NOTES FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q'ty
(3) Description
(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)
Note : No orders without Parts Code or Tool No. can be accepted.
[ Example ]
(4)
(1)
(2)
(3)
REF. NO.
SYMBOL
CODE
Q’TY
DESCRIPTION
REMARKS
Revision No. : marked on the printed circuit board.
B55L111 - 2 01 A
Design change indication
Specification No.
Pattern alteration No.
Circuit board No.
2. Design-changed parts:
When the parts are changed, any one of the following symbols is indicated in the REMARKS column.
CHNG#A : compatible between old and new
CHNG#B : replaceable from old to new
CHNG#D : incompatible
ADD : newly established
3. The original of this list was made based on the information available in April, 2002.
4. Parts are subject to change in design without prior notice.
CONTENTS
040
02'(/####37007#####;9508650378
4#1#35,17#0(&+$1,60
-2-

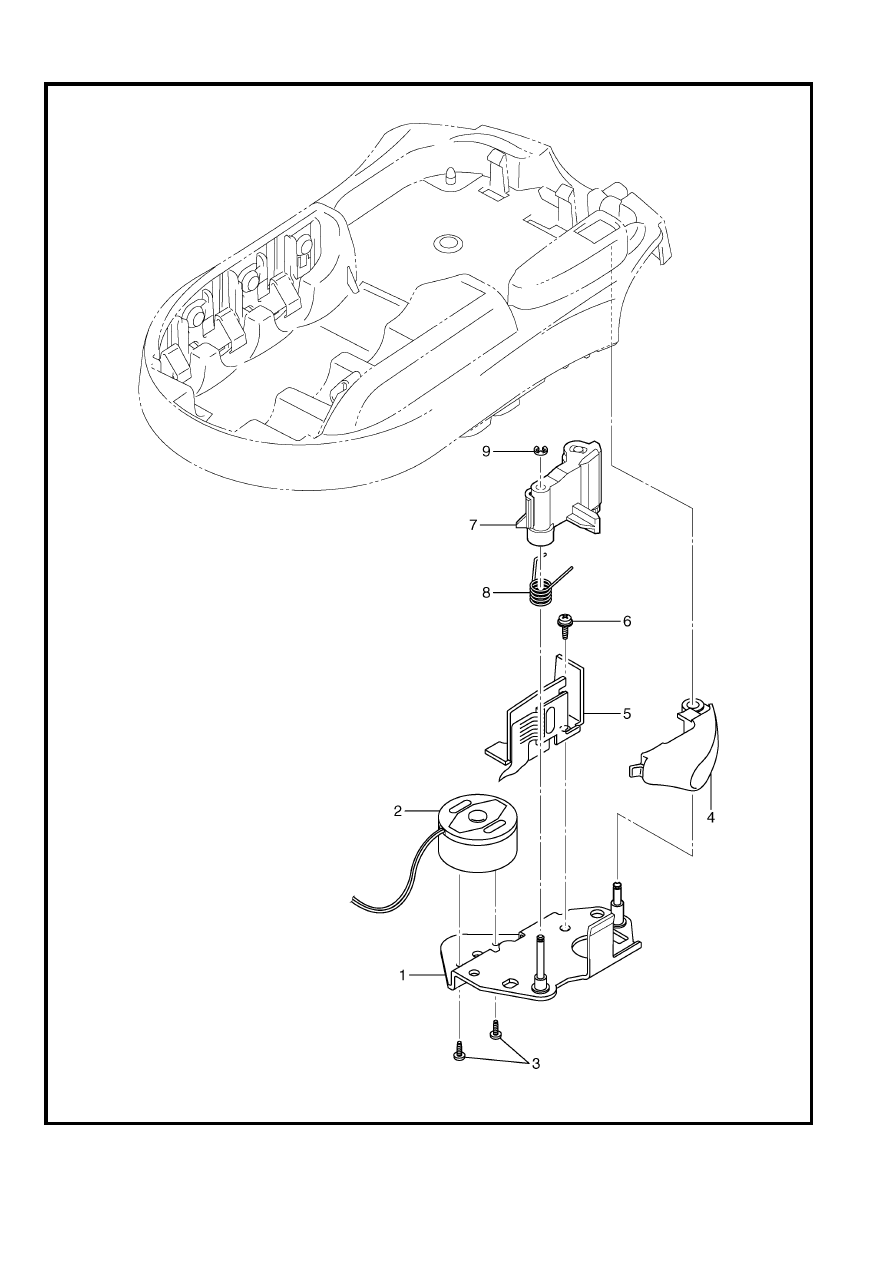

1 . PRINT MECHANISM
REF.NO.
CODE
Q'TY
DESCRIPTION
REMARKS
1
LA5531001
1 CHASSIS ASSY
2
LA0123001
1 DC MOTOR ASSY NAPLES
3
UN3640001
2 SCREW, PAN 1.7X2.5
4
LA5580004
1 CUTTER LEVER BB4, ORANGE3207
5
LA3061001
1 HEAD ASSY KF2400-21
6
UB3941001
1 CUP SCREW, M2.6X4
7
LA3066001
1 ROLLER HOLDER ASSY
8
LA3072001
1 ROLLER HOLDER SPRING
9
048020346
1 RETAINING RING, E2
MODEL PT-MT 8V2-U32-045
060
02'(/####37007#####;9508650394
5#1#&29(56
-4-

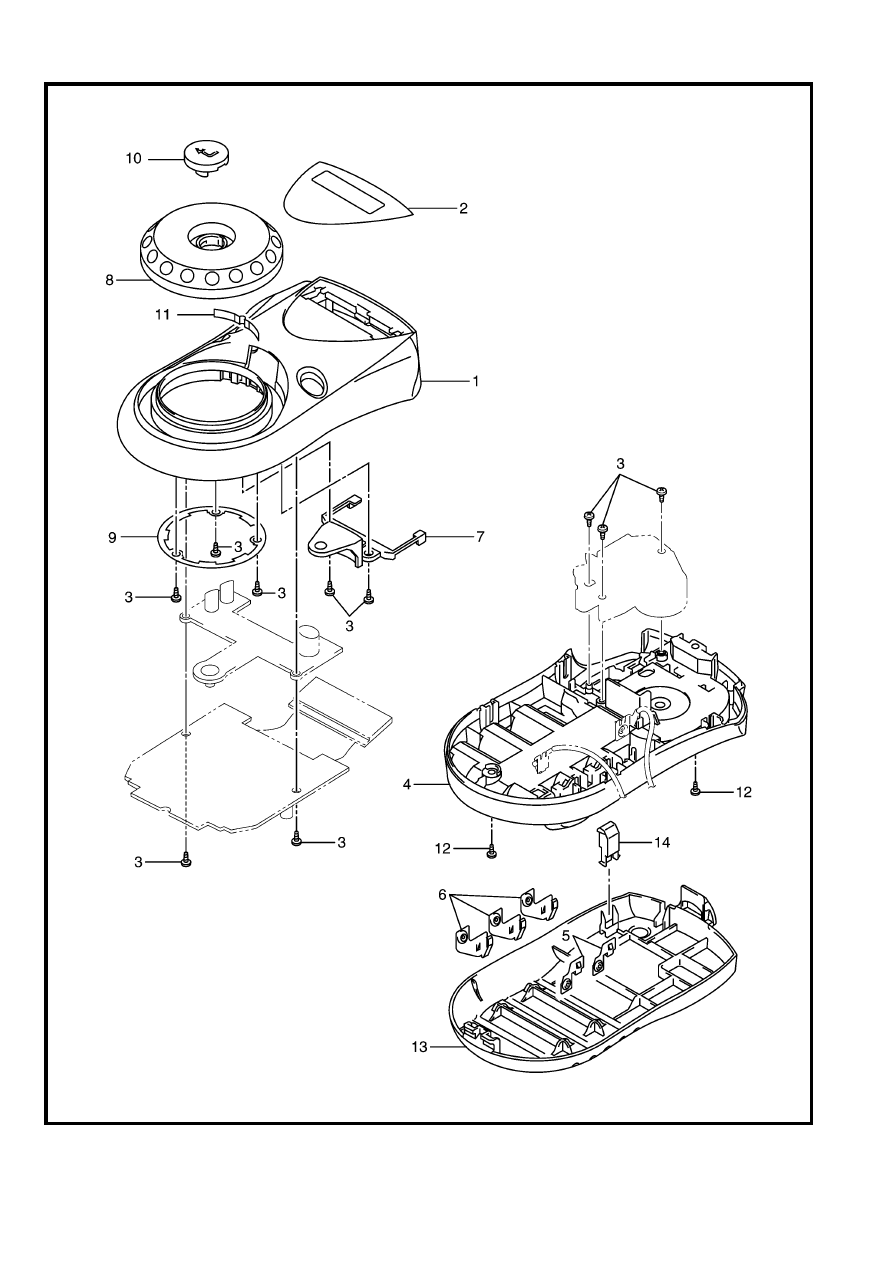

2 . COVERS
REF.NO.
CODE
Q'TY
DESCRIPTION
REMARKS
1
LA5533002
1 BODY COVER BB4, GRAY1615
2
LA7439001
1 LCD PANEL PT-MT
3
LA7449001
10 TAPTITE, BIND B M2.6X4
4
LA5535004
1 BOTTOM COVER BB4, ORANGE3207
5
LA5536001
2 BATTERY TERMINAL P1
6
LA5537001
3 BATTERY TERMINAL P2
7
LA5538001
1 LENS
8
LA7440001
1 SELECT DIAL PT-MT, ORANGE3207
9
LA5829001
1 DIAL SHEET BB4
10
LA5542002
1 ENTER KEY, GRAY1615
11
LA5543001
1 SELECT DIAL CLAW
12
085270617
2 TAPTITE, BIND B M2.6X6
13
LA7442001
1 CASSETTE COVER PT-MT, GRAY1615
14
LA3856001
1 ROLLER HOLDER CAM
MODEL PT-MT 8V2-U32-061
080
02'(/####37007#####;9508650434
6#1#0$,1#3&%
/$:783337
6SDLQ
/
/
+
+
+
/$:78333<
%HOJLXP
/
+
+
/
+
/$:783336
1HWKHUODQGV
++ROODQG,
+
/
+
+
+
/$:78333;
6ZLW]HUODQG
+
+
+
/
+
(8
/$:783335
)UDQFH
/
+
+
+
+
(8
/$:78333:
1RUZD\
+
/
/
+
+
/$:783334
(QJODQG/#,UHODQG/
'HQPDUN/#)LQODQG
+
+
+
+
+
/$:783339
6ZHGHQ
/
+
/
+
+
*(
/$:776334
*HUPDQ\
+
+
+
+
+
/$:783338
,WDO\
+
+
/
+
+
520#VSHF1
3$576#&2'(
'HVWLQDWLRQ
4
5
6
7
8
520#VSHF1
3$576#&2'(
'HVWLQDWLRQ
4
5
6
7
8
6ROGHU#SRLQWV
6ROGHU#SRLQWV
+=#6ROGHU#SRLQW#RSHQHG###/=#6ROGHU#SRLQW#FORVHG
-6-

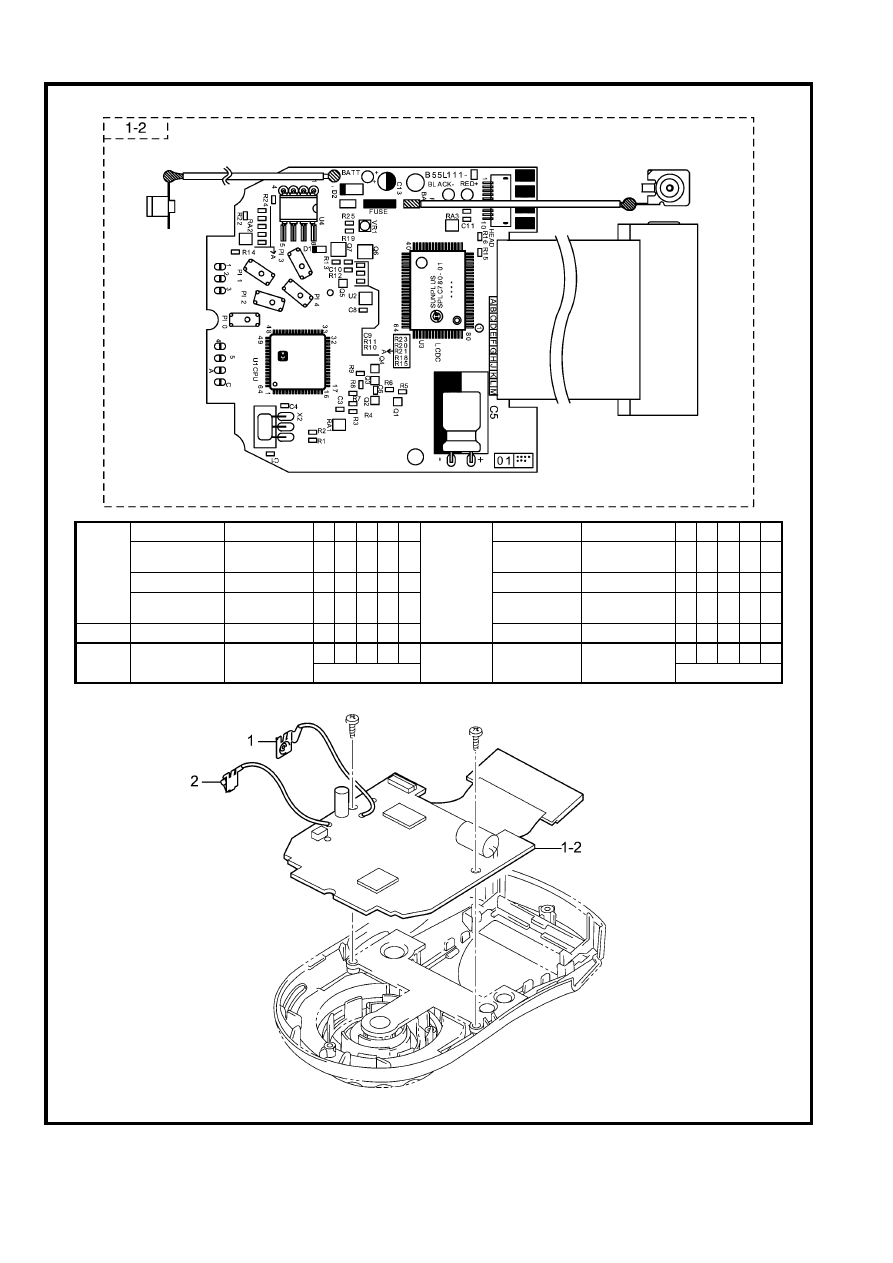

3 . MAIN PCB
REF.NO.
SYMBOL
CODE
Q'TY
DESCRIPTION
REMARKS
1-2
B55L111-330
LA7443001
1 MAIN PCB ASSY PT-MT DEU (DEU)
1-2
B55L111-321
LA7450001
1 MAIN PCB ASSY PT-MT EC (GBR/IRL/DNK/FIN)
1-2
B55L111-322
LA7450002
1 MAIN PCB ASSY PT-MT EC (FRA)
1-2
B55L111-323
LA7450003
1 MAIN PCB ASSY PT-MT EC (NLD)
1-2
B55L111-328
LA7450008
1 MAIN PCB ASSY PT-MT EC (CHE)
1-2
B55L111-326
LA7450006
1 MAIN PCB ASSY PT-MT EC (SWE)
1-2
B55L111-325
LA7450005
1 MAIN PCB ASSY PT-MT EC (ITA)
1-2
B55L111-329
LA7450009
1 MAIN PCB ASSY PT-MT EC (BEL)
1-2
B55L111-327
LA7450007
1 MAIN PCB ASSY PT-MT EC (NOR)
1-2
B55L111-324
LA7450004
1 MAIN PCB ASSY PT-MT EC (ESP)
1
LA5553001
1 PLUS TERMINAL ASSY BB4
2
LA5556001
1 MINUS TERMINAL ASSY BB4
MODEL PT-MT 8V2-U32-101
0:0
02'(/####37007#####;9508650<43
7#1#58%%(5#.(<
02'(/####37007####;9508650336
8#1#$77$&+0(176
-8-

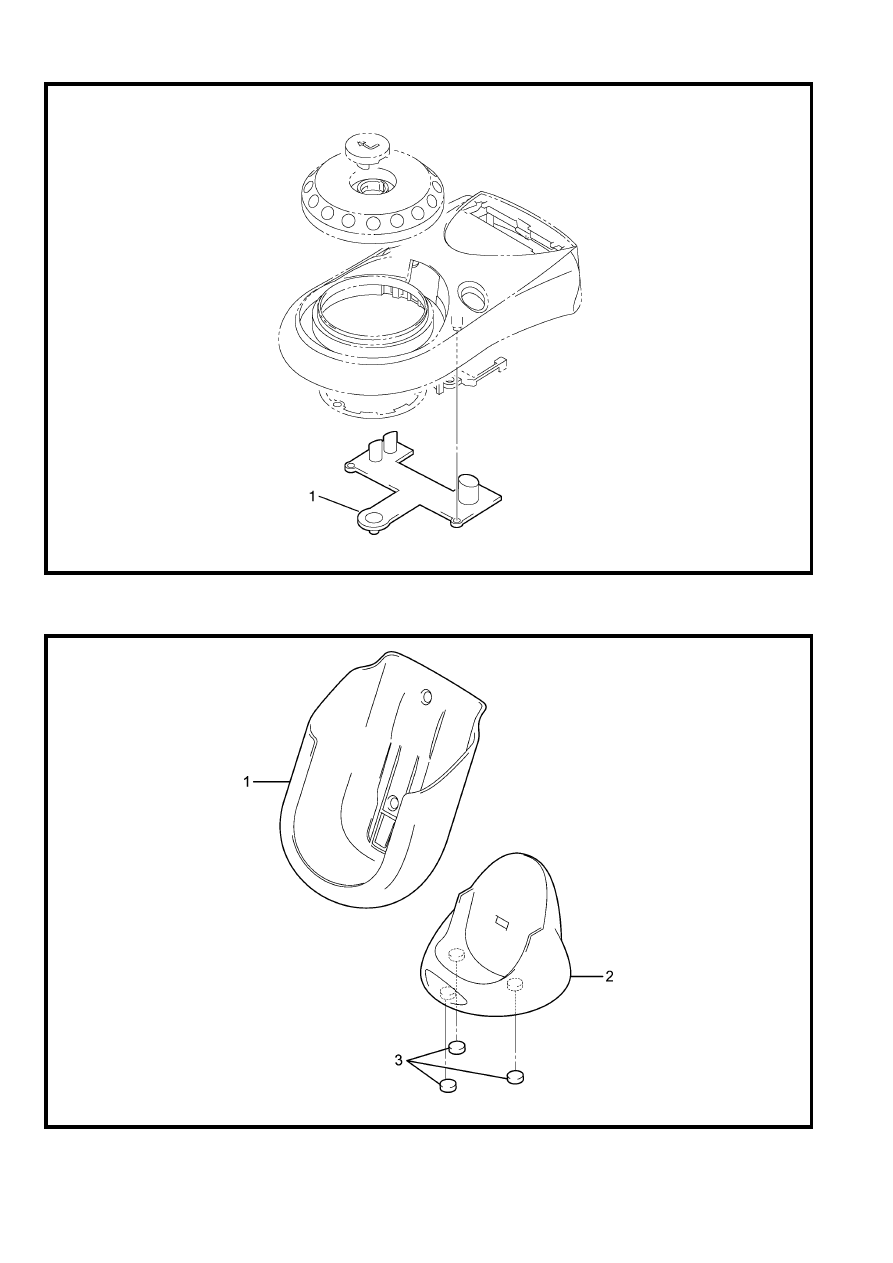

4 . RUBBER KEY
REF.NO.
CODE
Q'TY
DESCRIPTION
REMARKS
1
LA5530002
1 RUBBER 4 KEY BB4, GRAY1616
MODEL PT-MT 8V2-U32-003
5 . ATTACHMENTS
REF.NO.
SYMBOL
CODE
Q'TY
DESCRIPTION
REMARKS
1
LA5558004
1 HOLDER BB4, ORANGE3207
2
LA5560004
1 STAND BB4, ORANGE3207
3
LA5561001
3 STOPPER BB4
MODEL PT-MT 8V2-U32-910
0<0
02'(/####37007#####;9508650<63
9#1#35,17('#0$77(5
02'(/####37007####;9508650<53
:#1#3$&.,1*#0$7(5,$/6
-10-

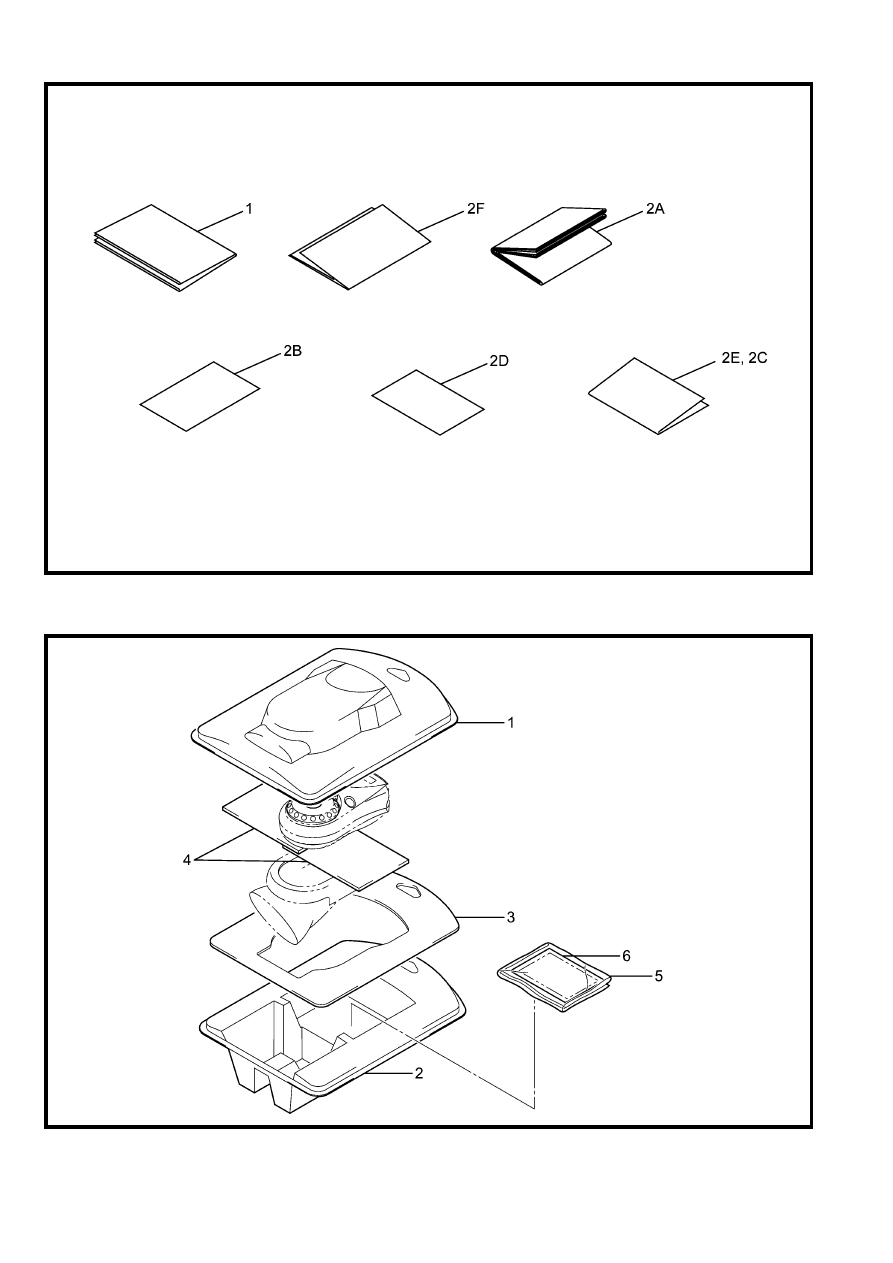

6 . PRINTED MATTER
PT2002017
REF.NO.
SYMBOL
CODE
Q'TY
DESCRIPTION
REMARKS
1
LA7525001
1 USER'S MANUAL PT-MT, DEU (DEU)
1
LA7455001
1 USER'S MANUAL PT-MT, GBR (GBR/IRL/FIN)
1
LA7529001
1 USER'S MANUAL PT-MT, FRA (FRA)
1
LA7545001
1 USER'S MANUAL PT-MT, DUTCH (NLD)
1
LA7535001
1 USER'S MANUAL PT-MT, DANISH (DNK)
1
LA7551001
1 USER'S MANUAL PT-MT, SWEDISH (SWE)
1
LA7542001
1 USER'S MANUAL PT-MT, ITALIAN (ITA)
1
LA7548001
1 USER'S MANUAL PT-MT, NORWEGIAN (NOR)
1
LA7554001
1 USER'S MANUAL PT-MT, SPANISH (ESP)
1
LA7557001
1 USER'S MANUAL MT, CHE.FRENCH (CHE)
1
LA7558001
1 USER'S MANUAL MT, CHE.GERMAN (CHE)
1
LA7538001
1 USER'S MANUAL MT, BEL.FRENCH (BEL)
1
LA7539001
1 USER'S MANUAL MT, BEL.DUTCH (BEL)
2A
B
LA1661001
1 WARRANTY CARD EURO CH (DEU/GBR/FRA/IRL/NLD/CHE/
CHNG
DNK/SWE/ITA/BEL/NOR/ESP)
2B
UH3662001
1 WARRANTY CARD UK-A (GBR)
2C
LE5115001
1 WARRANTY CARD SWE-A (SWE)
2D
A
UH3663001
1 WARRANTY CARD UK-B (GBR)
2E
UB3650001
1 WARRANTY CARD, FRENCH (FRA)
2F
LA1757001
1 WARRANTY CARD, SPA (ESP)
MODEL PT-MT 8V2-U32-920
7 . PACKING MATERIALS
REF.NO.
CODE
Q'TY
DESCRIPTION
REMARKS
1
LA7458000
1 UPPER PACK SHELL PT-MT
2
LA7459000
1 LOWER PACK SHELL PT-MT
3
LA7526001
1 COMMERCIAL SHEET PT-MT DEU (DEU)
3
LA7446001
1 COMMERCIAL SHEET PT-MT GBR (GBR/IRL/NLD/CHE/DNK/SWE/ITA/BEL/FIN/
NOR/ESP)
3
LA7530001
1 COMMERCIAL SHEET PT-MT FRA (FRA)
4
LA5844001
2 PROTECTION SHEET
5
LA7456001
1 PE BAG, 130X250
6
LA7513000
1 USER'S MANUAL PAD PT-MT (DEU/IRL/NLD/DNK/ITA/FIN/NOR)
MODEL PT-MT 8V2-U32-930
Apr., 2002
8V2035BE0
Printed in Japan
