MAZDA RX7 1990(1)

SYSTEM WIRING DIAGRAMS

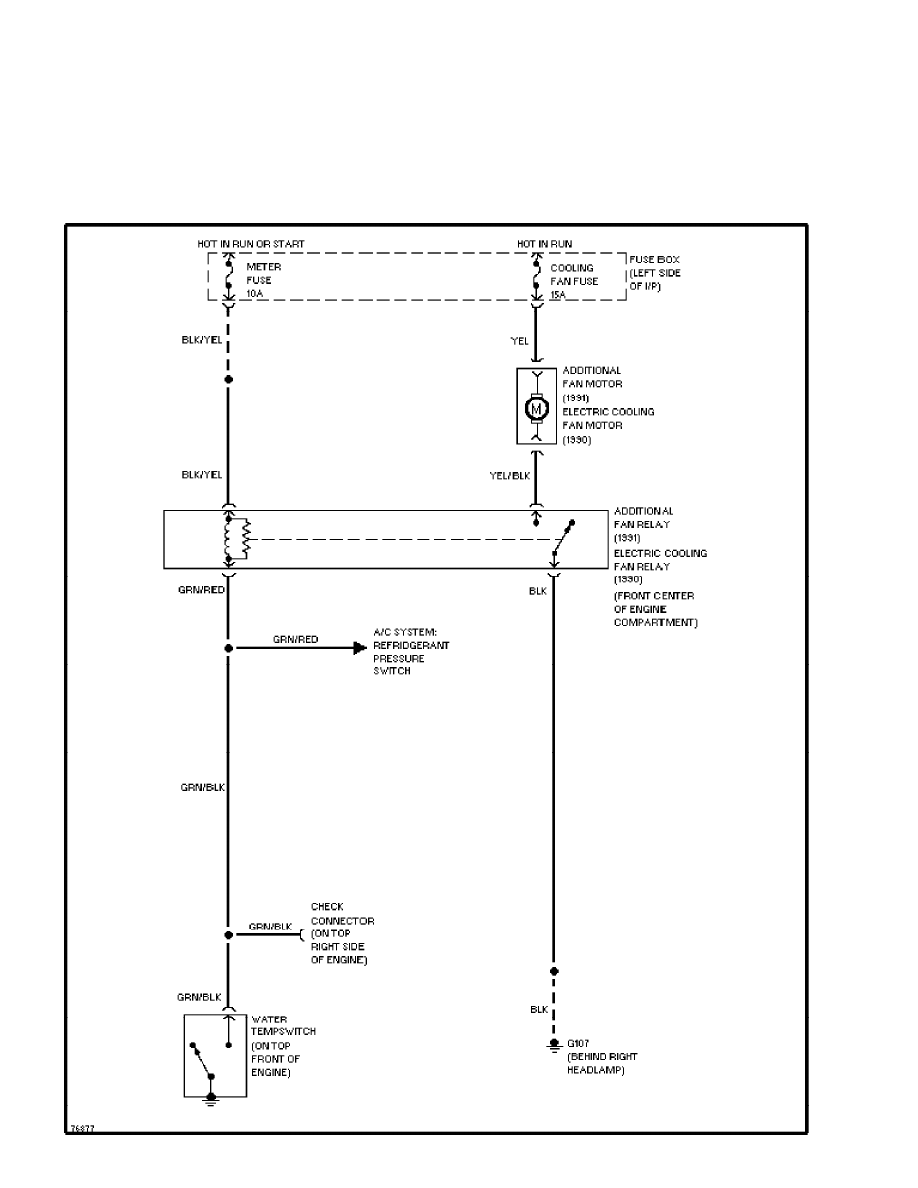

Cooling Fan Circuit, W/ Air Bag

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit, W/O Air Bag (p. 2)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

SYSTEM WIRING DIAGRAMS

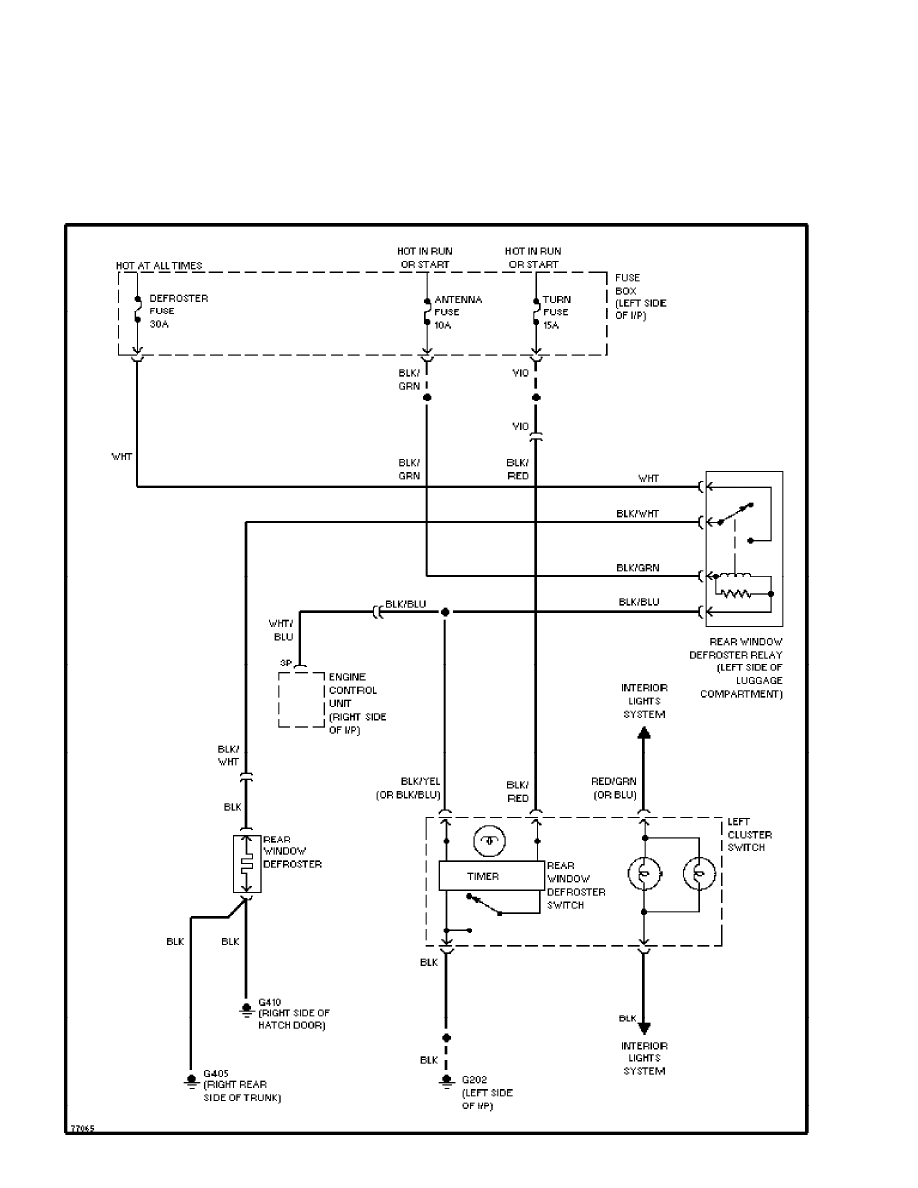

Defogger Circuit (p. 3)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

SYSTEM WIRING DIAGRAMS

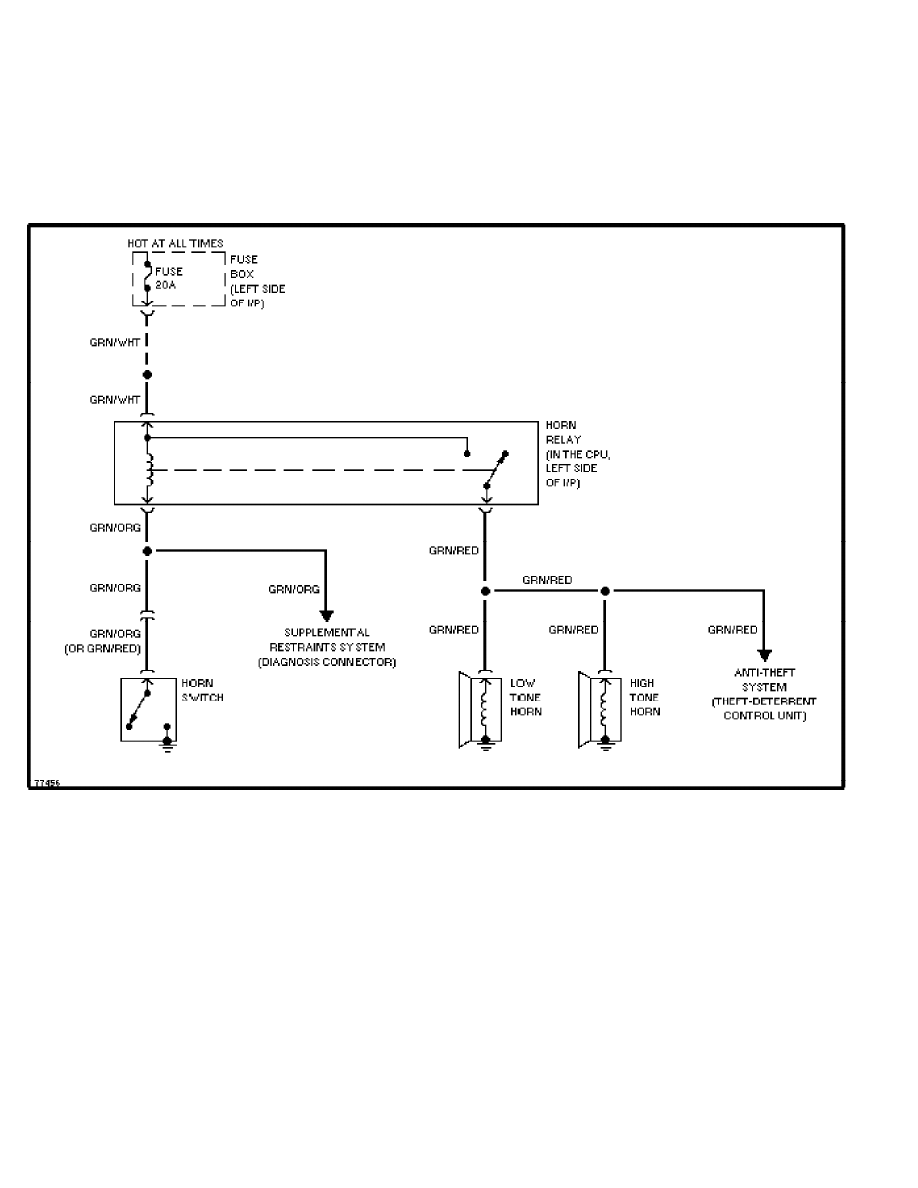

Horn Circuit (p. 4)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

SYSTEM WIRING DIAGRAMS

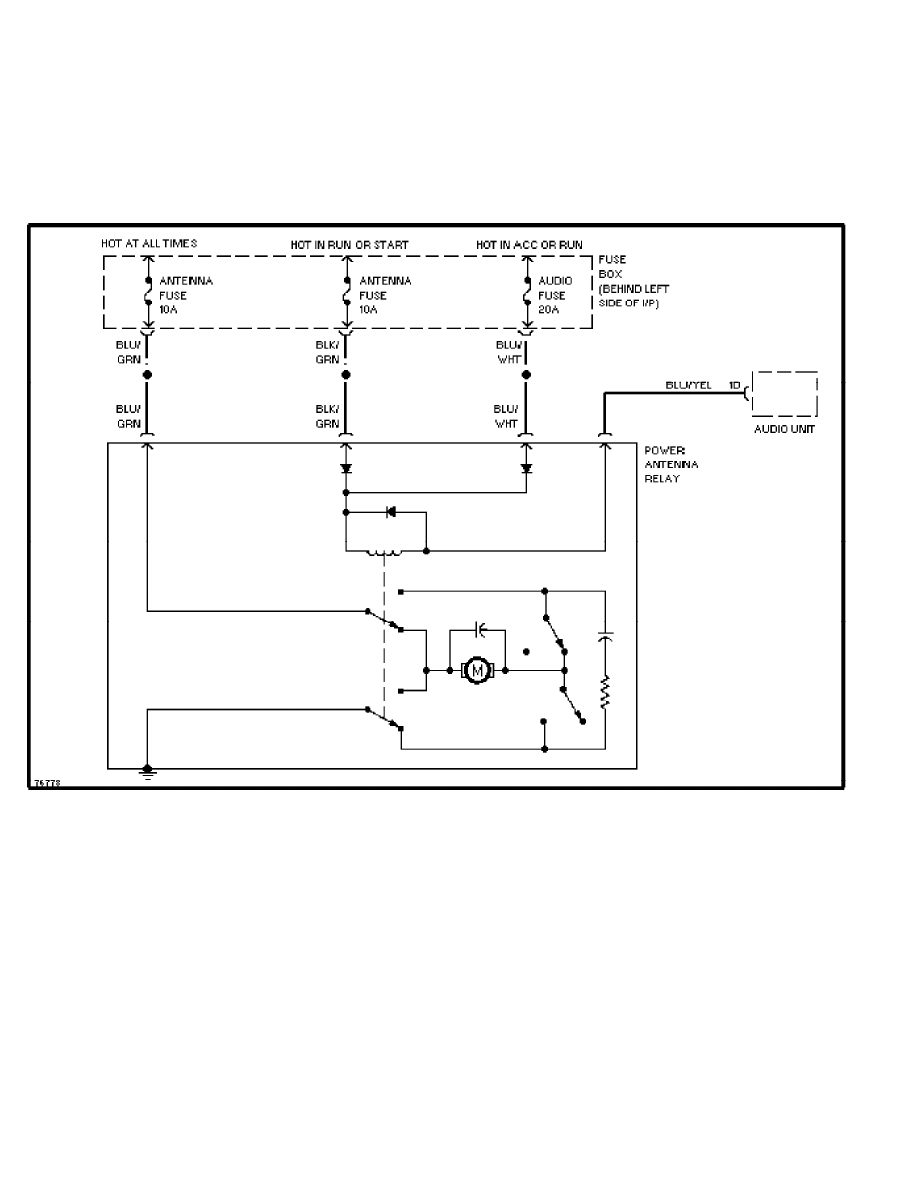

Power Antenna Circuit (p. 5)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

SYSTEM WIRING DIAGRAMS

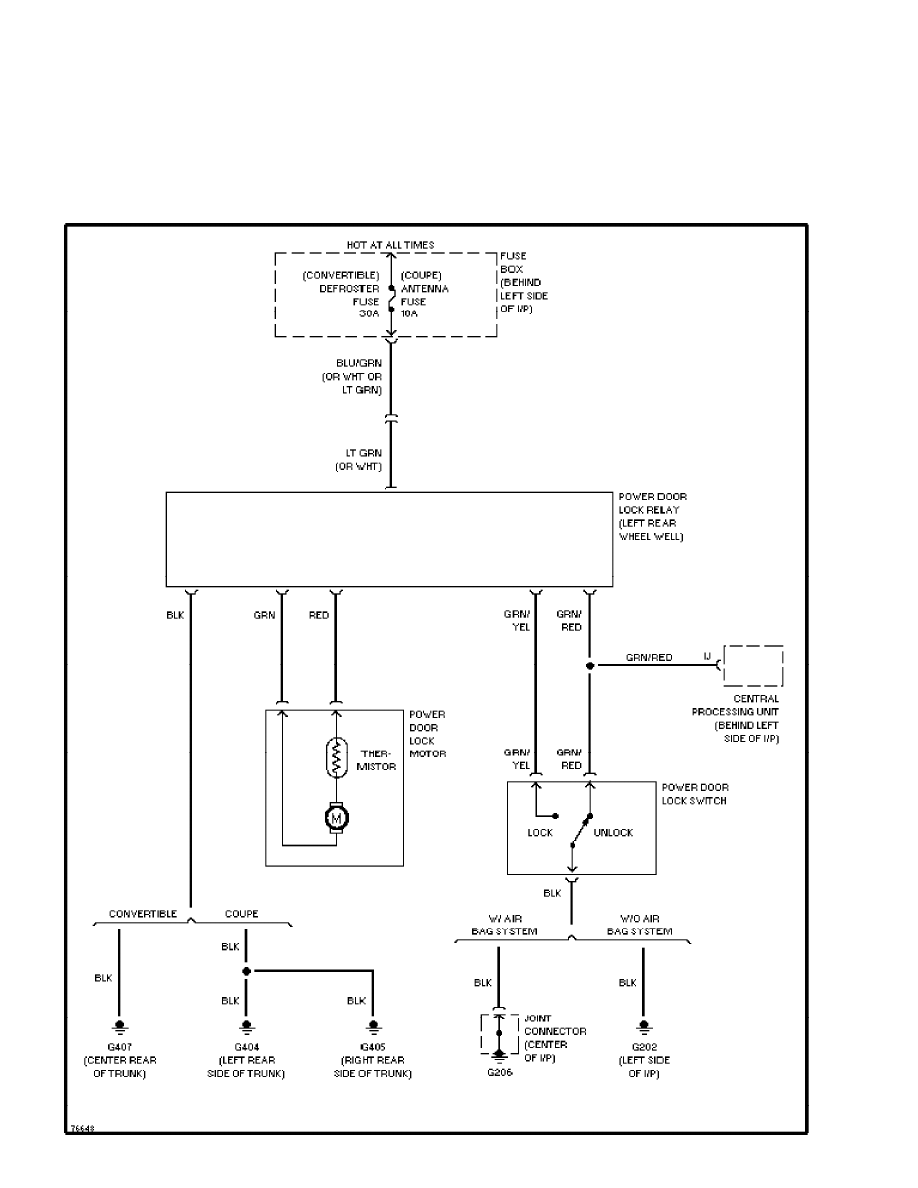

Power Door Lock Circuit (p. 6)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

SYSTEM WIRING DIAGRAMS

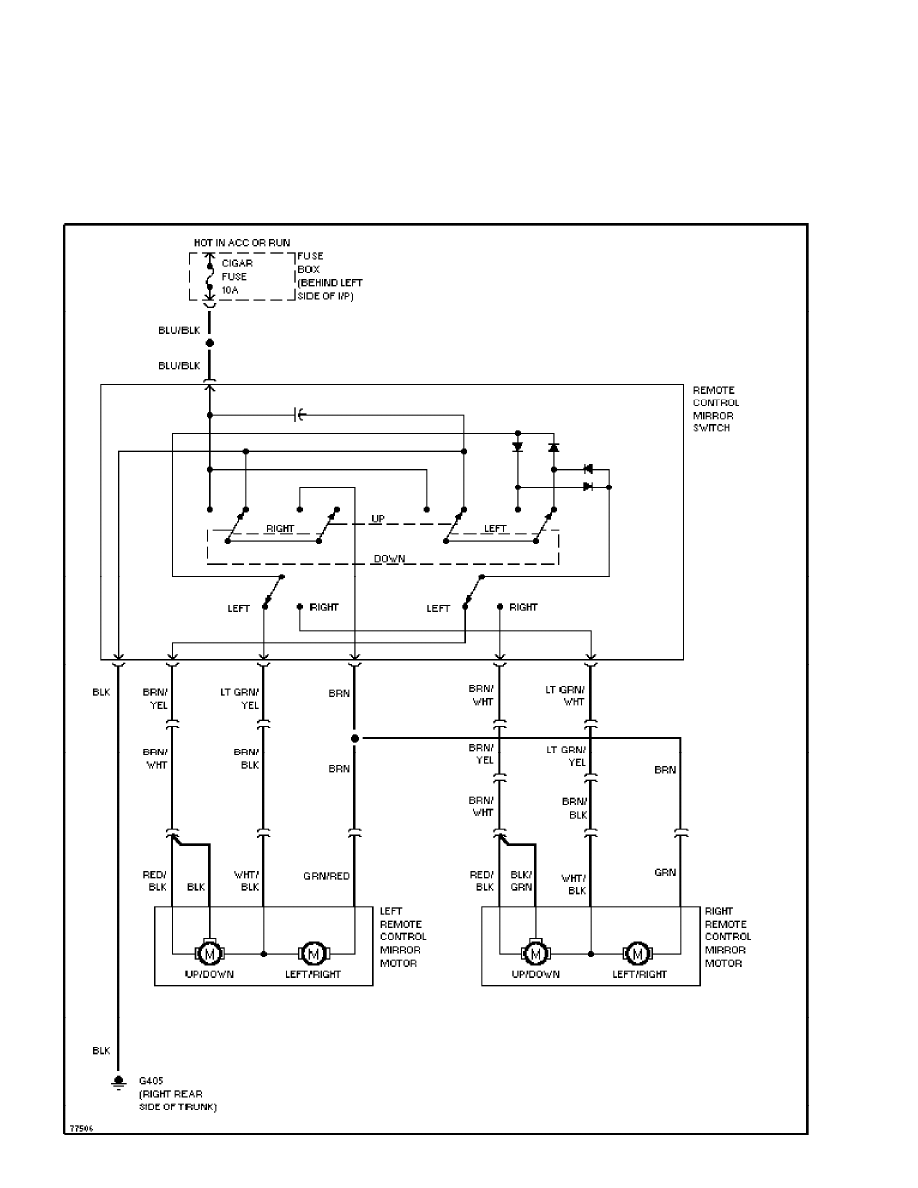

Power Mirror Circuit (p. 7)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

SYSTEM WIRING DIAGRAMS

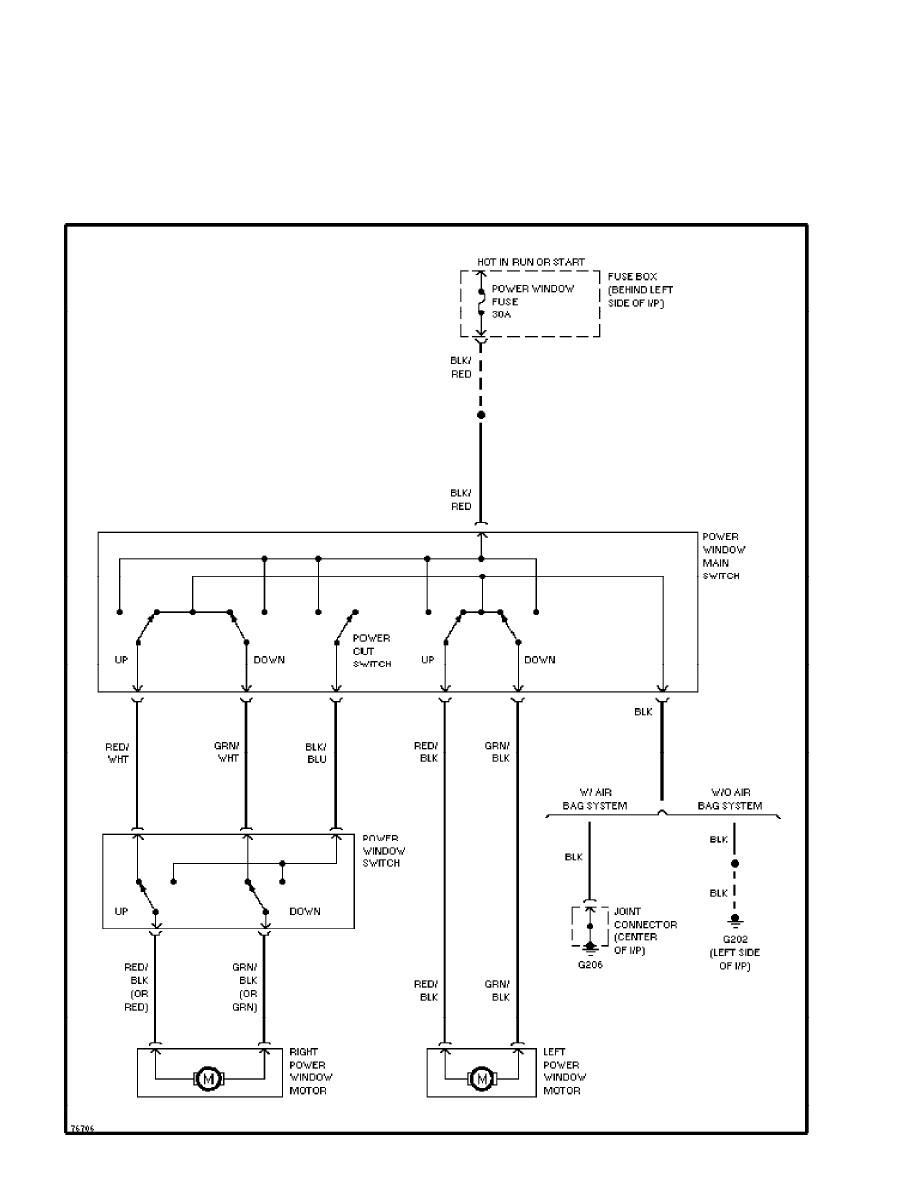

Power Window Circuit (p. 8)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

SYSTEM WIRING DIAGRAMS

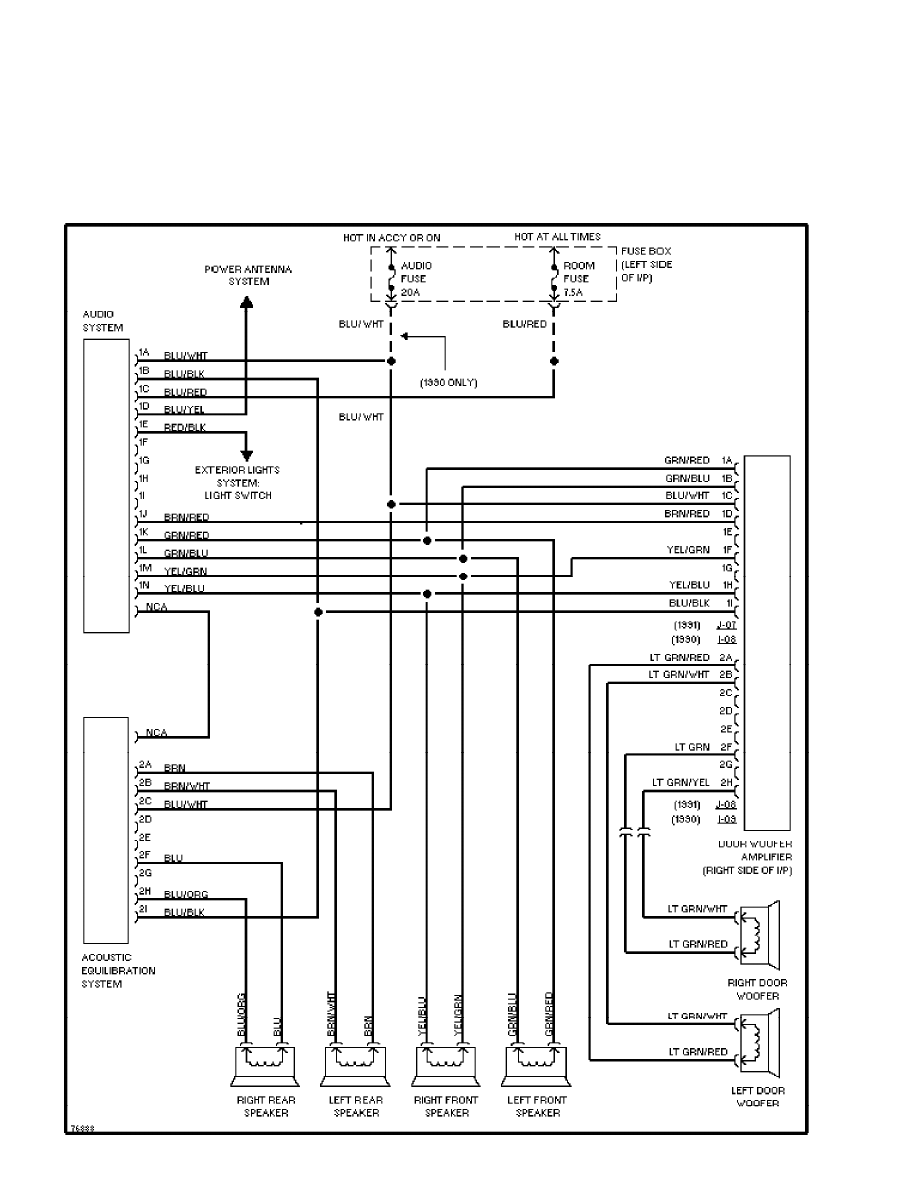

Radio Circuits, Convertible (p. 9)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

SYSTEM WIRING DIAGRAMS

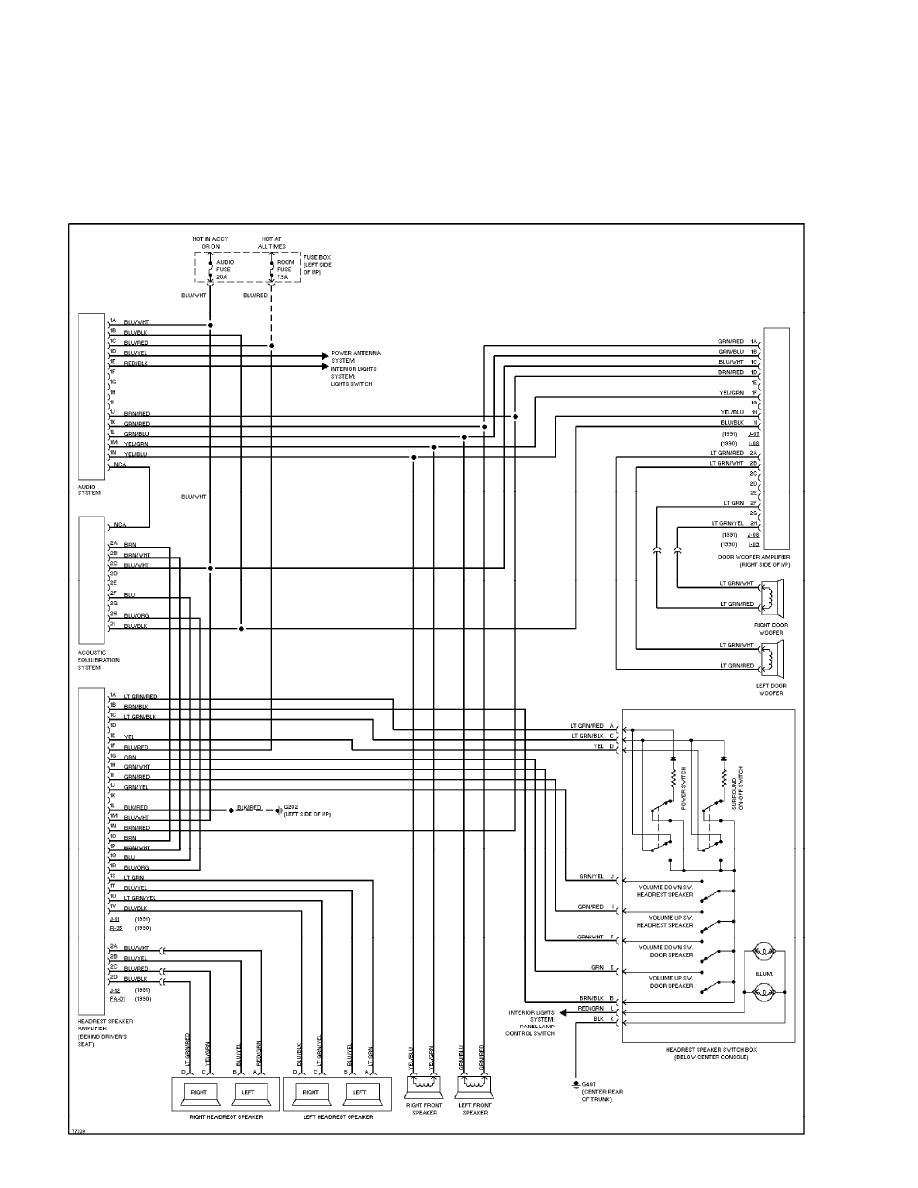

Radio Circuits, Coupe Base (p. 10)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

SYSTEM WIRING DIAGRAMS

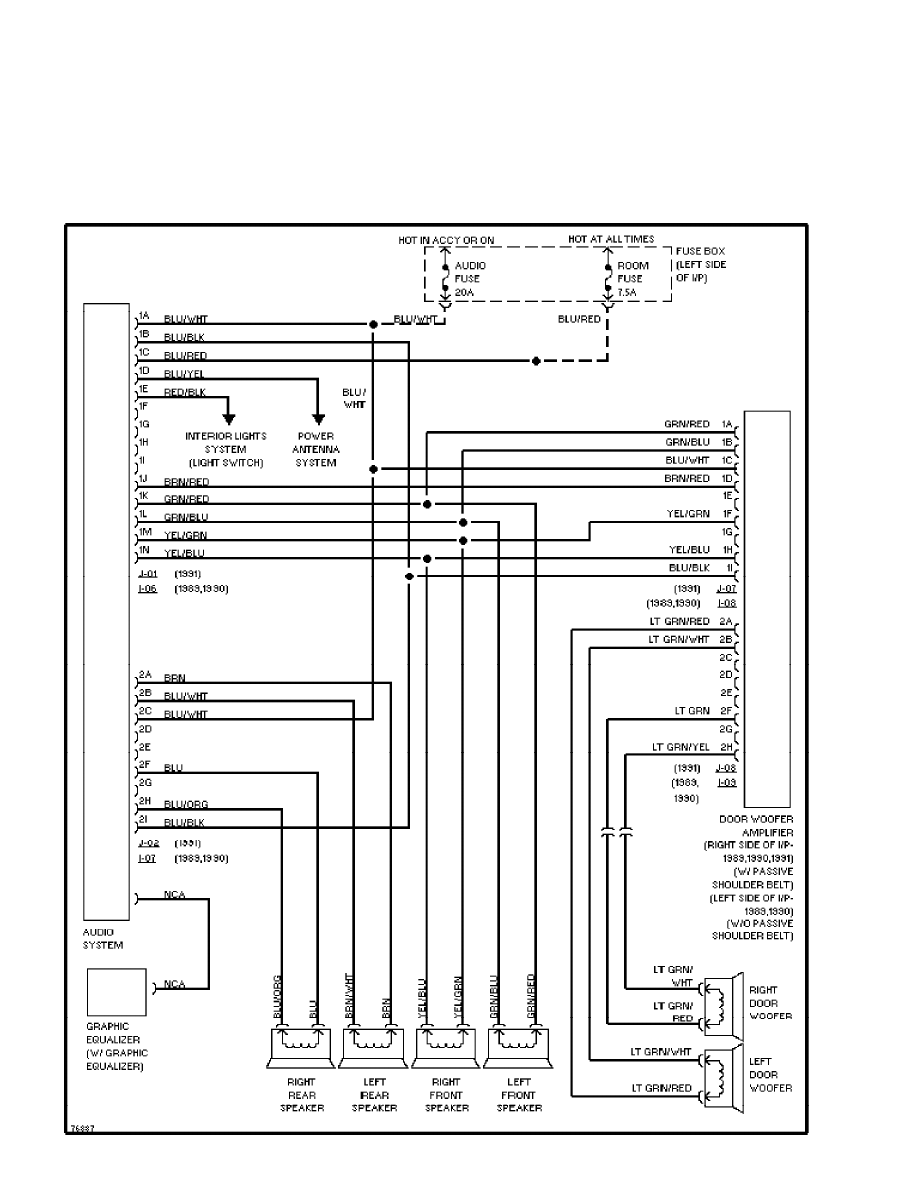

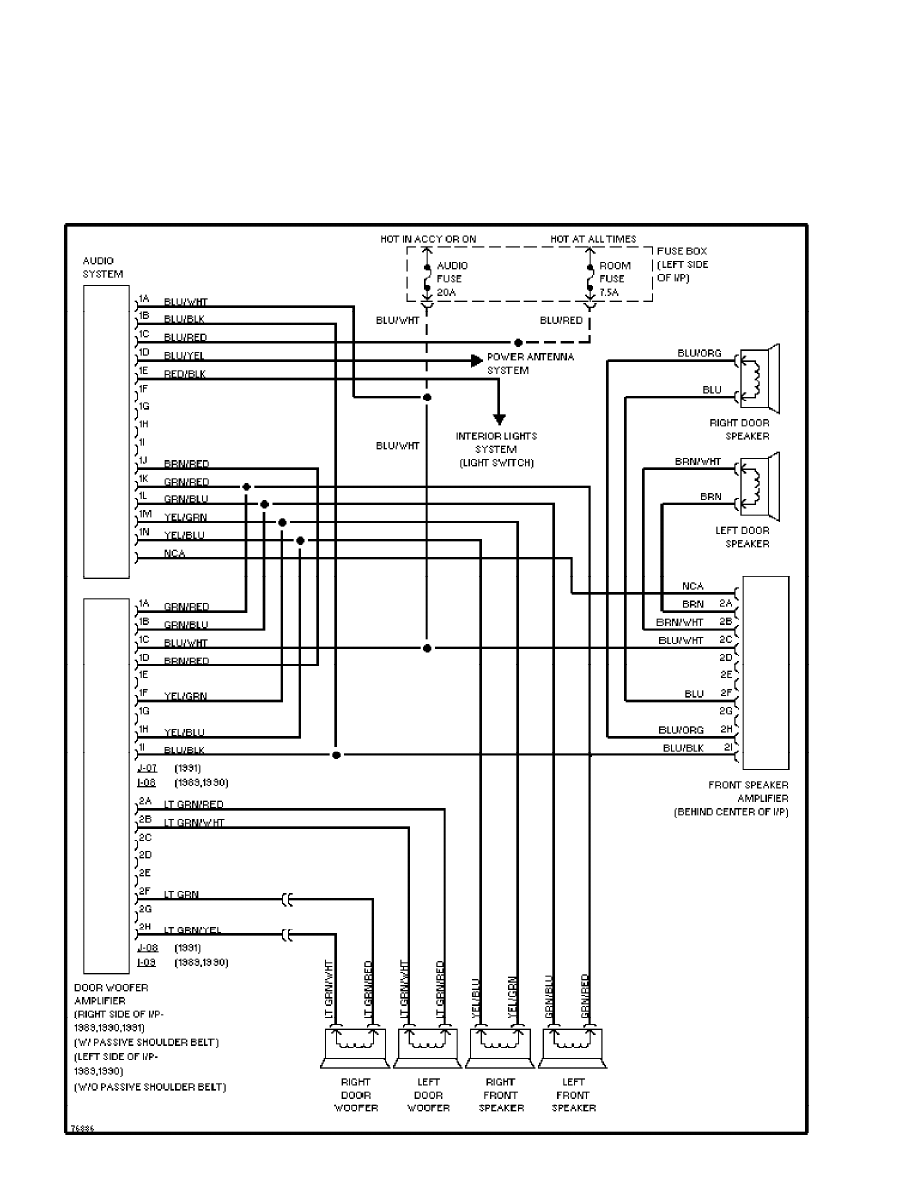

Radio Circuits, Coupe W/ CD Player (p. 11)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

SYSTEM WIRING DIAGRAMS

Radio Circuits, Coupe W/O CD Player (p. 12)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

SYSTEM WIRING DIAGRAMS

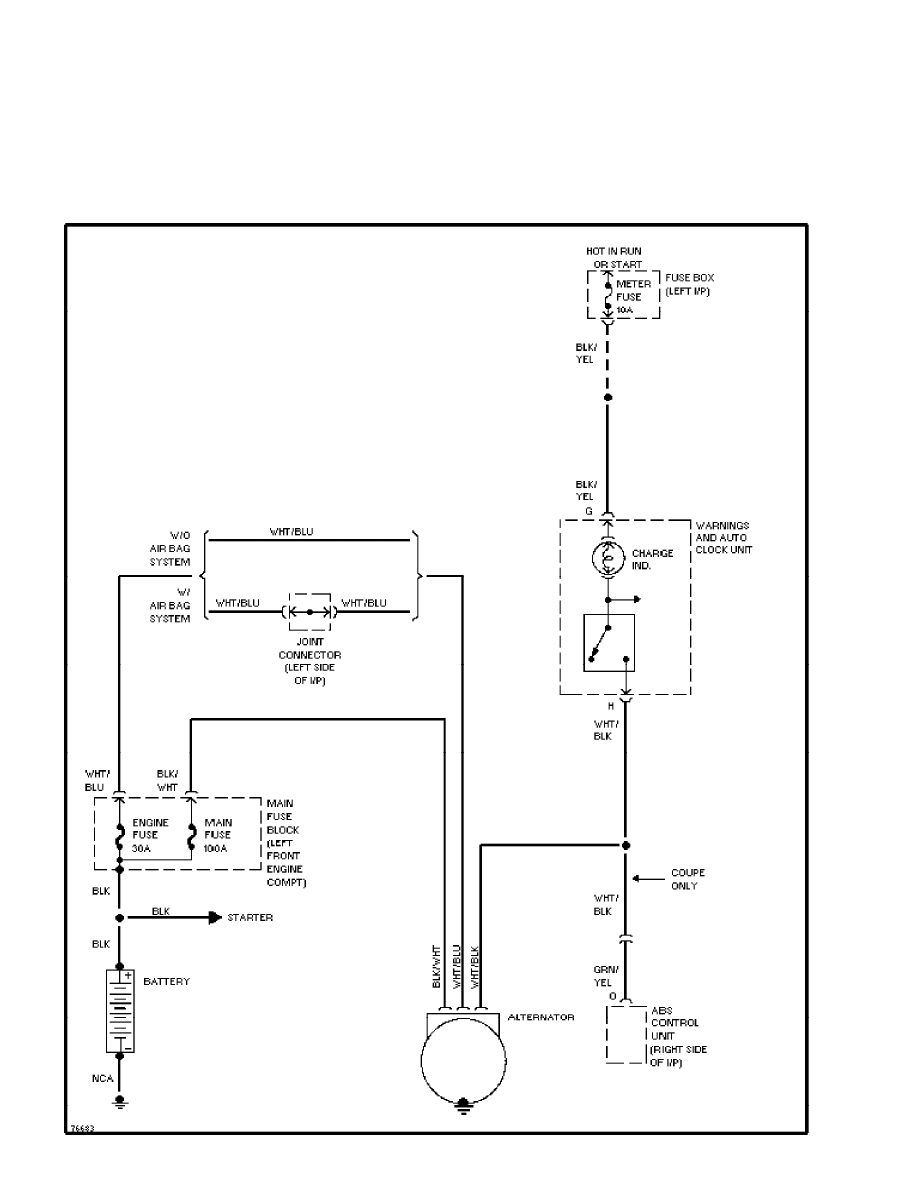

Charging Circuit (p. 13)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

SYSTEM WIRING DIAGRAMS

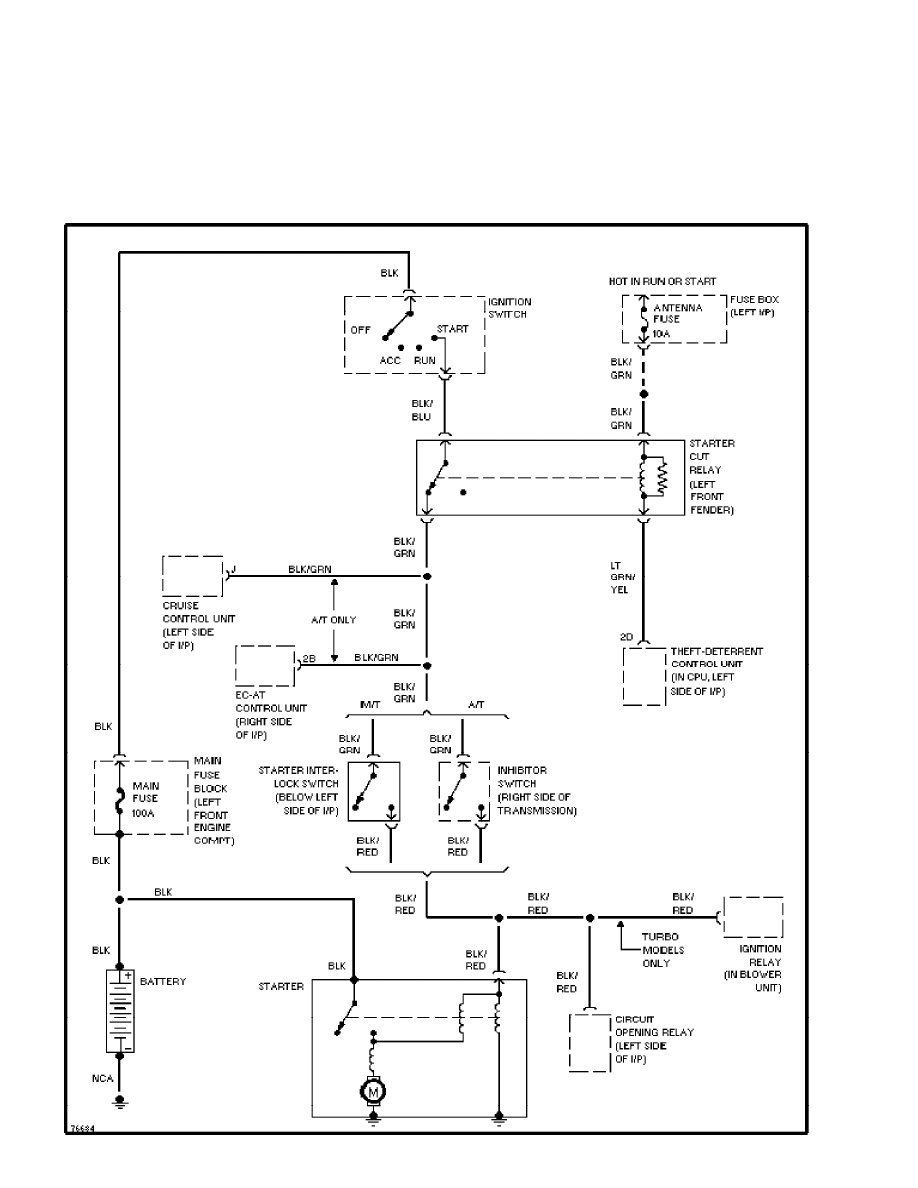

Starting Circuit (p. 14)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

SYSTEM WIRING DIAGRAMS

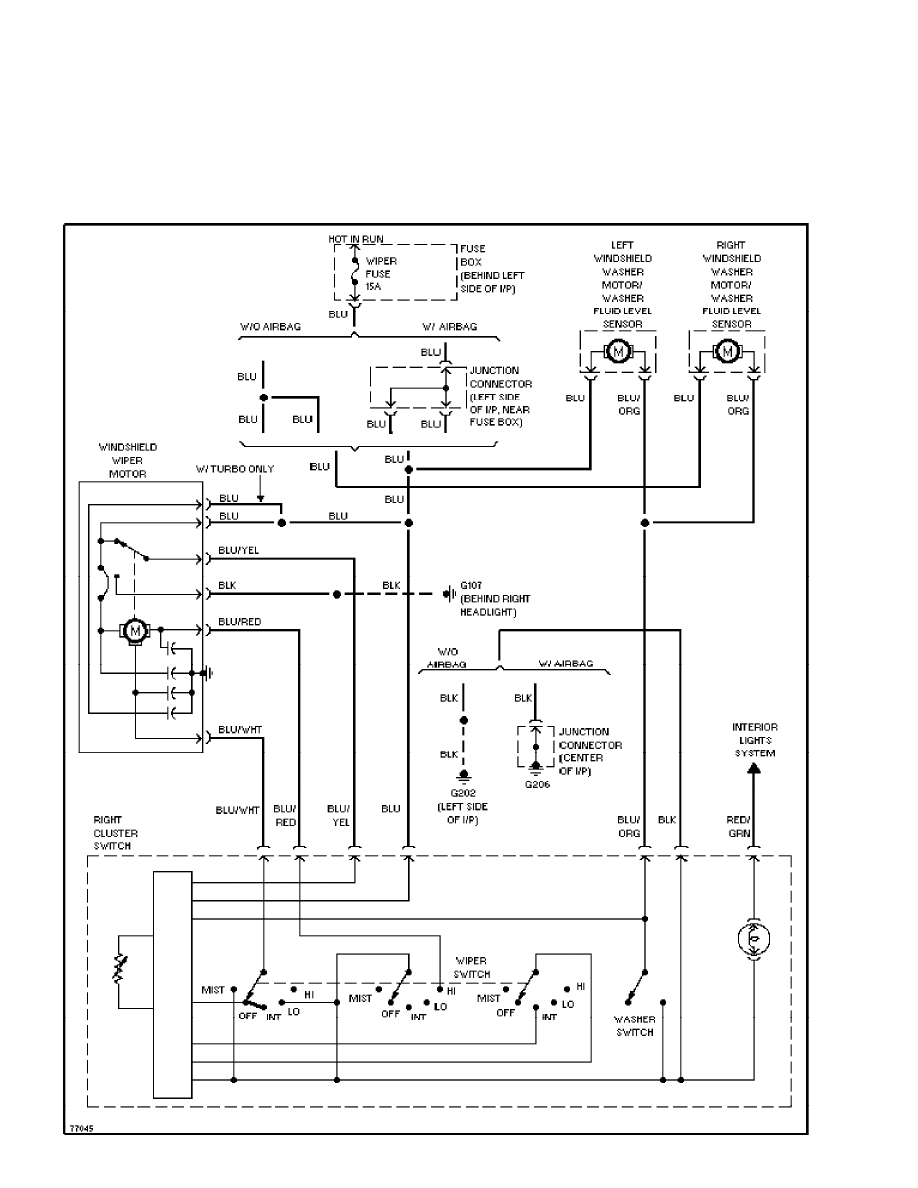

Front Washer/Wiper Circuit (p. 15)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

SYSTEM WIRING DIAGRAMS

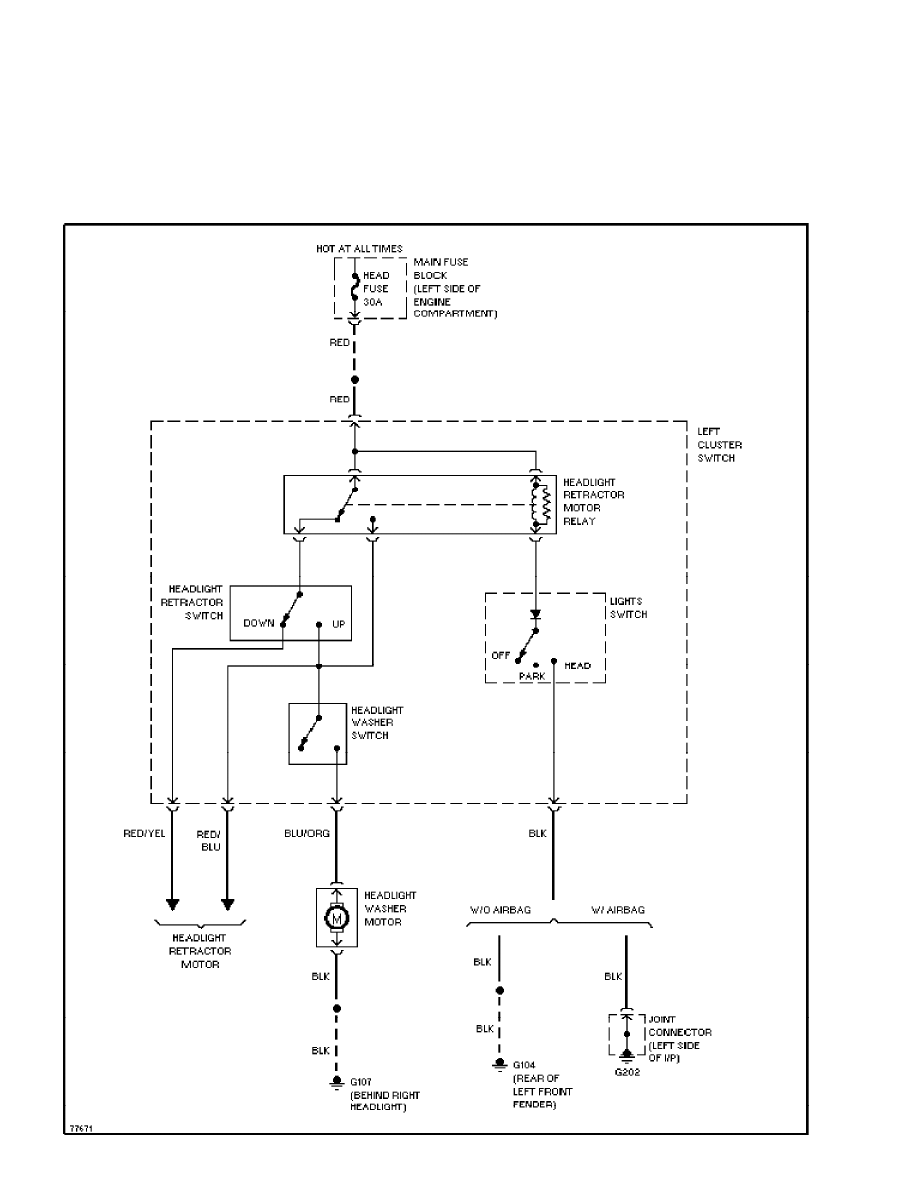

Headlamp Washer Circuit (p. 16)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

SYSTEM WIRING DIAGRAMS

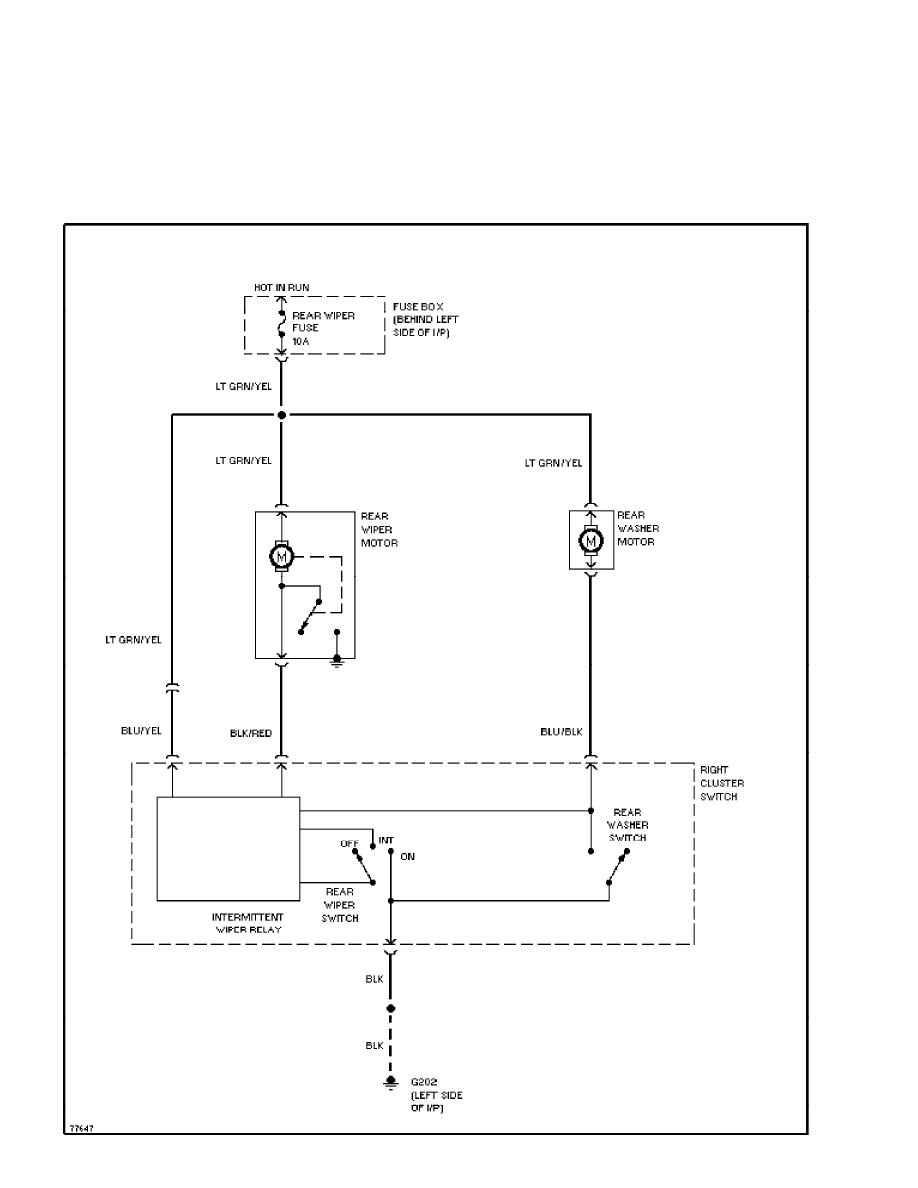

Rear Washer/Wiper Circuit (p. 17)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:26PM

WIRING DIAGRAMS

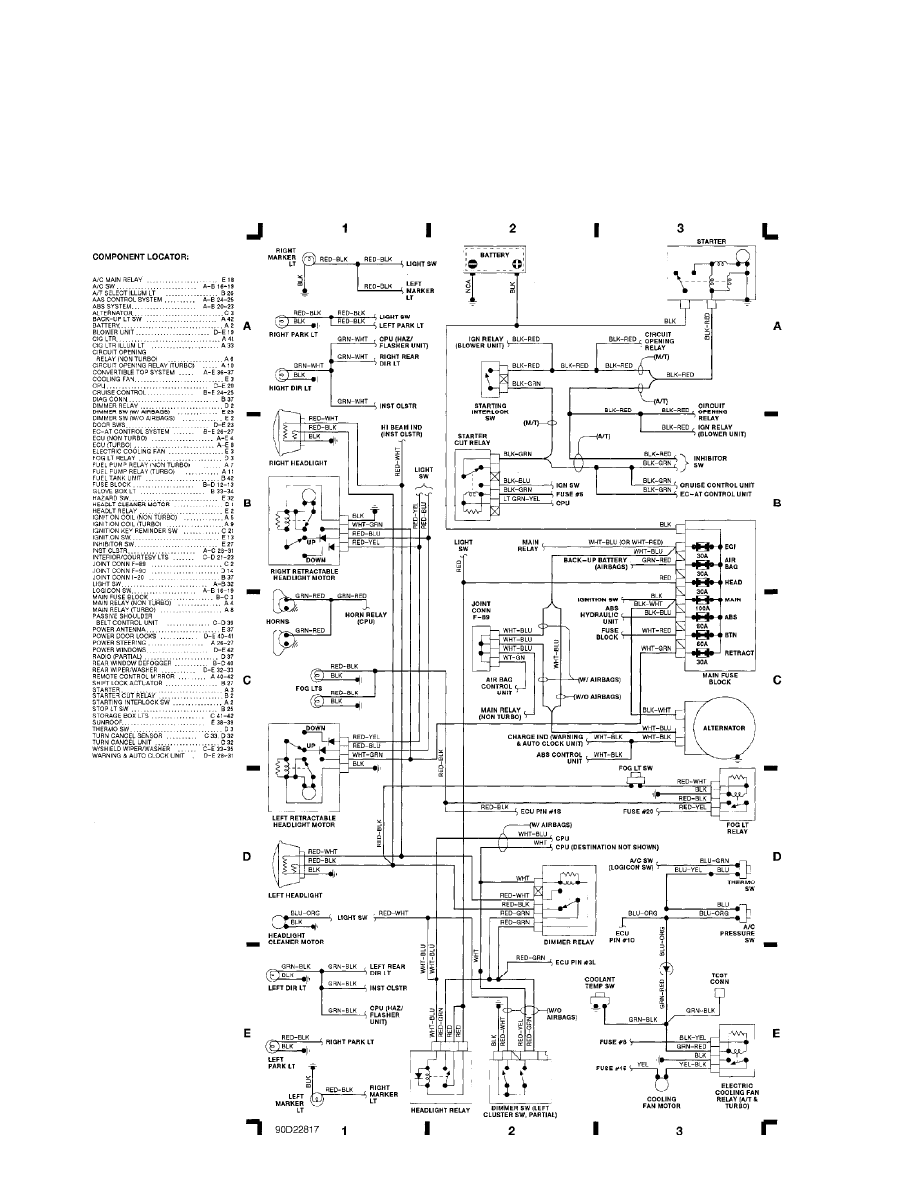

Fig. 1: Engine Compartment & Headlights (Grids 1-3)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:27PM

WIRING DIAGRAMS

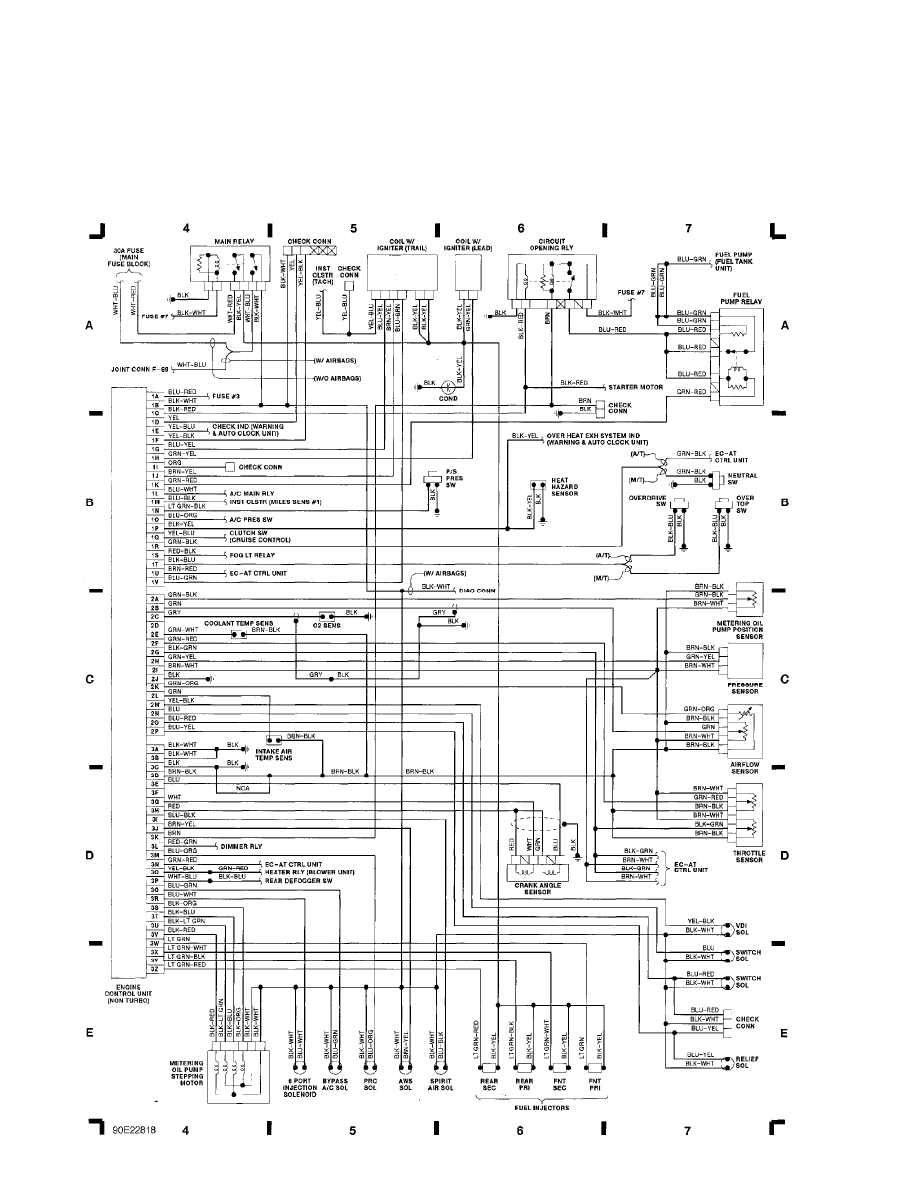

Fig. 2: Computer Engine Control (Non-Turbo) (Grids 4-7) (p. 2)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:27PM

WIRING DIAGRAMS

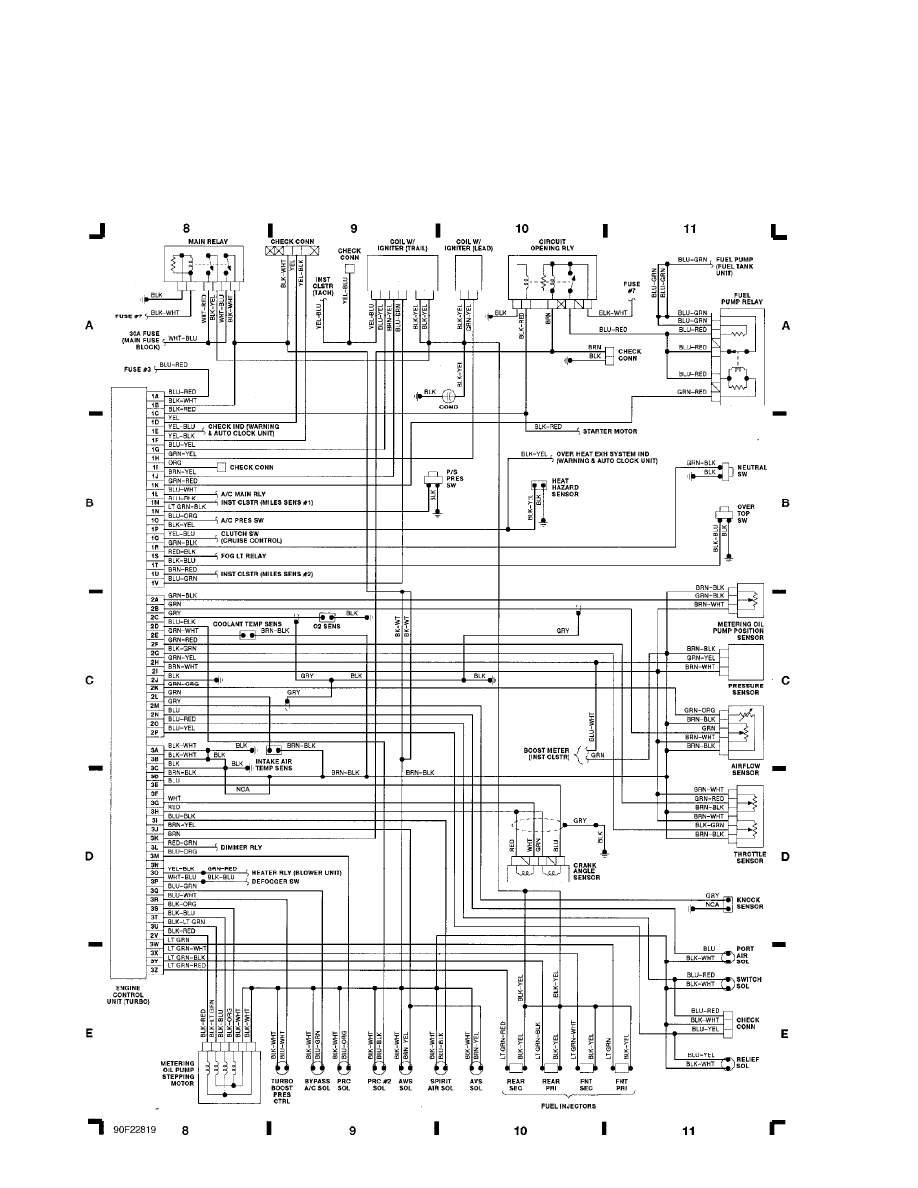

Fig. 3: Computer Engine Control (Turbo) (Grids 8-11) (p. 3)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:27PM

WIRING DIAGRAMS

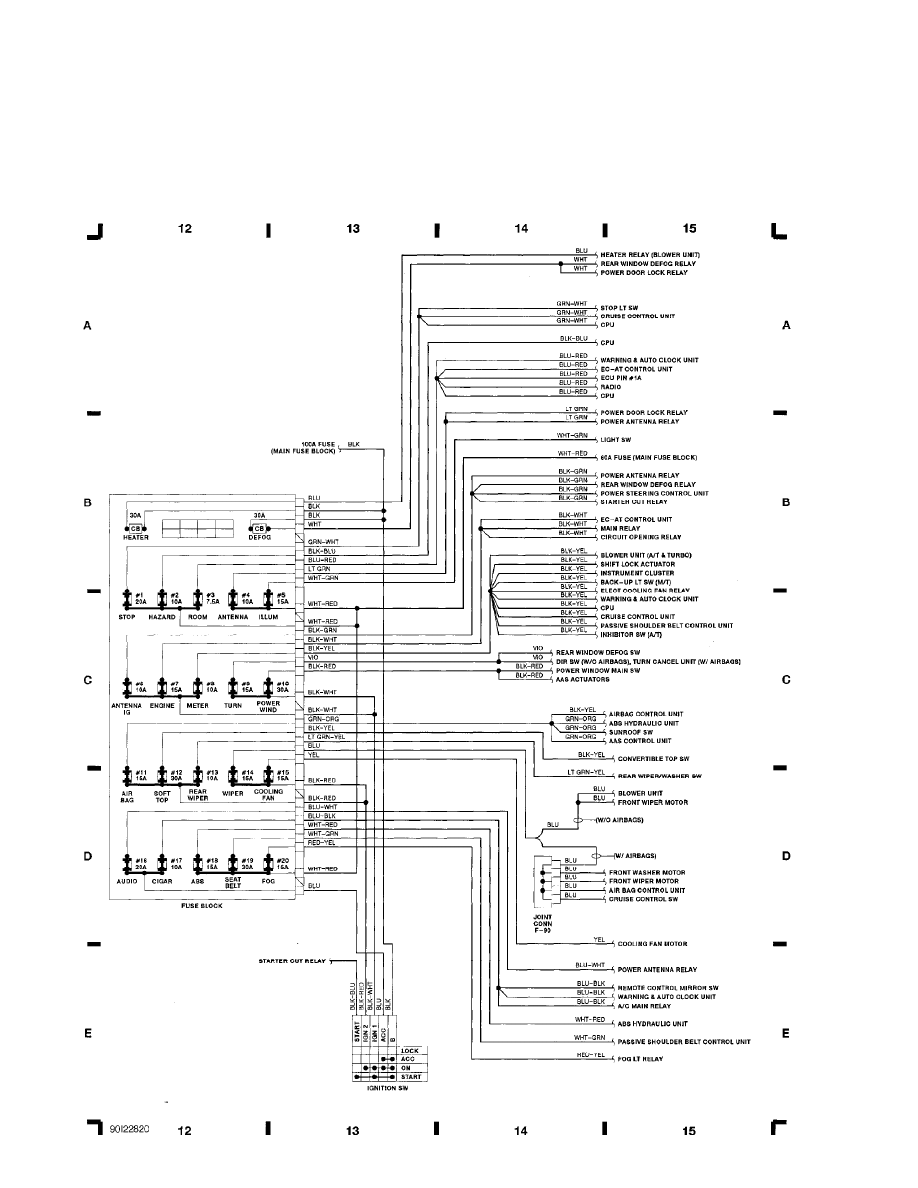

Fig. 4: Fuse Block (Grids 12-15) (p. 4)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:27PM

WIRING DIAGRAMS

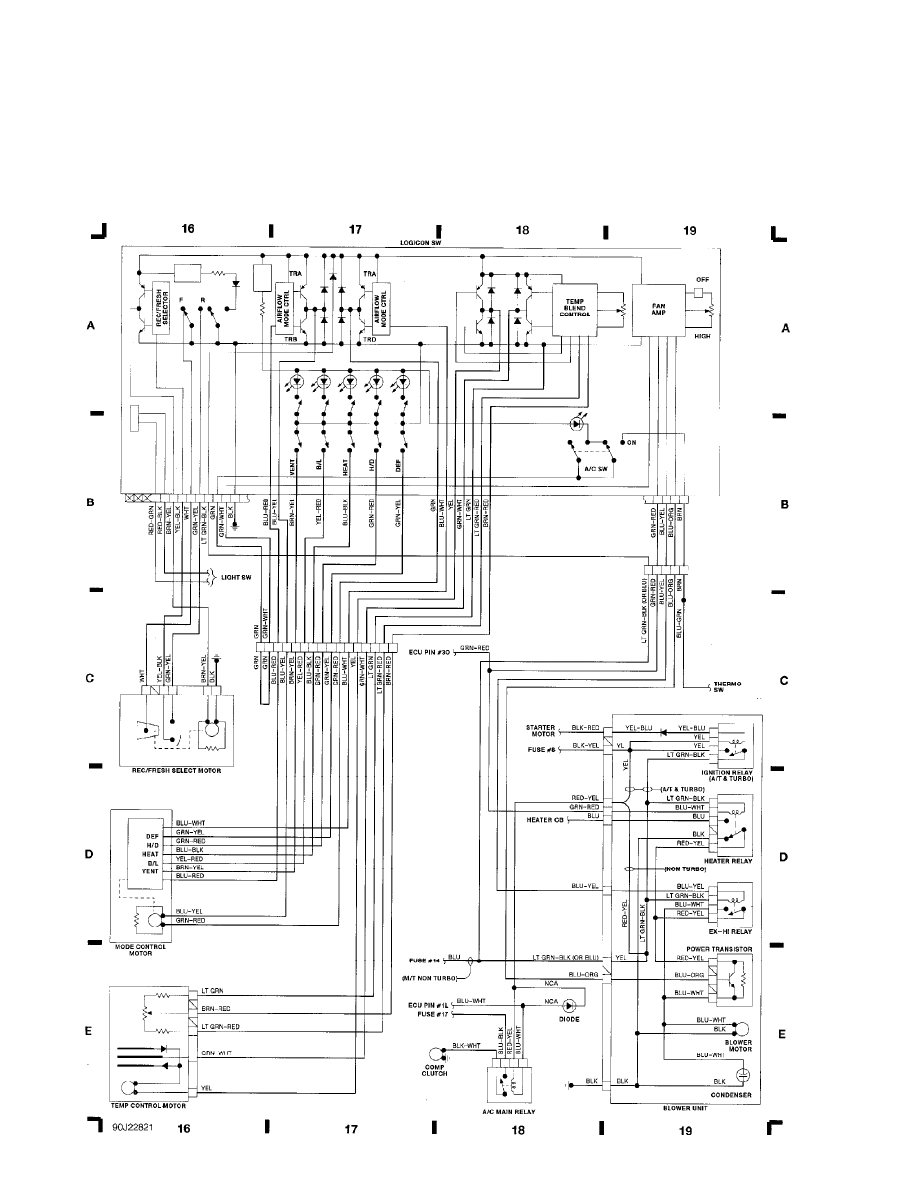

Fig. 5: A/C & Heating (Grids 16-19) (p. 5)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:27PM

WIRING DIAGRAMS

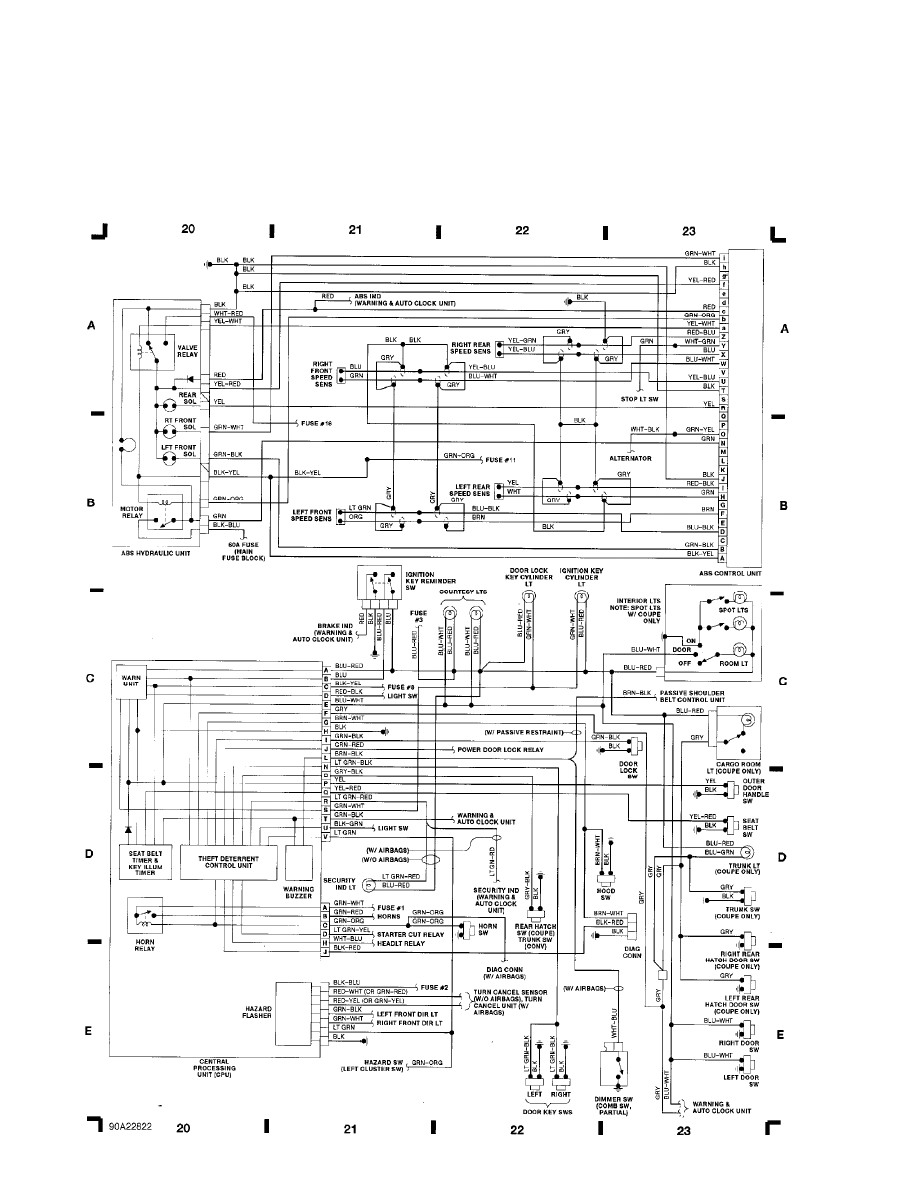

Fig. 6: ABS, Theft Deterrent System (Grids 20-23) (p. 6)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:27PM

WIRING DIAGRAMS

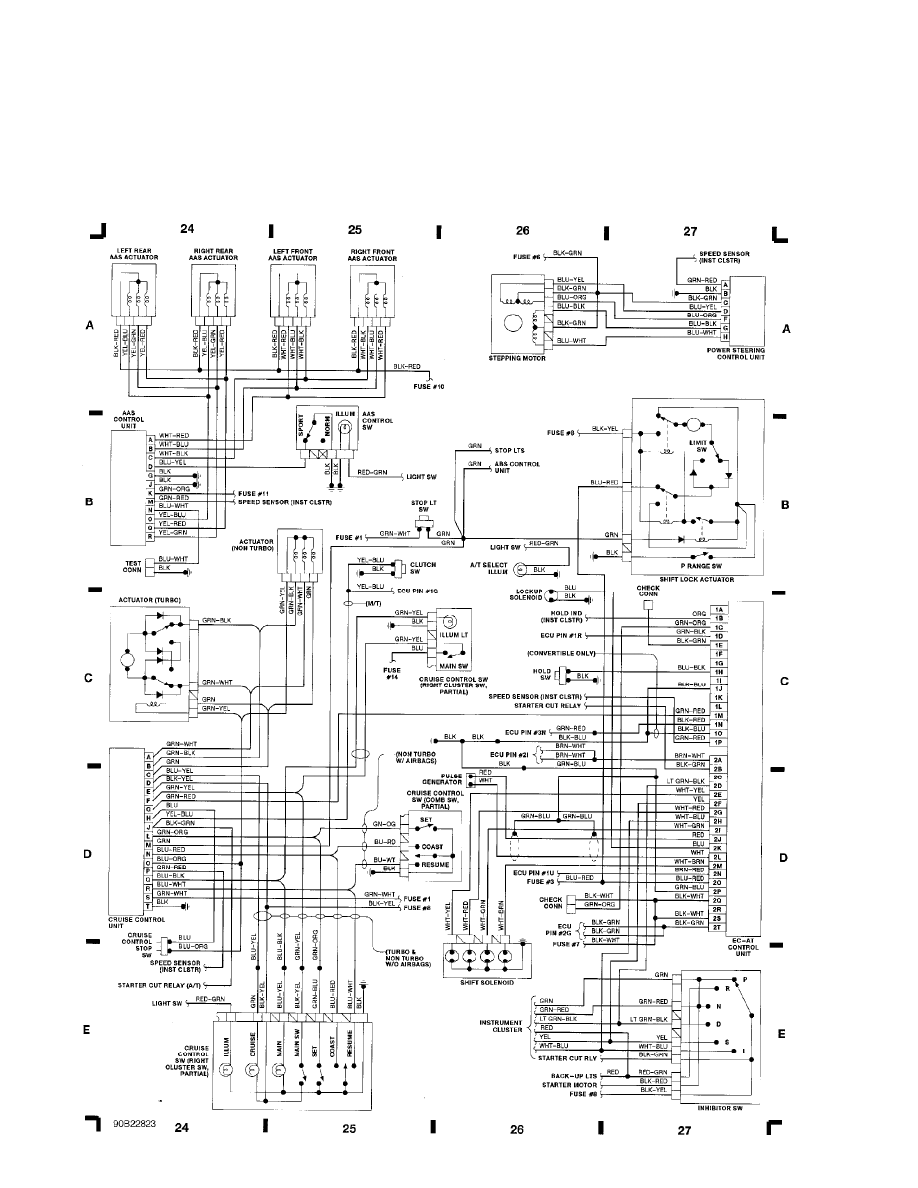

Fig. 7: AAS, Cruise Control, Elect A/T (Grids 24-27) (p. 7)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:27PM

WIRING DIAGRAMS

Fig. 8: Instrument Panel (Grids 28-31) (p. 8)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:27PM

WIRING DIAGRAMS

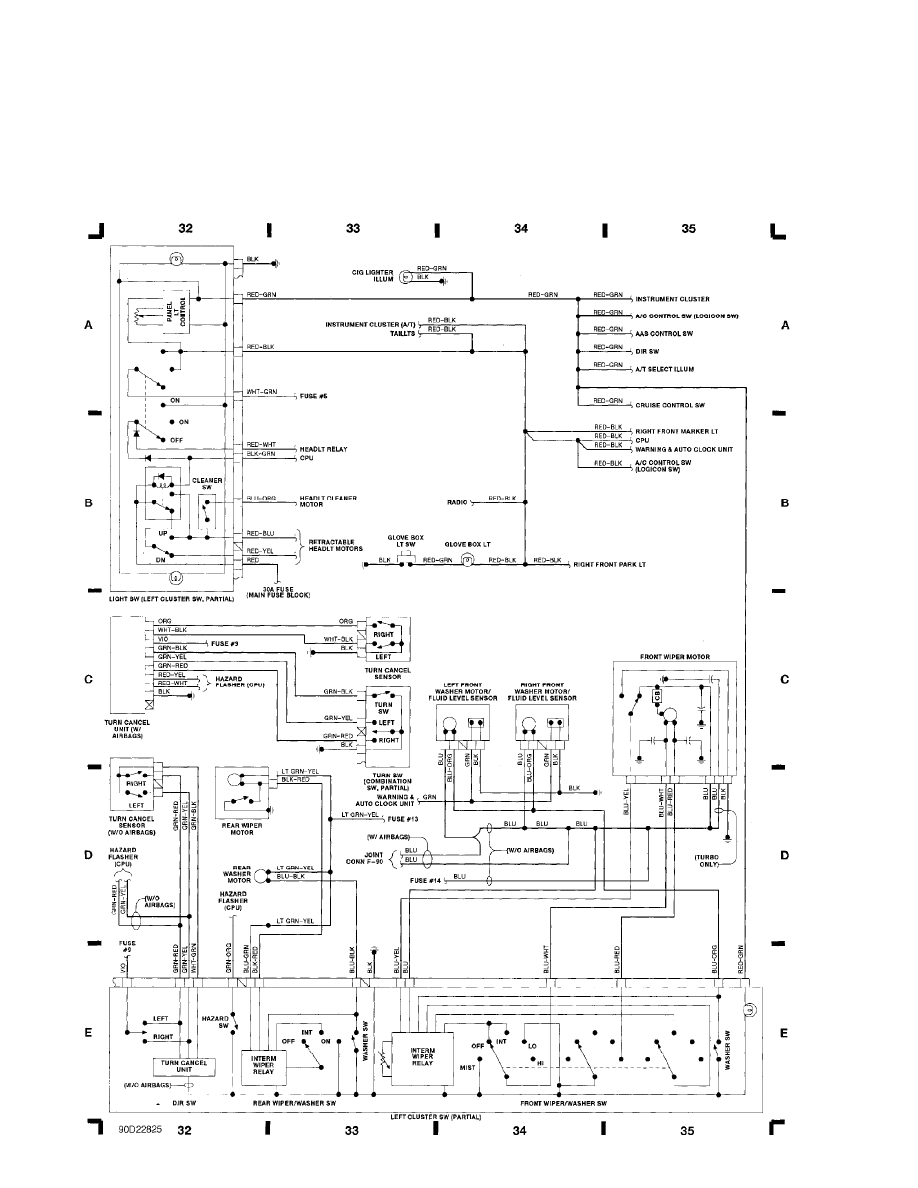

Fig. 9: Steering Column (Grids 32-35) (p. 9)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:27PM

WIRING DIAGRAMS

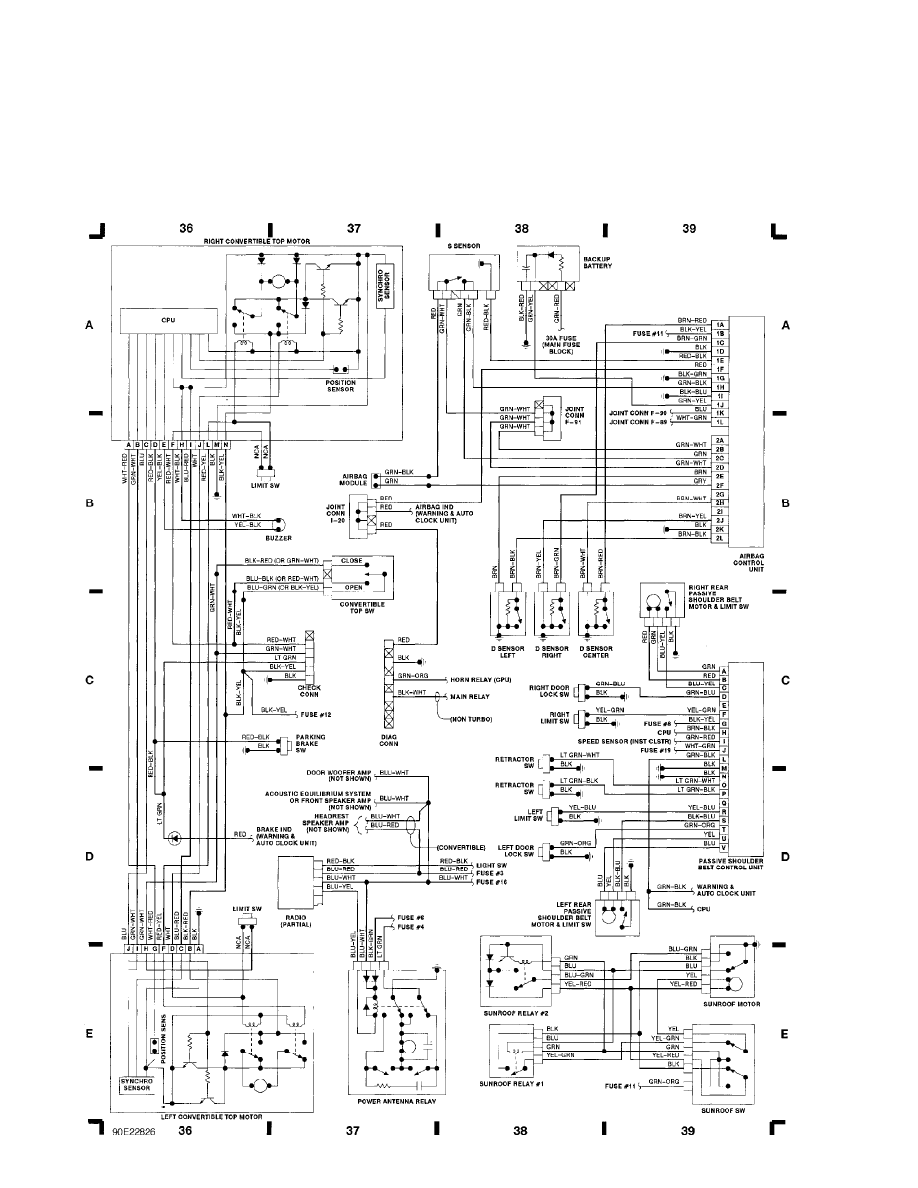

Fig. 10: Convertible Control, Passive Restraint (Grids 36-39) (p. 10)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:27PM

WIRING DIAGRAMS

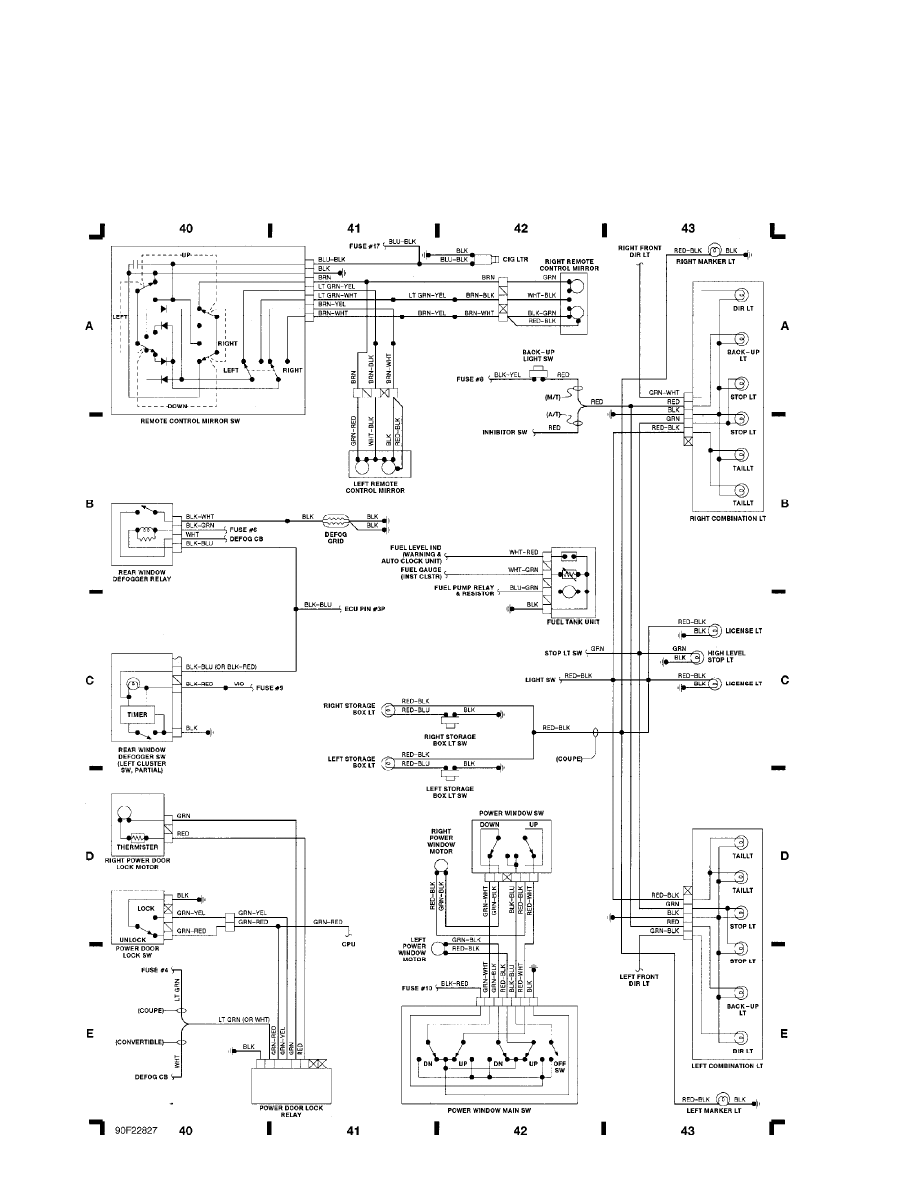

Fig. 11: Power Mirror/Doors/Window, Taillights (Grids 40-43) (p. 11)

1990 Mazda RX7

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 05:27PM
