Osan NorthÞp

KOREAN NAVIGATION VOLUME OSAN ONE DEPARTURE i5M_arch07

P'YONG'TAEK (RKSG) SOUTH KOREA

TACAN:	TWR:	TRANS LEVEL:	TRANS ALT:	GPS: N36°57,92'	ELEV:
01 9X	N.A.	FL 140	14000 Ft	El 28=04.20'	031'

Beware of Osan AB traffic. Monitor Osan TVVR 122.1 Do not cross below 8000fÅ‚.

A CASUL R-340 PT< DME 4 \ N37 01.05' 6128*02.36'

DME 3

\

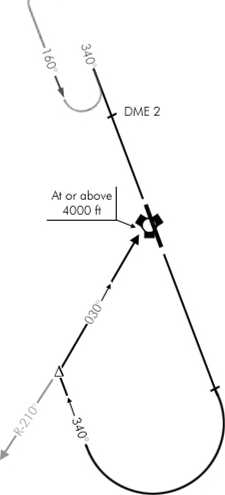

DEPARTURE ROUTE DESCRIPTION

OSAN 1 SOUTH: Climb on Rwy heading (1 60°) until reaching DME 3, Then RIGHT climbing

tum to heading 340° until intercepting R-210° INBOUND PyongTaek tacan. Cross PyongTaek at or above 4000ft. Proceed via R-34CT outbound to CASUL - cross at or above ÓOOOft. Then proceed and cross Osan at or above 8000ft. Thence ...

OSAN 1 NORTH: Climb on Rwy heading (340°). Cross CASUL at or above ÓOOOft. If lower, enter holding pattern and climb to ÓOOOft. Then proceed via R-340 outbound to Osan - cross at or above 8000ft. Thence...

© COMBATSIM CHECKUSTS 2007

OSAN ONE DEPARTURE

NOT FOR REAL NAVIGATION - F4 ALLIED FORCE ONLY

P'YONG'TAEK (RKSG) SOUTH KOREA
