08 mechanizm nośnik chwytacza

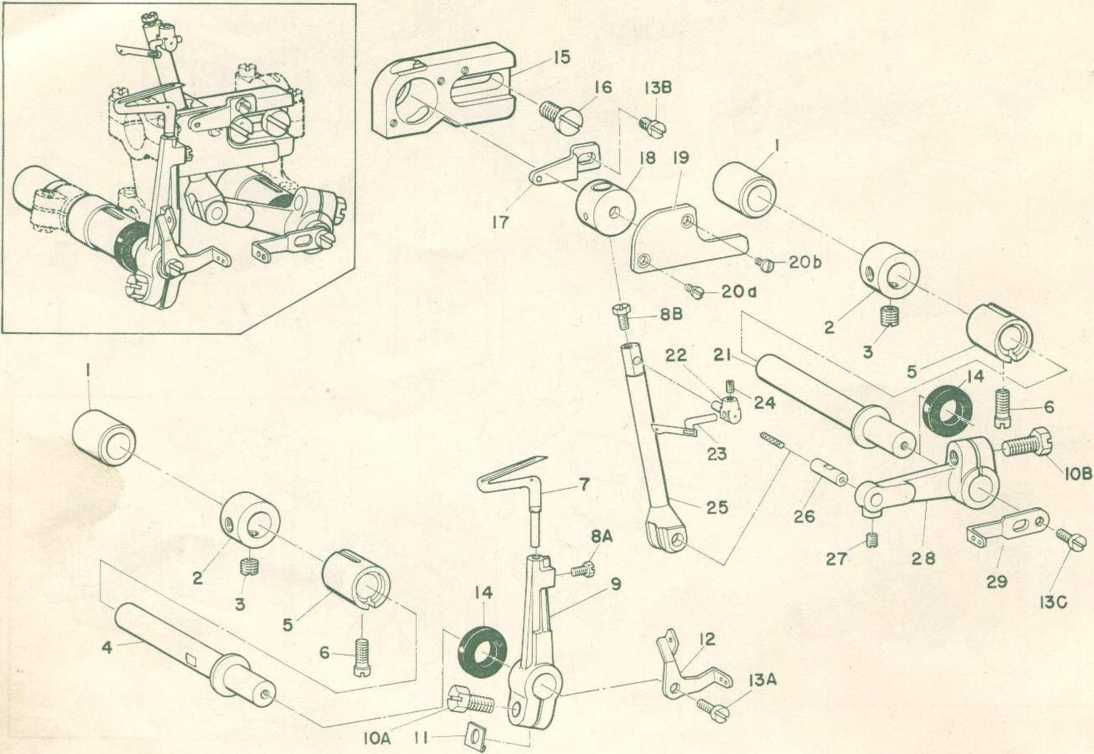

8. UPPER & LOWER LOOPER SHAFT COMPONENTS
|
Ref. No. |
Part No. |
Description |
Amt. Req. |
|
1 |
B-2509-804-000 |
Looper shaft bushing, rear |
2 |
|
2 |
CS-1031219-SH |
. . . Thrust collar (MO-816 use one collar) |
2 |
|
3 |
SS-8660530-TP |
......Screw (IVłO-816 use two | |
|
screws) |
4 | ||
|
4 |
B-2506-704-000 |
Lower looper shaft |
1 |
|
5 |
B-25O7-8O4-OO0B |
Looper shaft bushing, front |
2 |
|
6 |
SS-612020-SP |
. . . Screw |
2 |
|
<D |
B-2521 -804-000 |
Lower looper |
1 |
|
8A |
SS-9090610-TP |
. . . Screw |
1 |
|
O) |
B-2520-704-000 |
. . . Holder |
1 |
|
10A |
SS-9151210-TP |
......Clamp screw |
1 |
|
11 |
B-2531-704-000 |
......Washer |
1 |
|
12 |
B-2522-704-000 |
Looper thread take-up (left) |
1 |
|
13A |
SS-6090630-TP |
. . . Screw |
1 |
|
14 |
B-2508-704-000 |
Looper shaft oil seal |
2 |
|
15 |
B-2510-704-000 |
Upper looper guide retainer |
1 |
|
16 |
SS-6151440-SP |
. . . Screw |
2 |
|
Ref. No. |
Part No. |
Description |
Amt. Req. |
|
17 |
B-2524-704-000 |
Upper looper thread guide (left) |
1 |
|
13B |
SS-6090630-TP |
. . . Screw |
1 |
|
18 |
B-2512-804-000A |
Upper looper guide |
1 |
|
19 |
B-2515-804-000A |
. . . Cover |
1 |
|
20a |
SS-5060310-SP |
......Screw (A) |
1 |
|
20b |
SS-7060610-SP |
......Screw (B) |
1 |
|
21 |
B-2505-704-000 |
Upper looper shaft |
1 |
|
22 |
B-2518-804-000 |
Upper looper holder |
1 |
|
8B |
SS-9090610-TP |
. . . Screw |
1 |
|
% |
B-2519-804-000 |
Upper looper, for MO-804, MO-816 |
1 |
|
B-2519-814-000 |
Upper looper, for MO-814 |
1 | |
|
24 |
SS-8090410-SP |
. . . Screw |
1 |
|
B-2517-804-000A |
Upper looper holder connection |
1 | |
|
26 |
B-1422-804-000 |
. . .Pin |
1 |
|
27 |
SS-8080410-TP |
. . . Screw |
1 |
|
28 |
B-2516-804-000 |
Upper looper shaft driving arm |
1 |
|
10B |
SS-9151210-TP |
. . . Clamp screw |
1 |
|
29 |
B-2523-704-000 |
Looper thread take-up (right) |
1 |
|
13C |
SS-6090630-TP |
. . . Screw |
1 |
