FRONT WHEEL/SUSPENSION/STEERING

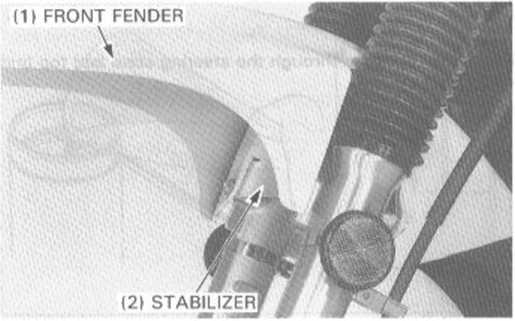

Install the stabilizer and front fender.

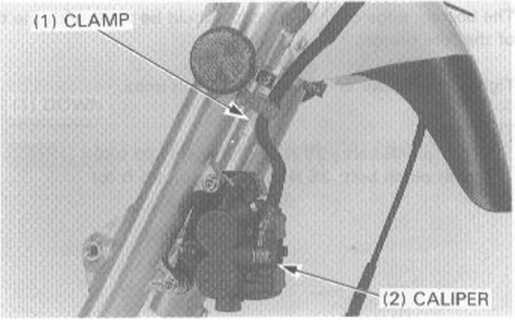

Install the brake caliper to the left fork leg. TORQUE: 27 N-m (2.7 kg-m, 20 ft-lb) Secure the brake hose with the clamp. Install the front wheel (page 13-10).

STEERING STEM

REM0VAL

Remove the following components.

—    Front wheel {page 13-5).

—    Lower brake hose holder bolts.

—    Front guard piąte.

(1) GUARD PLATĘ

(2) BOLTS^

—    Handlebars (page 13-3).

—    Upper brake hose holder bolt.

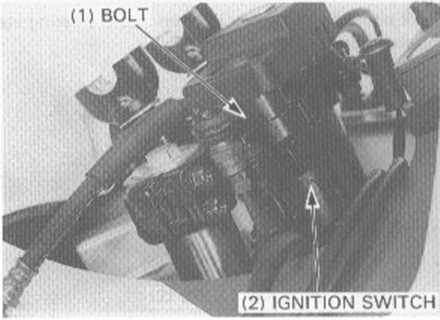

—    Ignition switch (page 19-5).

13-18
