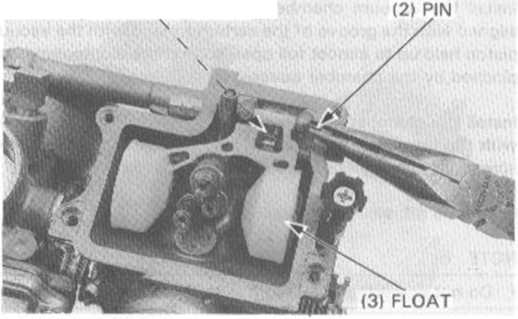

Install the float with the float valve toward the carburetor body and install the float arm pin through the body and float.

111 FLOAT VALVE

'E

FLOAT LEVEL

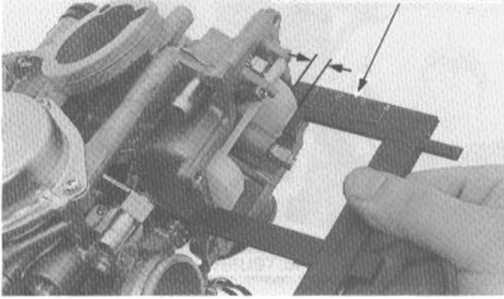

Measure the float level with the float tang just contacting the float valve.

FLOAT LEVEL: 7 mm (0.3 In)

TOOL:

Float level gauge    07401 —0010000

Adjust the float level by carefully bending the float tang.

(1) FLOAT LEVEL GAUGE

Apply thin oil to the O-ring.

Install the float chamber and tighten the screws securely.

(1) FLOAT CHAMBER

<2) SCREWS

NOTĘ

• Install the fuel tubę clamp at the correct position.

VACUUM CHAMBER

Install the jet needle, spring and needle holder to the vacuum piston.

Push the jet needle holder in and turn it in 60 degrees clock-wise.
