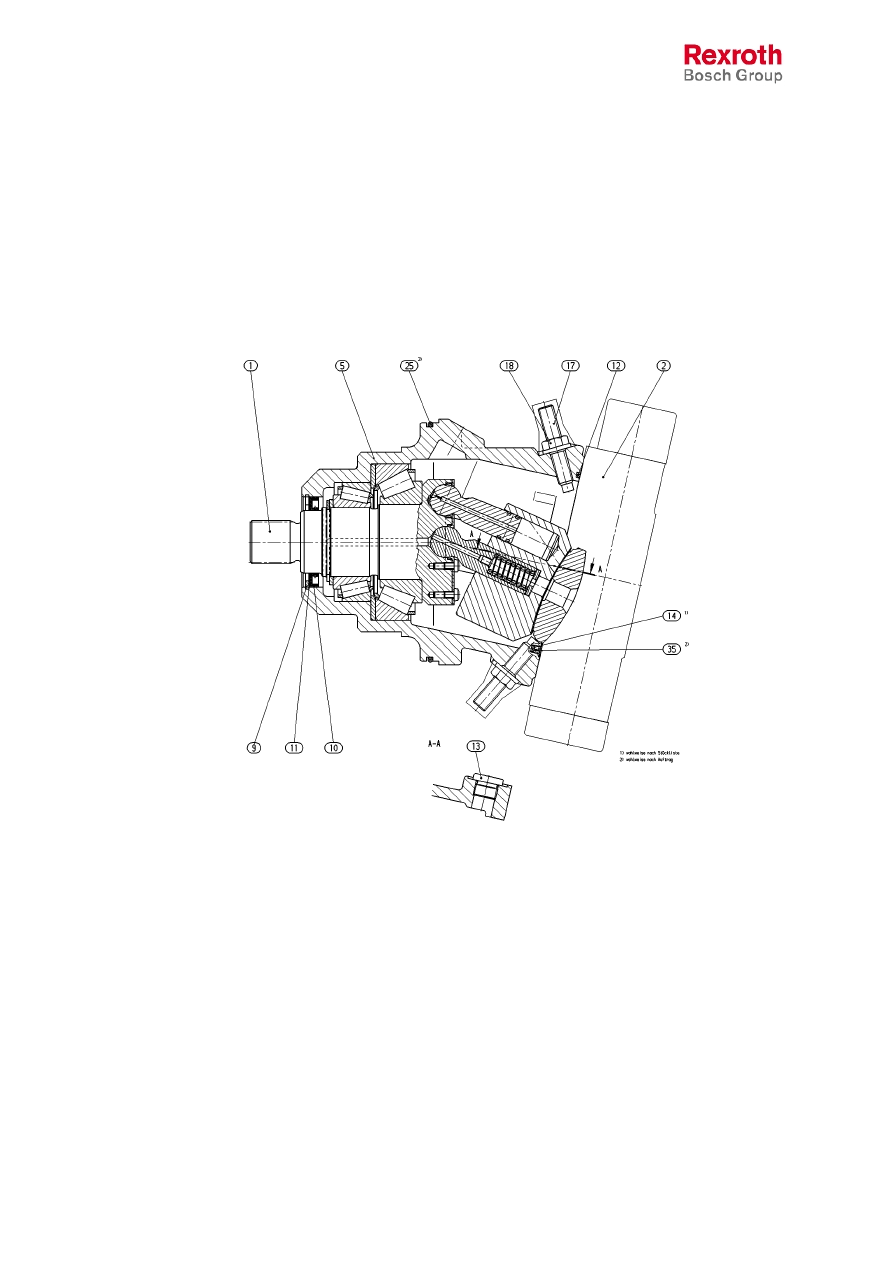

Spare parts list
Part No.: R909605796
Designation: A6VE55HD1/63W-VZL020B
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909721256
Pos.
Part No.
Designation
Quantity
Safety Notes:
Service – and repair works have to be carried out by the Bosch Rexroth AG or their repair stations only. We do not grant any
warranty for defects due to assembly, maintenance or repair not effected by the Bosch Rexroth AG or their repair stations.
1
R909603915
1 ST
L
ROTARY GROUP
2
R909603554
1 ST
L
CONTROL
5
R909921982
1 ST
HOUSING
9
R909083408
1 ST
RETAINING RING
10
R909831179
1 ST
D
SHAFT SEAL RING
11
R909087079
1 ST
D
BACK-UP PLATE
12
R909085366
1 ST
D
O-RING
13
R909156651
1 ST
D
LOCKING SCREW
17
R909447003
2 ST
L
THREADED PIN
18
R909152426
2 ST
D
SEAL LOCK NUT
L = Assembly group D = Sealing element
Page: 1
Date: 08.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Spare parts list
Part No.: R909605796
Designation: A6VE55HD1/63W-VZL020B
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909721256
L = Assembly group D = Sealing element
Page: 2
Date: 08.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Spare parts list
Part No.: R909603915
Designation: ROTARY GROUP
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909700413
Pos.
Part No.
Designation
Quantity
1
R909603991
1 ST
L
ROTARY GROUP, HYDR. SECTION
2
R909921744
1 ST
DRIVE SHAFT
3
R909651512
1 ST
SHIM
6
R909921736
1 ST
BACK-UP PLATE
6
R909921737
1 ST
BACK-UP PLATE
6
R909921738
1 ST
BACK-UP PLATE
6
R909921739
1 ST
BACK-UP PLATE
6
R909921740
1 ST
BACK-UP PLATE
6
R909921741
1 ST
BACK-UP PLATE
6
R909921742
1 ST
BACK-UP PLATE
6
R909921743
1 ST
BACK-UP PLATE
7
R909084416
1 ST
RETAINING RING
10
R909154398
1 ST
TAPERED-ROLLER BEARING
11
R909154399
1 ST
TAPERED-ROLLER BEARING
L = Assembly group D = Sealing element
Page: 3
Date: 08.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen

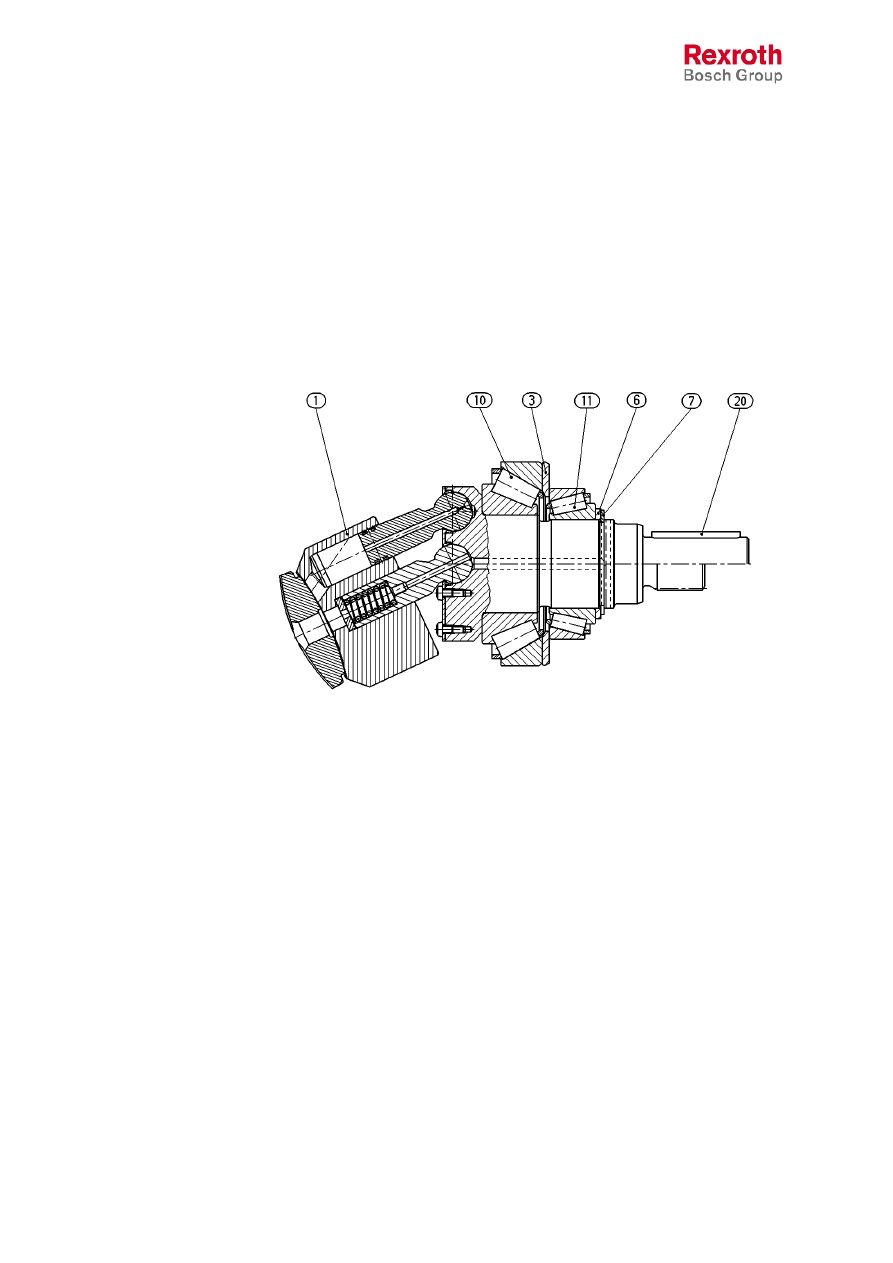

Spare parts list
Part No.: R909603915
Designation: ROTARY GROUP
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909700413
L = Assembly group D = Sealing element
Page: 4
Date: 08.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen

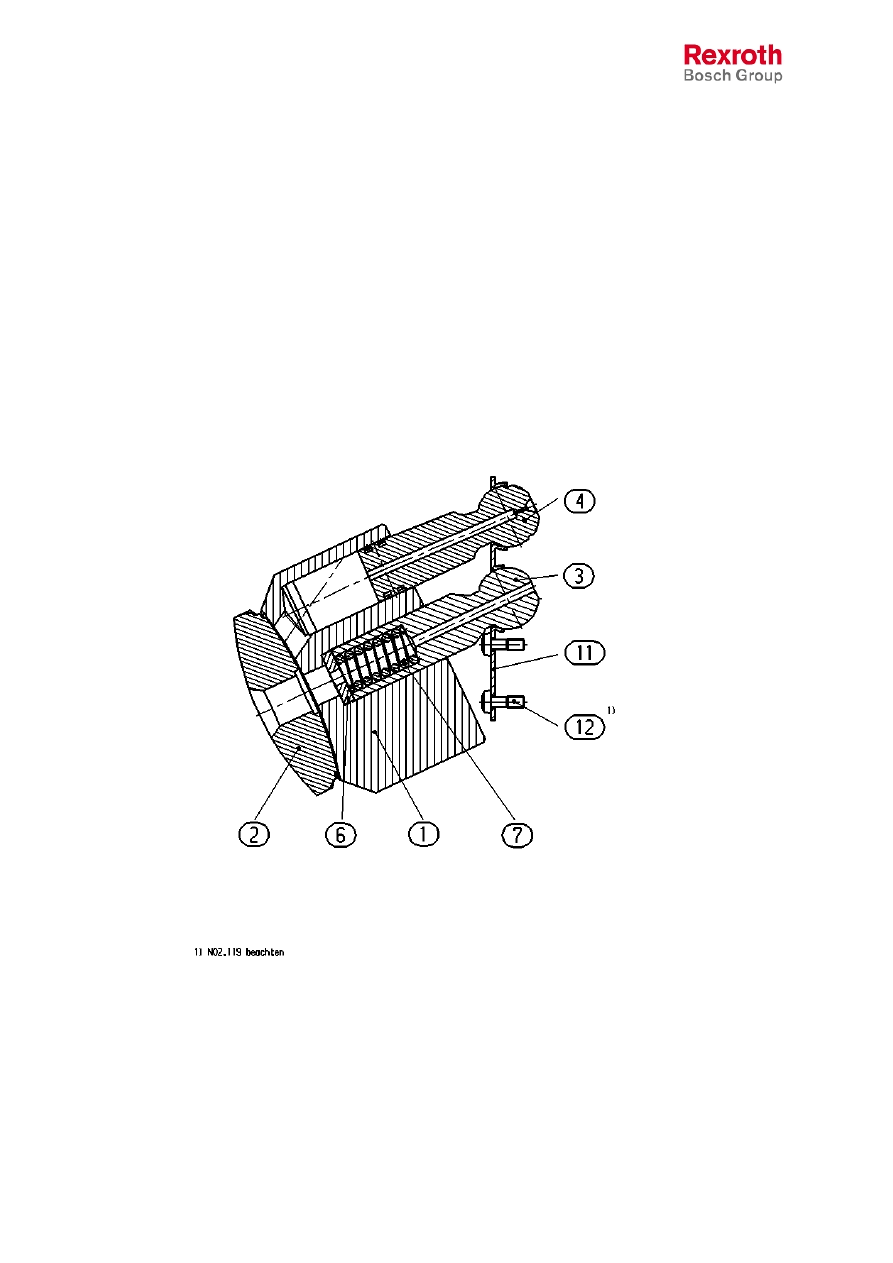

Spare parts list
Part No.: R909603991
Designation: ROTARY GROUP, HYDR. SECTION
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909700415
Pos.
Part No.
Designation
Quantity
1
R909421290
1 ST
CYLINDER
2
R909921786
1 ST
CONTROL LENS
3
R909921751
1 ST
CENTER PIN
4
R902021901
7 ST
L
PISTON WITH PISTON RINGS
6
R909921745
1 ST
ADJUSTMENT SHIM
6
R909921746
1 ST
ADJUSTMENT SHIM
6
R909921747
1 ST
ADJUSTMENT SHIM
6
R909921748
1 ST
ADJUSTMENT SHIM
6
R909921749
1 ST
ADJUSTMENT SHIM
6
R909921750
1 ST
ADJUSTMENT SHIM
7
R909921752
1 ST
PRESSURE SPRING
11
R902072551
1 ST
RETAINING PLATE
12
R902602776
14 ST
PAN HEAD SCREW W. TORX
L = Assembly group D = Sealing element
Page: 5
Date: 08.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Spare parts list
Part No.: R909603991
Designation: ROTARY GROUP, HYDR. SECTION
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909700415
L = Assembly group D = Sealing element
Page: 6
Date: 08.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen

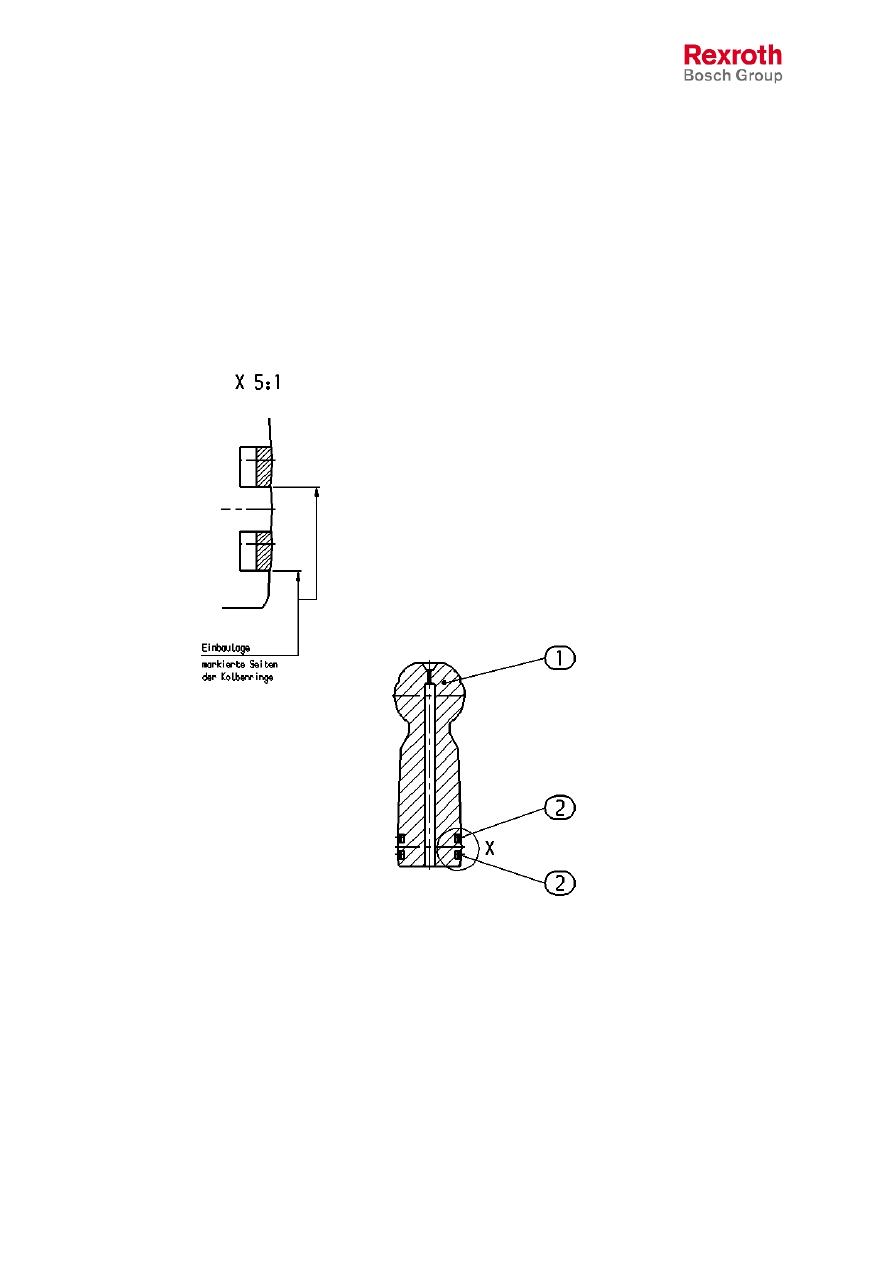

Spare parts list
Part No.: R902021901
Designation: PISTON WITH PISTON RINGS
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R902021890
Pos.
Part No.
Designation
Quantity
1
R909443335
1 ST
PISTON
2
R909831890
2 ST
STEEL SEALING RING
L = Assembly group D = Sealing element
Page: 7
Date: 08.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Spare parts list
Part No.: R902021901
Designation: PISTON WITH PISTON RINGS
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R902021890
L = Assembly group D = Sealing element
Page: 8
Date: 08.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Spare parts list
Part No.: R909603554
Designation: CONTROL
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909729201
Pos.
Part No.
Designation
Quantity
1
R909603920
1 ST
L
CONTROL PART
2
R909603764
1 ST
L
COVER
3
R909921412
1 ST
PORT PLATE
4
R909921439
1 ST
POSITIONING PISTON
5
R909422940
1 ST
POSITIONING TRUNNION
7
R909652200
1 ST
PISTON
8
R909445056
1 ST
THREADED PIN
10
R902075344
2 ST
VALVE GUIDE
11
R909426662
2 ST
BOLT
13
R909412756
2 ST
BUSH
15
R909083068
8 ST
SOCKET-HEAD SCREW
19
R909830726
2 ST
D
O-RING
20
R909085577
6 ST
D
O-RING
21
R909086487
2 ST
D
O-RING
22
R902602322
2 ST
BACK-UP RING
23
R909083197
1 ST
SOCKET-HEAD SCREW
24
R909832142
3 ST
D
SQUARE RING
26
R909084174
2 ST
CYLINDER PIN
28
R909831318
1 ST
D
DOUBLE BREAK-OFF PIN
L = Assembly group D = Sealing element
Page: 9
Date: 08.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen

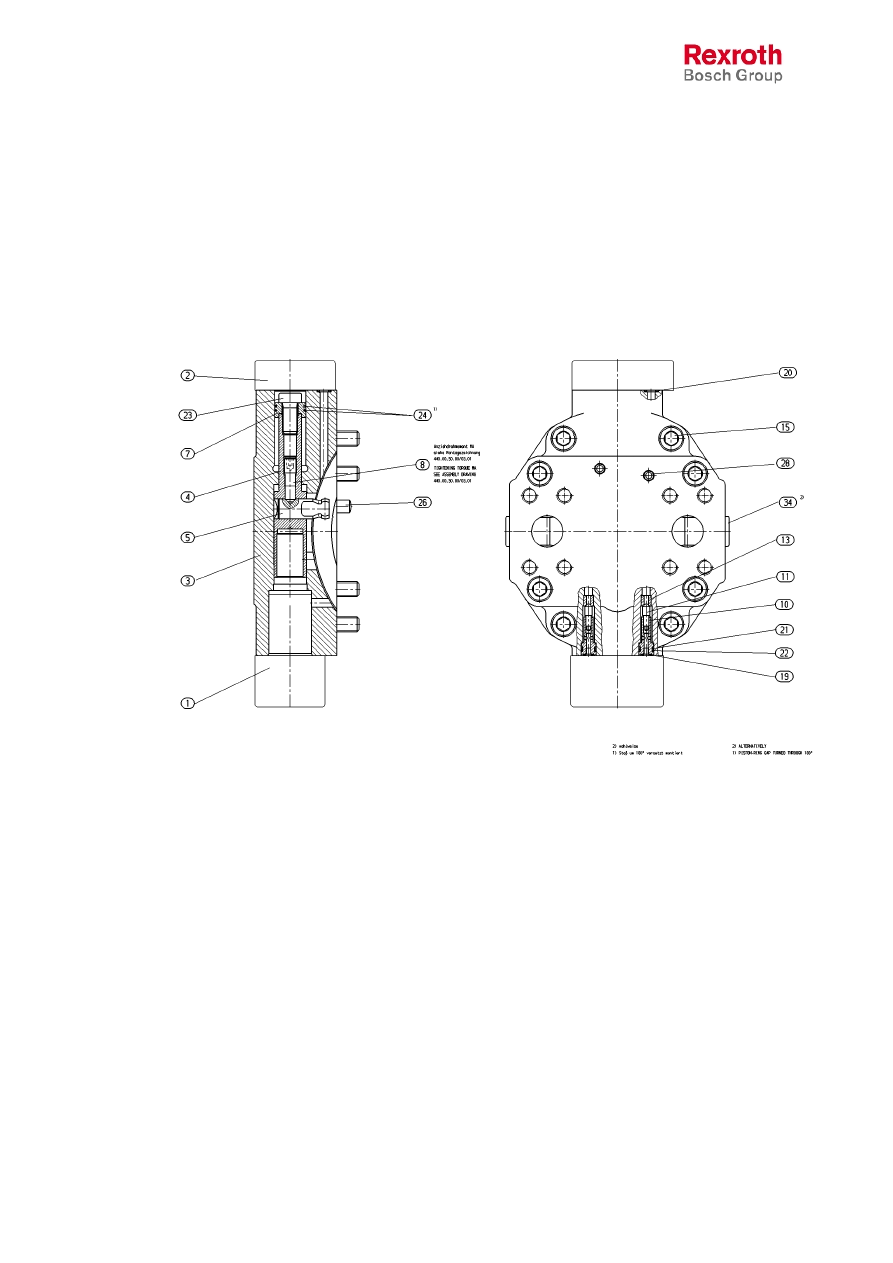

Spare parts list
Part No.: R909603554
Designation: CONTROL
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909729201
L = Assembly group D = Sealing element
Page: 10
Date: 08.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen

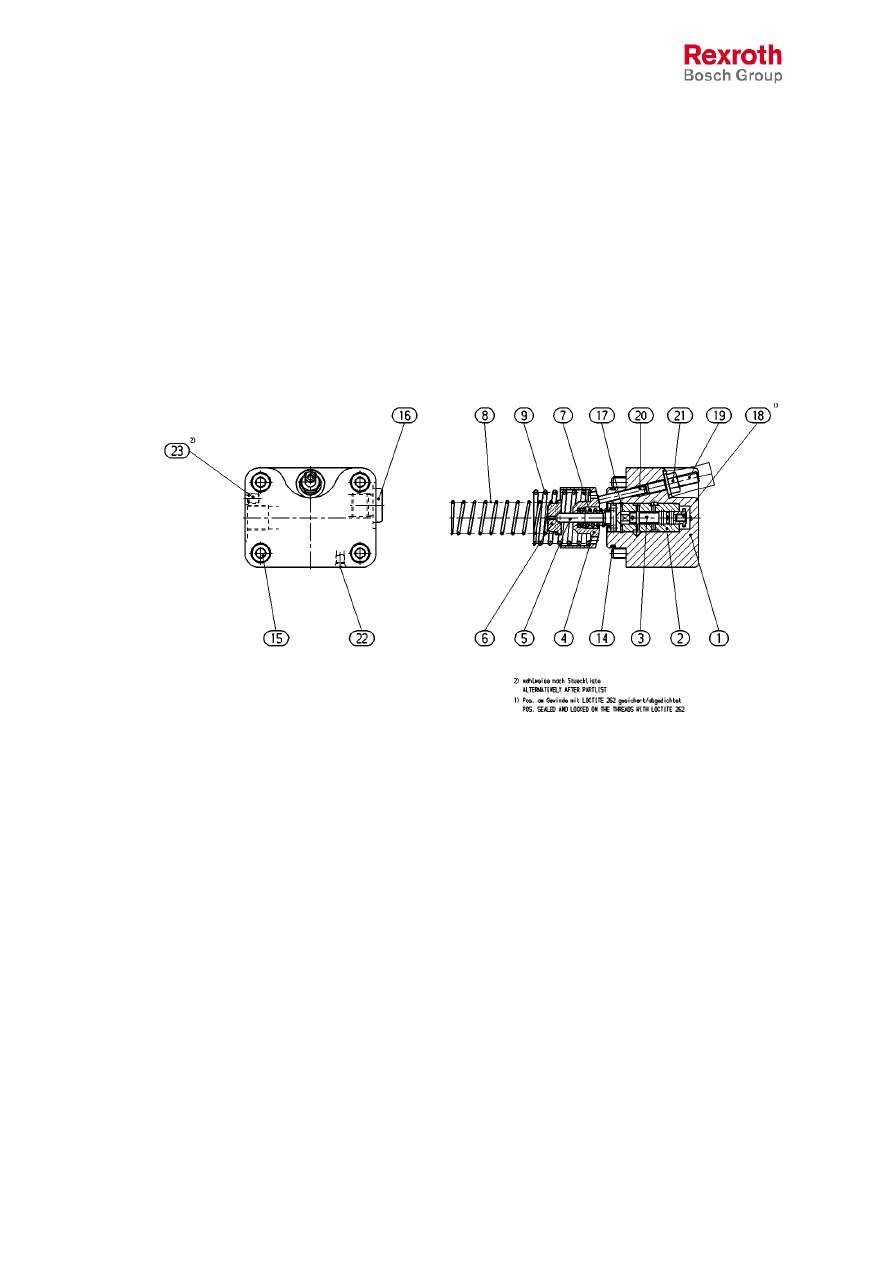

Spare parts list
Part No.: R909603920
Designation: CONTROL PART
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909729288
Pos.
Part No.
Designation
Quantity
1
R909412002
1 ST
CONTROL HOUSING
2
R909412246
1 ST
CONTROL BUSH
3
R909412266
1 ST
CONTROL PISTON
4
R909651118
1 ST
ADJUSTING BUSHING
5
R909921351
1 ST
SPRING COLLAR
6
R902024554
1 ST
SPRING COLLAR
7
R909921420
1 ST
PRESSURE SPRING
8
R909921135
1 ST
PRESSURE SPRING
9
R909651116
1 ST
PRESSURE SPRING
14
R909157562
1 ST
D
O-RING
15
R909083026
4 ST
SOCKET-HEAD SCREW
16
R909153930
1 ST
D
LOCKING SCREW
17
R909083381
1 ST
D
RETAINING RING
18
R909083488
1 ST
THREADED PIN
19
R909152427
1 ST
THREADED PIN
20
R909087756
1 ST
CYLINDER PIN
21
R909152425
1 ST
D
SEAL LOCK NUT
22
R909831317
1 ST
D
DOUBLE BREAK-OFF PIN
L = Assembly group D = Sealing element
Page: 11
Date: 08.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Spare parts list
Part No.: R909603920
Designation: CONTROL PART
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909729288
L = Assembly group D = Sealing element
Page: 12
Date: 08.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen

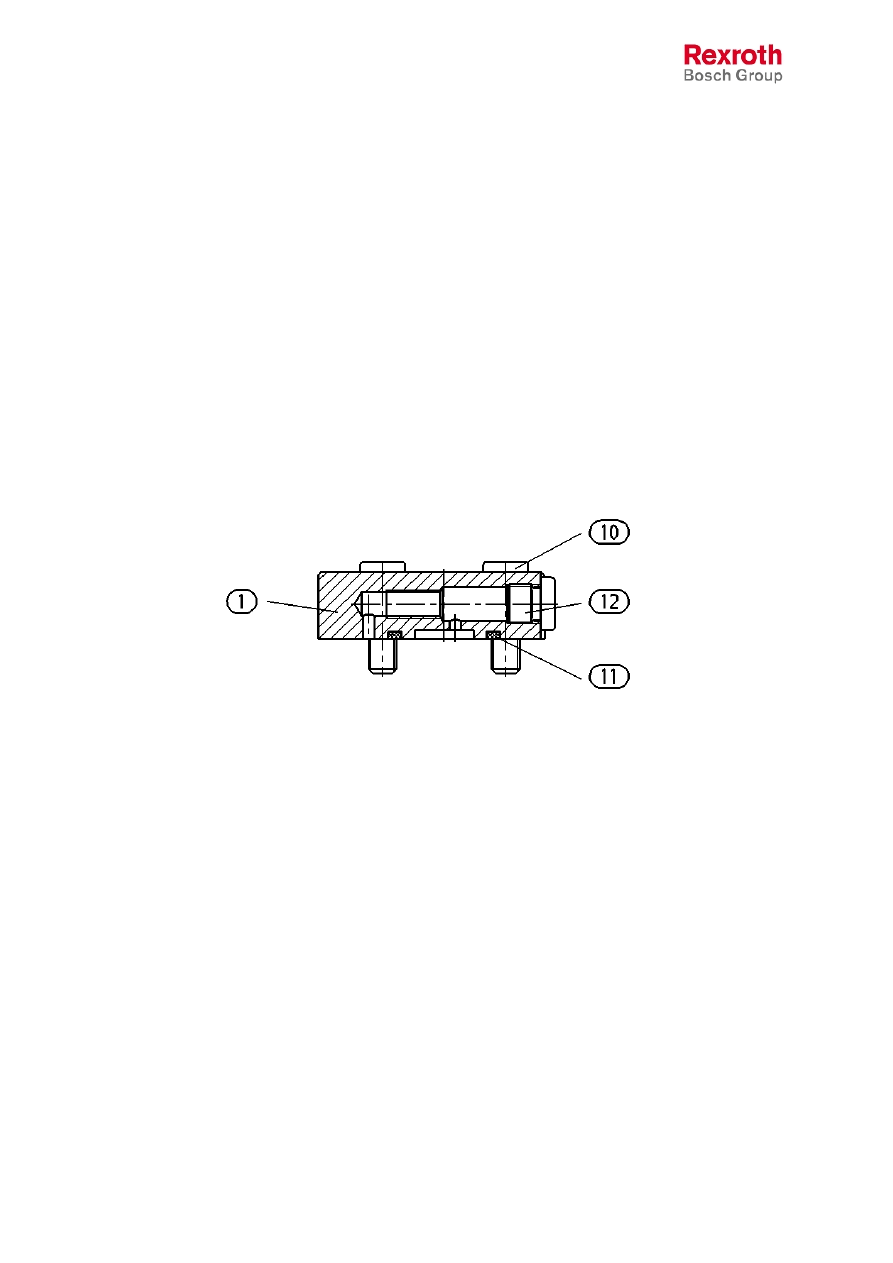

Spare parts list
Part No.: R909603764
Designation: COVER
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909731913
Pos.
Part No.
Designation
Quantity
1
R909445988
1 ST
COVER
10
R909831591
4 ST
SOCKET-HEAD SCREW
11
R909151882
1 ST
D
O-RING
12
R909153930
1 ST
D
LOCKING SCREW
L = Assembly group D = Sealing element
Page: 13
Date: 08.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Spare parts list
Part No.: R909603764
Designation: COVER
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909731913
L = Assembly group D = Sealing element
Page: 14
Date: 08.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Spare parts list
Part No.: R909447003
Designation: THREADED PIN
Mobile Hydraulics
Product Unit
Axial Piston Units
Pos.
Part No.
Designation
Quantity
1
R909154690
1 ST
THREADED PIN
2
R909153779
1 ST
THREADED PIN
3
R909154058
1 ST
THREADED PIN
4
R909156717
1 ST
THREADED PIN
5
R909157215
1 ST
THREADED PIN
6
R909831094
1 ST
THREADED PIN
7
R909086118
1 ST
THREADED PIN
L = Assembly group D = Sealing element
Page: 15
Date: 08.06.2007
Status of version: 3/2007
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
