Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R902007188
Spare parts list
Part No.: R902026969

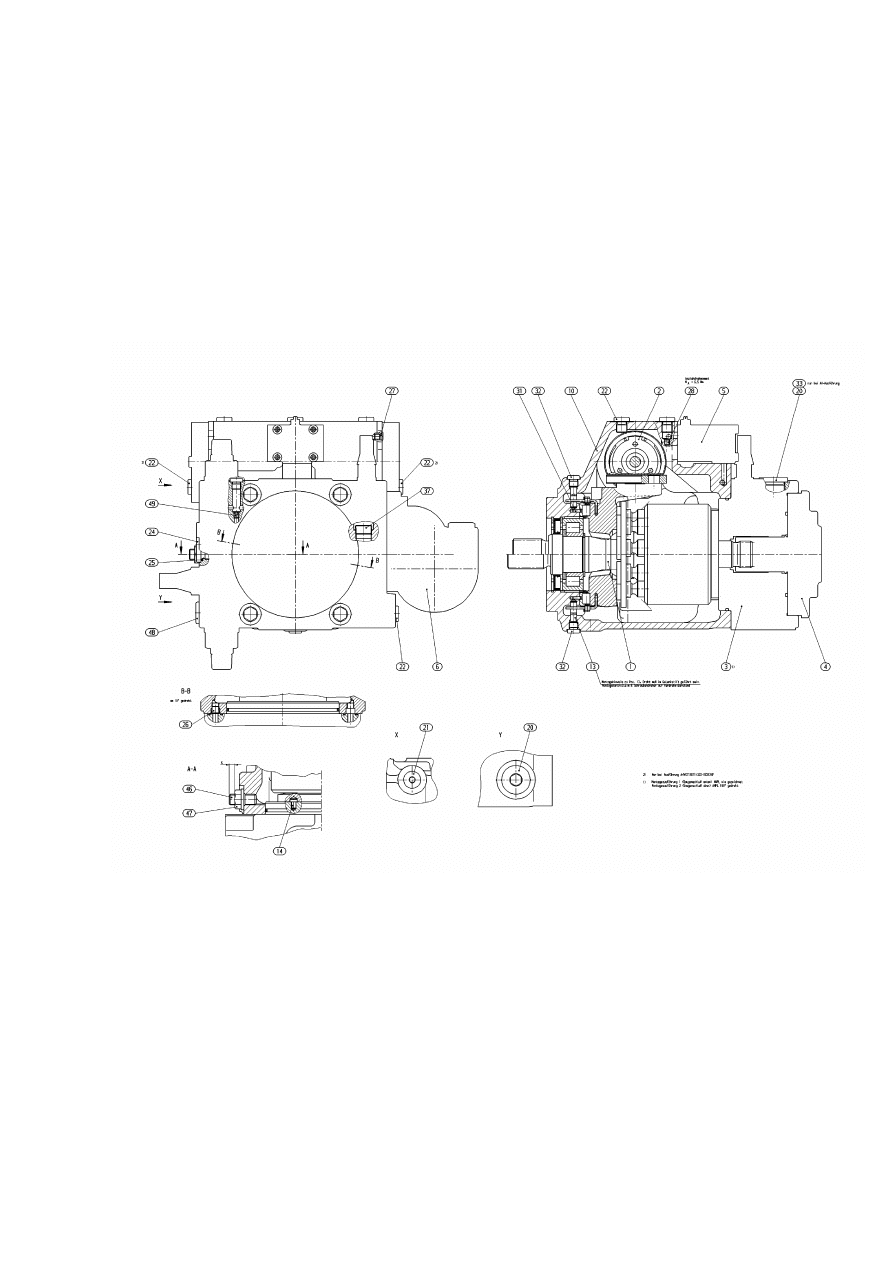

Designation: A4VG71HDDT1/32L-NZF02F021F *G*
Pos.
Designation
Part No.
Quantity
Safety Notes:
Service – and repair works have to be carried out by the Bosch Rexroth AG or their repair stations only.
We do not grant any warranty for defects due to assembly, maintenance or repair not effected by the
Bosch Rexroth AG or their repair stations.
1
R909607776
1 ST
L
ROTARY GROUP
2
R902016300
1 ST
L
CONTROL, HYDRAULIC
3
R909609869
1 ST
L
PORT PLATE WITH VALVES
4
R909606663
1 ST
L
INTERNAL GEAR PUMP ASSEMBLY
5
R909428137
1 ST
L
CONTROL MODULE
6
R902019631
1 ST
L

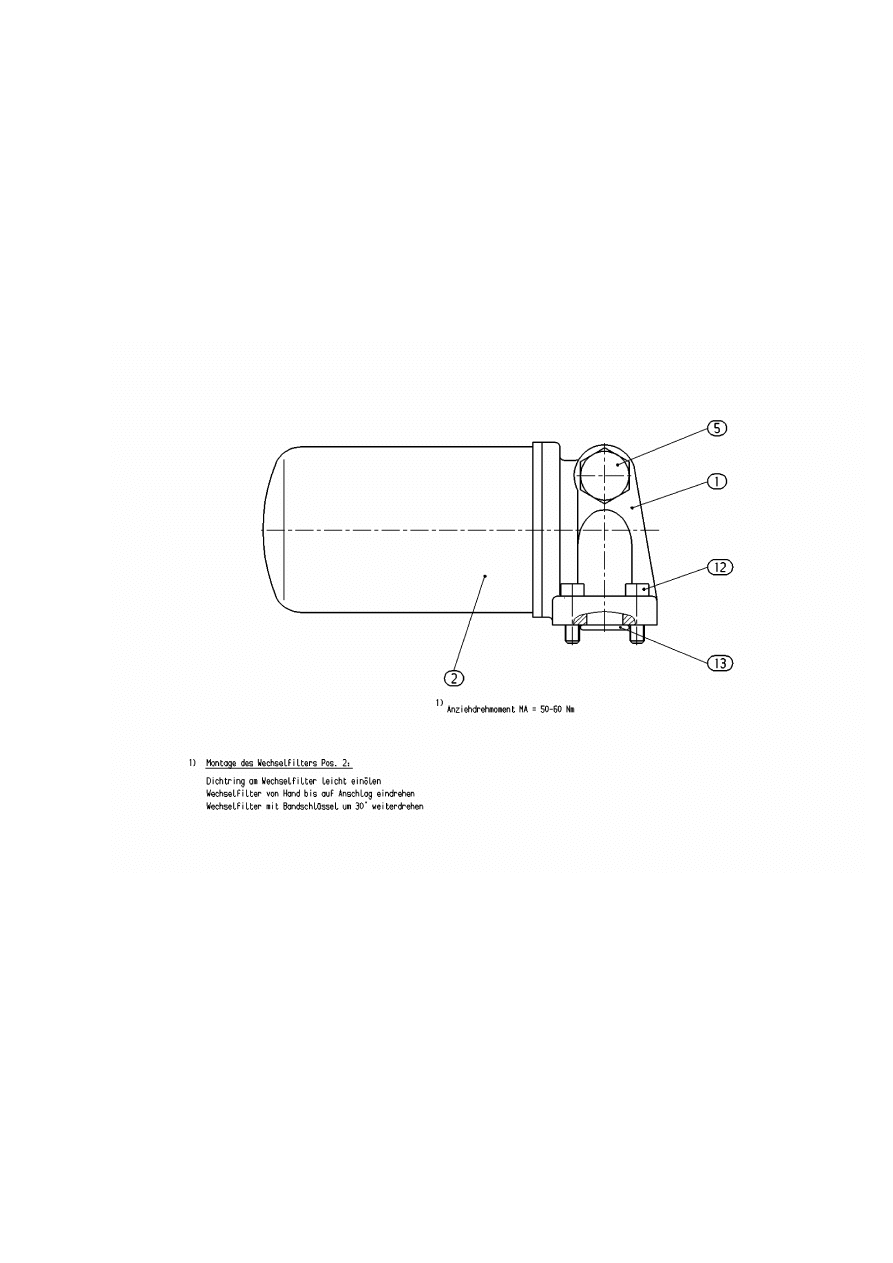

FILTER
10
R902003862
1 ST
HOUSING
13
R909449714
2 ST
JOINT PIN
14
R909405732
1 ST
DOWEL PIN
20
R909153891
2 ST
D
LOCKING SCREW
21
R909151979
1 ST
LOCKING SCREW
22
R909151692
6 ST
D
LOCKING SCREW
24
R909083228
1 ST
D
LOCKING SCREW
25
R909086731
1 ST
D
O-RING
26
R909153572
1 ST
D
LOCKING SCREW
27
R909831318
1 ST
DOUBLE BREAK-OFF PIN
28
R909156493
2 ST
D
ORIFICE
31
R909156579
2 ST
D
CLAMPING PIN
32
R909153364
2 ST
D
LOCKING SCREW
37
R909087913
1 ST
D
LOCKING SCREW
46
R909154982
1 ST
D
THREADED PIN
47
R909087405
1 ST
D
SEAL LOCK NUT
48
R909153815
1 ST
D
LOCKING SCREW
49
R909156497
1 ST
ORIFICE
Page: 1
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R902007188
Spare parts list
Part No.: R902026969
Designation: A4VG71HDDT1/32L-NZF02F021F *G*
Page: 2
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R902079243
Spare parts list
Part No.: R909607776

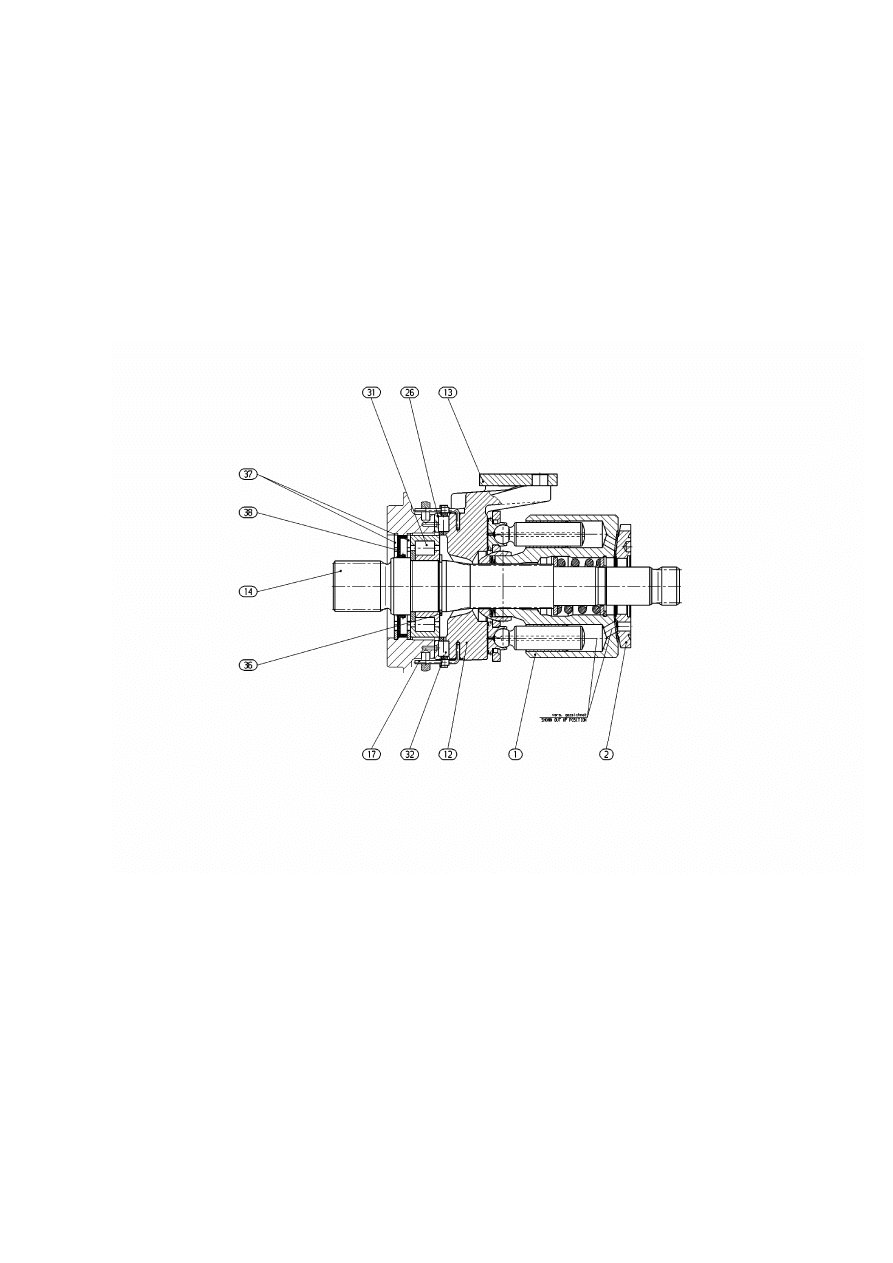

Designation: ROTARY GROUP
Pos.
Designation
Part No.
Quantity
1
R902079247
1 ST
L
ROTARY GROUP, HYDR. SECTION
2
R902007627
1 ST
CONTROL PLATE
12
R909443361
1 ST
CRADLE
13
R909449810
1 ST
SLIDE RING
14
R909921938
1 ST
DRIVE SHAFT
17
R909076233
2 ST
WIRE
26
R902066586
1 ST
BEARING LINER (PAIR)
31
R909153104
1 ST
PLAIN ROLLER BEARING
32
R909830152
1 ST
CRADLE BEARING ASSEMBLY ( SET)
36
R909083362
1 ST
RETAINING RING
37
R902600001
2 ST
RETAINING RING
38
R902601794
1 ST
D
WDR BABSL10FX2 45X 80X 7-FKM
98
R902002389
1 ST
SEAL KIT DRIVE SHAFT
Page: 3
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R902079243
Spare parts list
Part No.: R909607776
Designation: ROTARY GROUP
Page: 4
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R902079250
Spare parts list
Part No.: R902079247

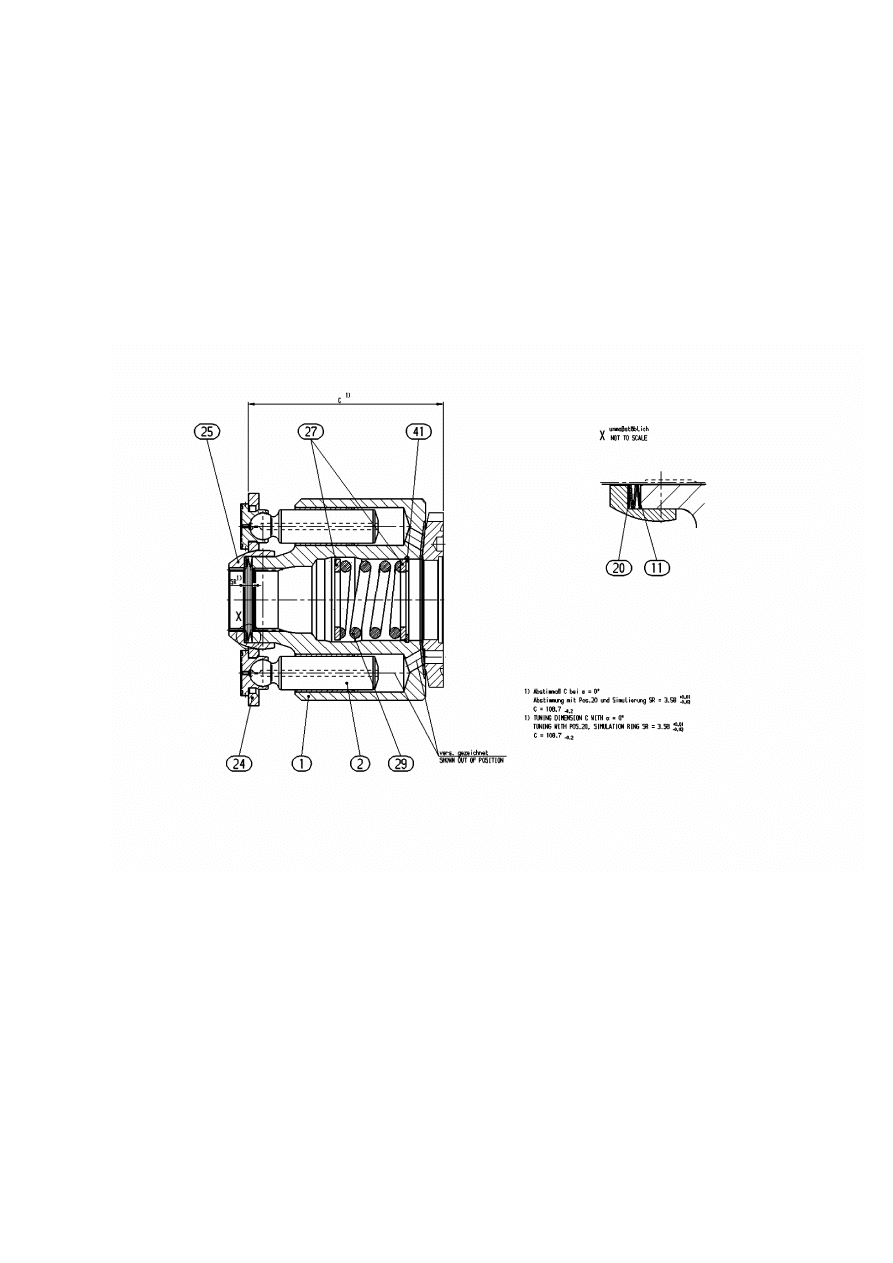

Designation: ROTARY GROUP, HYDR. SECTION
Pos.
Designation
Part No.
Quantity
1
R909443972
1 ST
CYLINDER WITH BUSHING
2
R909416736
9 ST
PISTON-SLIPPER PAD
11
R909921901
1 ST
CUP-SPRING STACK
20
R909432988
1 ST
SHIM
20
R909432989
1 ST
SHIM
20
R909432987
1 ST
SHIM
20
R909432990
1 ST
SHIM
24
R909921904
1 ST
RETAINING PLATE
25
R909921905
1 ST
RETAINING BALL
27
R909921903
2 ST
WASHER
29
R909435254
1 ST
PRESSURE SPRING
41
R909083403
1 ST
RETAINING RING
Page: 5
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R902079250
Spare parts list
Part No.: R902079247
Designation: ROTARY GROUP, HYDR. SECTION
Page: 6
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R902020316
Spare parts list
Part No.: R902016300

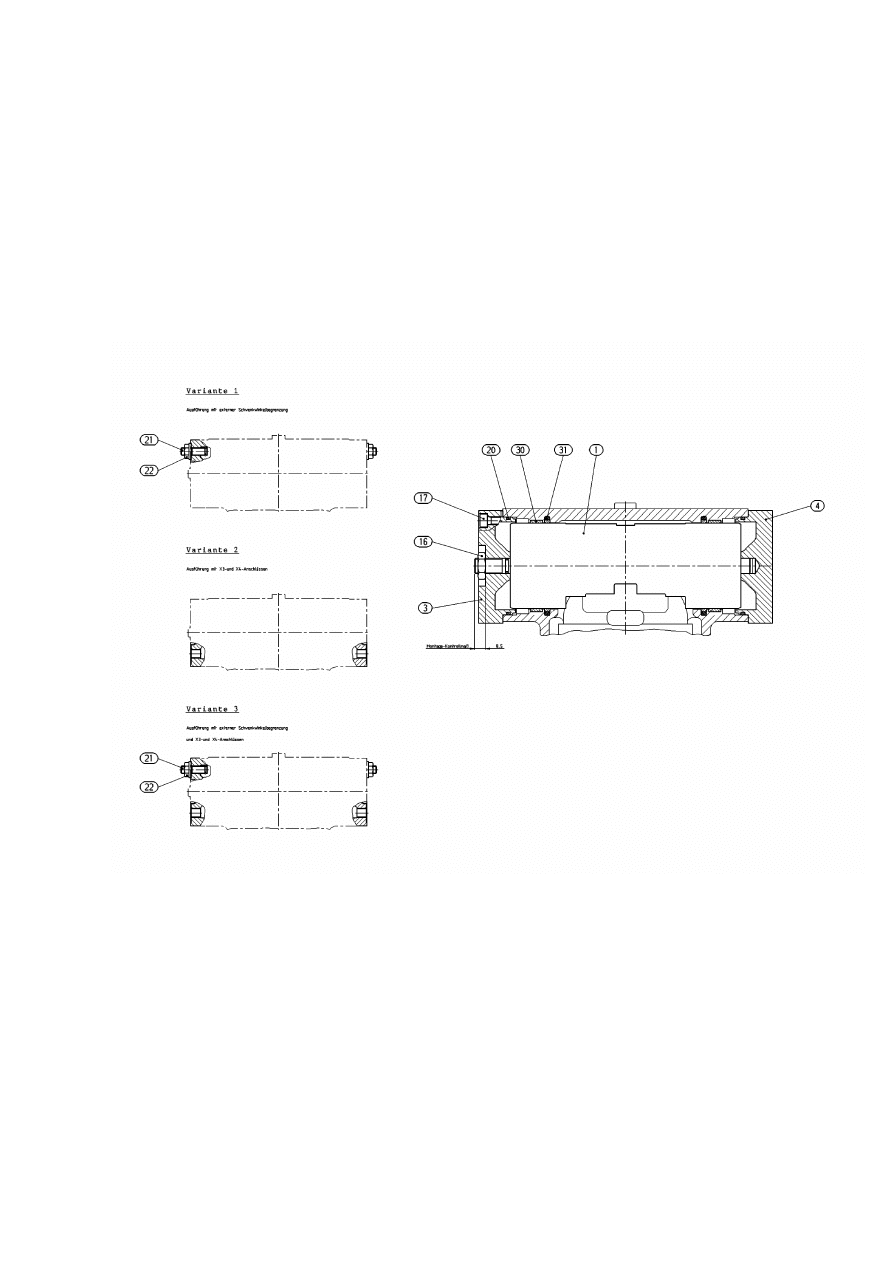

Designation: CONTROL, HYDRAULIC
Pos.
Designation
Part No.
Quantity
1
R902020313
1 ST
L
POSITIONING PISTON
3
R902016301
1 ST
COVER
4
R902016302
1 ST
COVER
16
R909154918
1 ST
HEXAGON NUT
17
R909084744
8 ST
SOCKET-HEAD SCREW
20
R909084482
2 ST
D
O-RING
30
R902600837
2 ST
D
GUIDE RING
31
R902600196
2 ST
D
TURCON-GLYD-RING
98
R902002372
1 ST
SEAL KIT HYDR. CONTROL
Page: 7
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R902020316
Spare parts list
Part No.: R902016300
Designation: CONTROL, HYDRAULIC
Page: 8
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R902020317
Spare parts list
Part No.: R902020313

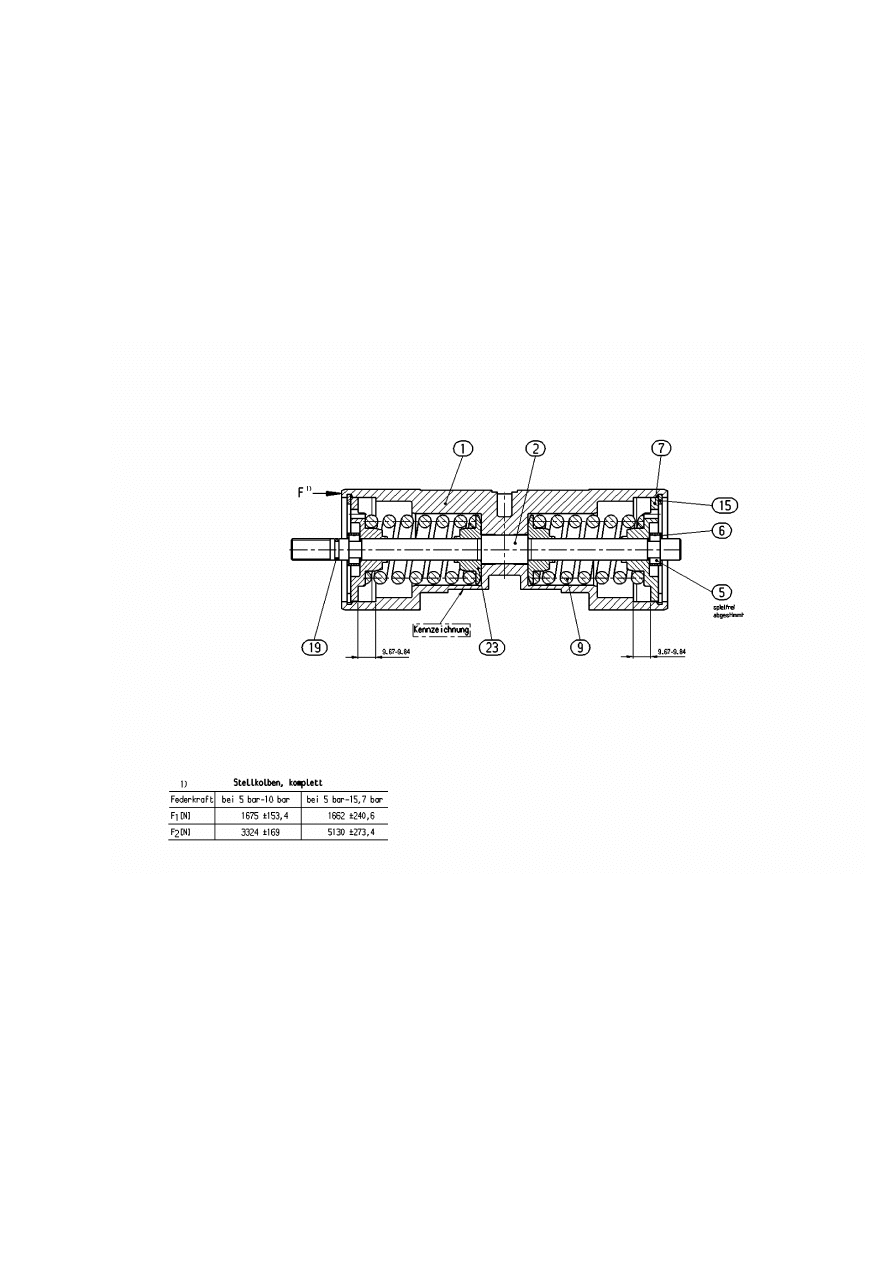

Designation: POSITIONING PISTON
Pos.
Designation
Part No.
Quantity
1
R902004843
1 ST
POSITIONING PISTON
2
R909449239
1 ST
ROD
5
R902013493
2 ST
RING
5
R902015509
2 ST
RING
5
R902015510
2 ST
RING
5
R902015511
2 ST
RING
5
R902015512
2 ST
RING
5
R902015508
2 ST
RING
5
R902015514
2 ST
RING
5
R902015513
2 ST
RING
6
R902600489
2 ST
ASSEMBLY RING
7
R902020101
2 ST
SPRING COLLAR
9
R909432979
2 ST
PRESSURE SPRING
15
R909084557
2 ST
RETAINING RING
19
R909085709
1 ST
D
O-RING
23
R909449248
2 ST
SPRING COLLAR
Page: 9
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R902020317
Spare parts list
Part No.: R902020313
Designation: POSITIONING PISTON
Page: 10
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909705321
Spare parts list
Part No.: R909609869

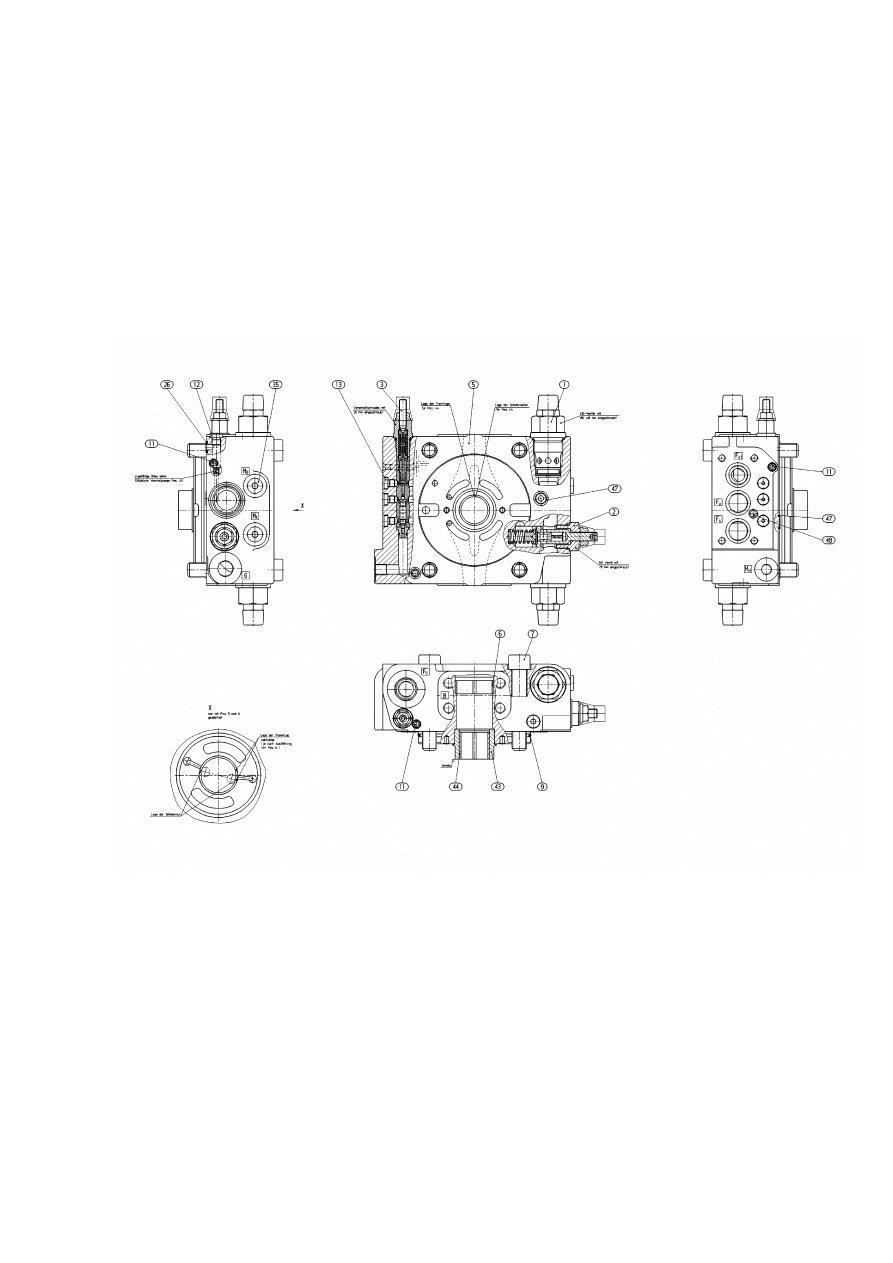

Designation: PORT PLATE WITH VALVES
Pos.
Designation
Part No.
Quantity
1
R902602249
2 ST
L
MHDBN22K2-20/520VHP-130 #150NM
2
R909434856
1 ST
L
PRESSURE RELIEF VALVE
3
R909437084
1 ST
L
PRESSURE OVERRIDE VALVE
5
R909650883
1 ST
PORT PLATE
6
R909449136
1 ST
BEARING BUSHING
7
R909083141
4 ST
SOCKET-HEAD SCREW
9
R909085947
1 ST
O-RING
11
R909831318
2 ST
DOUBLE BREAK-OFF PIN
12
R909153364
1 ST
D
LOCKING SCREW
13
R909154024
3 ST
D
LOCKING SCREW
26
R909085709
2 ST
D
O-RING
35
R909151692
2 ST
D
LOCKING SCREW
43
R909444842
1 ST
BUSH
44
R909426654
1 ST
BEARING BUSHING
47
R909086333
2 ST
D
O-RING
48
R909831319
1 ST
D
DOUBLE BREAK-OFF PIN
98
R902002399
1 ST
SEAL KIT PORT PLATE WITH VALVES
Page: 11
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909705321
Spare parts list
Part No.: R909609869
Designation: PORT PLATE WITH VALVES
Page: 12
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Spare parts list
Part No.: R902602249
Designation: MHDBN22K2-20/520VHP-130 #150NM
Pos.
Designation
Part No.
Quantity
1
R902600123
1 ST
D
SEAL KIT
2
R902602247
1 ST
CAP
Page: 13
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909730913
Spare parts list
Part No.: R909434856

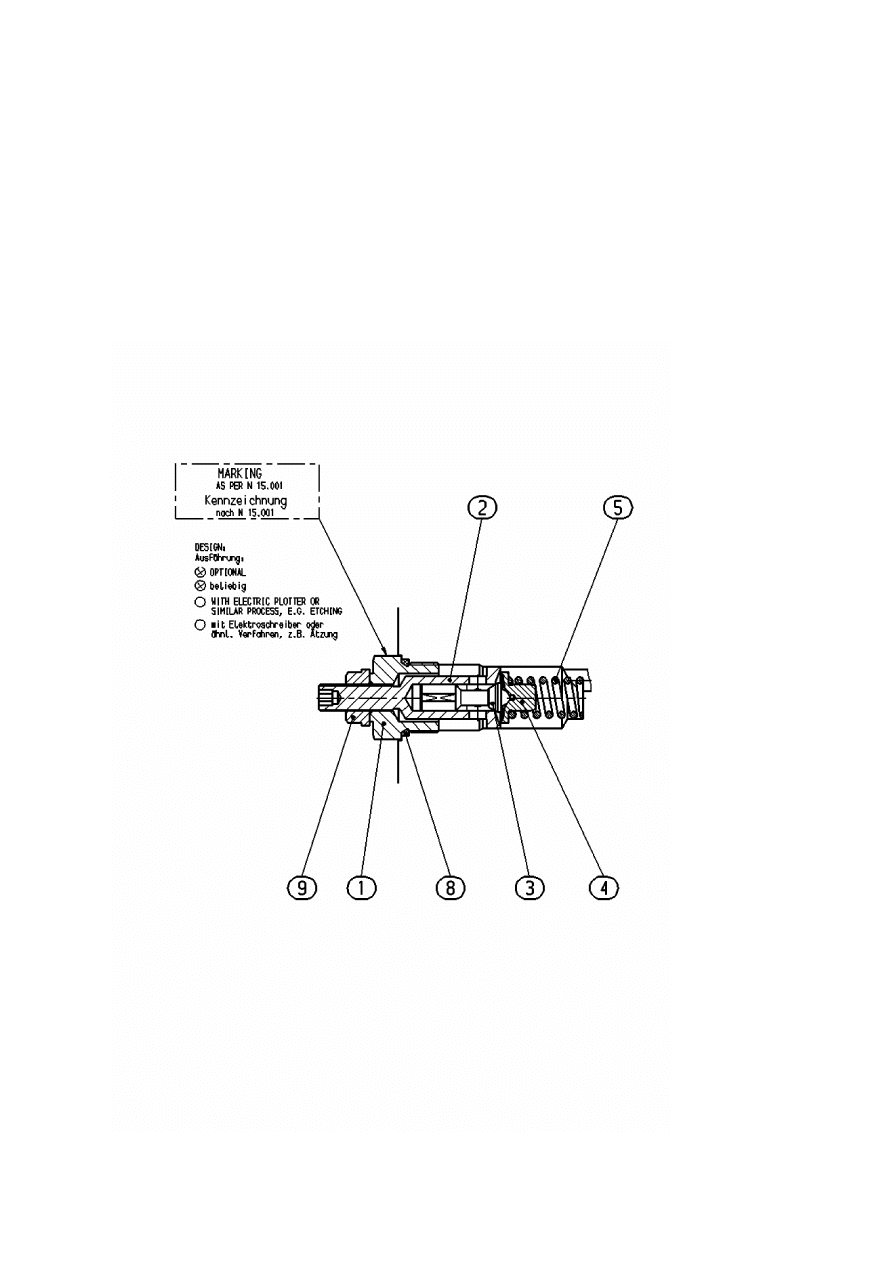

Designation: PRESSURE RELIEF VALVE
Pos.
Designation
Part No.
Quantity
1
R909436167
1 ST
LOCKING SCREW
2
R909449622
1 ST
ADJUSTING SCREW
3
R909435899
1 ST
VALVE PISTON
4
R902010336
1 ST
SPRING COLLAR
5
R909440765
1 ST
PRESSURE SPRING
8
R909083761
1 ST
D
O-RING
9
R909153271
1 ST
D
SEAL LOCK NUT
Page: 14
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909730913
Spare parts list
Part No.: R909434856
Designation: PRESSURE RELIEF VALVE
Page: 15
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909731050
Spare parts list
Part No.: R909437084
Designation: PRESSURE OVERRIDE VALVE
Pos.
Designation
Part No.
Quantity
1
R909432161
1 ST
LOCKING SCREW
2
R909425951
1 ST
VALVE BUSHING
3
R909432162
1 ST
CONTROL PISTON
4
R909432163
1 ST
PISTON
5
R909432164
1 ST
VALVE PISTON
6
R909436284
1 ST
POPPET SEAT
7
R902009402
1 ST
PRESSURE SPRING
8
R902043092
2 ST
SPRING COLLAR
9
R909432167
1 ST
ADJUSTING SCREW
10
R909083752
1 ST
D
O-RING
14
R909152707
1 ST
D
SEAL LOCK NUT
15
R909086380
1 ST
D
O-RING
Page: 16
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units

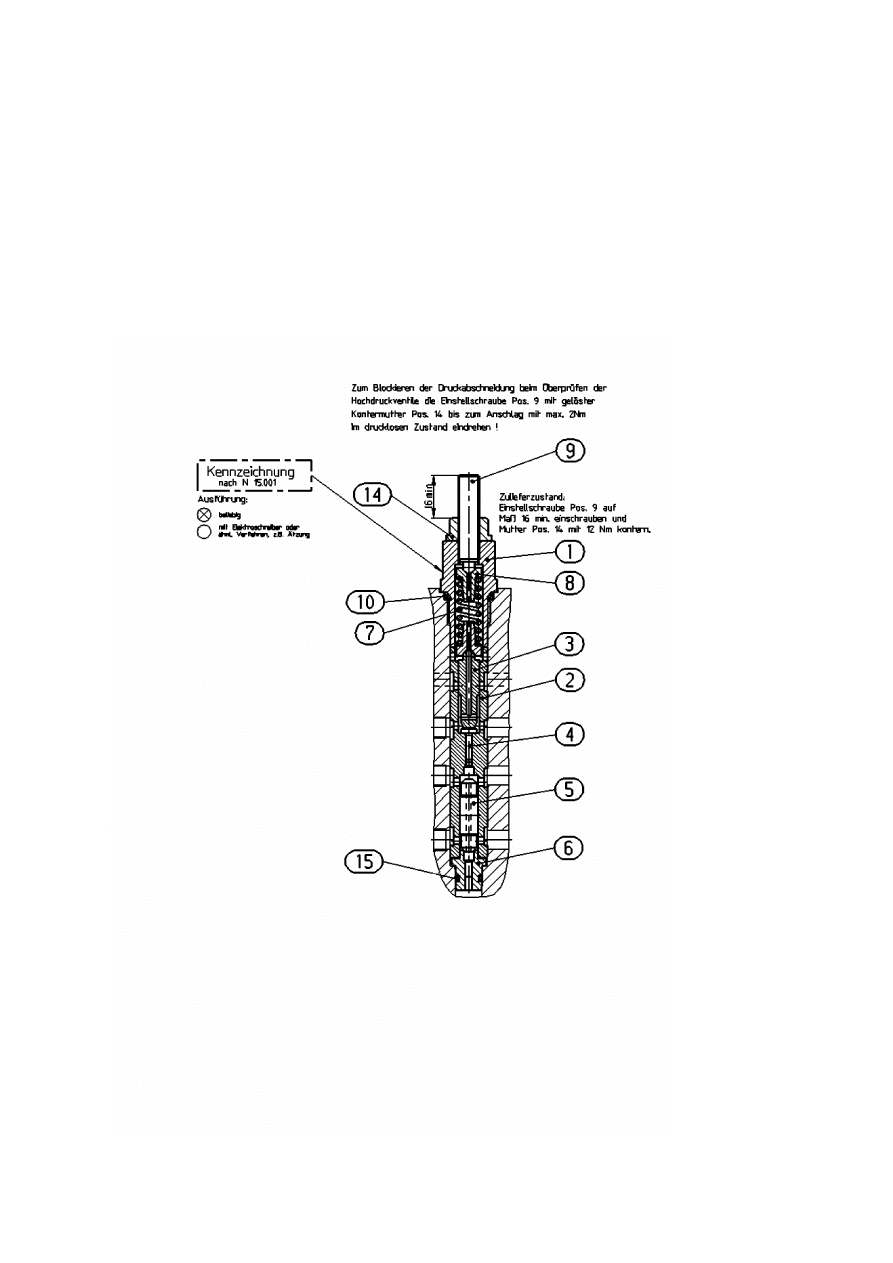

Drawing no.:
R909731050
Spare parts list
Part No.: R909437084
Designation: PRESSURE OVERRIDE VALVE
Page: 17
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units

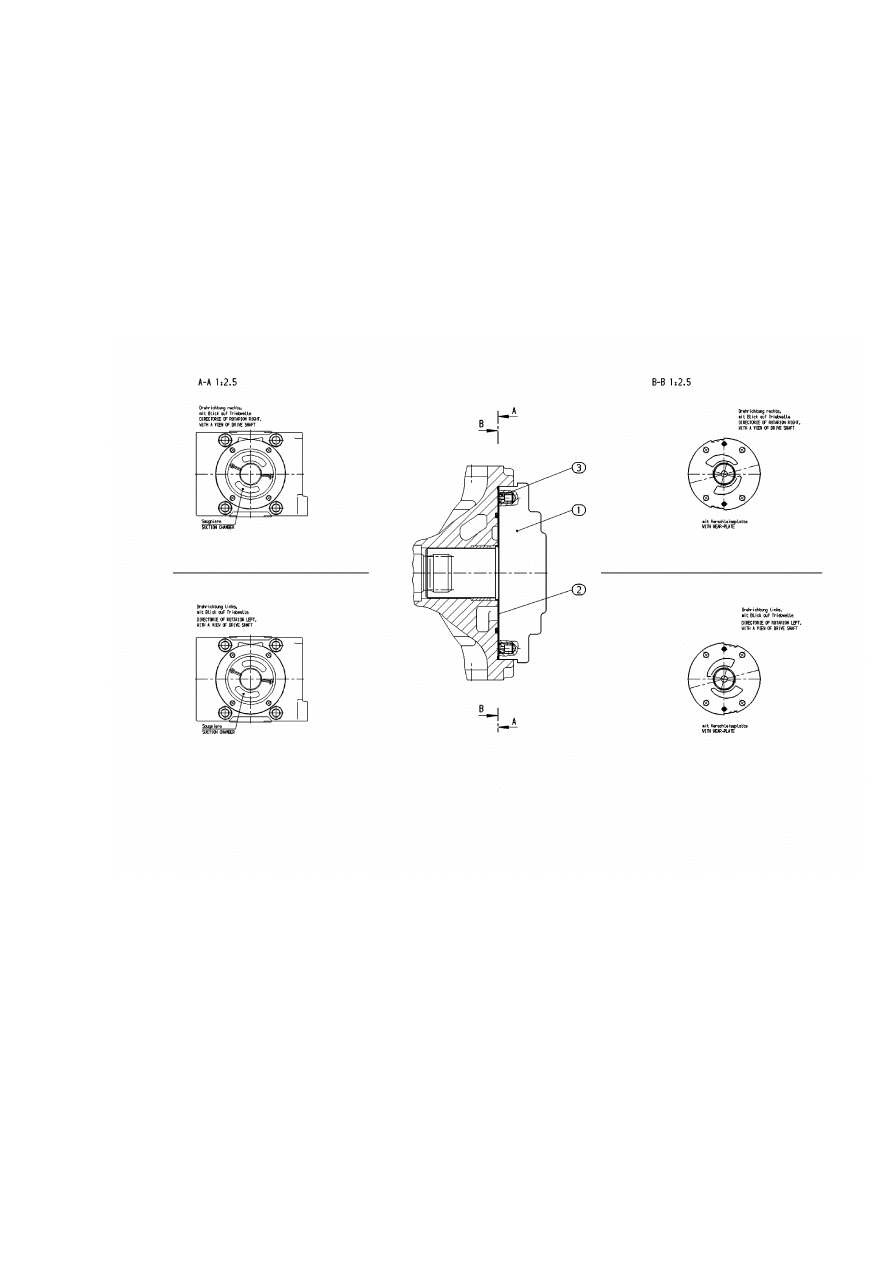

Drawing no.:
R902077732
Spare parts list
Part No.: R909606663
Designation: INTERNAL GEAR PUMP ASSEMBLY
Pos.
Designation
Part No.
Quantity
1
R902077997
1 ST
L
INTERNAL GEAR PUMP
2
R902077978
1 ST
L
WEAR PLATE COMPLETE
3
R902602447
2 ST
LOCKING PLUG
98
R902002411
1 ST
SEAL KIT INTERNAL GEAR PUMP
Page: 18
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R902077732
Spare parts list
Part No.: R909606663
Designation: INTERNAL GEAR PUMP ASSEMBLY
Page: 19
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit

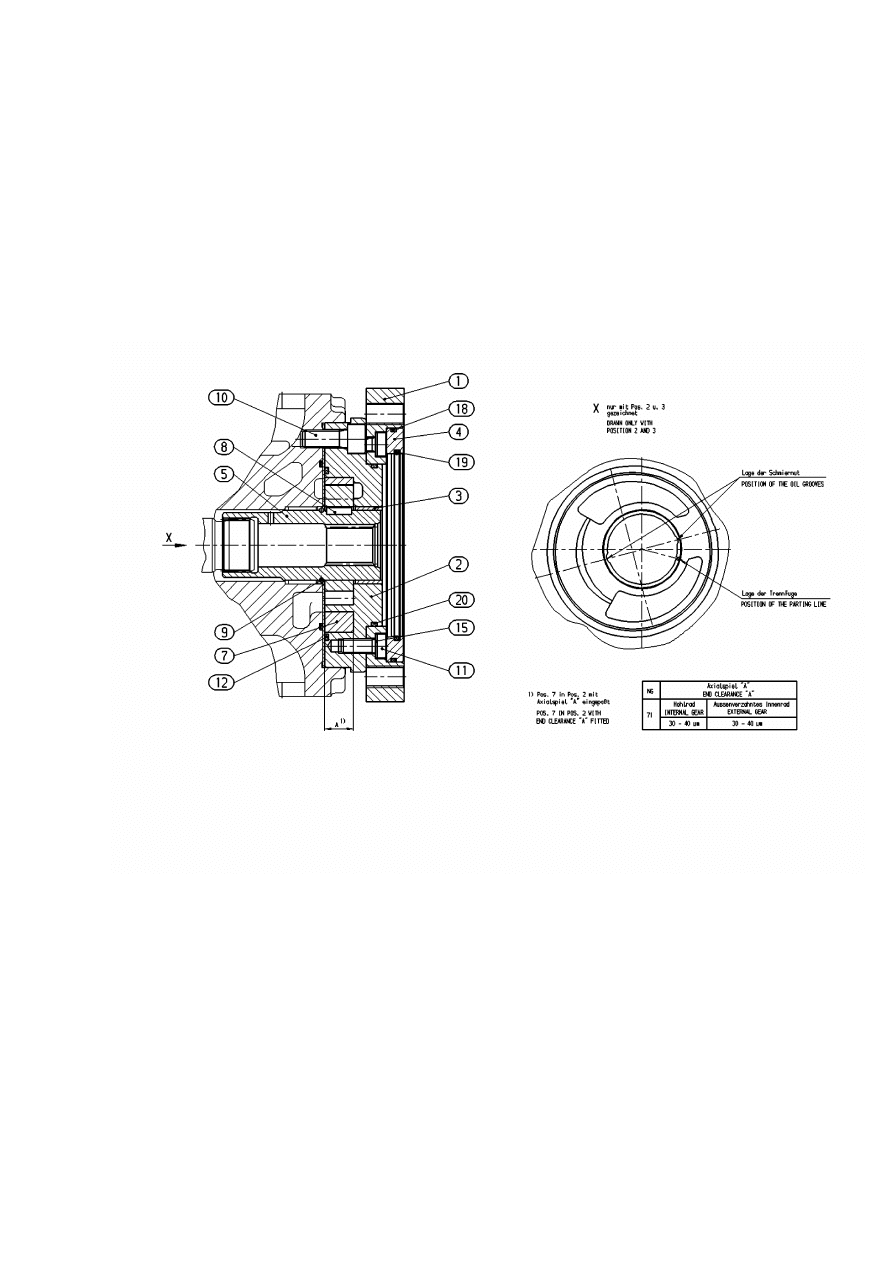

Axial Piston Units
Drawing no.:
R909723596
Spare parts list
Part No.: R902077997
Designation: INTERNAL GEAR PUMP
Pos.
Designation
Part No.
Quantity
1
R909444589
1 ST
INTERMEDIATE FLANGE
2
R902077946
1 ST
PUMP COVER
3
R909449136
1 ST
BEARING BUSHING
4
R909431554
1 ST
CENTERING RING
5
R902013157
1 ST
THROUGH-DRIVE SHAFT
7
R902006258
1 ST
WHEEL SET
8
R902025649
1 ST
SHAFT KEY
9
R909156930
1 ST
SNAP RING
10
R909083060
4 ST
SOCKET-HEAD SCREW
11
R909083189
6 ST
SOCKET-HEAD SCREW
12
R909086679
1 ST
D
O-RING
15
R909152493
6 ST
D
SEAL RING
18
R909085363
1 ST
D
O-RING
19
R909154589
1 ST
D
O-RING
20
R909085360
1 ST
D
O-RING
Page: 20
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909723596
Spare parts list
Part No.: R902077997
Designation: INTERNAL GEAR PUMP
Page: 21
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units

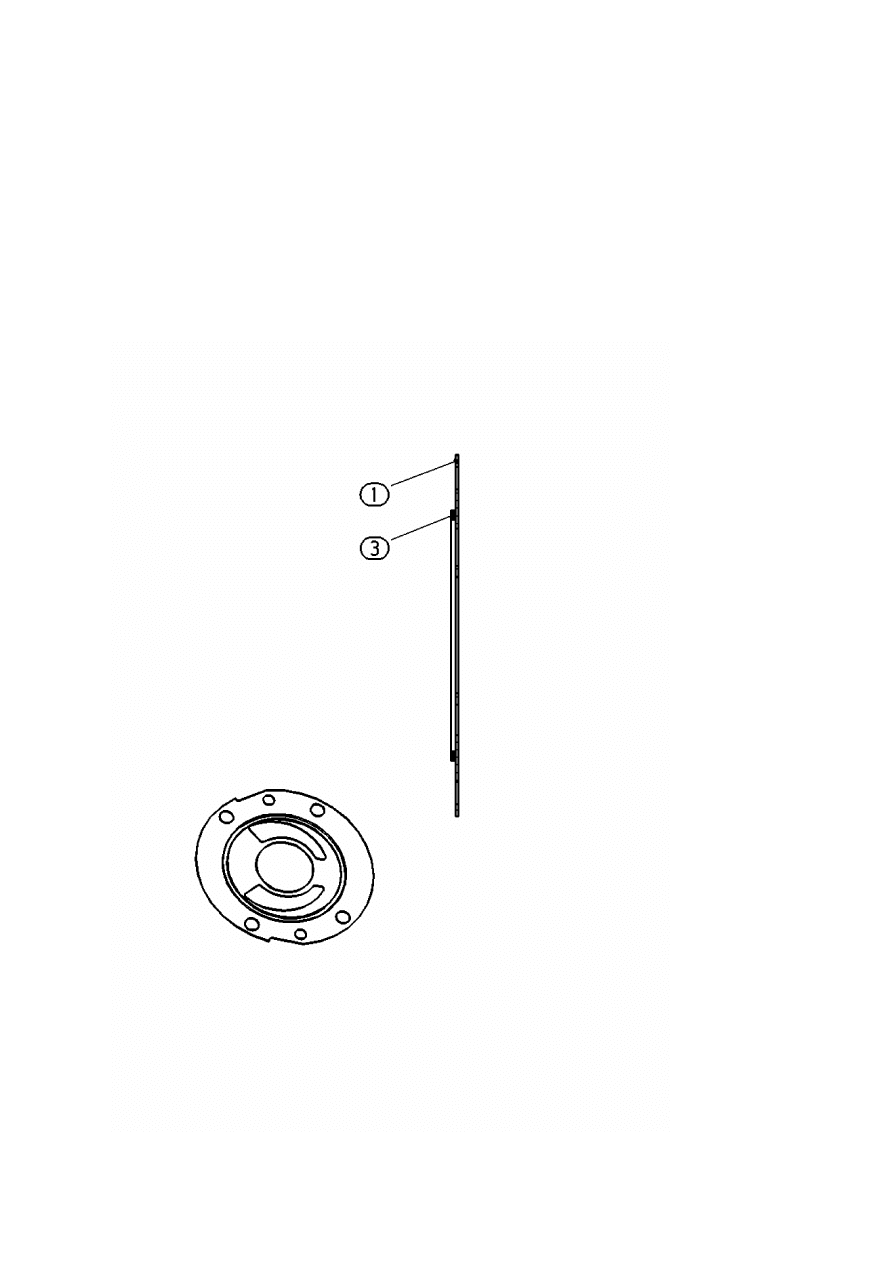

Drawing no.:
R902090839
Spare parts list
Part No.: R902077978
Designation: WEAR PLATE COMPLETE
Pos.
Designation
Part No.
Quantity
1
R902077959
1 ST
WEAR PLATE
3
R909086679
1 ST
D
O-RING
Page: 22
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R902090839
Spare parts list
Part No.: R902077978
Designation: WEAR PLATE COMPLETE
Page: 23
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909726105

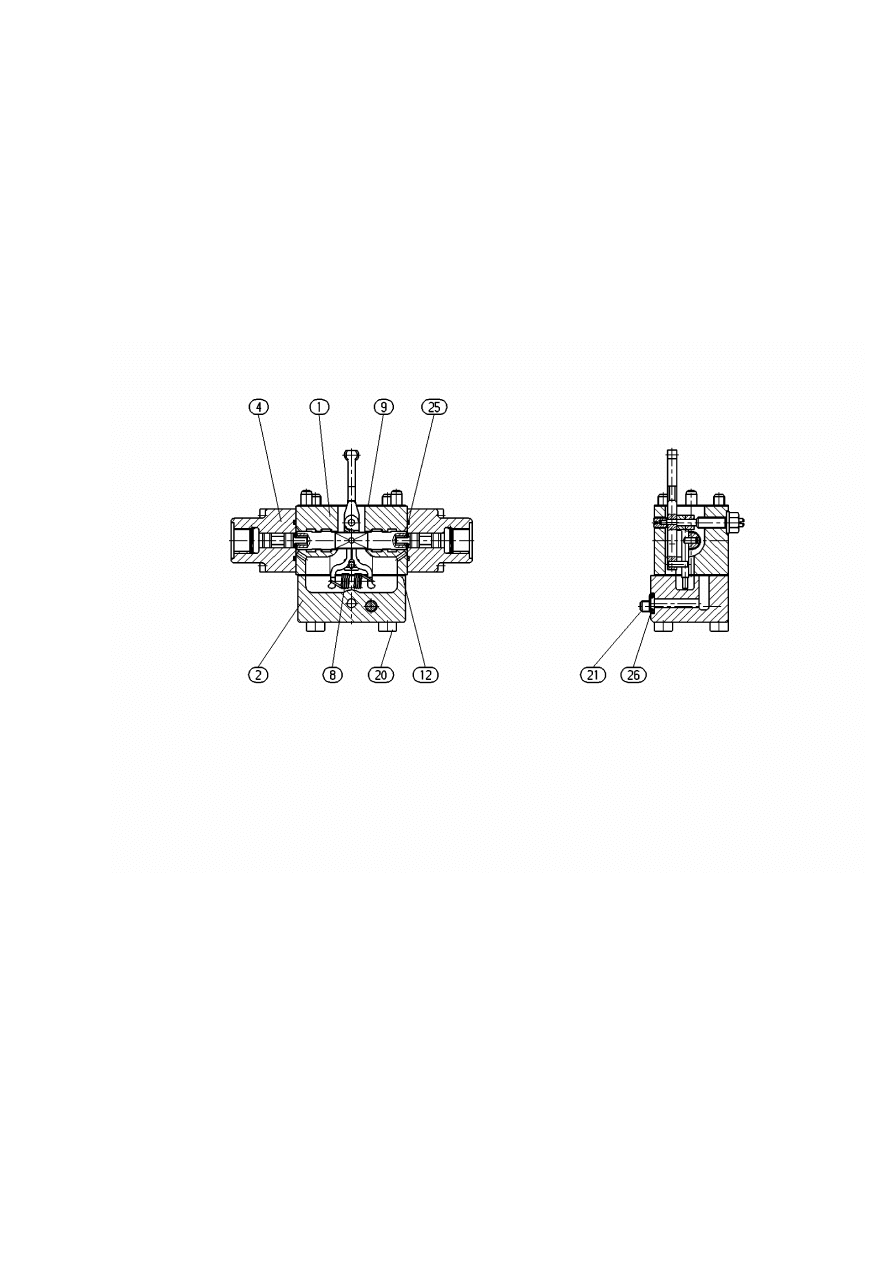

Spare parts list
Part No.: R909428137
Designation: CONTROL MODULE
Pos.
Designation
Part No.
Quantity
1
R909428136
1 ST
L
CONTROL MODULE
2
R902046034
1 ST
COVER
4
R909446129
2 ST
L
CONTROL MODULE ASSEMBLY
8
R909921218
1 ST
DRAW SPRING
9
R902066611
1 ST
D
GASKET
12
R902050037
1 ST
D
GASKET
20
R909085831
4 ST
D
SOCKET-HEAD SCREW
21
R909083027
1 ST
SOCKET-HEAD SCREW
25
R909083737
2 ST
D
O-RING
26
R902600655
1 ST
D
O-RING
98
R902002395
1 ST
SEAL KIT CONTROL MODULE
Page: 24
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909726105
Spare parts list
Part No.: R909428137
Designation: CONTROL MODULE
Page: 25
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units

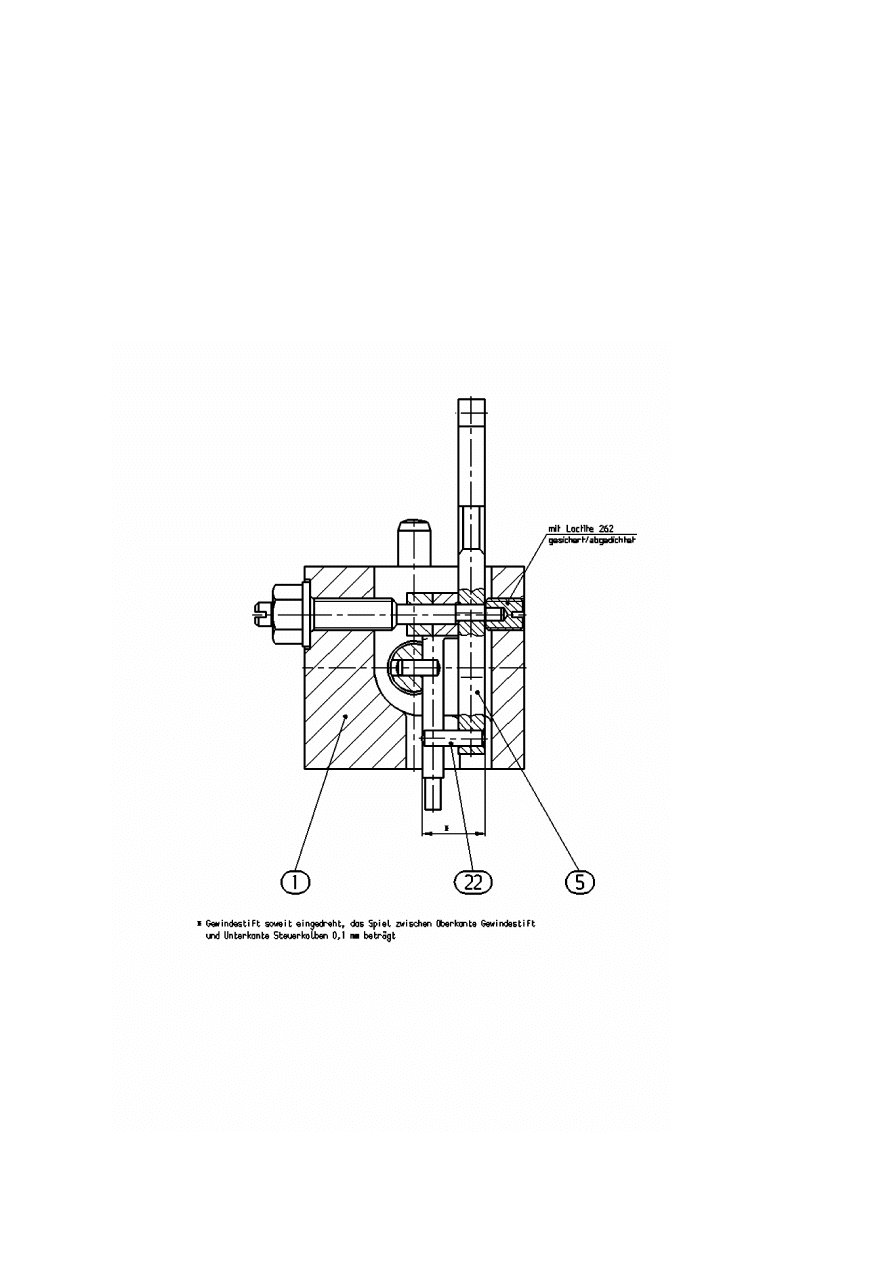

Drawing no.:
R909726103
Spare parts list
Part No.: R909428136
Designation: CONTROL MODULE
Pos.
Designation
Part No.
Quantity
1
R909446128
1 ST
L
CONTROL HOUSING WITH ACCESSOR.
5
R909430319
1 ST
FEEDBACK LEVER
22
R909151552
1 ST
NEEDLE ROLLER
Page: 26
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909726103
Spare parts list
Part No.: R909428136
Designation: CONTROL MODULE
Page: 27
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units

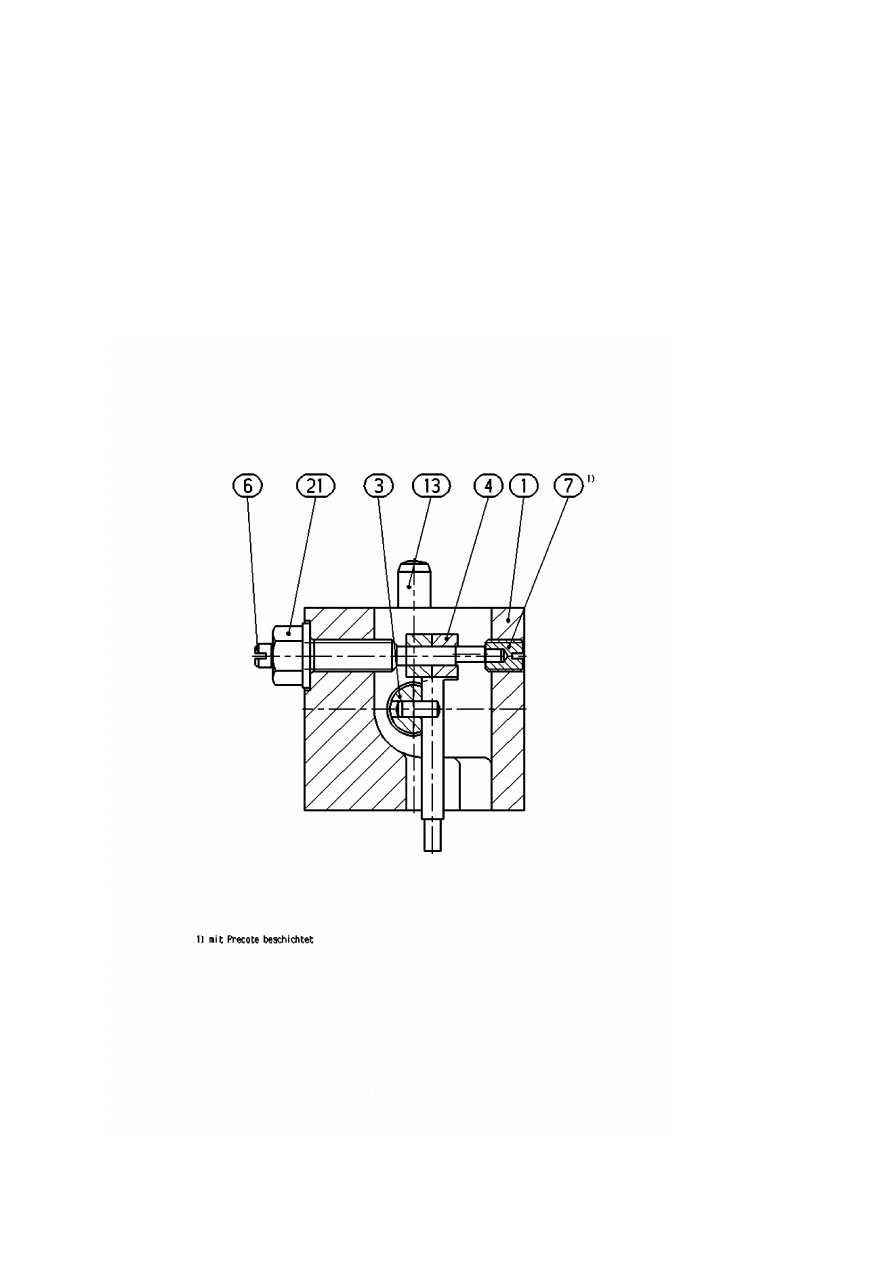

Drawing no.:
R909726076
Spare parts list
Part No.: R909446128
Designation: CONTROL HOUSING WITH ACCESSOR.
Pos.
Designation
Part No.
Quantity
1
R909650739
1 ST
HOUSING
3
R909417412
1 ST
CONTROL PISTON WITH CYL.PIN
4
R909417155
2 ST
LEVER
6
R909449837
1 ST
ECCENTRIC PIN
7
R902016196
1 ST
THREADED PIN
13
R909087338
2 ST
D
CYLINDER PIN
21
R909152425
1 ST
D
SEAL LOCK NUT
Page: 28
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909726076
Spare parts list
Part No.: R909446128
Designation: CONTROL HOUSING WITH ACCESSOR.
Page: 29
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units

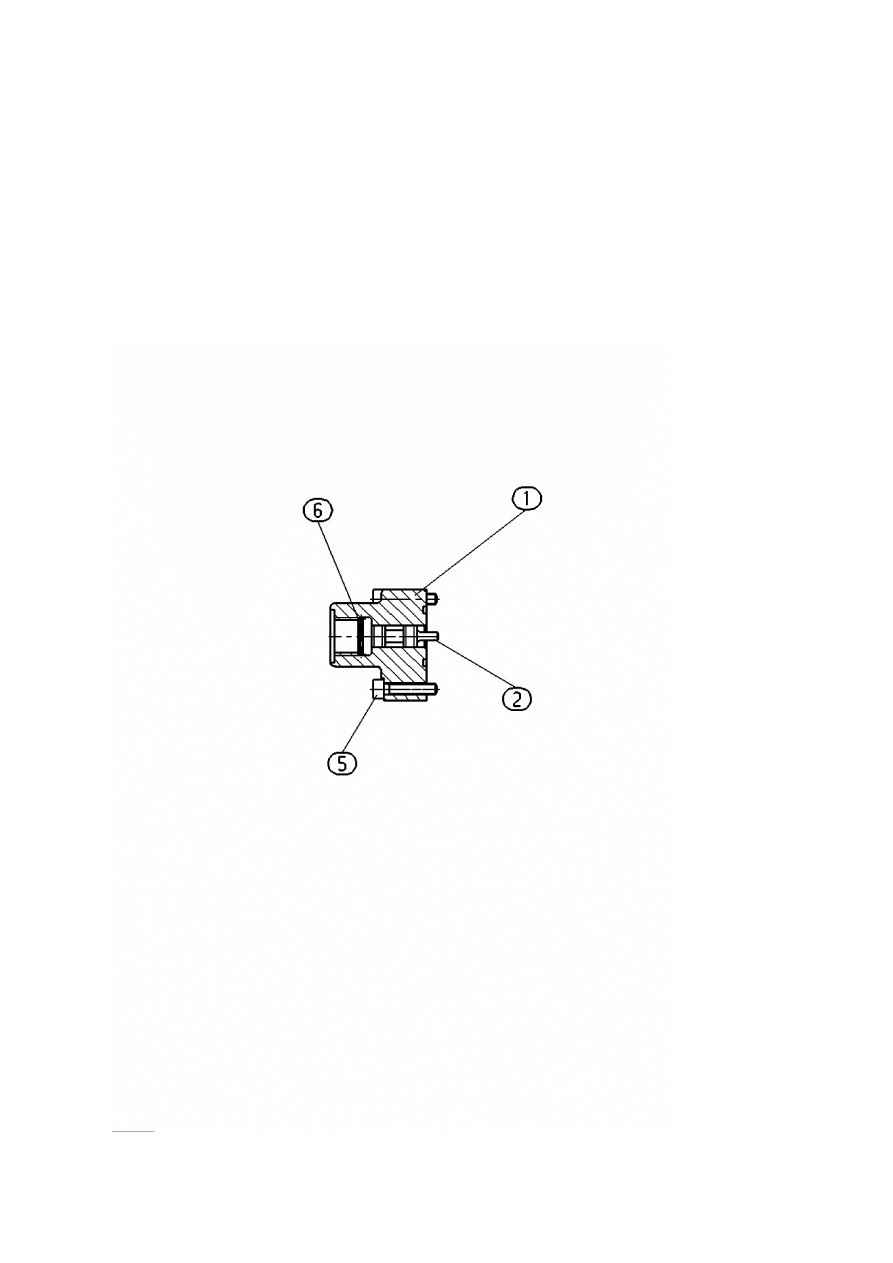

Drawing no.:
R909726077
Spare parts list
Part No.: R909446129
Designation: CONTROL MODULE ASSEMBLY
Pos.
Designation
Part No.
Quantity
1
R909651539
1 ST
HOUSING
2
R909439379
1 ST
PISTON
5
R909083005
4 ST
SOCKET-HEAD SCREW
6
R909156539
1 ST
SNAP RING
Page: 30
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909726077
Spare parts list
Part No.: R909446129
Designation: CONTROL MODULE ASSEMBLY
Page: 31
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909732388
Spare parts list
Part No.: R902019631
Designation: FILTER
Pos.
Designation
Part No.
Quantity
1
R902018840
1 ST
L
FILTER HEAD, COMPLETE
2
R909157926
1 ST
INTERCHANGEABLE FILTER
5
R909831440
1 ST
LOCKING SCREW
12
R909083038
4 ST
SOCKET-HEAD SCREW
13
R909086517
3 ST
D
O-RING
98
R902002432
1 ST
SEAL KIT FILTER
Page: 32
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909732388
Spare parts list
Part No.: R902019631
Designation: FILTER
Page: 33
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units

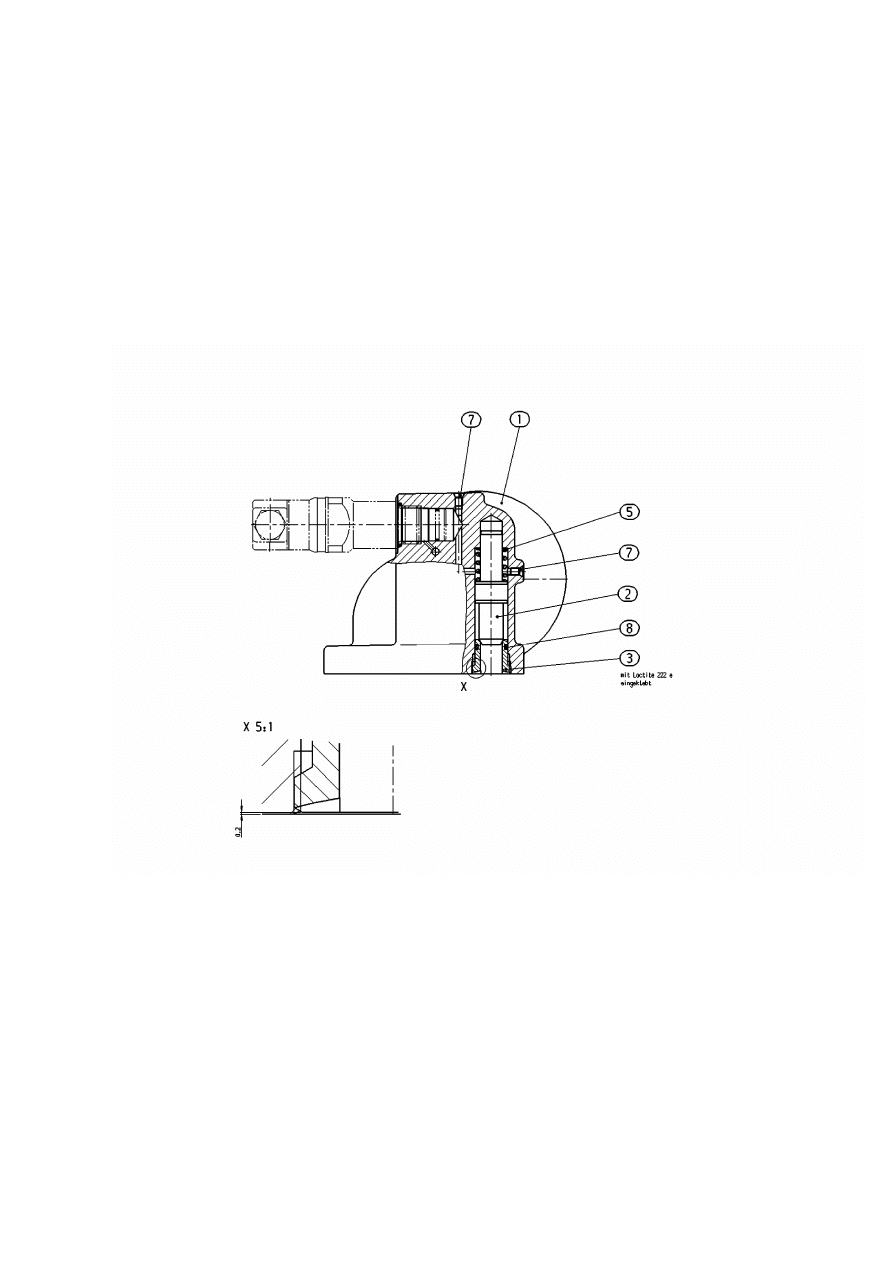

Drawing no.:
R909732393
Spare parts list
Part No.: R902018840
Designation: FILTER HEAD, COMPLETE
Pos.
Designation
Part No.
Quantity
1
R902017170
1 ST
FILTER HEAD
2
R909650232
1 ST
VALVE PISTON
3
R909650231
1 ST
POPPET SEAT
5
R909651439
1 ST
PRESSURE SPRING
7
R909831316
1 ST
DOUBLE BREAK-OFF PIN
8
R909831978
1 ST
D
O-RING
Page: 34
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Rexroth
Bosch Group
Mobile Hydraulics
Product Unit
Axial Piston Units
Drawing no.:
R909732393
Spare parts list
Part No.: R902018840
Designation: FILTER HEAD, COMPLETE
Page: 35
Date: 18.08.2005
L = Assembly group D = Sealing element
Status of version: 7/2005
Brueninghaus Hydromatik GmbH, Werk Elchingen, Glockeraustraße 2, D-89275 Elchingen
Wyszukiwarka
Podobne podstrony:
więcej podobnych podstron
