Purpose :

This SOP is separated into three parts : (1)Overview & Tools (2)Disassembly (3)Assembly
This purpose of this SOP is to help engineer assembly & disassembly more easily

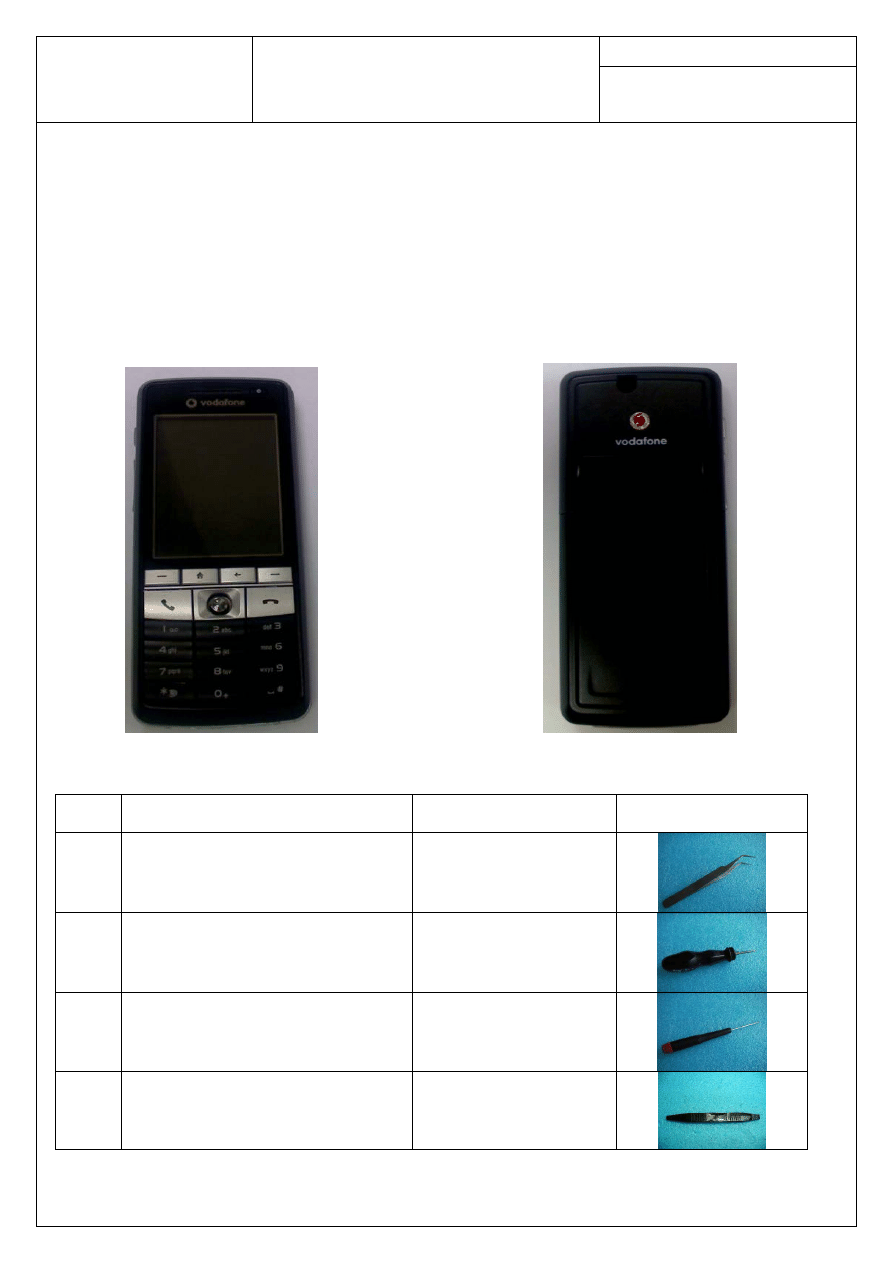

( 1 ) Overview

1. Top site 2. Bottom site

Tools

Item

Part Name


P/N

1

Tweezers

16-000600014

2

Screwdriver ( T5 )

16-T00362002

3

Screwdriver ( + )

16-000511307

4

PLASTIC WRENCH

13GV0400PZZZ

Doc. No:

ASUSTeK COMPUTER INC.

Halley Assembly & Disassembly

SOP

Date:
Rev.: Page:

2

Repair Index:

A.

How to remove the Battery?

Pg.2

B.

How to remove the Cases?

Pg.3

C.

How to remove the Earpiece?

Pg.8

D.

How to remove the Keypad Assembly?

Pg.8

E.

How to remove the Speaker?

Pg.9

F.

How to remove the Vibrator?

Pg.9

G.

How to remove the Main Board Module?

Pg.10

H.

How to remove the LCD Module?

Pg.12

(2)Disassembly

A. How to remove the Battery?

Please follow steps 1 and 2.

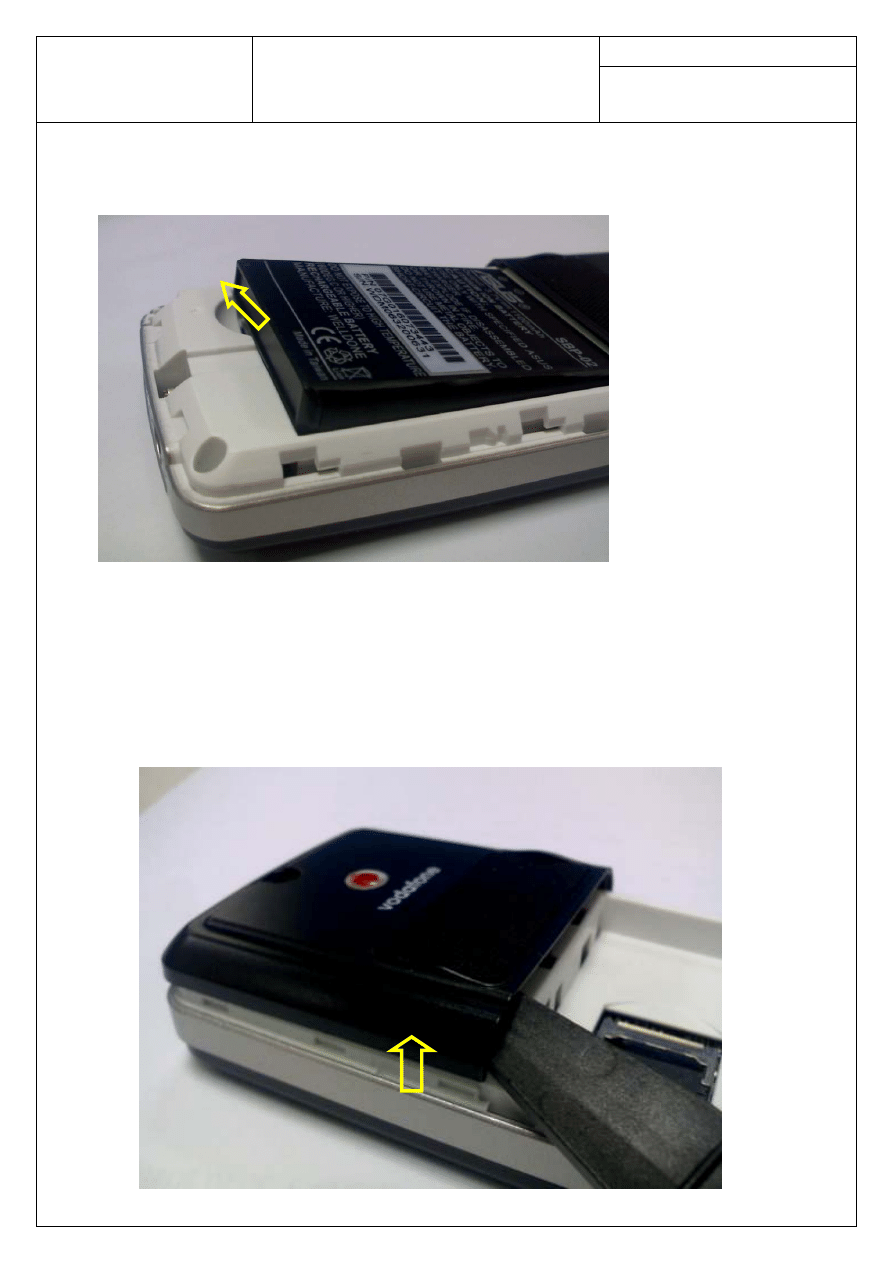

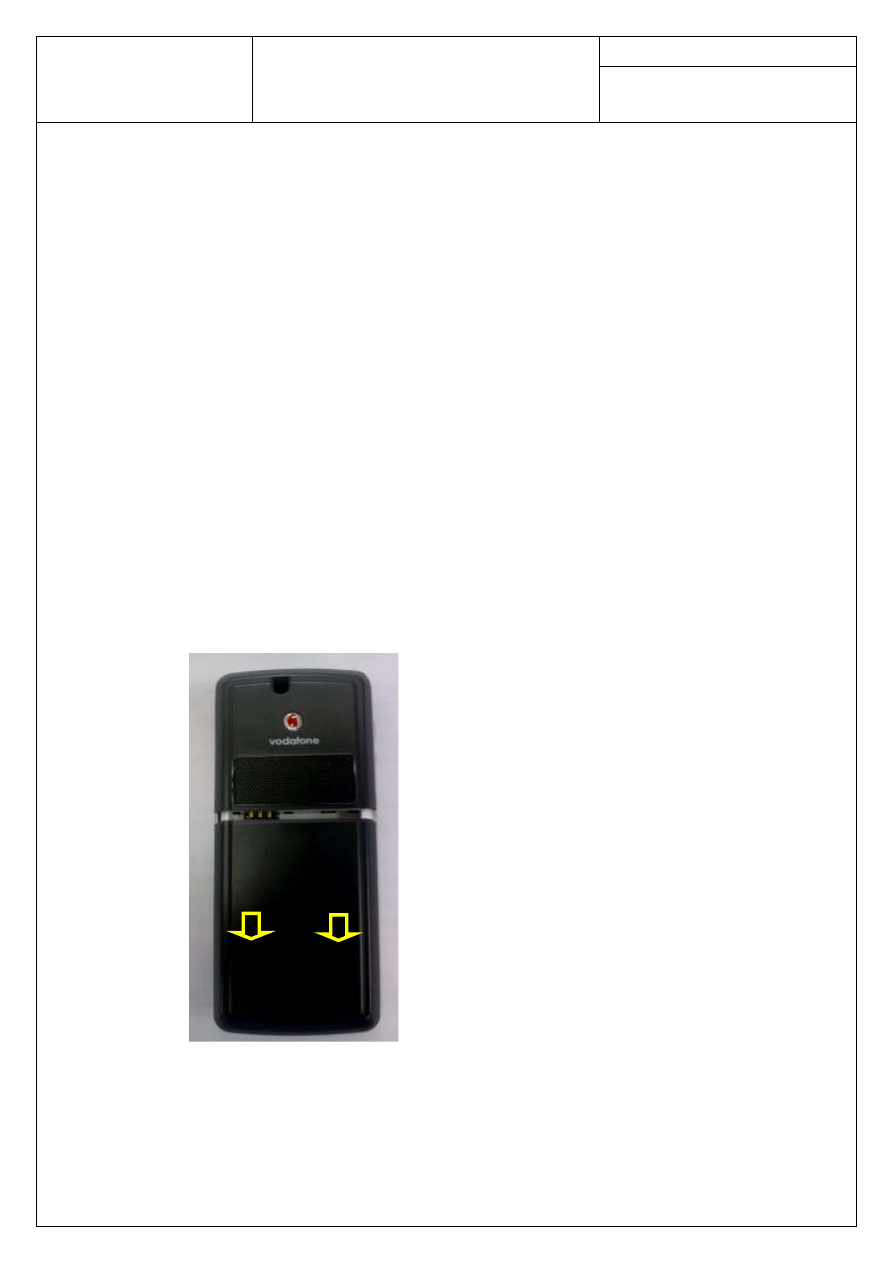

Remove Battery cover by sliding it down with both hands.

Doc. No:

ASUSTeK COMPUTER INC.

Halley Assembly & Disassembly

SOP

Date:
Rev.: Page:

3

Remove Battery with the direction indicated.

B. How to remove the Cases (Top, Middle and Antenna)?

Please follow steps from 1~6.

Remove antenna cover by using a pair of tweezers to lift up the left side of it.

Doc. No:

ASUSTeK COMPUTER INC.

Halley Assembly & Disassembly

SOP

Date:
Rev.: Page:

4

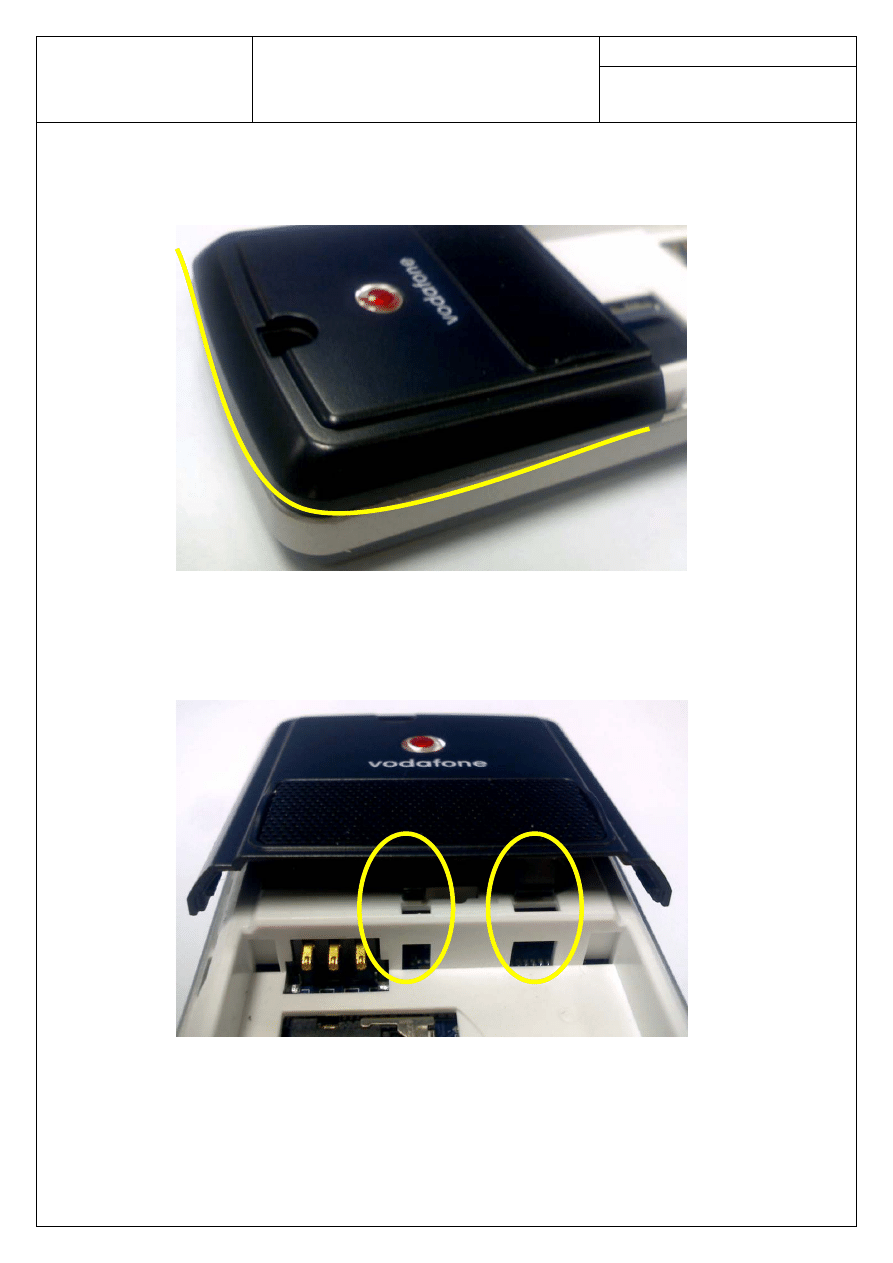

Slide to open with the yellow line indicated in the below picture.

Watch out for the two hooks as indicated by yellow circle when you remove the antenna cover.

Doc. No:

ASUSTeK COMPUTER INC.

Halley Assembly & Disassembly

SOP

Date:
Rev.: Page:

5

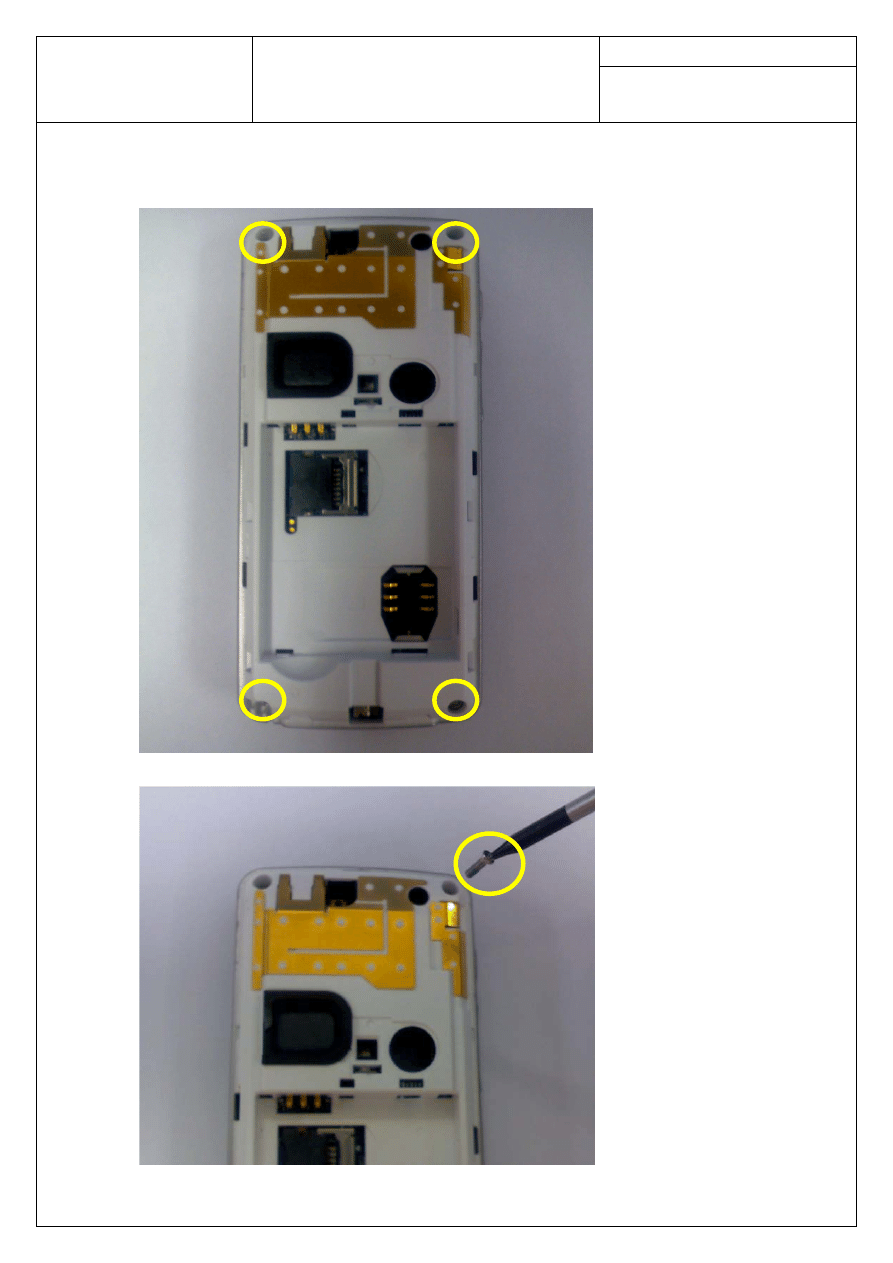

Remove 4 screws with T5 screwdriver.

Doc. No:

ASUSTeK COMPUTER INC.

Halley Assembly & Disassembly

SOP

Date:
Rev.: Page:

6

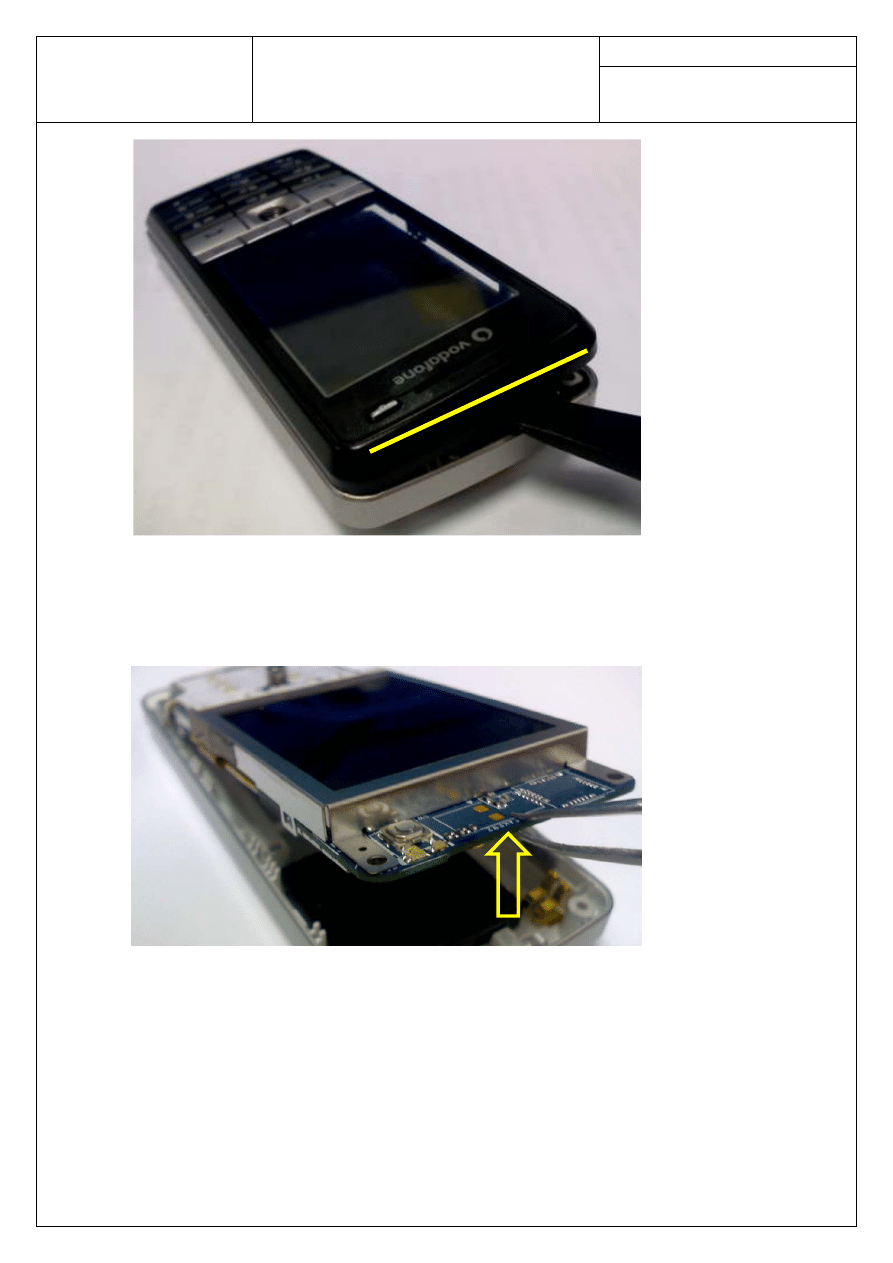

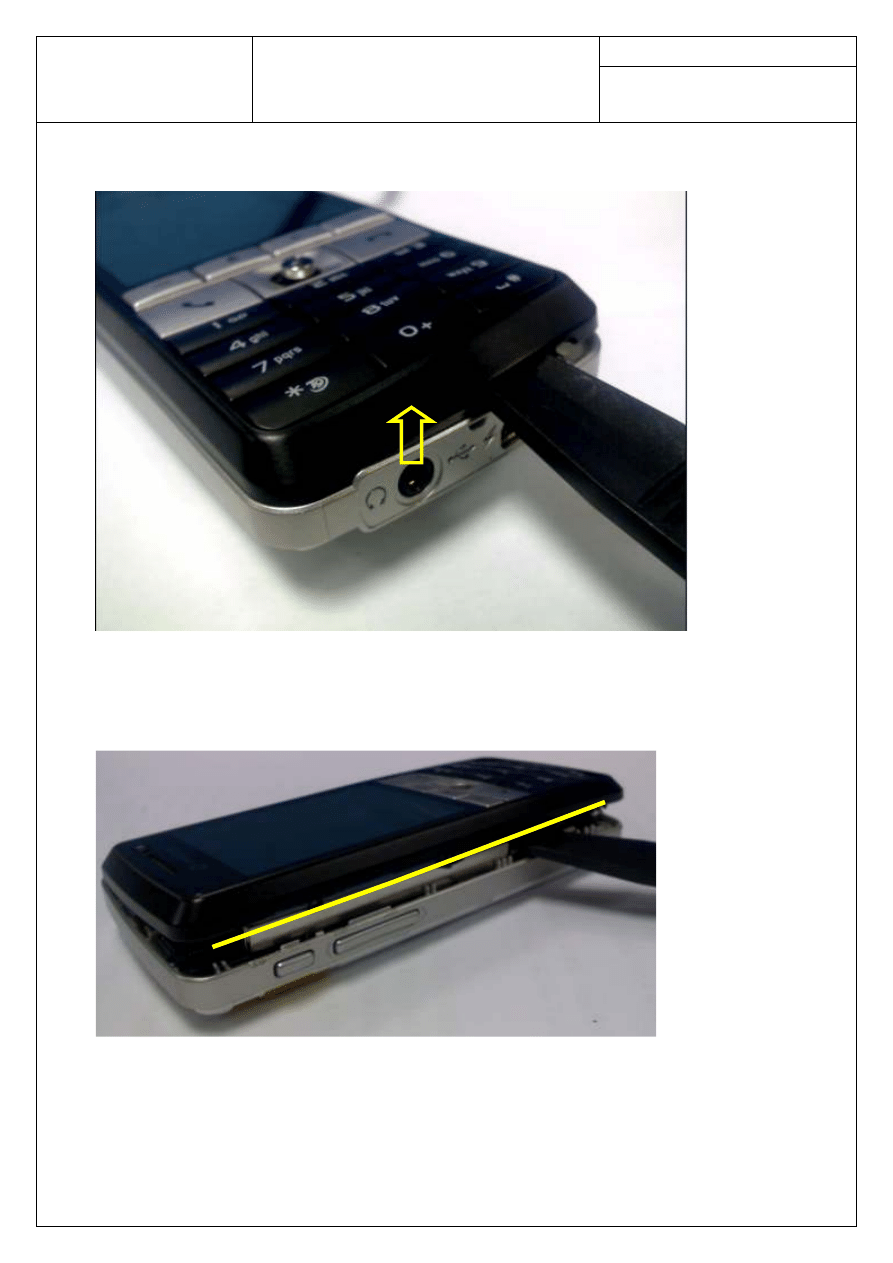

Remove Top Case Assembly by inserting a plastic wrench between top and middle assembly.

Slide to open with the yellow line indicated in the below picture.

Doc. No:

ASUSTeK COMPUTER INC.

Halley Assembly & Disassembly

SOP

Date:
Rev.: Page:

7

Remove Middle Case Assembly by removing Main Board with a pair of tweezers.

Doc. No:

ASUSTeK COMPUTER INC.

Halley Assembly & Disassembly

SOP

Date:
Rev.: Page:

8

C. How to remove the Earpiece?

Please follow steps from 1~5 and 7.

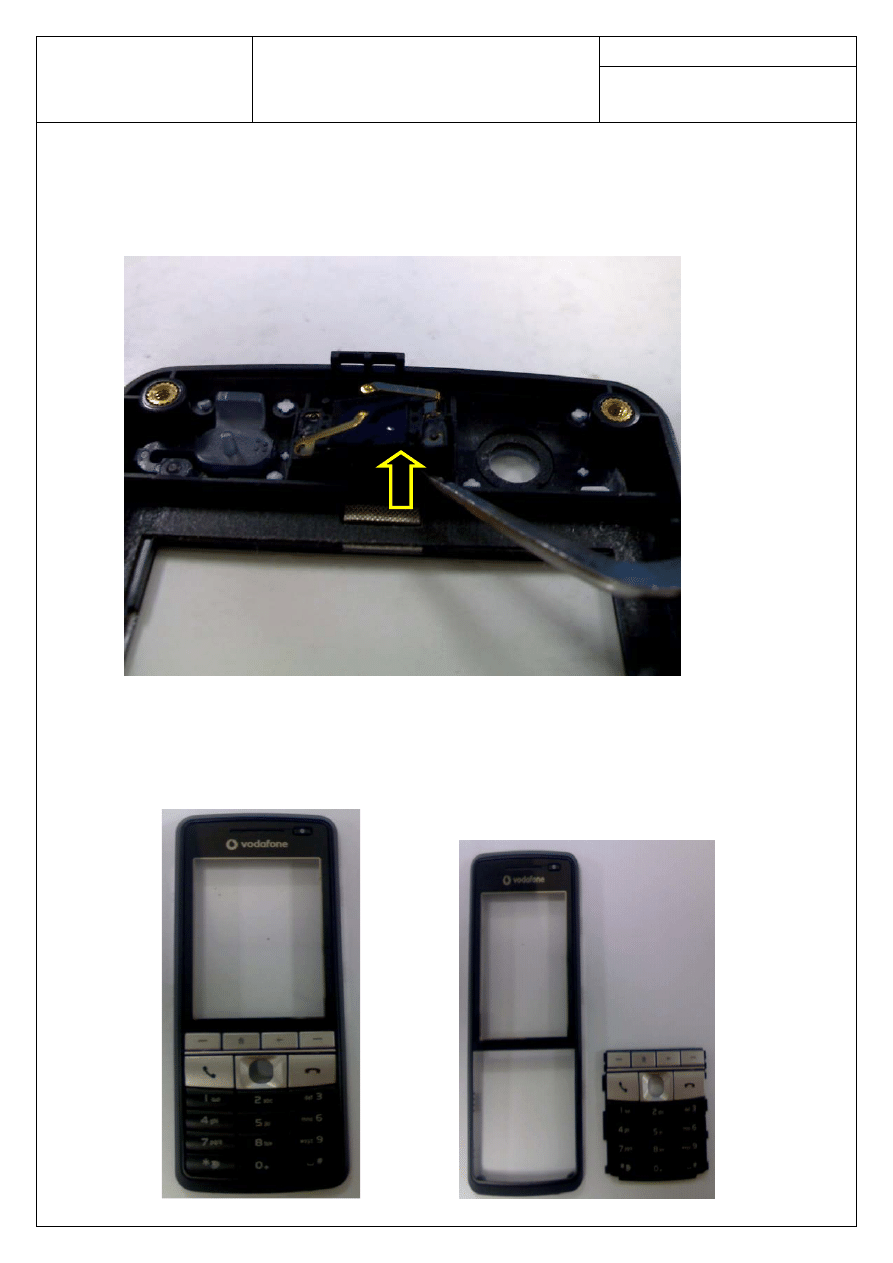

Remove receiver with a pair of tweezers.

D. How to remove the Keypad Assembly?

Please follow steps from 1~5 and 8.

Remove Keypad Assembly.

Doc. No:

ASUSTeK COMPUTER INC.

Halley Assembly & Disassembly

SOP

Date:
Rev.: Page:

9

E. How to remove the Speaker?

Please follow steps from 1~6 and 9.

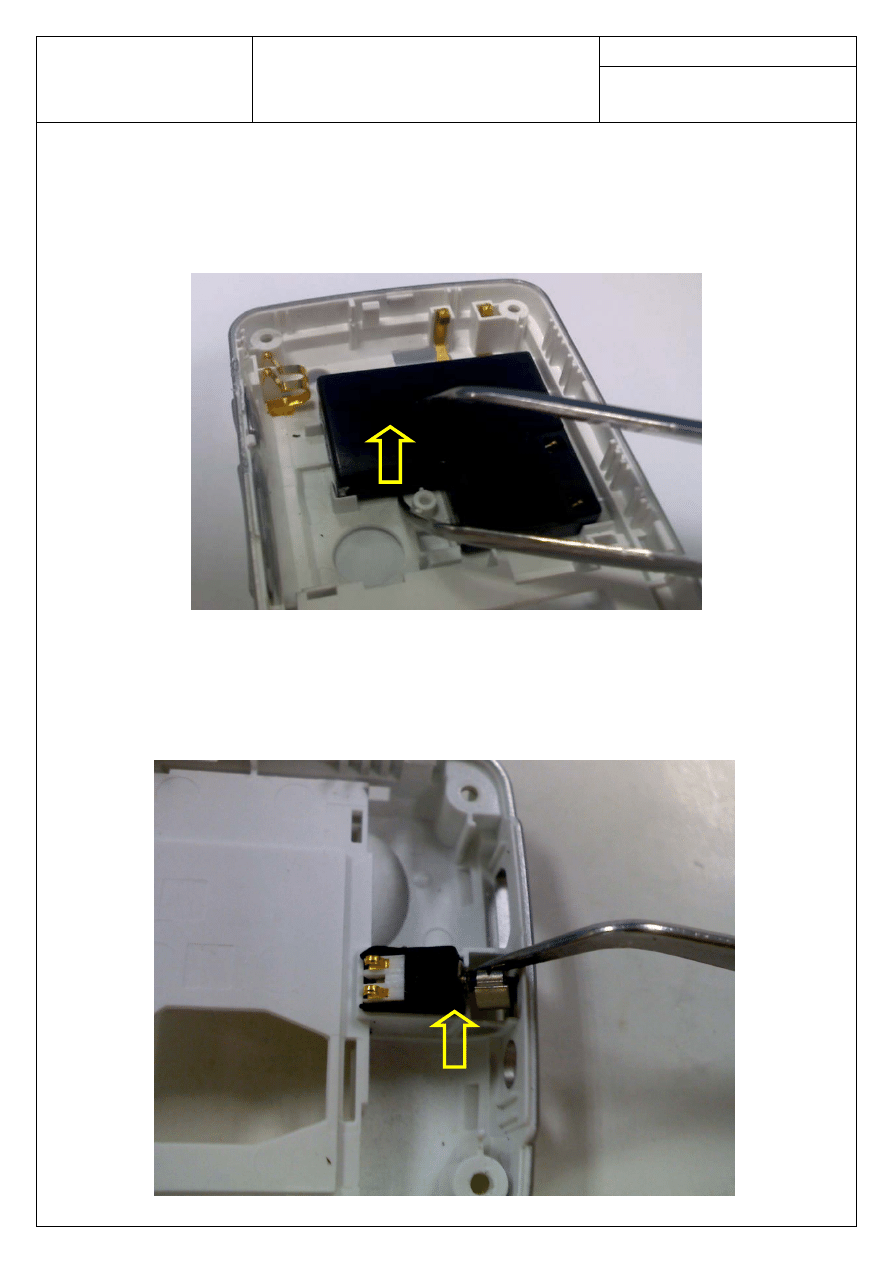

Remove speaker box with a pair of tweezers from the middle case assembly.

F. How to remove the Vibrator?

Please follow steps from 1~6 and 10.

Remove the vibrator with a pair of tweezers.

Doc. No:

ASUSTeK COMPUTER INC.

Halley Assembly & Disassembly

SOP

Date:
Rev.: Page:

10

G. How to remove the Main Board Module?

Please follow steps from 1~6 and 12~16.

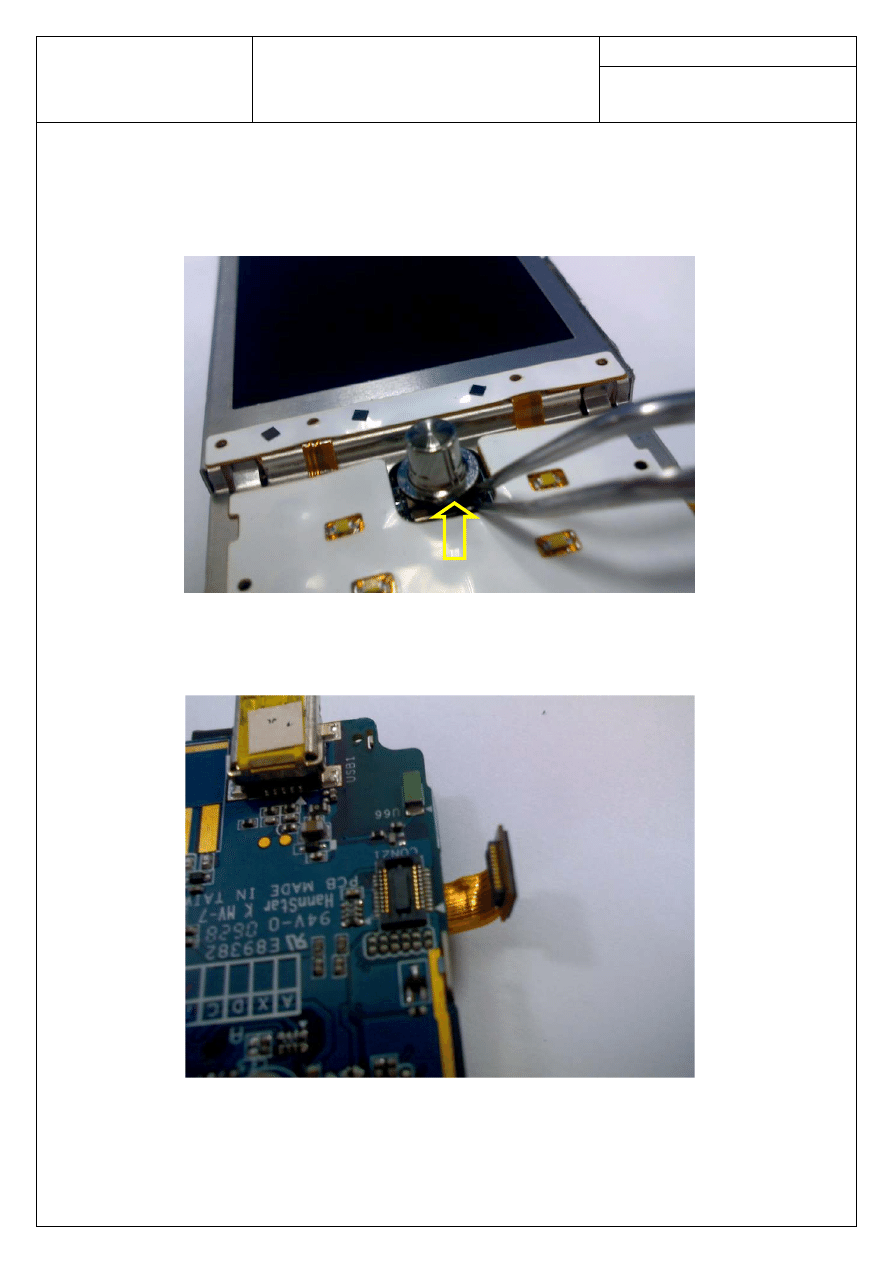

Remove the joystick

Detach the keypad FPC connector.

Doc. No:

ASUSTeK COMPUTER INC.

Halley Assembly & Disassembly

SOP

Date:
Rev.: Page:

11

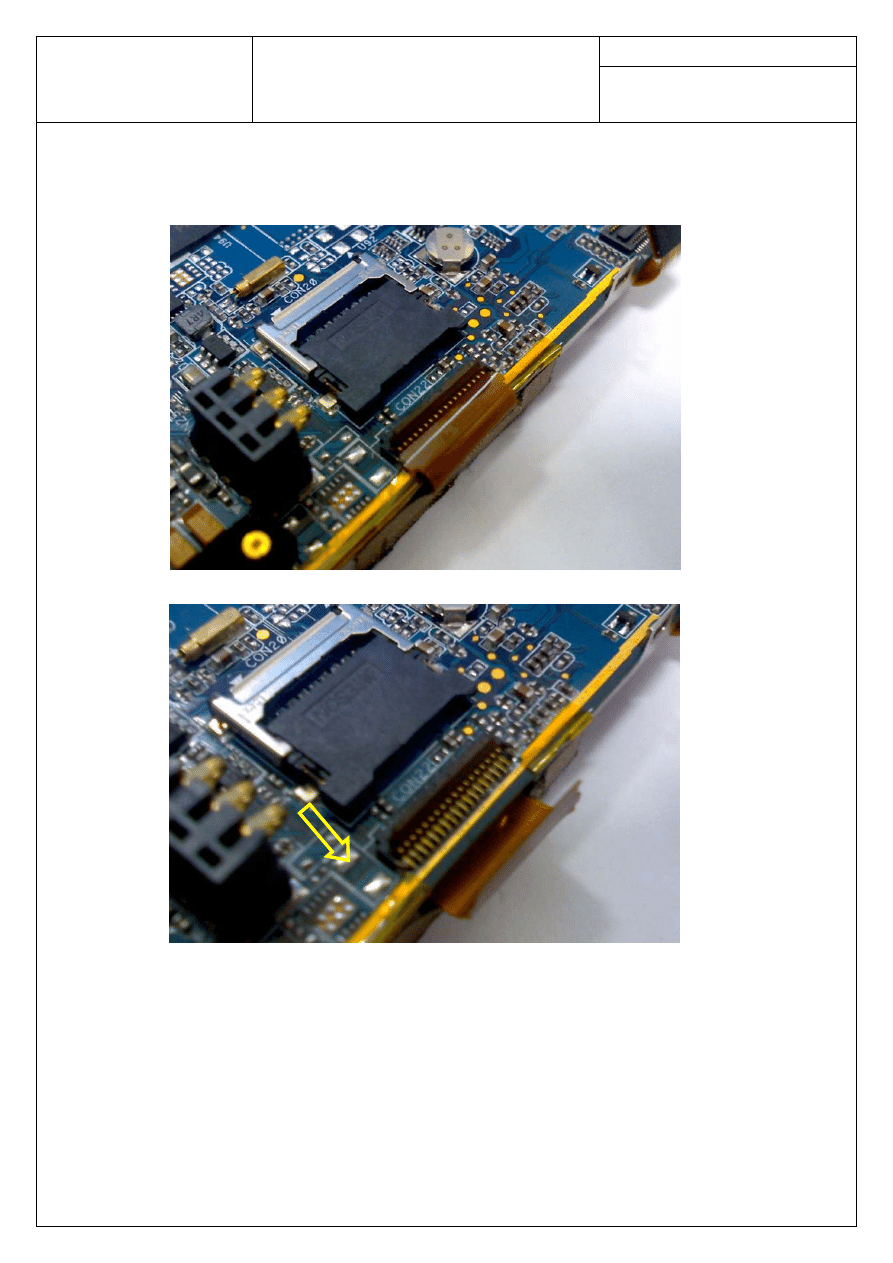

Remove the LCD FPC by up flip the connector switch.

Connected

Detach

Doc. No:

ASUSTeK COMPUTER INC.

Halley Assembly & Disassembly

SOP

Date:
Rev.: Page:

12

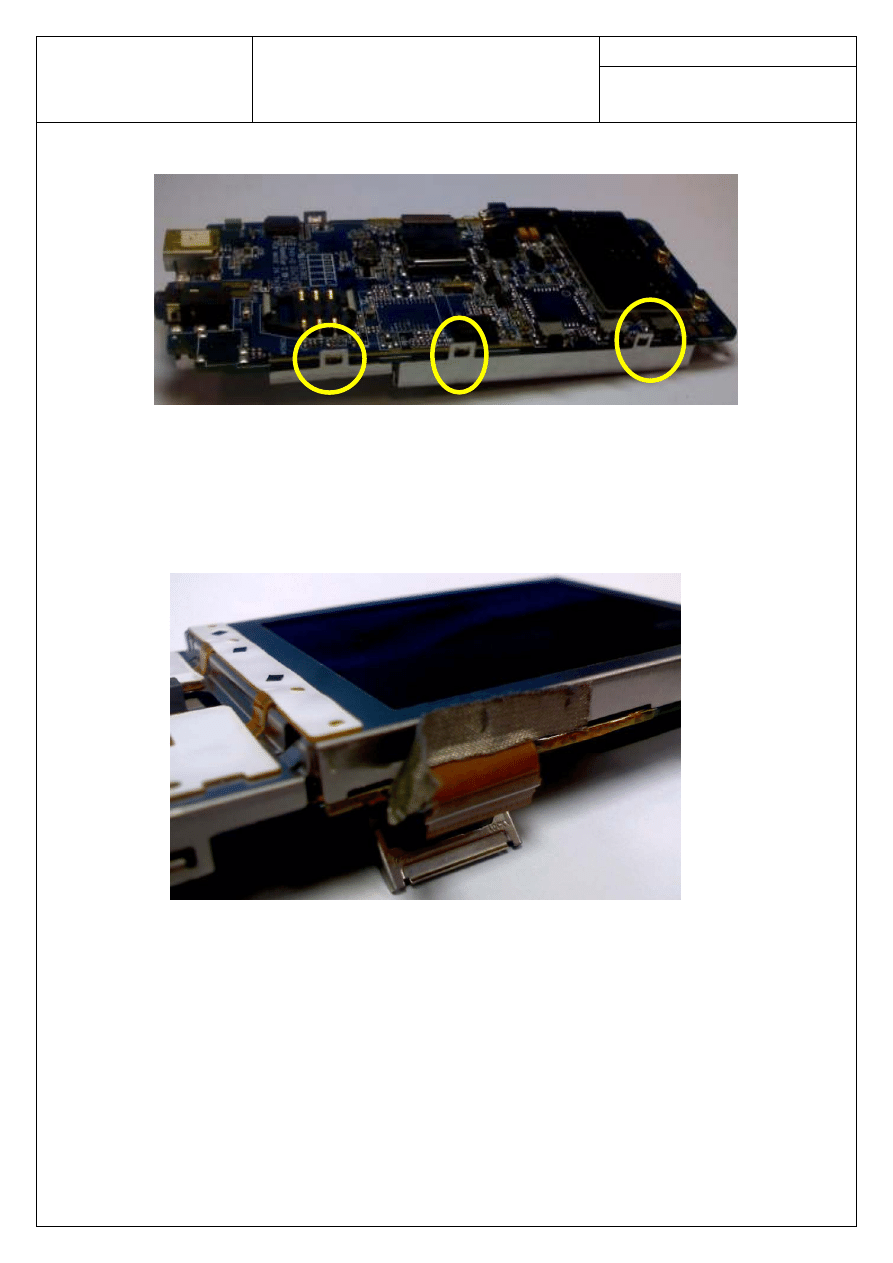

Remove the MB by unlocking the three hooks indicated below.

I. How to remove the LCD Module?

Please follow steps from 1~6, 12~16, and 17~18.

Remove the conductive tape.

Doc. No:

ASUSTeK COMPUTER INC.

Halley Assembly & Disassembly

SOP

Date:
Rev.: Page:

13

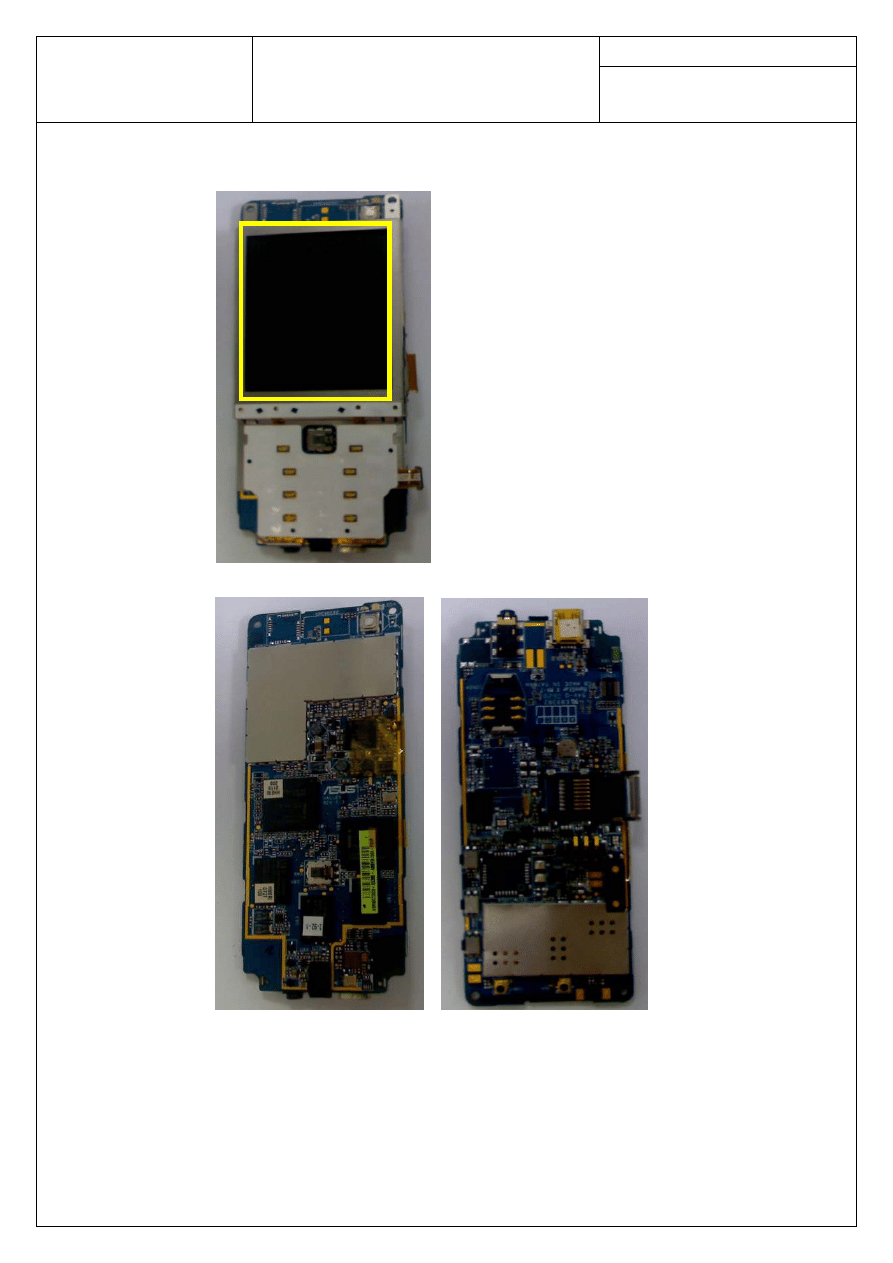

Remove LCD Module.

Front Back

( 3 ) Assembly

It is carried out in the exact reverse sequence as the disassembly.
