WIRING DIAGRAMS - TURBO & QUATTRO

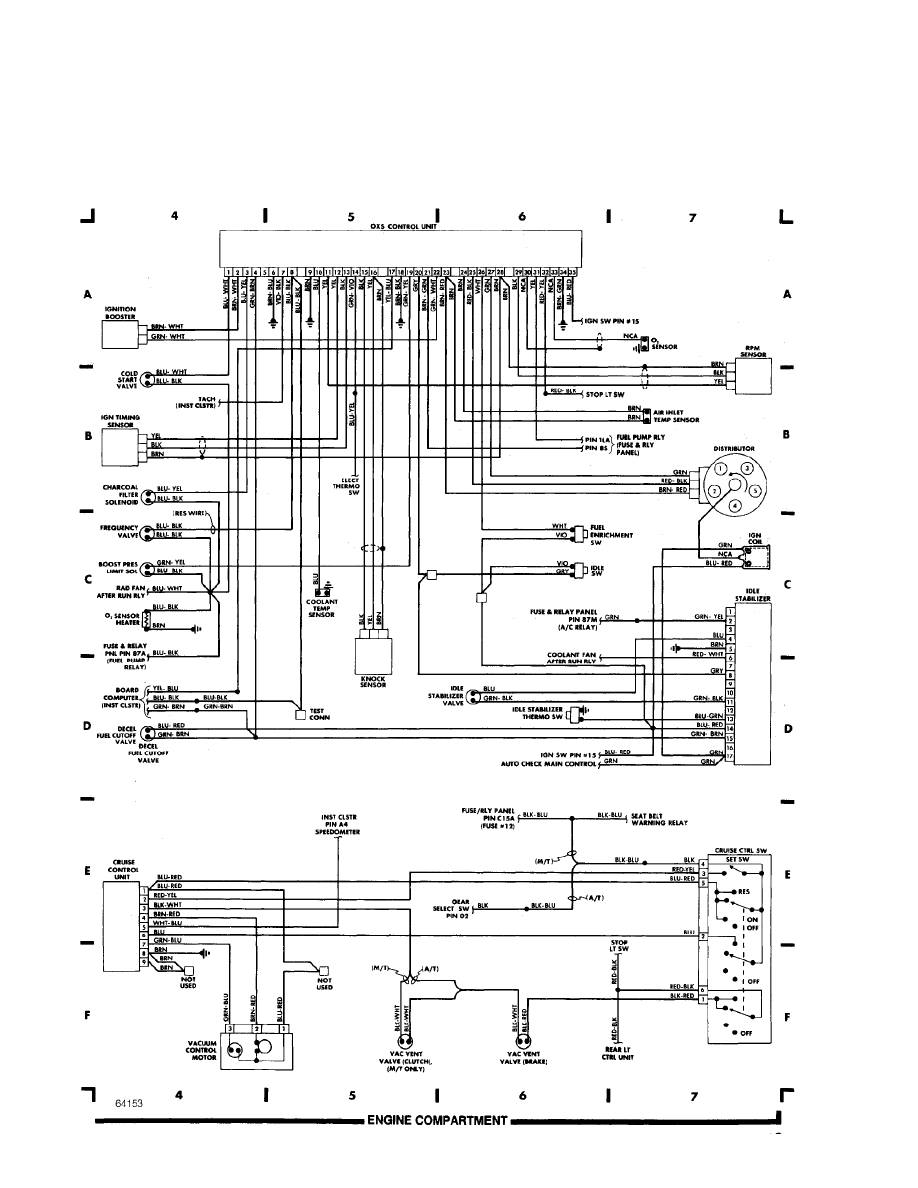

Fig. 2: Engine Compartment (Cont.) (Grids 4-7)

1987 Audi 5000CS Quattro
