DISPLAY DEVICES

background image

DEFINITION

• A display device is a device for

visual presentation of images

(including text) acquired, stored, or

transmitted in various forms.

Ex : Computer monitor,TV screen.

• Also known as an information

display

background image

Classification Of Displays

• CRT Cathode Ray Tube
• LED Light Emitting Diode
• LCD Liquid Crystal Display
• Gas discharge PLASMA displays
• Electro- luminescent (EL) display
• Incandescent display
• EPID Electrophoretic image display
• LVD Liquid vapour display

background image

On Methods Of Conversion Of Electrical

Data Into Visible Light

Active Displays
Light emitters: incandescent is the release of

electromagnetic radiation from a hot body due to its
high temperature

Luminescence: it is any emission of electromagnetic

radiation due to non thermal means

Gas discharge: glow of light around the cathode.

e.g. LEDs, CRTs, gas discharge plasma.

Passive displays
E.g. – LCD, EPIDs

background image

On the application

• Analog : bar graph displays (CRT)

• Digital :alphanumeric, LEDs

background image

Display size & physical

dimension

• Symbolic: alphanumeric, LEDs

• Console (interactive) : CRTs, LEDs

• Large screen : enlarged projection

system

background image

Display format

• Direct view

• Non planar type

background image

In terms of resolution & legibility of

characters

• Simple single element indicator

• Multi-element Display

background image

• Cathode ray tube (CRT) displays

create images by impinging an
electron beam on the face of an
evacuated glass tube that has been
coated with phosphors that emit light
at the primary colors. Cathode-ray
tube (CRT) displays had been the
predominant display technology for
purposes such as home television
screens and computer monitors.

background image

• A light emitting diode (LED) is a

semiconductor light emitting device,
which emits various colors of light,
with light sources being constituted
by compound semiconductors made
of various materials. Light-emitting
diodes have long life expectancy,
high tolerance to humidity, low
power consumption and minimal
heat generation

background image

• Liquid crystal display (LCD) has many

advantages over other conventional
types of displays including high
display quality, small volume
occupation, lightweight, low voltage
driven and low power consumption. A
liquid crystal display device uses the
optical anisotropy and polarization
properties of liquid crystal molecules
to produce an image.

background image

• A plasma display panel (PDP) is a

display device in which ultraviolet
rays generated by the discharge of
gas excites phosphors to realize
predetermined images. In a plasma
display panel, ultraviolet rays are
generated by discharging gas and
exciting phosphor to emit light for a
color display.

background image

• Electroluminescent displays work by

making use of electroluminescence
phenomenon in which light is
generated when an electric field of
certain intensity is applied to a
fluorescent substance.

background image

• A vacuum fluorescent display (VFD)

is an electron tube which displays a
desired pattern by causing electrons
emitted from the cathode in the
vacuum vessel (envelope) which is
transparent to impinge on the
phosphor applied to the anode and
causing the phosphor to emit light.
Vacuum fluorescent displays require
a filament power supply to heat the
filament to a temperature suitable
for proper emission of electrons
which are accelerated by an anode
potential onto a fluorescent material
to emit light.

background image

RELATED TERMINOLOGIES

• Pixel
• Resolution
• Display Size
• Viewing Angle
• Response time
• Brightness

background image

PIXEL

• Picture Element
• It is the smallest element

forming an image.

background image

RESOLUTION

• No. of pixels per unit video display
• Video Graphics Array (VGA):

– 720 pixels across by 400 pixels down in

text mode

– 640 pixels across by 480 pixels down in

graphics mode.

background image

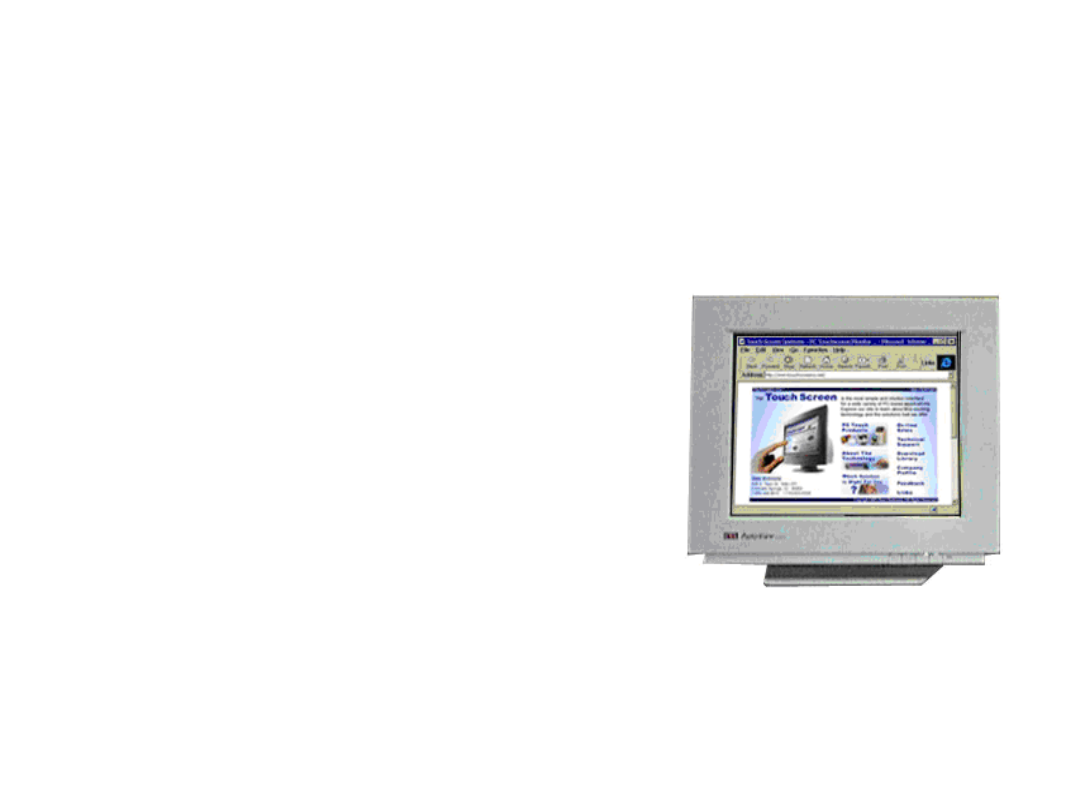

DISPLAY SIZE

• Measured as

distance from
one corner to
the diagonally
opposite
corner.

• Usually

measured in
INCHES.

background image

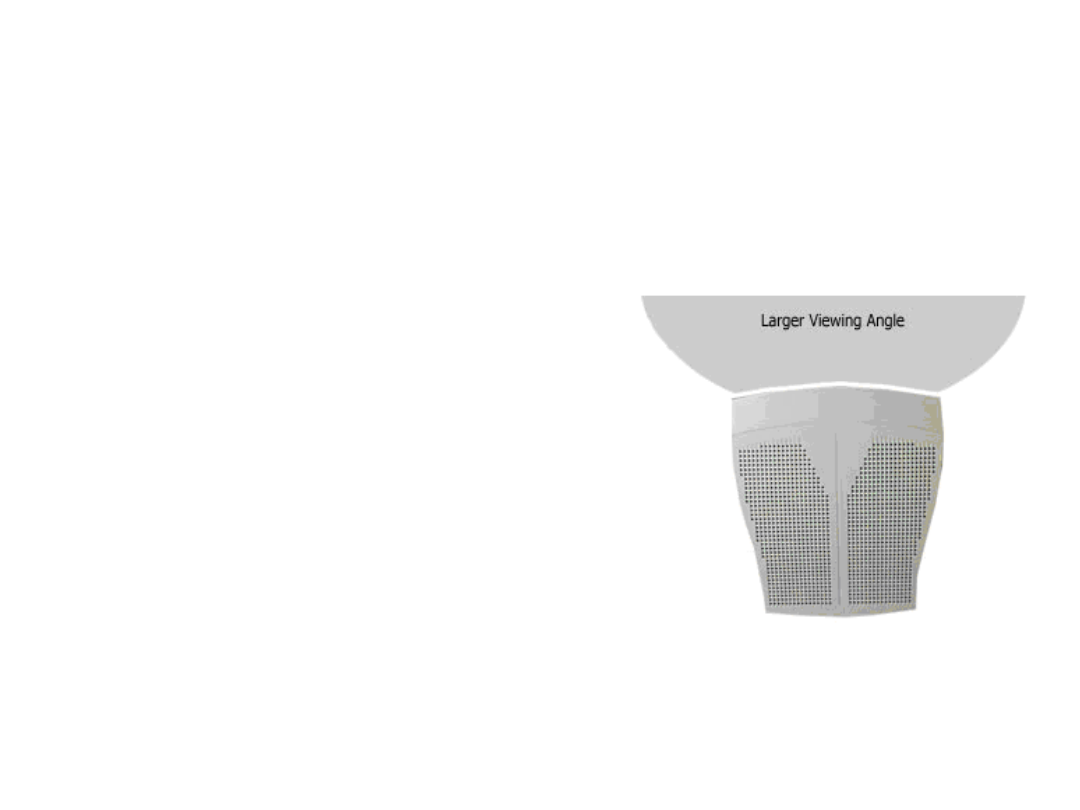

VIEWING ANGLE

• It is angle from

which the
screen can be
seen from side.

• It is larger for

CRT as
compared to
LCD

background image

RESPONSE TIME

• The minimum time necessary to

change a pixel's color or brightness.

background image

BRIGHTNESS

The amount of light emitted from the
display (more specifically known as
luminance).
