Fail safe specifications (summery) | |||||||
code (rep.) |
fail | mode | run or condition | engine can start | check engine alarm | note | action |
P2617 | speed sensor (crank) | no connection / short circuit | no | no | alarm | check crankshaft speed sensor (4) according to description, if sensor is not okay replace it | |
P0344 | difference from speed sensor (cam) | no | no | alarm | check crankshaft speed sensor (4) according to description, if sensor is not okay replace it | ||
P2614 | speed sensor (cam) | no connection / short circuit | reduce | yes | alarm | torque limitation | check camshaft speed sensor (3) according to description, if sensor is not okay replace it |
- | coolant temp | under 0 °C | 1000rpm | yes | no | ||
- | over 108 °C | reduce | yes | alarm | overheat protection | determine the cause of over temperature | |
P0118 | no connection / short circuit to G | reduce | yes | alarm | run as T=110 C, use torque limitation | check coolant temperature sensor (10) according to description, if sensor is not okay replace it | |
P0117 | short circuit to B | reduce | yes | alarm | run as T=110 C, use torque limitation | check coolant temperature sensor (10) according to description, if sensor is not okay replace it | |
- | charge air temp | over 110 C | reduce | yes | no | smoke limitation | |
P0112 | over 125 C | reduce | yes | alarm | smoke limitation | check charge air temperature sensor (2) according to description, if sensor is not okay replace it | |
P0113 | under -20 C | reduce | yes | alarm | smoke limitation | check charge air temperature sensor (2) according to description, if sensor is not okay replace it | |
P0113 | no connection / short circuit to G | reduce | yes | alarm | run as T=-30 C, smoke limitation | check charge air temperature sensor (2) according to description, if sensor is not okay replace it | |
P0112 | short circuit to B | reduce | yes | alarm | run as T=130 C, smoke limitation | check charge air temperature sensor (2) according to description, if sensor is not okay replace it | |
P0238 | boost pressure | 4 bar (abs) | reduce | yes | alarm | torque limitation, like short circut to B | check boost pressure sensor (1) according to description, if sensor is not okay replace it |
- | 4BY - over 1.9 ba r(rel), 2.9 bar (abs) 6BY - over 2.3 bar (rel), 3.3 bar (abs) |
reduce | yes | alarm | determine the cause of over boost | ||
P0237 | under the 0.5 bar (abs) | reduce | yes | alarm | torque limitation, like short circut to G | check boost pressure sensor (1) according to description, if sensor is not okay replace it | |
P0236 | plausibility check with APS (ambient air pressure sensor) fail | reduce | yes | alarm | torque limitation | check plausibility with APS, if APS signal is implausible replace DDE-ECU, if BPS signal is implausible replace BPS sensor (1) | |
P0237 | no connection / short circuit to G | reduce | yes | alarm | torque limitation | check boost pressure sensor (1) according to description, if sensor is not okay replace it | |
P0238 | short circuit to B | reduce | yes | alarm | torque limitation | check boost pressure sensor (1) according to description, if sensor is not okay replace it | |
- | fuel temperature | over 90 C | reduce | yes | no | overheat protection | determine the cause of over temperature |
P0183 | no connection / short cuircuit to G | reduce | yes | alarm | run as T=90C, overheat protection | check fuel temperature sensor (8) according to description, if sensor is not okay replace it | |
P0182 | short cuircuit to B | reduce | yes | alarm | run as T=90C, overheat protection | check fuel temperature sensor (8) according to description, if sensor is not okay replace it | |
P0192 | rail pressure | short cuircuit to G | reduce | yes | alarm | use torque limitation | check rail pressure sensor (5) according to description, if sensor is not okay replace it |
P0193 | no connection / short cuircuit B | reduce | yes | alarm | use torque limitation | check rail pressure sensor (5) according to description, if sensor is not okay replace it | |
P0090 | rail pressure control valve | not connected | no | no | alarm | check rail pressure control valve (6) according to description, if actuator is not okay replace it | |
P0092 | short circuit to B | no | no | alarm | check rail pressure control valve (6) according to description, if actuator is not okay replace it | ||
P0091 | short circuit to G | reduce | yes | alarm | use torque limitation | check rail pressure control valve (6) according to description, if actuator is not okay replace it | |
P0001 | metering unit | not connected | reduce | yes | alarm | use torque limitation | check metering unit (7) according to description, if actuator is not okay replace it |
P0004 | short circuit to B | reduce | yes | alarm | use torque limitation | check metering unit (7) according to description, if actuator is not okay replace it | |
P0003 | short circuit to G | no | no | alarm | check metering unit (7) according to description, if actuator is not okay replace it | ||
P0230 | fuel feed pump | not connected | no | no | alarm | check circuit of the fuel feed pump, if circuit is okay replace relay | |
P0232 | short circuit to B | no | no | alarm | check circuit of the fuel feed pump, if circuit is okay replace relay | ||
P0231 | short circuit to G | reduce | yes | alarm | check circuit of the fuel feed pump, if circuit is okay replace relay | ||
U0001 | CAN throttle signal | no signal | idle | yes | alarm | run engine by sub throttle | check CAN circuit, if circuit is okay replace throttle |
P0122/P0222 | throttle signal | Both throttle signal are missing / short circuit to G | 1600 | yes | alarm | engine speed is fixed | check modul (14) according to description, if sensor is not okay replace it |
P0123/P0223 | Both throttle signal are short circuit to B | 1600 | yes | alarm | engine speed is fixed | check modul (14) according to description, if sensor is not okay replace it | |
P0122 | throttle signal 1 is missing / short circuit to G | reduce | yes | alarm | use torque limitation | check modul (14) according to description, if sensor is not okay replace it | |
P0123 | throttle signal 1short circuit to B | reduce | yes | alarm | use torque limitation | check modul (14) according to description, if sensor is not okay replace it | |
P0222 | throttle signal 2 is missing / short circuit to G | reduce | yes | alarm | use torque limitation | check modul (14) according to description, if sensor is not okay replace it | |
P0223 | throttle signal 2short circuit to B | reduce | yes | alarm | use torque limitation | check modul (14) according to description, if sensor is not okay replace it | |
P0201 | injector no.1 | open circuit / short circuit to G | reduce | yes | alarm | use torque limitation | check injector (13) according to description, if injector is not okay replace it |
P0261 | short circuit to B | reduce | yes | alarm | use torque limitation | check injector (13) according to description, if injector is not okay replace it | |
P0202 | injector no.2 | open circuit / short circuit to G | reduce | yes | alarm | use torque limitation | check injector (13) according to description, if injector is not okay replace it |
P0264 | short circuit to B | reduce | yes | alarm | use torque limitation | check injector (13) according to description, if injector is not okay replace it | |
P0203 | injector no.3 | open circuit / short circuit to G | reduce | yes | alarm | use torque limitation | check injector (13) according to description, if injector is not okay replace it |
P0267 | short circuit to B | reduce | yes | alarm | use torque limitation | check injector (13) according to description, if injector is not okay replace it | |
P0204 | injector no.4 | open circuit / short circuit to G | reduce | yes | alarm | use torque limitation | check injector (13) according to description, if injector is not okay replace it |
P0270 | short circuit to B | reduce | yes | alarm | use torque limitation | check injector (13) according to description, if injector is not okay replace it | |
P0205 | injector no.5 | open circuit / short circuit to G | reduce | yes | alarm | use torque limitation | check injector (13) according to description, if injector is not okay replace it |
P0273 | short circuit to B | reduce | yes | alarm | use torque limitation | check injector (13) according to description, if injector is not okay replace it | |
P0206 | injector no.6 | open circuit / short circuit to G | reduce | yes | alarm | use torque limitation | check injector (13) according to description, if injector is not okay replace it |
P0276 | short circuit to B | reduce | yes | alarm | use torque limitation | check injector (13) according to description, if injector is not okay replace it | |
P2049 | 4BY - injector bank 1 6BY - injector bank 1 |
short circuit on High Side to G / B short circuit on High Side to G / B |
no reduce |
no no |
alarm | use torque limitation | check injector (13) according to description, if injector is not okay replace it |
P2052 | 4BY - injector bank 2 6BY - injector bank 2 |
short circuit on High Side to G / B short circuit on High Side to G / B |
reduce reduce |
yes yes |
alarm | use torque limitation | check injector (13) according to description, if injector is not okay replace it |
P0607 | injector chip fault | injector control module performance | no | no | alarm | replace DDE-ECU | |
P0650 | check engine lamp | not connected, short circuit | yes | yes | alarm | check circuit, if circuit is okay replace lamp | |
P0671 | glow system - glow spark 1 | not connected, short circuit | yes | yes | alarm | appears only if glow system is used | check glow plugs (12) according to description, if circuit is okay replace glow spark |
P0672 | glow system - glow spark 2 | not connected, short circuit | yes | yes | alarm | appears only if glow system is used | check glow plugs (12) according to description, if circuit is okay replace glow spark |
P0673 | glow system - glow spark 3 | not connected, short circuit | yes | yes | alarm | appears only if glow system is used | check glow plugs (12) according to description, if circuit is okay replace glow spark |
P0674 | glow system - glow spark 4 | not connected, short circuit | yes | yes | alarm | appears only if glow system is used | check glow plugs (12) according to description, if circuit is okay replace glow spark |
P0675 | glow system - glow spark 5 | not connected, short circuit | yes | yes | alarm | appears only if glow system is used | check glow plugs (12) according to description, if circuit is okay replace glow spark |
P0676 | glow system - glow spark 6 | not connected, short circuit | yes | yes | alarm | appears only if glow system is used | check glow plugs (12) according to description, if circuit is okay replace glow spark |
P0670 | glow plug control module | failure, short circuit, over-current | yes | yes | alarm | appears only if glow system is used | check glow plugs (12) according to description, if plugs okay replace glow plug control module |
P0380 | glow control relay actuator | not connected, short circuit | yes | yes | alarm | appears only if glow system is used | check glow plugs (12) according to description, if plugs okay replace glow plug relay actuator |
P0087 | rail pressure governor deviation | rail pressure governor deviation exceeds / falls below a limit |
reduce or shut off | depends on fault | alarm | torque limitation or shut-off | check possible failure-reason, system test of the rail pressure governor |
P0088 | rail pressure governor deviation | rail pressure governor deviation exceeds / falls below a limit |
reduce or shut off | depends on fault | alarm | torque limitation or shut-off | check possible failure-reason, system test of the rail pressure governor |
P0089 | rail pressure governor deviation | rail pressure governor deviation exceeds / falls below a limit |
yes | yes | alarm | check possible failure-reason, system test of the rail pressure governor | |
P0090 | rail pressure governor deviation | rail pressure governor deviation exceeds / falls below a limit |
reduce | yes | alarm | use torque limitation | check possible failure-reason, system test of the rail pressure governor |
P0689 P0690 |
main relay | power relay sense short circuit low power relay sense short circuit high |
no | no | alarm | replace DDE-main relay | |
P0602 | Control Module Programming Error (HWEMon) | overvoltage / undervoltage | no | no | alarm | replace DDE-ECU | |
P0602 | shut off path | control module programming error | no | no | alarm | replace DDE-ECU | |
P0642 P0643 |
sensor supply monitoring 1 | short circuit | reduce | yes | alarm | use torque limitation | check circuit and parts on sensor supply voltage1, if no fault found in ciruit replace DDE-ECU |
P0652 | sensor supply monitoring 2 | short circuit | reduce | yes | alarm | use torque limitation | check circuit and parts on sensor supply voltage2, if no fault found in ciruit replace DDE-ECU |
P0653 | sensor supply monitoring 3 | short circuit | reduce | yes | alarm | use torque limitation | check circuit and parts on sensor supply voltage3, if no fault found in ciruit replace DDE-ECU |
P0562 P0563 |
system voltage low system voltage high |
yes | no yes |
alarm | ckeck generator and powermanagment (KL30) | ||
P2227 | atmospheric pressure | plausibility check with BPS (boost pressure sensor) fail | yes | yes | alarm | check plausibility with APS, if APS signal is implausible replace DDE-ECU, if BPS signal is implausible replace BPS sensor (1) | |
P2228 P2229 |
short circuit low short circuit high |
yes | yes | alarm | replace DDE-ECU | ||
U0426 | immobilizer | manipulation error | no | no | alarm | replace DDE-ECU | |
- | neutral switch | only in case of analog throttle or in case of CAN-fault (U0001), wrong configuration - neutral position | no | no | alarm | neutral protection alarm on display | check if gear is in neutral, check if switch has the right configuration - closed in neutral position |
DTC - Diagnostic Trouble Code | ||||||||||

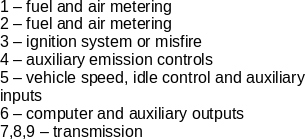

The diagnostic trouble code consists of an alphanumeric designator, B0 -- B3 for body, C0 -- C3 for chassis, P0 -- | ||||||||||
P3 for powertrain, and U0 -- U3 for network communication, followed by three characters. The assignment of the | ||||||||||
proper alpha designator should be determined by the area most appropriate for that function. In most cases, the | ||||||||||
alpha designator will be implied since diagnostic information will be requested from a particular controller. However, | ||||||||||
this does not imply that all codes supported by a particular controller shall have the same alphanumeric designator. | ||||||||||
ISO/SAE controlled codes (core DTCs) | ||||||||||
ISO/SAE controlled diagnostic trouble codes are those codes where industry uniformity has been achieved. These | ||||||||||
codes were felt to be common enough across most manufacturers’ applications that a common number and fault | ||||||||||
message could be assigned. All unspecified numbers in each grouping have been reserved for future growth. | ||||||||||
Although service procedures may differ widely amongst manufacturers, the fault being indicated is common enough | ||||||||||
to be assigned a particular fault code. Codes in this area are not to be used by manufacturers until they have been | ||||||||||
approved by ISO/SAE. | ||||||||||
some of the P-Codes | ||||||||||
P0001 | Fuel Volume Regulator Control Circuit/Open | |||||||||
P0003 | Fuel Volume Regulator Control Circuit Low | |||||||||
P0004 | Fuel Volume Regulator Control Circuit High | |||||||||
P0087 | Fuel Rail/System Pressure - Too Low | |||||||||
P0088 | Fuel Rail/System Pressure - Too High | |||||||||
P0090 | Fuel Pressure Regulator 1 Control Circuit | |||||||||
P0091 | Fuel Pressure Regulator 1 Control Circuit Low | |||||||||
P0112 | Intake Air Temperature Sensor 1 Circuit Low | |||||||||
P0113 | Intake Air Temperature Sensor 1 Circuit High | |||||||||
P0117 | Engine Coolant Temperature Circuit Low | |||||||||
P0118 | Engine Coolant Temperature Circuit High | |||||||||
P0122 | Throttle/Pedal Position Sensor/Switch "A" Circuit Low | |||||||||
P0123 | Throttle/Pedal Position Sensor/Switch "A" Circuit High | |||||||||
P0182 | Fuel Temperature Sensor A Circuit Low | |||||||||
P0183 | Fuel Temperature Sensor A Circuit High | |||||||||
P0201 | Injector Circuit/Open - Cylinder 1 | |||||||||
P0202 | Injector Circuit/Open - Cylinder 2 | |||||||||
P0203 | Injector Circuit/Open - Cylinder 3 | |||||||||
P0204 | Injector Circuit/Open - Cylinder 4 | |||||||||
P0222 | Throttle/Pedal Position Sensor/Switch "B" Circuit Low | |||||||||
P0223 | Throttle/Pedal Position Sensor/Switch "B" Circuit High | |||||||||
P0230 | Fuel Pump Primary Circuit | |||||||||
P0231 | Fuel Pump Secondary Circuit Low | |||||||||
P0237 | Turbo/Super Charger Boost Sensor "A" Circuit Low | |||||||||
P0238 | Turbo/Super Charger Boost Sensor "A" Circuit High | |||||||||
P0344 | Camshaft Position Sensor "A" Circuit Intermittent | |||||||||
P0650 | Malfunction Indicator Lamp (MIL) Control Circuit | |||||||||
P2614 | Camshaft Position Signal Output Circuit/Open | |||||||||
P2617 | Crankshaft Position Signal Output Circuit/Open |
