MITSUBISHI STARION 1986

background image

SYSTEM WIRING DIAGRAMS

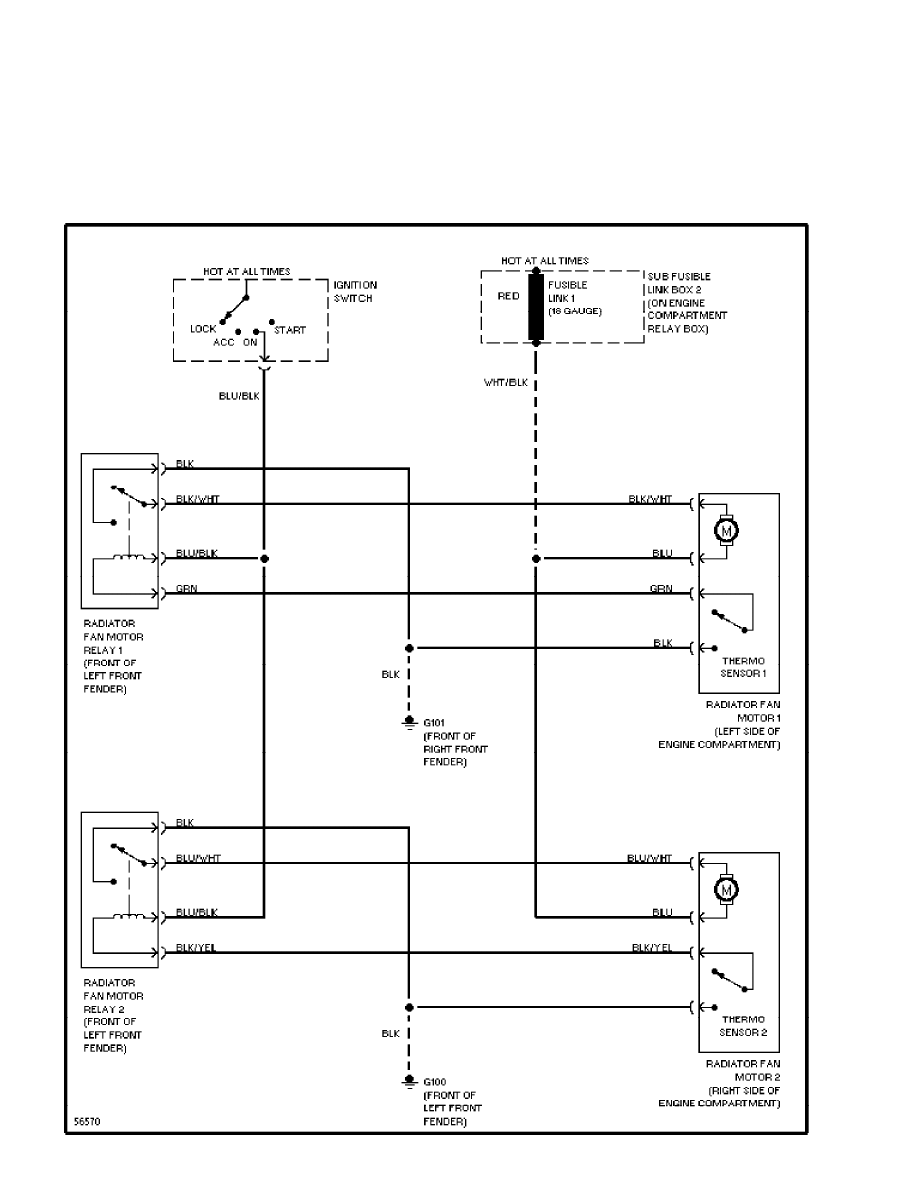

Cooling Fan Circuit

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

SYSTEM WIRING DIAGRAMS

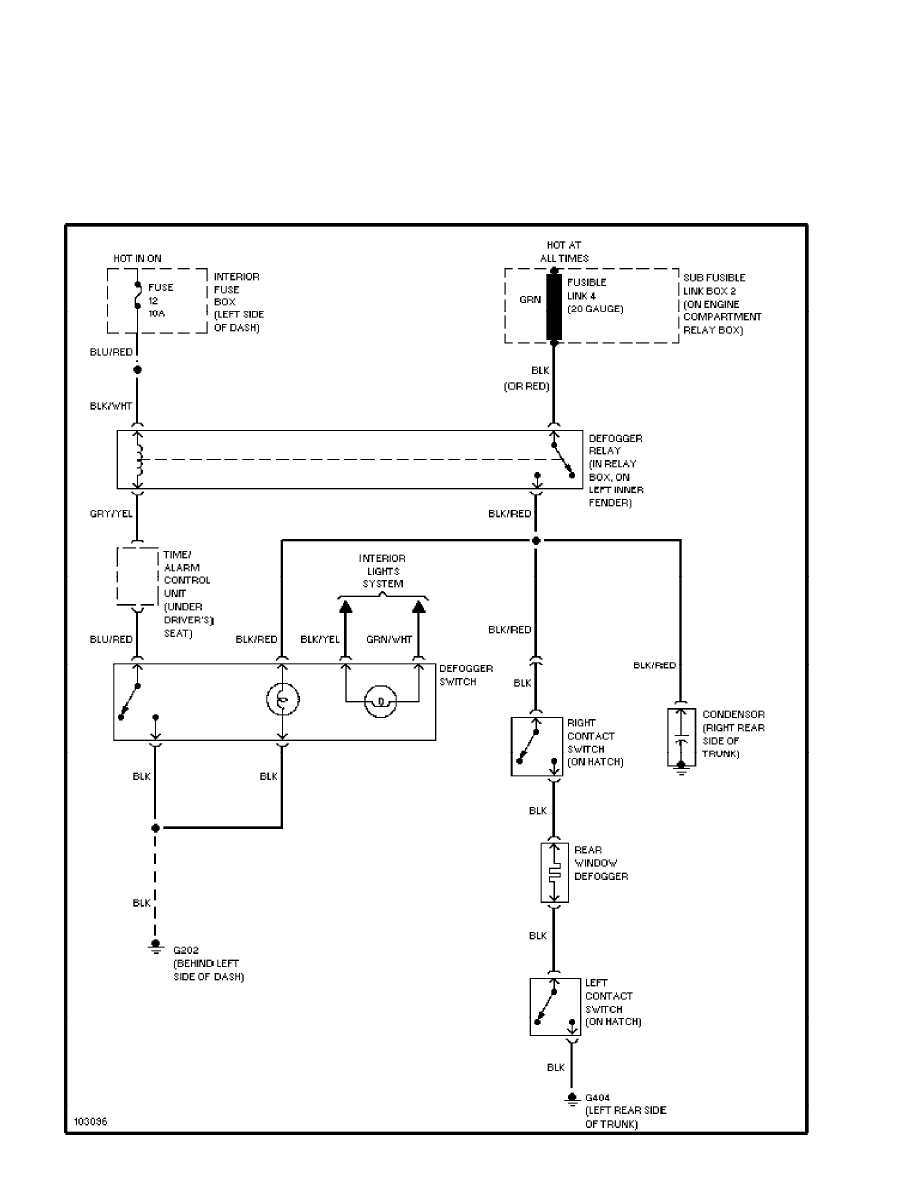

Defogger Circuit (p. 2)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

SYSTEM WIRING DIAGRAMS

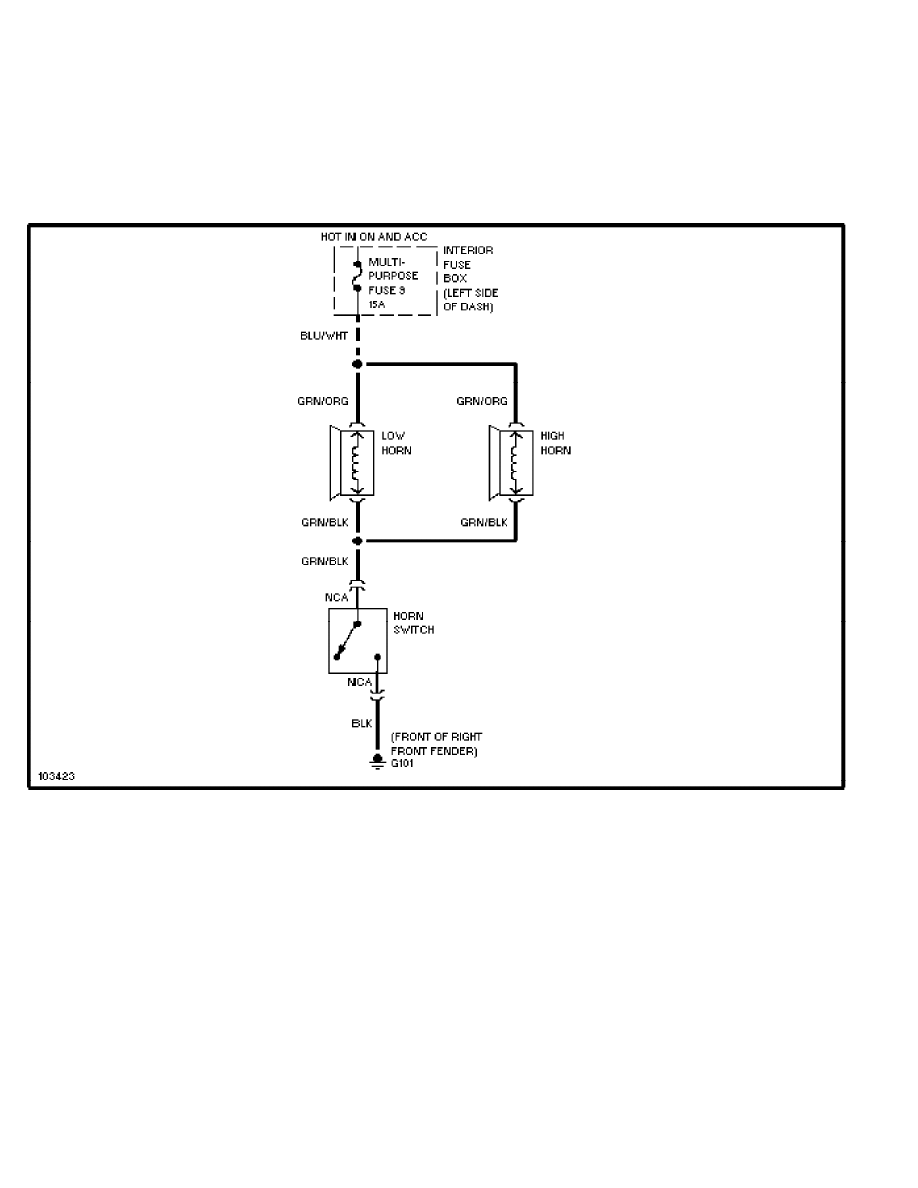

Horn Circuit (p. 3)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

SYSTEM WIRING DIAGRAMS

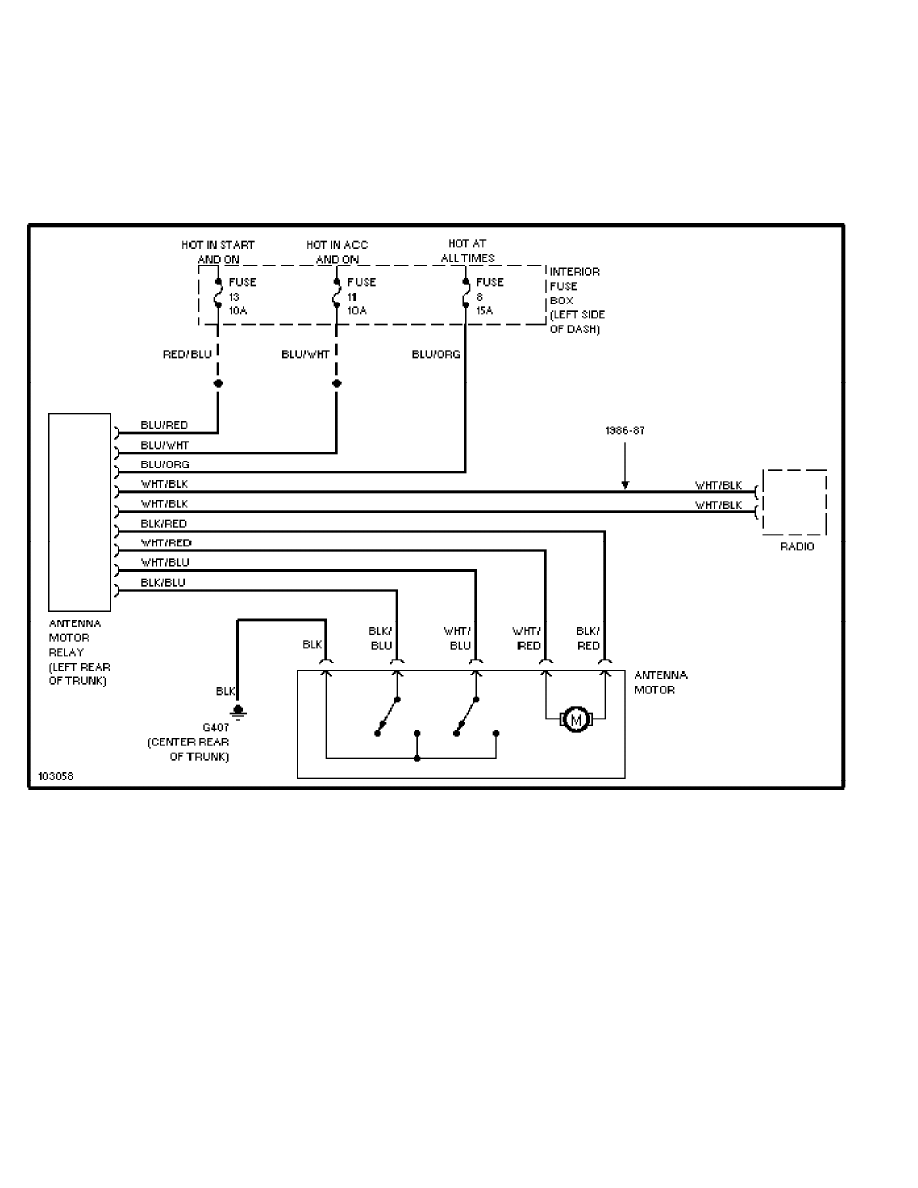

Power Antenna Circuit (p. 4)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

SYSTEM WIRING DIAGRAMS

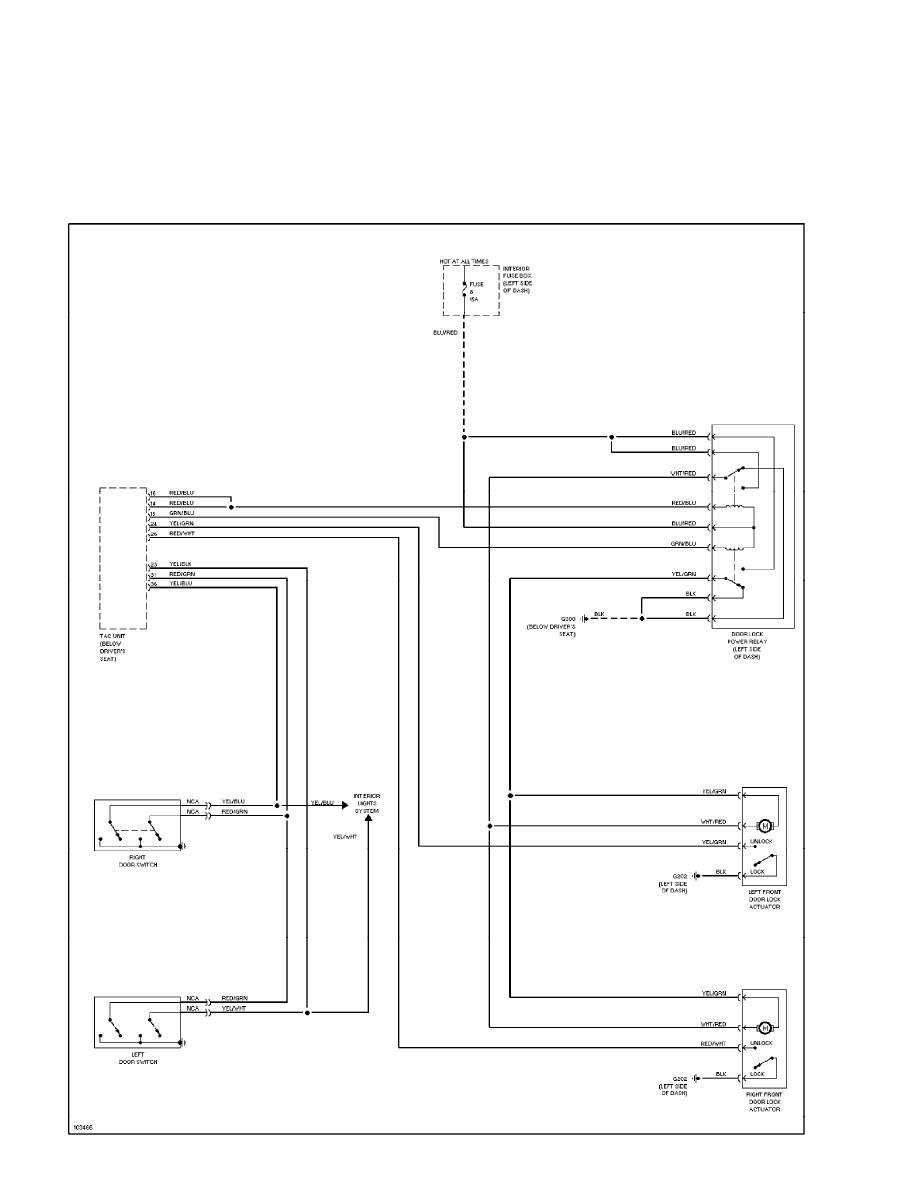

Power Door Lock Circuit (p. 5)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

SYSTEM WIRING DIAGRAMS

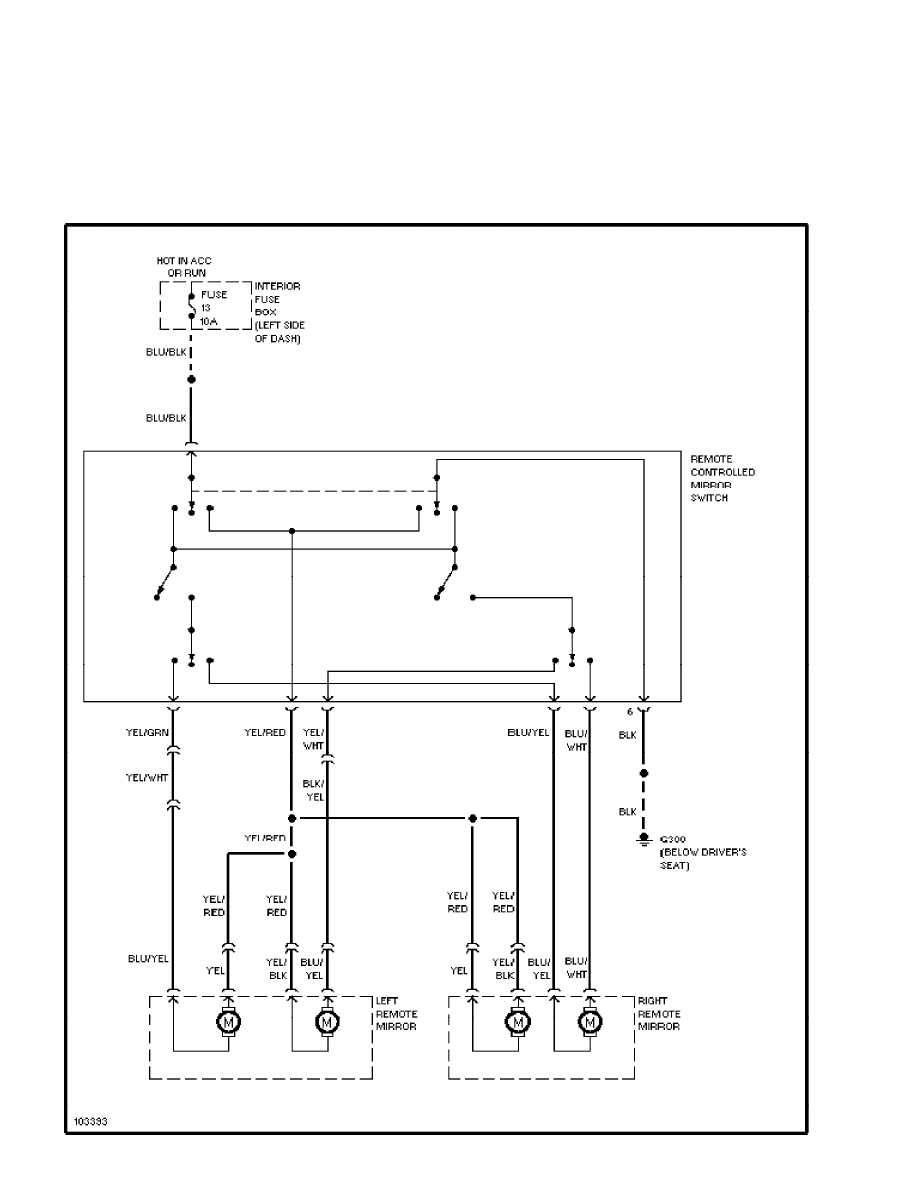

Power Mirror Circuit (p. 6)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

SYSTEM WIRING DIAGRAMS

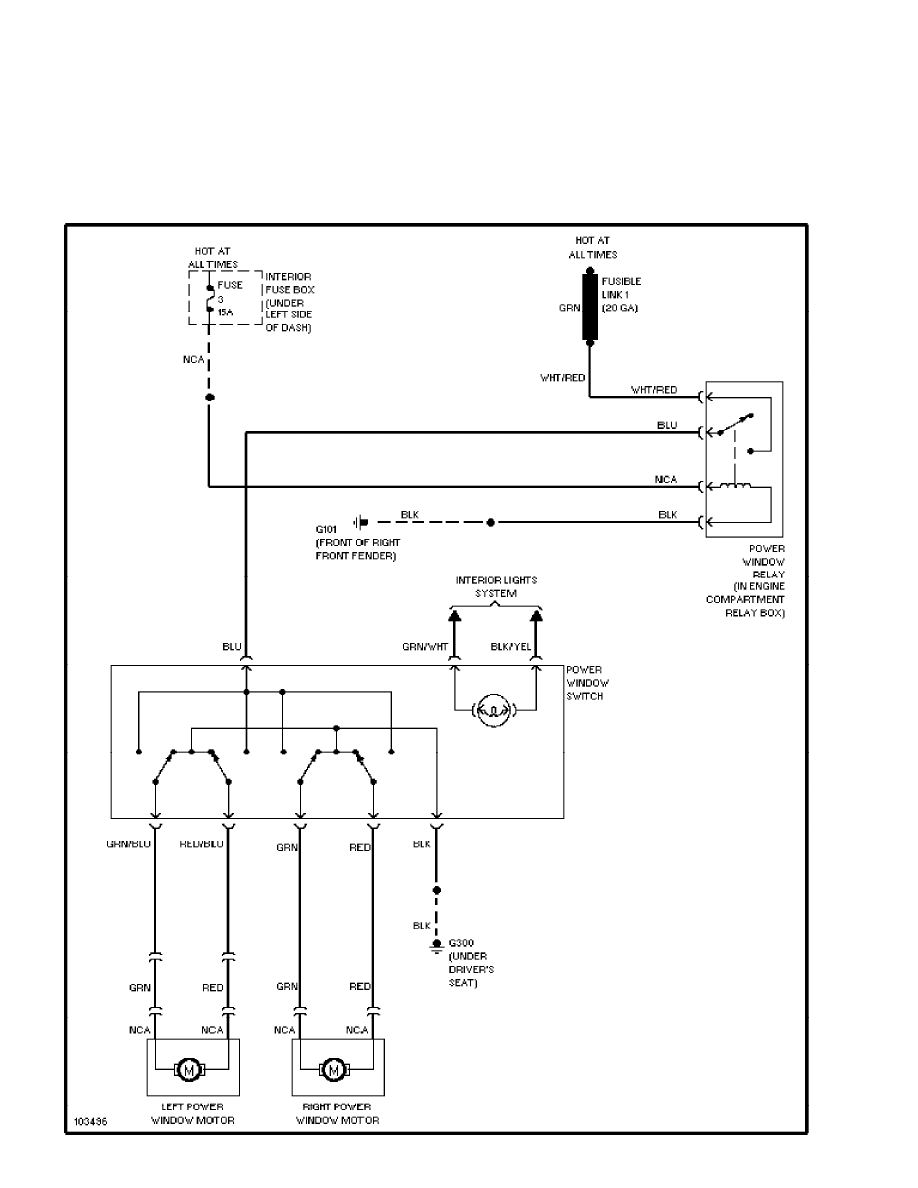

Power Window Circuit (p. 7)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

SYSTEM WIRING DIAGRAMS

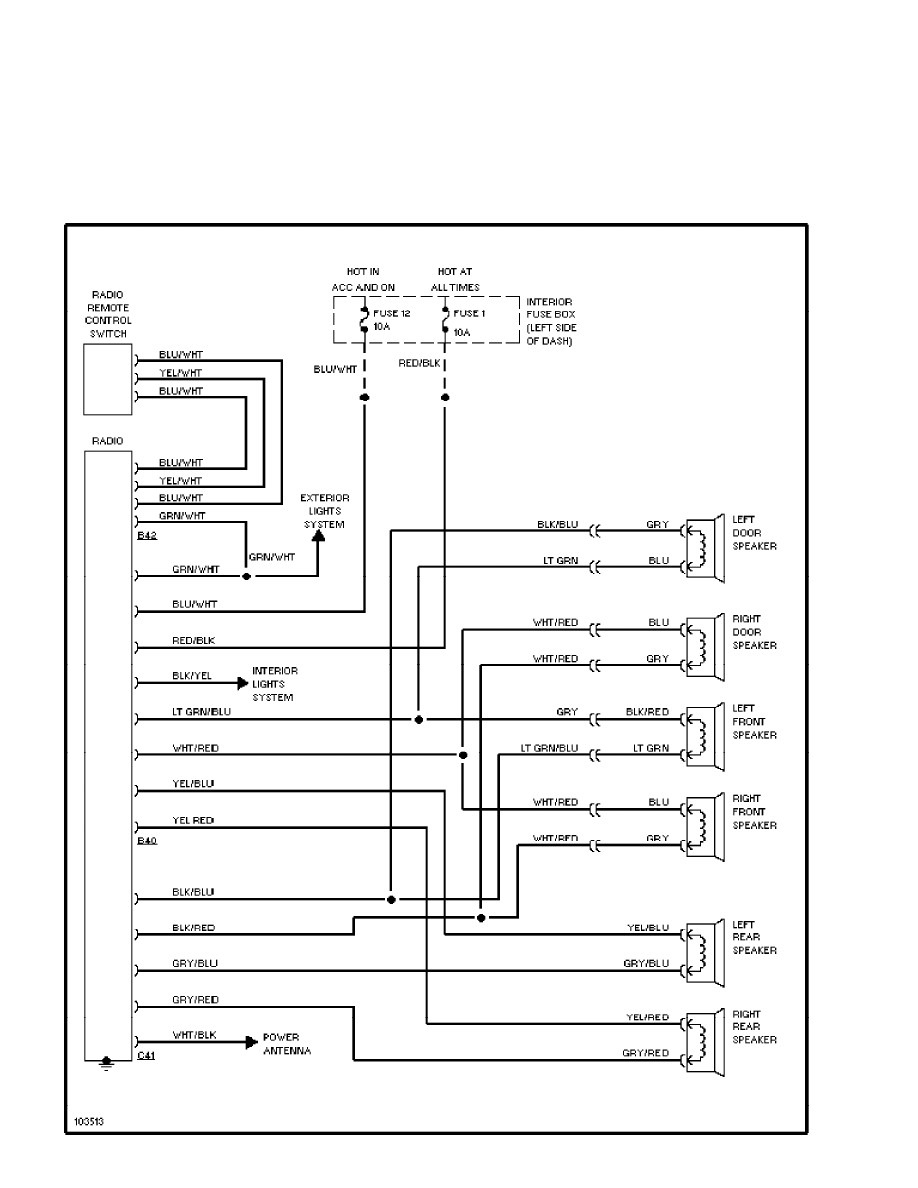

Radio Circuits (p. 8)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

SYSTEM WIRING DIAGRAMS

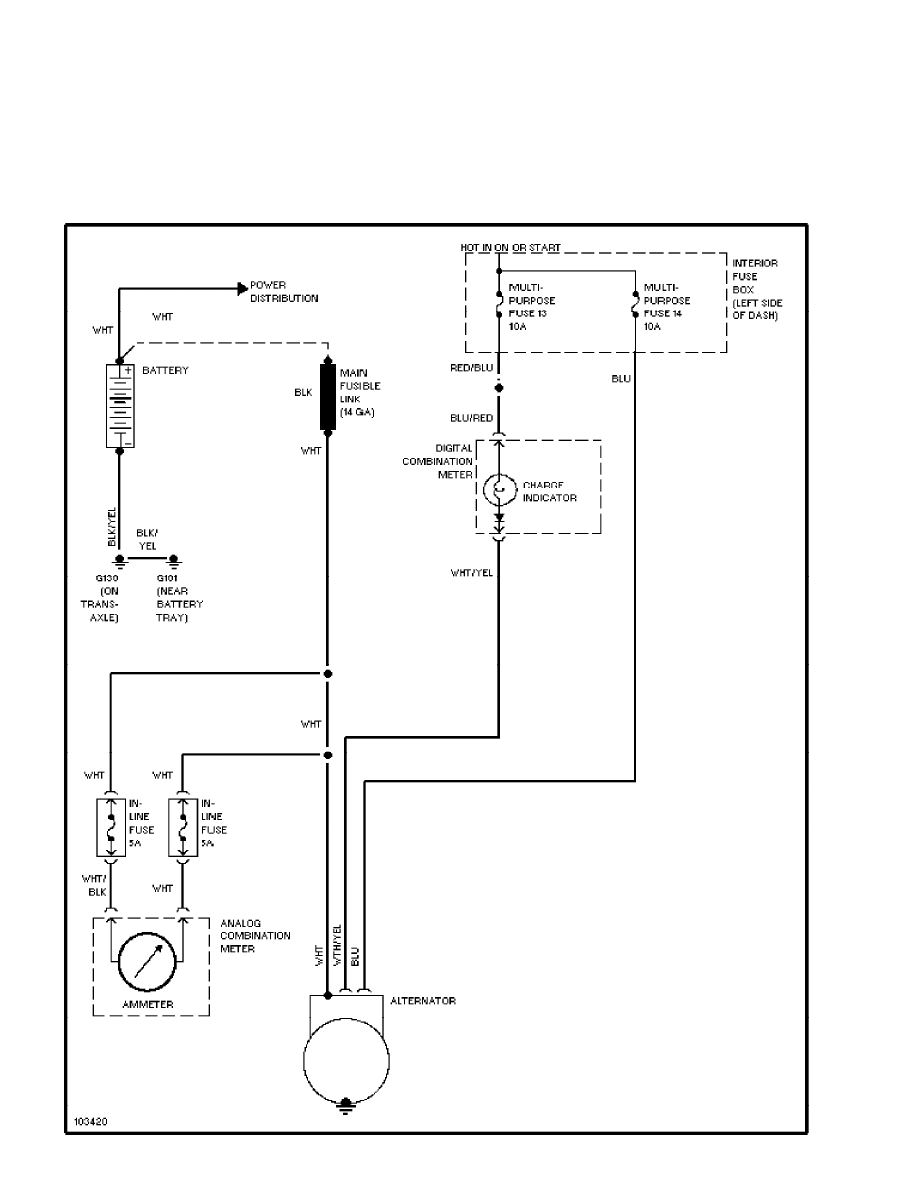

Charging Circuit (p. 9)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

SYSTEM WIRING DIAGRAMS

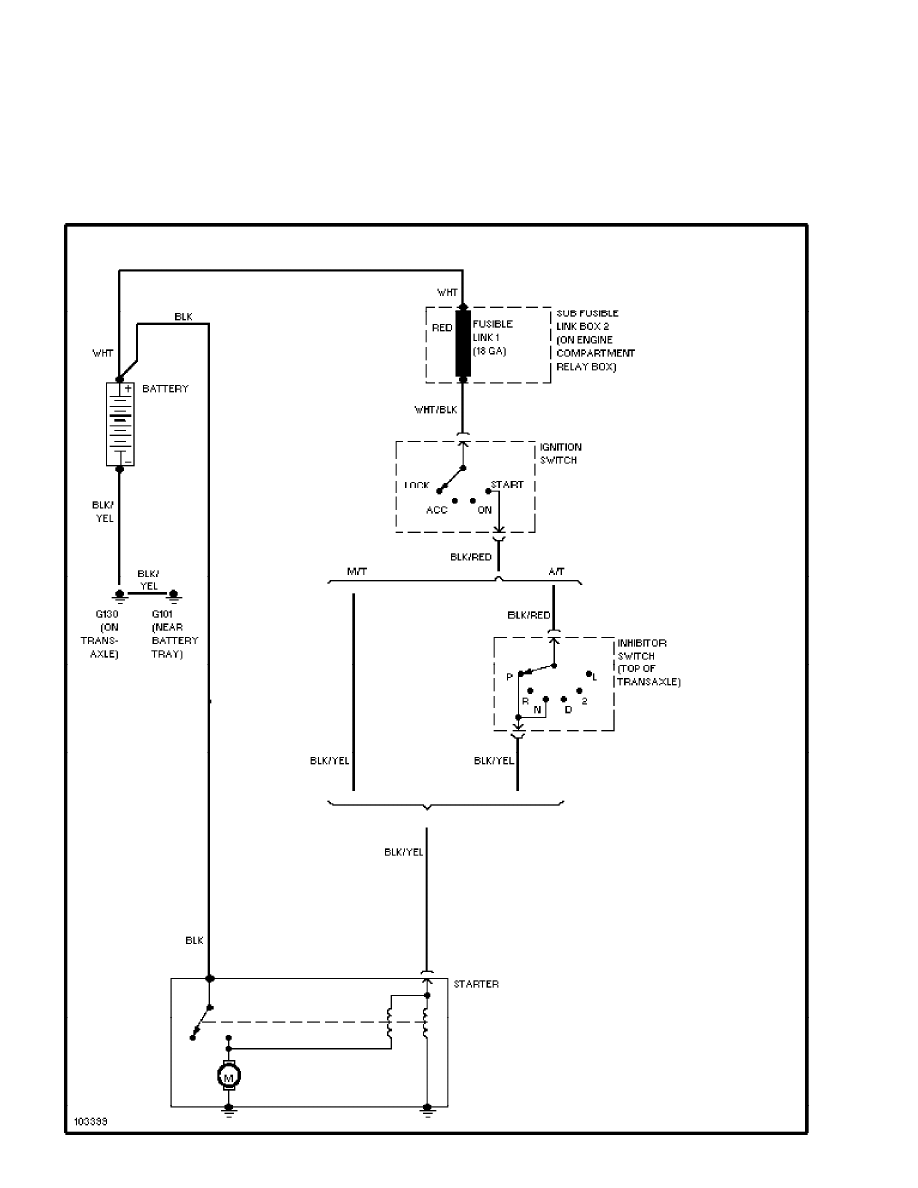

Starting Circuit (p. 10)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

SYSTEM WIRING DIAGRAMS

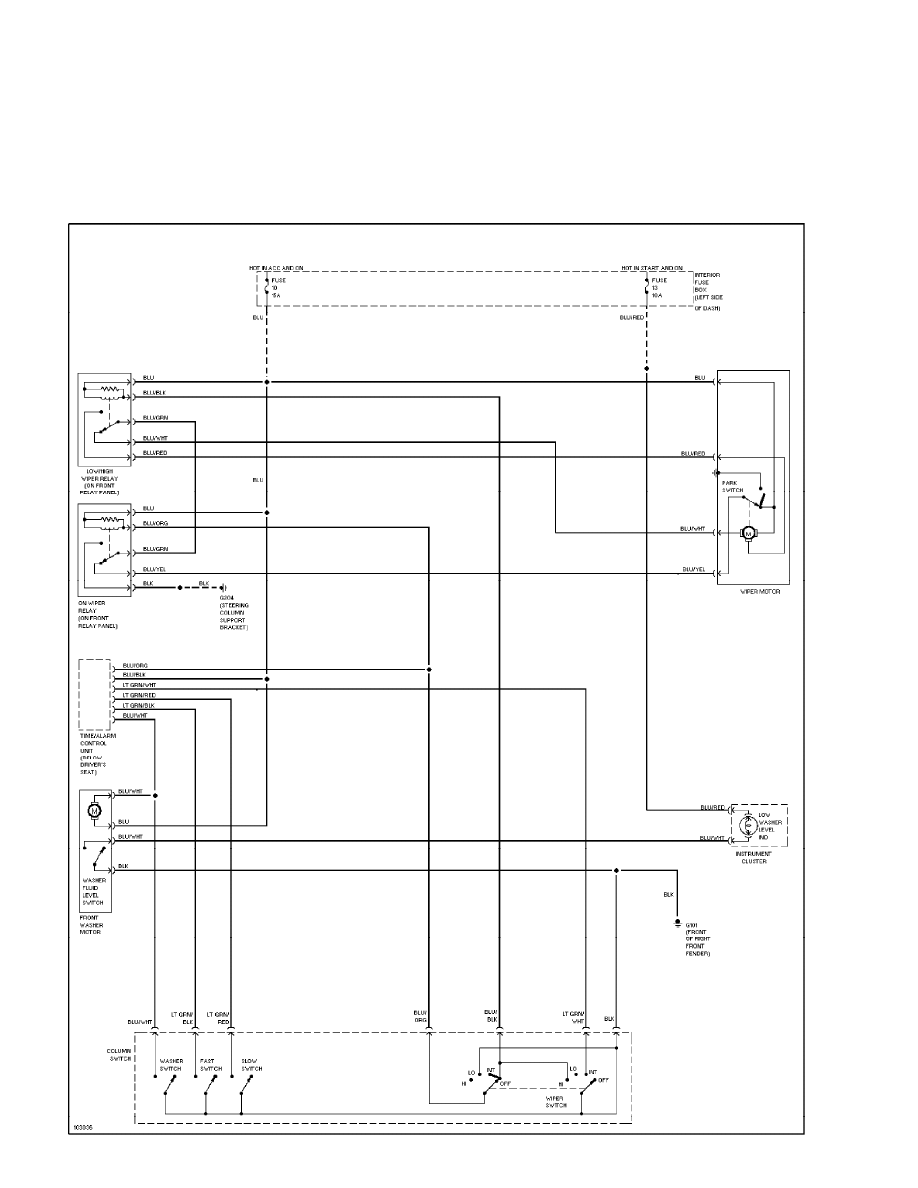

Front Wiper/Washer Circuit (p. 11)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

SYSTEM WIRING DIAGRAMS

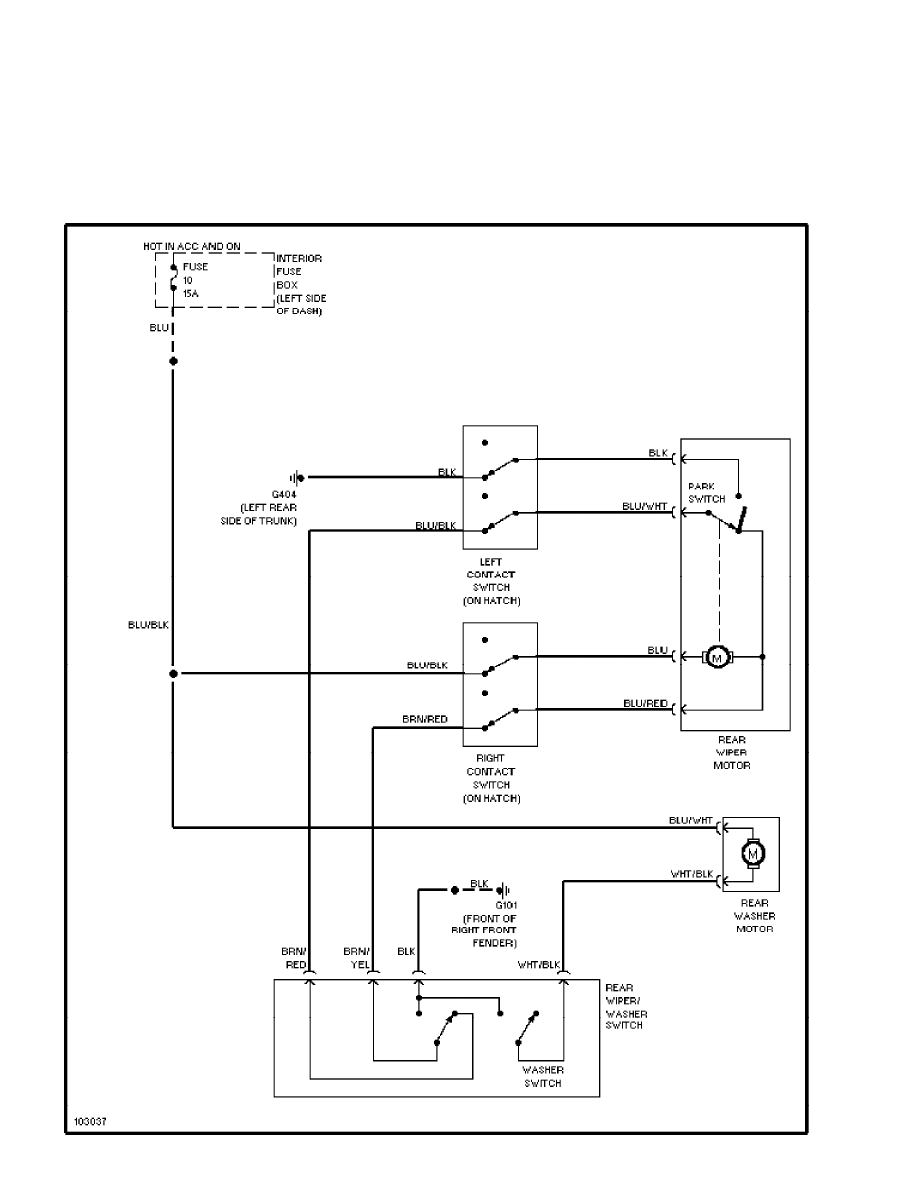

Rear Wiper/Washer Circuit (p. 12)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

WIRING DIAGRAMS

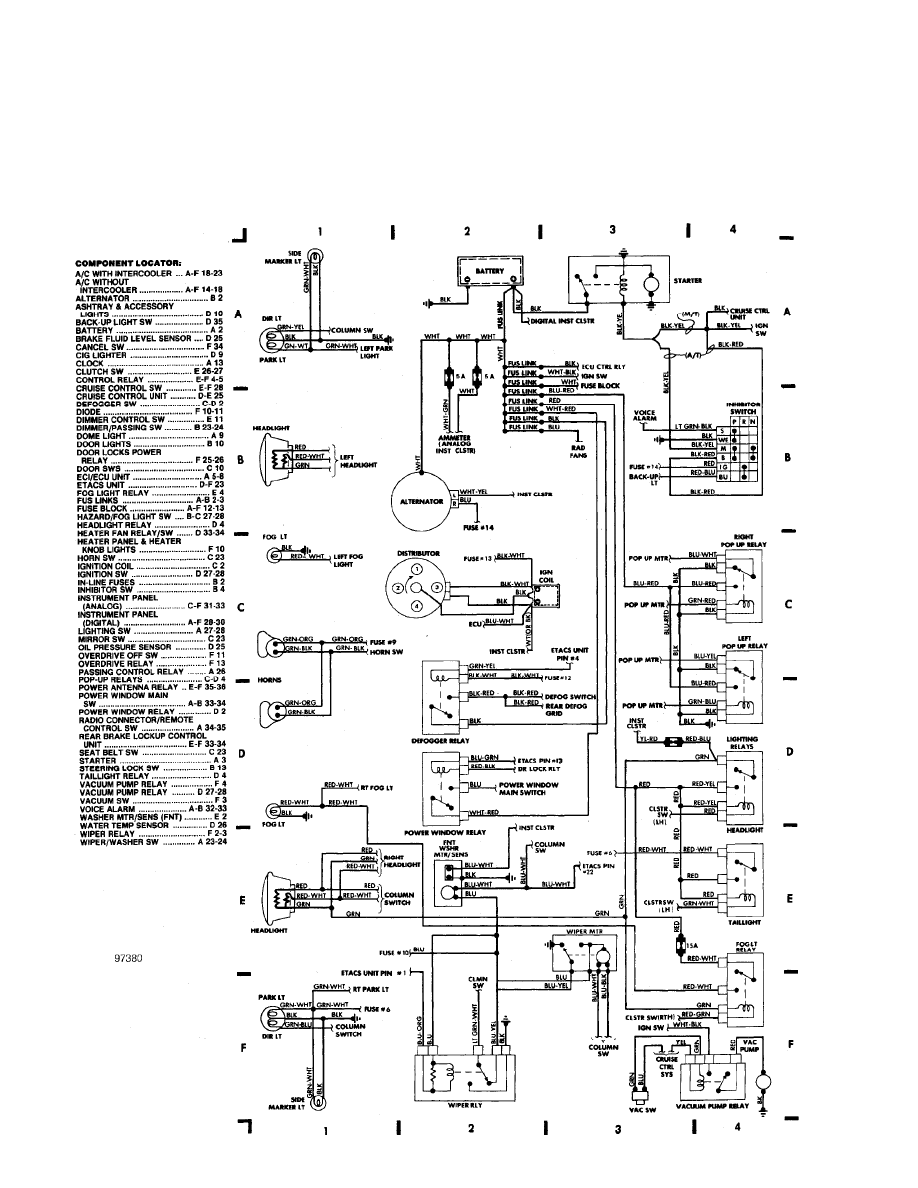

Fig. 1: Engine Compartment (Grids 1-4)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

WIRING DIAGRAMS

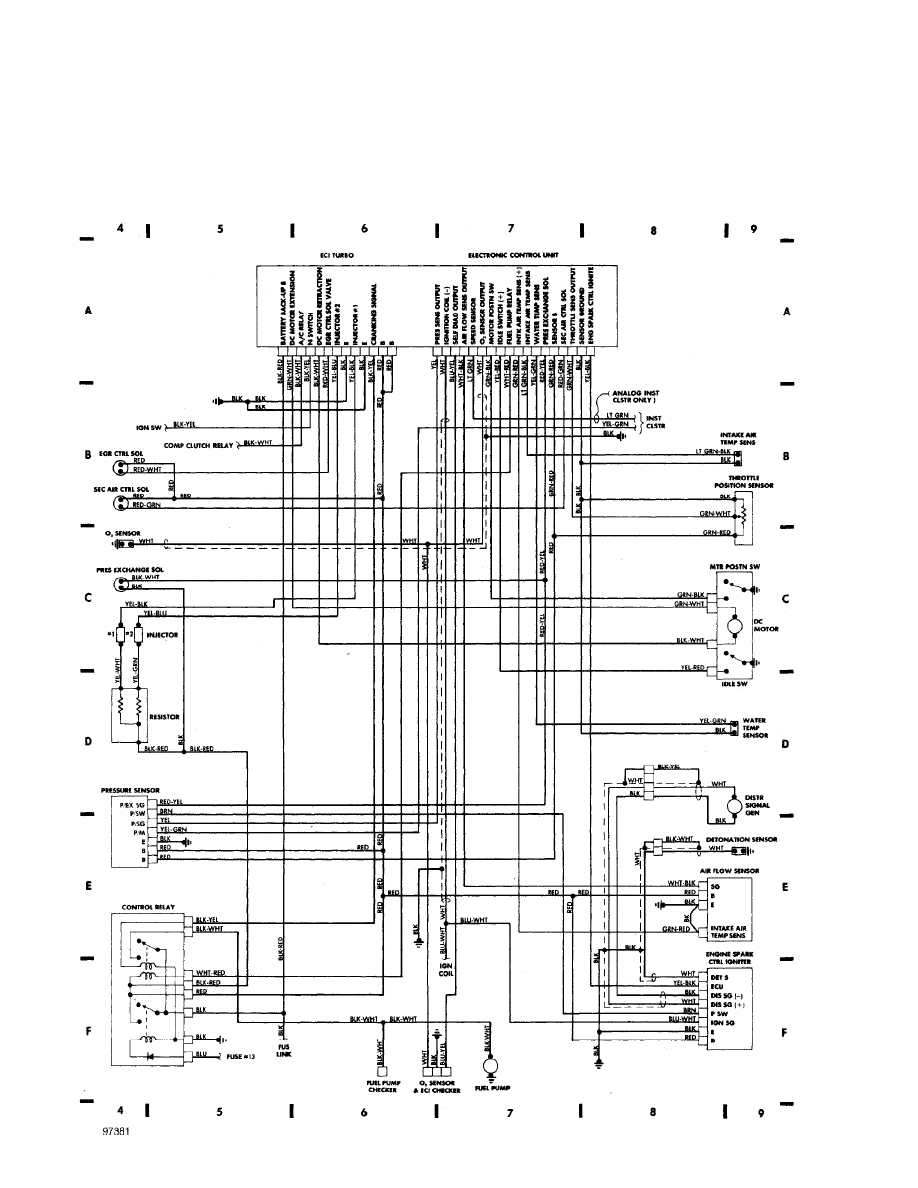

Fig. 2: Engine Compartment (Cont.) (Grids 4-9) (p. 2)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

WIRING DIAGRAMS

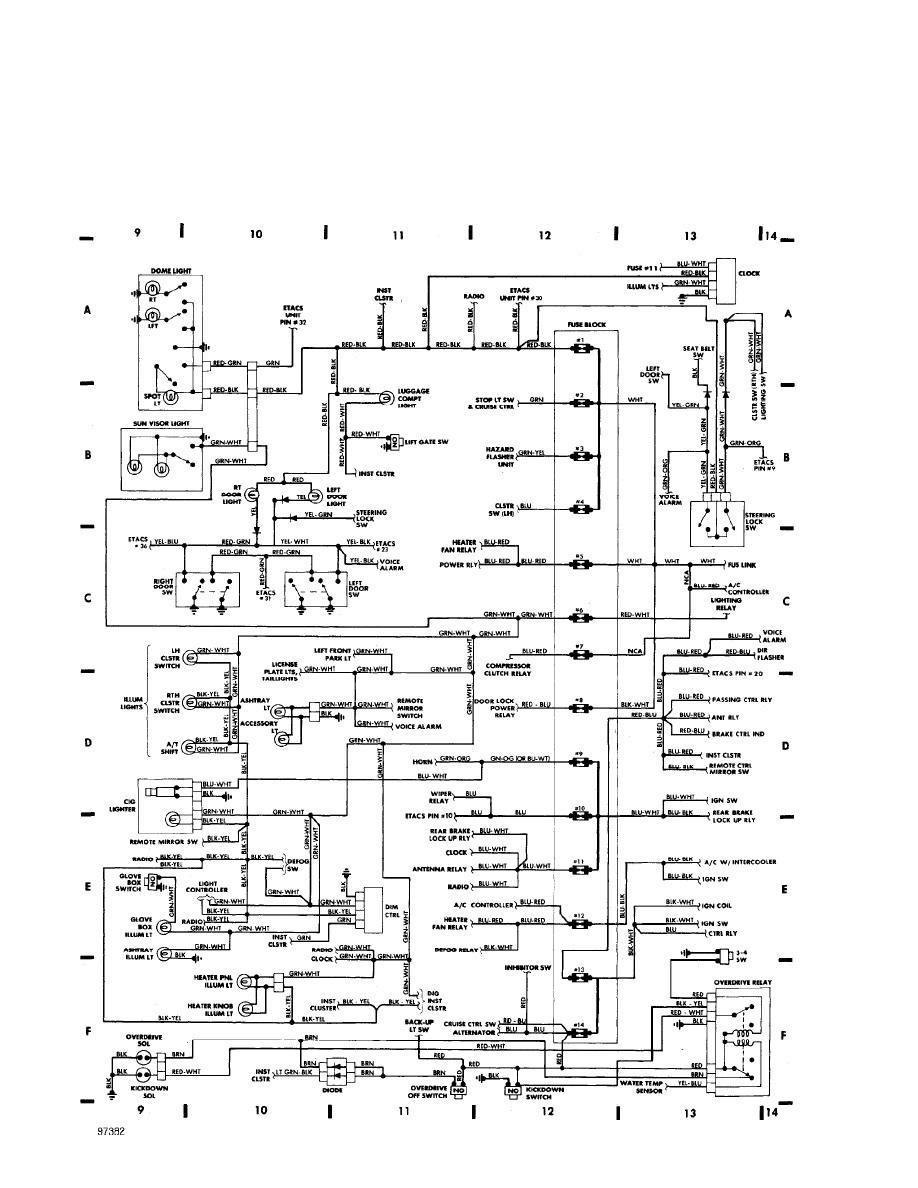

Fig. 3: Fuse Block & Underdash (Grids 9-14) (p. 3)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

WIRING DIAGRAMS

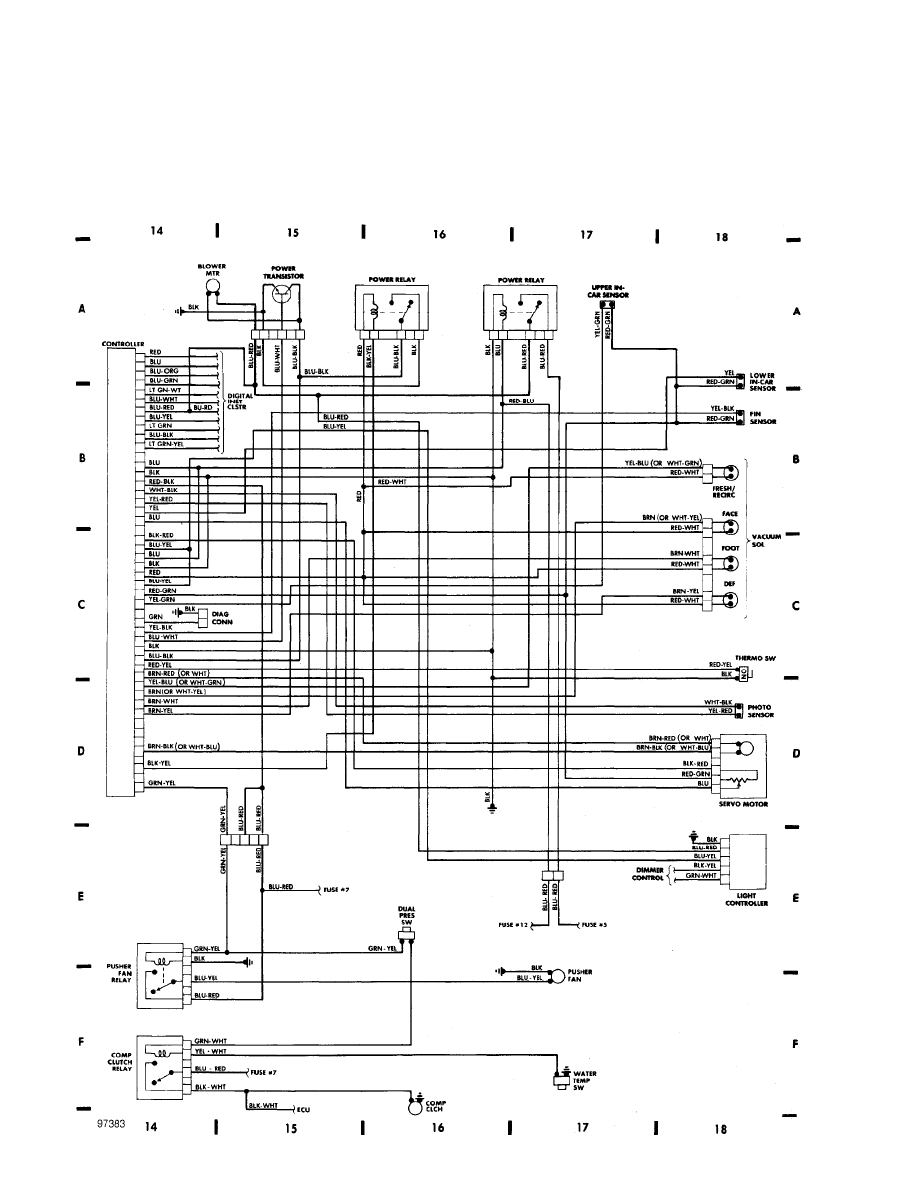

Fig. 4: Air Conditioning W/O Intercooler (Grids 14-18) (p. 4)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

WIRING DIAGRAMS

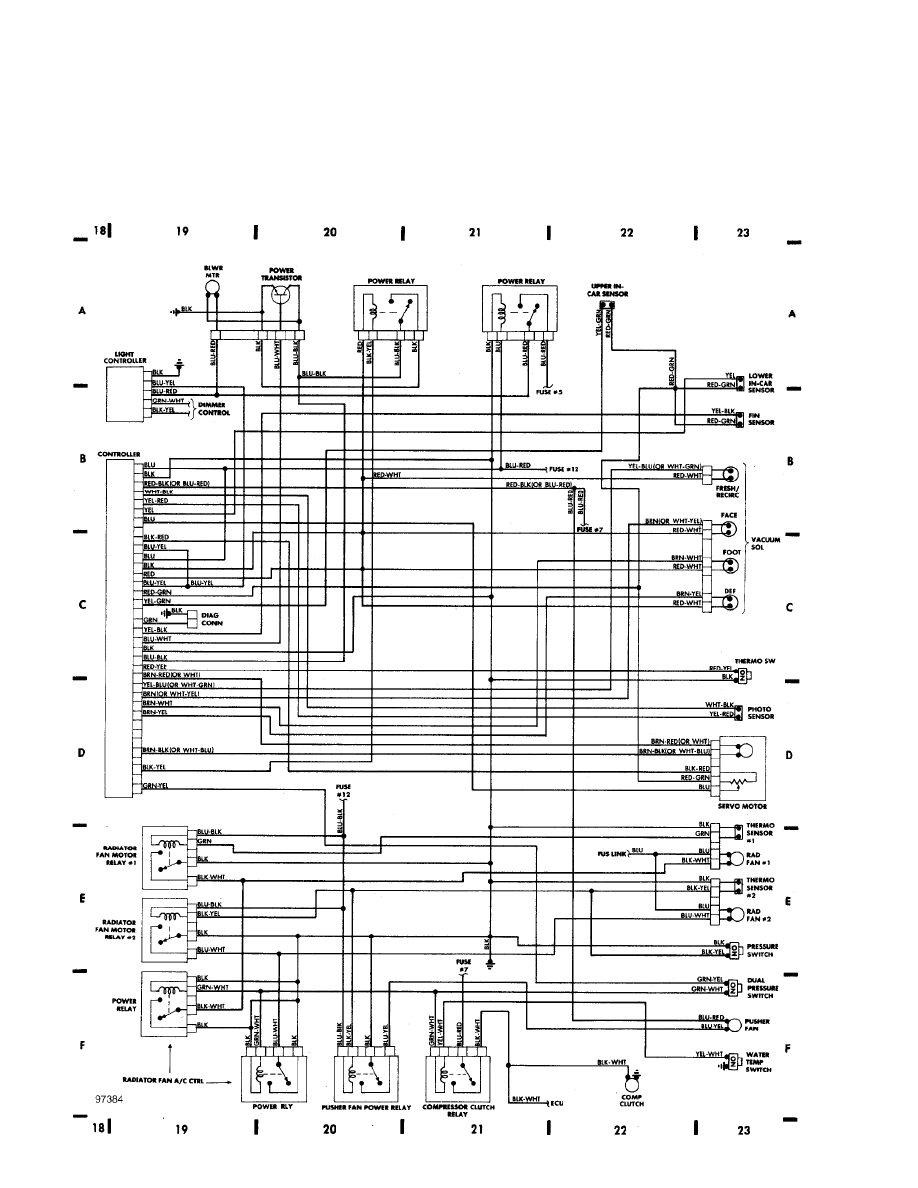

Fig. 5: Air Conditioning With Intercooler (Grids 18-23) (p. 5)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

WIRING DIAGRAMS

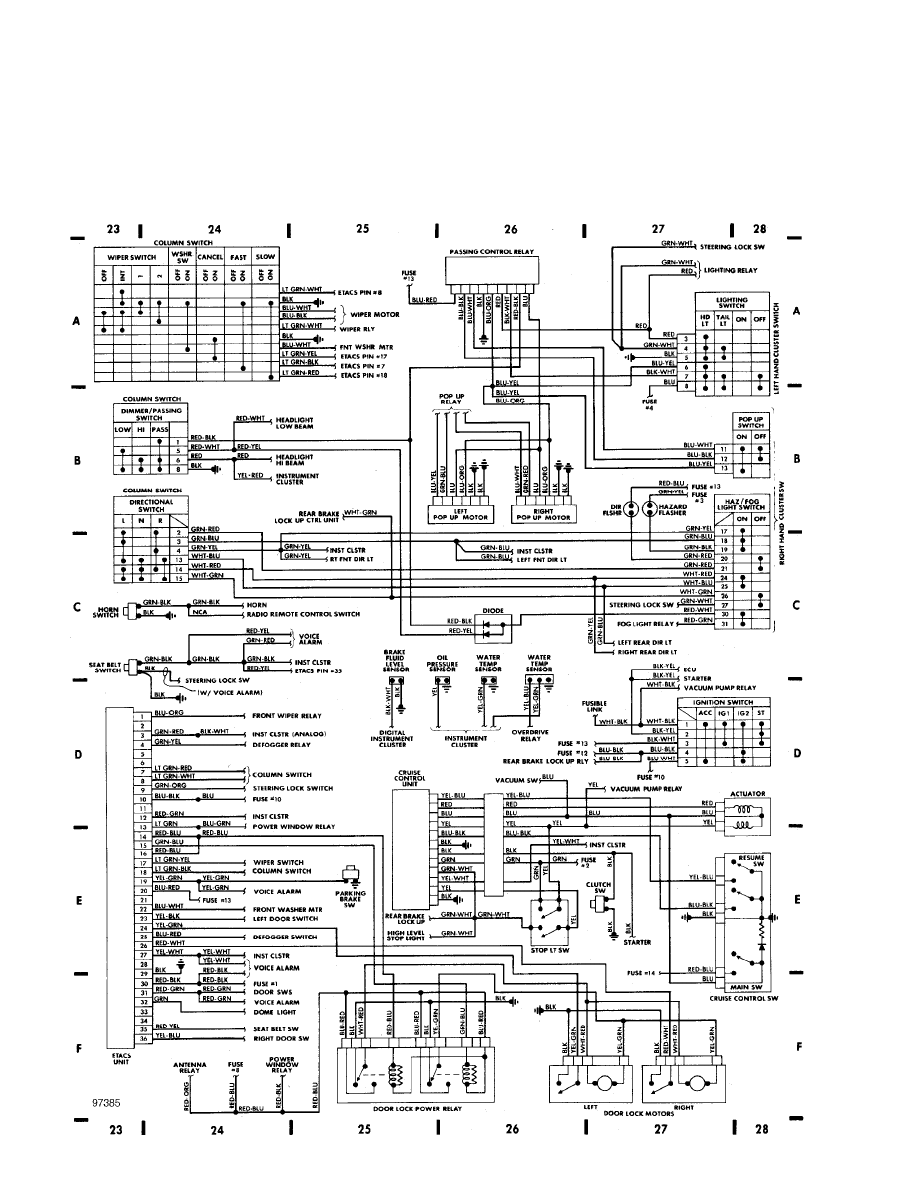

Fig. 6: Underdash & Instrument Panel (Grids 23-28) (p. 6)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

WIRING DIAGRAMS

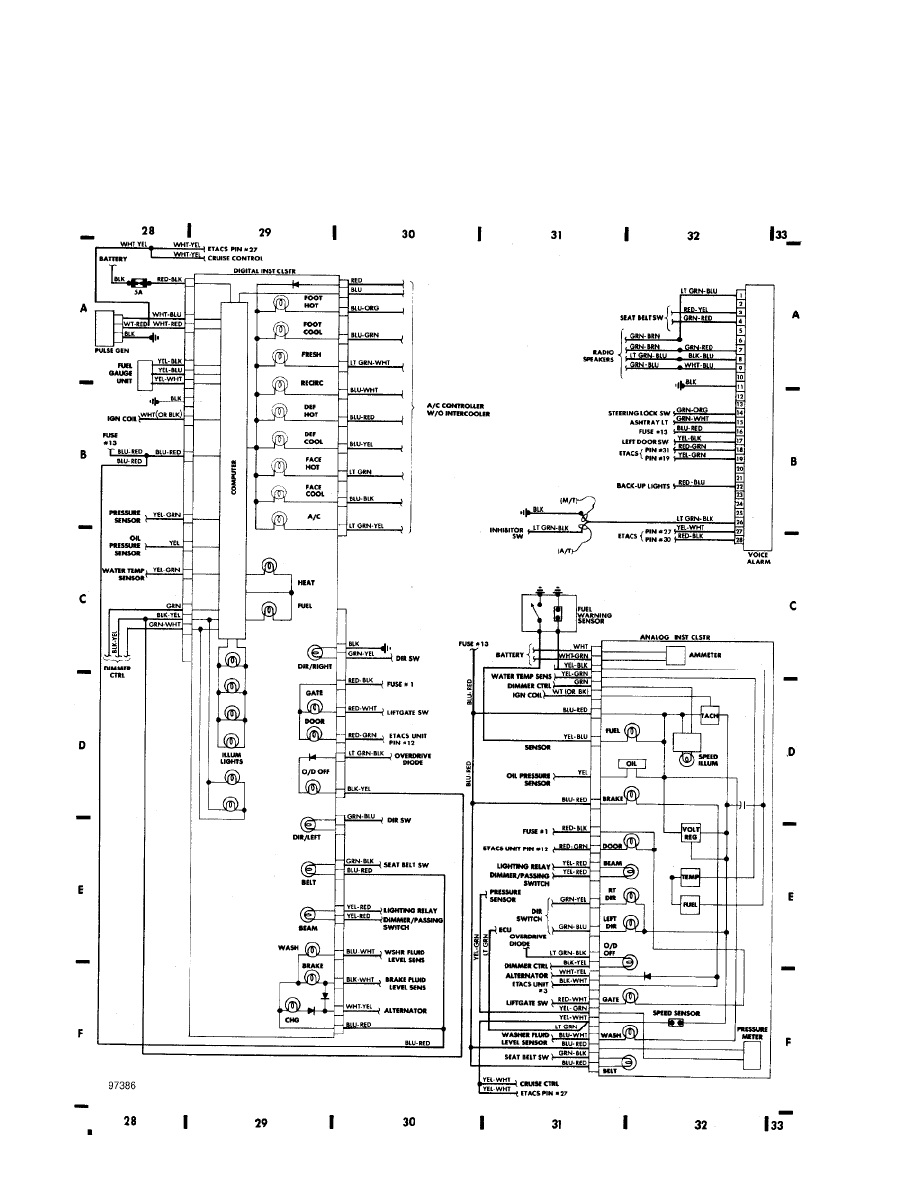

Fig. 7: Instrument Panel (Cont.) (Grids 28-33) (p. 7)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM

background image

WIRING DIAGRAMS

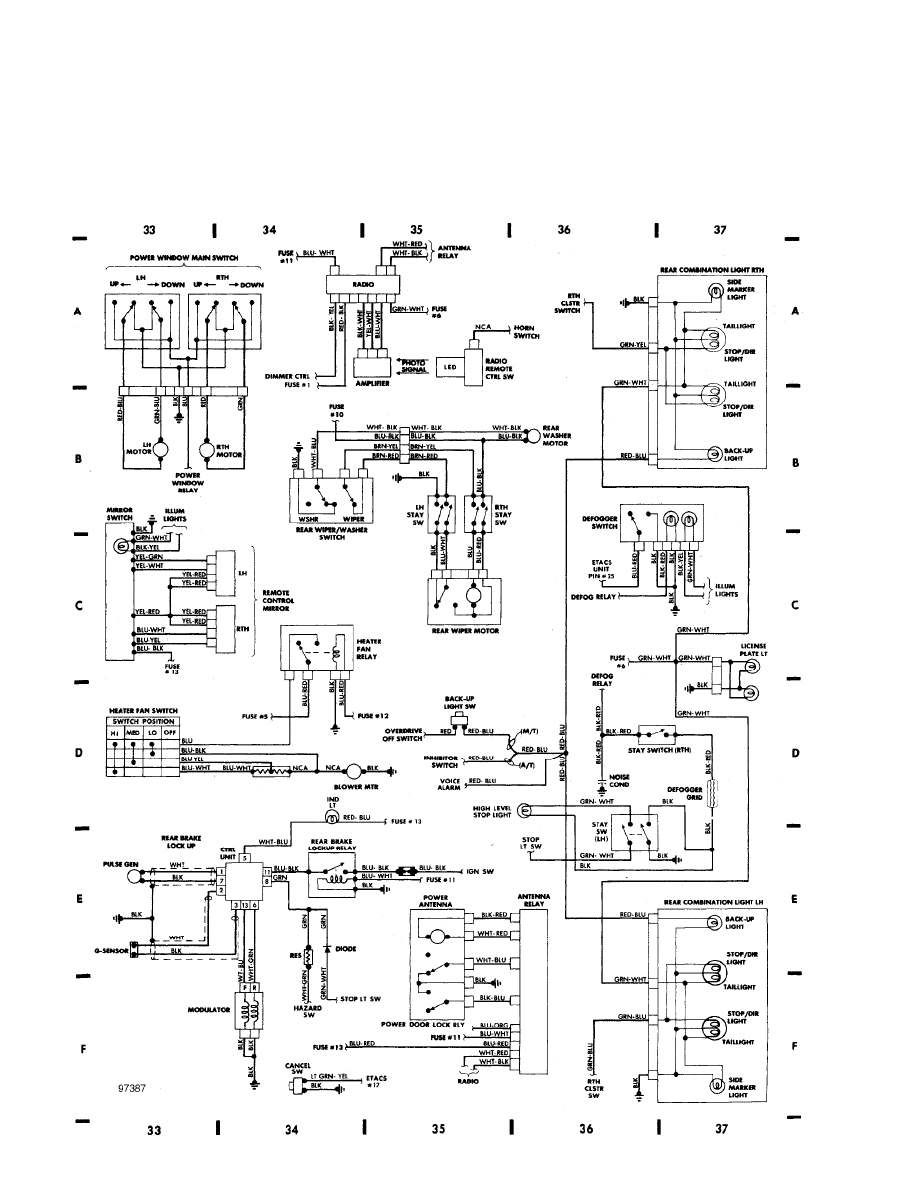

Fig. 8: Rear Compartment & Accessories (Grids 33-37) (p. 8)

1986 Mitsubishi Starion

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:35PM
