VEHICLE CONTROL SYSTEM

IGNITION OR STARTER SWITCH ASSY

80–1

1882

Author:

Date:

2004 COROLLA   (RM1037U)

IGNITION OR STARTER SWITCH ASSY

REPLACEMENT

1.

REMOVE STEERING COLUMN COVER (See page

50–8

)

2.

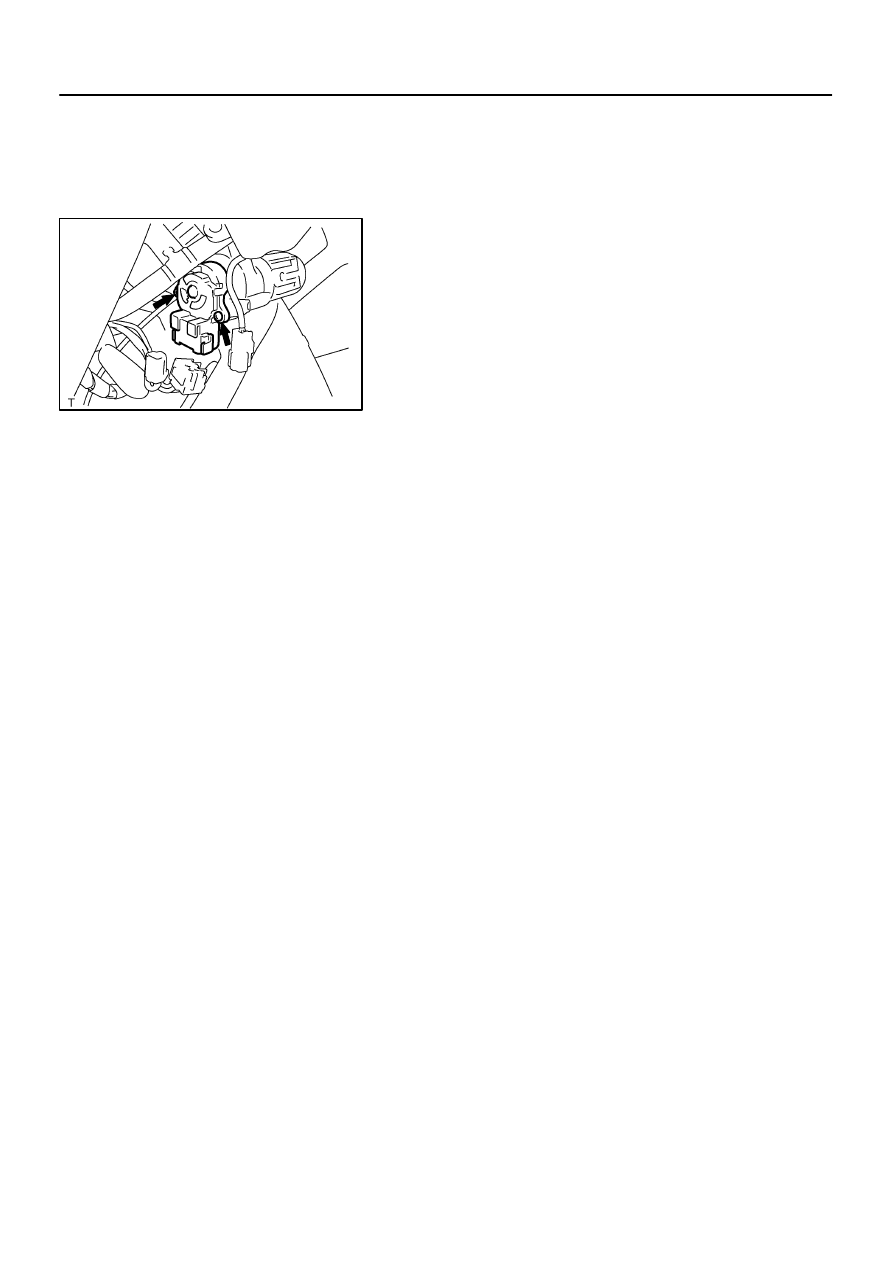

REMOVE IGNITION OR STARTER SWITCH ASSY

(a)

Disconnect the ignition switch connector and unlock
warning switch connector.

(b)

Remove the 2 clamps.

(c)

Remove the 2 screws and ignition switch.

8002V–01

B59929

LOCK

ACC

ON

START

80–2

–

VEHICLE CONTROL SYSTEM

IGNITION OR STARTER SWITCH ASSY

1883

Author:

Date:

2004 COROLLA   (RM1037U)

INSPECTION

1.

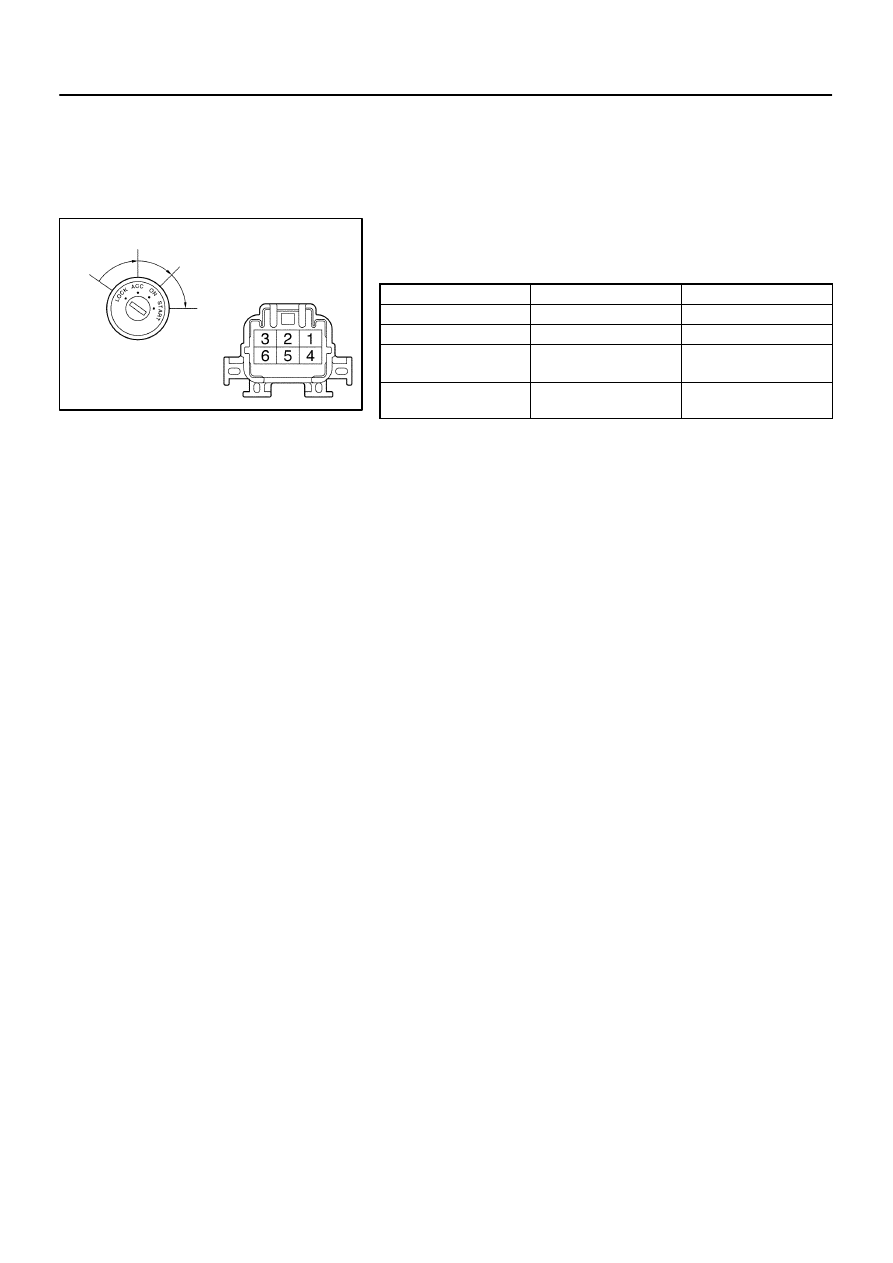

INSPECT IGNITION OR STARTER SWITCH ASSY

(a)

Inspect the ignition switch.
Standard:

Switch position

Terminal No.

Specified condition

LOCK

–

No continuity

ACC

1

⇔

 3

Continuity

ON

1

⇔

 2

⇔

 3

Continuity

ON

1

⇔

 2

⇔

 3

5

⇔

 6

Continuity

START

1

⇔

 2

Continuity

START

1

⇔

 2

4

⇔

 5

⇔

 6

Continuity

If the continuity is not as specified, replace the switch.
