Mobilchips
Service Engineering & Optimization
V3

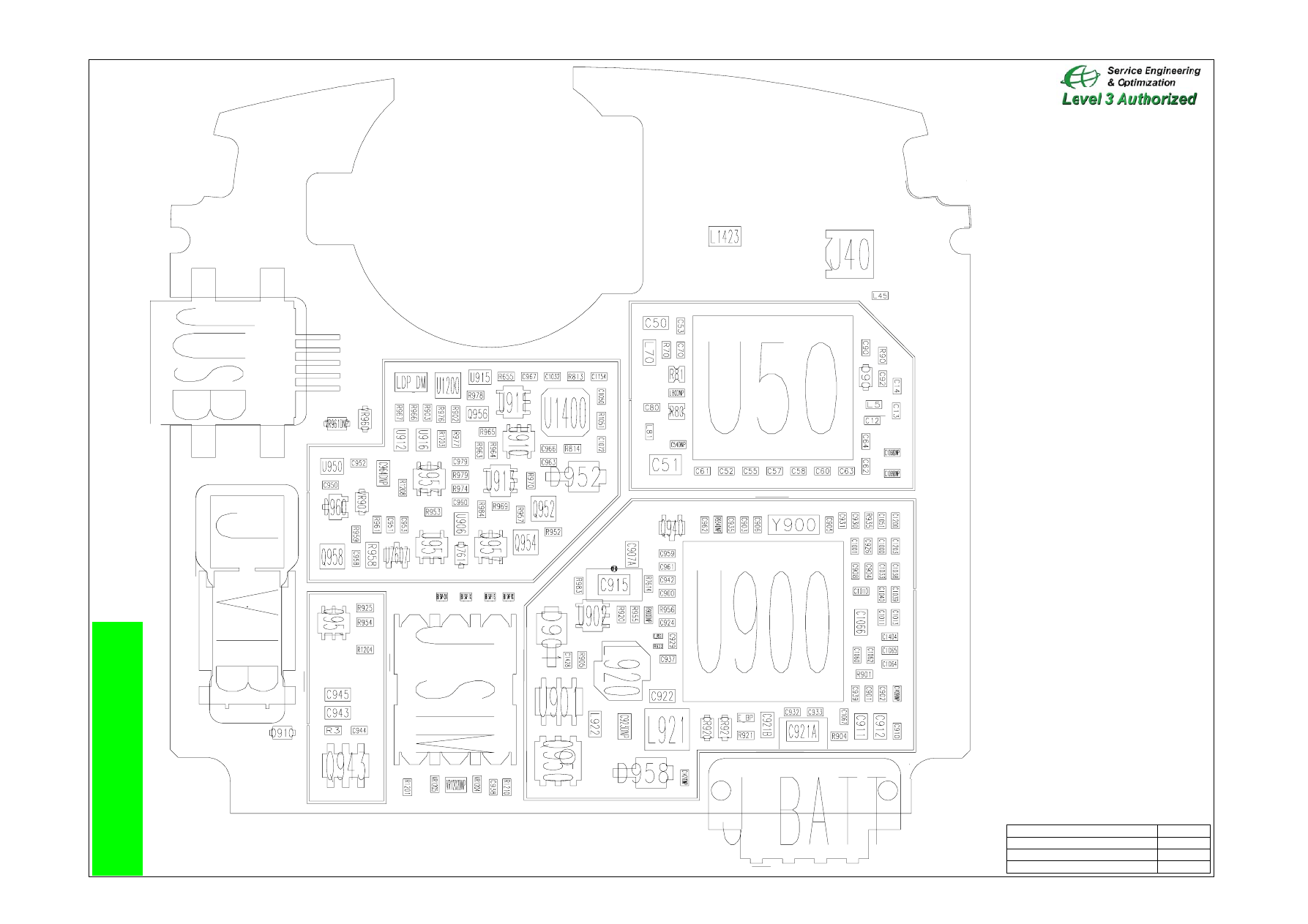

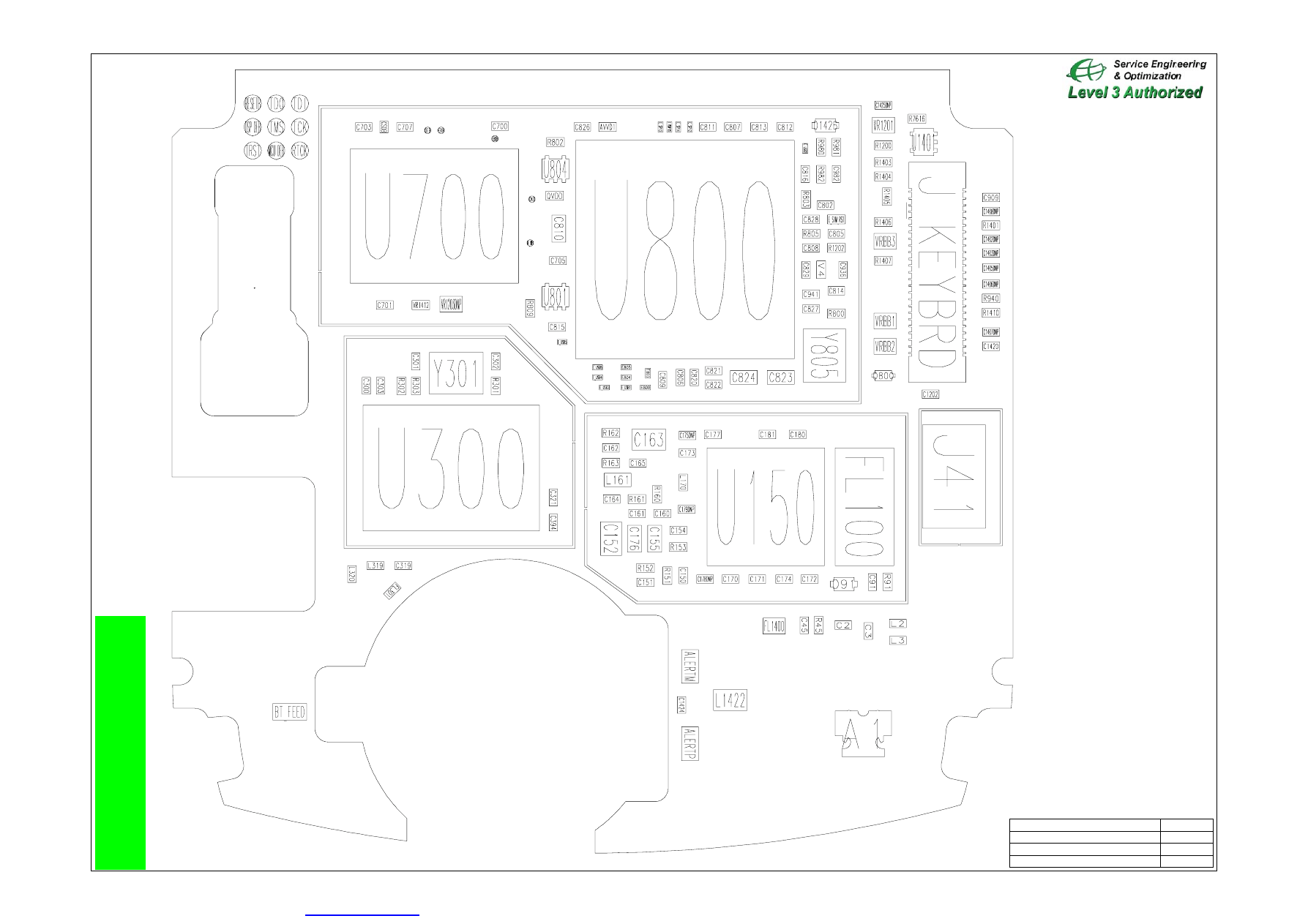

Level 3 Board Layout
Alexander Buehler, Michael Hansen
2004.07.08
Rev. 1.0
8488386N04_B_41
Page 1 of 2
REVISIONS
V3
_ 8488386N04_B_41
Schematics & manuals on www.mobilchips.com
Mobilchips
Service Engineering & Optimization
V3
Level 3 Board Layout
Alexander Buehler, Michael Hansen
2004.07.08
Rev. 1.0
8488386N04_B_41
Page 2 of 2
REVISIONS
V3
_ 8488386N04_B_41
