FORD AEROSTAR 1992

SYSTEM WIRING DIAGRAMS

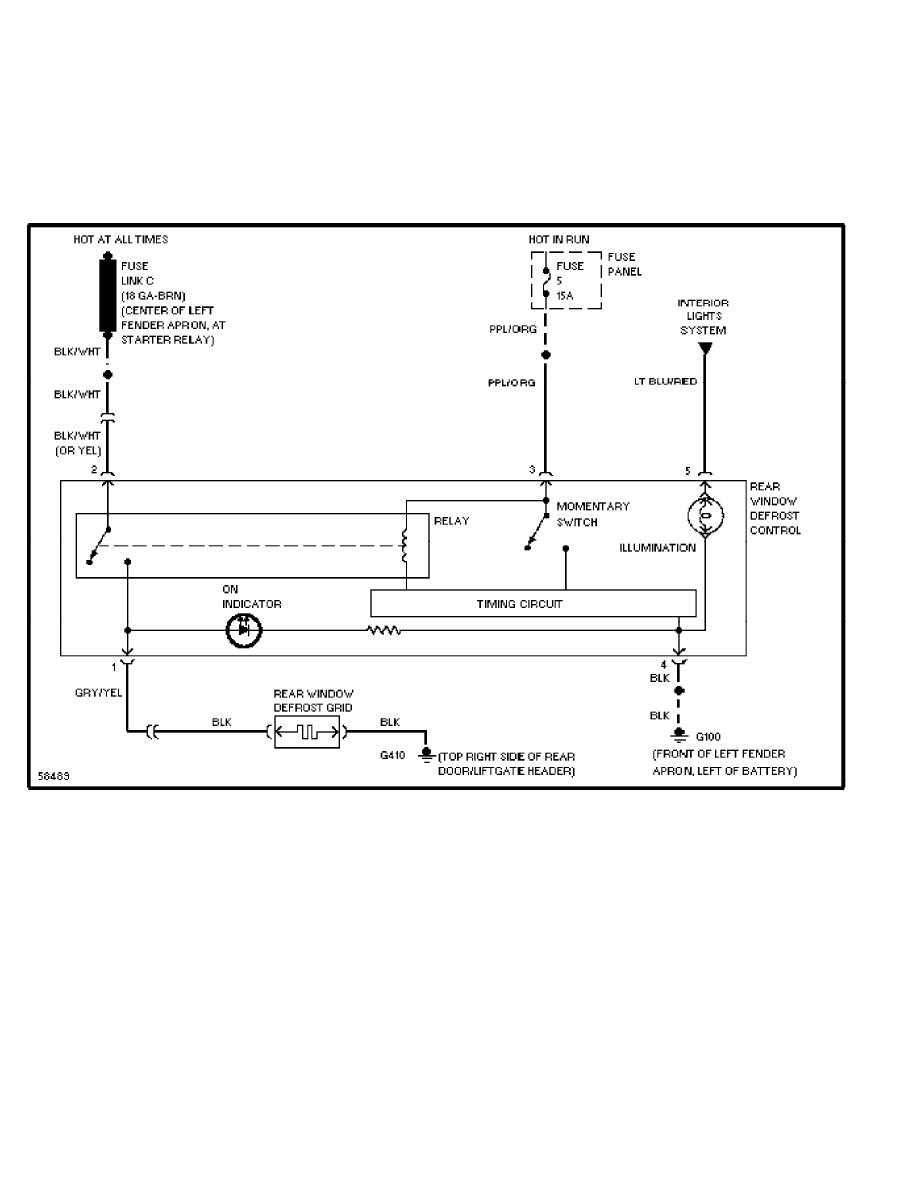

Defogger Circuit

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:33PM

SYSTEM WIRING DIAGRAMS

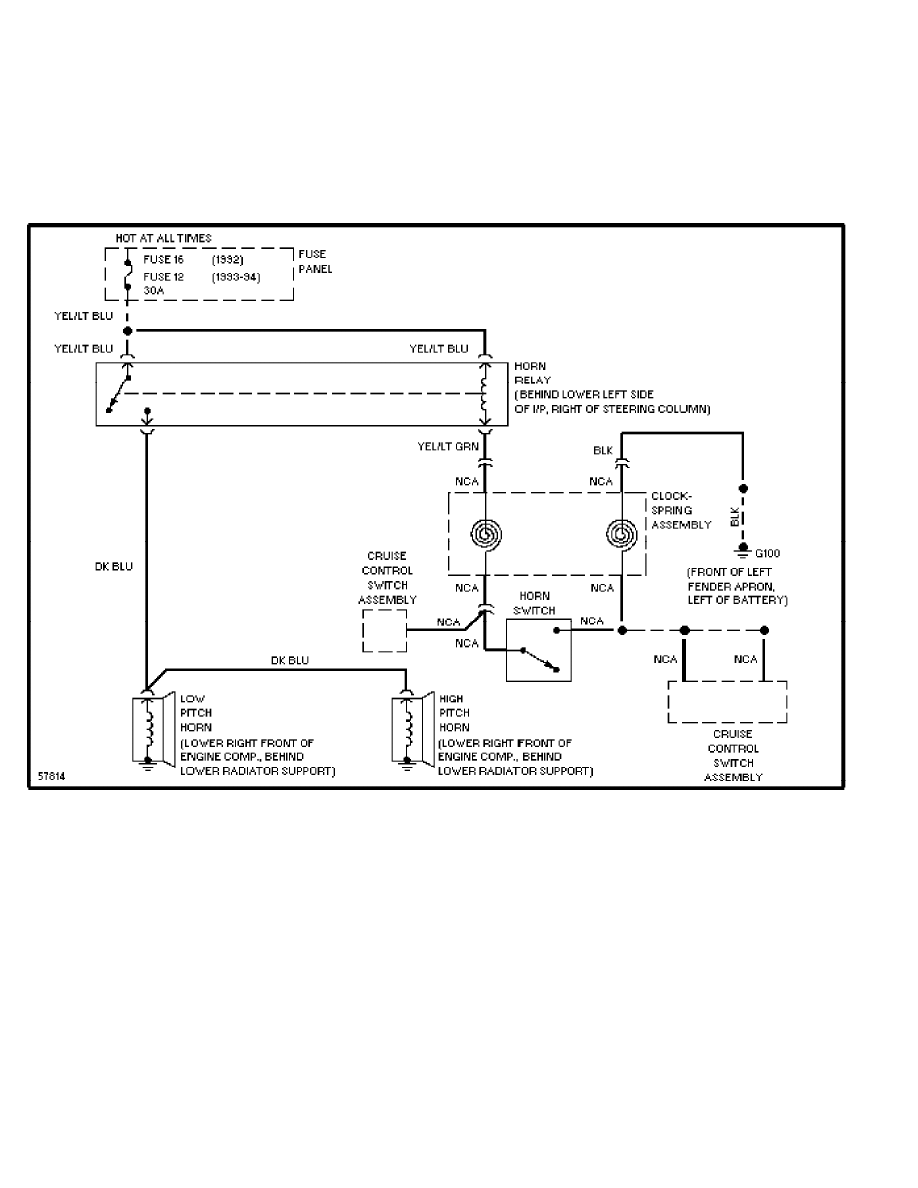

Horn Circuit (p. 2)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:33PM

SYSTEM WIRING DIAGRAMS

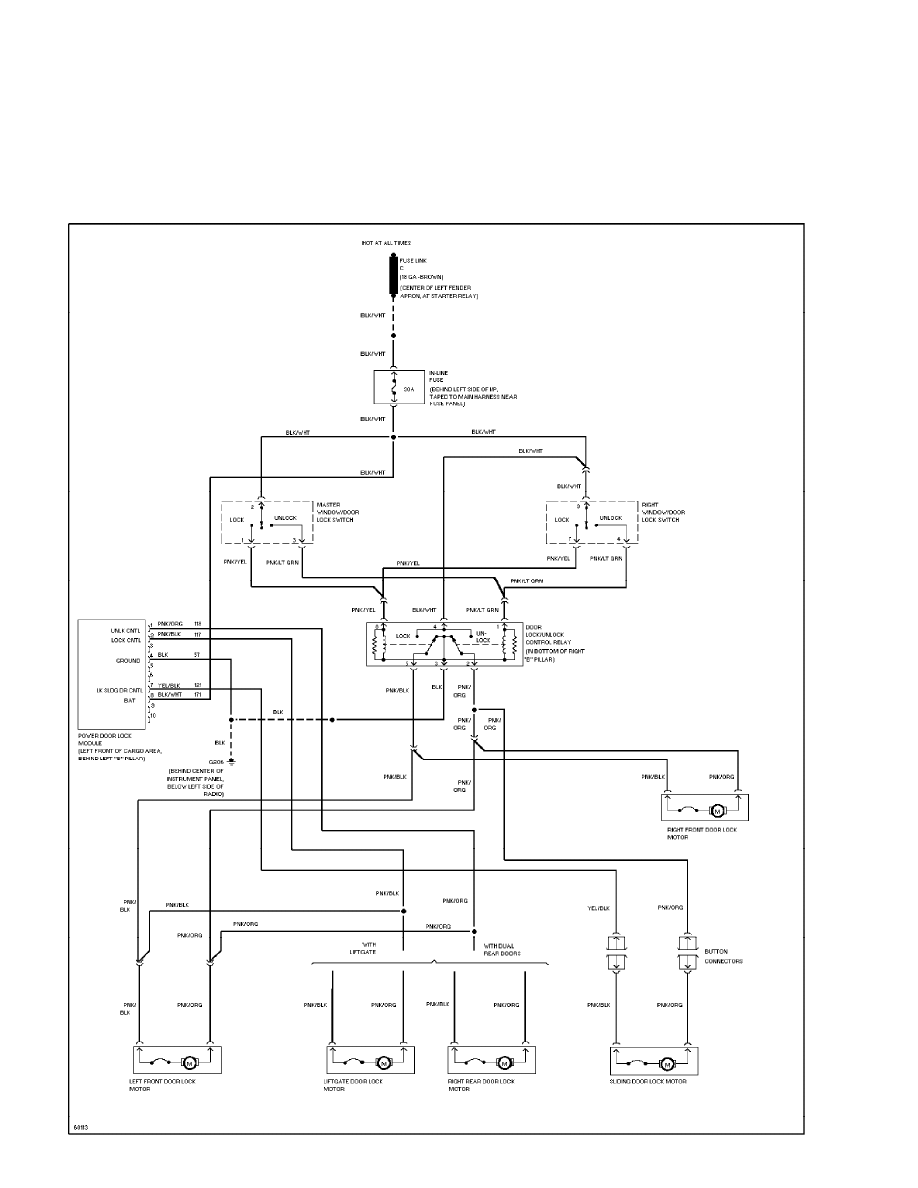

Power Door Lock Circuit (p. 3)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:33PM

SYSTEM WIRING DIAGRAMS

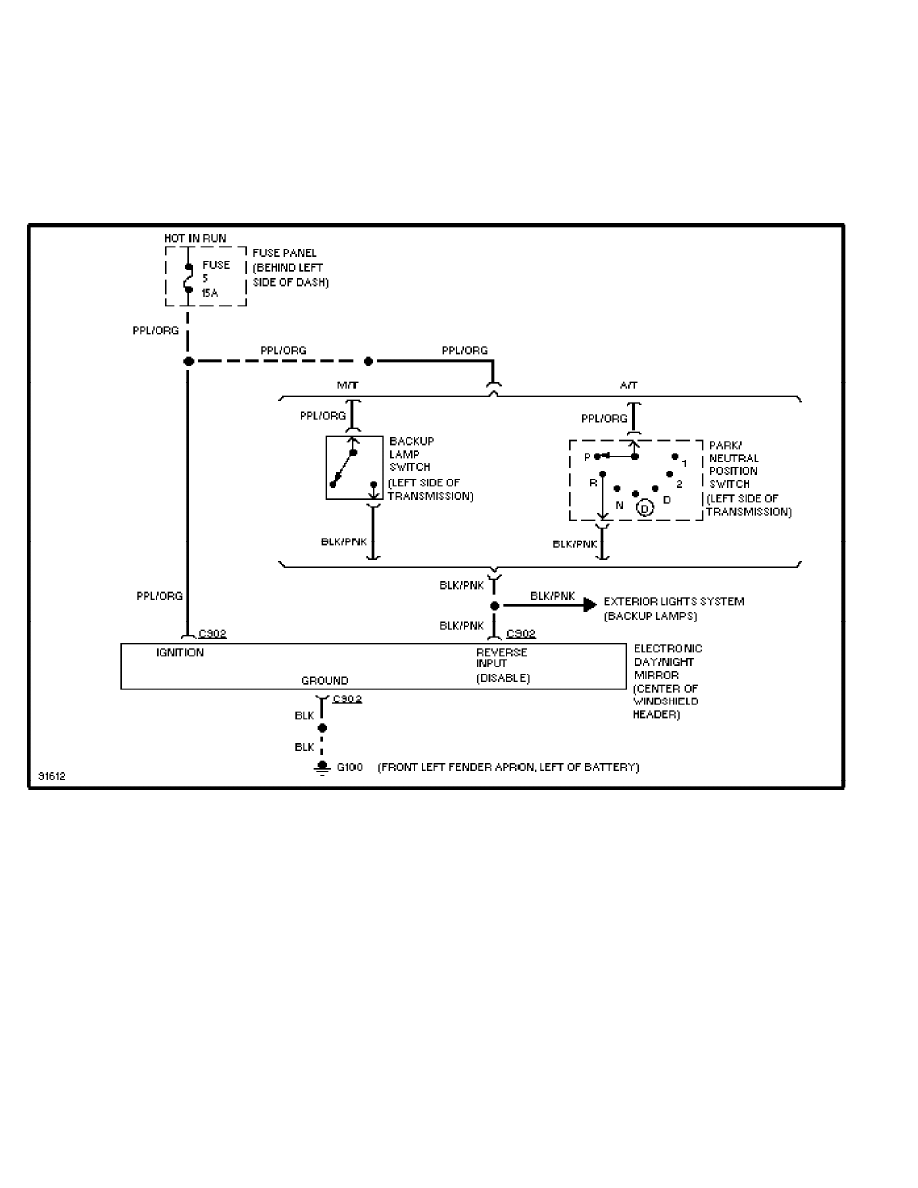

Electronic Day/Night Mirror Circuit (p. 4)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:33PM

SYSTEM WIRING DIAGRAMS

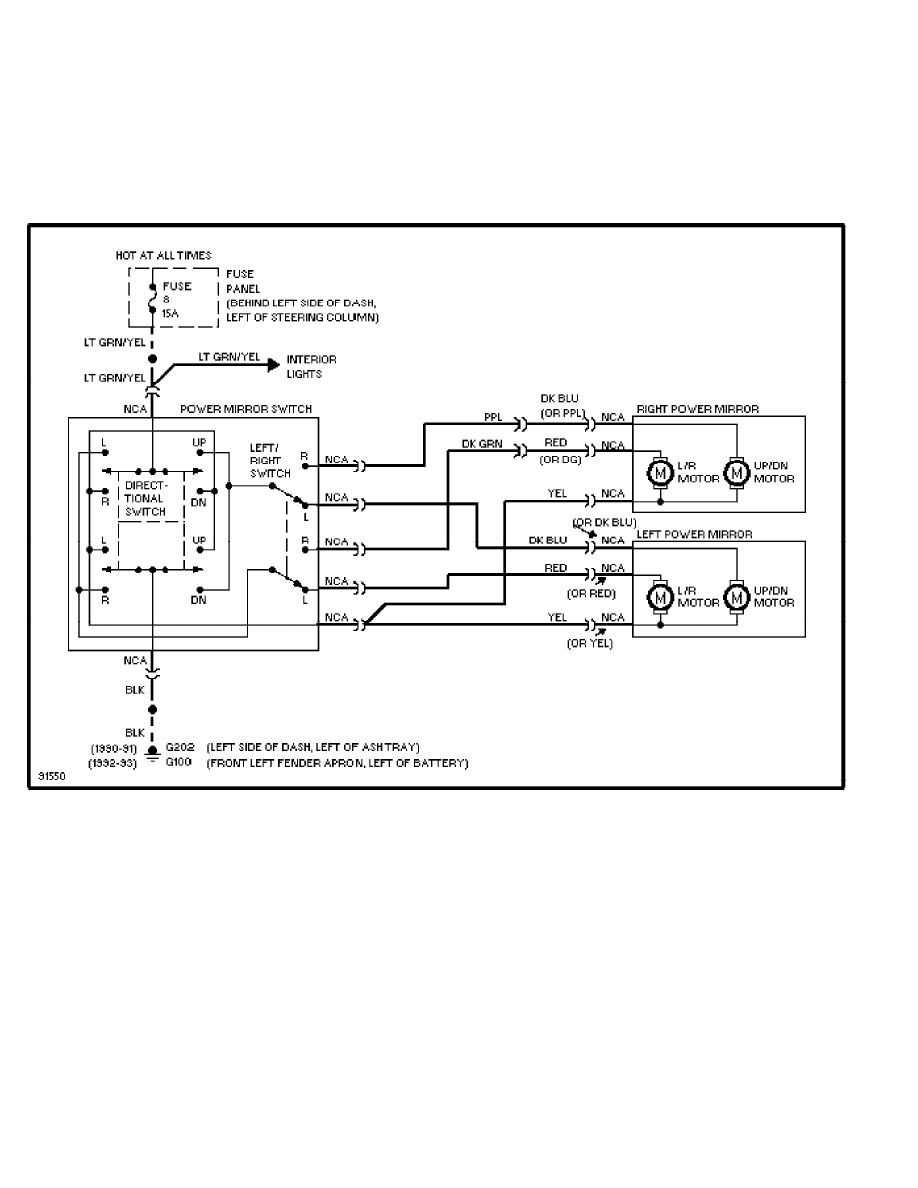

Power Mirrors Circuit (p. 5)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:33PM

SYSTEM WIRING DIAGRAMS

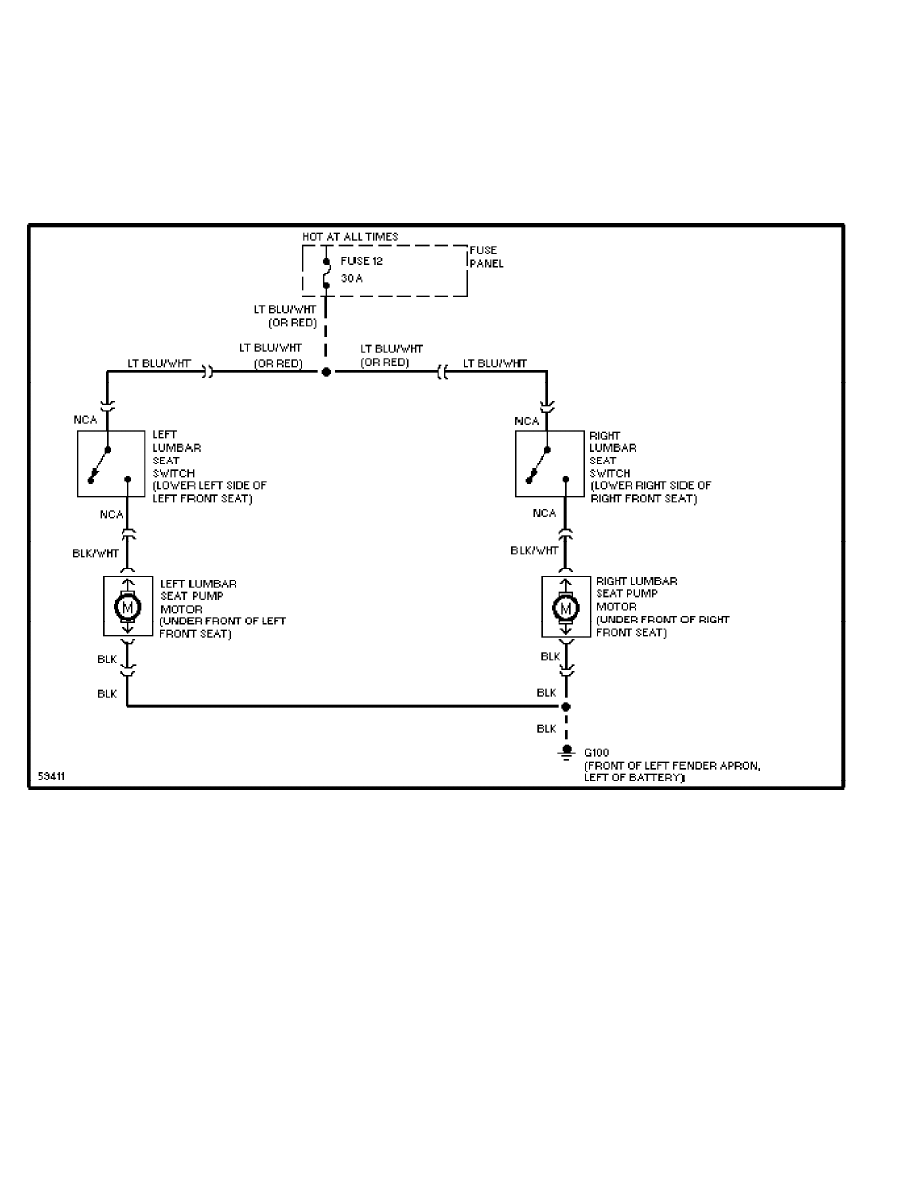

Lumbar Circuit (p. 6)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:33PM

SYSTEM WIRING DIAGRAMS

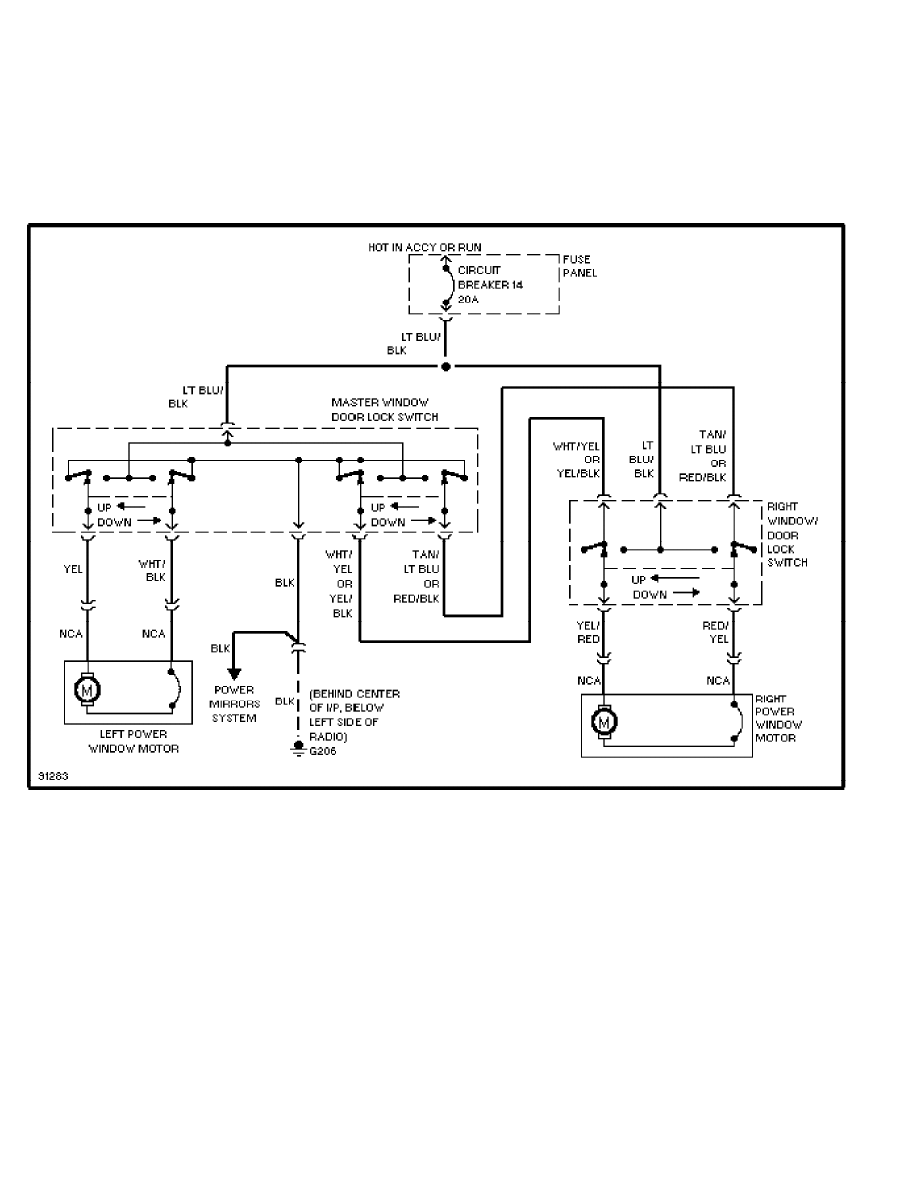

Power Window Circuit (p. 7)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:33PM

SYSTEM WIRING DIAGRAMS

AM Radio Circuit (p. 8)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:33PM

SYSTEM WIRING DIAGRAMS

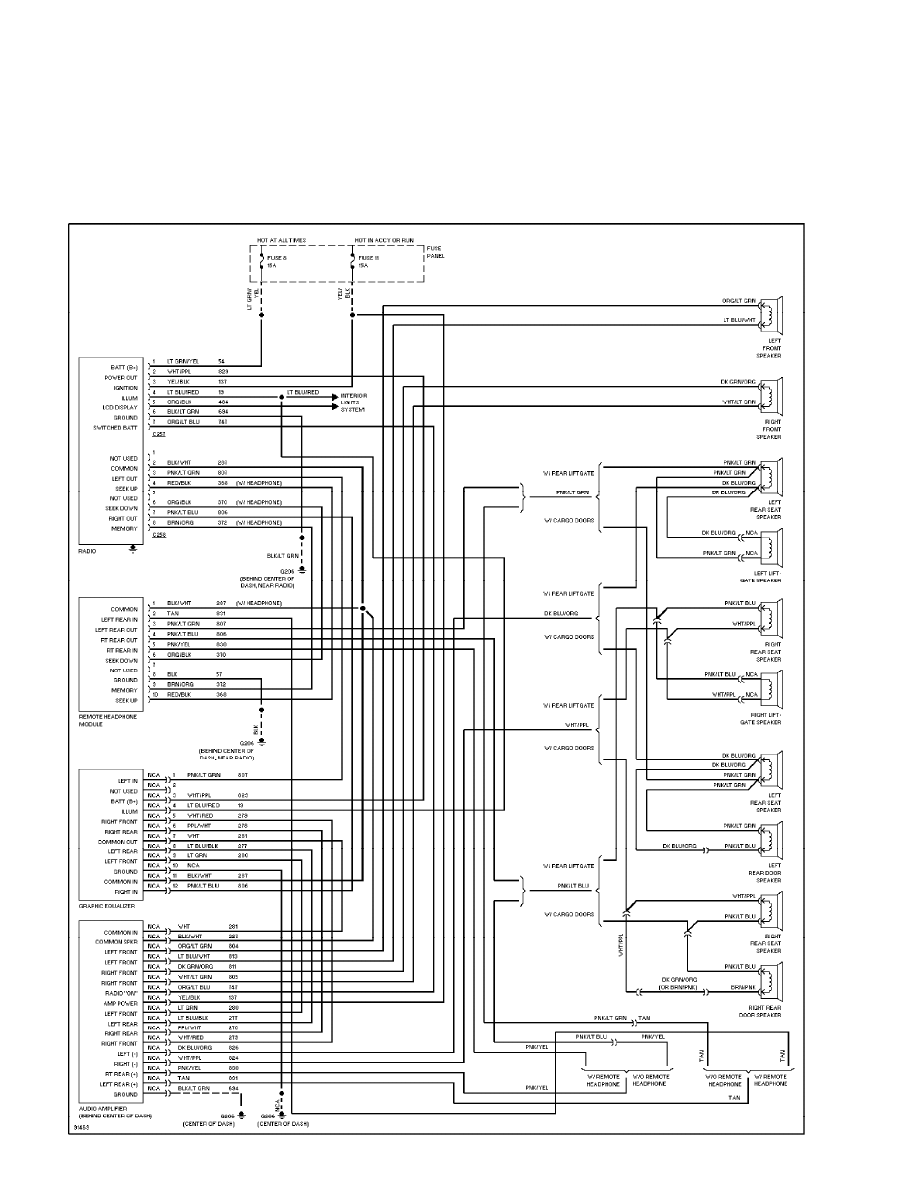

AM/FM Stereo W/ Remote Headphone Circuit (p. 9)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:33PM

SYSTEM WIRING DIAGRAMS

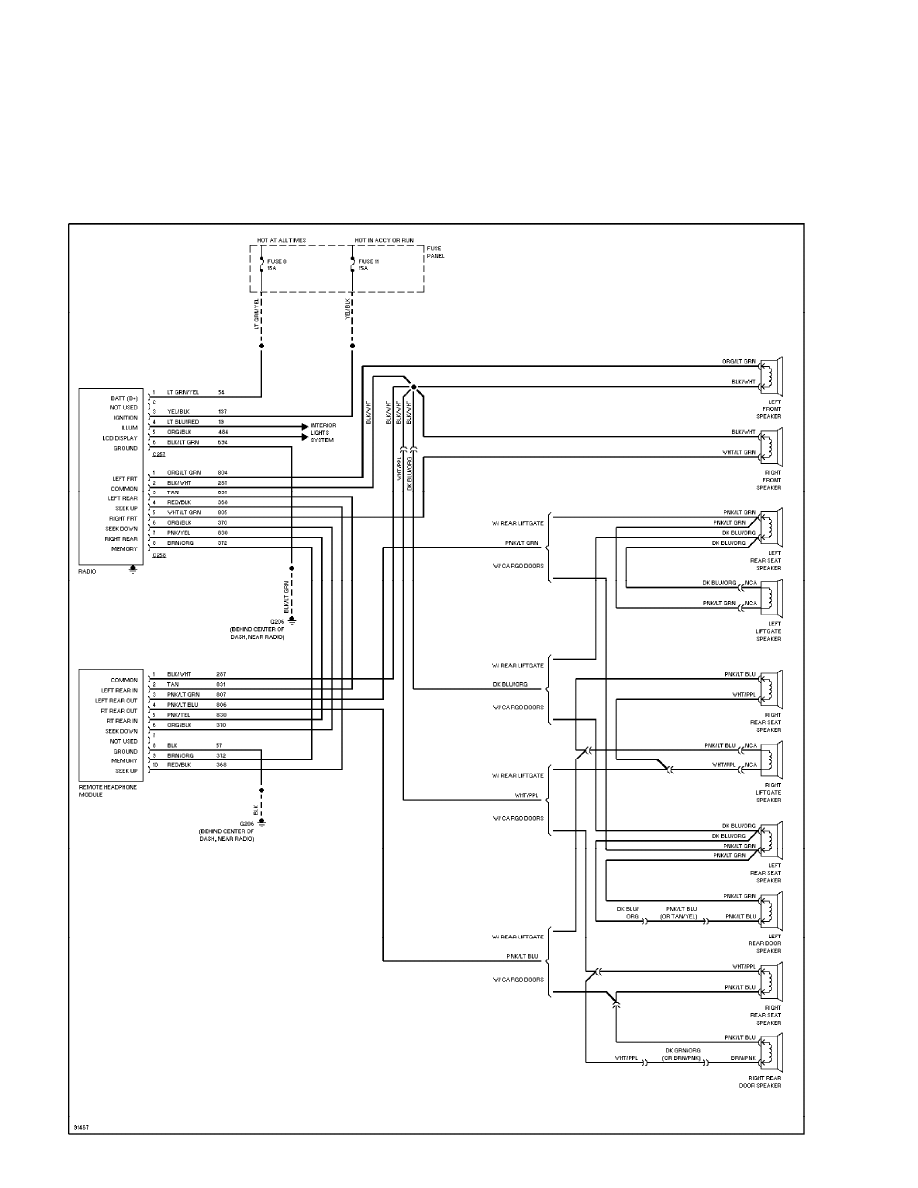

AM/FM Stereo W/O Remote Headphone Circuit, W/ Cargo Doors (p. 10)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:33PM

SYSTEM WIRING DIAGRAMS

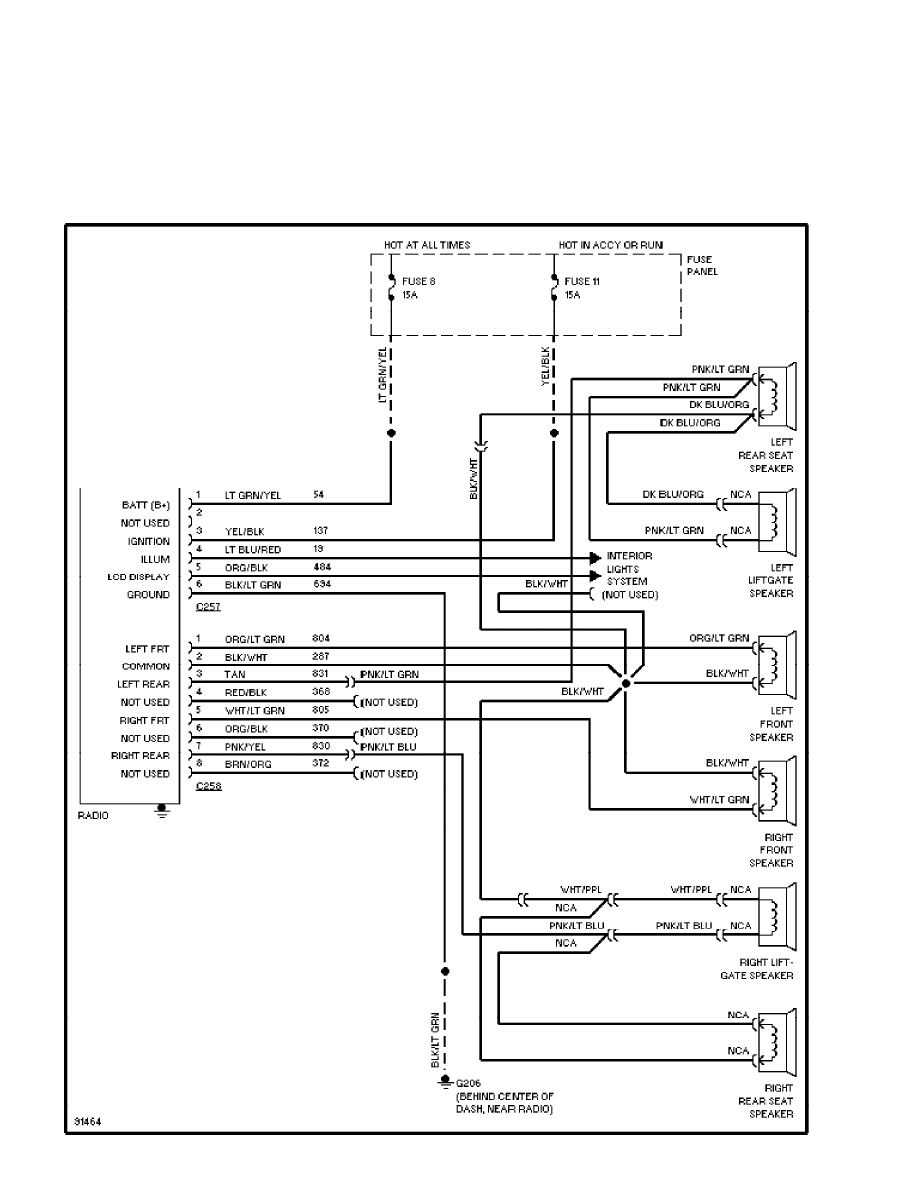

AM/FM Stereo W/O Remote Headphone Circuit, W/ Liftgate (p. 11)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:33PM

SYSTEM WIRING DIAGRAMS

Premium Sound Radio Circuit (p. 12)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:33PM

SYSTEM WIRING DIAGRAMS

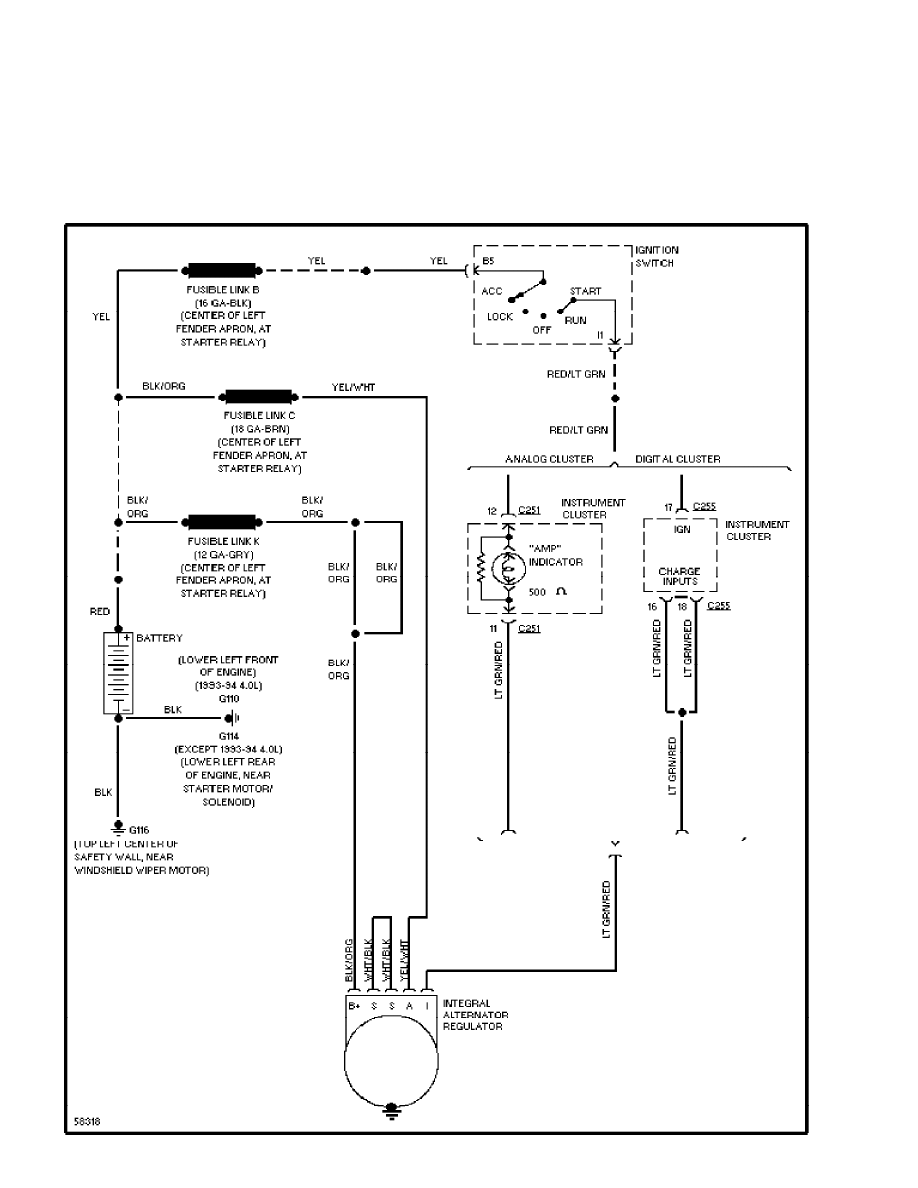

Charging Circuit (p. 13)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:33PM

SYSTEM WIRING DIAGRAMS

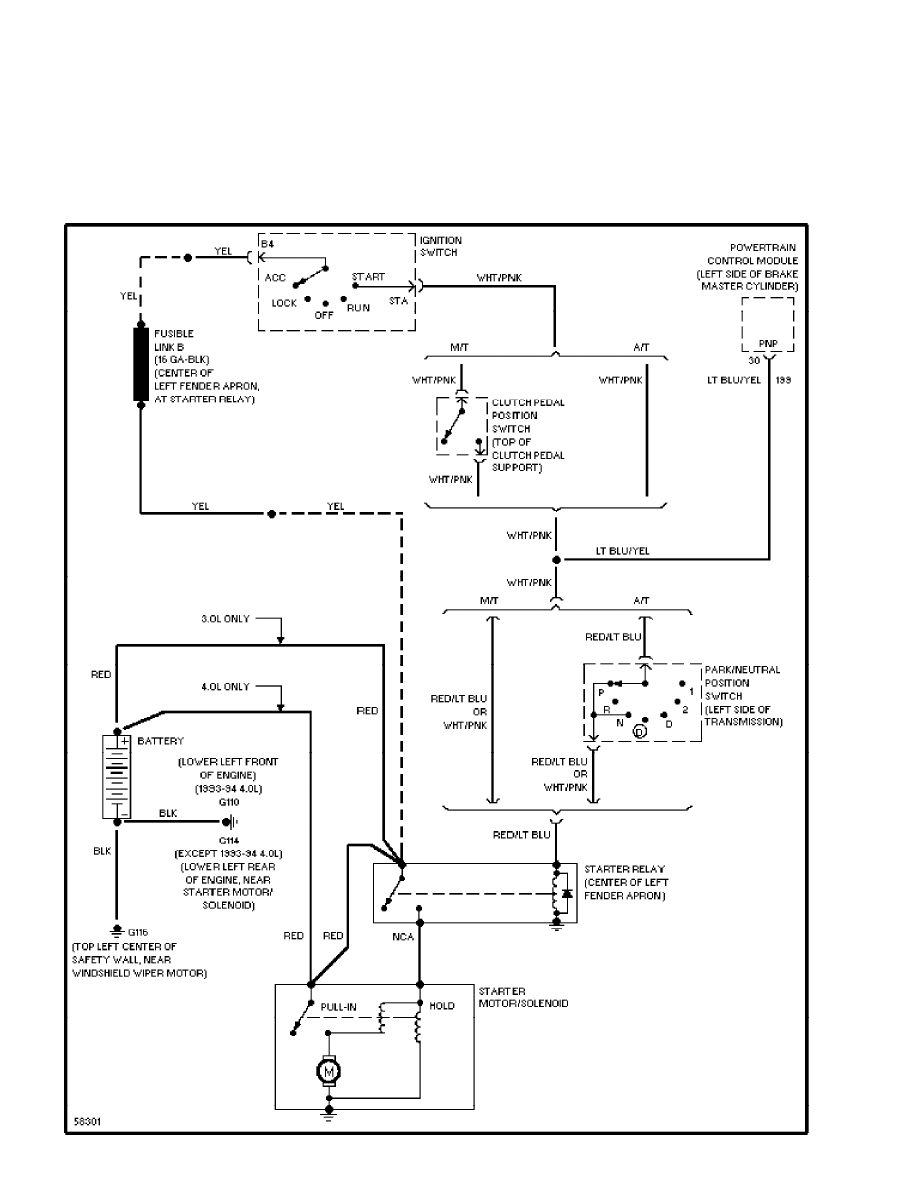

Starting Circuit (p. 14)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:33PM

SYSTEM WIRING DIAGRAMS

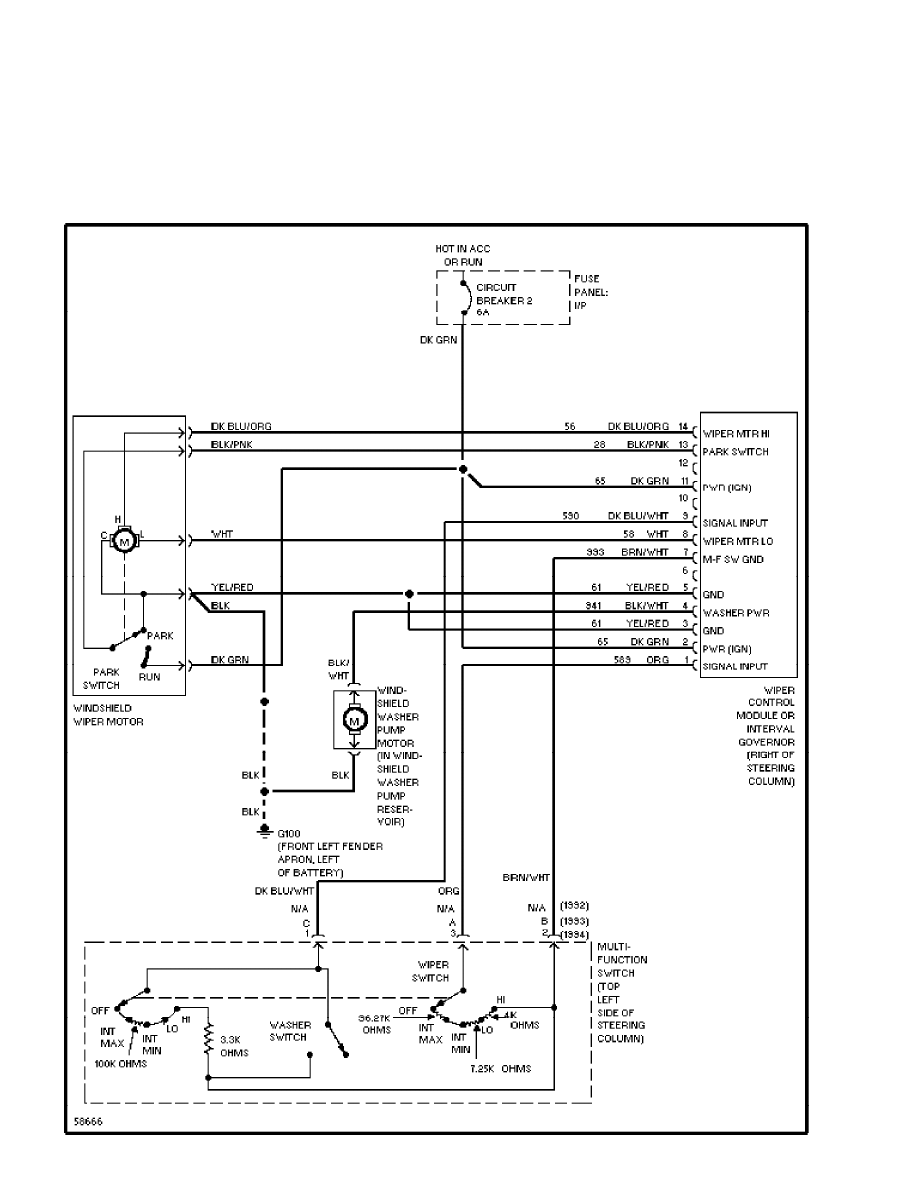

Front Wiper/Washer Circuit (p. 15)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:33PM

SYSTEM WIRING DIAGRAMS

Rear Wiper/Washer Circuit (p. 16)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:33PM

WIRING DIAGRAMS

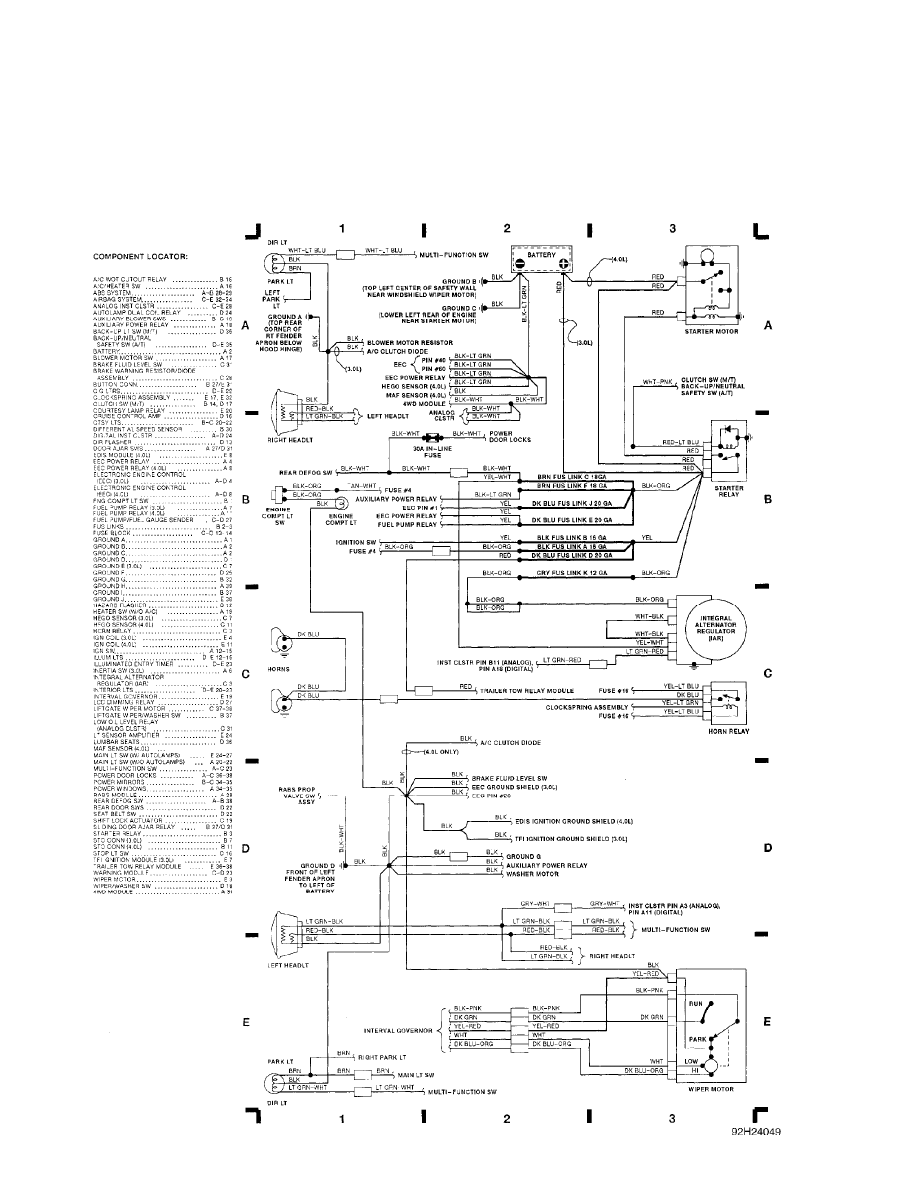

Fig. 1: Engine Compartment & Headlights (Grids 1-3)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:35PM

WIRING DIAGRAMS

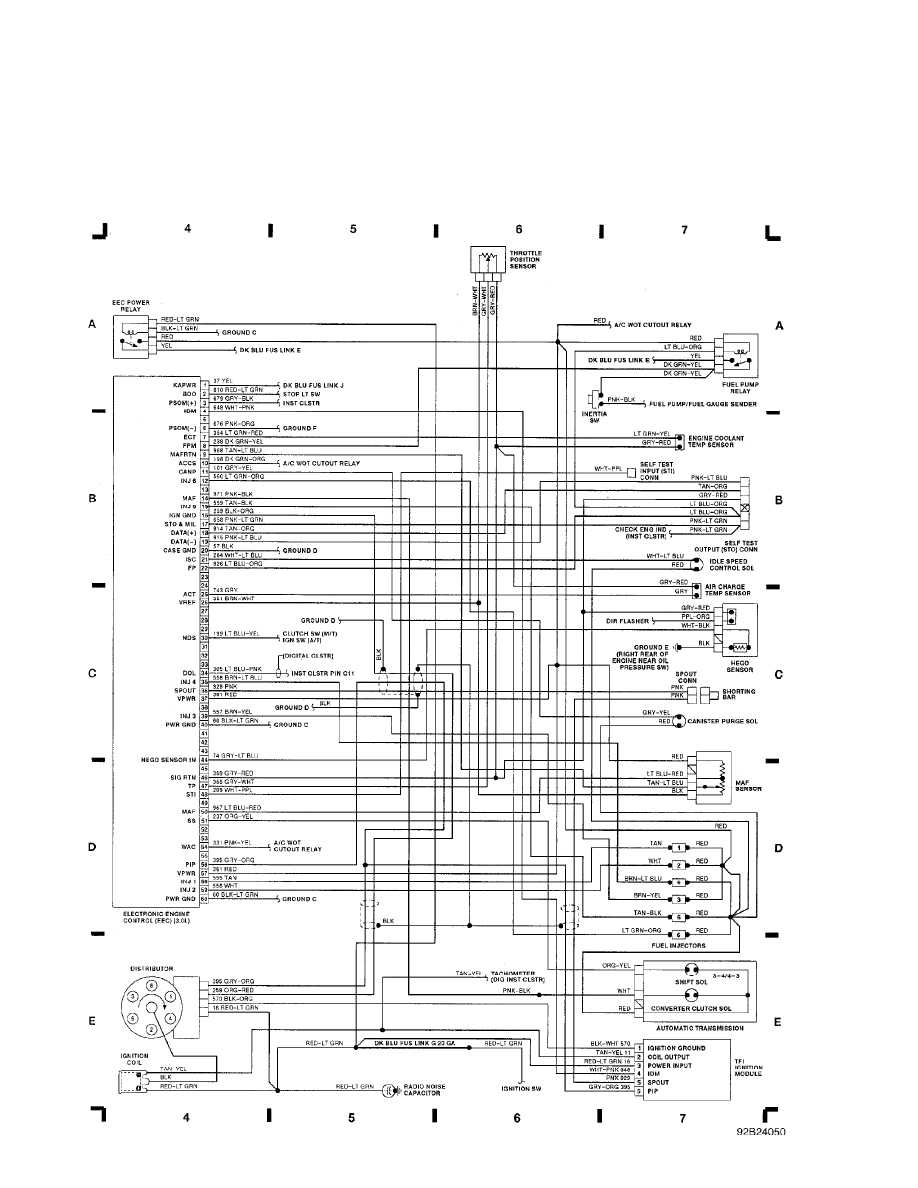

Fig. 2: Engine Control (EEC) (3.0L) (Grids 4-7) (p. 2)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:35PM

WIRING DIAGRAMS

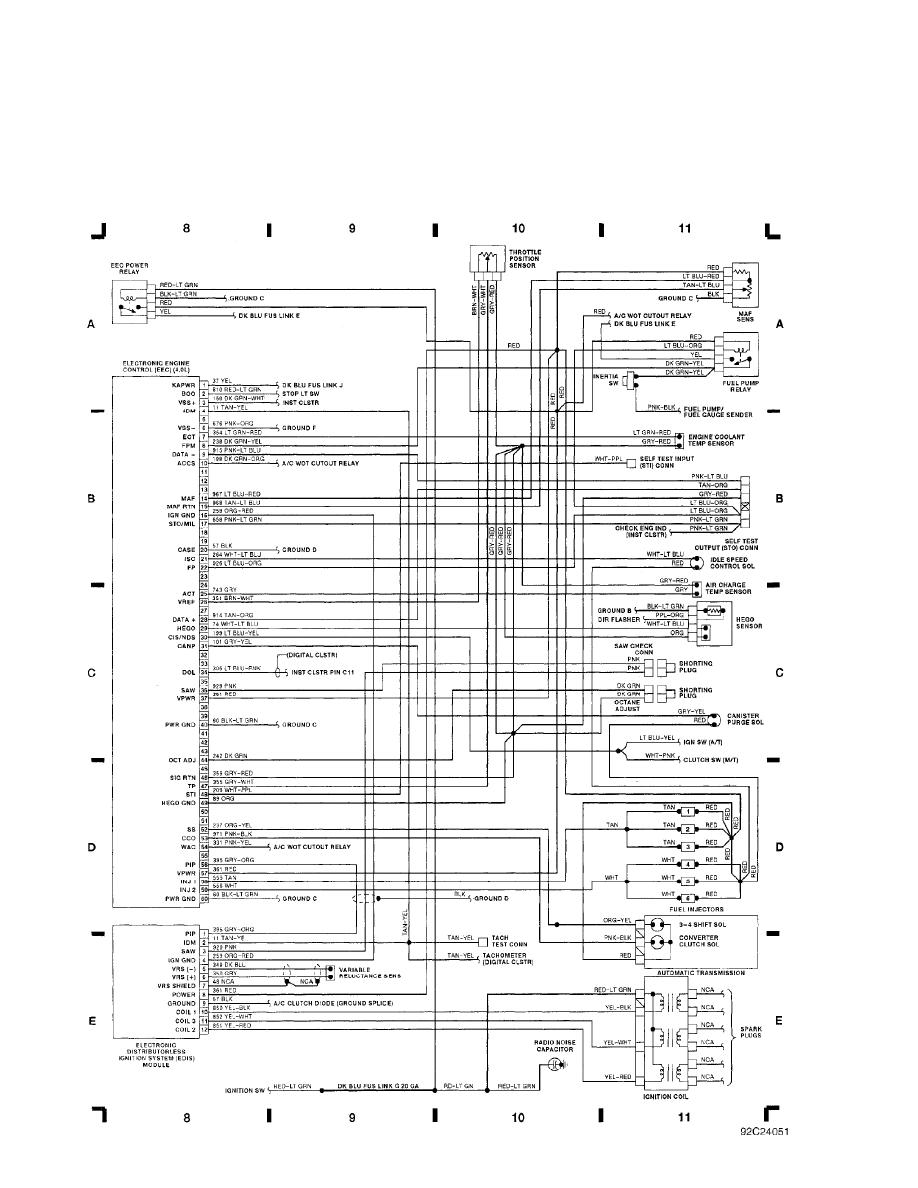

Fig. 3: Engine Control (EEC) (4.0L) (EDIS) Module (Grids 8-11) (p. 3)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:35PM

WIRING DIAGRAMS

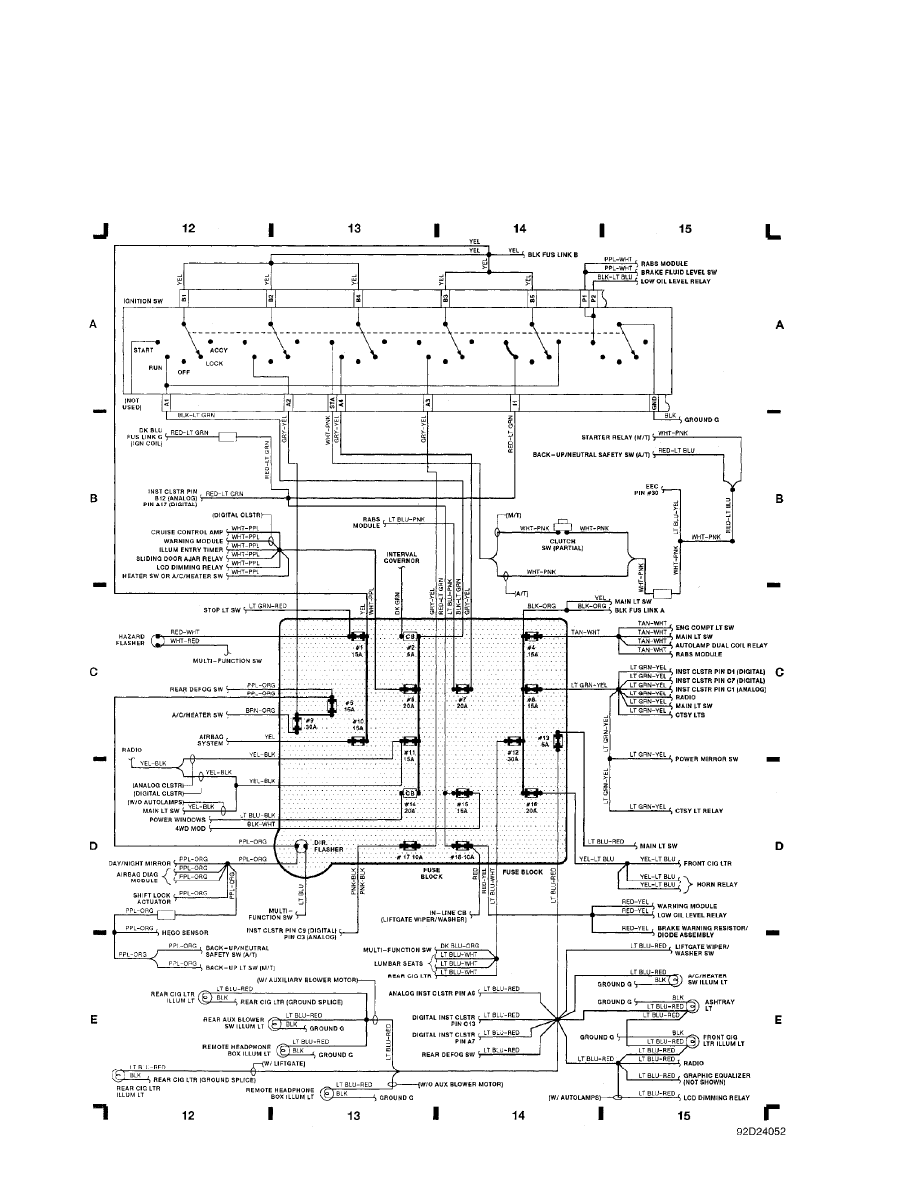

Fig. 4: Fuse Block, Ignition Switch (Grids 12-15) (p. 4)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:35PM

WIRING DIAGRAMS

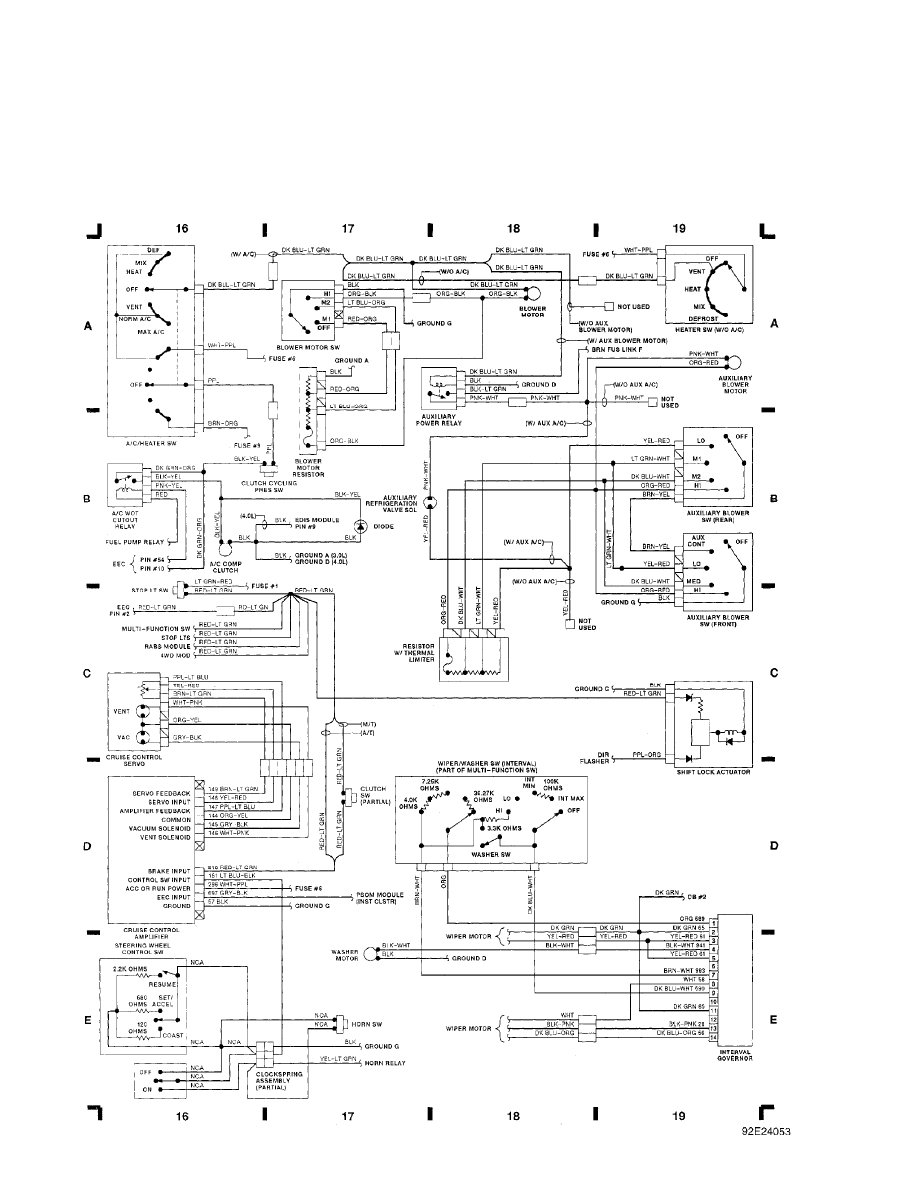

Fig. 5: A/C-Heater & Cruise Control Switches (Grids 16-19) (p. 5)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:35PM

WIRING DIAGRAMS

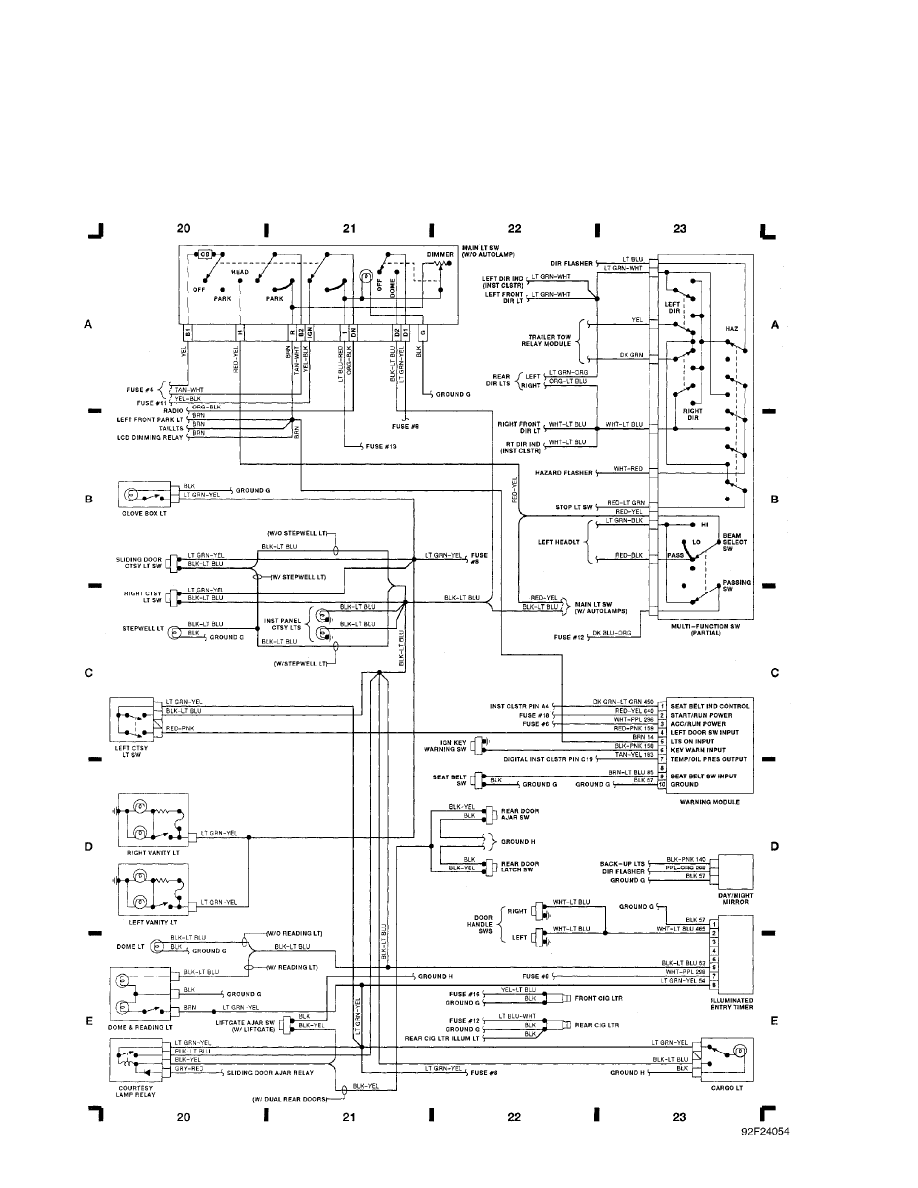

Fig. 6: Multi-Fun./Main Lt.W/O Autolamp Sw./Warn.Mod. (Grids 20-23) (p. 6)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:35PM

WIRING DIAGRAMS

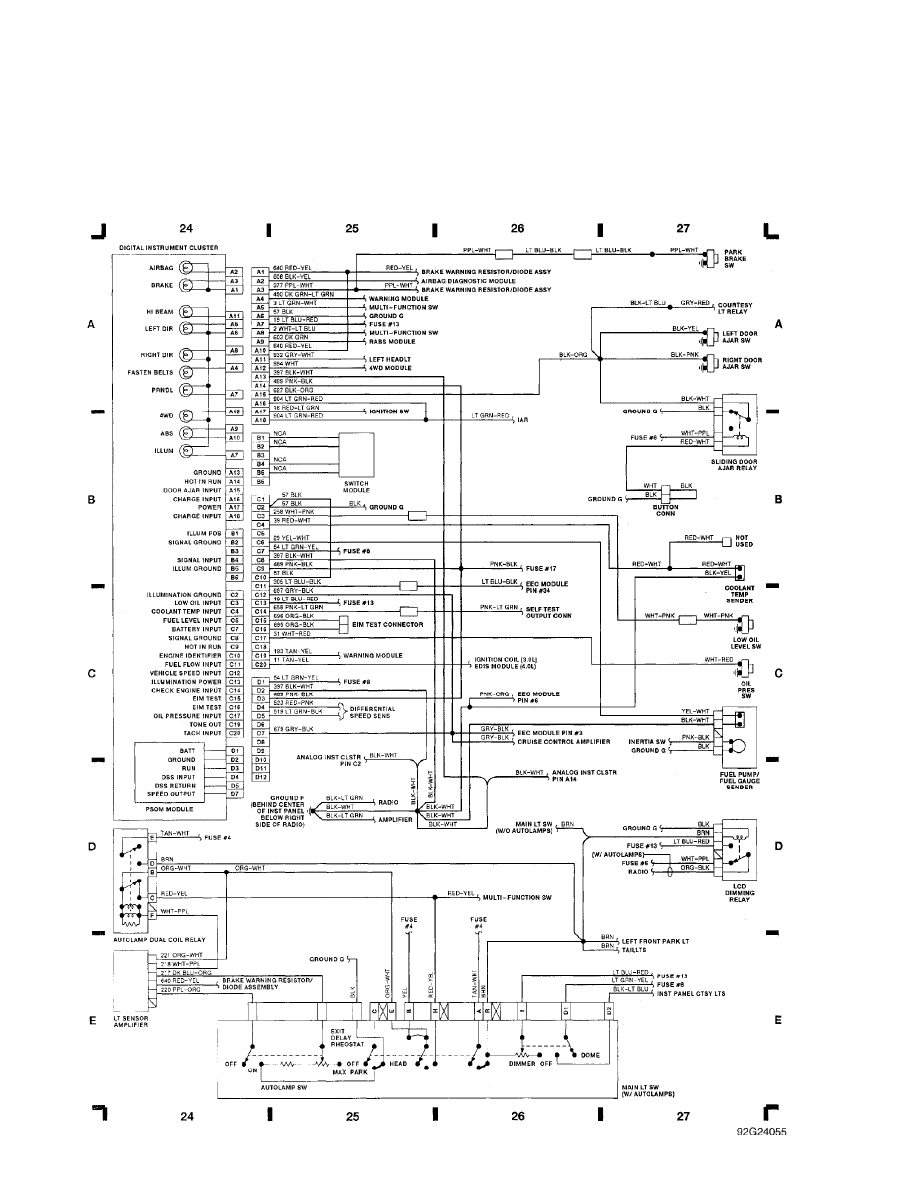

Fig. 7: Digital Inst. Cltr/Main Light Sw. W/Autolamp (Grids 24-27) (p. 7)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:35PM

WIRING DIAGRAMS

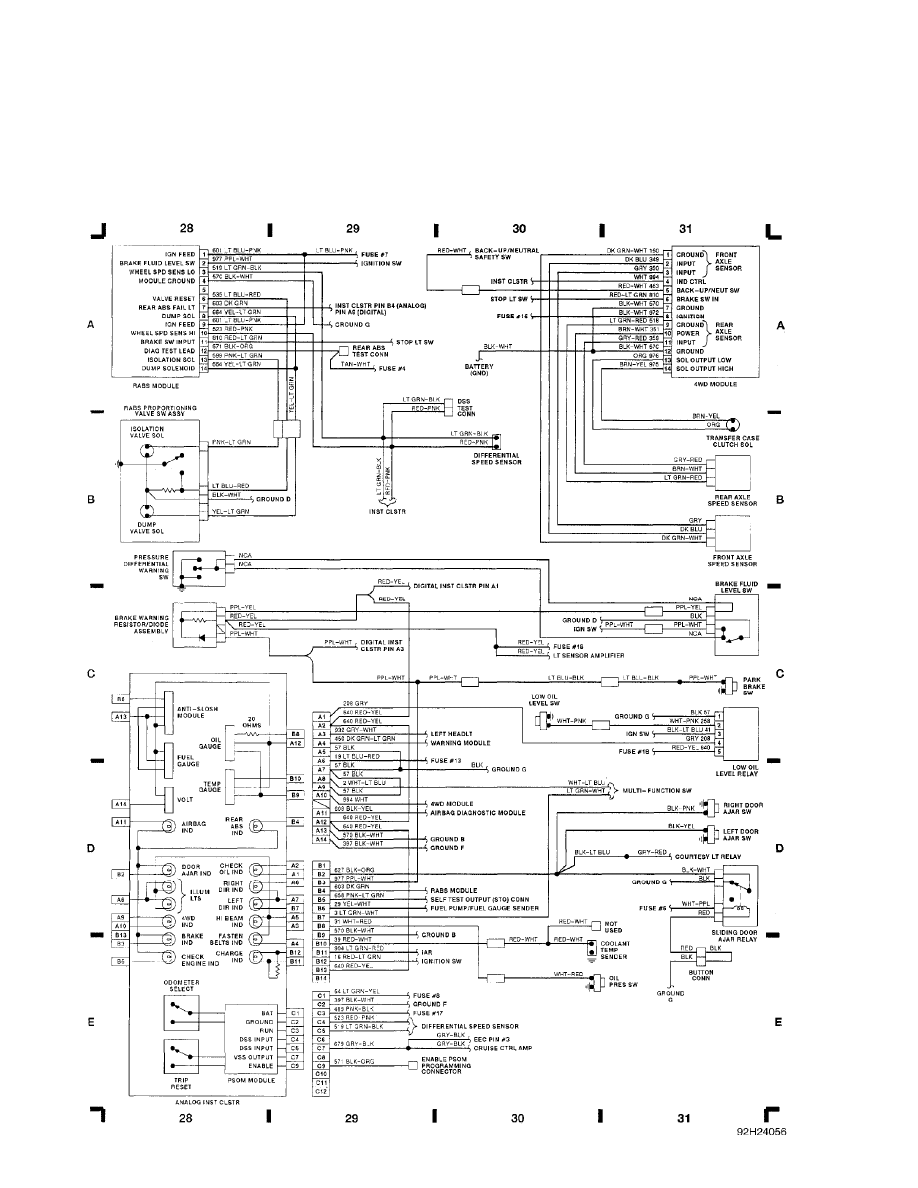

Fig. 8: RABS Module/Analog Inst. Cluster/4WD Module (Grids 28-31) (p. 8)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:35PM

WIRING DIAGRAMS

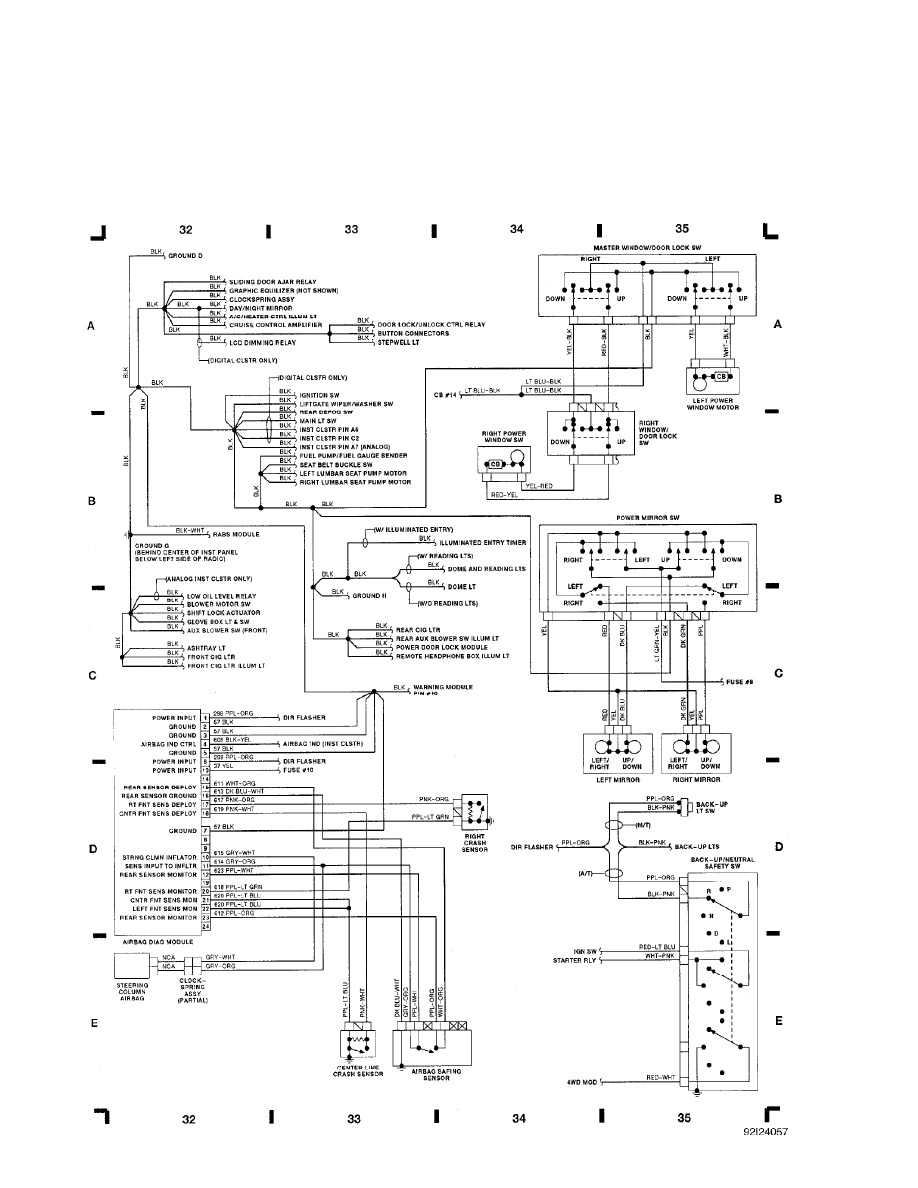

Fig. 9: Power Mirror/Window/Door Switch/Airbag Module (Grids 32-35) (p. 9)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:35PM

WIRING DIAGRAMS

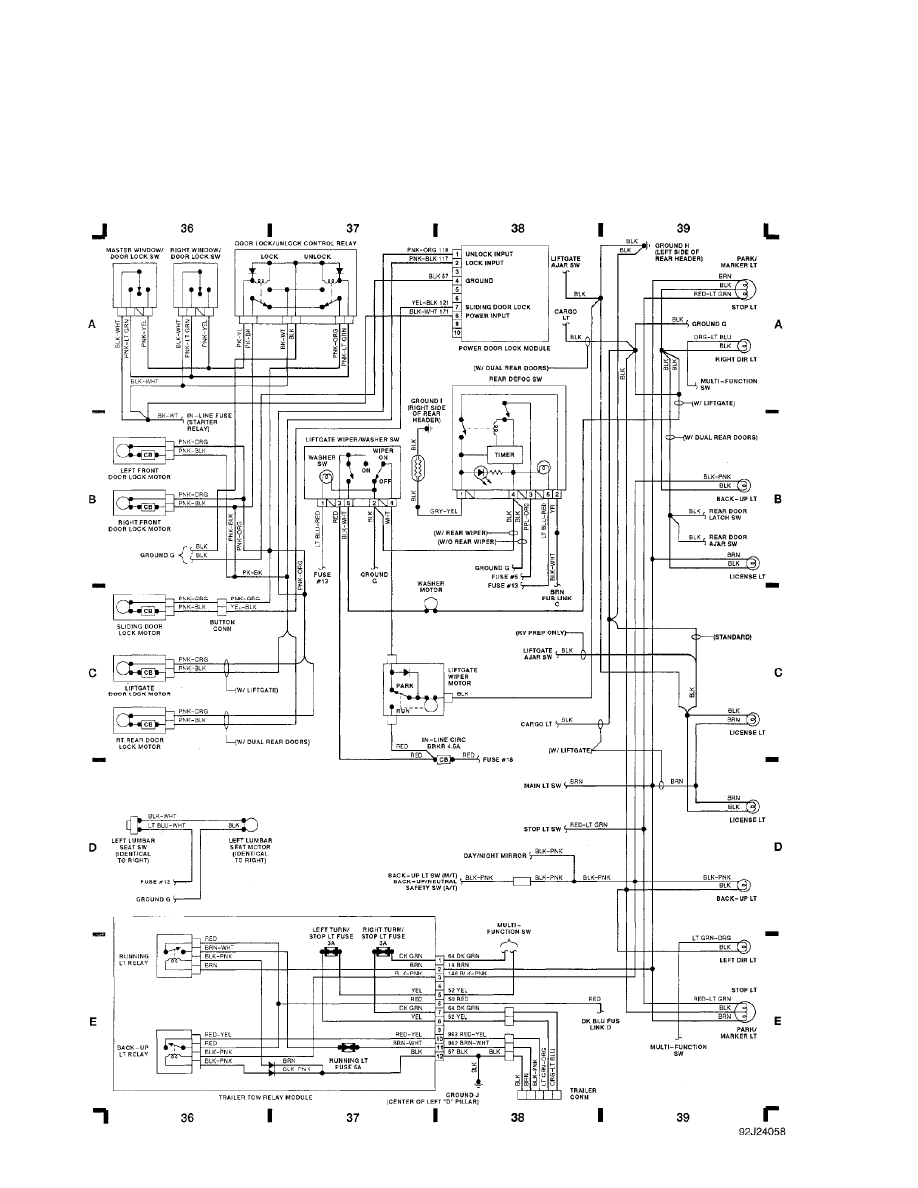

Fig. 10: Passenger Compt./Trailer Tow Relay/Taillights (Grids 36-39) (p. 10)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:35PM

WIRING DIAGRAMS

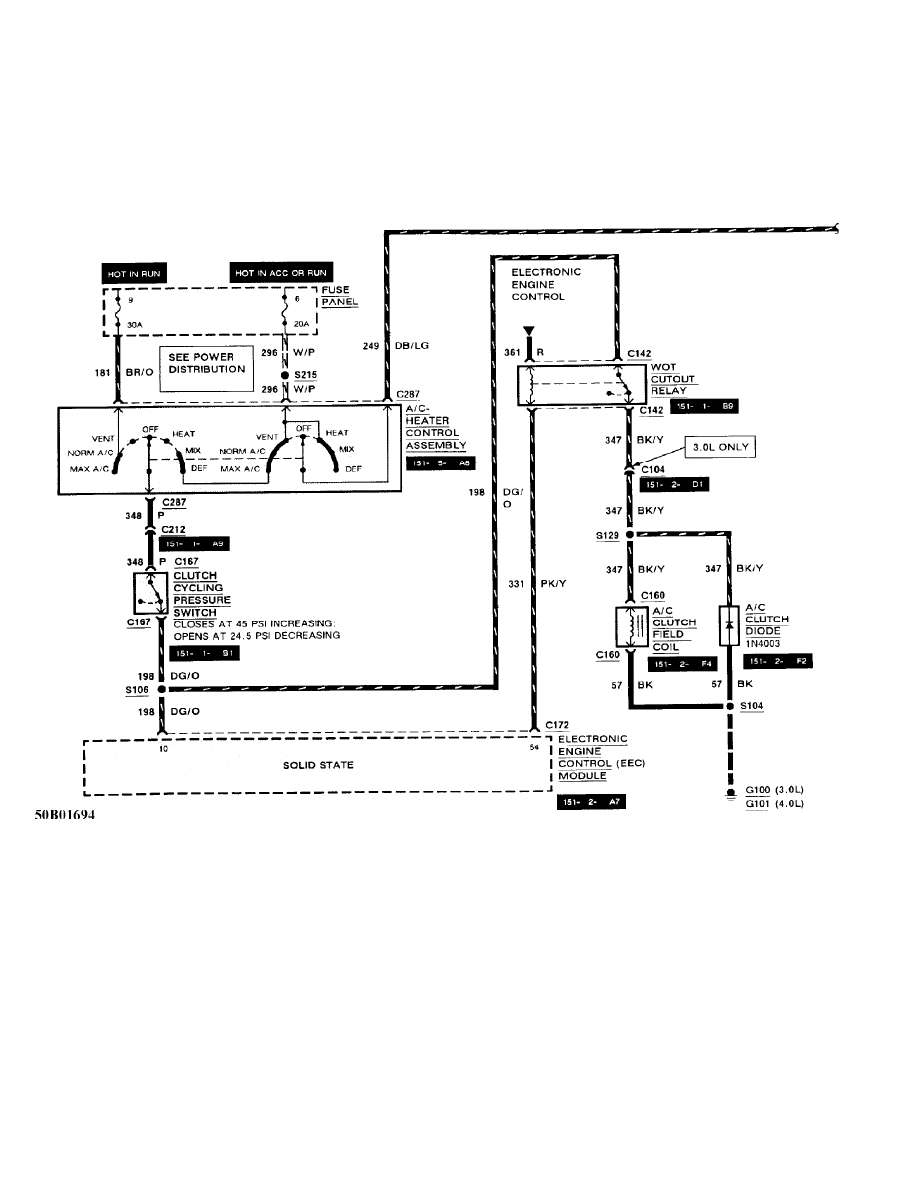

Fig. 11: A/C Wide Open Throttle (WOT) Cutout Relay (p. 11)

1992 Ford Aerostar

For x

Thursday, September 23, 2004 10:36PM
