FORD F PICKUP 1988

background image

SYSTEM WIRING DIAGRAMS

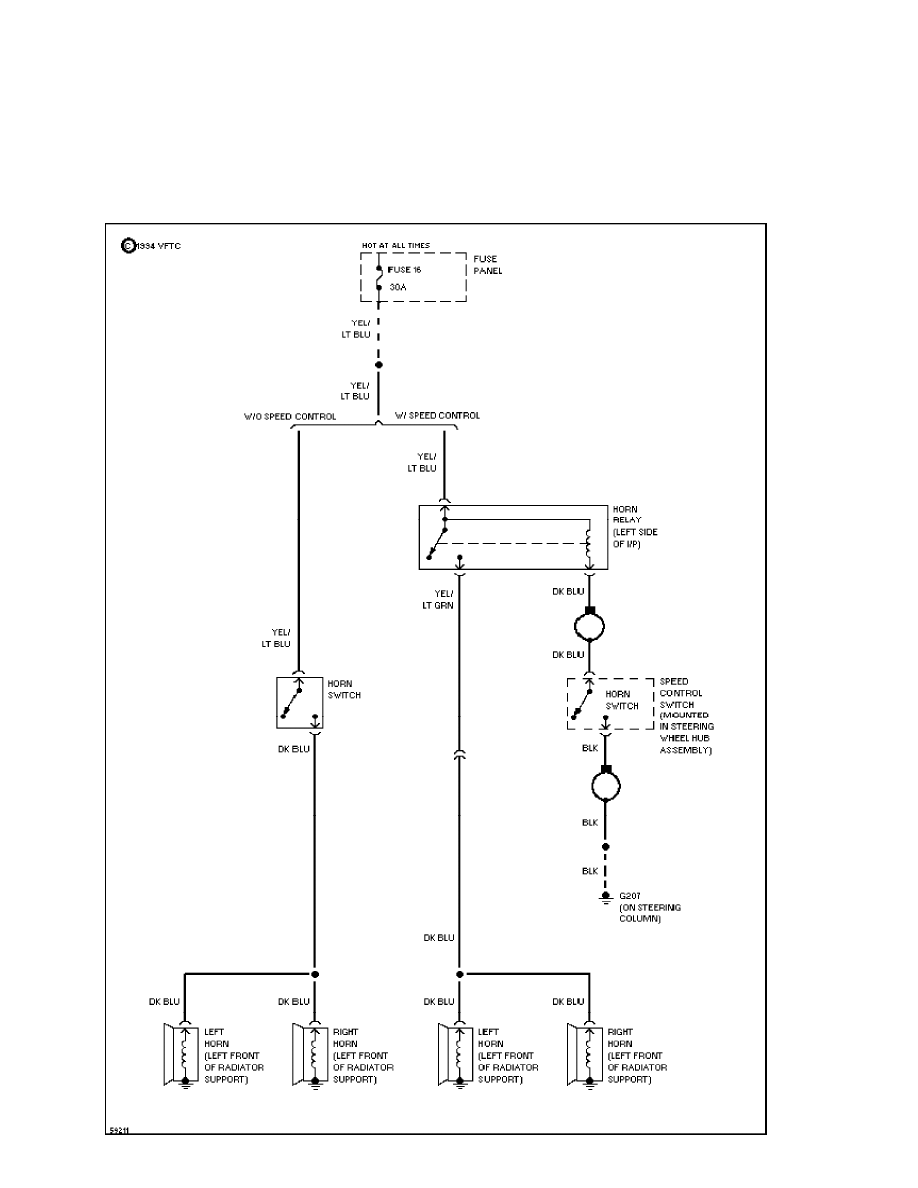

Horn Circuit

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

SYSTEM WIRING DIAGRAMS

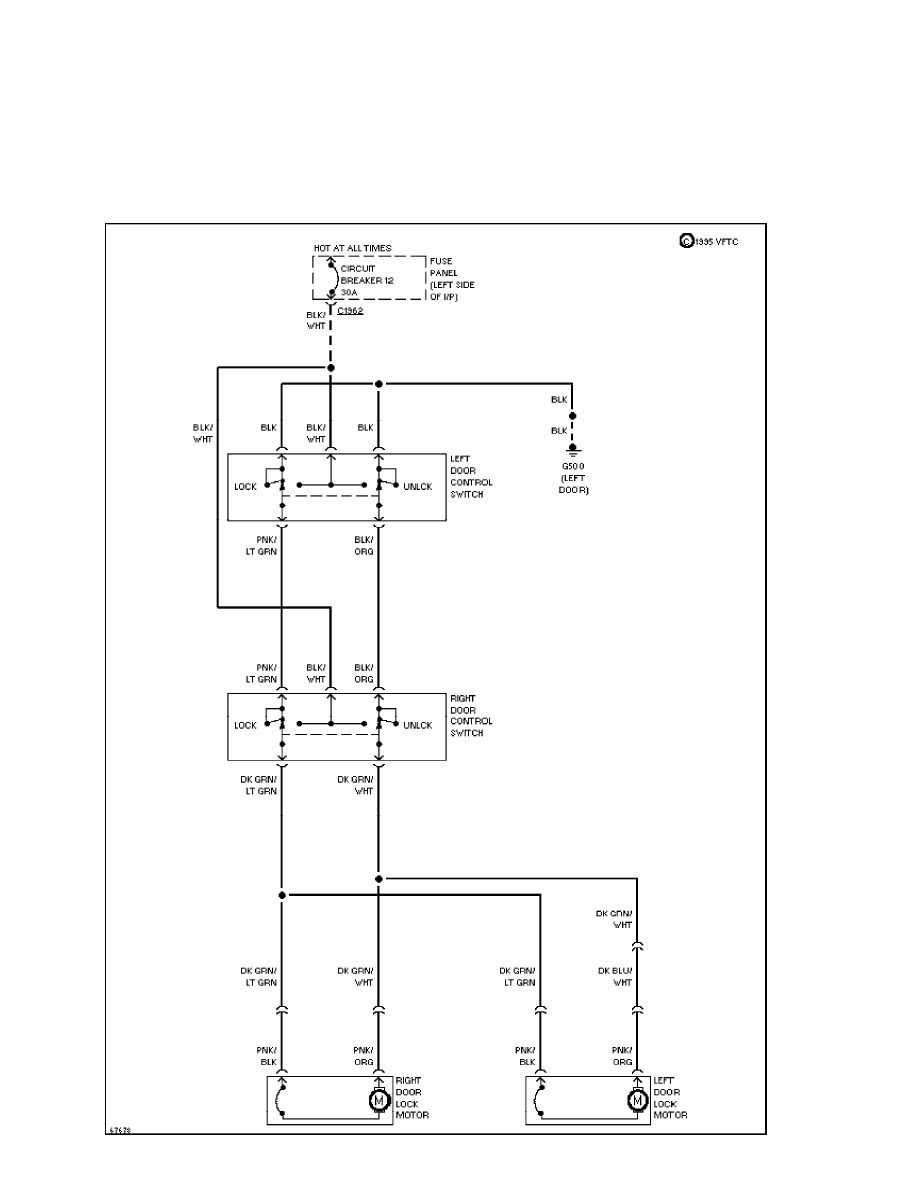

Power Door Lock Circuit (p. 2)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

SYSTEM WIRING DIAGRAMS
Power Windows Circuit (p. 3)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

SYSTEM WIRING DIAGRAMS

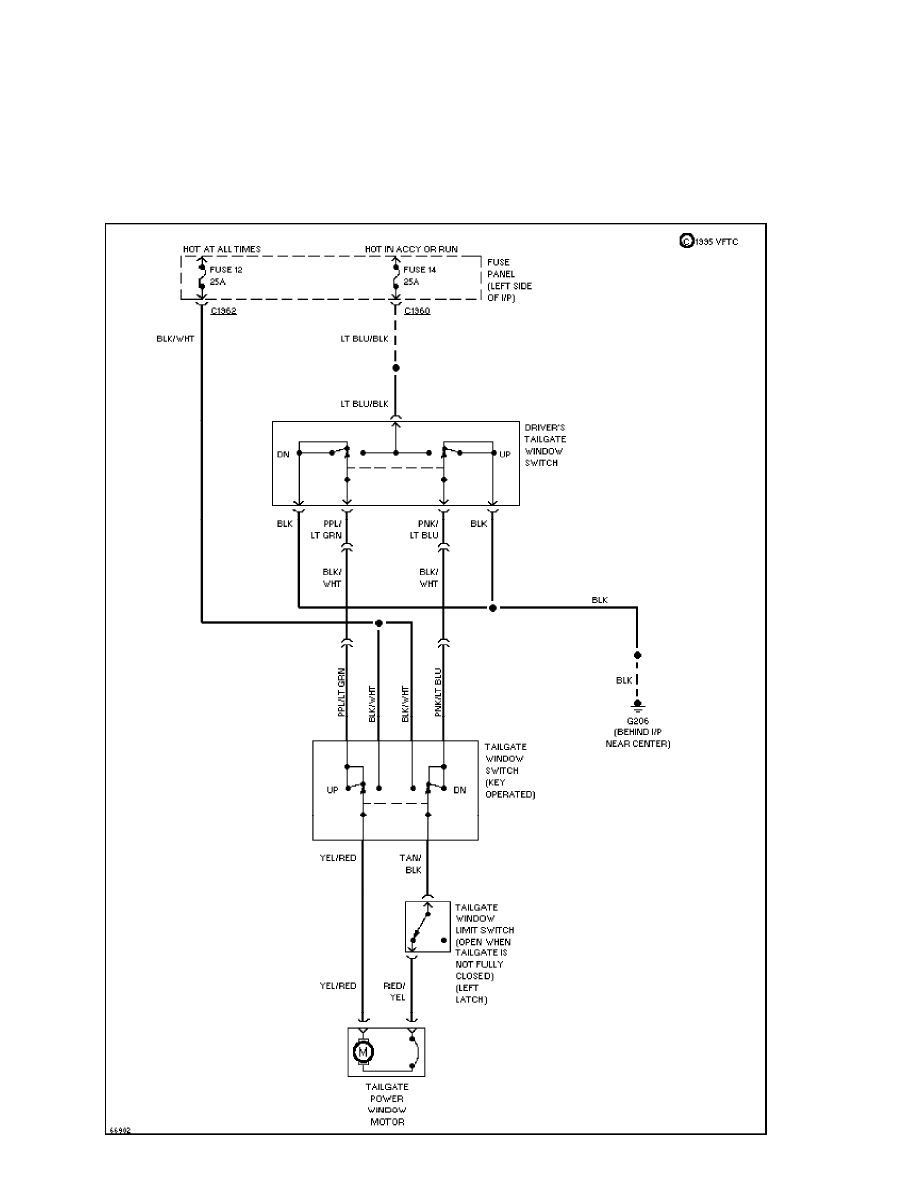

Tailgate Power Window Circuit, Bronco Only (p. 4)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

SYSTEM WIRING DIAGRAMS

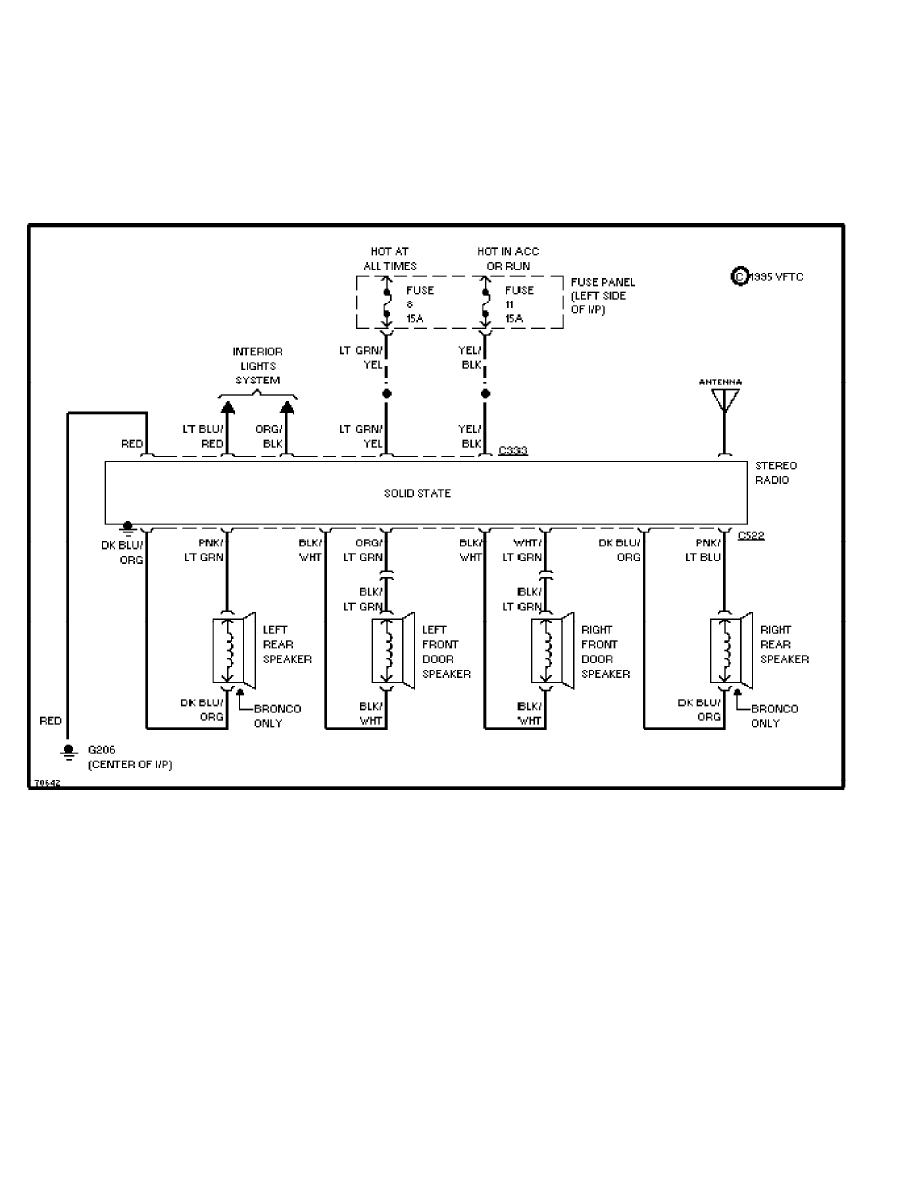

Radio Circuits (p. 5)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

SYSTEM WIRING DIAGRAMS

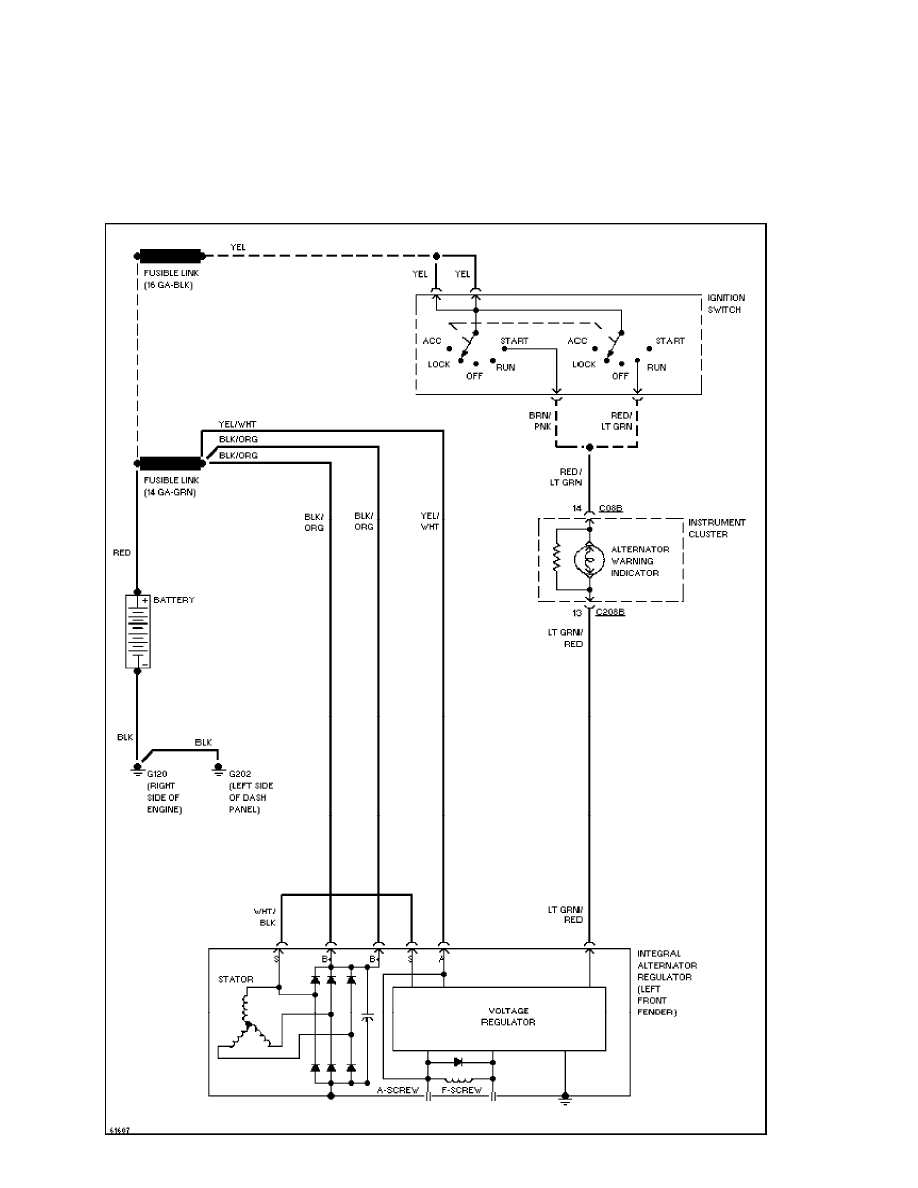

4.9L, Charging Circuit (p. 6)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

SYSTEM WIRING DIAGRAMS

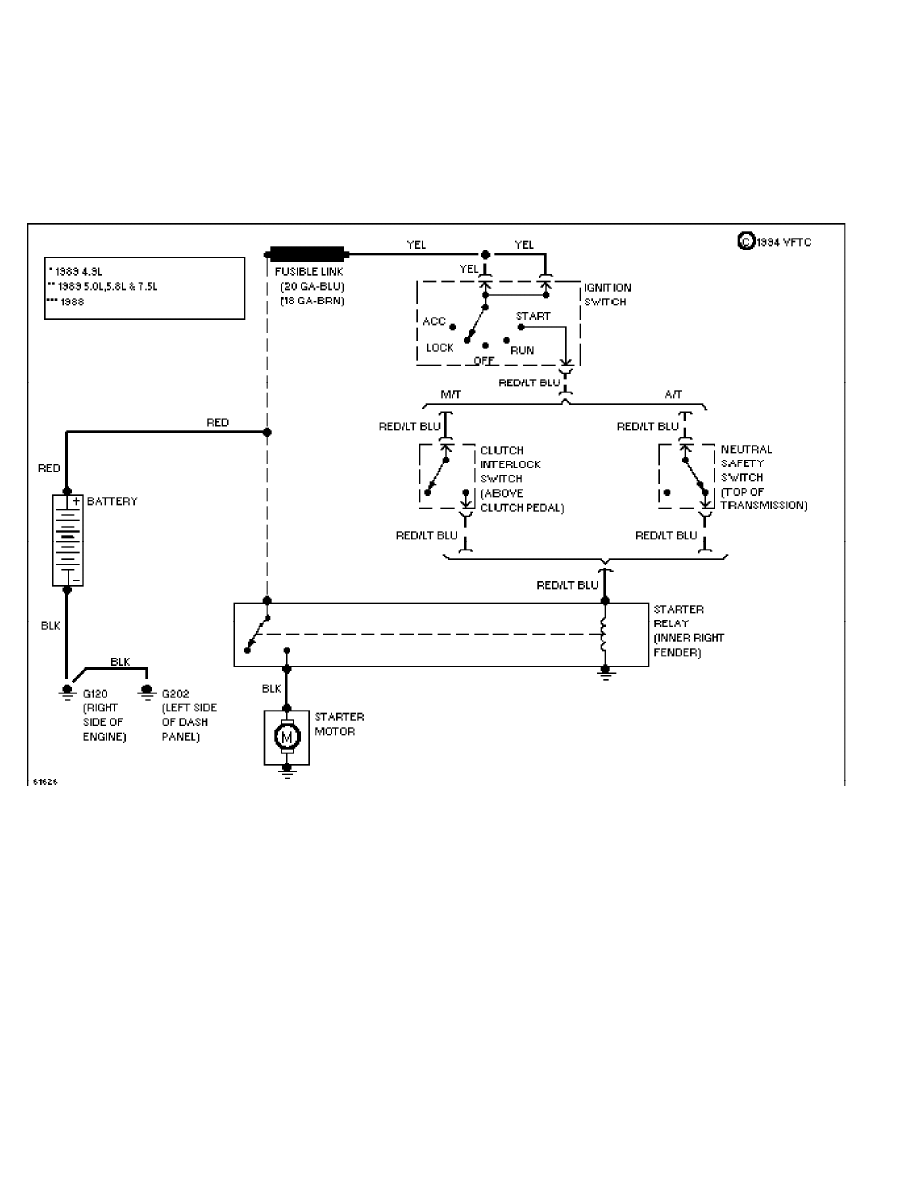

4.9L, Starting Circuit (p. 7)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

SYSTEM WIRING DIAGRAMS

5.0L, Charging Circuit (p. 8)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

SYSTEM WIRING DIAGRAMS

5.0L, Starting Circuit (p. 9)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

SYSTEM WIRING DIAGRAMS

5.8L, Charging Circuit (p. 10)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

SYSTEM WIRING DIAGRAMS

5.8L, Starting Circuit (p. 11)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

SYSTEM WIRING DIAGRAMS

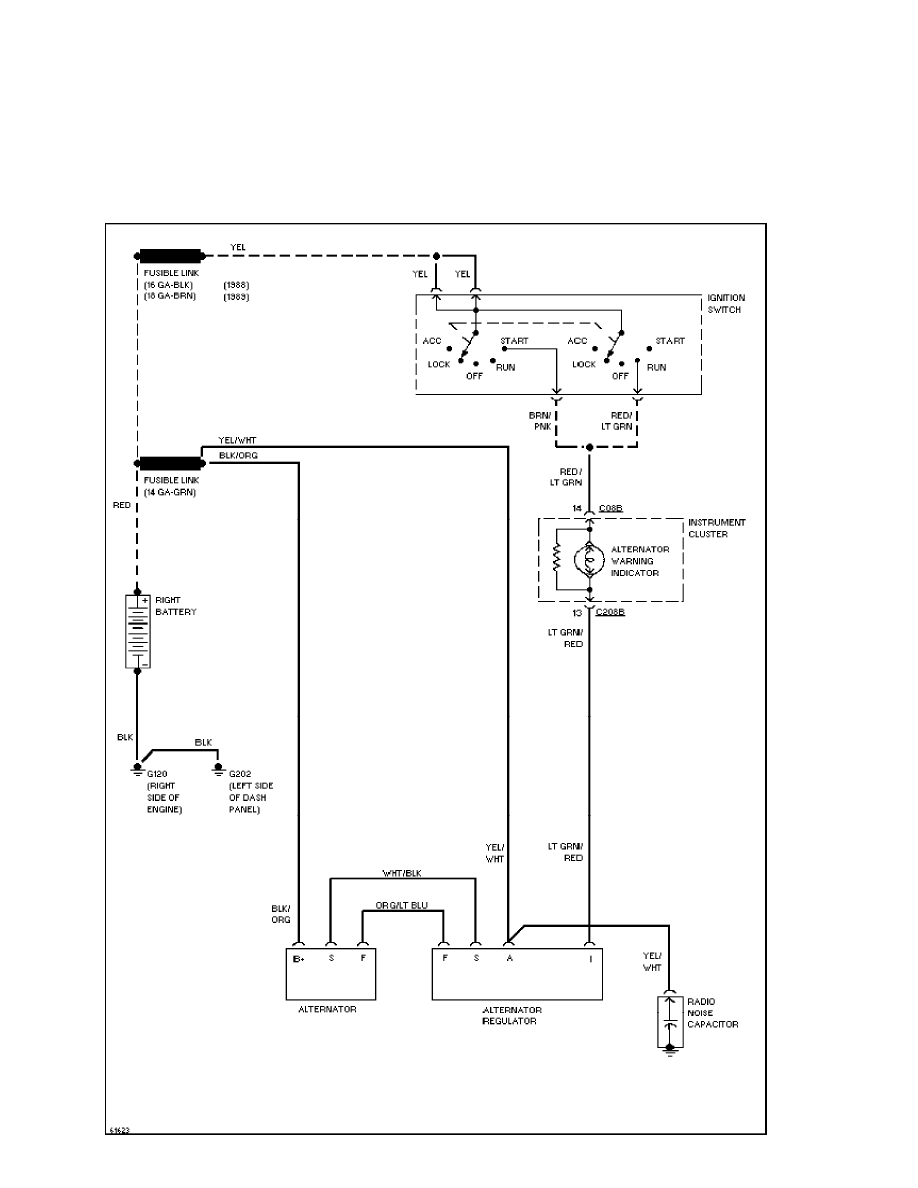

7.3L Diesel, Charging Circuit (p. 12)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

SYSTEM WIRING DIAGRAMS

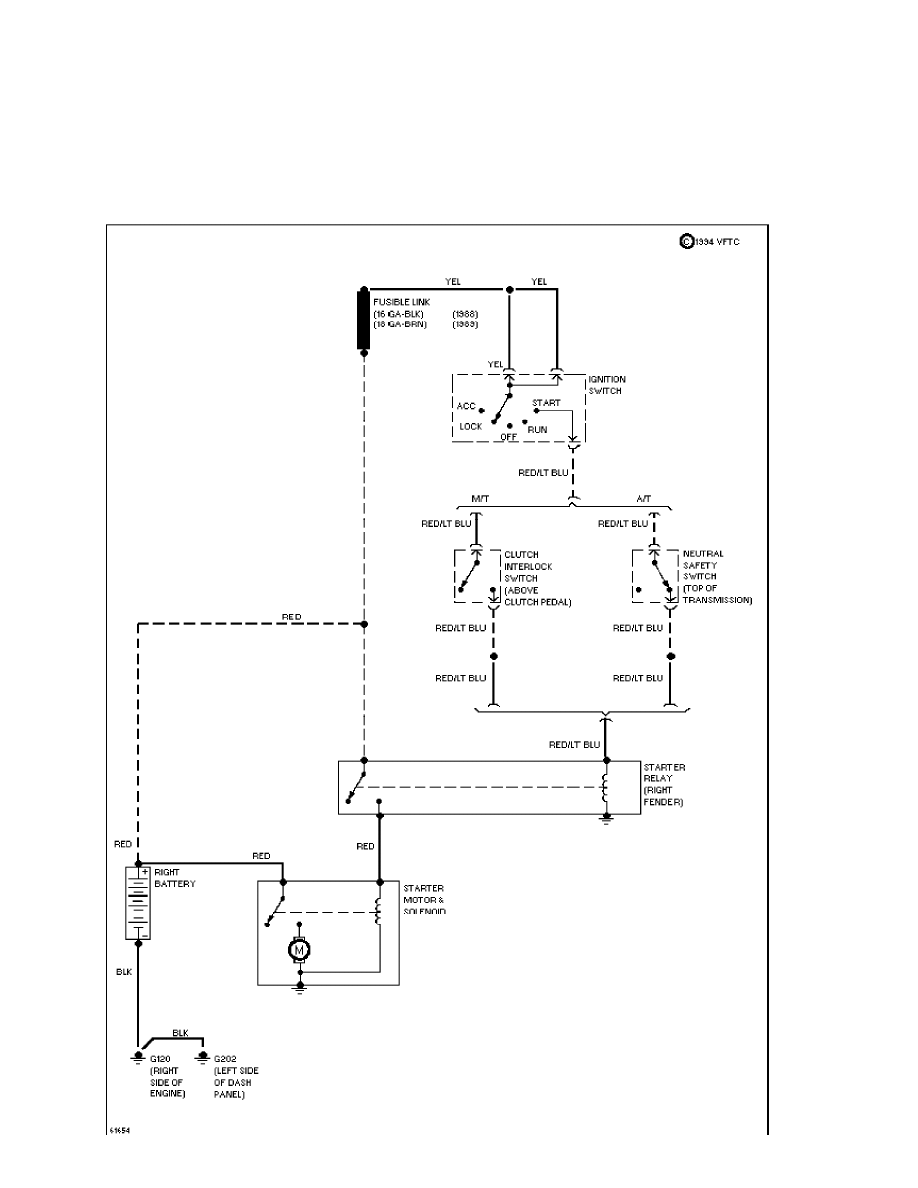

7.3L Diesel, Starting Circuit (p. 13)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

SYSTEM WIRING DIAGRAMS

7.5L, Charging Circuit (p. 14)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

SYSTEM WIRING DIAGRAMS

7.5L, Starting Circuit (p. 15)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

SYSTEM WIRING DIAGRAMS

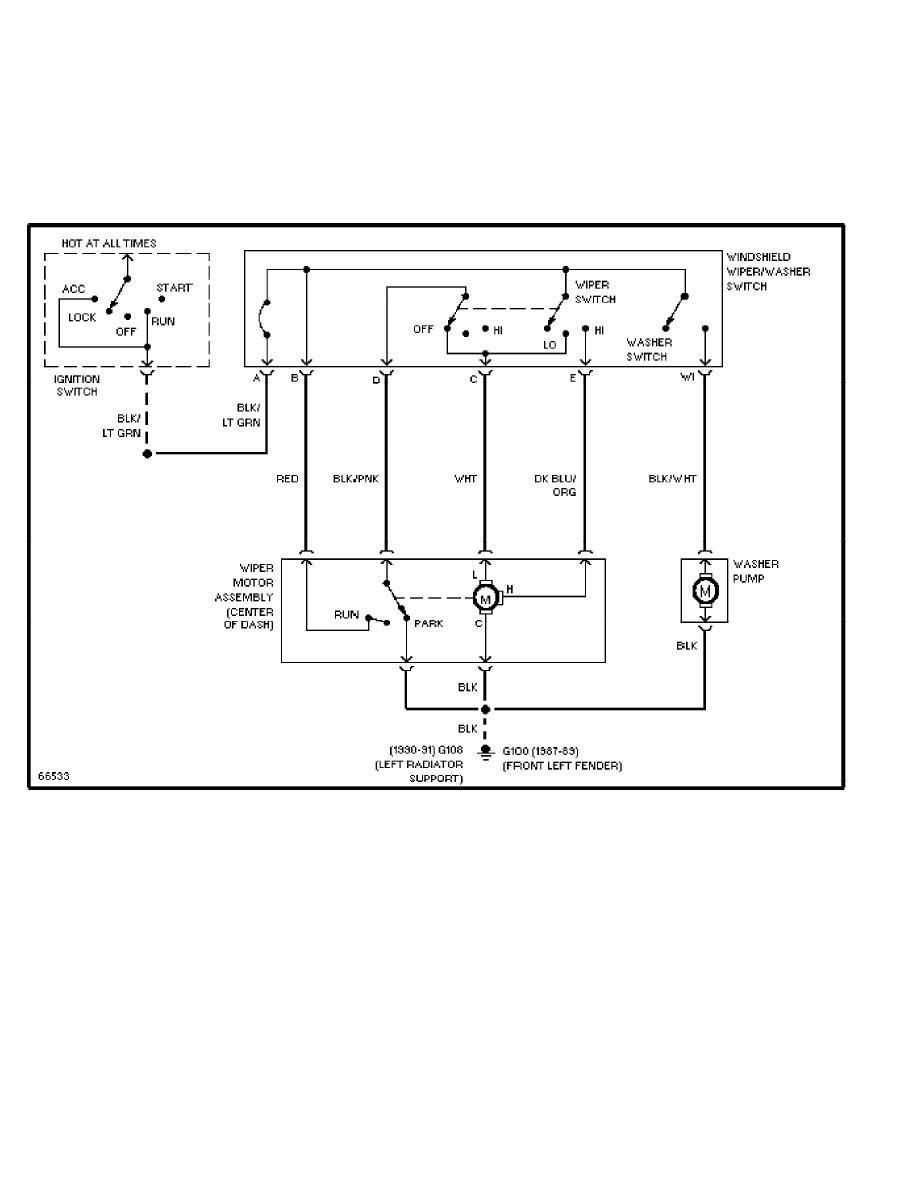

2-Speed Wiper/Washer Circuit (p. 16)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

SYSTEM WIRING DIAGRAMS

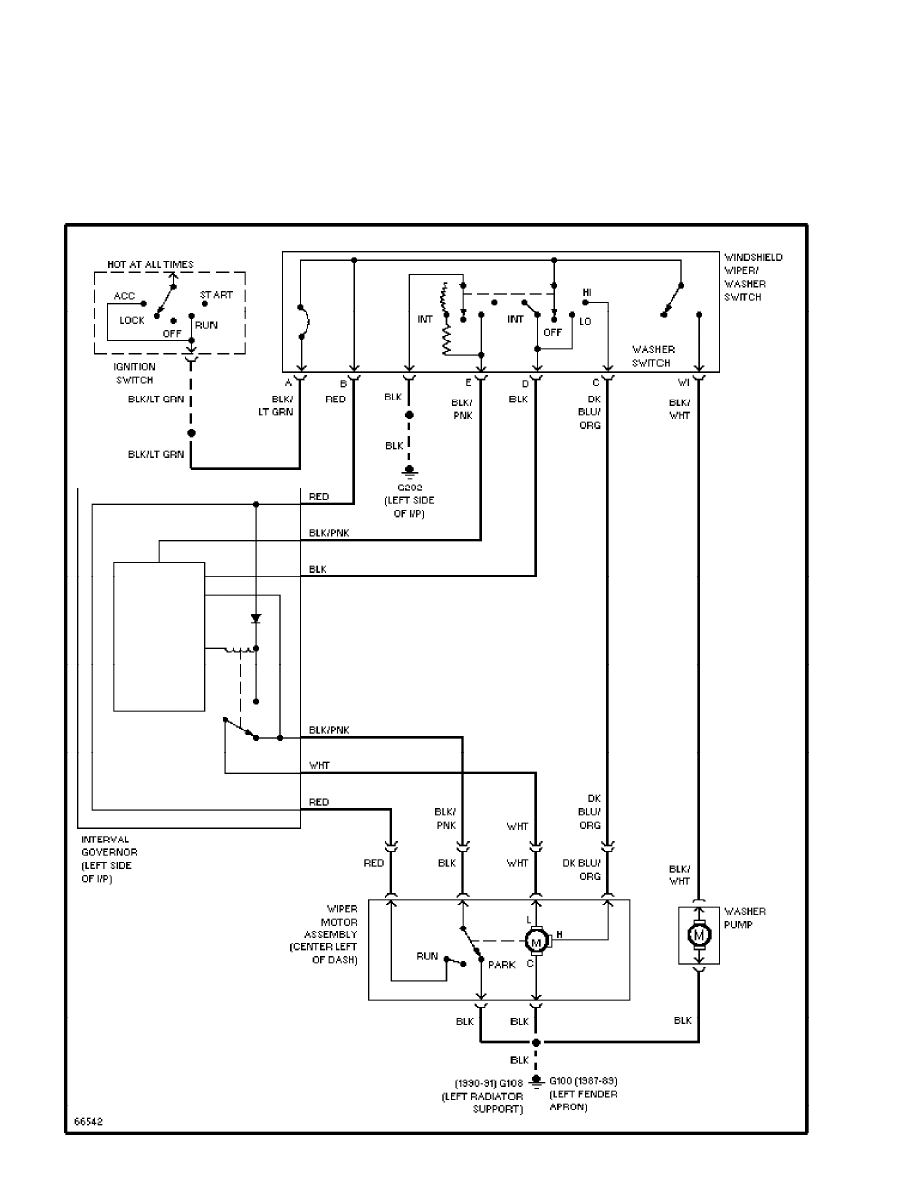

Interval Wiper/Washer Circuit (p. 17)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

WIRING DIAGRAMS

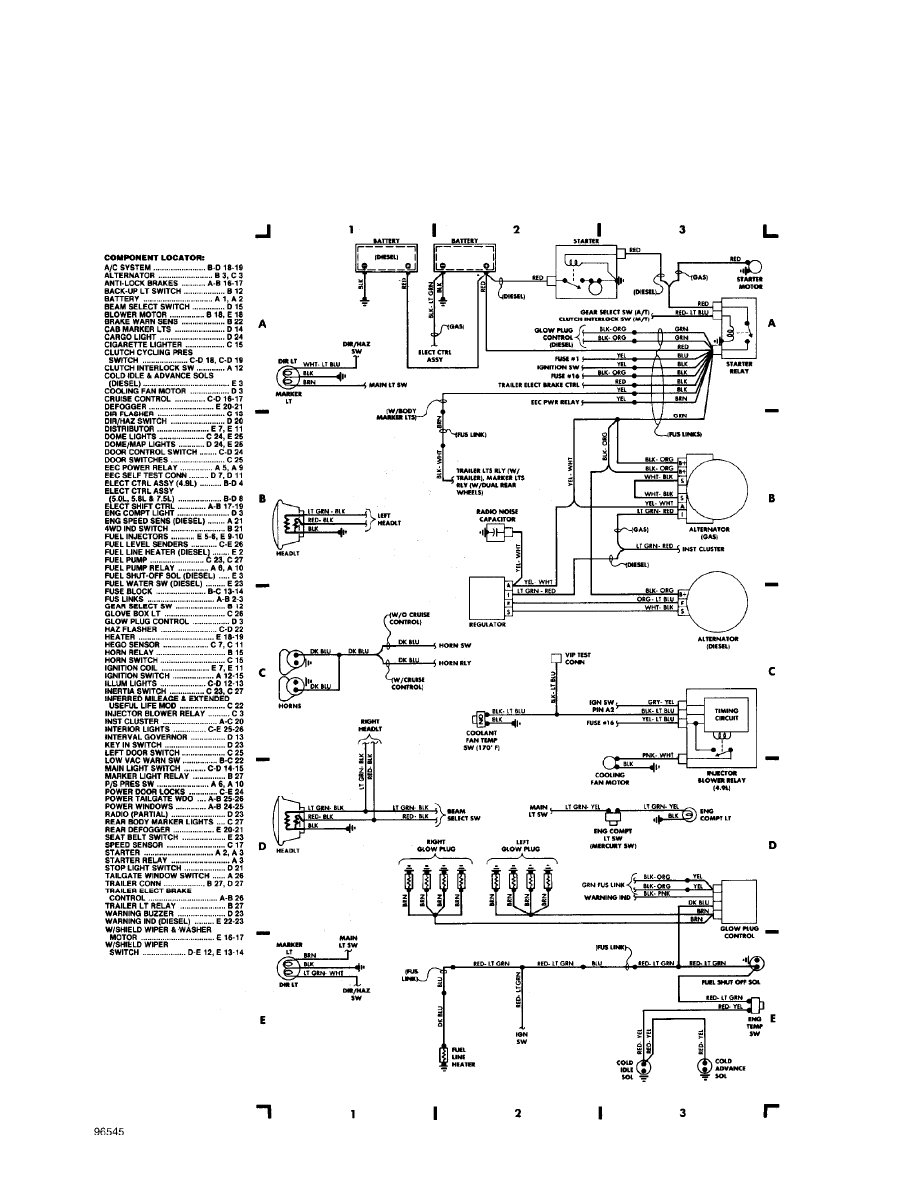

Fig. 1: Engine Compartment & Head Lights

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

WIRING DIAGRAMS

Fig. 2: Computer Engine Control (6-CYL) (p. 2)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

WIRING DIAGRAMS

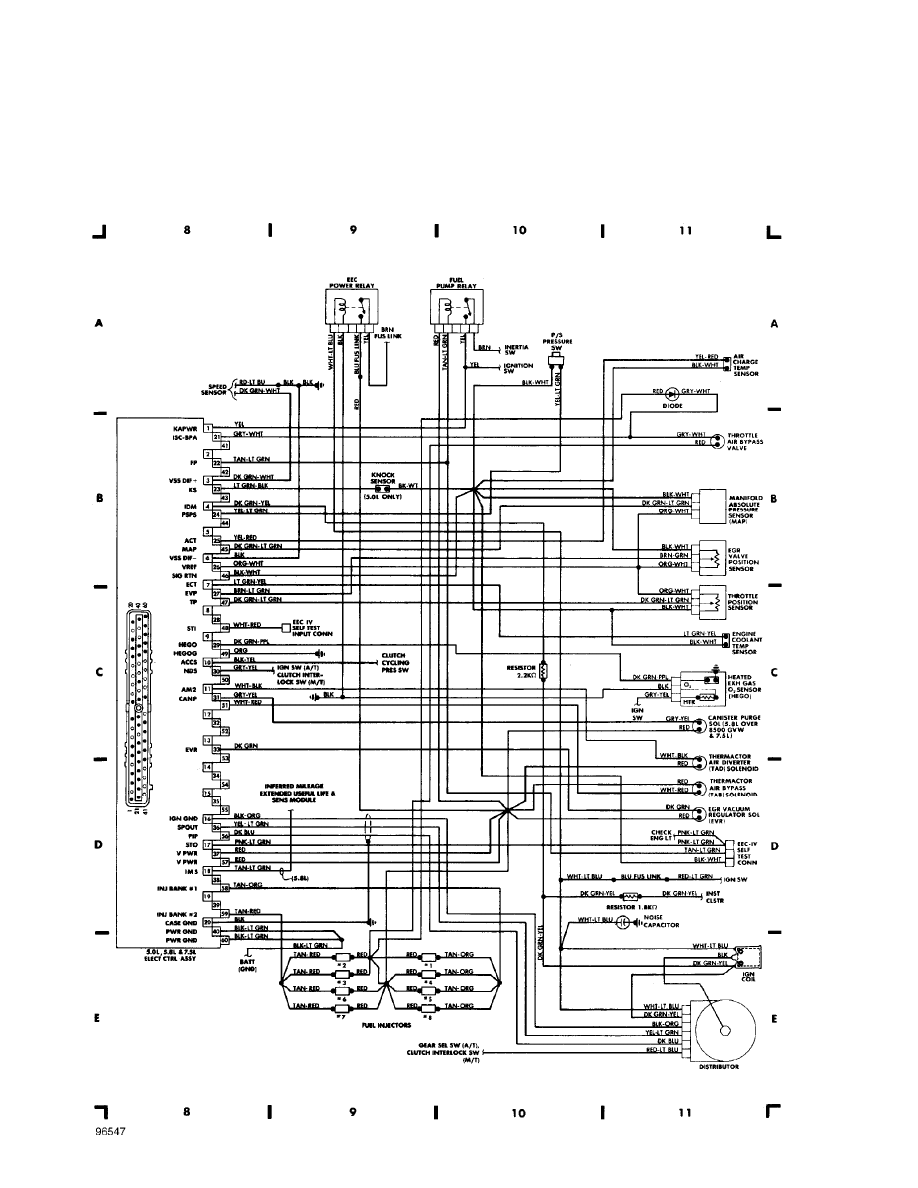

Fig. 3: Computer Engine Control (V8) (p. 3)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

WIRING DIAGRAMS

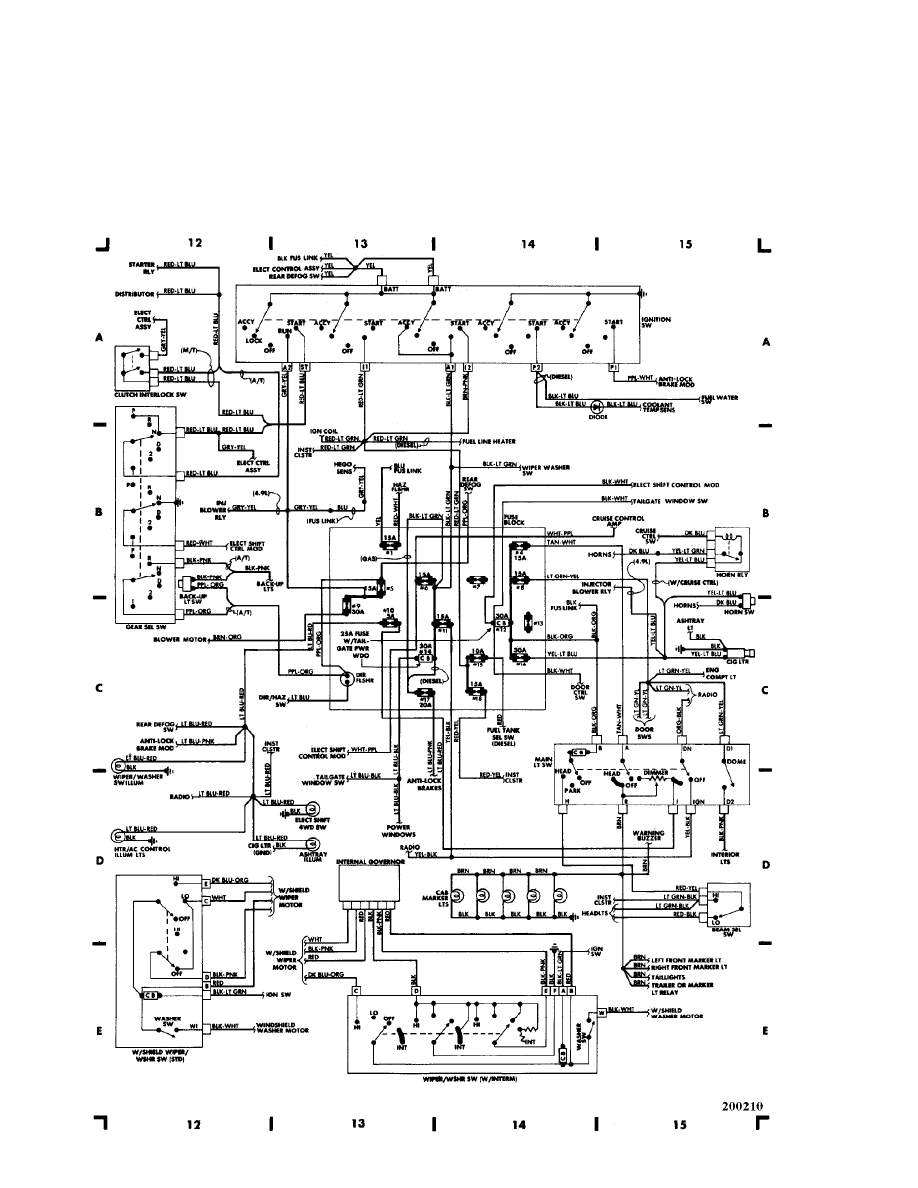

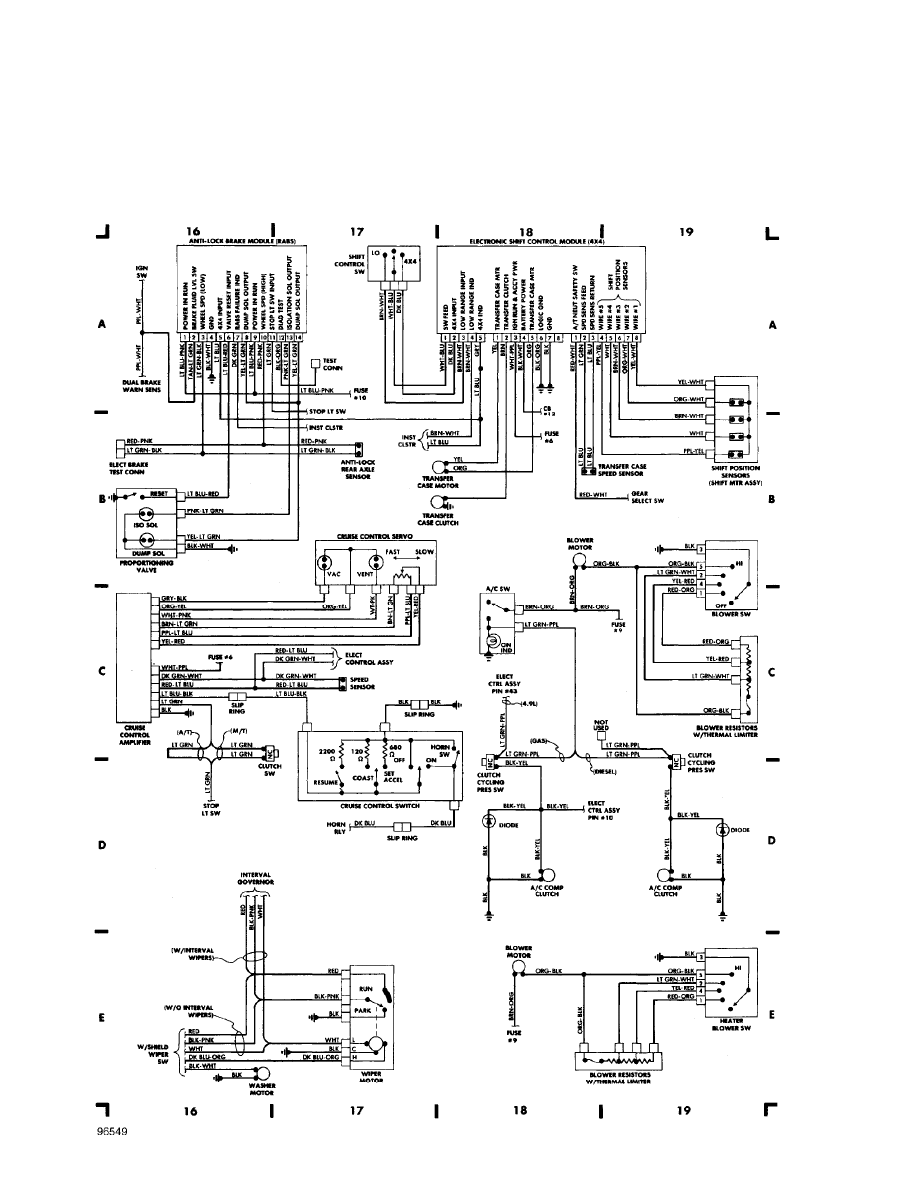

Fig. 4: Instrument Panel (1 of 3) (p. 4)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

WIRING DIAGRAMS

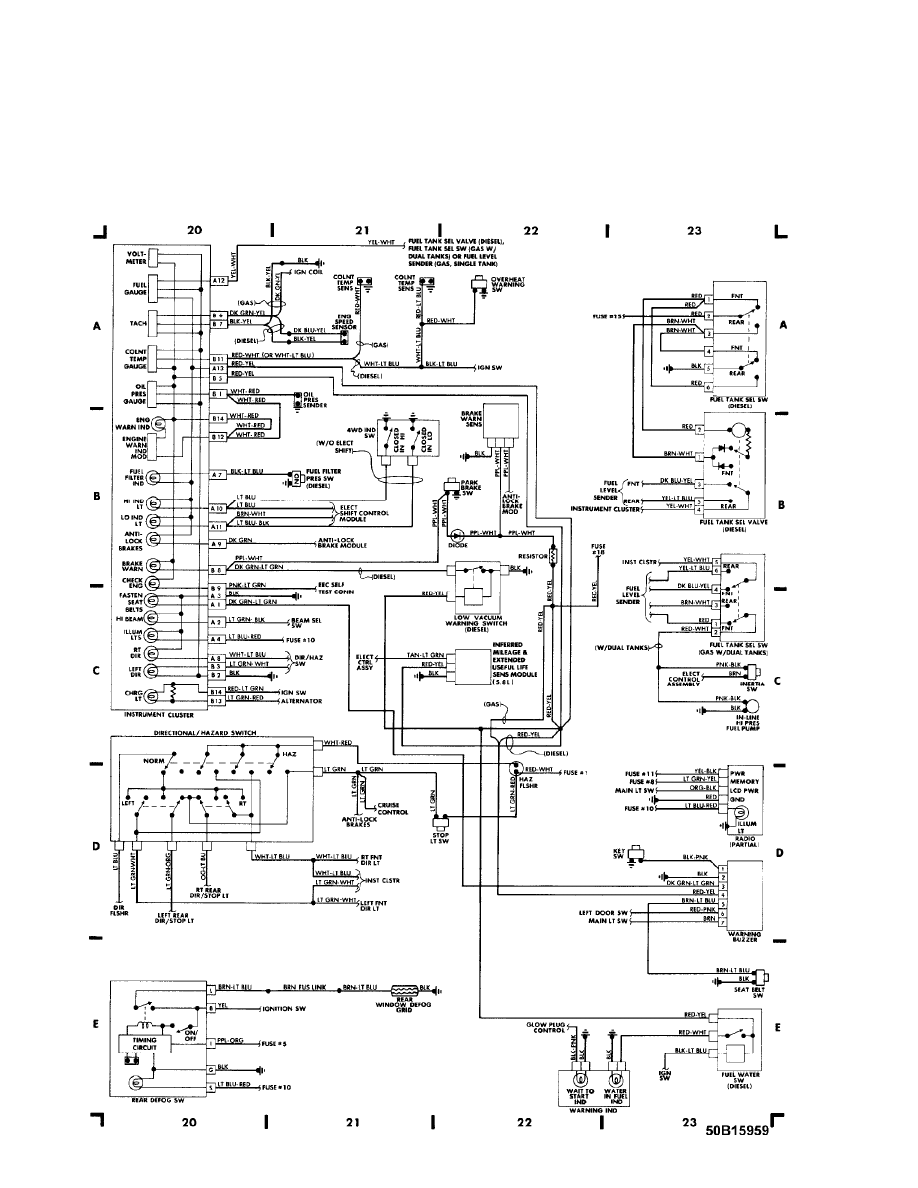

Fig. 5: Instrument Panel (2 of 3) (p. 5)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

WIRING DIAGRAMS

Fig. 6: Instrument Panel (3 of 3) (p. 6)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM

background image

WIRING DIAGRAMS

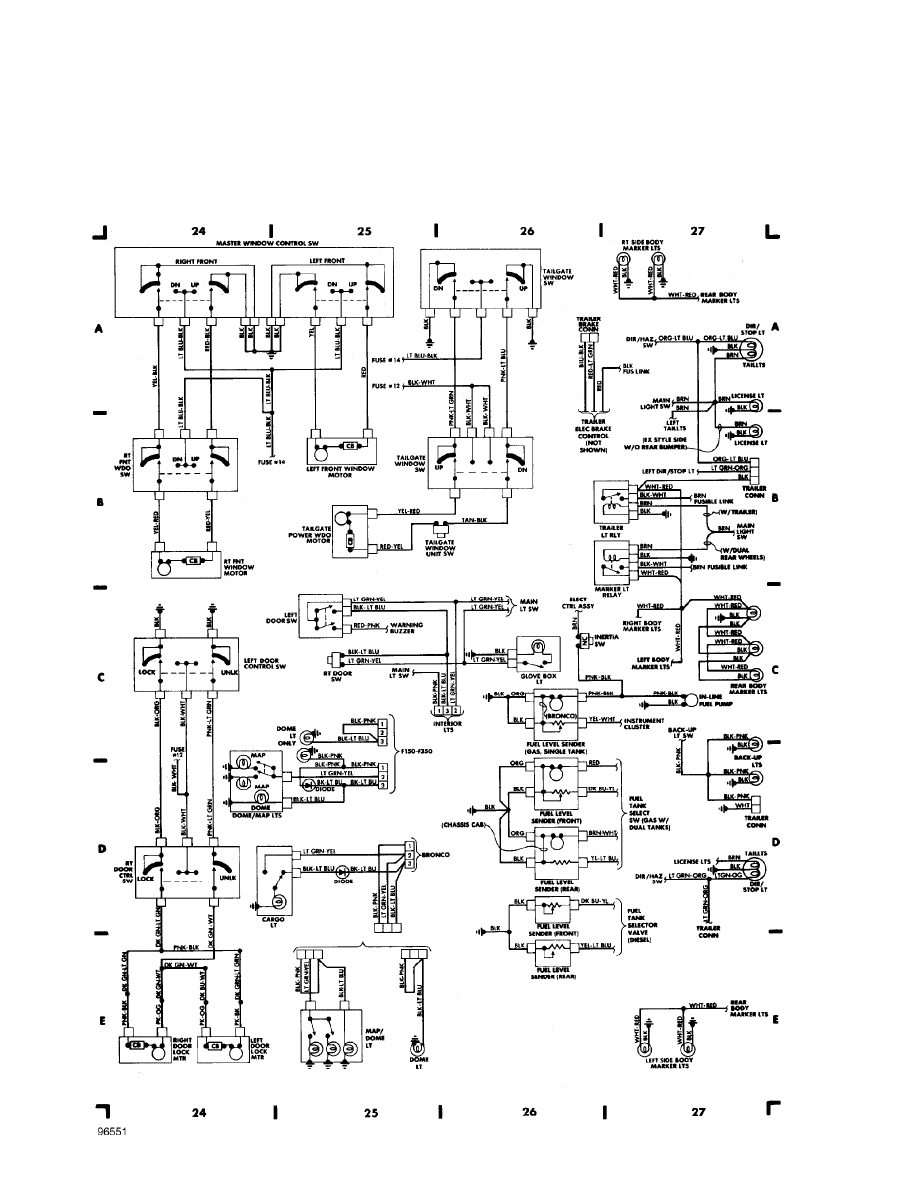

Fig. 7: Passenger Compartment & Tail Lights (p. 7)

1988 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:57PM
