SYSTEM WIRING DIAGRAMS

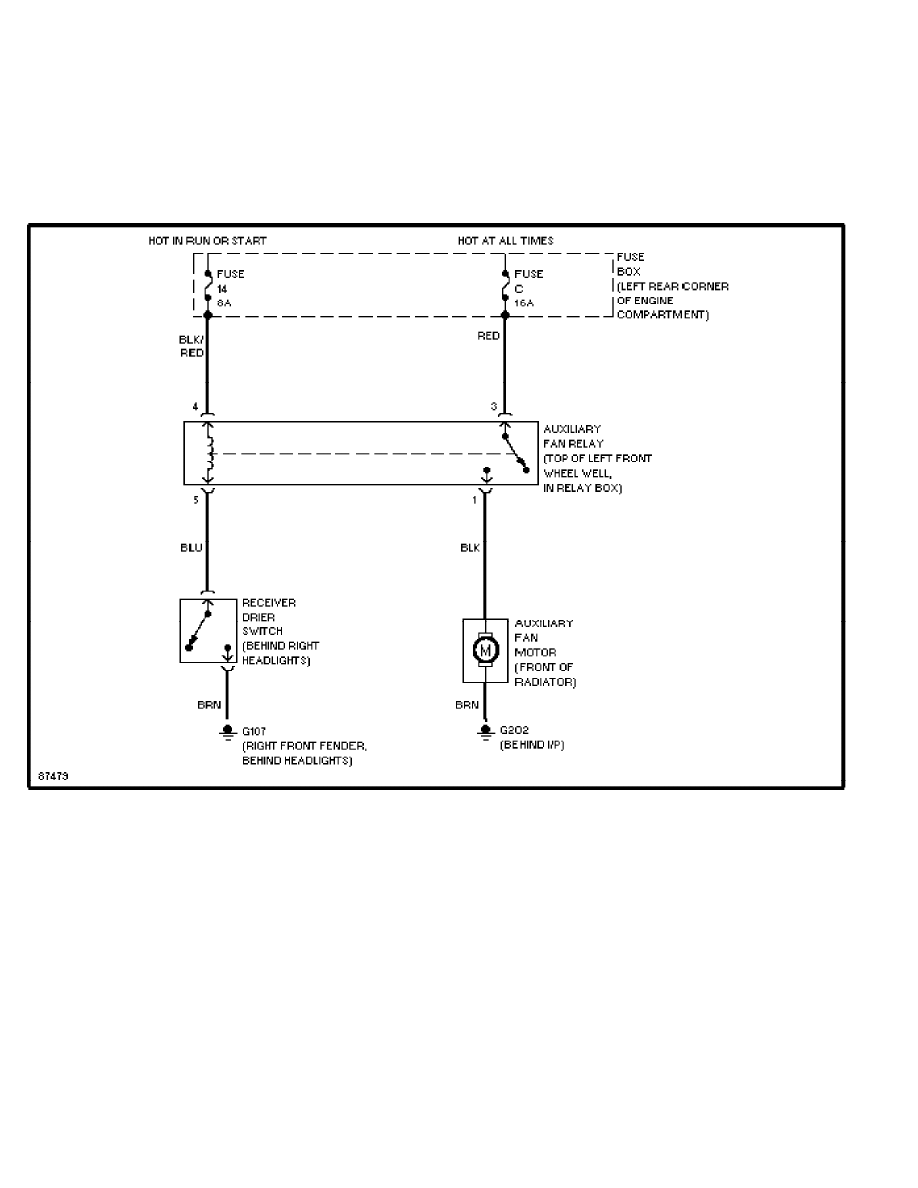

Cooling Fan Circuit
1985 Mercedes-Benz 300TD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:14PM
SYSTEM WIRING DIAGRAMS
Cooling Fan Circuit
1985 Mercedes-Benz 300TD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:14PM
SYSTEM WIRING DIAGRAMS

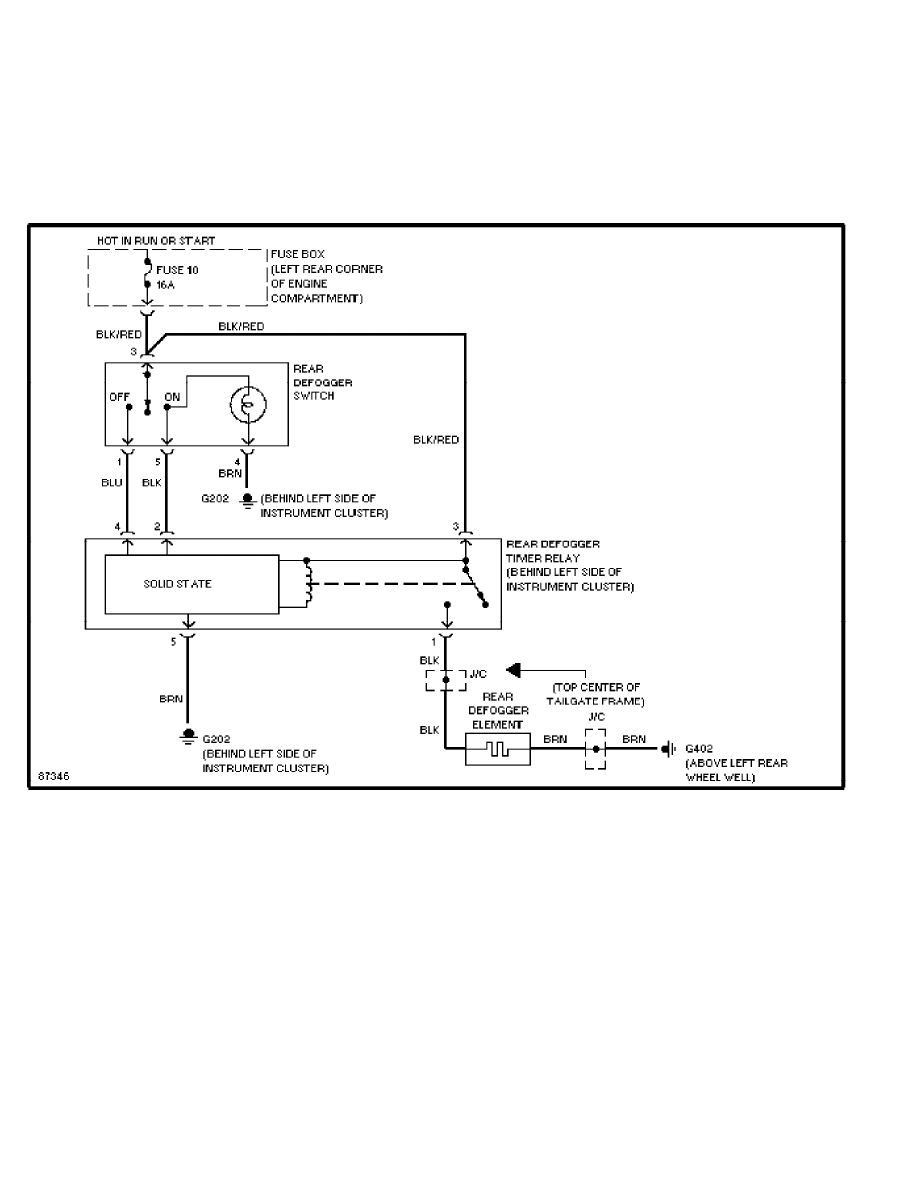

Defogger Circuit (p. 2)
1985 Mercedes-Benz 300TD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:14PM
SYSTEM WIRING DIAGRAMS

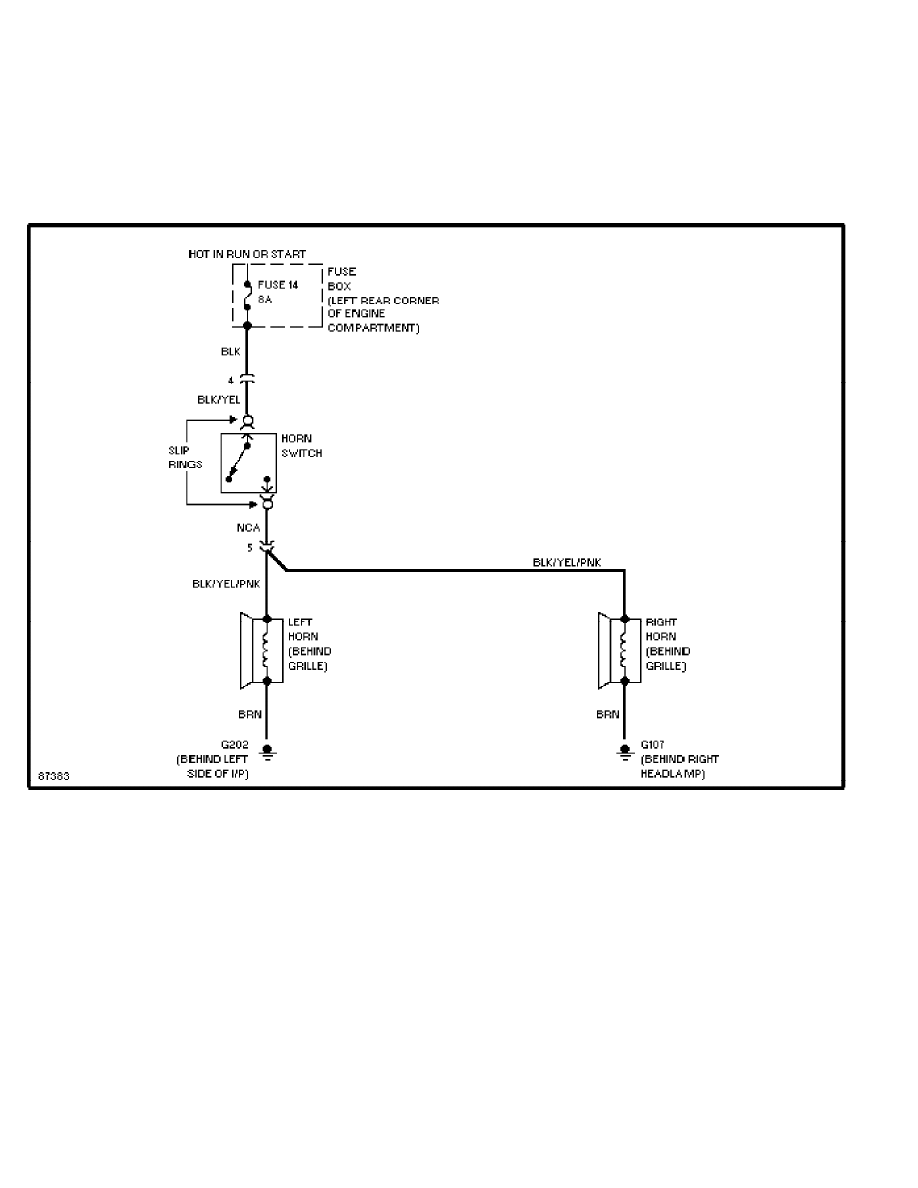

Horn Circuit (p. 3)
1985 Mercedes-Benz 300TD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:14PM
SYSTEM WIRING DIAGRAMS

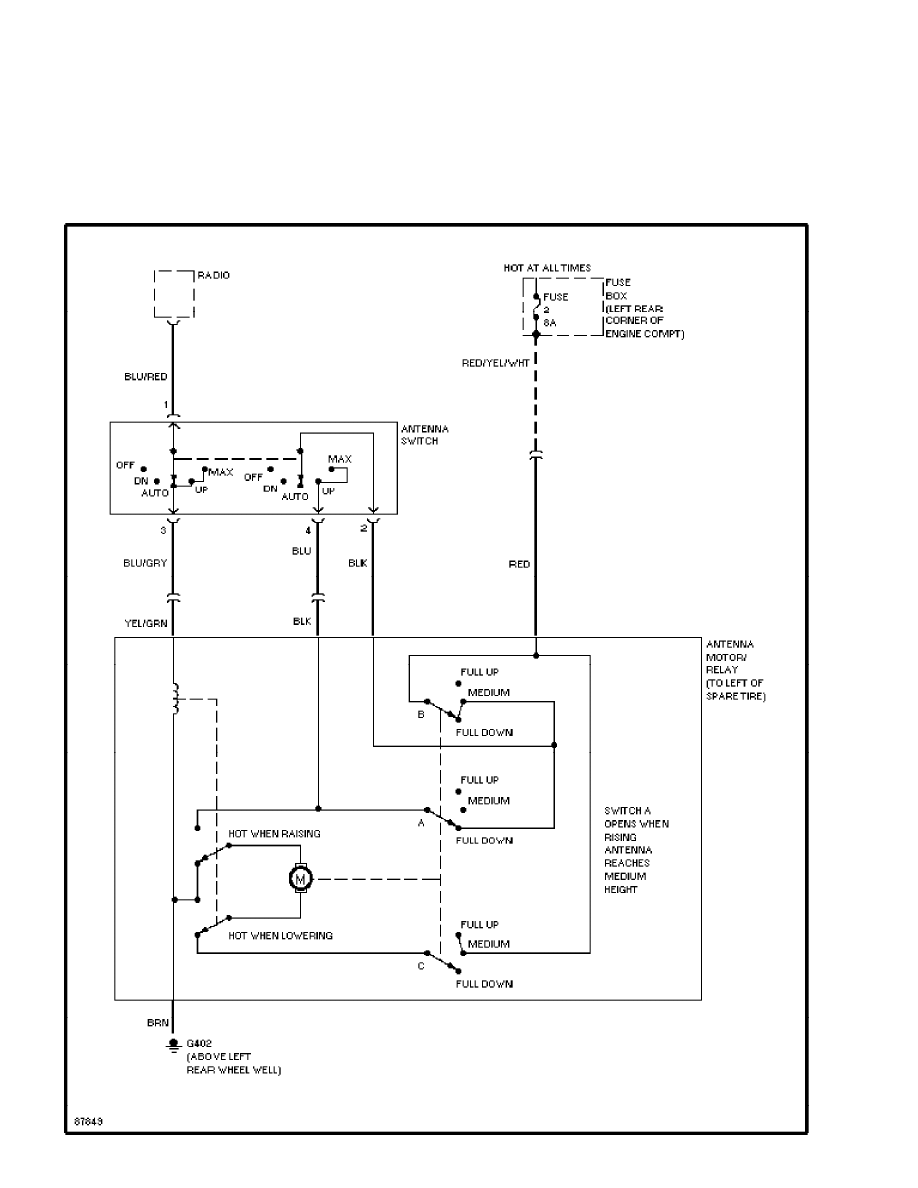

Power Antenna Circuit (p. 4)
1985 Mercedes-Benz 300TD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:14PM
SYSTEM WIRING DIAGRAMS

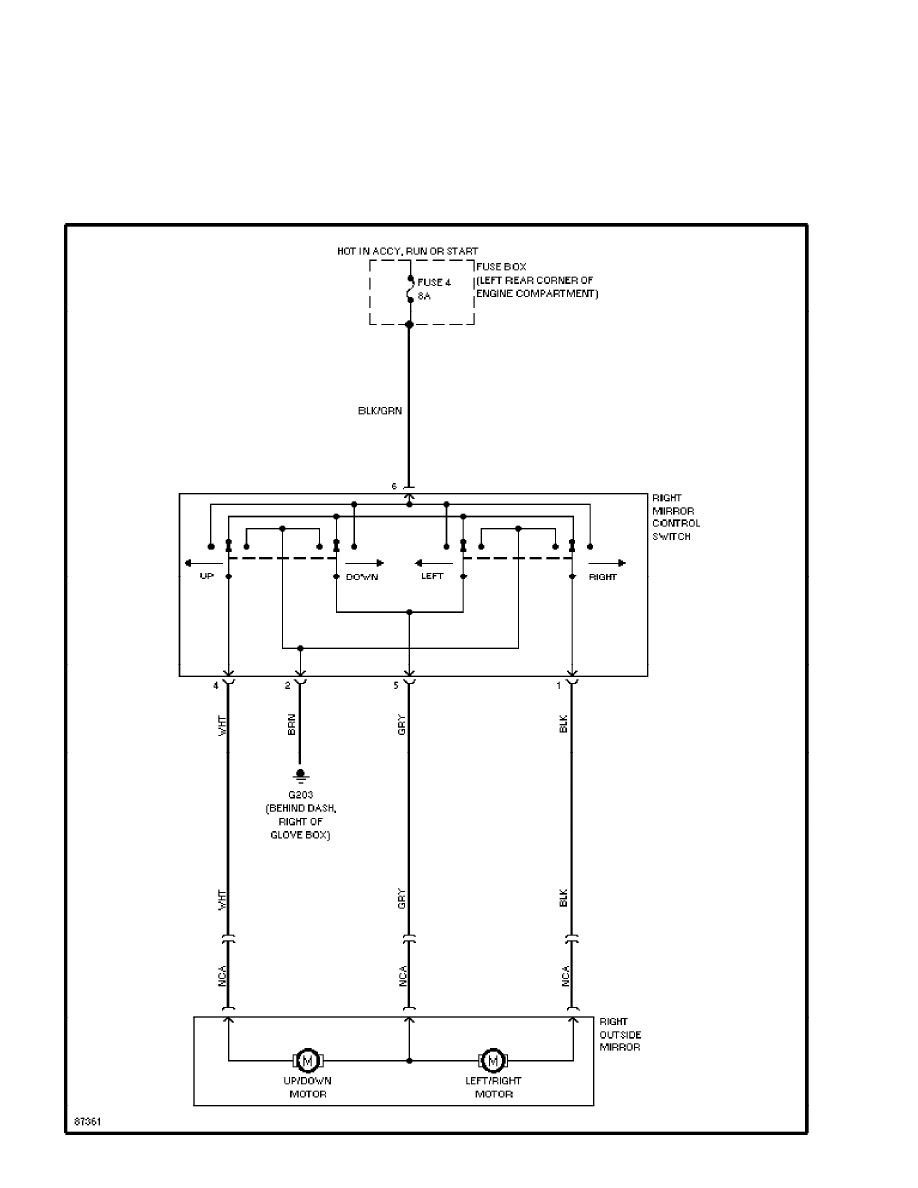

Power Mirror Circuit (p. 5)
1985 Mercedes-Benz 300TD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:14PM
SYSTEM WIRING DIAGRAMS

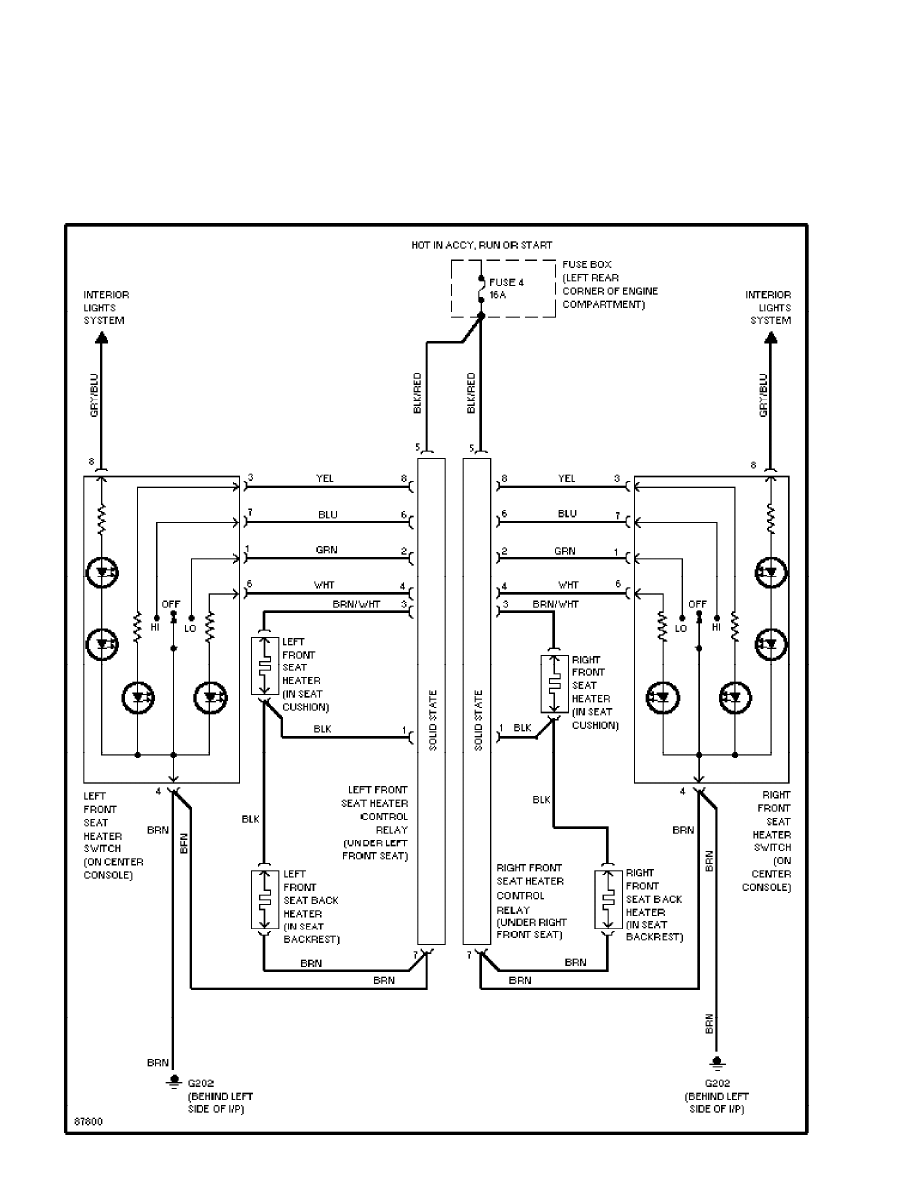

Heated Seats Circuit (p. 6)
1985 Mercedes-Benz 300TD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:14PM
SYSTEM WIRING DIAGRAMS

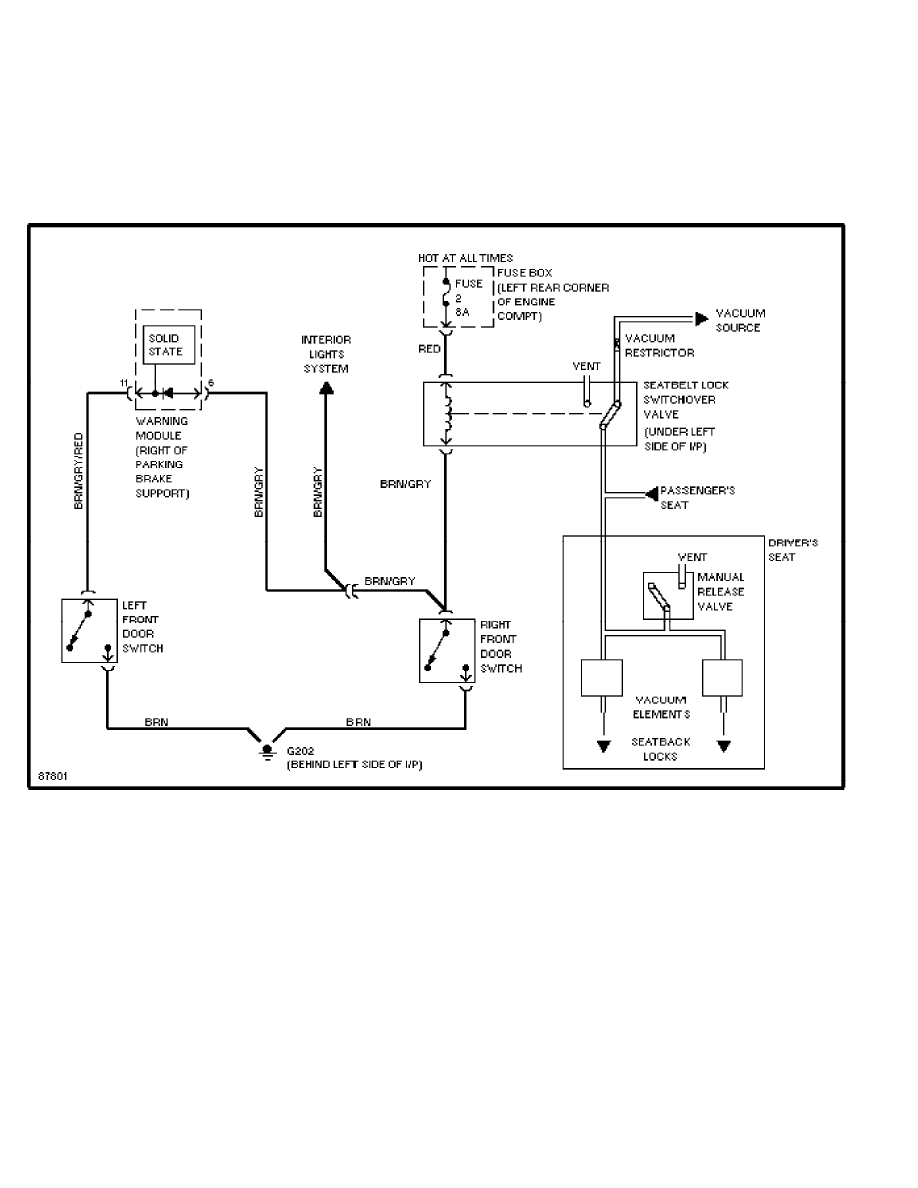

Seat Backrest Locking System (p. 7)
1985 Mercedes-Benz 300TD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:14PM
SYSTEM WIRING DIAGRAMS

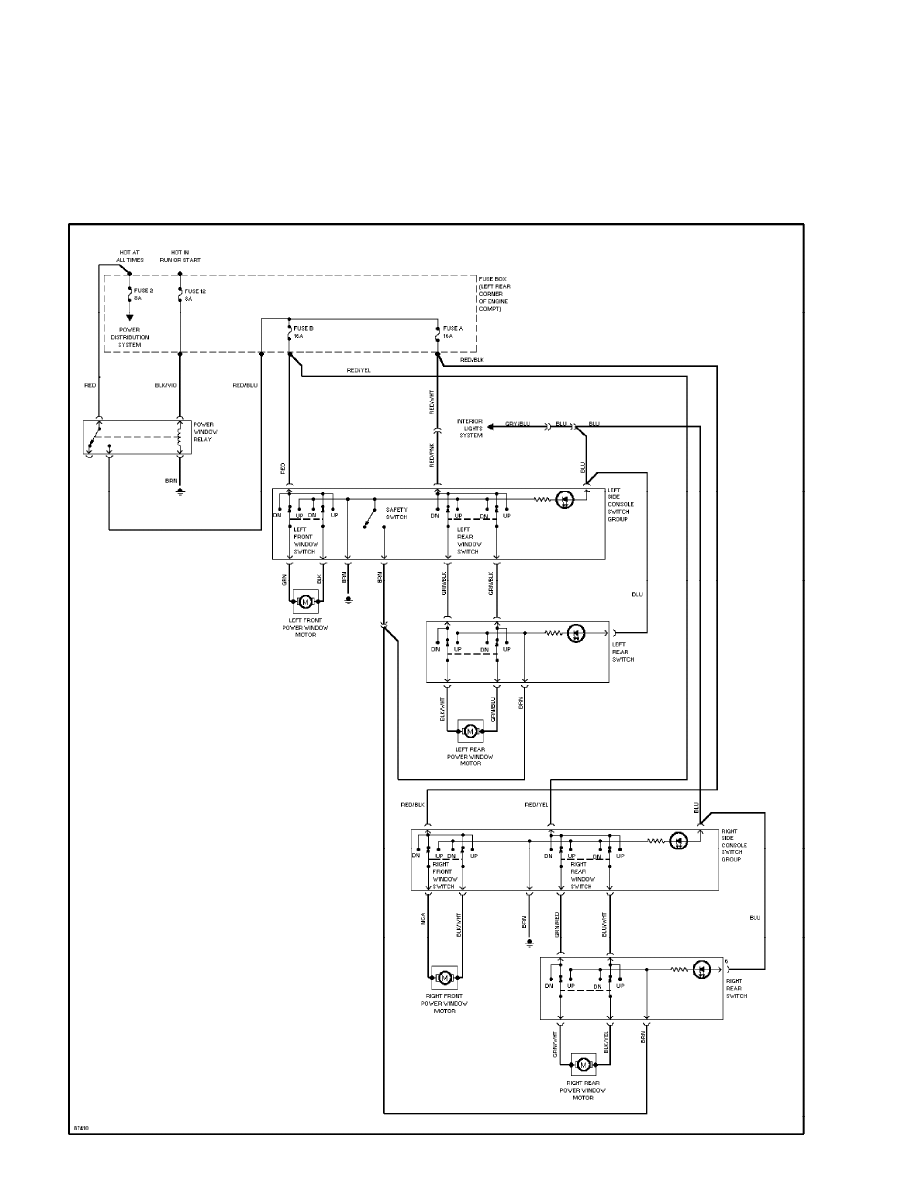

Power Window Circuit (p. 8)
1985 Mercedes-Benz 300TD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:14PM
SYSTEM WIRING DIAGRAMS
Radio Circuits (p. 9)
1985 Mercedes-Benz 300TD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:14PM
SYSTEM WIRING DIAGRAMS

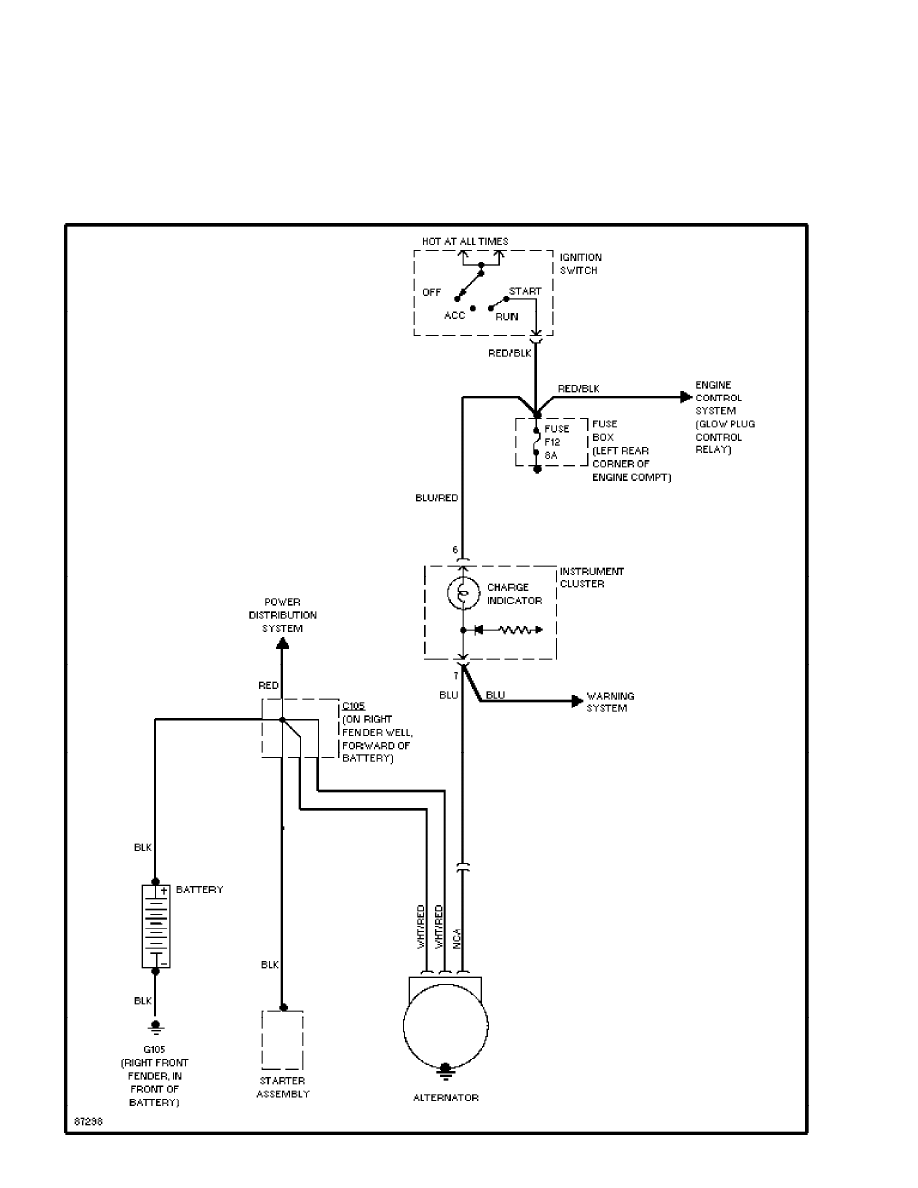

Charging Circuit (p. 10)
1985 Mercedes-Benz 300TD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:14PM
SYSTEM WIRING DIAGRAMS
Starting Circuit (p. 11)
1985 Mercedes-Benz 300TD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:14PM
SYSTEM WIRING DIAGRAMS

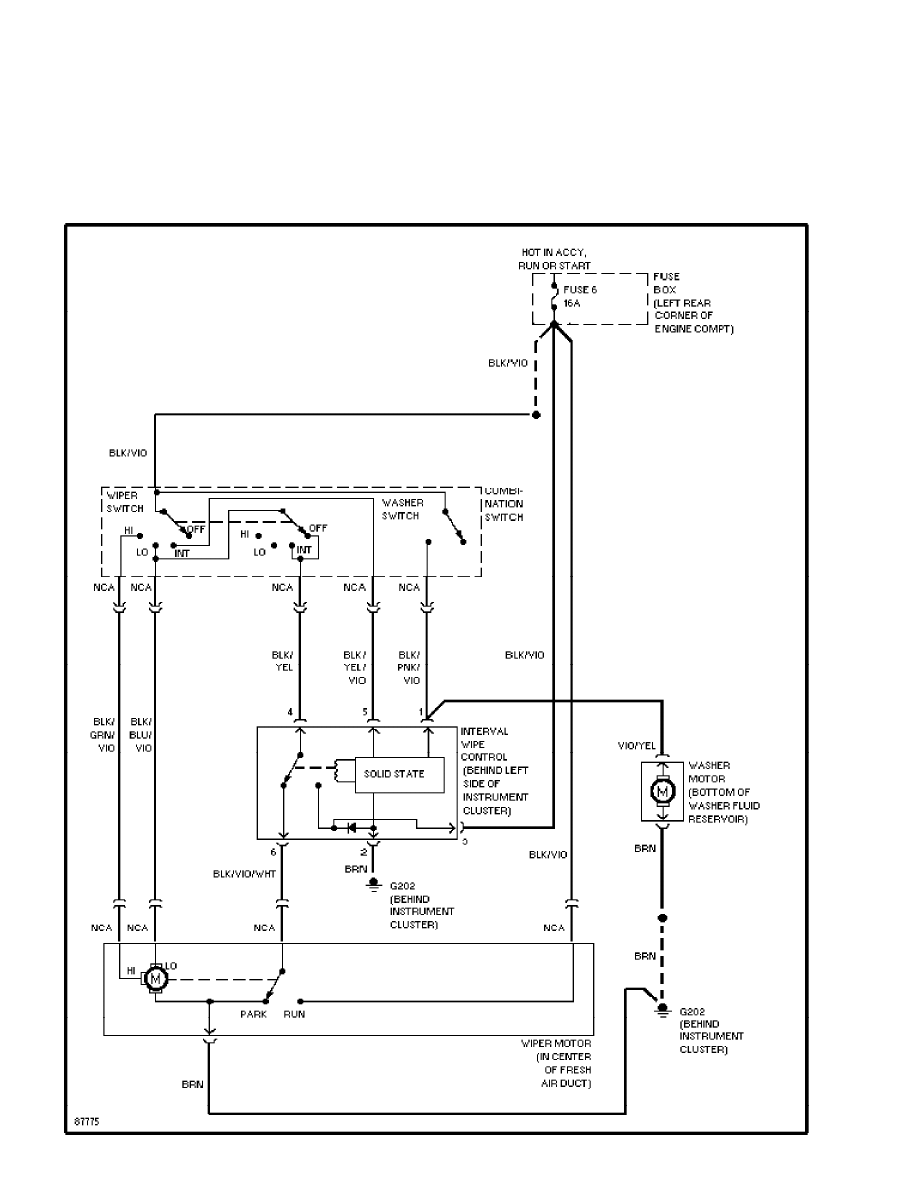

Interval Wiper/Washer Circuit (p. 12)
1985 Mercedes-Benz 300TD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:14PM
SYSTEM WIRING DIAGRAMS

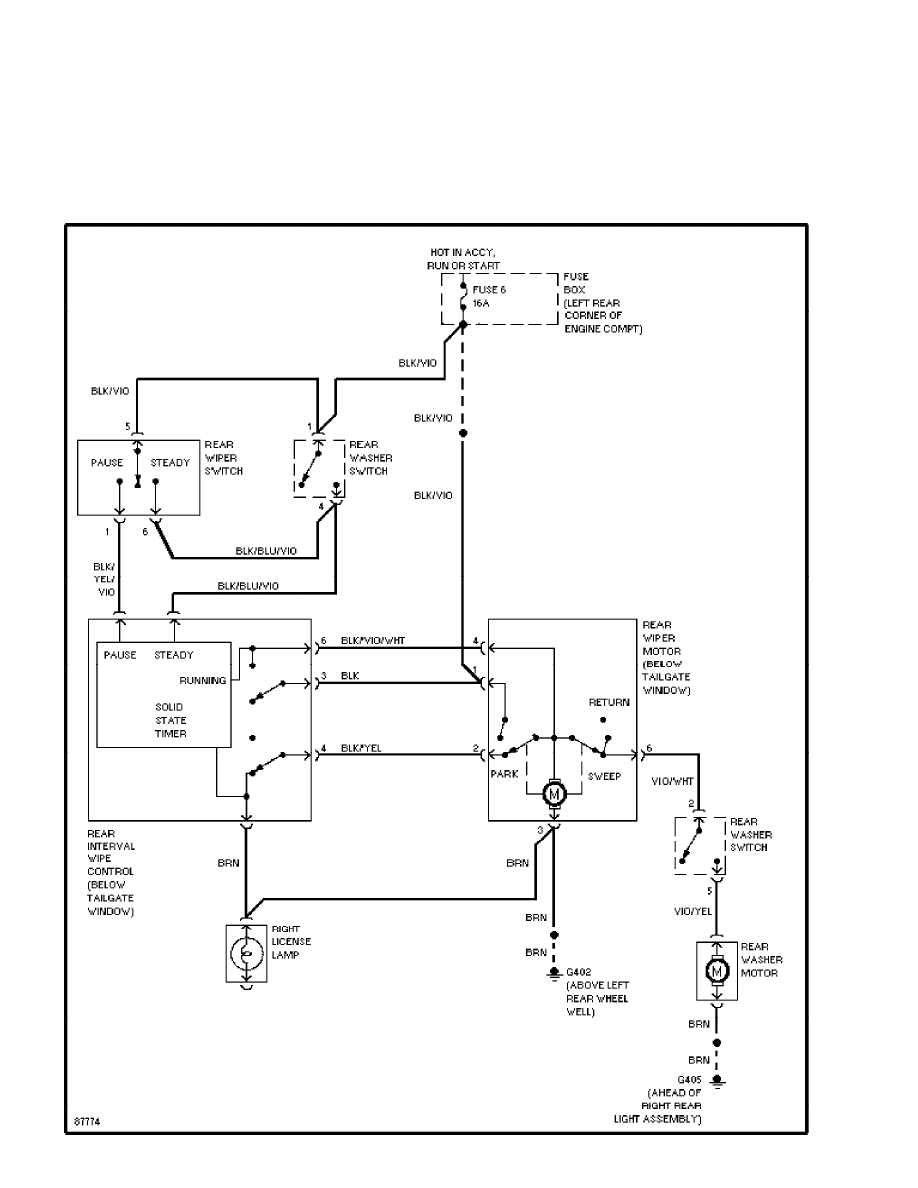

Rear Washer/Wiper W/ Intermittent Relay Circuit (p. 13)
1985 Mercedes-Benz 300TD
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:14PM
