regulacja w dziedzinie czŕstotliwoťci, CC', CC>GENTER,G2, 1,1,2,1, 1,2,2,1,2


CC>GENTER,G2, 1,1,2,1, 1,2,2,1,2

2s +1

G2(s) = ------------

2s^2 +s +2

CC>ilt

Enter transfer function > g2

Option >

Inverse Laplace transform (causal)

+

¦ 1.032796*cos( .9682459t - .2526802)*exp(-.25t) for t>0

G2(t)= ¦

¦

¦ 0 for t<0

+

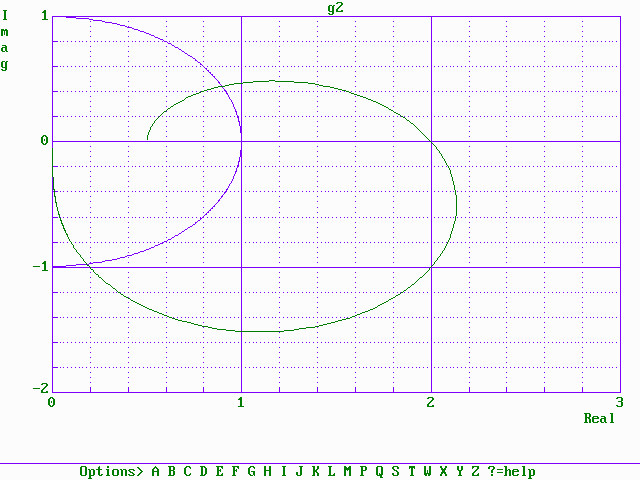

0x08 graphic

CC>GENTER,G1, 1,1,2,1, 1,1,2,2

2s +1

G1(s) = -------

2s +2

CC>ilt

Enter transfer function > g1

Option >

Inverse Laplace transform (causal)

+

¦ Ű(t) for t=0

¦

¦

G1(t)= ¦ -.5*exp(-1t) for t>0

¦

¦

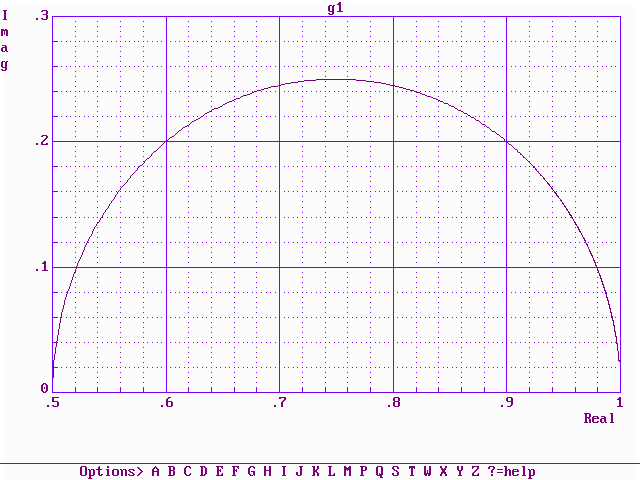

0x08 graphic
¦ 0 for t<0

+

CC>GENTER,G3, 1,2,2,4,7, 1,3,5,4,1,2

2s^2 +4s +7

G3(s) = ------------------

5s^3 +4s^2 +s +2

CC>ilt

Enter transfer function > g3

Option >

Inverse Laplace transform (causal)

+

¦ 1.819411*sin( .6244998t - .1239837)*exp( .1t) + .625*exp(-1t)

¦

G3(t)= ¦ for t>0

¦

¦

0x08 graphic
¦ 0 for t<0

+

CC>GENTER,G4, 1,2,4,1,5, 1,3,2,2,2,1

4s^2 +s +5

G4(s) = -------------------

2s^3 +2s^2 +2s +1

CC>ilt

Enter transfer function > g4

Option >

Inverse Laplace transform (causal)

+

¦ 3.130163*exp(-.6477989t) - 1.192939*cos( .8607166t + .3258564)

¦

G4(t)= ¦ *exp(-.1761006t) for t>0

¦

¦

¦ 0 for t<0

0x08 graphic
+

CC>GENTER,G5, 1,3,5,2,3,5, 1,4,2,4,1,2,3

5s^3 +2s^2 +3s +5

G5(s) = ------------------------

2s^4 +4s^3 +s^2 +2s +3

CC>ilt

Enter transfer function > g5

Option >

Inverse Laplace transform (causal)

+

¦ .4758529*sin( .8388428t + .2100141)*exp( .3824391t) - .25*exp(-1t)

¦

G5(t)= ¦ + 2.650797*exp(-1.764878t) for t>0

¦

¦

¦ 0 for t<0

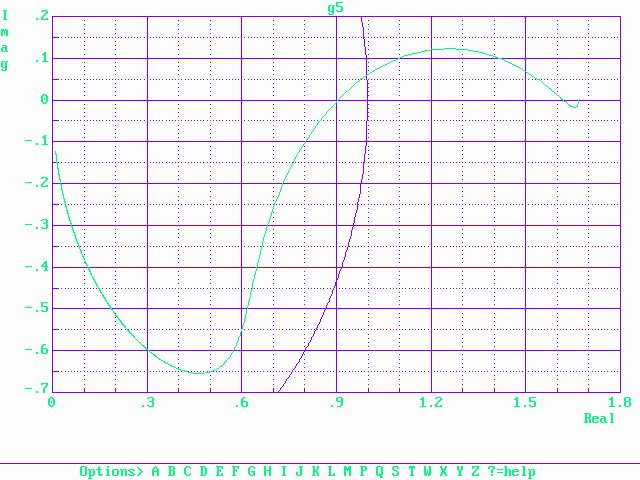

0x08 graphic
