SYSTEM WIRING DIAGRAMS

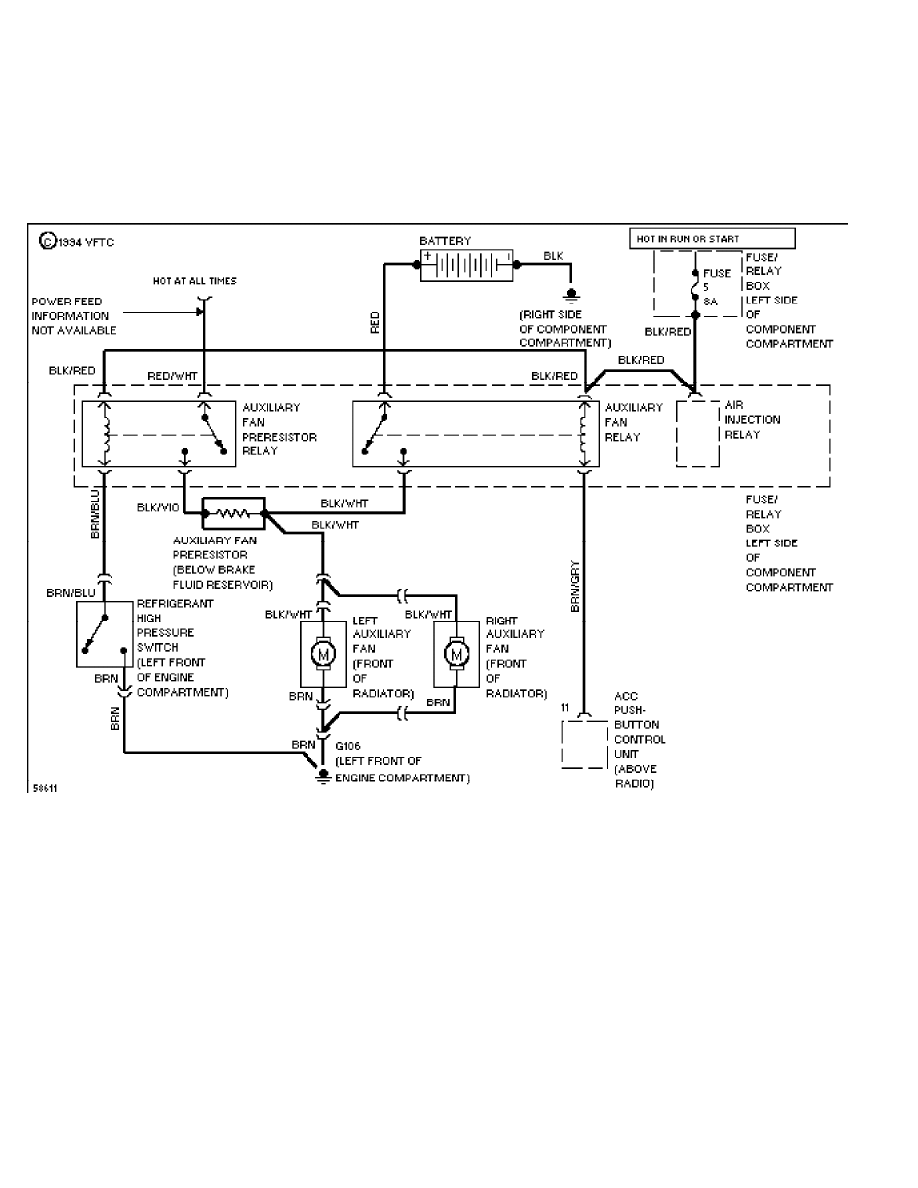

Cooling Fan Circuit
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS
Cooling Fan Circuit
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

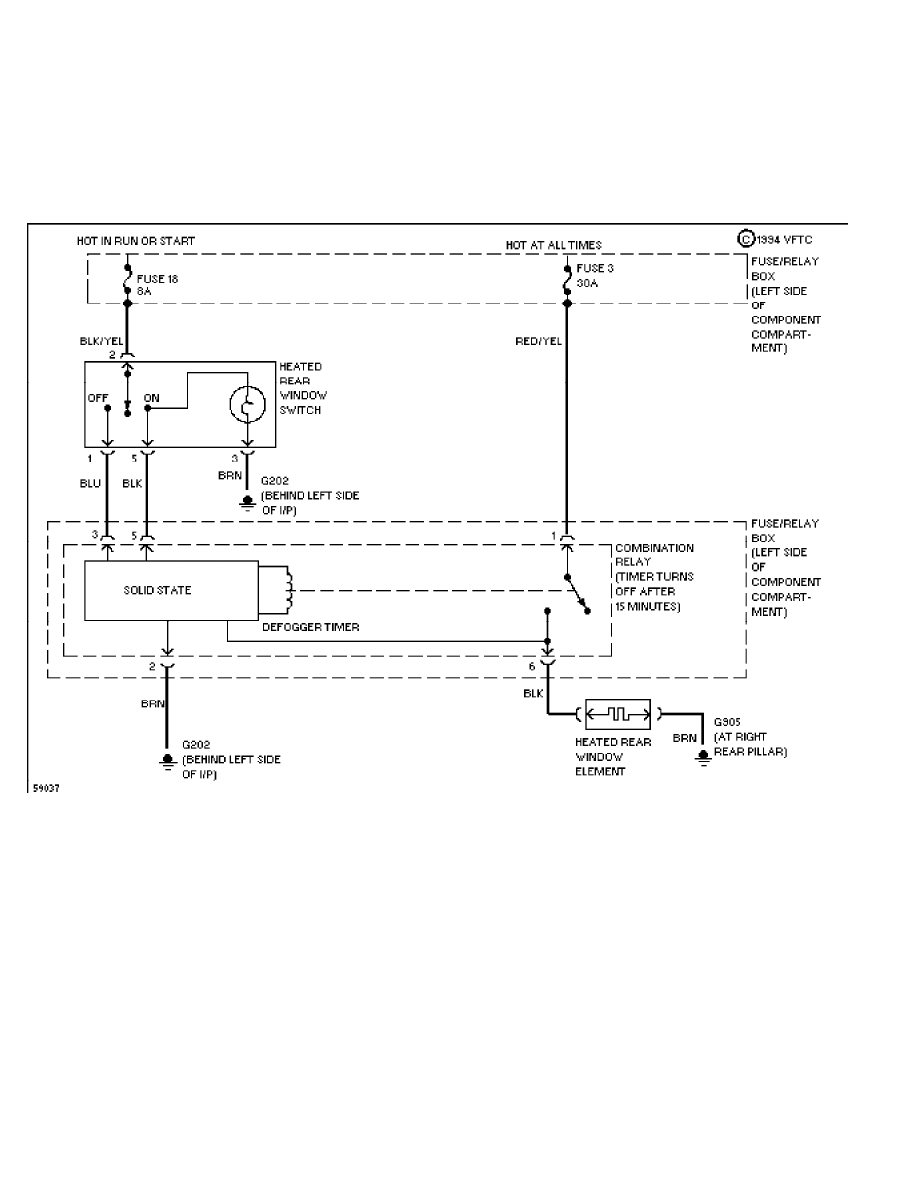

Defogger Circuit (p. 2)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

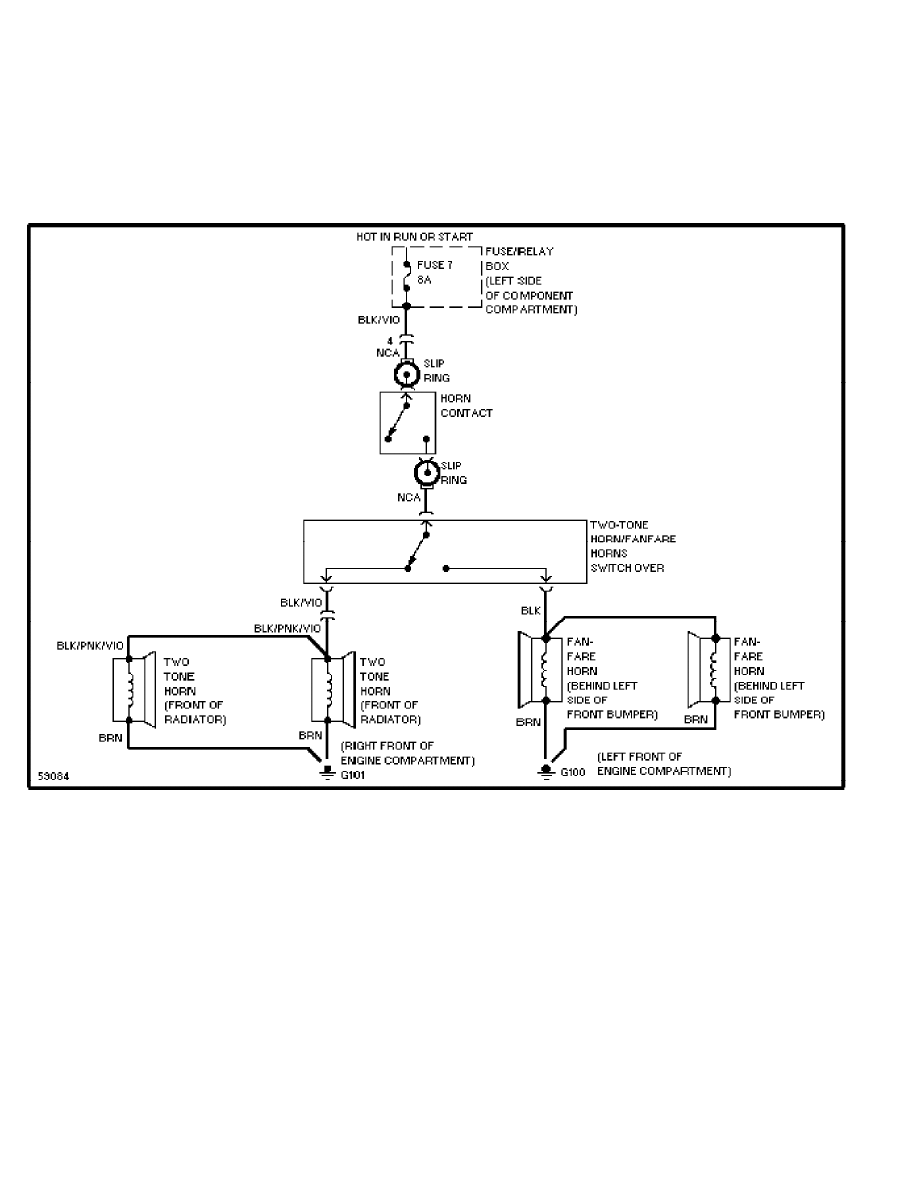

Horn Circuit (p. 3)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

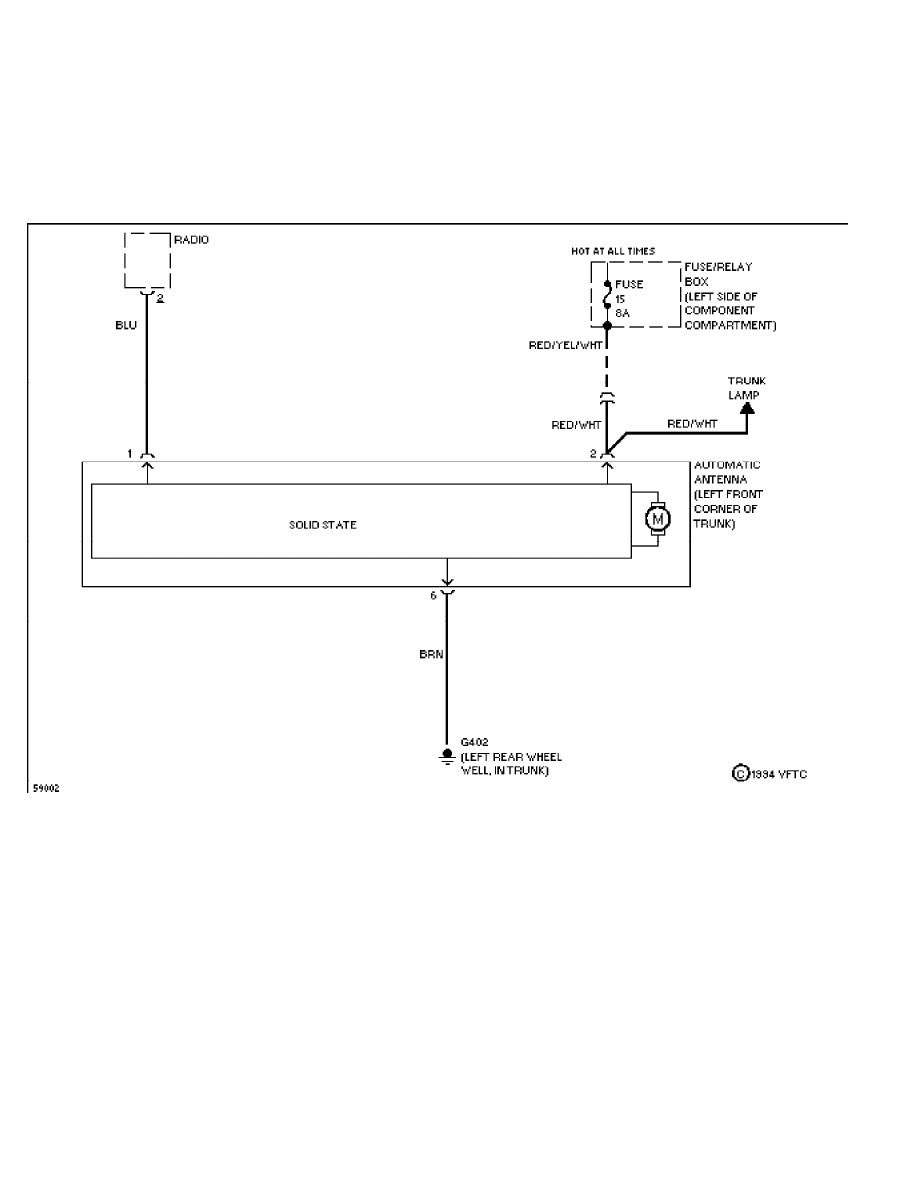

Power Antenna Circuit, Base Radio (p. 4)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

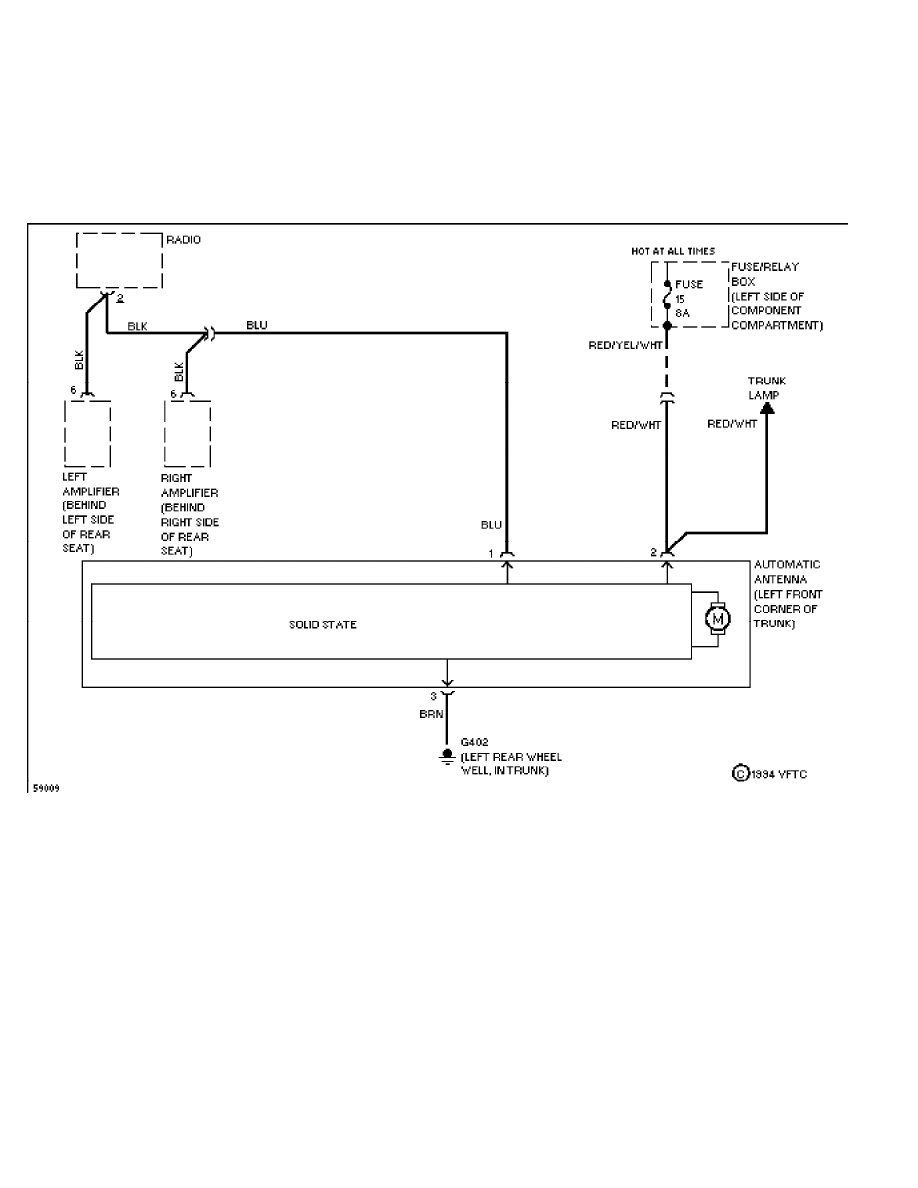

Power Antenna Circuit, One Piece Radio W/ Sound System (p. 5)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

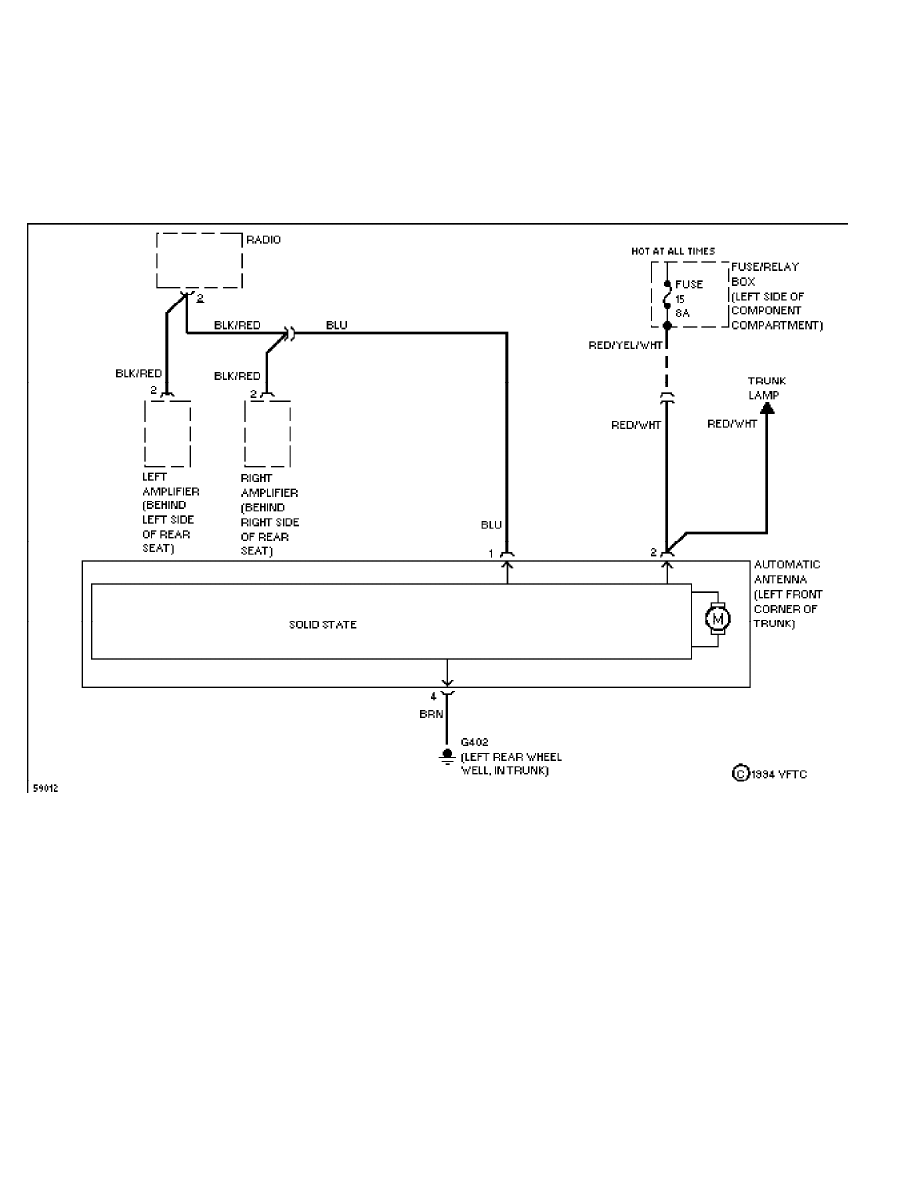

Power Antenna Circuit, Two Piece Radio (p. 6)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS
Power Door Lock Circuit (p. 7)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS
Power Mirror Circuit (p. 8)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

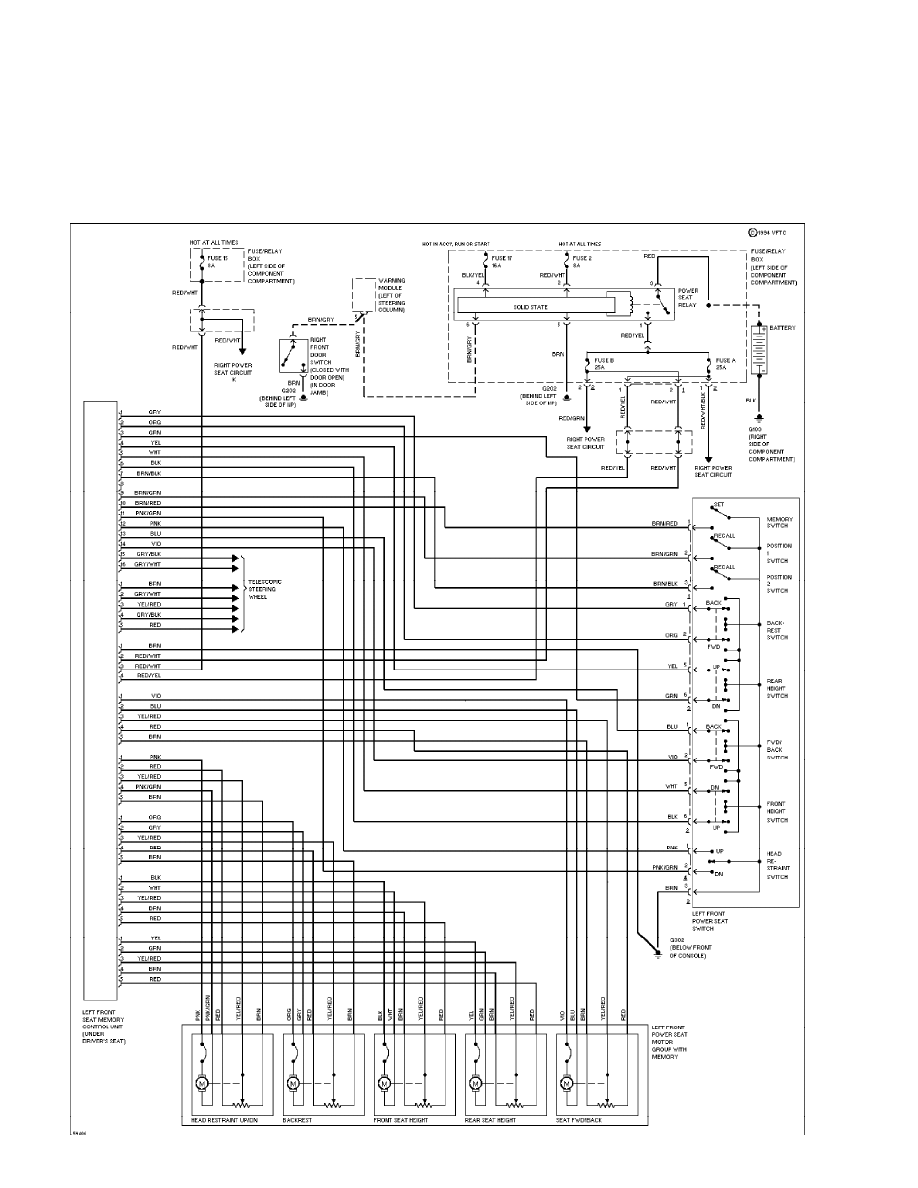

Driver Power Seat Circuit (p. 9)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

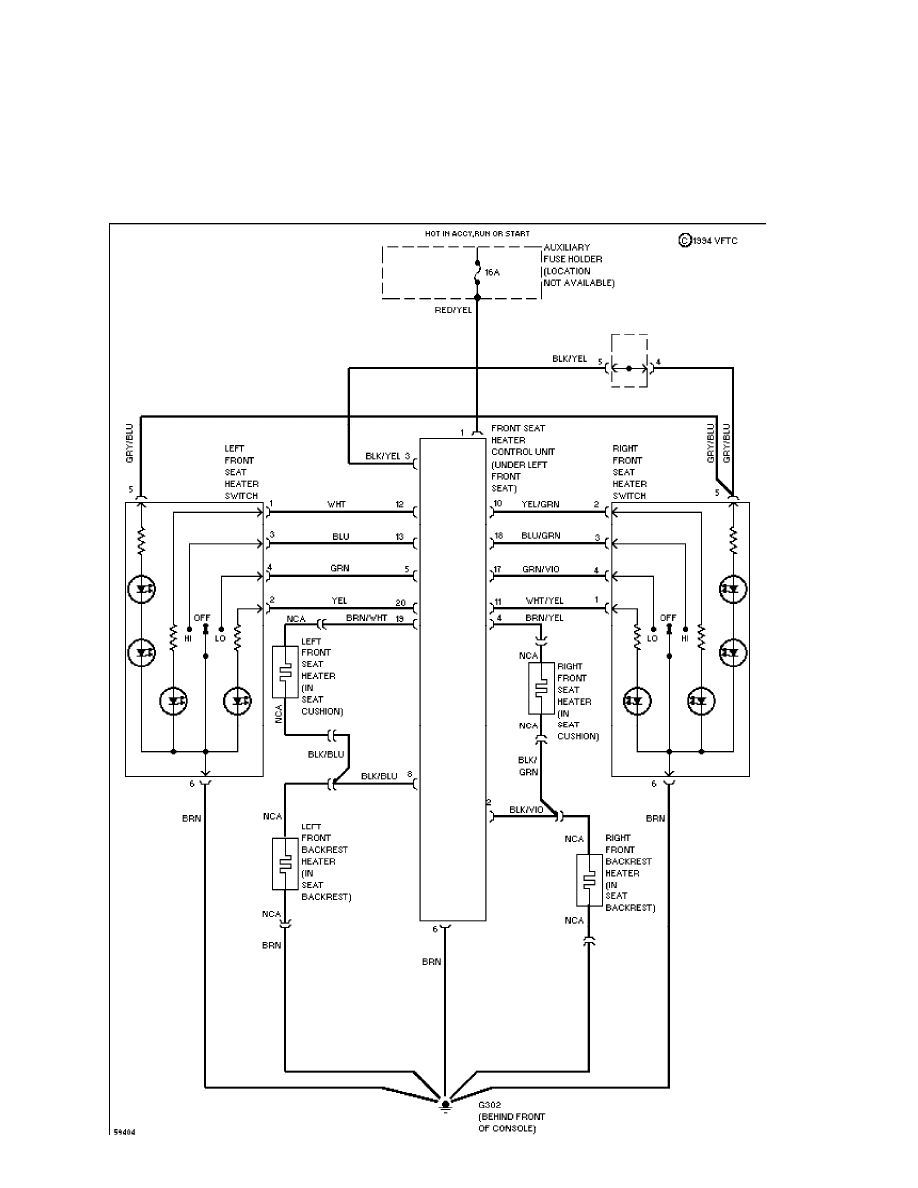

Front Seat Heater Circuit (p. 10)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS
Orthopedic Seats (p. 11)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

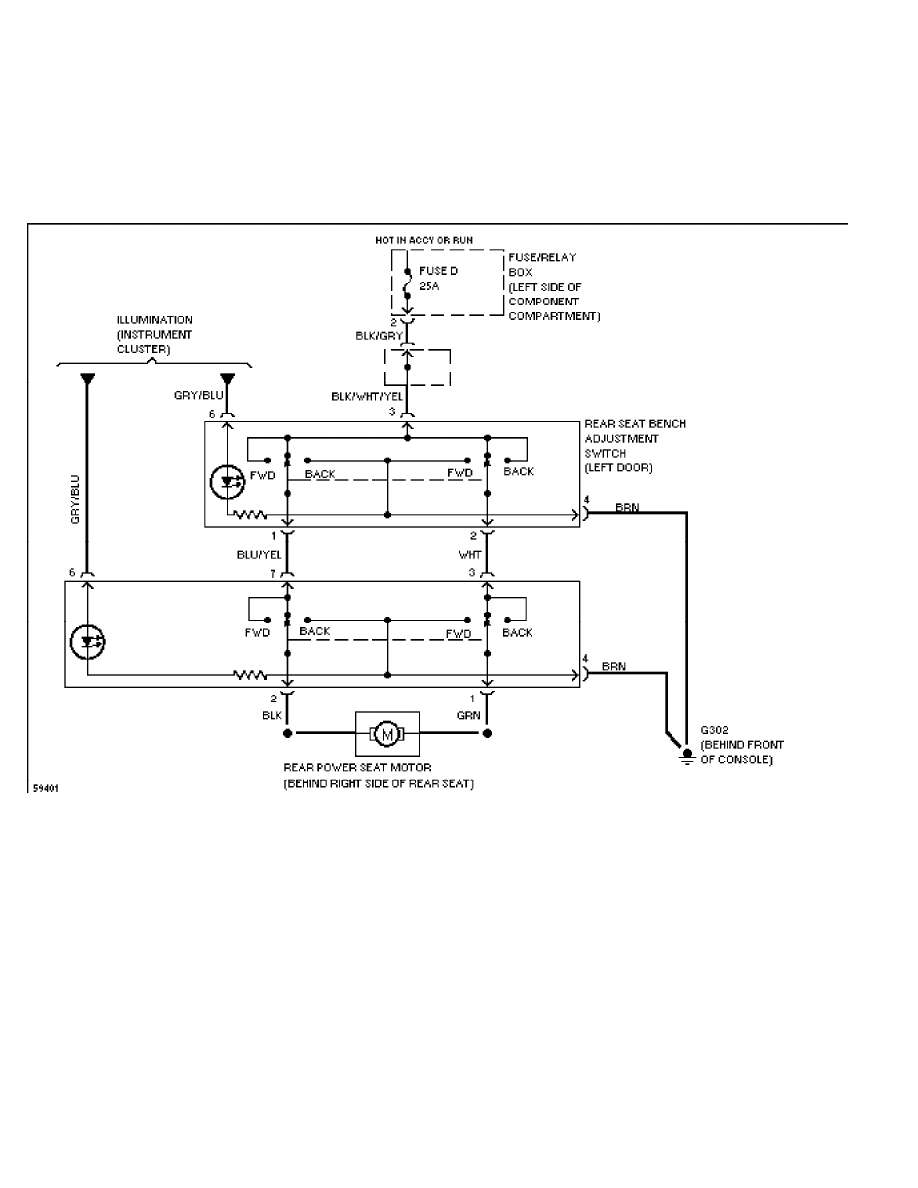

Rear Seat Adjuster Circuit, Sedan (p. 12)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

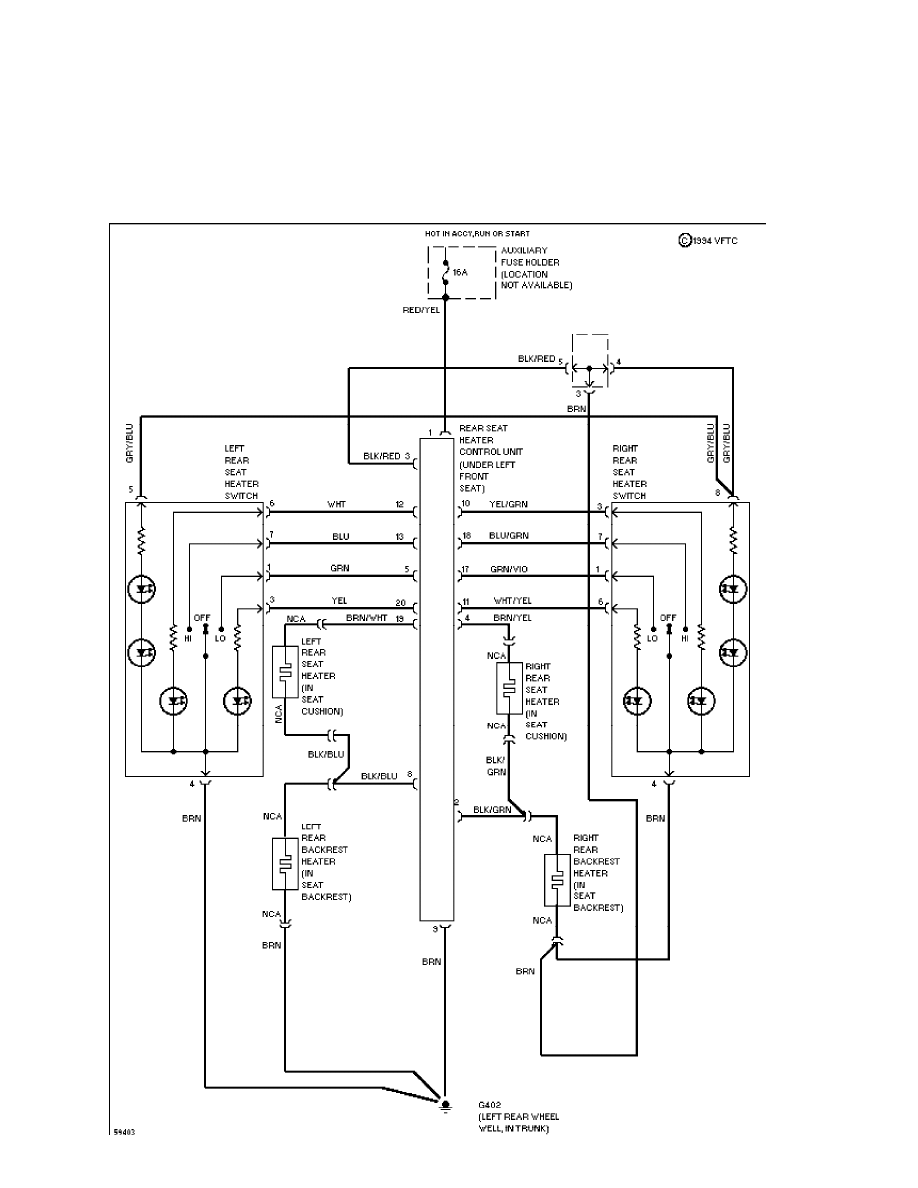

Rear Seat Heater Circuit (p. 13)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS
Right Seat Circuit (p. 14)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

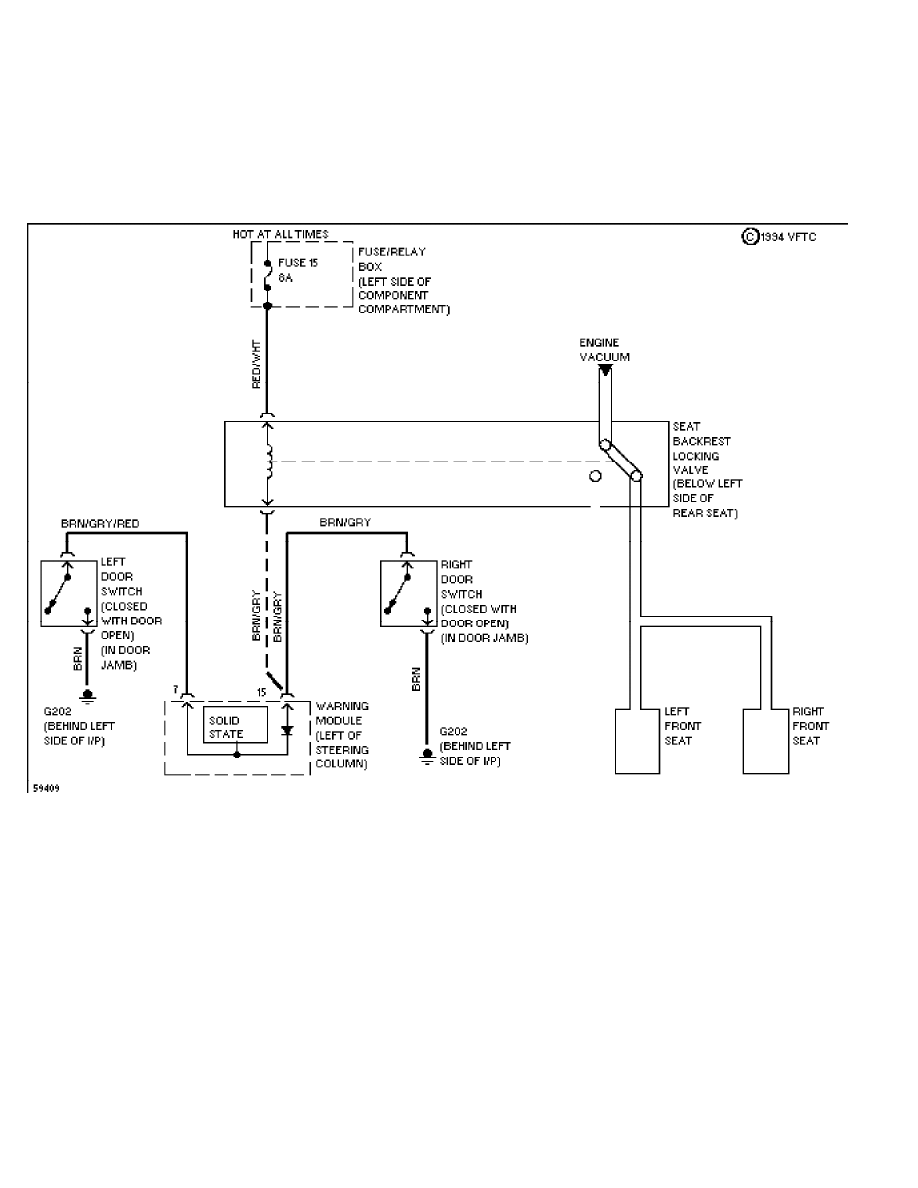

Seat Backrest Locking System, Coupe (p. 15)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

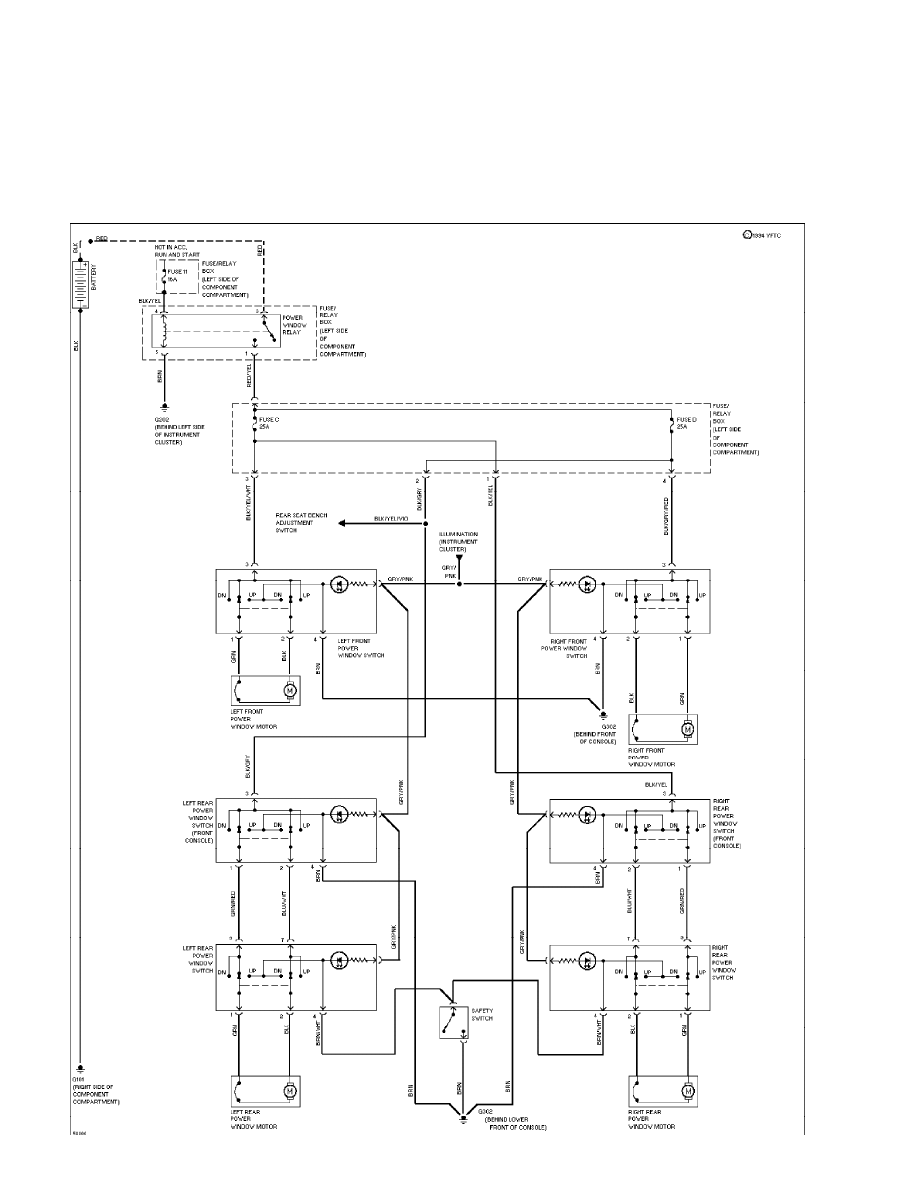

Power Window Circuit (p. 16)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS
Base Radio (p. 17)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

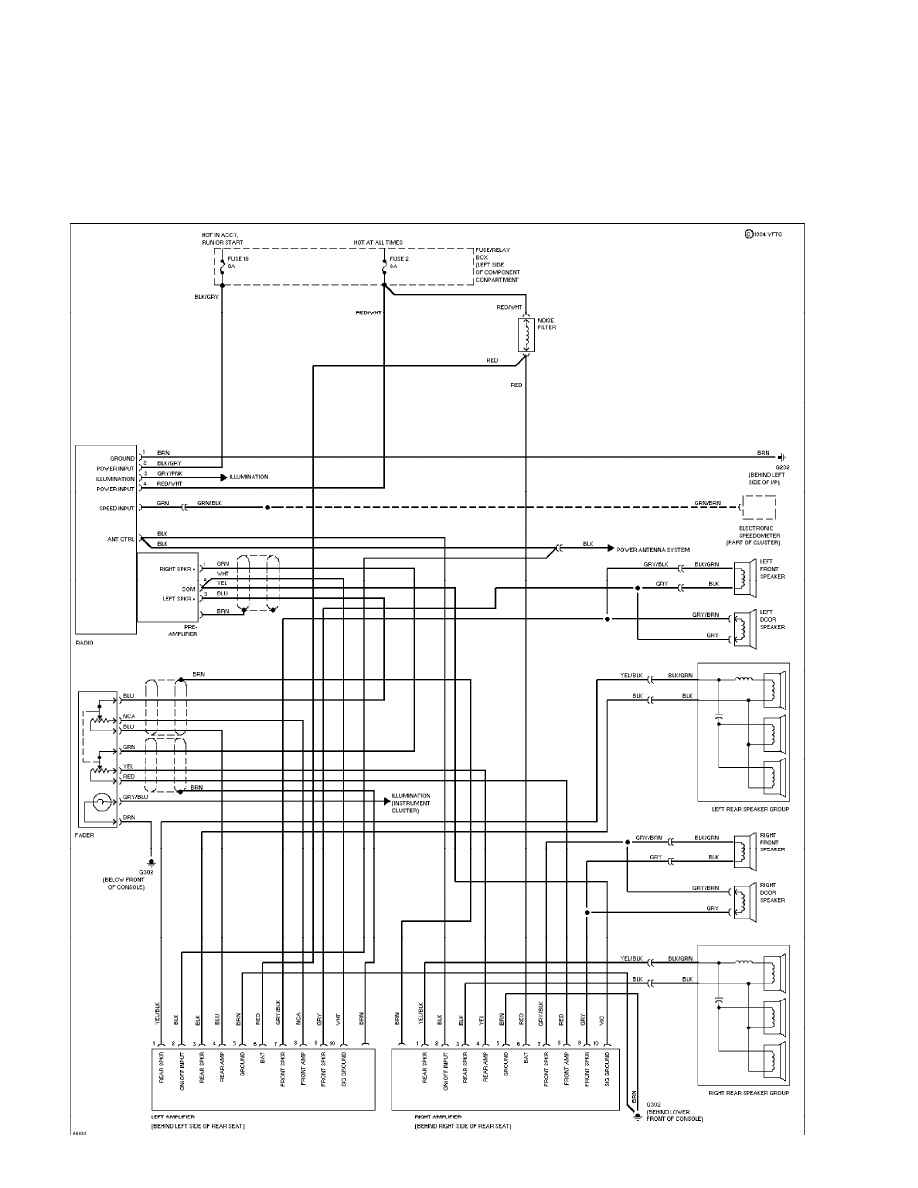

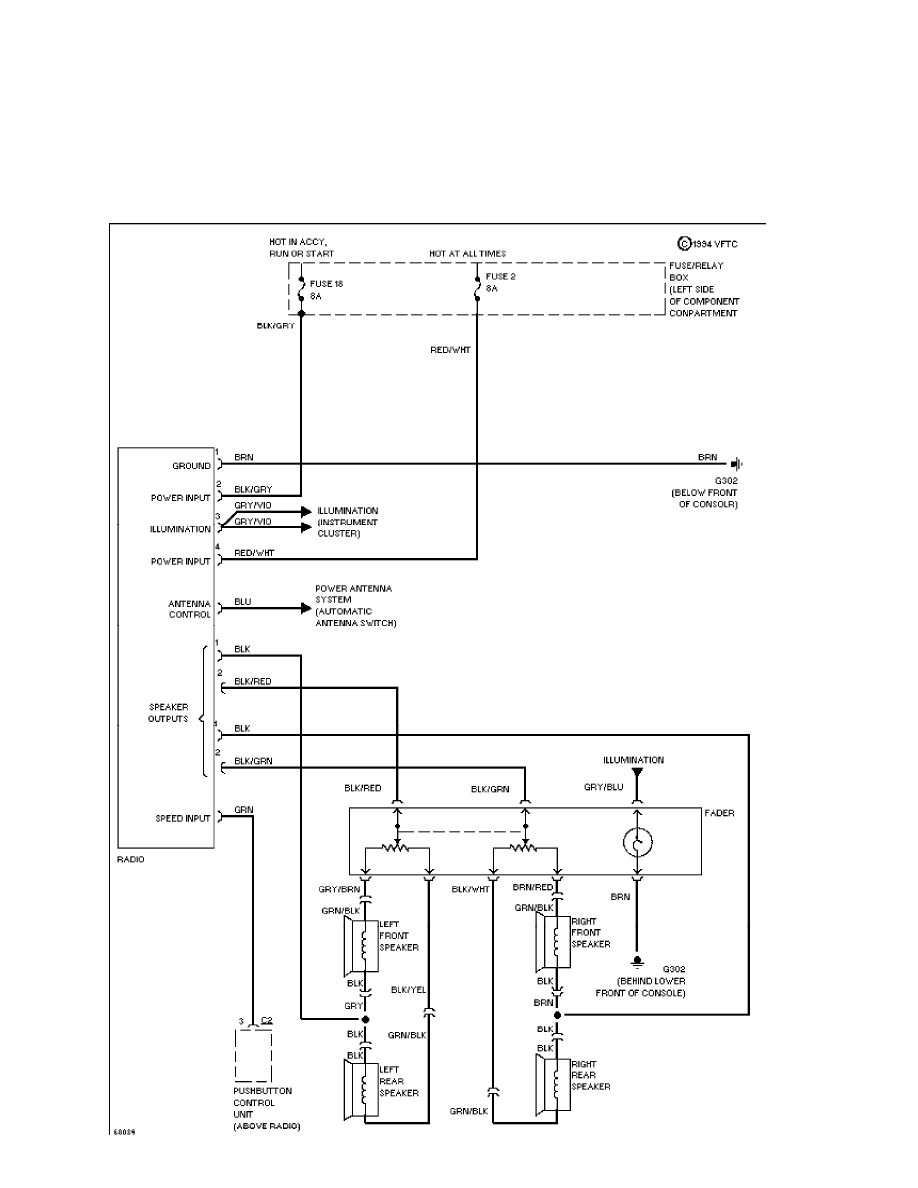

One Piece Radio, W/ Sound System (p. 18)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

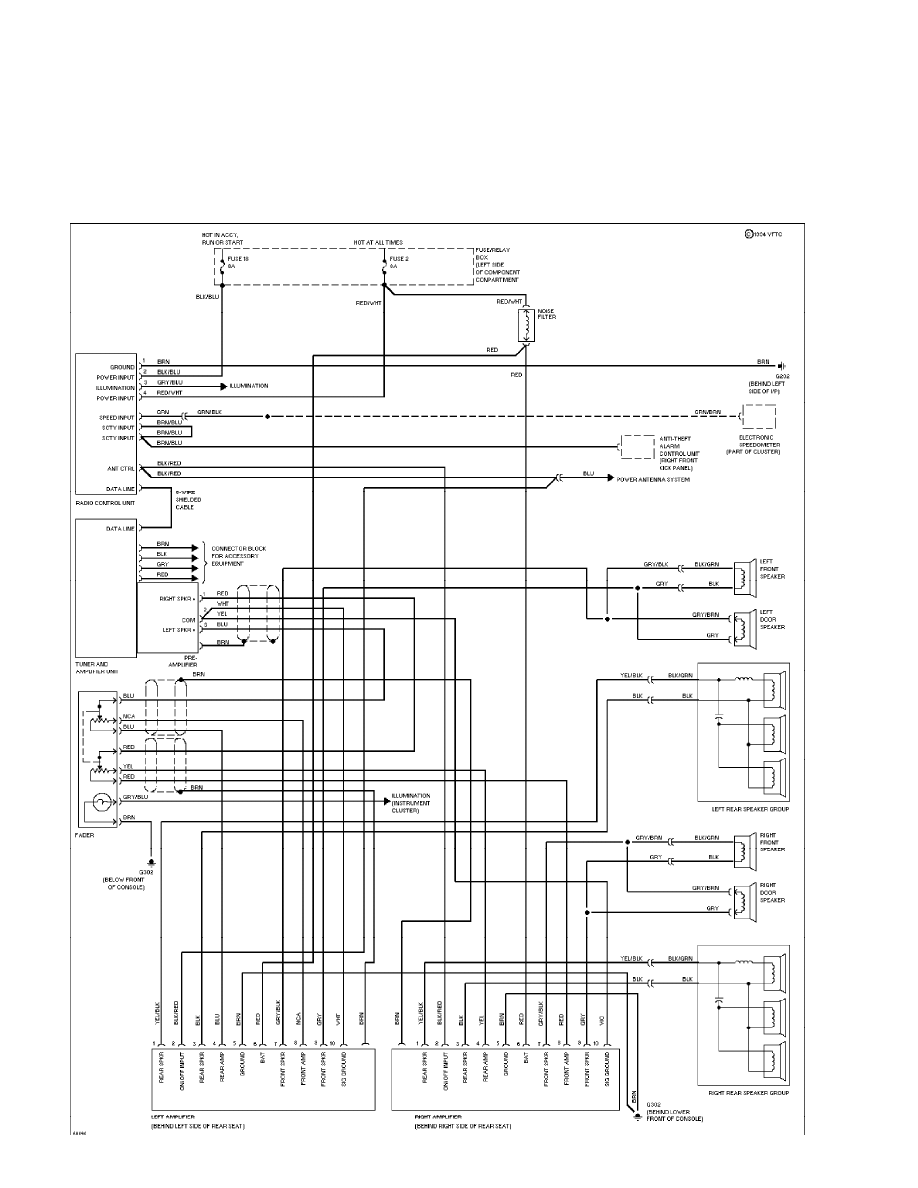

Two Piece Radio, W/ Sound System (p. 19)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

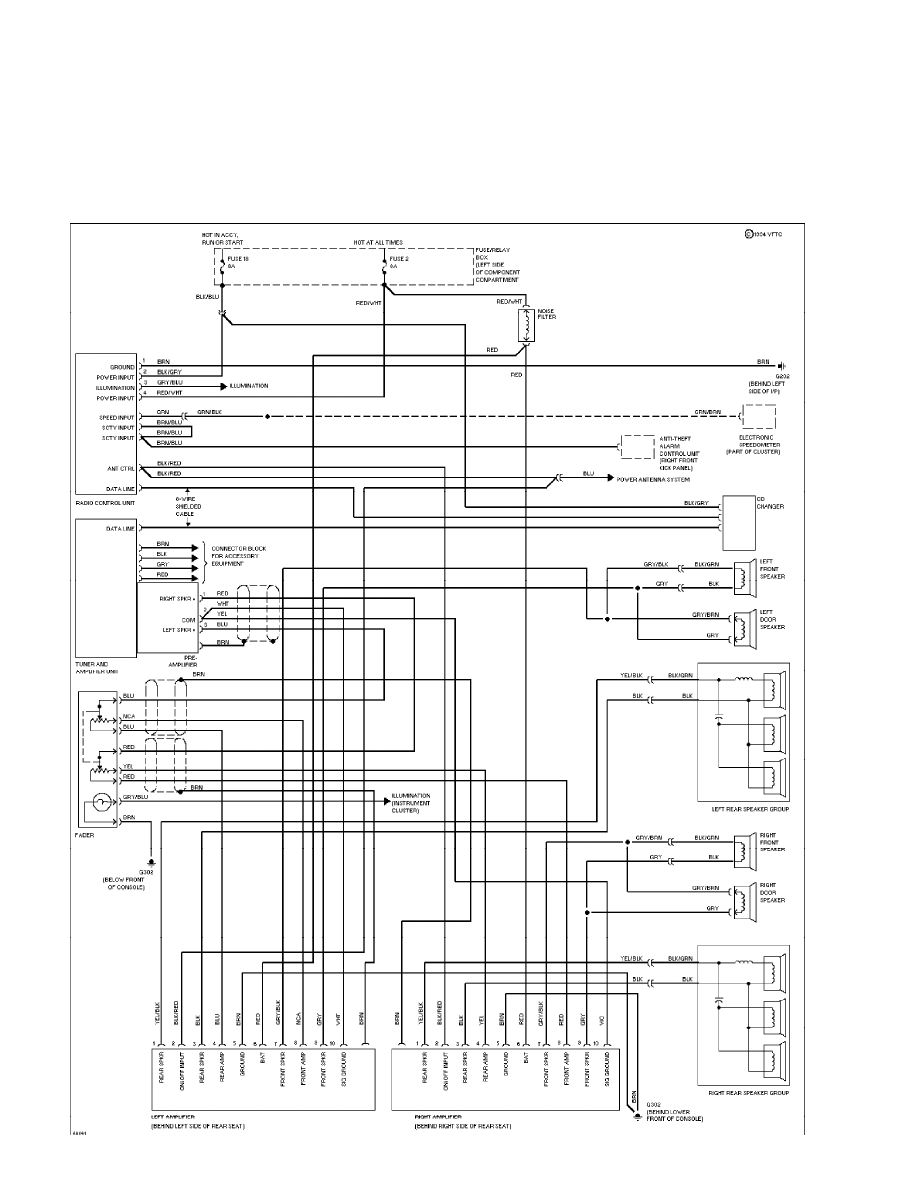

Two Piece Radio, W/ Sound System & CD Player (p. 20)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

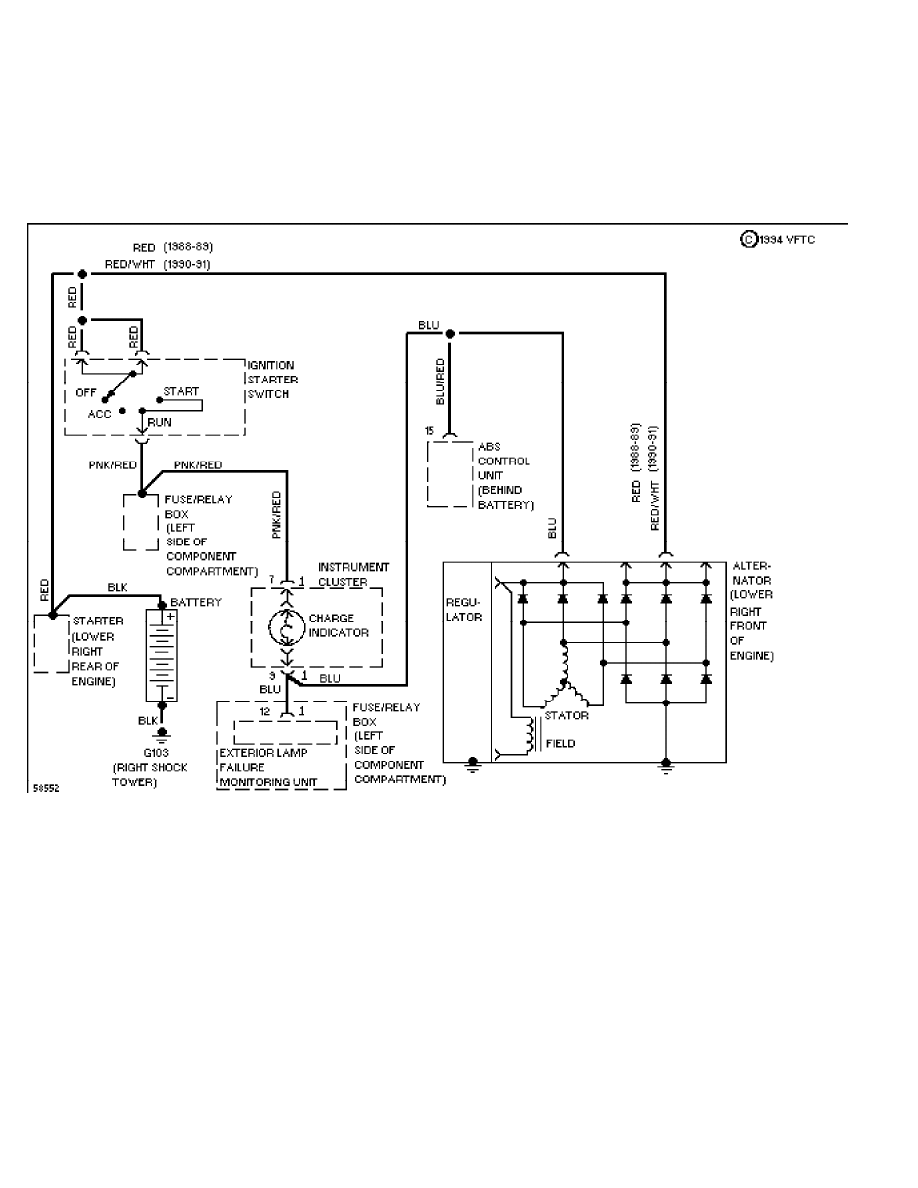

Charging Circuit (p. 21)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

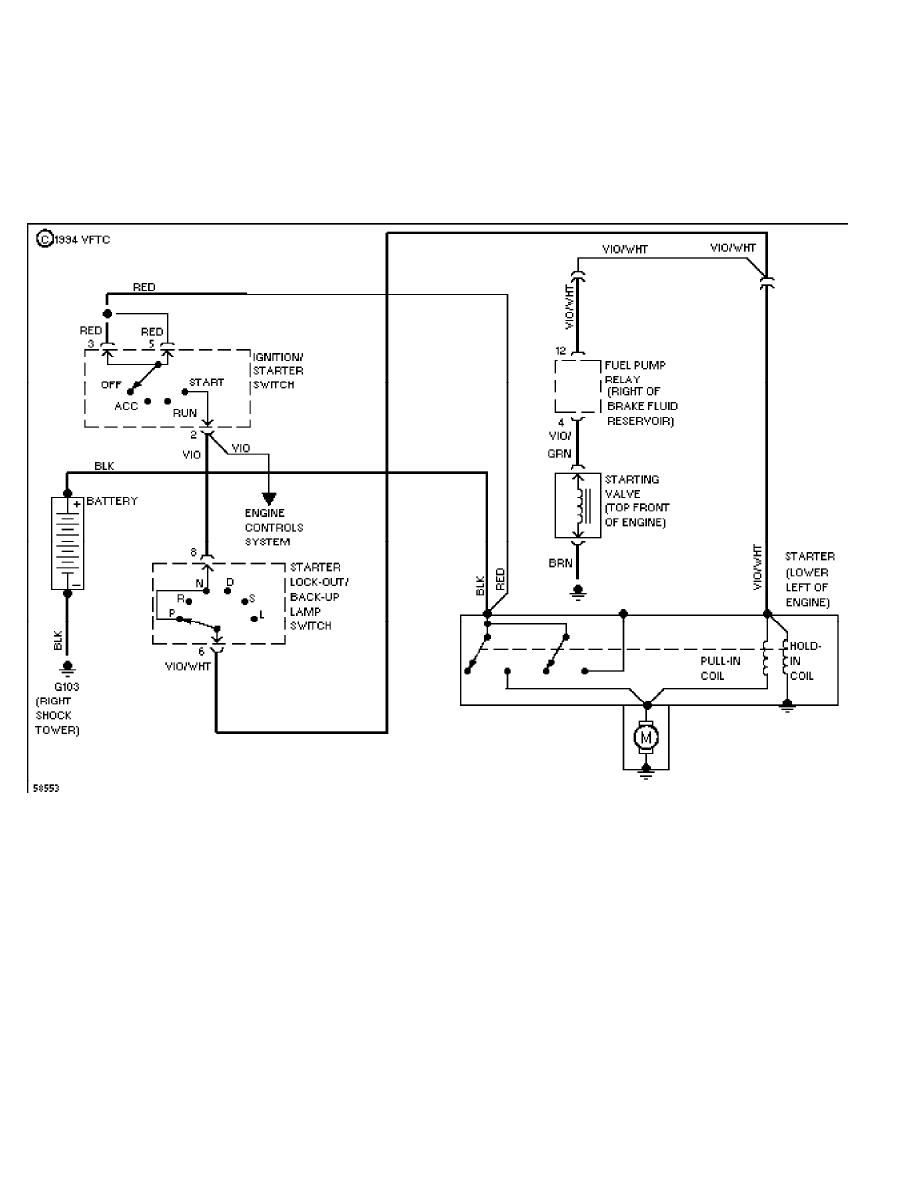

Starting Circuit (p. 22)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS

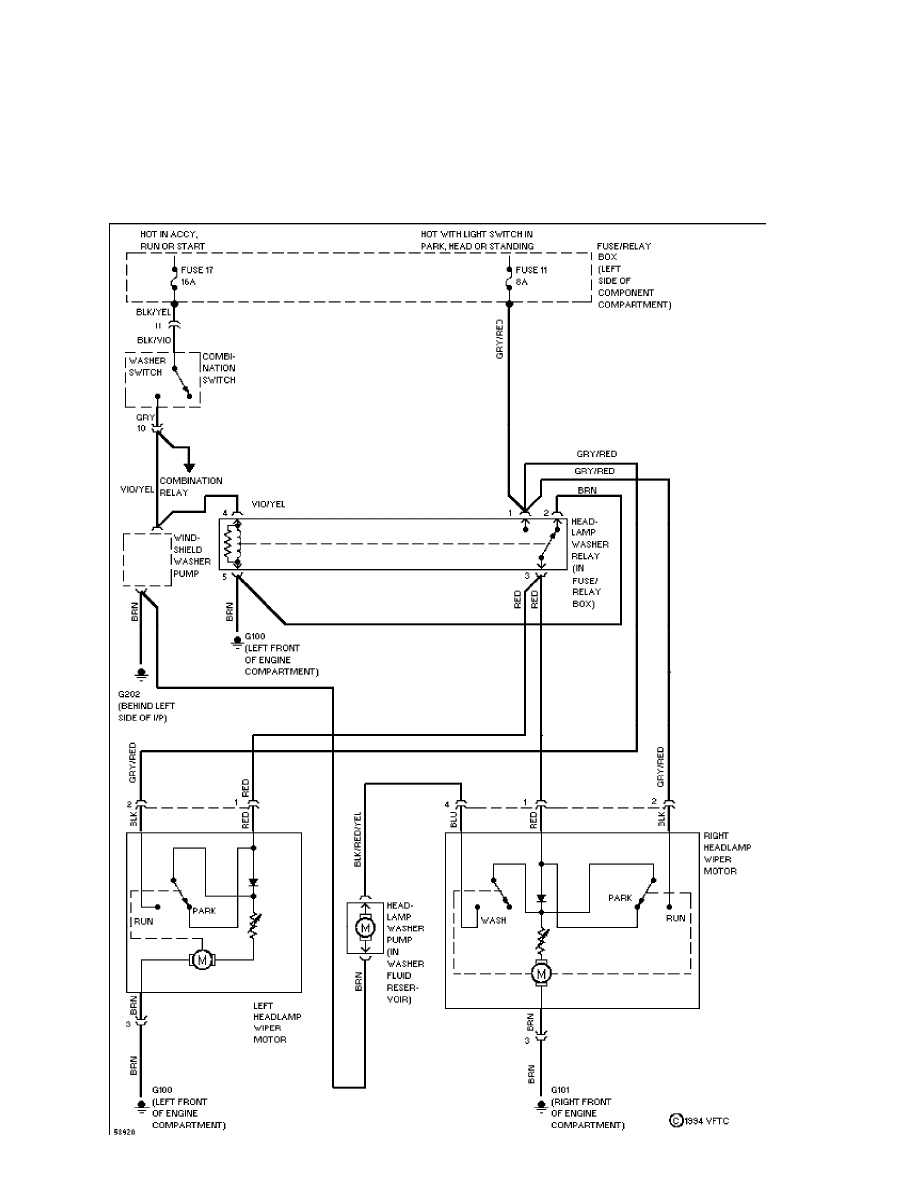

Headlight Washer/Wiper Circuit (p. 23)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
SYSTEM WIRING DIAGRAMS
Interval Wiper/Washer Circuit (p. 24)
1991 Mercedes-Benz 560SEL
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 03:50PM
