SYSTEM WIRING DIAGRAMS

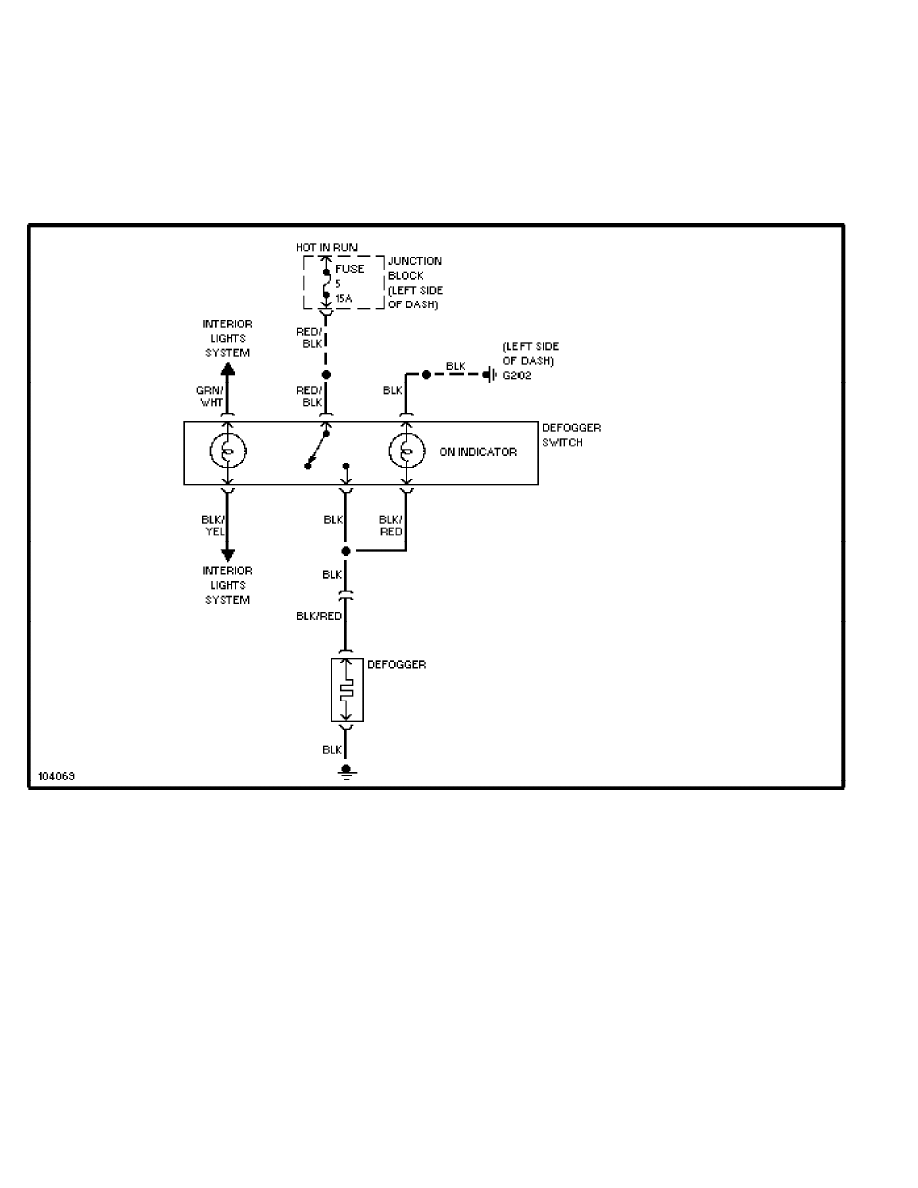

Defogger Circuit
1986 Mitsubishi Montero
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:03PM
SYSTEM WIRING DIAGRAMS
Horn Circuit (p. 2)
1986 Mitsubishi Montero
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:03PM
SYSTEM WIRING DIAGRAMS
Back Door Lock Circuit (p. 3)
1986 Mitsubishi Montero
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:03PM

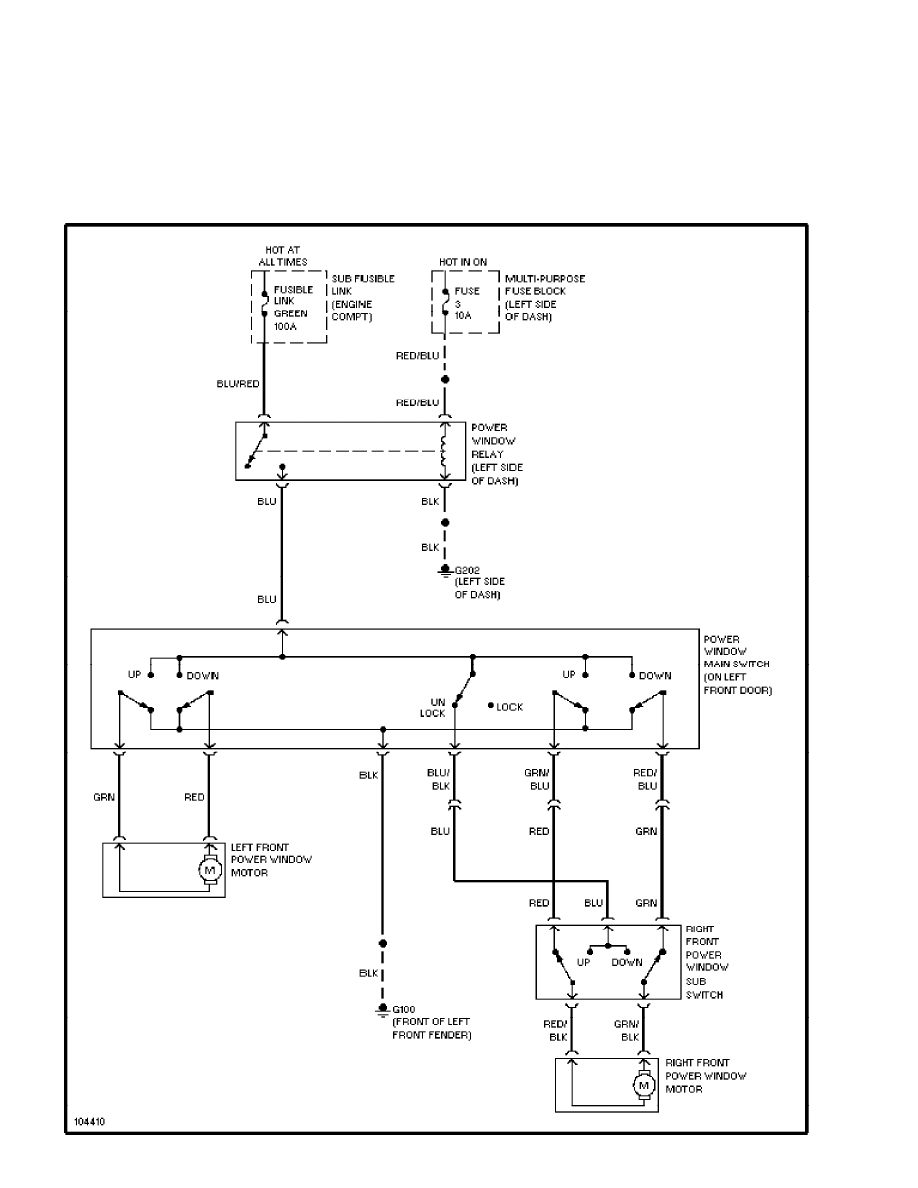

SYSTEM WIRING DIAGRAMS
Power Window Circuit (p. 4)
1986 Mitsubishi Montero
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:03PM

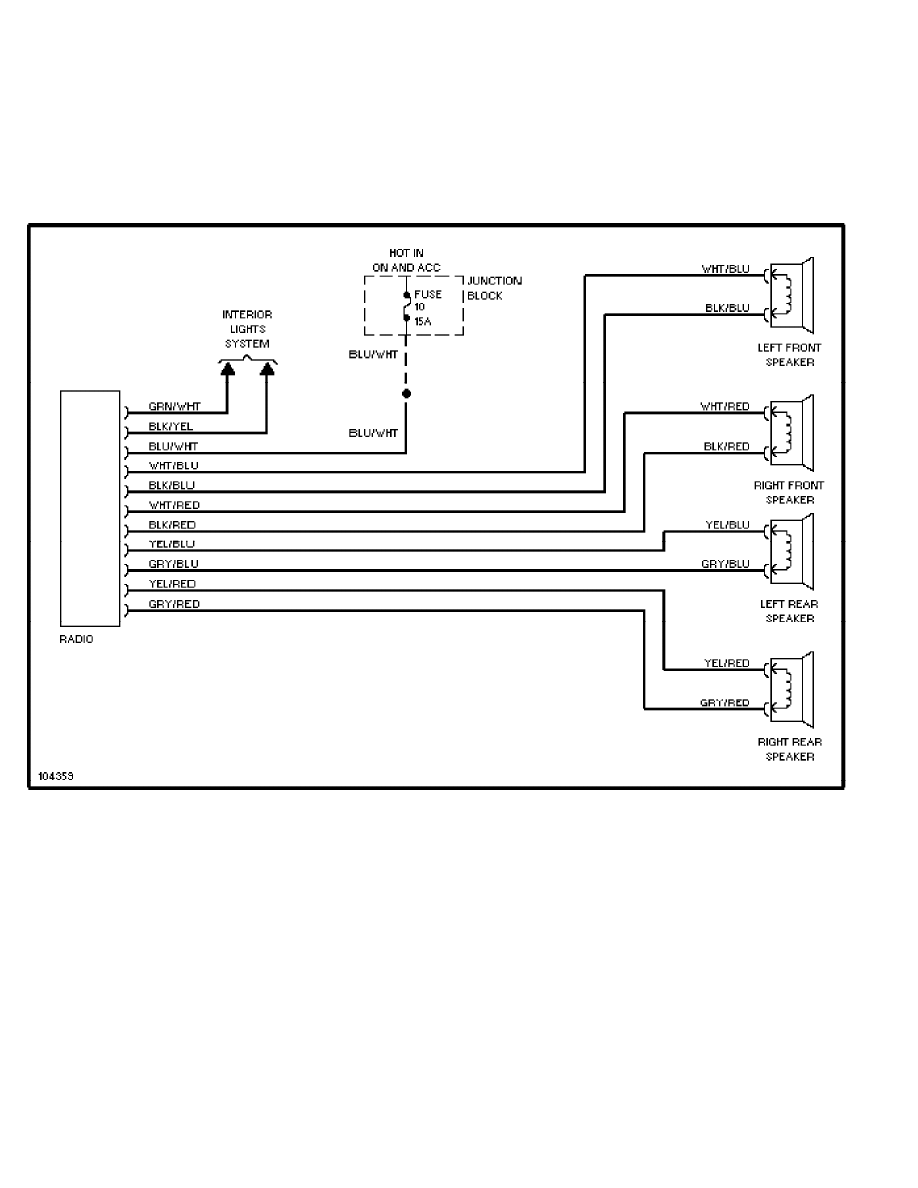

SYSTEM WIRING DIAGRAMS
Radio Circuits (p. 5)
1986 Mitsubishi Montero
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:03PM

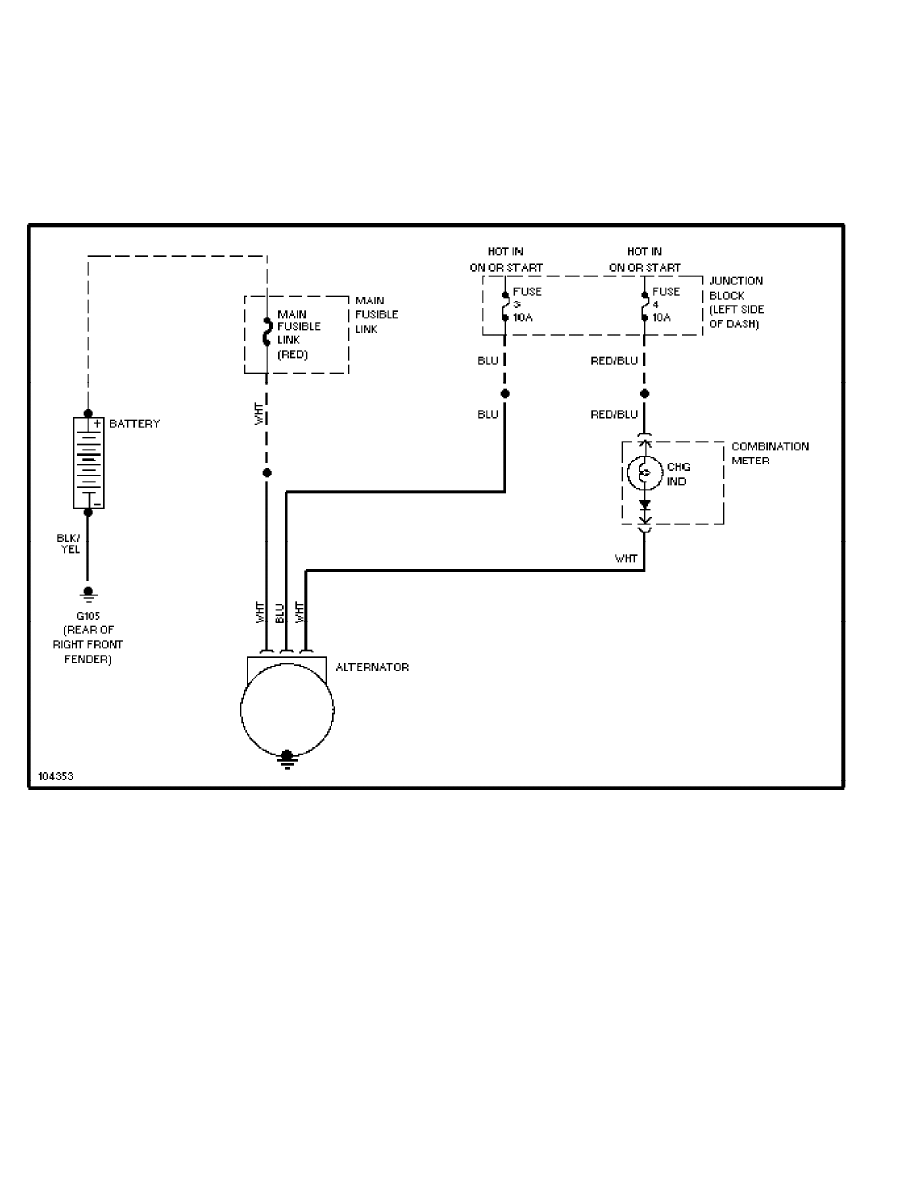

SYSTEM WIRING DIAGRAMS
Charging Circuit (p. 6)
1986 Mitsubishi Montero
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:03PM
SYSTEM WIRING DIAGRAMS

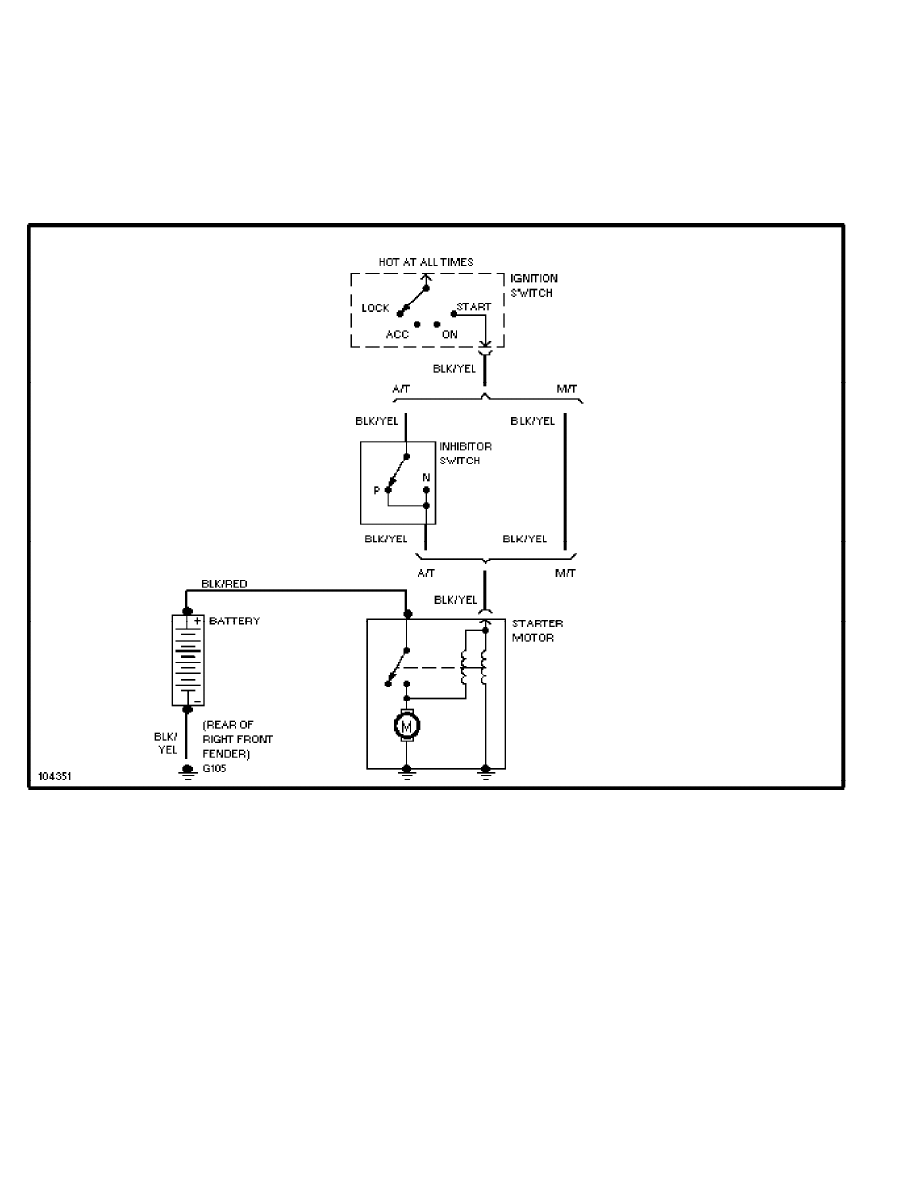

Starting Circuit (p. 7)
1986 Mitsubishi Montero
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:03PM

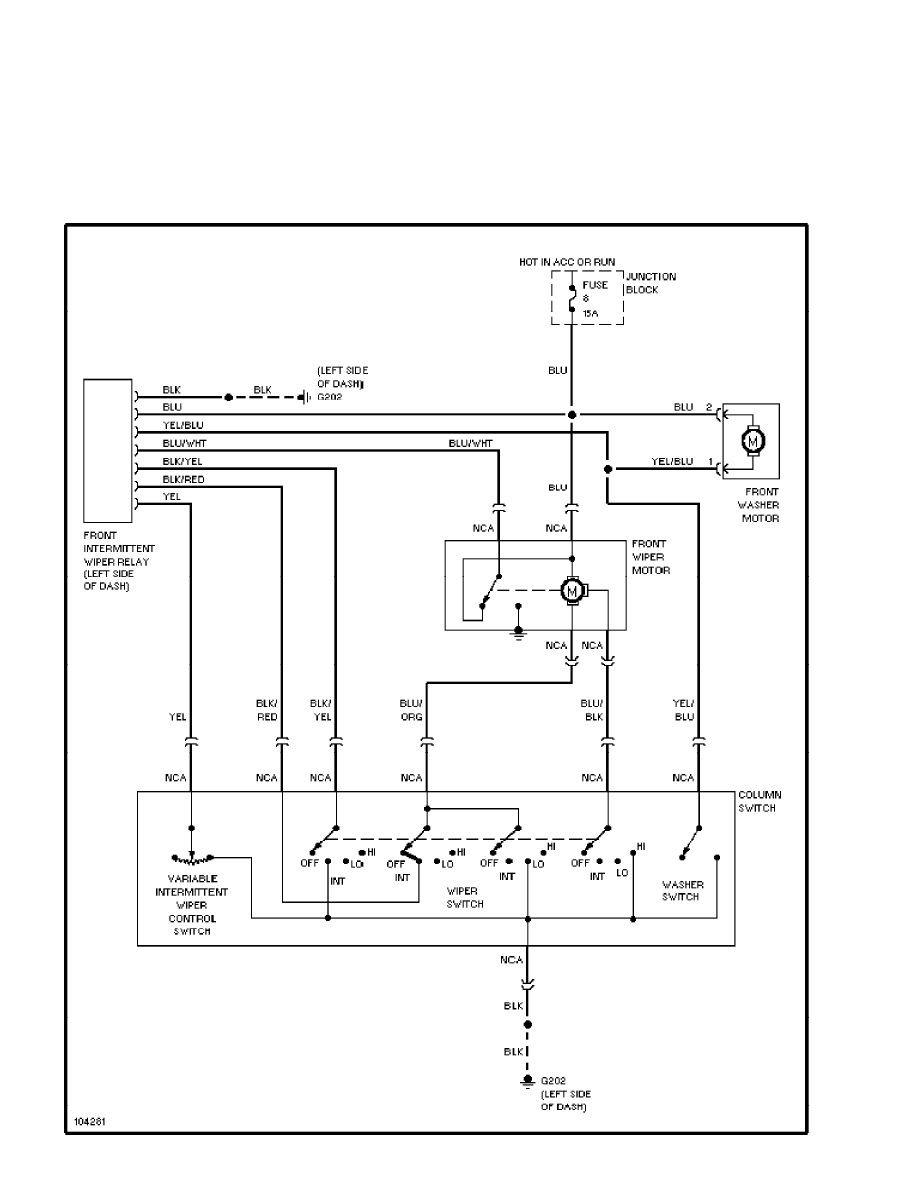

SYSTEM WIRING DIAGRAMS
Front Wiper/Washer Circuit (p. 8)
1986 Mitsubishi Montero
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:03PM

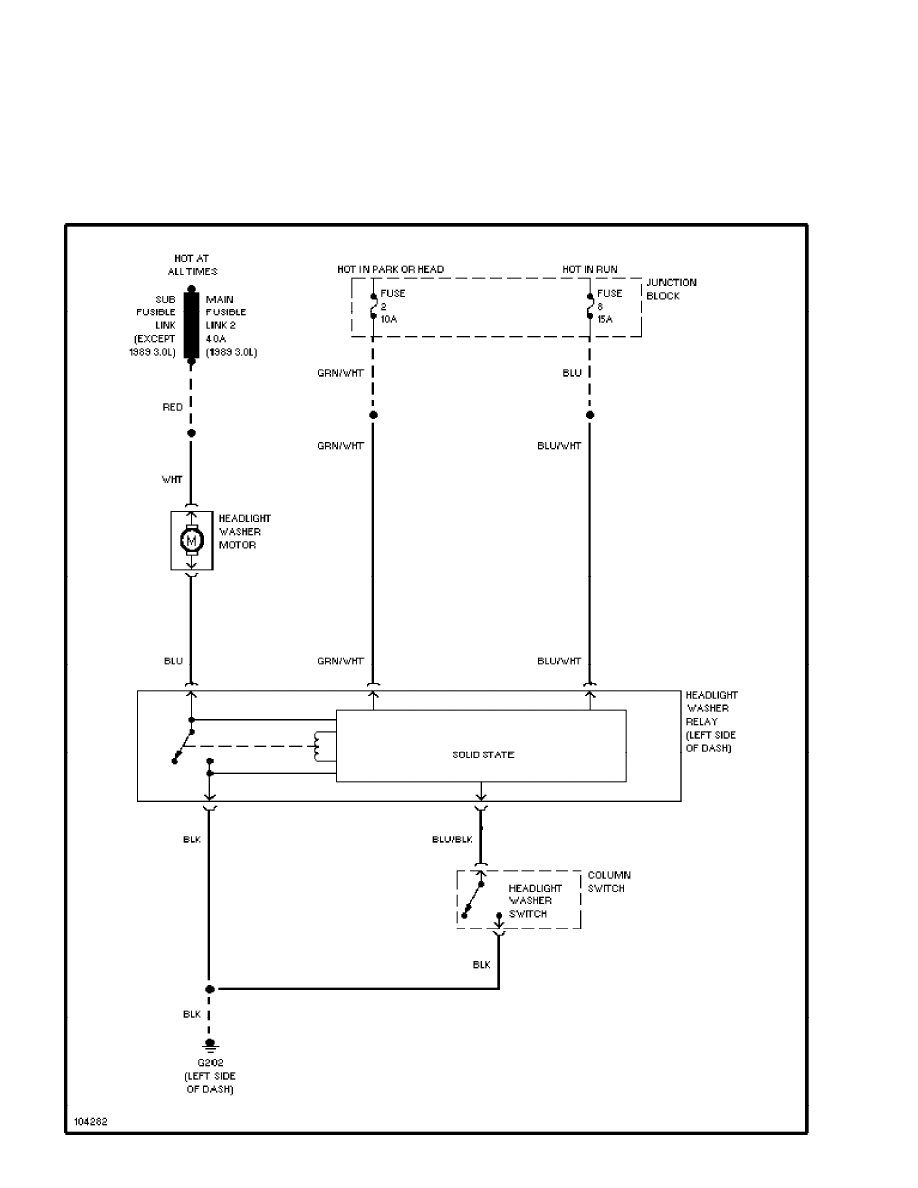

SYSTEM WIRING DIAGRAMS
Headlamp Washer Circuit (p. 9)
1986 Mitsubishi Montero
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:03PM

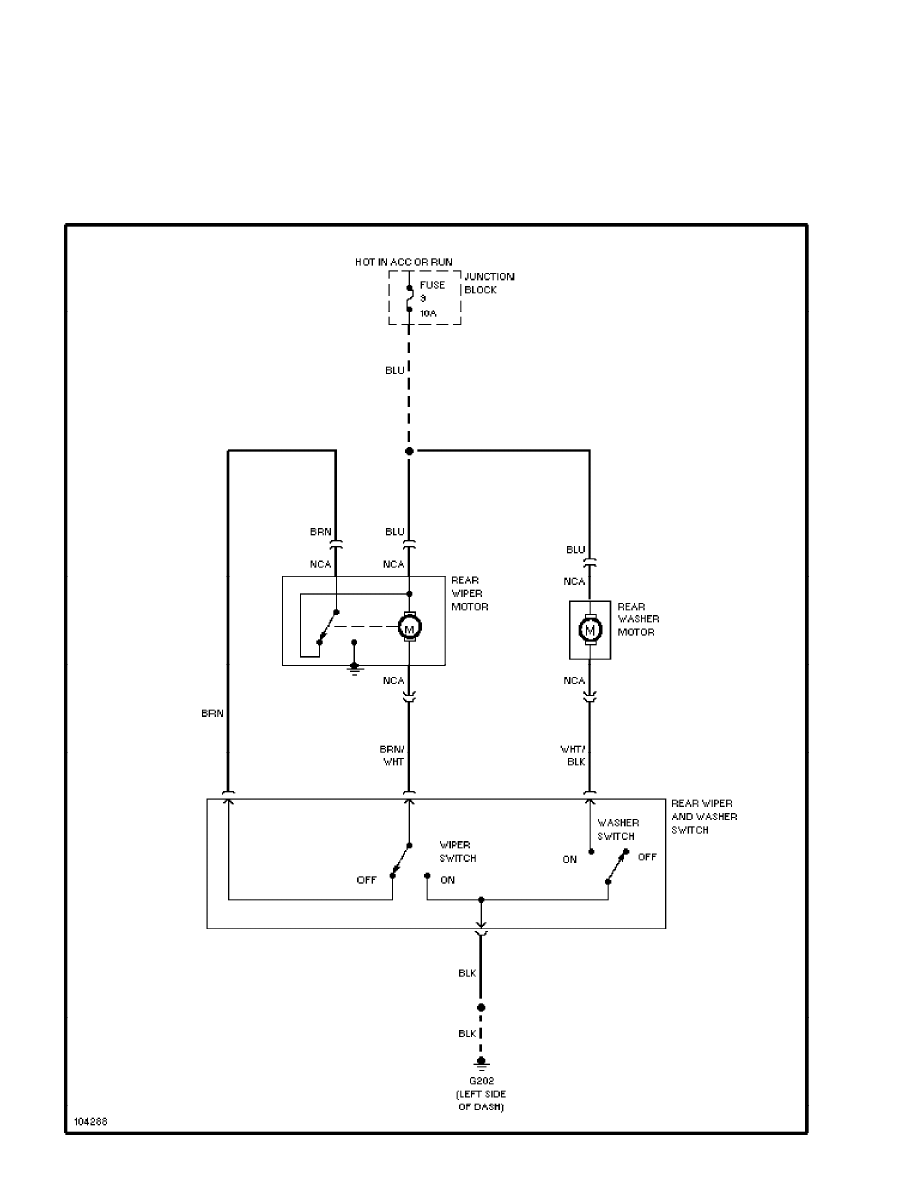

SYSTEM WIRING DIAGRAMS
Rear Wiper/Washer Circuit (p. 10)
1986 Mitsubishi Montero
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:03PM

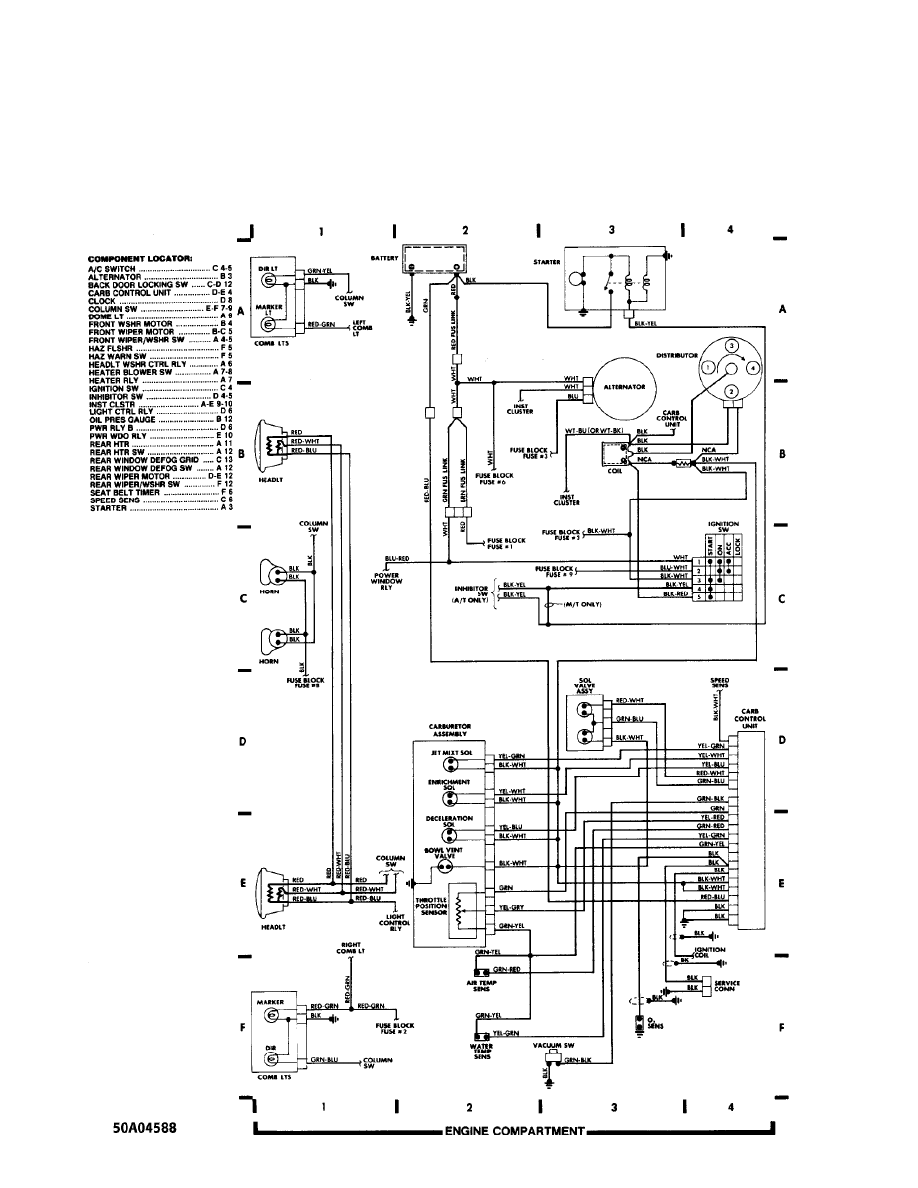

WIRING DIAGRAMS
Fig. 1: Engine Compartment (Grids 1-4)
1986 Mitsubishi Montero
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:03PM
WIRING DIAGRAMS
Fig. 2: Underdash (Grids 4-9) (p. 2)
1986 Mitsubishi Montero
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:03PM

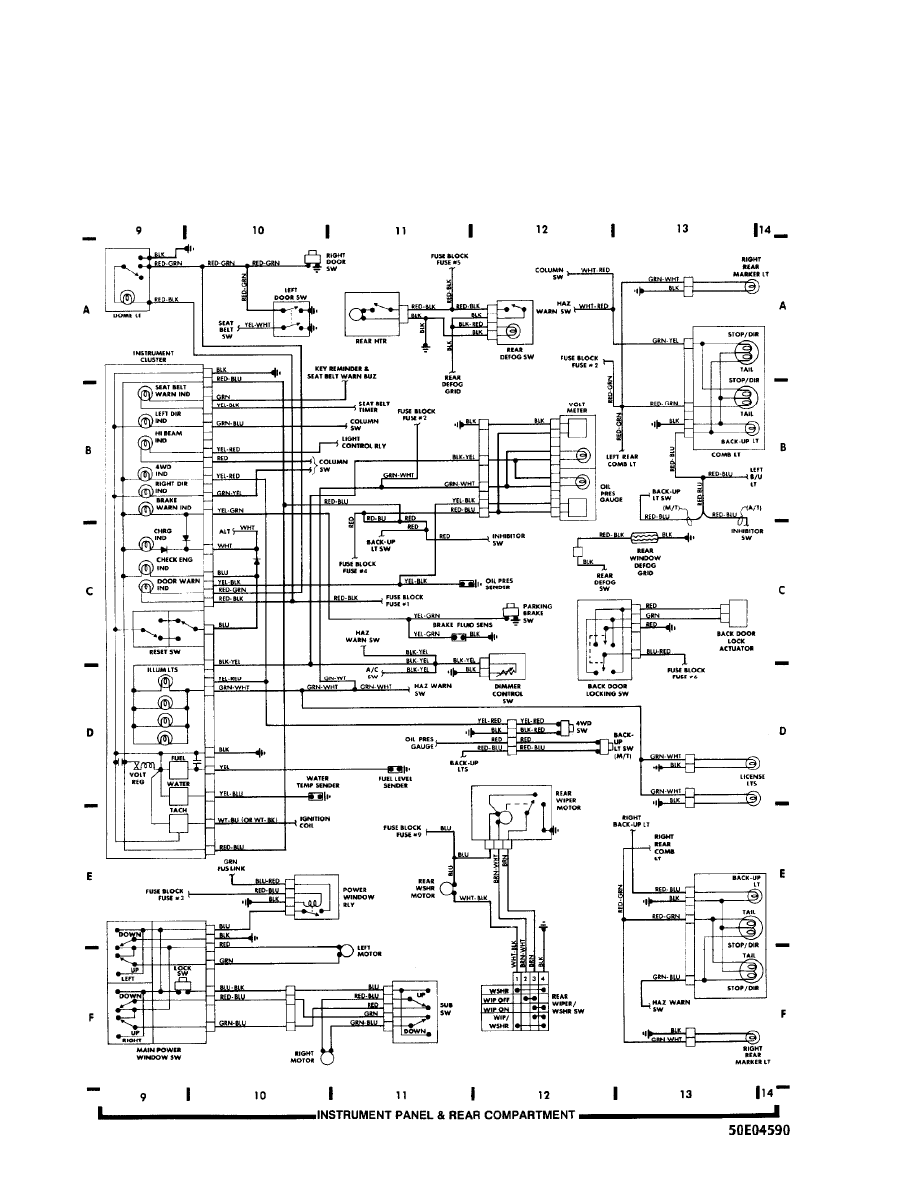

WIRING DIAGRAMS

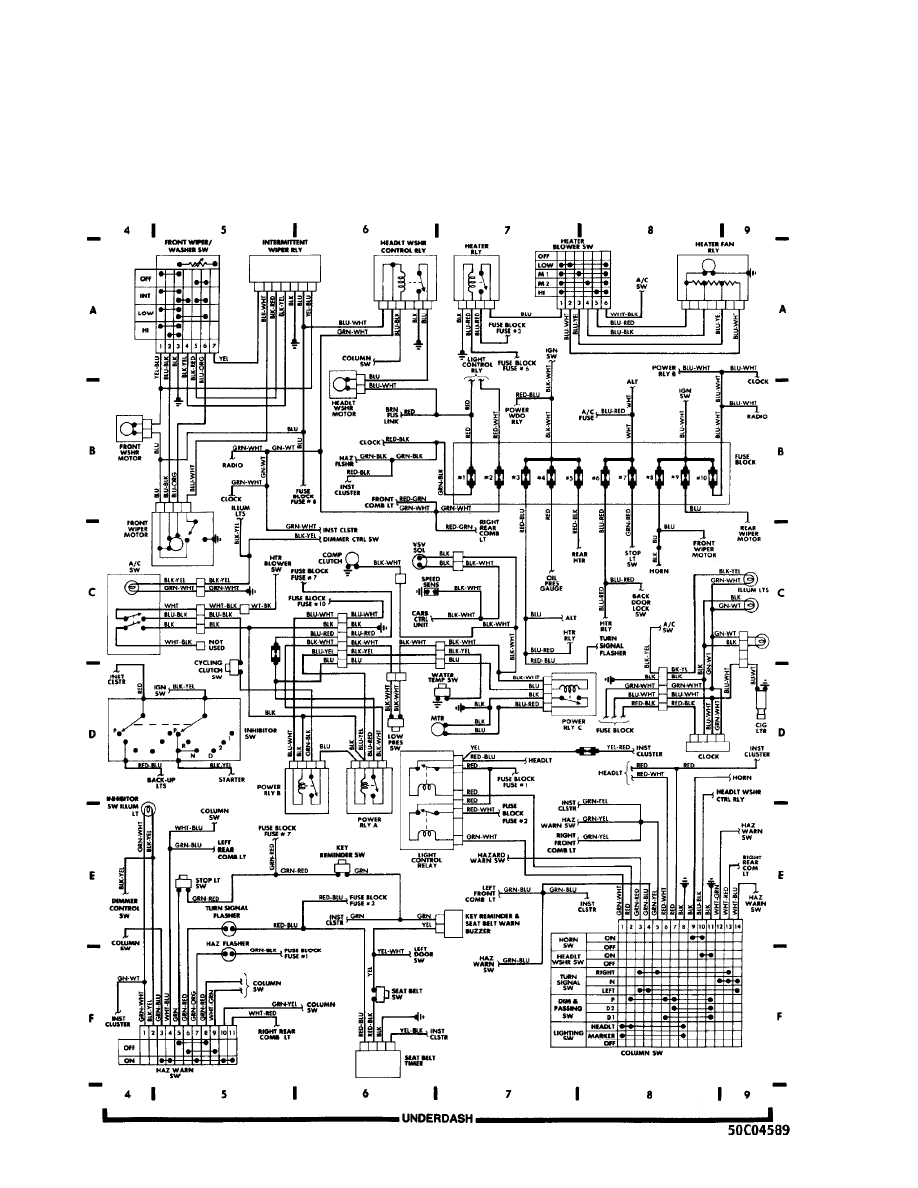

Fig. 3: Instrument Panel & Rear Compartment (Grids 9-14) (p. 3)
1986 Mitsubishi Montero
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:03PM
