MAZDA MPV 1993

SYSTEM WIRING DIAGRAMS

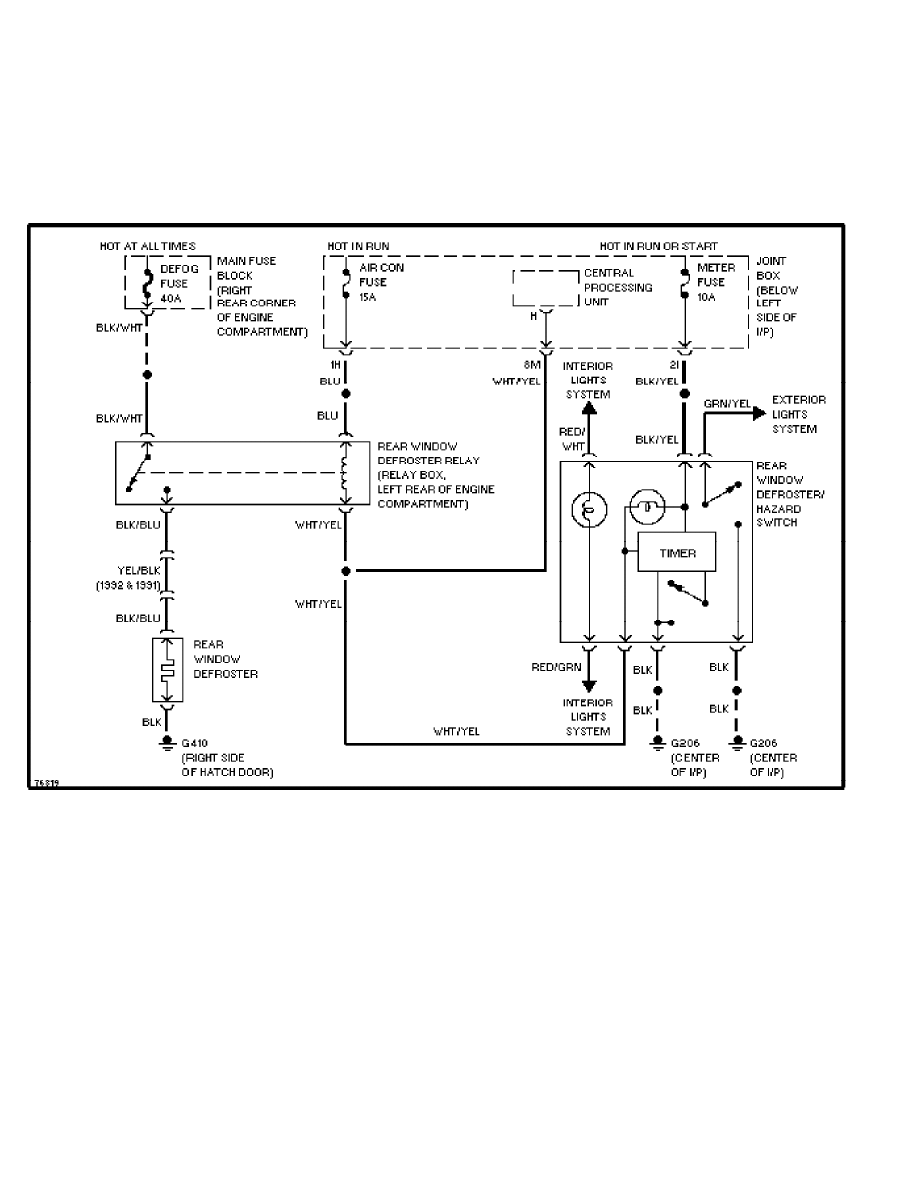

Defogger Circuit

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:46PM

SYSTEM WIRING DIAGRAMS

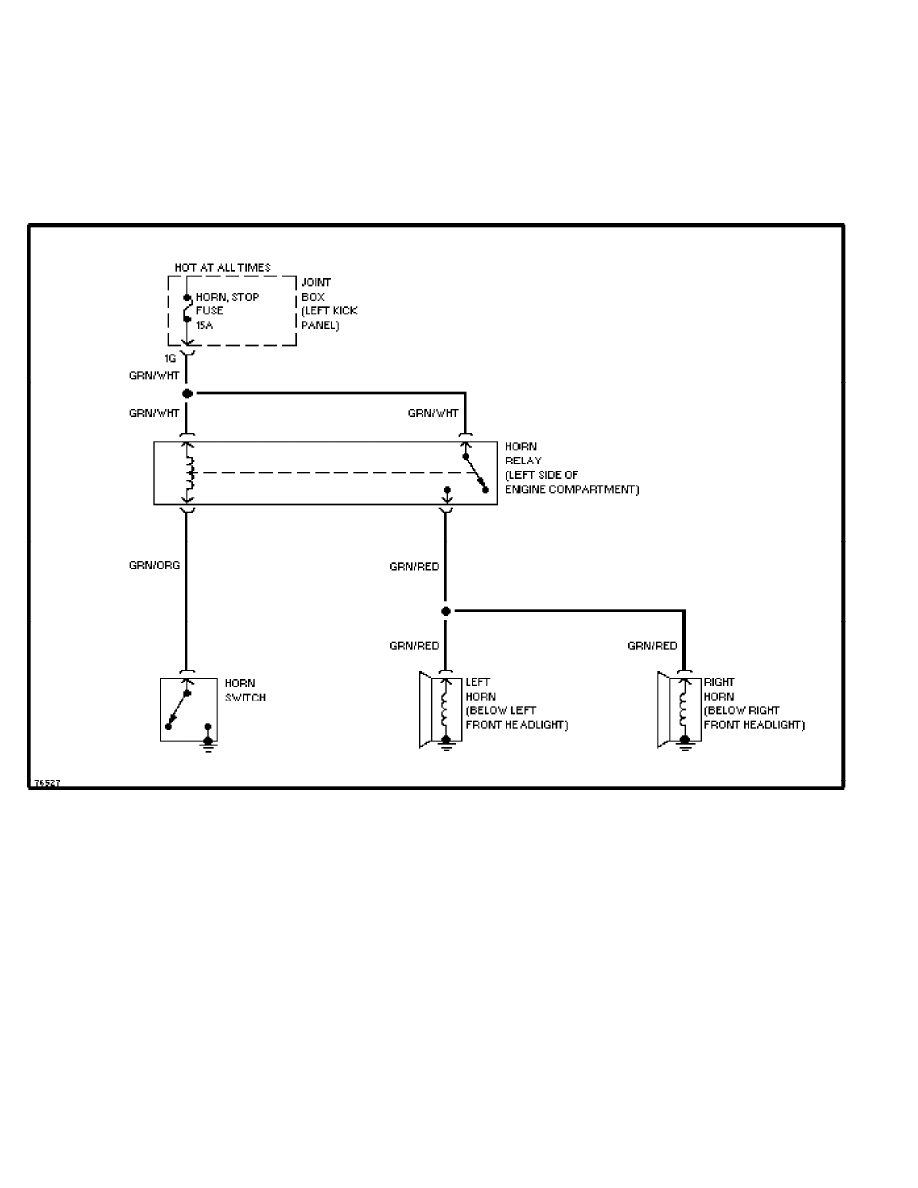

Horn Circuit (p. 2)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:46PM

SYSTEM WIRING DIAGRAMS

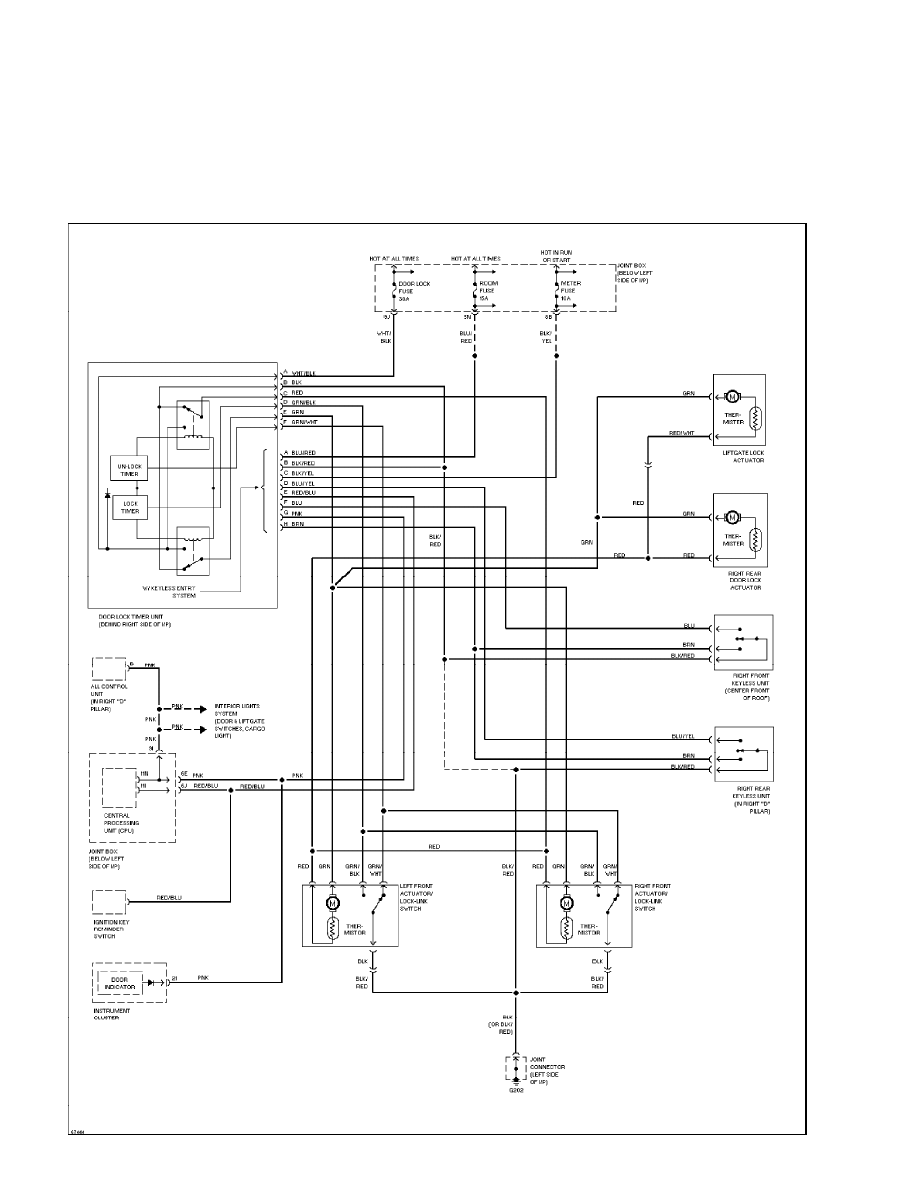

Power Door Lock Circuit (p. 3)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:46PM

SYSTEM WIRING DIAGRAMS

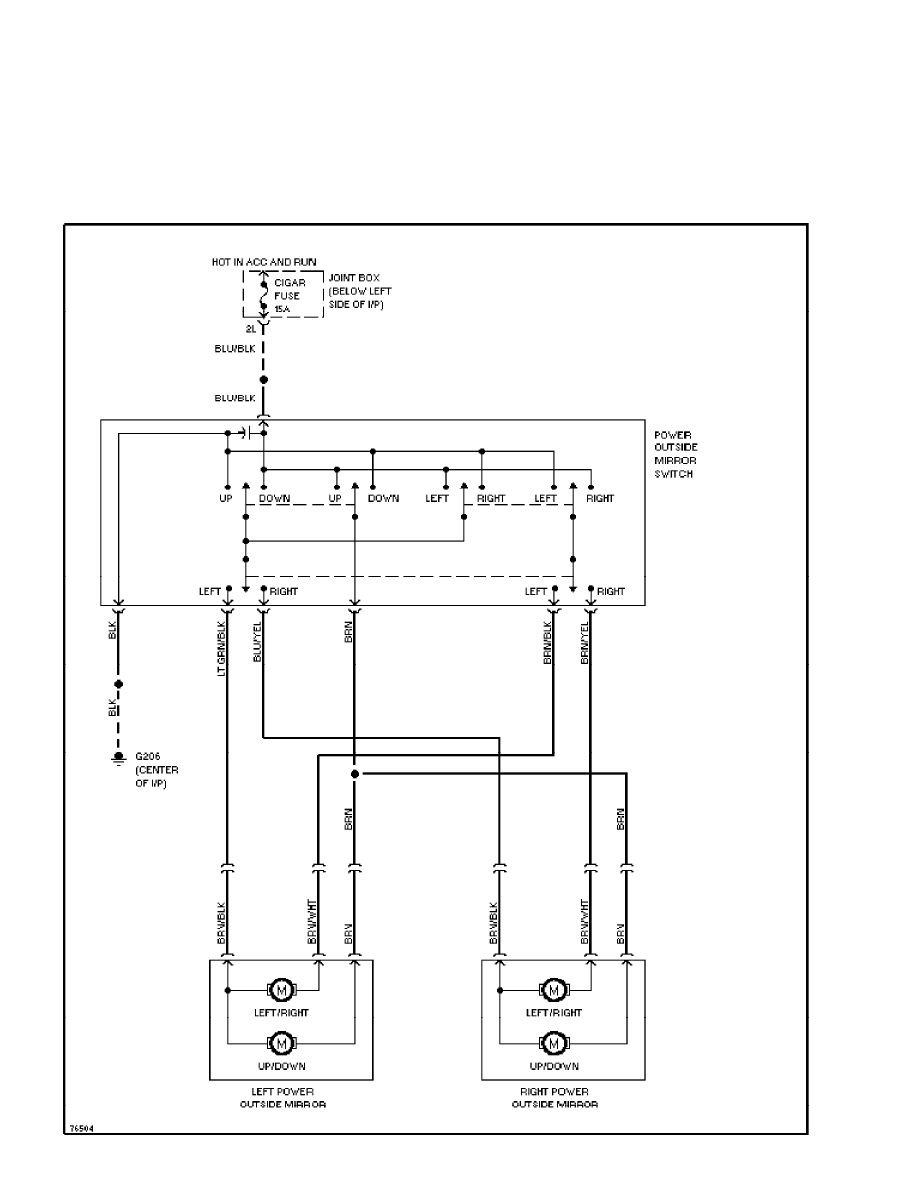

Power Mirror Circuit (p. 4)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:46PM

SYSTEM WIRING DIAGRAMS

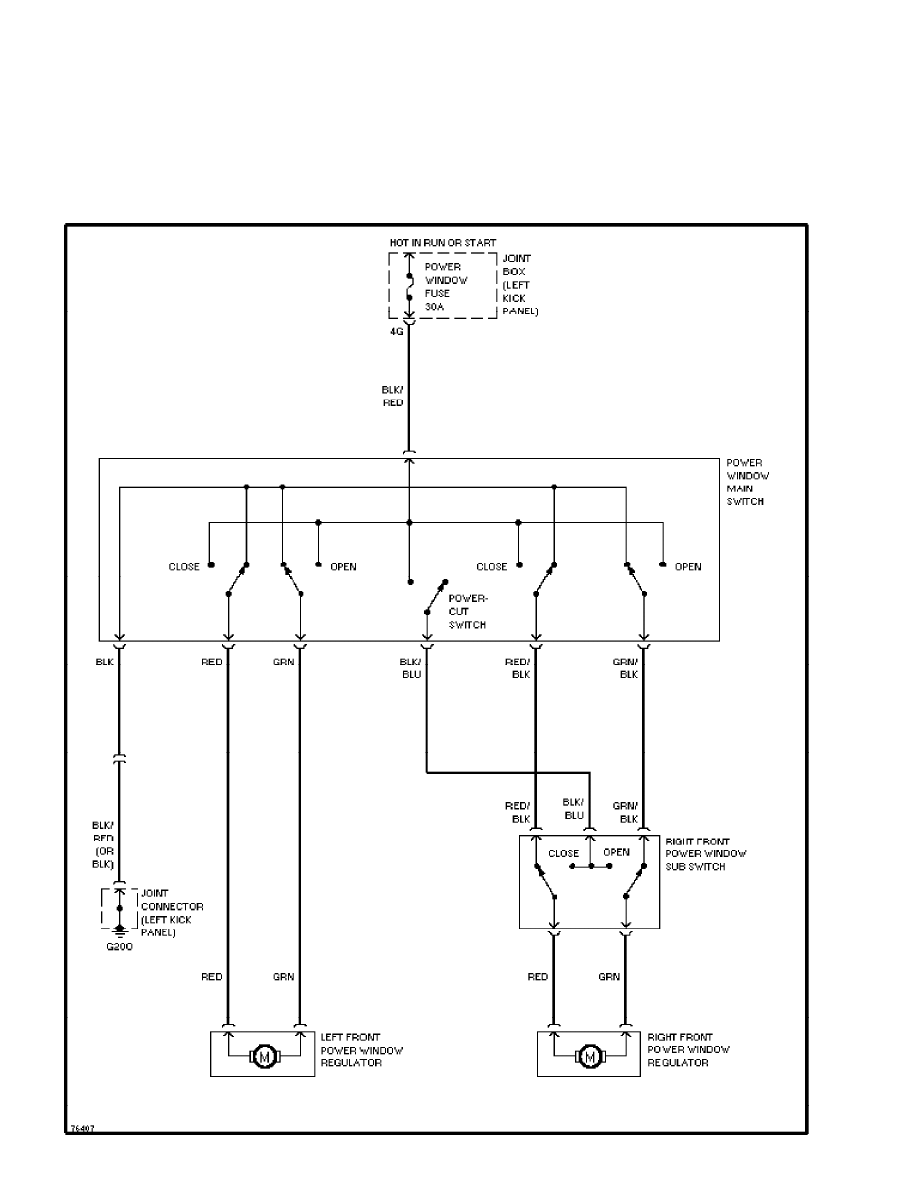

Power Window Circuit (p. 5)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:46PM

SYSTEM WIRING DIAGRAMS

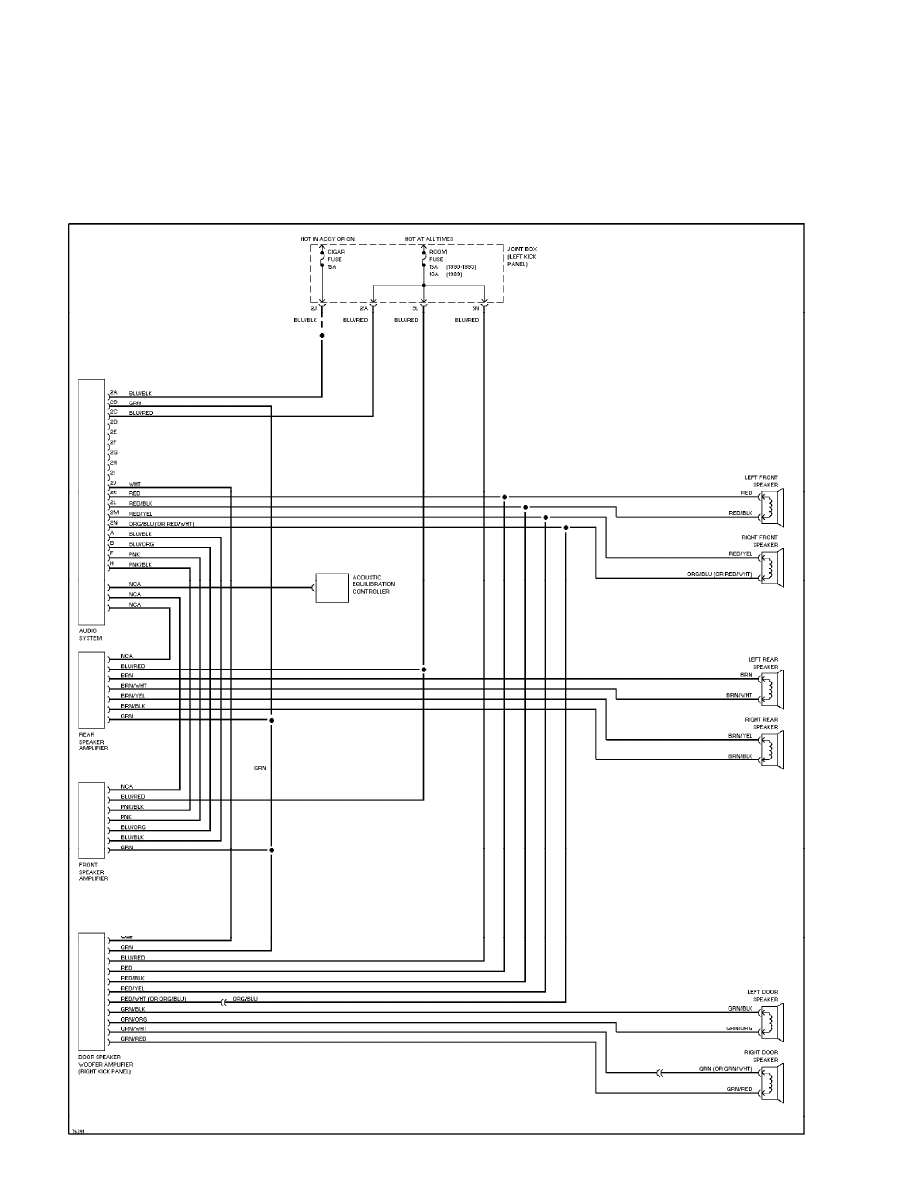

Radio Circuits, W/ Acoustic Equilibration (p. 6)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:46PM

SYSTEM WIRING DIAGRAMS

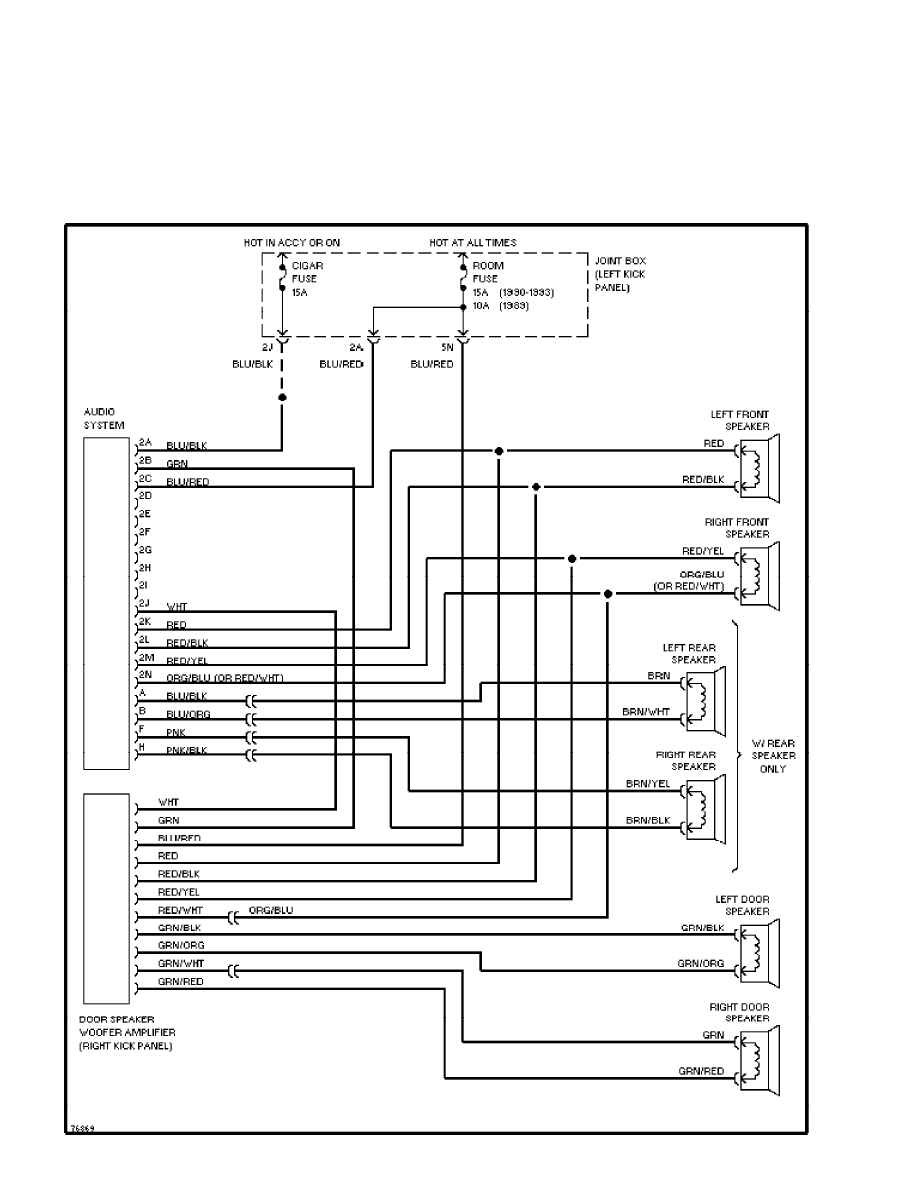

Radio Circuits, W/O Acoustic Equilibration (p. 7)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:46PM

SYSTEM WIRING DIAGRAMS

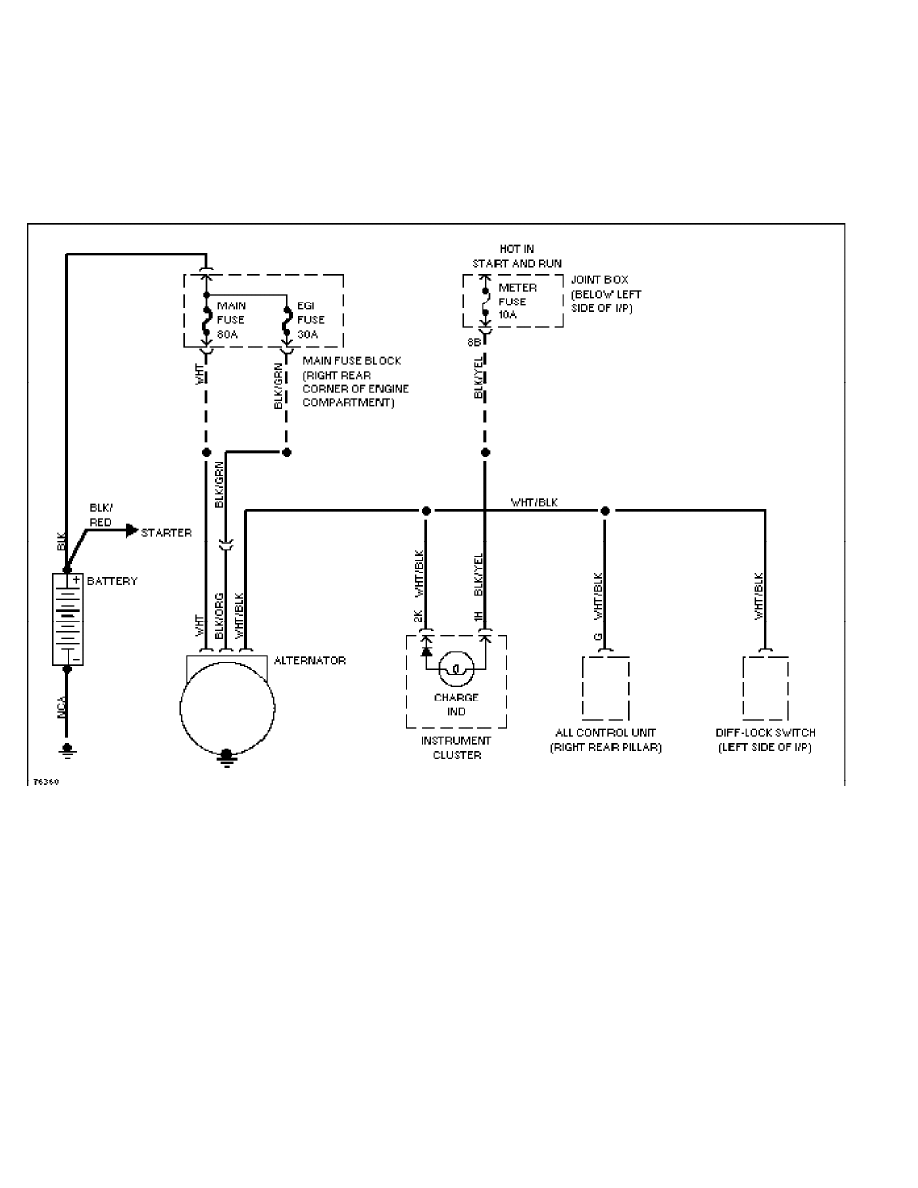

Charging Circuit (p. 8)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:46PM

SYSTEM WIRING DIAGRAMS

Starting Circuit (p. 9)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:46PM

SYSTEM WIRING DIAGRAMS

2.6L, Transmission Circuit (p. 10)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:46PM

SYSTEM WIRING DIAGRAMS

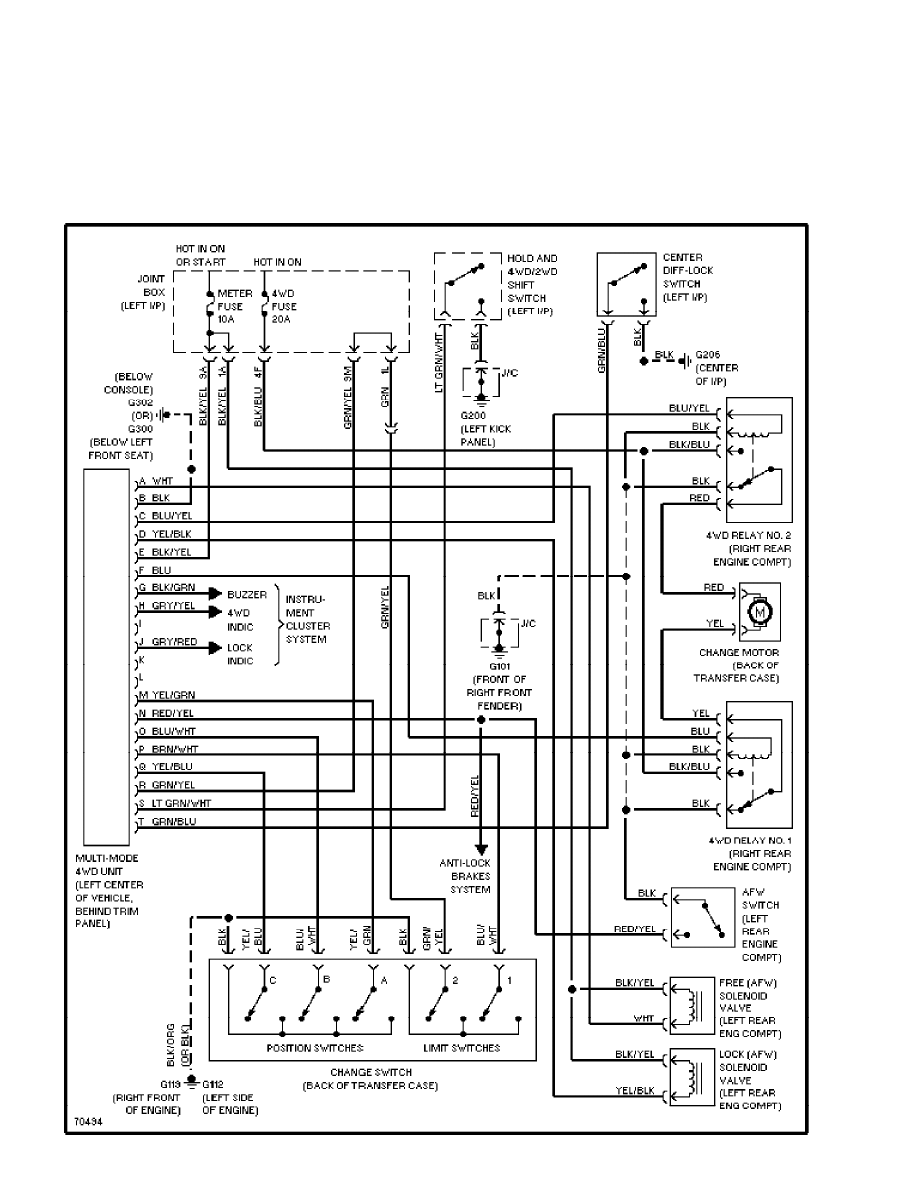

3.0L, Transfer Case Circuit (p. 11)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:46PM

SYSTEM WIRING DIAGRAMS

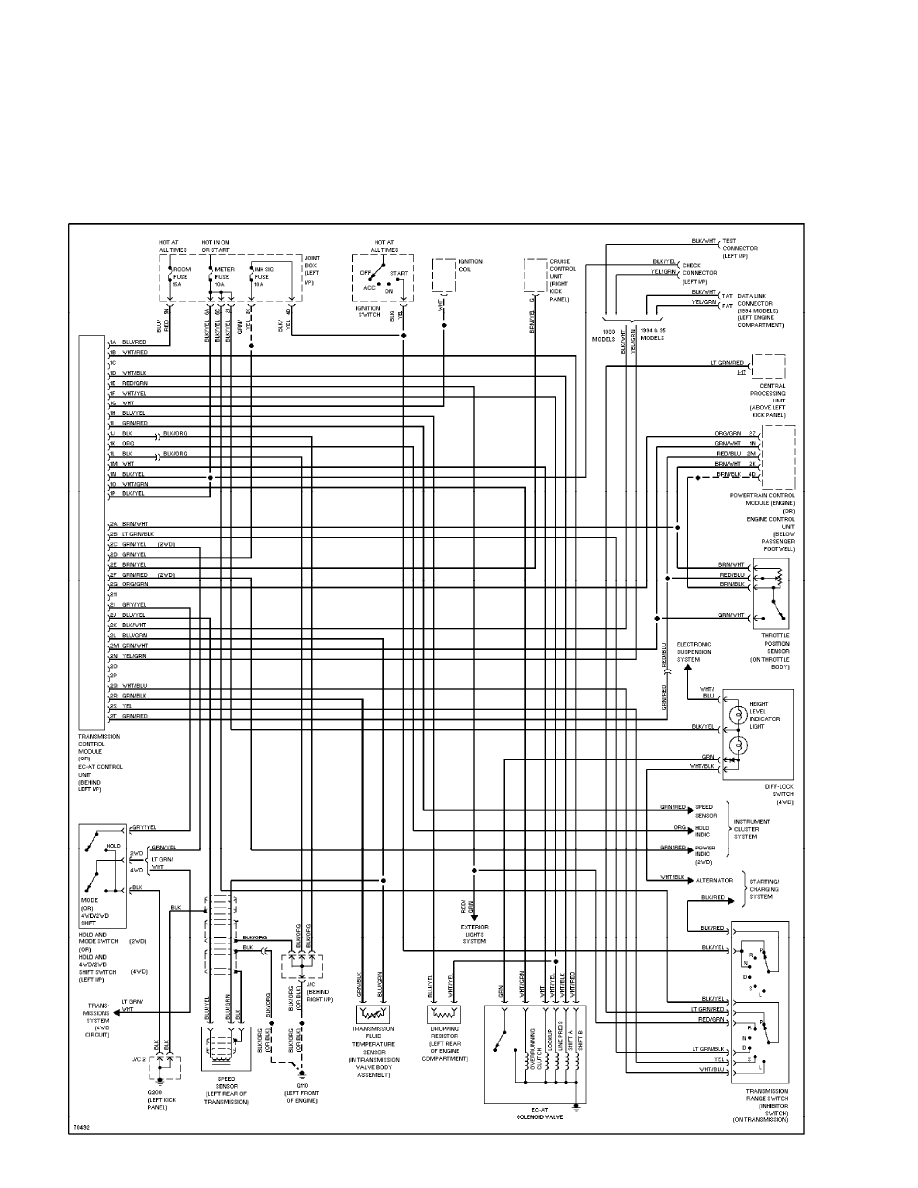

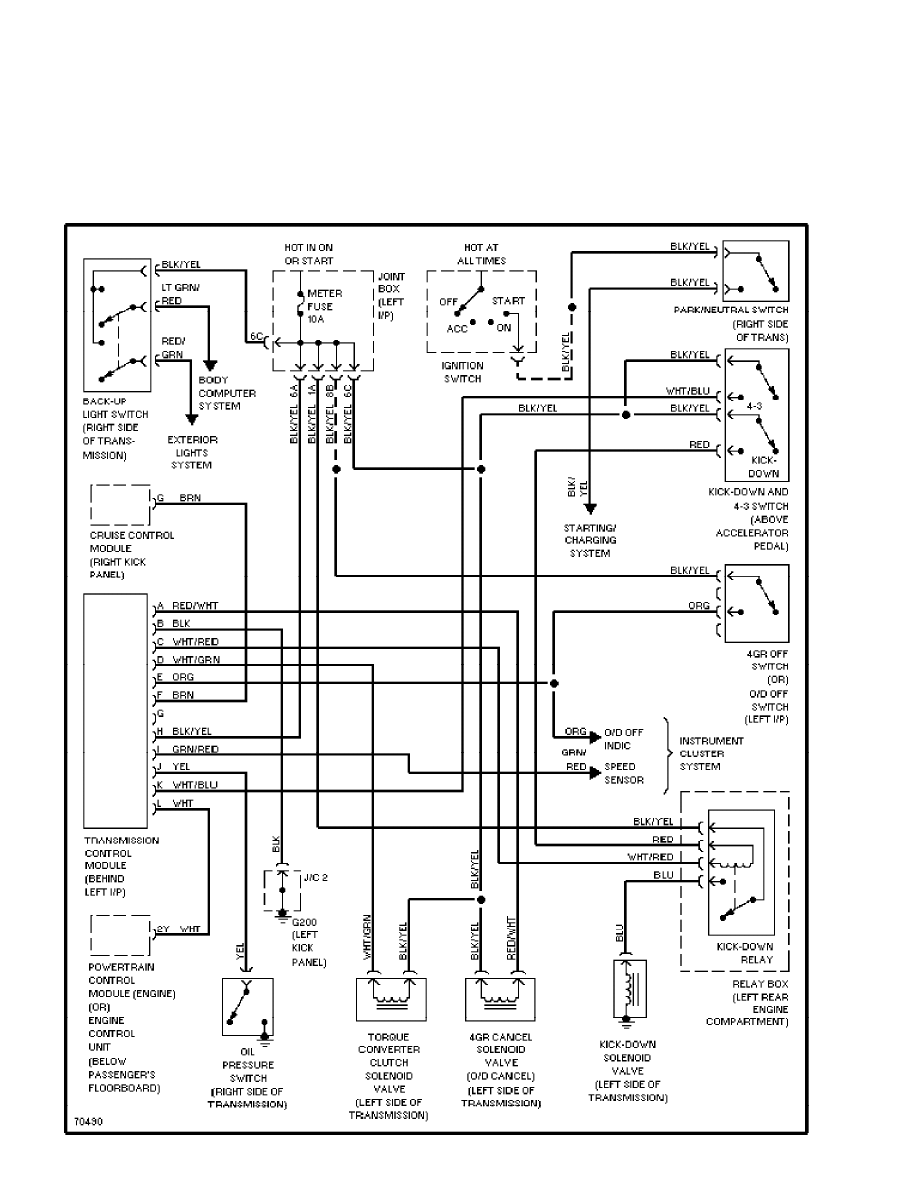

3.0L, Transmission Circuit (p. 12)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:46PM

SYSTEM WIRING DIAGRAMS

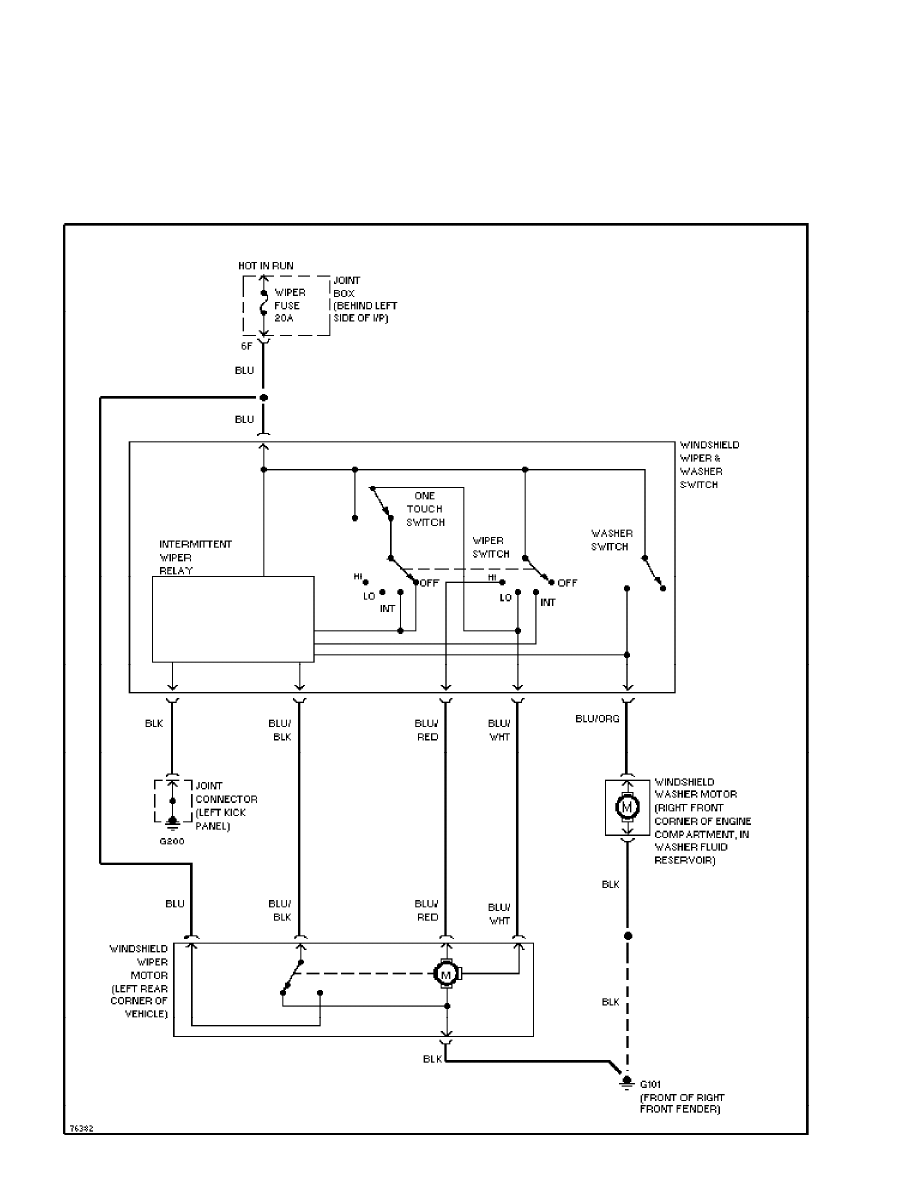

Front Washer/Wiper Circuit (p. 13)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:46PM

SYSTEM WIRING DIAGRAMS

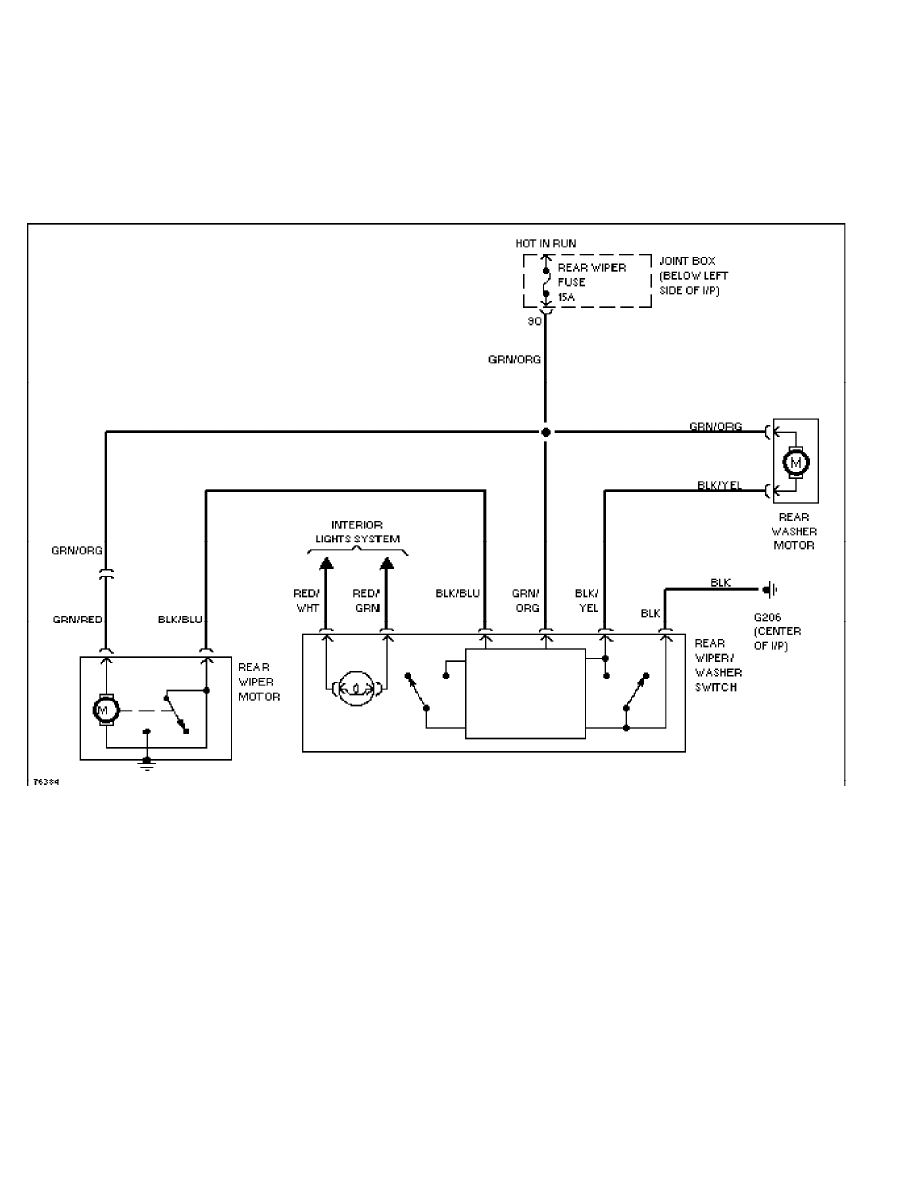

Rear Washer/Wiper Circuit (p. 14)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

WIRING DIAGRAMS

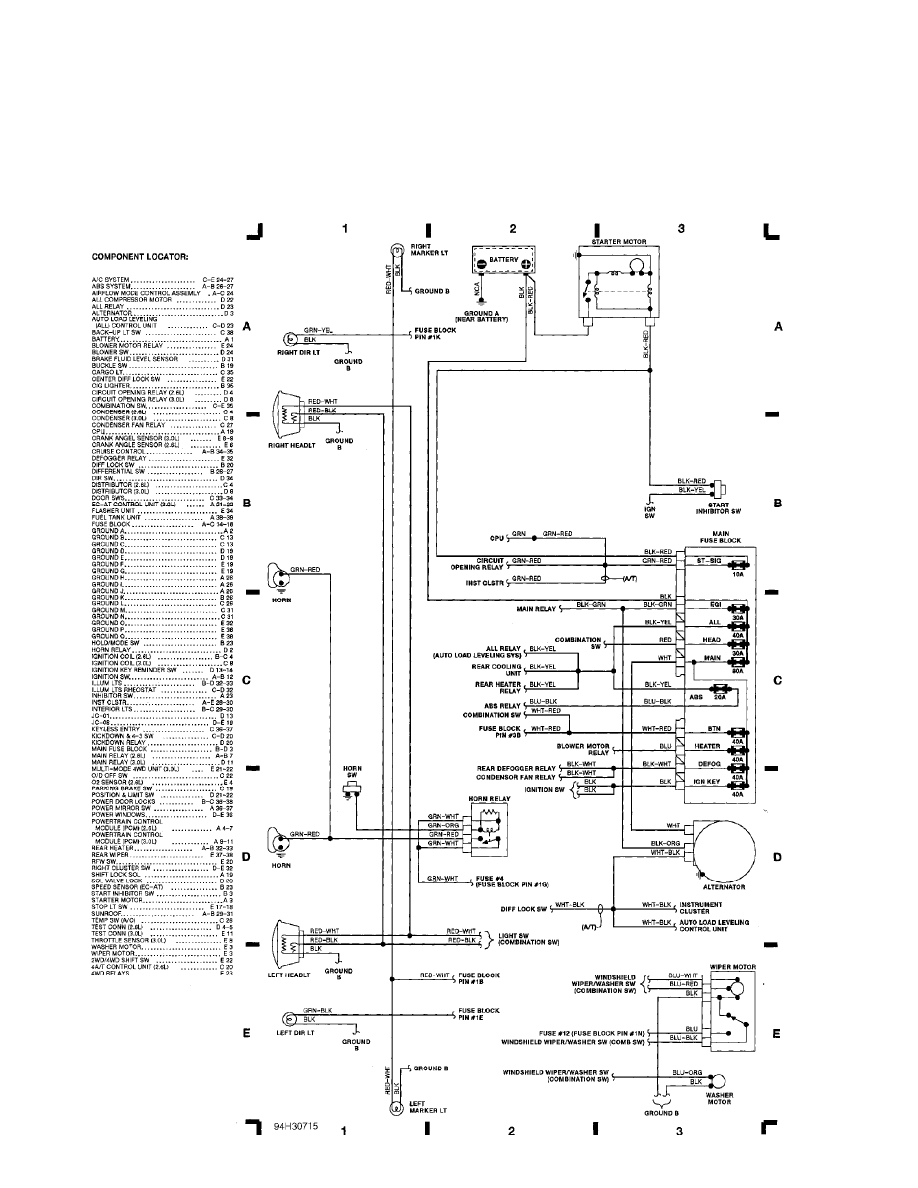

Fig. 1: Engine Compartment, Headlights, Alternator (Grid 1-3)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

WIRING DIAGRAMS

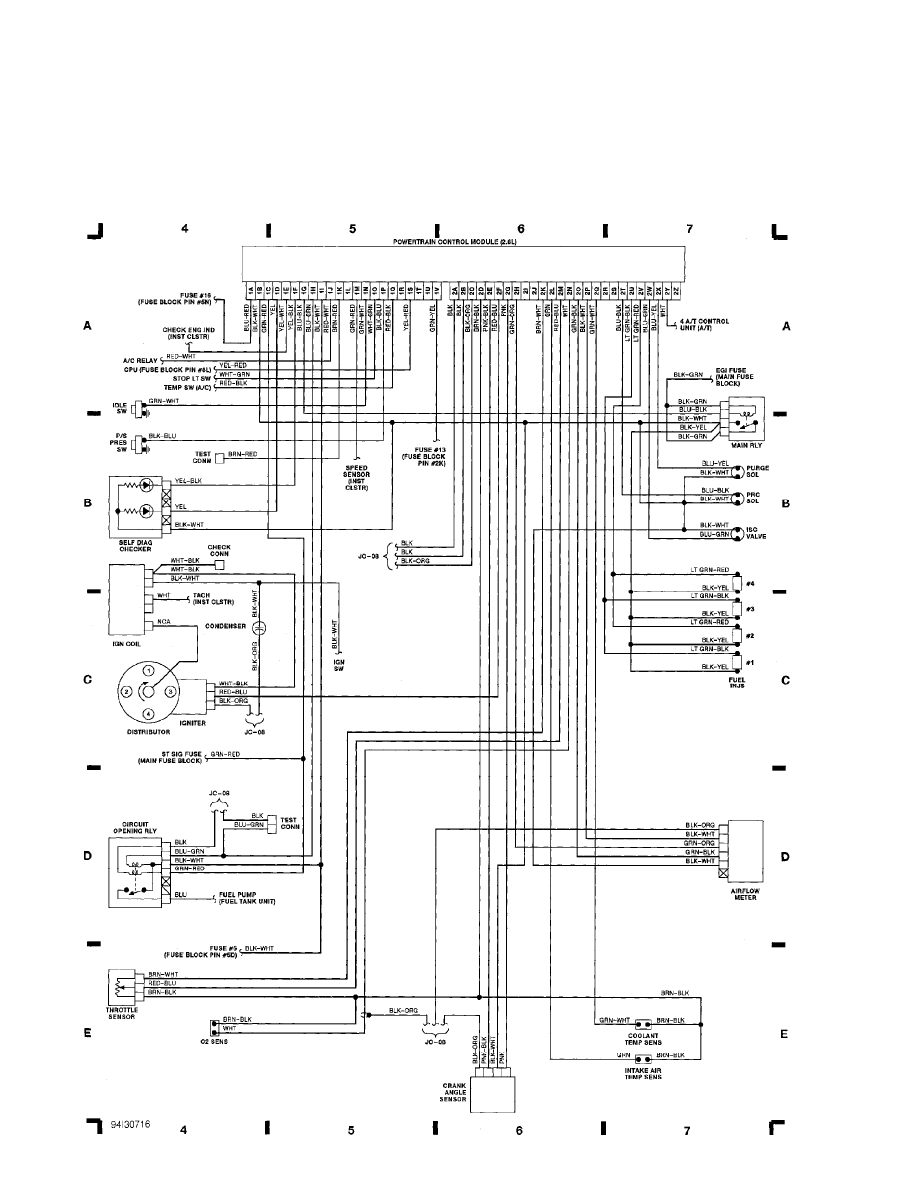

Fig. 2: Powertrain Ctrl Module (2.6L), Airflow Meter (Grid 4-7) (p. 2)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

WIRING DIAGRAMS

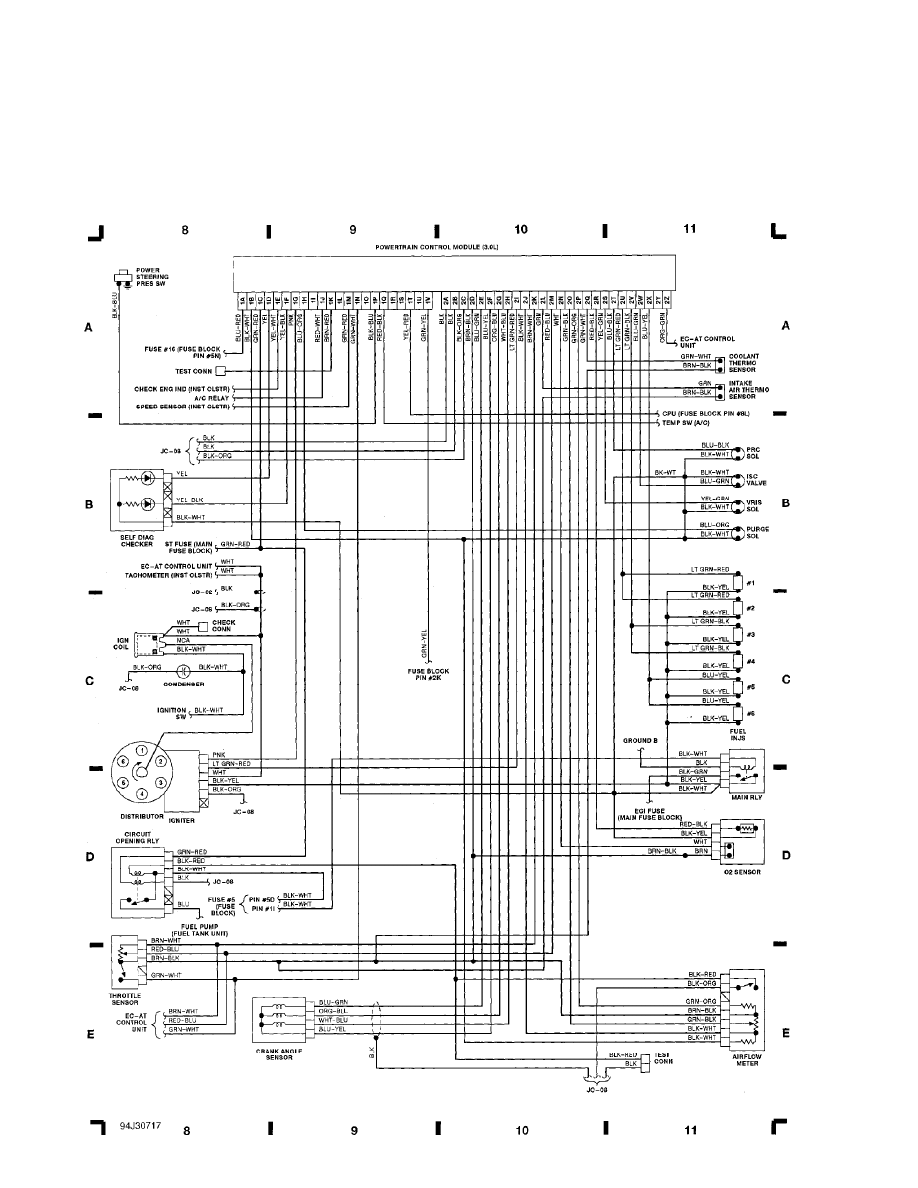

Fig. 3: Powertrain Ctrl Module (3.0L), Airflow Meter (Grid 8-11) (p. 3)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

WIRING DIAGRAMS

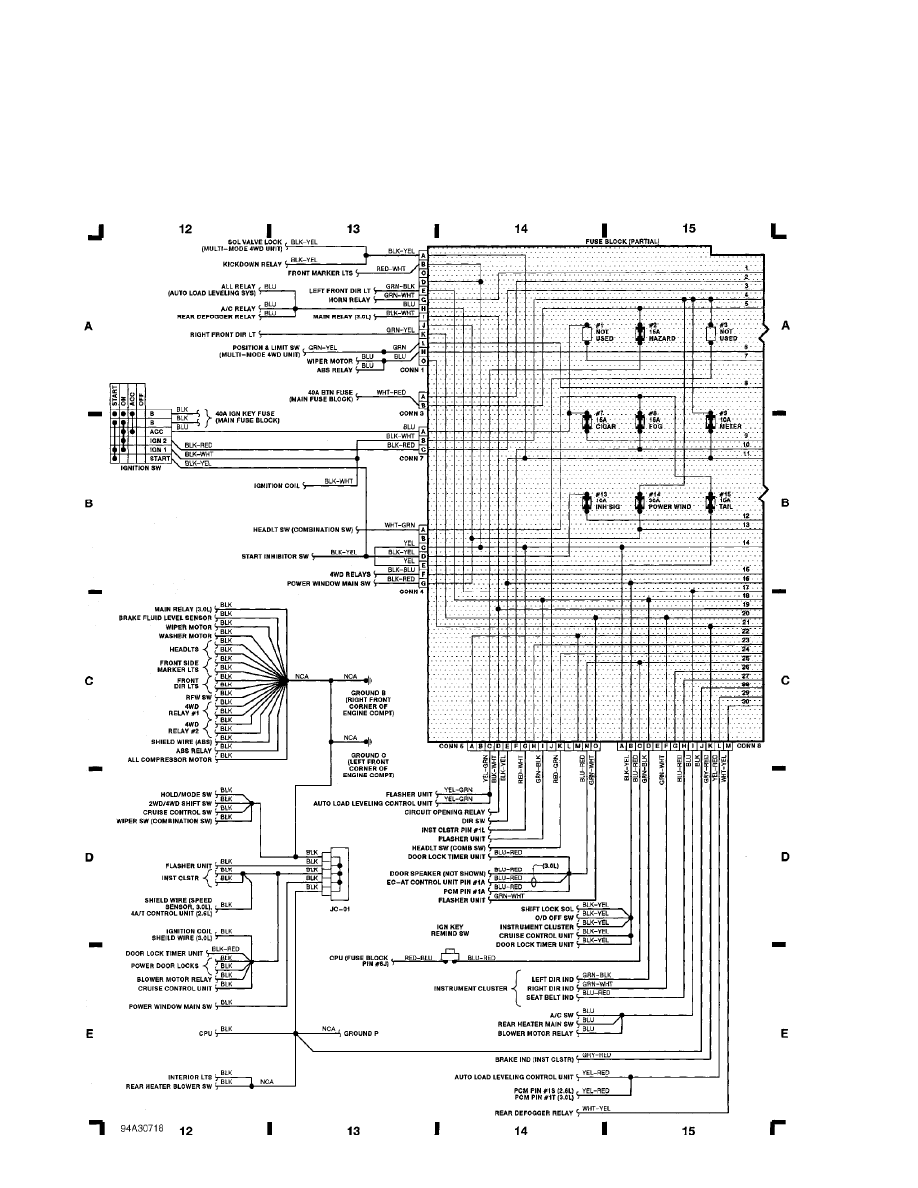

Fig. 4: Fuse Block (Partial), Ignition Sw (Grid 12-15) (p. 4)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

WIRING DIAGRAMS

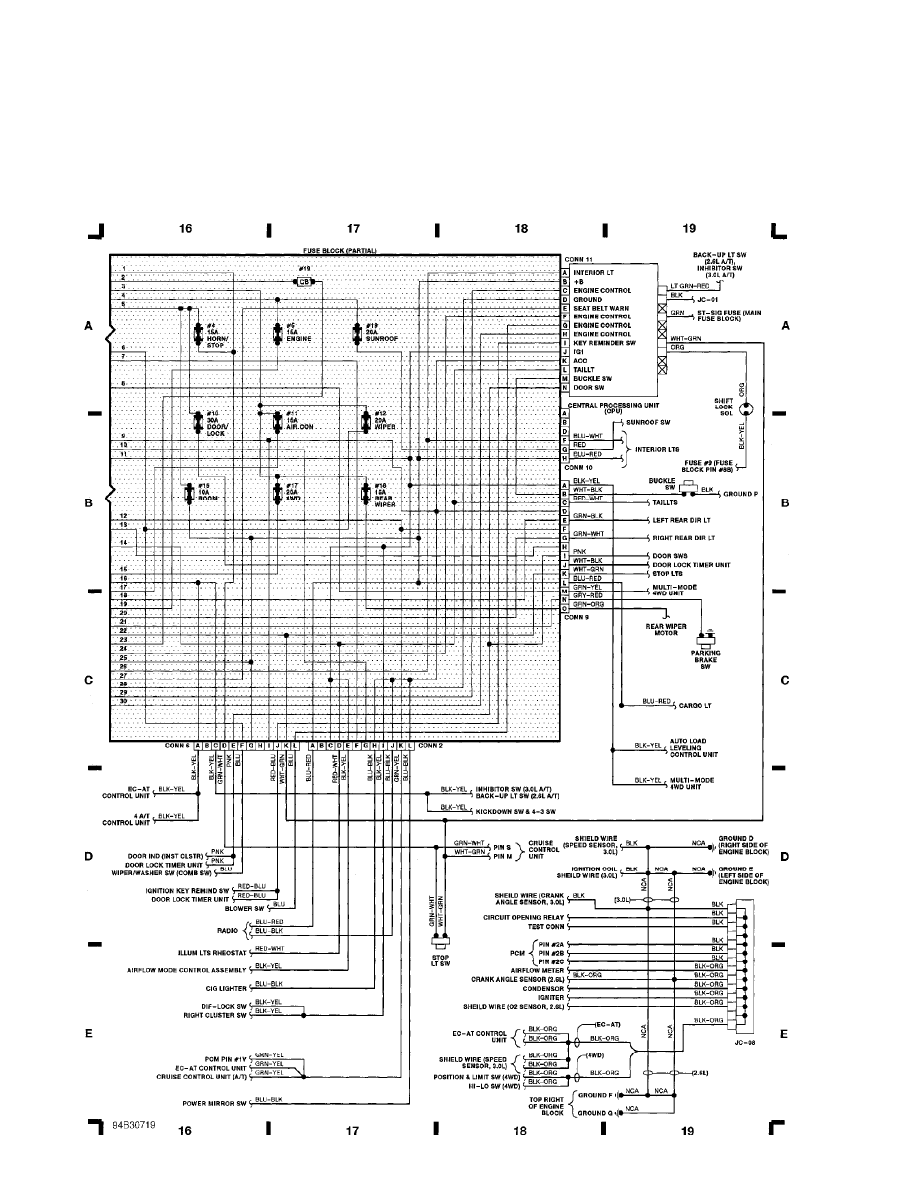

Fig. 5: Fuse Block (Partial), Junction Conn-08 (Grid 16-19) (p. 5)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

WIRING DIAGRAMS

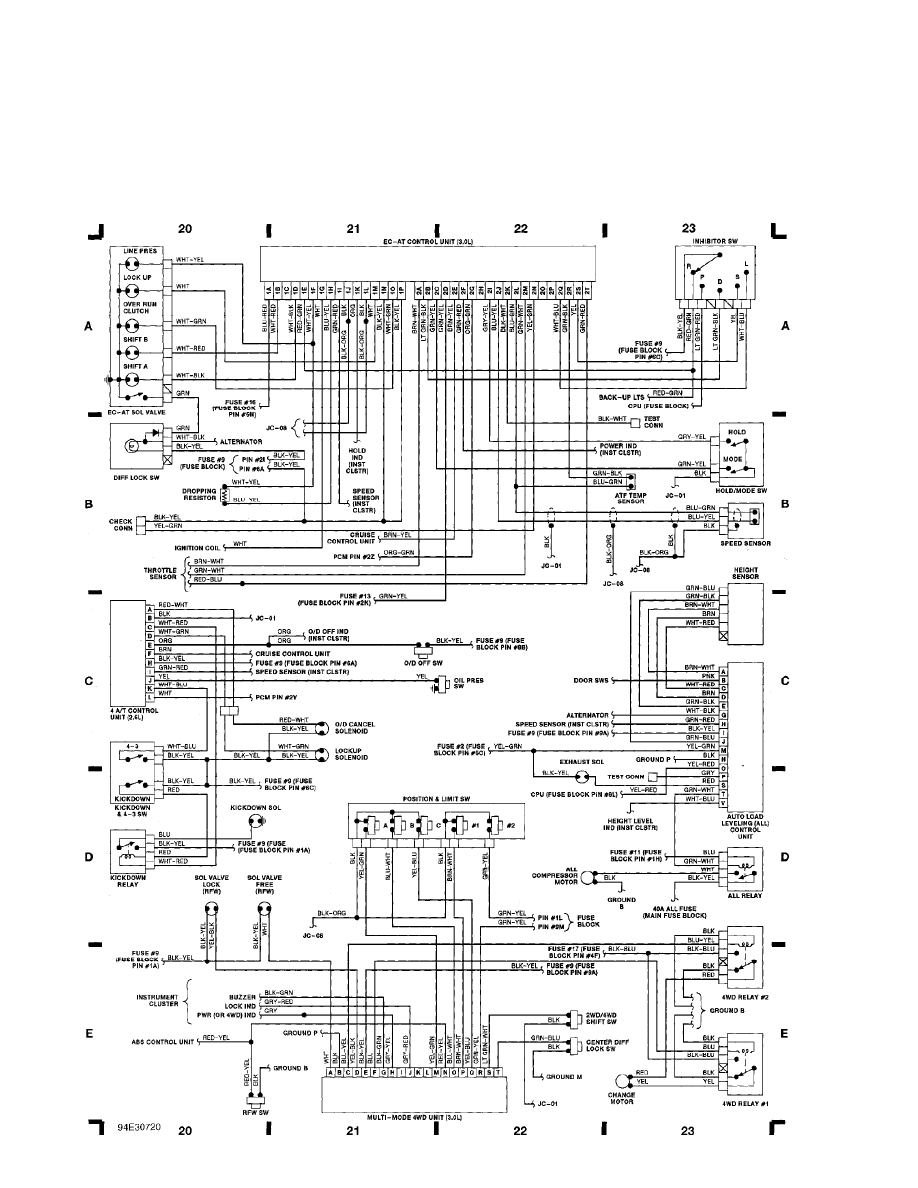

Fig. 6: EC-AT Ctrl Unit (3.0L), Multi Mode 4WD Unit (Grid 20-23) (p. 6)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

WIRING DIAGRAMS

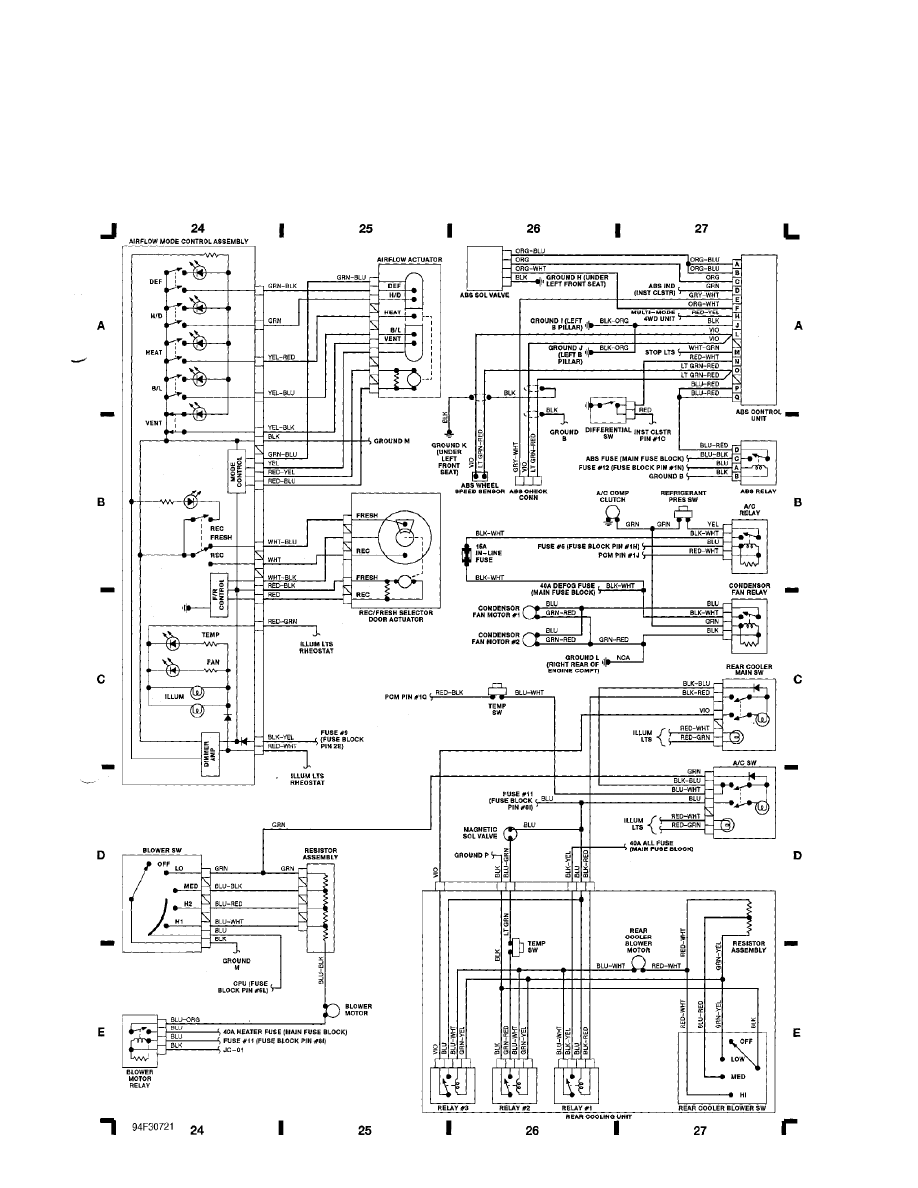

Fig. 7: Airflow Mode Ctrl Assembly, Blower Sw, A/C Sw (Grid 24-27) (p. 7)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

WIRING DIAGRAMS

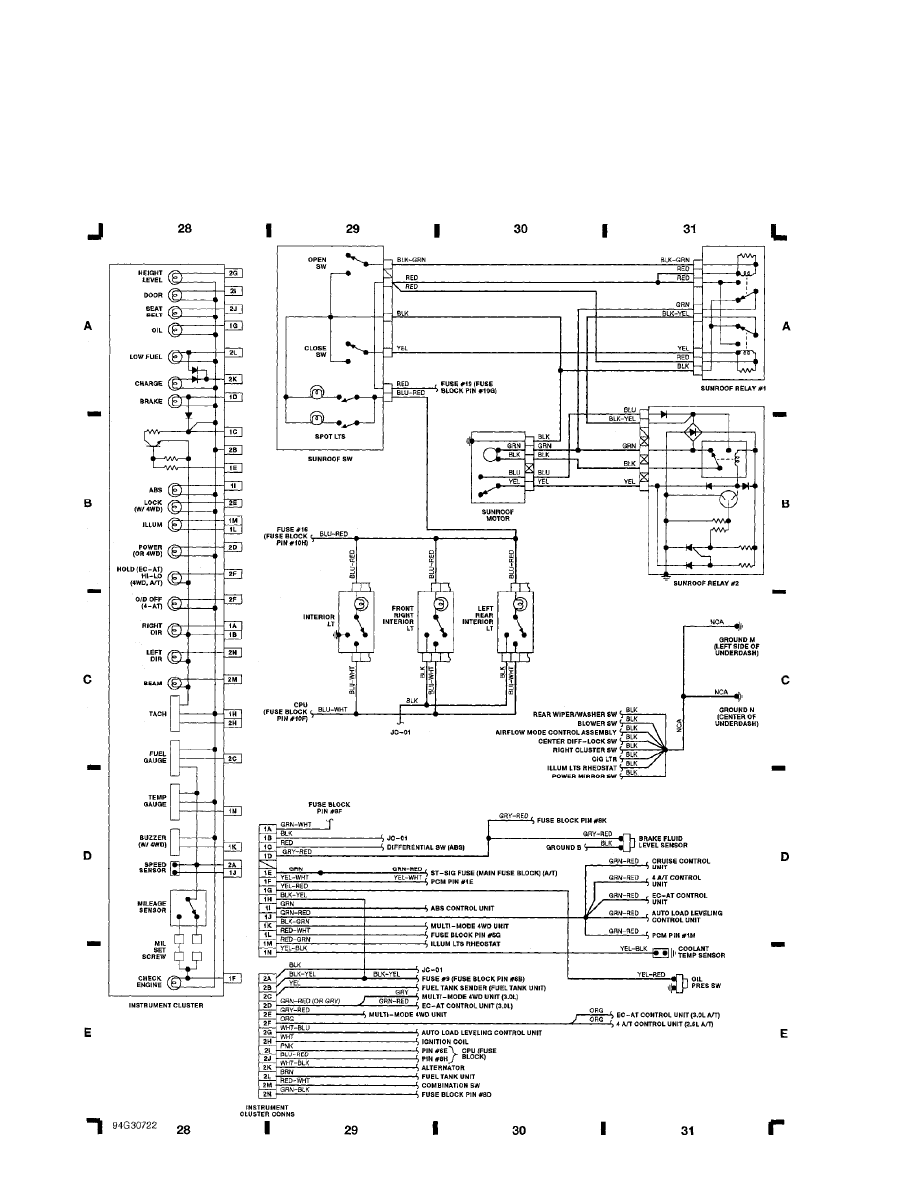

Fig. 8: Instrument Clstr, Sunroof, Courtesy Lights (Grid 28-31) (p. 8)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

WIRING DIAGRAMS

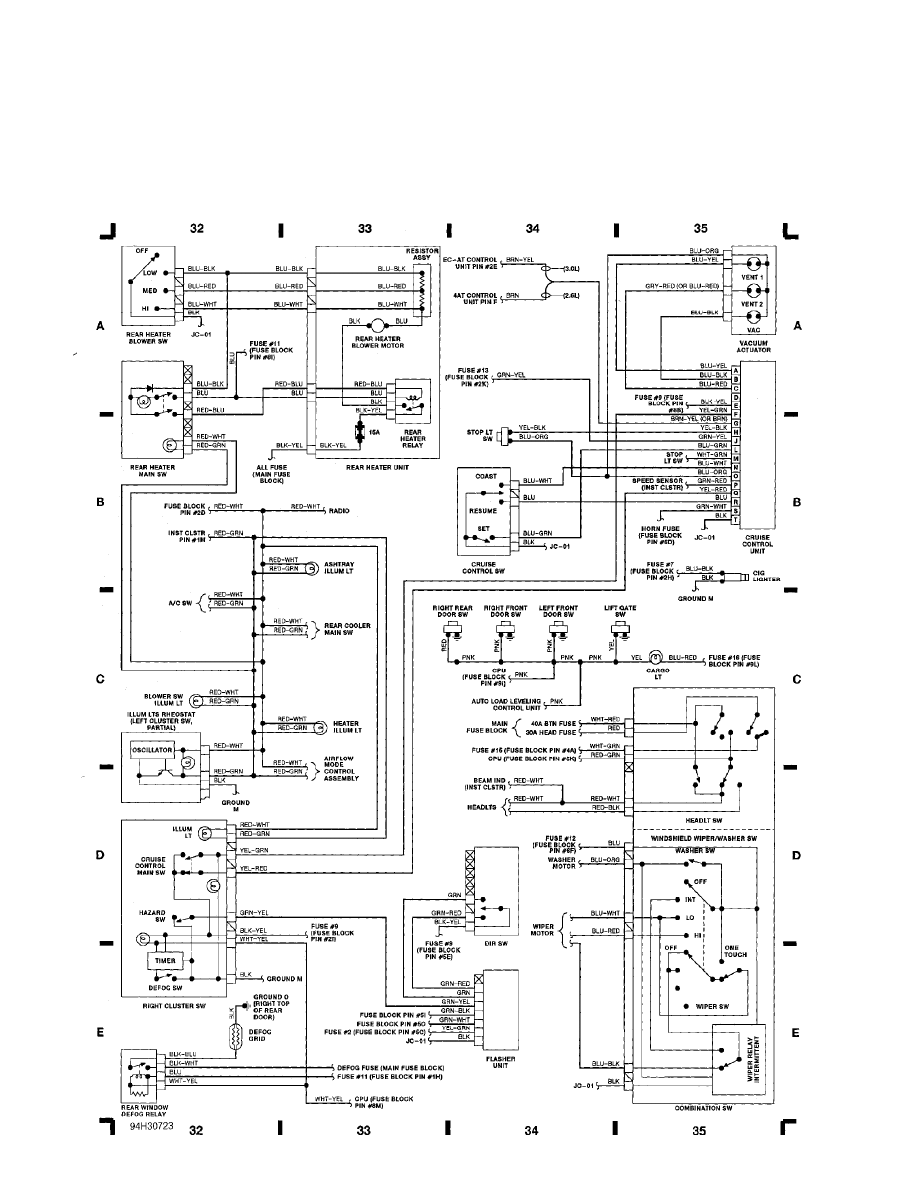

Fig. 9: Cruise Ctrl, Combination Sw, Flasher Unit (Grid 32-35) (p. 9)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

WIRING DIAGRAMS

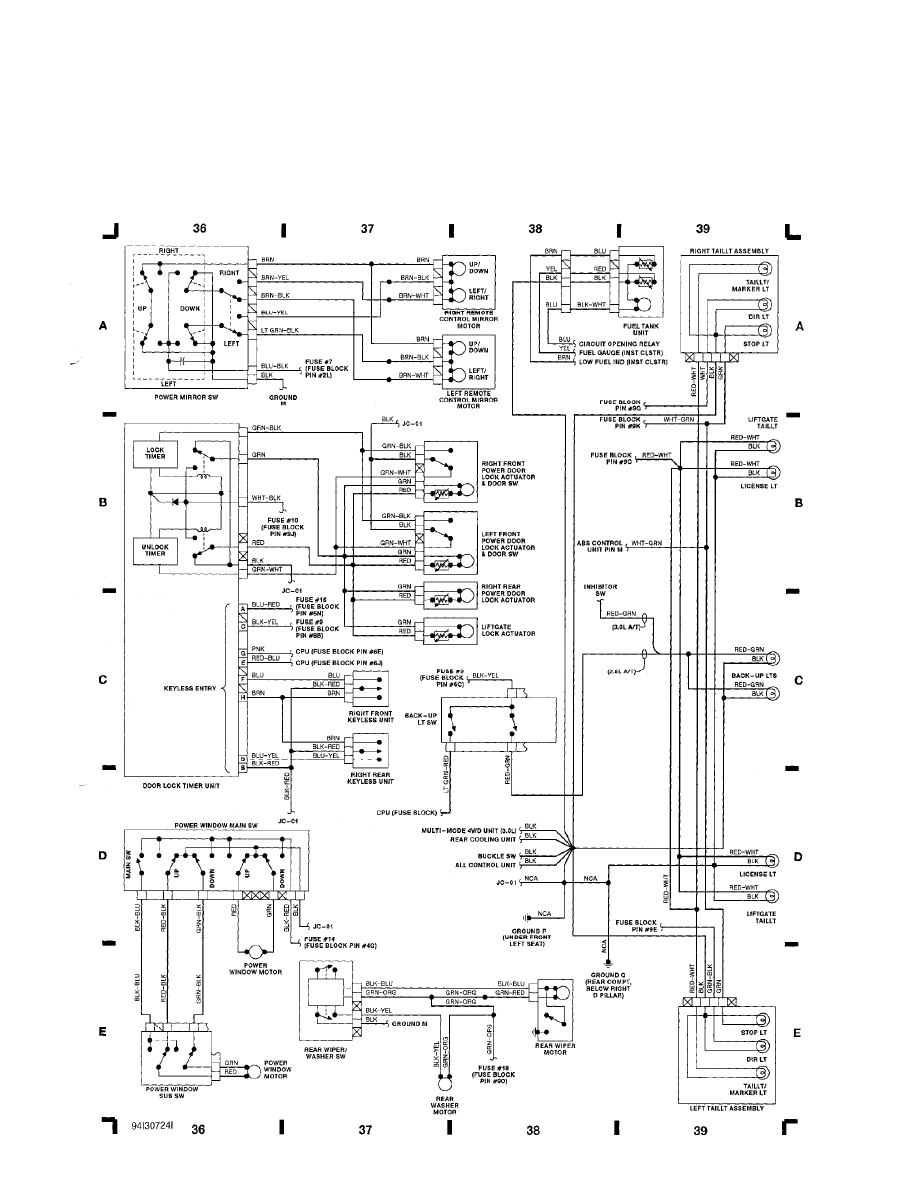

Fig. 10: Taillights, Pwr Windows, Pwr Doors (Grid 36-39) (p. 10)

1993 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM
