FORD PROBE 1989

SYSTEM WIRING DIAGRAMS

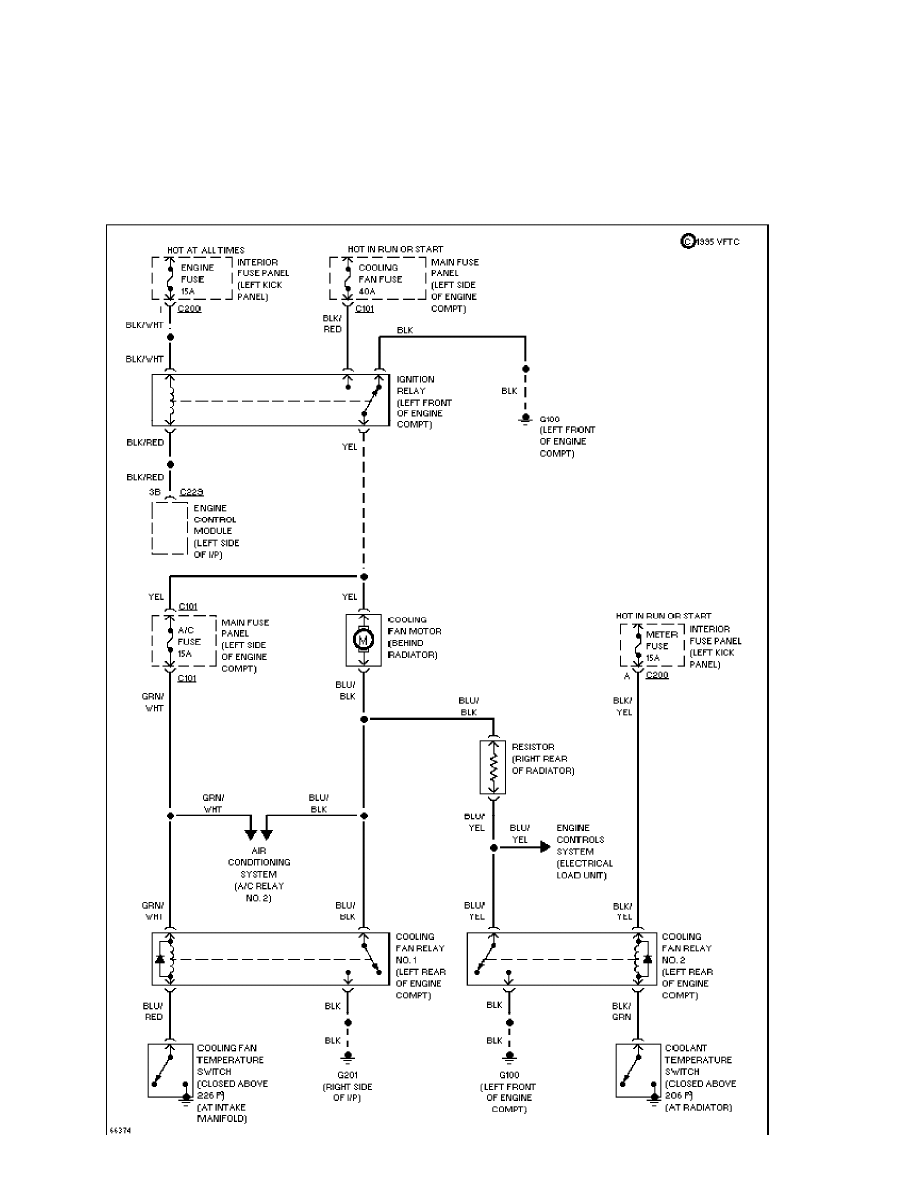

Cooling Fan Circuit

1989 Ford Probe

For x

Thursday, November 25, 2004 01:03PM

SYSTEM WIRING DIAGRAMS

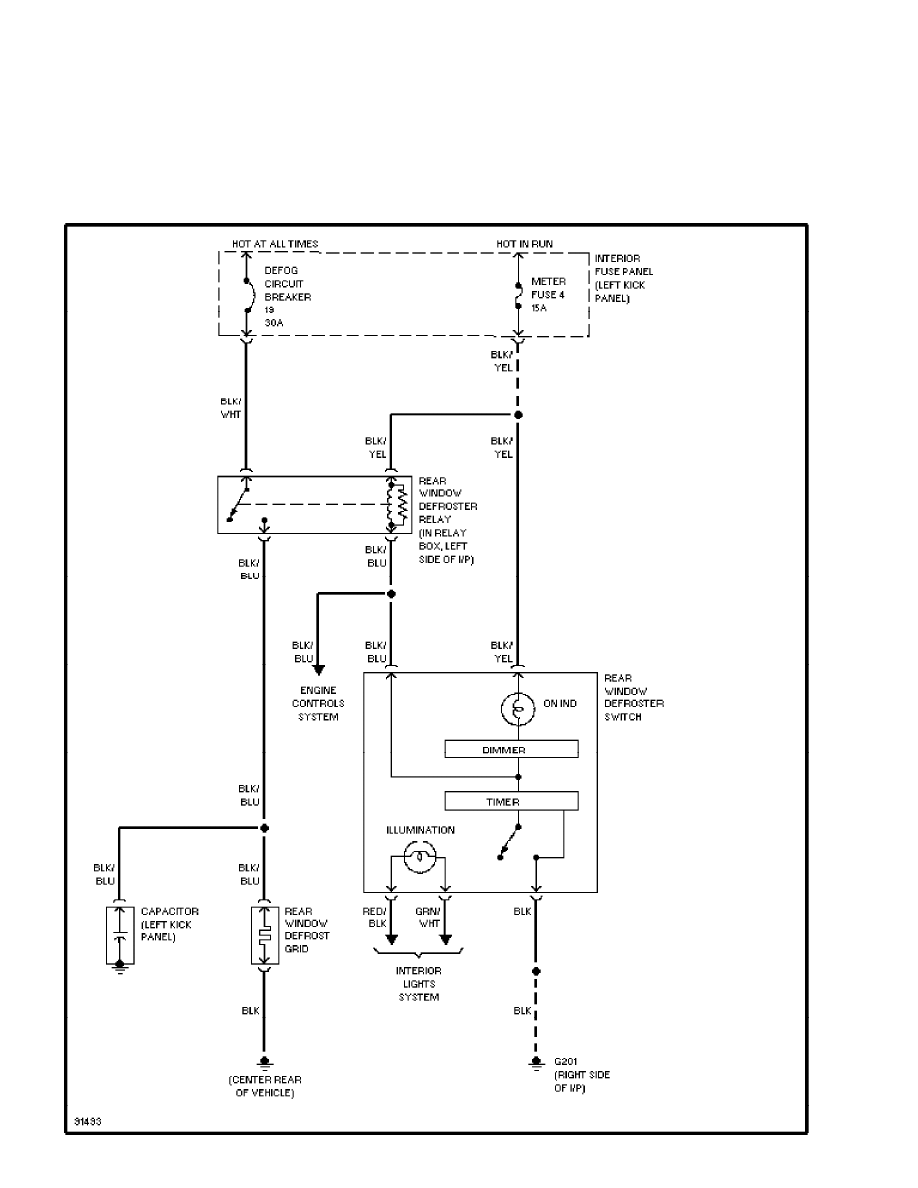

Defogger Circuit (p. 2)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:03PM

SYSTEM WIRING DIAGRAMS

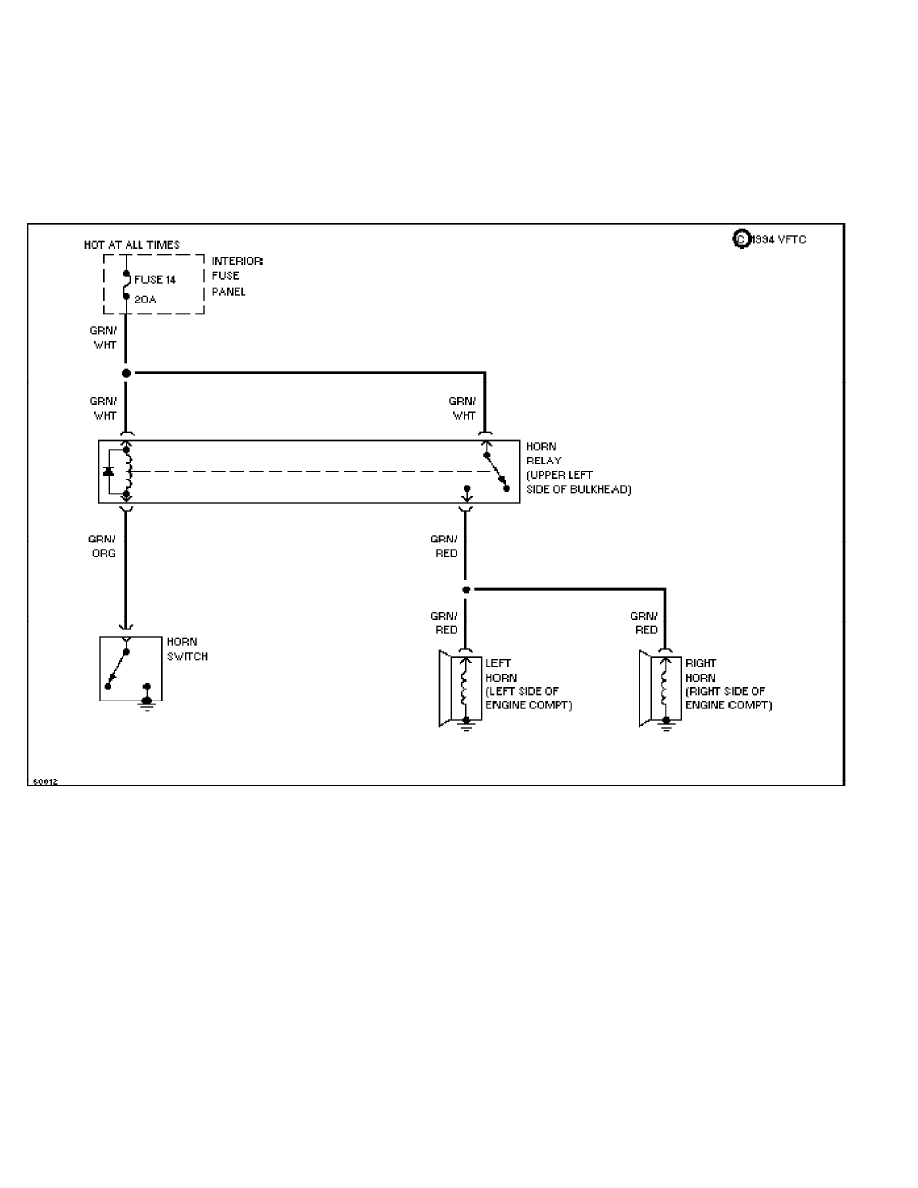

Horn Circuit (p. 3)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:03PM

SYSTEM WIRING DIAGRAMS

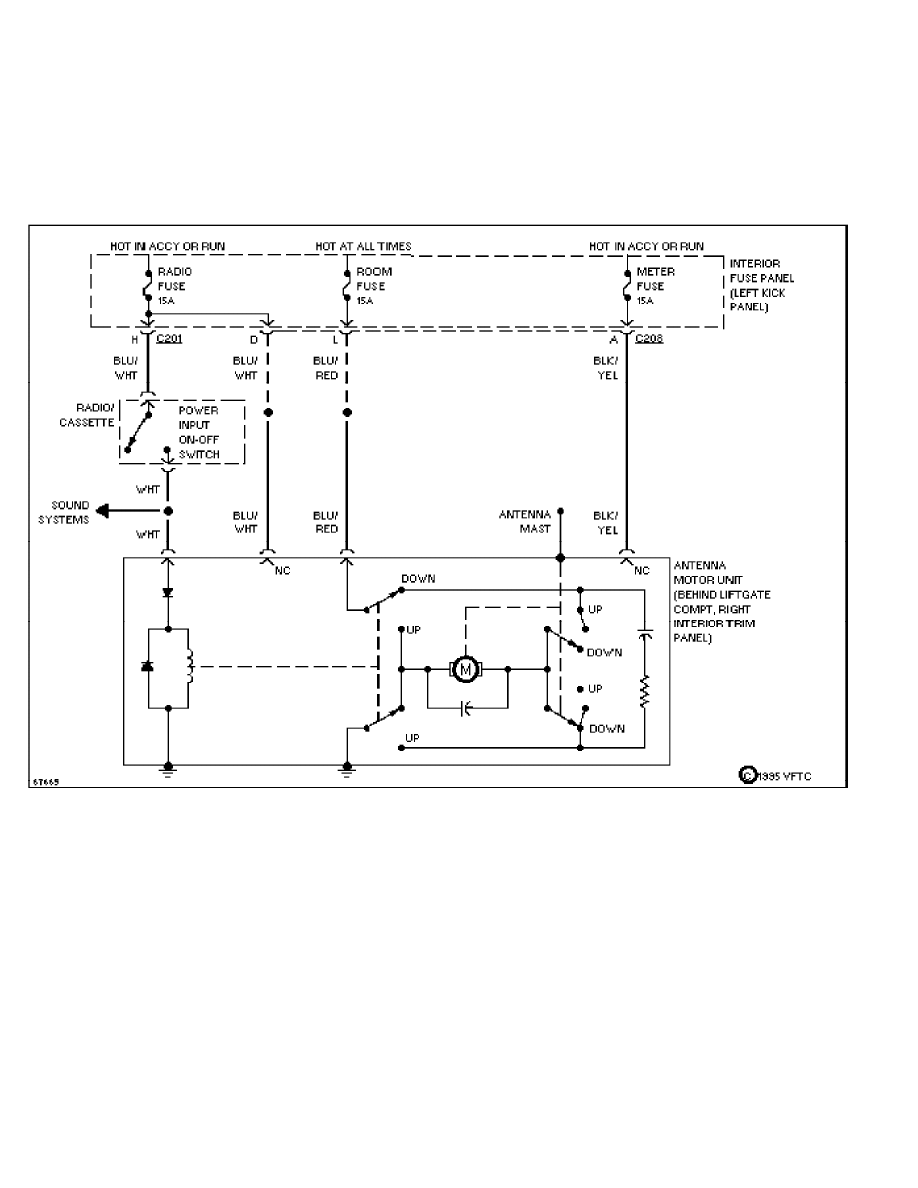

Power Antenna Circuit (p. 4)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:03PM

SYSTEM WIRING DIAGRAMS

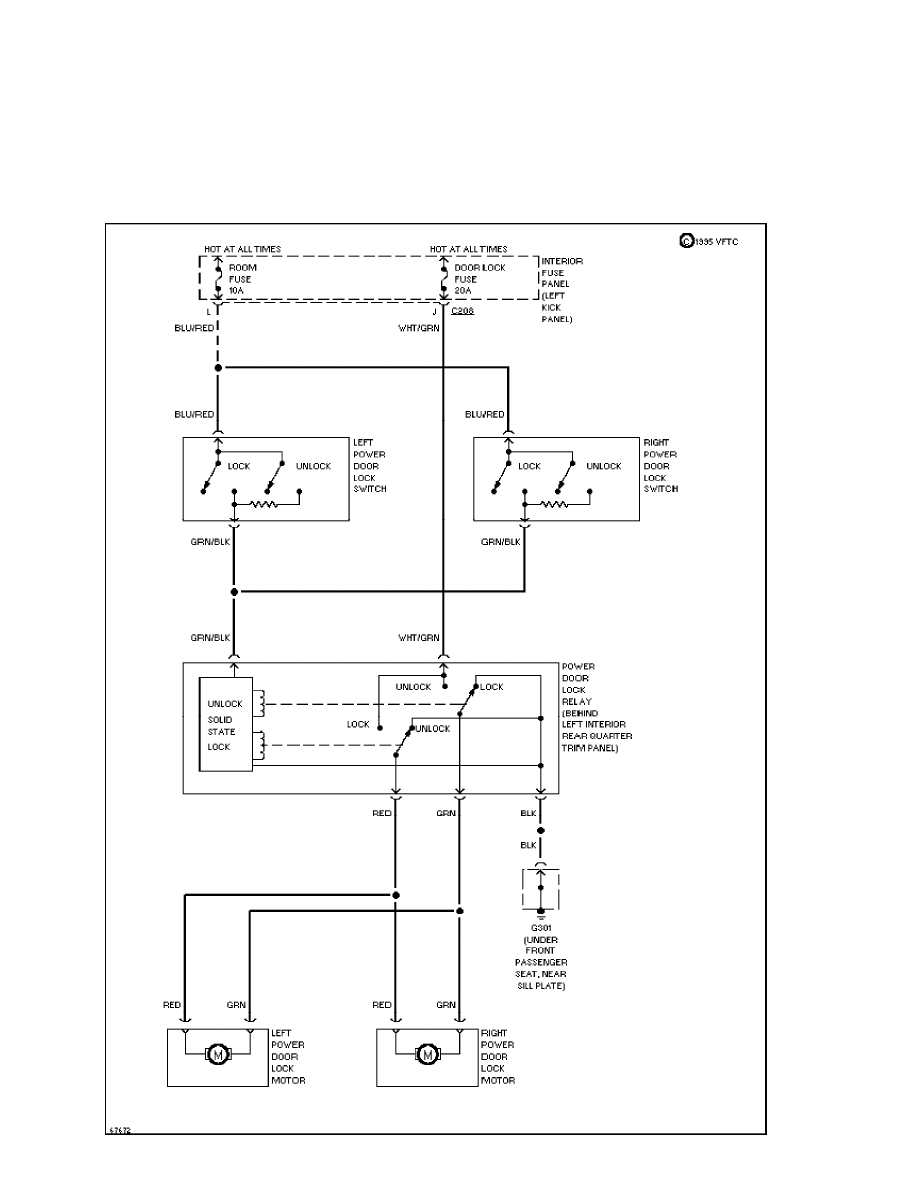

Power Door Lock Circuit (p. 5)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:03PM

SYSTEM WIRING DIAGRAMS

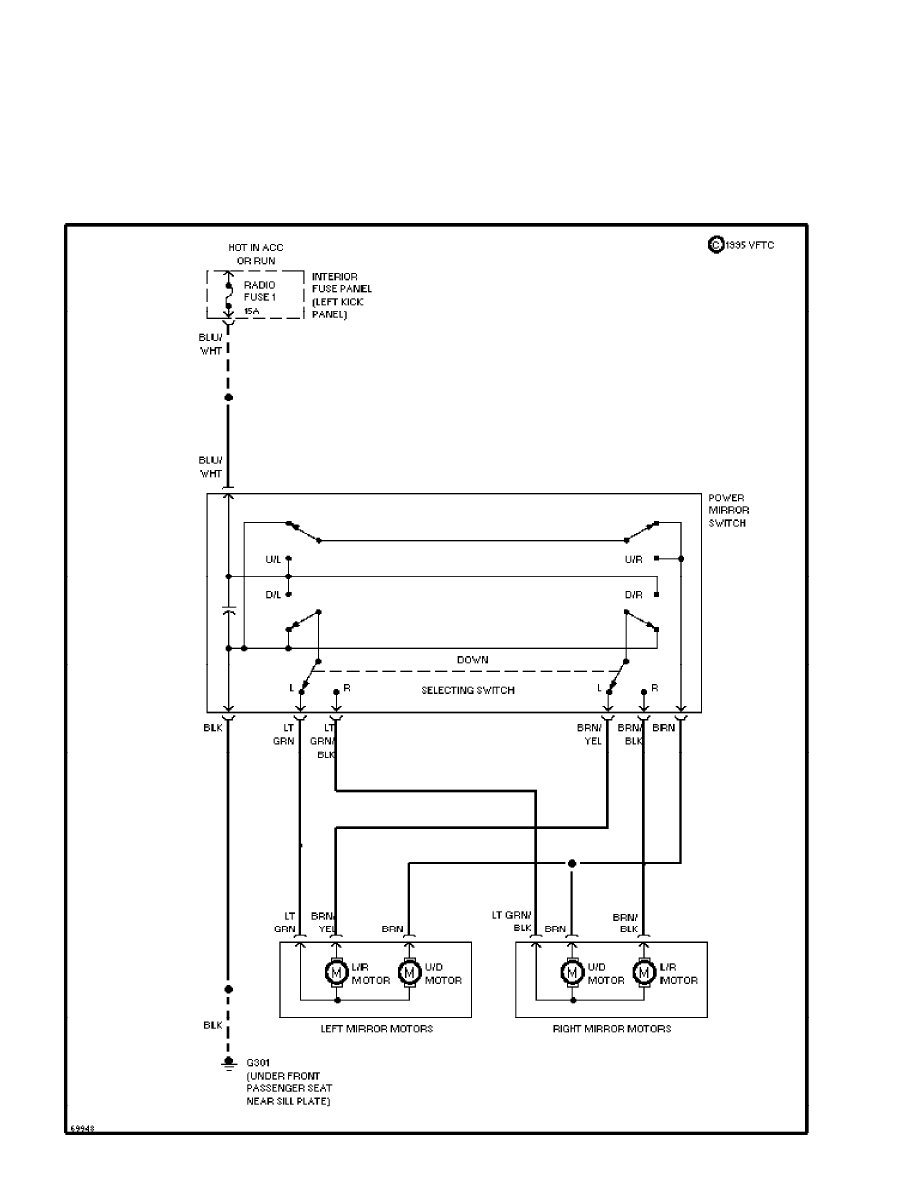

Power Mirror Circuit (p. 6)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:03PM

SYSTEM WIRING DIAGRAMS

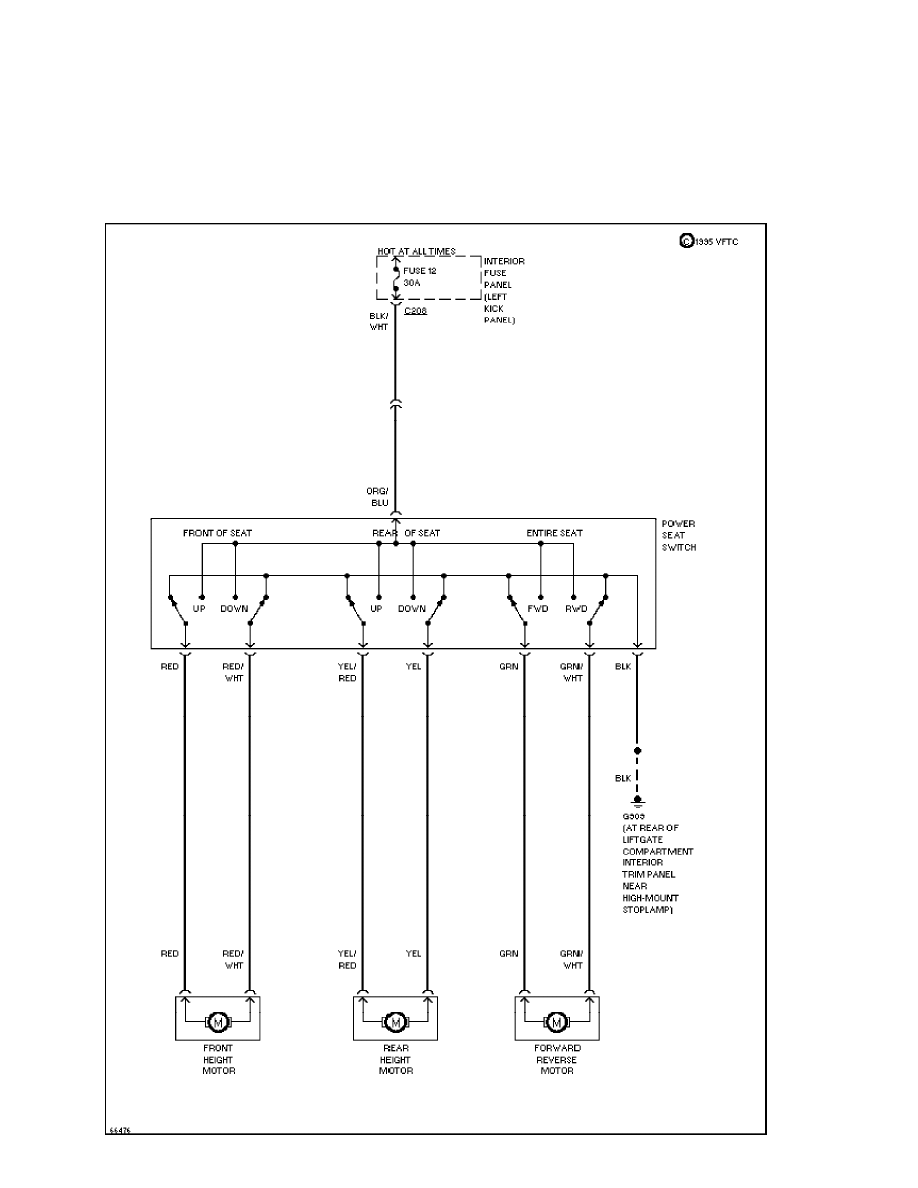

Power Seat Circuits (p. 7)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:03PM

SYSTEM WIRING DIAGRAMS

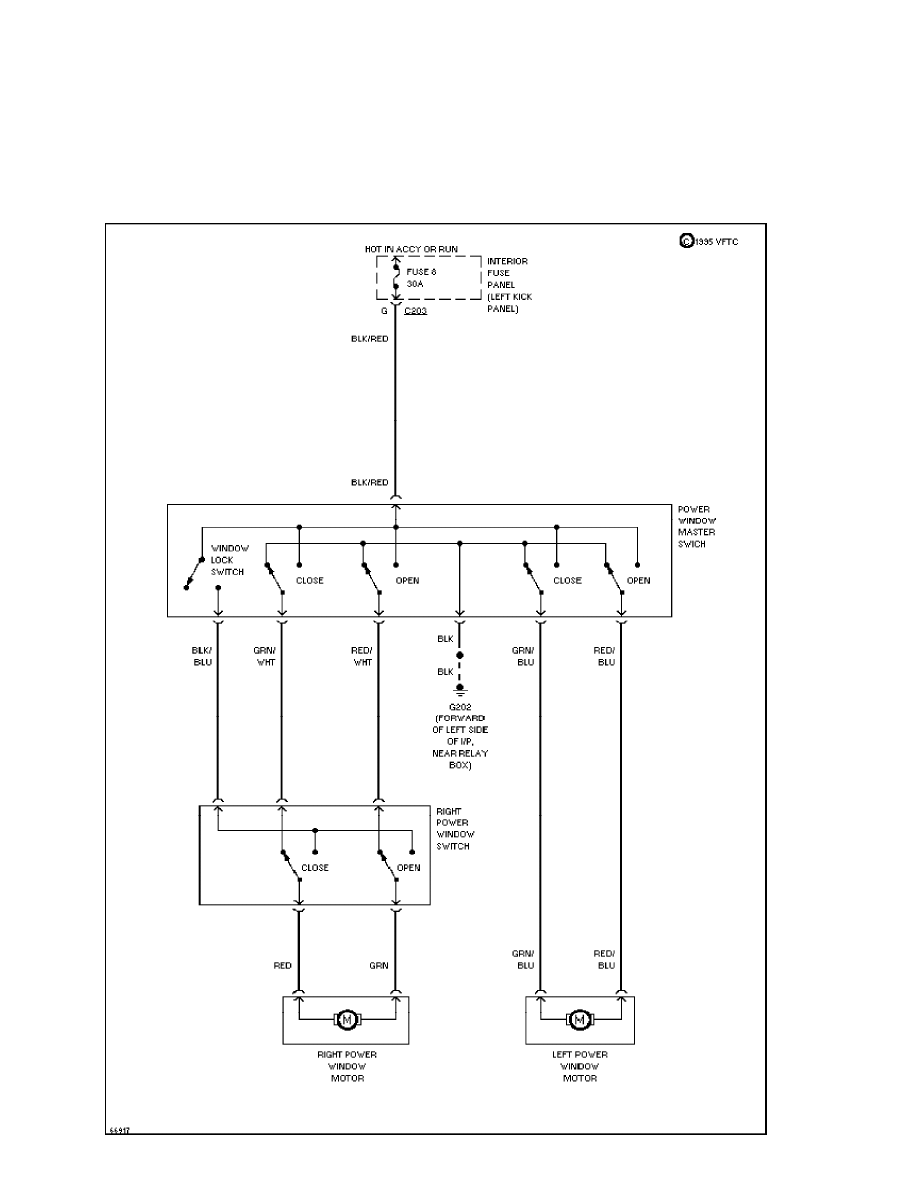

Power Window Circuit (p. 8)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:03PM

SYSTEM WIRING DIAGRAMS

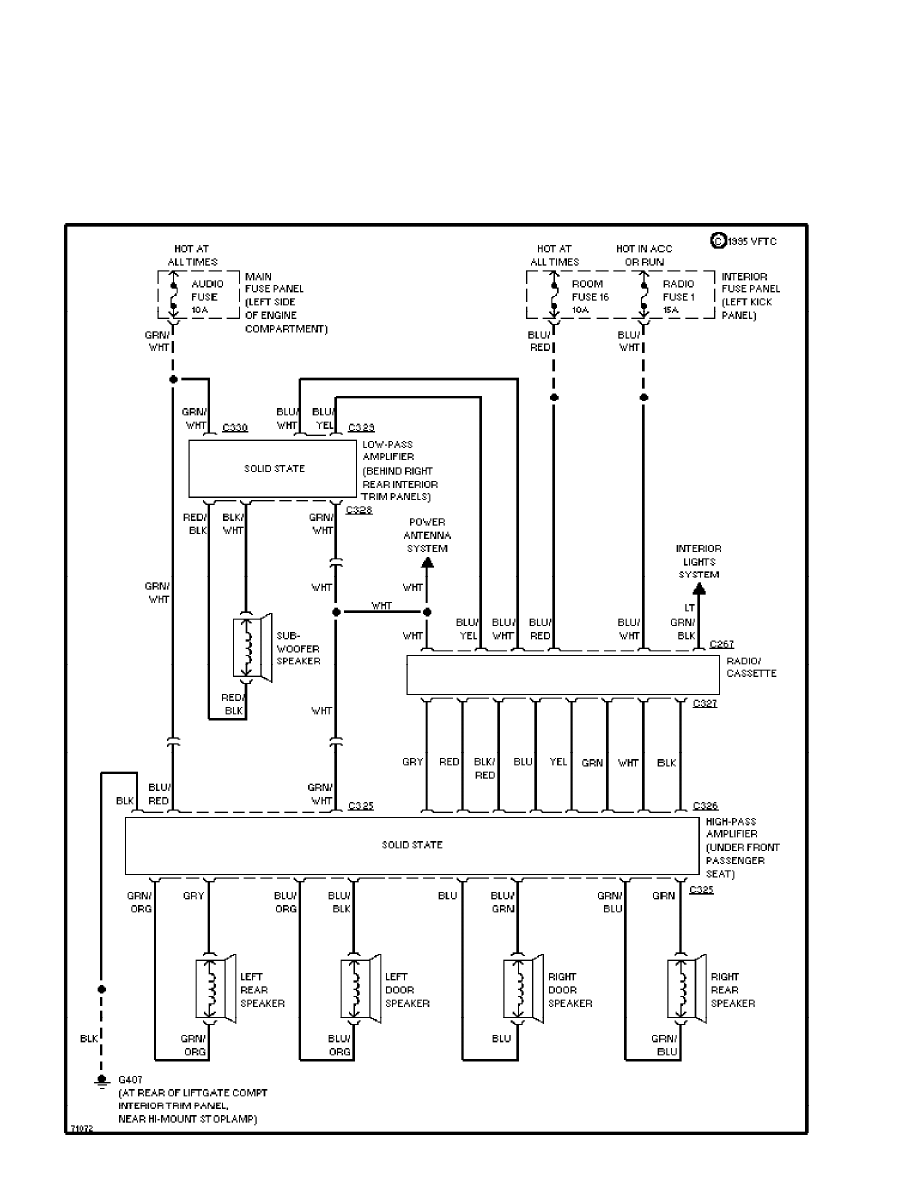

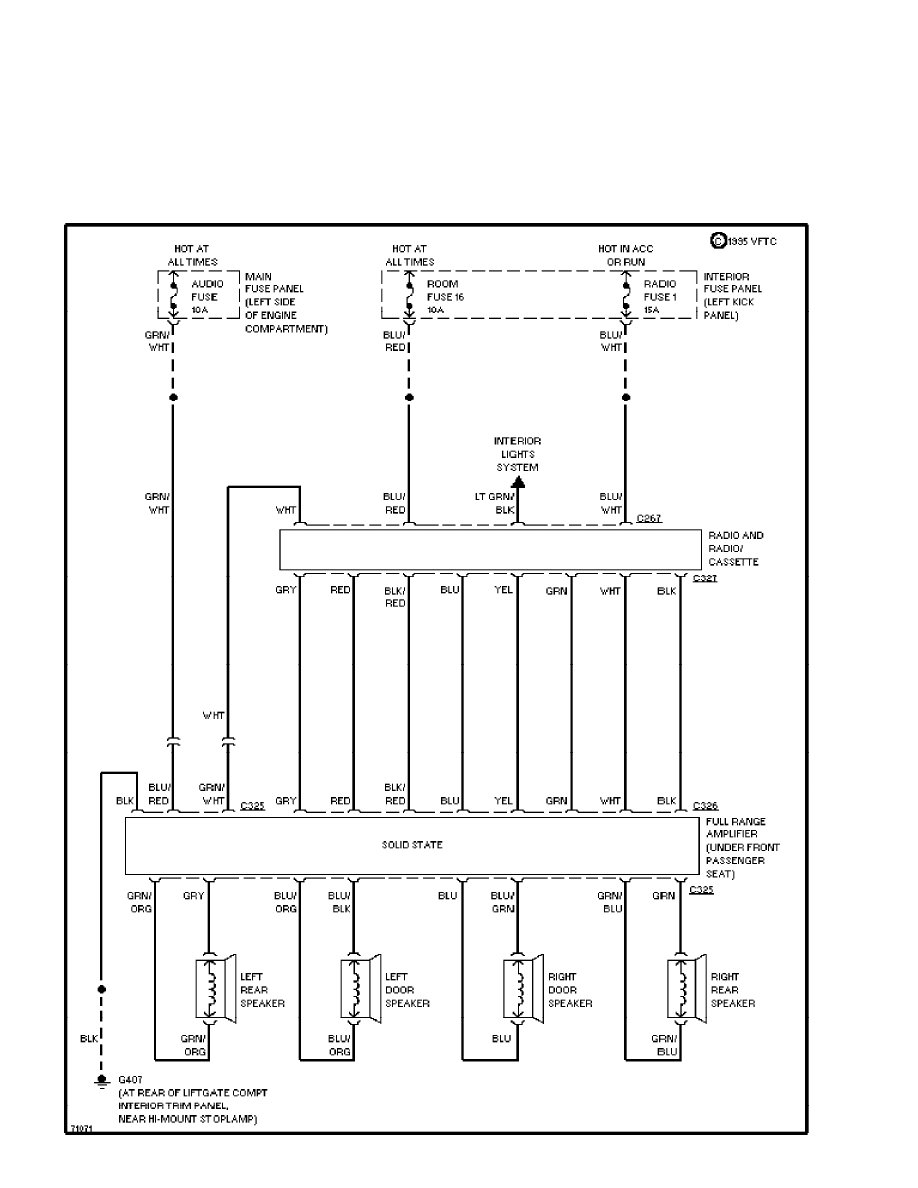

Premium Sound Radio Circuit (p. 9)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:03PM

SYSTEM WIRING DIAGRAMS

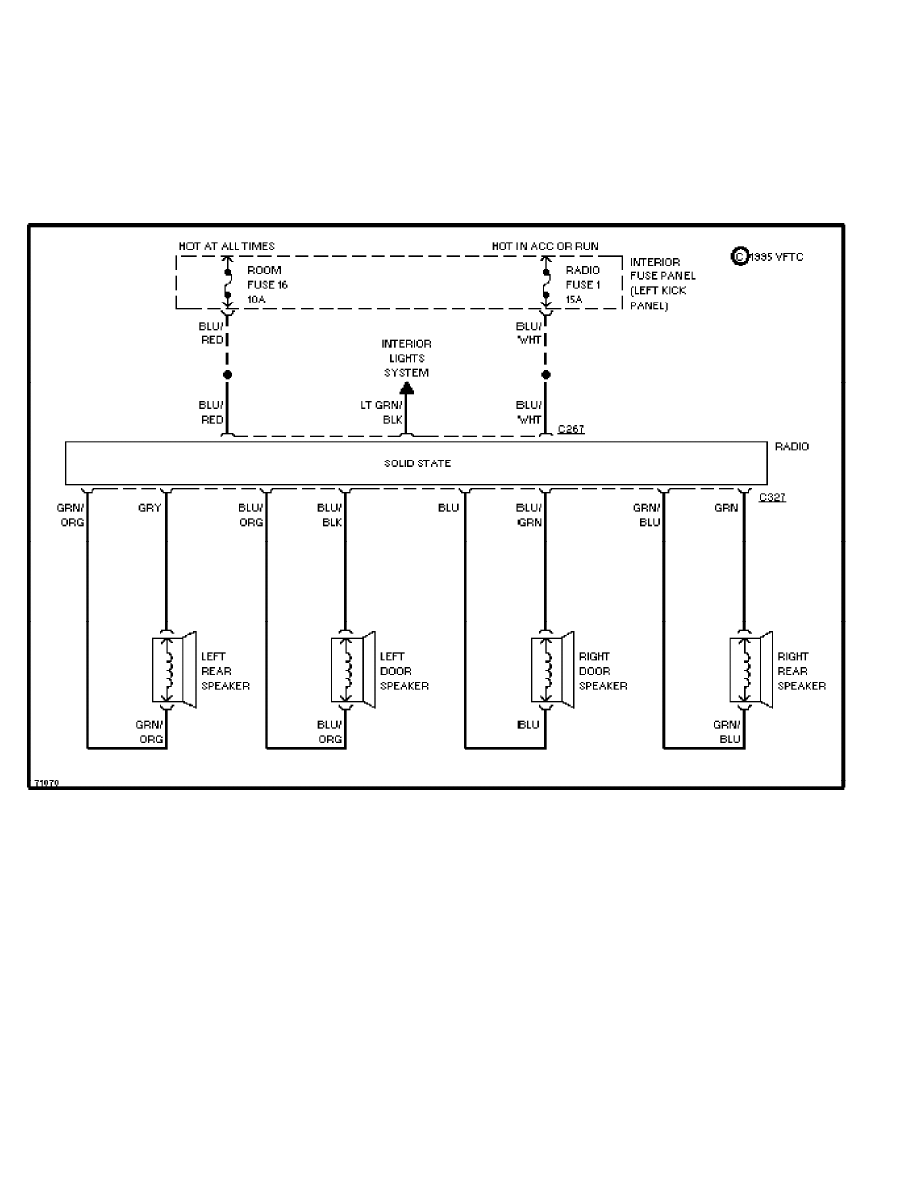

Stereo Radio Circuit (p. 10)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:03PM

SYSTEM WIRING DIAGRAMS

Stereo/Cassette/Digital Audio Disc (p. 11)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:03PM

SYSTEM WIRING DIAGRAMS

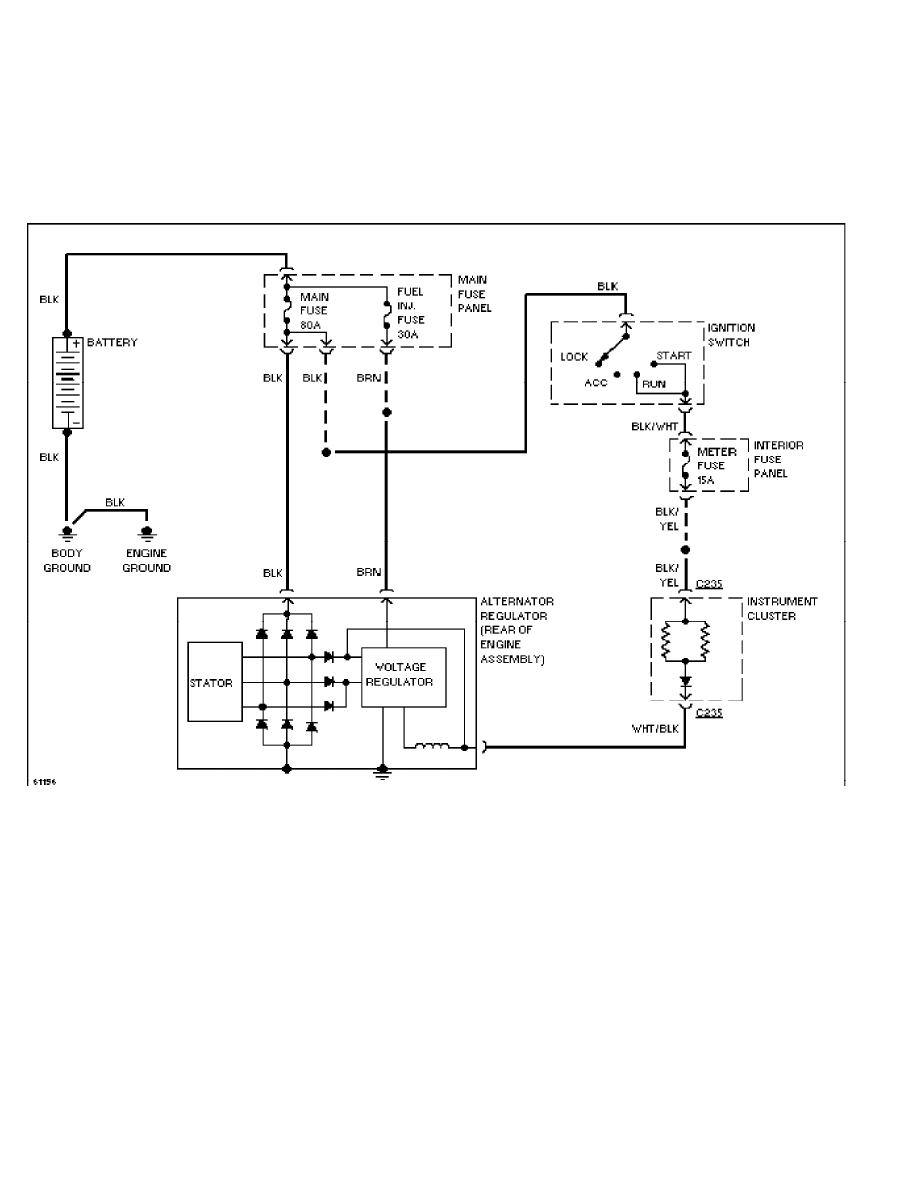

Charging Circuit (p. 12)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:03PM

SYSTEM WIRING DIAGRAMS

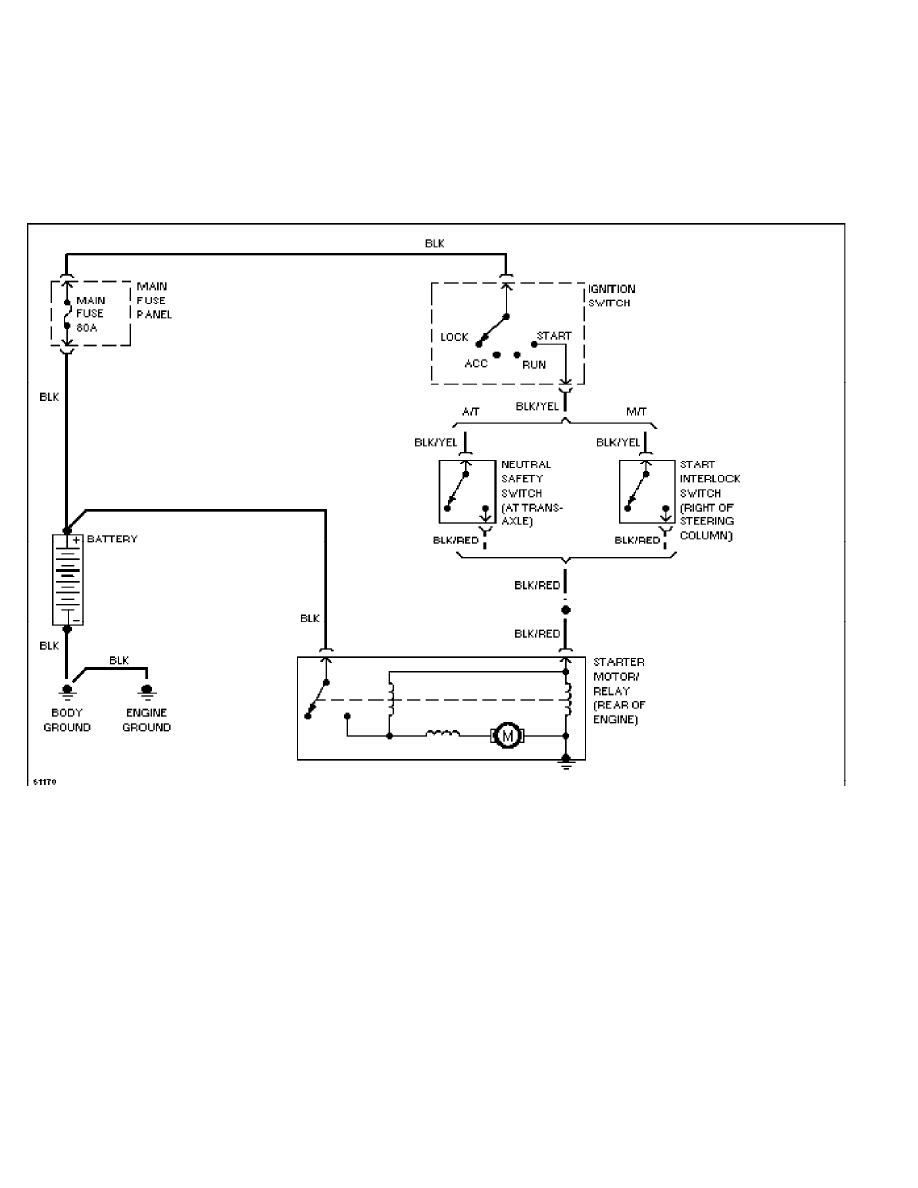

Starting Circuit (p. 13)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:03PM

SYSTEM WIRING DIAGRAMS

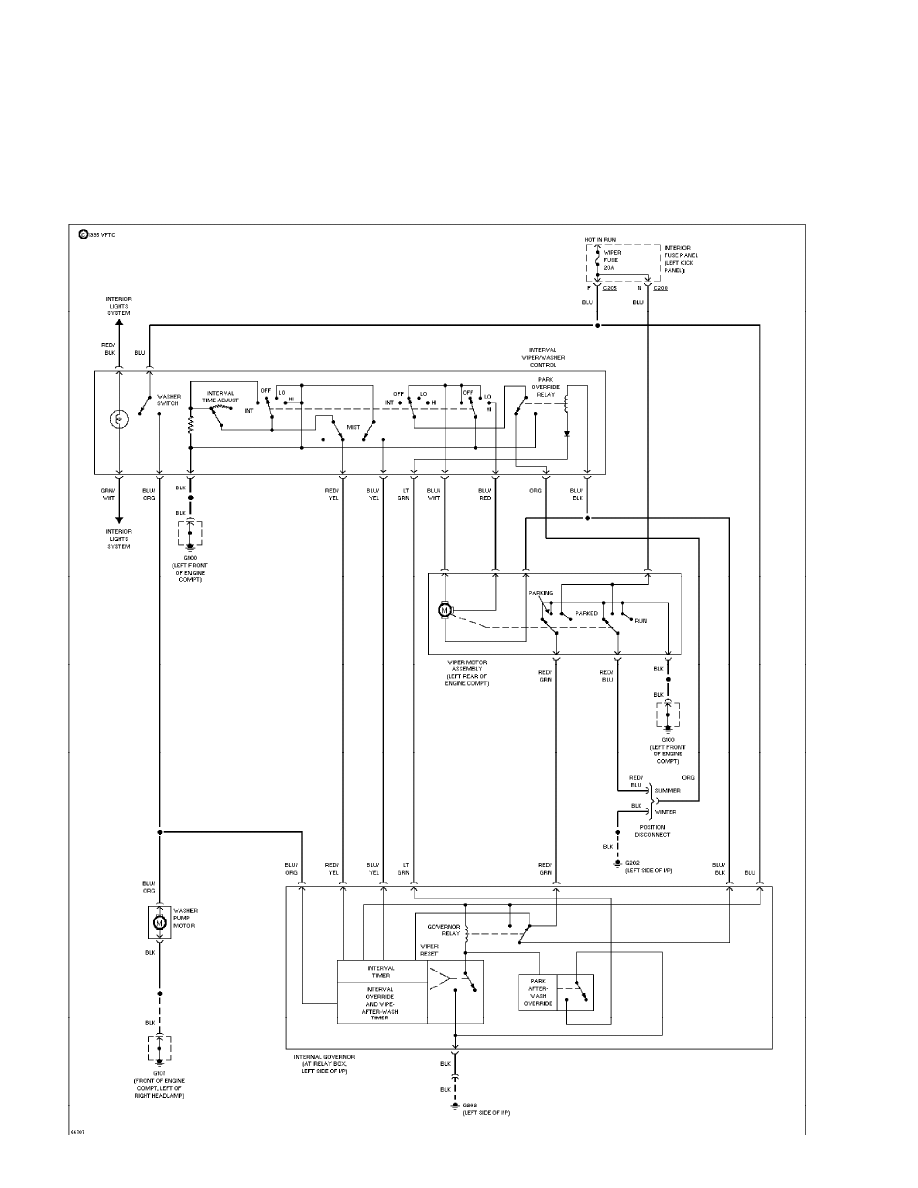

Interval Wiper/Washer Circuit (p. 14)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:03PM

SYSTEM WIRING DIAGRAMS

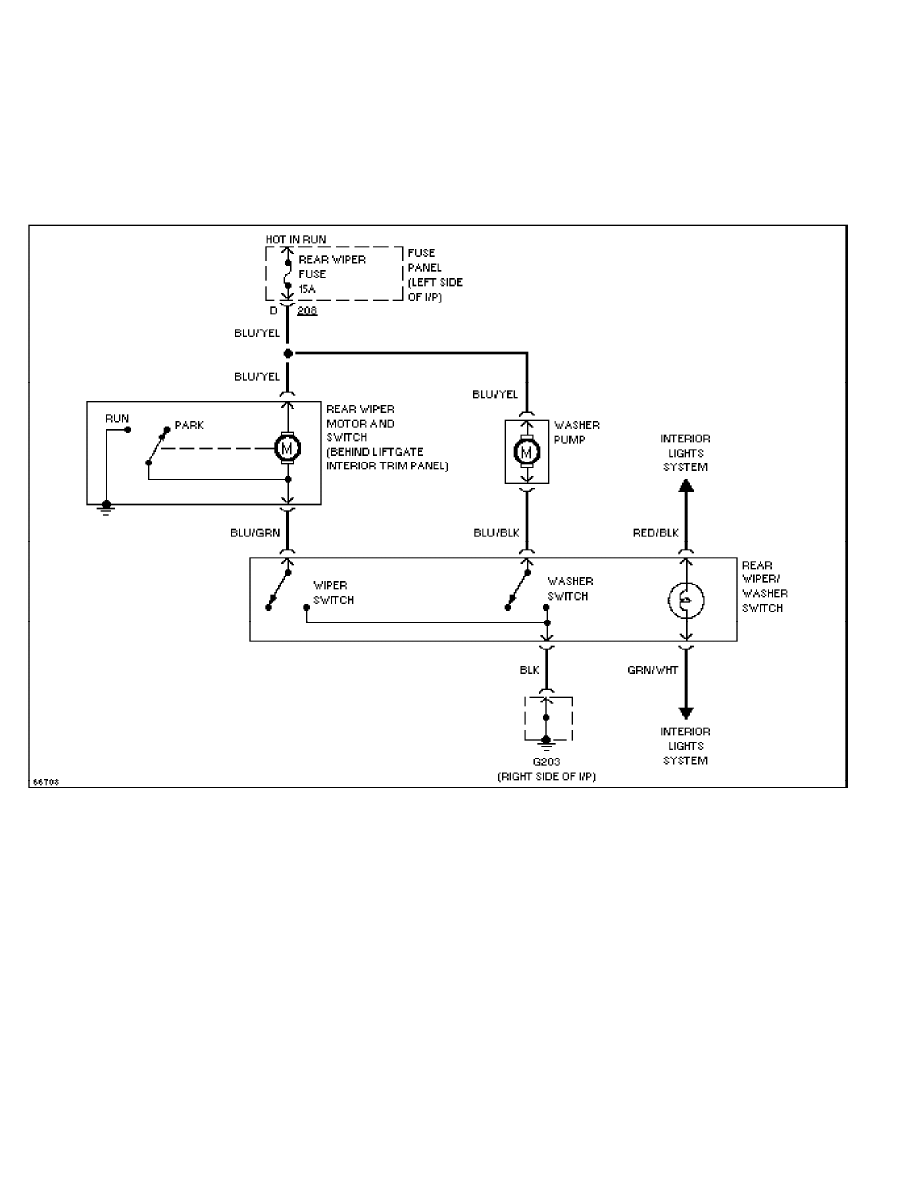

Rear Wiper/Washer Circuit (p. 15)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:03PM

WIRING DIAGRAMS

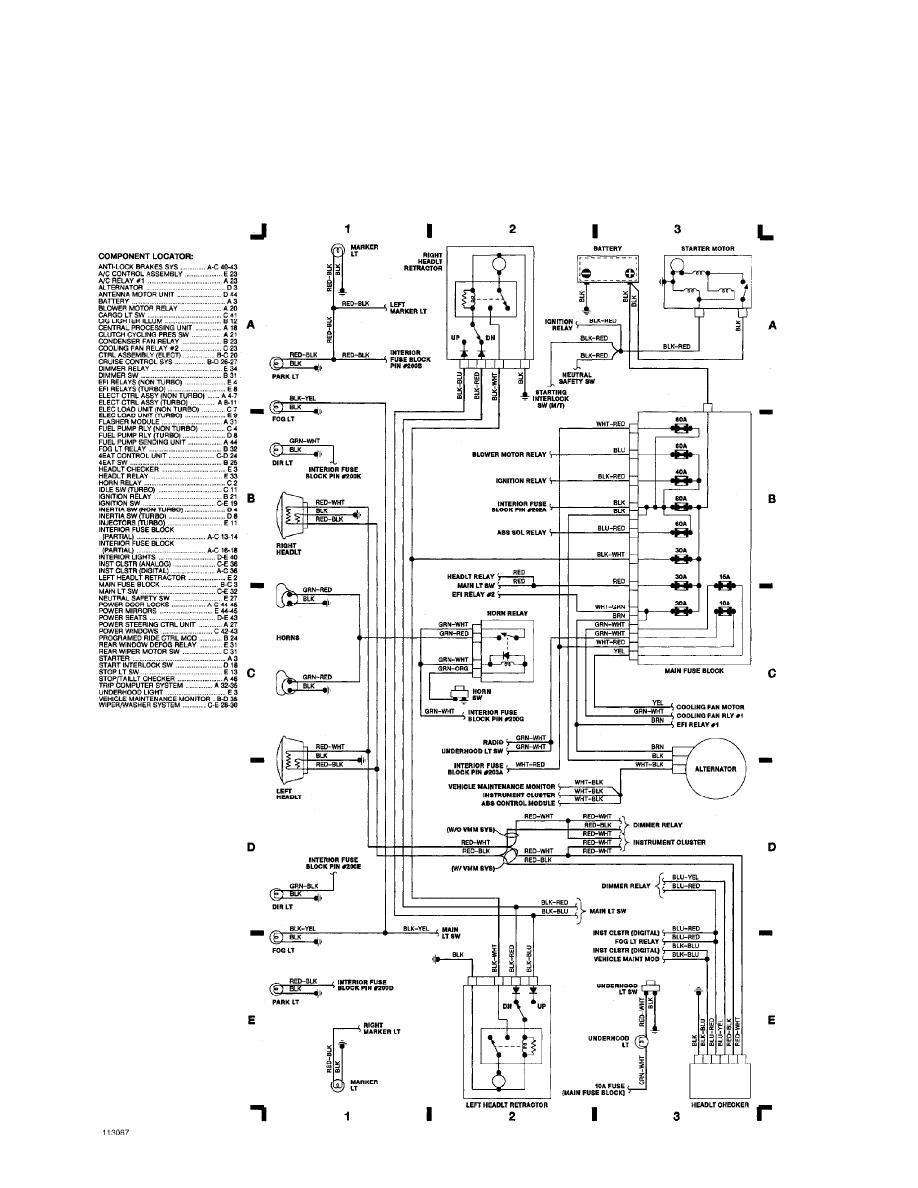

Fig. 1: Engine Compartment & Headlights

1989 Ford Probe

For x

Thursday, November 25, 2004 01:05PM

WIRING DIAGRAMS

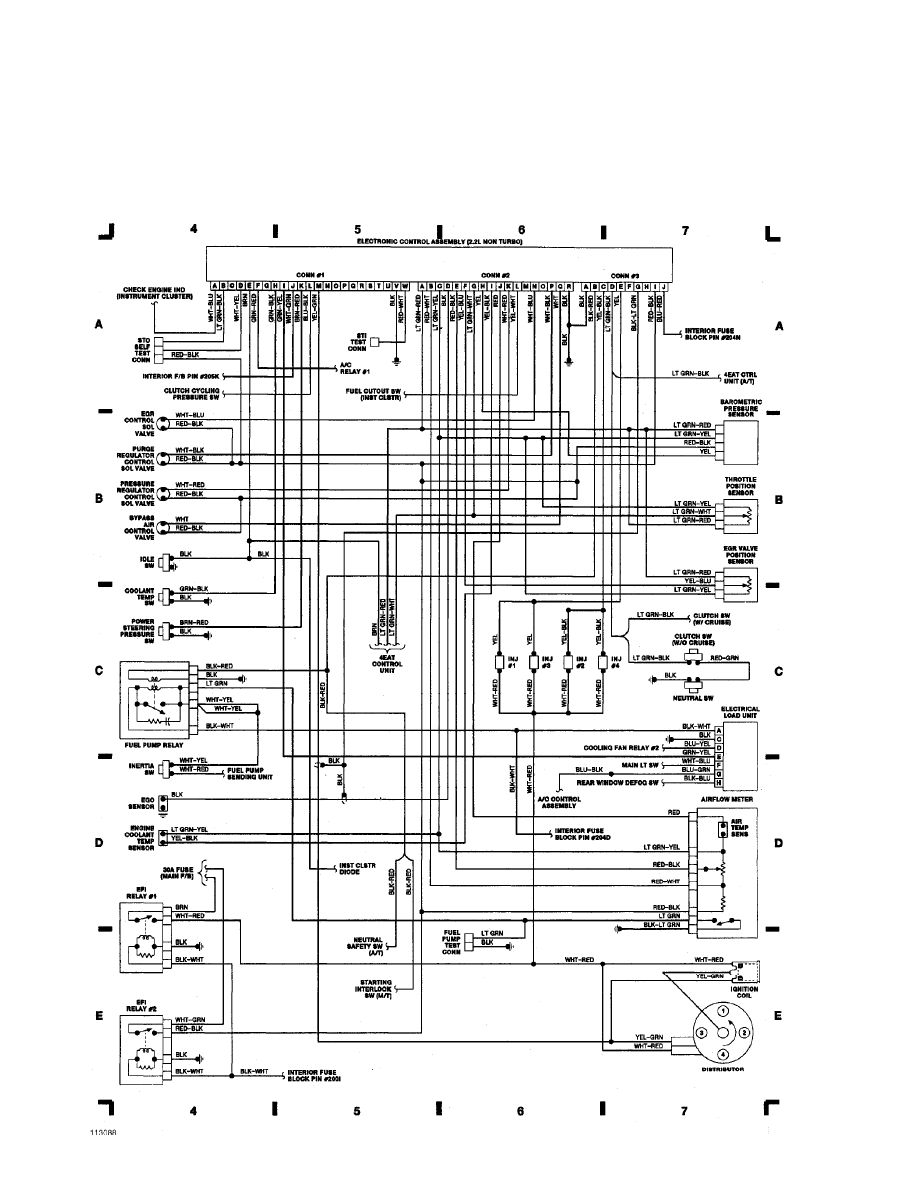

Fig. 2: Computer Engine Control (Non-Turbo) (p. 2)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:05PM

WIRING DIAGRAMS

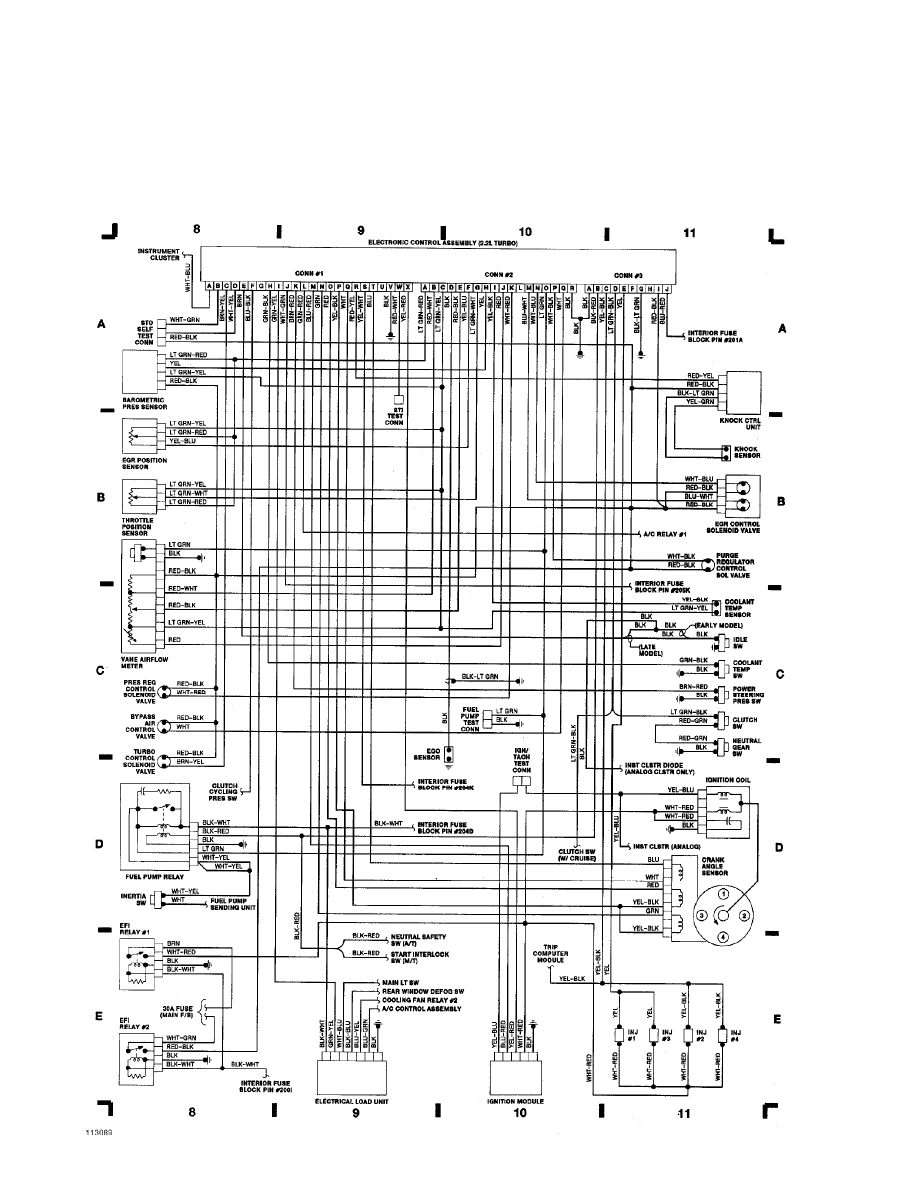

Fig. 3: Computer Engine Control (Turbo) (p. 3)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:05PM

WIRING DIAGRAMS

Fig. 4: Fuse Block (1 Of 2) (p. 4)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:05PM

WIRING DIAGRAMS

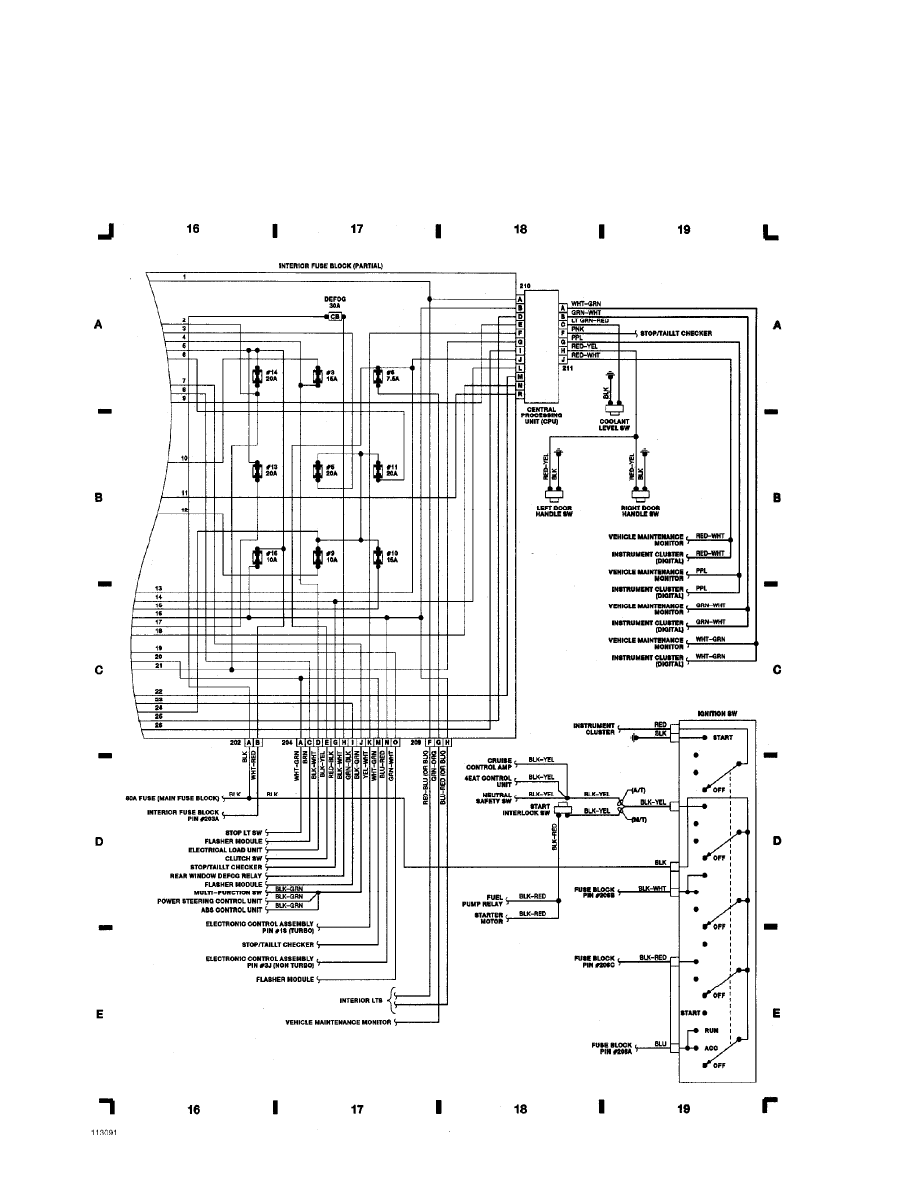

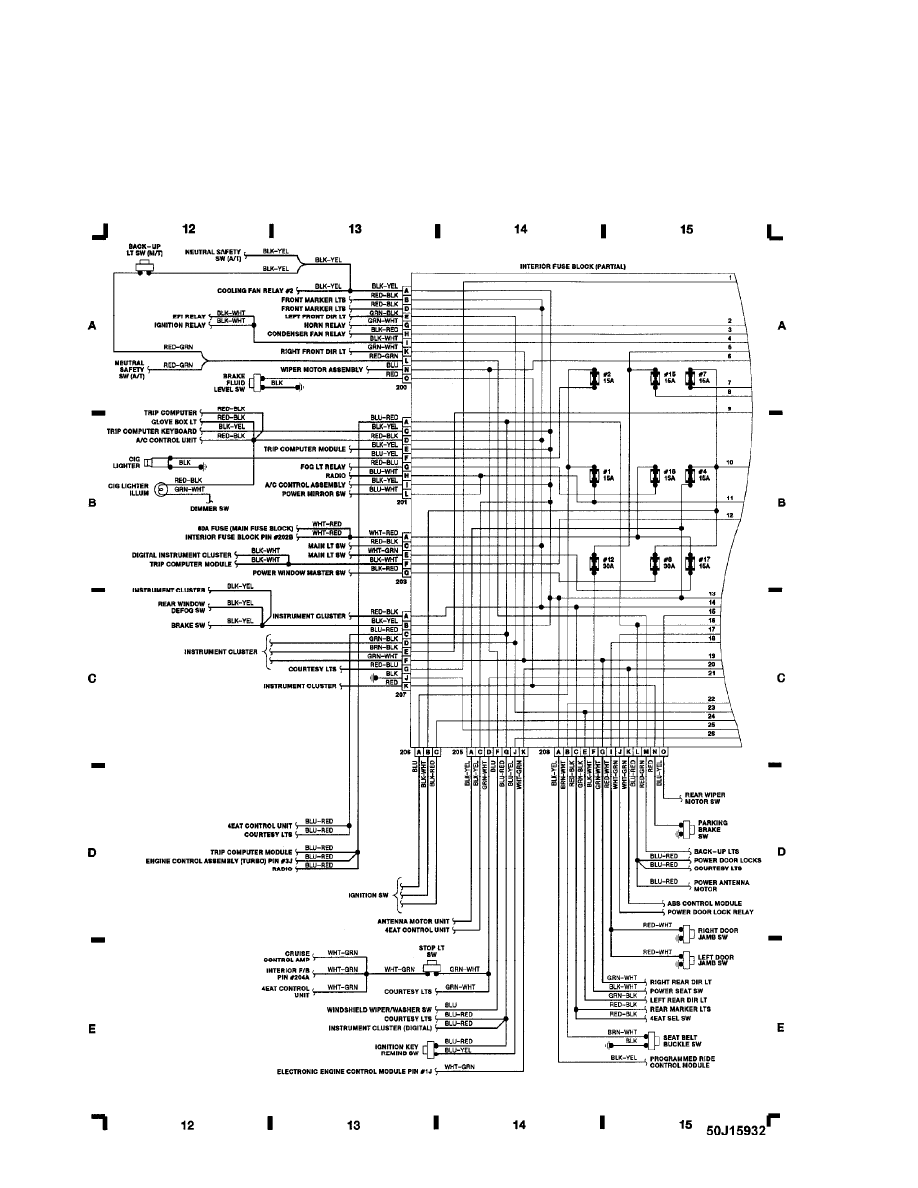

Fig. 5: Fuse Block (2 Of 2) (p. 5)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:05PM

WIRING DIAGRAMS

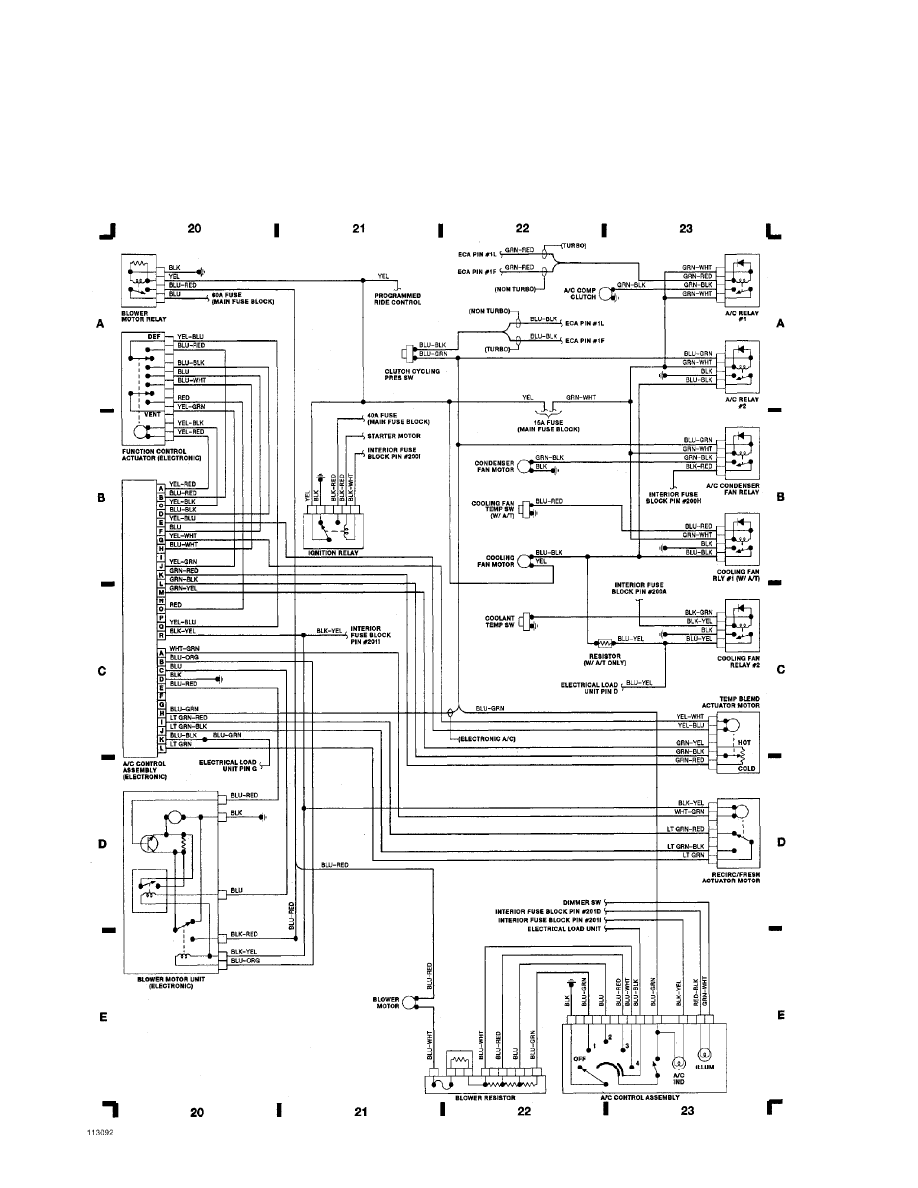

Fig. 6: A/C & Heating (p. 6)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:05PM

WIRING DIAGRAMS

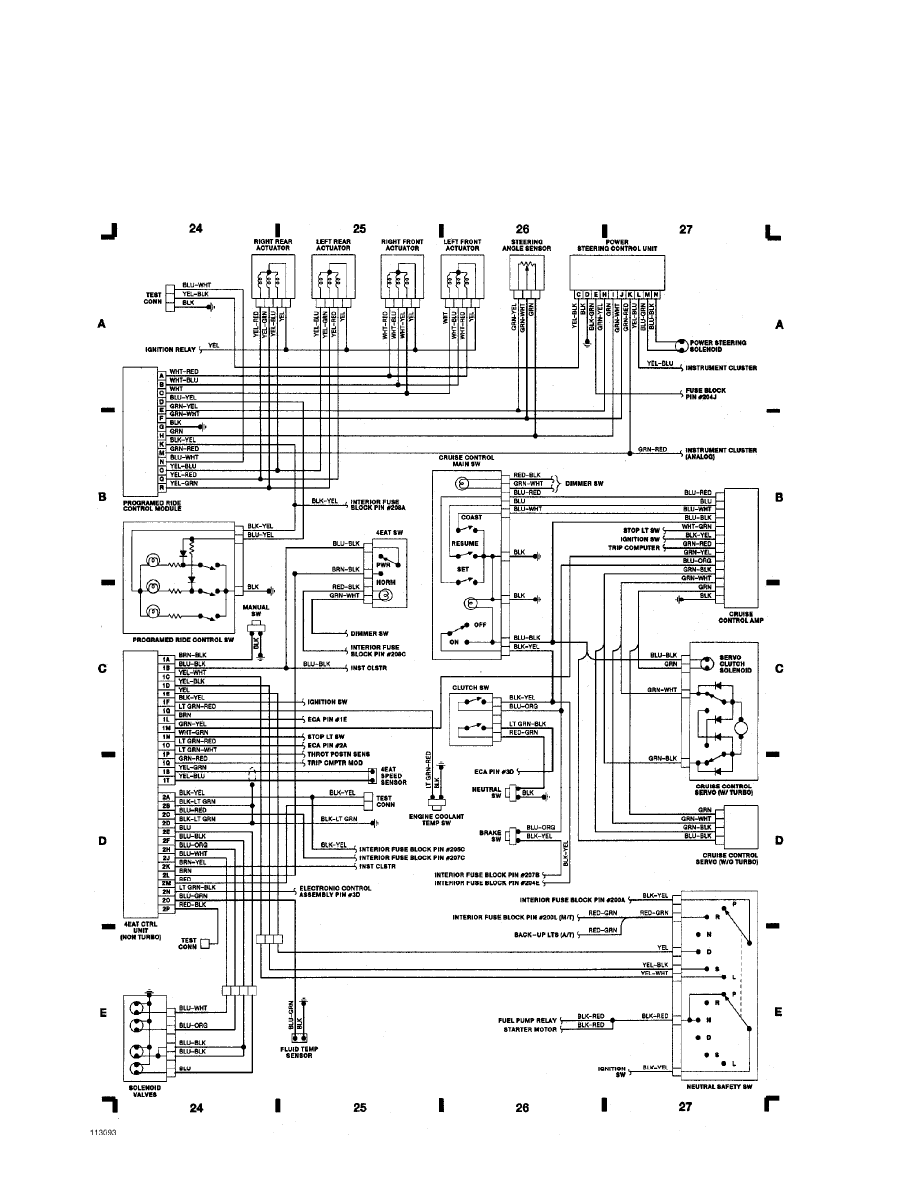

Fig. 7: Electronic Ride Control, Power Steering & Cruise Control (p. 7)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:05PM

WIRING DIAGRAMS

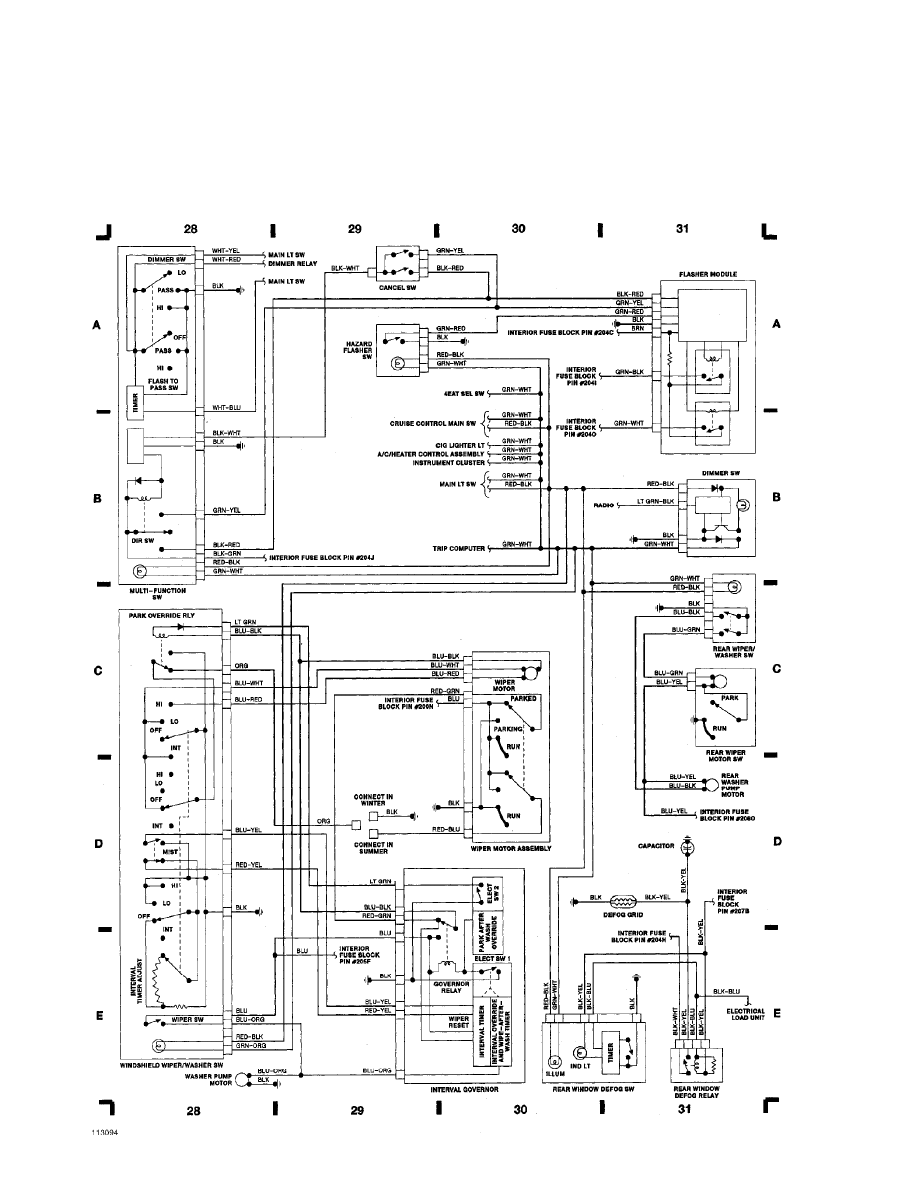

Fig. 8: Wiper/Washer System & Multi-Function Switch (p. 8)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:05PM

WIRING DIAGRAMS

Fig. 9: Trip Computer, Maintenance Monitor & Light Switches (p. 9)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:05PM

WIRING DIAGRAMS

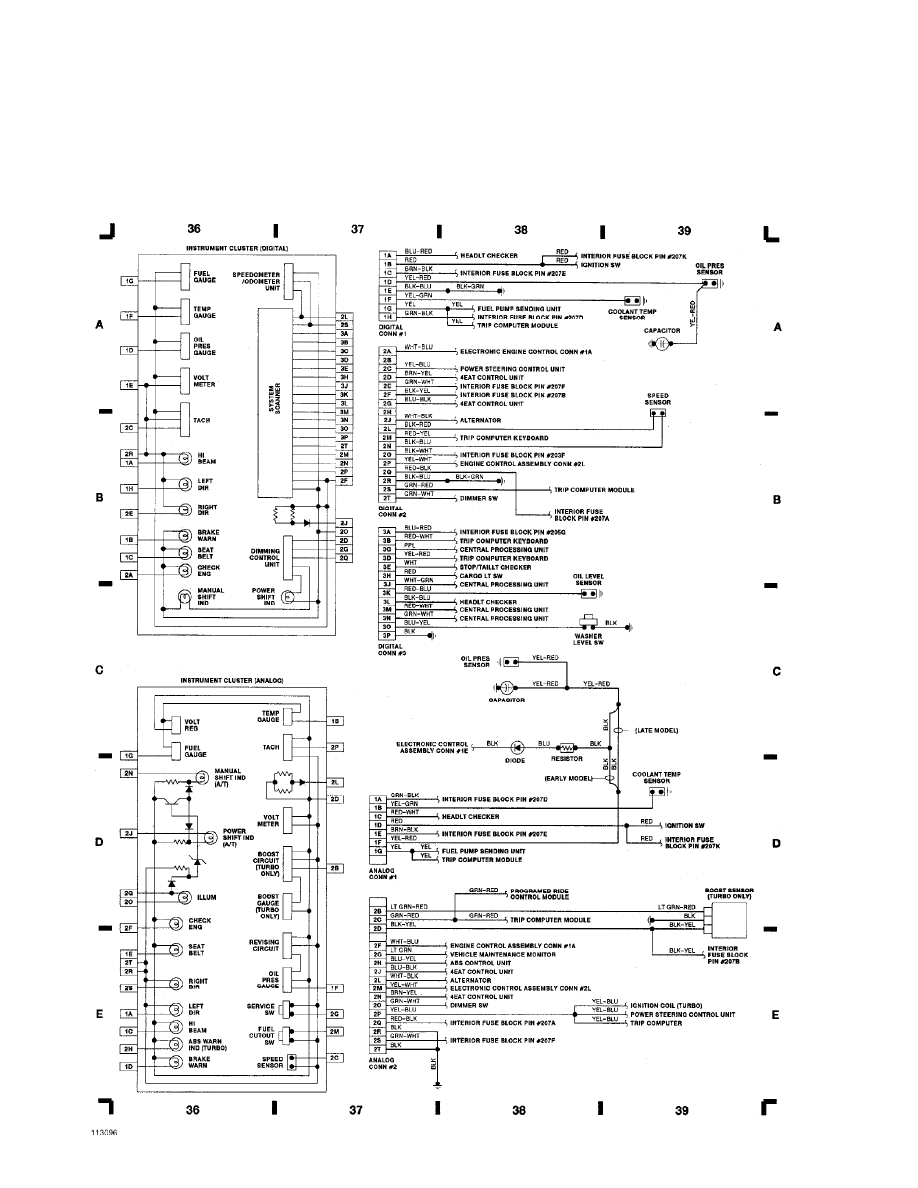

Fig. 10: Instrument Panel (p. 10)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:05PM

WIRING DIAGRAMS

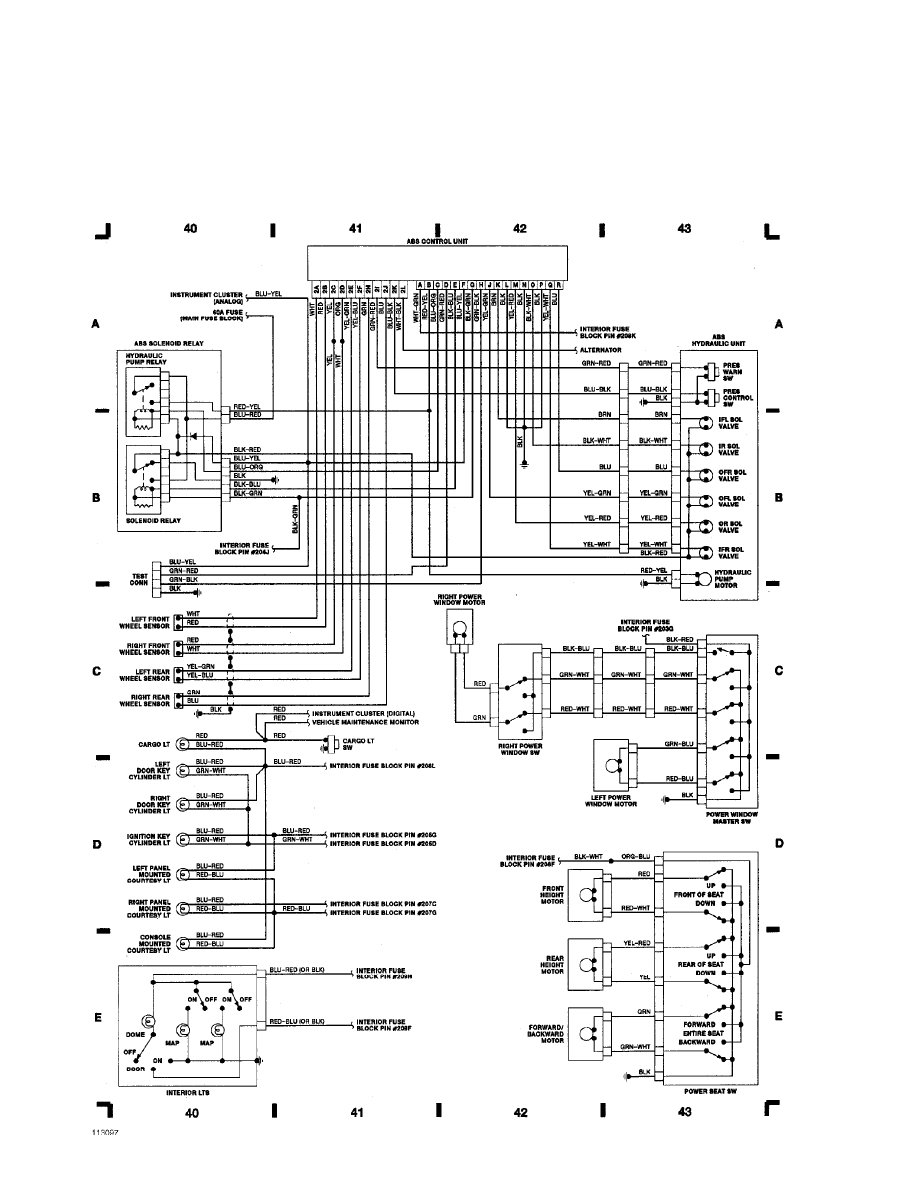

Fig. 11: Anti-Lock Brake System (p. 11)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:05PM

WIRING DIAGRAMS

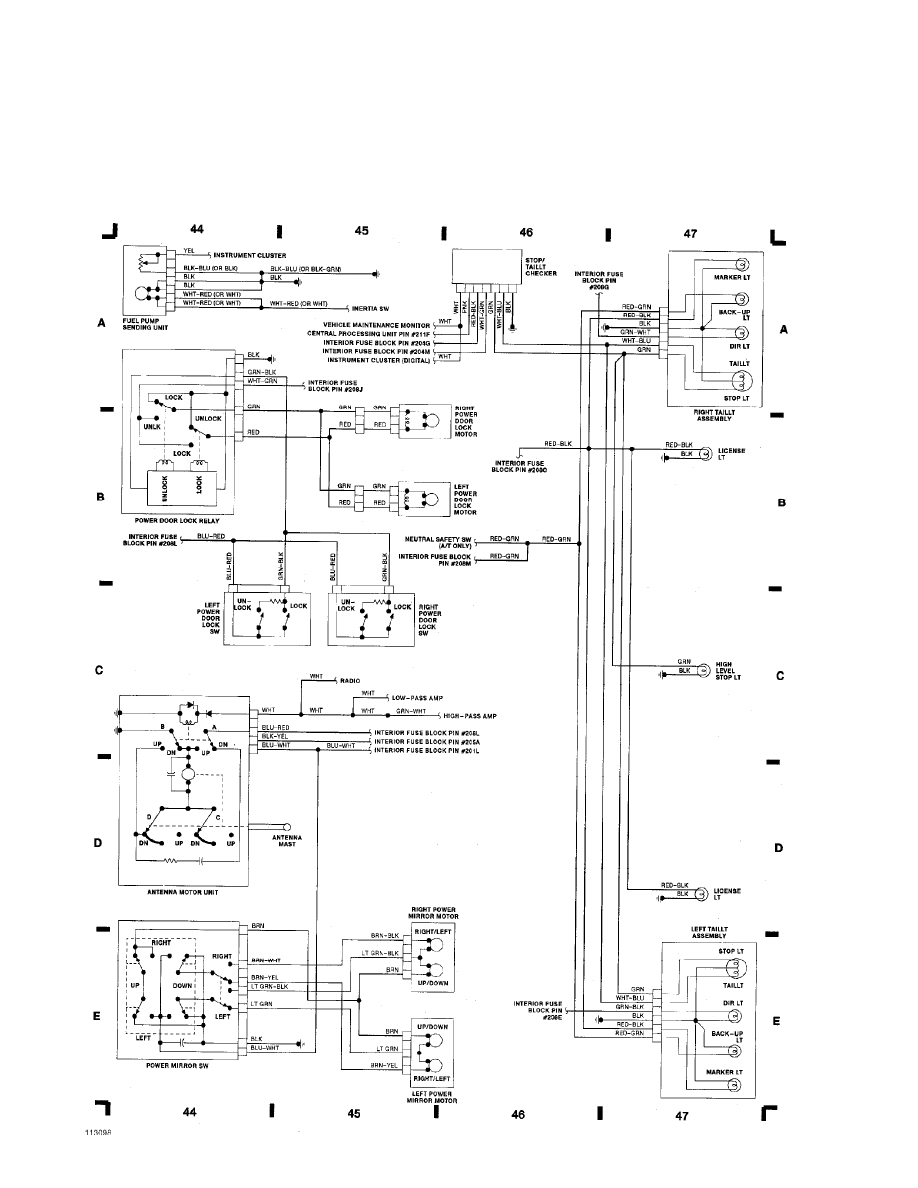

Fig. 12: Passenger Compartment & Taillights (p. 12)

1989 Ford Probe

For x

Thursday, November 25, 2004 01:05PM
