SAAB 9000 1990

SYSTEM WIRING DIAGRAMS

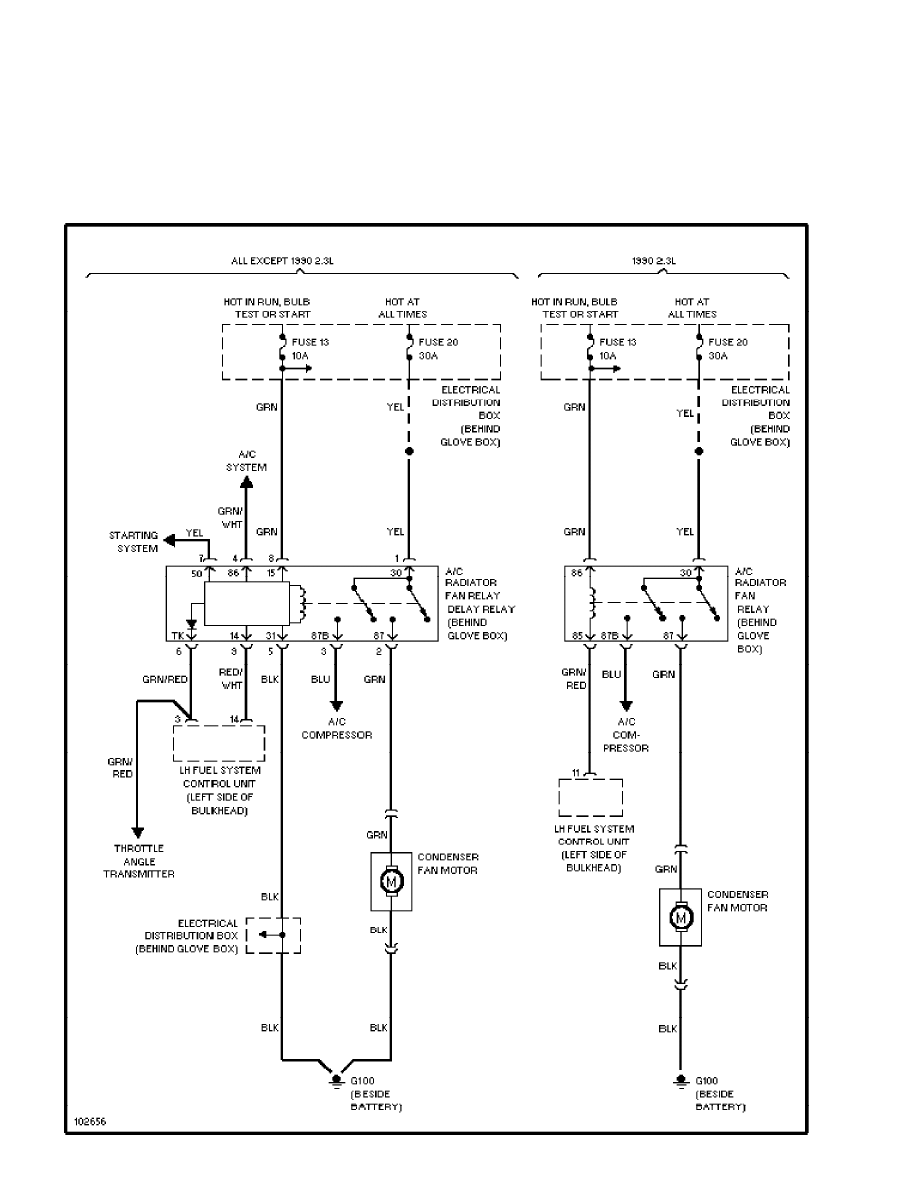

Auxiliary Cooling Fan Circuit, W/ A/C

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:43PM

SYSTEM WIRING DIAGRAMS

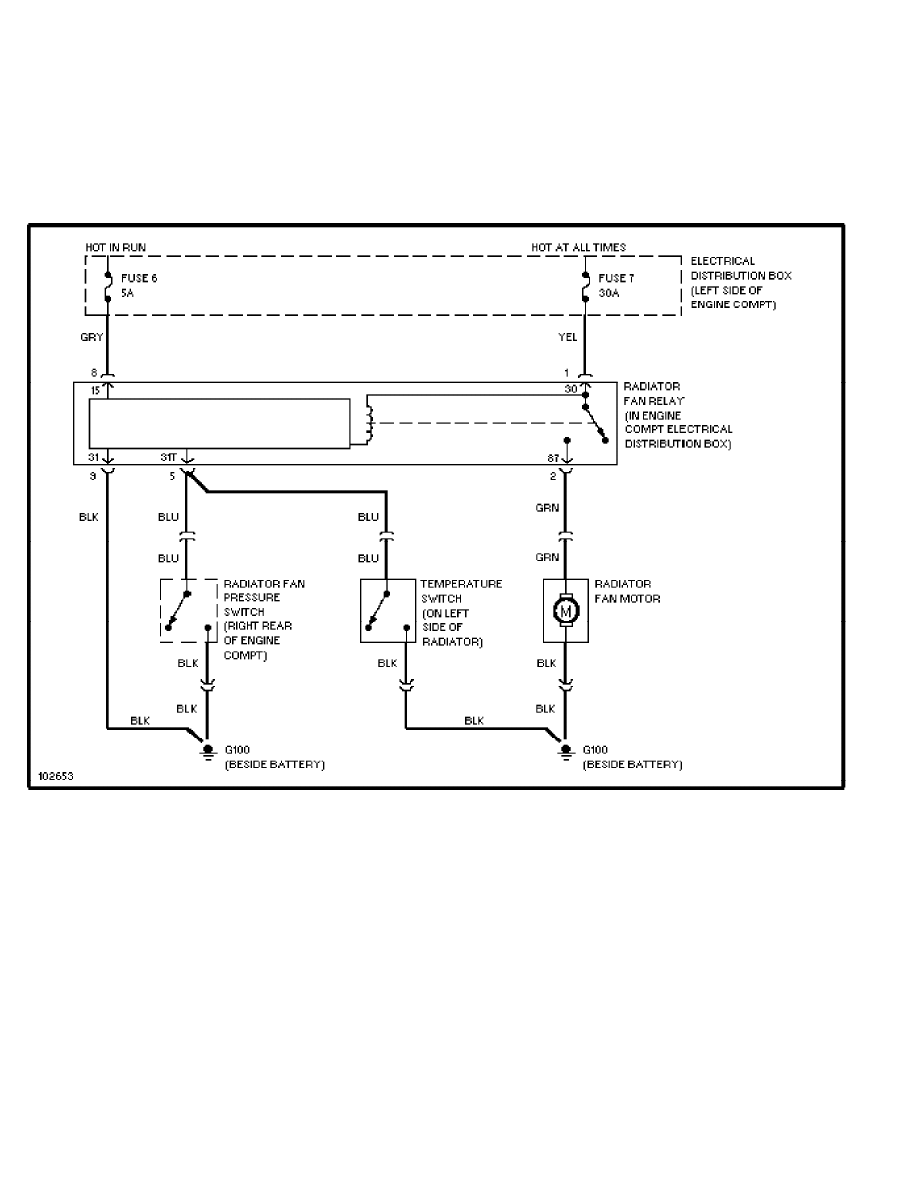

Radiator Cooling Fan Circuit, One Speed Radiator Fan (p. 2)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:43PM

SYSTEM WIRING DIAGRAMS

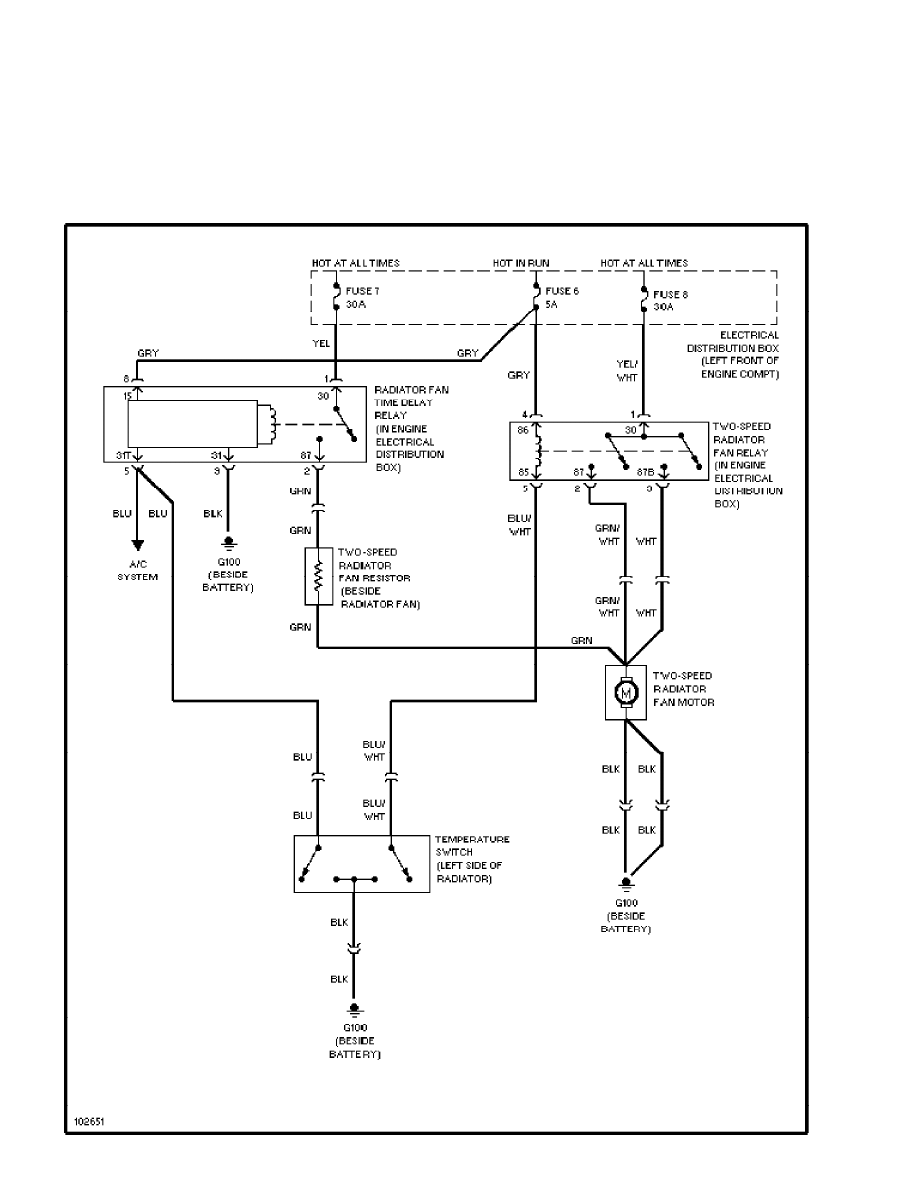

Radiator Cooling Fan Circuit, Two Speed Radiator Fan (p. 3)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:43PM

SYSTEM WIRING DIAGRAMS

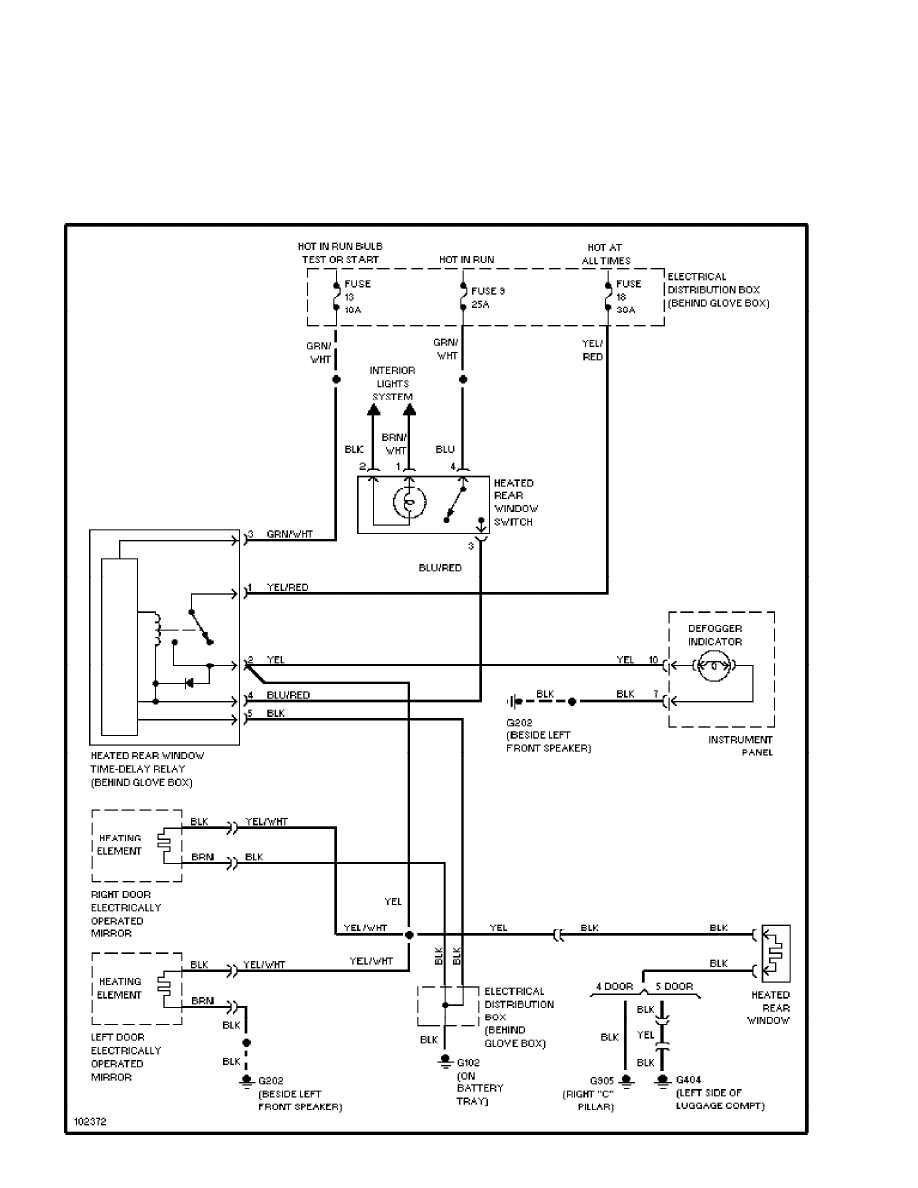

Defogger Circuit (p. 4)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:43PM

SYSTEM WIRING DIAGRAMS

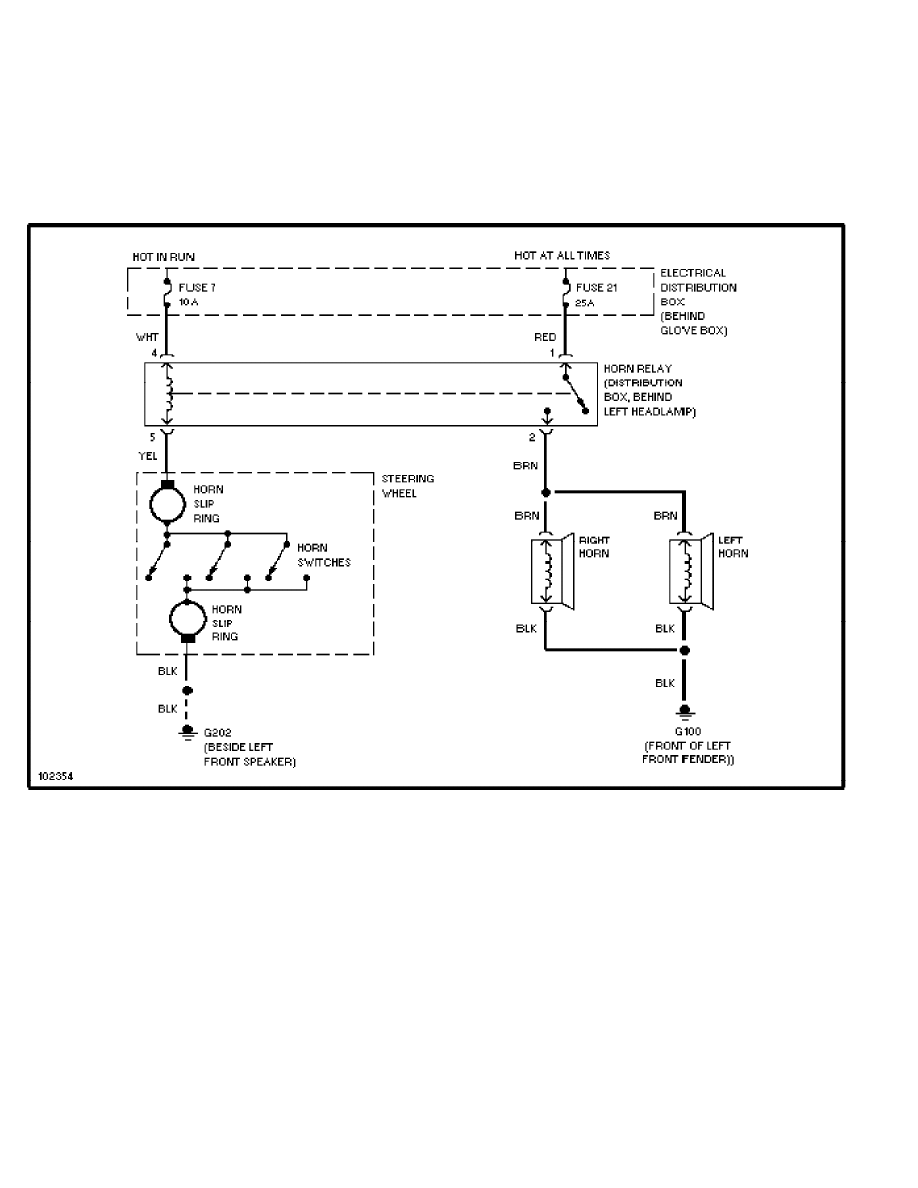

Horn Circuit (p. 5)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:43PM

SYSTEM WIRING DIAGRAMS

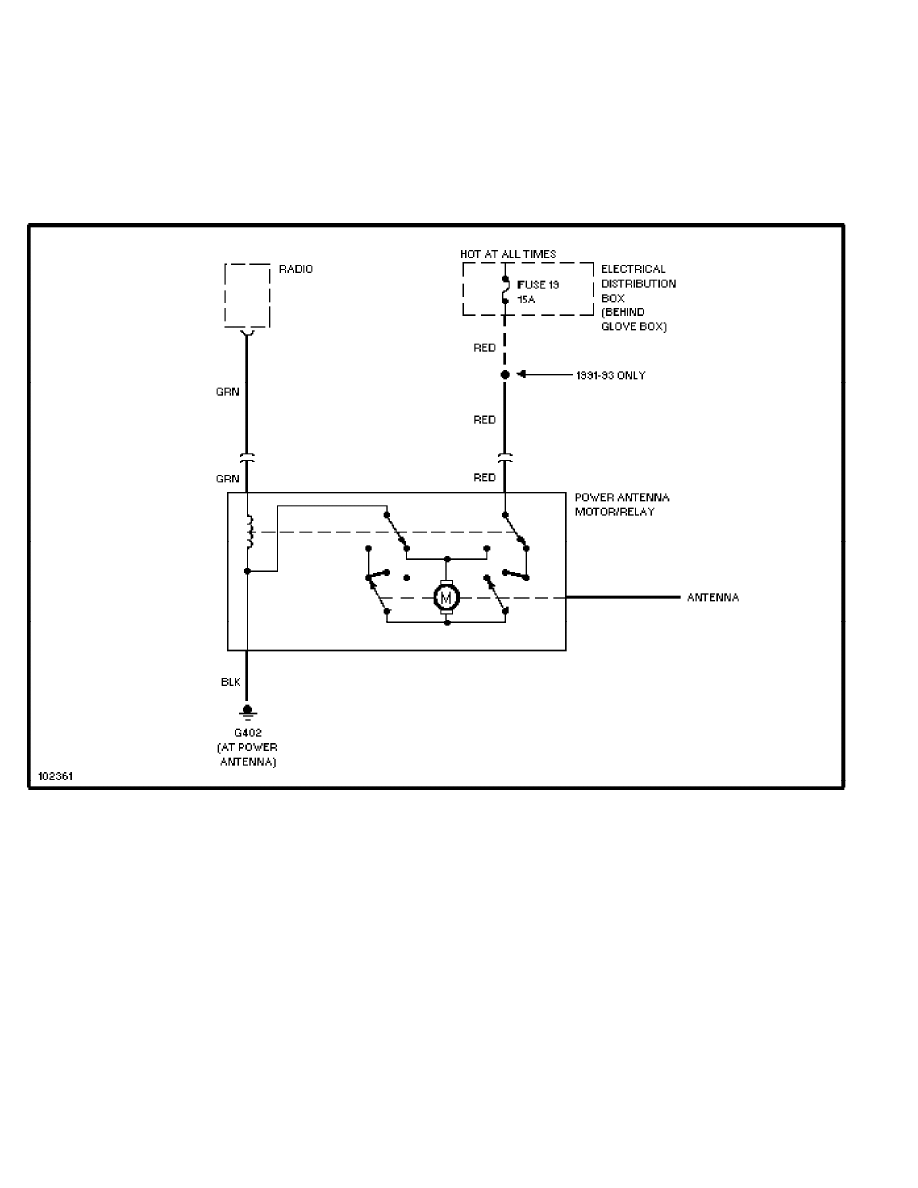

Power Antenna Circuit (p. 6)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:43PM

SYSTEM WIRING DIAGRAMS

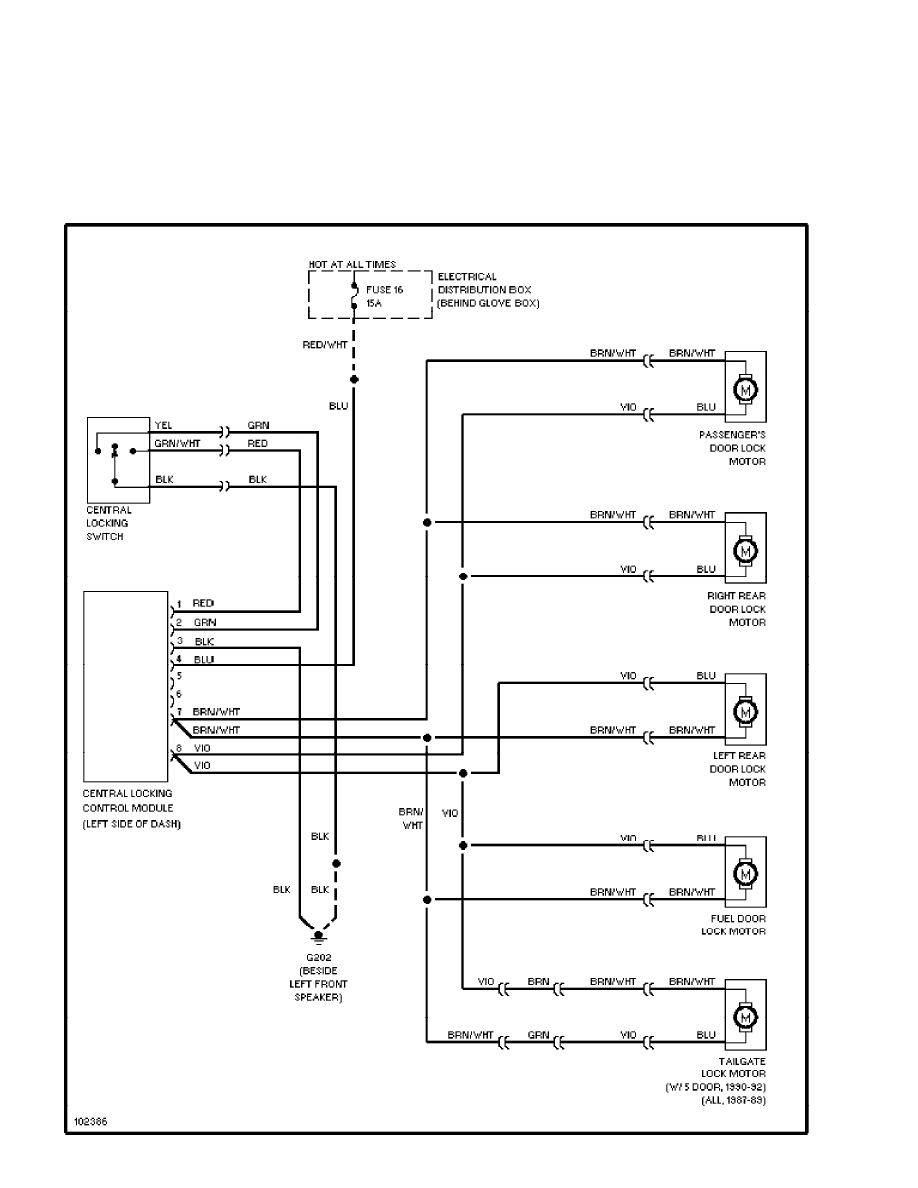

Power Door Lock Circuit (p. 7)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:43PM

SYSTEM WIRING DIAGRAMS

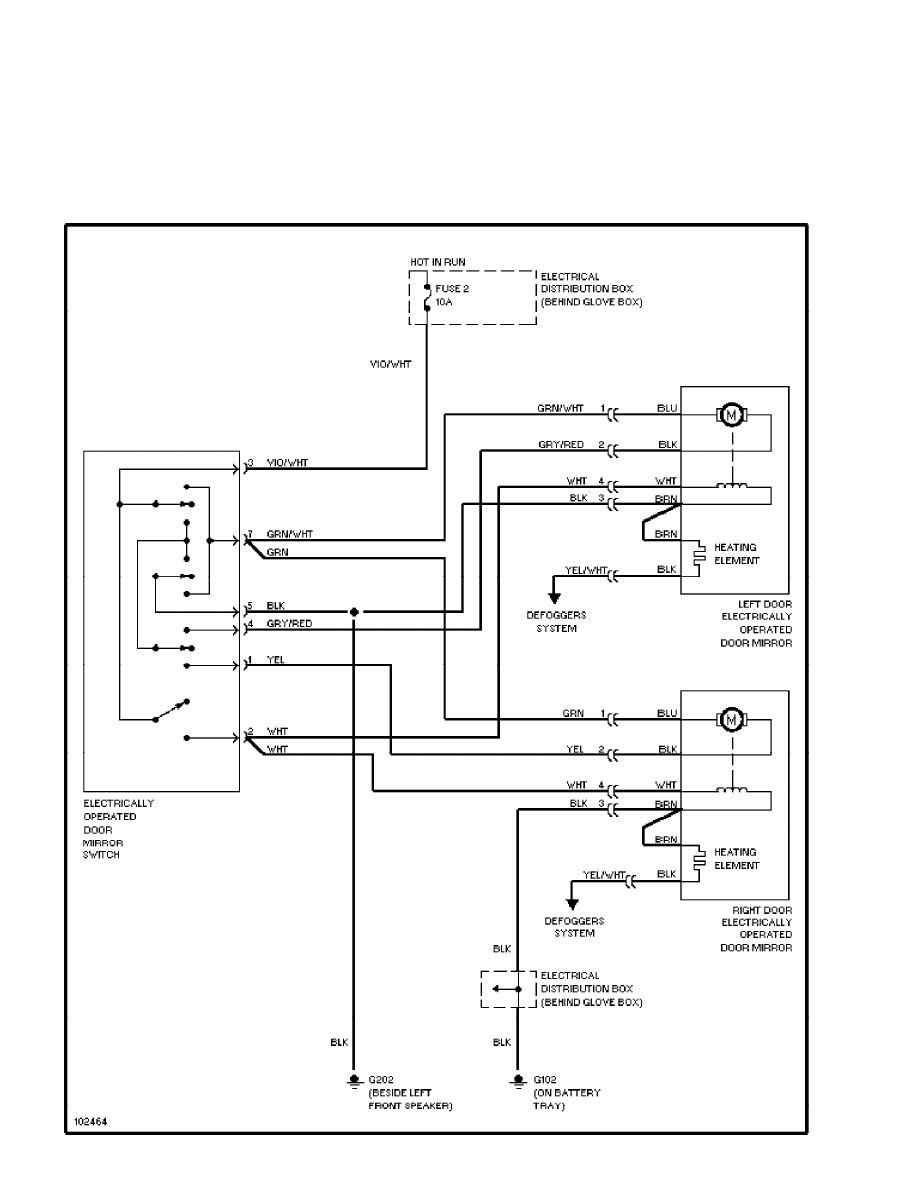

Power Mirror Circuit (p. 8)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:43PM

SYSTEM WIRING DIAGRAMS

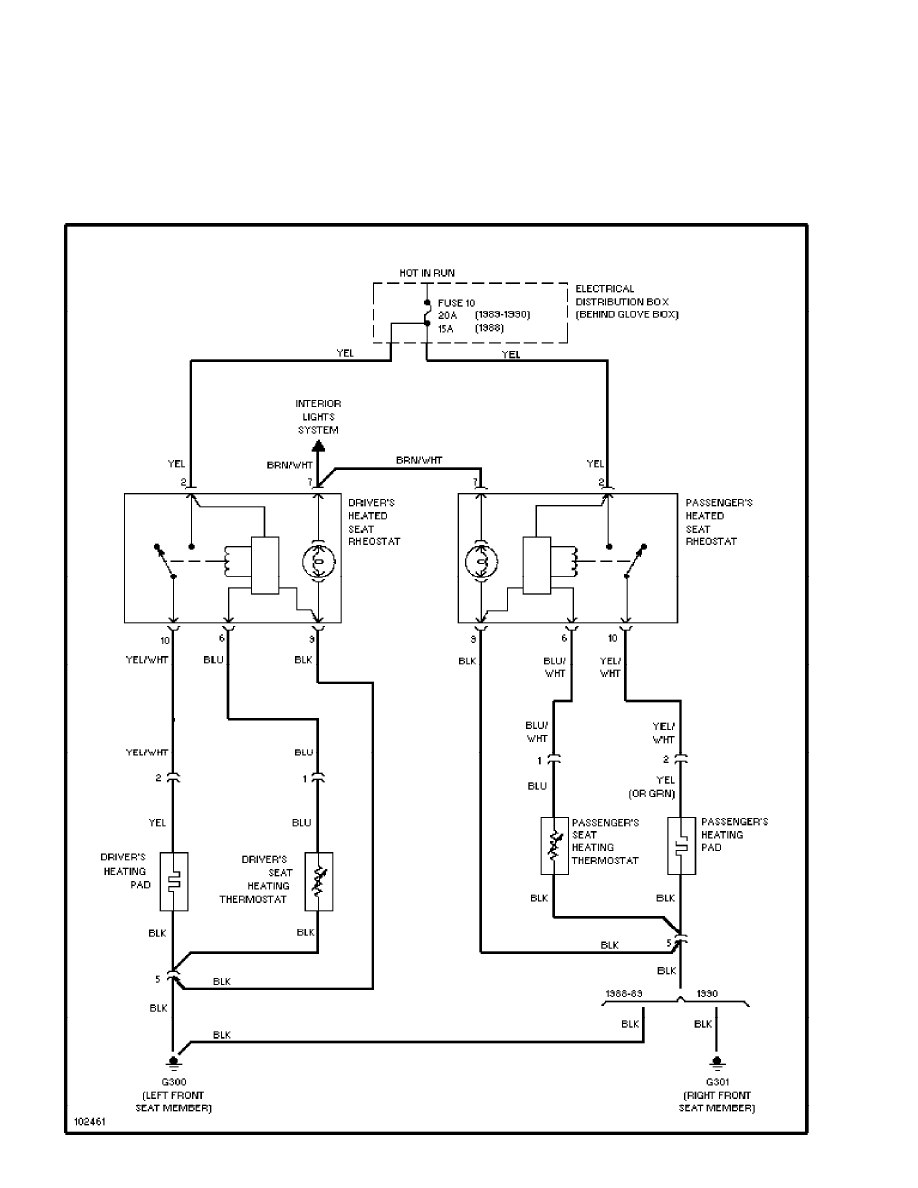

Heated Seats Circuit (p. 9)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:43PM

SYSTEM WIRING DIAGRAMS

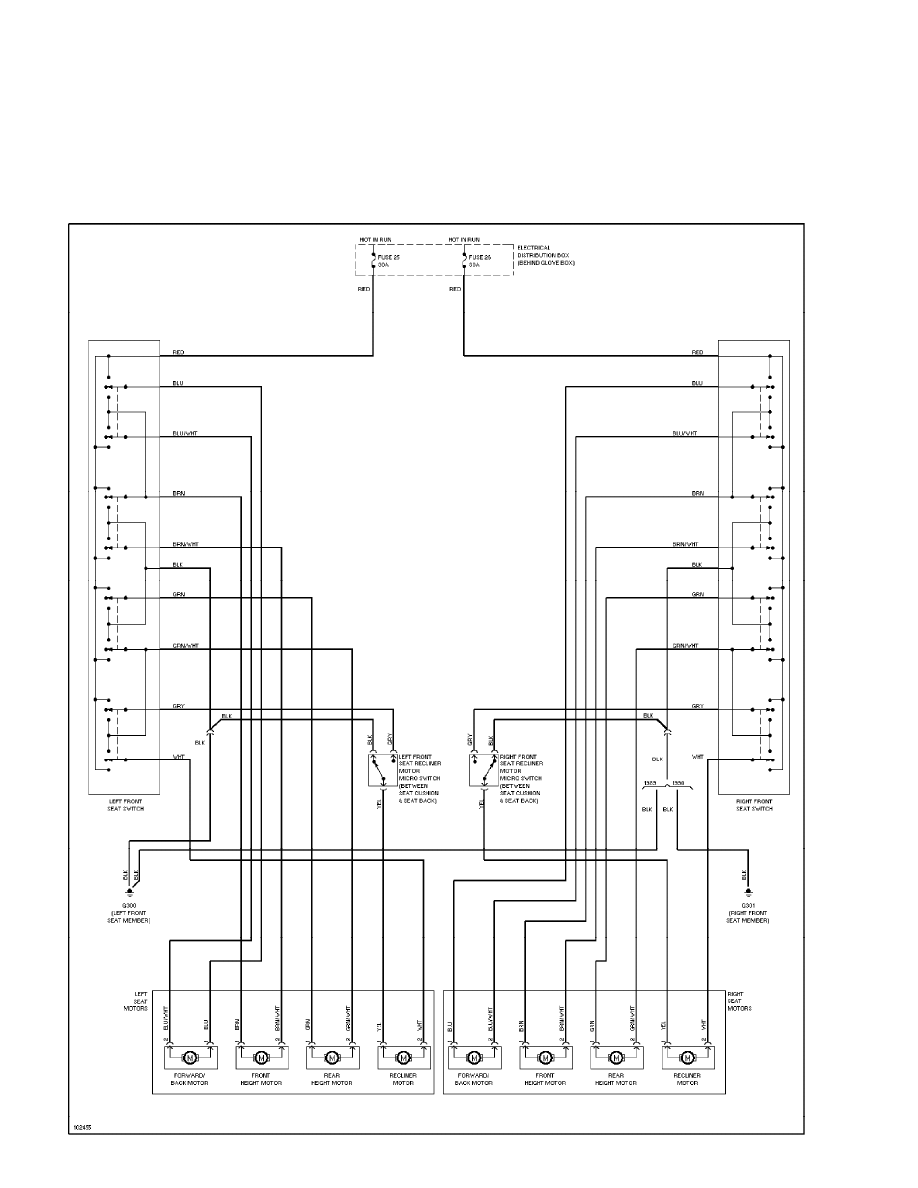

Power Seats Circuit (p. 10)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:43PM

SYSTEM WIRING DIAGRAMS

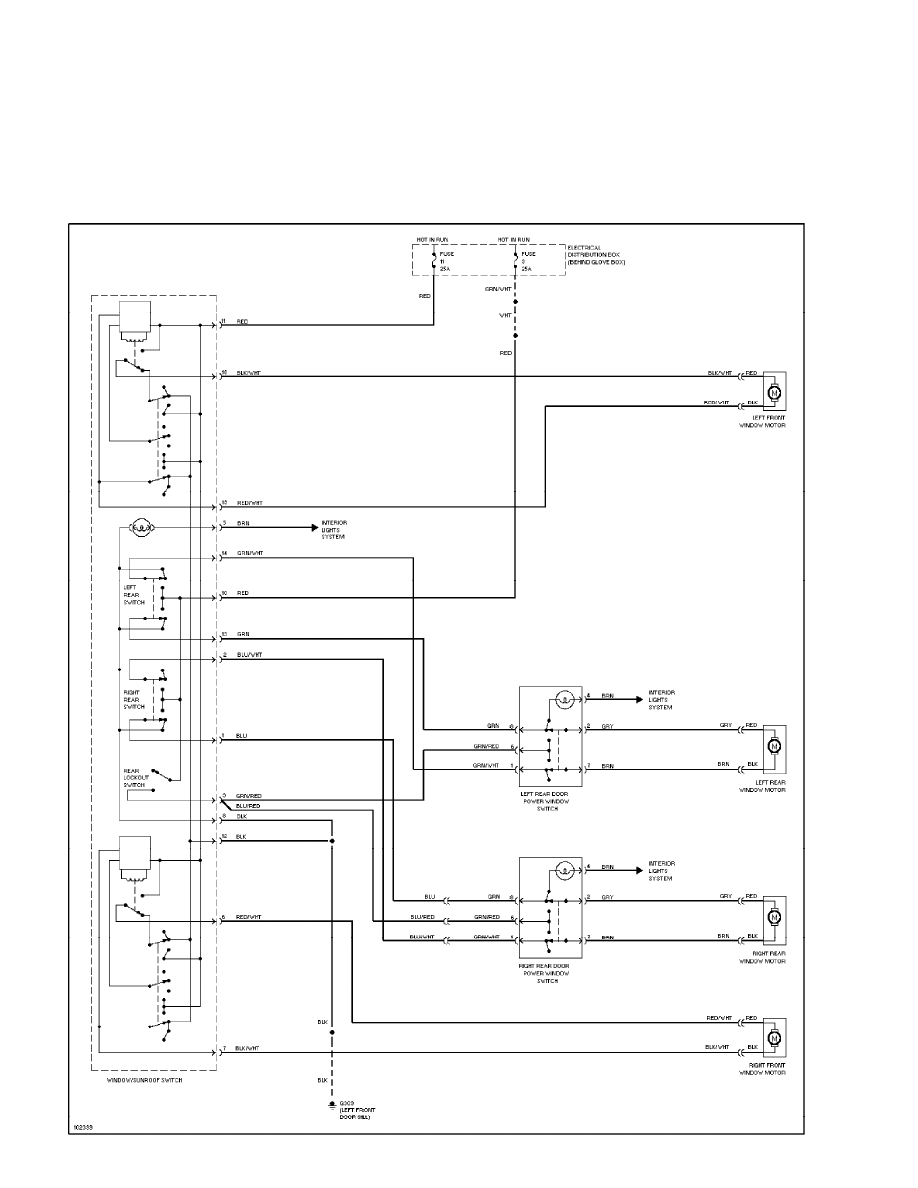

Power Window Circuit (p. 11)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:43PM

SYSTEM WIRING DIAGRAMS

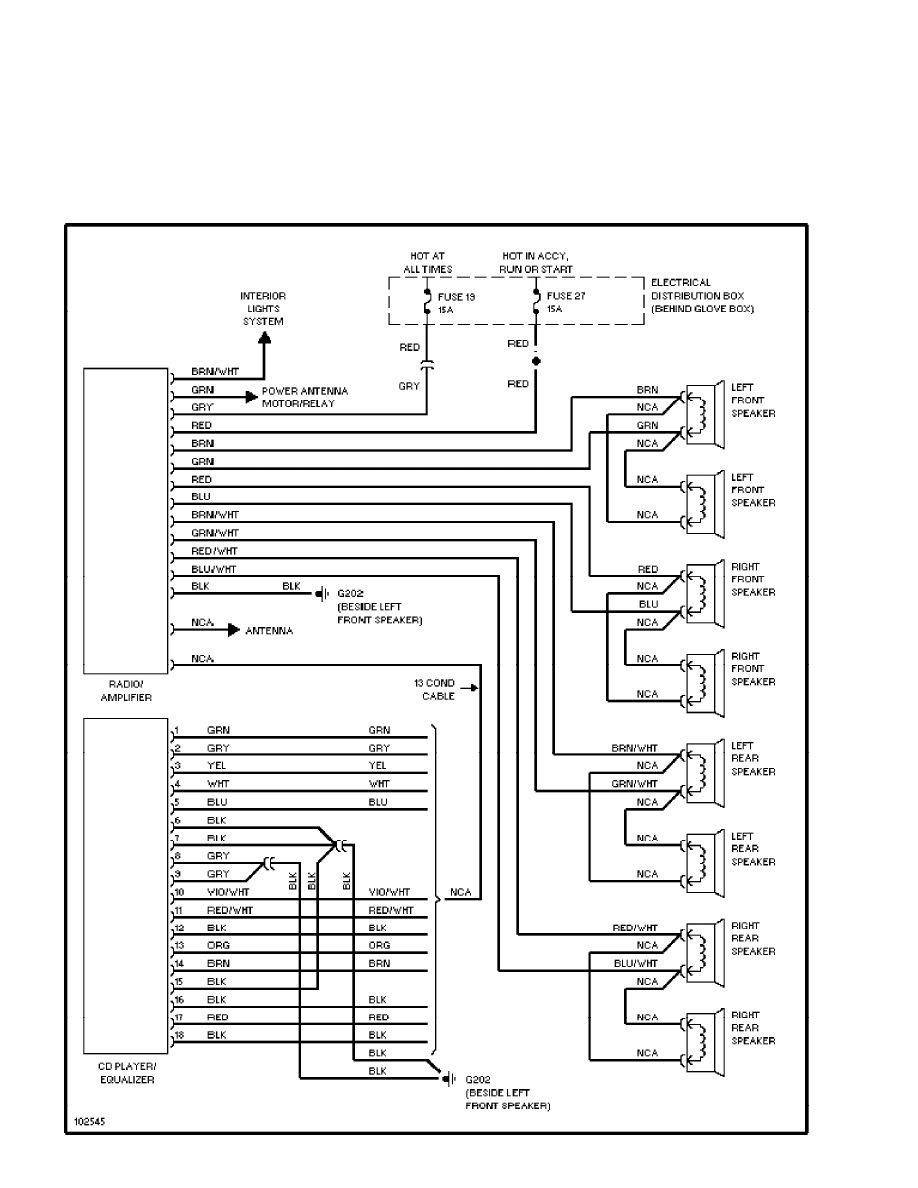

Radio Circuits (p. 12)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:43PM

SYSTEM WIRING DIAGRAMS

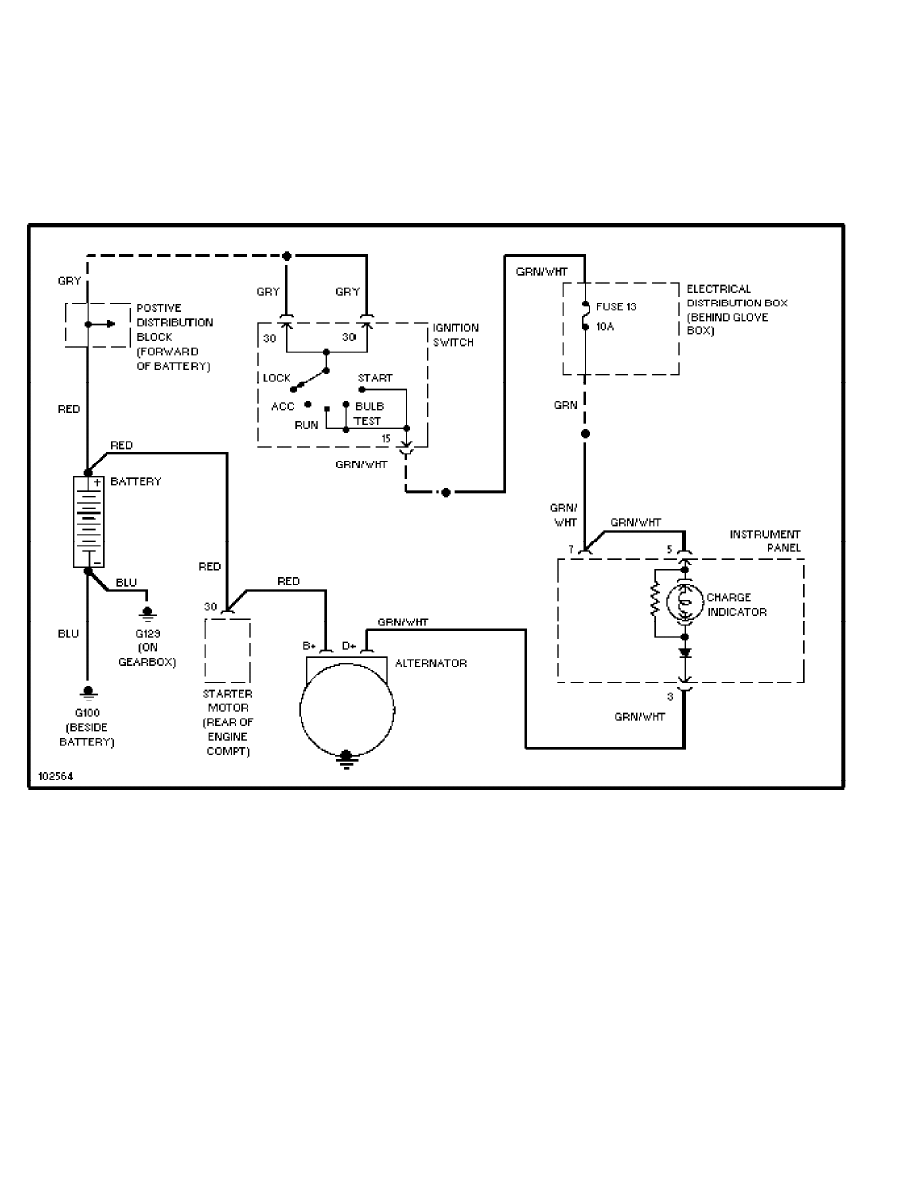

Charging Circuit (p. 13)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:43PM

SYSTEM WIRING DIAGRAMS

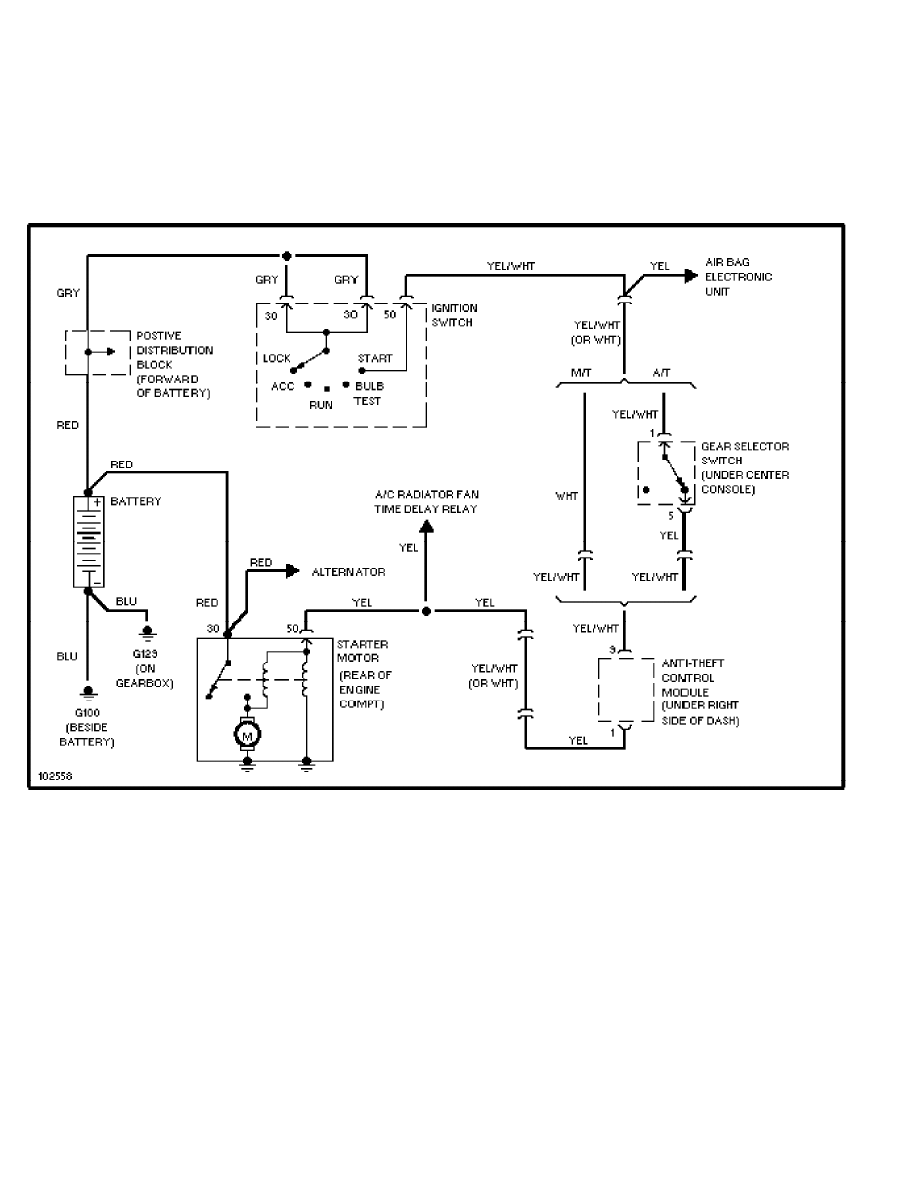

Starting Circuit (p. 14)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:43PM

SYSTEM WIRING DIAGRAMS

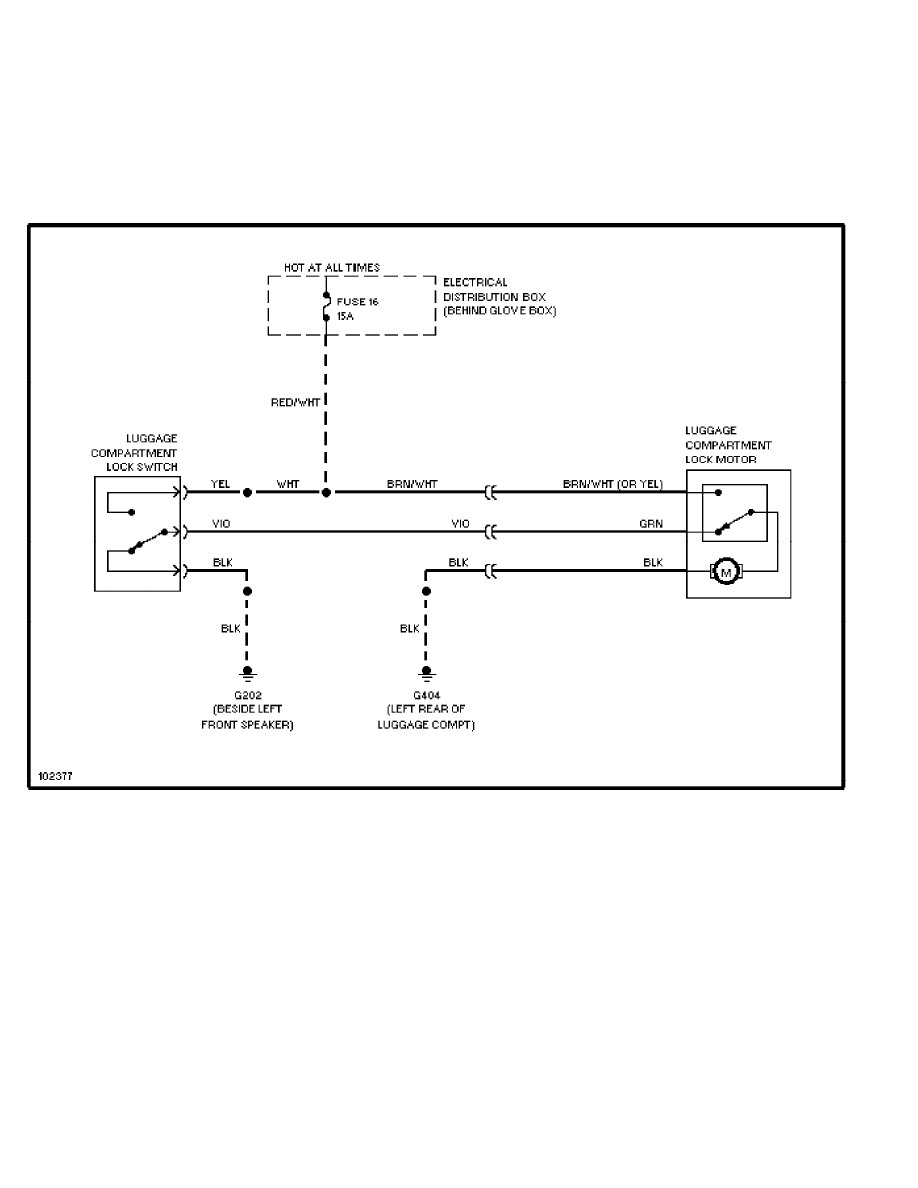

Trunk, Tailgate, Fuel Door Circuits (p. 15)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:43PM

SYSTEM WIRING DIAGRAMS

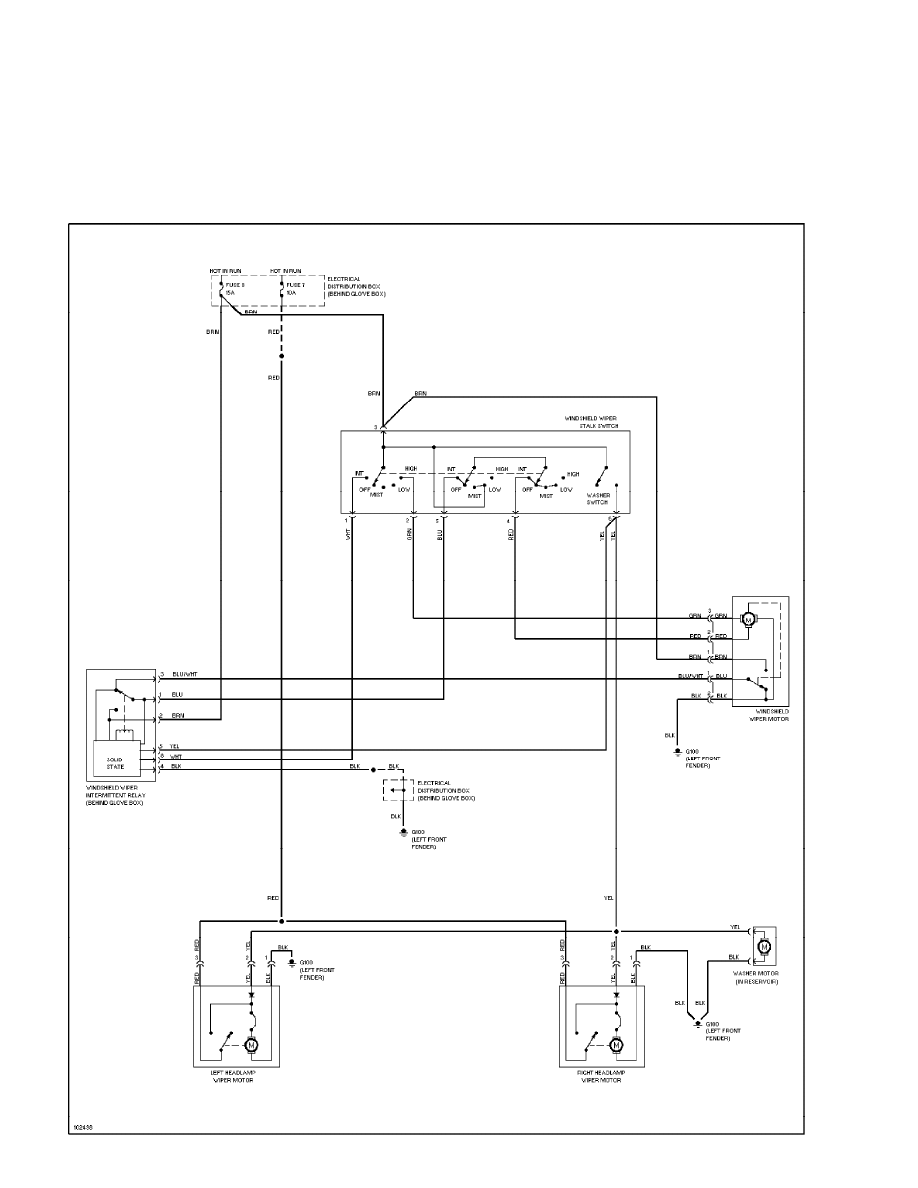

Front & Headlight Washer/Wiper Circuit (p. 16)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:43PM

WIRING DIAGRAMS

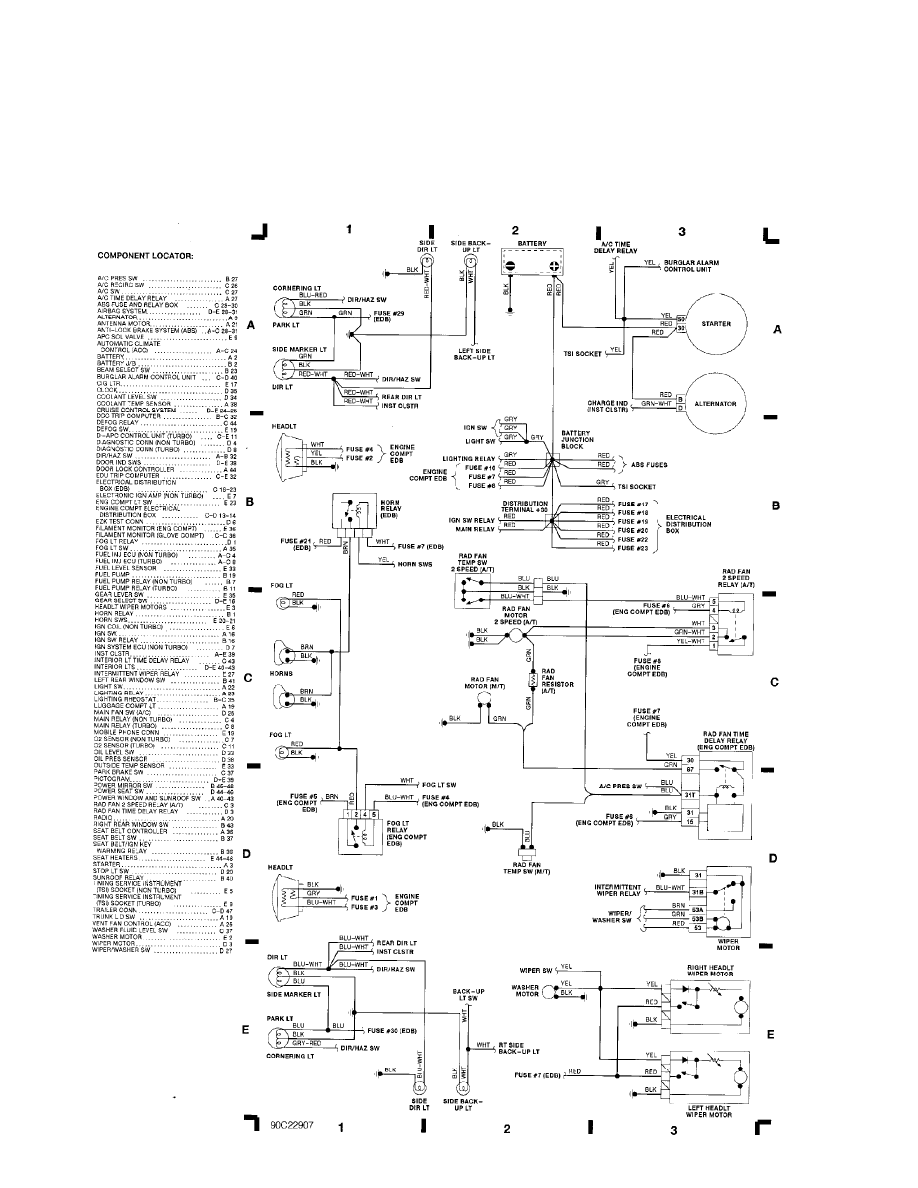

Fig. 1: Engine Compartment & Headlights (Grid 1-3)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:44PM

WIRING DIAGRAMS

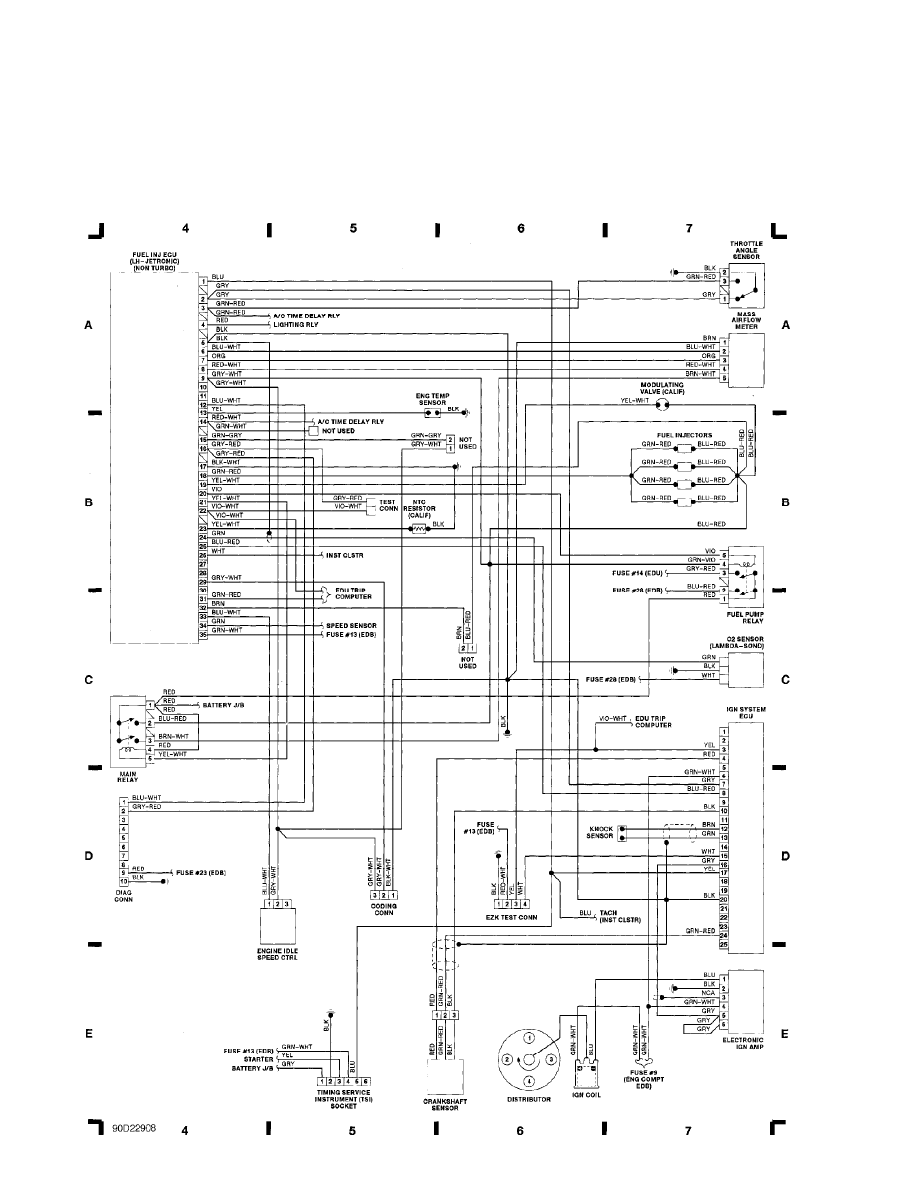

Fig. 2: Computer Engine Control (Non Turbo) (Grid 4-7) (p. 2)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:44PM

WIRING DIAGRAMS

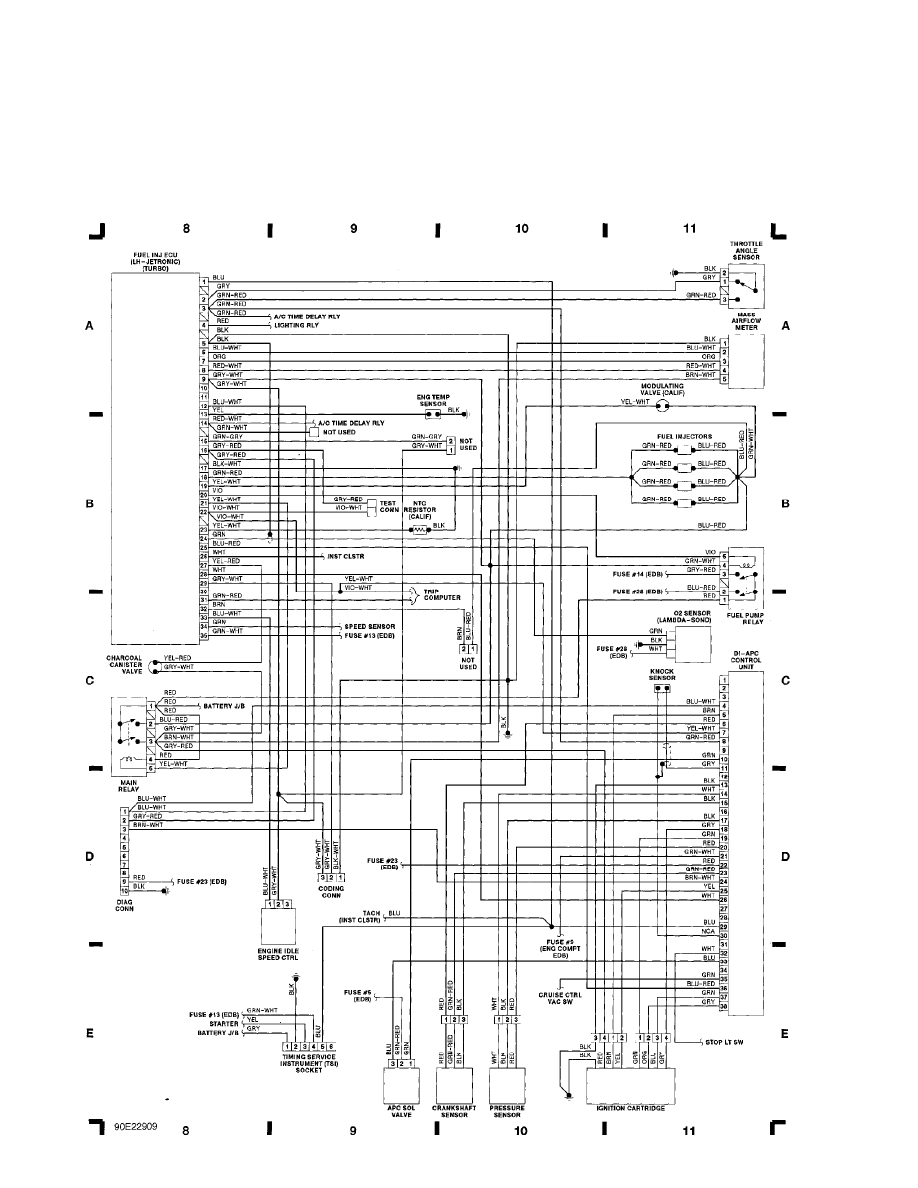

Fig. 3: Computer Engine Control (Turbo) (Grid 8-11) (p. 3)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:44PM

WIRING DIAGRAMS

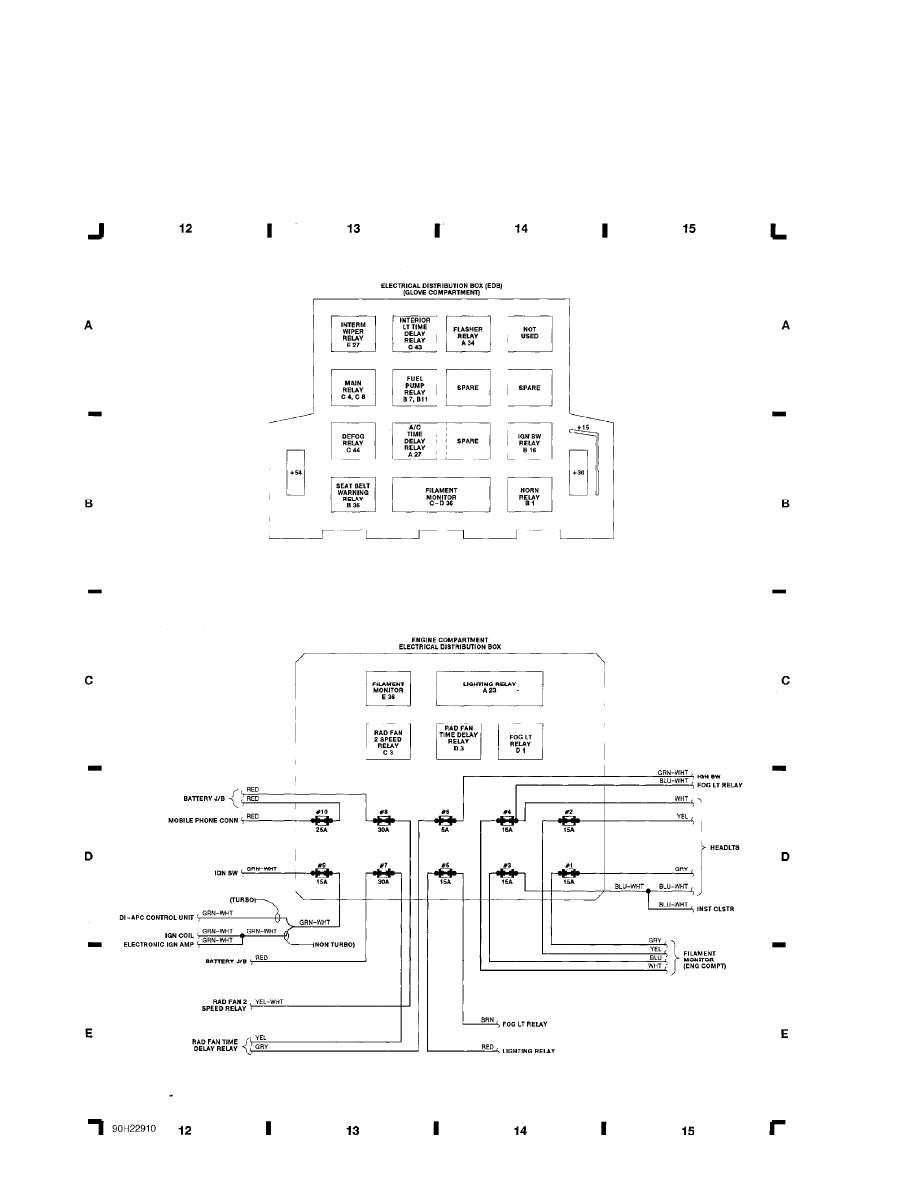

Fig. 4: Glove Box & Eng Compt Fuse & Relay Box (Grid 12-15) (p. 4)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:44PM

WIRING DIAGRAMS

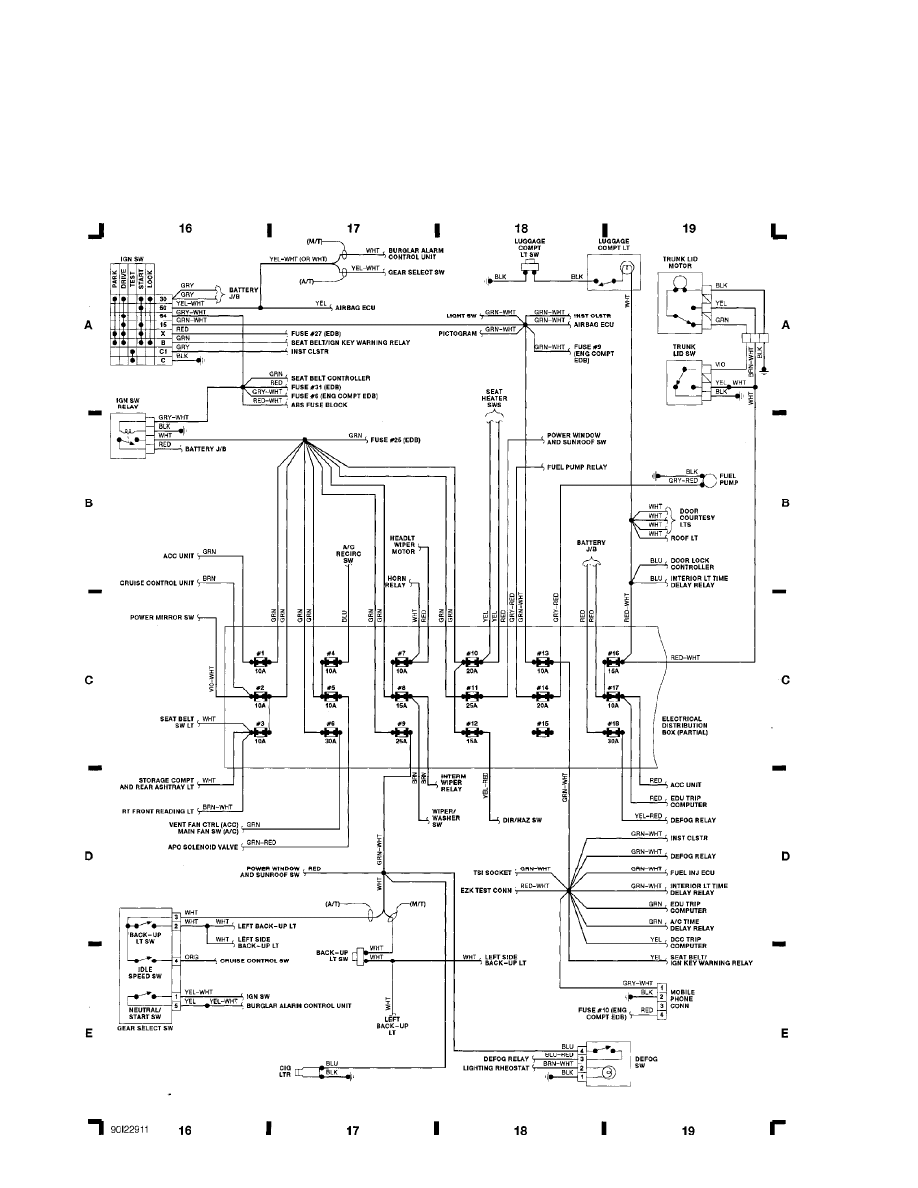

Fig. 5: Fuse Block (Partial) (Grid 16-19) (p. 5)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:44PM

WIRING DIAGRAMS

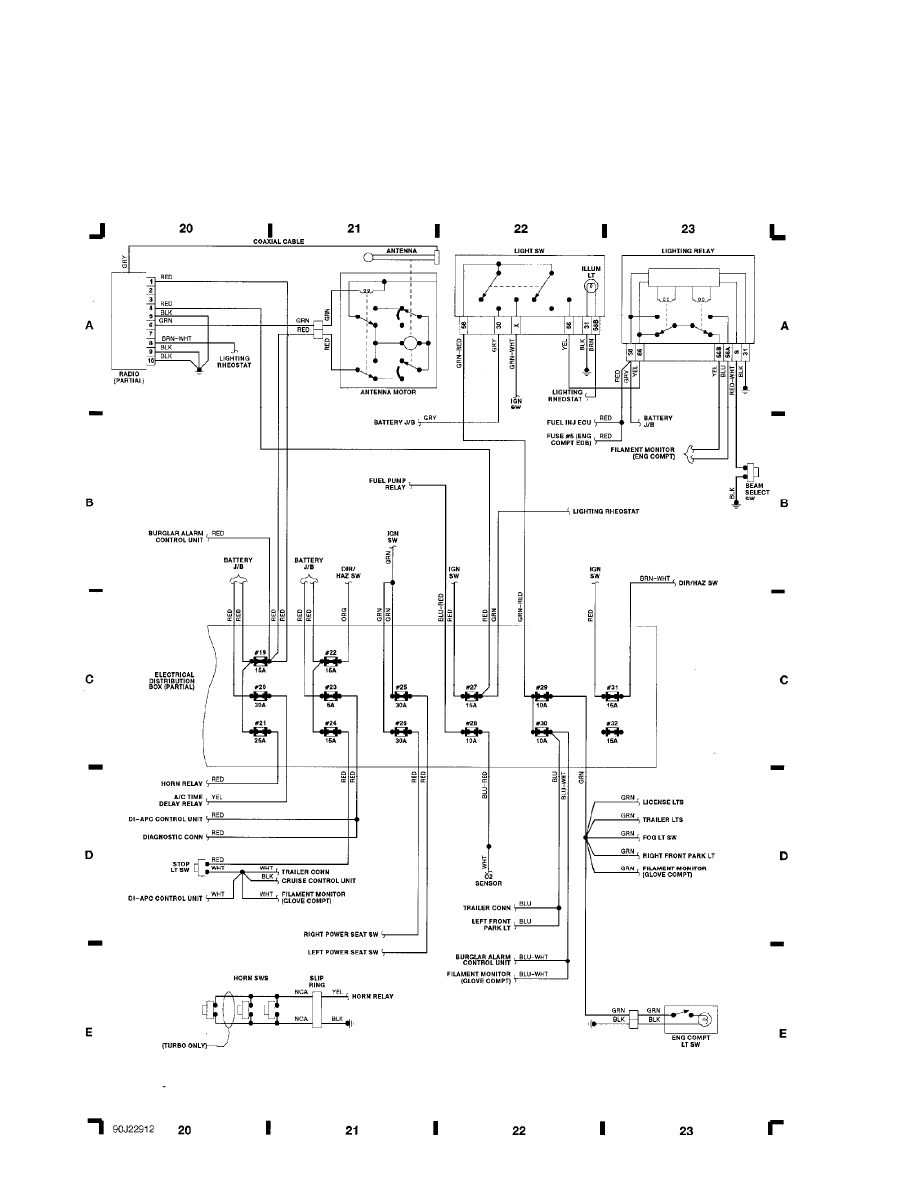

Fig. 6: Fuse Block (Cont), Light Switch/Relay (Grid 20-23) (p. 6)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:44PM

WIRING DIAGRAMS

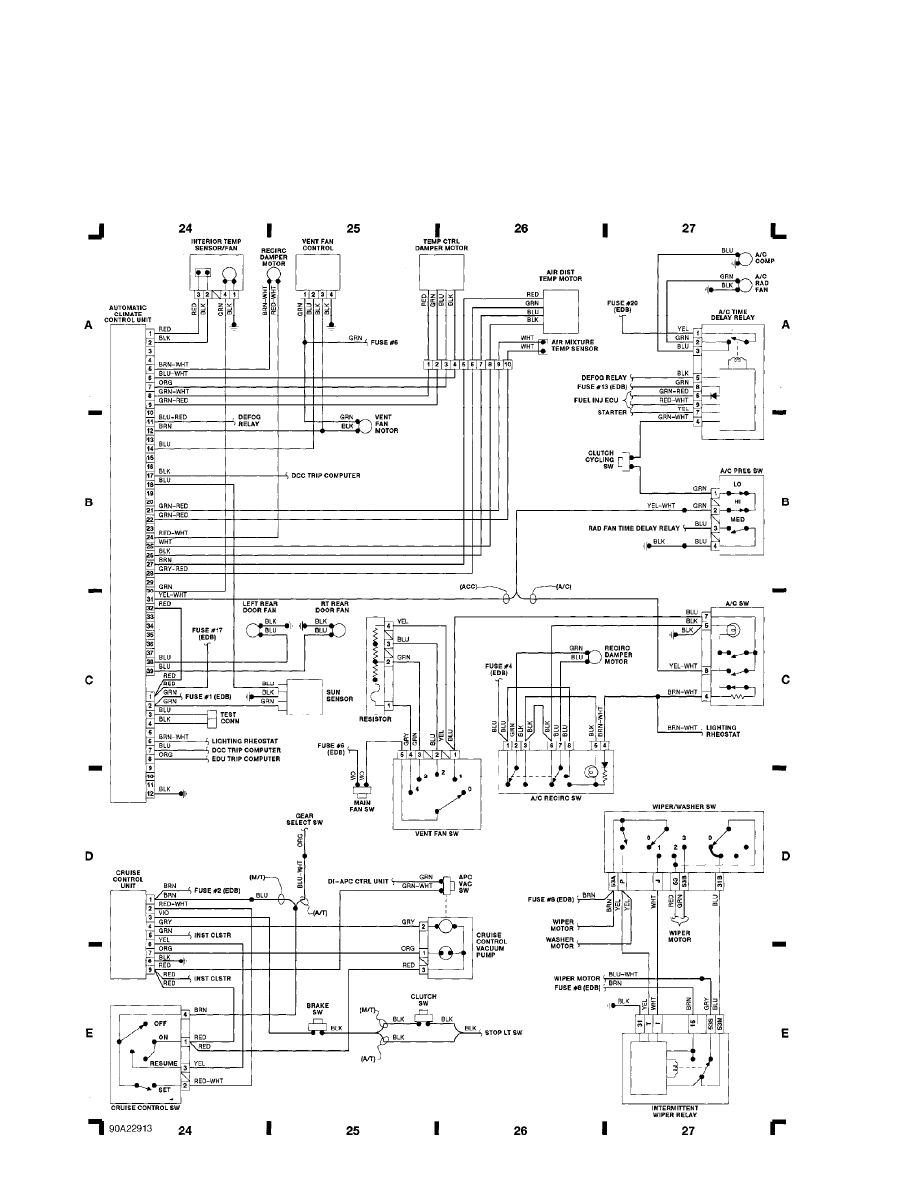

Fig. 7: A/C & Heater, Cruise Control, Wiper/Washer (Grid 24-27) (p. 7)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:44PM

WIRING DIAGRAMS

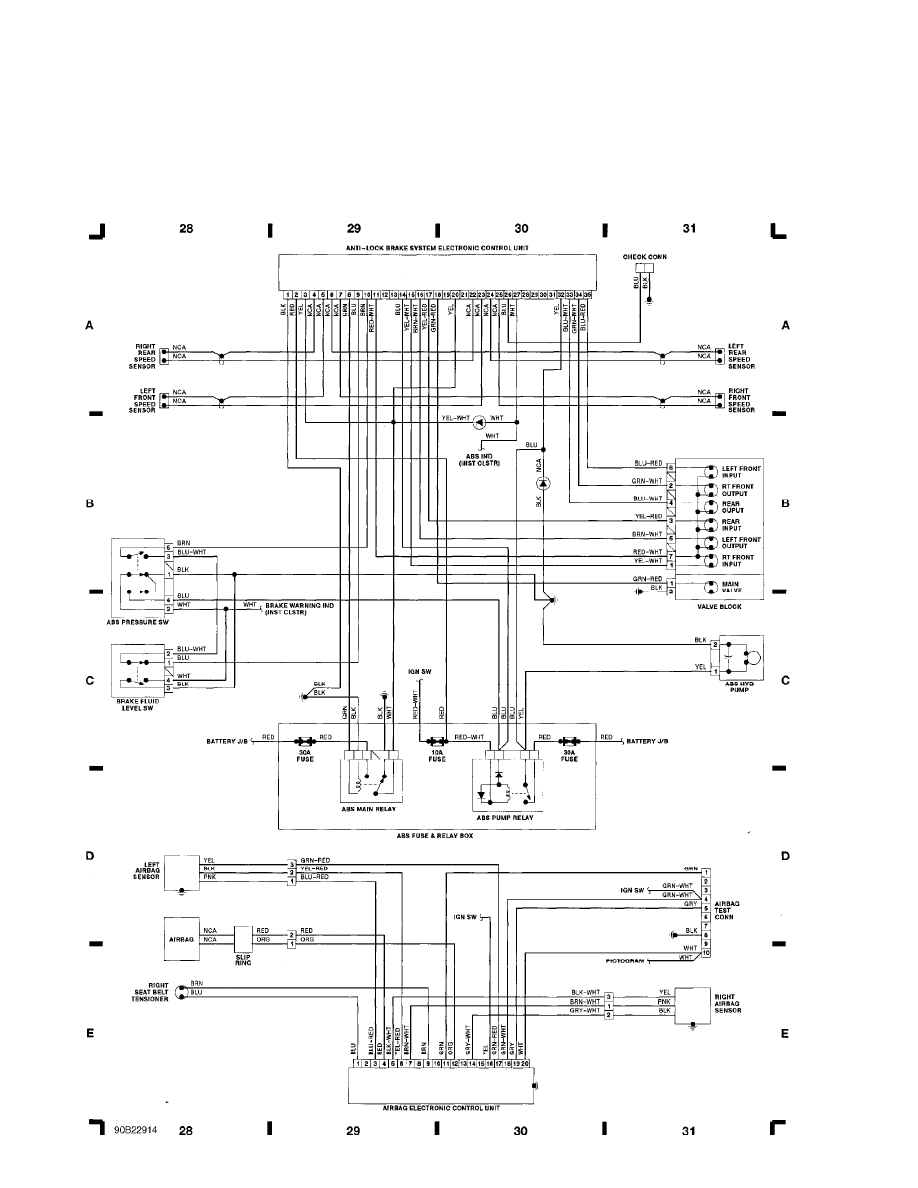

Fig. 8: ABS, Airbag (Grid 28-31) (p. 8)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:44PM

WIRING DIAGRAMS

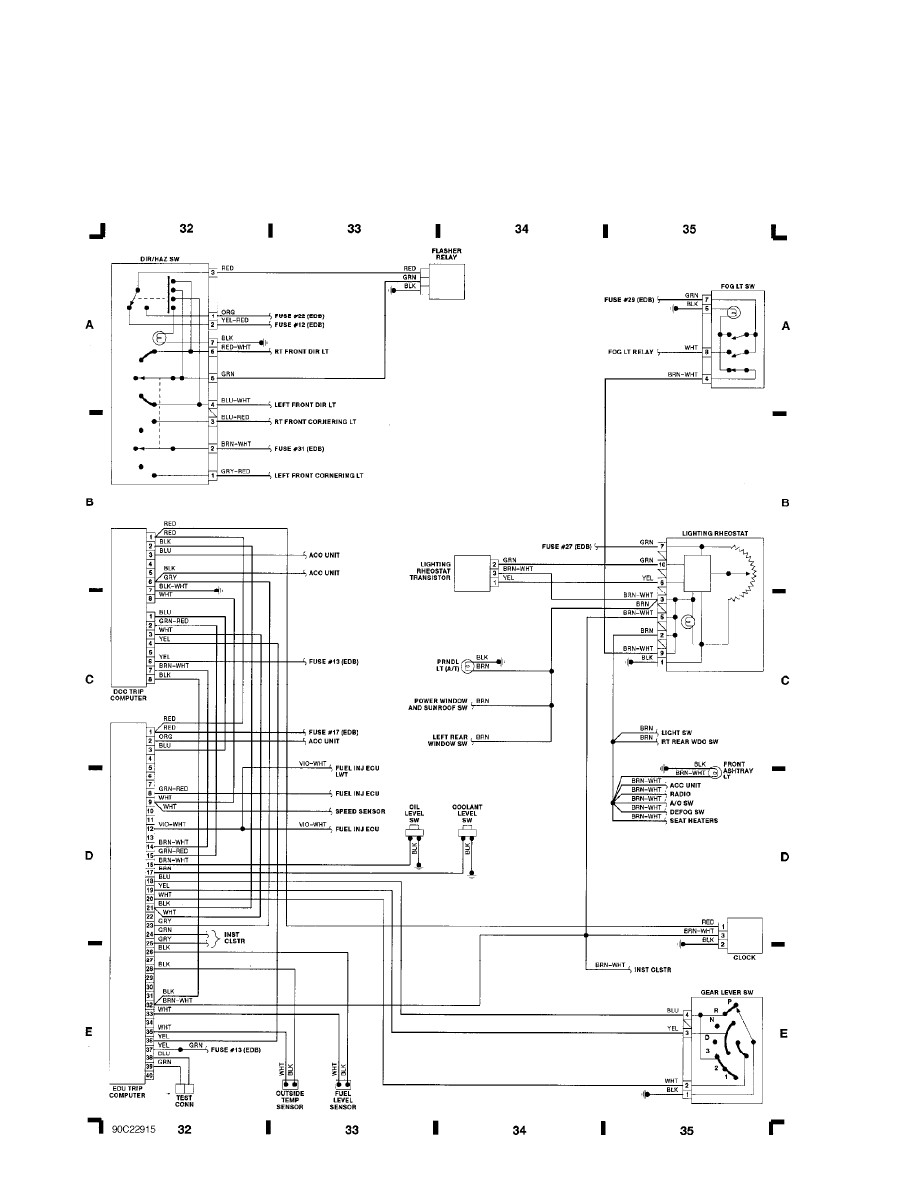

Fig. 9: Trip Computers, Dir/Haz Switch (Grid 32-35) (p. 9)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:44PM

WIRING DIAGRAMS

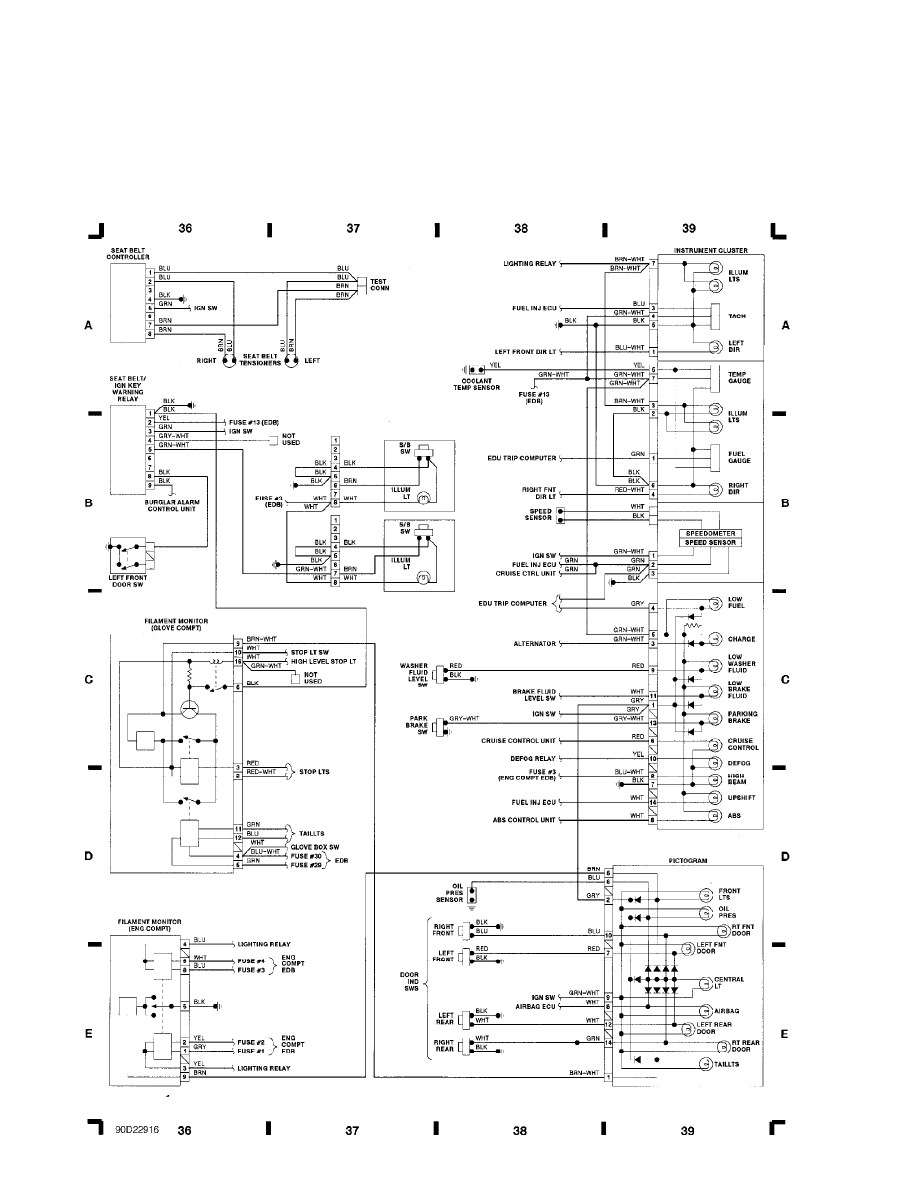

Fig. 10: Instrument Panel, Filament monitor (Grid 36-39) (p. 10)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:44PM

WIRING DIAGRAMS

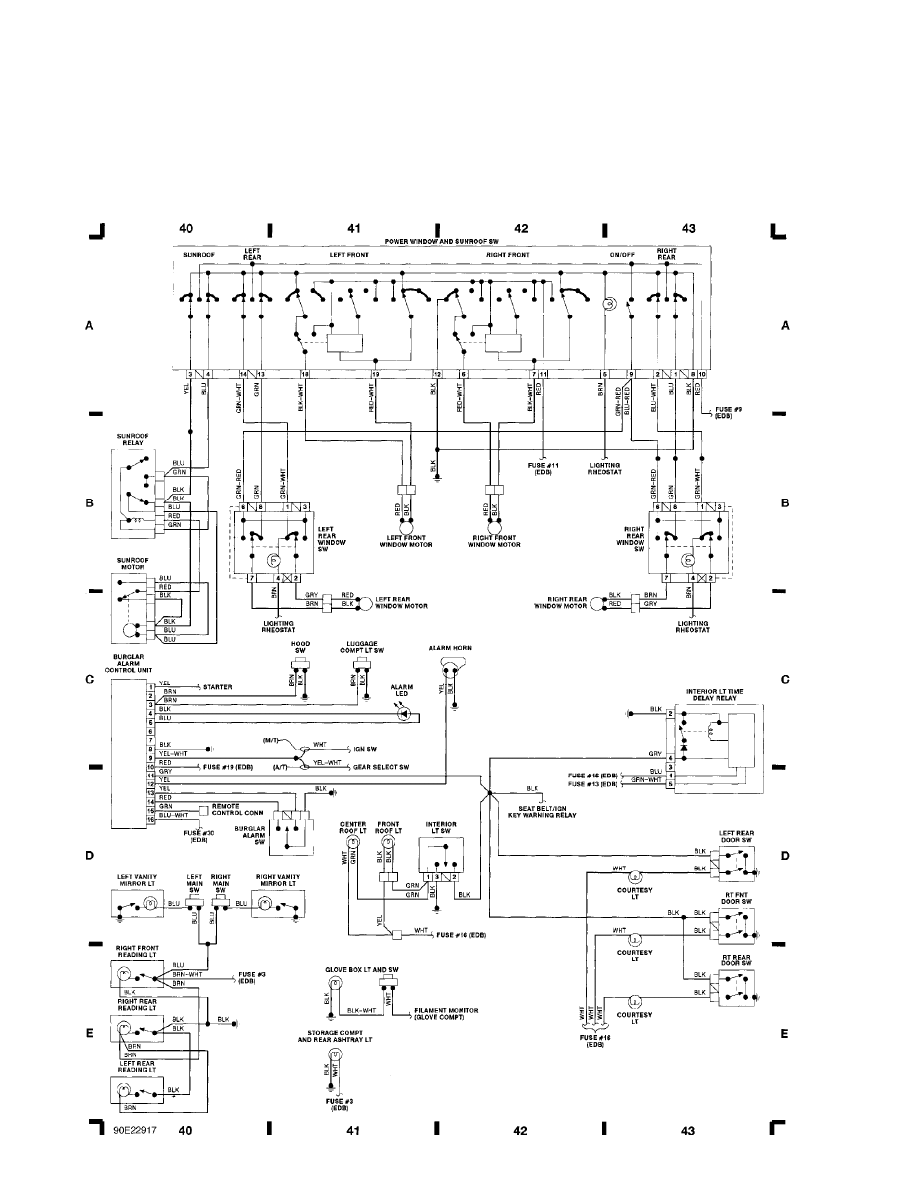

Fig. 11: Burglar Alarm, Interior Light, Power Window (Grid 40-43) (p. 11)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:44PM

WIRING DIAGRAMS

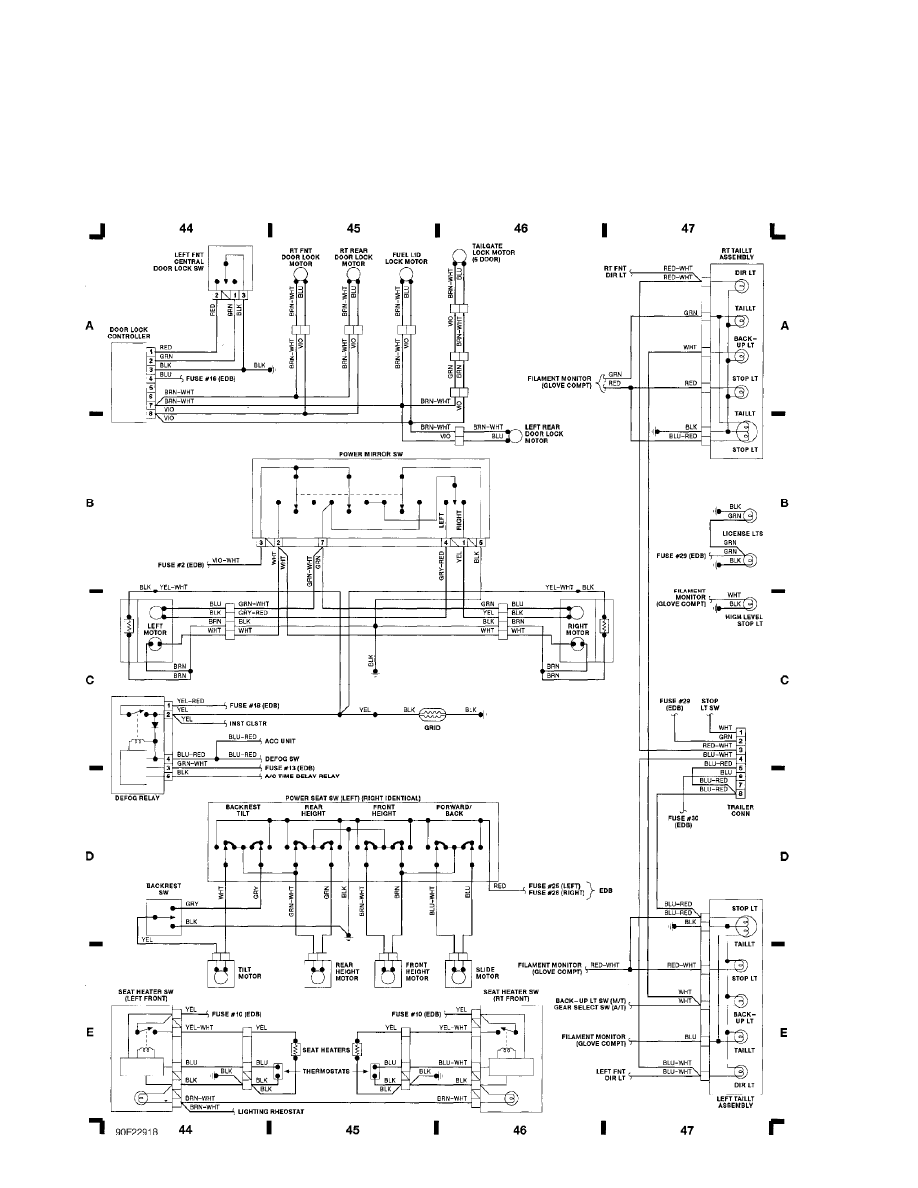

Fig. 12: Power Door/Mirror/Seat, Taillights (Grid 44-47) (p. 12)

1990 Saab 9000

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:44PM
