SYSTEM WIRING DIAGRAMS

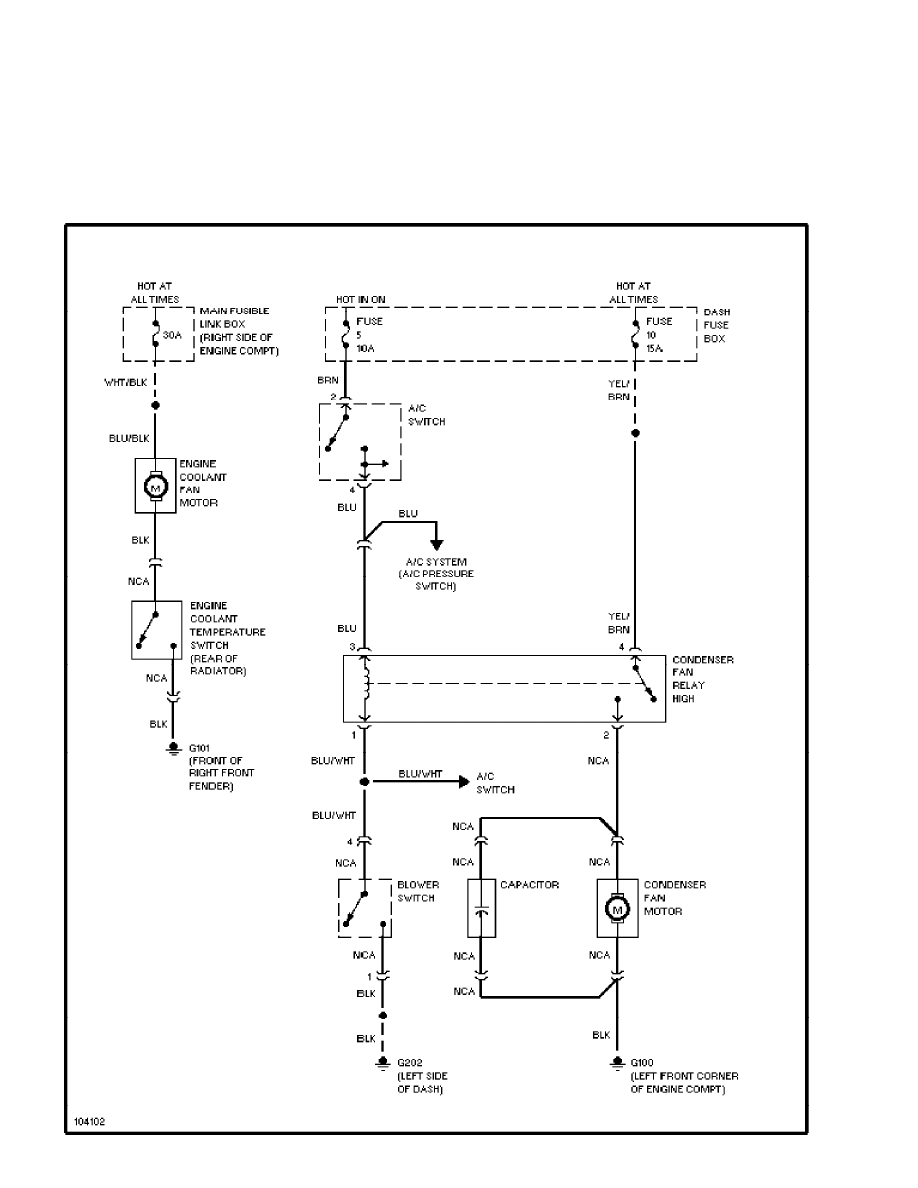

Cooling Fan Circuit
1988 Mitsubishi Precis
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:16PM
SYSTEM WIRING DIAGRAMS

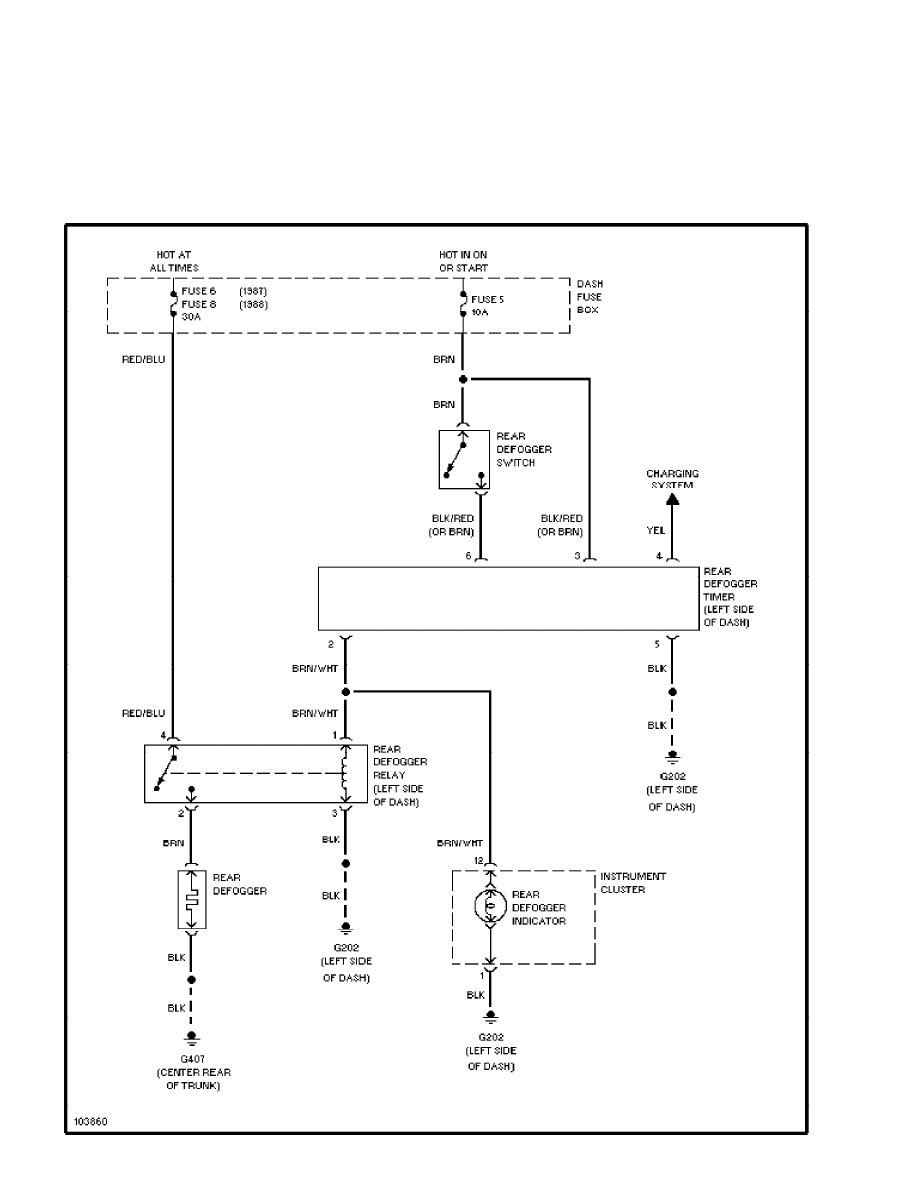

Defogger Circuit (p. 2)
1988 Mitsubishi Precis
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:16PM
SYSTEM WIRING DIAGRAMS

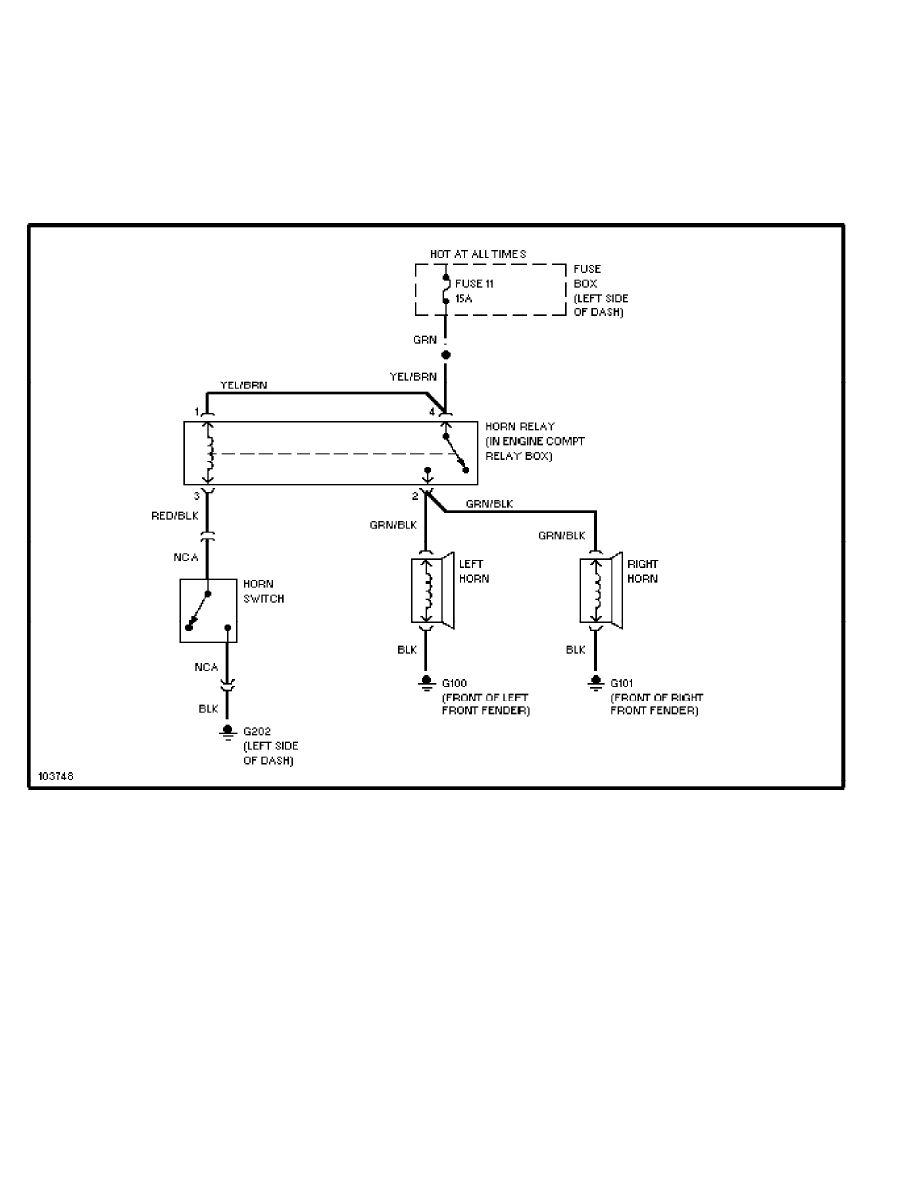

Horn Circuit (p. 3)
1988 Mitsubishi Precis
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:16PM
SYSTEM WIRING DIAGRAMS

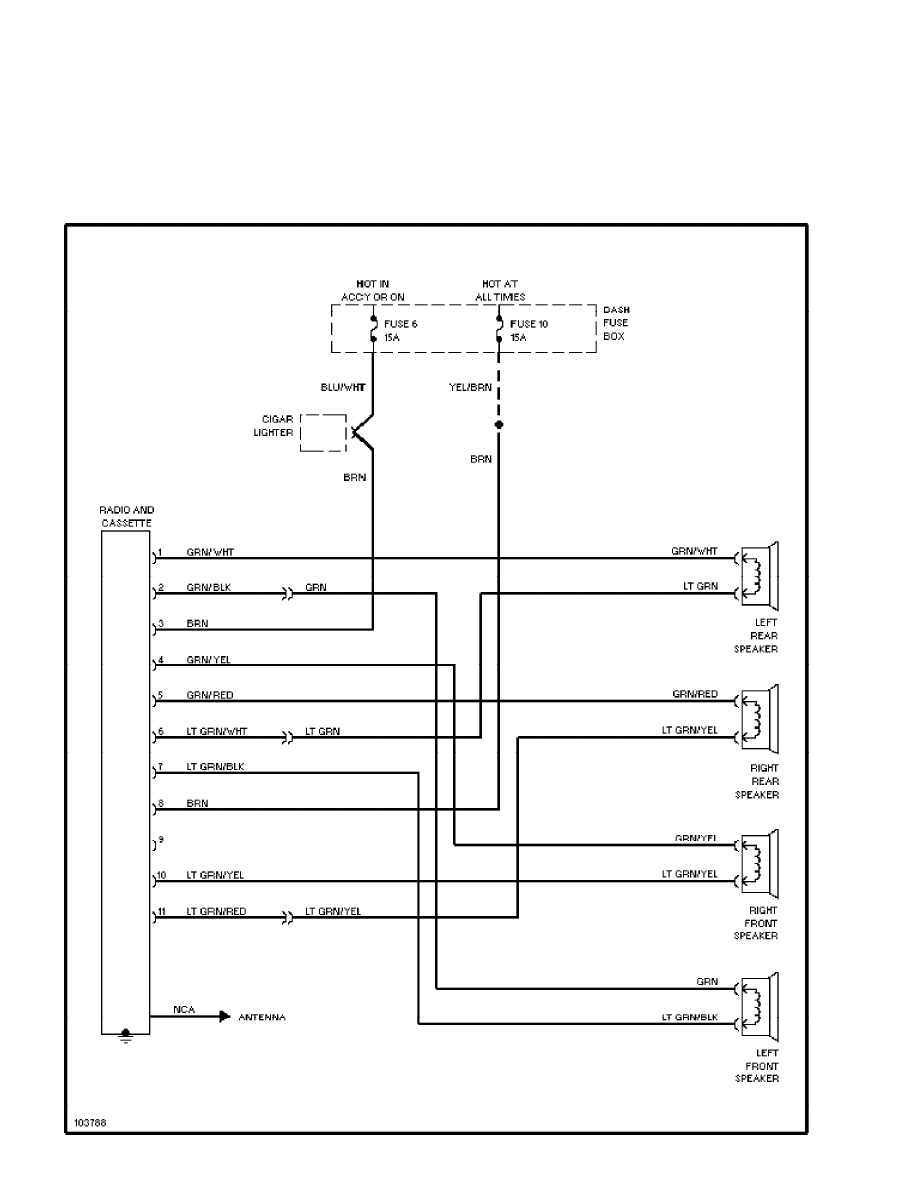

Radio Circuits (p. 4)
1988 Mitsubishi Precis
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:16PM
SYSTEM WIRING DIAGRAMS
Charging Circuit (p. 5)
1988 Mitsubishi Precis
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:16PM
SYSTEM WIRING DIAGRAMS

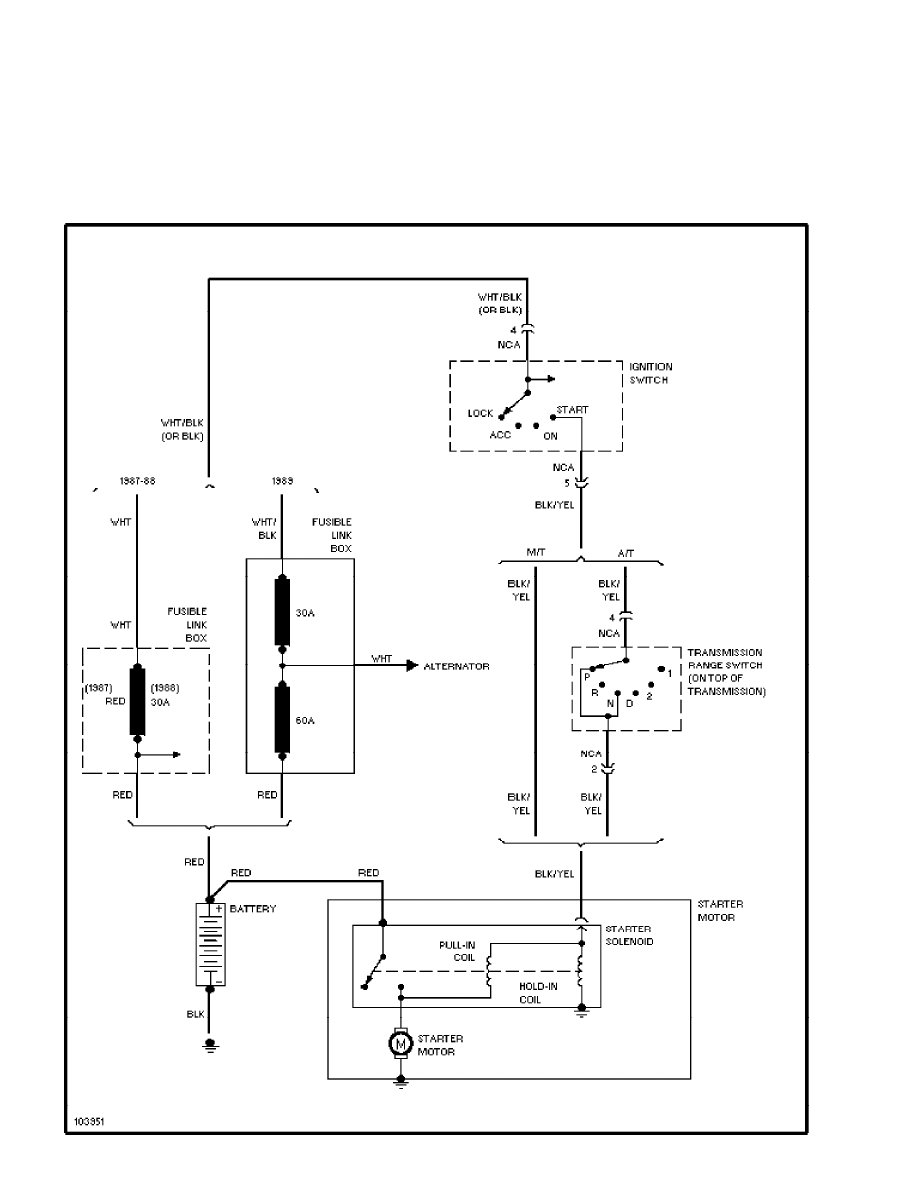

Starting Circuit (p. 6)
1988 Mitsubishi Precis
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:16PM
SYSTEM WIRING DIAGRAMS

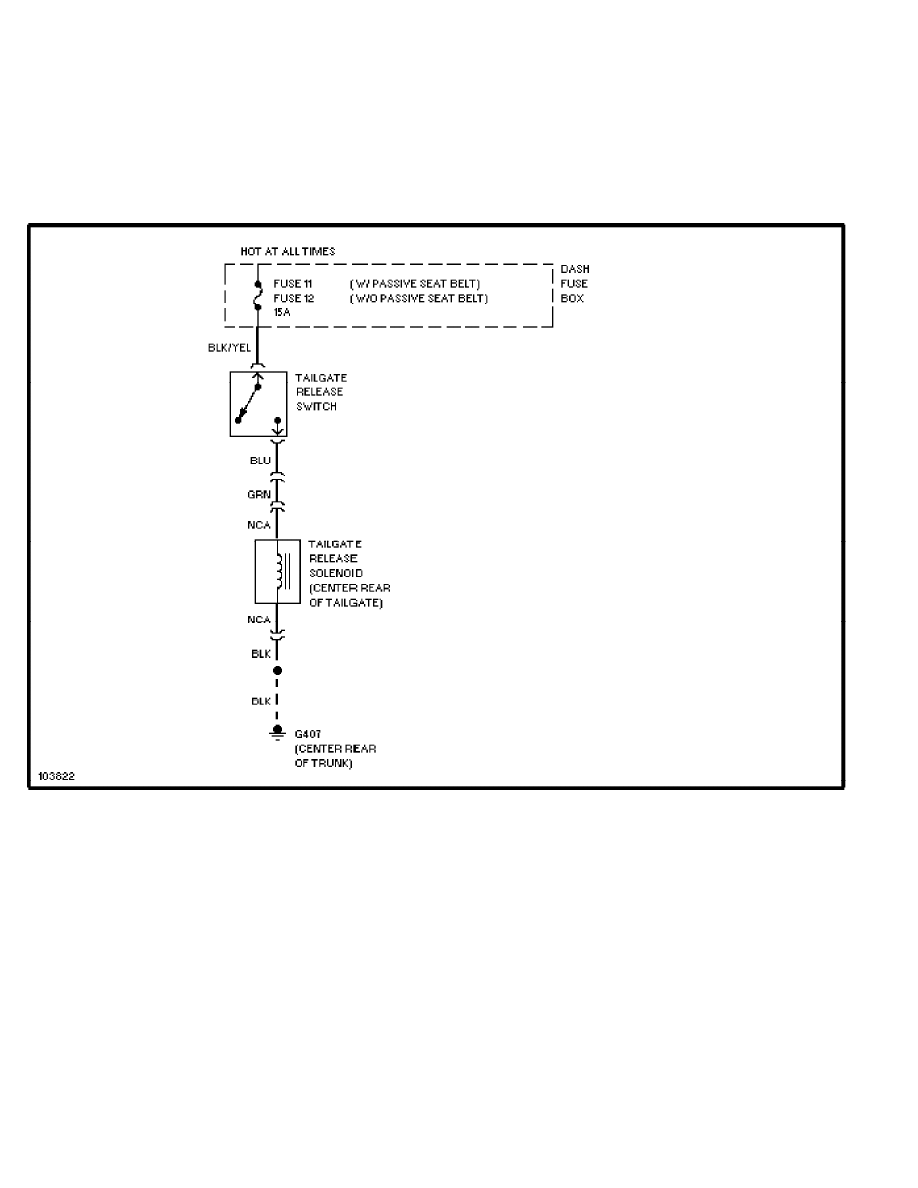

Trunk, Tailgate, Fuel Door Circuits (p. 7)
1988 Mitsubishi Precis
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:16PM
SYSTEM WIRING DIAGRAMS
Front Wiper/Washer Circuit (p. 8)
1988 Mitsubishi Precis
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:16PM
SYSTEM WIRING DIAGRAMS

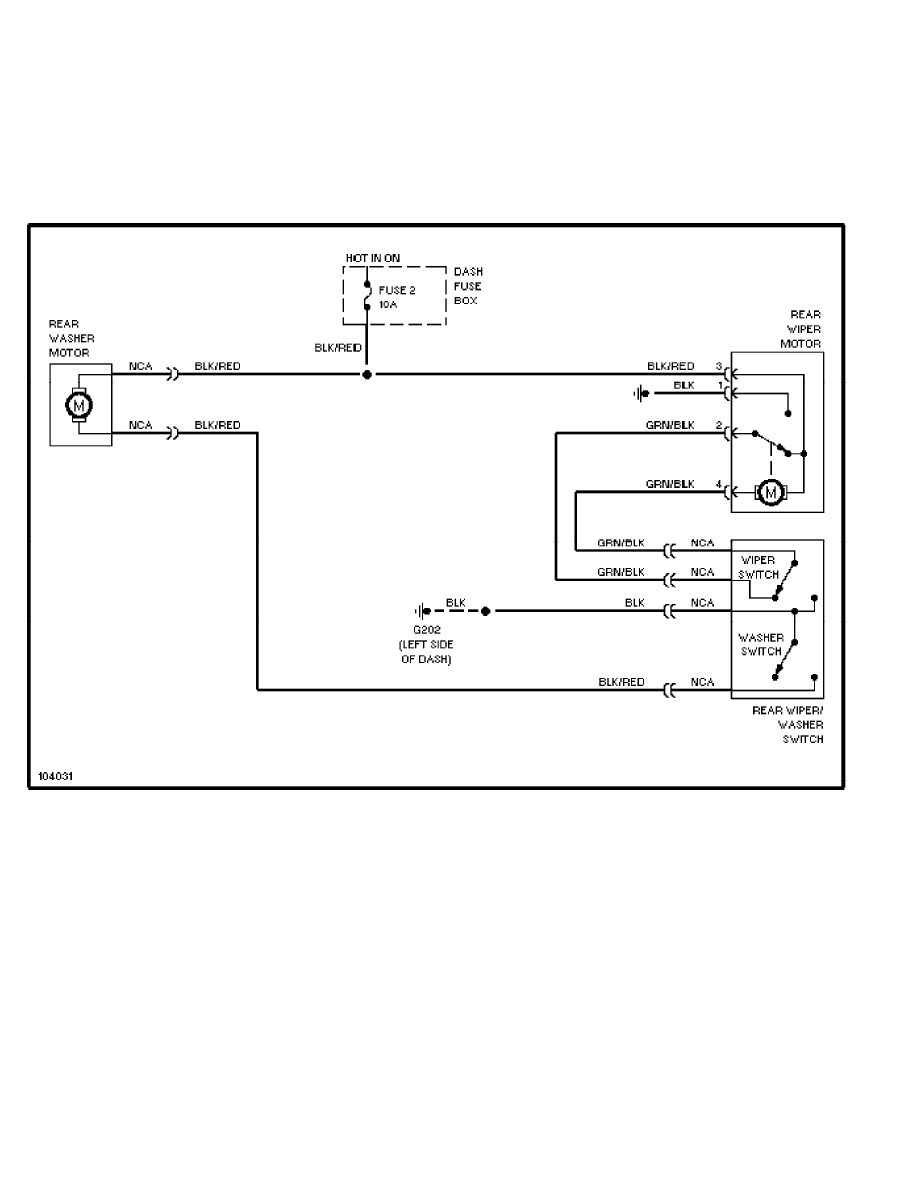

Rear Wiper/Washer Circuit (p. 9)
1988 Mitsubishi Precis
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:16PM
WIRING DIAGRAMS

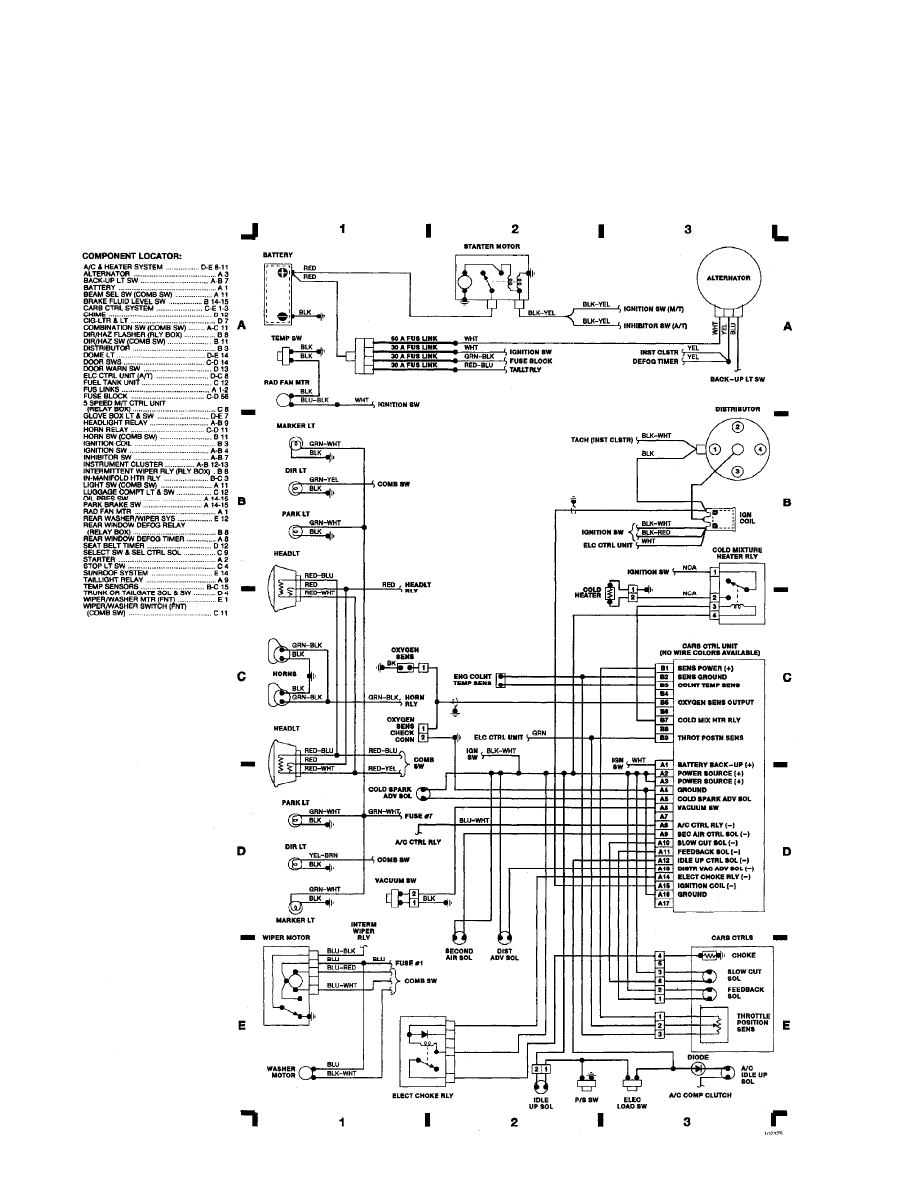

Fig. 1: Engine Compartment, Computer Engine Control & Headlights
1988 Mitsubishi Precis
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:16PM
WIRING DIAGRAMS

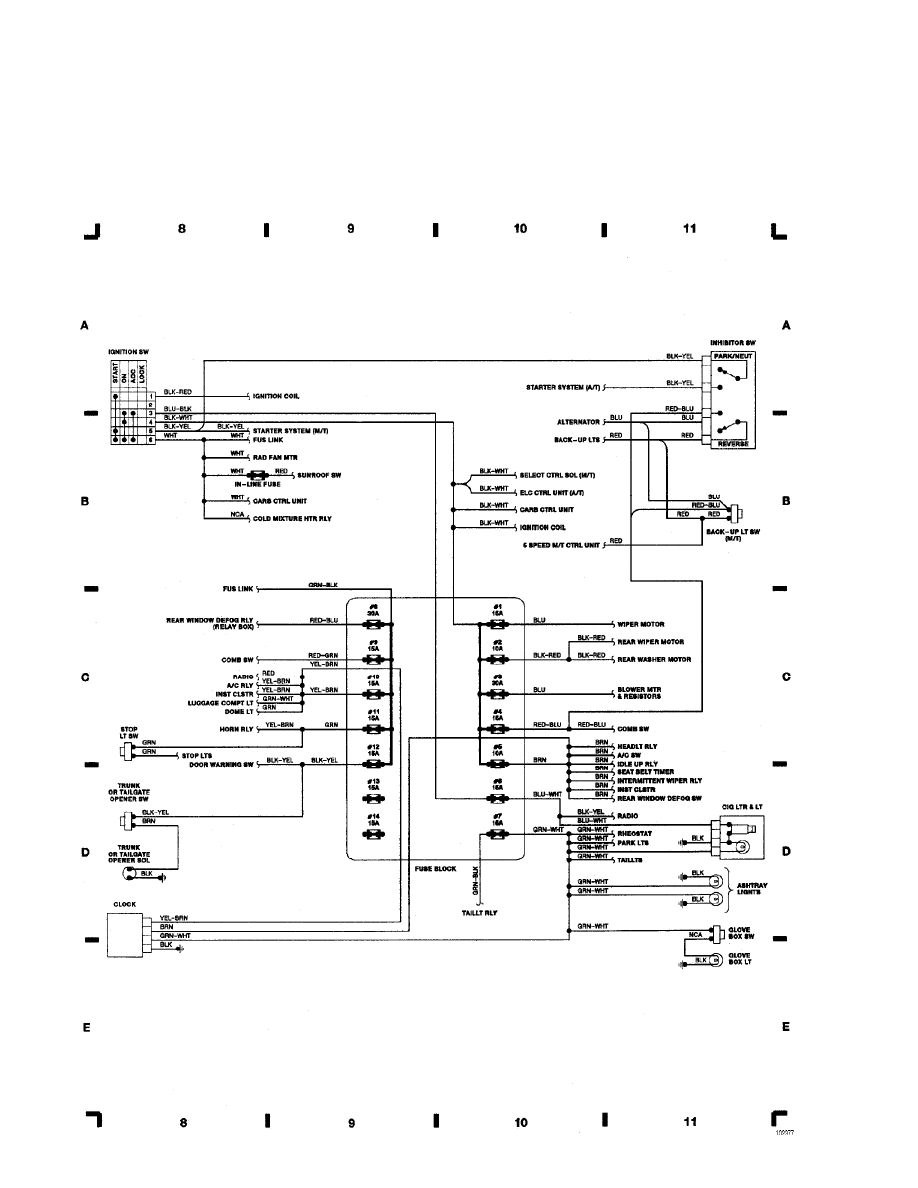

Fig. 2: Combination Switch & Dash Switches (p. 2)
1988 Mitsubishi Precis
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:16PM
WIRING DIAGRAMS

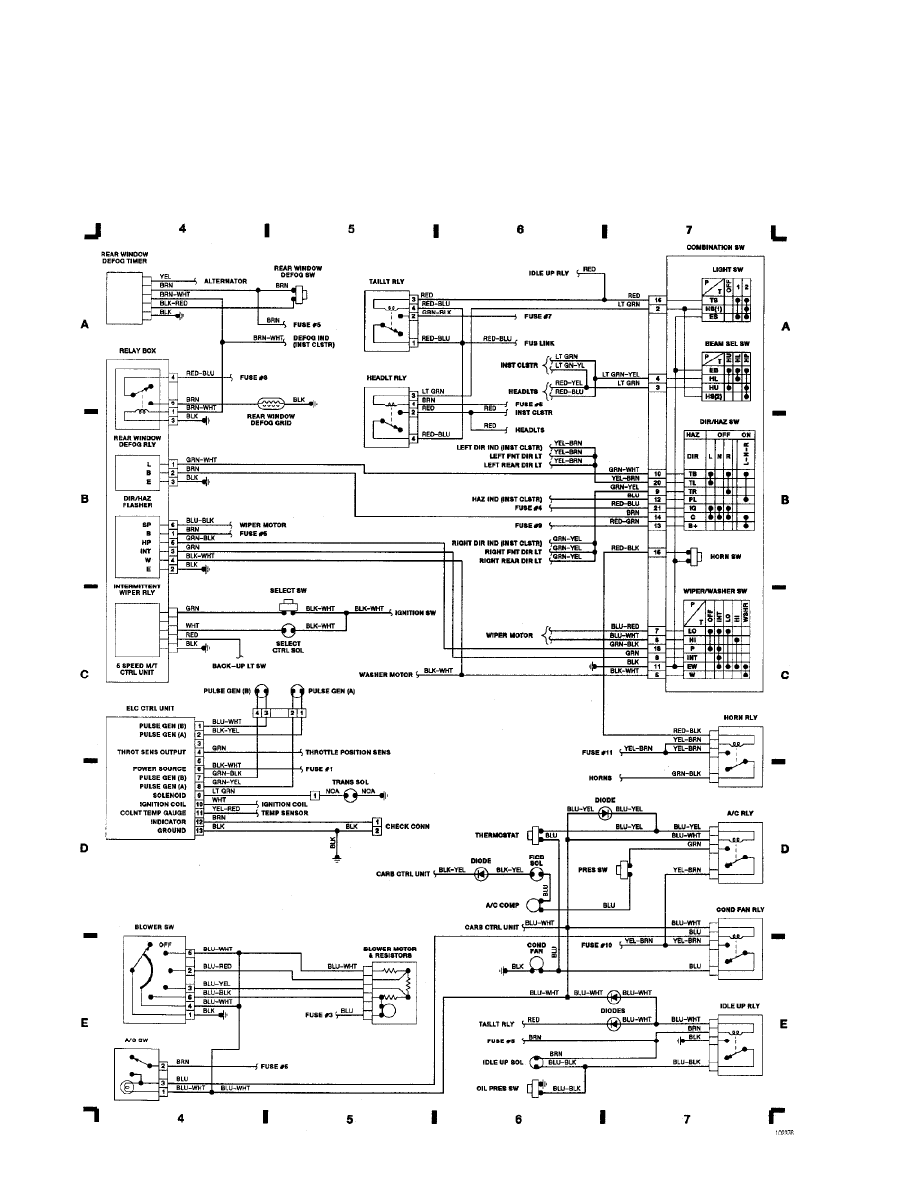

Fig. 3: Fuse Block (p. 3)
1988 Mitsubishi Precis
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:16PM
WIRING DIAGRAMS

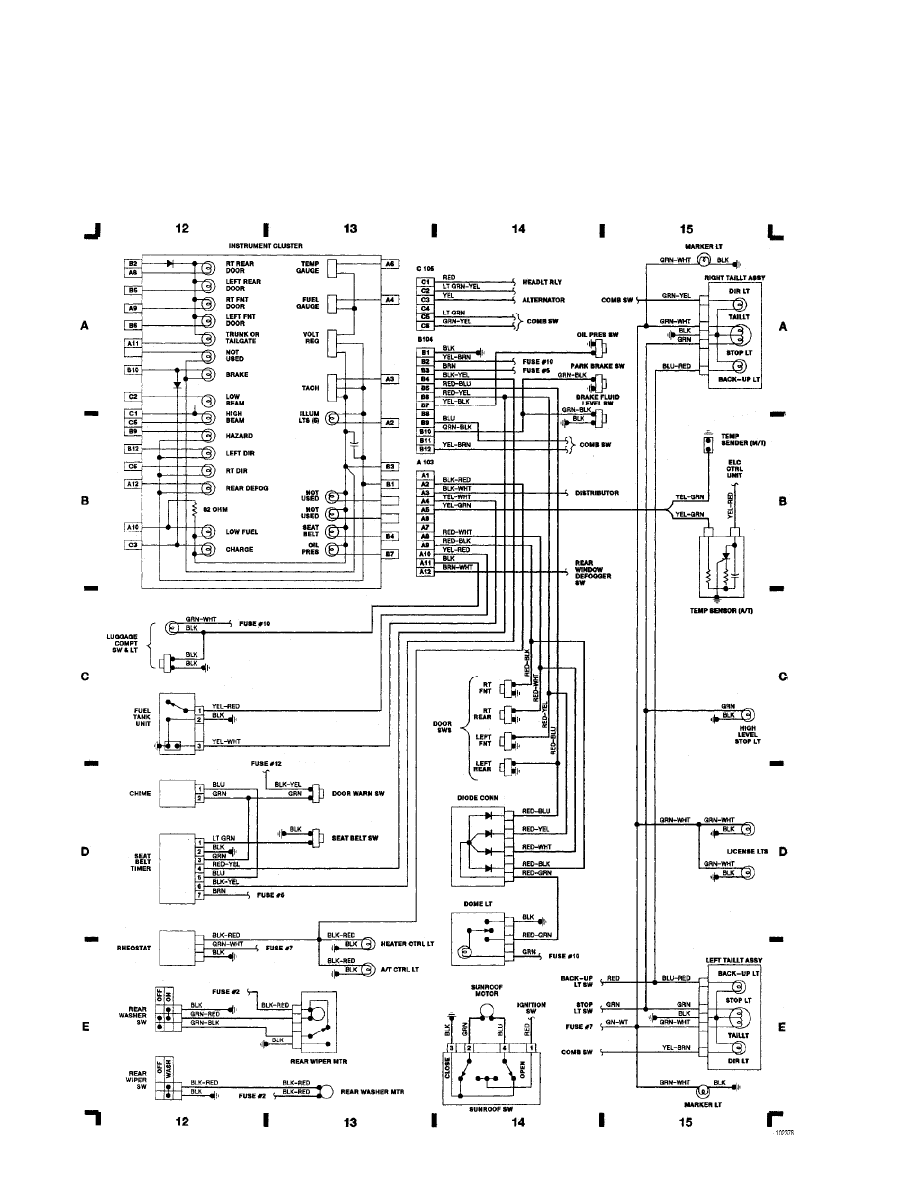

Fig. 4: Instrument Panel, Passenger Compartment & Taillights (p. 4)
1988 Mitsubishi Precis
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:16PM
