SYSTEM WIRING DIAGRAMS

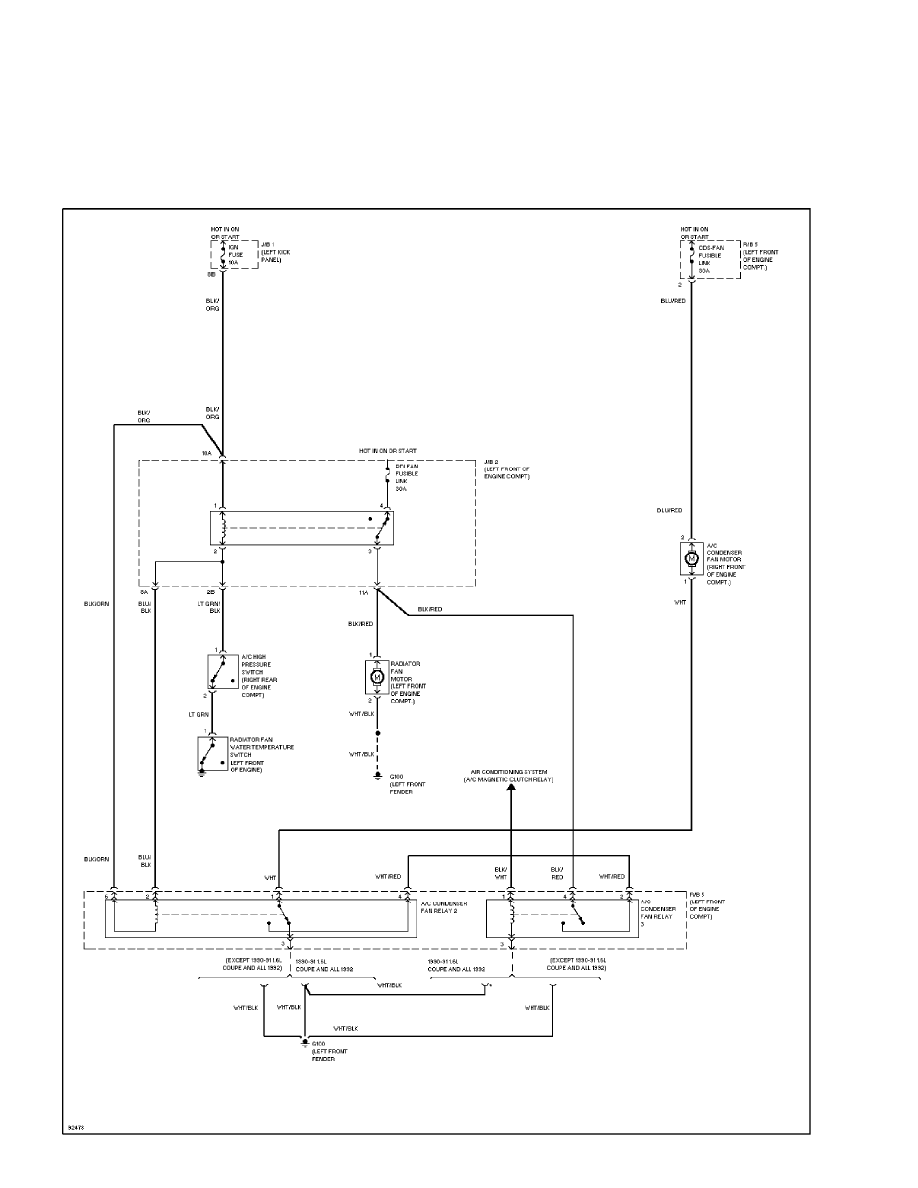

Cooling Fan Circuit

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

SYSTEM WIRING DIAGRAMS

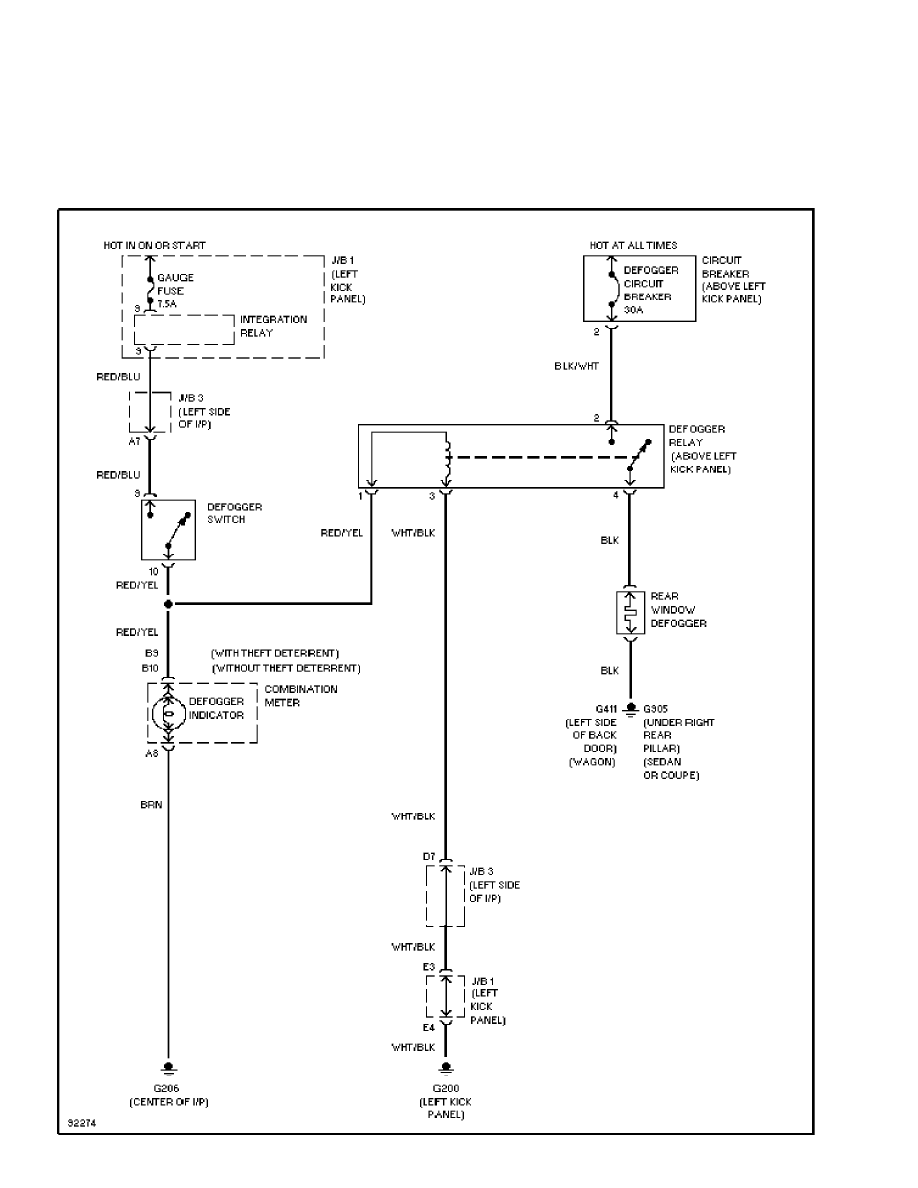

Defogger Circuit (p. 2)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

SYSTEM WIRING DIAGRAMS

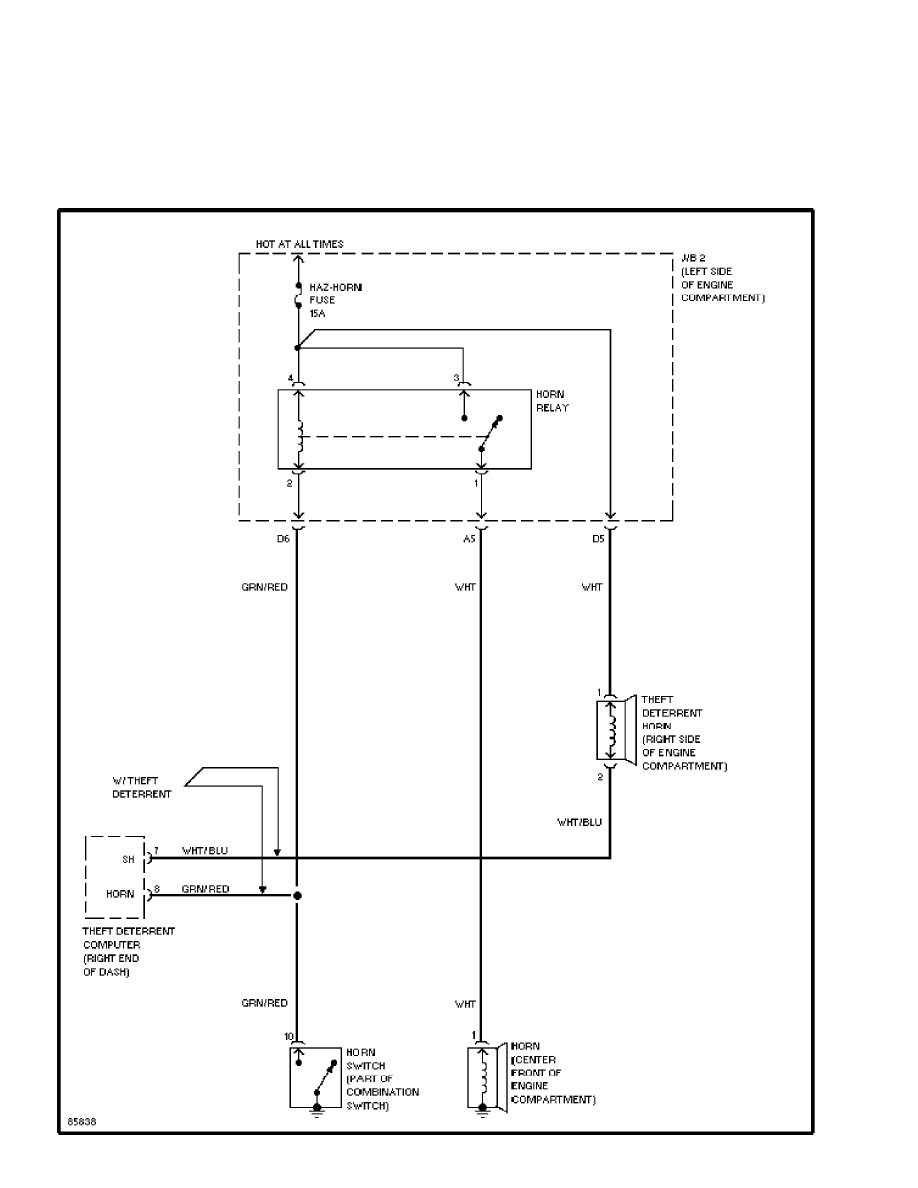

Horn Circuit (p. 3)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

SYSTEM WIRING DIAGRAMS

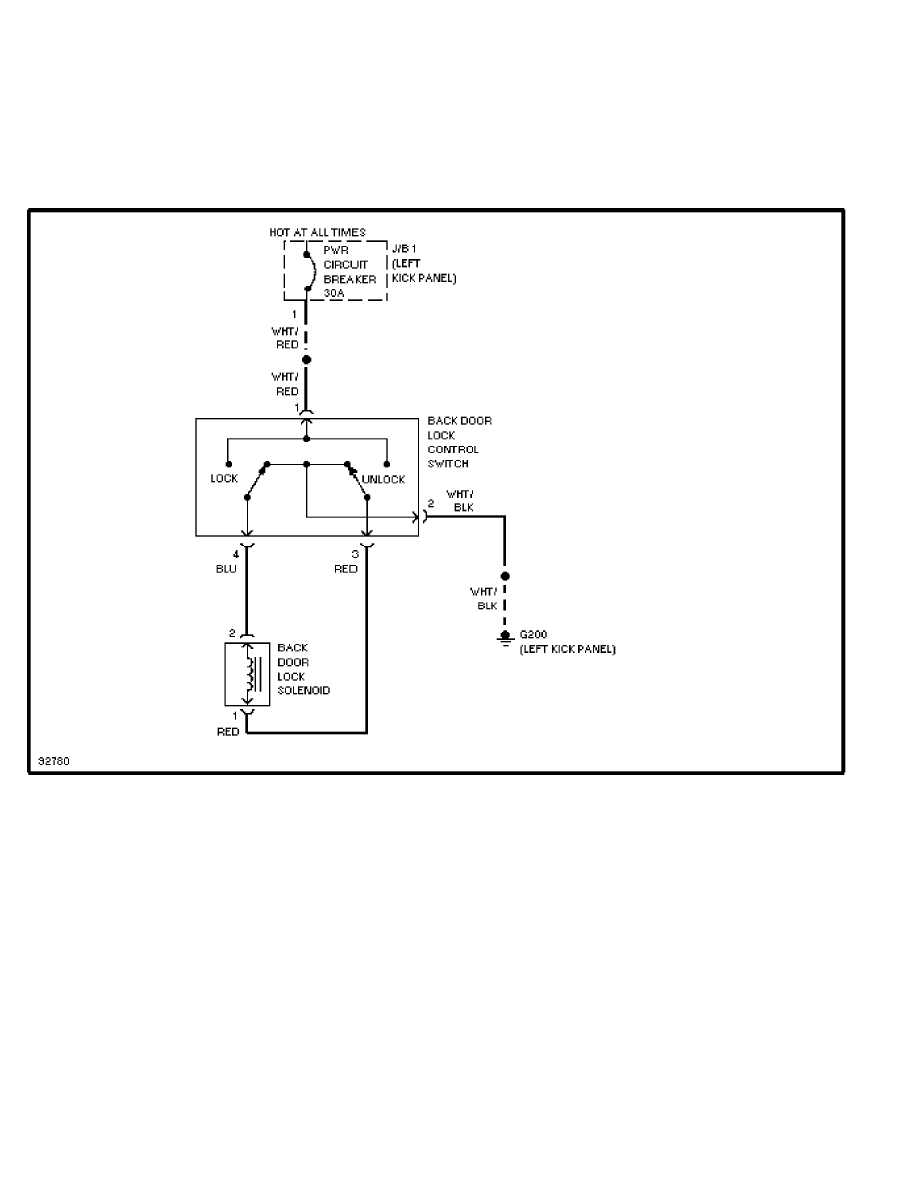

Back Door Lock Circuit (p. 4)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

SYSTEM WIRING DIAGRAMS

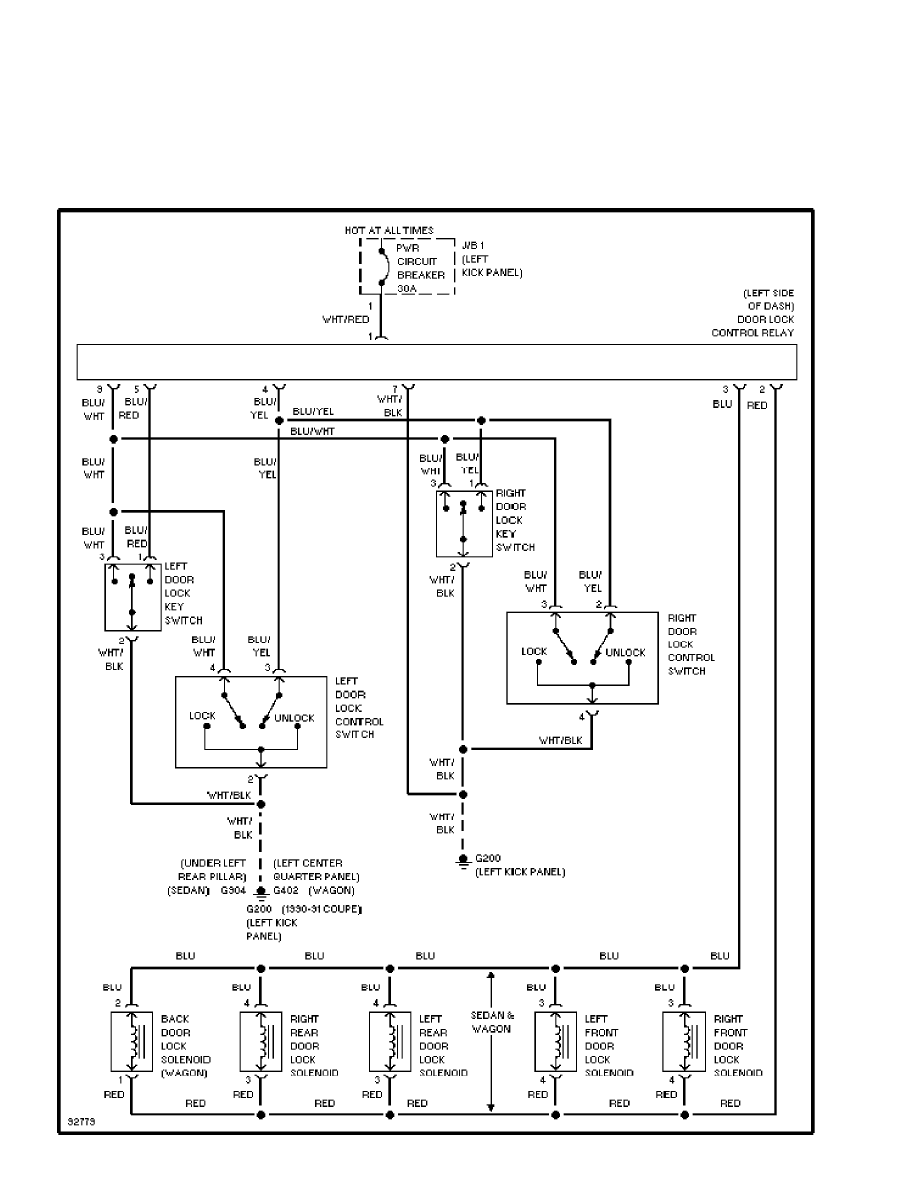

Door Lock Circuit (p. 5)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

SYSTEM WIRING DIAGRAMS

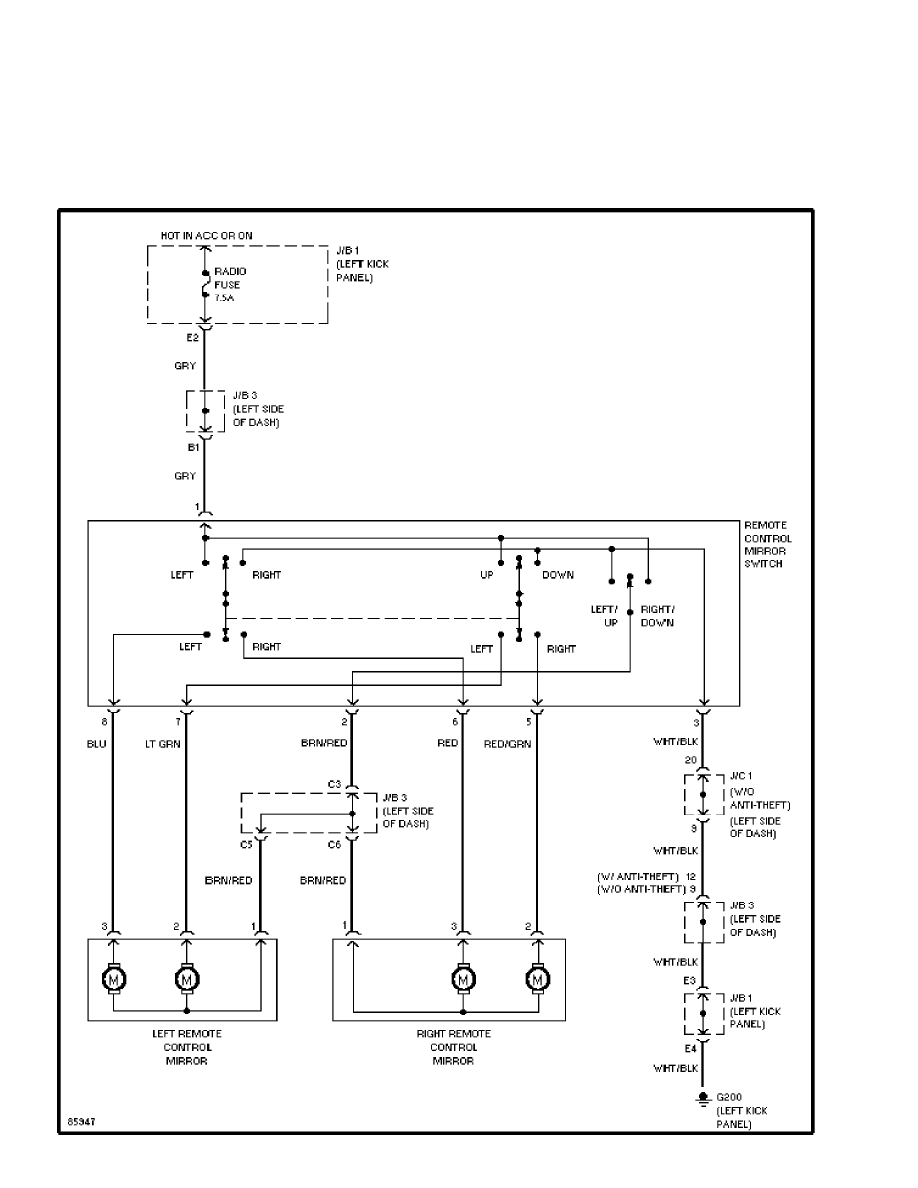

Power Mirror Circuit (p. 6)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

SYSTEM WIRING DIAGRAMS

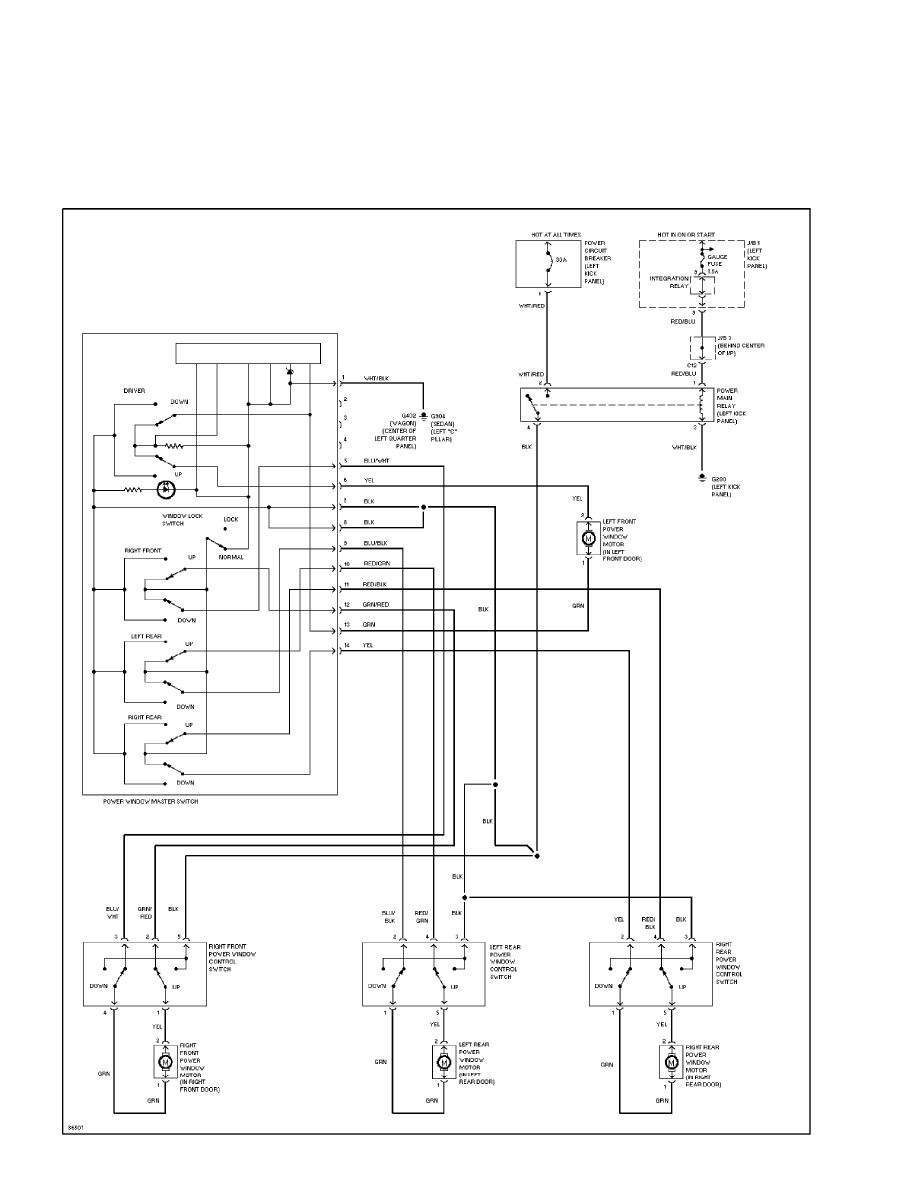

Power Window Circuit (p. 7)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

SYSTEM WIRING DIAGRAMS

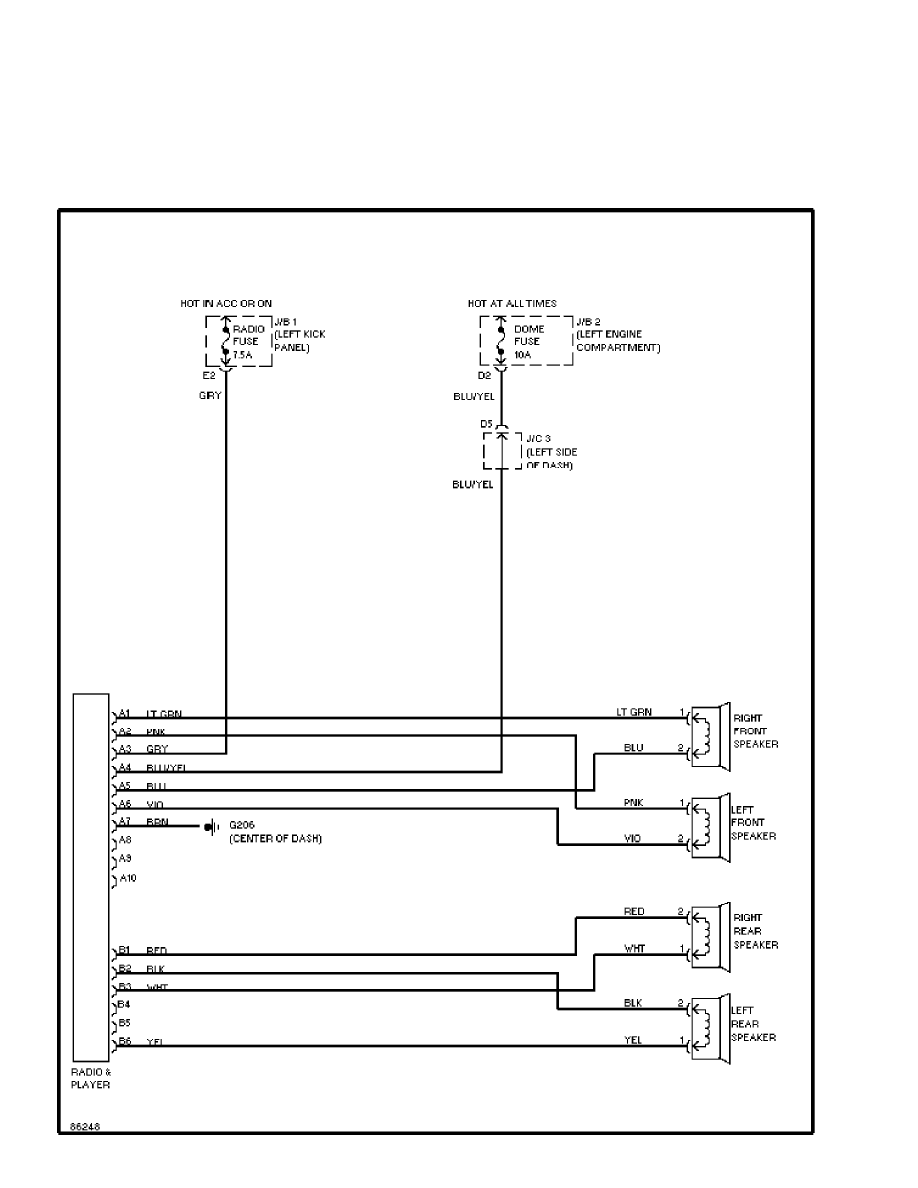

Radio Circuits (p. 8)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

SYSTEM WIRING DIAGRAMS

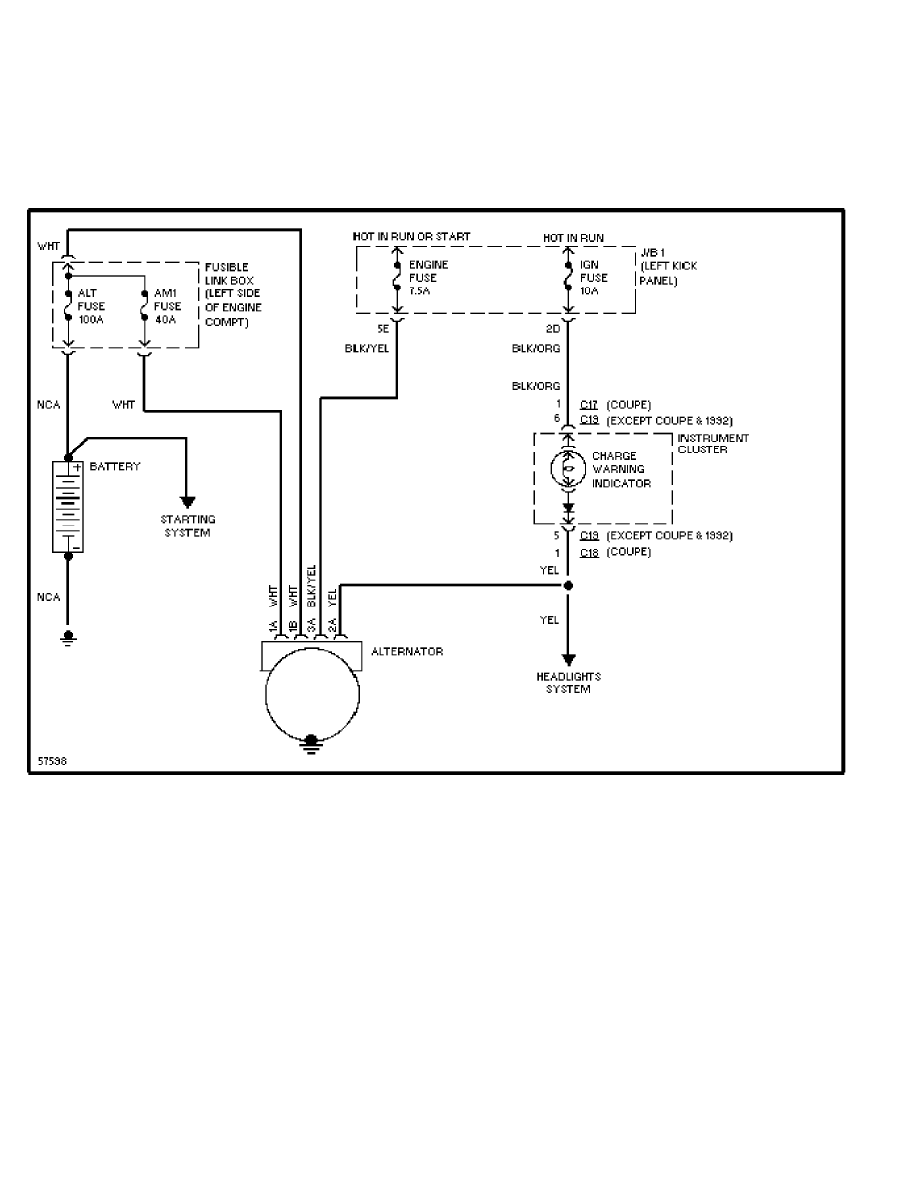

Charging Circuit (p. 9)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

SYSTEM WIRING DIAGRAMS

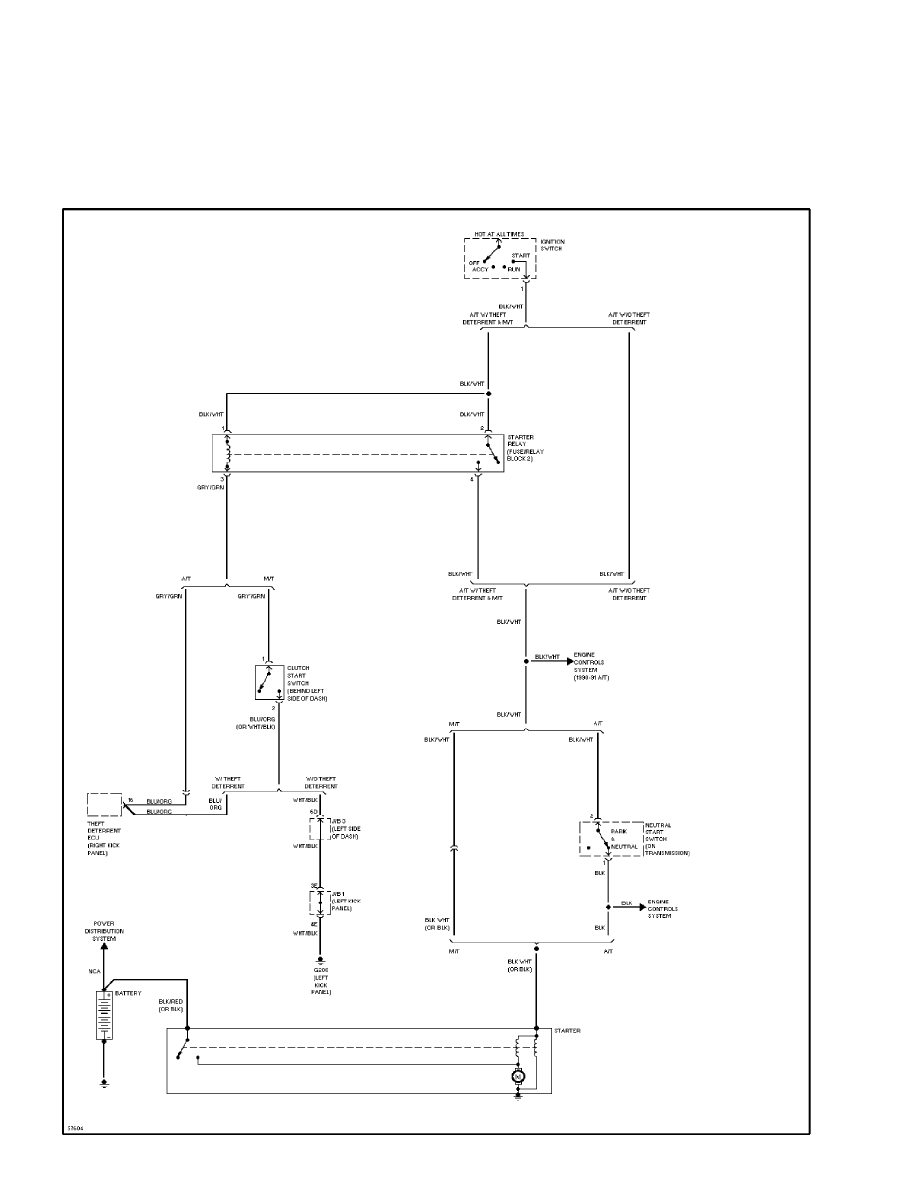

Starting Circuit (p. 10)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

SYSTEM WIRING DIAGRAMS

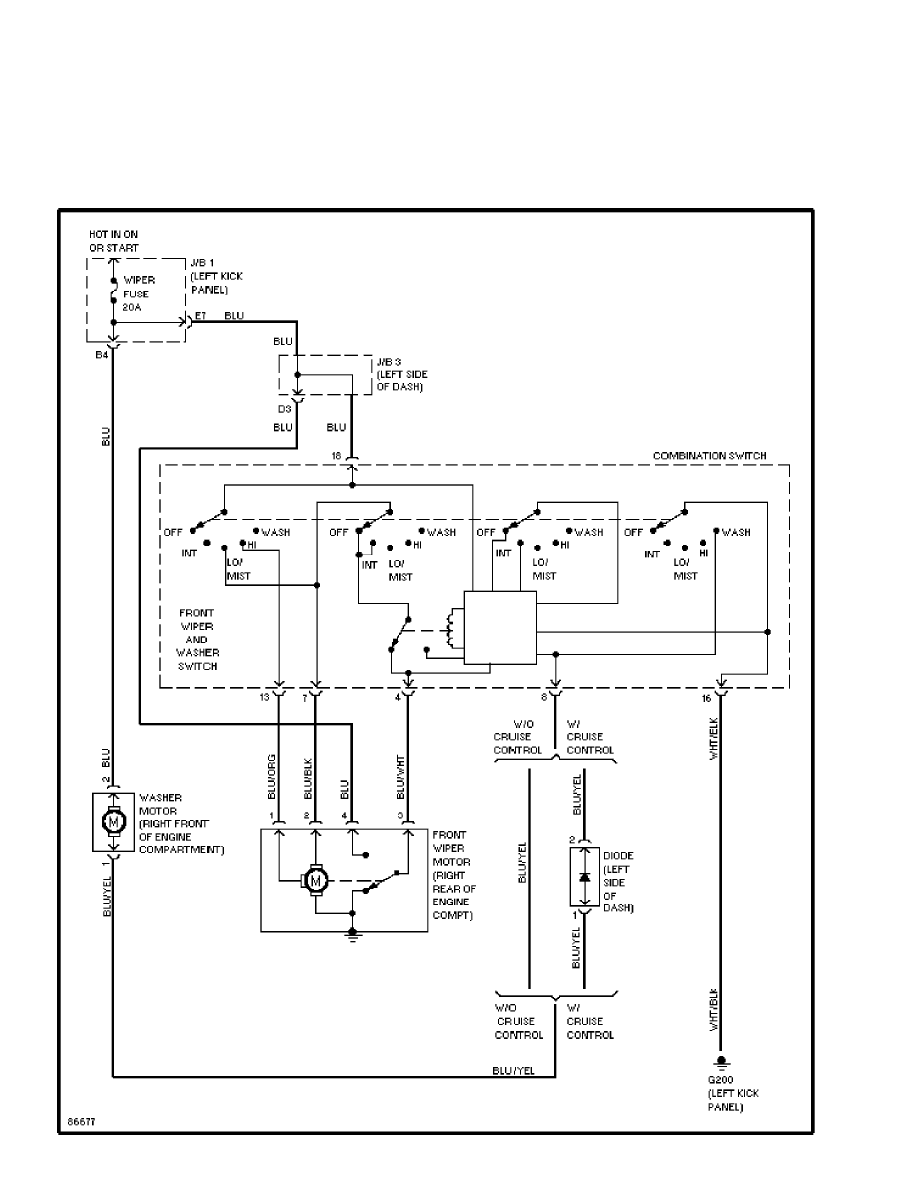

Front Wiper/Washer Circuit (p. 11)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

SYSTEM WIRING DIAGRAMS

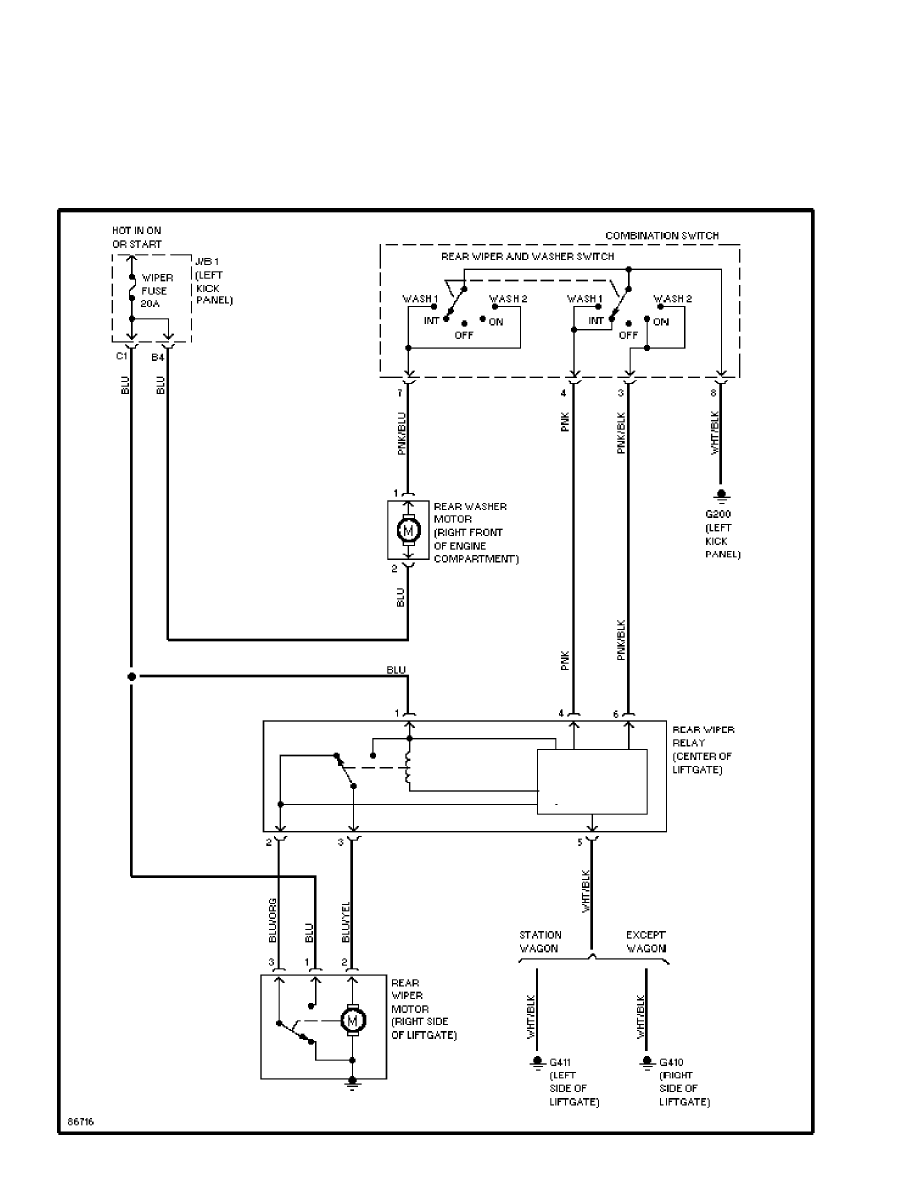

Rear Wiper/Washer Circuit (p. 12)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

WIRING DIAGRAMS

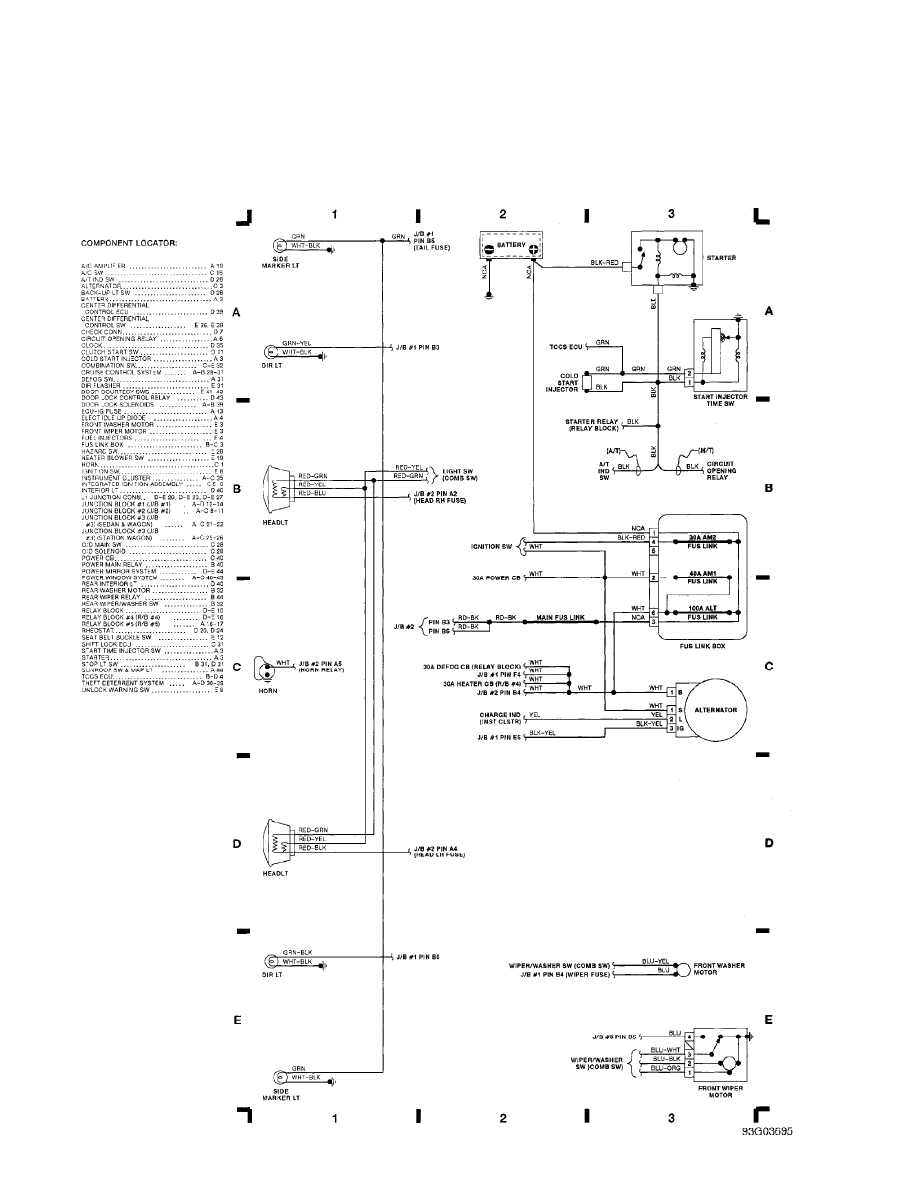

Fig. 1: Engine Compartment, Headlights, Fusible Link Box (Grid 1-3)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

WIRING DIAGRAMS

Fig. 2: TCCS ECU, Ignition System, Engine Sensors (Grid 4-7) (p. 2)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

WIRING DIAGRAMS

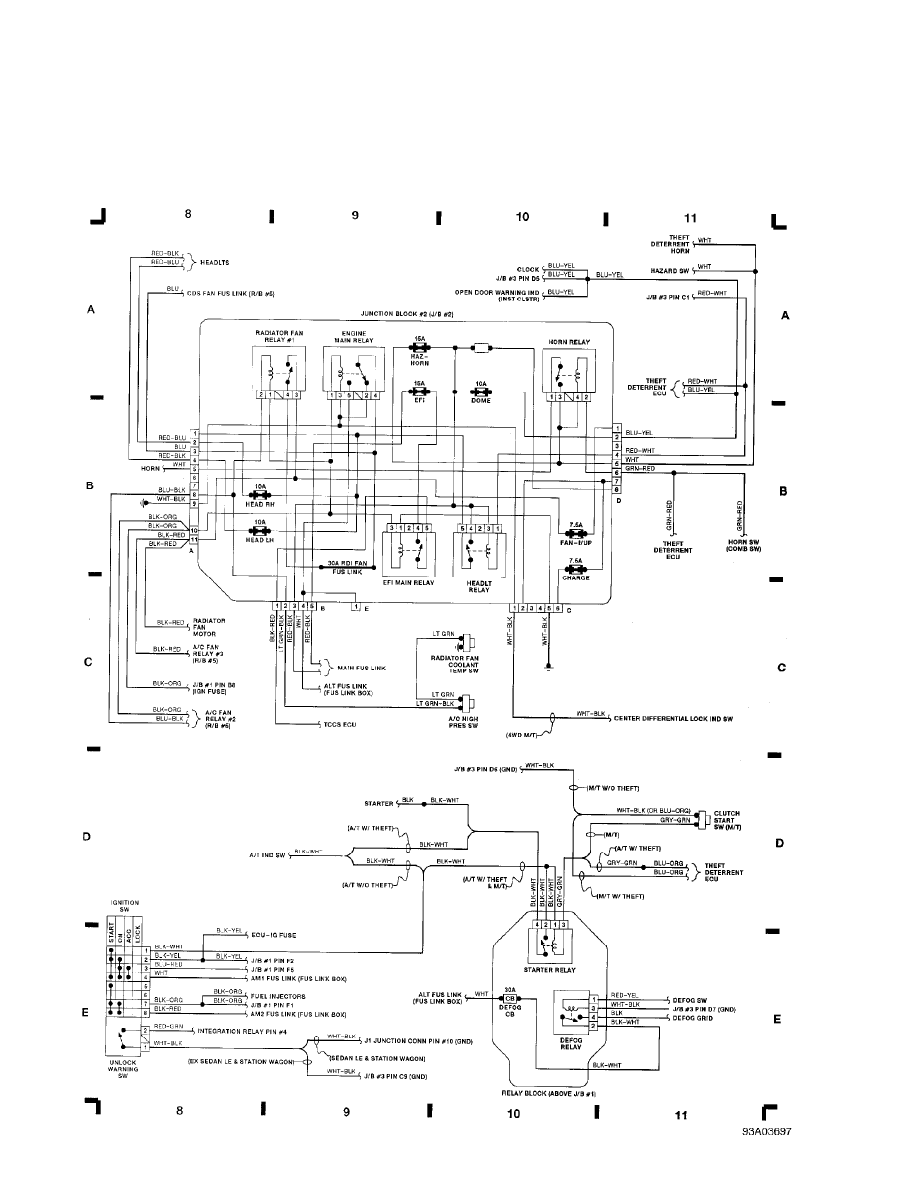

Fig. 3: Junction Block #2, Relay Block, Ignition Switch (Grid 8-11) (p. 3)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

WIRING DIAGRAMS

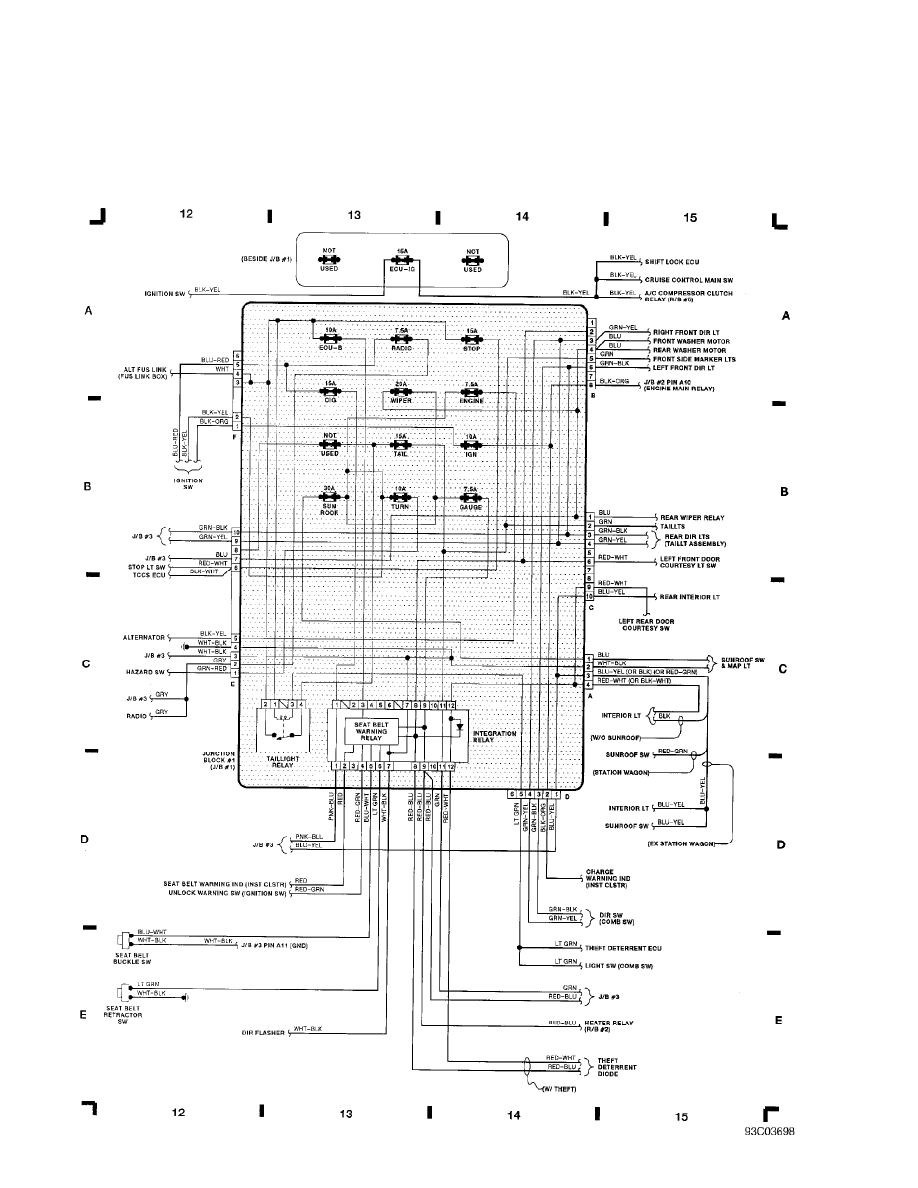

Fig. 4: Junction Block #1, Seat Belt Switches (Grid 12-15) (p. 4)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

WIRING DIAGRAMS

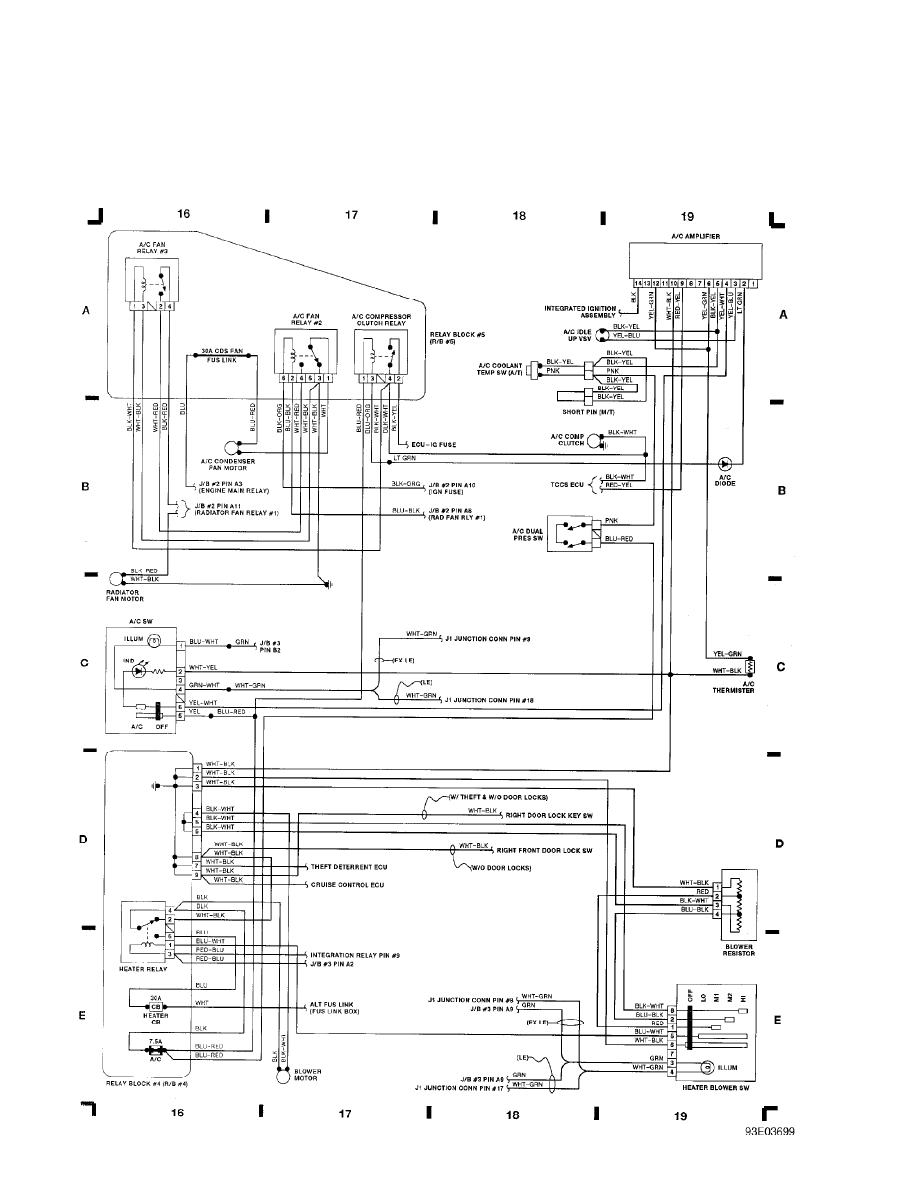

Fig. 5: Relay Block #4 & #5, A/C & Heater System (Grid 16-19) (p. 5)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

WIRING DIAGRAMS

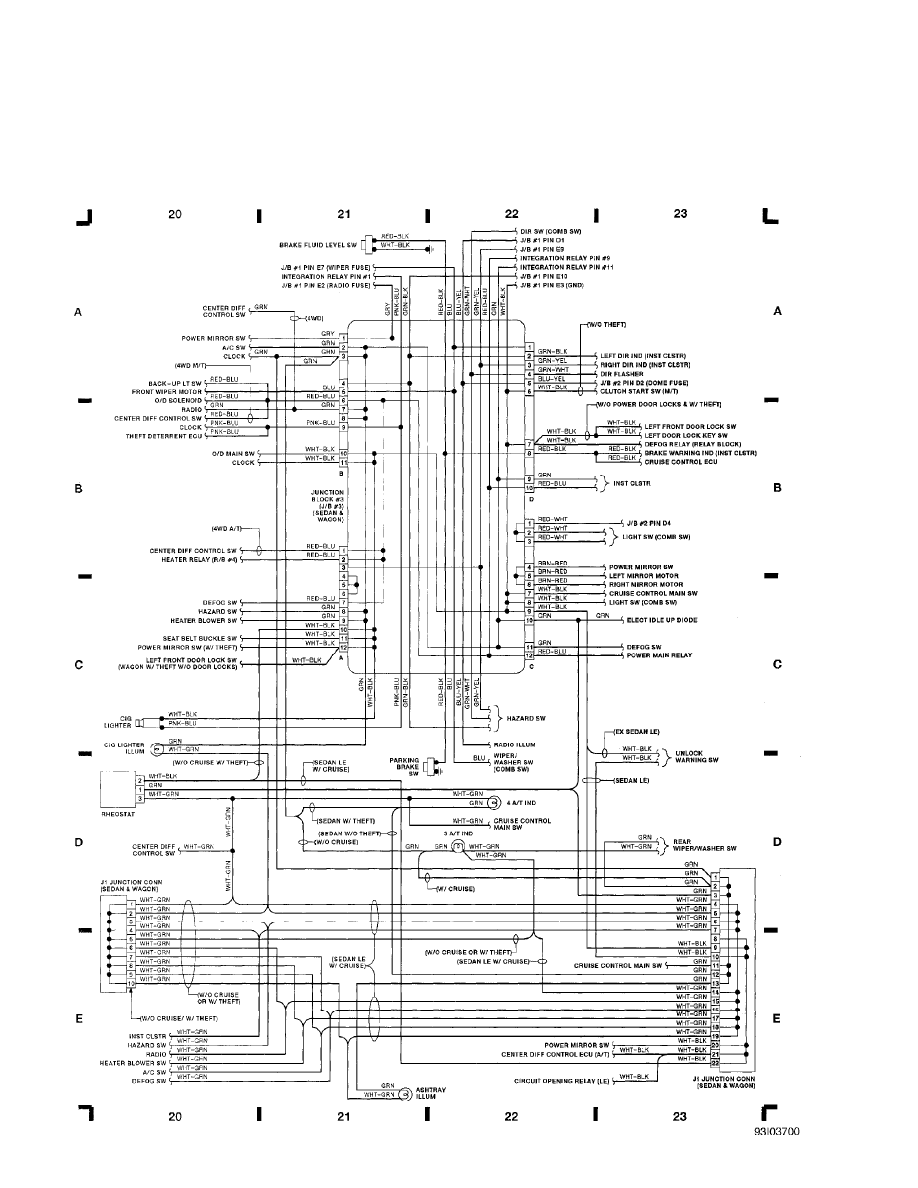

Fig. 6: Junction Block #3 (Sedan & Wagon) (Grid 20-23) (p. 6)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

WIRING DIAGRAMS

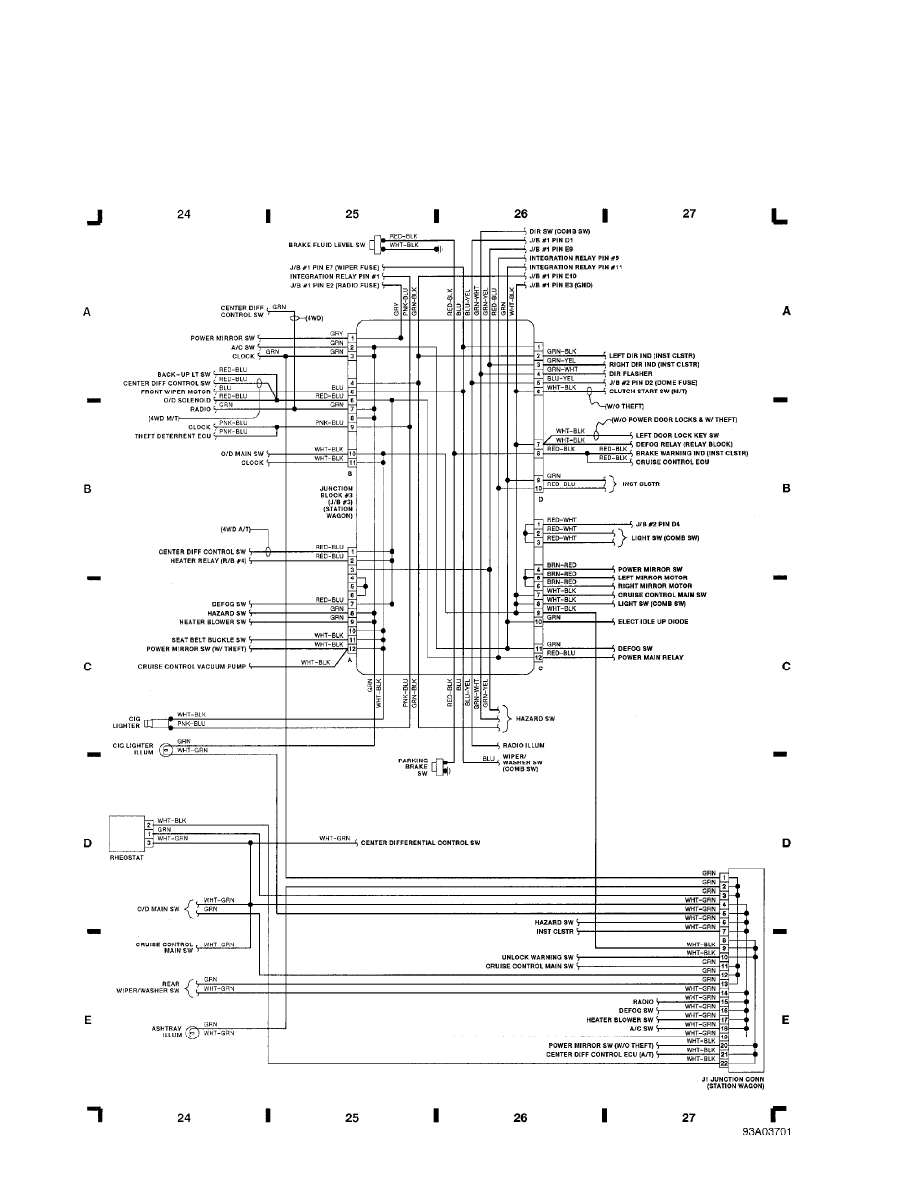

Fig. 7: Junction Block #3 (Station Wagon) (Grid 24-27) (p. 7)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:00PM

WIRING DIAGRAMS

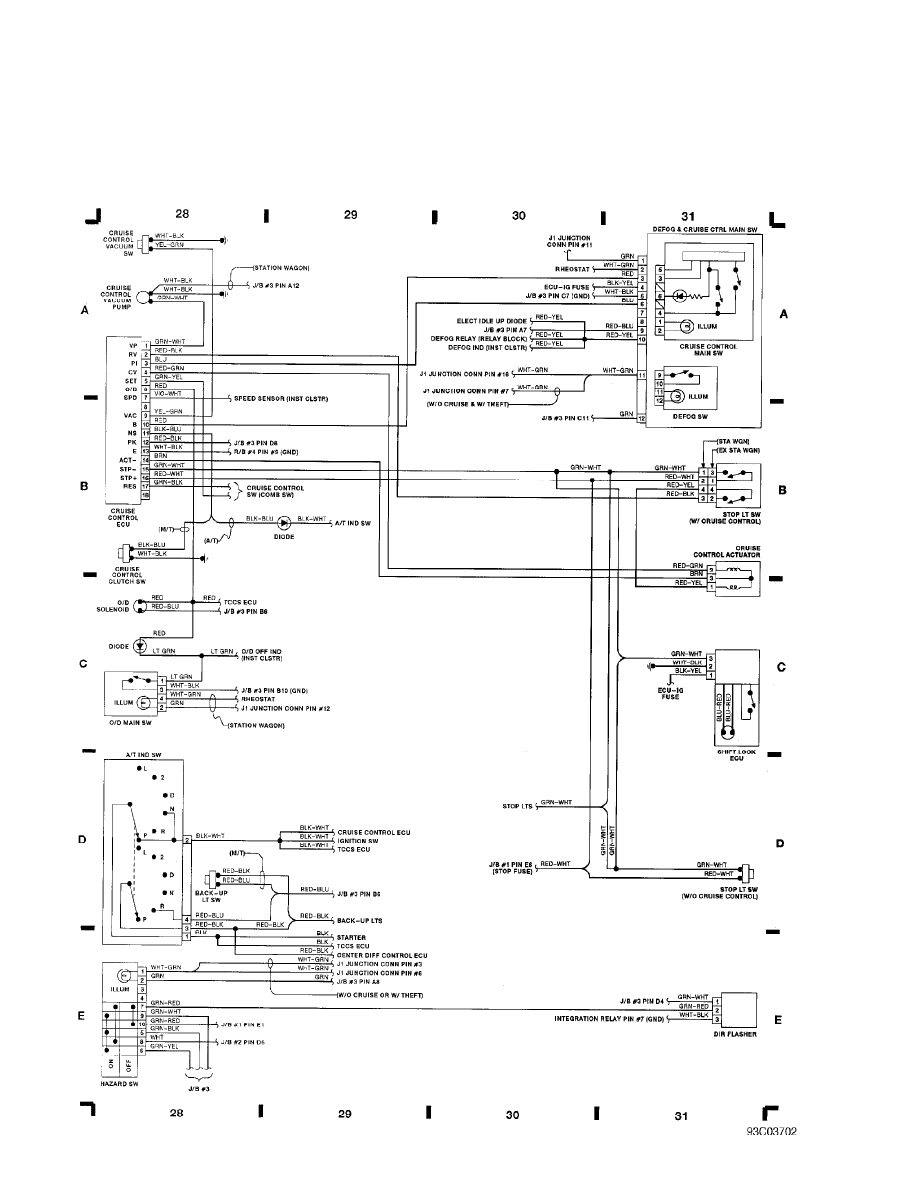

Fig. 8: Cruise Control, Hazard Sw., Directional Flasher (Grid 28-31) (p. 8)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:01PM

WIRING DIAGRAMS

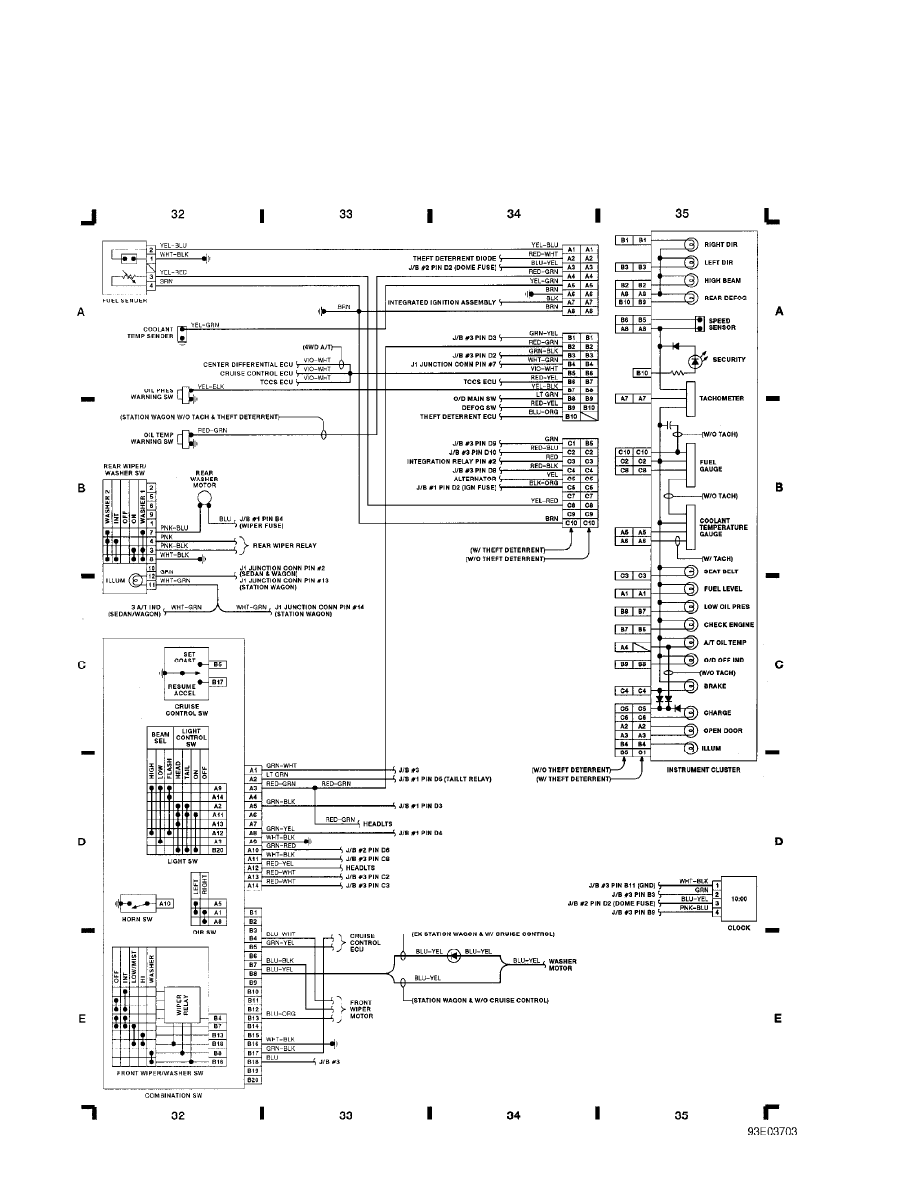

Fig. 9: Combination Switch, Instrument Cluster (Grid 32-35) (p. 9)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:01PM

WIRING DIAGRAMS

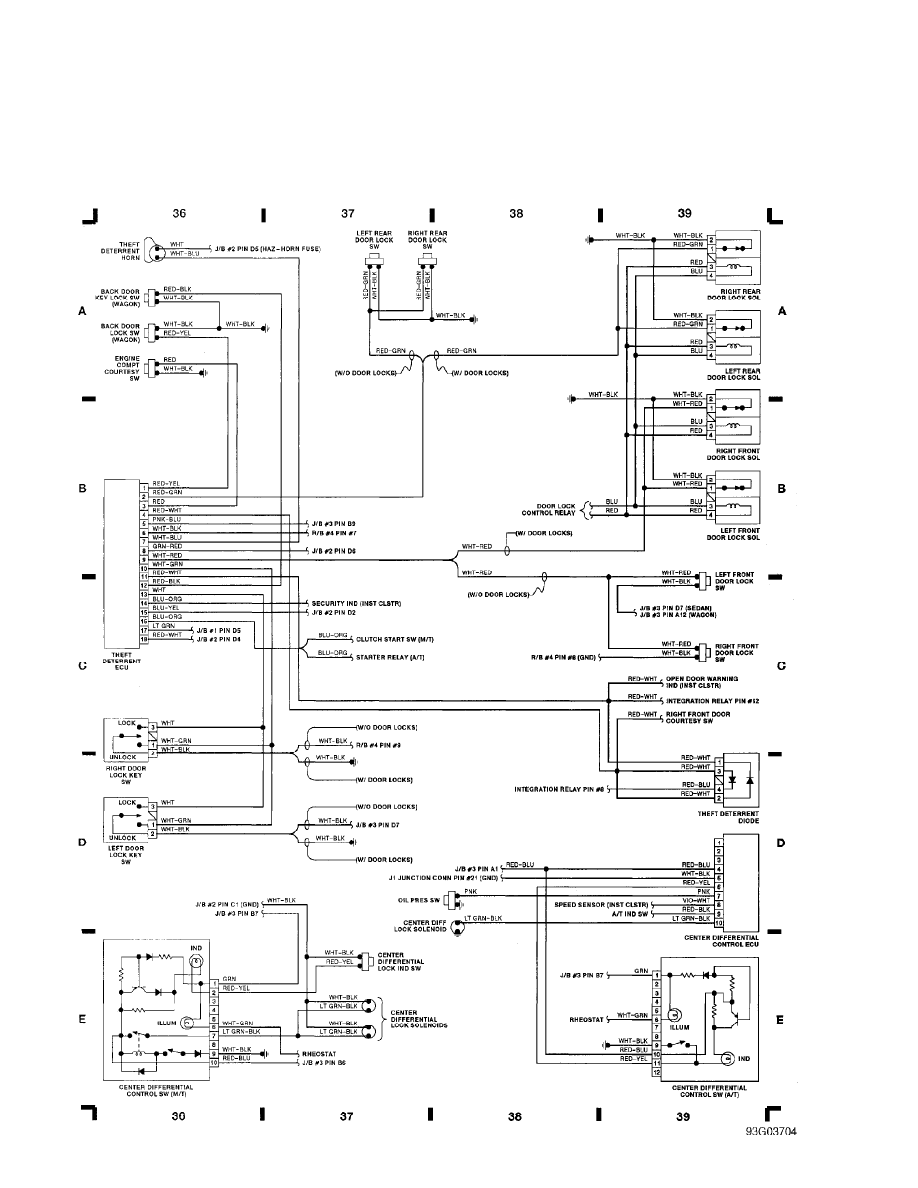

Fig. 10: Theft Deterrent System, Center Diff. Control (Grid 36-39) (p. 10)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:01PM

WIRING DIAGRAMS

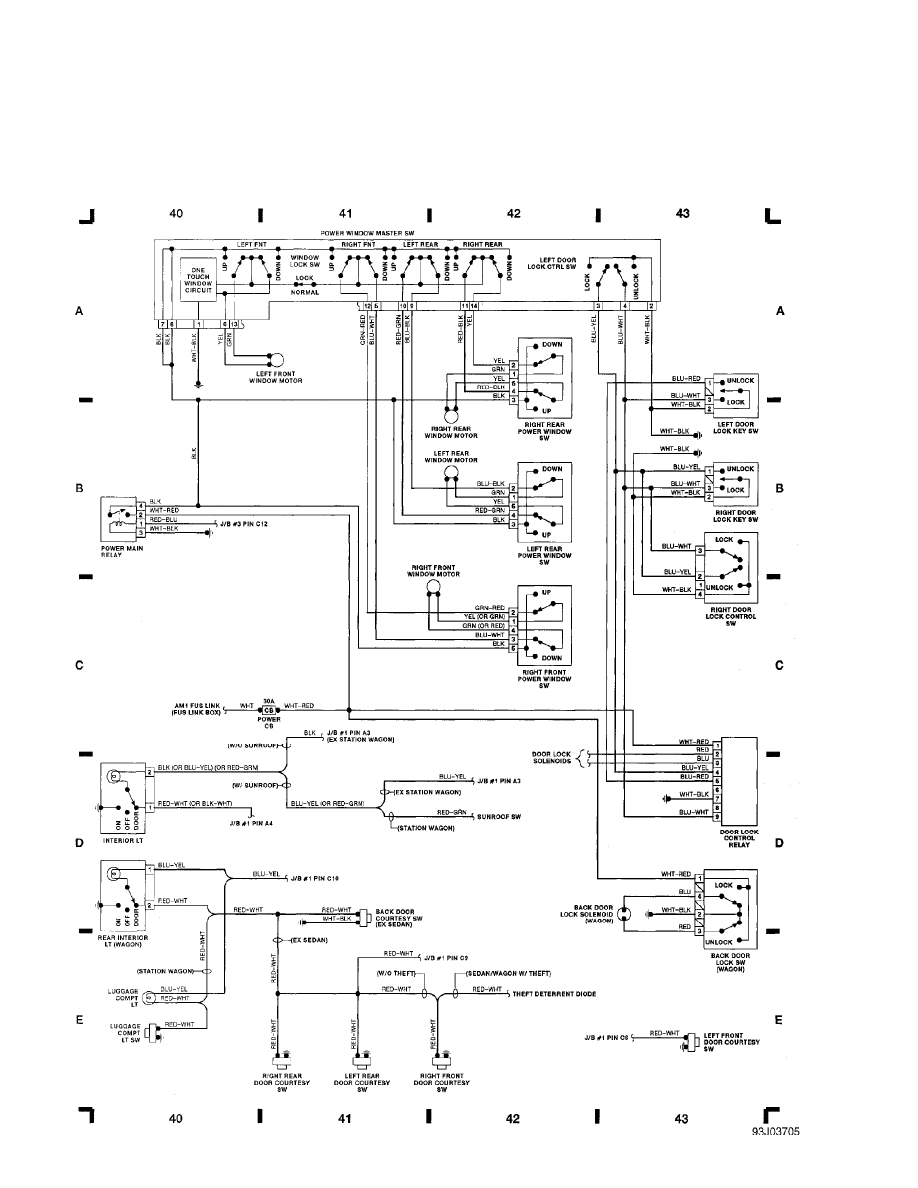

Fig. 11: Power Accessories, Courtesy Lights (Grid 40-43) (p. 11)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:01PM

WIRING DIAGRAMS

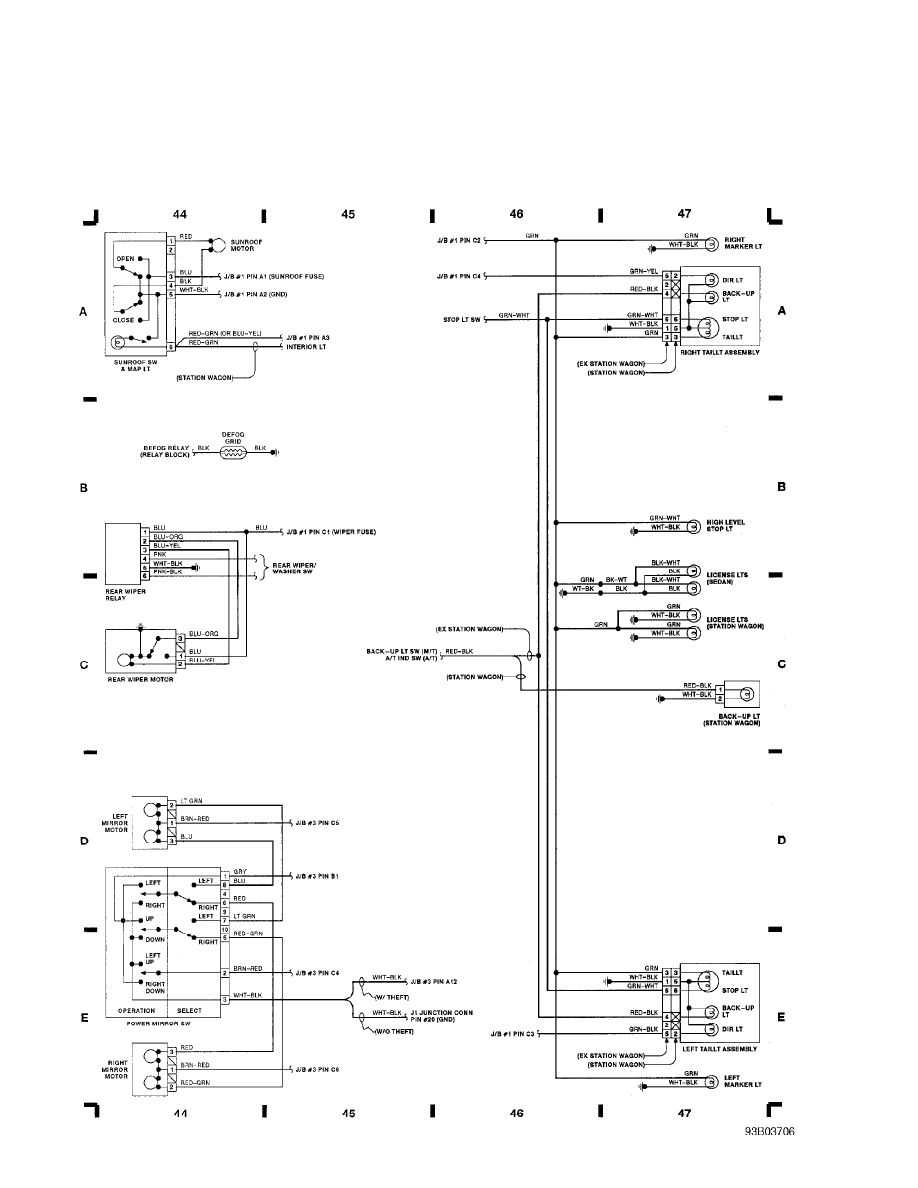

Fig. 12: Sunroof, Power Mirrors, Taillights (Grid 44-47) (p. 12)

1992 Toyota Corolla

For [e-mail]

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, April 15, 2005 03:01PM
