MAZDA B2200 1993

background image

SYSTEM WIRING DIAGRAMS

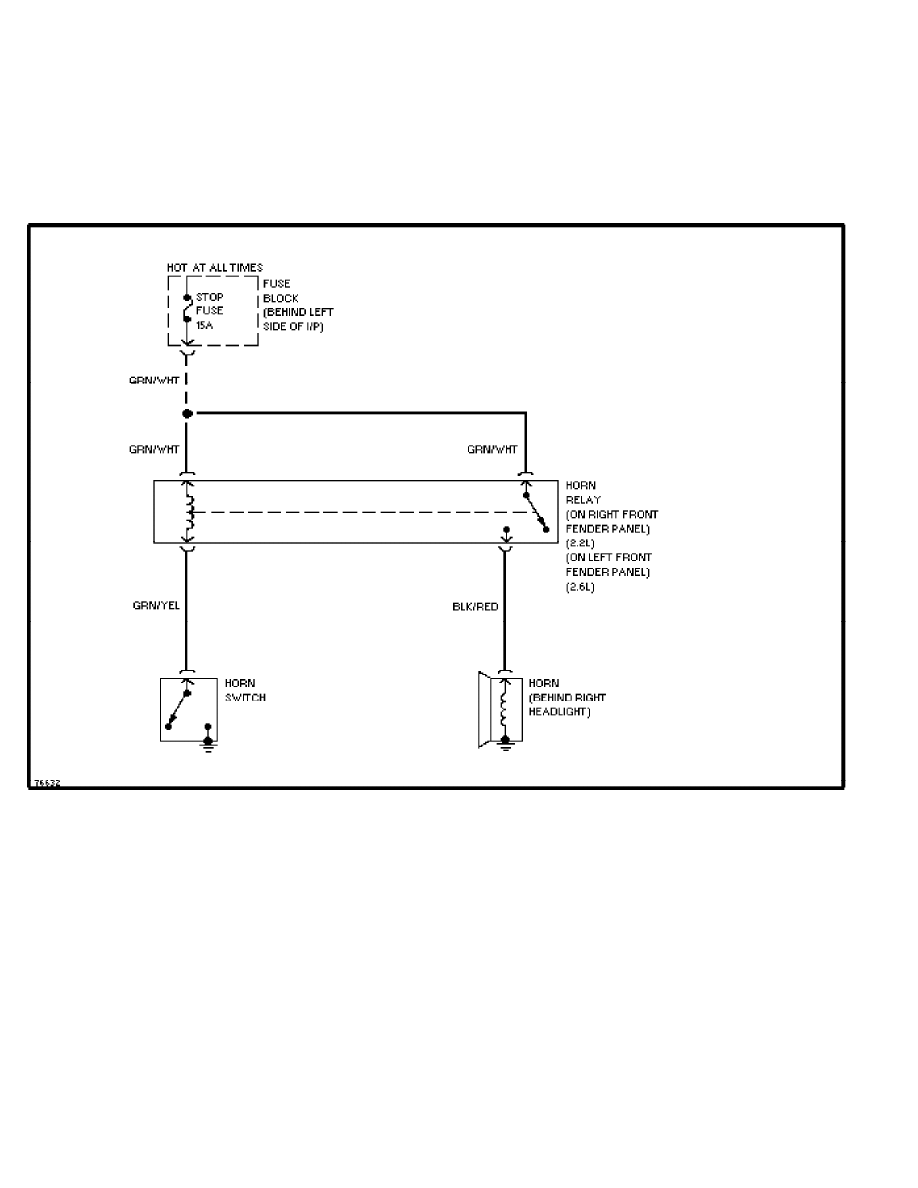

Horn Circuit

1993 Mazda B2200

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:28PM

background image

SYSTEM WIRING DIAGRAMS

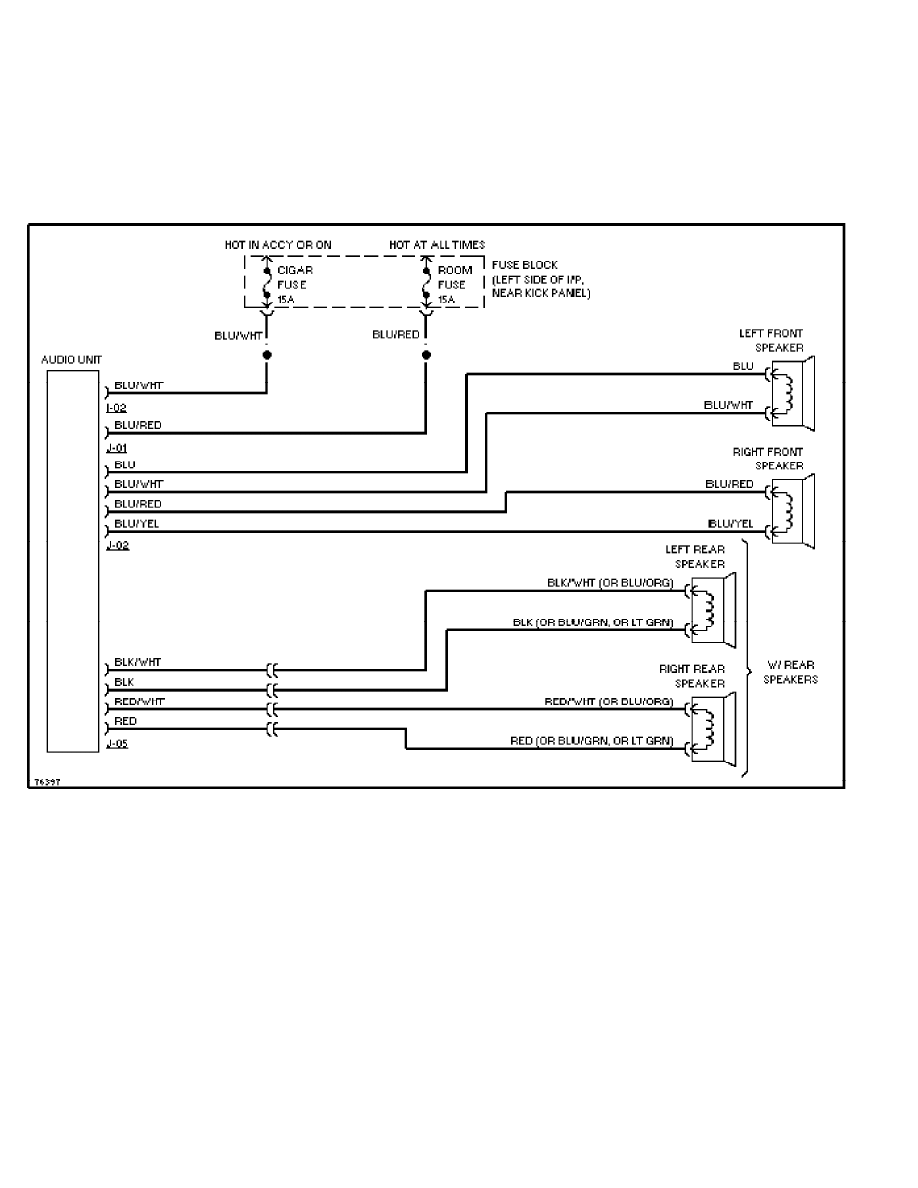

Radio Circuits (p. 2)

1993 Mazda B2200

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:28PM

background image

SYSTEM WIRING DIAGRAMS

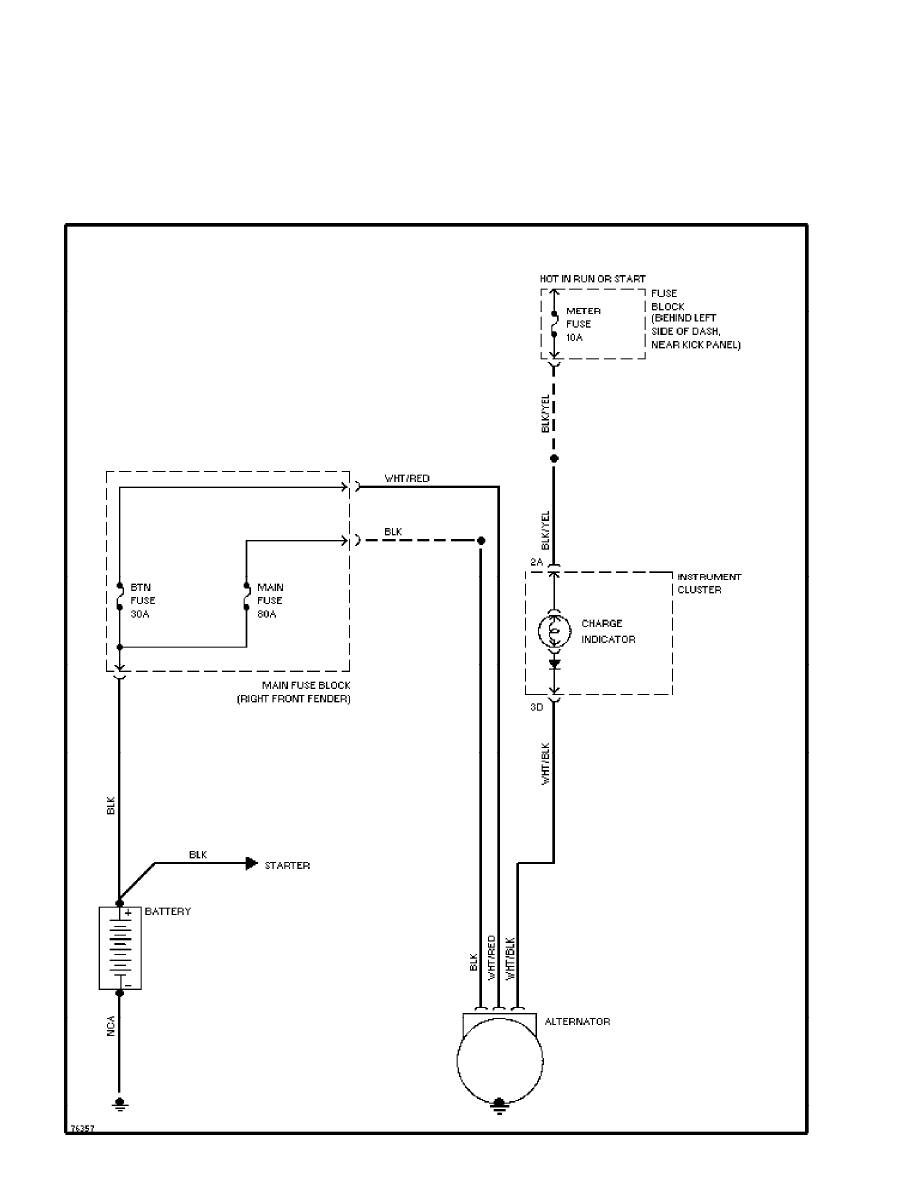

Charging Circuit (p. 3)

1993 Mazda B2200

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:28PM

background image

SYSTEM WIRING DIAGRAMS

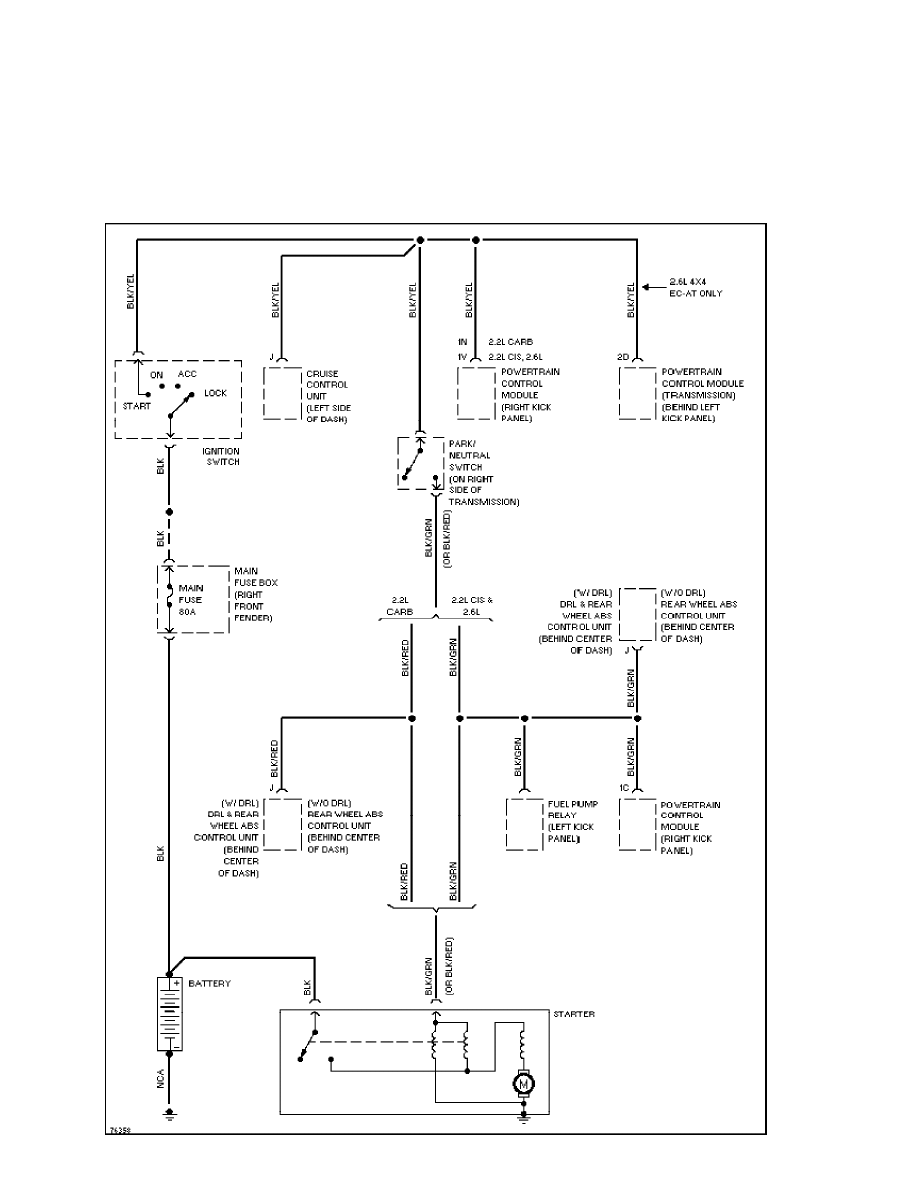

Starting Circuit, A/T (p. 4)

1993 Mazda B2200

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:28PM

background image

SYSTEM WIRING DIAGRAMS

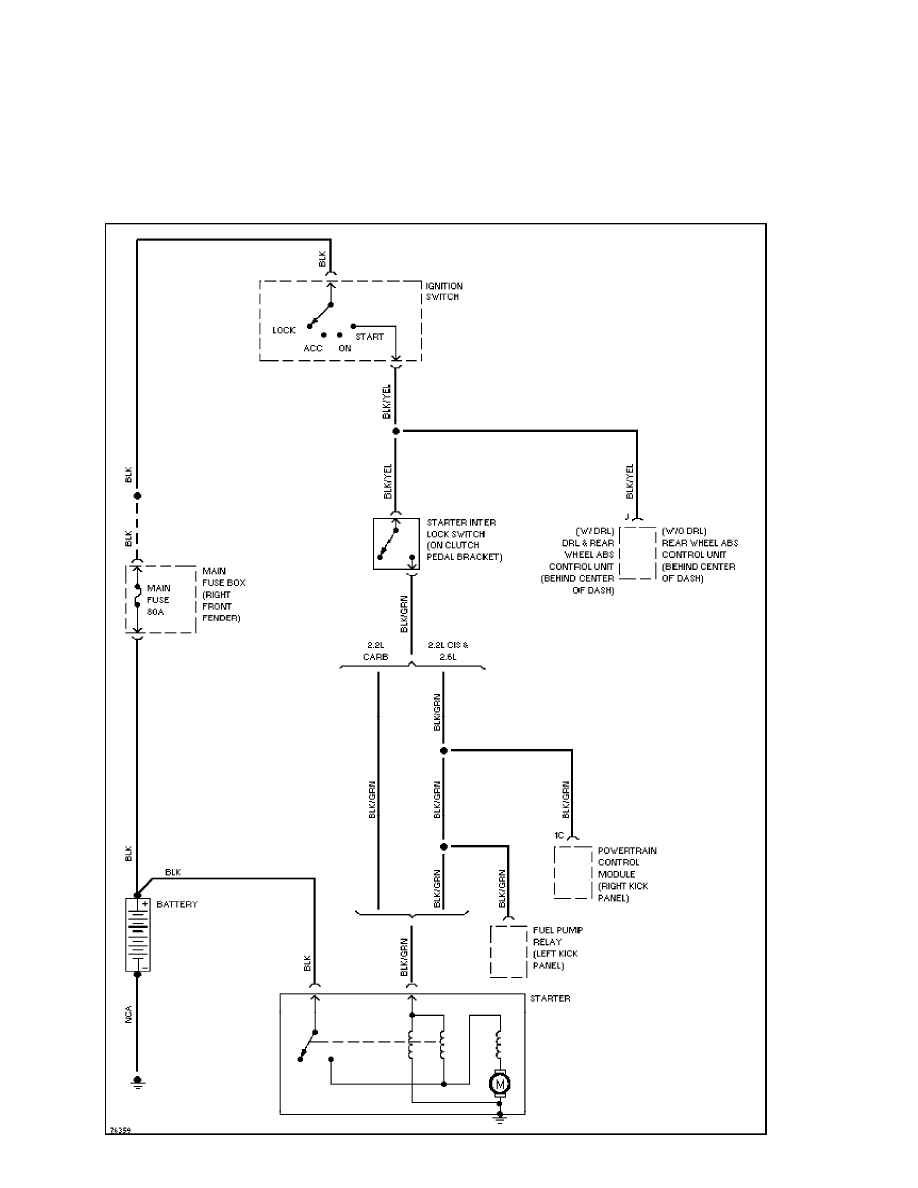

Starting Circuit, M/T (p. 5)

1993 Mazda B2200

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:28PM

background image

SYSTEM WIRING DIAGRAMS

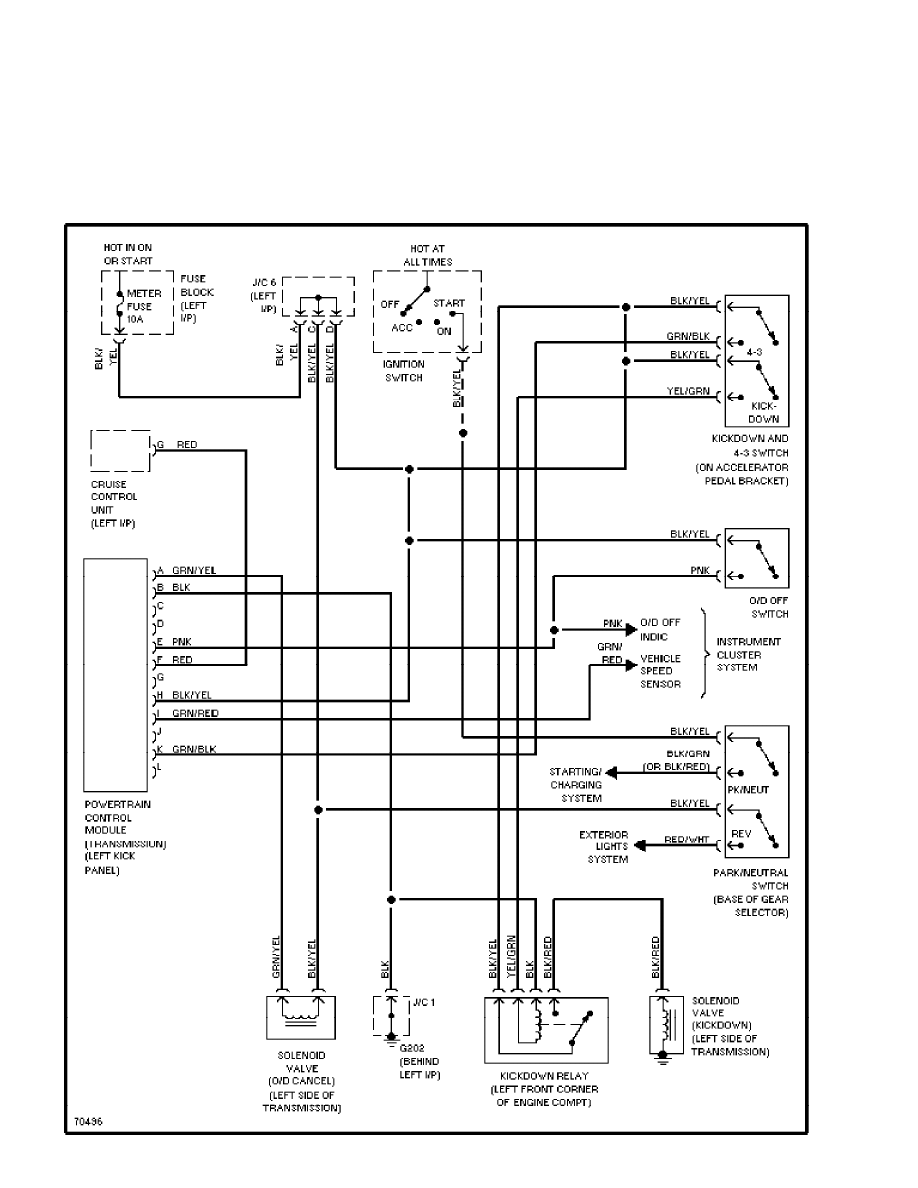

Transmission Circuit (p. 6)

1993 Mazda B2200

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:28PM

background image

SYSTEM WIRING DIAGRAMS

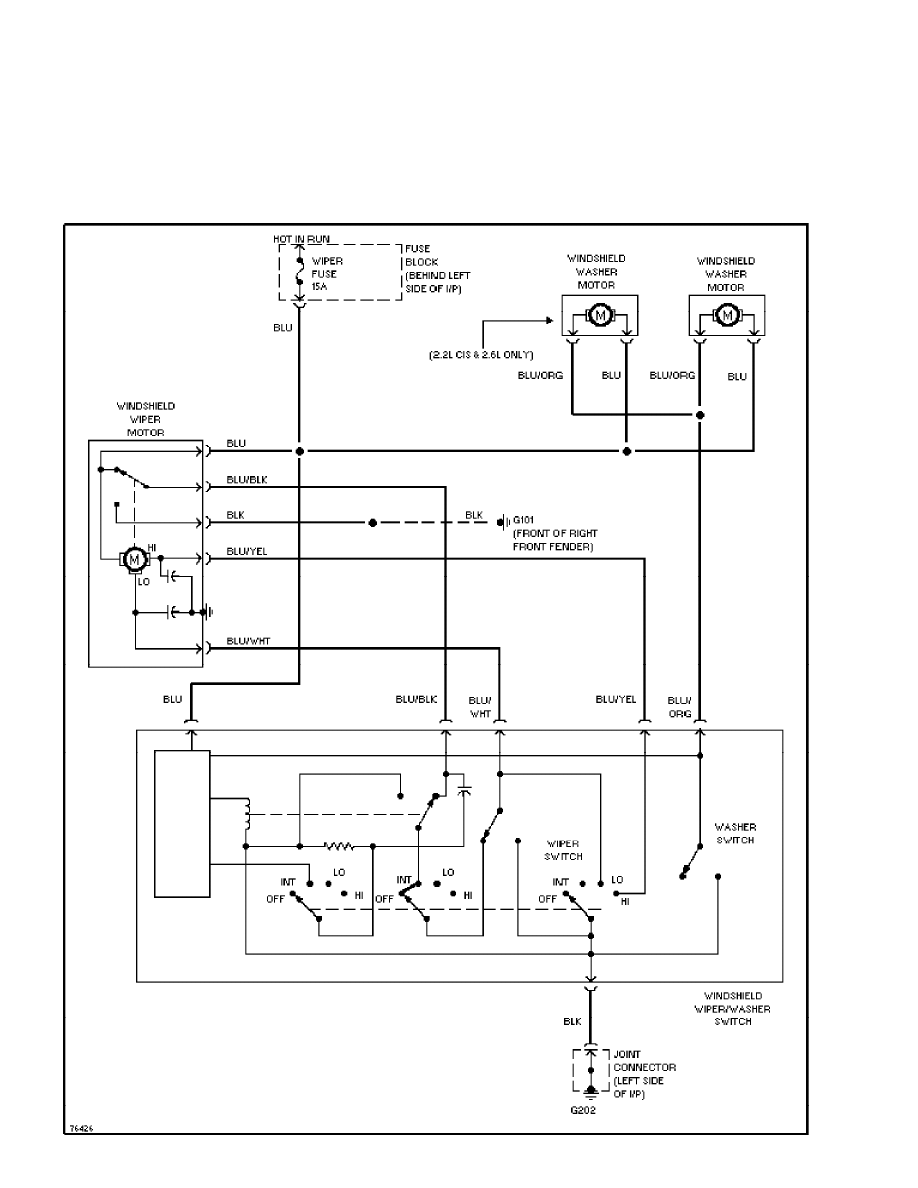

Wiper/Washer Circuit (p. 7)

1993 Mazda B2200

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:28PM

background image

WIRING DIAGRAMS

Fig. 1: Engine Compartment, Headlights, Battery (Grid 1-3)

1993 Mazda B2200

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:28PM

background image

WIRING DIAGRAMS

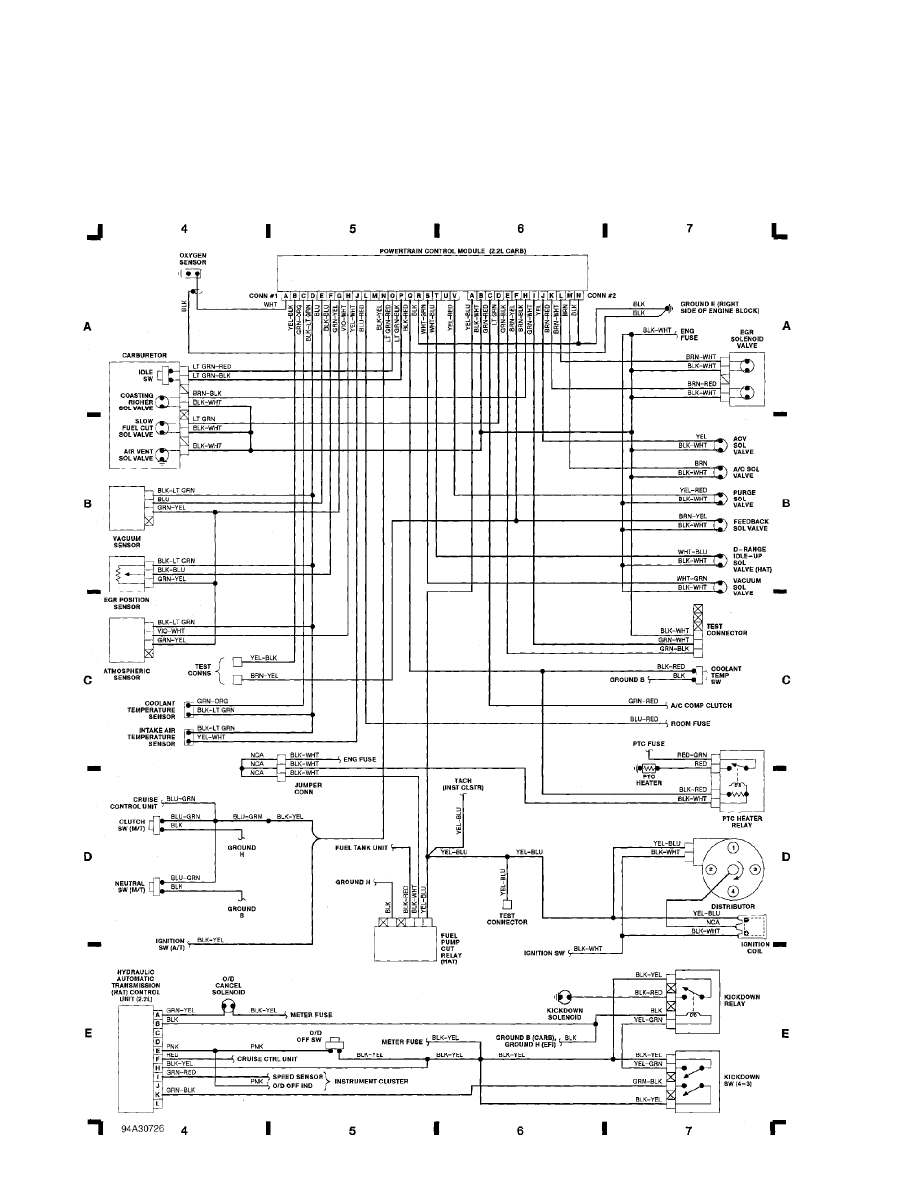

Fig. 2: Powertrain Control Module (2.3L Carb) (Grid 4-7) (p. 2)

1993 Mazda B2200

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:28PM

background image

WIRING DIAGRAMS

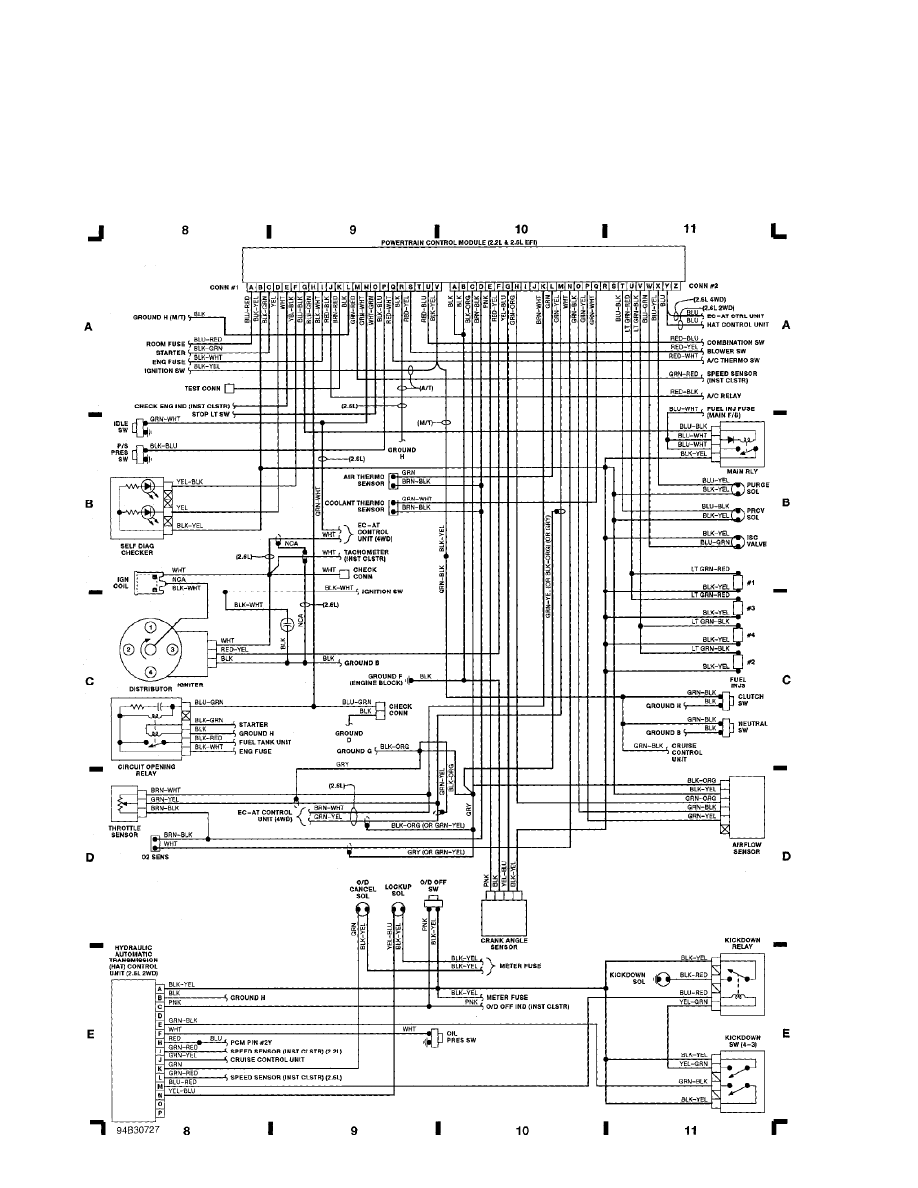

Fig. 3: Powertrain Control Module (2.2L & 2.6L EFI) (Grid 8-11) (p. 3)

1993 Mazda B2200

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:28PM

background image

WIRING DIAGRAMS

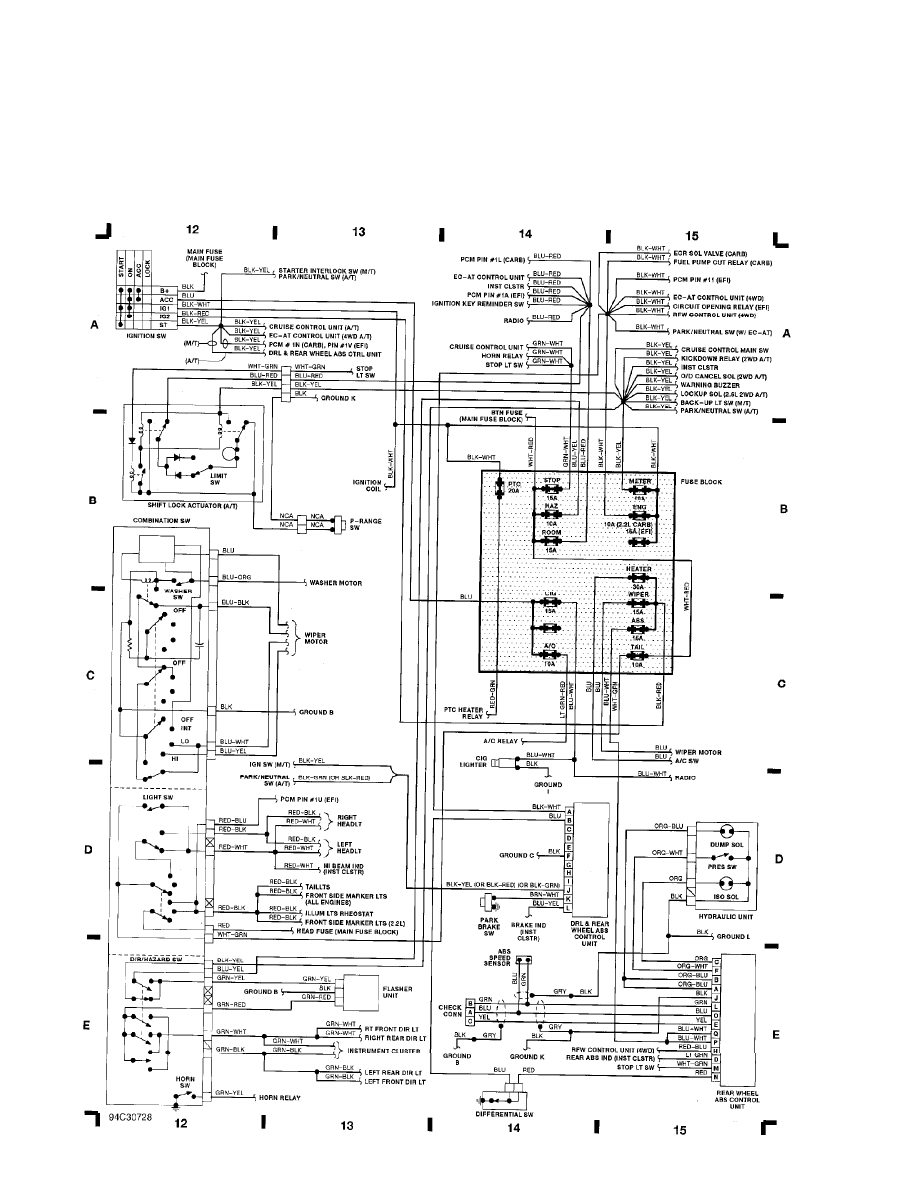

Fig. 4: Fuse Block, Ignition Sw, Differential Sw (Grid 12-15) (p. 4)

1993 Mazda B2200

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:28PM

background image

WIRING DIAGRAMS

Fig. 5: Instrument Cluster, A/C Sw and Relay (Grid 16-19) (p. 5)

1993 Mazda B2200

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:28PM

background image

WIRING DIAGRAMS

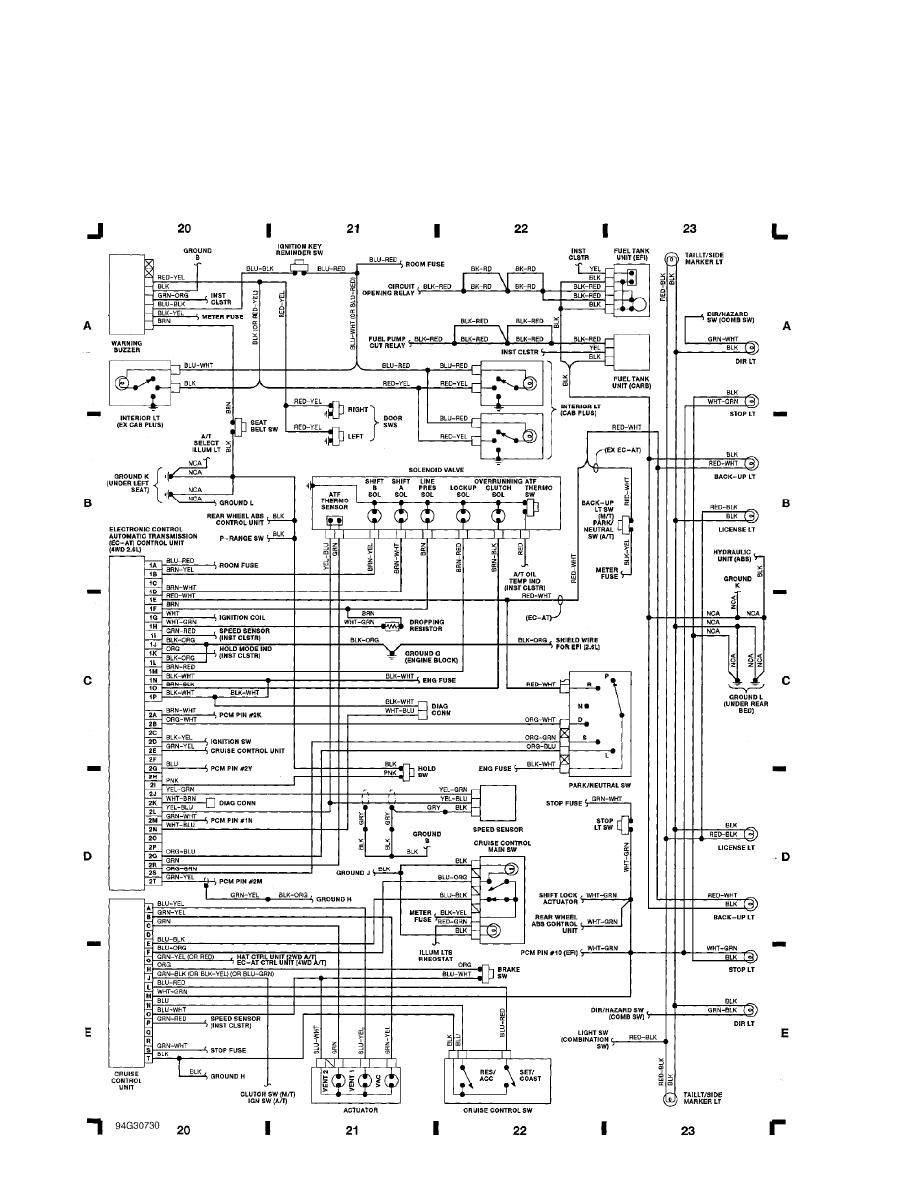

Fig. 6: Cruise Control Unit, Taillights, Warning Buzzer (Grid 20-23) (p. 6)

1993 Mazda B2200

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:28PM
