Intake Air Distribution and Filtering - 2.0L Duratorq-TDCi
(85kW/115PS) - DW/2.0L Duratorq-TDCi (100kW/136PS) - DW/2.0L
Duratorq-TDCi (103kW/140PS) - DW - Intake Air Distribution and
Filtering

Mondeo 2007.5 (02/2007-)

Print

Description and Operation

Description

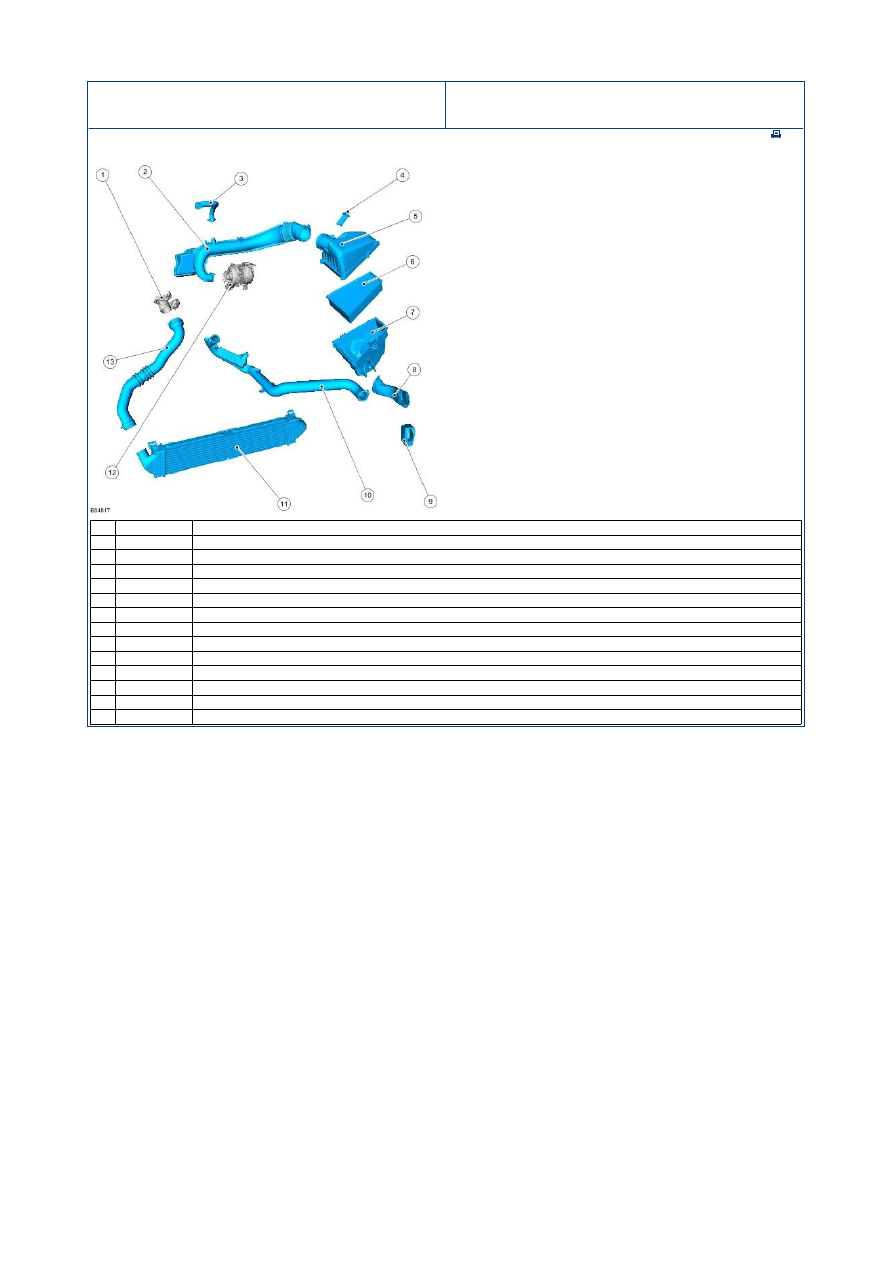

Intake air shutoff throttle

Air cleaner outlet pipe

Positive crankcase ventilation (PCV) hose

Mass air flow (MAF) sensor

Air cleaner cover

Air cleaner element

Air cleaner housing

Air cleaner intake pipe

Noise, vibration and harshness (NVH) foam

Charge air cooler intake pipe

Charge air cooler

Turbocharger

Charge air cooler outlet pipe

Item

1

2

3

4

5

6

7

8

9

10

11

12

13
