HYUNDAI EXCEL 1993

SYSTEM WIRING DIAGRAMS

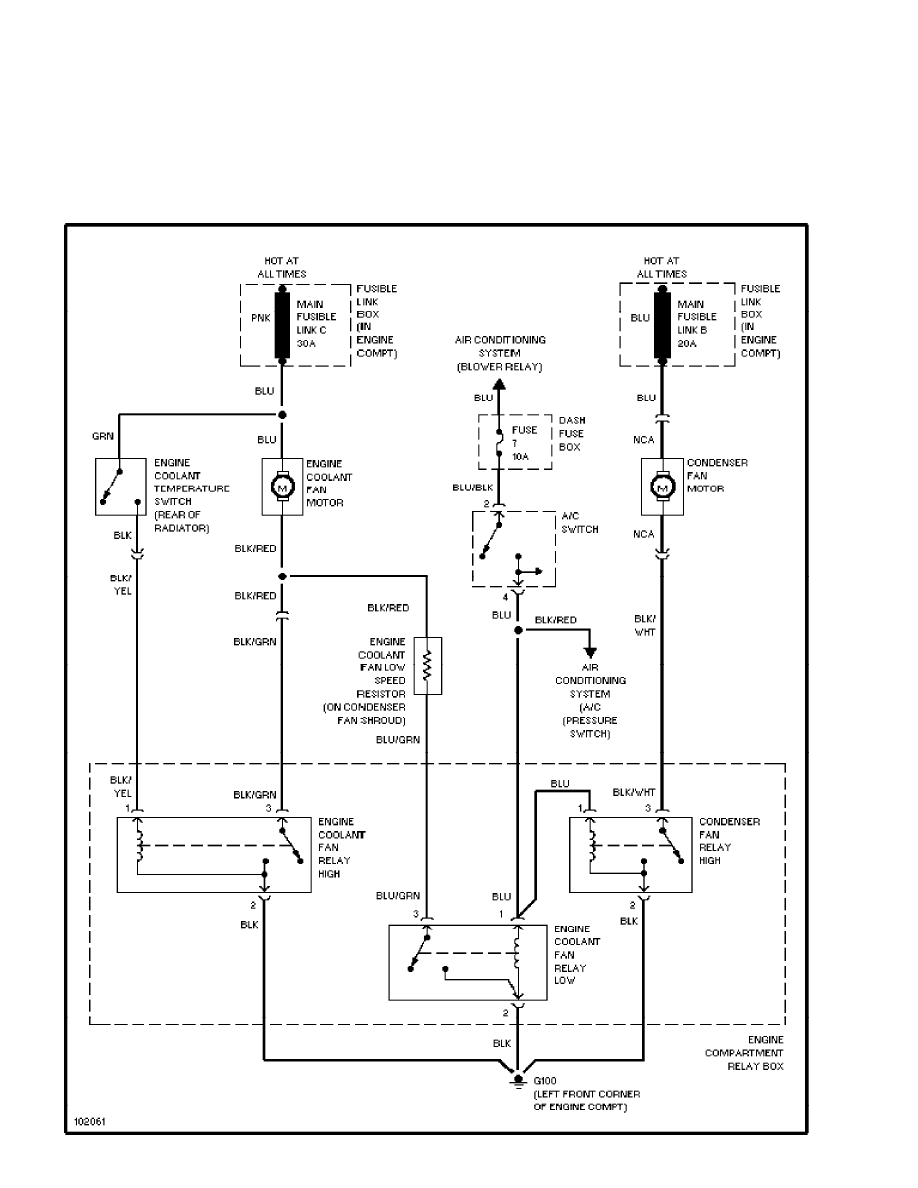

Cooling Fan Circuit

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:40AM

SYSTEM WIRING DIAGRAMS

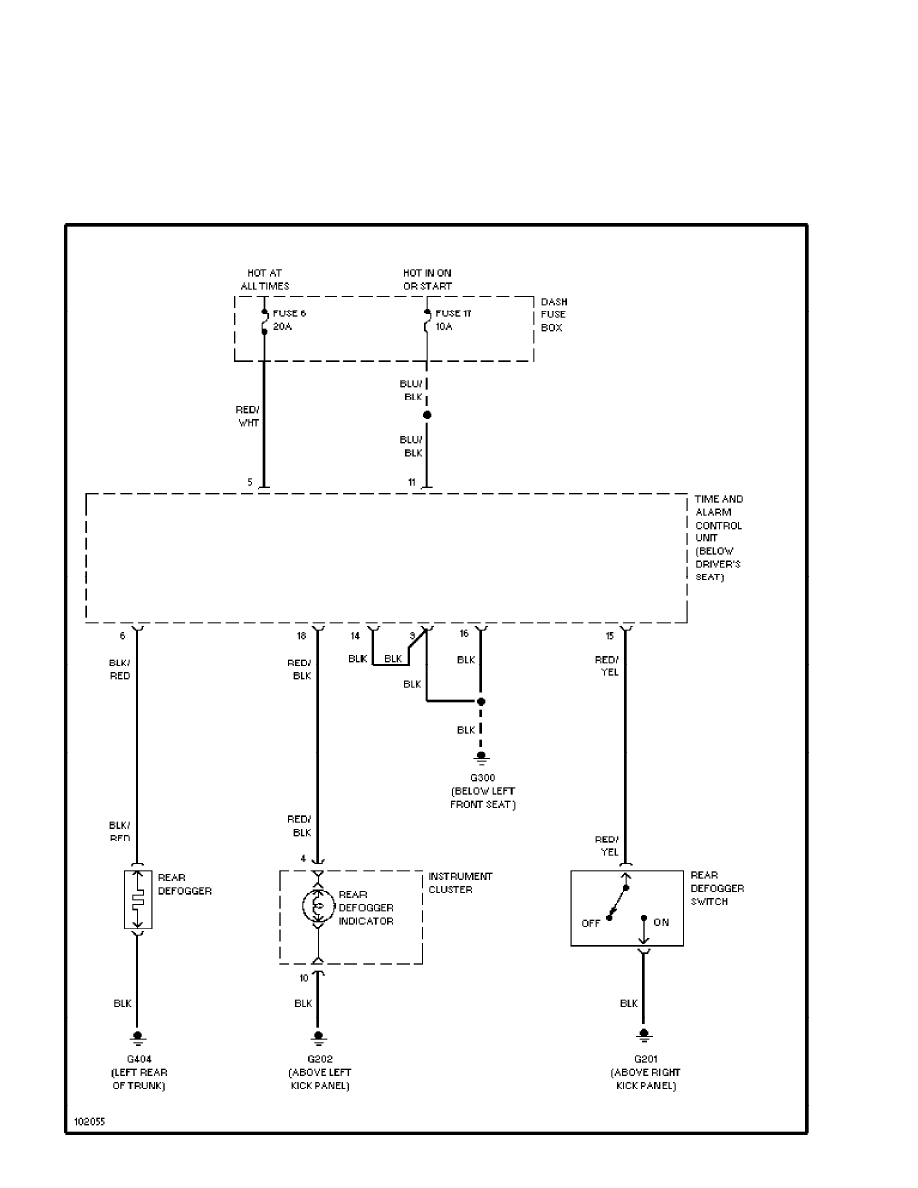

Defogger Circuit (p. 2)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:40AM

SYSTEM WIRING DIAGRAMS

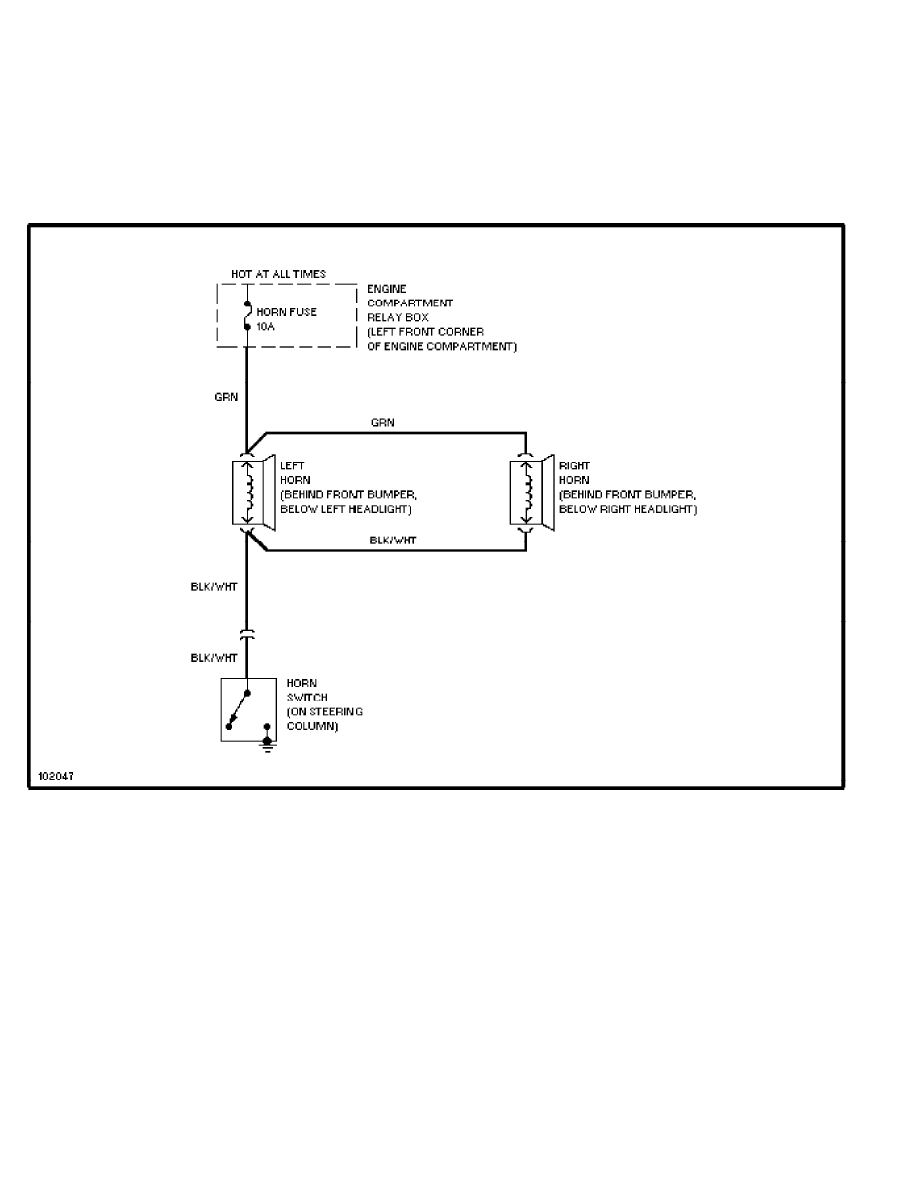

Horn Circuit (p. 3)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:40AM

SYSTEM WIRING DIAGRAMS

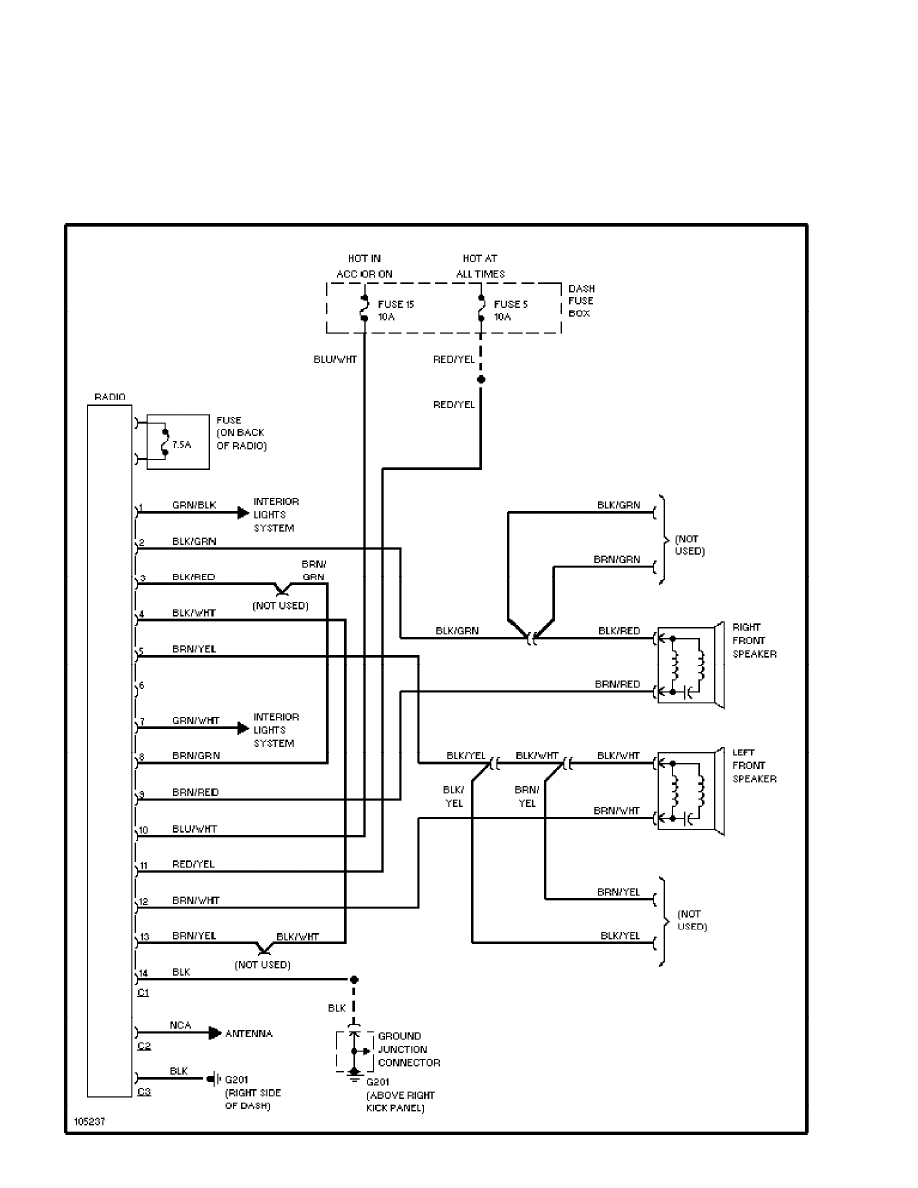

2-Speaker System Circuit (p. 4)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:40AM

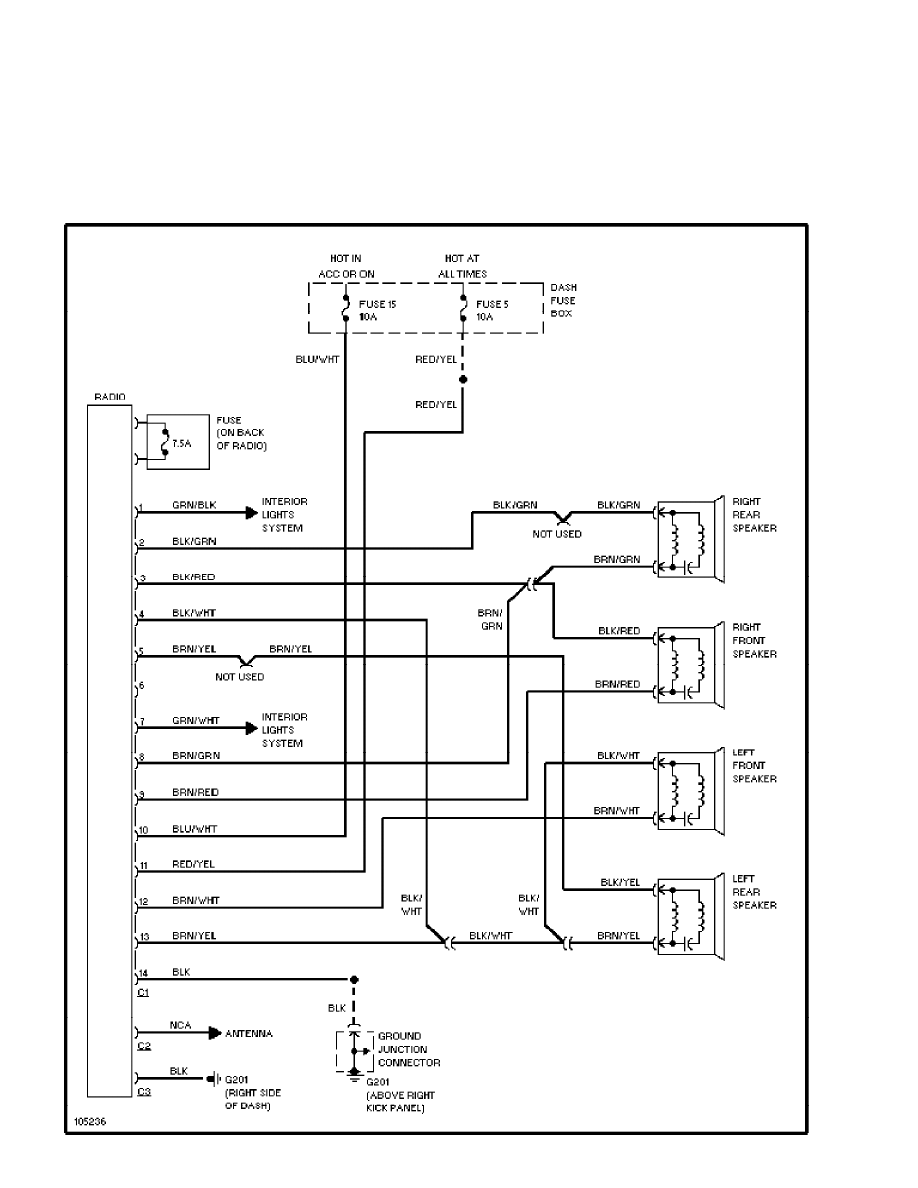

SYSTEM WIRING DIAGRAMS

4-Speaker System Circuit (p. 5)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:40AM

SYSTEM WIRING DIAGRAMS

Charging Circuit (p. 6)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:40AM

SYSTEM WIRING DIAGRAMS

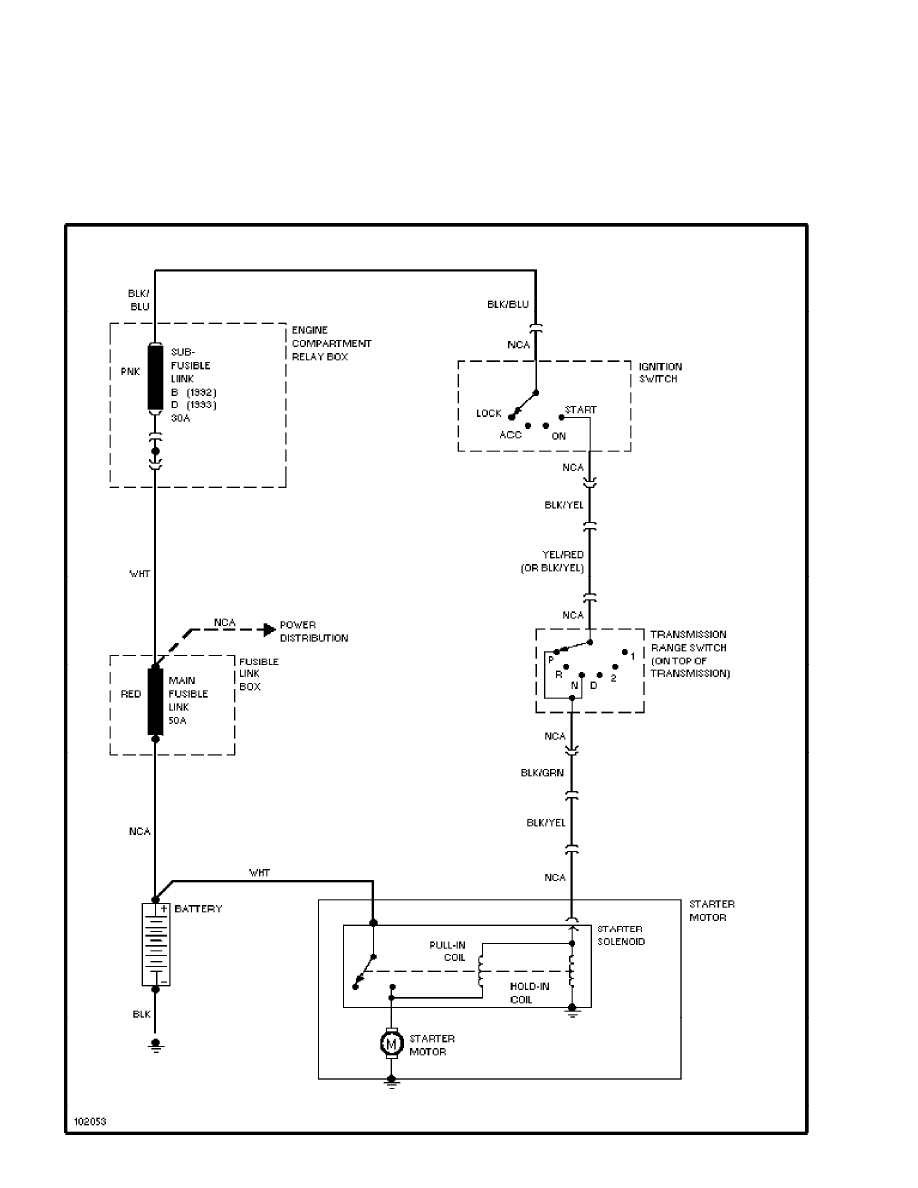

Starting Circuit, A/T (p. 7)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:40AM

SYSTEM WIRING DIAGRAMS

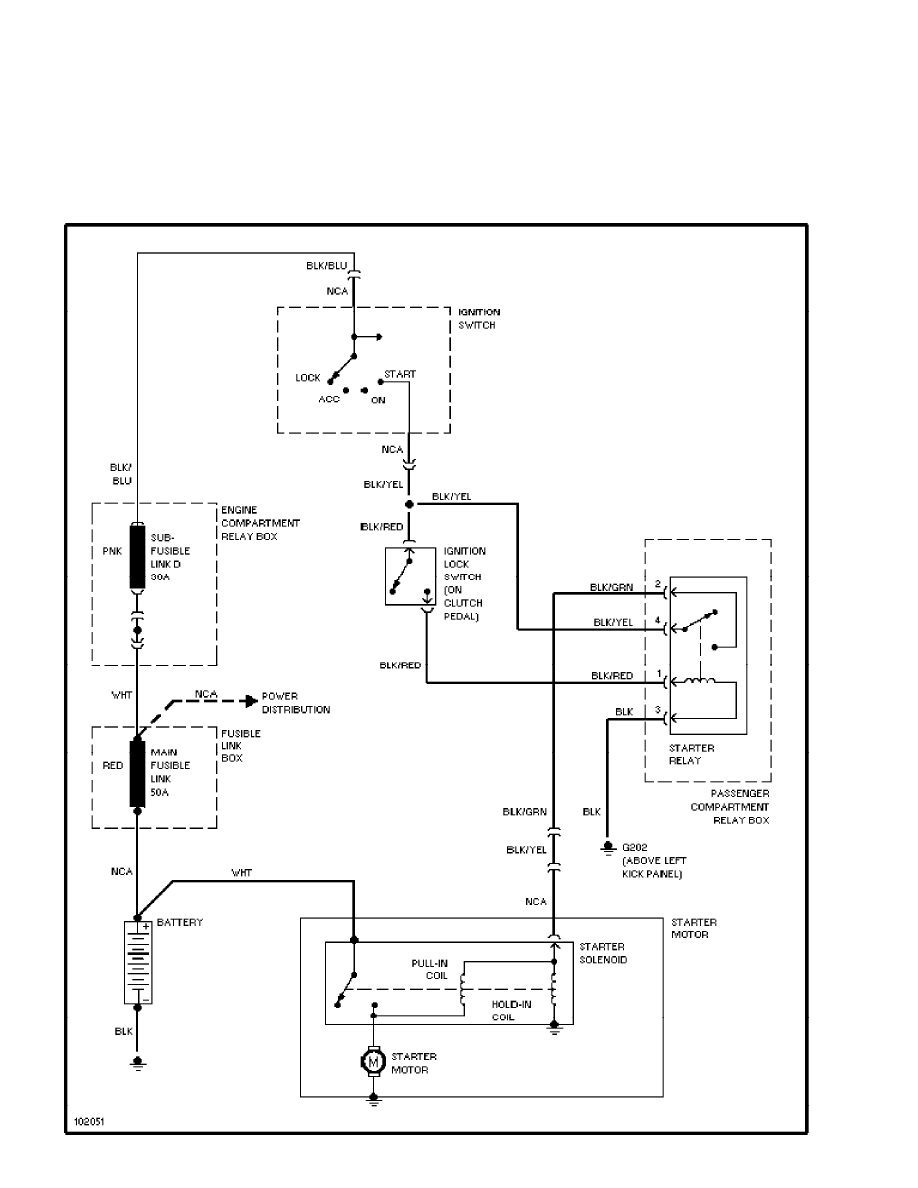

Starting Circuit, M/T (p. 8)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:40AM

SYSTEM WIRING DIAGRAMS

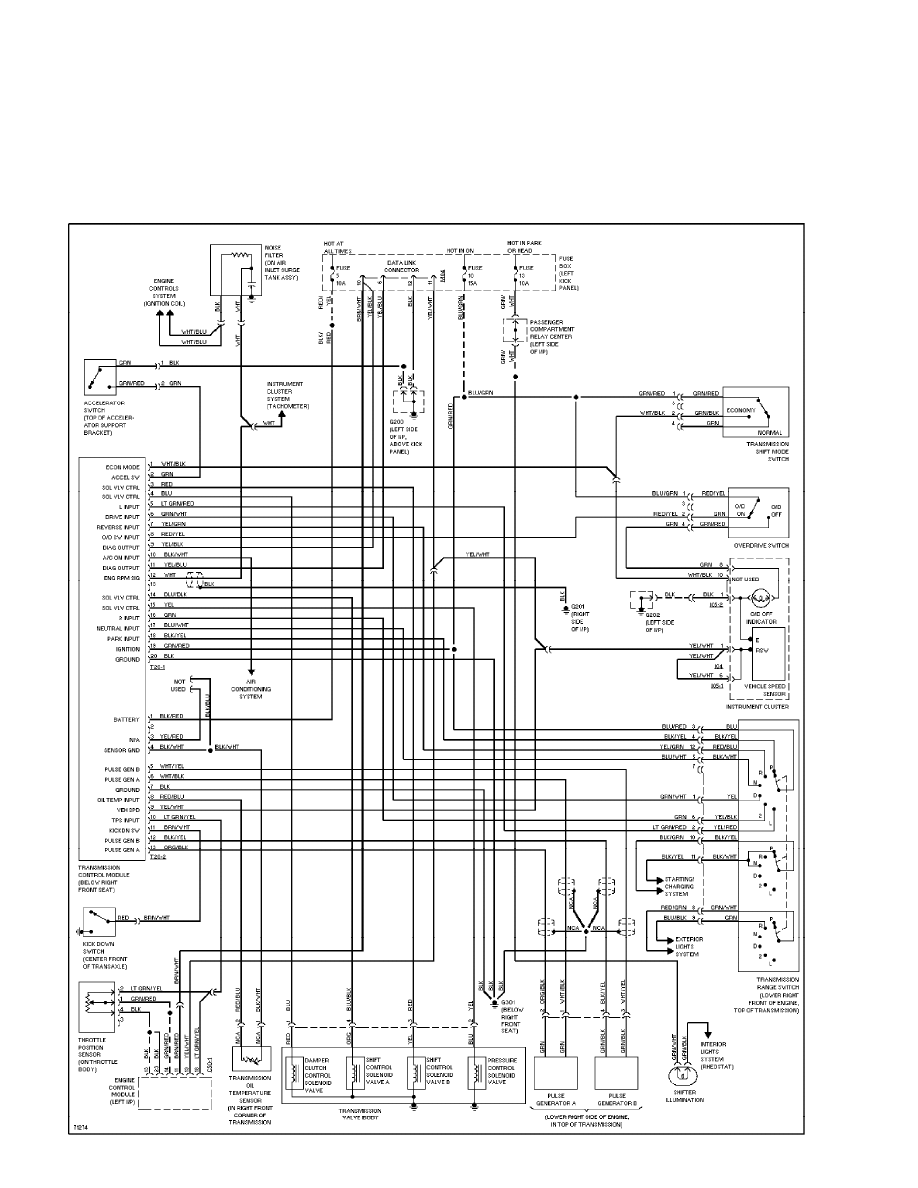

Transmission Circuit (p. 9)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:40AM

SYSTEM WIRING DIAGRAMS

Trunk/Tailgate Release Circuit (p. 10)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:40AM

SYSTEM WIRING DIAGRAMS

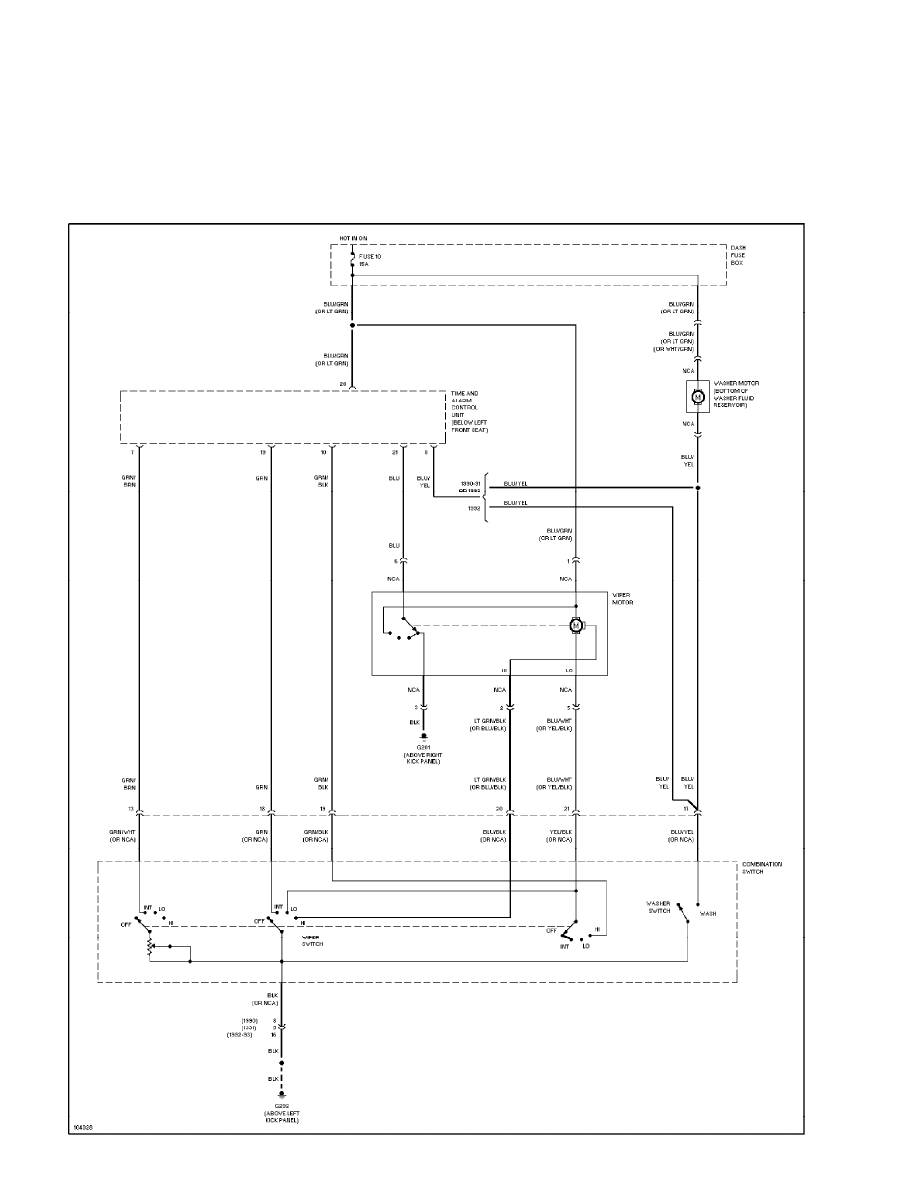

Front Wiper/Washer Circuit (p. 11)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:40AM

SYSTEM WIRING DIAGRAMS

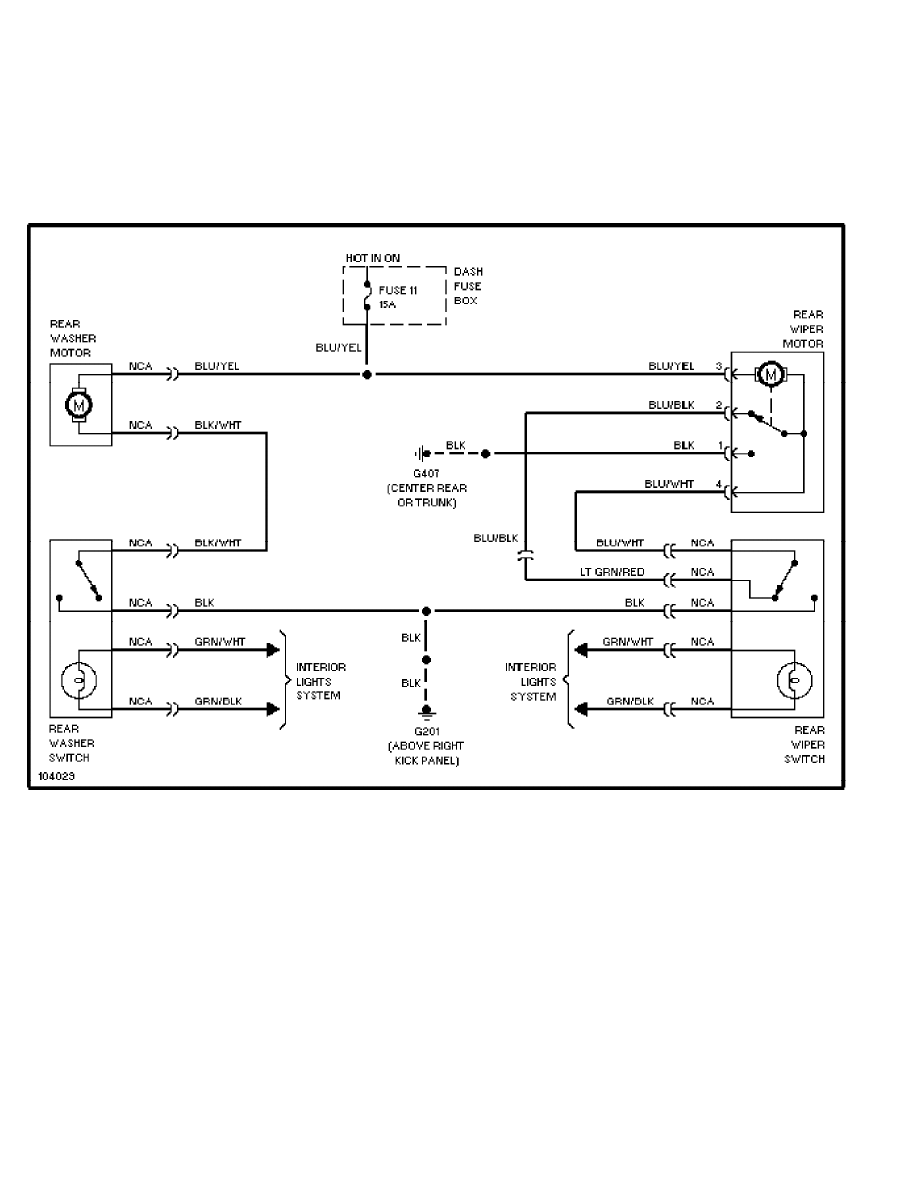

Rear Wiper/Washer Circuit (p. 12)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:40AM

WIRING DIAGRAMS

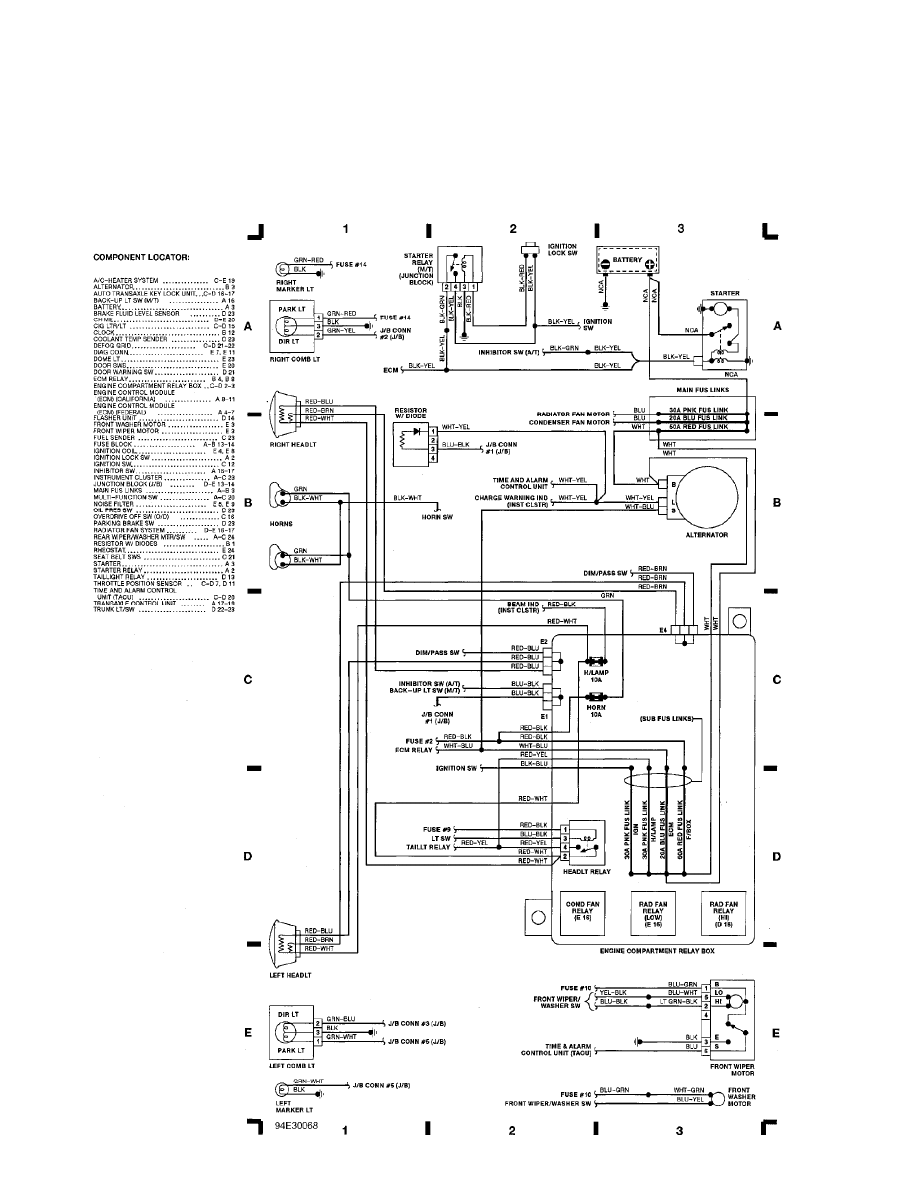

Fig. 1: Headlights, Ignition Lock Sw, Starter (Grid 1-3)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:41AM

WIRING DIAGRAMS

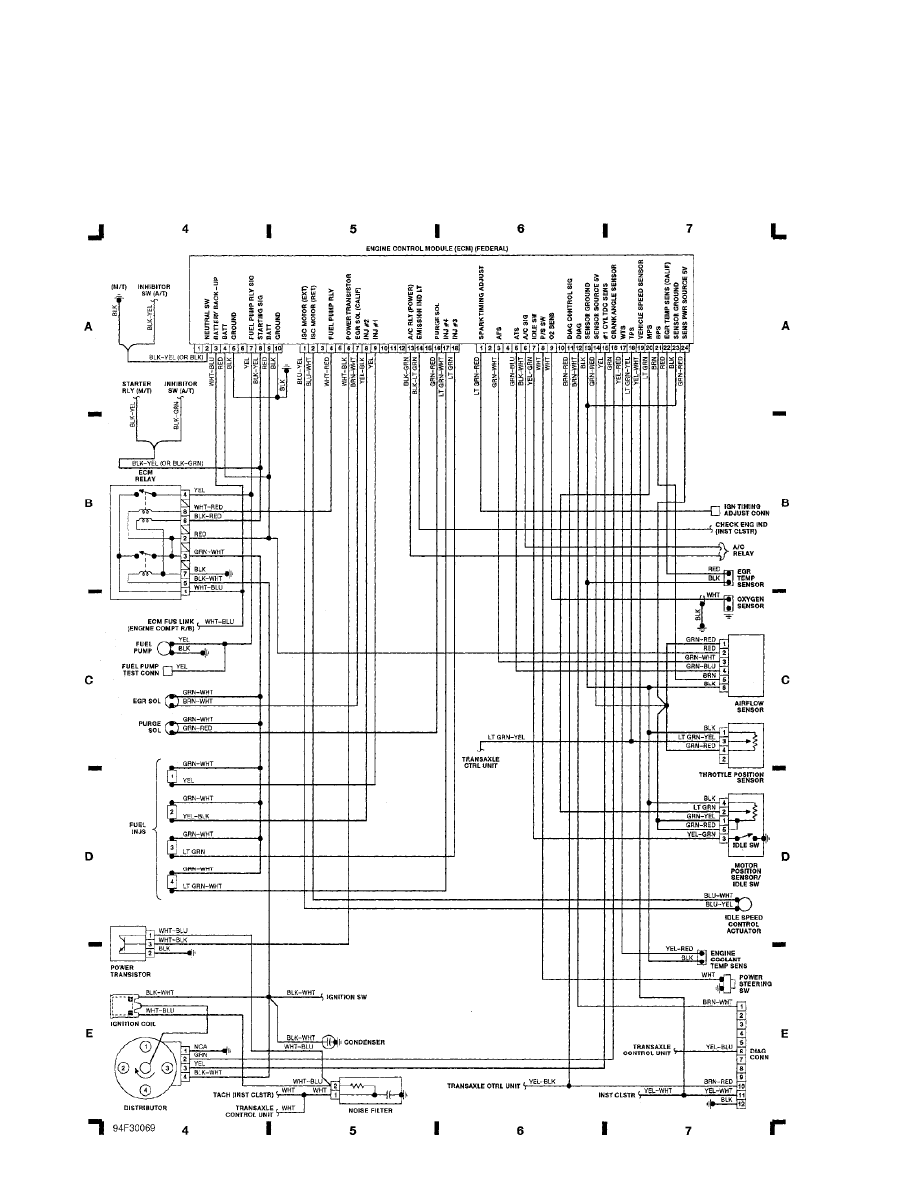

Fig. 2: Engine Ctrl Module, ECM Relay (Grid 4-7) (p. 2)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:41AM

WIRING DIAGRAMS

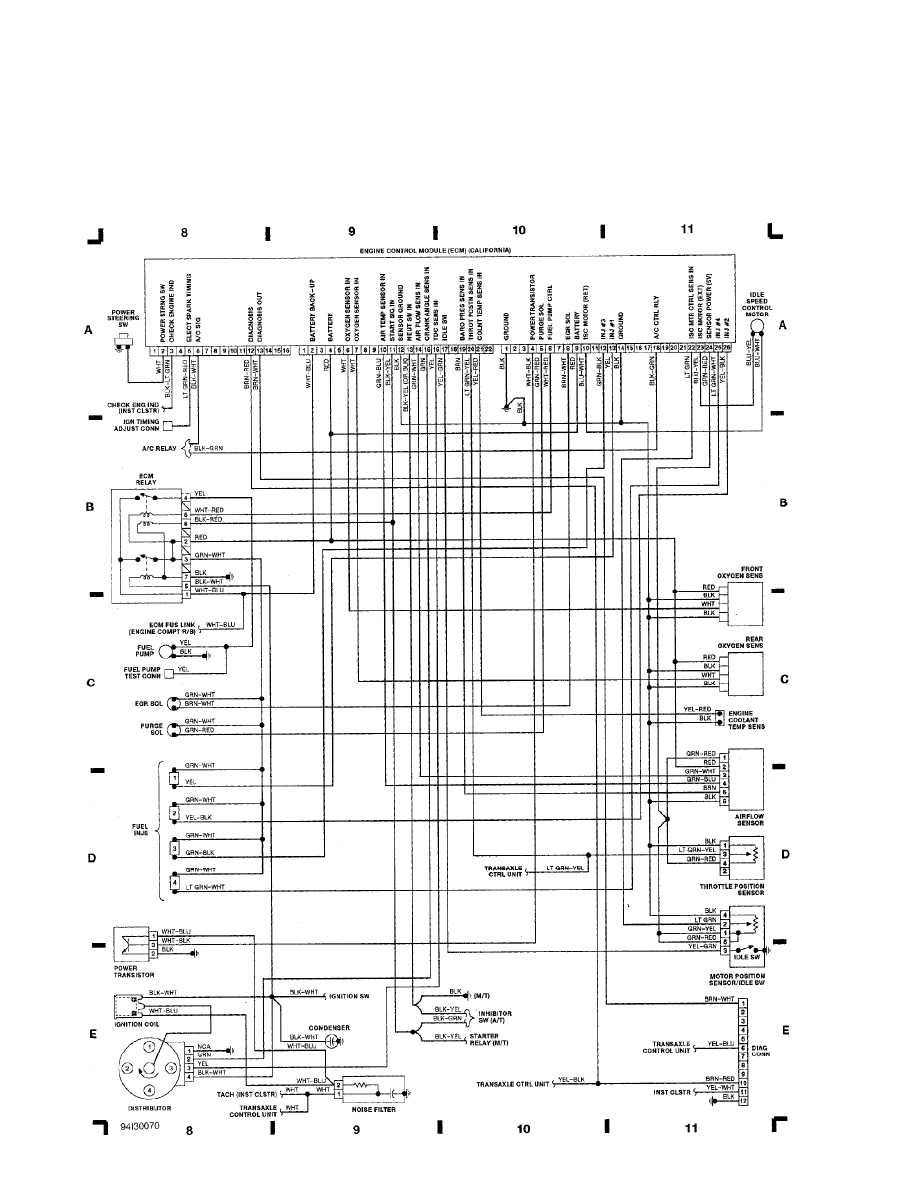

Fig. 3: Engine Ctrl Module (Calif), ECM Relay (Grid 8-11) (p. 3)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:41AM

WIRING DIAGRAMS

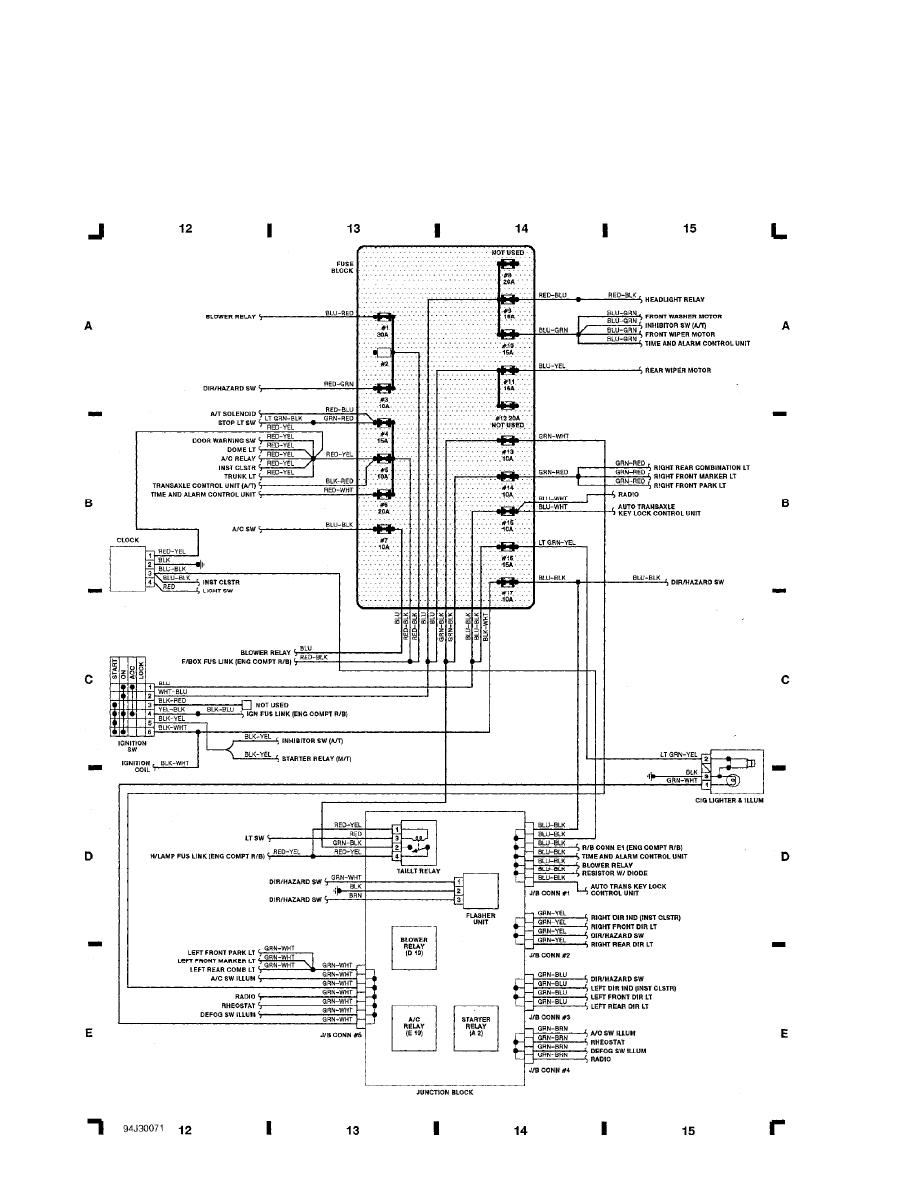

Fig. 4: Fuse Block, Junction Block, Clock (Grid 12-15) (p. 4)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:41AM

WIRING DIAGRAMS

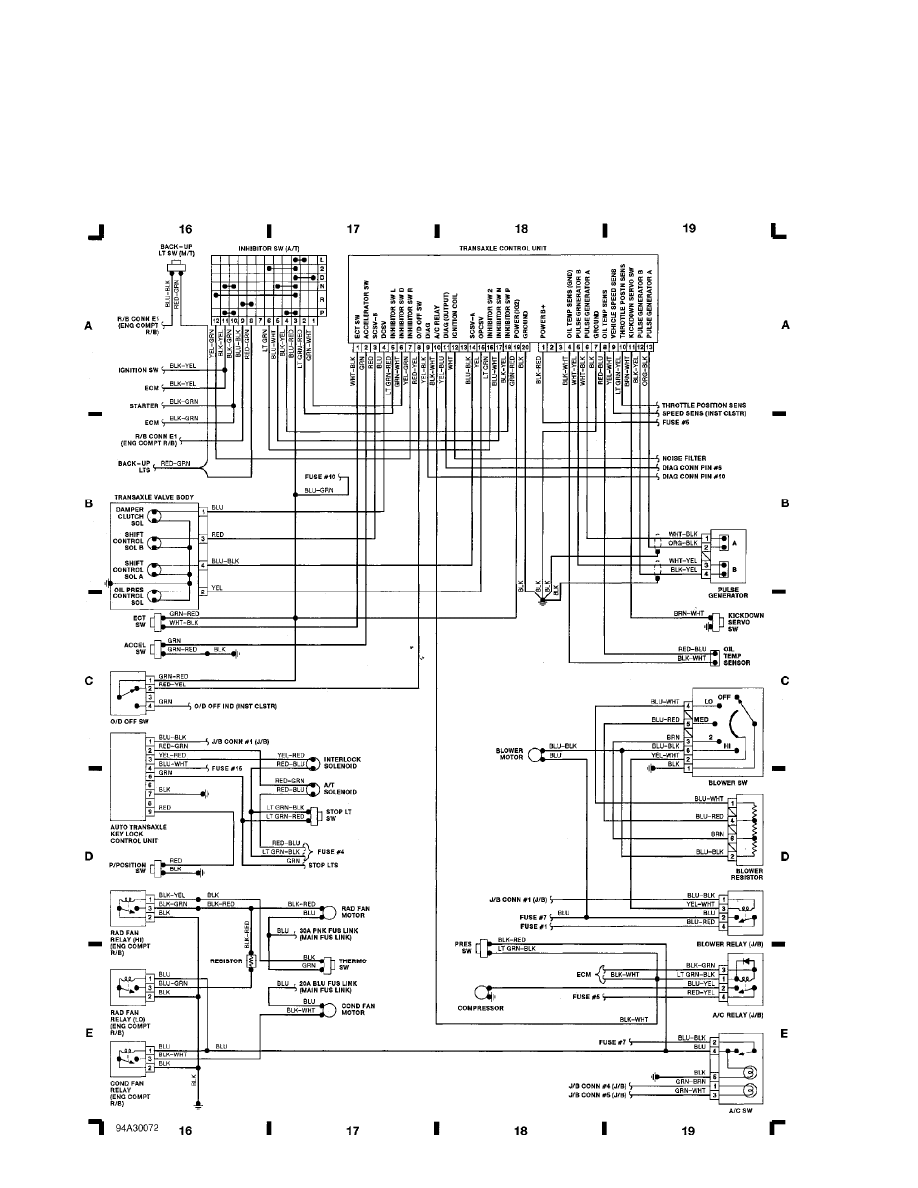

Fig. 5: Transaxle Control Unit, Blower Sw, A/C Sw (Grid 16-19) (p. 5)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:41AM

WIRING DIAGRAMS

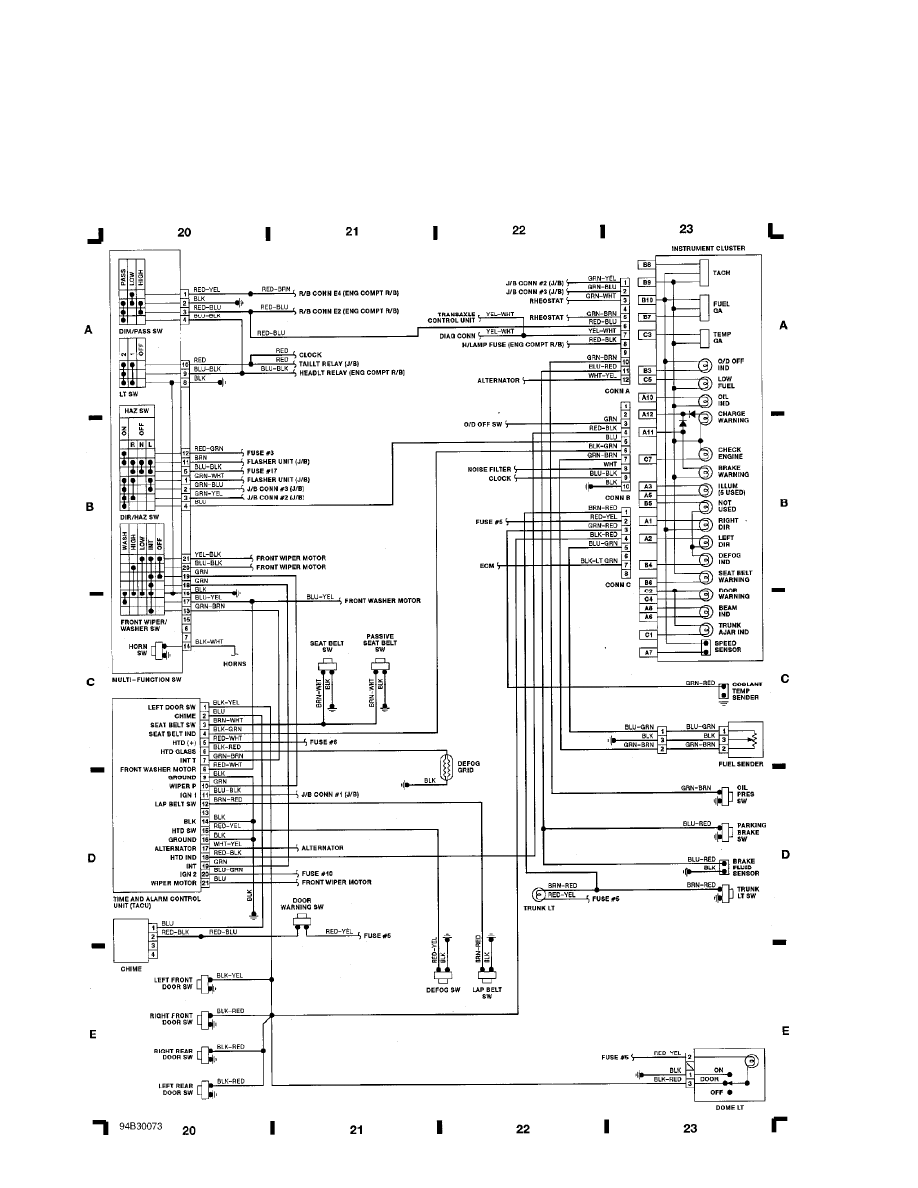

Fig. 6: Instrument Cluster, Multi-Function Sw (Grid 20-23) (p. 6)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:41AM

WIRING DIAGRAMS

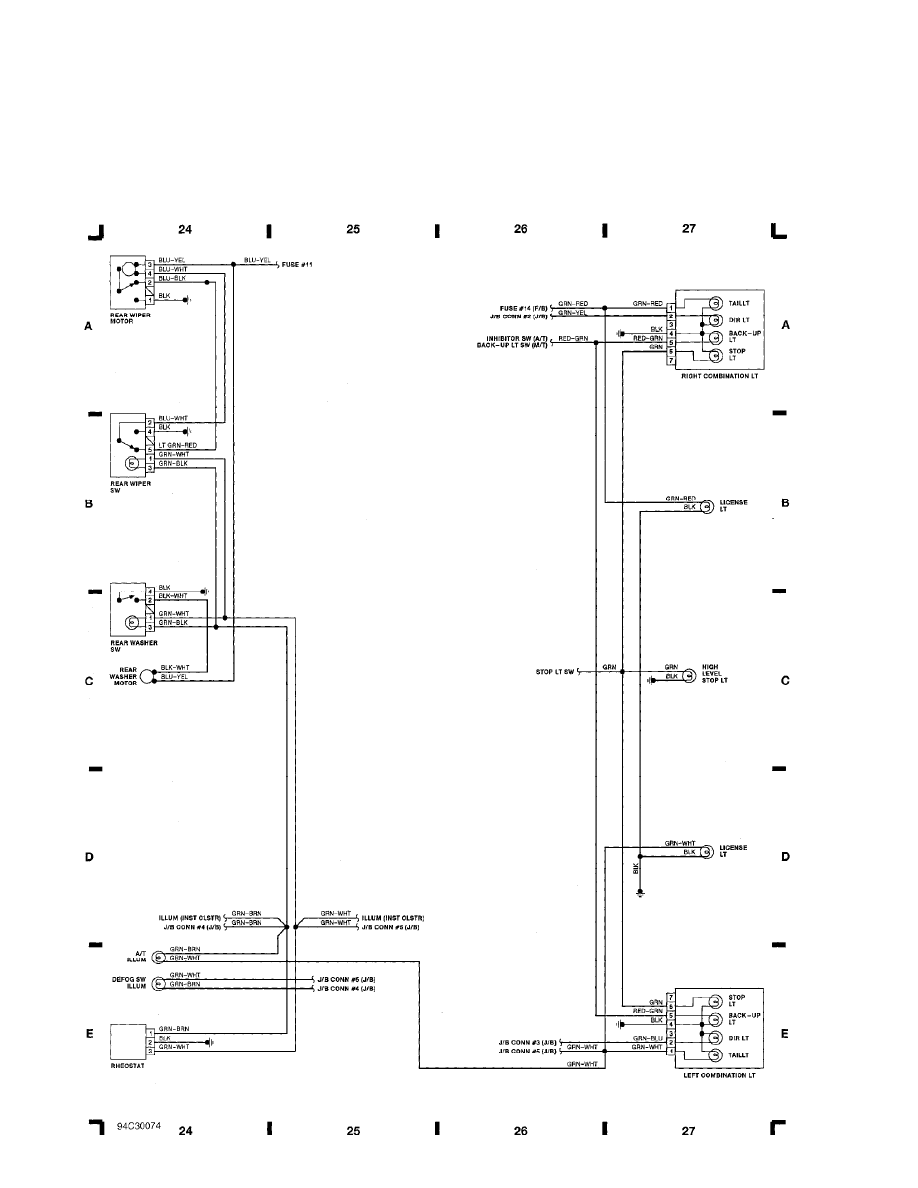

Fig. 7: Left Combination Sw, Rheostat, Taillights (Grid 24-27) (p. 7)

1993 Hyundai Excel

For x

Thursday, March 17, 2005 11:41AM
