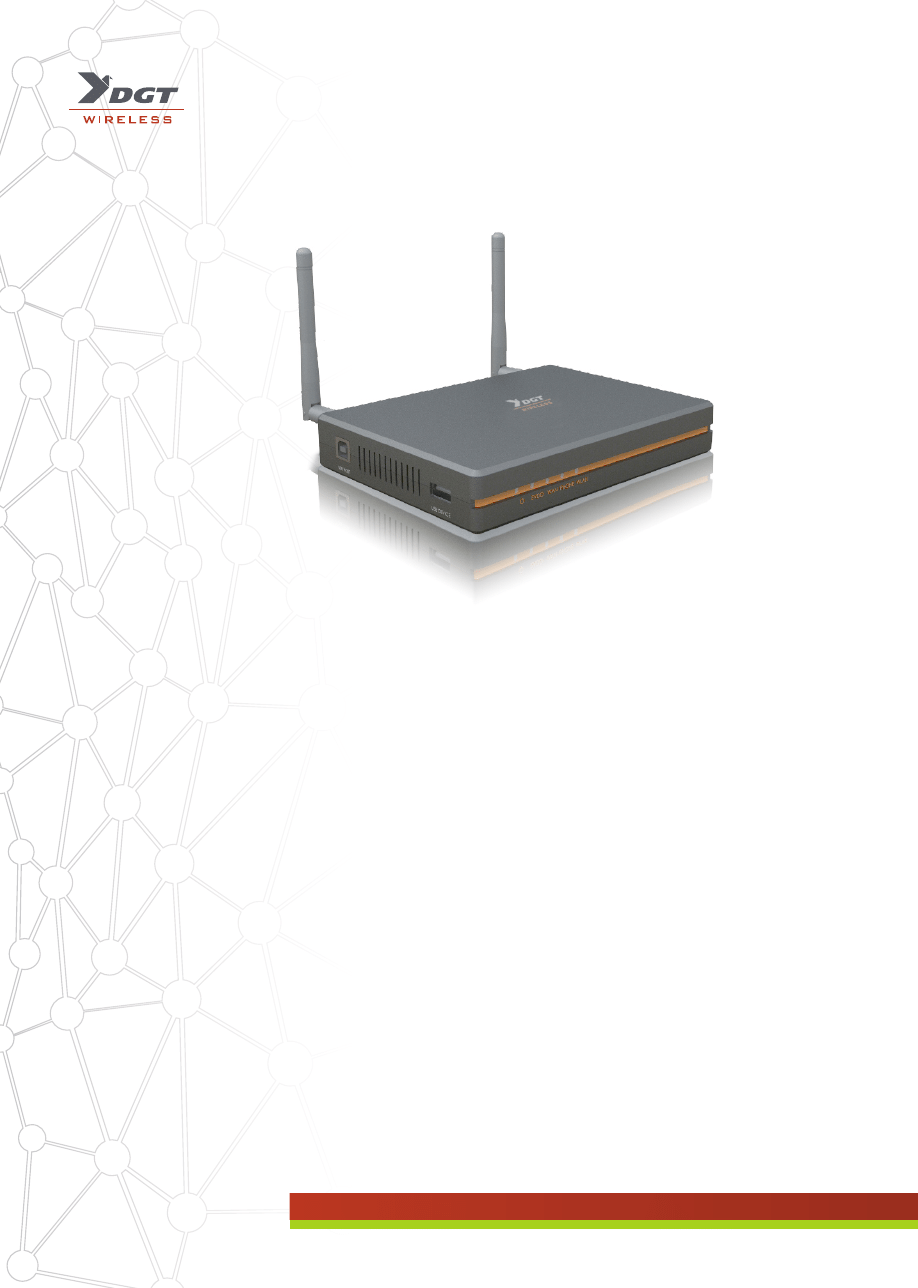

DGT Router 3G HSPA solution is dedicated for mobile operators interested to offer

a broadband Internet access and voice services based on HSPA technology.

Unique features

Router 3G HSPA can work as traditional router with 4 point switch, wireless ac-

cess point, and telephone gateway or as a traditional HSPA modem when the USB

cable is plugged into the USB client socket. When the USB connection to a PC is

detected the router switches automatically from the router mode to the modem

connection type mode. The connection type mode can be monitored in Router’s

Connection Manager Application.

Voice services - Traditional Telephony and VoIP

Router 3G supports voice services in UMTS and VoIP gateway mode.

In UMTS gateway mode the Router 3G works as an ordinary Fixed Wireless

Terminal.

In VoIP gateway mode the Router 3G utilizes its integrated IP PBX functionality to

make internal calls between POTS terminals and IP terminals and supports trunk

connections to external VoIP providers.

Additional cost routing optimization between UMTS and VoIP is supported.

High Speed Internet Access

HSPA 7.2 / 5.76 Mbps Data Transmission • WAN Ethernet Port • 4 port Ethernet

Switch • WLAN 802.11 b/g

Additional Tools

Remote Terminal Management System - Routers can be managed from the cen-

tralized management system providing tools for Remote Configurations, Firmare

Updates and ongoing technical terminal support by an operator.

Customization and Branding

Router 3G HSPA customization and branding is available.

Branding on the device includes custom casing, packaging , software changes to

accomodate operator’s marketing objectives.

UMTS/HSPA

Voice over IP (VoIP),

IP PABX

G3 Fax Transmission

4-Port Ethernet

Switch

WLAN 802.11 b/g

VPN Security

Remote Terminal

Configuration

Update and Support

Capability

Integrated Power

Back-up Supply

Router 3G

HSPA

This document is not a business offer and it is exclusively informative in character. DGT reserves the right to introduce changes without prior notice.

DGT Sp. z o.o.

ul. Mlynska 7, 83-010 Straszyn, POLAND

tel. [phone], fax [phone]

Technology

WAN

• GSM/GPRS/EDGE – 850/900/1800/1900 MHz

• UMTS/HSDPA/HSUPA - 2100 MHz, 850/1900 MHz (op-

tion)

• Ethernet port - 10/100 BaseT
Data transmission speed

• HSPA - up to 7.2 Mbps (downlink) / up to 5.76 Mbps

(uplink)

LAN, WLAN

• Ethernet Switch – 4 x 10/100 BaseT

• WLAN access point – 802.11 b/g
USB

• USB Host 2.0

• USB device for modem mode
Antenna

• External antenna 850/900/1800/1900/2100 MHz

• WiFI external 2.4 GHz antenna

Telephony features

Interface parameters

• Type and connector: 1 x FXS, 2-wire, RJ11 (used in case

of UMTS voice service and VoIP)

• Loop voltage: 48V DC

• Loop current: 23 mA

• Ringing voltage: 60 V RMS +/- 15 V, 25 Hz

• Line impedance: 600 Ω

• Subscriber’s loop max resistance: 1200 Ω

• DTMF and pulse dialling modes

• CLIP FSK calling line presentation

• Configuration of line and tone parameters according to

country requirements

UMTS voice service support

• AMR, FR, HFR voice codecs

• CLIP-FSK, Call waiting, Call Transfer, Call Forward, SMS,

Baby Call (Hot Line)

VoIP, IP PABX service support (option)

• SIP 2.0

• Voice codecs: G.711 A/μ, G.729AB

• Fax - G.711 pass through and T.38 fax relay

• DTMF inband and relay (RFC 2833/4733)

• VAD (Voice Activity Detection), CNG (Comfort Noise

Generation)

• Echo cancellation - G.165/G.168

• Packet Loss Compensation, Silence Suppression

• P PBX (optional) – SIP Proxy/Registrar functionality

• Selected services supported: 3-way call, Call Hold, Call

Transfer, Call Forward, DND, Call Waiting

• Dial Plan support

Router / gateway features

Protocols

• NAT, DHCP server/client

• DNS relay support, DDNS

• QoS - TOS/DiffServ, 802.1p

• PPP, PPoE

• NTP (time)

• RIPv1, RIPv2
VPN
• Internet access - PPPoE, PPTP, L2TP

• Pass-through - PPTP, L2TP, IPSec

Security

• MAC, IP address and port filtering

• Demilitarized Zone (DMZ)

• Statefull Packet Inspection firewall

• WLAN – WEP 64/128, WPA, WPA2, WPS, hidden SSID
Other

• Port forwarding

• Application Layer Gateway

• Event logging

Management and applications

LED Indicators

• UMTS/HSPA connection

• WAN, 4 x LAN ports

• Telephone port

• Main or battery power supply
Management

• Local - available through serial interface RS-232

• Local – Connection Manager for the modem mode

• Remote - available to subscribers through www interface

• Remote – available to operators dedicated remote central

management system (optional for operators)

• Remote - SNMP (optional)

Applications

• Router setup wizard software

• SMS client

Environmental and general properties

Dimensions and weight
• 150x107x27 mm, 270g
Power

• Power Adapter Supply 120/230VAC/9VDC, 1A

• Backup Power Supply (battery) Li-ion: 8,4 V, 2000 mAh

• Power Consumption - max. 15W
Operating temperature and humidity

• 0 – 40

O

C

• 5 to 90% (noncondensing)
Approvals/Certification

• CE

• EMC

• Wi-Fi (802.11 b/g)
Package Contents

• Router 3G HSPA

• Power Adapter 5V/1500mA

• Li-ion Battery

• 1 x Telephone cable

• 1 x LAN cable

• User Quick Start Guide
Order codes - device versions

• Router 3G HSPA with VoIP/IP PBX

• Router 3G HSPA without VoIP/IP PBX support

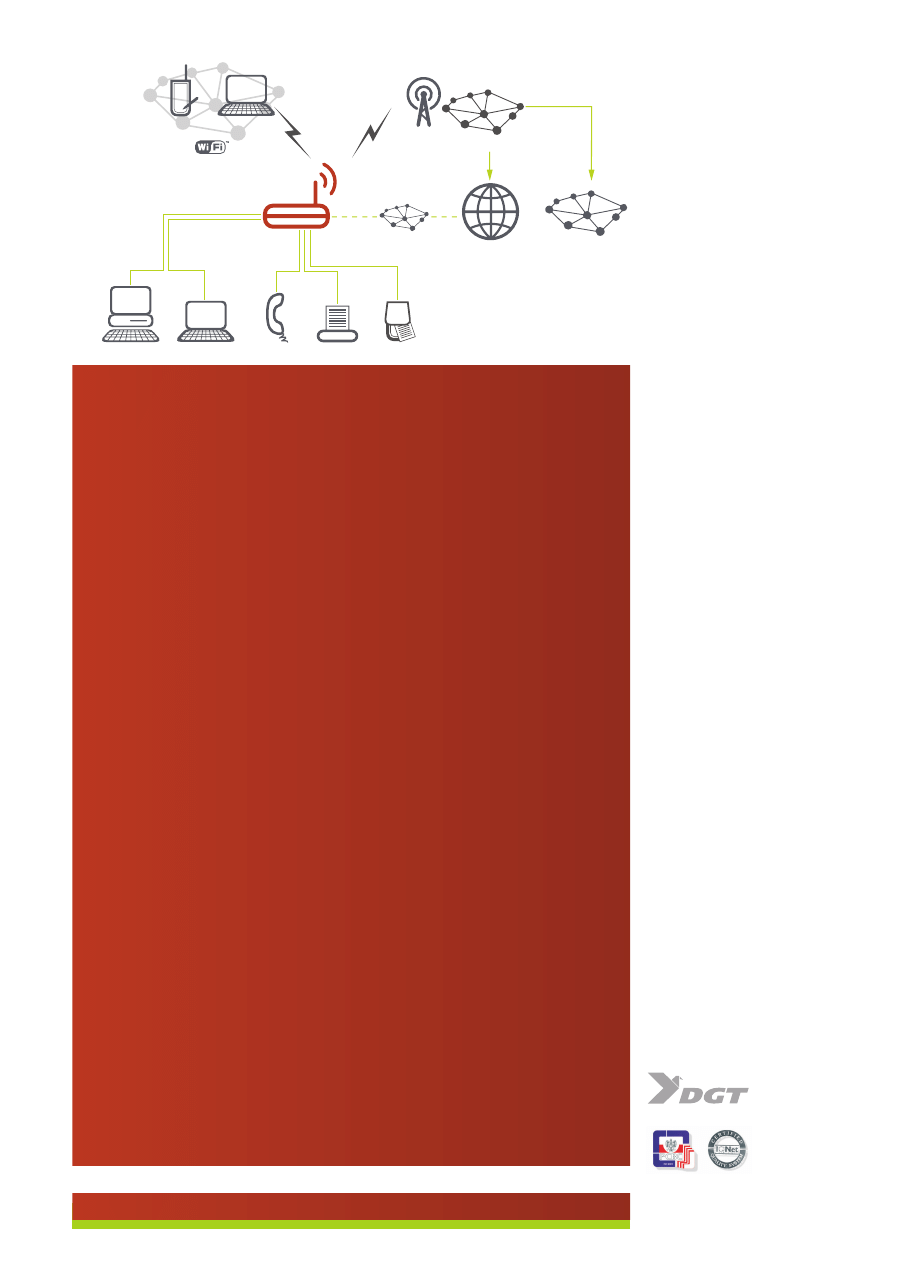

Technical Specification

PDA

UMTS/HSPA

Phone

Notebook

PC

Printer

Scanner

Internet

PSTN

ISP

Eth.

4xEth.

Eth.

Eth.

1xFXS

2xUSB

Router 3G

HSPA

Notebook
