FORD ESCORT 1986

SYSTEM WIRING DIAGRAMS

1.9L HO, Cooling Fan Circuit, A/T W/ A/C

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

1.9L HO, Cooling Fan Circuit, M/T W/ A/C (p. 2)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

1.9L, Cooling Fan Circuit, A/T W/ A/C (p. 3)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

1.9L, Cooling Fan Circuit, M/T W/ A/C (p. 4)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

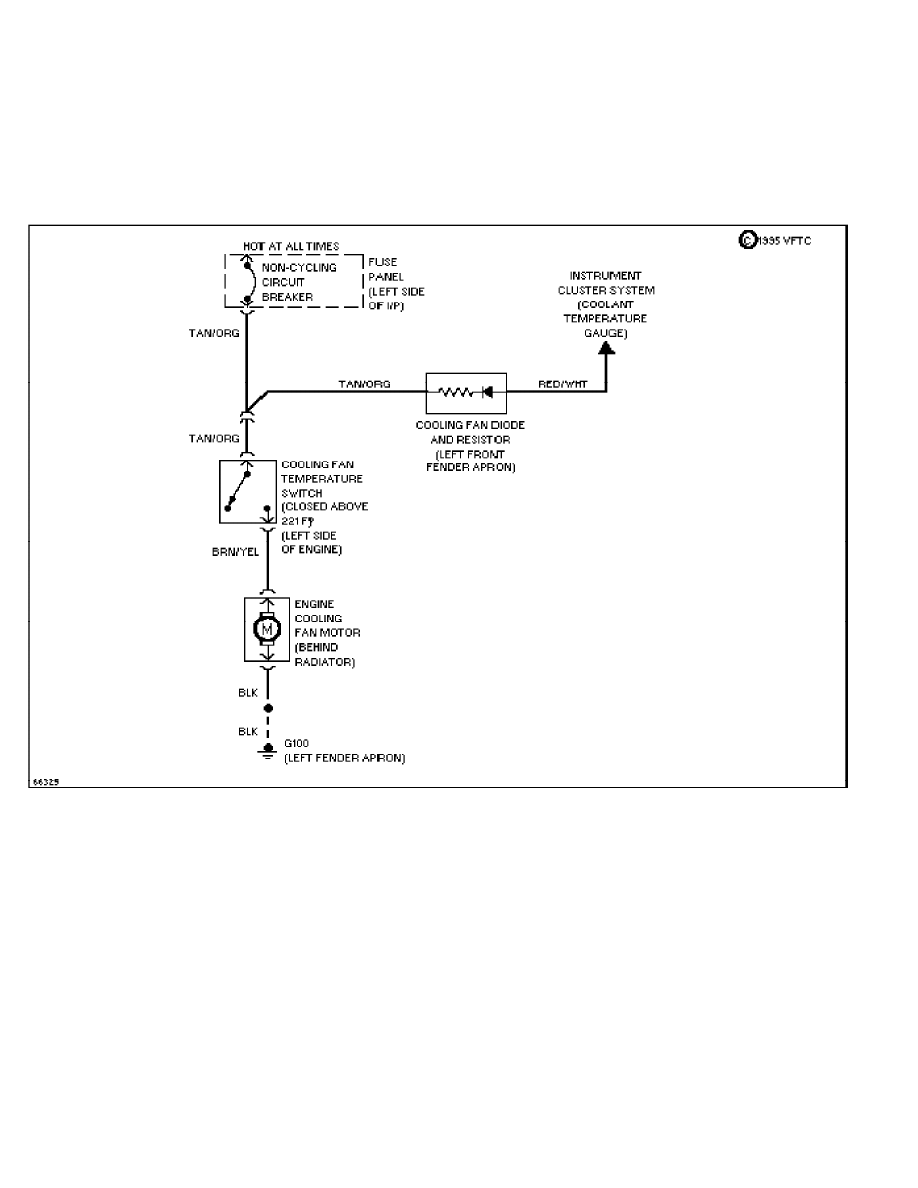

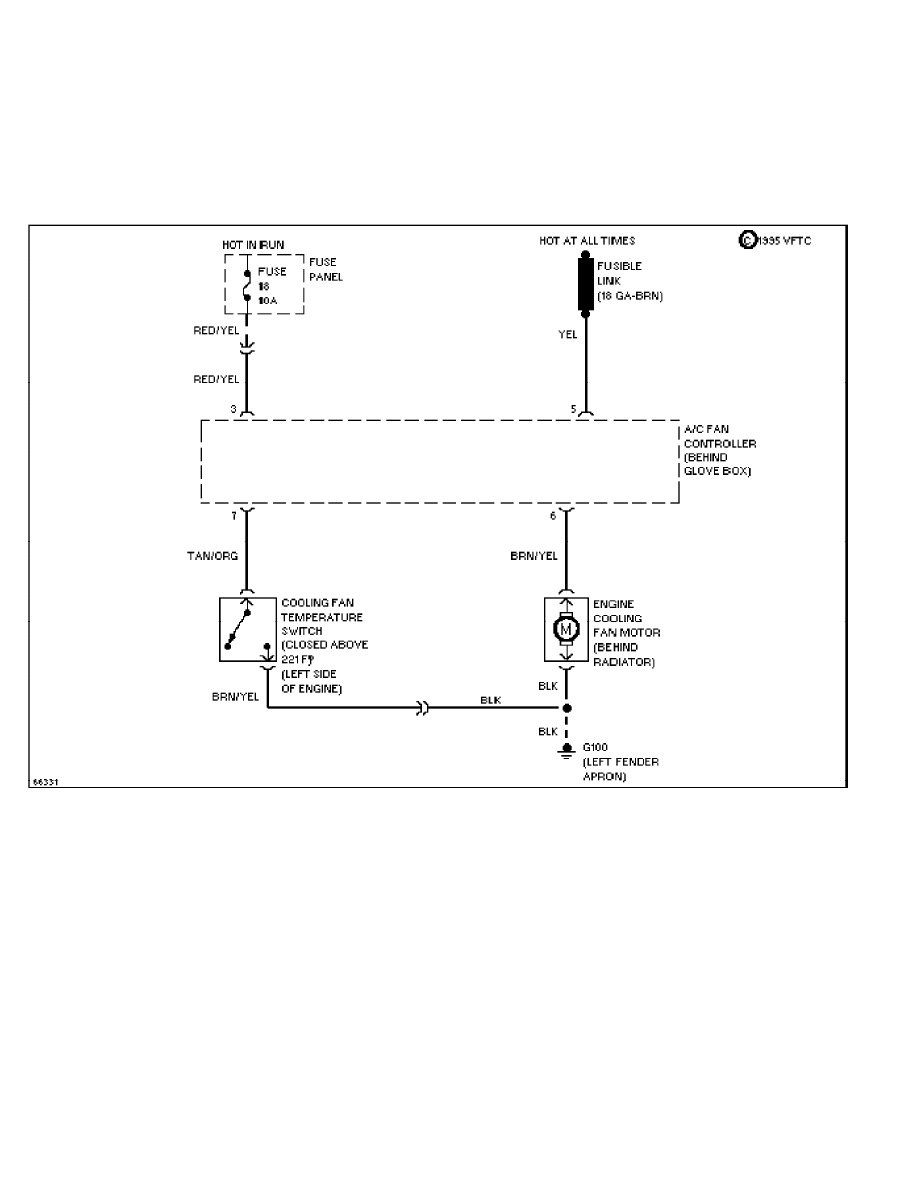

Cooling Fan Circuit, W/O A/C (p. 5)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

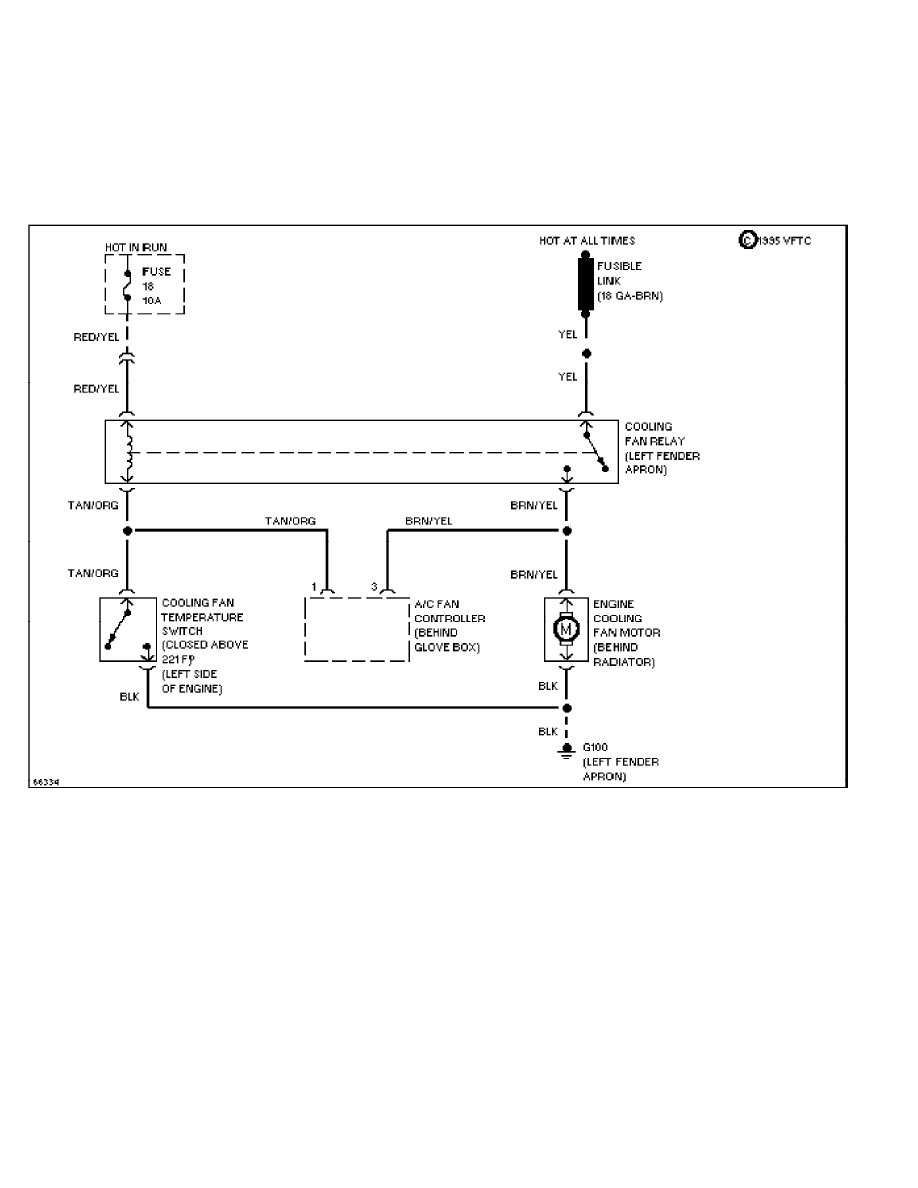

2.0L Diesel, Cooling Fan Circuit, W/ A/C (p. 6)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit, W/O A/C (p. 7)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

Defogger Circuit (p. 8)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

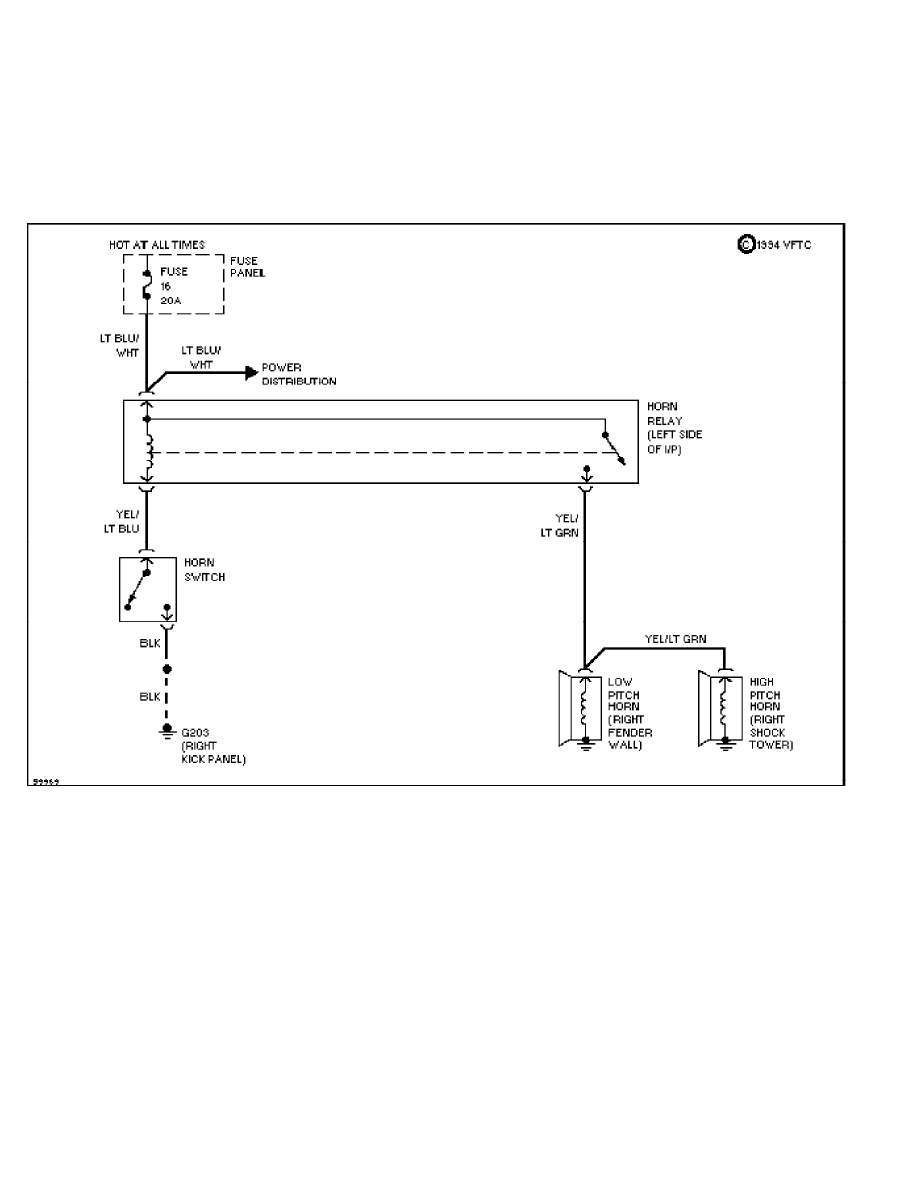

Horn Circuit (p. 9)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

Power Mirror Circuit (p. 10)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

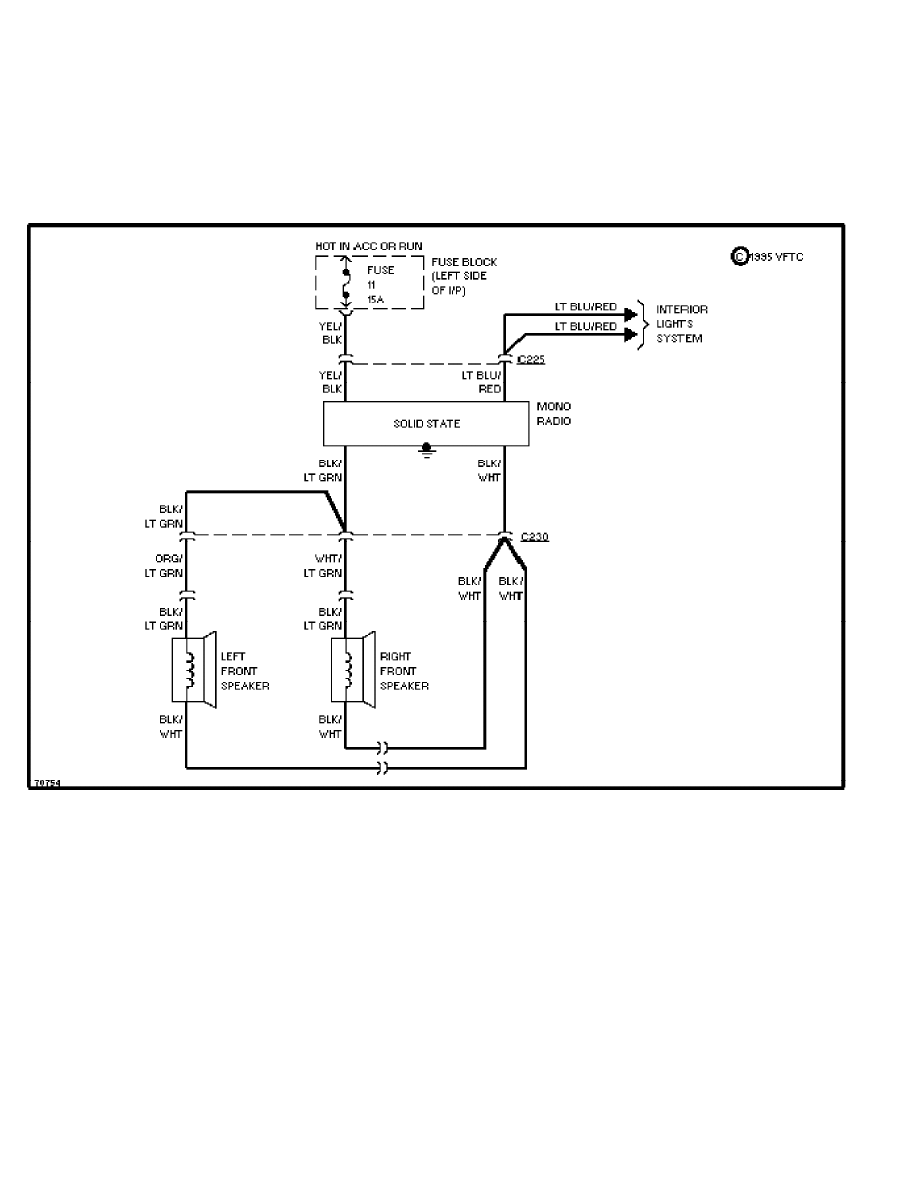

Mono Radio Circuit (p. 11)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

Premium Sound Radio Circuit (p. 12)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

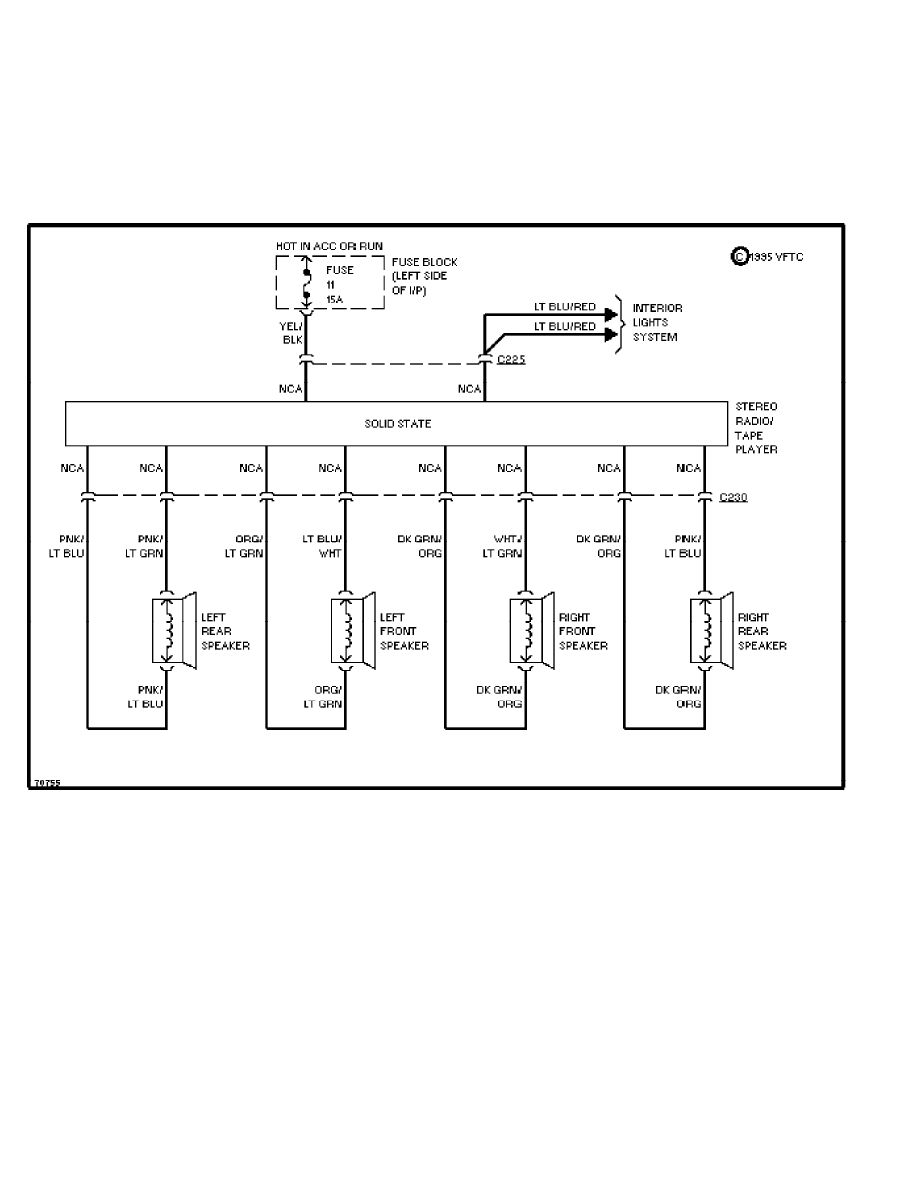

Stereo Radio Circuit (p. 13)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

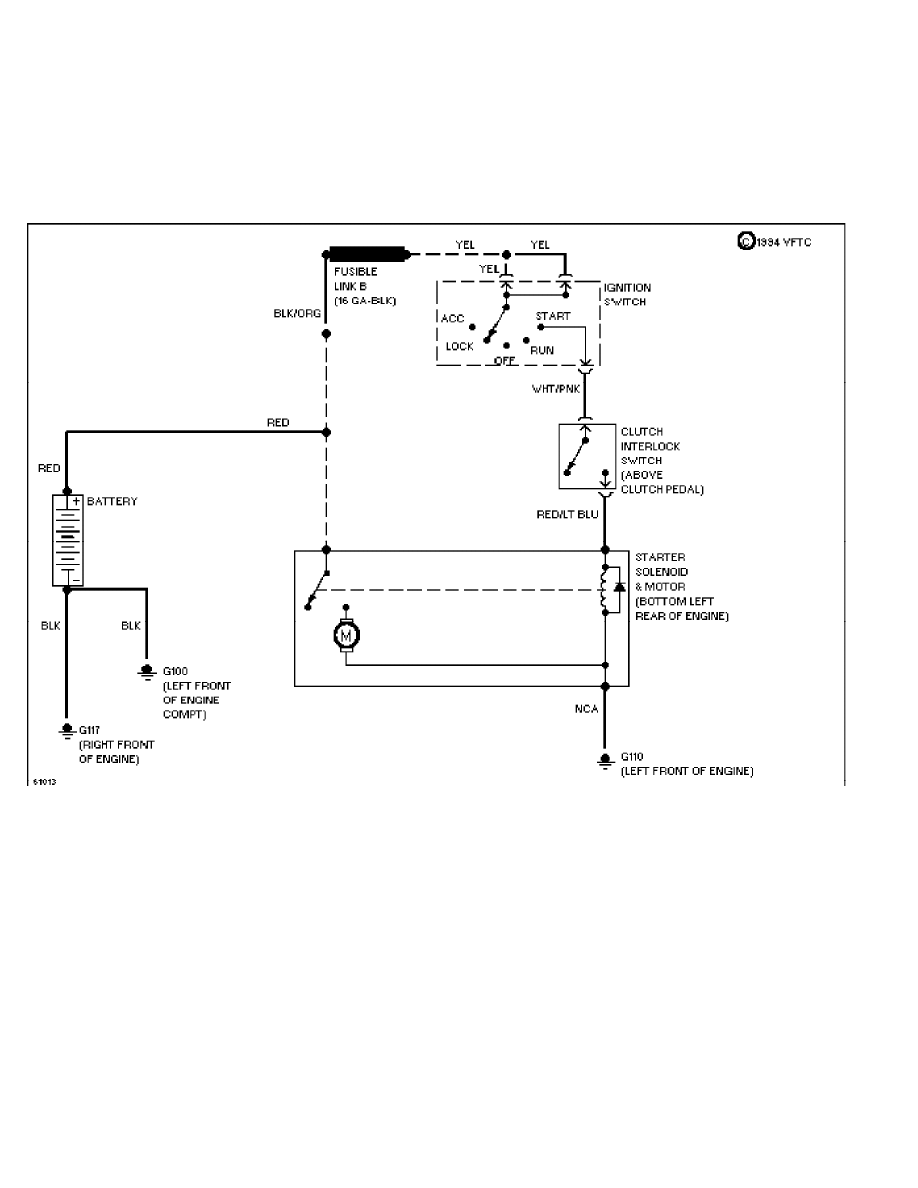

1.9L, Starting Circuit (p. 14)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

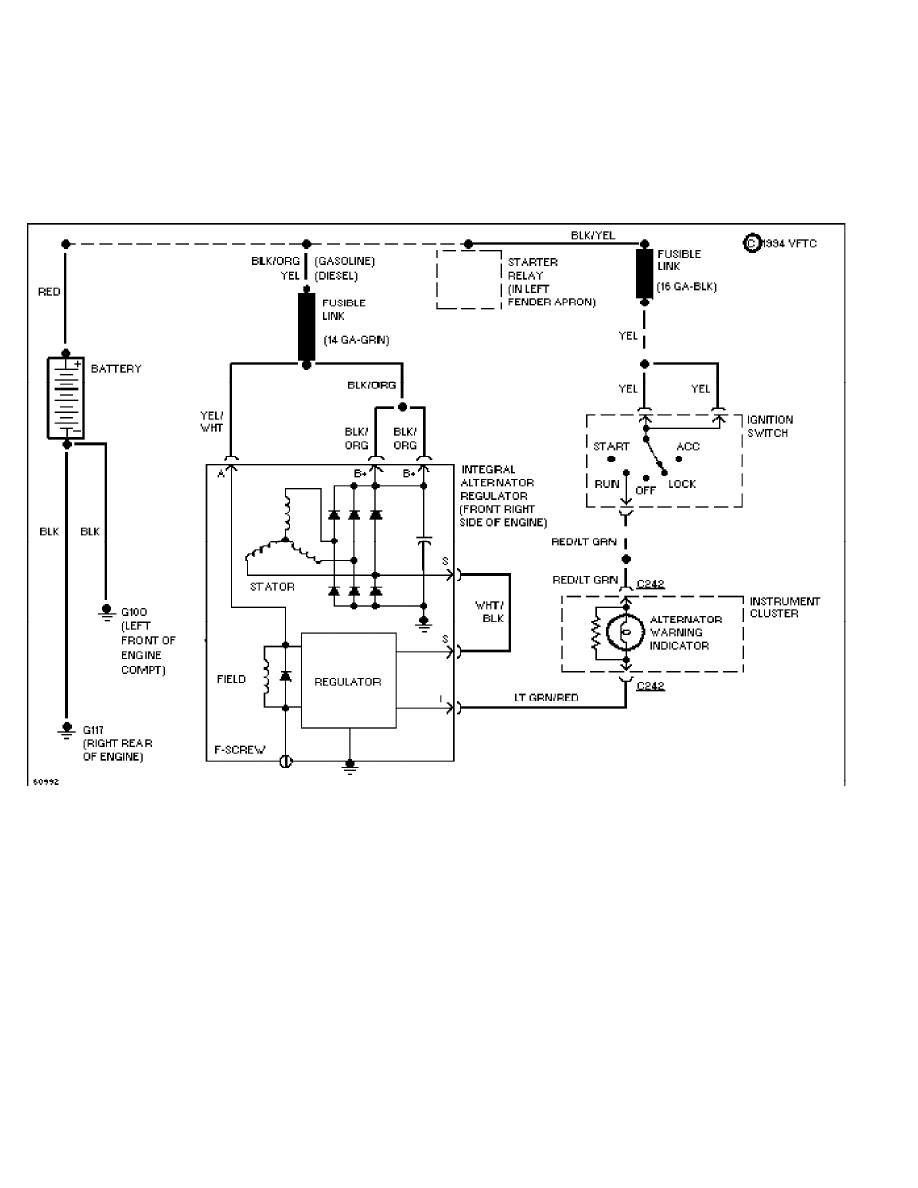

Charging Circuit (p. 15)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

2.0L Diesel, Starting Circuit (p. 16)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

Charging Circuit (p. 17)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

Hatch Release Circuit (p. 18)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

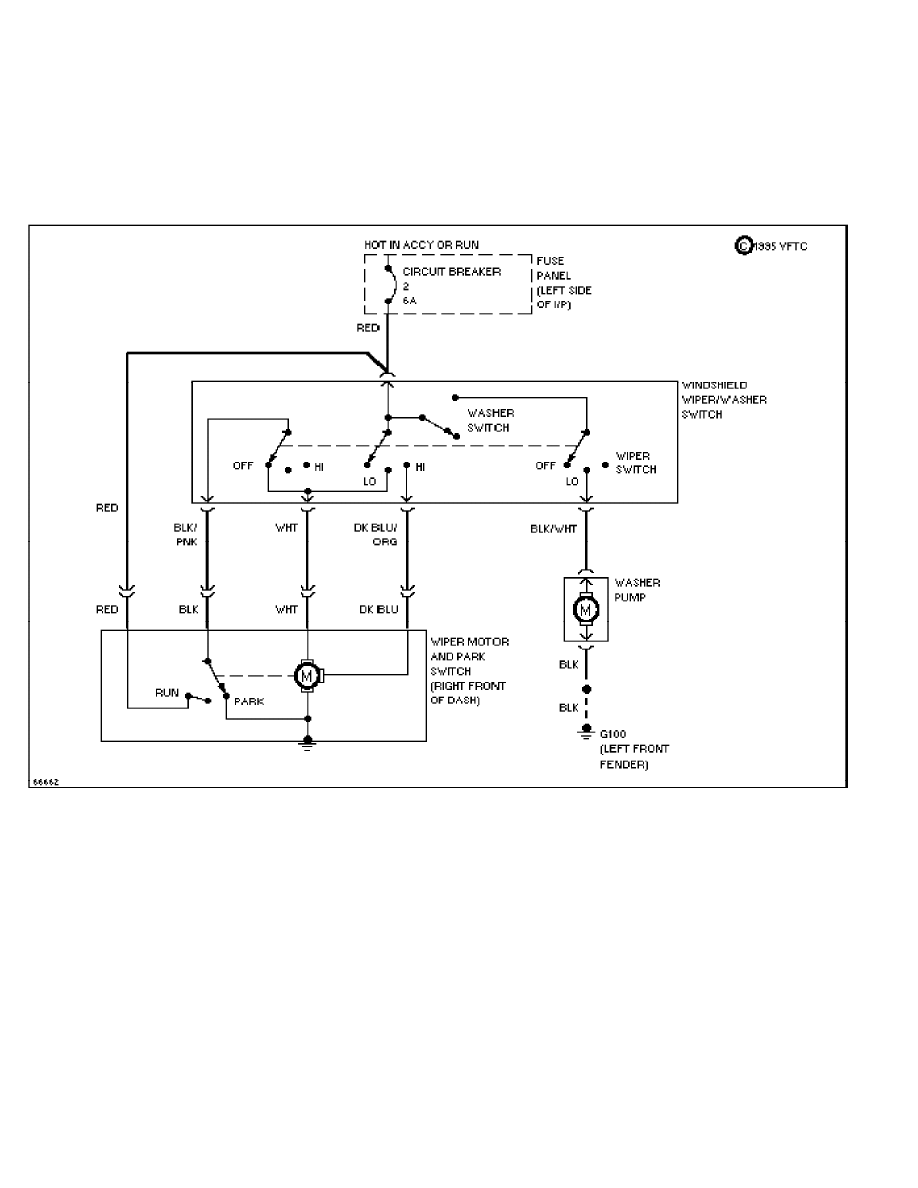

2-Speed Wiper/Washer Circuit (p. 19)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

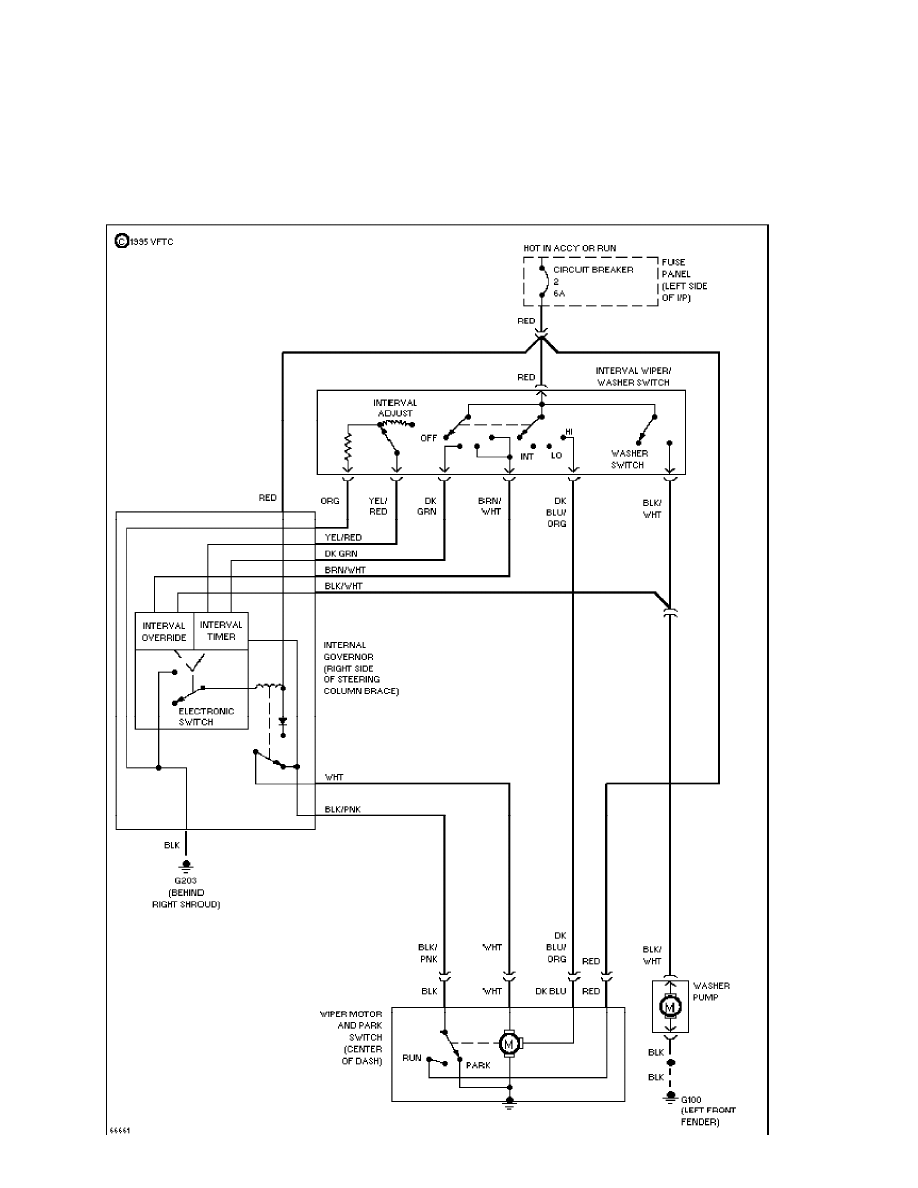

Interval Wiper/Washer Circuit (p. 20)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

SYSTEM WIRING DIAGRAMS

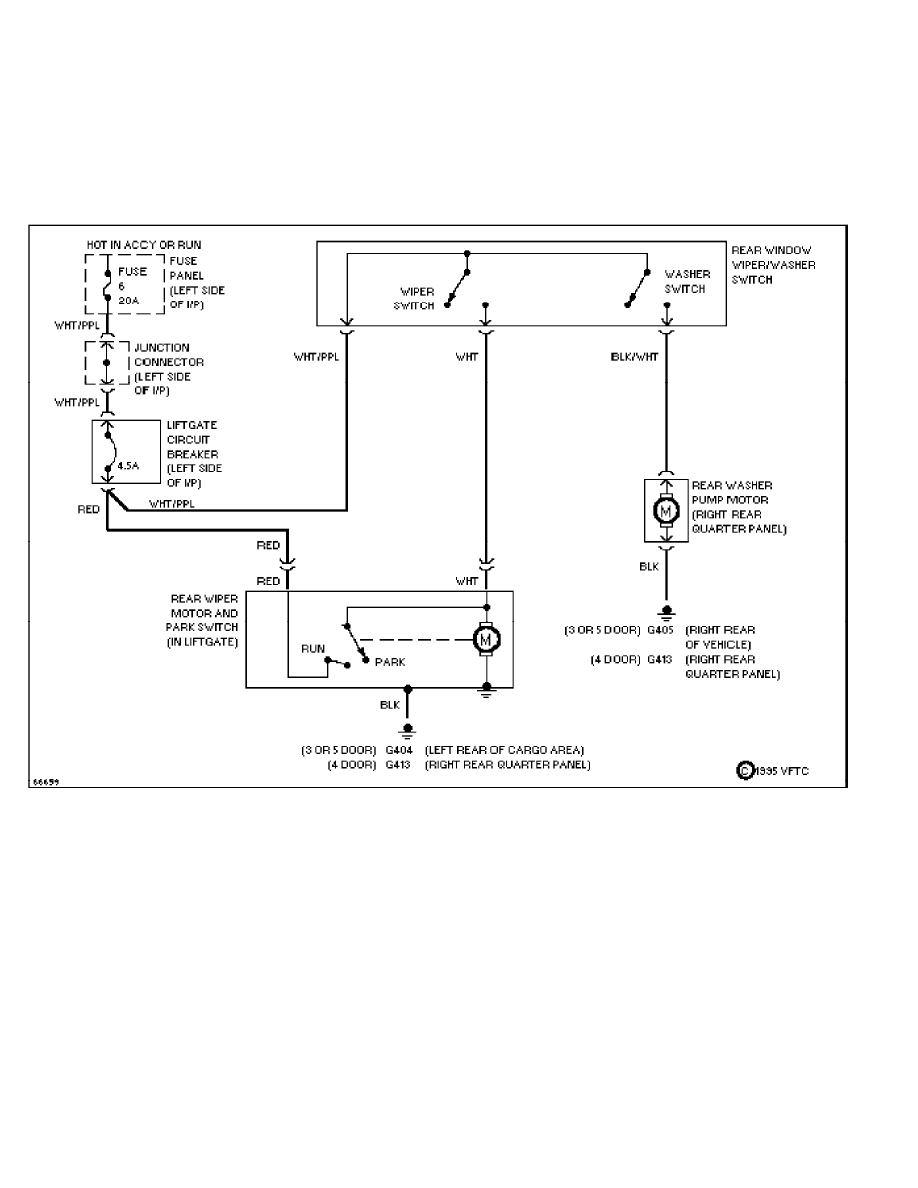

Rear Wiper/Washer Circuit (p. 21)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:45PM

WIRING DIAGRAMS

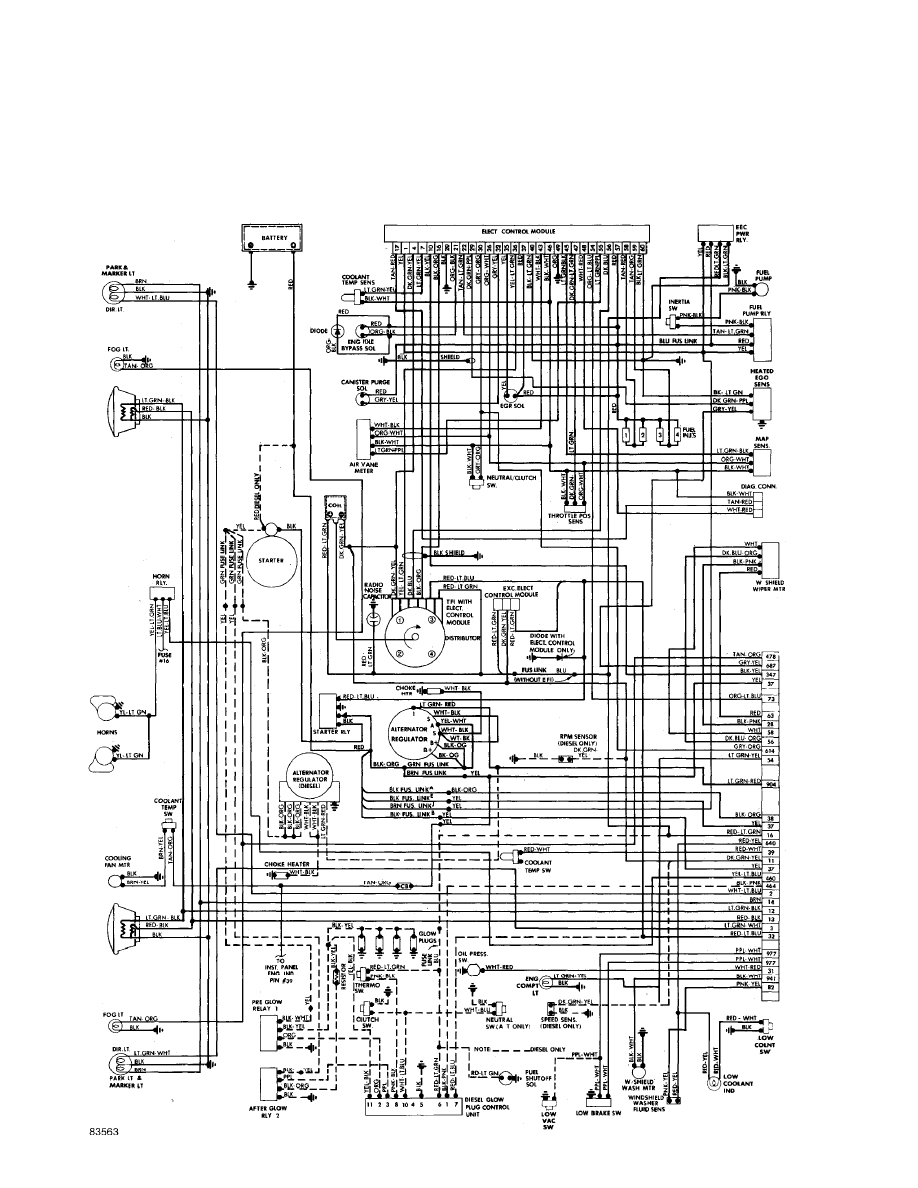

Fig. 1: Engine Compartment

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:46PM

WIRING DIAGRAMS

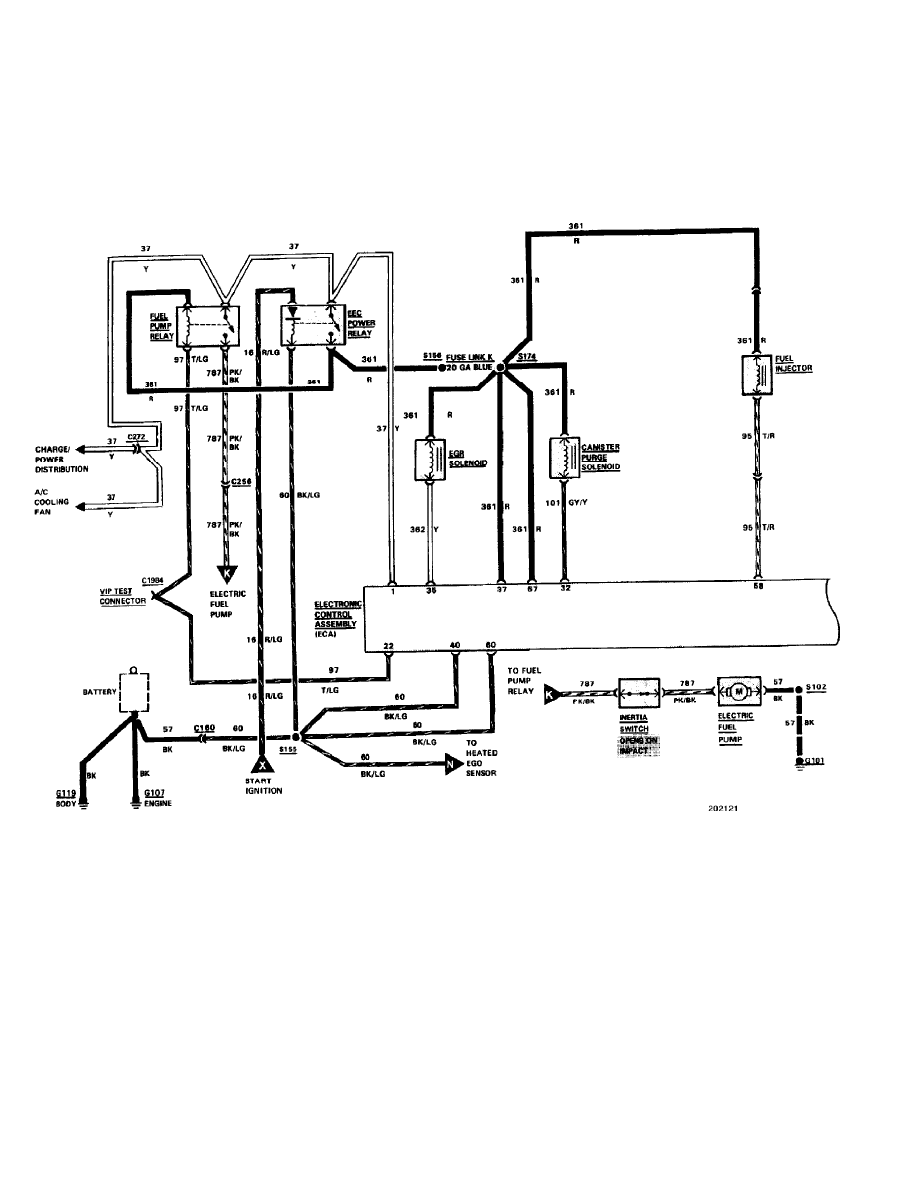

Fig. 2: Central Fuel Injection (CFI) Information (1 of 2) (p. 2)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:46PM

WIRING DIAGRAMS

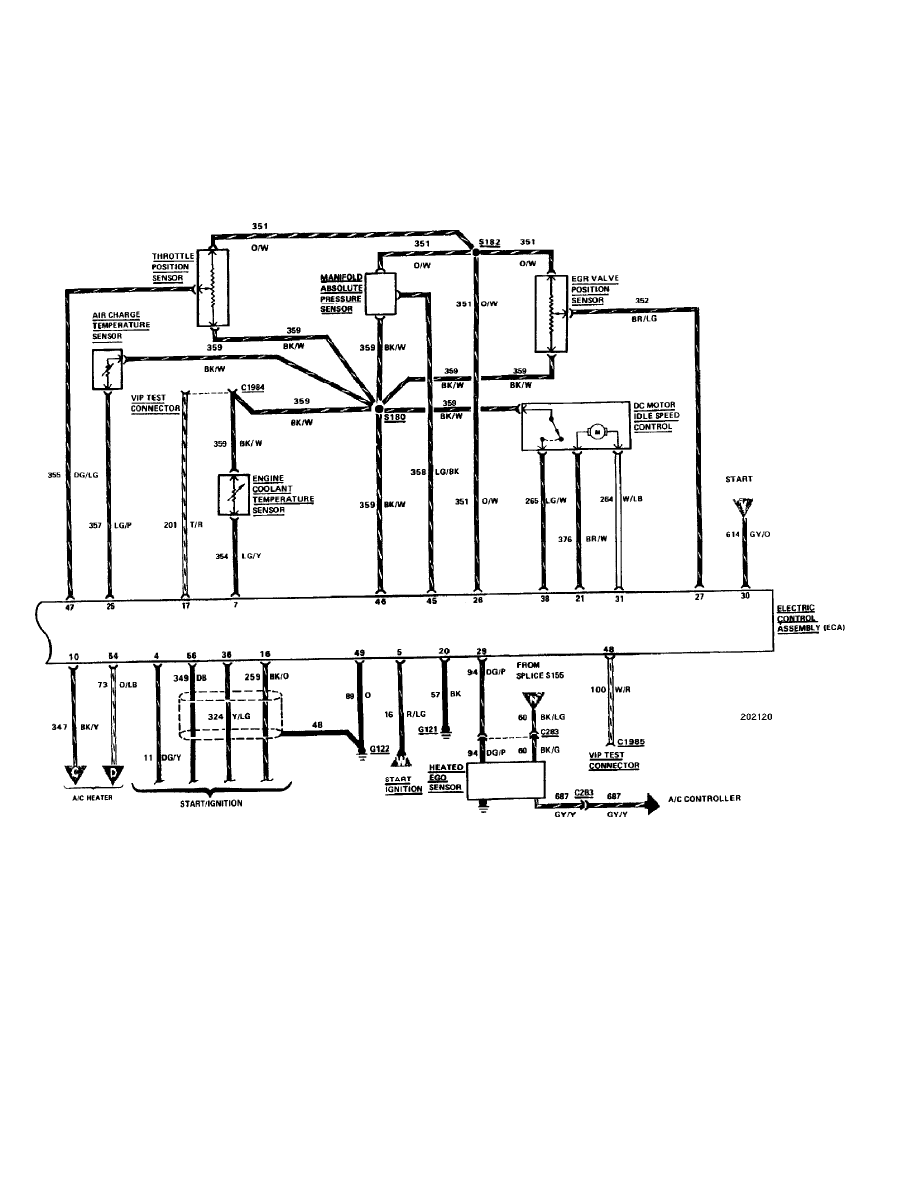

Fig. 3: Central Fuel Injection (CFI) Information (2 of 2) (p. 3)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:46PM

WIRING DIAGRAMS

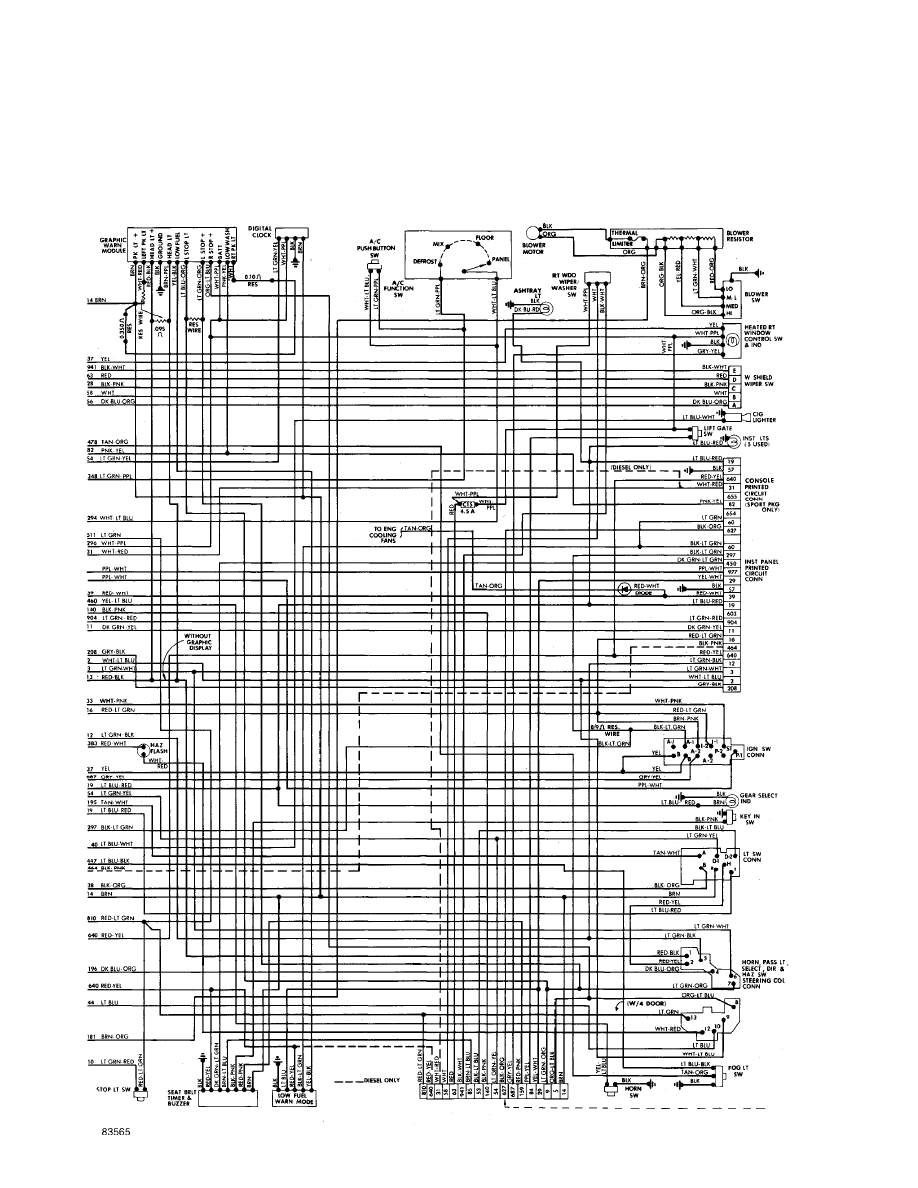

Fig. 4: Fuse Block & Underdash (p. 4)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:46PM

WIRING DIAGRAMS

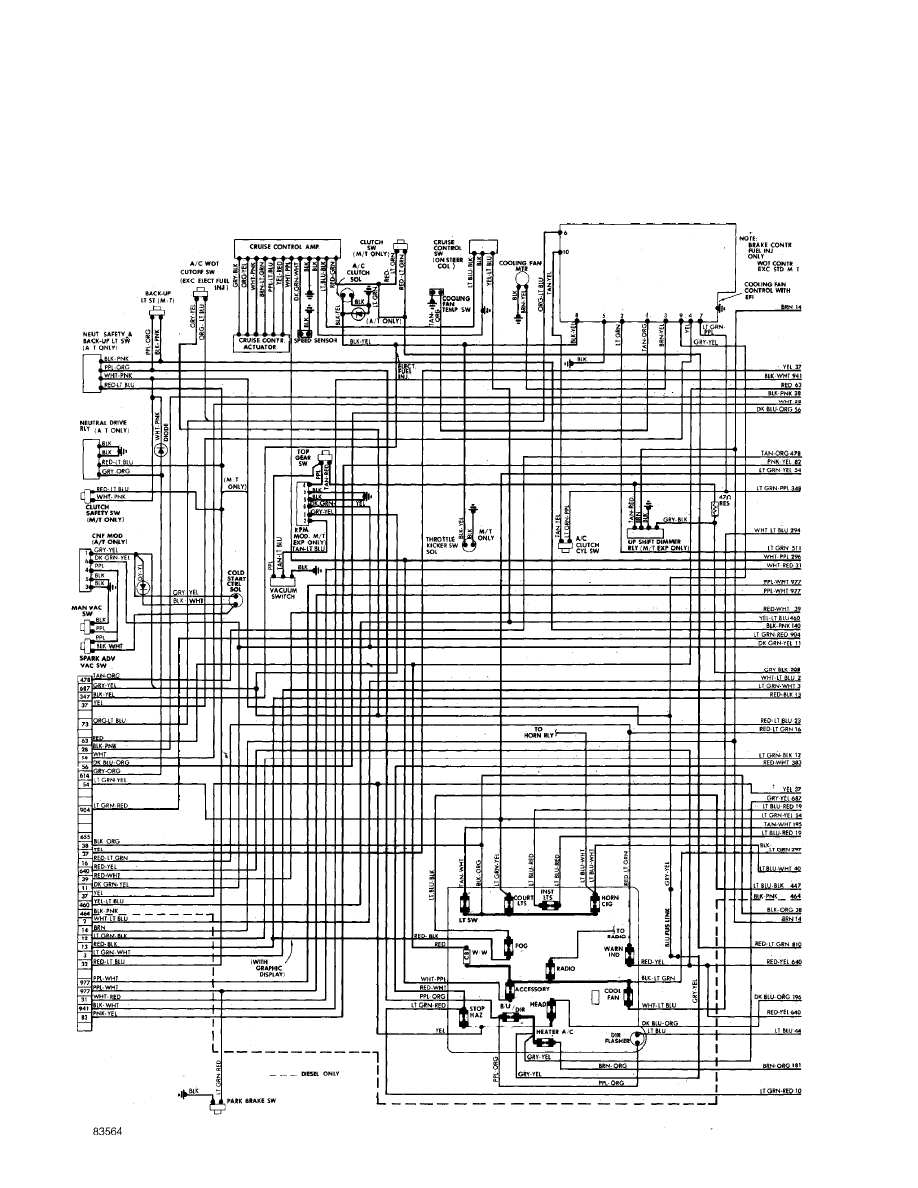

Fig. 5: Underdash (Cont.) & Instrument Panel (p. 5)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:46PM

WIRING DIAGRAMS

Fig. 6: Rear Compartment & Accessories (p. 6)

1986 Ford Escort

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 06:46PM
