WIRING DIAGRAMS

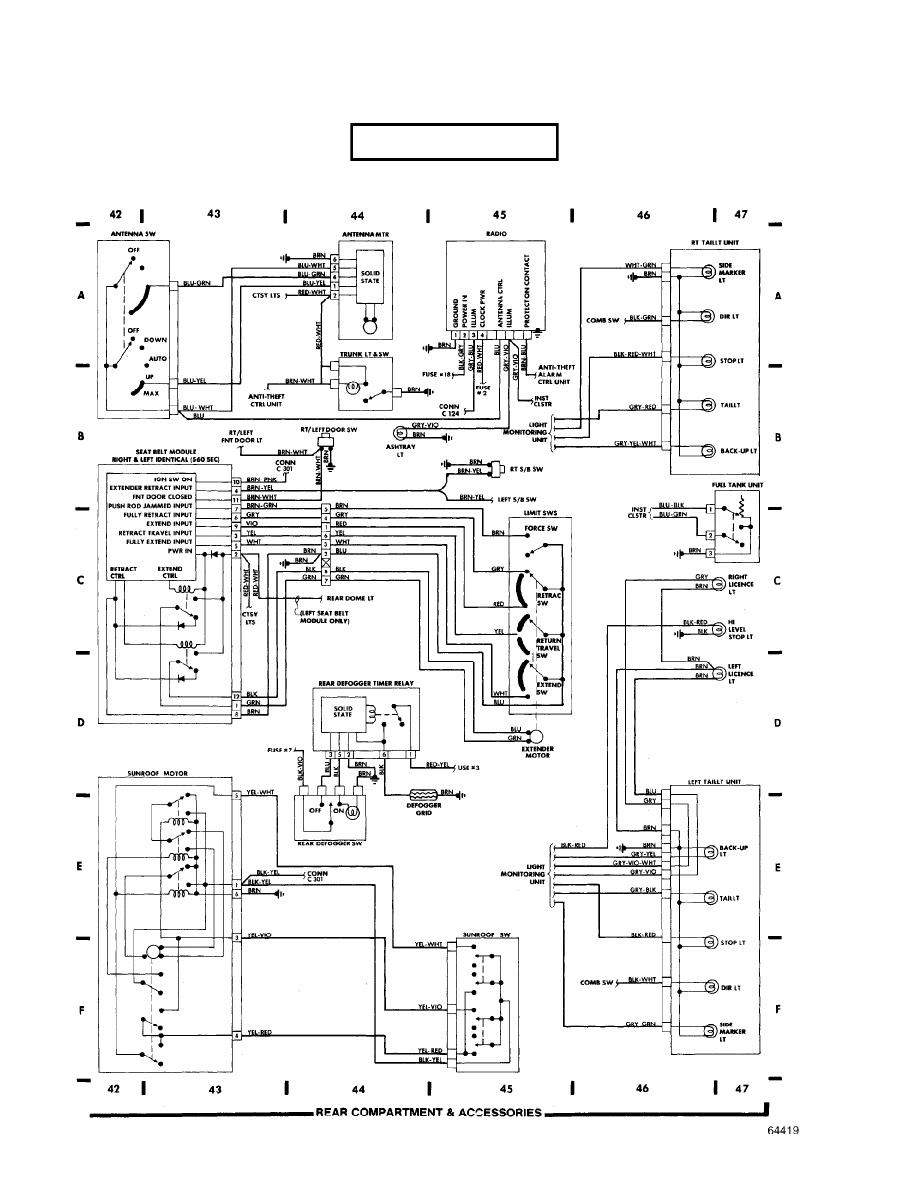

Fig. 10: Rear Compartment & Accessories (Cont.) (Grids 42-47)

1987 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 01:47PM

[e-mail]

WIRING DIAGRAMS

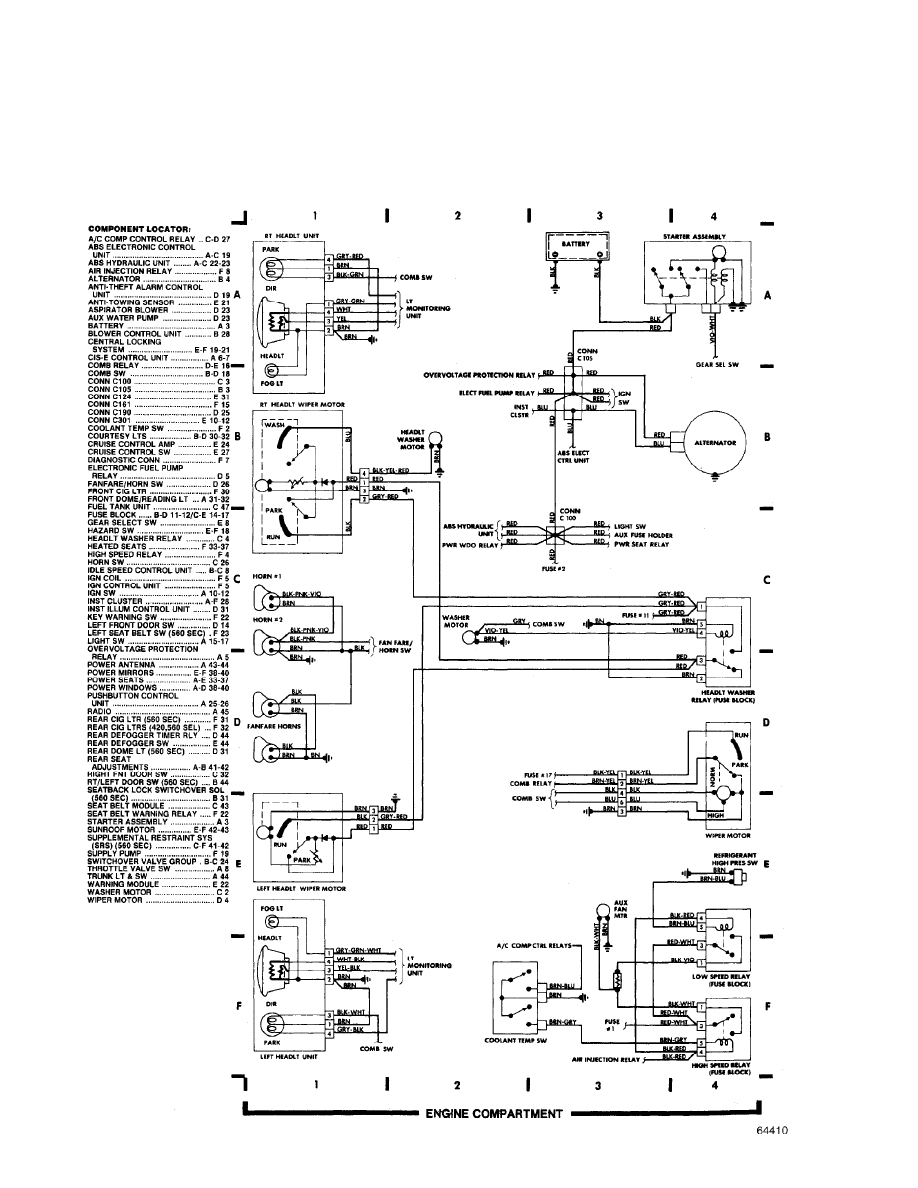

Fig. 1: Engine Compartment (Grids 1-4)

1987 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 01:40PM

WIRING DIAGRAMS

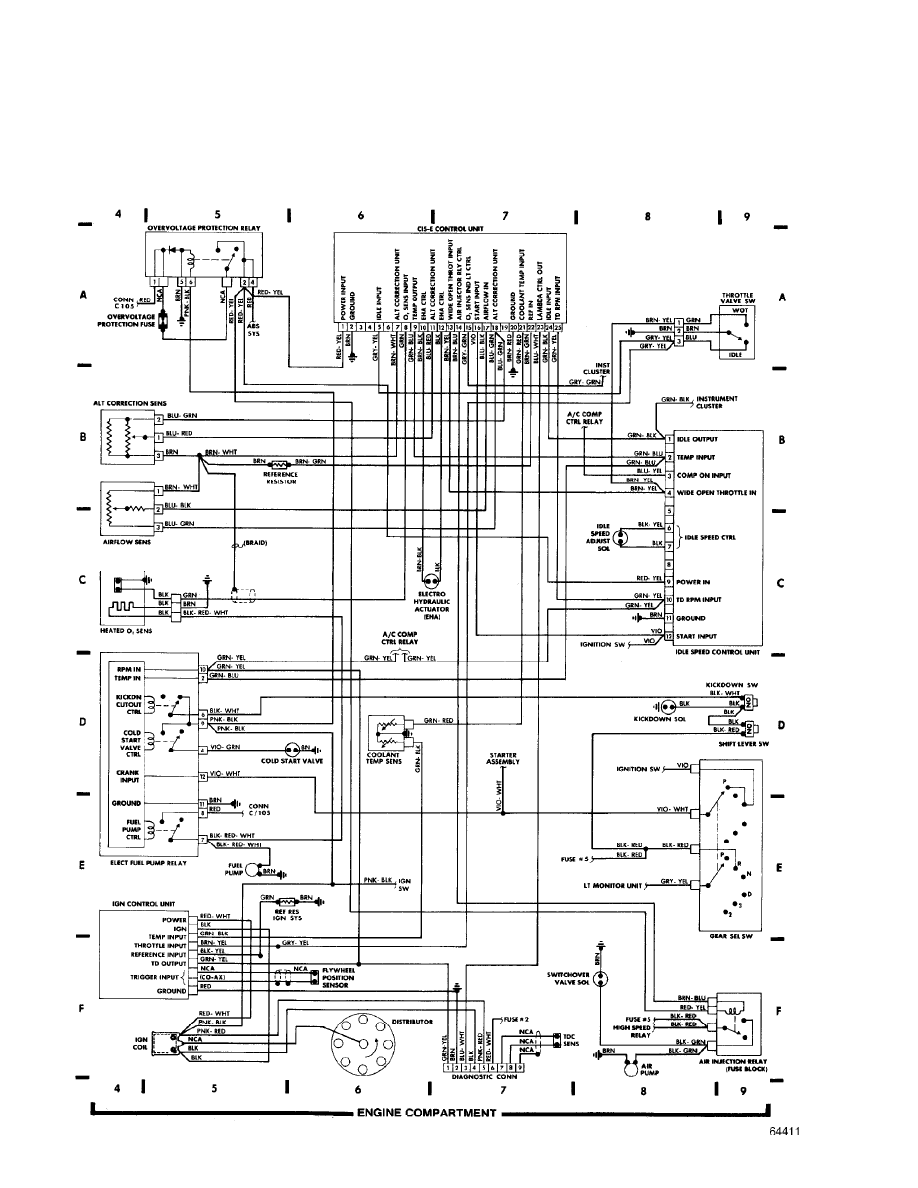

Fig. 2: Engine Compartment (Cont.) (Grids 4-9)

1987 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 01:41PM

WIRING DIAGRAMS

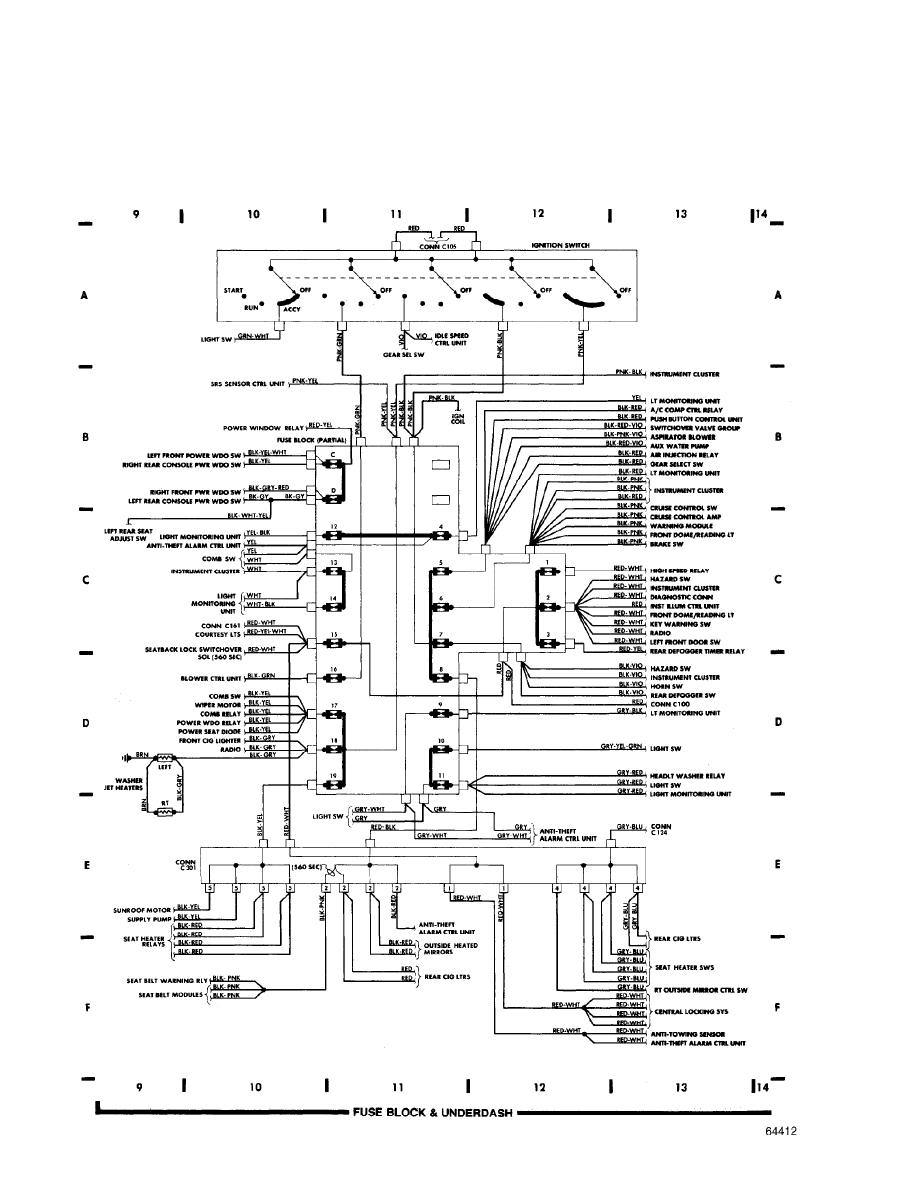

Fig. 3: Fuse Block & Underdash (Grids 9-14)

1987 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 01:41PM

WIRING DIAGRAMS

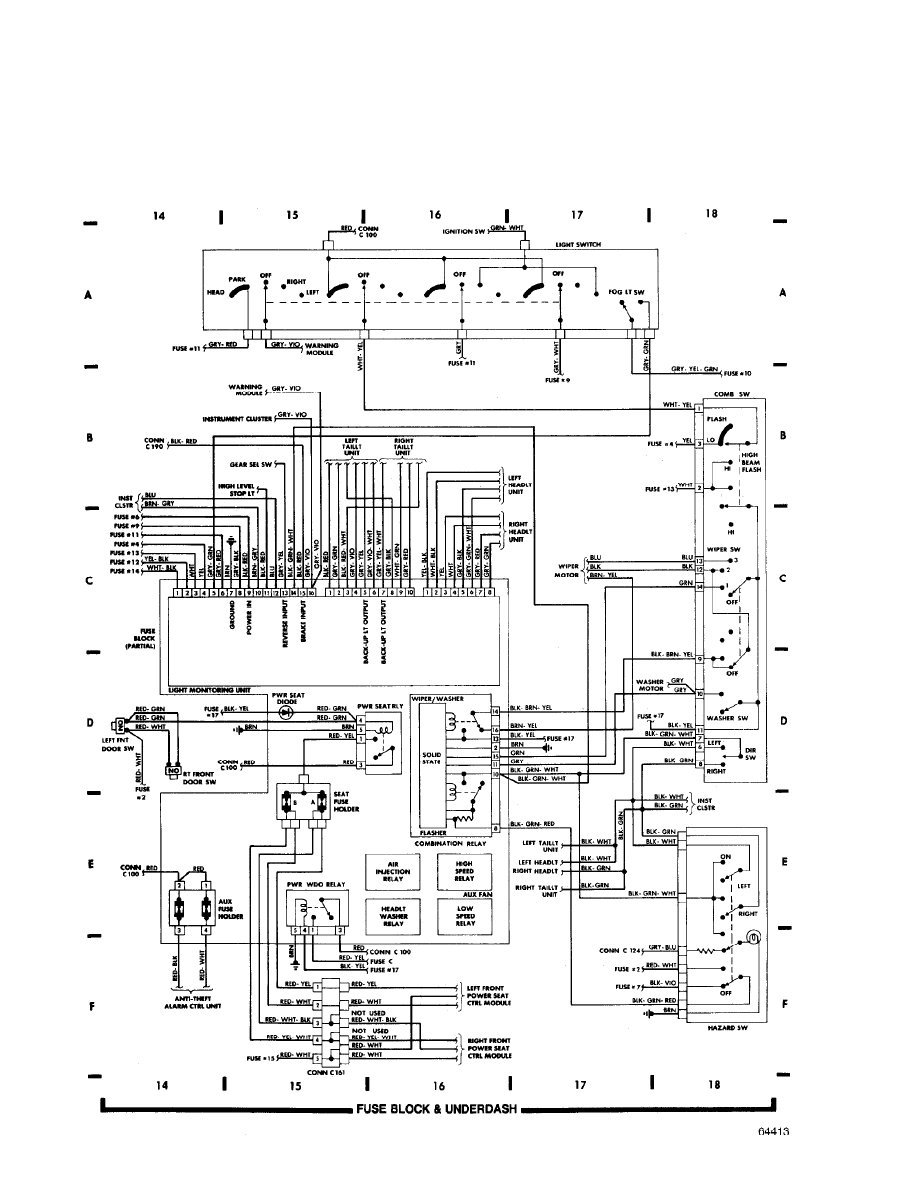

Fig. 4: Fuse Block & Underdash (Grids 14-18)

1987 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 01:41PM

WIRING DIAGRAMS

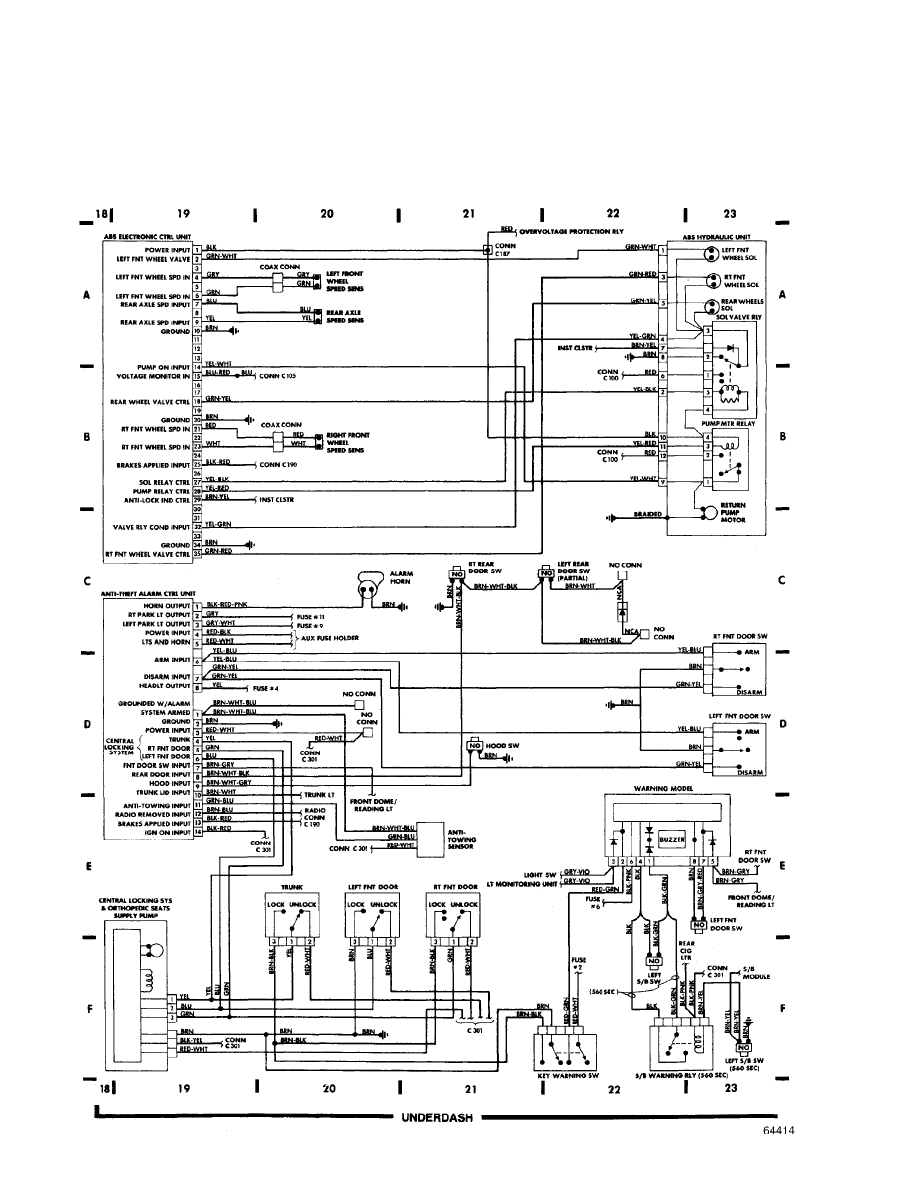

Fig. 5: Underdash (Cont.) (Grids 18-23)

1987 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 01:42PM

WIRING DIAGRAMS

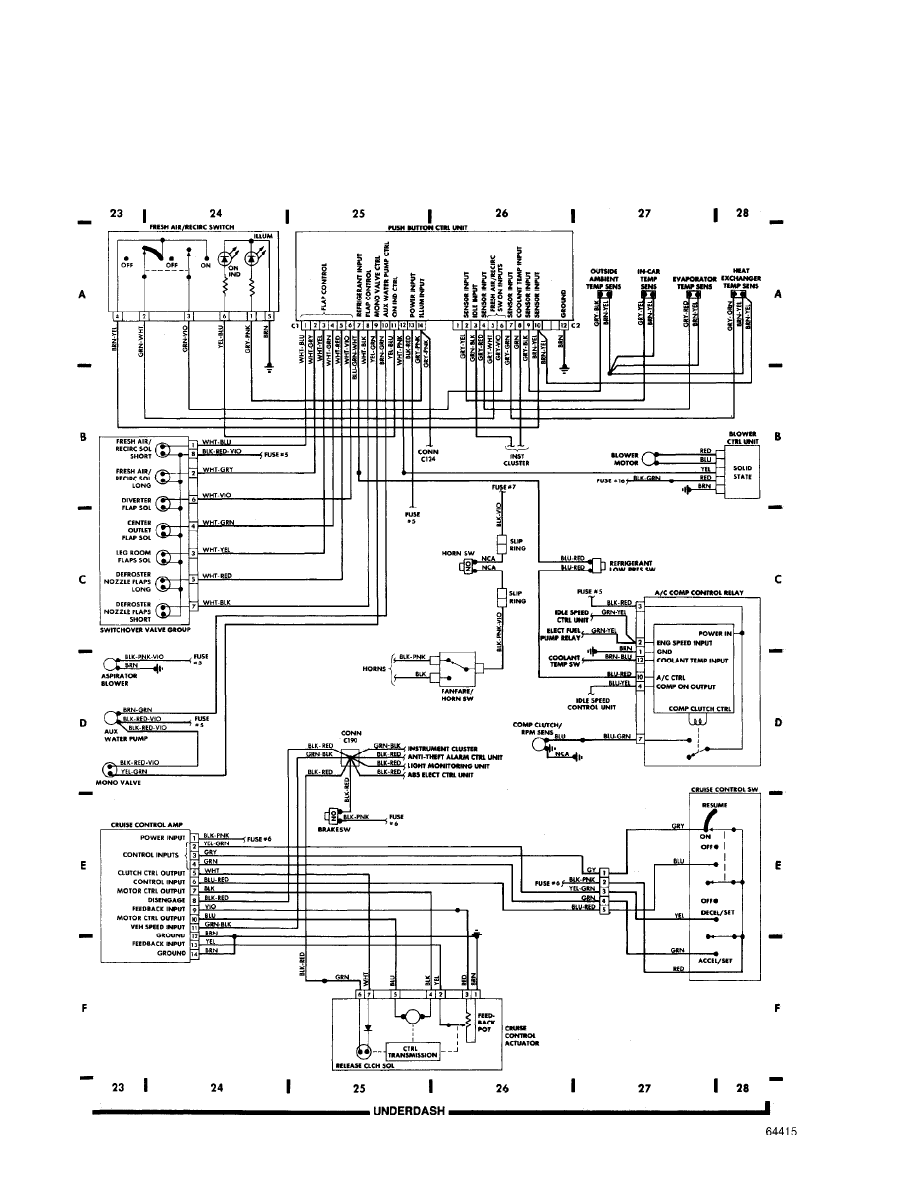

Fig. 6: Underdash (Cont.) (Grids 23-28)

1987 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 01:42PM

WIRING DIAGRAMS

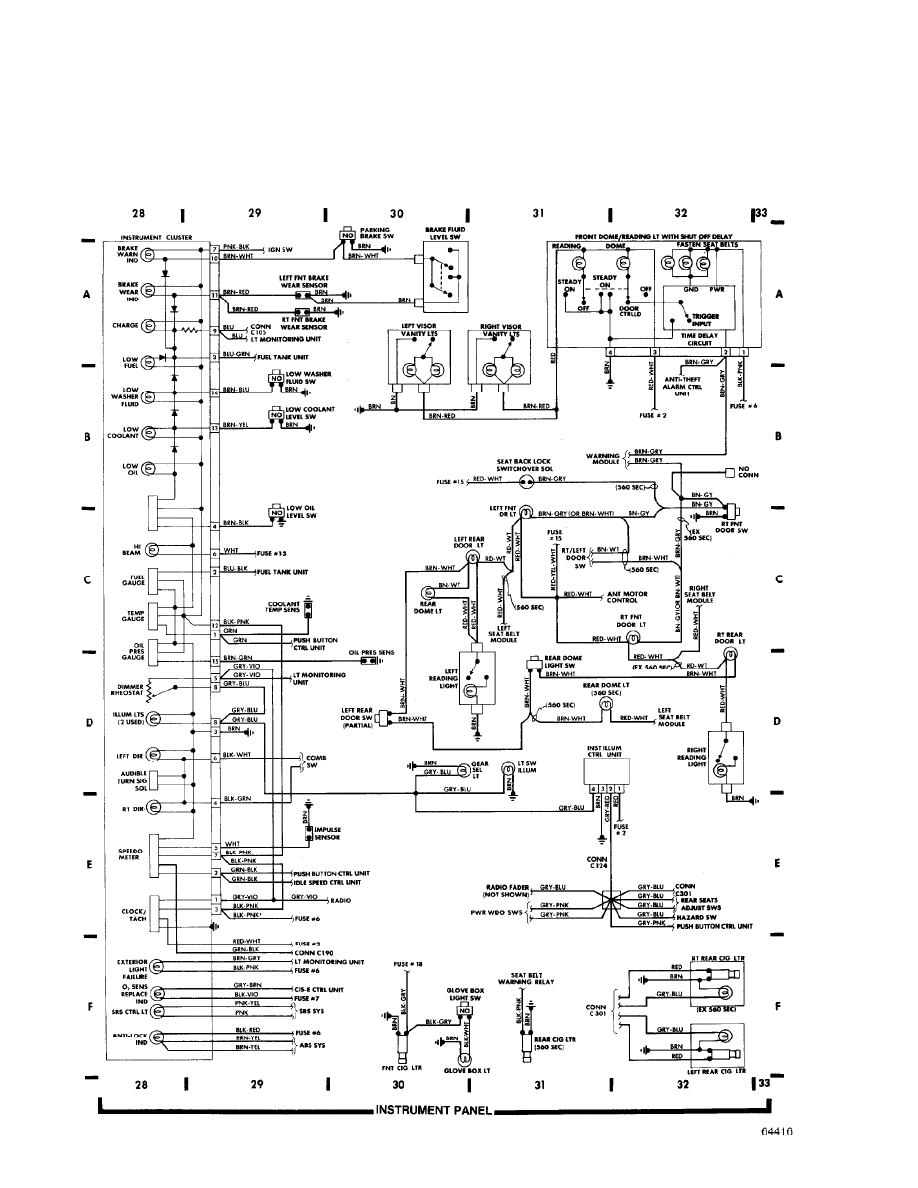

Fig. 7: Instrument Panel (Grids 28-33)

1987 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 01:42PM

WIRING DIAGRAMS

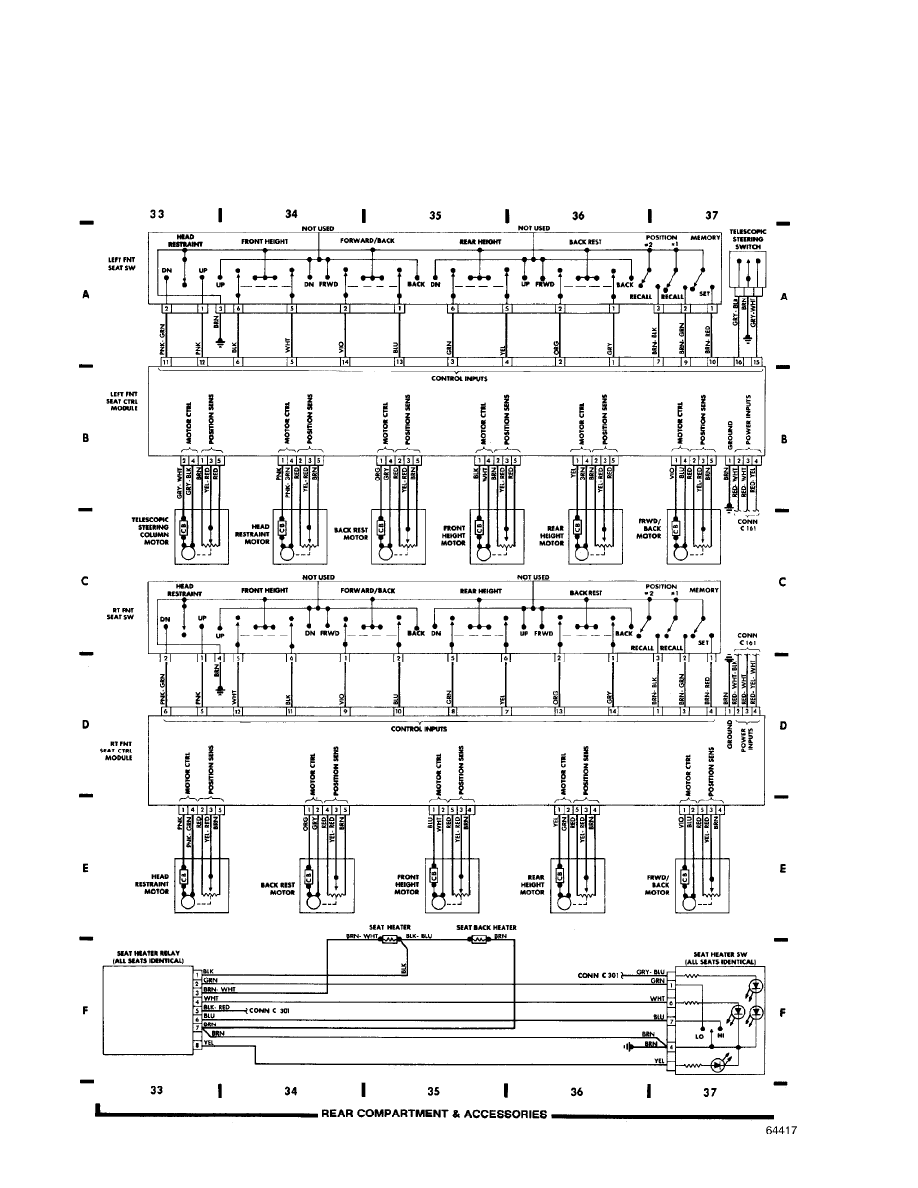

Fig. 8: Rear Compartment & Accessories (Grids 33-37)

1987 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 01:42PM

WIRING DIAGRAMS

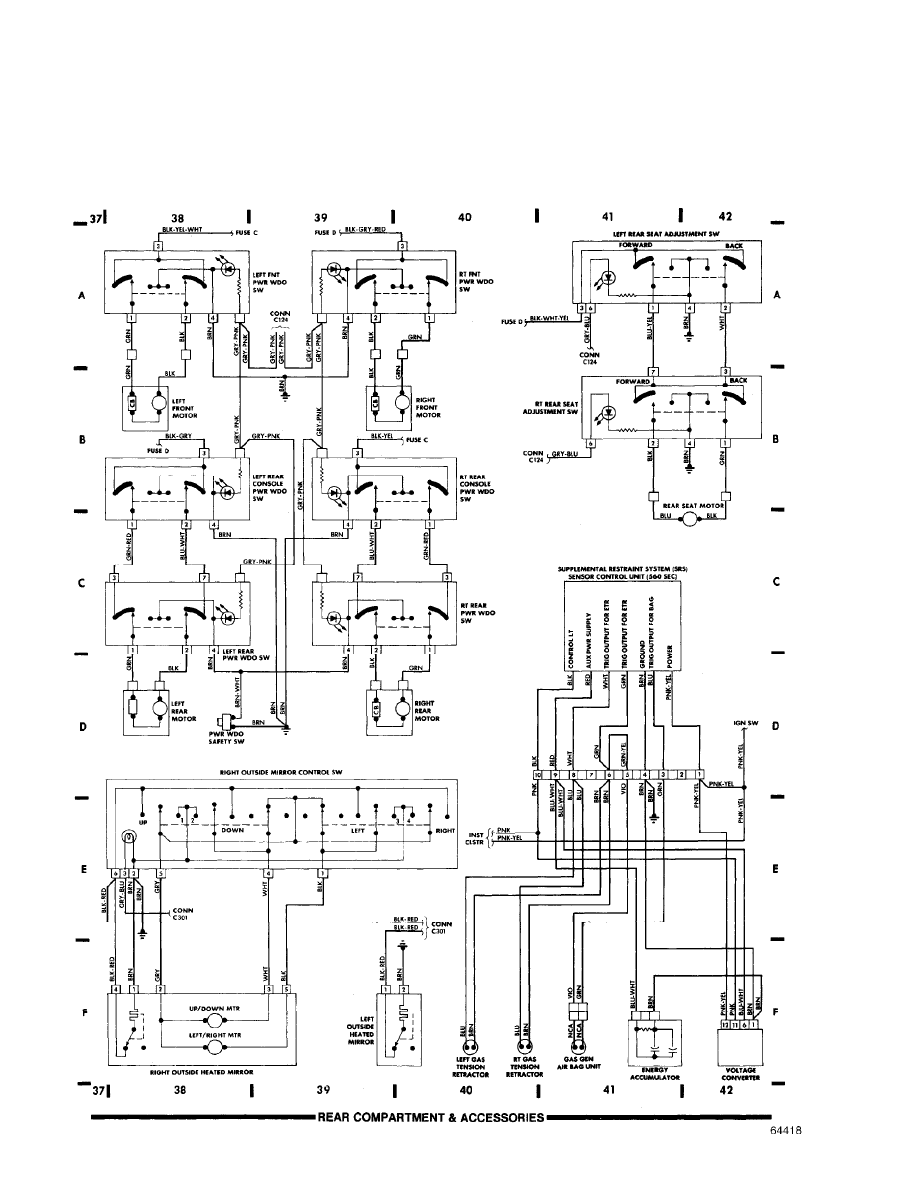

Fig. 9: Rear Compartment & Accessories (Cont.) (Grids 37-42)

1987 Mercedes-Benz 560SEL

For DIAKOM-AUTO http://www.diakom.ru Taganrog [e-mail] (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 01:47PM
