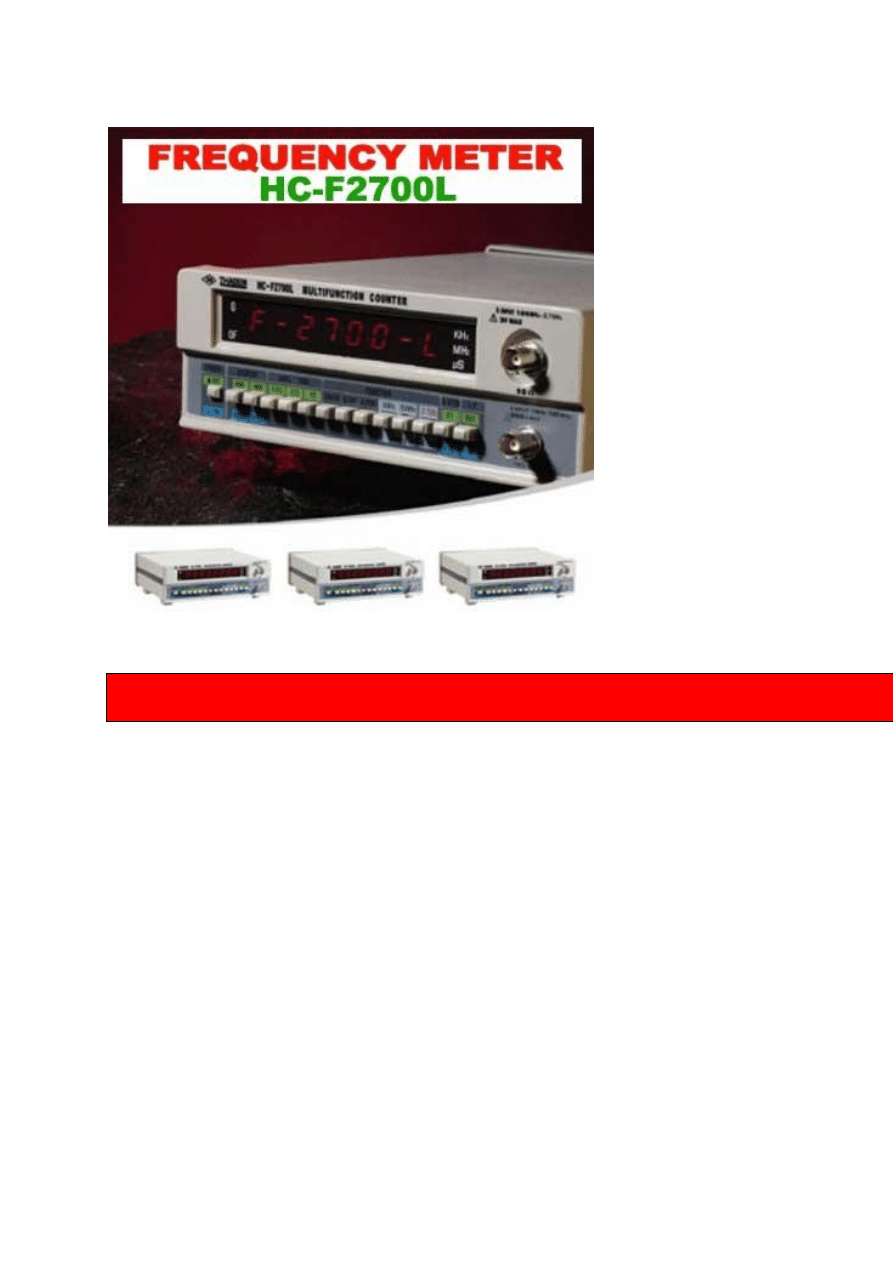

FREQUENCY COUNTER HC-F2700L

Technical Specifications :

1, the application of SCM control and computing, using scale integrated circuits,
complete broadband such as precision and period measurements, counting down to
achieve high resolution
2, frequency measurement, measuring cycle, 13MHz standard frequency output
3,100 MHz low-pass filter is provided below is to improve the low frequency
performance, enhance immunity
4, the completion of the 8-digit per second measurement and display of
five, high accuracy, low power consumption, small size, exquisite, easy to carry.

2.7GHZ precision digital frequency meter
The instrument has four main functions: A channel frequency measurement, the
channel frequency measurement, A-channel measuring cycle and the A-channel with
input signal attenuation, low-pass filter function .
The instrument can be widely used in laboratory, industrial and mining enterprises,
universities, commissioning and maintenance of the wireless communication
device. High-sensitivity measurement designed to meet the communications field UHF
signals measured correctly and obtain the best measurement results.

Model

A channel

B-channel

Show

8-segment LED display

Frequency

Range

Resolution

10Hz-10MHz direct counting

100MHz-1GHz, 2.7GHz, 3GHz

10MHz-100MHz proportional

counting

Lockup

100Hz, 1kHz, 13kHz

Accuracy

0.01s, 0.1s, 1s

Sensitivity

± 1 count ± time base error × measured frequency

Input impedance

10Hz-8MHz 20mVrms/8MHz-10MHz 30mVrms / 10MHz-80MHz

20mVrms/80MHz-100MHz 30mVrms approximately 50Ω

Maximum input

voltage

250Vrms

3V

Stability

Short-term stability: ± 3 × 10-9 / sec

Long-term stability: ± 2 × 10-5 /

month

Input Voltage

AC110/220 ± 10% Frequency 50Hz

Size

207mm × 85mm × 255m
