MERCEDES BENZ 420SEL 1986

SYSTEM WIRING DIAGRAMS

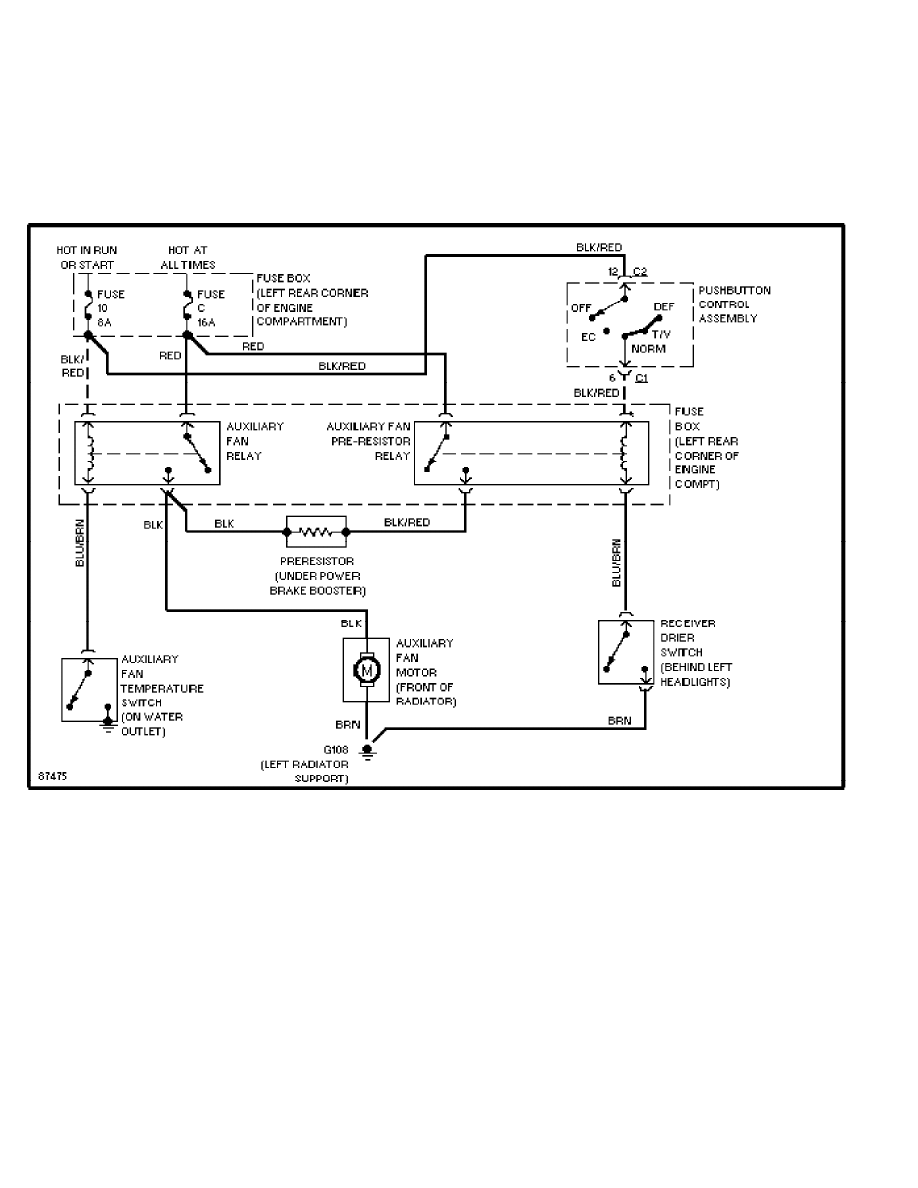

Cooling Fan Circuit

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

Defogger Circuit (p. 2)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

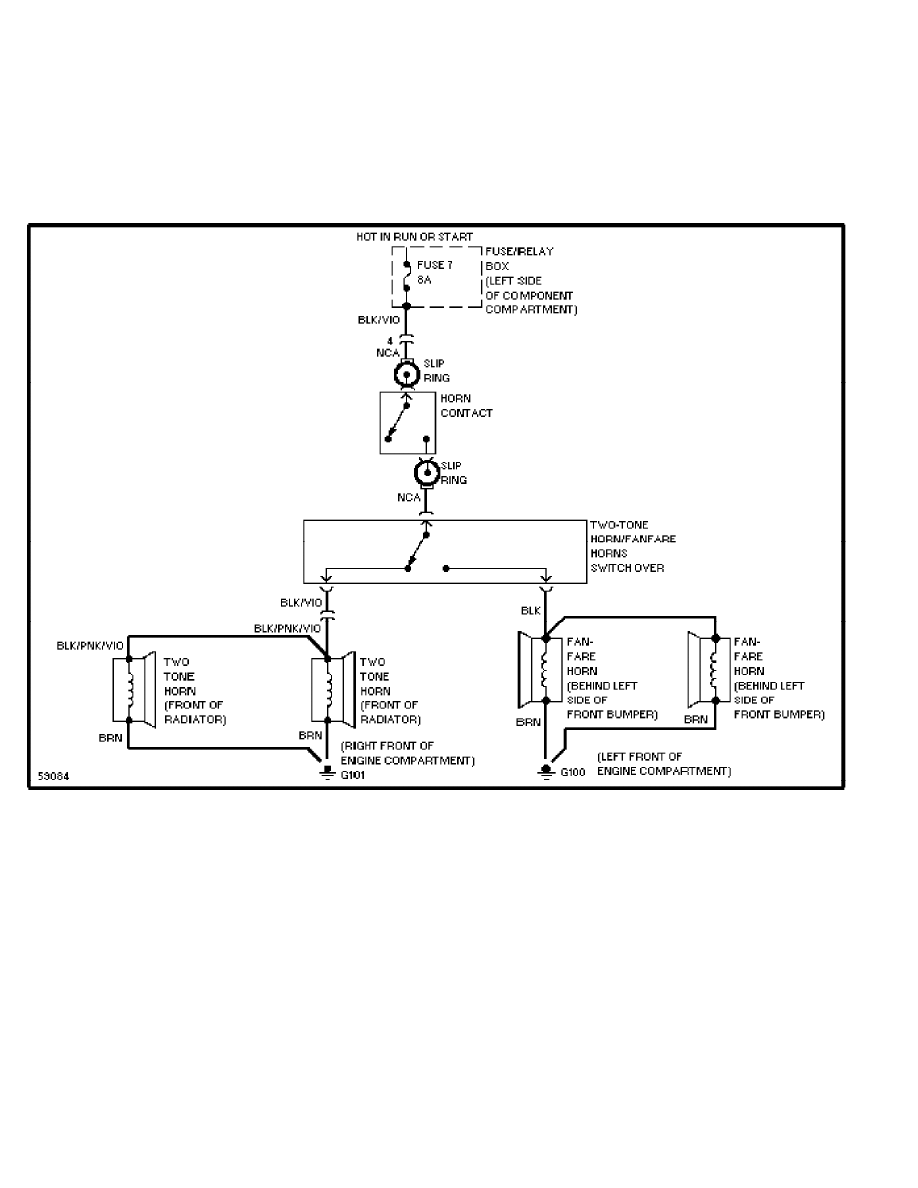

Horn Circuit (p. 3)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

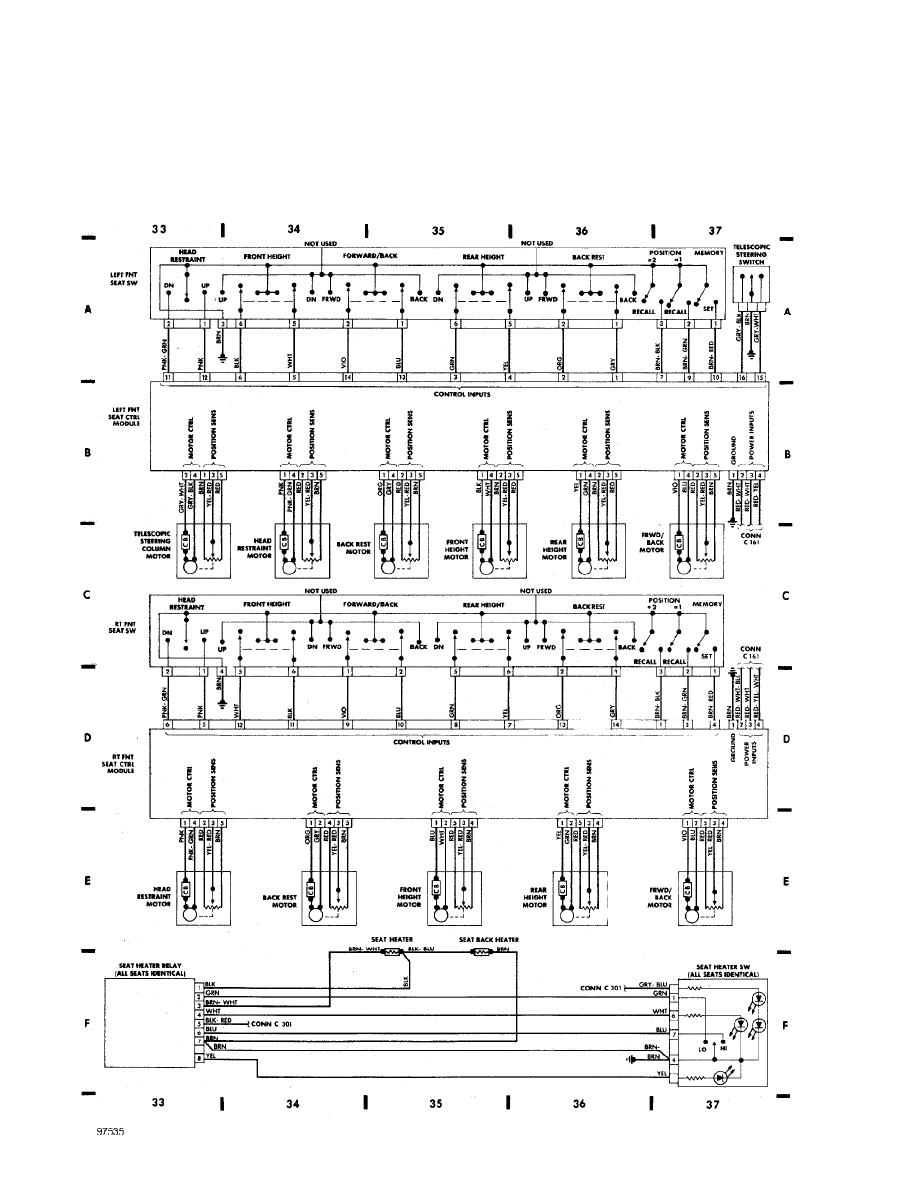

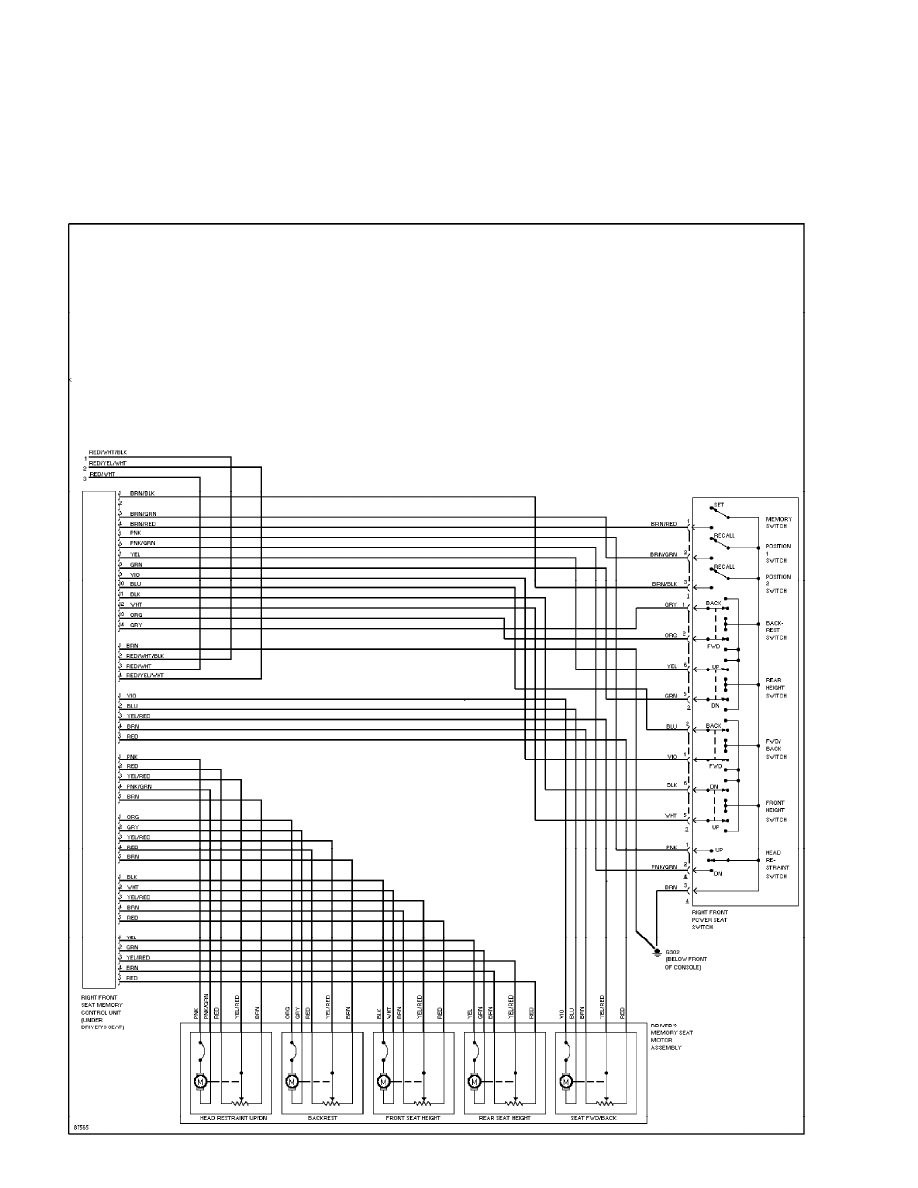

Memory Seats & Steering Column Circuit (1 of 2) (p. 4)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

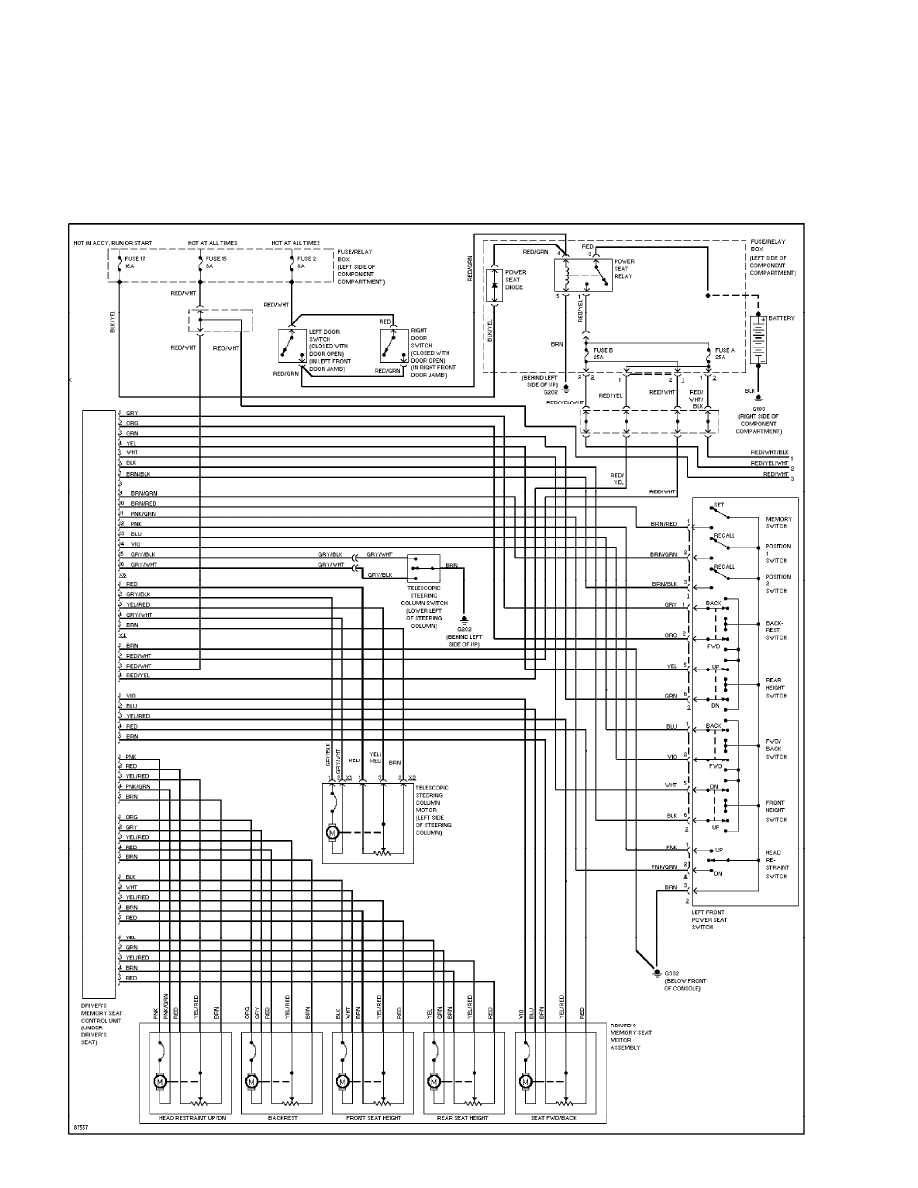

Memory Seats & Steering Column Circuit (2 of 2) (p. 5)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

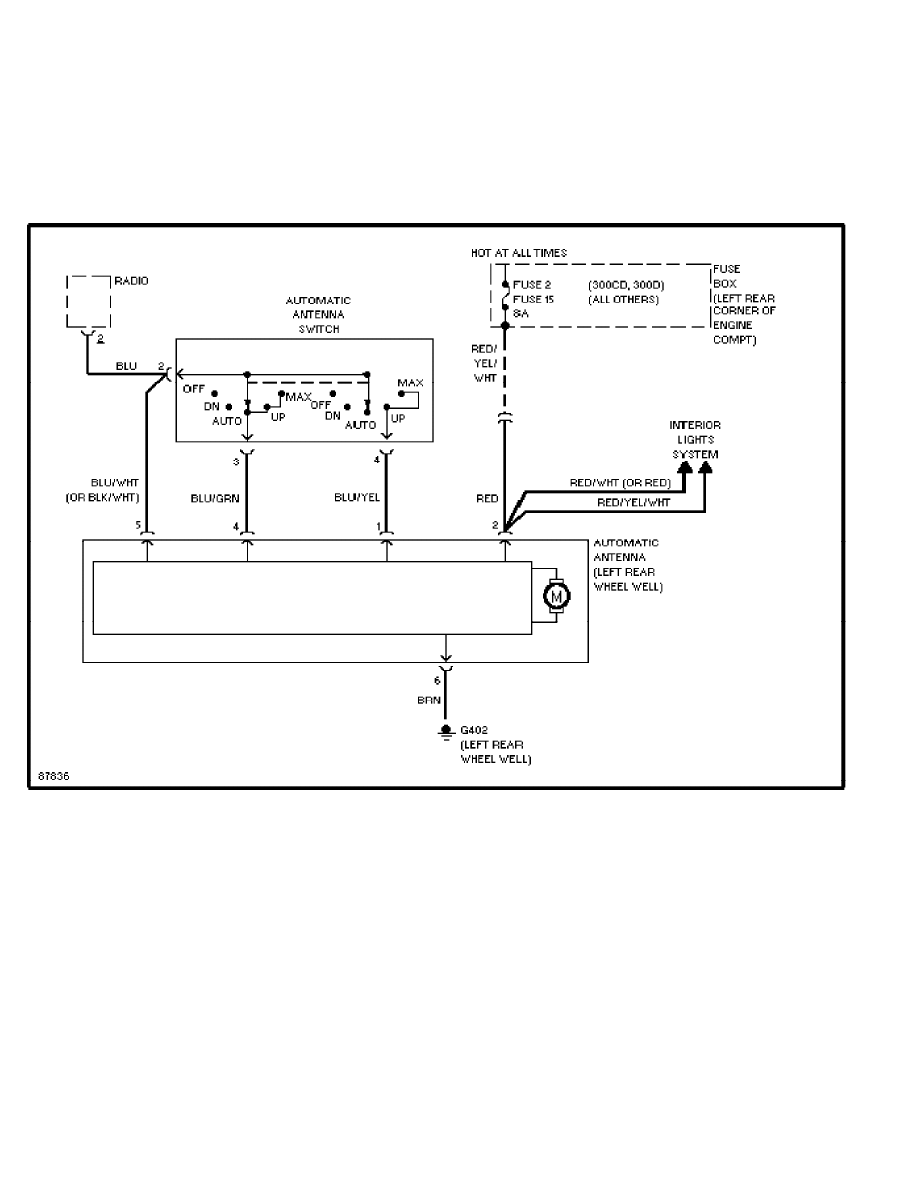

Power Antenna Circuit (p. 6)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

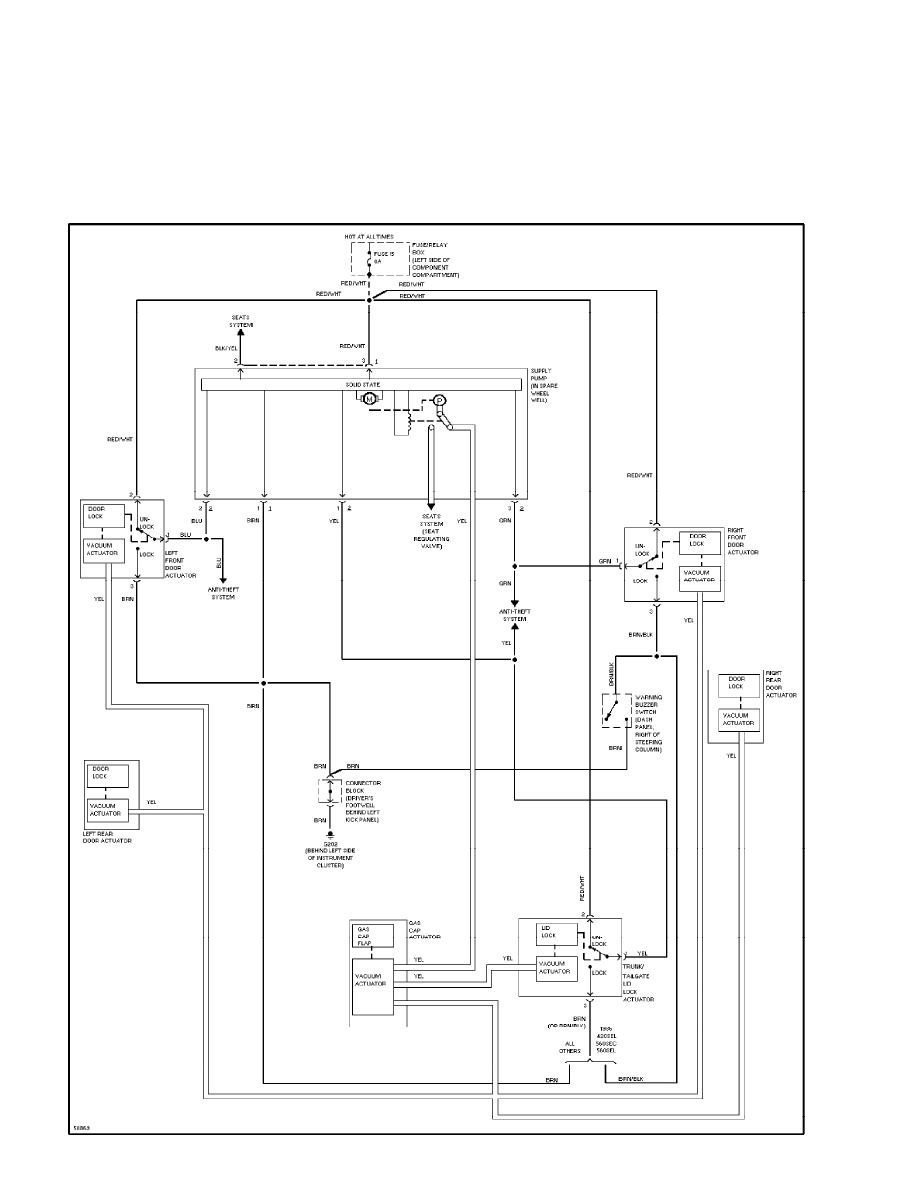

Power Door Lock Circuit (p. 7)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

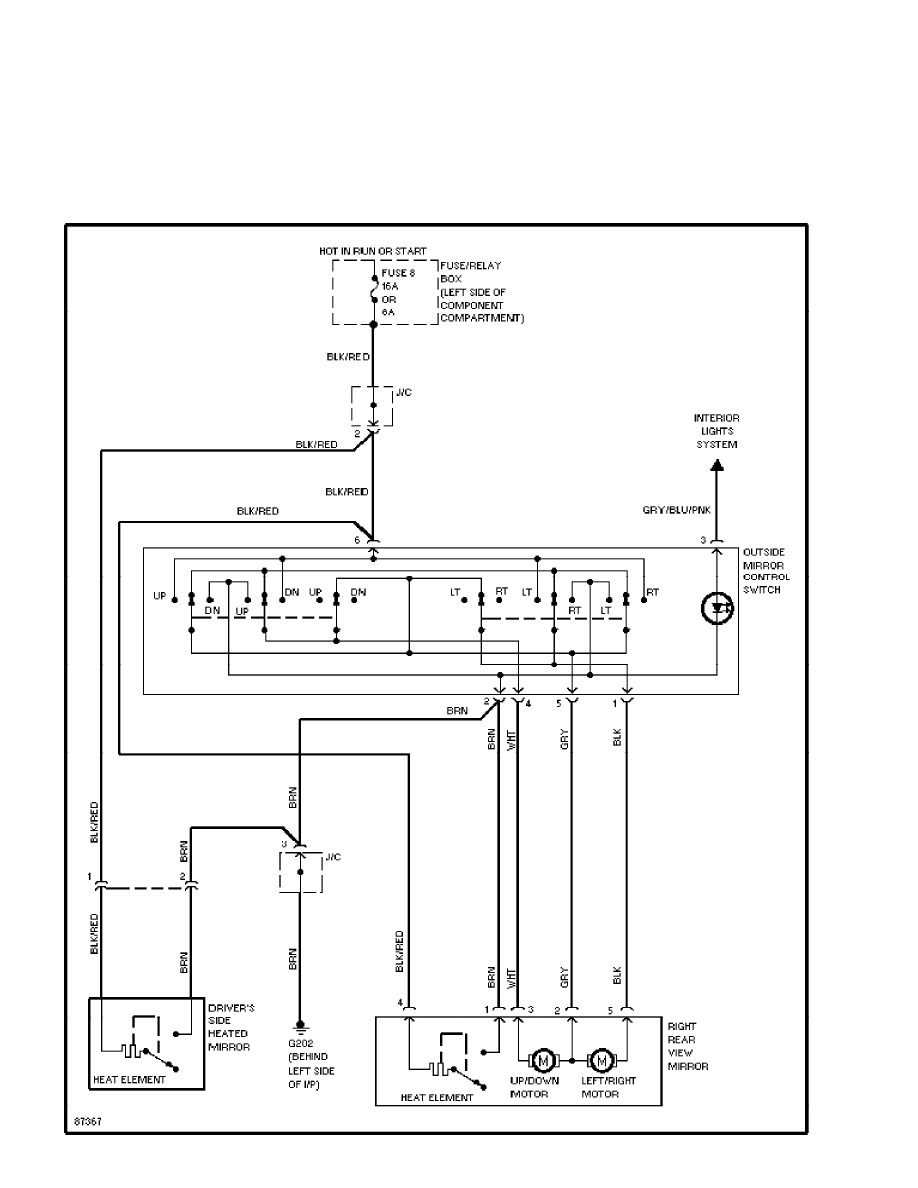

Power Mirror Circuit (p. 8)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

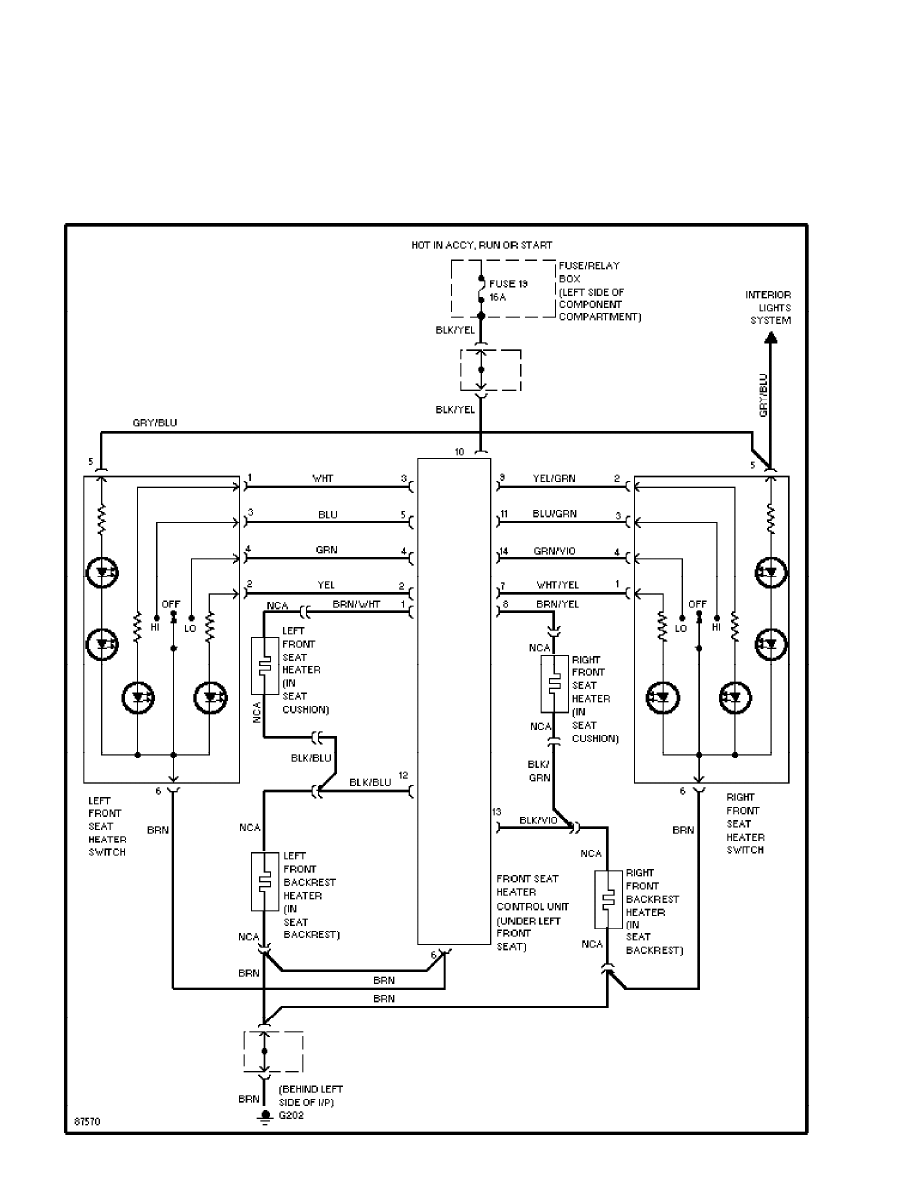

Front Seat Heater Circuit (p. 9)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

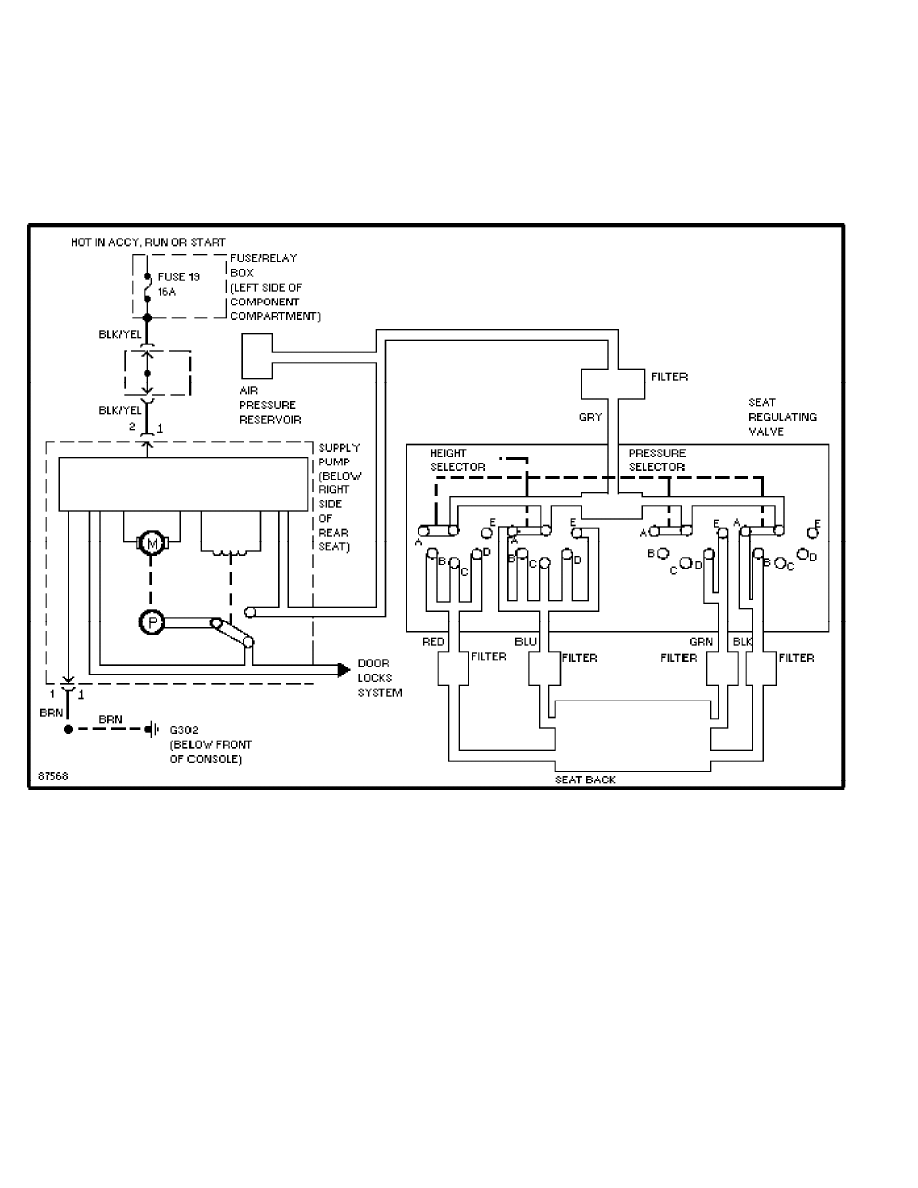

Orthopedic Seats (p. 10)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

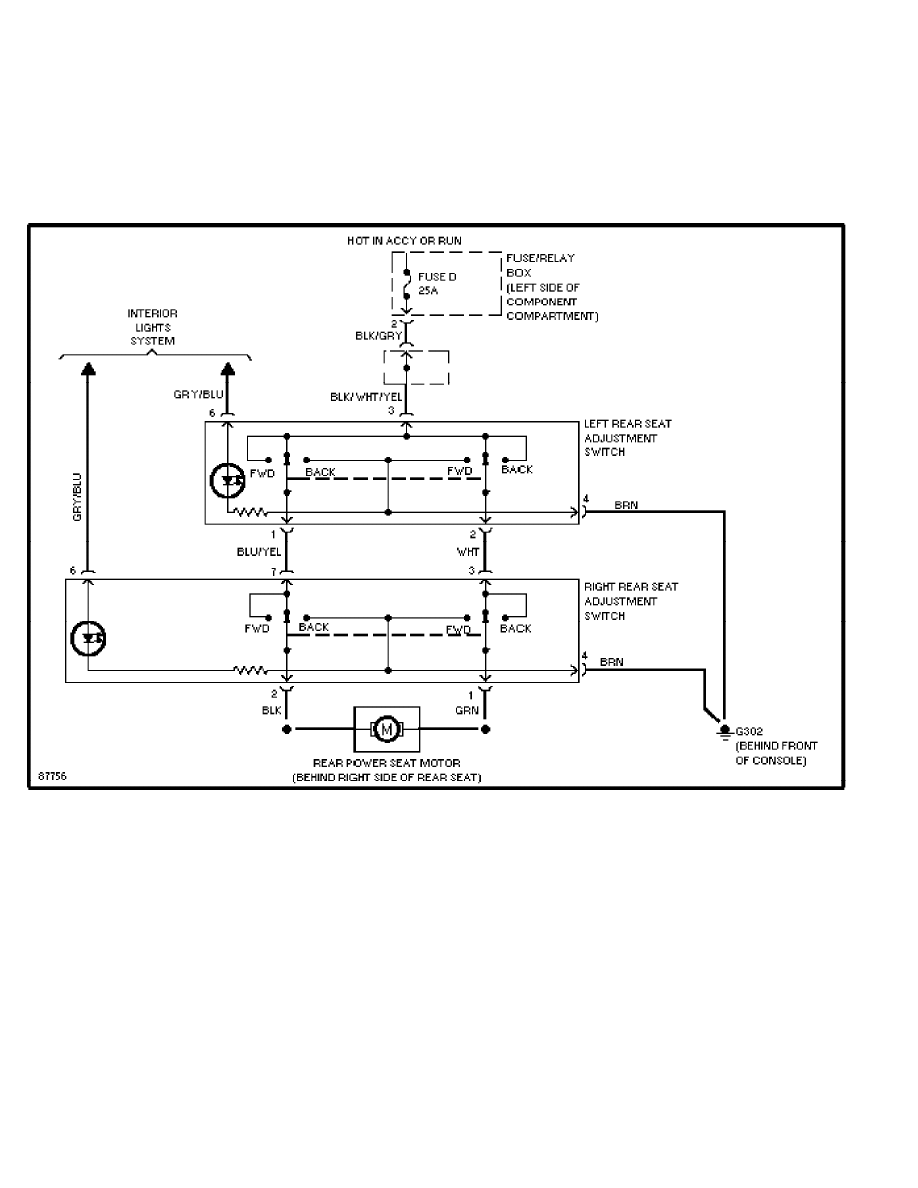

Rear Seat Adjuster Circuit (p. 11)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

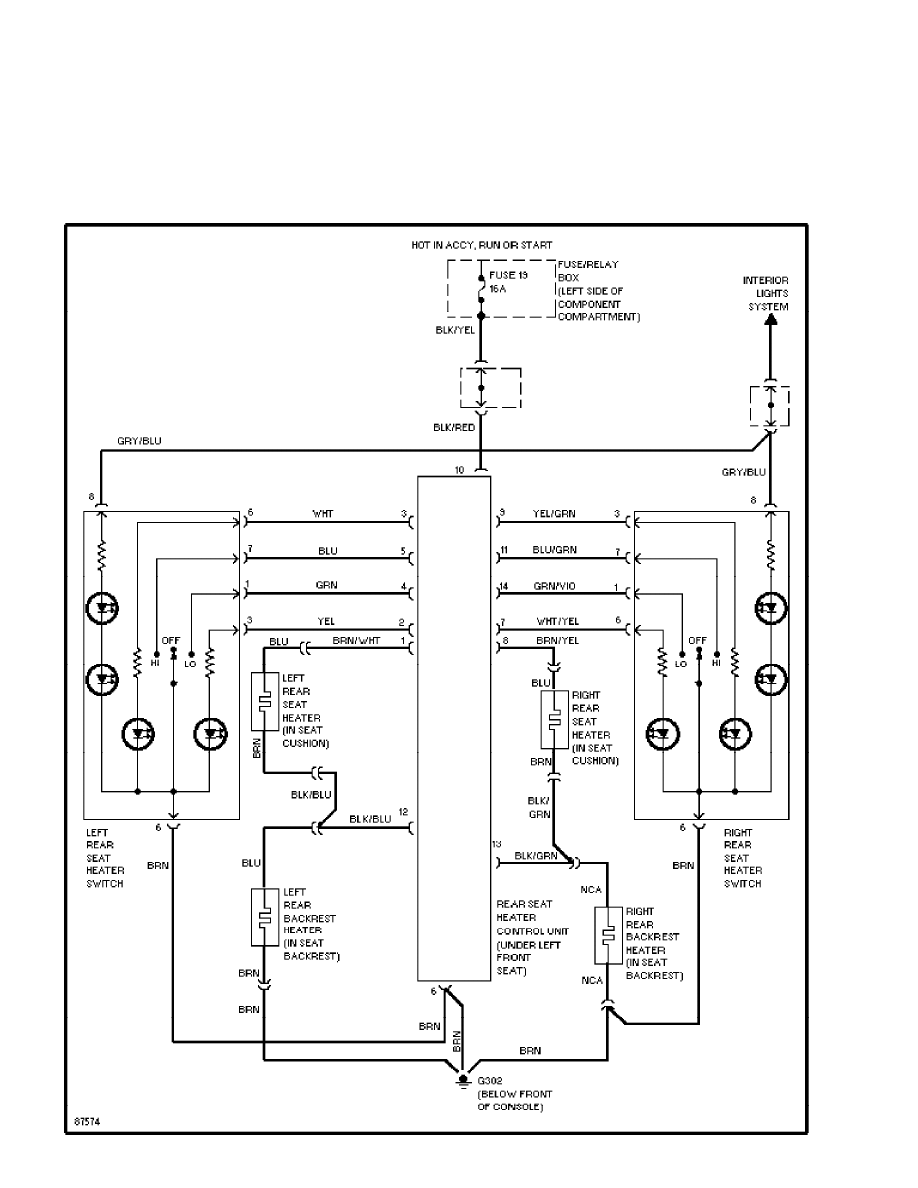

Rear Seat Heater Circuit (p. 12)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

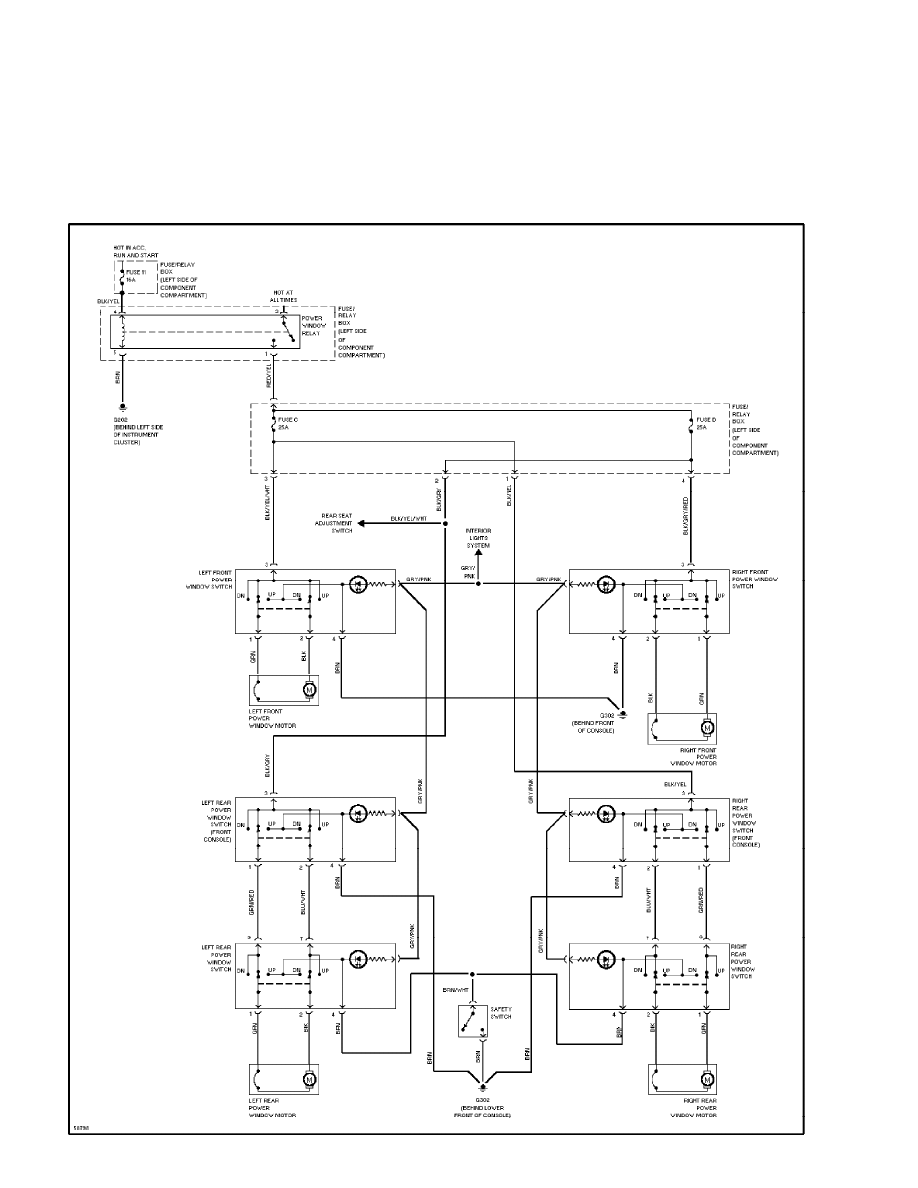

Power Window Circuit (p. 13)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

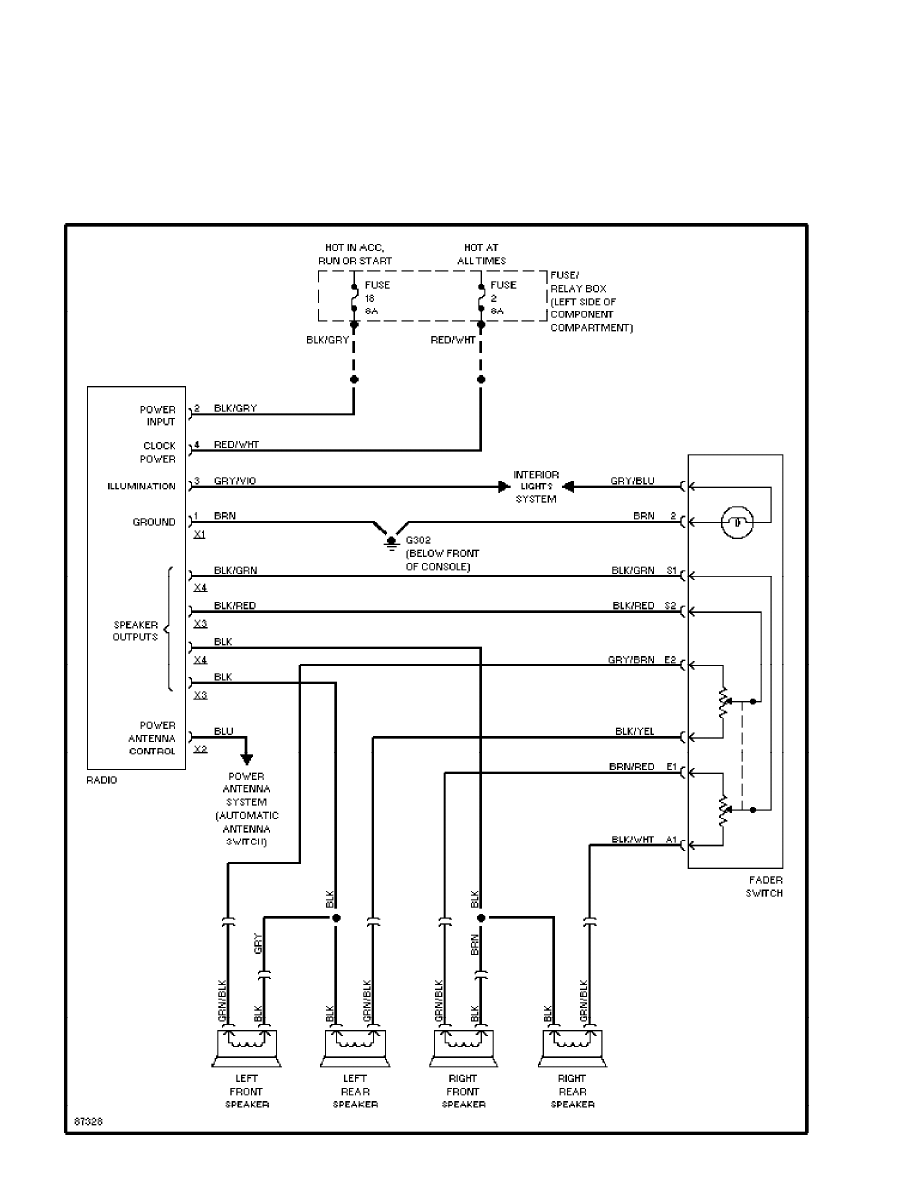

Radio Circuits (p. 14)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

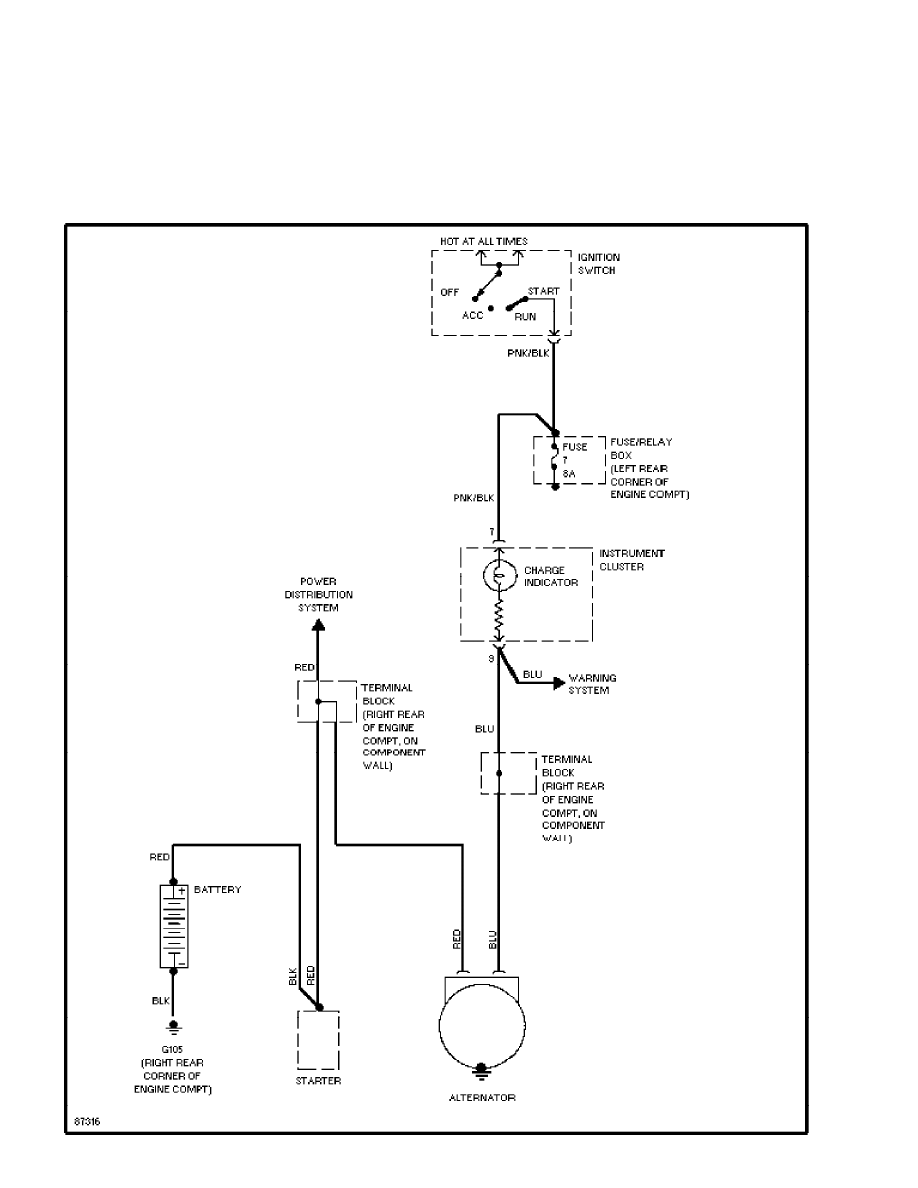

Charging Circuit (p. 15)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

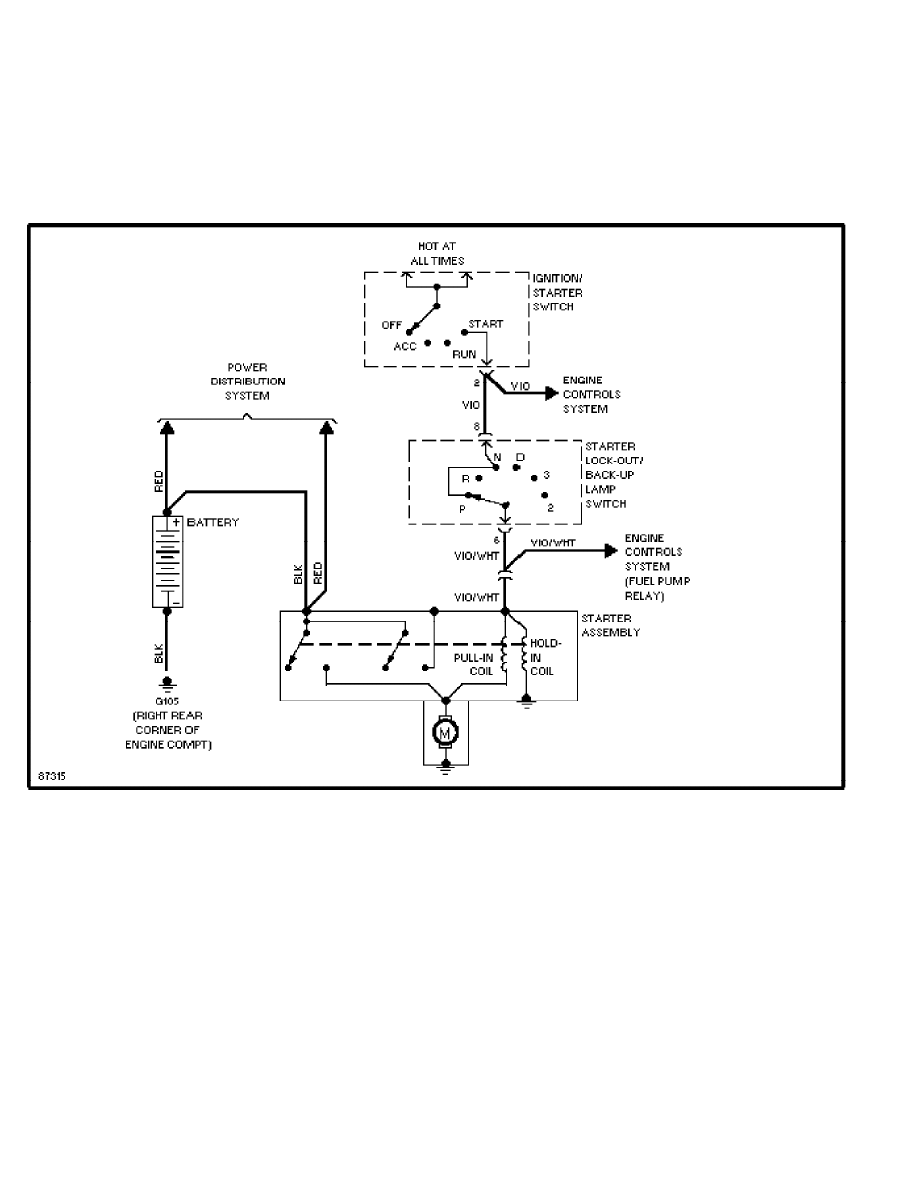

Starting Circuit (p. 16)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

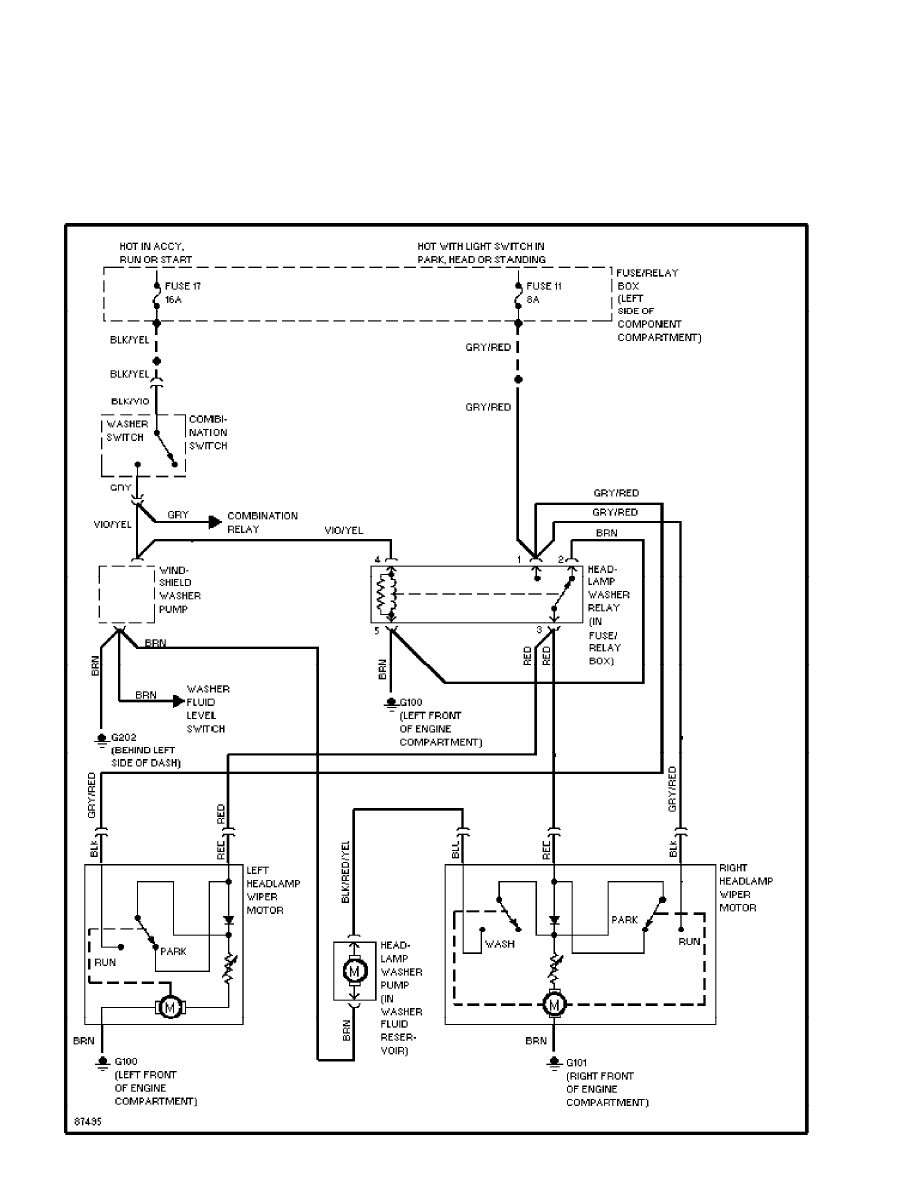

Headlamp Wiper/Washer Circuit (p. 17)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

SYSTEM WIRING DIAGRAMS

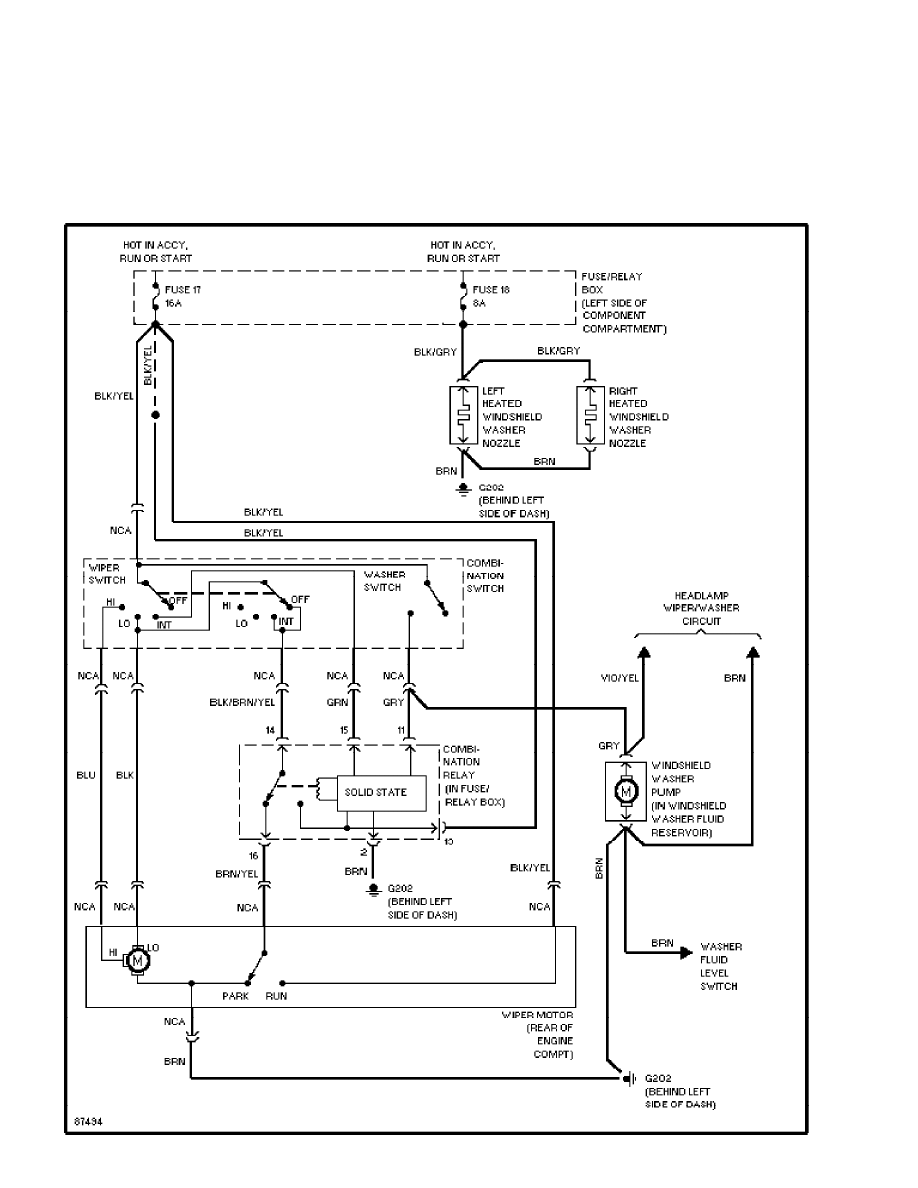

Interval Wiper/Washer Circuit (p. 18)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:21PM

WIRING DIAGRAMS

Fig. 1: Engine Compartment (Grids 1-4)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:22PM

WIRING DIAGRAMS

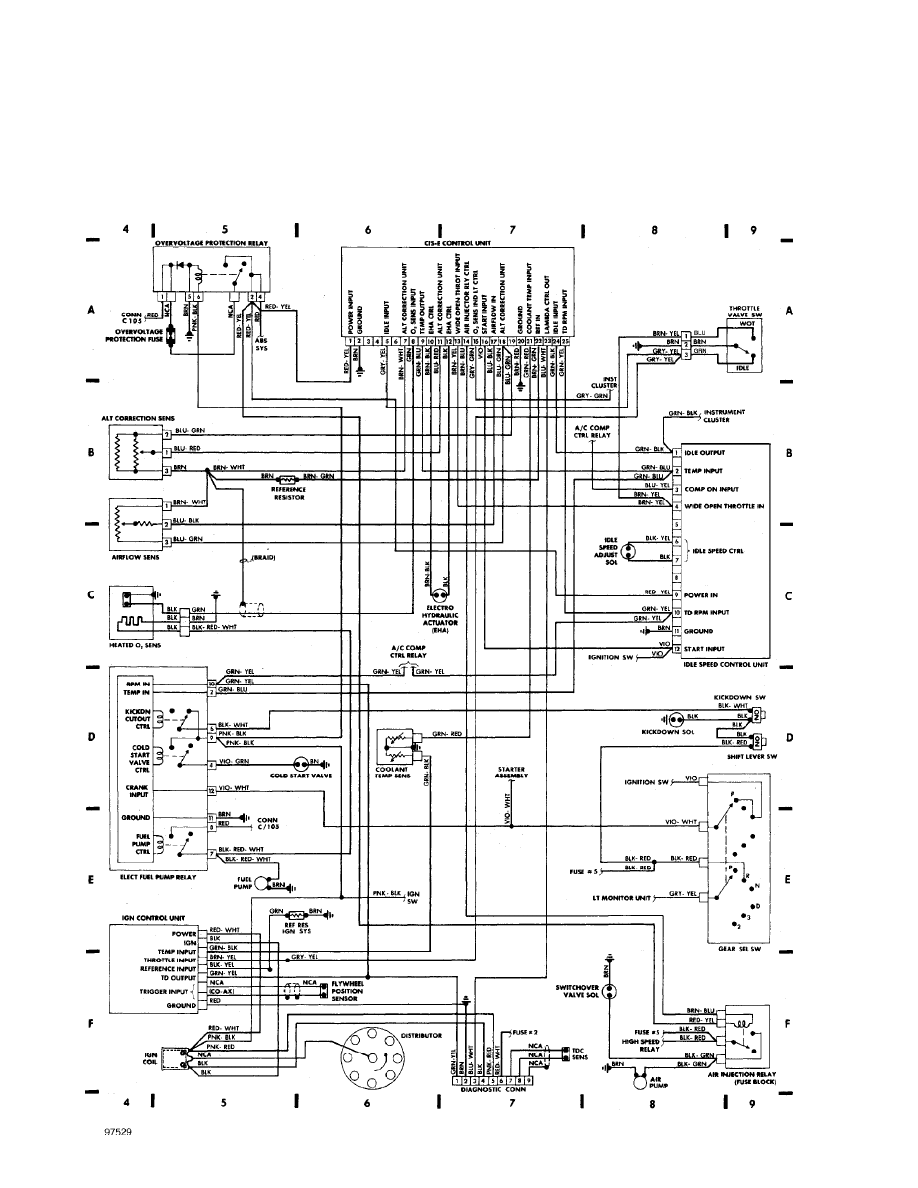

Fig. 2: Engine Compartment (Cont.) (Grids 4-9) (p. 2)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:22PM

WIRING DIAGRAMS

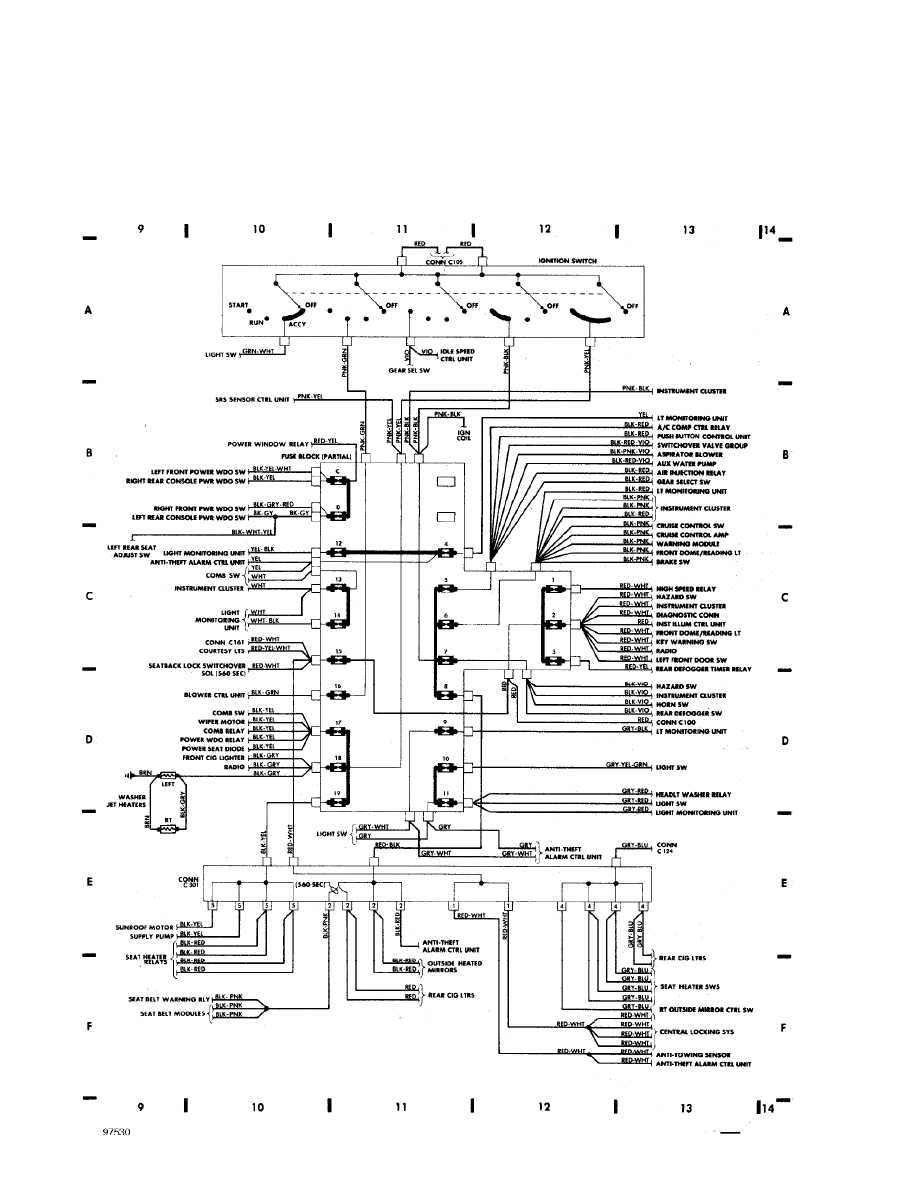

Fig. 3: Fuse Block & Underdash (Grids 9-14) (p. 3)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:22PM

WIRING DIAGRAMS

Fig. 4: Fuse Block & Underdash (Cont.) (Grids 14-18) (p. 4)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:22PM

WIRING DIAGRAMS

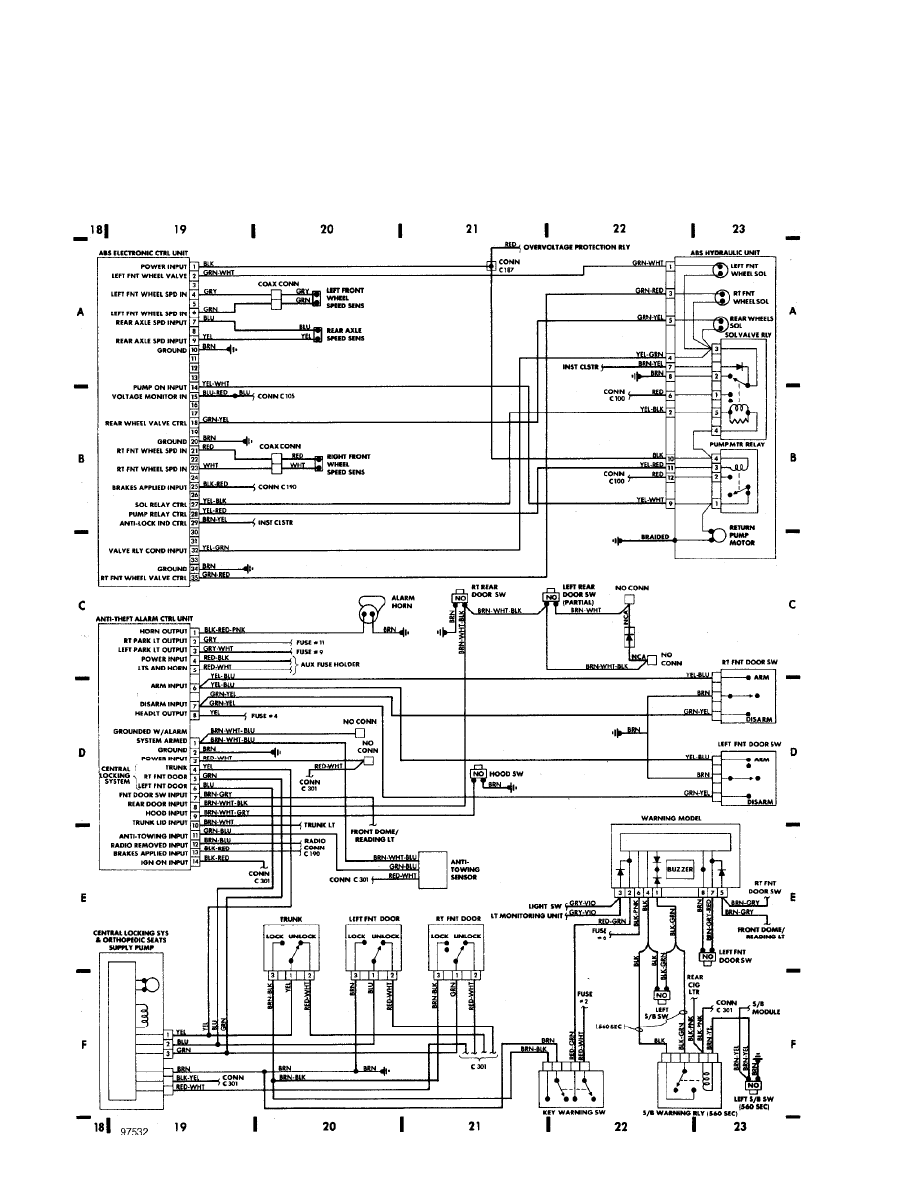

Fig. 5: Underdash (Grids 18-23) (p. 5)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:22PM

WIRING DIAGRAMS

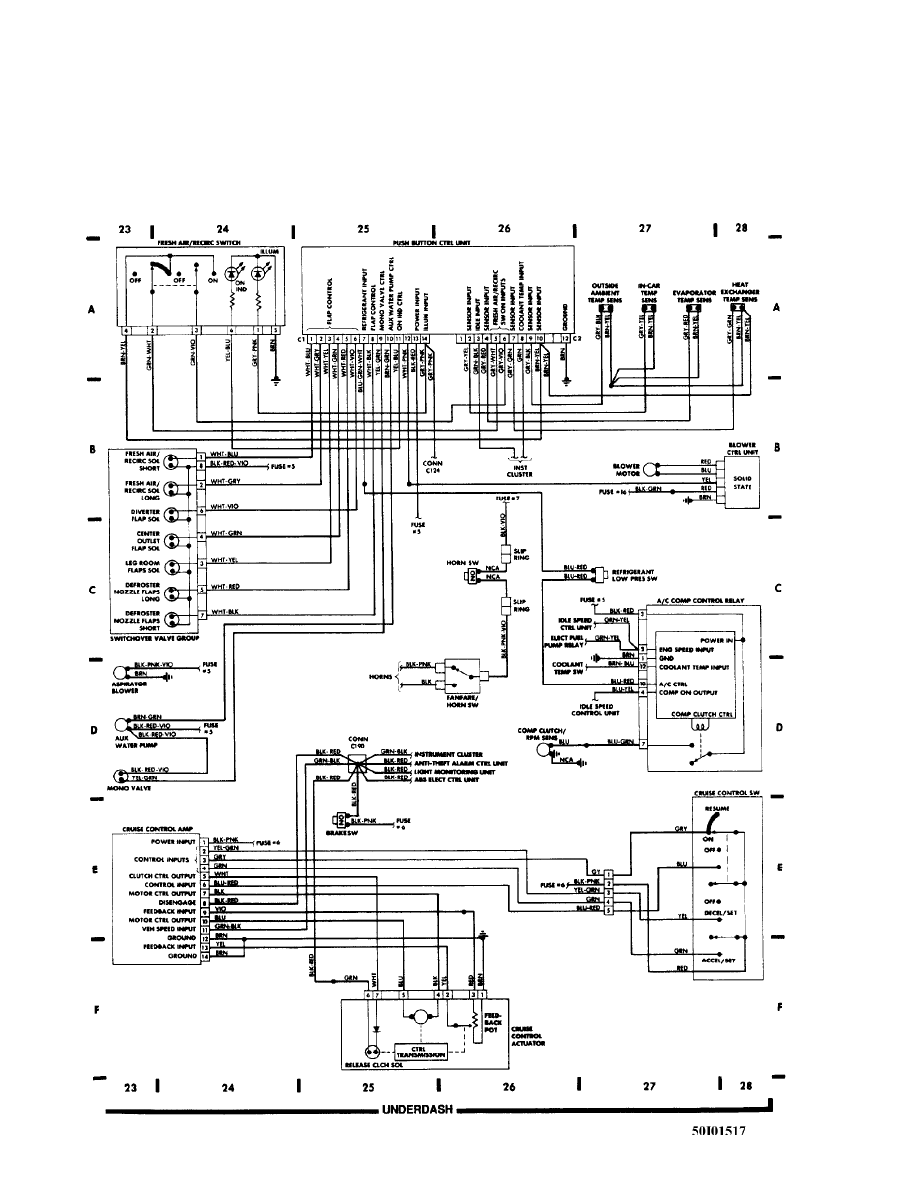

Fig. 6: Underdash (Cont.) (Grids 23-28) (p. 6)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:22PM

WIRING DIAGRAMS

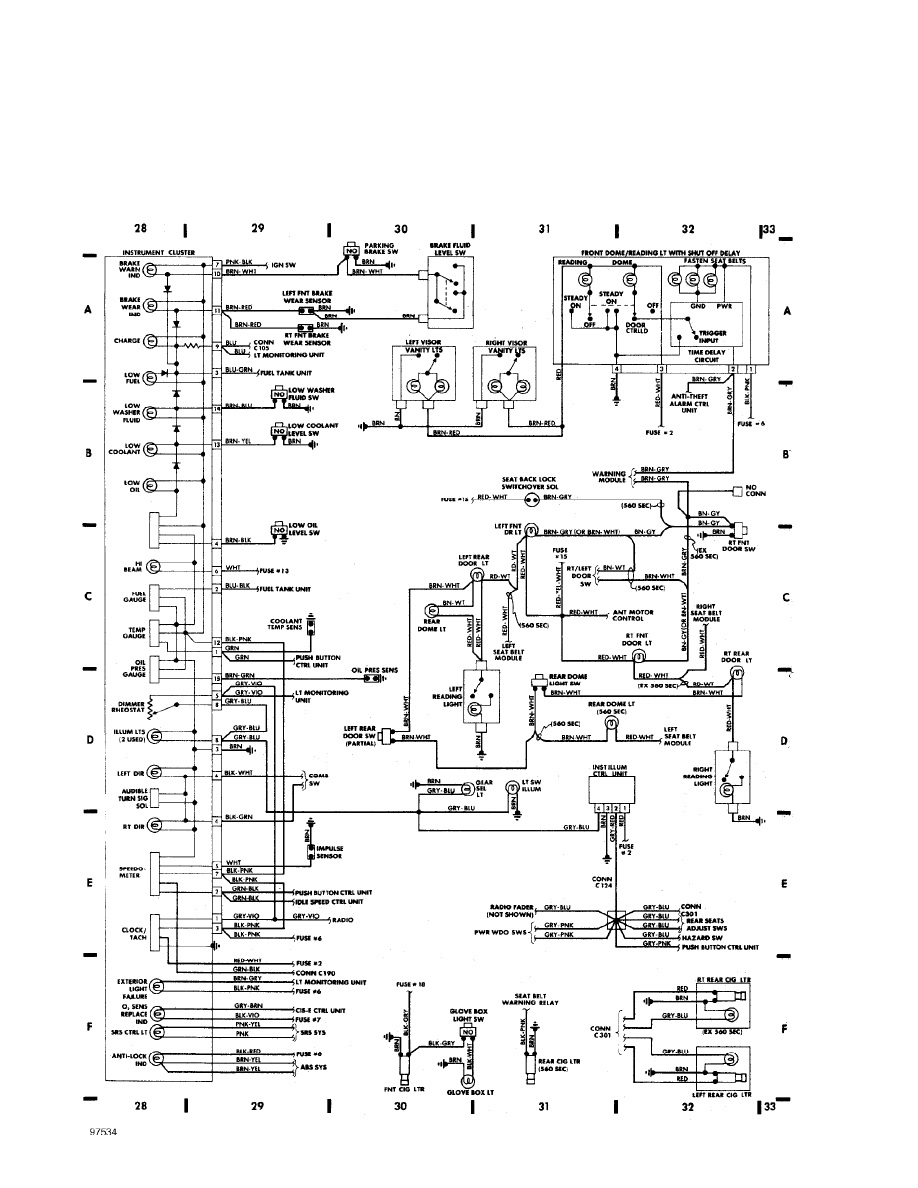

Fig. 7: Instrument Panel (Grids 28-33) (p. 7)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:22PM

WIRING DIAGRAMS

Fig. 8: Rear Compartment & Accessories (Grids 33-37) (p. 8)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:22PM

WIRING DIAGRAMS

Fig. 9: Rear Compartment & Accessories (Grids 37-42) (p. 9)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:22PM

WIRING DIAGRAMS

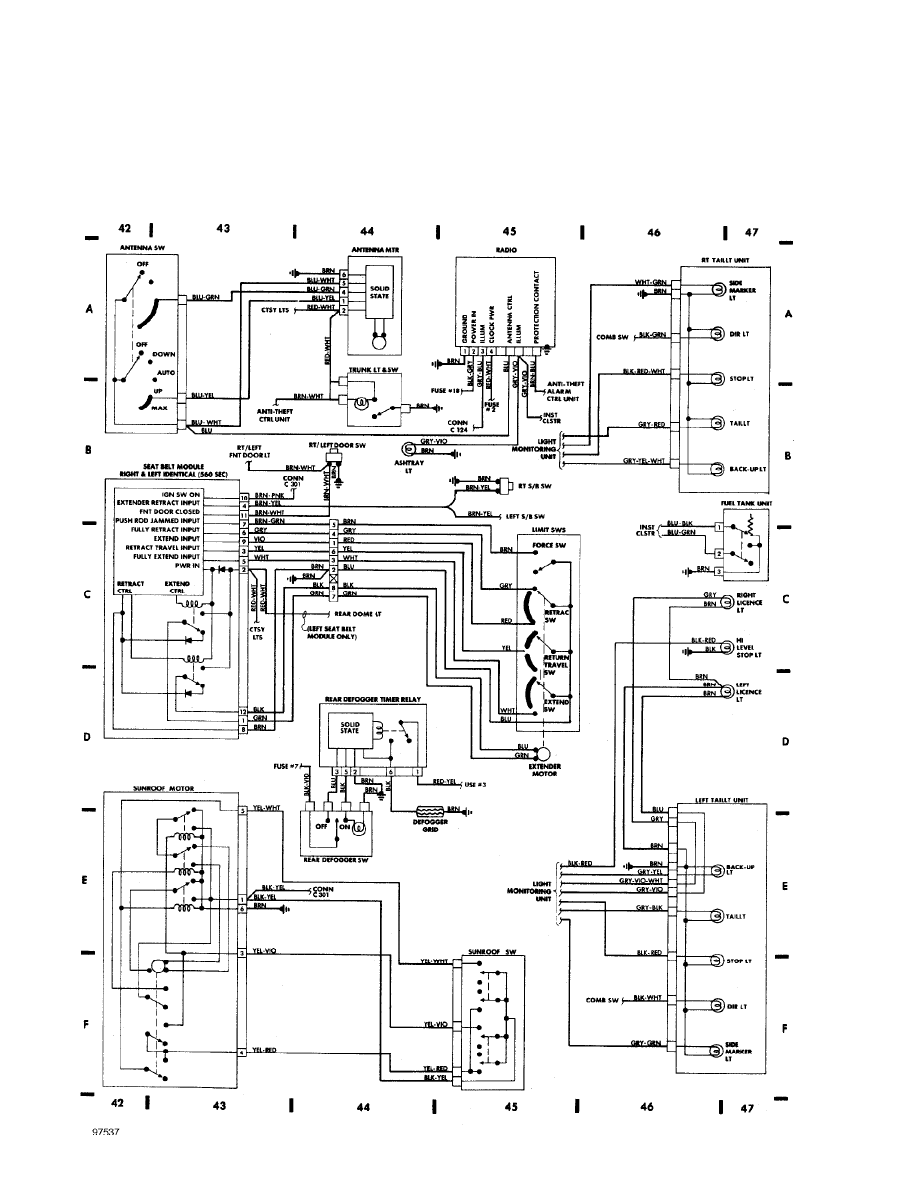

Fig. 10: Rear Compartment & Accessories (Grids 42-47) (p. 10)

1986 Mercedes-Benz 420SEL

For cdr101@wp.pl x x x x

Sunday, April 02, 2006 02:22PM
