AUDI COUPE GT 1985

background image

SYSTEM WIRING DIAGRAMS

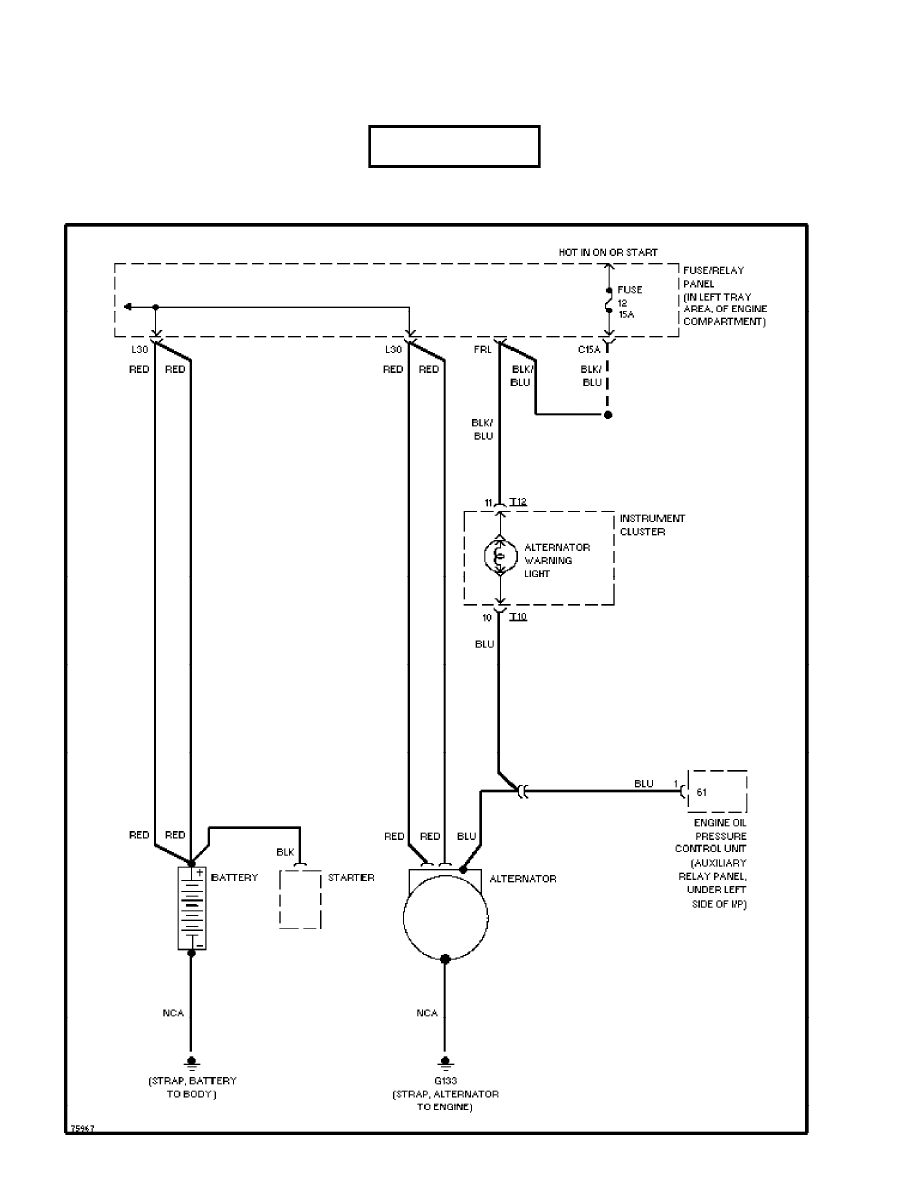

Charging Circuit

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:14PM

cdr@wp.pl

background image

SYSTEM WIRING DIAGRAMS

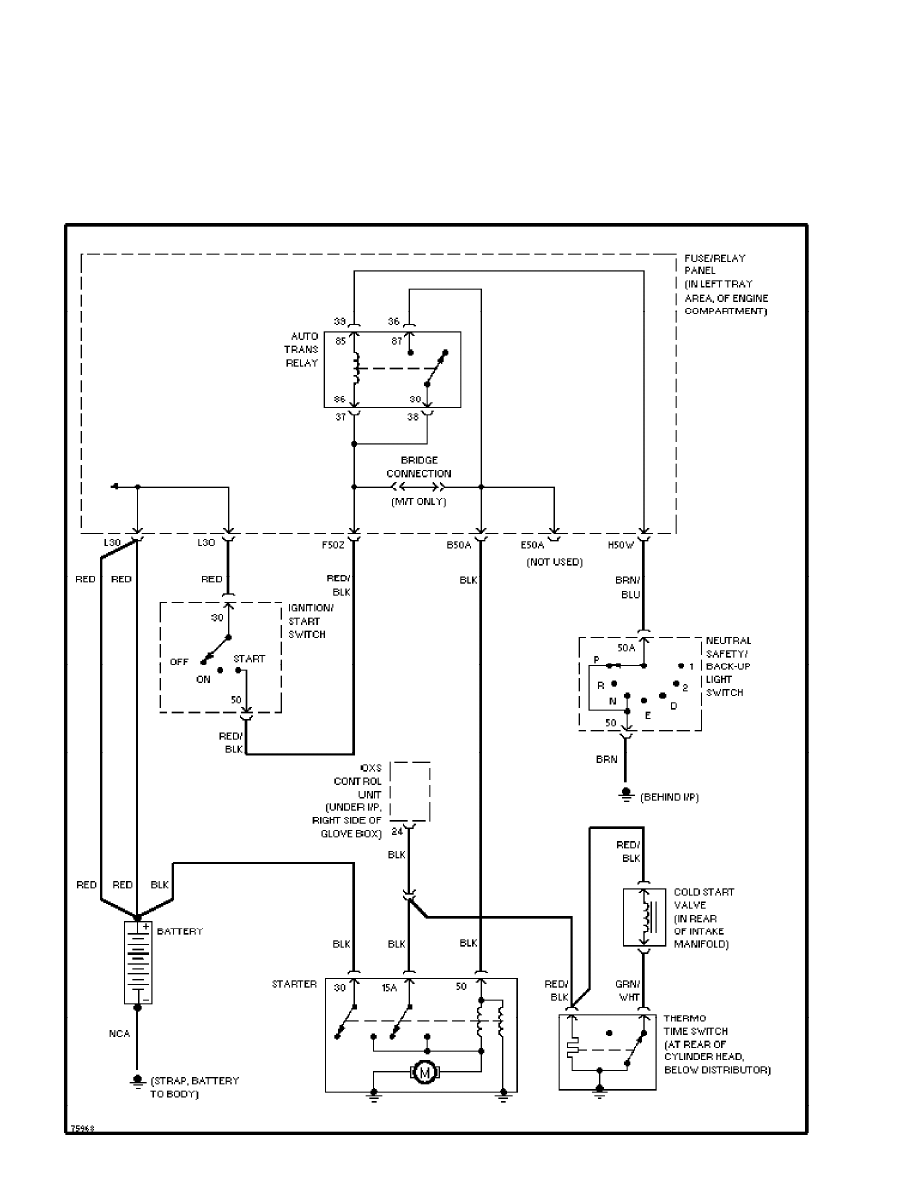

Starting Circuit

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:14PM

background image

SYSTEM WIRING DIAGRAMS

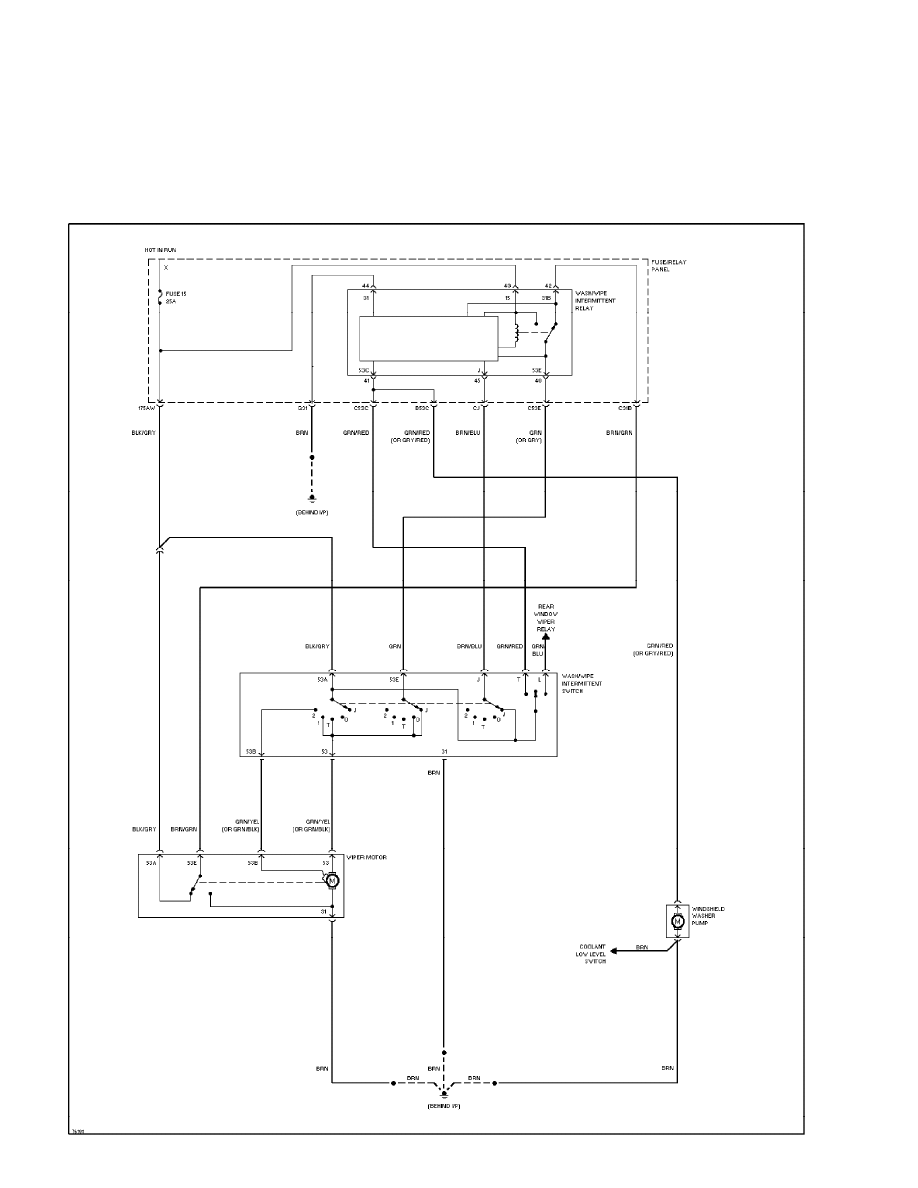

Front Wiper/Washer Circuit

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:14PM

background image

SYSTEM WIRING DIAGRAMS

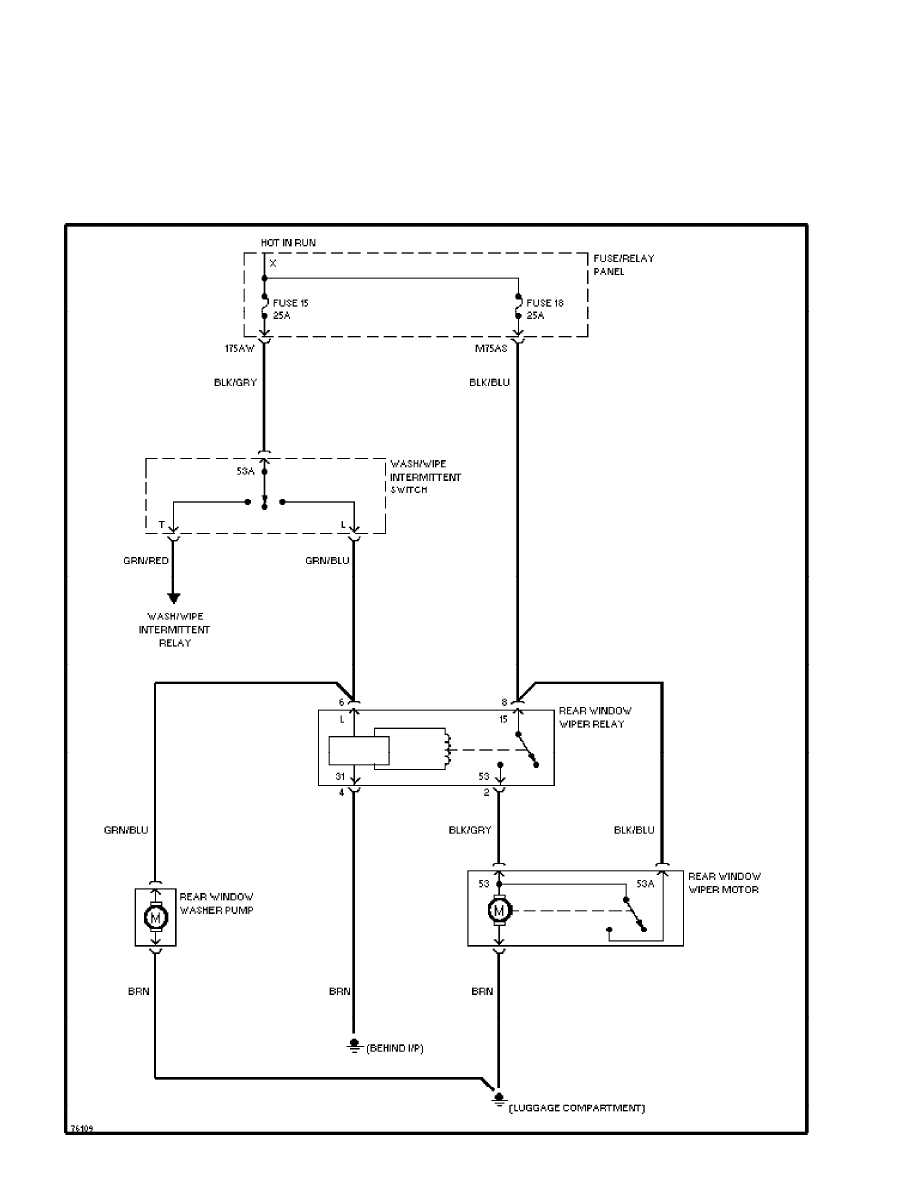

Rear Wiper/Washer Circuit

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:14PM

background image

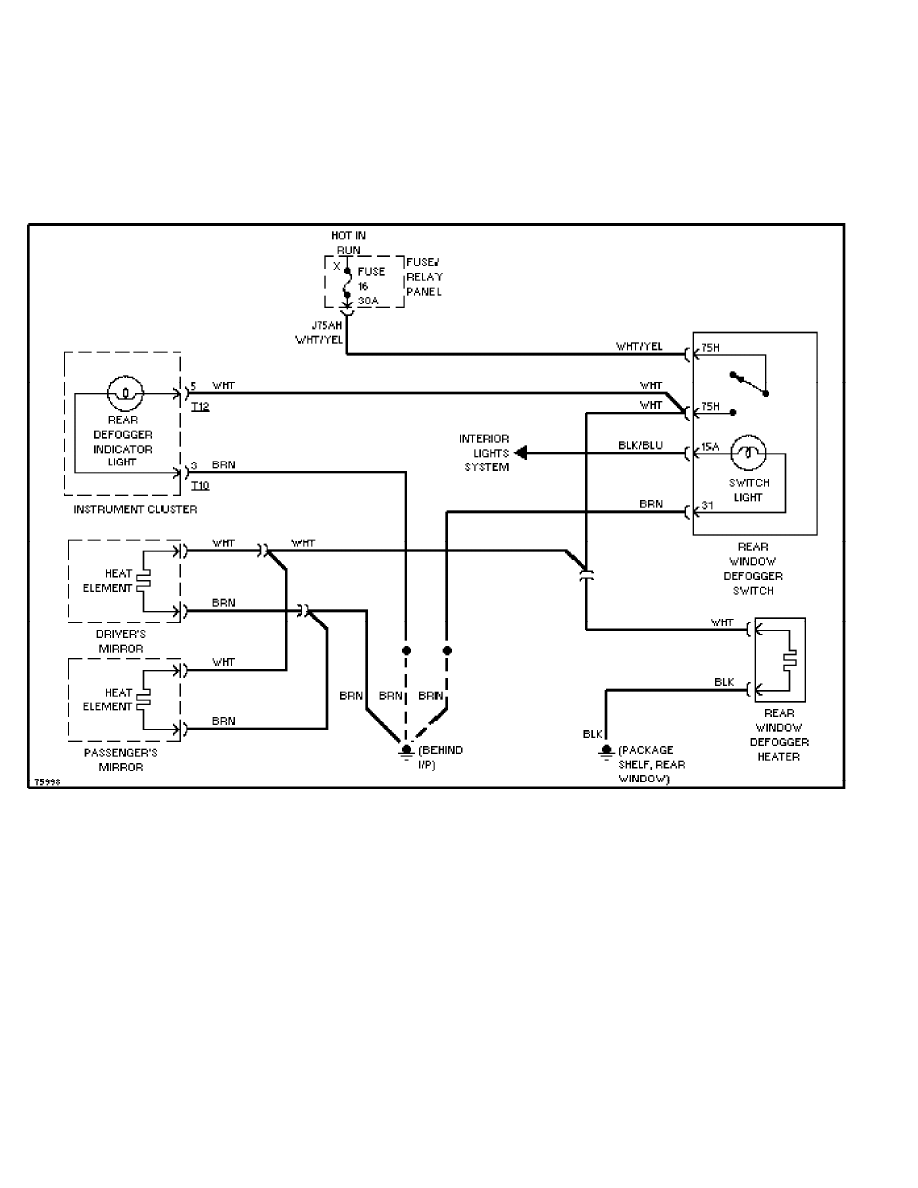

SYSTEM WIRING DIAGRAMS

Defogger Circuit

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:13PM

background image

SYSTEM WIRING DIAGRAMS

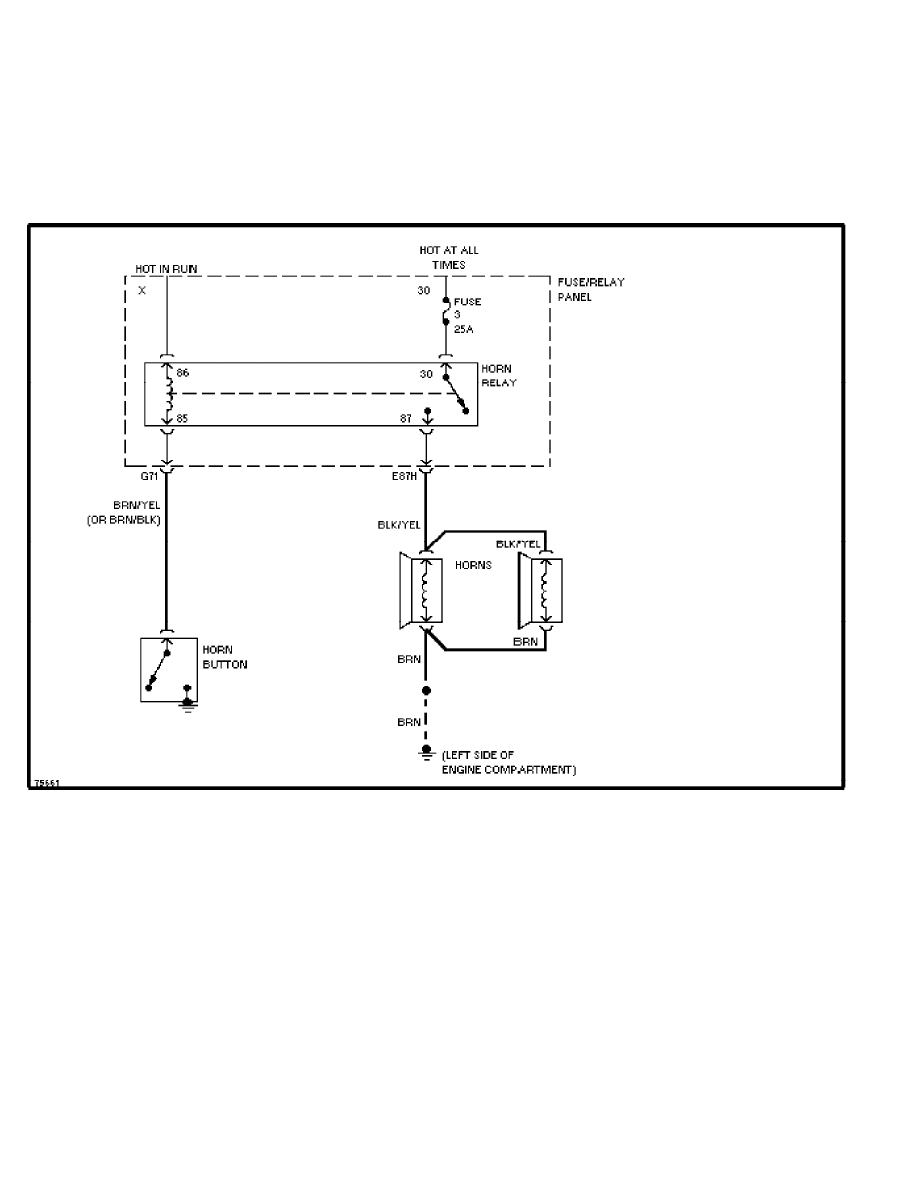

Horn Circuit

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:14PM

background image

SYSTEM WIRING DIAGRAMS

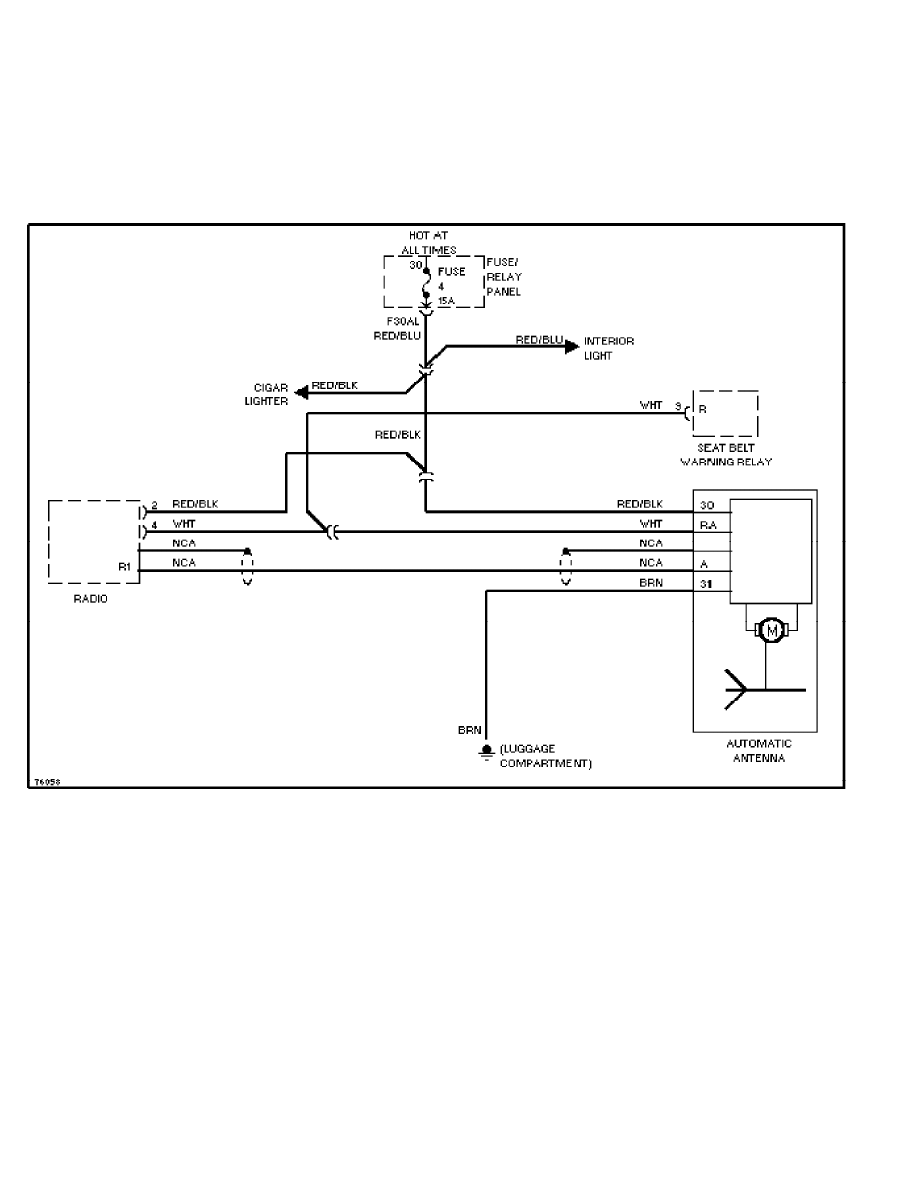

Power Antenna Circuit

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:14PM

background image

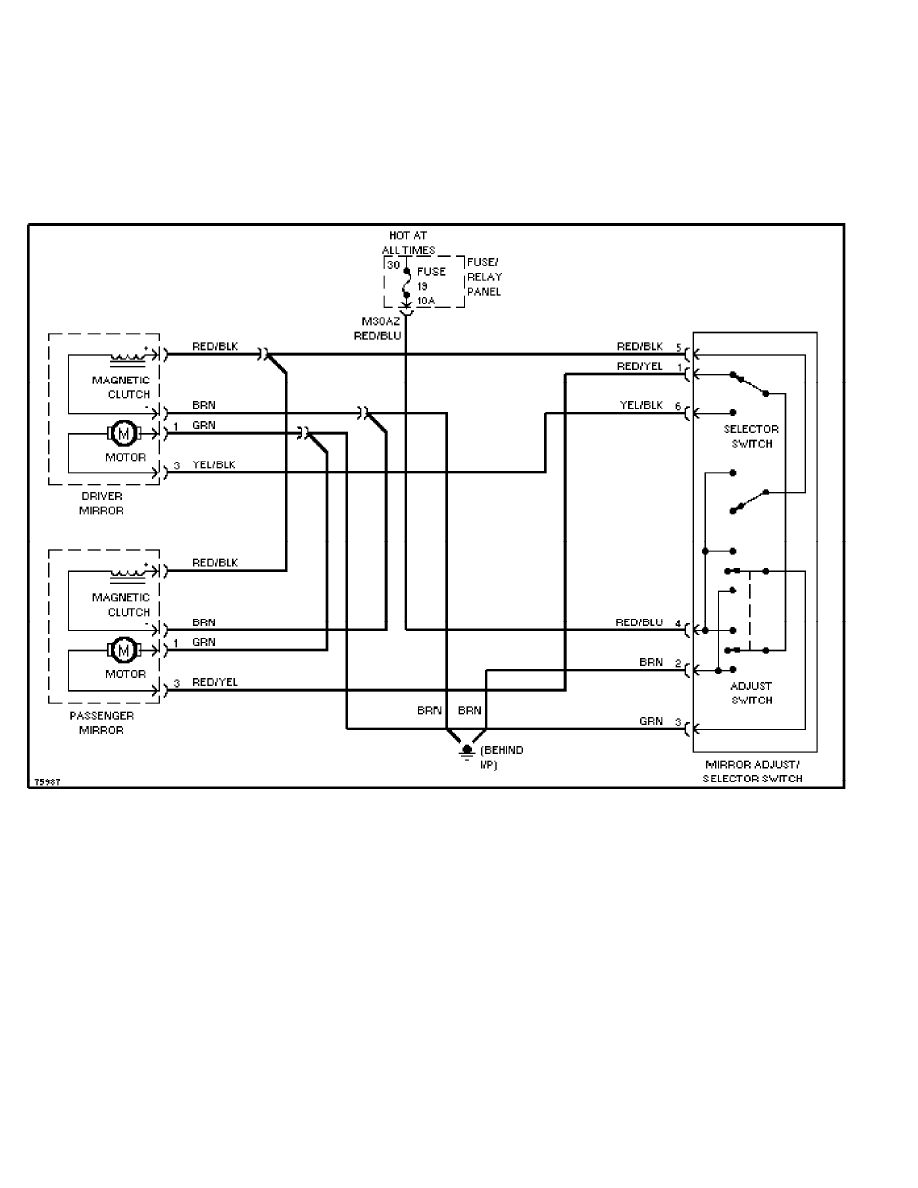

SYSTEM WIRING DIAGRAMS

Power Mirror Circuit

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:14PM

background image

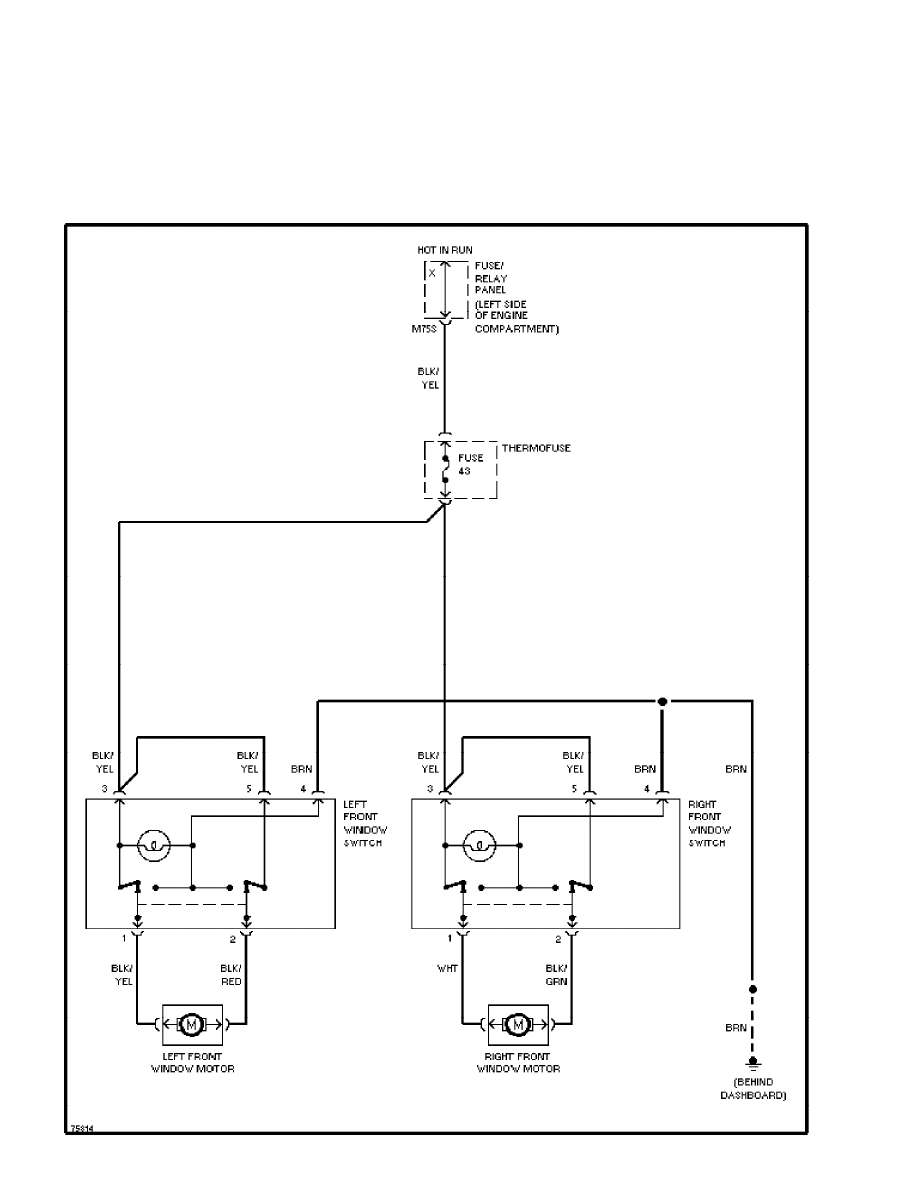

SYSTEM WIRING DIAGRAMS

Power Window Circuit

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:14PM

background image

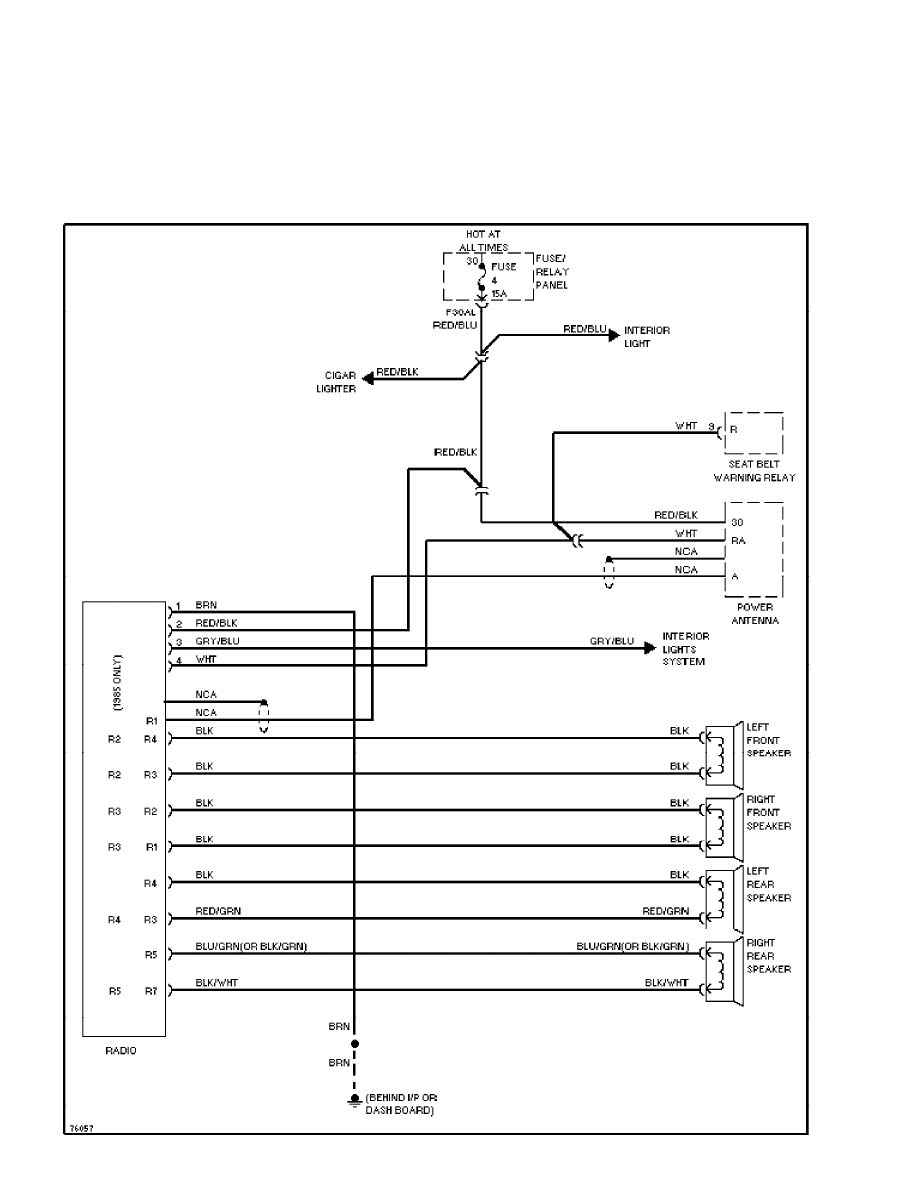

SYSTEM WIRING DIAGRAMS

Radio Circuits

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:14PM

background image

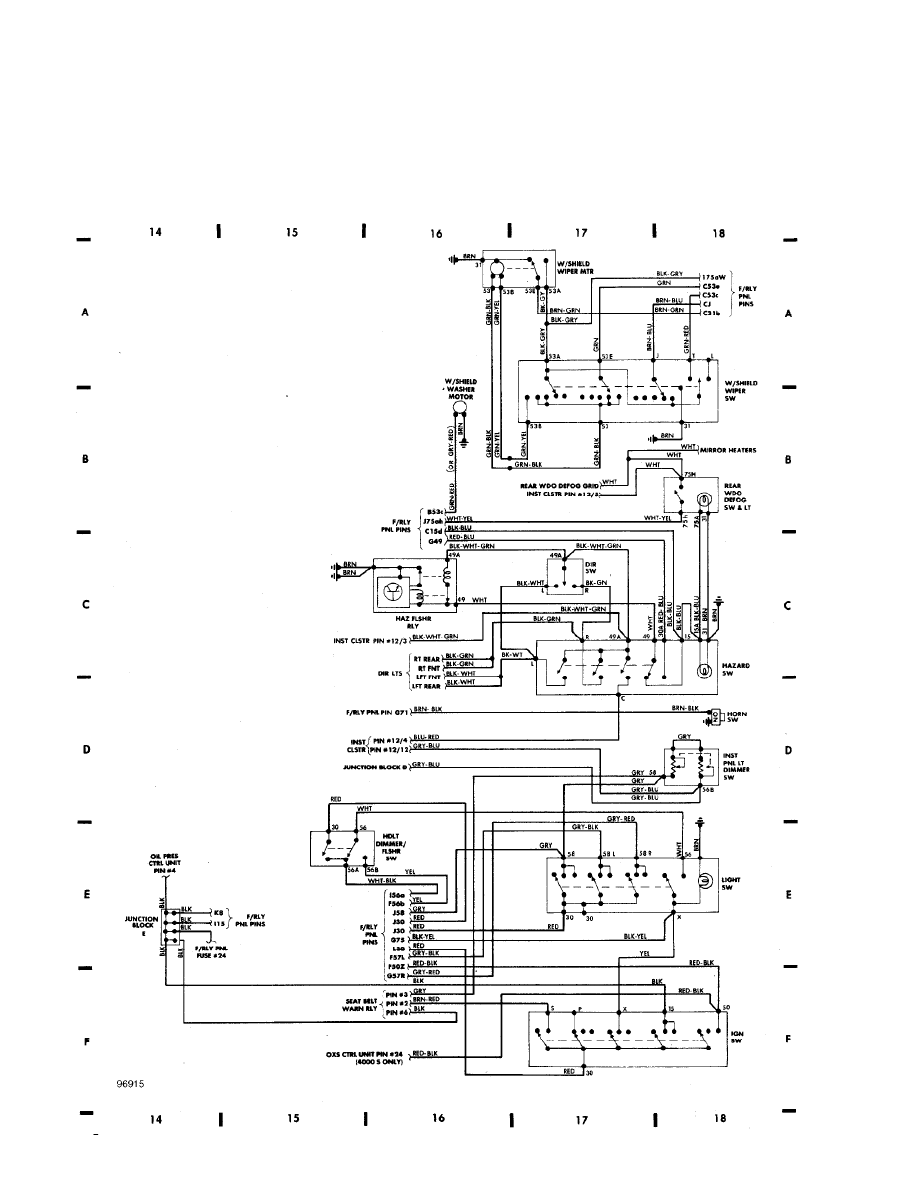

WIRING DIAGRAMS

Fig. 4: Instrument Panel & Underdash

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:17PM

background image

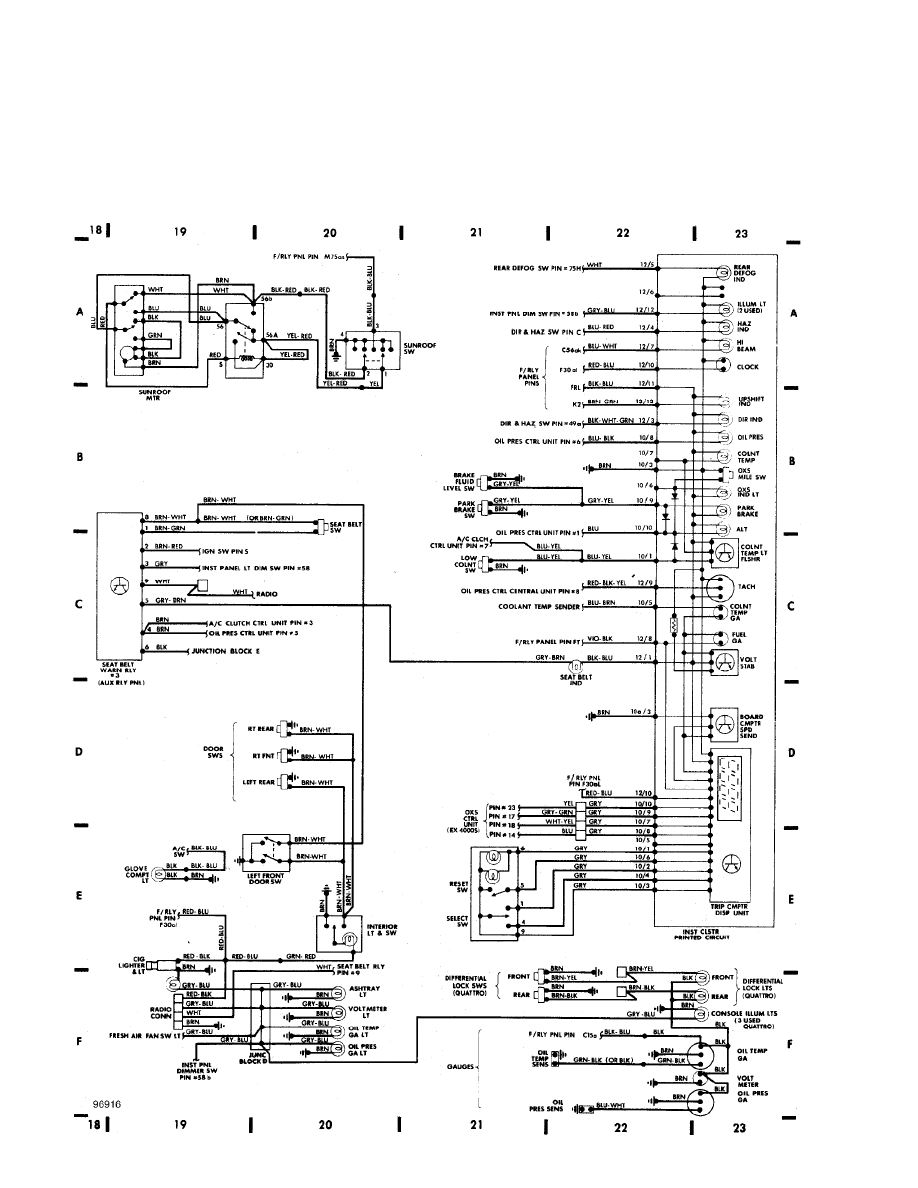

WIRING DIAGRAMS

Fig. 5: Instrument Panel & Underdash

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:17PM

background image

WIRING DIAGRAMS

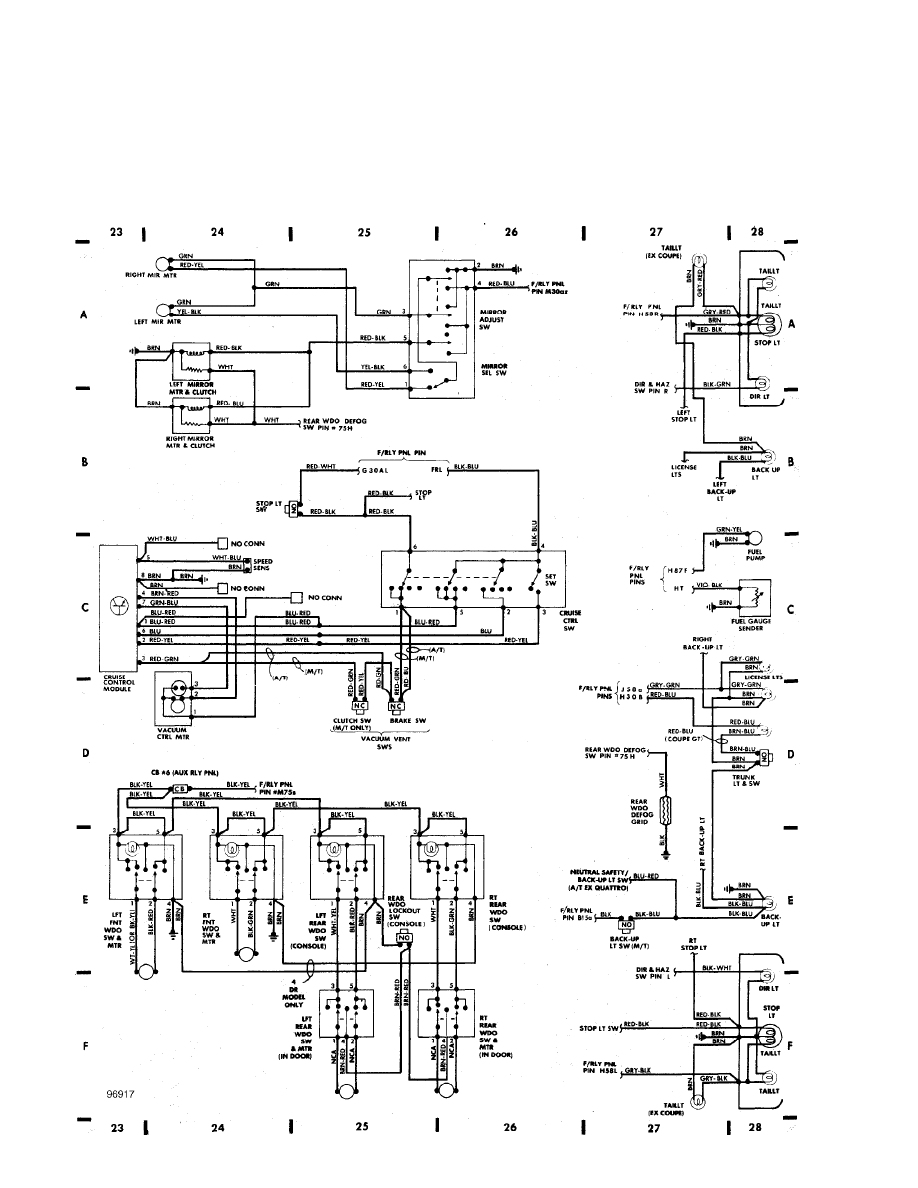

Fig. 6: Rear Compartment & Accessories

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:17PM

background image

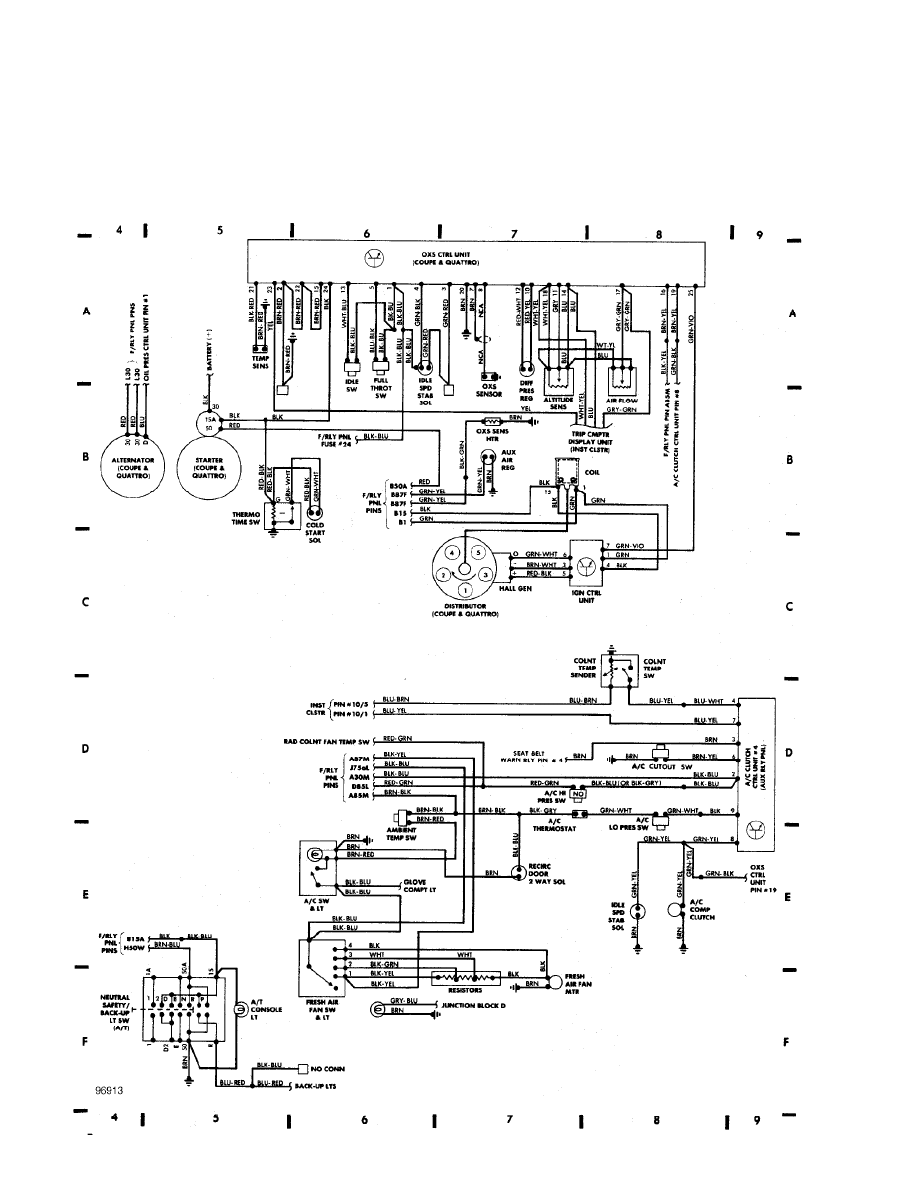

WIRING DIAGRAMS

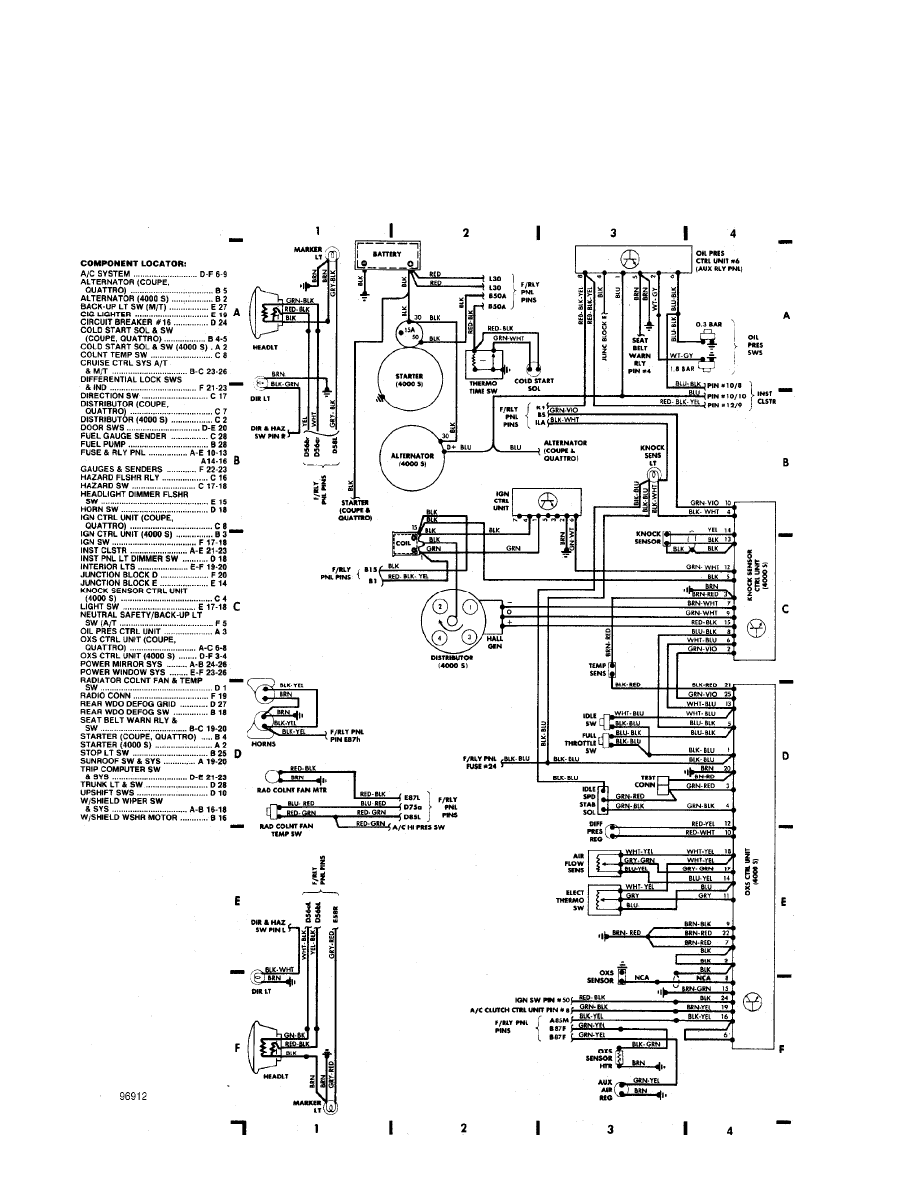

Fig. 1: Engine Compartment

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:15PM

background image

WIRING DIAGRAMS

Fig. 2: Engine Compartment (Cont.) & Underdash

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:16PM

background image

WIRING DIAGRAMS

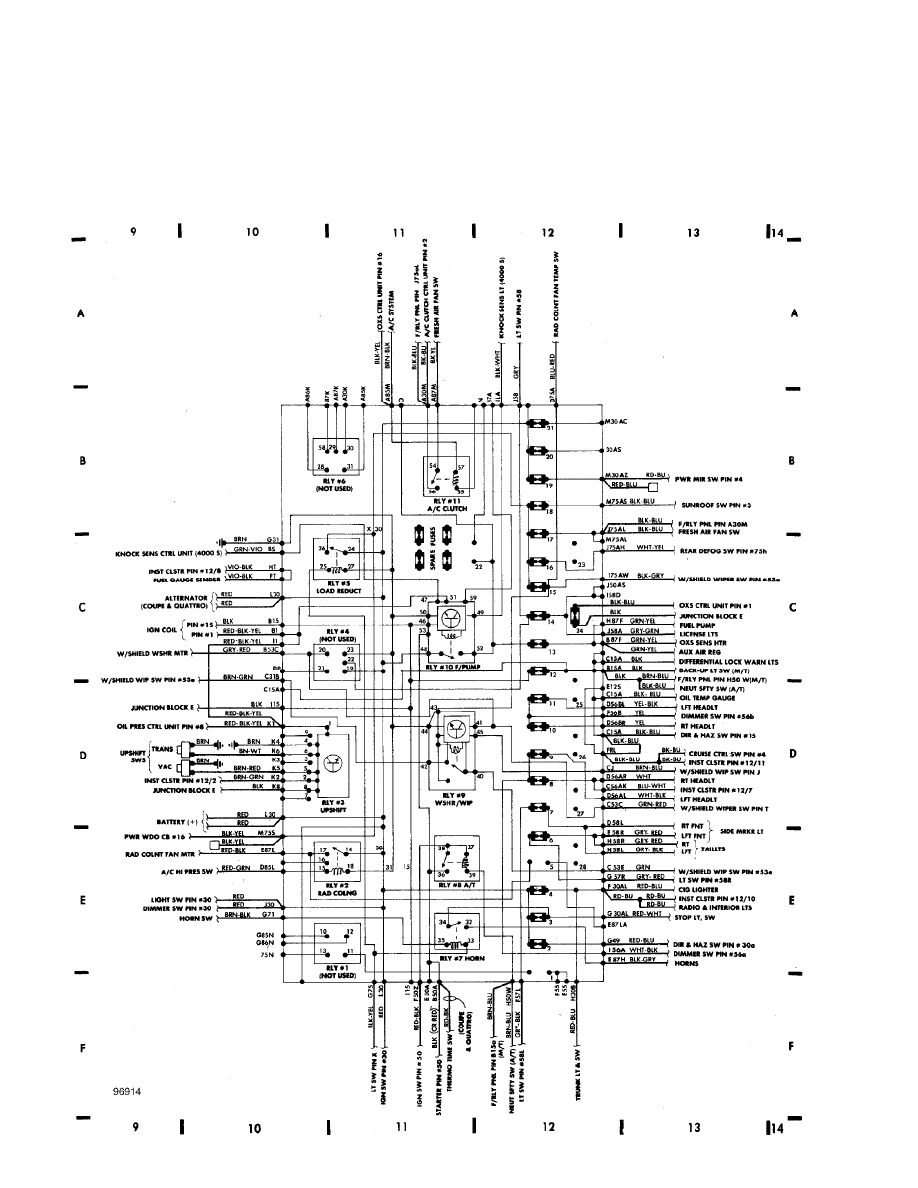

Fig. 3: Fuse & Relay Panel

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:17PM

background image

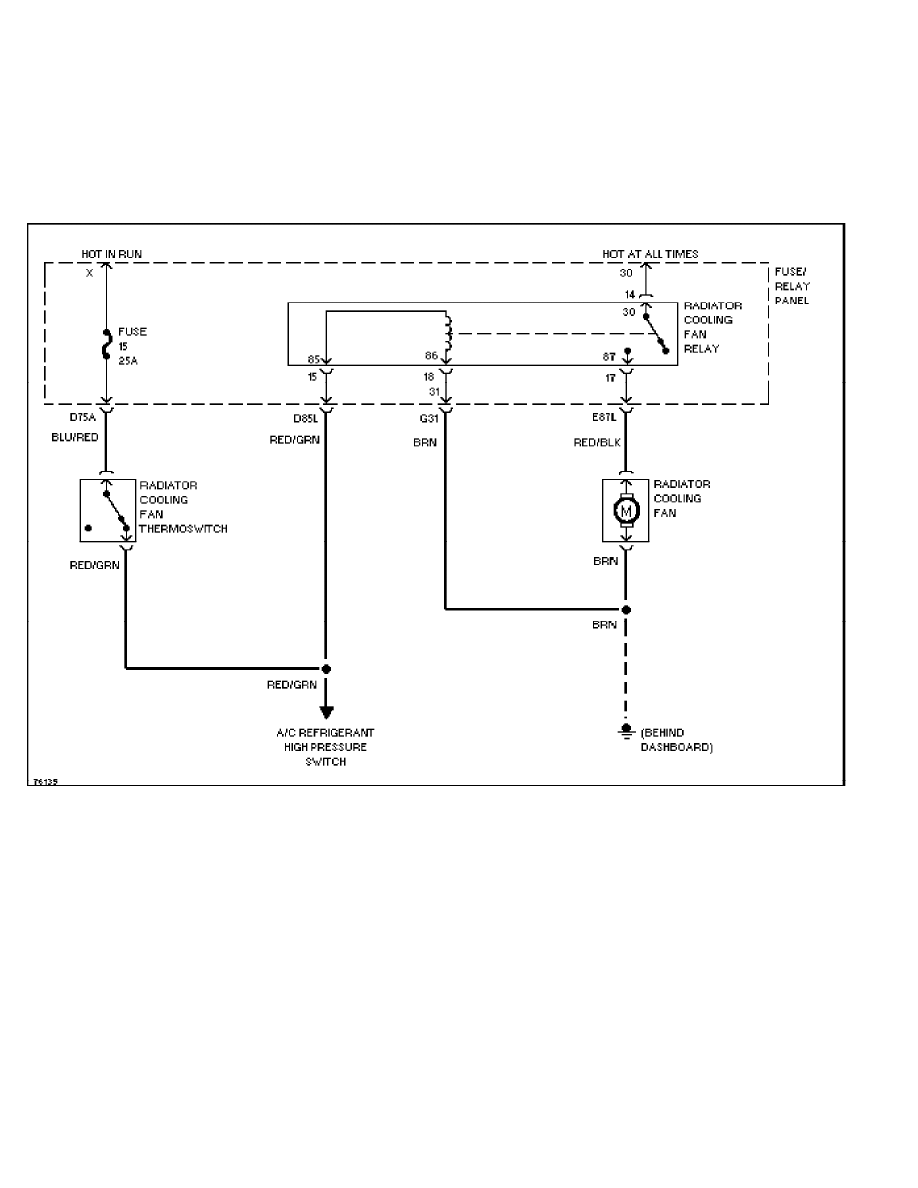

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit

1985 Audi Coupe GT

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:13PM
