MERCEDES BENZ 190D 1988

background image

SYSTEM WIRING DIAGRAMS

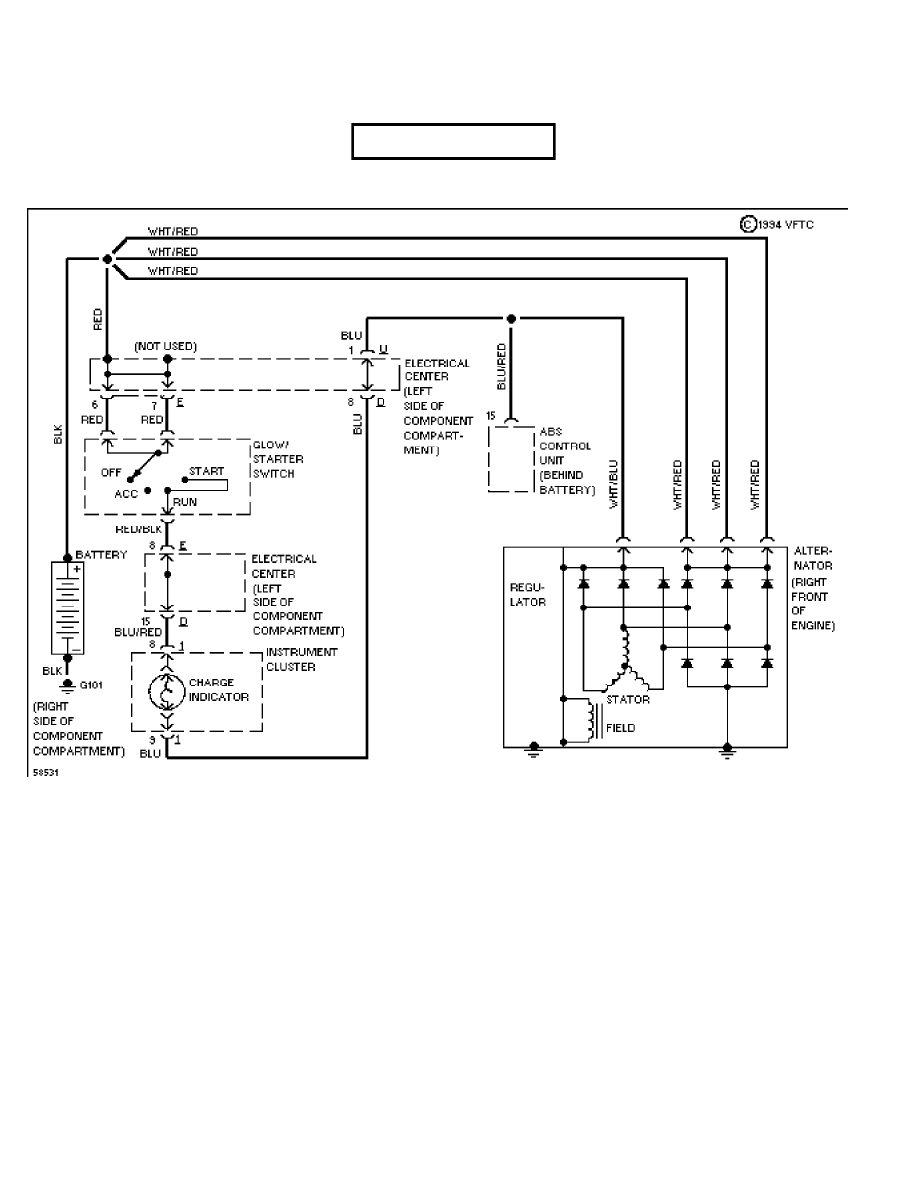

Charging Circuit

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:41PM

cdr@wp.pl

background image

SYSTEM WIRING DIAGRAMS

Right Seat Circuit

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:40PM

background image

SYSTEM WIRING DIAGRAMS

Starting Circuit

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:41PM

background image

SYSTEM WIRING DIAGRAMS

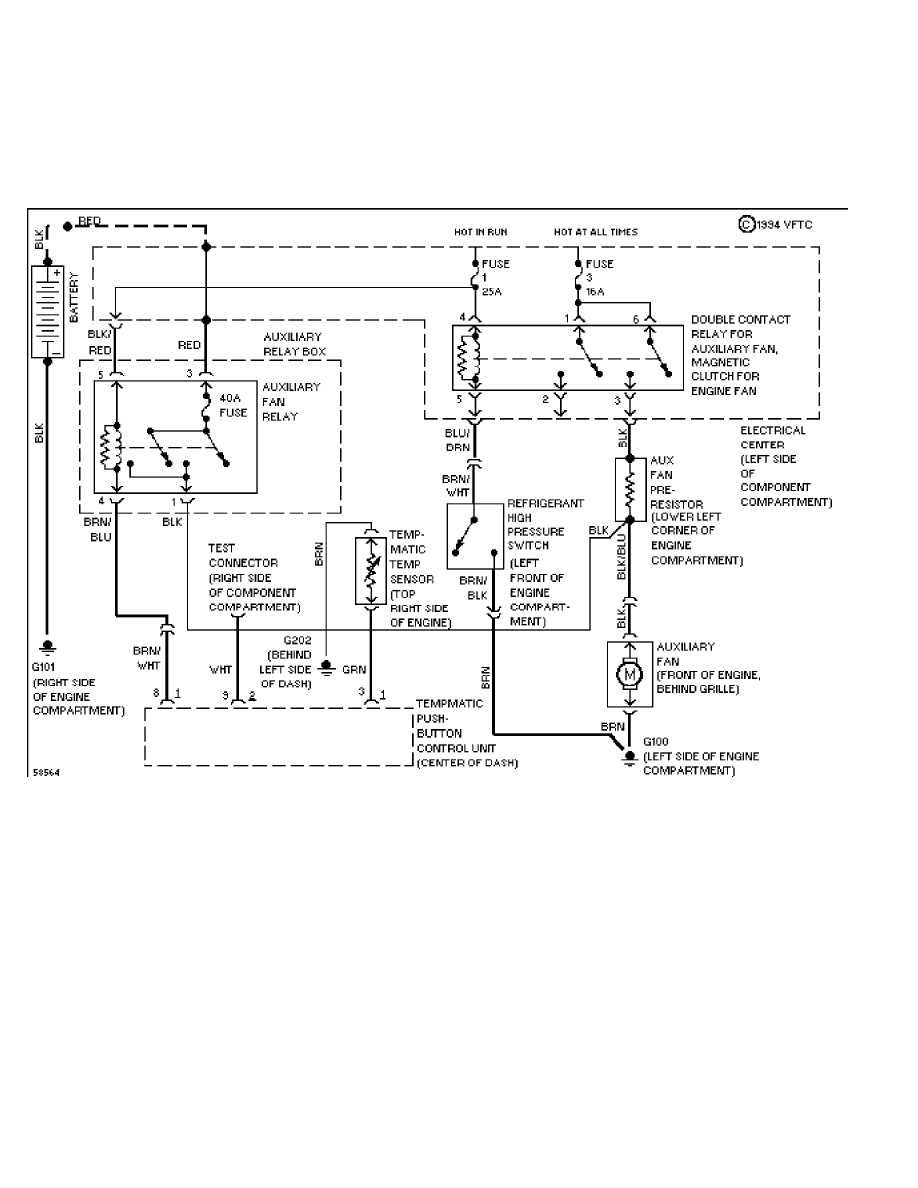

Cooling Fan Circuit

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:38PM

background image

SYSTEM WIRING DIAGRAMS

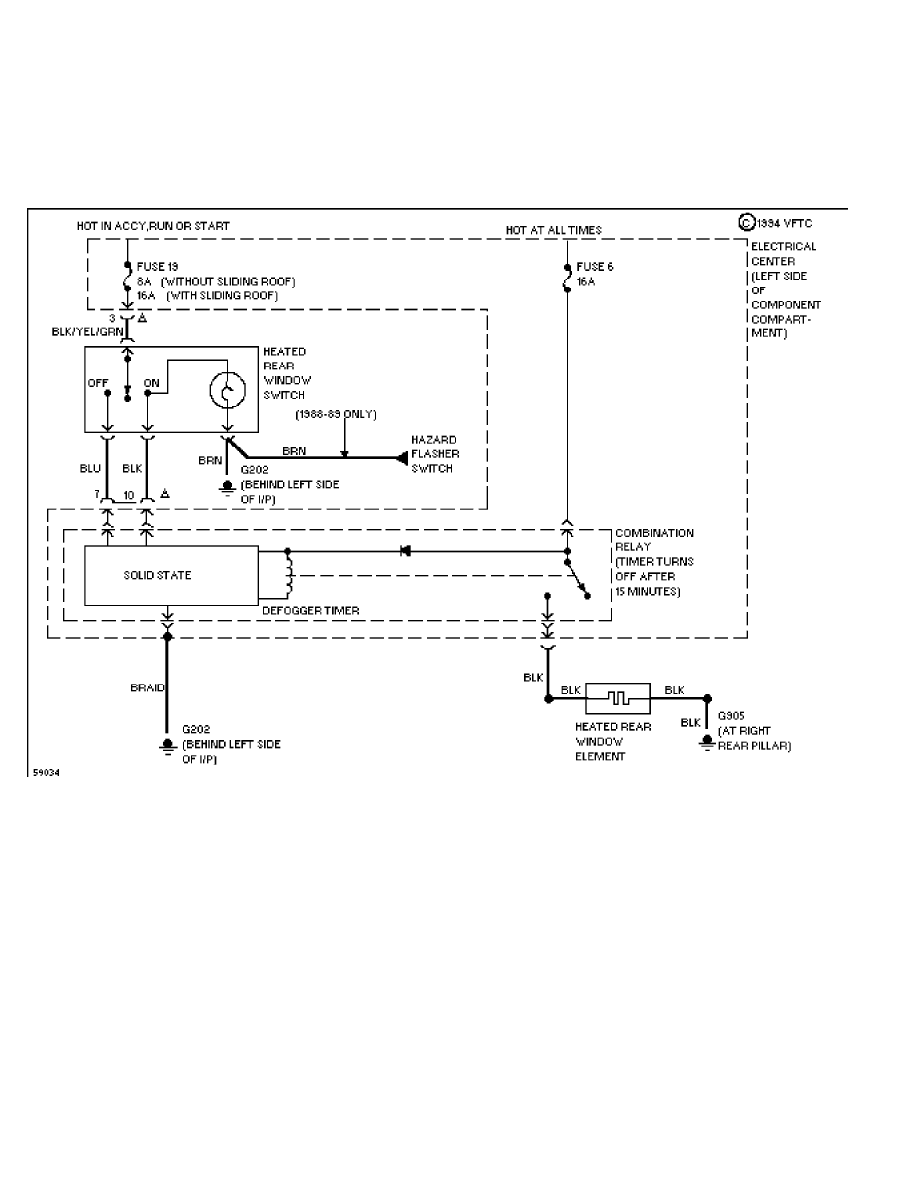

Defogger Circuit

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:38PM

background image

SYSTEM WIRING DIAGRAMS

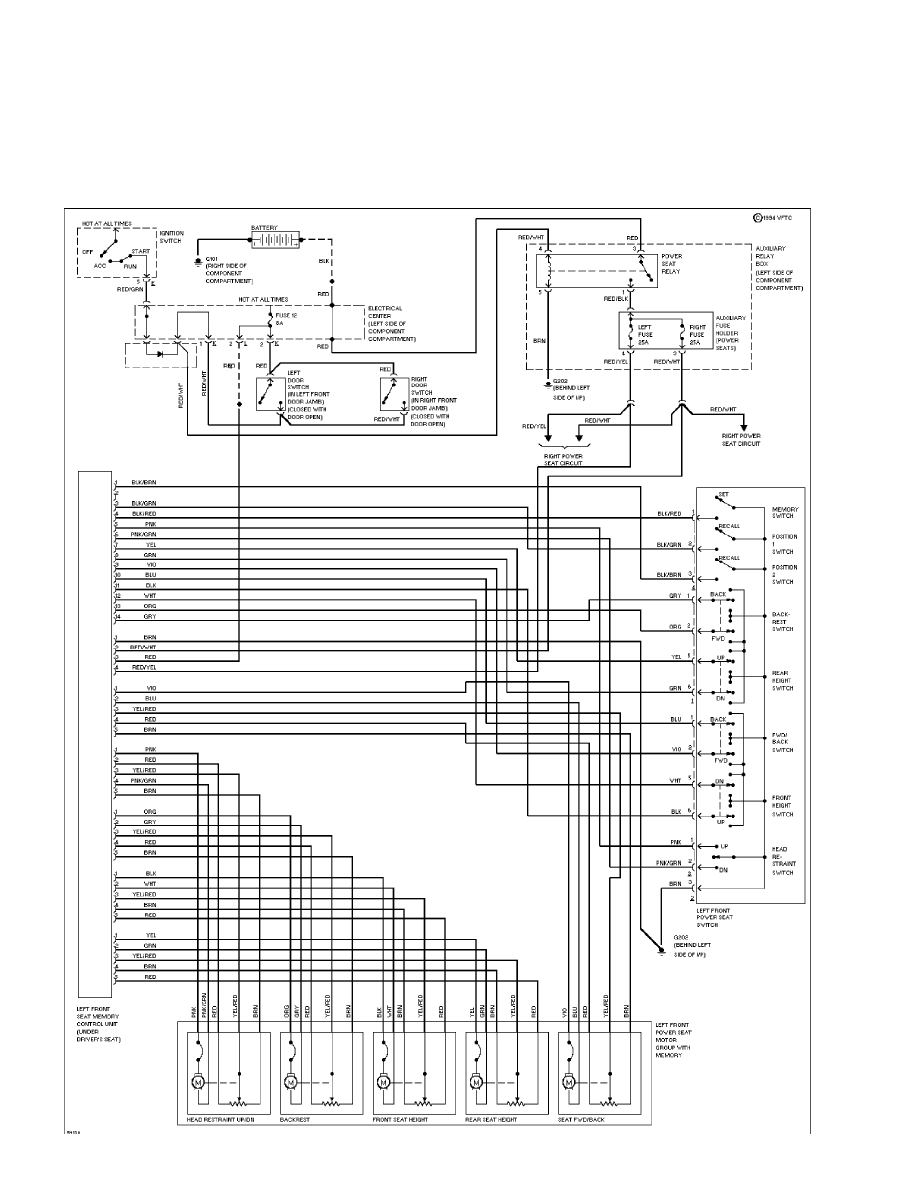

Driver Power Seat Circuit, W/ Memory

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:39PM

background image

SYSTEM WIRING DIAGRAMS

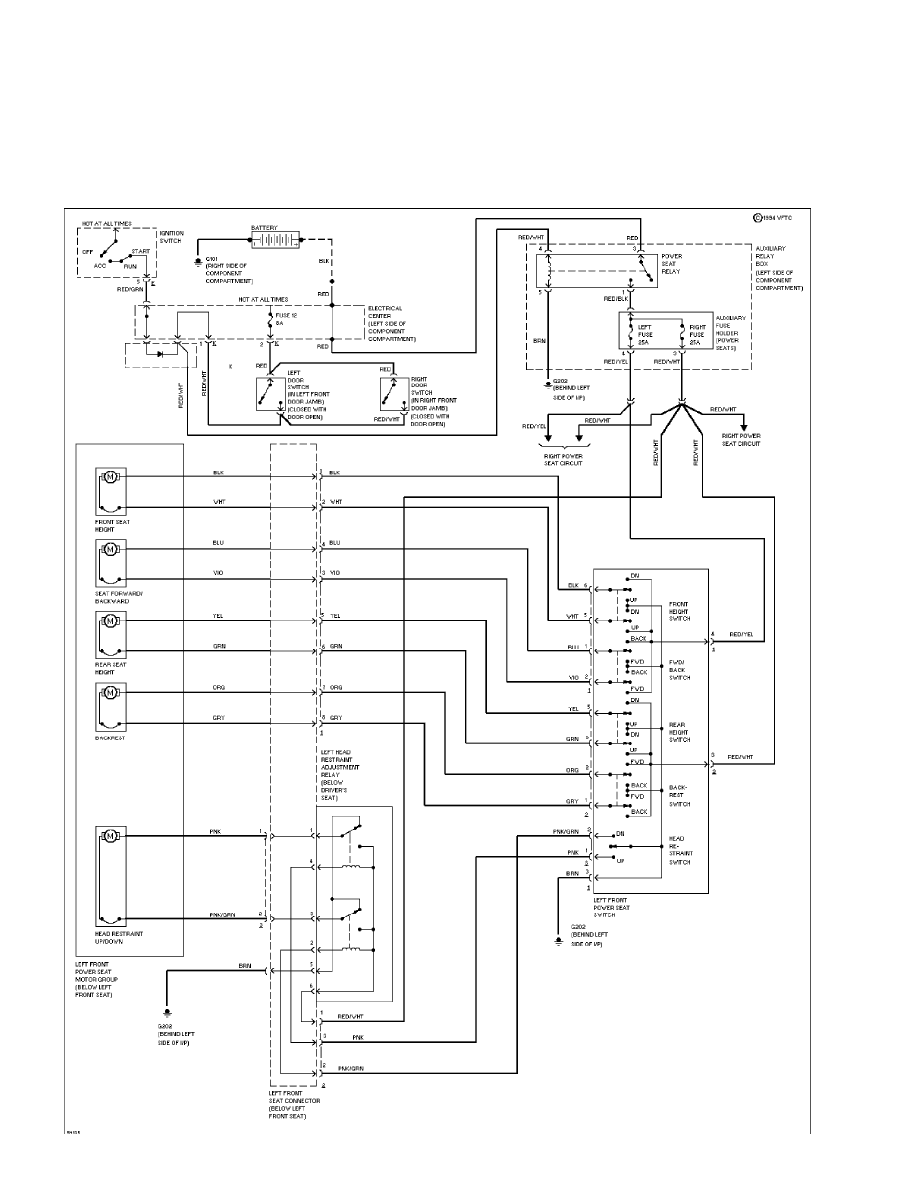

Driver Power Seat Circuit, W/O Memory

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:39PM

background image

SYSTEM WIRING DIAGRAMS

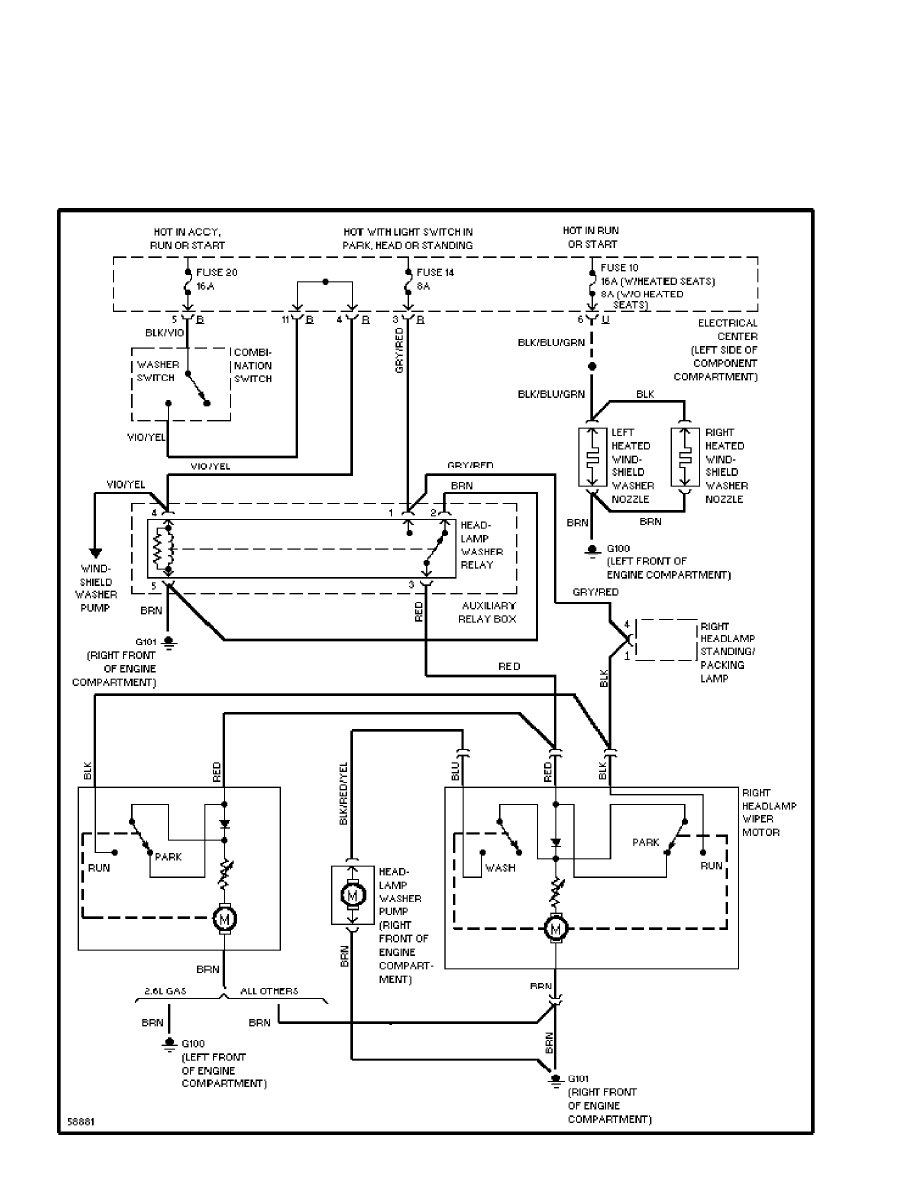

Headlight Washer/Wiper Circuit

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:41PM

background image

SYSTEM WIRING DIAGRAMS

Heater Circuit

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:40PM

background image

SYSTEM WIRING DIAGRAMS

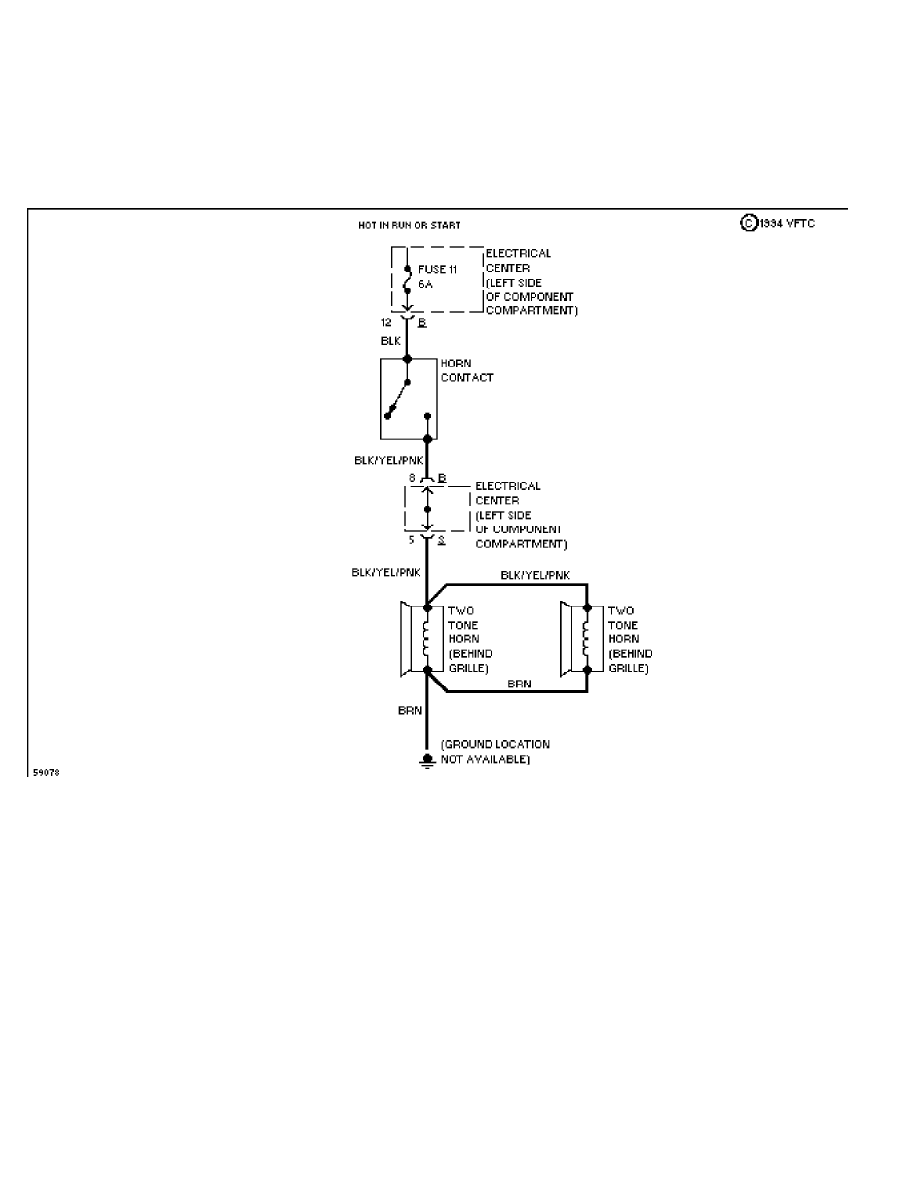

Horn Circuit

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:38PM

background image

SYSTEM WIRING DIAGRAMS

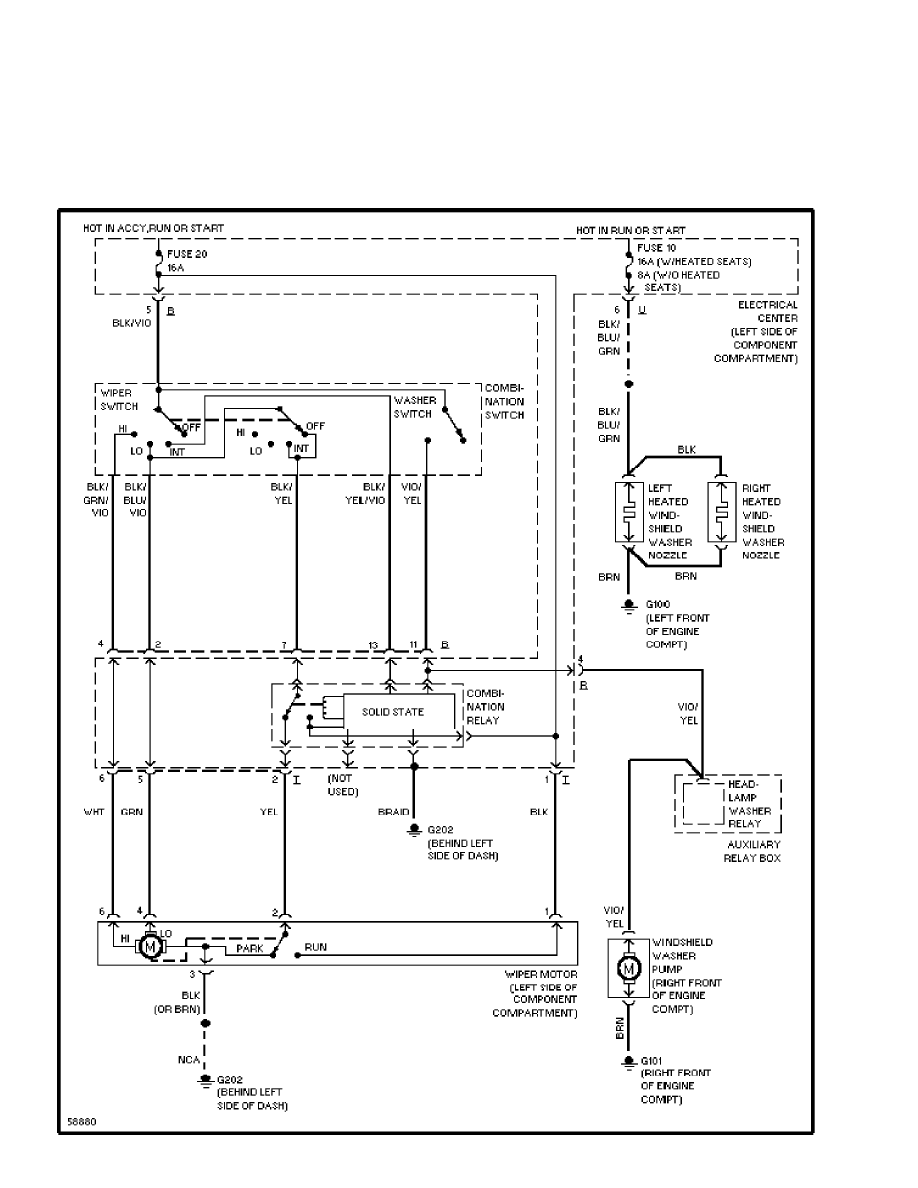

Interval Wiper/Washer Circuit

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:41PM

background image

SYSTEM WIRING DIAGRAMS

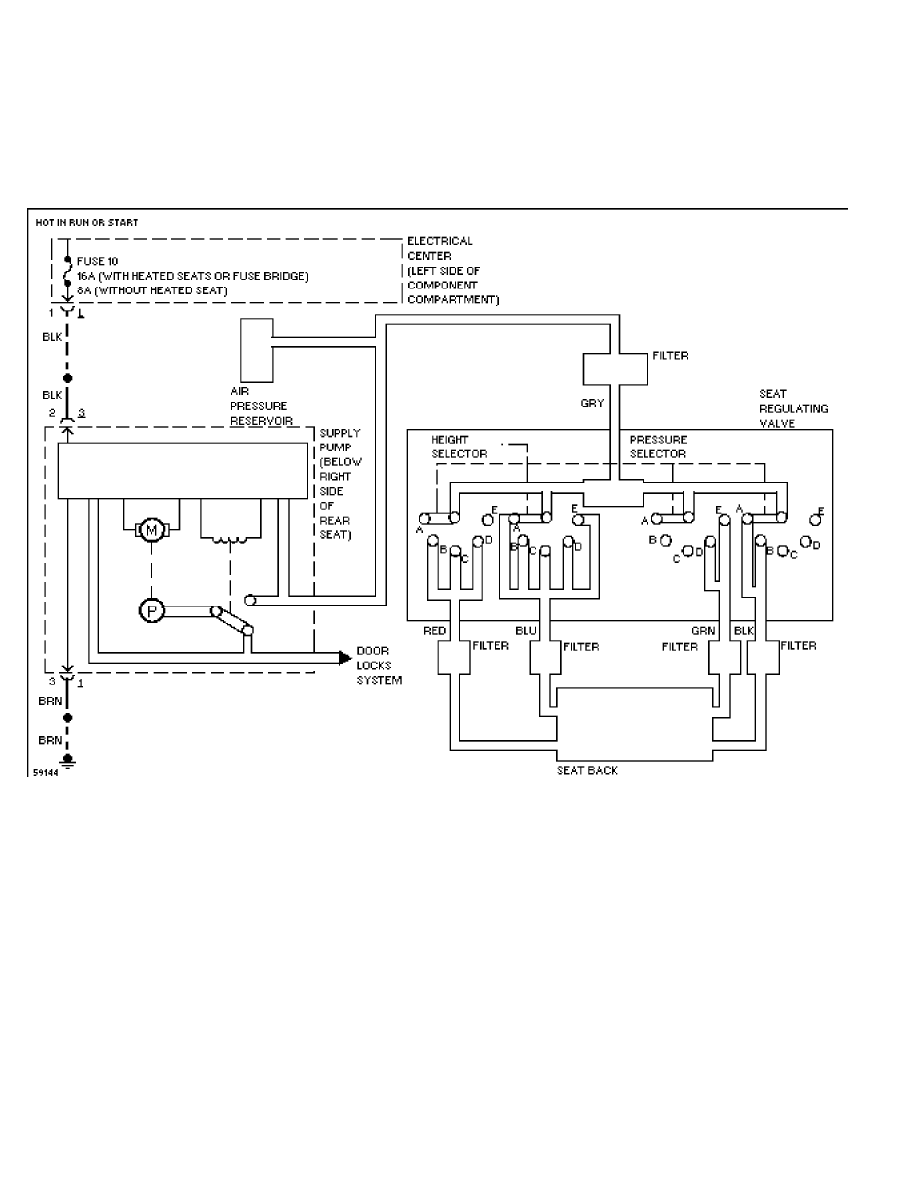

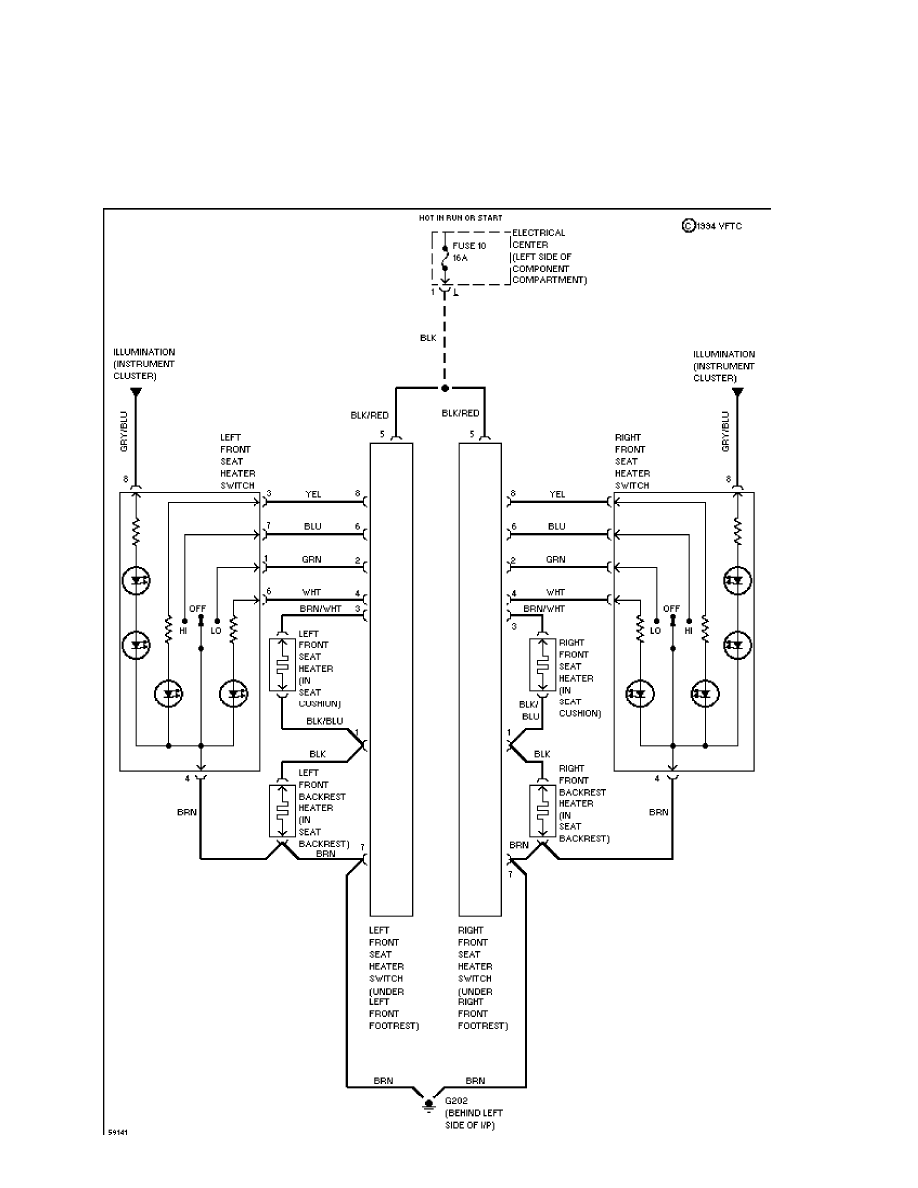

Orthopedic Seats

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:40PM

background image

SYSTEM WIRING DIAGRAMS

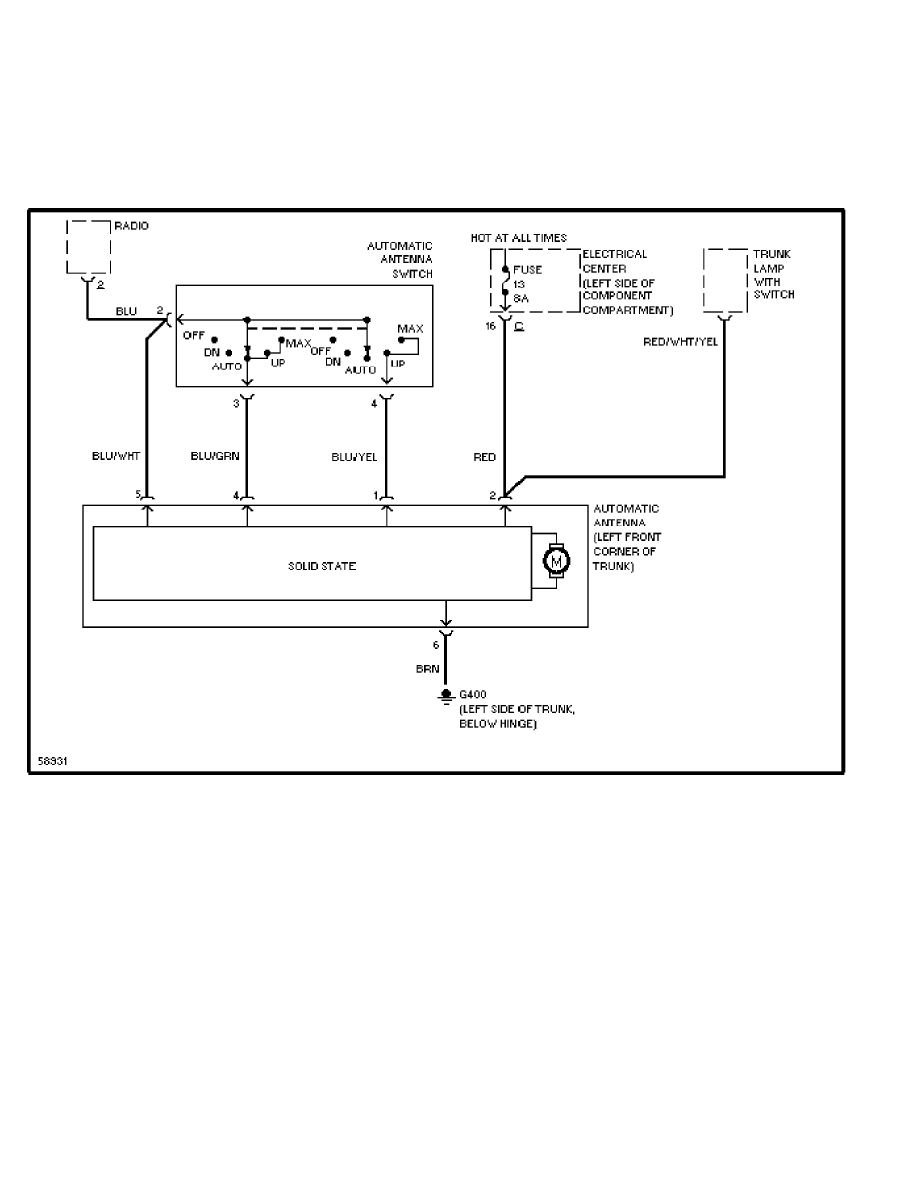

Power Antenna Circuit

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:39PM

background image

SYSTEM WIRING DIAGRAMS

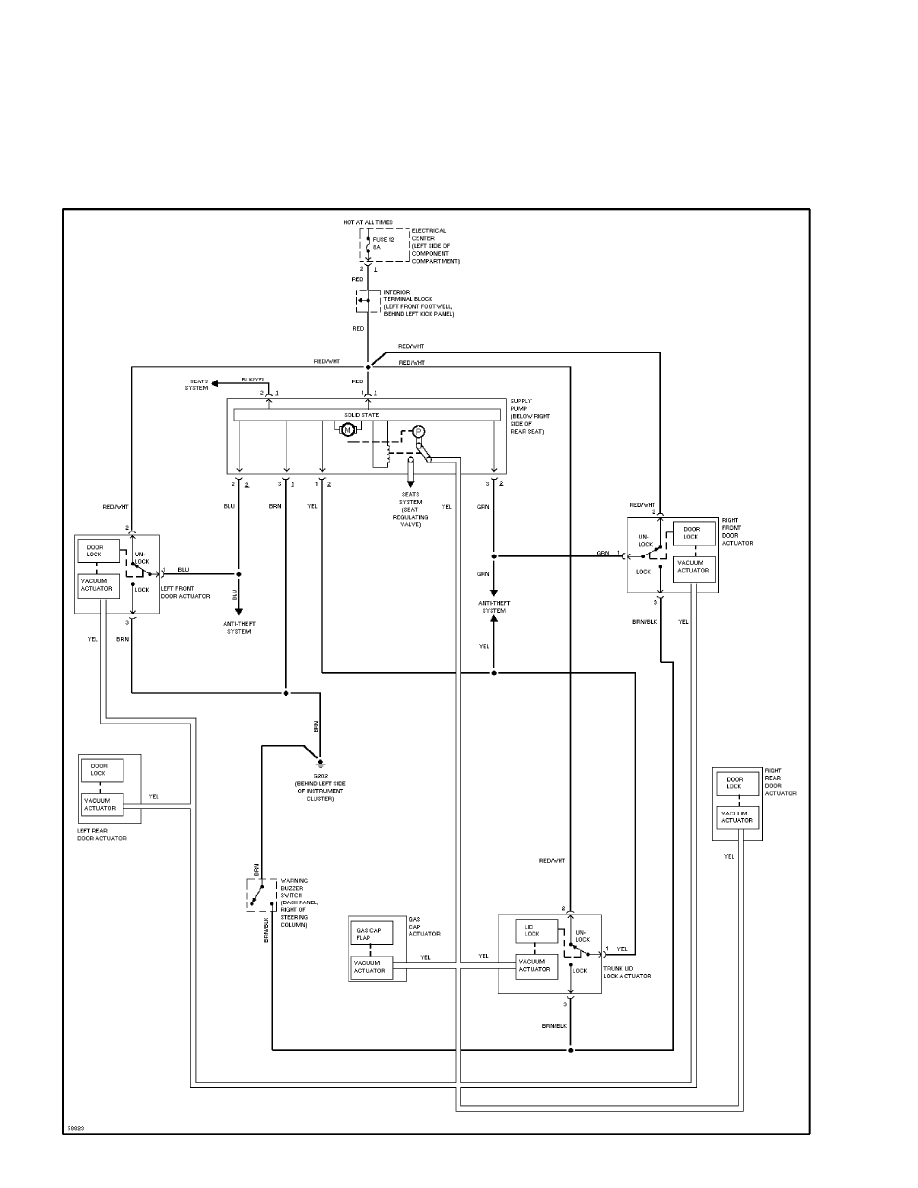

Power Door Lock Circuit

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:39PM

background image

SYSTEM WIRING DIAGRAMS

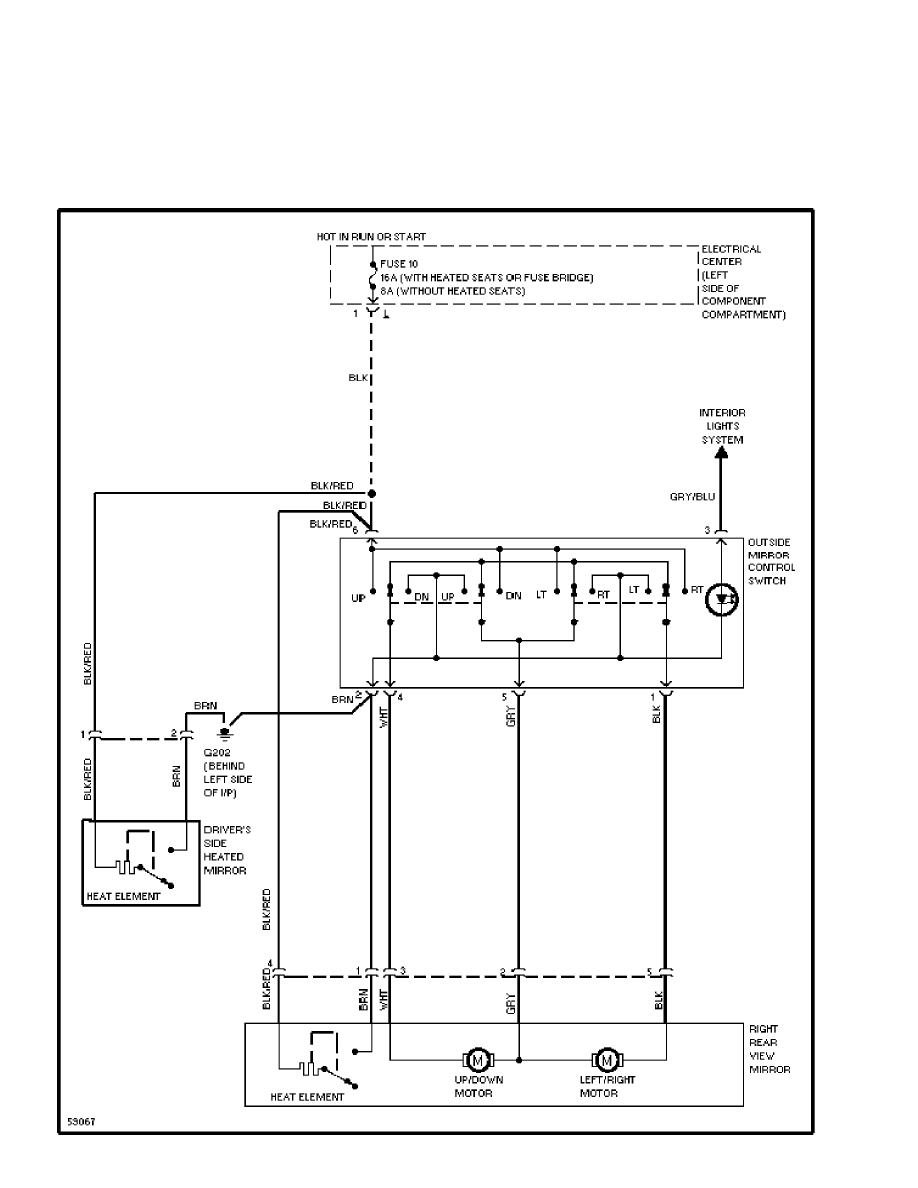

Power Mirror Circuit

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:39PM

background image

SYSTEM WIRING DIAGRAMS

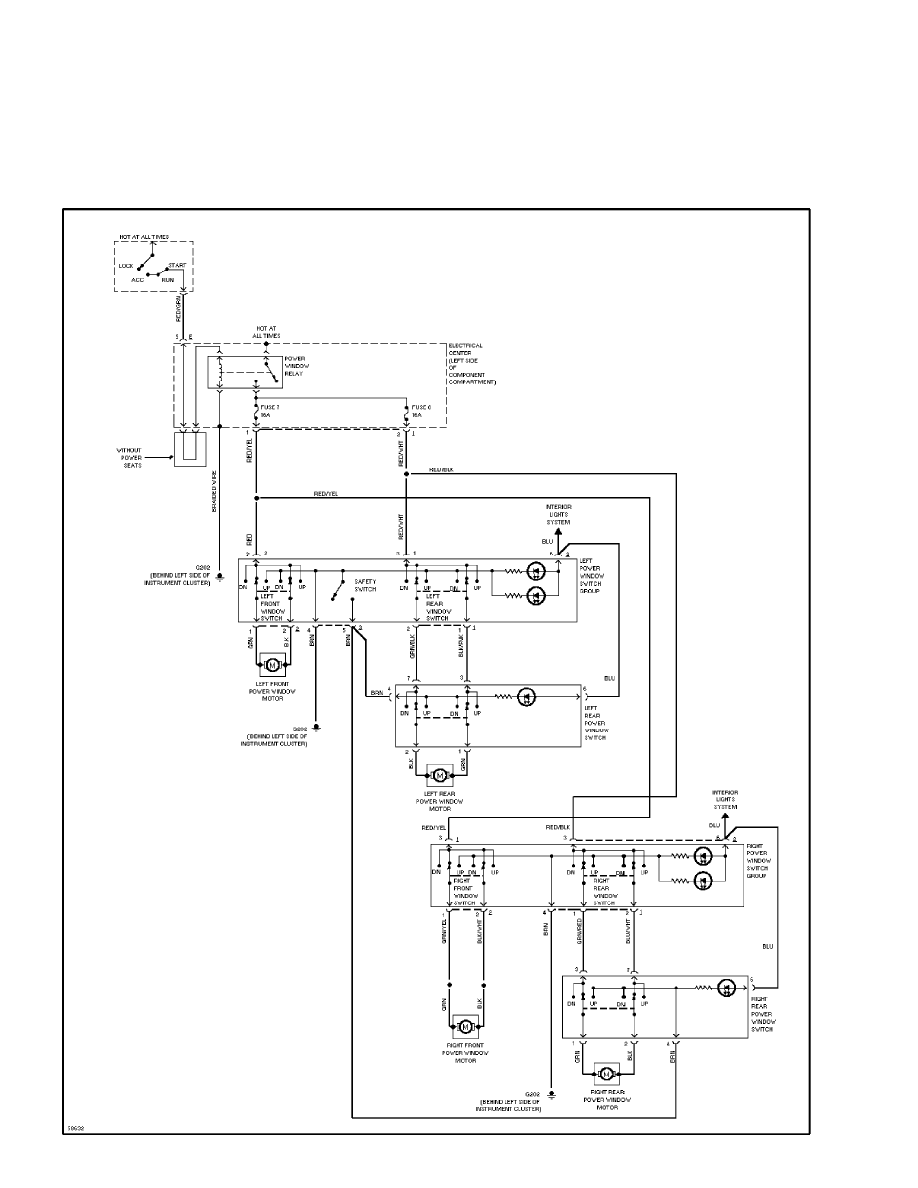

Power Window Circuit

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:40PM

background image

SYSTEM WIRING DIAGRAMS

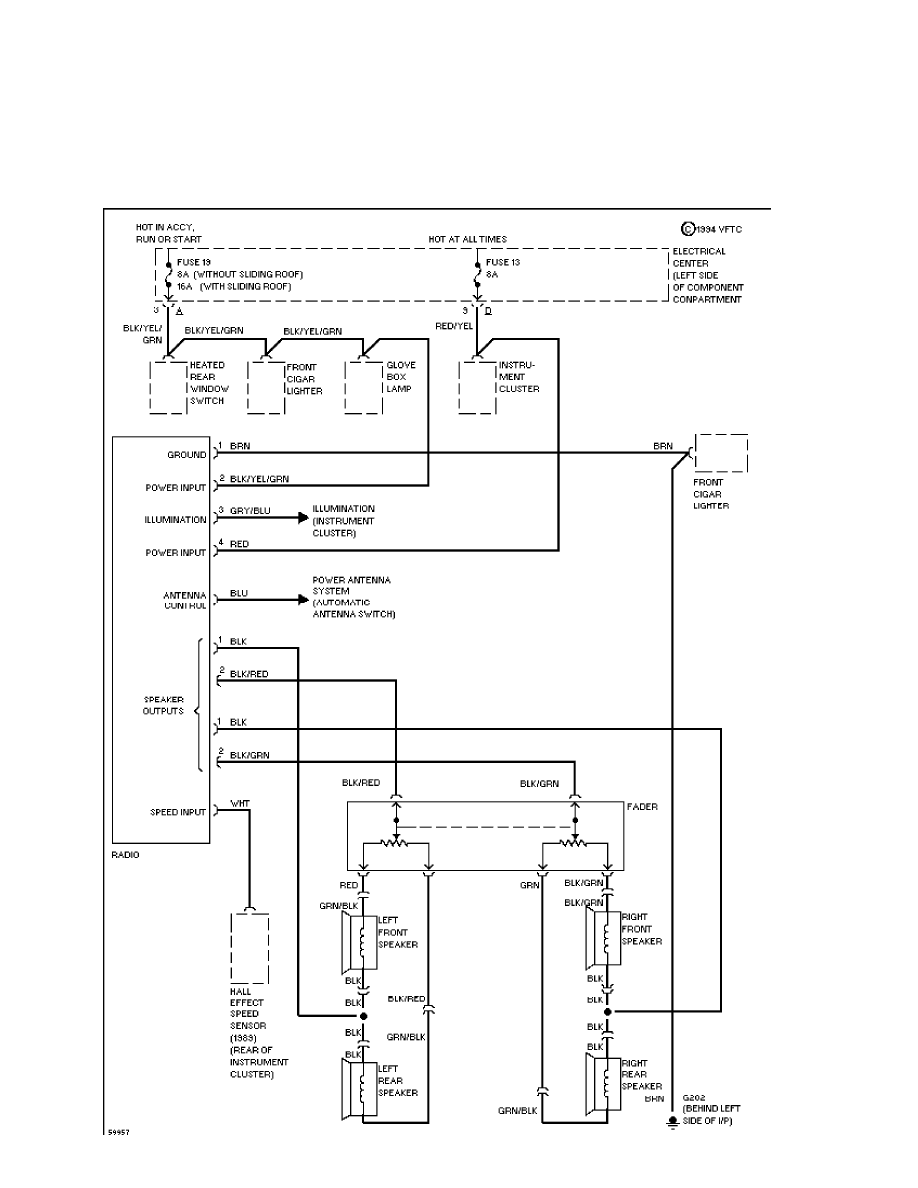

Radio Circuits

1988 Mercedes-Benz 190D

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 28, 2000 02:41PM
