Samsung SGH Q208 service manual

background image

SERVICE

GPRS GSM TELEPHONE

SGH-Q208

Manual

GPRS GSM TELEPHONE

CONTENTS

1. Electrical Parts List

2. Exploded Views and Parts List

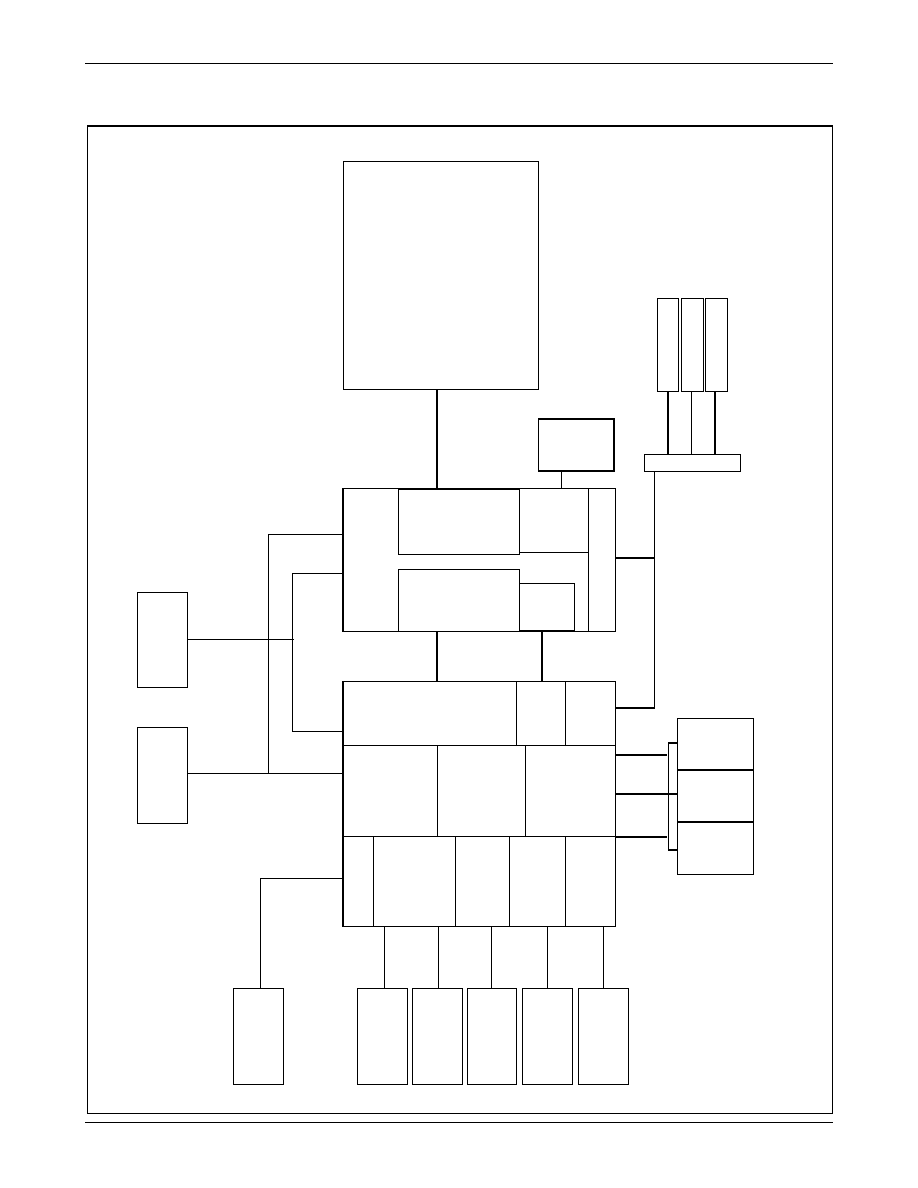

3. Block Diagrams

4. PCB Diagrams

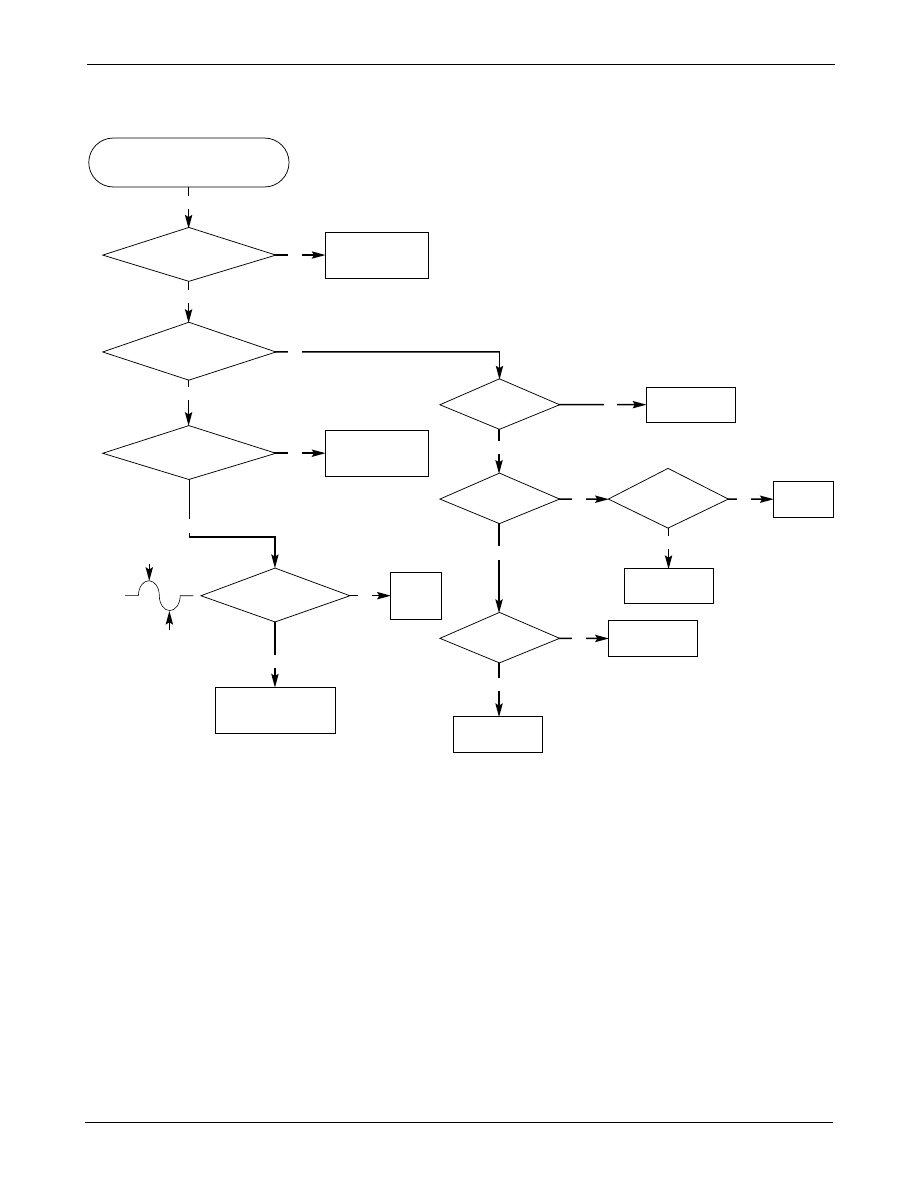

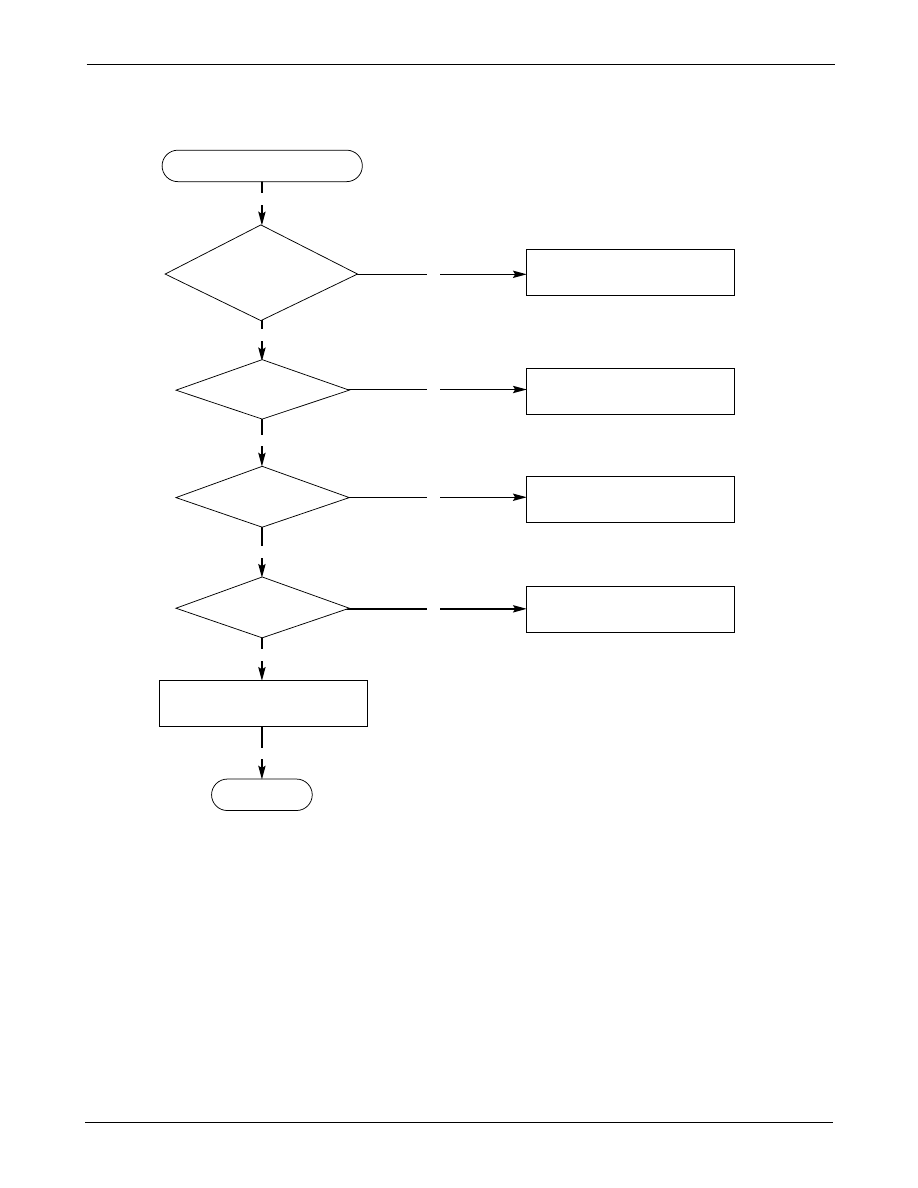

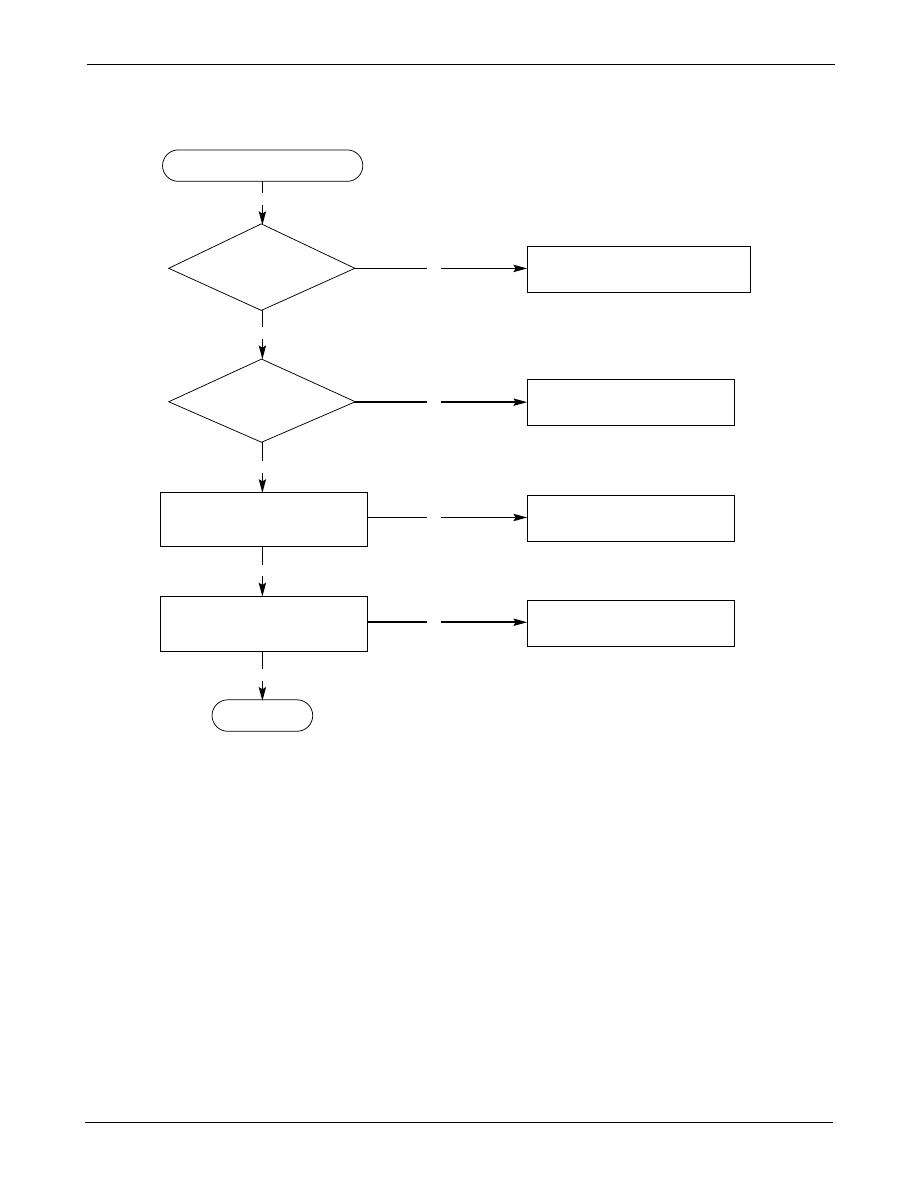

5. Flow Chart of Troubleshooting and

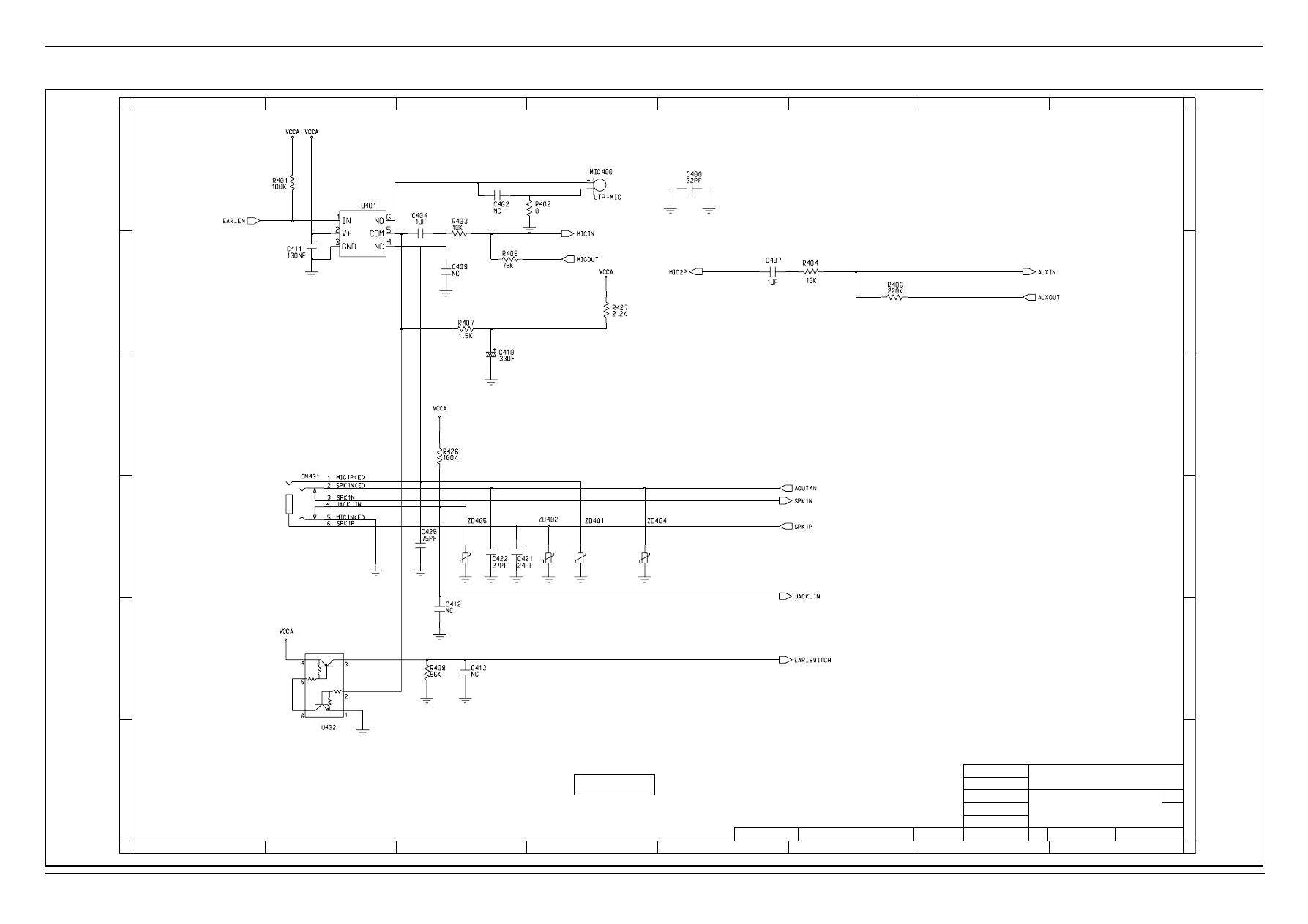

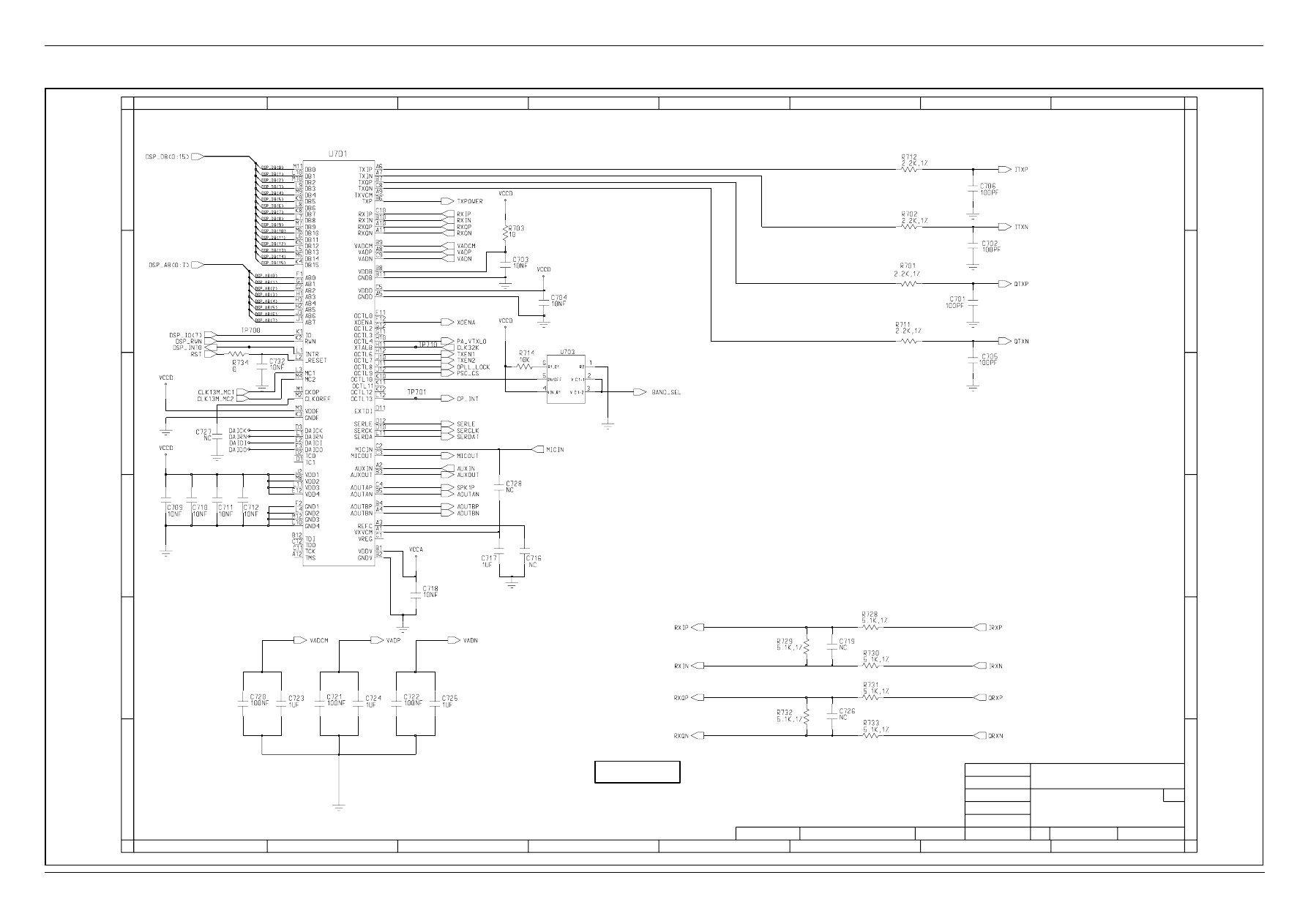

Circuit Diagrams

background image

© Samsung Electronics Co.,Ltd. April. 2002

Pinted in Korea.
Code No.: GH68-02791A
BASIC.

ELECTRONICS

background image

1. SGH-Q208 MAIN Electrical Parts List

SAMSUNG Proprietary-Contents may change without notice

1-1

0 SGH-Q208

1

GH92-01290A

PBA MAIN-SGHQ208

SGH-Q208, TEC, CHNA, -, -, -, -, -, -

1

GH99-02670A

PAA MAIN-TEC SGH-Q208, TEC, CHNA, -, -, -

2

GG68-10705A

LABEL(P)-SEAL SP-R912, CRP, 65.0 X 95.0, -, ORG

2

GH68-00518B

LABEL(P)-SEAL SGH-A100, ART, 100 G, 46, 34, -, WHT, -, -, -

2 GH68-01778A

LABEL(P)-BARCODE SHIPPING SGH-A100, ART, 100 G, 250, 100, -, WHT,

2

GH68-01819A

LABEL(P)-SECURITY SGH-M100, ART, 100 G, 100, 100, -, WHT, -, -, -

2

GH68-02107B

LABEL(R)-MAIN SGH-Q208, MAT, T0.05, 32.7, 40.7, -, SIL, -, -, -

2

GH68-11067B

LABEL(P)-BARCODE(INDA) SGH-A100, ART, 100 G, 65, 69, -, WHT, -, -, -

2

GH69-00842A

BAG-VINYL HANDSET SGH-A300, LDPE, T0.06, 80, 170, TR P, -

2

3002-001117

AU501

BUZZER-MAGNETIC 88DB, 3.6 V, 120MA, 2700HZ, TP

2

2404-001239

C1001

C-TA, CHIP 100 UF, 20 %, 6.3 V, WT, TP, 3.3 X 2.7 X 1.7 MM

2

2404-001239

C1002

C-TA, CHIP 100 UF, 20 %, 6.3 V, WT, TP, 3.3 X 2.7 X 1.7 MM

2

2404-001239

C1003

C-TA, CHIP 100 UF, 20 %, 6.3 V, WT, TP, 3.3 X 2.7 X 1.7 MM

2

2203-001239

C1005

C-CERAMIC, CHIP 0.082 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000696

C1006

C-CERAMIC, CHIP 0.002 NF, 0.25 PF, 50 V, NP0, TP, 1005

2

2203-000254

C1008

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000254

C1009

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-005571

C101

C-CERAMIC, CHIP 10000 NF, +80-20 %, 6.3 V, Y5 V, TP, 2012

2

2203-005050

C1010

C-CERAMIC, CHIP 0.0018 NF, 0.25 PF, 50 V, NP0, TP, 1005

2

2203-000995

C1011

C-CERAMIC, CHIP 0.047 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000233

C1012

C-CERAMIC, CHIP 0.1 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000812

C1013

C-CERAMIC, CHIP 0.033 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-001072

C1014

C-CERAMIC, CHIP 0.056 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-001239

C1015

C-CERAMIC, CHIP 0.082 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000696

C1016

C-CERAMIC, CHIP 0.002 NF, 0.25 PF, 50 V, NP0, TP, 1005

2

2203-001124

C1017

C-CERAMIC, CHIP 680 PF, 10 %, 50 V, X7R, TP, 1005, -

2

2203-000254

C1019

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-005065

C102

C-CERAMIC, CHIP 1000 NF, +80-20 %, 10 V, Y5 V, TP, 1608

2

2203-000696

C1020

C-CERAMIC, CHIP 0.002 NF, 0.25 PF, 50 V, NP0, TP, 1005

2

2203-000628

C1021

C-CERAMIC, CHIP 0.022 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000696

C1022

C-CERAMIC, CHIP 0.002 NF, 0.25 PF, 50 V, NP0, TP, 1005

2

2203-001239

C1023

C-CERAMIC, CHIP 0.082 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-001124

C1024

C-CERAMIC, CHIP 680 PF, 10 %, 50 V, X7R, TP, 1005, -

2

2203-000254

C1028

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-005053

C1029

C-CERAMIC, CHIP 0.0039 NF, 0.25 PF, 50 V, NP0, TP, 1005

2

2203-005571

C103

C-CERAMIC, CHIP 10000 NF, +80-20 %, 6.3 V, Y5 V, TP, 2012

2

2203-000254

C1030

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

Level

SEC Code

Design LOC

DESCRIPTIONS

background image

SAMSUNG Proprietary-Contents may change without notice

1-2

SGH-Q208 Electrical Parts List

2

2203-000330

C1031

C-CERAMIC, CHIP 0.012 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000233

C1036

C-CERAMIC, CHIP 0.1 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000233

C1037

C-CERAMIC, CHIP 0.1 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000233

C1038

C-CERAMIC, CHIP 0.1 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000233

C1039

C-CERAMIC, CHIP 0.1 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-005065

C104

C-CERAMIC, CHIP 1000 NF, +80-20 %, 10 V, Y5 V, TP, 1608

2

2203-001383

C1040

C-CERAMIC, CHIP 0.0005 NF, 0.25 PF, 50 V, NP0, TP, 1005

2

2203-000233

C1041

C-CERAMIC, CHIP 0.1 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000812

C1044

C-CERAMIC, CHIP 0.033 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000812

C1045

C-CERAMIC, CHIP 0.033 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-005571

C105

C-CERAMIC, CHIP 10000 NF, +80-20 %, 6.3 V, Y5 V, TP, 2012

2

2203-001383

C1050

C-CERAMIC, CHIP 0.0005 NF, 0.25 PF, 50 V, NP0, TP, 1005

2

2703-001180

C1052

INDUCTOR-SMD 15 NH, 5 %, 1 X 0.5 X 0.5 mm

2

2203-000995

C1053

C-CERAMIC, CHIP 0.047 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-005065

C106

C-CERAMIC, CHIP 1000 NF, +80-20 %, 10 V, Y5 V, TP, 1608

2

2404-001281

C107

C-TA, CHIP 22 UF, 20 %, 6.3 V, G P, TP, 2012

2

2404-001281

C108

C-TA, CHIP 22 UF, 20 %, 6.3 V, G P, TP, 2012

2

2203-005065

C110

C-CERAMIC, CHIP 1000 NF, +80-20 %, 10 V, Y5 V, TP, 1608

2

2203-000254

C111

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-005571

C112

C-CERAMIC, CHIP 10000 NF, +80-20 %, 6.3 V, Y5 V, TP, 2012

2

2203-005065

C113

C-CERAMIC, CHIP 1000 NF, +80-20 %, 10 V, Y5 V, TP, 1608

2

2203-005061

C115

C-CERAMIC, CHIP 100 NF, +80-20 %, 16 V, Y5 V, TP, 1005

2

2203-002494

C116

C-CERAMIC, CHIP 470 NF, 10 %, 16 V, X7R, TP, 2012

2

2404-001281

C117

C-TA, CHIP 22 UF, 20 %, 6.3 V, G P, TP, 2012

2

2203-000233

C118

C-CERAMIC, CHIP 0.1 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000254

C119

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-005065

C120

C-CERAMIC, CHIP 1000 NF, +80-20 %, 10 V, Y5 V, TP, 1608

2

2203-005571

C126

C-CERAMIC, CHIP 10000 NF, +80-20 %, 6.3 V, Y5 V, TP, 2012

2

2203-005496

C127

C-CERAMIC, CHIP 220 NF, +80-20 %, 10 V, Y5 V, TP, 1005

2

2404-001105

C201

C-TA, CHIP 10 UF, 20 %, 6.3 V, G P, TP, 2012

2

2203-000233

C202

C-CERAMIC, CHIP 0.1 NF, 5 %, 50 V, NP0, TP, 1005

2

2404-001020

C203

C-TA, CHIP 10 UF, 20 %, 10 V, G P, TP, 3216, 3.2

2

2203-000812

C204

C-CERAMIC, CHIP 0.033 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000425

C205

C-CERAMIC, CHIP 0.018 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000995

C207

C-CERAMIC, CHIP 0.047 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-005061

C208

C-CERAMIC, CHIP 100 NF, +80-20 %, 16 V, Y5 V, TP, 1005

2

2203-000995

C211

C-CERAMIC, CHIP 0.047 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000995

C212

C-CERAMIC, CHIP 0.047 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000995

C213

C-CERAMIC, CHIP 0.047 NF, 5 %, 50 V, NP0, TP, 1005

Level

SEC Code

Design LOC

DESCRIPTIONS

background image

SAMSUNG Proprietary-Contents may change without notice

1-3

SGH-Q208 Electrical Parts List

Level

SEC Code

Design LOC

DESCRIPTIONS

2

2203-000995

C214

C-CERAMIC, CHIP 0.047 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000995

C215

C-CERAMIC, CHIP 0.047 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000995

C216

C-CERAMIC, CHIP 0.047 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000995

C217

C-CERAMIC, CHIP 0.047 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000995

C218

C-CERAMIC, CHIP 0.047 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-005061

C219

C-CERAMIC, CHIP 100 NF, +80-20 %, 16 V, Y5 V, TP, 1005

2

2203-000679

C301

C-CERAMIC, CHIP 0.027 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-001441

C309

C-CERAMIC, CHIP 75 PF, 5 %, 50 V, X7R, TP, 1005, 1.0 mm

2

2203-005061

C321

C-CERAMIC, CHIP 100 NF, +80-20 %, 16 V, Y5 V, TP, 1005

2

2203-000628

C400

C-CERAMIC, CHIP 0.022 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-005065

C404

C-CERAMIC, CHIP 1000 NF, +80-20 %, 10 V, Y5 V, TP, 1608

2

2203-005065

C407

C-CERAMIC, CHIP 1000 NF, +80-20 %, 10 V, Y5 V, TP, 1608

2

2404-001151

C410

C-TA, CHIP 33 UF, 20 %, 6.3 V, LZ, TP, 3216

2

2203-005061

C411

C-CERAMIC, CHIP 100 NF, +80-20 %, 16 V, Y5 V, TP, 1005

2

2203-000643

C421

C-CERAMIC, CHIP 0.024 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000679

C422

C-CERAMIC, CHIP 0.027 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-001441

C425

C-CERAMIC, CHIP 75 PF, 5 %, 50 V, X7R, TP, 1005, 1.0 mm

2

2203-001630

C501

C-CERAMIC, CHIP 330 NF, +80-20 %, 16 V, Y5 V, TP, 1608

2

2203-001630

C502

C-CERAMIC, CHIP 330 NF, +80-20 %, 16 V, Y5 V, TP, 1608

2

2203-001630

C503

C-CERAMIC, CHIP 330 NF, +80-20 %, 16 V, Y5 V, TP, 1608

2

2203-000812

C504

C-CERAMIC, CHIP 0.033 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000812

C505

C-CERAMIC, CHIP 0.033 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-005061

C506

C-CERAMIC, CHIP 100 NF, +80-20 %, 16 V, Y5 V, TP, 1005

2

2203-005061

C508

C-CERAMIC, CHIP 100 NF, +80-20 %, 16 V, Y5 V, TP, 1005

2

2203-000254

C510

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-005571

C520

C-CERAMIC, CHIP 10000 NF, +80-20 %, 6.3 V, Y5 V, TP, 2012

2

2404-001101

C522

C-TA, CHIP 1 UF, 20 %, 16 V, G P, TP, 2012, -

2

2203-005061

C601

C-CERAMIC, CHIP 100 NF, +80-20 %, 16 V, Y5 V, TP, 1005

2

2203-000254

C602

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000254

C603

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000254

C604

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000254

C605

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000254

C606

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000254

C607

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000254

C608

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000254

C609

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-005061

C610

C-CERAMIC, CHIP 100 NF, +80-20 %, 16 V, Y5 V, TP, 1005

2

2203-000628

C611

C-CERAMIC, CHIP 0.022 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000628

C612

C-CERAMIC, CHIP 0.022 NF, 5 %, 50 V, NP0, TP, 1005

background image

SAMSUNG Proprietary-Contents may change without notice

1-4

SGH-Q208 Electrical Parts List

2

2203-000254

C613

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000254

C614

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000254

C615

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-005065

C622

C-CERAMIC, CHIP 1000 NF, +80-20 %, 10 V, Y5 V, TP, 1608

2

2203-000233

C701

C-CERAMIC, CHIP 0.1 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000233

C702

C-CERAMIC, CHIP 0.1 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000254

C703

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000254

C704

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000233

C705

C-CERAMIC, CHIP 0.1 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000233

C706

C-CERAMIC, CHIP 0.1 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000254

C709

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000254

C710

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000254

C711

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000254

C712

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-005065

C717

C-CERAMIC, CHIP 1000 NF, +80-20 %, 10 V, Y5 V, TP, 1608

2

2203-000254

C718

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-005061

C720

C-CERAMIC, CHIP 100 NF, +80-20 %, 16 V, Y5 V, TP, 1005

2

2203-005061

C721

C-CERAMIC, CHIP 100 NF, +80-20 %, 16 V, Y5 V, TP, 1005

2

2203-005061

C722

C-CERAMIC, CHIP 100 NF, +80-20 %, 16 V, Y5 V, TP, 1005

2

2203-005065

C723

C-CERAMIC, CHIP 1000 NF, +80-20 %, 10 V, Y5 V, TP, 1608

2

2203-005065

C724

C-CERAMIC, CHIP 1000 NF, +80-20 %, 10 V, Y5 V, TP, 1608

2

2203-005065

C725

C-CERAMIC, CHIP 1000 NF, +80-20 %, 10 V, Y5 V, TP, 1608

2

2203-000254

C732

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000254

C801

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000438

C802

C-CERAMIC, CHIP 1 NF, 10 %, 50 V, X7R, TP, 1005, -

2

2203-000995

C803

C-CERAMIC, CHIP 0.047 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000812

C804

C-CERAMIC, CHIP 0.033 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000233

C805

C-CERAMIC, CHIP 0.1 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000254

C806

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000254

C807

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-005552

C808

C-CERAMIC, CHIP 0.0022 NF, 0.1 PF, 50 V, NP0, TP, 1005

2

2203-000233

C809

C-CERAMIC, CHIP 0.1 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000995

C810

C-CERAMIC, CHIP 0.047 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000995

C811

C-CERAMIC, CHIP 0.047 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000751

C812

C-CERAMIC, CHIP 330 NF, +80-20 %, 16 V, Y5 V, TP, 2012,

2

2203-000438

C818

C-CERAMIC, CHIP 1 NF, 10 %, 50 V, X7R, TP, 1005, -

2

2203-000870

C901

C-CERAMIC, CHIP 0.003 NF, 0.25 PF, 50 V, NP0, TP, 1005

2

2203-000438

C903

C-CERAMIC, CHIP 1 NF, 10 %, 50 V, X7R, TP, 1005, -

2

2203-001201

C905

C-CERAMIC, CHIP 0.007 NF, 0.5 PF, 50 V, NP0, TP, 1005

Level

SEC Code

Design LOC

DESCRIPTIONS

background image

SAMSUNG Proprietary-Contents may change without notice

1-5

SGH-Q208 Electrical Parts List

Level

SEC Code

Design LOC

DESCRIPTIONS

2

2203-000438

C907

C-CERAMIC, CHIP 1 NF, 10 %, 50 V, X7R, TP, 1005, -

2

2203-000438

C908

C-CERAMIC, CHIP 1 NF, 10 %, 50 V, X7R, TP, 1005, -

2

2404-001088

C913

C-TA, CHIP 2.2 UF, 20 %, 6.3 V, G P, TP, 2012, -

2

2203-000628

C914

C-CERAMIC, CHIP 0.022 NF, 5 %, 50 V, NP0, TP, 1005

2

2404-001151

C915

C-TA, CHIP 33 UF, 20 %, 6.3 V, LZ, TP, 3216

2

2203-000254

C917

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000679

C918

C-CERAMIC, CHIP 0.027 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000438

C919

C-CERAMIC, CHIP 1 NF, 10 %, 50 V, X7R, TP, 1005, -

2

2203-000812

C922

C-CERAMIC, CHIP 0.033 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000438

C923

C-CERAMIC, CHIP 1 NF, 10 %, 50 V, X7R, TP, 1005, -

2

2203-002687

C924

C-CERAMIC, CHIP 1.2 NF, 10 %, 50 V, X7R, TP, 1005

2

2203-000359

C925

C-CERAMIC, CHIP 0.15 NF, 5 %, 50 V, NP0, TP, 1005

2

2404-001105

C926

C-TA, CHIP 10 UF, 20 %, 6.3 V, G P, TP, 2012

2

2203-000679

C928

C-CERAMIC, CHIP 0.027 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000438

C931

C-CERAMIC, CHIP 1 NF, 10 %, 50 V, X7R, TP, 1005, -

2

2203-000438

C932

C-CERAMIC, CHIP 1 NF, 10 %, 50 V, X7R, TP, 1005, -

2

2203-005061

C934

C-CERAMIC, CHIP 100 NF, +80-20 %, 16 V, Y5 V, TP, 1005

2

2203-000278

C938

C-CERAMIC, CHIP 0.01 NF, 0.5 PF, 50 V, NP0, TP, 1005

2

2203-000438

C939

C-CERAMIC, CHIP 1 NF, 10 %, 50 V, X7R, TP, 1005, -

2

2301-001214

C940

C-FILM, CHIP 4.7 NF, 5 %, 16 V, TP, 2012, -

2

2301-001387

C941

C-FILM, CHIP 0.82 NF, 5 %, 50 V, TP, 2012, -

2

2203-000995

C942

C-CERAMIC, CHIP 0.047 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-002968

C943

C-CERAMIC, CHIP 0.051 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000278

C944

C-CERAMIC, CHIP 0.01 NF, 0.5 PF, 50 V, NP0, TP, 1005

2

2203-000438

C951

C-CERAMIC, CHIP 1 NF, 10 %, 50 V, X7R, TP, 1005, -

2

2203-000254

C954

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-005061

C957

C-CERAMIC, CHIP 100 NF, +80-20 %, 16 V, Y5 V, TP, 1005

2

2203-000696

C958

C-CERAMIC, CHIP 0.002 NF, 0.25 PF, 50 V, NP0, TP, 1005

2

2203-005061

C959

C-CERAMIC, CHIP 100 NF, +80-20 %, 16 V, Y5 V, TP, 1005

2

2203-005056

C960

C-CERAMIC, CHIP 0.0068 NF, 0.25 PF, 50 V, NP0, TP, 1005

2

2203-005056

C961

C-CERAMIC, CHIP 0.0068 NF, 0.25 PF, 50 V, NP0, TP, 1005

2

2203-000812

C962

C-CERAMIC, CHIP 0.033 NF, 5 %, 50 V, NP0, TP, 1005

2

2404-001088

C963

C-TA, CHIP 2.2 UF, 20 %, 6.3 V, G P, TP, 2012, -

2

2203-000812

C964

C-CERAMIC, CHIP 0.033 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000254

C965

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2404-001105

C966

C-TA, CHIP 10 UF, 20 %, 6.3 V, G P, TP, 2012

2

2203-000812

C967

C-CERAMIC, CHIP 0.033 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000812

C968

C-CERAMIC, CHIP 0.033 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000812

C969

C-CERAMIC, CHIP 0.033 NF, 5 %, 50 V, NP0, TP, 1005

background image

SAMSUNG Proprietary-Contents may change without notice

1-6

SGH-Q208 Electrical Parts List

2

2203-000812

C970

C-CERAMIC, CHIP 0.033 NF, 5 %, 50 V, NP0, TP, 1005

2

2301-001213

C972

C-FILM, CHIP 6.8 NF, 5 %, 16 V, TP, 2012, -

2

2301-001419

C973

C-FILM, CHIP 8.2 NF, 5 %, 16 V, TP, 2012, -

2

2301-001231

C974

C-FILM, CHIP 680 PF, 5 %, 50 V, TP, 2012, -

2

2301-001233

C975

C-FILM, CHIP 2.2 NF, 5 %, 50 V, TP, 2012, -

2

2203-000679

C976

C-CERAMIC, CHIP 0.027 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-002525

C977

C-CERAMIC, CHIP 0.56 NF, 10 %, 50 V, X7R, TP, 1005

2

2203-000812

C978

C-CERAMIC, CHIP 0.033 NF, 5 %, 50 V, NP0, TP, 1005

2

2203-000438

C979

C-CERAMIC, CHIP 1 NF, 10 %, 50 V, X7R, TP, 1005, -

2

2203-000254

C980

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

2203-000438

C983

C-CERAMIC, CHIP 1 NF, 10 %, 50 V, X7R, TP, 1005, -

2

2203-000438

C984

C-CERAMIC, CHIP 1 NF, 10 %, 50 V, X7R, TP, 1005, -

2

2203-000438

C985

C-CERAMIC, CHIP 1 NF, 10 %, 50 V, X7R, TP, 1005, -

2

2203-000254

C988

C-CERAMIC, CHIP 10 NF, 10 %, 16 V, X7R, TP, 1005, -

2

3705-001239

CN1001

CONNECTOR-COA X IAL -, JACK, 50 Mohm, 50 ohm, 0.3dB

2

3711-004623

CN202

CONNECTOR-HEADER BOX, 20 P, 2R, 0.5 mm, SMD-S, AUF

2

3711-004623

CN203

CONNECTOR-HEADER BOX, 20 P, 2R, 0.5 mm, SMD-S, AUF

2

3710-001611

CN301

CONNECTOR-SOCKET 18 P, 1R, 0.5 mm, SMD-A, A UF

2

3722-001715

CN401

JACK-PHONE 6 P, 2.3PI, AG, BLK, -

2

3711-004621

CN601

CONNECTOR-HEADER BOX, 14 P, 2R, 0.5 mm, SMD-S, AUF

2

3709-001187

CN801

CONNECTOR-CARD EDGE 6 P, 2.54 MM, SMD-A, -

2

0401-001033

D101

DIODE-SWITCHING MCL4154, 25 V, 200mA, M-MELF, TP

2

1405-001082

D202

VARISTOR 5.6 V, 20A, 1 X 0.5 X 0.6 mm, TP

2

1405-001082

D203

VARISTOR 5.6 V, 20A, 1 X 0.5 X 0.6 mm, TP

2

1405-001082

D204

VARISTOR 5.6 V, 20A, 1 X 0.5 X 0.6 mm, TP

2

1405-001018

D302

VARISTOR 14 V, -, 1.6 X 0.8 mm, TP

2

1405-001018

D303

VARISTOR 14 V, -, 1.6 X 0.8 mm, TP

2

0407-000115

D501

DIODE-ARRAY DAN202U, 80 V, 100mA, CA2-3, SC-70,

2

0407-001002

D502

DIODE-ARRAY DAN222, 80 V, 300mA, CA2-3, EM3, TP

2 4709-001214

F1001

COUPLER-DIRECTION 880-915MHz, 19.5+-1dB, 13dB, 2.0 X 1.25 X 0.7 mm, TP

2 4709-001213

F1002

COUPLER-DIRECTION 1710-1785MHz, 14+-1dB, 12dB, 2.0 X 1.25 X 0.7 mm, TP

2 2904-001325

F1003

FILTER-SAW 942.5MHZ, 50MHZ, 1.7DB(G), 2.0DB(P), TP, 2.8DB(G), 3.1DB(P), -

2

2904-001226

F901

FILTER-SAW 942.5MHz, 35MHz, 925-960MHz/2dB, TP, 925-960MHz/3.8dB

2

2904-001320

F902

FILTER-SAW 225MHZ, 60MHZ, -, TP, -, -

2

2904-001228

F903

FILTER-SAW 1.8425GHz, -, 1805-1880MHz/1dB, TP, 1805-1880MHz/3.5dB

2 4709-001217

F904

FREQ-DISTRIBUTER 880-960MHz, 1710-1880MHz, 0.7dB, 4 W, -30to+85C, 50 ohm

2

2703-001190

L1001

INDUCTOR-SMD 15 NH, 5 %, 1.6 X 0.8 X 0.8 mm

2

2703-001132

L1002

INDUCTOR-SMD 4.7 NH, 5 %, 1.6 X 0.8 X 0.8 mm

2

2703-001288

L1004

INDUCTOR-SMD 2.7 NH, 0.5 NH, 1.6 X 0.8 X 0.8 mm

Level

SEC Code

Design LOC

DESCRIPTIONS

background image

SAMSUNG Proprietary-Contents may change without notice

1-7

SGH-Q208 Electrical Parts List

Level

SEC Code

Design LOC

DESCRIPTIONS

2

2703-001040

L1005

INDUCTOR-SMD 10 NH, 5 %, 1.6 X 0.8 X 0.8 mm

2

2703-001207

L1006

INDUCTOR-SMD 6.8 NH, 5 %, 1.6 X 0.8 X 0.8 mm

2

2703-001207

L1007

INDUCTOR-SMD 6.8 NH, 5 %, 1.6 X 0.8 X 0.8 mm

2

2703-001206

L1008

INDUCTOR-SMD 4.7 NH, 0.3 NH, 1.6 X 0.8 X 0.8 mm

2

2703-001258

L1009

INDUCTOR-SMD 3.3 NH, 0.3 NH, 1.6 X 0.8 X 0.8 mm

2

3301-001105

L101

CORE-FERRITE AB, 1.6 X 0.8 X 0.8 mm, -, -

2

2703-001514

L902

INDUCTOR-SMD 68 NH, 5 %, 1.8 X 1.12 X 1.02 mm

2

2703-001514

L903

INDUCTOR-SMD 68 NH, 5 %, 1.8 X 1.12 X 1.02 mm

2

2703-001926

L904

INDUCTOR-SMD 27 NH, 2 %, 1.6 X 0.8 X 0.8 mm

2

2703-001747

L905

INDUCTOR-SMD 4.7 NH, 0.3 NH, 1.0 X 0.5 x 0.5 mm

2

2703-001514

L907

INDUCTOR-SMD 68 NH, 5 %, 1.8 x 1.12 x 1.02 mm

2

2703-001748

L909

INDUCTOR-SMD 5.6 NH, 0.3 NH, 1.0 x 0.5 x 0.5 mm

2

2703-001685

L910

INDUCTOR-SMD 82 NH, 5 %, 1.7 x 1.14 x 1.02 mm

2

2703-001613

L911

INDUCTOR-SMD 18 NH, 10 %, 1 x 0.5 x 0.5 mm

2

2703-001734

L912

INDUCTOR-SMD 6.8 NH, 5 %, 1 x 0.5 x 0.5 mm

2

2703-001132

L914

INDUCTOR-SMD 4.7 NH, 5 %, 1.6 x 0.8 x 0.8 mm

2

2007-007771

L915

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2703-001422

L916

INDUCTOR-SMD 22 NH, 5 %, 1.6 x 0.8 x 0.8 mm

2

2703-001422

L918

INDUCTOR-SMD 22 NH, 5 %, 1.6 x 0.8 x 0.8 mm

2

2703-001943

L933

INDUCTOR-SMD 10 NH, 5 %, 1.0 x 0.5 x 0.5 mm

2

4302-001119

M101

BATTERY-LI(2ND)

3 V, 0.1MAH, -, -, 3.1 V, -

2

2801-004116

OSC601

CRYSTAL-SMD .032768MHZ, 30PPM, 28-ACM, 9 PF, 50 OHM, TP

2

2809-001255

OSC801

OSCILLATOR-VCTC X O 13MHZ, 5PPM, 10 Kohm//10 PF, TP, 3 V, 2MA

2

2806-001233

OSC901

OSCILLATOR-VCO 1167MHz/1615MHz, -, 0+-3dBm, TP, 2.85 V, -

2

2806-001232

OSC902

OSCILLATOR-VCO 1080MHz, -, -6to0dBm, TP, 2.85 V, 6.5mA

2

2806-001231

OSC903

OSCILLATOR-VCO 897.5MHz/1747.5MHz, -, -, TP, 2.85 V, 20mA

2

0504-001012

Q1001

TR-DIGITAL DTC114YE, NPN, 150M W, 10K/47K, EMT3, TP

2

0504-001012

Q1002

TR-DIGITAL DTC114YE, NPN, 150M W, 10K/47K, EMT3, TP

2

0504-001012

Q1003

TR-DIGITAL DTC114YE, NPN, 150M W, 10K/47K, EMT3, TP

2

0504-000168

Q101

TR-DIGITAL RN1104, NPN, 100M W, 47K/47K, SSM, TP

2

0504-000168

Q102

TR-DIGITAL RN1104, NPN, 100M W, 47K/47K, SSM, TP

2

0504-000168

Q114

TR-DIGITAL RN1104, NPN, 100M W, 47K/47K, SSM, TP

2

0501-002346

Q201

TR-SMALL SIGNAL 2SB1427, PN P, 500m W, SOT-89, TP, 390-820

2

0504-000168

Q204

TR-DIGITAL RN1104, NPN, 100M W, 47K/47K, SSM, TP

2

0504-000168

Q205

TR-DIGITAL RN1104, NPN, 100M W, 47K/47K, SSM, TP

2

0501-002011

Q301

TR-SMALL SIGNAL 2SD2114K, NPN, 200m W, SOT-23, TP, 8

2

0501-000162

Q501

TR-SMALL SIGNAL 2SA1576, PN P, 200M W, SOT-323, TP, 180-390

2

0501-002011

Q502

TR-SMALL SIGNAL 2SD2114K, NPN, 200m W, SOT-23, TP, 8

2

0504-000167

Q503

TR-DIGITAL RN1102, NPN, 100M W, 10K/10K, SSM, TP

background image

SAMSUNG Proprietary-Contents may change without notice

1-8

SGH-Q208 Electrical Parts List

2

0504-000167

Q601

TR-DIGITAL RN1102, NPN, 100M W, 10K/10K, SSM, TP

2

0504-000167

Q602

TR-DIGITAL RN1102, NPN, 100M W, 10K/10K, SSM, TP

2

0504-000167

Q603

TR-DIGITAL RN1102, NPN, 100M W, 10K/10K, SSM, TP

2

2007-000070

R1000

R-CHIP 0 ohm, 5 %, 1/16 W, DA, TP, 1608

2

2007-001288

R1001

R-CHIP 18 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007008

R1002

R-CHIP 300 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-007008

R1003

R-CHIP 300 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000139

R1004

R-CHIP 220 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007132

R1005

R-CHIP 15 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-007142

R1006

R-CHIP 10 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-007771

R1007

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-001301

R1008

R-CHIP 68 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-001301

R1009

R-CHIP 68 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000157

R101

R-CHIP 47 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007311

R1010

R-CHIP 22 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-007008

R1011

R-CHIP 300 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-007139

R1012

R-CHIP 47 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-001301

R1013

R-CHIP 68 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-001301

R1014

R-CHIP 68 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007132

R1015

R-CHIP 15 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-001288

R1016

R-CHIP 18 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007008

R1017

R-CHIP 300 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-007008

R1018

R-CHIP 300 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000148

R102

R-CHIP 10 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000148

R1020

R-CHIP 10 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000148

R1021

R-CHIP 10 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000148

R1022

R-CHIP 10 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000140

R1023

R-CHIP 1 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000148

R1024

R-CHIP 10 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R1025

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R1026

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R104

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000170

R105

R-CHIP 1 Mohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R107

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000157

R108

R-CHIP 47 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000157

R109

R-CHIP 47 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000148

R110

R-CHIP 10 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000148

R115

R-CHIP 10 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000162

R116

R-CHIP 100 Kohm, 5 %, 1/16 W, DA, TP, 1005

Level

SEC Code

Design LOC

DESCRIPTIONS

background image

SAMSUNG Proprietary-Contents may change without notice

1-9

SGH-Q208 Electrical Parts List

Level

SEC Code

Design LOC

DESCRIPTIONS

2

2007-001319

R117

R-CHIP 1.2 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000162

R119

R-CHIP 100 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R18

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-007308

R201

R-CHIP 33 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-007308

R202

R-CHIP 33 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-001323

R203

R-CHIP 3 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007139

R204

R-CHIP 47 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-007771

R206

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000162

R210

R-CHIP 100 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000148

R211

R-CHIP 10 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000162

R217

R-CHIP 100 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000162

R218

R-CHIP 100 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000162

R222

R-CHIP 100 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000138

R223

R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000138

R224

R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000138

R225

R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000138

R226

R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000138

R227

R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000138

R228

R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000138

R229

R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000138

R230

R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000138

R231

R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R232

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000140

R300

R-CHIP 1 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R302

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000140

R304

R-CHIP 1 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000157

R305

R-CHIP 47 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000140

R306

R-CHIP 1 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000140

R307

R-CHIP 1 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R308

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000140

R309

R-CHIP 1 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000166

R310

R-CHIP 300 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000157

R311

R-CHIP 47 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000140

R314

R-CHIP 1 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000140

R315

R-CHIP 1 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R321

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000140

R322

R-CHIP 1 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000143

R323

R-CHIP 4.7 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000839

R324

R-CHIP 39 ohm, 5 %, 1/16 W, DA, TP, 1608

background image

SAMSUNG Proprietary-Contents may change without notice

1-10

SGH-Q208 Electrical Parts List

2

2007-007771

R325

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R327

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R329

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000839

R330

R-CHIP 39 ohm, 5 %, 1/16 W, DA, TP, 1608

2

2007-000162

R401

R-CHIP 100 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R402

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000148

R403

R-CHIP 10 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000148

R404

R-CHIP 10 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007021

R405

R-CHIP 75 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000566

R406

R-CHIP 220 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000242

R407

R-CHIP 1.5 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000159

R408

R-CHIP 56 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000162

R426

R-CHIP 100 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000141

R427

R-CHIP 2.2 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000148

R502

R-CHIP 10 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000137

R503

R-CHIP 2 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000162

R504

R-CHIP 100 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R507

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000143

R508

R-CHIP 4.7 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000143

R509

R-CHIP 4.7 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R510

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000157

R511

R-CHIP 47 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000157

R512

R-CHIP 47 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000148

R514

R-CHIP 10 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R517

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000157

R520

R-CHIP 47 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000148

R601

R-CHIP 10 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000157

R603

R-CHIP 47 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R604

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-001306

R605

R-CHIP 150 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000170

R606

R-CHIP 1 Mohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007142

R607

R-CHIP 10 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-000148

R608

R-CHIP 10 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000157

R610

R-CHIP 47 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R613

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R615

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R616

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R617

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R618

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

Level

SEC Code

Design LOC

DESCRIPTIONS

background image

SAMSUNG Proprietary-Contents may change without notice

1-11

SGH-Q208 Electrical Parts List

Level

SEC Code

Design LOC

DESCRIPTIONS

2

2007-001311

R619

R-CHIP 270 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000157

R620

R-CHIP 47 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007317

R701

R-CHIP 2.2 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-007317

R702

R-CHIP 2.2 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-000172

R703

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007317

R711

R-CHIP 2.2 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-007317

R712

R-CHIP 2.2 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-000148

R714

R-CHIP 10 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007698

R728

R-CHIP 5.1 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-007698

R729

R-CHIP 5.1 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-007698

R730

R-CHIP 5.1 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-007698

R731

R-CHIP 5.1 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-007698

R732

R-CHIP 5.1 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-007698

R733

R-CHIP 5.1 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-007771

R734

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R801

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R802

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000161

R803

R-CHIP 82 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000151

R804

R-CHIP 15 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000174

R805

R-CHIP 47 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R806

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000159

R807

R-CHIP 56 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000170

R808

R-CHIP 1 Mohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R809

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000148

R811

R-CHIP 10 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000138

R812

R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000138

R813

R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000138

R814

R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007318

R901

R-CHIP 1 Kohm, 1 %, 1/16 W, DA, TP, 1005

2

2007-000172

R902

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R903

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-001284

R905

R-CHIP 4.7 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R906

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R907

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R908

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R909

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-001298

R910

R-CHIP 51 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R914

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R915

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

background image

SAMSUNG Proprietary-Contents may change without notice

1-12

SGH-Q208 Electrical Parts List

2

2007-000147

R917

R-CHIP 8.2 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R919

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-001325

R921

R-CHIP 3.3 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R922

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000143

R923

R-CHIP 4.7 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-001284

R926

R-CHIP 4.7 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R927

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-001301

R928

R-CHIP 68 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-007771

R929

R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R930

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000138

R931

R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000138

R932

R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000153

R934

R-CHIP 22 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-001217

R938

R-CHIP 82 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000141

R939

R-CHIP 2.2 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-001295

R940

R-CHIP 39 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R941

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000143

R942

R-CHIP 4.7 Kohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000174

R943

R-CHIP 47 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R945

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R946

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2

2007-000172

R947

R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005

2 1209-001292

U1001

IC-ETC, LINEAR HD155171NP01EL, QF P, 24 P, 165 MIL, PLASTIC, 3.6 V,

2

1201-001785

U1002

IC-POWER AMP 08122, -, 8 P, -, DUAL, 34DB, -, 7 V, -, -25TO+100C, -, -,

2

0801-000794

U1003

IC-CMOS LOGIC 7S08, AND GATE, SOT-25, 5 P, 63 MIL,

2

0504-001042

U1004

TR-DIGITAL BCR10PN, NPN/PN P, 250m W, 10K/10K,

2

0504-001042

U1005

TR-DIGITAL BCR10PN, NPN/PN P, 250m W, 10K/10K,

2

2909-001084

U1006

FILTER-DUPLE X ER 942.5MHZ, 897.5MHZ, 1/1.2DB, TP, -, -

2

0504-001042

U1008

TR-DIGITAL BCR10PN, NPN/PN P, 250m W, 10K/10K,

2 1203-001985

U101

IC-VOLTAGE REGULATOR 2005, QF P, 48 P, 276 MIL, PLASTIC, 1.8/3 V, -, -

2

2203-001124

U1011

C-CERAMIC, CHIP 680 PF, 10 %, 50 V, X 7R, TP, 1005, -

2 1203-001917

U102

IC-VOLTAGE REGULATOR 5213, SOT-23, 5 P, 50 MIL, PLASTIC, 3.3, 222m W, -

2 0801-002212

U103

IC-CMOS LOGIC 7S02, NOR GATE, SC-70, 5 P, 49 MIL, SINGLE, TP, PLASTIC,

2

0505-001423

U104

FET-SILICON FDG6323L, N/ P, -, -, -, 0.3 W, SC70-6

2 1203-002127

U201

IC-BATTERY 1734, SOT-23, 6 P, 150 MIL, PLASTIC, 4.7/5.3 V, -, 0to+70C, 1A, -, TP

2

0506-001052

U202

TR-ARRAY UMH9N, NPN, 2, 150M W, SC-88, TP, 68-

2 1001-001088

U401

IC-ANALOG SWITCH MA X 4544EUT-T, -, SOT-23, 6 P, -, SINGLE, 13 V, -

2

0504-001071

U402

TR-DIGITAL UMD9N, NPN/PN P, 150m W, 4.7, UMT6, TP

2 1106-001301

U501

IC-SRAM 1337, 262K x 16Bit, CS P, 72 P, -, 85nS, 3 V, -, PLASTIC, -25to+85C,

Level

SEC Code

Design LOC

DESCRIPTIONS

background image

SAMSUNG Proprietary-Contents may change without notice

1-13

SGH-Q208 Electrical Parts List

Level

SEC Code

Design LOC

DESCRIPTIONS

2

0504-001042

U502

TR-DIGITAL BCR10PN, NPN/PN P, 250m W, 10K/10K,

2

0801-000794

U503

IC-CMOS LOGIC 7S08, AND GATE, SOT-25, 5 P, 63 MIL,

2 GH09-00017A

U601

IC

MICOM-SGHQ100 TR09BFTBE17IN2-DB, SGH-Q100, -, -, -, -, 144K X

2

1209-001219

U602

IC-SENSOR LM60C, SOT-23, 3 P, 115 MIL, PLASTIC

2 1204-001827

U701

IC-SIGNAL PROCESSOR CSP1099R-BF-DT, BGA, 100 P, 393 MIL, PLASTIC,

2

0505-001423

U703

FET-SILICON FDG6323L, N/ P, -, -, -, 0.3 W, SC70-6

2 0801-002345

U801

IC-CMOS LOGIC 7S04, INVERTER, SOT-353, 5 P, 49 MIL, SINGLE, TP,

2

0504-001042

U802

TR-DIGITAL BCR10PN, NPN/PN P, 250m W, 10K/10K,

2 1209-001308

U901

IC-PLL/SYNTHESISER HD155131TF, QF P, 56 P, 290 MIL, PLASTIC, 3.3 V, -, -

2

3711-004814

VCON1

CONNECTOR-HEADER -, 2 P, -, 2.5 MM, STRAIGHT, AU0.1U, BLK

2

3711-004814

VCON2

CONNECTOR-HEADER -, 2 P, -, 2.5 MM, STRAIGHT, AU0.1U, BLK

2

1405-001082

ZD302

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD304

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD305

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD306

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD307

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD309

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD310

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD311

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD312

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD313

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD314

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD315

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD316

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD317

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD401

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD402

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD404

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

2

1405-001082

ZD405

VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP

background image

SAMSUNG Proprietary-Contents may change without notice

2-1

2. SGH-Q208 Exploded View and its Parts List

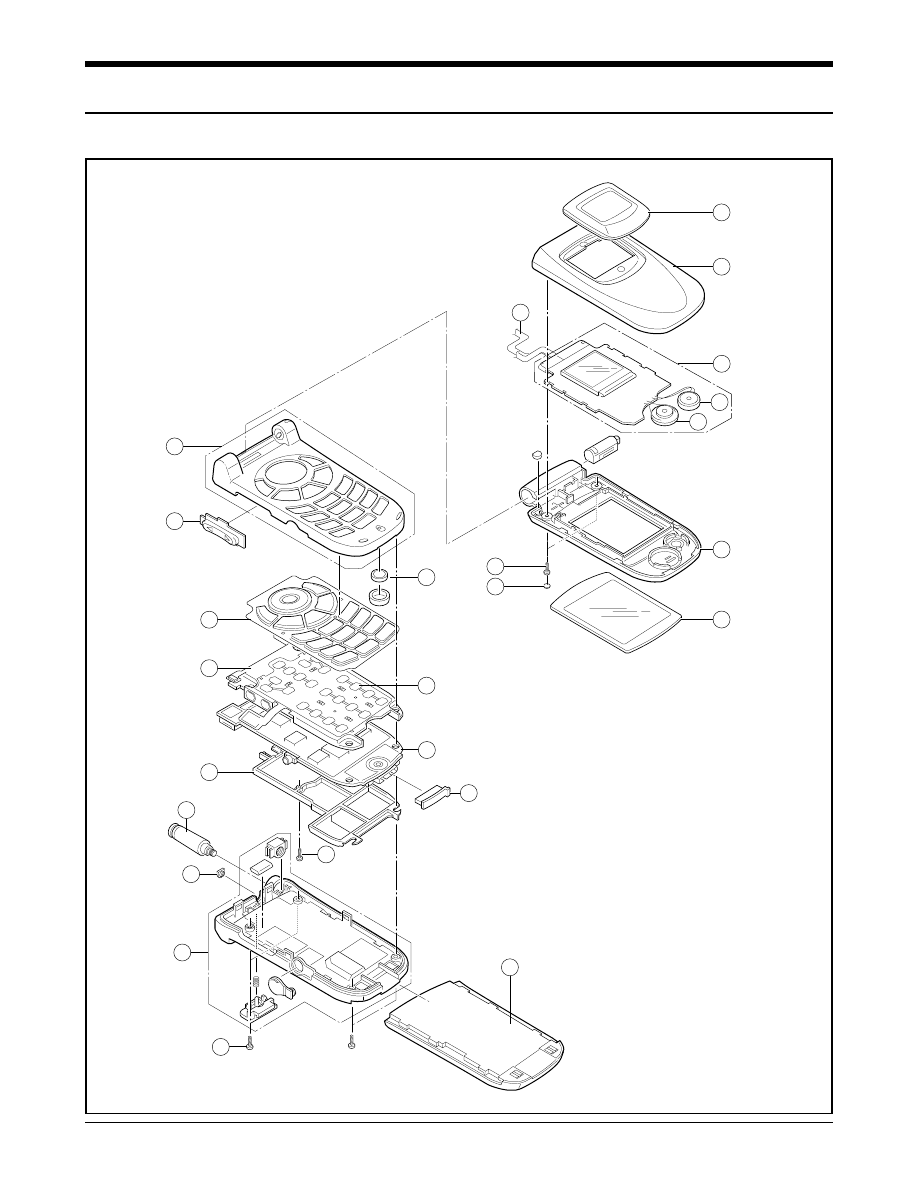

2-1. Cellular phone Exploded View

1

2

3

4

4-1

4-2

5

6

7
8

10

11

12

13

14

15

16

18

17

19

20

21

22

23

9

background image

SAMSUNG Proprietary-Contents may change without notice

2-2

SGH-Q208 Exploded view and its Part List

2-2. Cellular phone Parts List

1

2

3

4

4-1

4-2

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

DUAL LCD WINDOW

FOLDER UPPER

CON ASS’Y

LCD ASS’Y

MOTOR

SPEAKER

FOLDER LOWER

LCD WINDOW

SCREW (M1.4 X 2)

SCREW DUMMY

SUA, VOLUME KEY ASS’Y

SUA FRONT COVER

MIC

KEY PAD ASS’Y

SHIELD COVER

KEY FPCB

MAIN PBA

SUA, SHIELD COVER-B

SCREW (M1.4 X 4)

ANTEENA

COVER CONNECTOR

SUA, RF JACK COVER

REAR COVER

SCREW (M1.7 X 5)

BATTERY

Description

Remark

SEC CODE

M/Silver

Location

No.

720mAh

900mAh

GH72-02482B

GH75-01101A

GH59-00272A

GH07-00093A

3101-001280

3001-001251

GH75-01102A

GH72-02484A

6001-000883

GH68-00370C

GH75-01100A

GH75-01097A

GH59-00138A

GH75-01099B

GH75-01735A

GH59-00273A

GH92-01290A

GH75-01583A

6001-000464

GH42-00173A

GH73-00704A

GH73-00703A

GH75-01103A

6001-001346

GH43-00511A

GH43-00507A

GH72-02482A

GH75-01101A

GH59-00272A

GH07-00093A

3101-001280

3001-001251

GH75-01102A

GH72-02484A

6001-000883

GH68-00370C

GH75-01100A

GH75-01097A

GH59-00138A

GH75-01099A

GH75-01735A

GH59-00273A

GH92-01290A

GH75-01583A

6001-000464

GH42-00173B

GH73-00704A

GH73-00703A

GH75-01103A

6001-001346

GH43-00511B

GH43-00507B

GH72-02482A

GH75-01101A

GH59-00272A

GH07-00093A

3101-001280

3001-001251

GH75-01102A

GH72-02484A

6001-000883

GH68-00370C

GH75-01100A

GH75-01097A

GH59-00138A

GH75-01099A

GH75-01735A

GH59-00273A

GH92-01290A

GH75-01583A

6001-000464

GH42-00173C

GH73-00704A

GH73-00703A

GH75-01103A

6001-001346

GH43-00511C

GH43-00507C

PWHITE

BGOLD

background image

SAMSUNG Proprietary-Contents may change without notice

2-3

SGH-Q208 Exploded view and its Part List

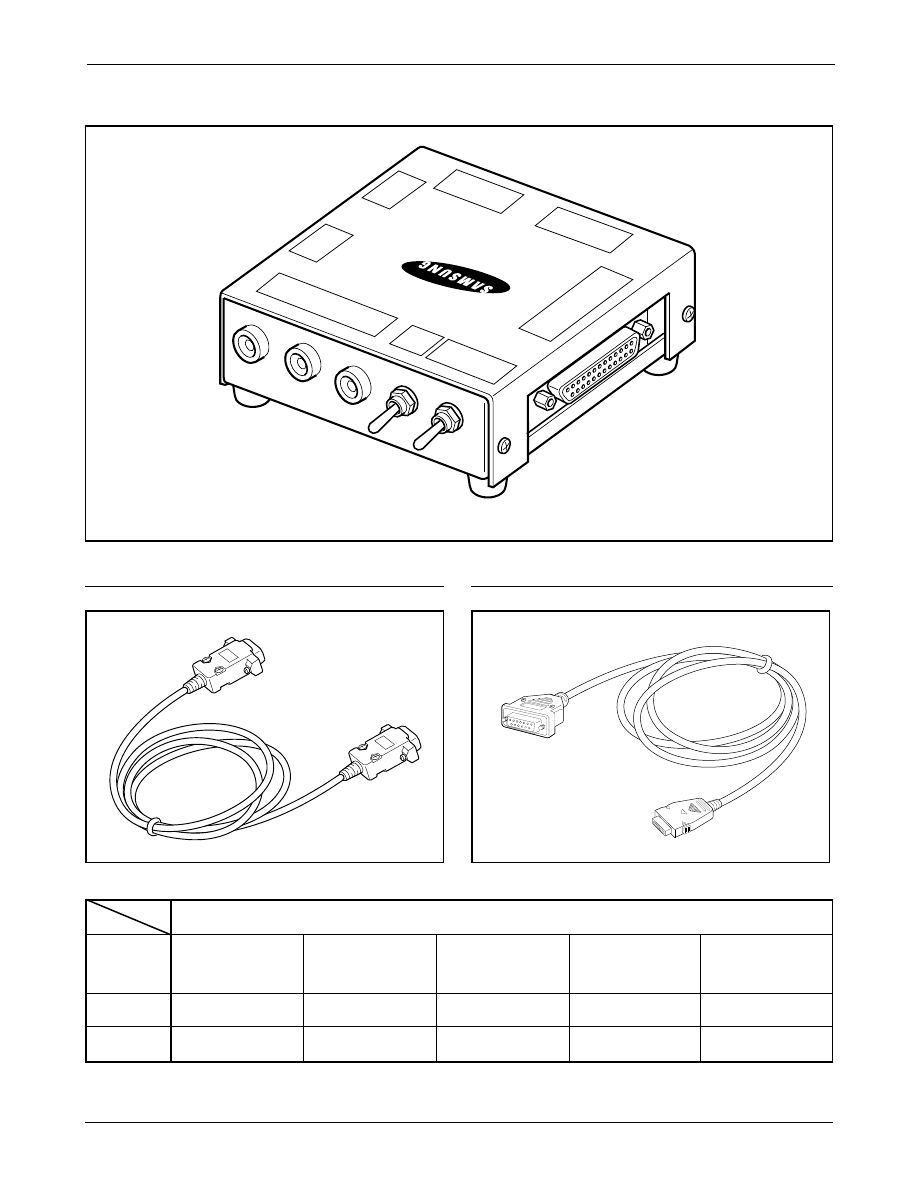

2-3. Test Jig

(GH80-00865A)

POWER ON

DS[ KT

AG

-POWER 4.2V +

SDS

S/W

DEBUG

S/W

DEBUG

TEST

PA

CK

SDSD/L

ELECTRONICS

GPRS TEST

JIG

GH80-00865A

Data Cable

Test Cable

(GH39-00127A)

SWITCH

MODE

POWER

SDS DEBUG SDS DEBUG

ON

S/W

S/W

D/L

D/L

HIGH

LOW

LOW

CONNECT

N.C

CAL

HIGH

LOW

LOW

CONNECT

N.C

background image

SAMSUNG Proprietary-Contents may change without notice

3-1

3. SGH-Q208 Block Diagrams

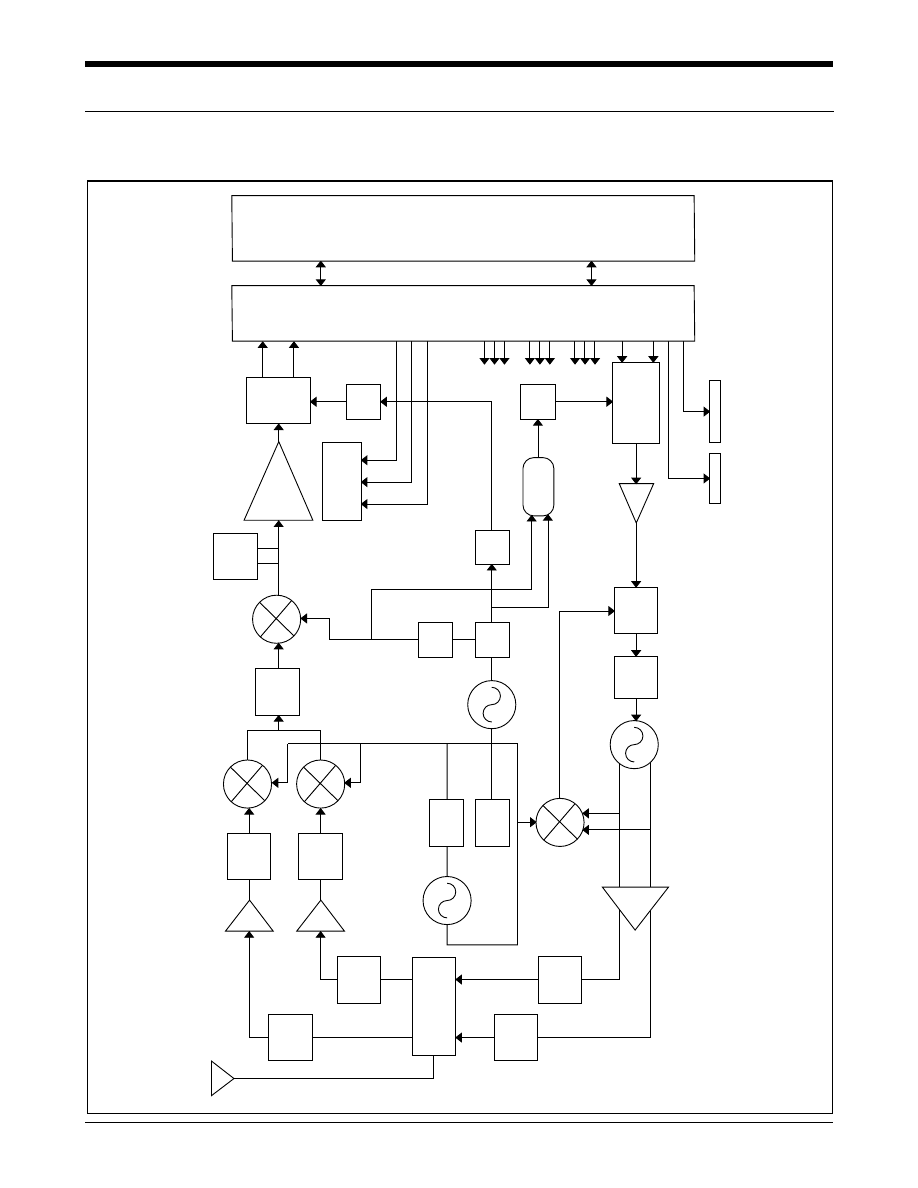

3-1. RF Solution Block Diagram

ANTENNA

RF

FIL

TER

LPF

LPF

GSM:880 MHz 915 MHz

GSM:880 MHz 915 MHz

GSM:925 MHz 960 MHz

DCS:1710 MHz 1785 MHz

DCS:1710 MHz 1785 MHz

DCS:1805 MHz 1880 MHz

PA

M

TX VCO

RF

FIL

TER

FEM

LNA

LNA

RX

SA

W

RX

SA

W

RF VCO

GSM :1

150 MHz 1

185 MHz

DCS:RX:1580 MHz 1655 MHz

TX :1575 MHz 1650 MHz

RF

SYNTH

IF

SYNTH

MIXER 1

IF VCO

1080 MHz

1/2

1/6

1/2

IF

SA

W

225 MHz

MIXER 2

LC

FIL

TER

45 MHz

PGA

I,Q

DEMOD

SERIAL

DA

T

A

INTERF

ACE

270 MHz

SWITCH

DCS:270 MHz

GSM:540 MHz

1/2

1/2

GSM:270 MHz

DCS:135 MHz

I,Q

MODULA

T

O

R

PD

LOOP

FIL

TER

GSM:270 MHz

DCS:135 MHz

UI

AUDIO

SERIAL

D

ATA

,

CLK,

LE

OCTL

SIGNALS

RF

DRIVER

DAI

I,Q

I,Q

CSP1089

TRIDENT

DSP16000

ARM7TDMI

background image

SAMSUNG Proprietary-Contents may change without notice

3-2

SGH-Q208 Block Diagrams

3-2. Base Band Solution Block Diagram

X-T

AL

32.768 kHz

¥ACC:Asynchronous Communications Controller

IRDA

RS232

GPIO

SIMO/I

ARM

JT

AG/ICE

TRIDENT

POWER

(DC/DC, CHARGER)

X-T

AL

13 MHz

FLASH

ROM

(16M x 1)

SRAM

(4M)

FLASH

ROM

(32 x 1)

DAI

Audio

LCD

Keypad

B’D to B’D Connector

Memory Part

CSP1099

ACC

PPI

(Programmable

Peripheral I/O)

SMAR

T

CARD

RT

C

JT

AG/ICE

DSP16000

ARM7TDMI

EMI

(External Memory

Interface)

IO

RW

N

AB[8:0]

DB[15:0]

INT1

IRQx

PA

x

RSTB

DSPJT

AG

LCD

KEYBOARD

TXIP

TXIN

TXQP

TXQN

RXIP

RXIN

RXQP

RXQN

SERCK

SERLE

SERDA

RFOVL

TXP

OCTL

RF SOLUTION

- RF IC : BRIGHT3

- P

A

M

- MAIN VCO

- TX

VCO

- IF VCO

IO

RW

N

AB[8:0]

DB[15:0]

INT1

IRQx

PA

x

RSTB

<RF DIR

VER>

TX I/Q

RX I/Q

TXP

SERCK

SERLE

SERDA

OCTL[1:1

1]

DAICK

DAIRN

DAIDO

DAIDI

JT

AG

Audio Part

background image

SAMSUNG Proprietary-Contents may change without notice

4-1

4. SGH-Q208 PCB Diagrams

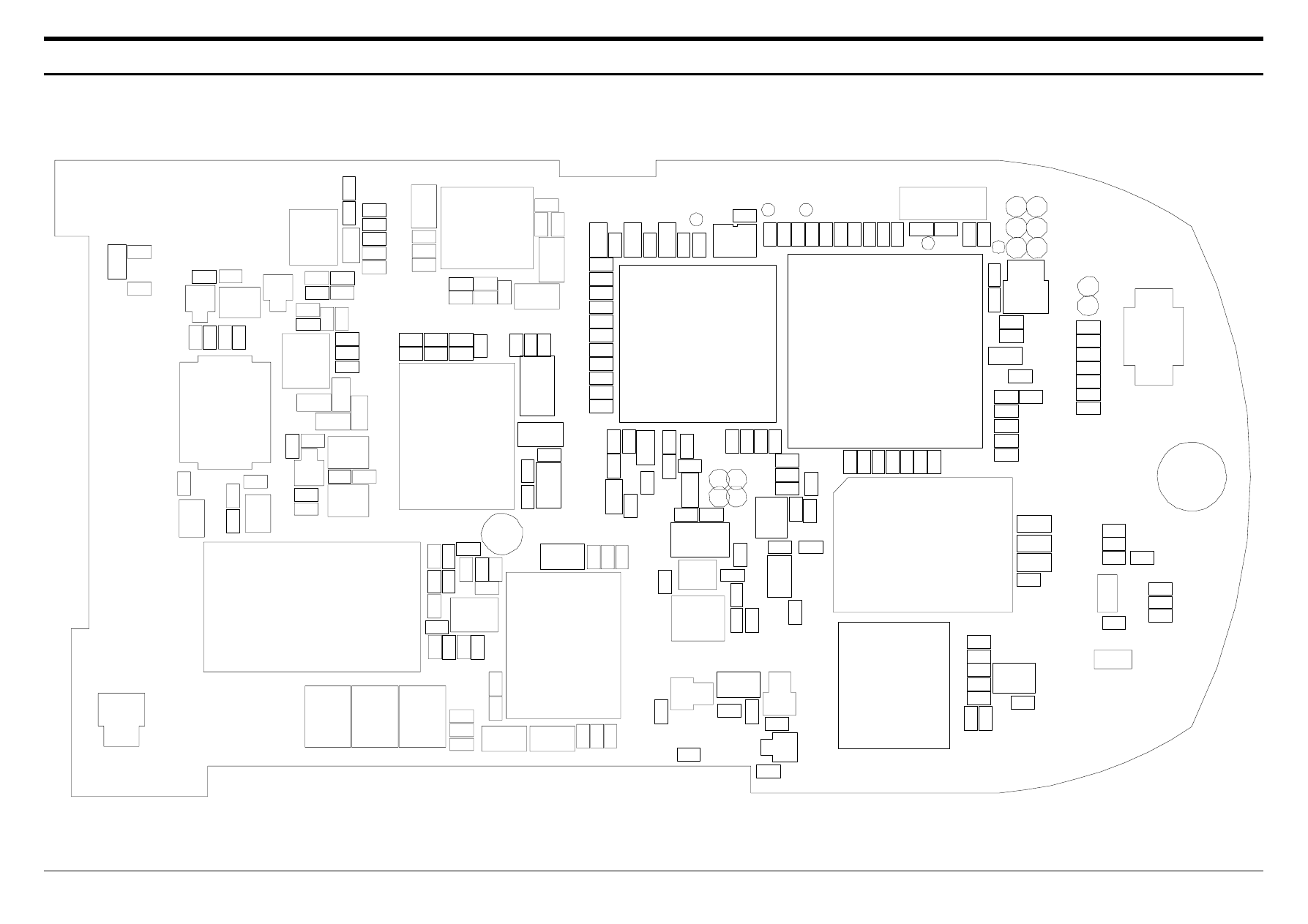

1. Main PCB Top Diagram

C1001

C1002

C1003

C1007

C1008

C1009

C1011

C1021

C1033

C1036

C1037

C1038

C1039

C1041

C1043

C1044

C1045

C1052

C400

C402

C404

C407

C409

C410

C411

C413

C421

C425

C501

C502

C503

C504

C505

C508

C509

C510

C520

C522

C601

C602

C603

C604

C605

C606

C607

C608

C609

C610

C611

C612

C613

C614

C615

C622

C701

C702

C703

C704

C705

C706

C709

C710

C711

C712

C716

C717

C718

C720

C721

C722

C723

C724

C725

C727

C728

C732

C803

C903

C905

C906

C915

C917

C918

C922

C923

C928

C931

C938

C939

C940

C941

C943

C944

C958

C962

C963

C964

C965

C966

C967

C968

C969

C970

C971

C972

C973

C974

C975

C976

C977

C978

C988

CN601

D302

D303

D501

DAICK

DAIDI

DAIDO

DAIRN

F1001

F1002

F901

F903

F904

H900

JTAG1

JTAG2

L1010

L904

L905

L909

L911

L912

L914

L915

L916

L918

L919

L933

L_WR

MIC400

OSC601

OSC901

OSC902

OSC903

Q1001

Q1002

Q1003

Q501

Q502

Q503

R1000

R1001

R1002

R1003

R1007

R1016

R1017

R1018

R1021

R1022

R1023

R1024

R1025

R1026

R18

R205

R401

R402

R403

R404

R405

R406

R407

R408

R426

R427

R502

R503

R504

R507

R510

R511

R512

R514

R516

R517

R518

R520

R522

R601

R602

R603

R604

R606

R607

R608

R609

R610

R611

R613

R615

R616

R617

R620

R701

R702

R703

R711

R712

R714

R734

R812

R903

R907

R909

R910

R911

R912

R914

R917

R919

R923

R928

R929

R930

R931

R932

R936

R937

R938

R939

R940

R941

R942

R948

R949

RST1

TCK1

TDI1

TDO1

TMS1

TP600

TP601

TP700

TP701

TP710

U1002

U1004

U1005

U1006

U1008

U401

U402

U501

U502

U503

U504

U601

U602

U701

U703

ZD302

ZD304

ZD305

ZD306

ZD307

ZD309

ZD310

ZD311

ZD312

ZD313

ZD314

ZD315

ZD316

ZD317

ZD401

background image

SAMSUNG Proprietary-Contents may change without notice

4-2

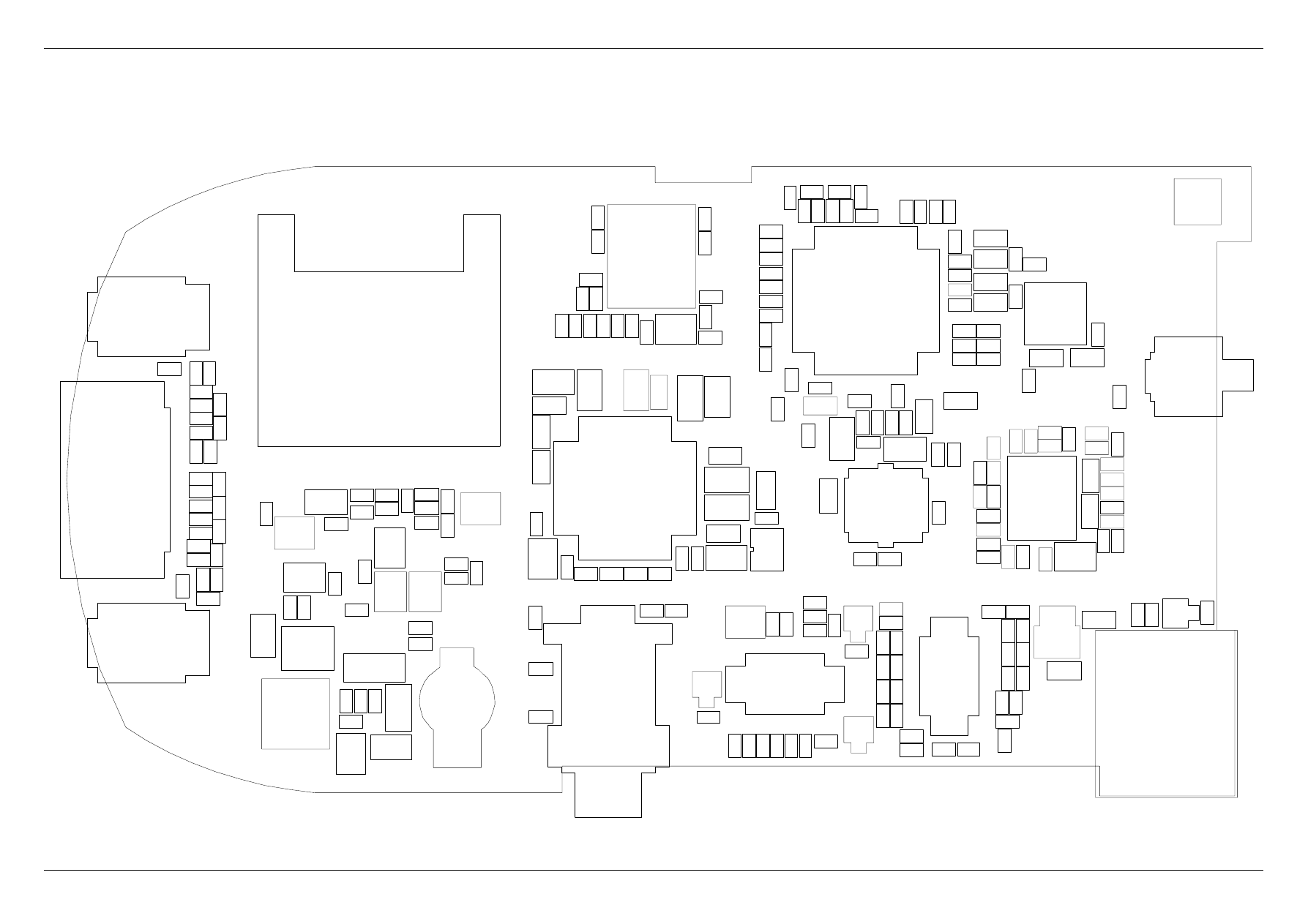

2. Main PCB Bottom Diagram

SGH-Q208 PCB Diagrams

ANT1002

AU501

C1005

C1006

C101

C1010

C1012

C1013

C1014

C1015

C1016

C1017

C1019

C102

C1020

C1022

C1023

C1024

C1025

C1028

C1029

C103

C1030

C1031

C104

C1040

C1042

C105

C1050

C1053

C106

C107

C108

C110

C111

C112

C113

C115

C116

C117

C118

C119

C120

C126

C127

C201

C202

C203

C204

C205

C206

C207

C208

C211

C212

C213

C214

C215

C216

C217

C218

C219

C301

C308

C309

C311

C312

C321

C412

C422

C506

C719

C726

C801

C802

C804

C805

C806

C807

C808

C809

C810

C811

C812

C818

C901

C907

C908

C913

C914

C919

C924

C925

C926

C932

C934

C942

C951

C954

C957

C959

C960

C961

C979

C980

C982

C983

C984

C985

C987

CN1001

CN202

CN203

CN301

CN401

CN801

D101

D202

D203

D204

D502

F1003

F902

L1001

L1002

L1004

L1005

L1006

L1007

L1008

L1009

L101

L902

L903

L907

L910

M101

OSC801

Q101

Q102

Q114

Q201

Q204

Q205

Q301

Q601

Q602

Q603

R1004

R1005

R1006

R1008

R1009

R101

R1010

R1011

R1012

R1013

R1014

R1015

R102

R1020

R104

R105

R107

R108

R109

R110

R115

R116

R117

R119

R201

R202

R203

R204

R206

R210

R211

R212

R213

R214

R215

R216

R217

R218

R222

R223

R224

R225

R226

R227

R228

R229

R230

R231

R232

R300

R301

R302

R303

R304

R305

R306

R307

R308

R309

R310

R311

R314

R315

R320

R321

R322

R323

R324

R325

R326

R327

R328

R329

R330

R508

R509

R605

R618

R619

R728

R729

R730

R731

R732

R733

R801

R802

R803

R804

R805

R806

R807

R808

R809

R810

R811

R813

R814

R815

R816

R901

R902

R905

R906

R908

R915

R921

R922

R926

R927

R934

R943

R945

R946

R947

U1001

U1003

U101

U1011

U1013

U102

U103

U104

U201

U202

U801

U802

U901

VCON1

VCON2

ZD402

ZD404

ZD405

background image

SAMSUNG Proprietary-Contents may change without notice

5-1

5.SGH-Q208 Flow Chart of Troubleshooting and

Circuit Diagrams

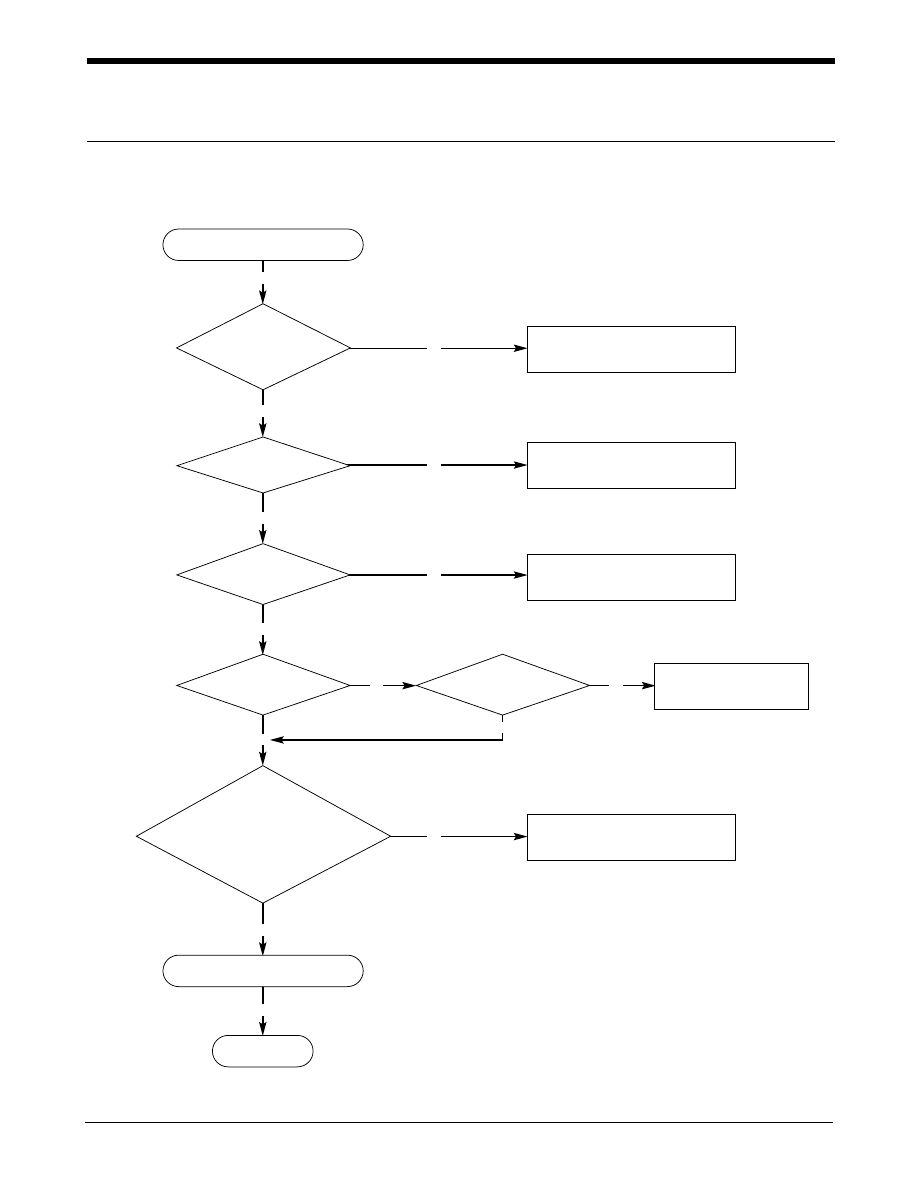

5-1. Power ON

N

‘POWER ON’ does not work

Y

Y

Check the current

consumption more than

100 mA

Download again

N

Y

Check the

Voltage more

than 3.3V

Charge the Battery

N

Y

Check the pin

4 of U101 is more than

2.85 V

Check U101 and C112

N

Y

U101 pin 31,35,36

= 3.0 V

N

U101 pin 1

= 1.8 V

N

Y

END

Y

Check the clock signal

at pin4 of U801

Freq=13 MHz ?

Vrms

300 mV ?

Vpp is around 900 mVpp ?

Check the clock generation circuit

(related to OSC801 and U801)

Check the initial operation

Check U101 and

C103, C104, C120

Y

background image

5-2. Initial

N

Initial Failure

Y

Y

Check the

signal at the pin 17 of

U101 is “High”

when the phone

is boot on

Check U101

N

Y

Check the pin 18

of U101 is “High”

Check the U701

N

Y

Check the pin 4 of

OSC801 is around 3.0 V

Check the soldered status of

OSC801, R801, U101

N

Check the soldered status of

OSC801, U801

Y

END

Y

Check LCD connector CN203,

and resolder bridge

SAMSUNG Proprietary-Contents may change without notice

5-2

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

Check the pin 4 of

U801 is around 3.0 V

background image

SAMSUNG Proprietary-Contents may change without notice

5-3

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

5-3. Sim Part

Phone can’t access SIM card

Y

N

Y

Check the pin 1 of CN801.

voltage

2.8 V ?

Check the circuit related to U802

N

Y

Check the SIM

connector’s (CN801)

Connection to

SIM card

Resolder or change CN801

N

Check the related circuit of U802

N

Check the related circuit of U601

and U101

END

Y

Check the circuit around U802

input circuitry

Y

Check the circuit around U601

output and vlotage supply circuitry

background image

SAMSUNG Proprietary-Contents may change without notice

5-4

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

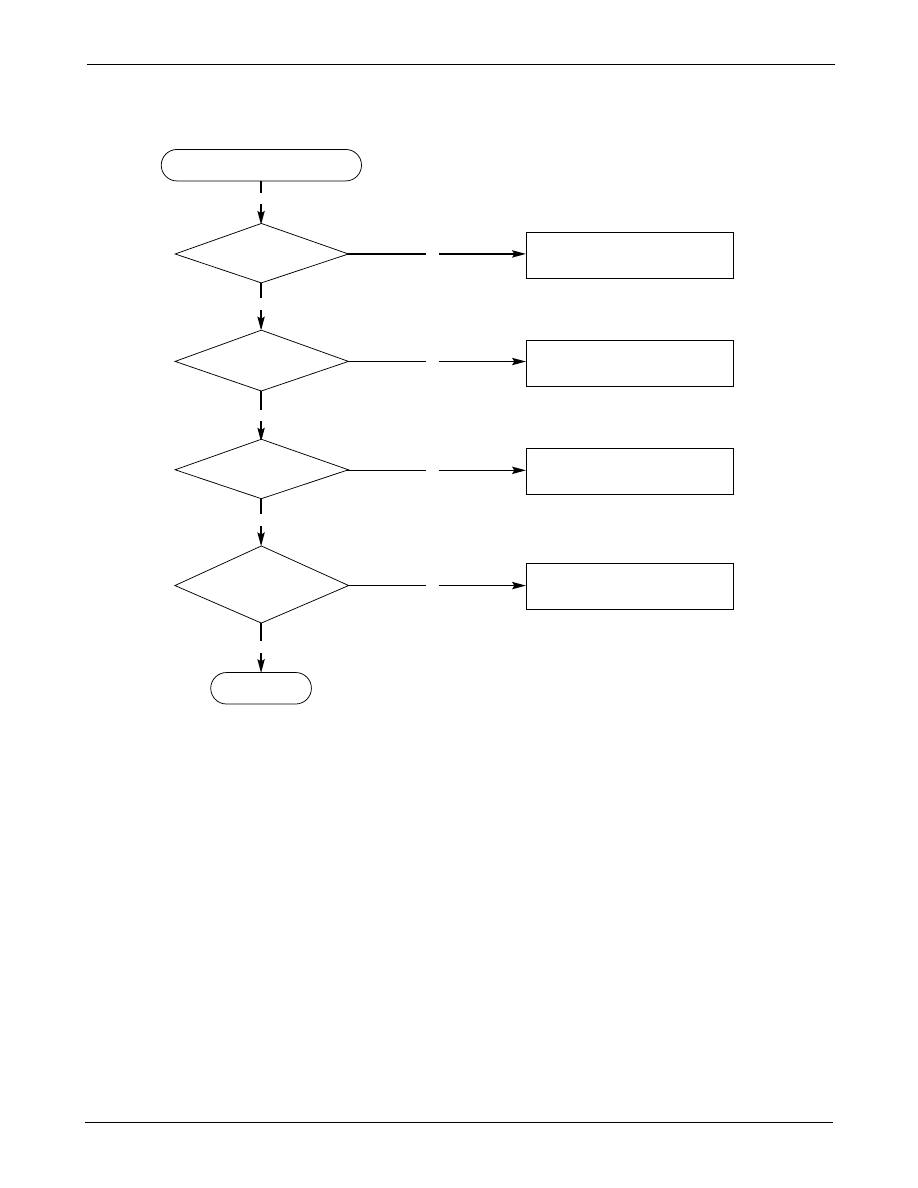

Abnormal charging part

Y

N

Y

Check

the pin 17, 18 of CN301

is around 5 V

Replace TA

N

Y

Check the pin 2 of

U202 is “Low”

Resolder U202, R204, R203

Check the U601

N

Y

Check the pin 1 of

Q201 is “Low”

Resolder Q201, U201

N

Y

Check the

pin 5 of U201 is between

3.2 V and 4.2 V?

Change U201

END

5-4. Charging Part

background image

Y

END

SAMSUNG Proprietary-Contents may change without notice

5-5

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

5-5. Microphone Part

Micro Phone does not work

Y

N

Y

check the contact status

of microphone.

Refabricate or change the

microphone holder.

Y

N

Check audio switch

U401 circuitry

Change U401

N

Check the reference

voltage on mic path

C410 2.5 V

Resolder or change

R427, C410, R407, C404, R403, R405

background image

SAMSUNG Proprietary-Contents may change without notice

5-6

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

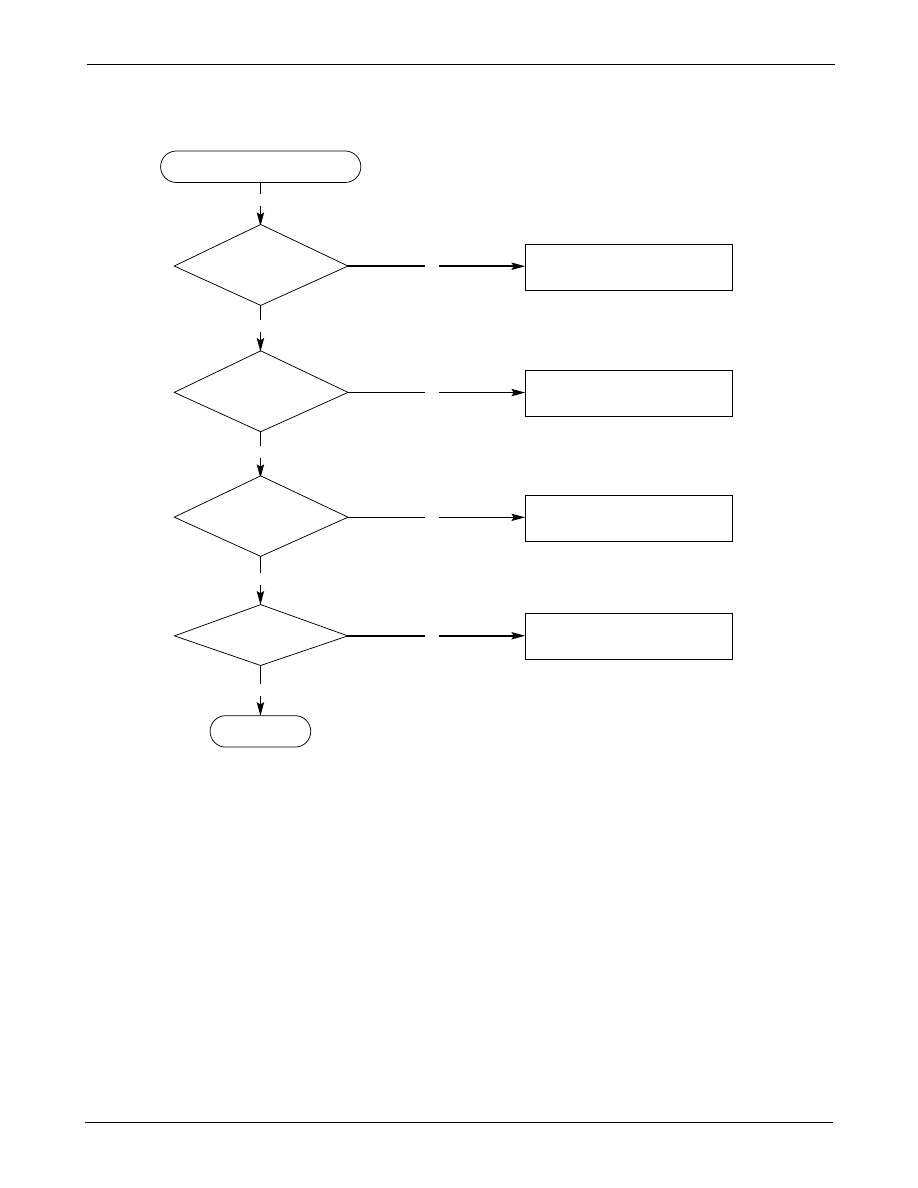

Speaker does not work

Y

N

Y

Check the

soldered status of ear

jack connector

CN401

Resolder or change CN401

N

Y

Check the connection

status SPK to CN203

Resolder and check the board to

board connector

N

Y

Check soldered status

around CN401

Resolder or change

C422, ZD404, C421, ZD402

N

Y

Is Speaker working ?

Replace the Speaker

END

5-6. Speaker Part

background image

SAMSUNG Proprietary-Contents may change without notice

5-7

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

5-7. Key Data Input

Check initial operation

Y

Y

N

Y

When one of the keys is

pushed, one of pin [2,4,6,8,10]

of CN202 is “High”?

Check the U601

N

Y

When one of the keys is

pushed, one of pin [1,3,5,7,9] of

CN202 is “High”?

Resloder CN202 or replace

the key PCB

END

Check the connection between

CN202 and LCD module PCB

background image

SAMSUNG Proprietary-Contents may change without notice

5-8

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

5-8. Ring Indicator

Ring Indicator does not work

Y

Y

N

Y

Check the Q601 pin 2 is

“High”

Check U601

N

Y

Check the Q601~3 pin 3

is “Low”

Replace Q601/Q602/Q603

N

Y

Check the voltage of

Ring indicator Anode is

around 3.7 V

Resolder or change LED

END

Check the connection between

CN203 and Keypad PCB

background image

SAMSUNG Proprietary-Contents may change without notice

5-9

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

5-9. Back Light

Backlight does not work

Y

Y

N

Y

Backlight

“ON” mode in

the menu ?

Select backlight “ON” mode

N

Y

Q301 pin 1 = “High” ?

Resolder or change Q301, R322

N

Y

Check the

connection from CN203

to LCD Module

Replace FPCB Connector

N

Y

LCD backlight on ?

Replace EL between LCD and

LCD PCB

END

Check the soldered status of EL pad

background image

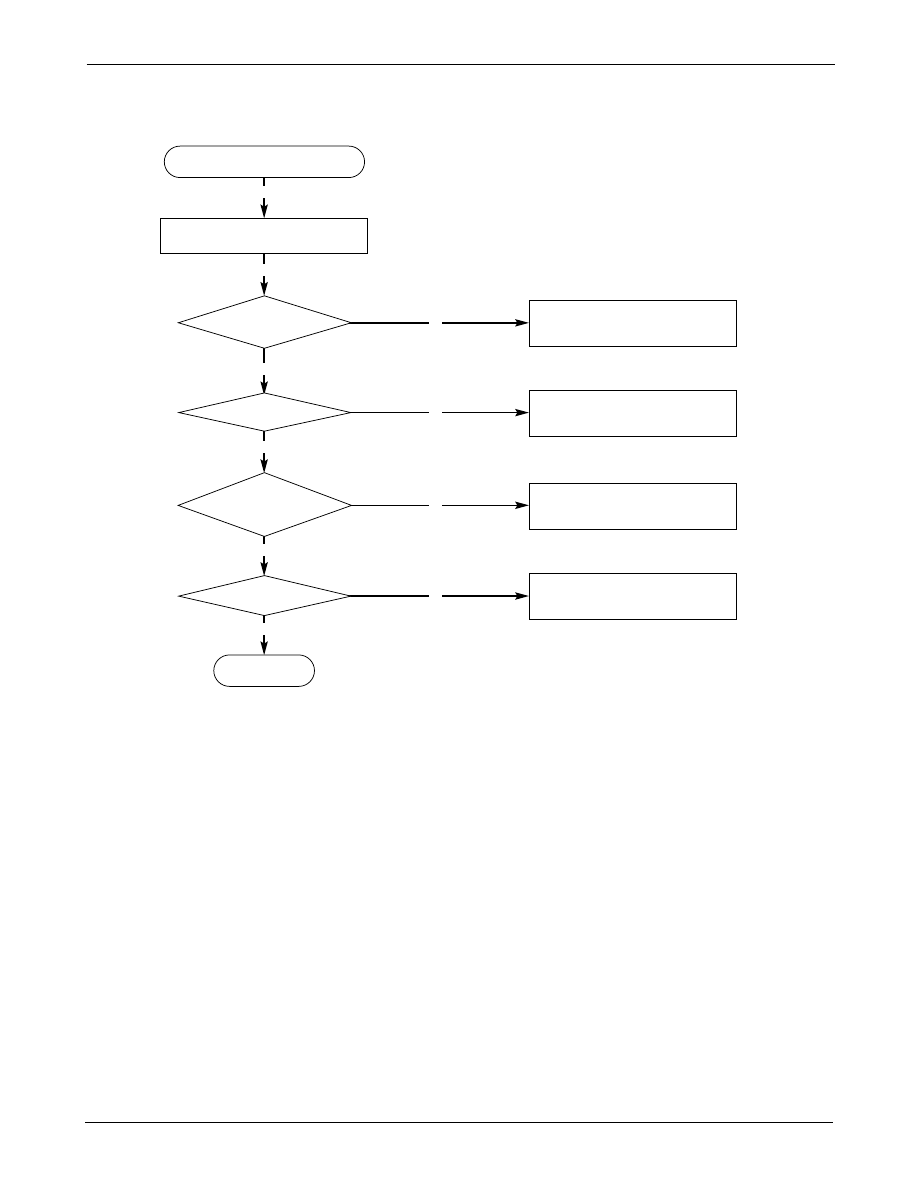

5-10. Alert Tone

Abnormal Alert tone

Y

Y

N

Y

Is there

alert wave signal on the

Q508 during alert tone

test?

Resolder or replace R508

N

Y

Is there

alert wave signal on the

Q502 pin3 during alert

tone test?

Check the circuit related to Q502

N

Y

Check the C506

3.3V

Resolder D502 and C506

N

Y

Buzzer is ok?

Change the Buzzer

END

SAMSUNG Proprietary-Contents may change without notice

5-10

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

Alert tone on by pushing the key

#0289#

background image

Y

Change U901

N

Check OSC902

pin 1

-20 dBm

Resolder or change

OSC902

N

SAMSUNG Proprietary-Contents may change without notice

5-11

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

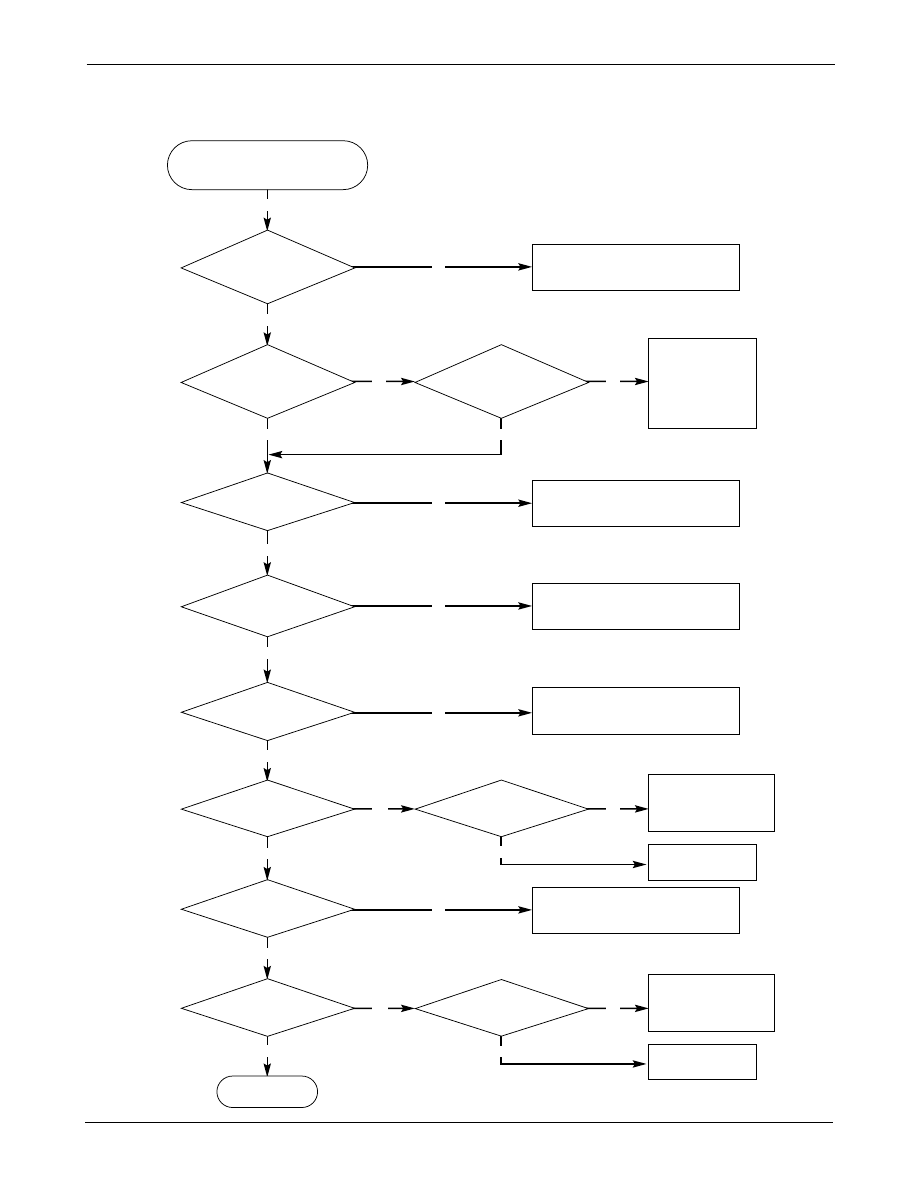

5-11. GSM Receiver

RX On

RF input : 62 CH

Amp. : -50 dBm

Y

N

N

Y

U1006

Pin 9

-70 dBm

Resolder or Change CN1001

N

Resolder or Change U901

Y

F1004

pin 5

-73 dBm

Resolder F1004

N

Y

F902

pin 5, 6

-60 dBm

Change F902

Y

U901

pin 43, 44

-50 dBm

N

Y

U1006

Pin 5

-70 dBm

N

Y

Resolder U1006,

Pin 5

-70 dBm?

Check voltage

U1006 pins

Pin 2 : L

Pin 4 : H
Pin 8 : H
Pin 10 : L

Y

U901

pin 4

-55 dBm

&

2.5 Vdc

Y

Resolder or

Change U901

END

N

Y

F901

pin 4

-60 dBm

Resolder or Change F901

N

Y

F902

pin 1, 2

-55 dBm

Check OSC901

pin 1

-20 dBm

Change OSC901

N

•All or RF values by dBm should be measured in max hold status of

RF spectrum analyzer in active call

background image

N

Y

Change

OSC903

U901

17, 18, 19, 20 pin

like left?

N

Board Change

1.75 V

0.75 V

1.25 V

Y

Y

Y

Change CN1001

SAMSUNG Proprietary-Contents may change without notice

5-12

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

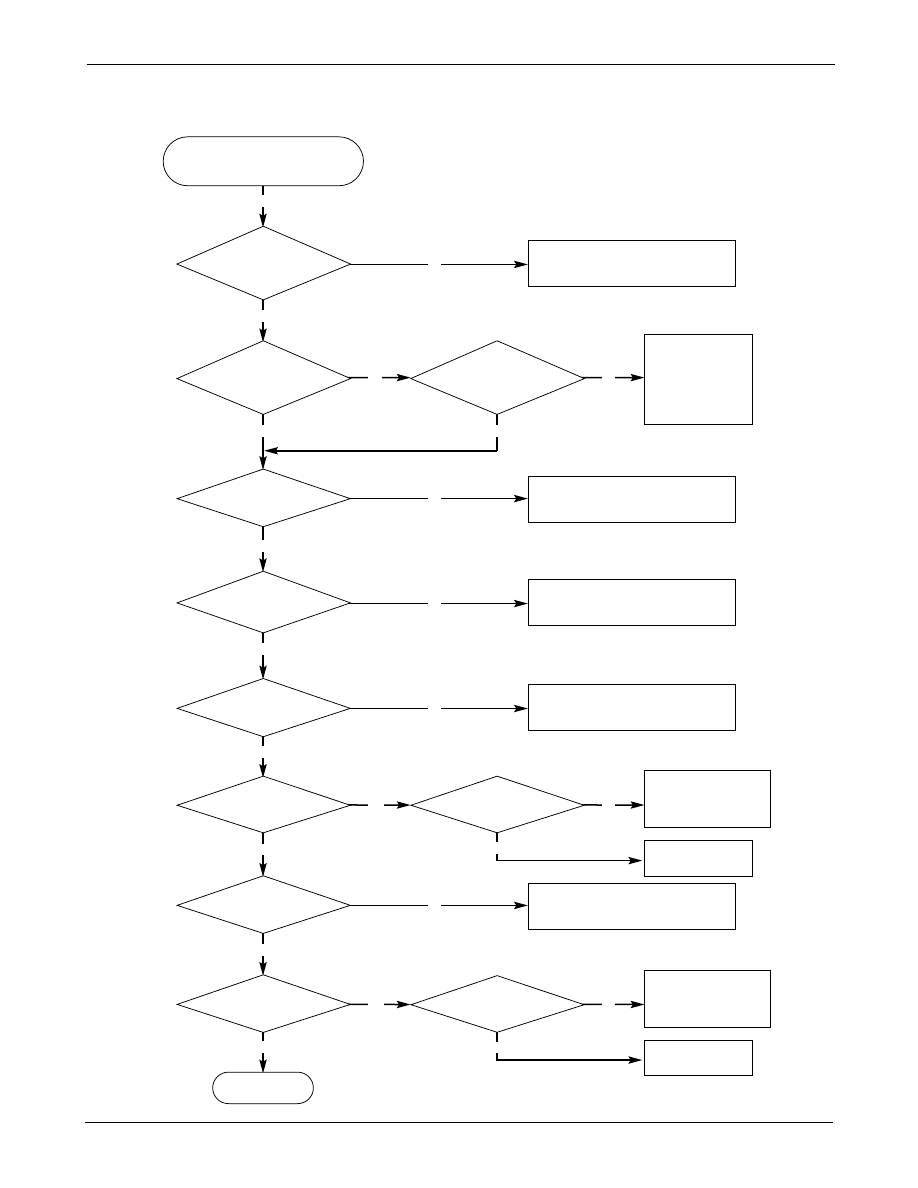

5-12. GSM Transmitter

GSM TX

N

U1006

9 pin : 33 dBm?

N

Change U1005

Change U1004

N

Y

U1006

2, 8 pin:High?

4, 10 pin:Low?

U1005

2 pin:High?

N

N

U1004 2pin:Low?

U703 5pin:Low?

3pin:Low?

N

Y

Change U1006

OSC903

3 pin:0.8 V~2.5 V?

Change U1004

Change

U703

Y

Y

N

U1004 3pin:Low?

Change U1008

background image

SAMSUNG Proprietary-Contents may change without notice

5-13

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

5-13. DCS Receiver

Y

Change U901

N

Check OSC902

pin 1

-20 dBm

Resolder or change

OSC902

N

RX On

RF input : 62 CH

Amp. : -50 dBm

Y

N

N

Y

U1006

Pin 9

-70 dBm

Resolder or Change CN1001

N

Resolder or Change U901

Y

F1003

pin 5

-73 dBm

Resolder F1003

N

Y

F902

pin 5, 6

-60 dBm

Change F902

Y

U901

pin 43, 44

-50 dBm

N

Y

U1006

Pin 7

-70 dBm

N

Y

Resolder U1006,

Pin 7

-70 dBm?

Check voltage

U1006 pins

Pin 2 : L

Pin 4 : H
Pin 8 : H
Pin 10 : L

Y

U901

pin 8

-55 dBm

&

2.5 Vdc

Y

Resolder or

Change U901

END

N

Y

F903

pin 4

-60 dBm

Resolder or Change F903

N

Y

F902

pin 1, 2

-55 dBm

Check OSC901

pin 1

-20 dBm

Change OSC901

N

•All or RF values by dBm should be measured in max hold status of

RF spectrum analyzer in active call

background image

SAMSUNG Proprietary-Contents may change without notice

5-14

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

5-14. DCS Transmitter

Y

Y

Y

Change CN1001

DCS TX

N

U1006

9 pin : 30 dBm?

N

Change U1005

Change U1004

N

Y

U1006

2, 8 pin:Low?

4, 10 pin:High?

U1005

2 pin:High?

N

N

U1004

2pin:High?

U703 5pin:High?

3pin:High?

N

Y

Change

U1006

OSC903

3 pin:0.8 V~2.5 V?

N

Y

Change

OSC903

U901

17, 18, 19, 20 pin

like left?

N

Board Change

Change U1004

Change

U703

Y

Y

N

U1004

3pin:High?

Change U1008

1.75 V

0.75 V

1.25 V

background image

SAMSUNG Proprietary-Contents may change without notice

5-15

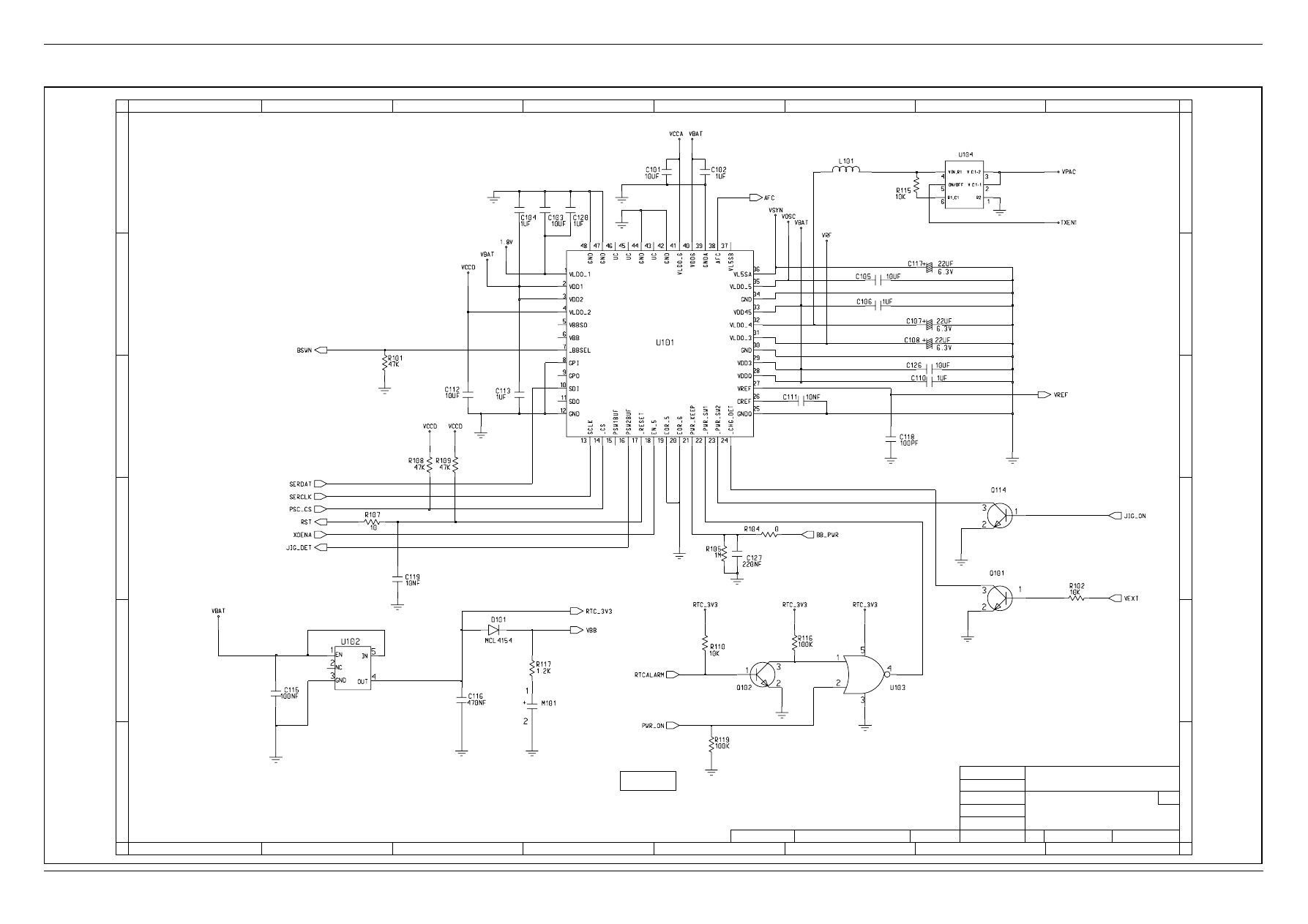

5-15. Power Circuit Diagram

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

2

E

COMPANY NAME

5

1

REV

F

A

of

C

D

5

MFG ENGR CHK

1

2

F

3

SEC

6

7

0.1

Time Changed

Engineer

B

3

4

E

DOC CTRL CHK

6

7

8

1

SAMY

SAMY

10:47:38 am

2002.01.17

SAMY

10

SGH-Q208

A3

Changed by

POWER

4

Date Changed

8

QA CHK

Drawn by

Drawing Number

Sheet

R&D CHK

Size

TITLE:

A

B

C

D

background image

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

SAMSUNG Proprietary-Contents may change without notice

5-16

8

A

D

D

F

A

Date Changed

Time Changed

Engineer

Drawn by

R&D CHK

COMPANY NAME

Address

DOC CTRL CHK

MFG ENGR CHK

6

E

7

8

City

B’D-TO-B’D CONNECTOR

QA CHK

REV

Drawing Number

0.1

SGH-Q208

A3

2

3

4

5

F

1

Size

TITLE:

B

Sheet

5

6

C

1

E

7

CHARGER

2

3

4

B

C

2

10

of

Changed by

user5

user5

11:12:09 am

2002.01.17

user5

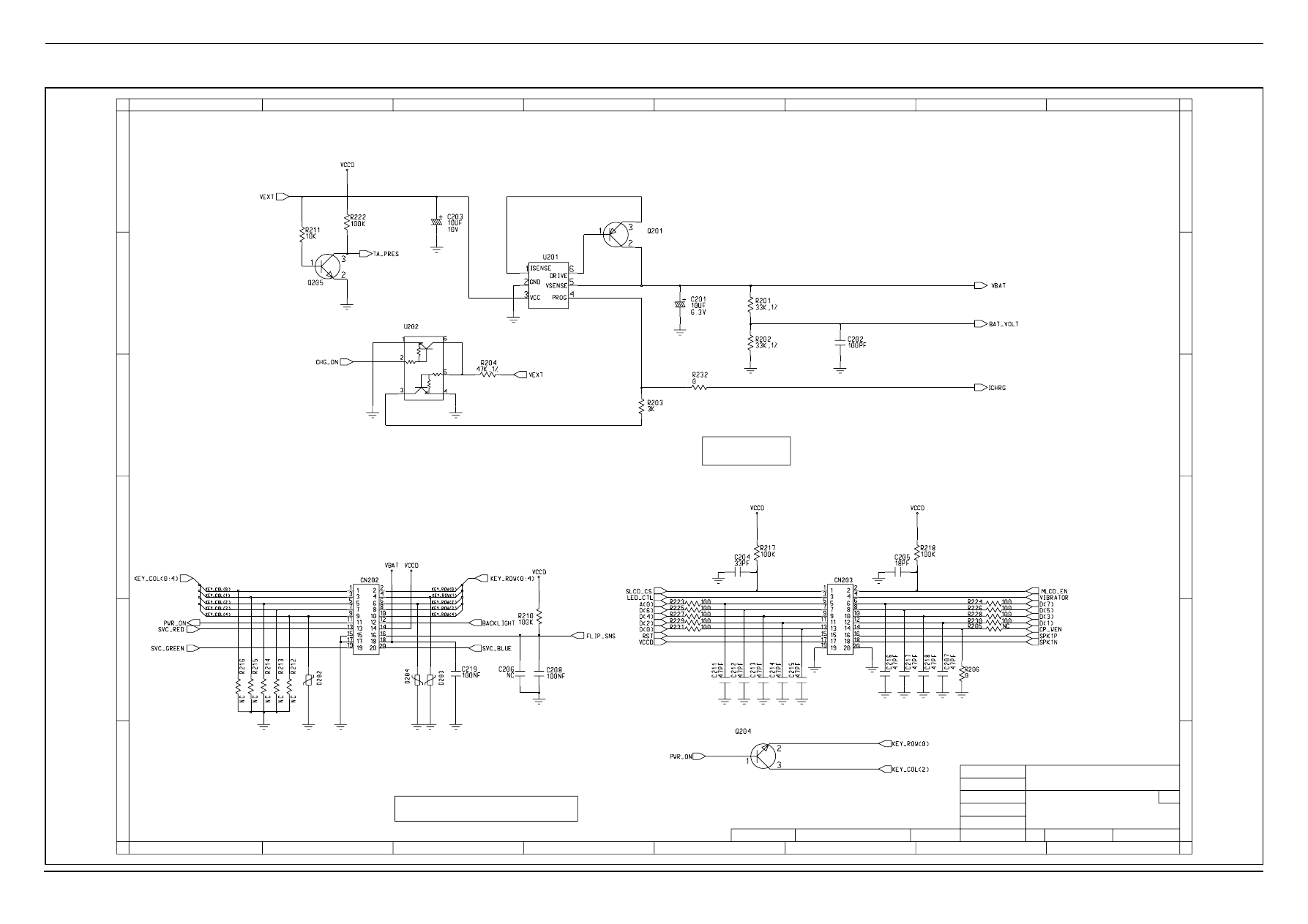

5-16. Charger & B'D-TO-B'D Connector Circuit Diagram

background image

SAMSUNG Proprietary-Contents may change without notice

5-17

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

REV

Drawing Number

D

6

of

COMPANY NAME

E

QA CHK

1

Size

A

4

SEC

Drawn by

C

Changed by

Date Changed

C

5

6

8

Engineer

10

TITLE:

7

3

SGH-Q208

A3

B

4

F

8

I/F CONNECTOR

E

1

5

R&D CHK

A

MFG ENGR CHK

Sheet

B

2

3

Time Changed

7

DOC CTRL CHK

D

F

2

SAMY

SAMY

2:06:48 pm

2002.01.17

SAMY

3

0.1

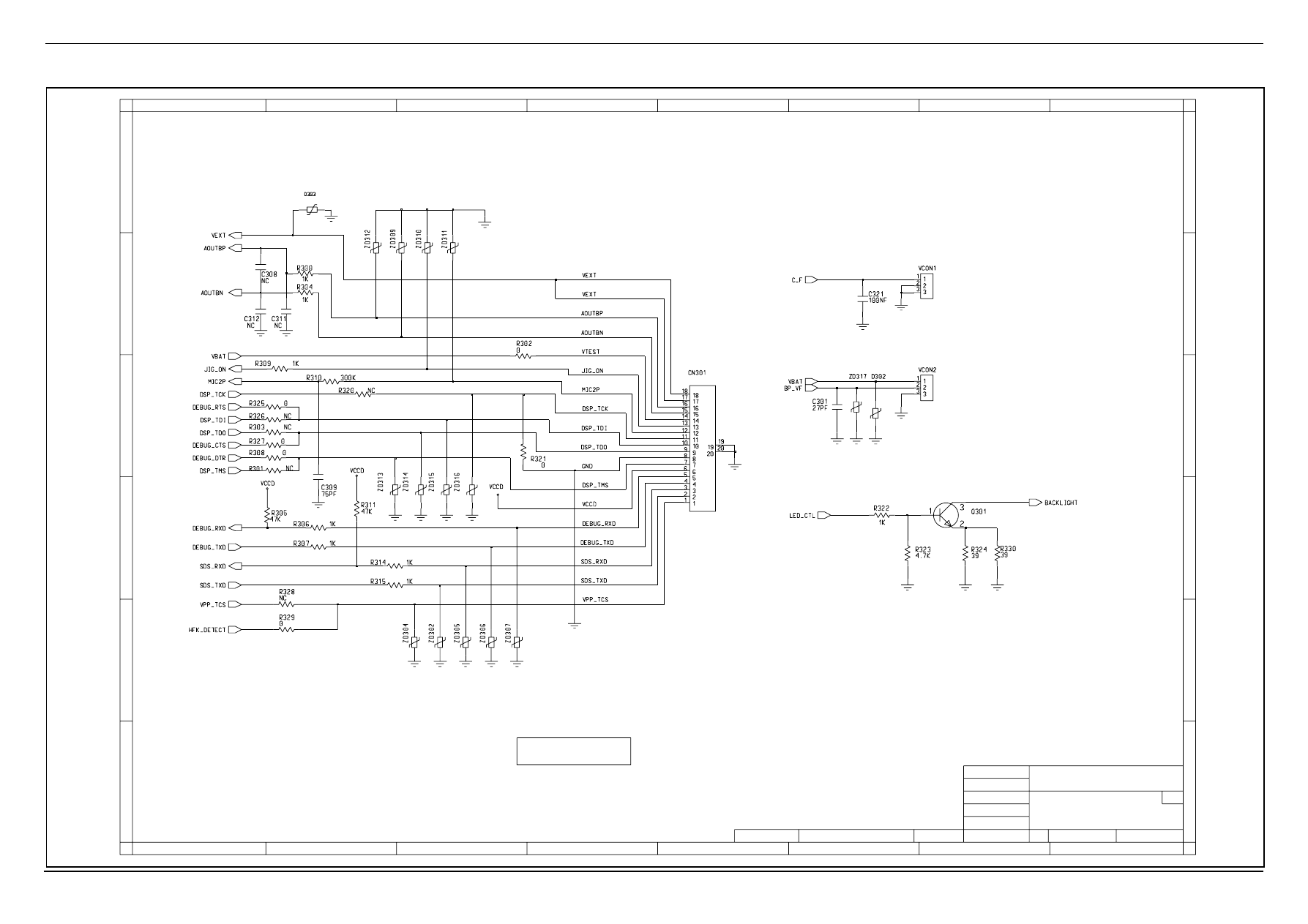

5-17. I/F Connector Circuit Diagram

background image

SAMSUNG Proprietary-Contents may change without notice

5-18

5-18. Audio Circuit Diagram

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

B

10

C

Drawing Number

COMPANY NAME

5

D

AUDIO

Size

4

A

D

Sheet

8

A

Time Changed

F

4

2

B

A3

Engineer

6

of

3

Date Changed

R&D CHK

1

SEC

DOC CTRL CHK

5

QA CHK

REV

E

TITLE:

8

2

1

Changed by

3

F

6

MFG ENGR CHK

7

7

E

C

Drawn by

SAMY

2002.01.17

8:55:41 am

SAMY

SAMY

0.1

4

SGH-Q208

background image

SAMSUNG Proprietary-Contents may change without notice

5-19

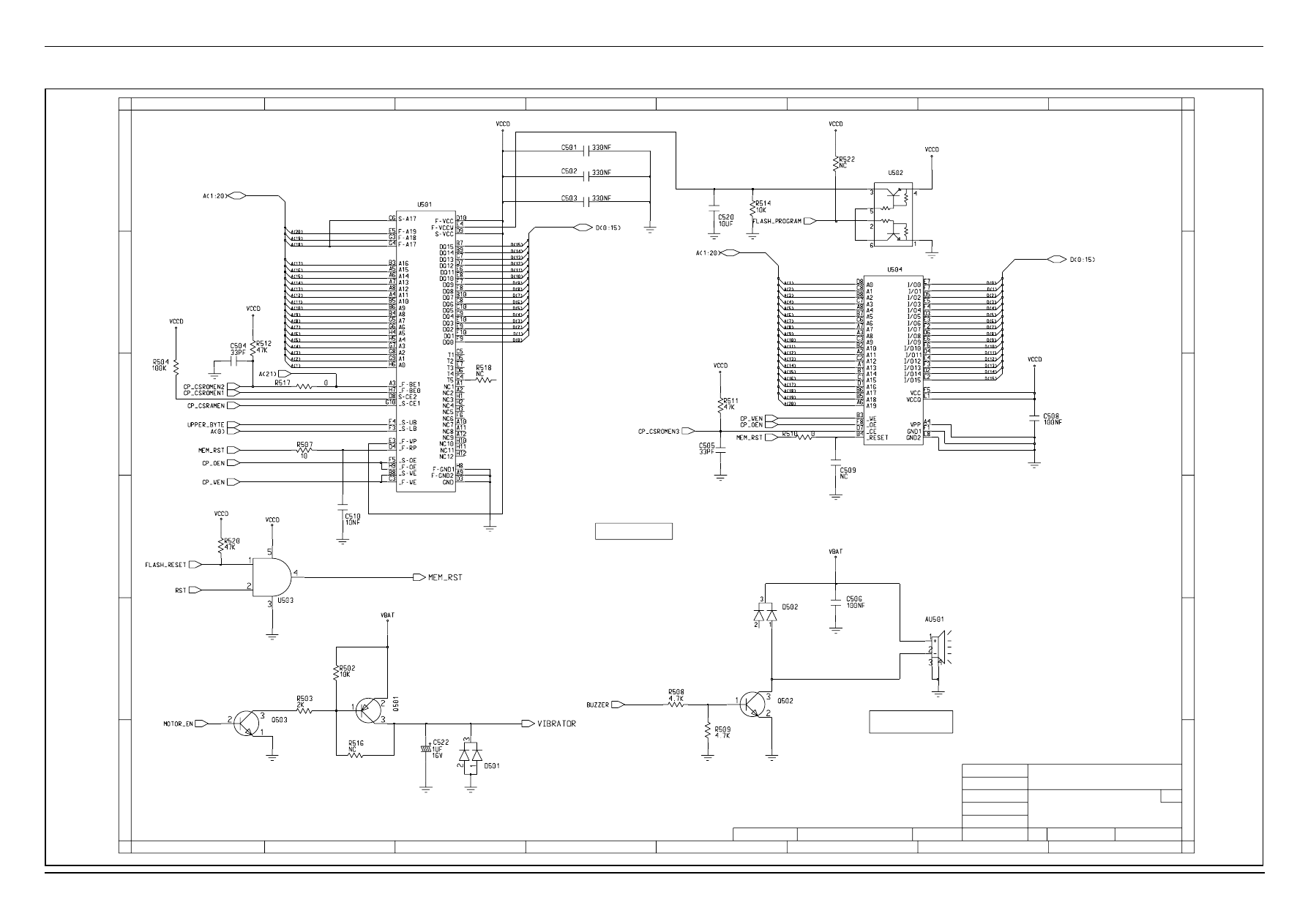

5-19. Memory & Buzzer Circuit Diagram

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

Drawing Number

2

7

A

8

5

6

Engineer

6

7

5

Date Changed

C

Time Changed

E

8

MFG ENGR CHK

D

MEMORY

Changed by

1

QA CHK

2

4

F

E

F

R&D CHK

of

C

Size

3

4

A

DOC CTRL CHK

REV

BUZZER

Sheet

COMPANY NAME

1

Drawn by

TITLE:

10

SEC

3

B

D

SAMY

SAMY

3:07:43 pm

2002.01.17

SAMY

5

0.1

SGH-Q208

A3

B

background image

SAMSUNG Proprietary-Contents may change without notice

5-20

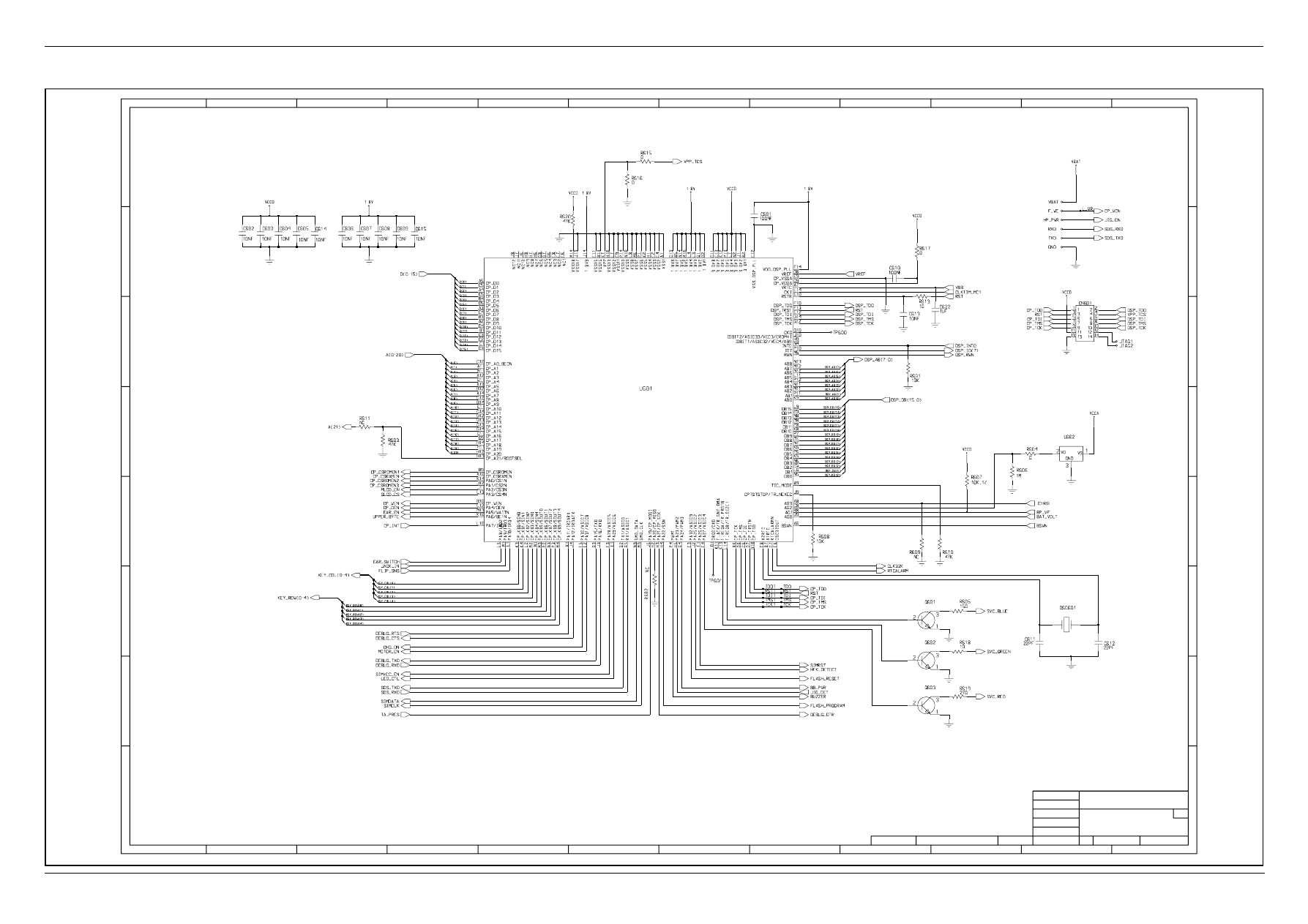

5-20. Trident Circuit Diagram

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

9

4

F

Drawn by

4

G

2

8

7

5

TITLE

Time Changed

A

10

6

11

3

6

Engineer

10

8

B

D

D

7

H

G

MFG ENGR CHK

QA CHK

F

5

REV

12

Sheet

A

C

1

SGH-Q208

A2

10

Date Changed

R&D CHK

DOC CTRL CHK

11

6

TRIDENT

of

1

Size

Drawing Number

C

E

12

3

E

Changed by

9

COMPANY NAME

2

B

SEC

H

SAMY

2002.01.17

2:28:36 pm

SAMY

SAMY

0.1

background image

SAMSUNG Proprietary-Contents may change without notice

5-21

5-21. CSP1089 Circuit Diagram

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

A

F

C

REV

DOC CTRL CHK

1

8

5

E

E

F

8

B

1

QA CHK

3

Date Changed

Engineer

4

D

Changed by

2

3

A

COMPANY NAME

SEC

7

6

SAMY

7

0.1

SGH-Q208

A3

10

Size

of

Time Changed

B

5

6

Sheet

Drawing Number

7

2

4

TITLE:

CSP1089

Drawn by

R&D CHK

C

MFG ENGR CHK

D

SAMY

SAMY

10:54:38 am

2002.01.17

background image

SAMSUNG Proprietary-Contents may change without notice

5-22

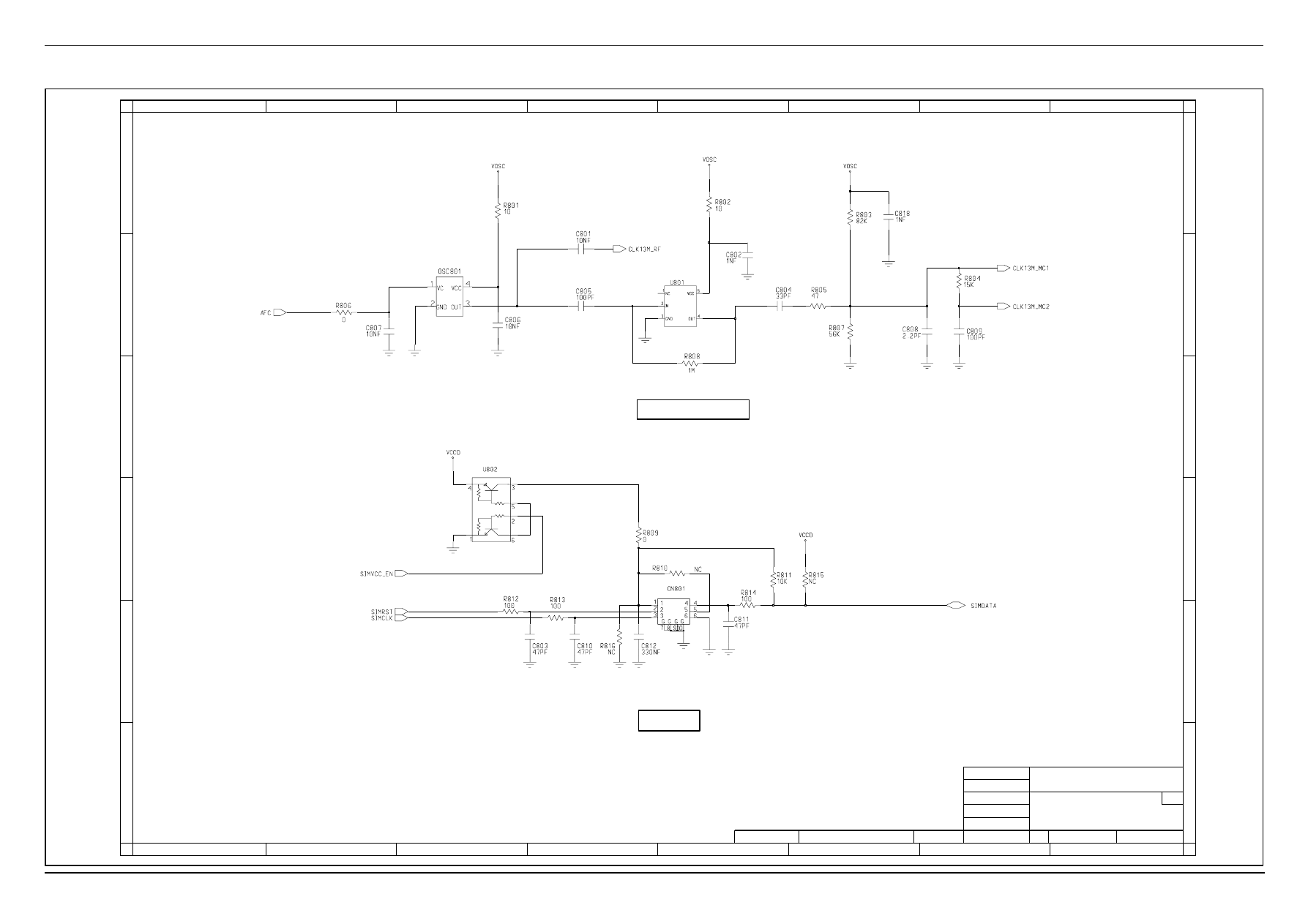

5-22. X-TAL(13 MHz) & SIM Circuit Diagram

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

D

D

Changed by

Date Changed

8

1

3

B

C

4

5

6

Size

TITLE:

6

DOC CTRL CHK

X-TAL(13MHz)

F

E

SEC

E

A3

8

QA CHK

4

SIM

Drawing Number

Sheet

of

COMPANY NAME

Drawn by

R&D CHK

Engineer

REV

A

7

10

8

0.1

2

MFG ENGR CHK

B

F

Time Changed

2

A

5

7

C

1

3

SAMY

2002.01.17

8:08:40 pm

SAMY

SAMY

SGH-Q208

background image

SAMSUNG Proprietary-Contents may change without notice

5-23

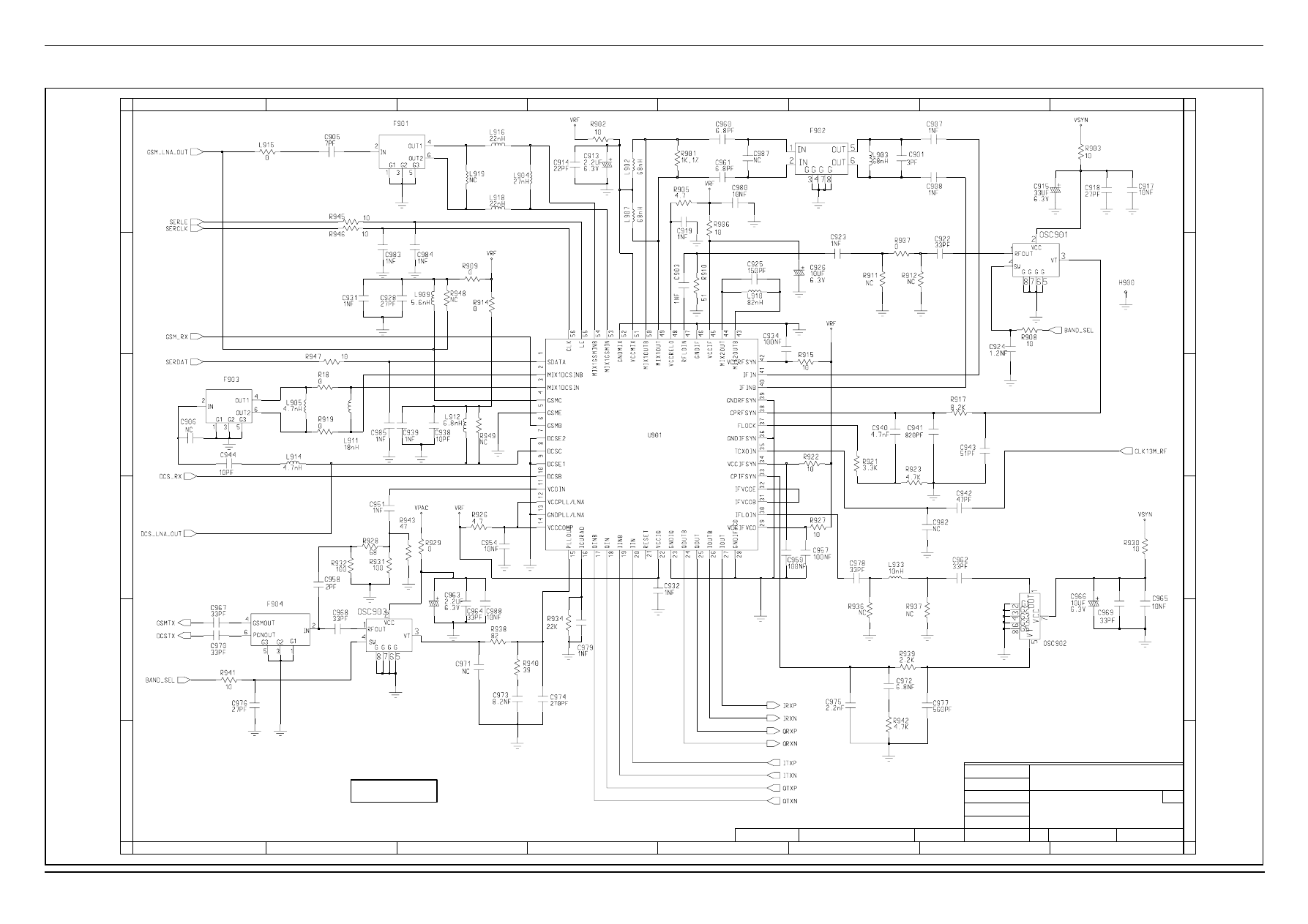

5-23. Bright3 Circuit Diagram

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

A

6

C

Changed by

3

3

C

D

Size

TITLE:

F

4

Sheet

5

B

4

0.1

MFG ENGR CHK

7

FILM_CAP

R&D CHK

A

Drawn by

A

FILM_CAP

4

B

of

E

Drawing Number

A

7

R&D CHK

2

SEC

FILM_CAP

D

E

9

of

6

5

SAMY

5

8

Sheet

1

1

B

D

FILM_CAP

E

4

DOC CTRL CHK

1

10

8

Date Changed

8

3

REV

C

COMPANY NAME

F

6

8

FILM_CAP

B

REV

Changed by

Engineer

F

5

MFG ENGR CHK

2

DOC CTRL CHK

Drawn by

Time Changed

COMPANY NAME

Time Changed

Date Changed

D

QA CHK

Engineer

1

6

BRIGHT3

F

E

3

Size

QA CHK

SGH-Q208

A3

10:39:03 am

SAMY

SAMY

A3

2

TITLE:

7

7

FILM_CAP

C

2

Drawing Number

2002.01.17

10:39:03 am

SAMY

SAMY

background image

SAMSUNG Proprietary-Contents may change without notice

5-24

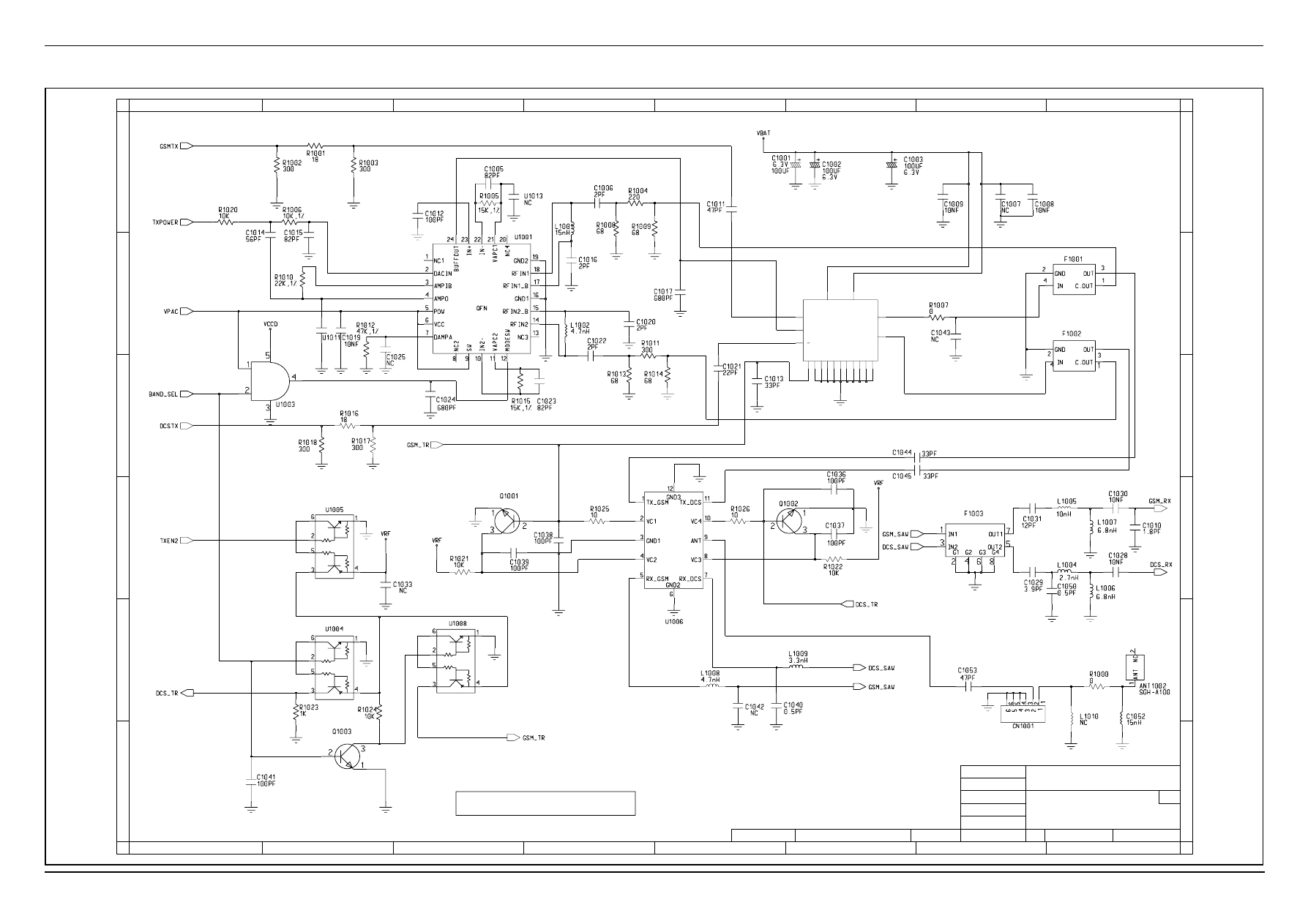

5-24. Transmitter & Receiver Circuit Diagram

SGH-Q208 Flow Chart of Troubleshooting and Circuit Diagrams

1

D

Engineer

2

4

8

QA CHK

MFG ENGR CHK

Drawing Number

REV

Sheet

10

Time Changed

5

C

D

E

TITLE:

DOC CTRL CHK

COMPANY NAME

2

TRANSMITTER & RECEIVER

7

R&D CHK

A

B

4

3

F

SAMY

SAMY

0.1

10

SGH-Q208

A3

Size

A

5

6

of

6

8

Date Changed

Changed by

Drawn by

F

C

3

SEC

E

B

1

7

SAMY

2002.01.17

6:40:54 pm

4

2 VAPC

VCTL

7

3

VDD1

VDD2

6

12

13

G5

G6

14

15

G7

G8

16

17

G9

1 GSM

5

POUTDCS

POUTGSM

U1002

DCS

8

9

G1

G10

18

G2

10

11

G3

G4


Wyszukiwarka

Podobne podstrony:
Samsung SGH R200 service manual
Samsung SGH E710 service manual
Samsung SGH T500 service manual
Samsung SGH A408 service manual
Samsung SGH N288 service manual
Samsung SGH A288 service manual
Samsung SGH S341i service manual
Samsung SGH E715 service manual
Samsung SGH X120 service manual
Samsung SGH Q100 service manual
Samsung SGH 2400 service manual
Samsung SGH N200 service manual
Samsung SGH R220E service manual
Samsung SGH Q105 service manual
Samsung SGH D410 service manual
Samsung SGH A200 service manual
Samsung SGH R220 service manual

więcej podobnych podstron
