AUDI 5000CS QUATRO 1988

background image

SYSTEM WIRING DIAGRAMS

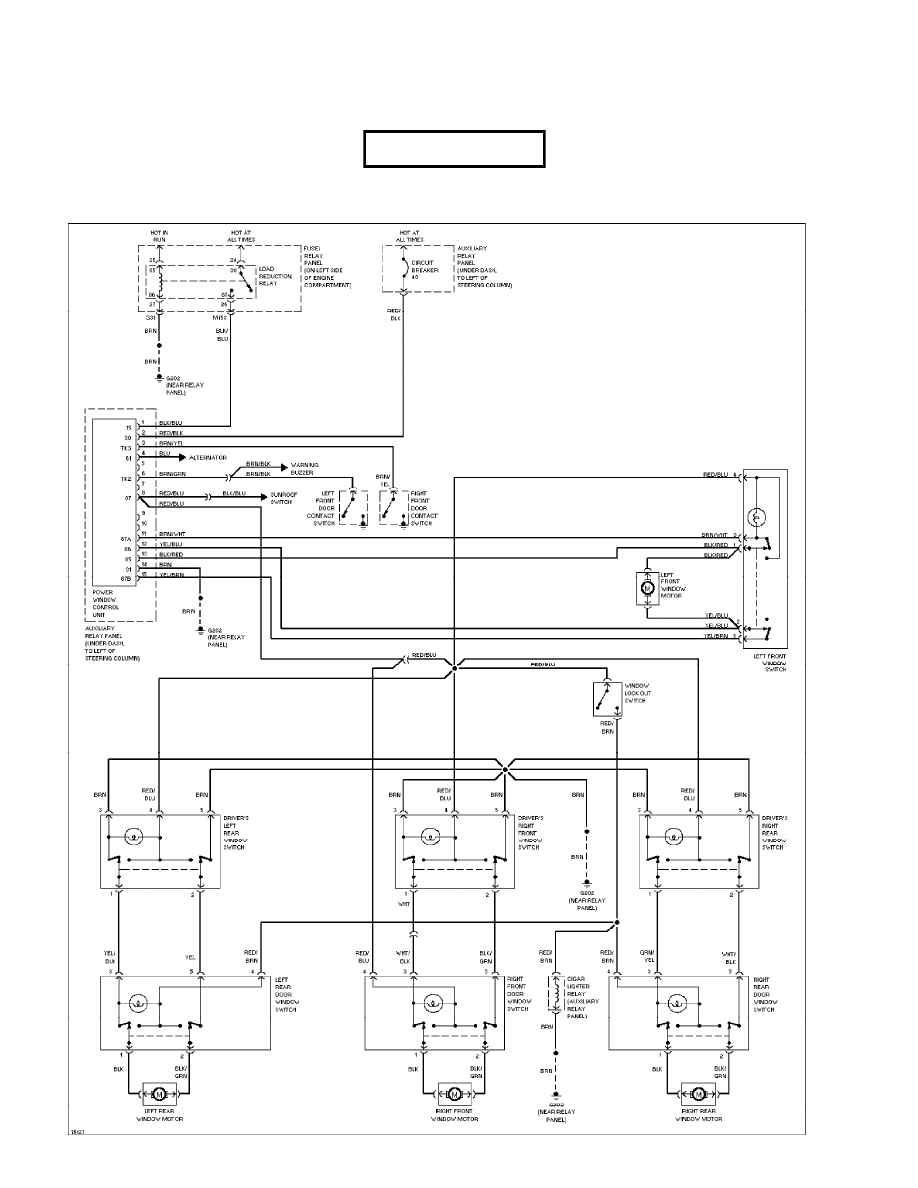

Power Window Circuit

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:37PM

cdr@wp.pl

background image

SYSTEM WIRING DIAGRAMS

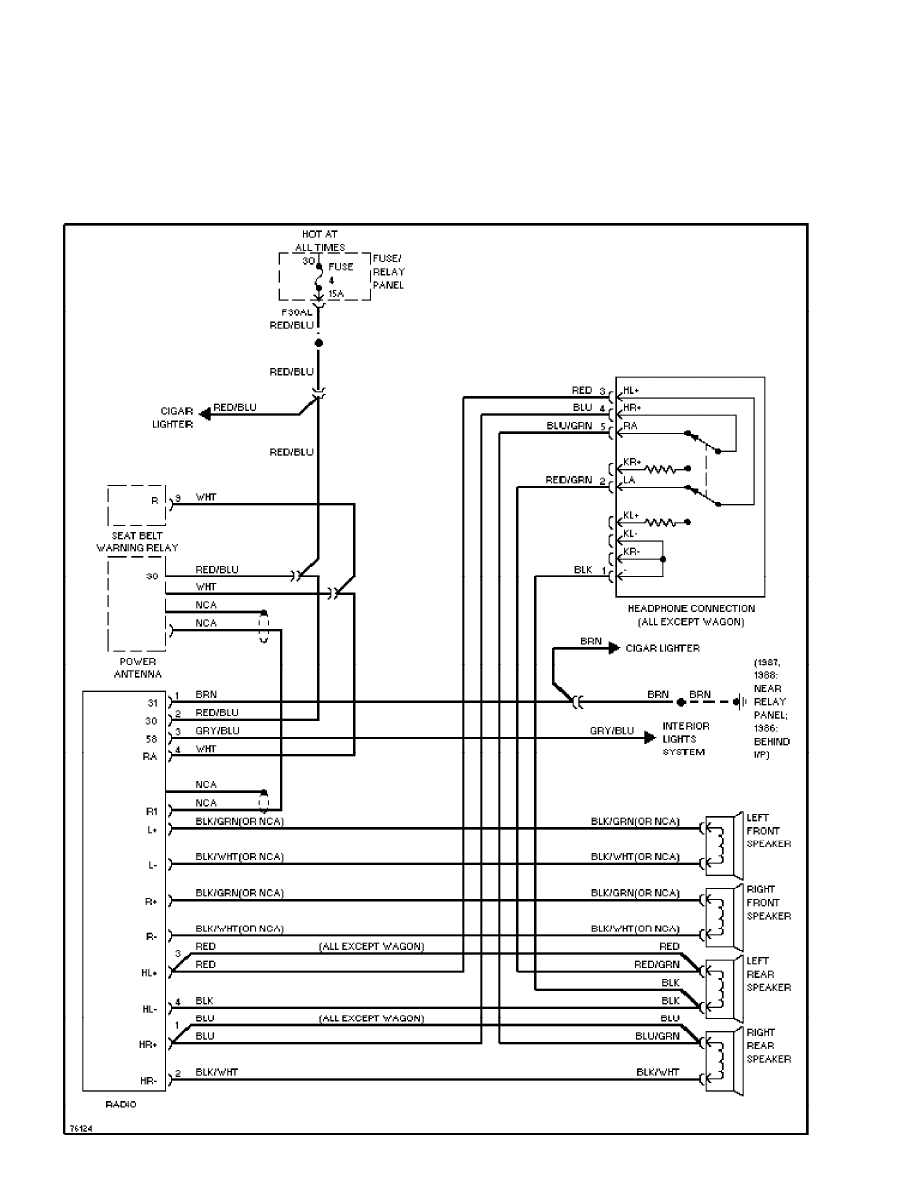

Radio Circuits

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:37PM

background image

SYSTEM WIRING DIAGRAMS

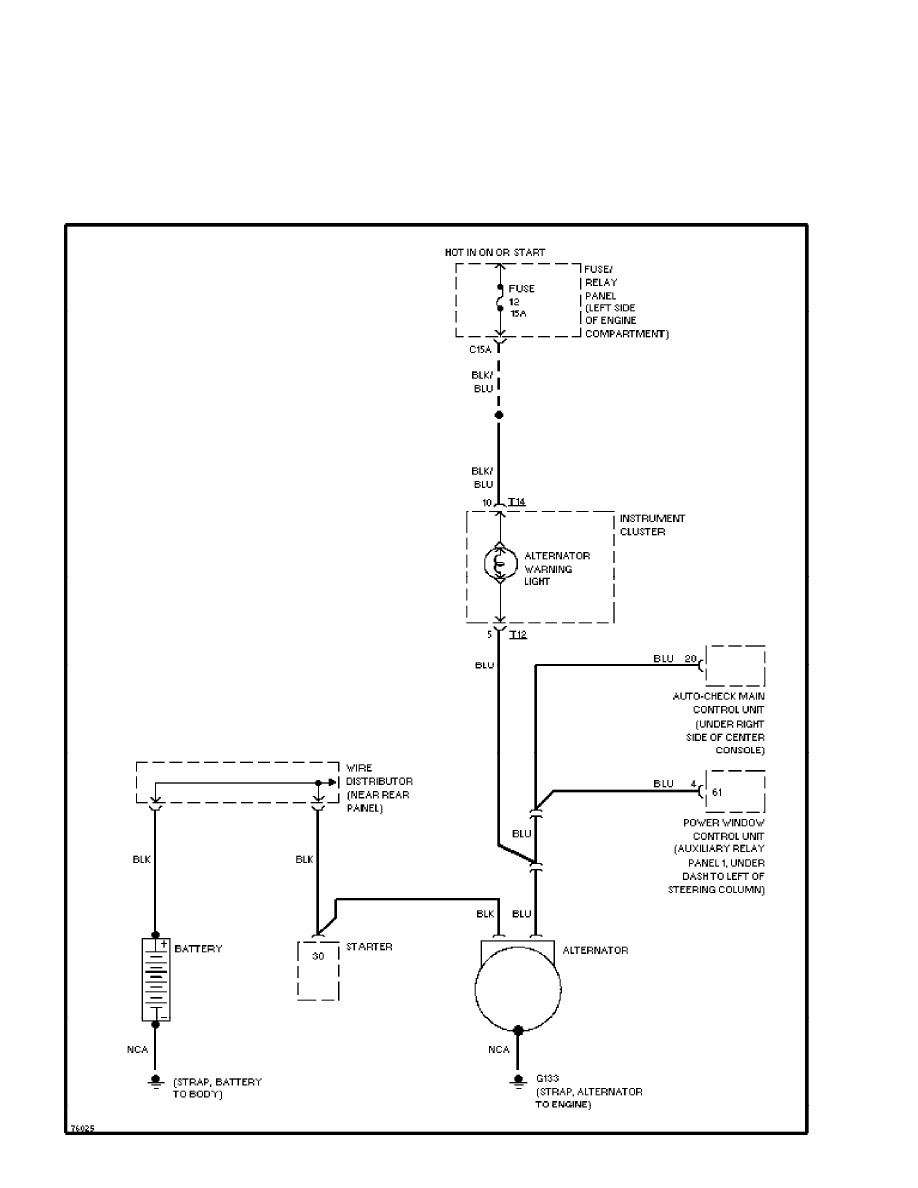

Charging Circuit

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:37PM

background image

SYSTEM WIRING DIAGRAMS

Starting Circuit

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:37PM

background image

SYSTEM WIRING DIAGRAMS

Front Wiper/Washer Circuit

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:37PM

background image

SYSTEM WIRING DIAGRAMS

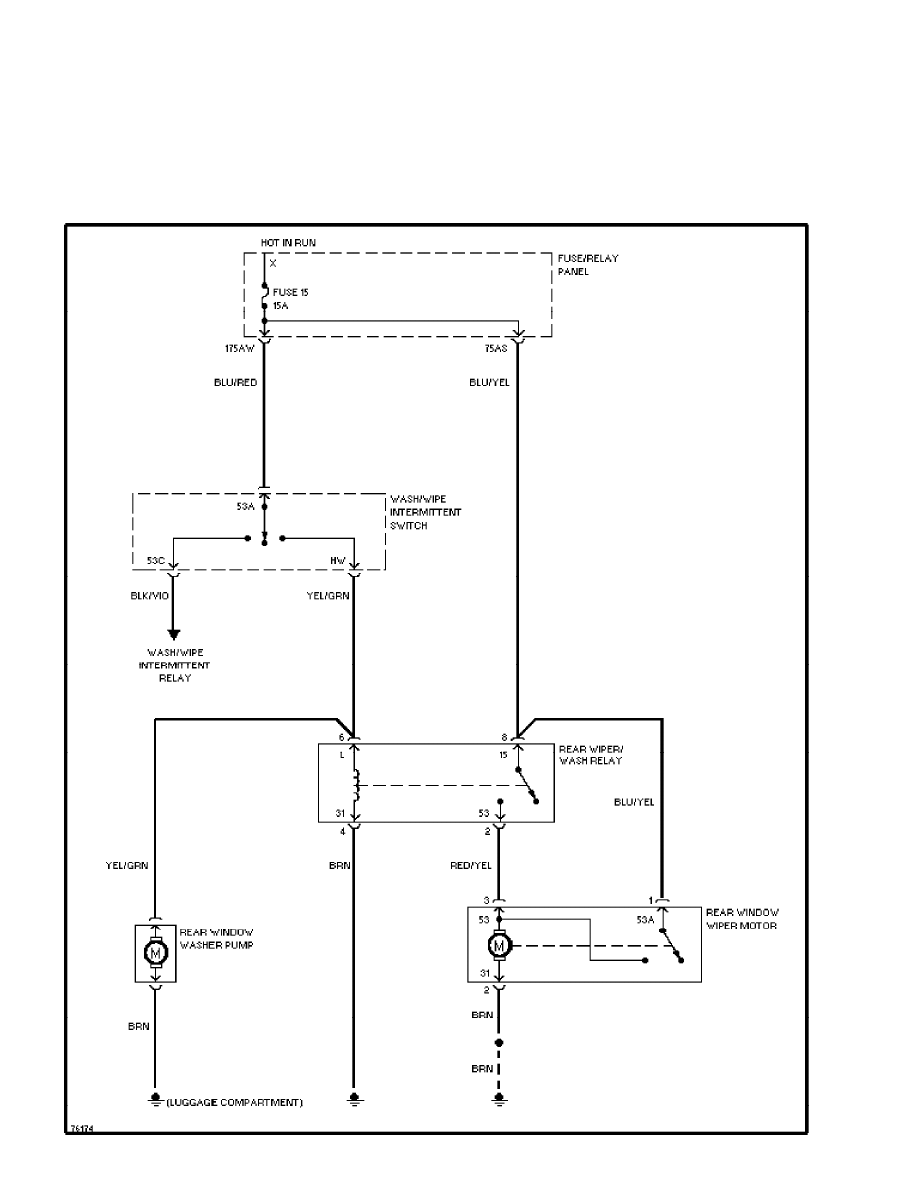

Rear Wiper/Washer Circuit

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:37PM

background image

SYSTEM WIRING DIAGRAMS

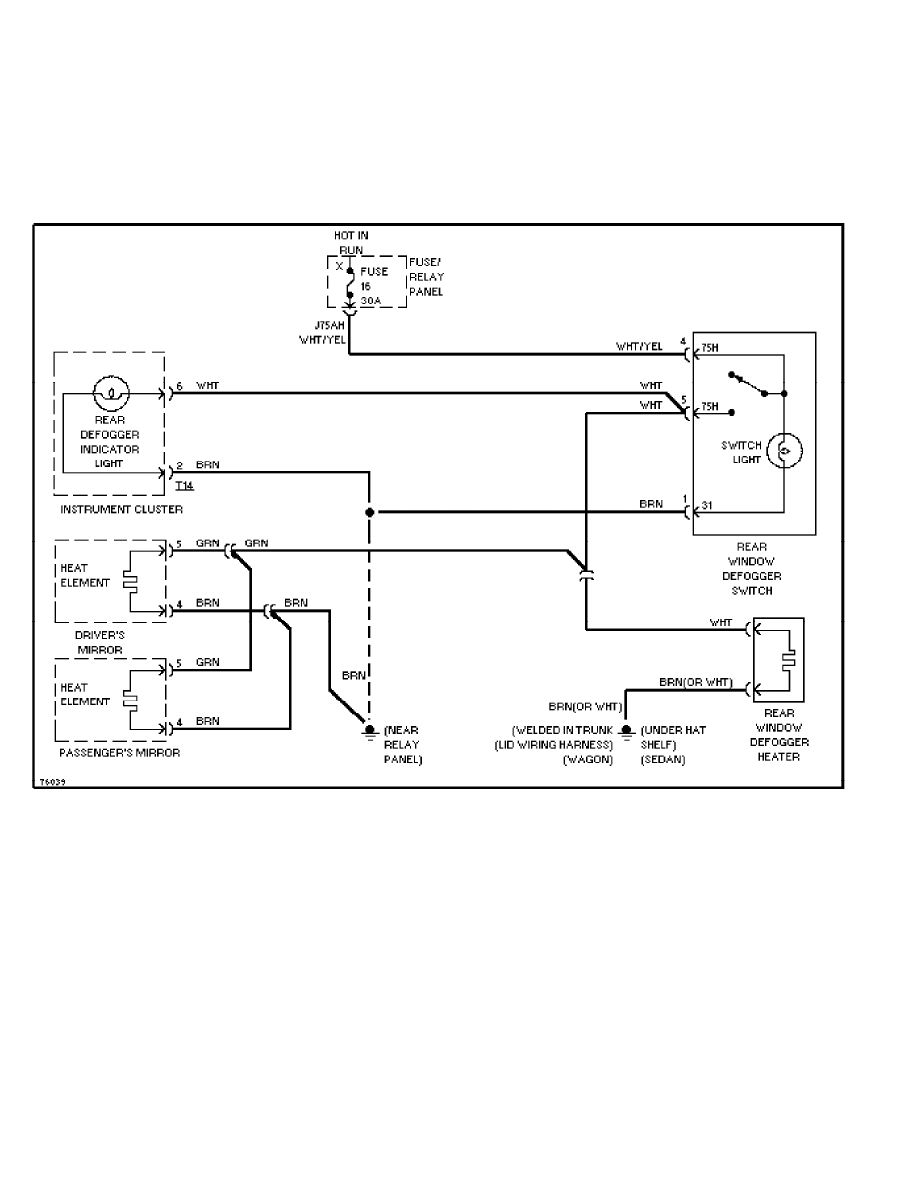

Defogger Circuit

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:26PM

background image

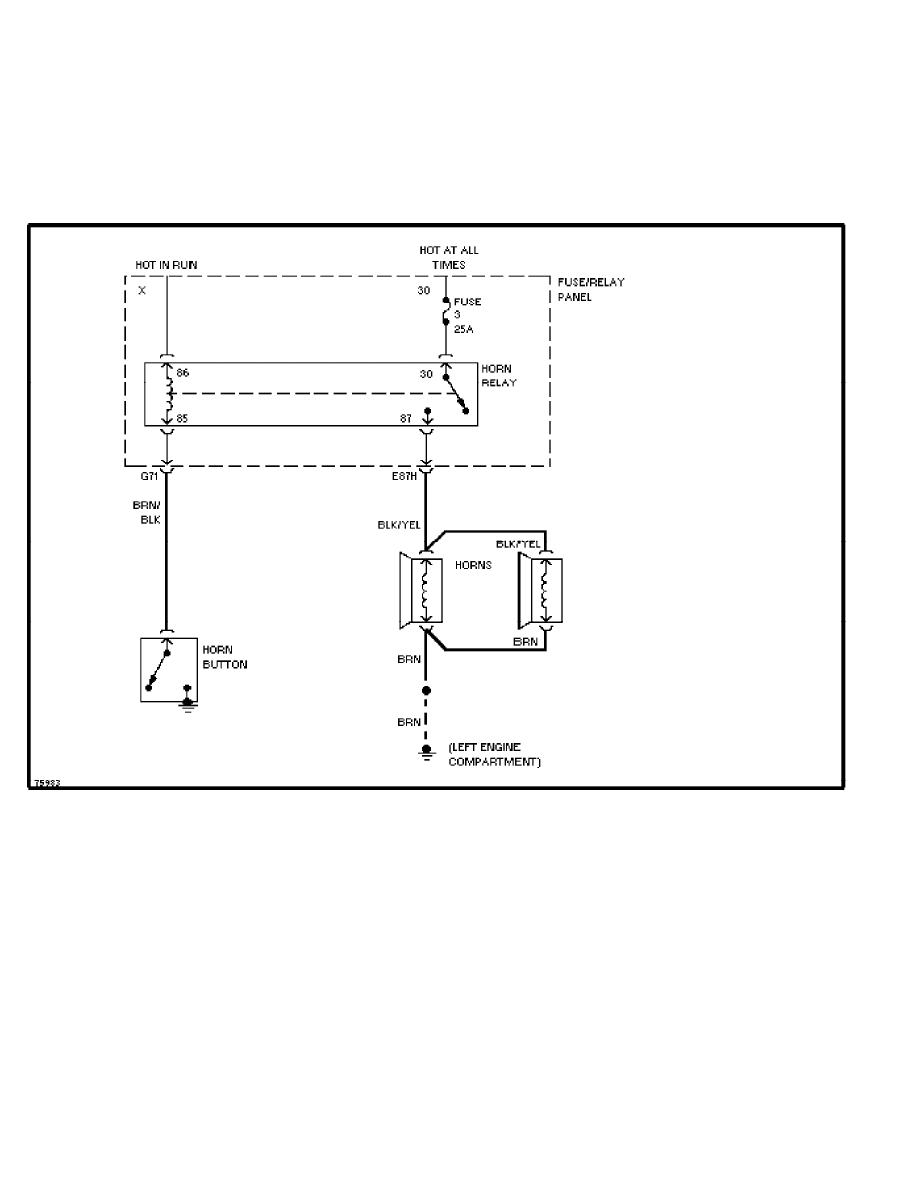

SYSTEM WIRING DIAGRAMS

Horn Circuit

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:26PM

background image

SYSTEM WIRING DIAGRAMS

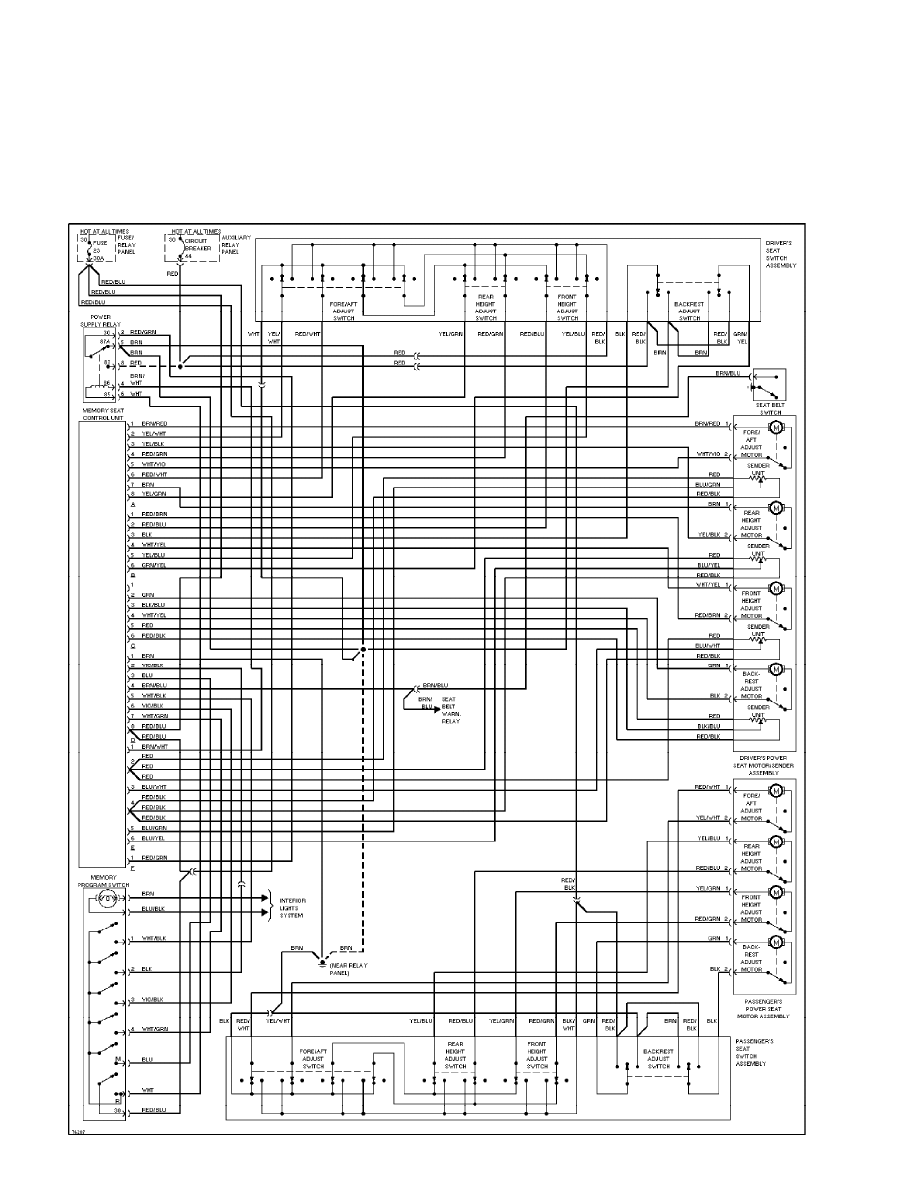

Memory Seat Circuit

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:26PM

background image

SYSTEM WIRING DIAGRAMS

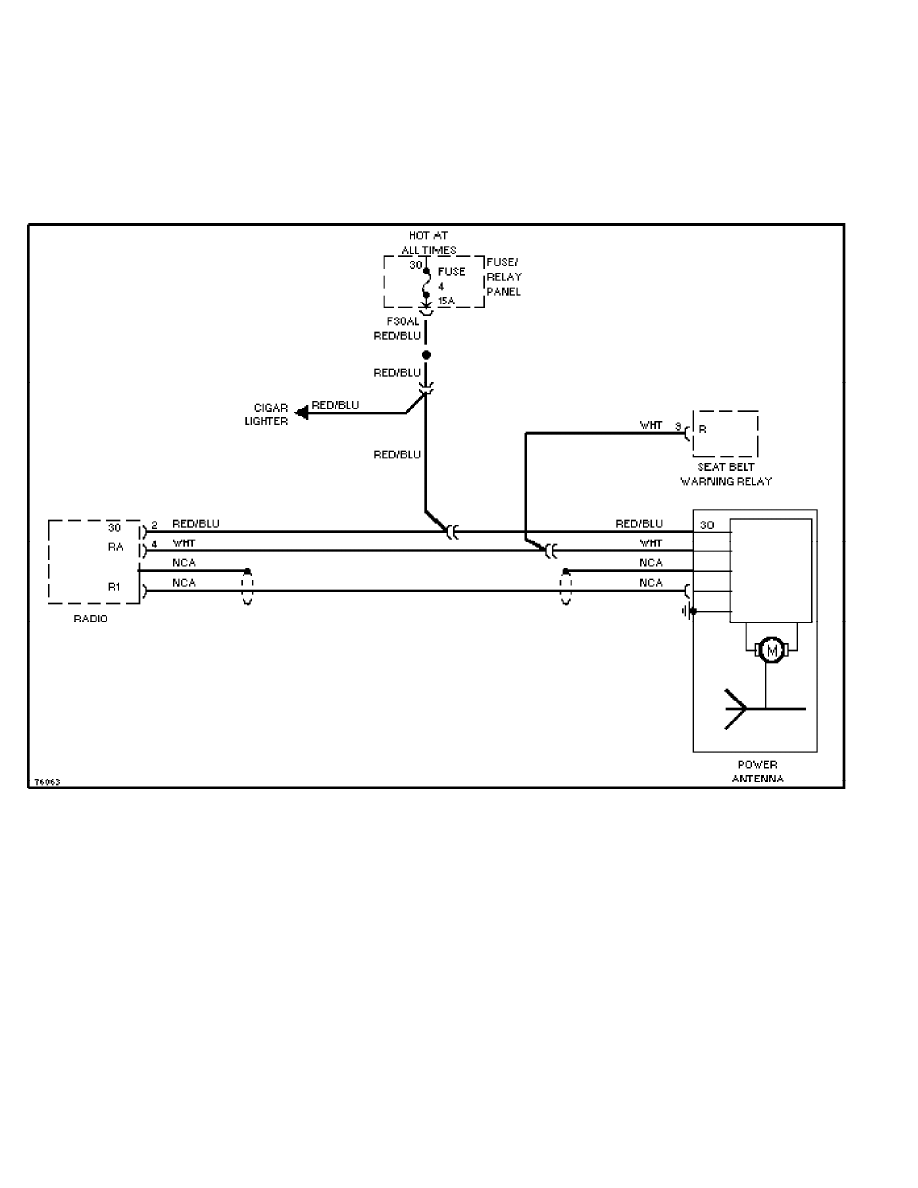

Power Antenna Circuit

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:36PM

background image

SYSTEM WIRING DIAGRAMS

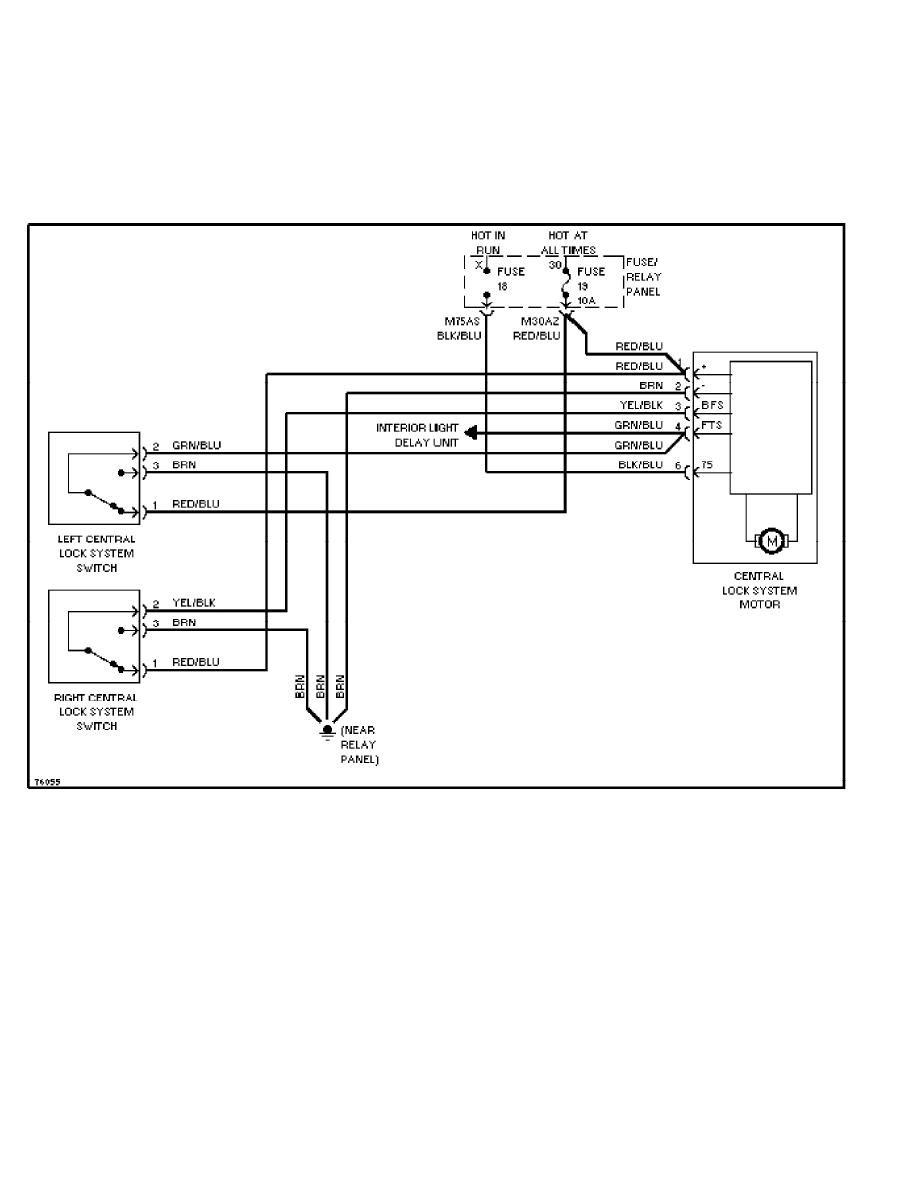

Power Door Lock Circuit

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:36PM

background image

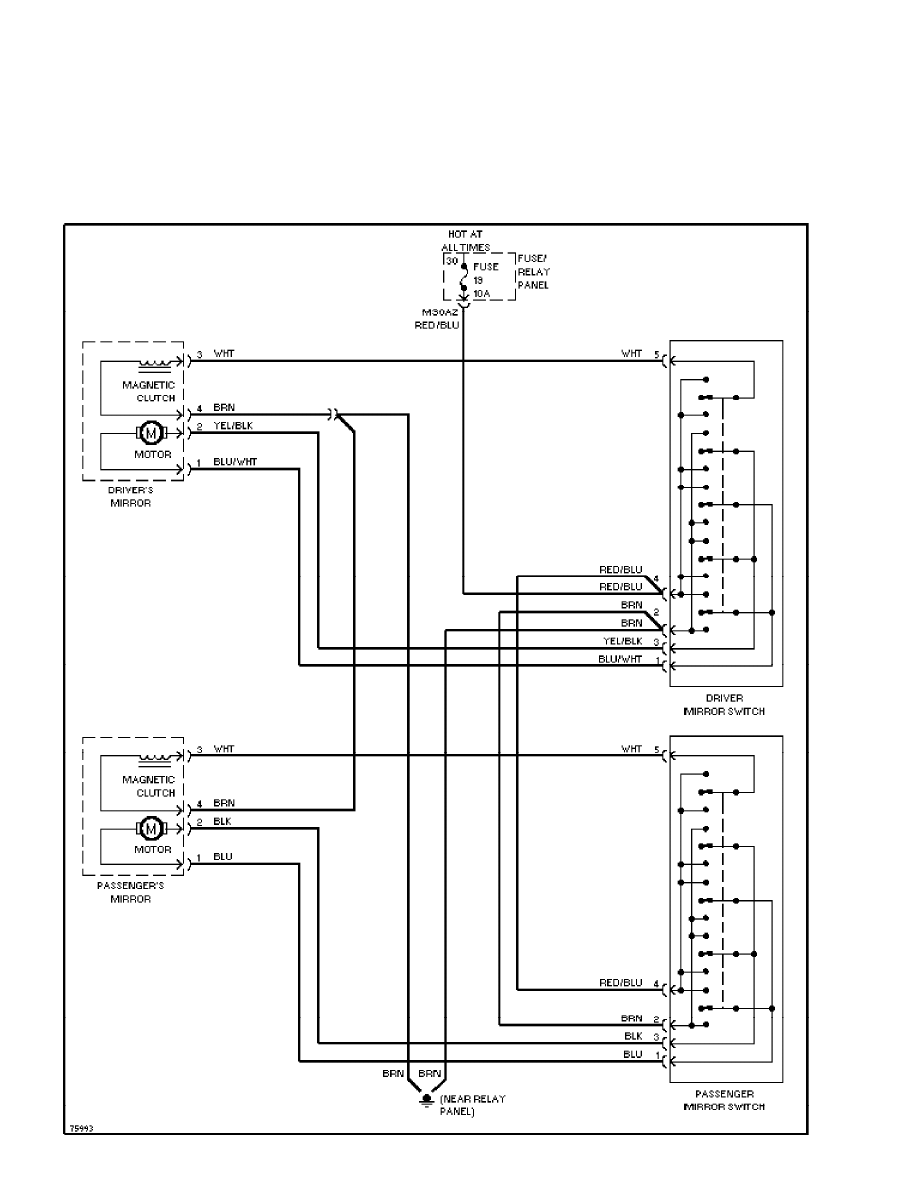

SYSTEM WIRING DIAGRAMS

Power Mirror Circuit

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:36PM

background image

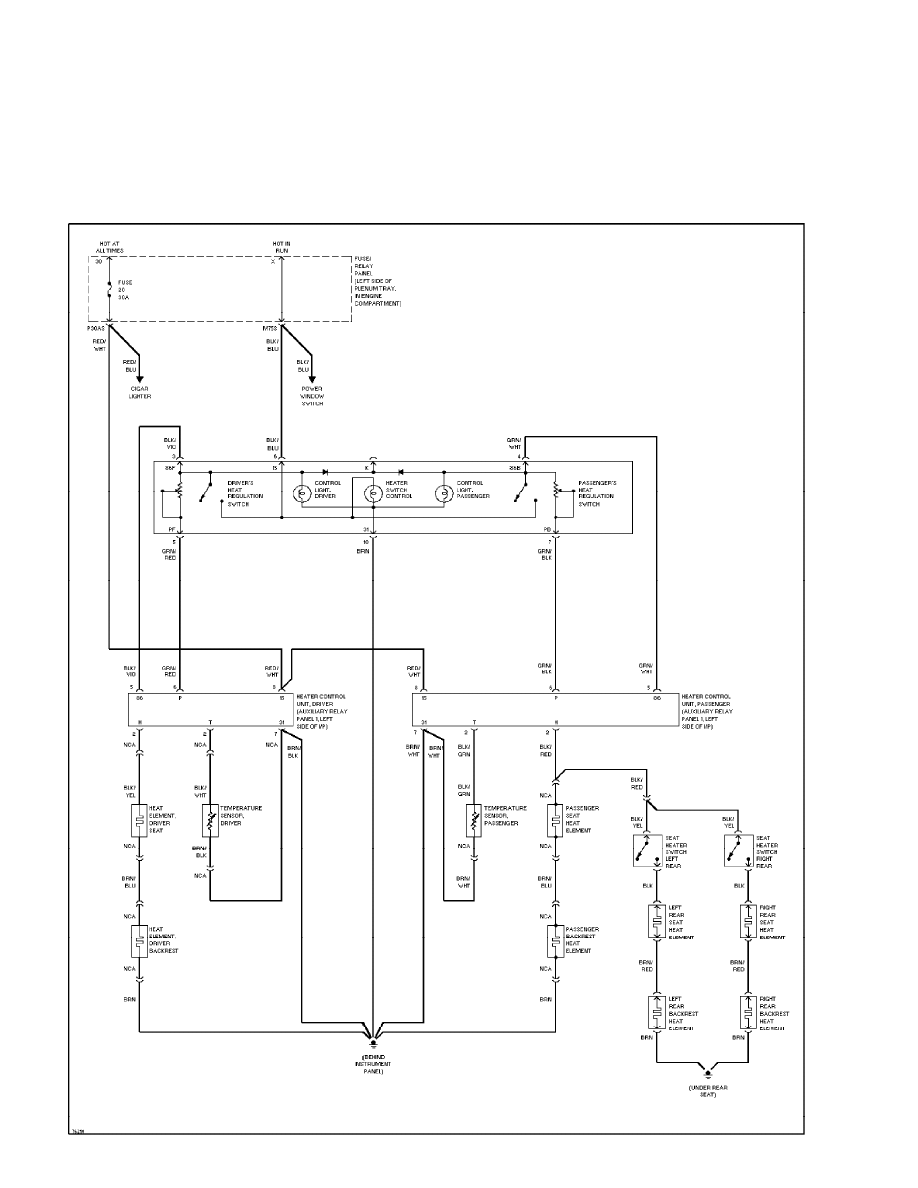

SYSTEM WIRING DIAGRAMS

Heated Seats Circuit

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:36PM

background image

SYSTEM WIRING DIAGRAMS

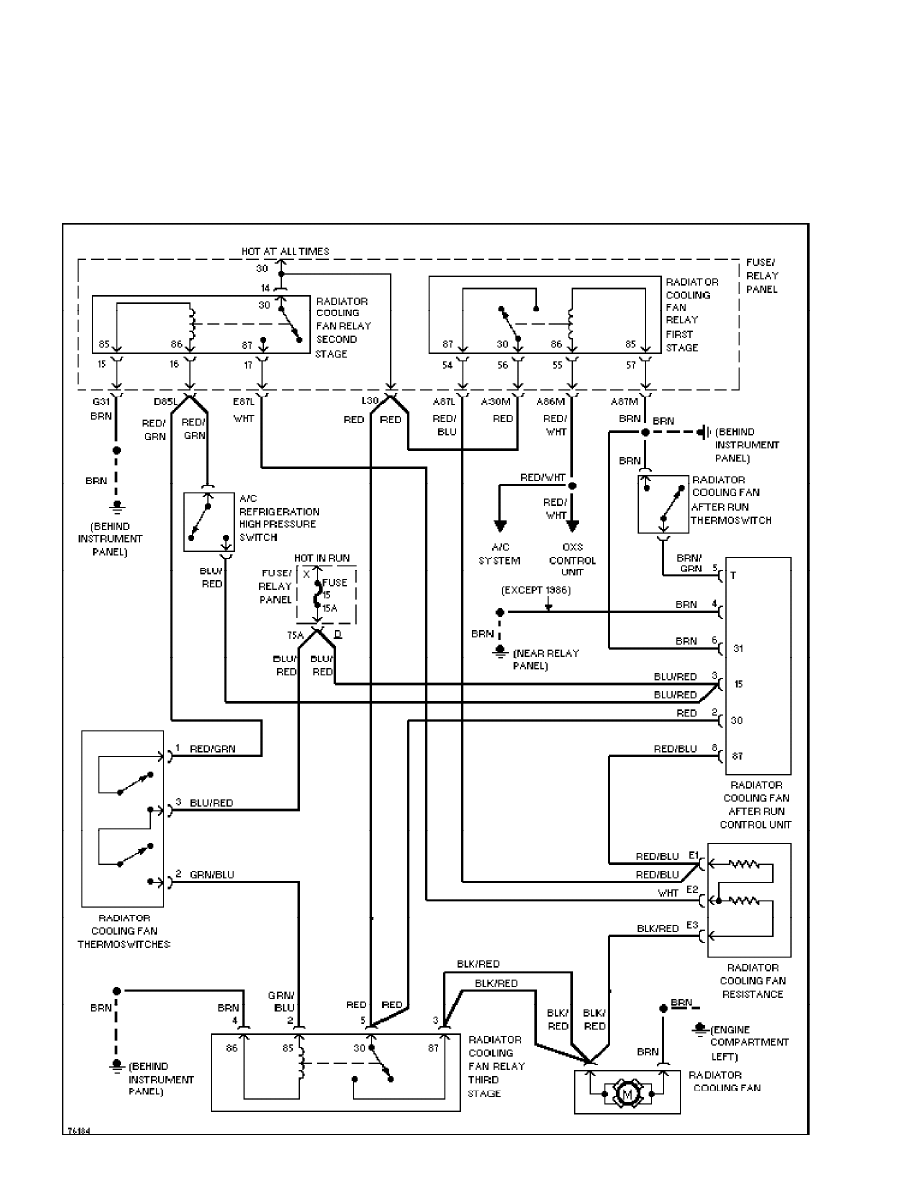

Cooling Fan Circuit

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:26PM

background image

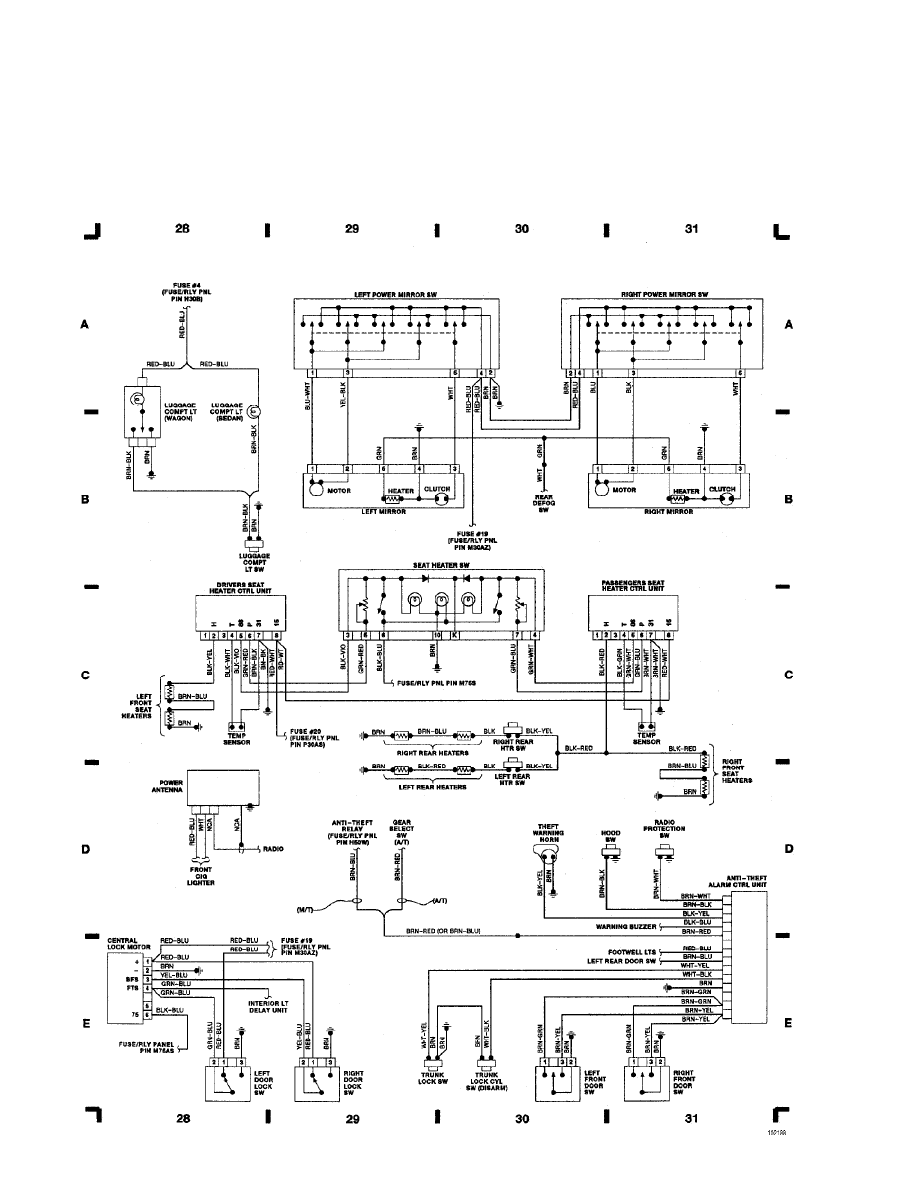

WIRING DIAGRAMS - NON-TURBO

Fig. 8: Power Mirrors, Anti-Theft & Seat Heating Systems

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:38PM

background image

WIRING DIAGRAMS - NON-TURBO

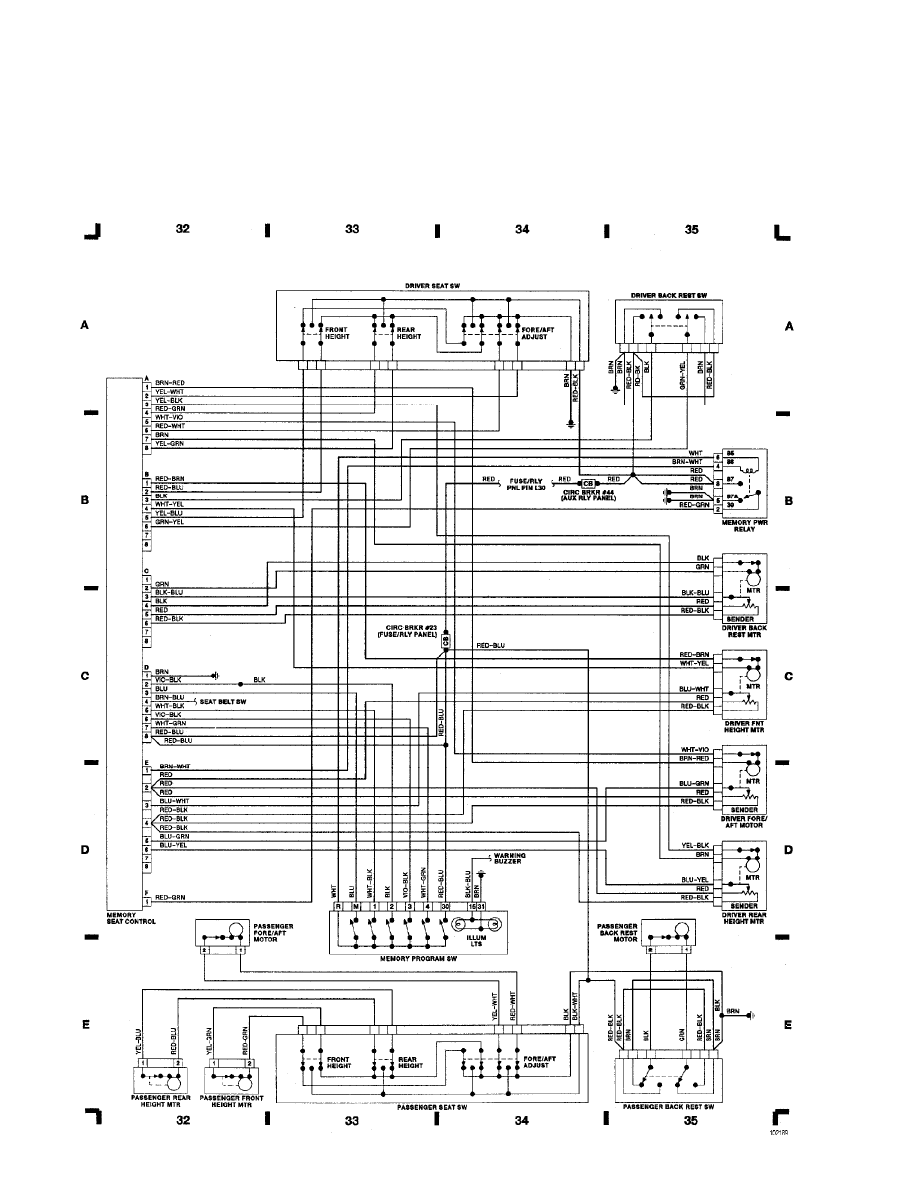

Fig. 9: Power Seat System

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:38PM

background image

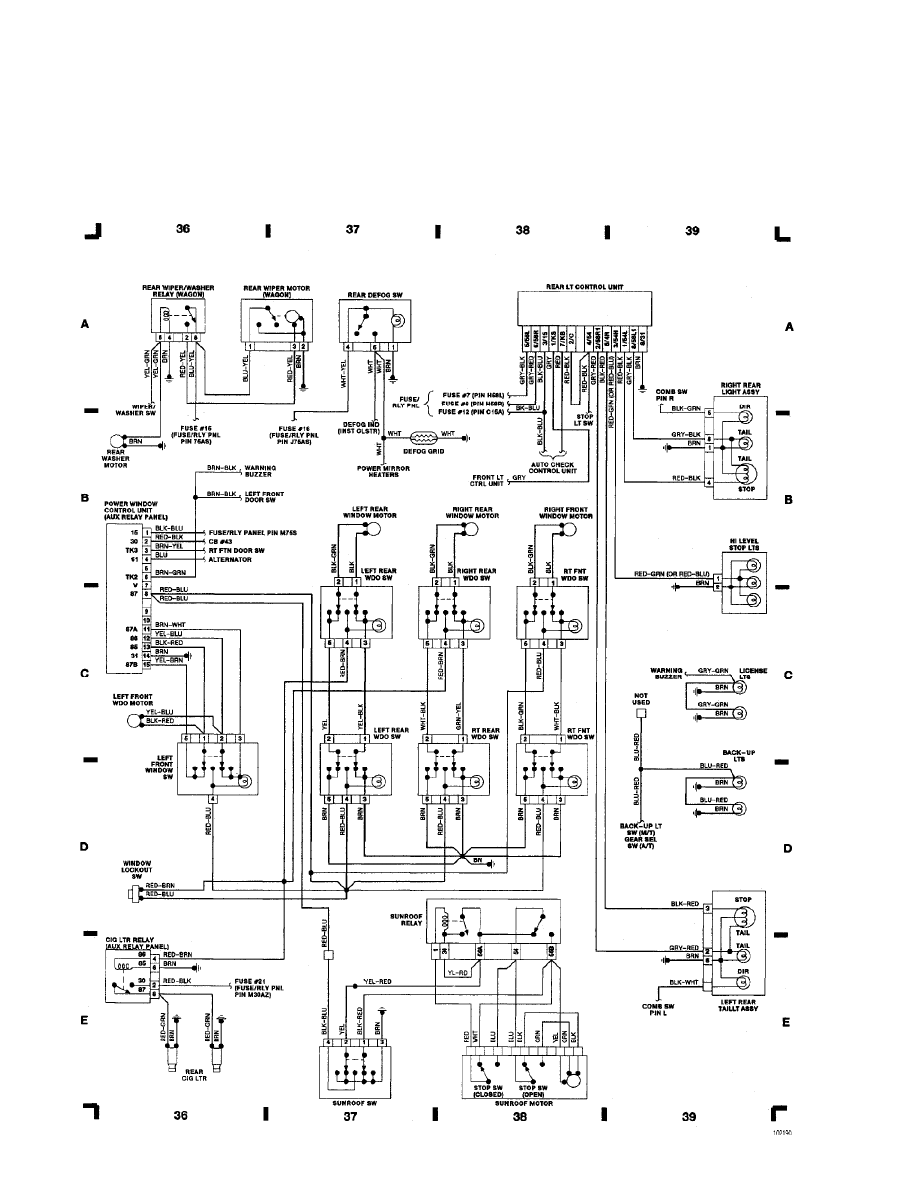

WIRING DIAGRAMS - NON-TURBO

Fig. 10: Rear Compartment & Accessories (Cont.)

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:38PM

background image

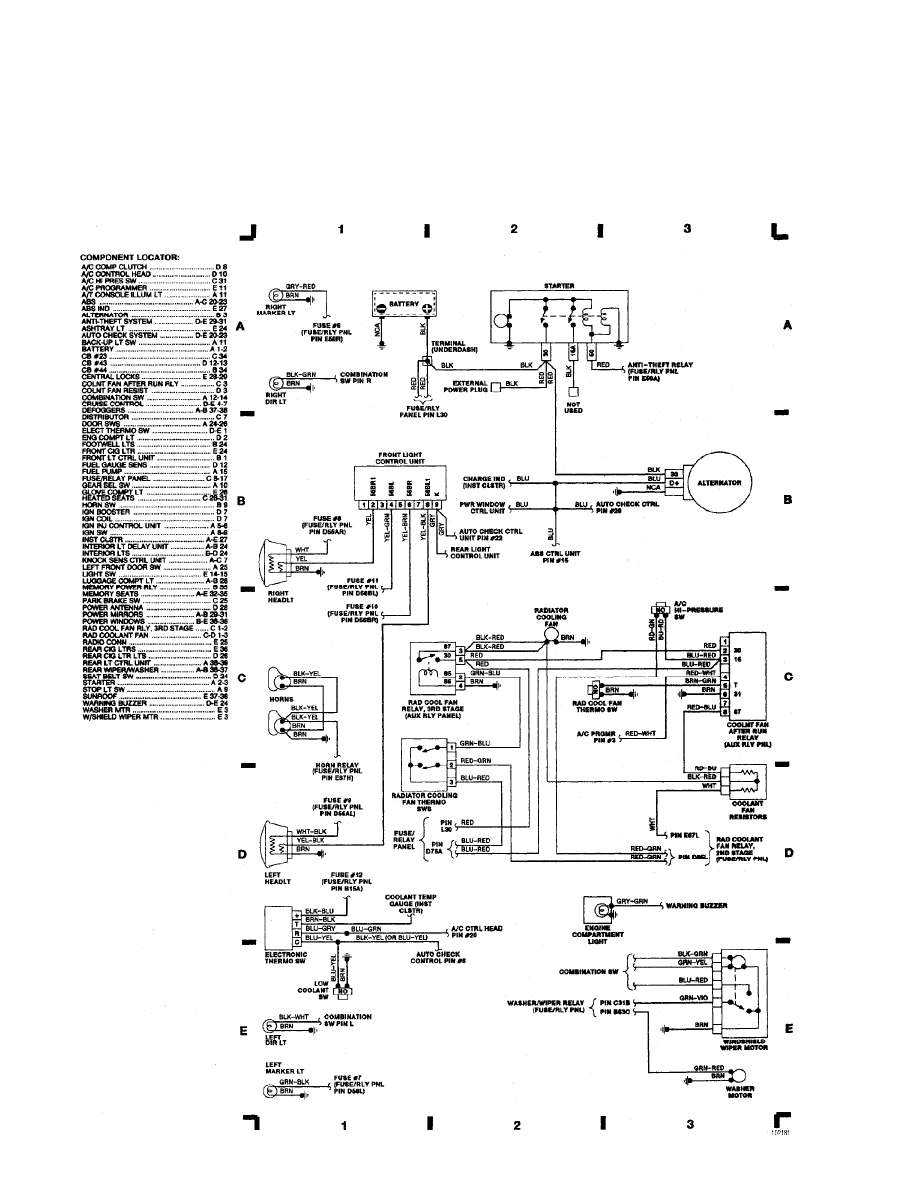

WIRING DIAGRAMS - NON-TURBO

Fig. 1: Engine Compartment

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:38PM

background image

WIRING DIAGRAMS - NON-TURBO

Fig. 2: Computer Engine Control System

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:38PM

background image

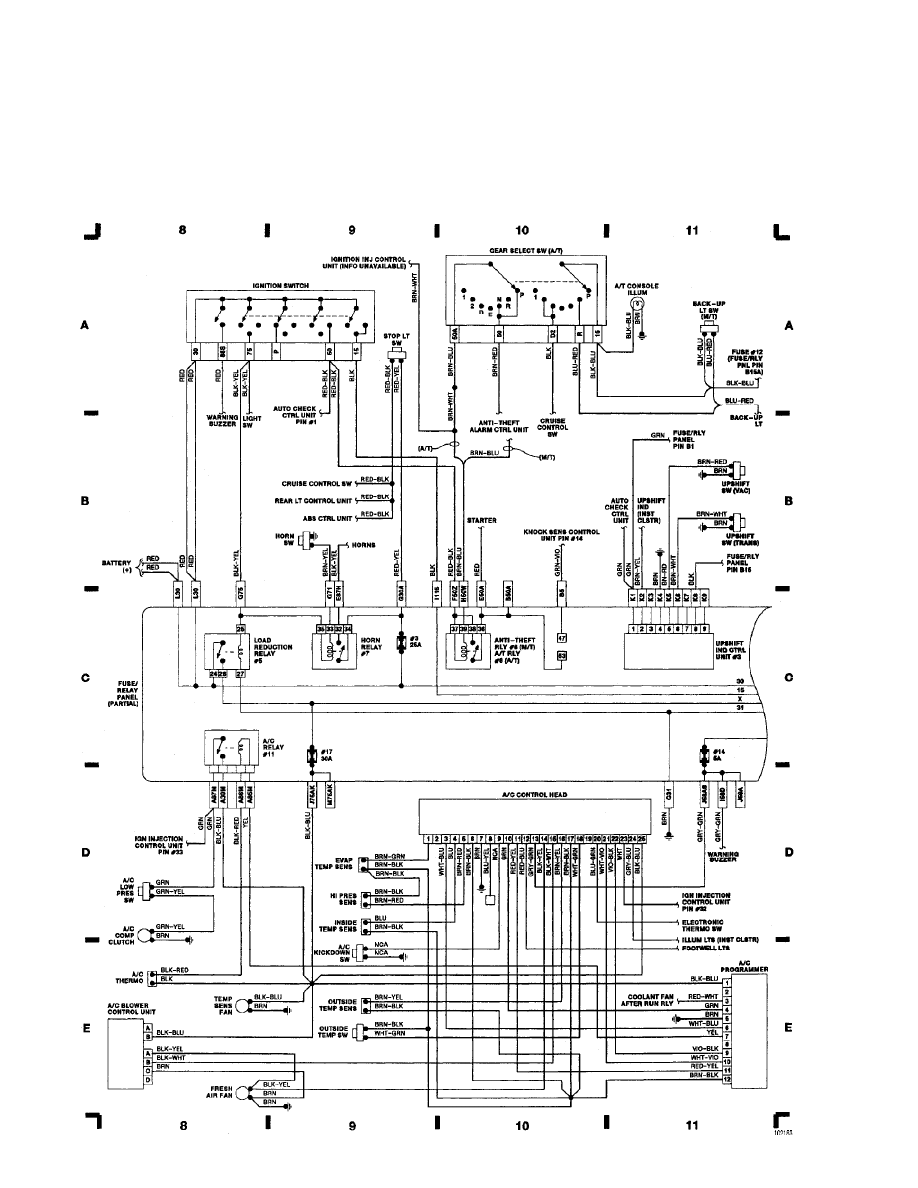

WIRING DIAGRAMS - NON-TURBO

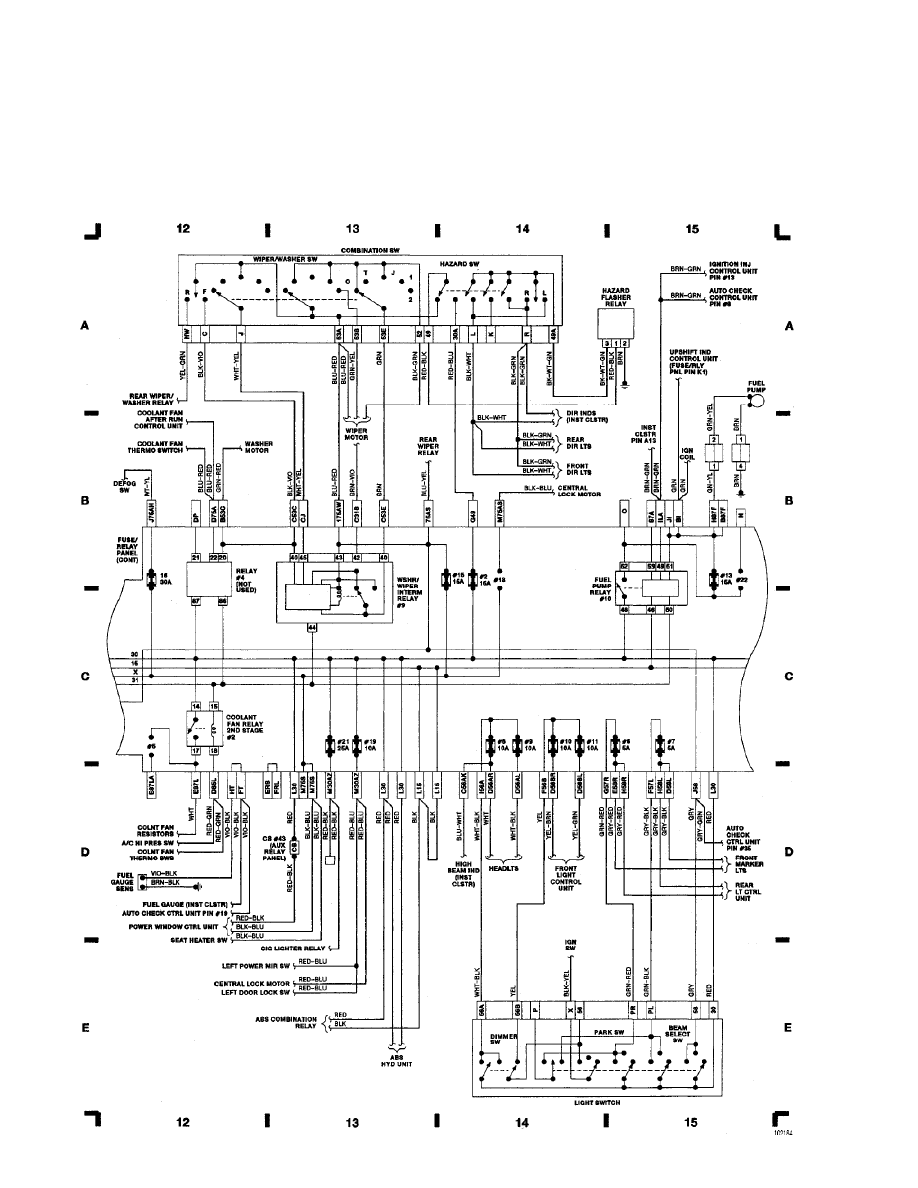

Fig. 3: Fuse Block, Underdash, Ignition Switch & A/C Control

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:38PM

background image

WIRING DIAGRAMS - NON-TURBO

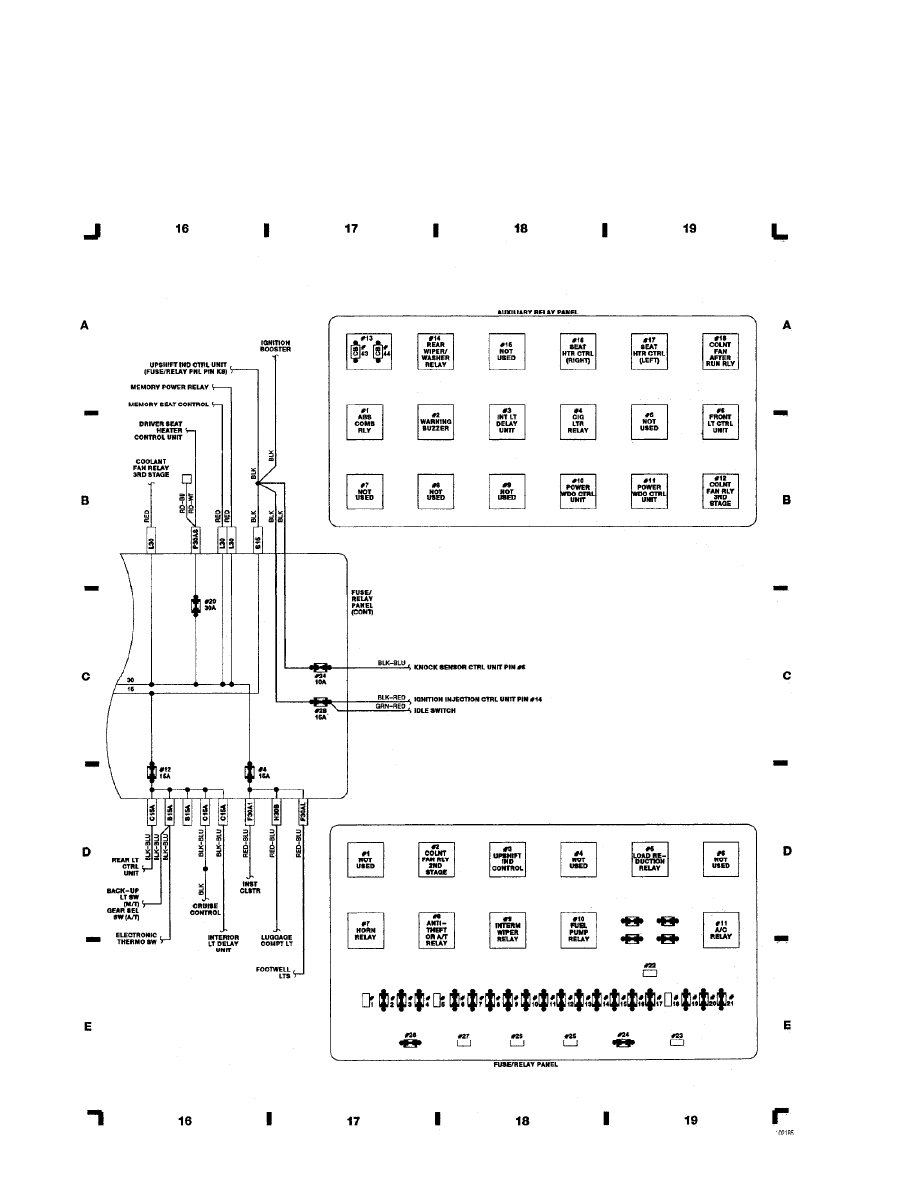

Fig. 4: Fuse Block, Underdash (Cont.) & Instrument Panel

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:38PM

background image

WIRING DIAGRAMS - NON-TURBO

Fig. 5: Fuse Block, Underdash & Instrument Panel (Cont.)

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:38PM

background image

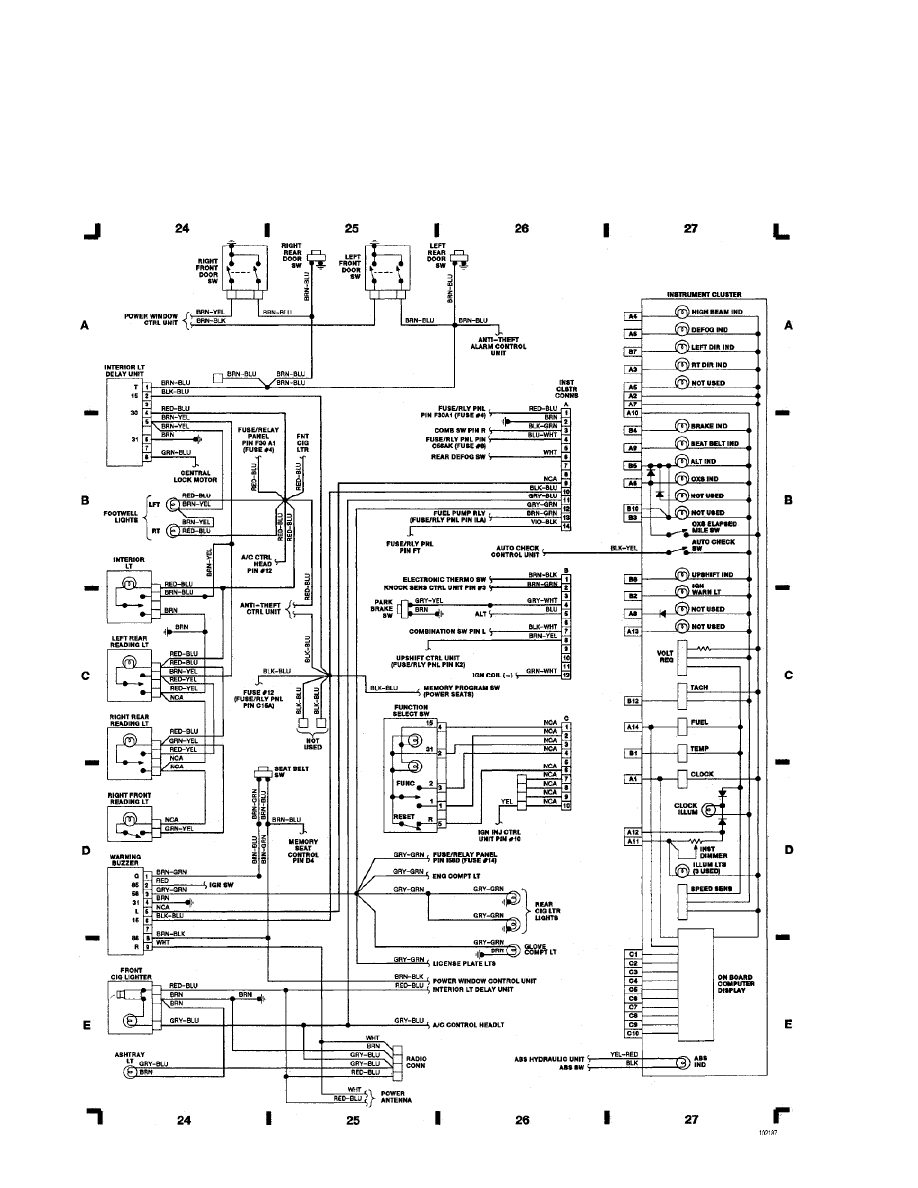

WIRING DIAGRAMS - NON-TURBO

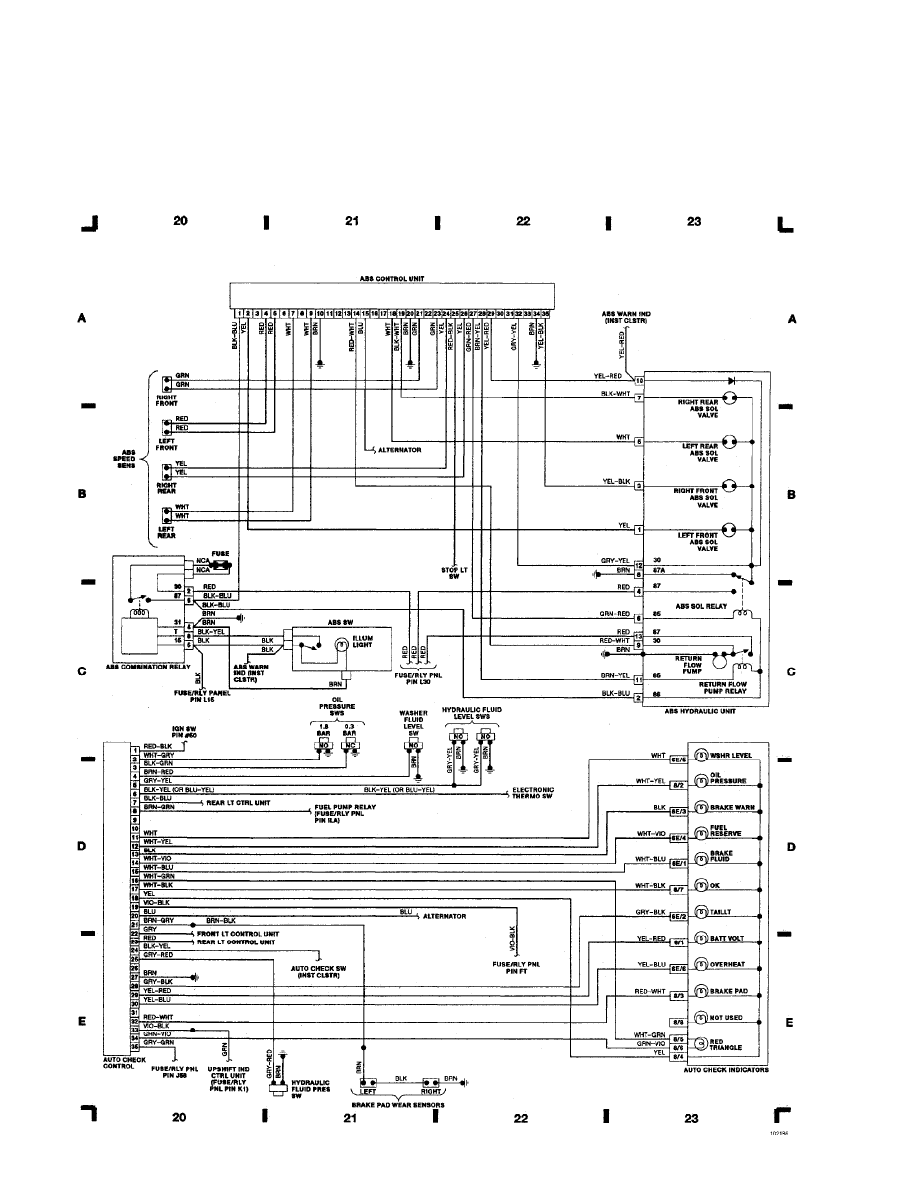

Fig. 6: Instrument Panel (Cont.), Anti-Lock Brake & Auto-Check Control Systems

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:38PM

background image

WIRING DIAGRAMS - NON-TURBO

Fig. 7: Instrument Panel (Cont.)

1988 Audi 5000S Quattro

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:38PM
