JAGUAR XJ6 1989

SYSTEM WIRING DIAGRAMS

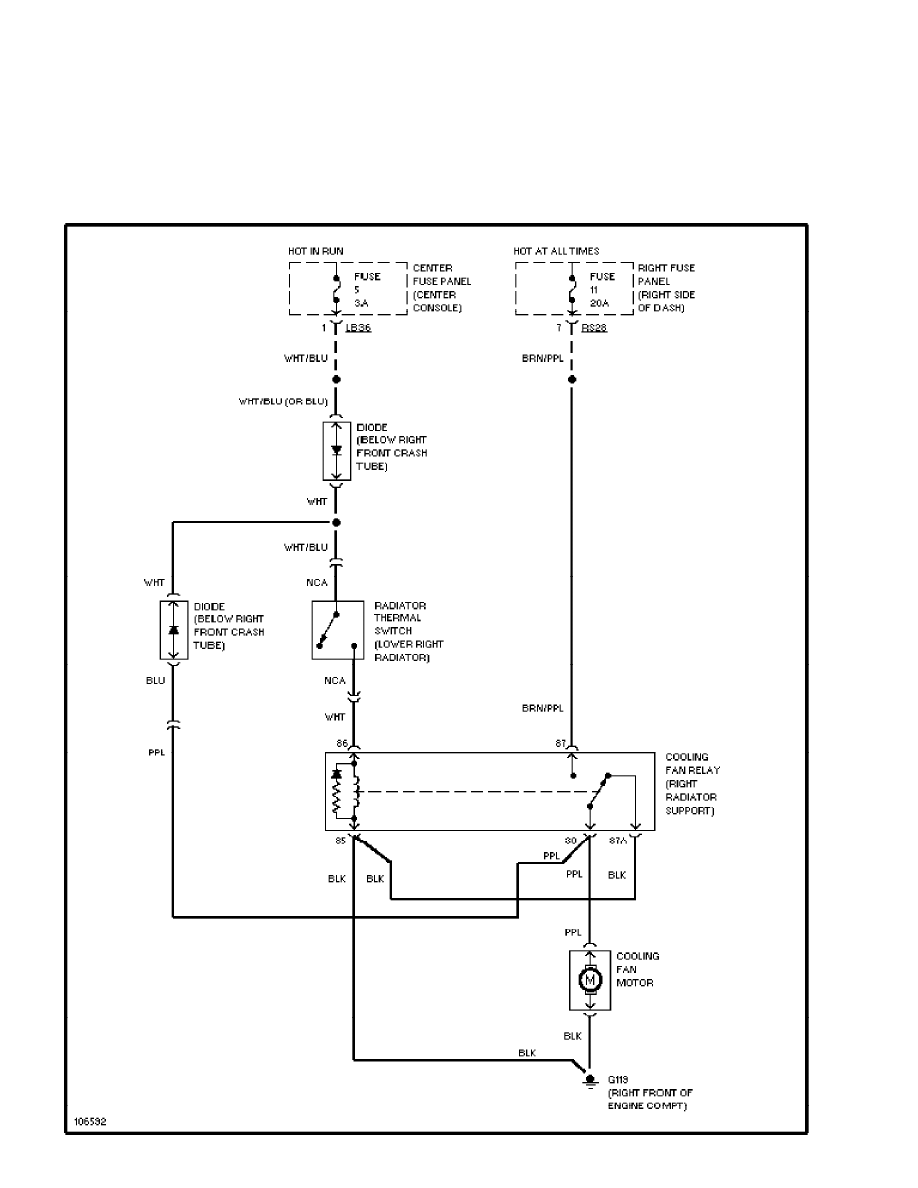

Cooling Fan Circuit

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

SYSTEM WIRING DIAGRAMS

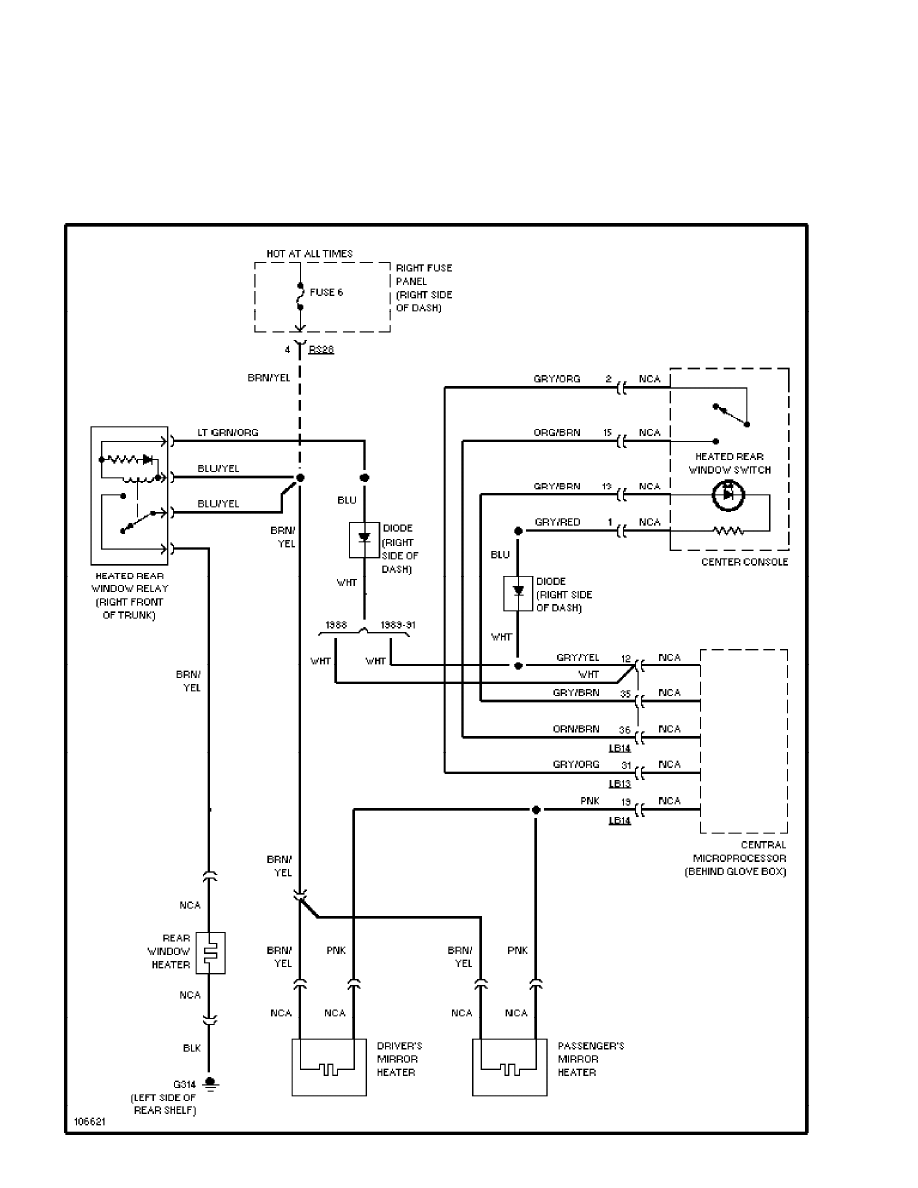

Defogger Circuit (p. 2)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

SYSTEM WIRING DIAGRAMS

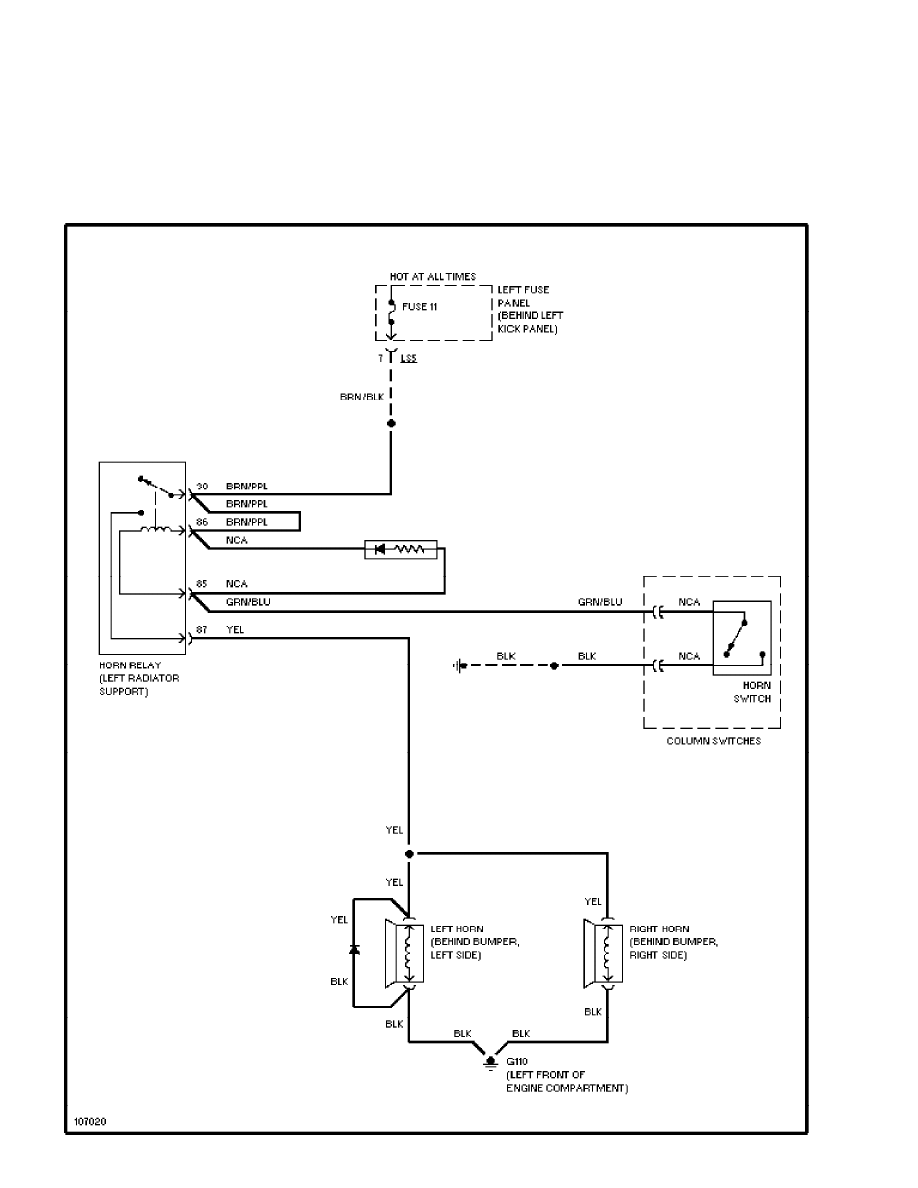

Horn Circuit (p. 3)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

SYSTEM WIRING DIAGRAMS

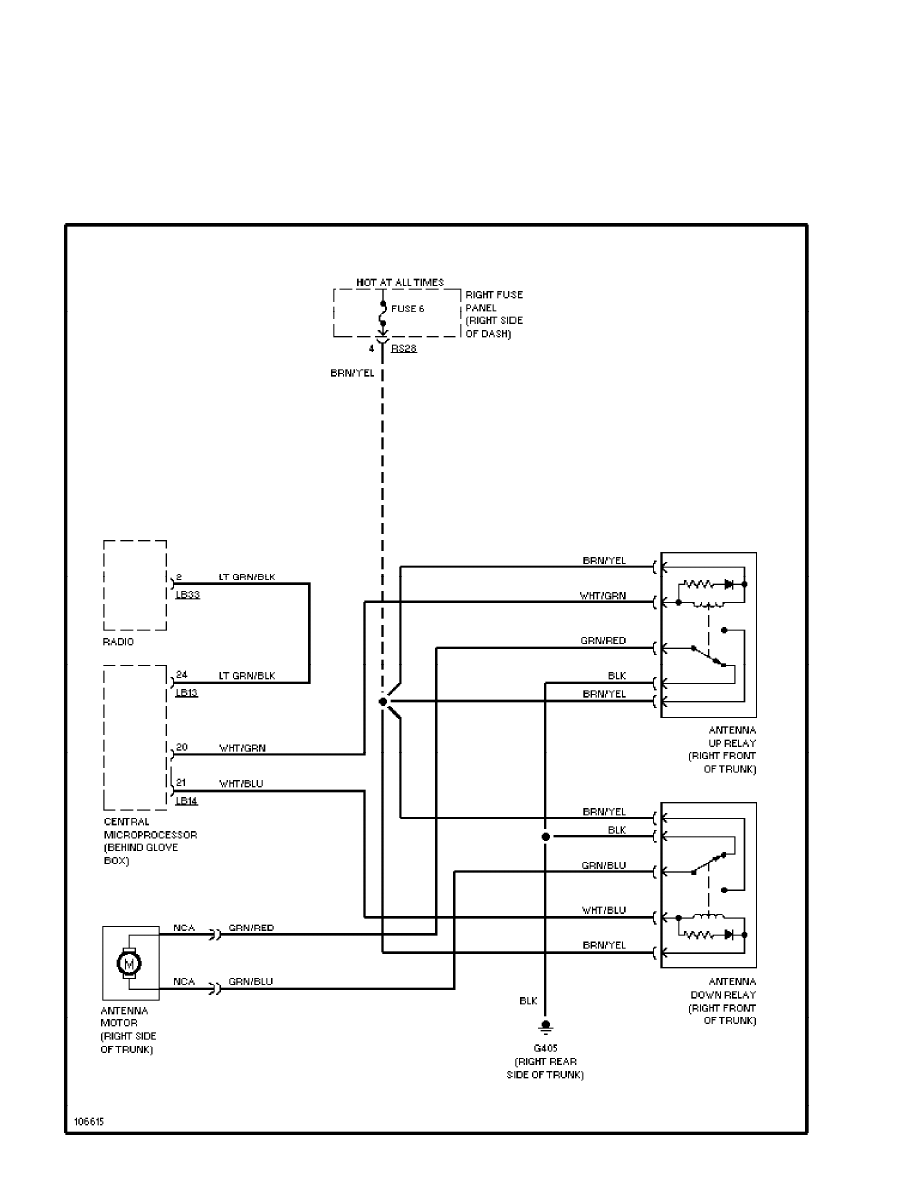

Power Antenna Circuit (p. 4)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

SYSTEM WIRING DIAGRAMS

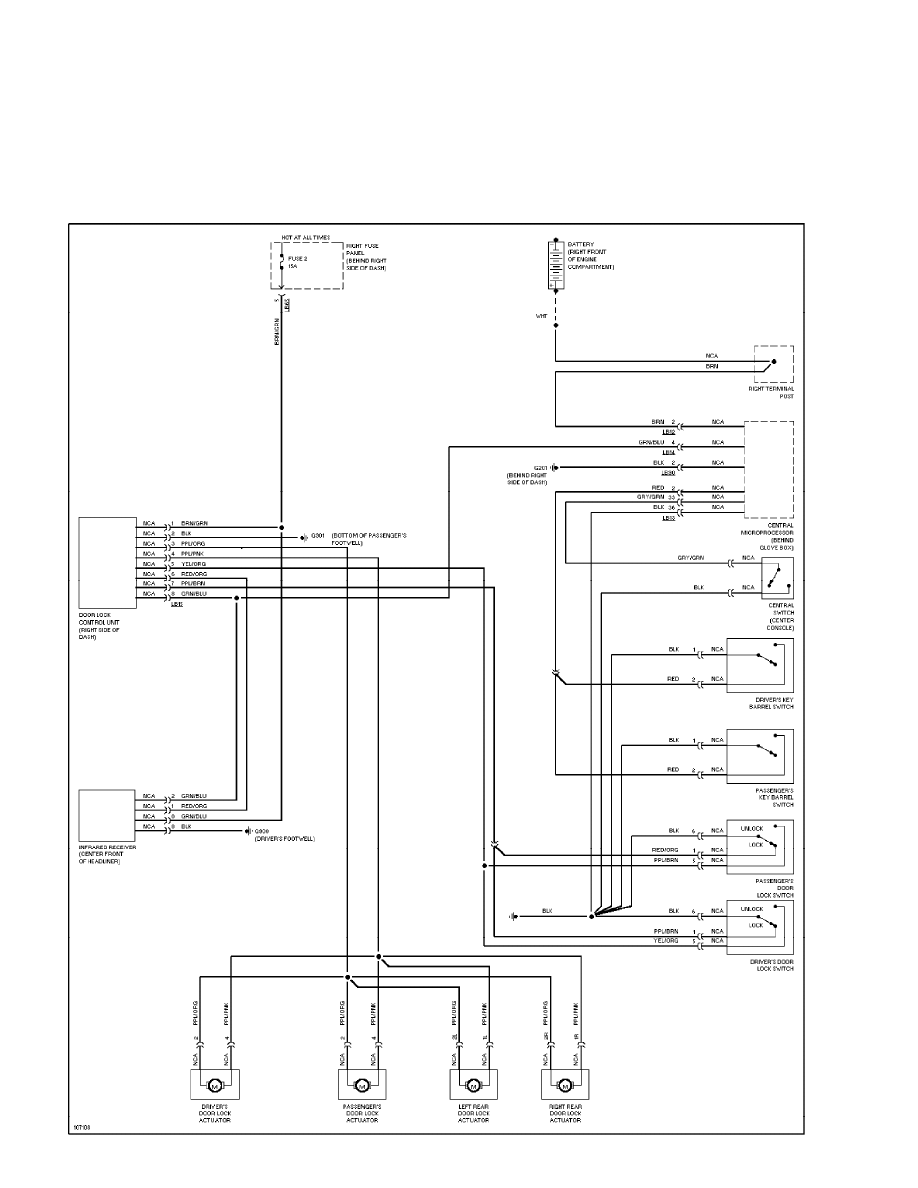

Power Door Lock Circuit (p. 5)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

SYSTEM WIRING DIAGRAMS

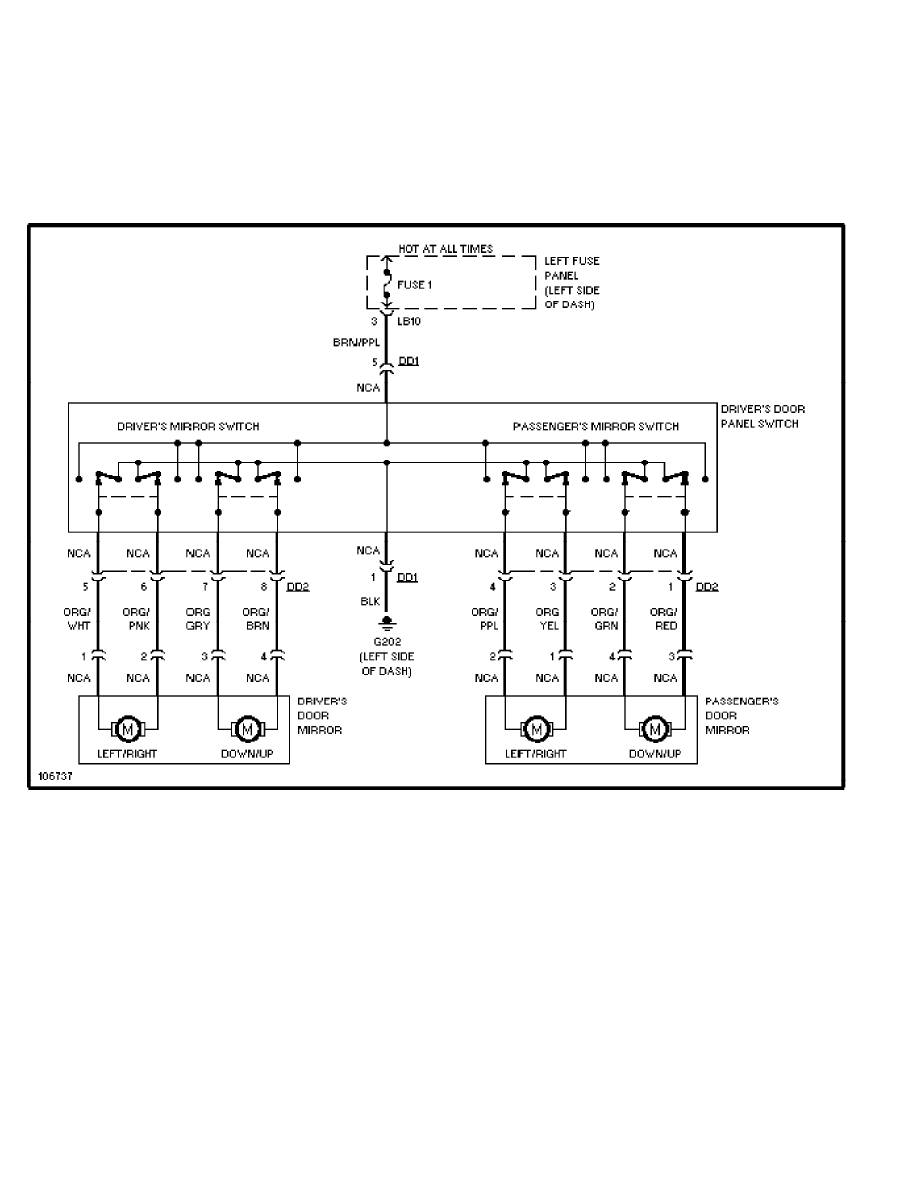

Power Mirror Circuit (p. 6)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

SYSTEM WIRING DIAGRAMS

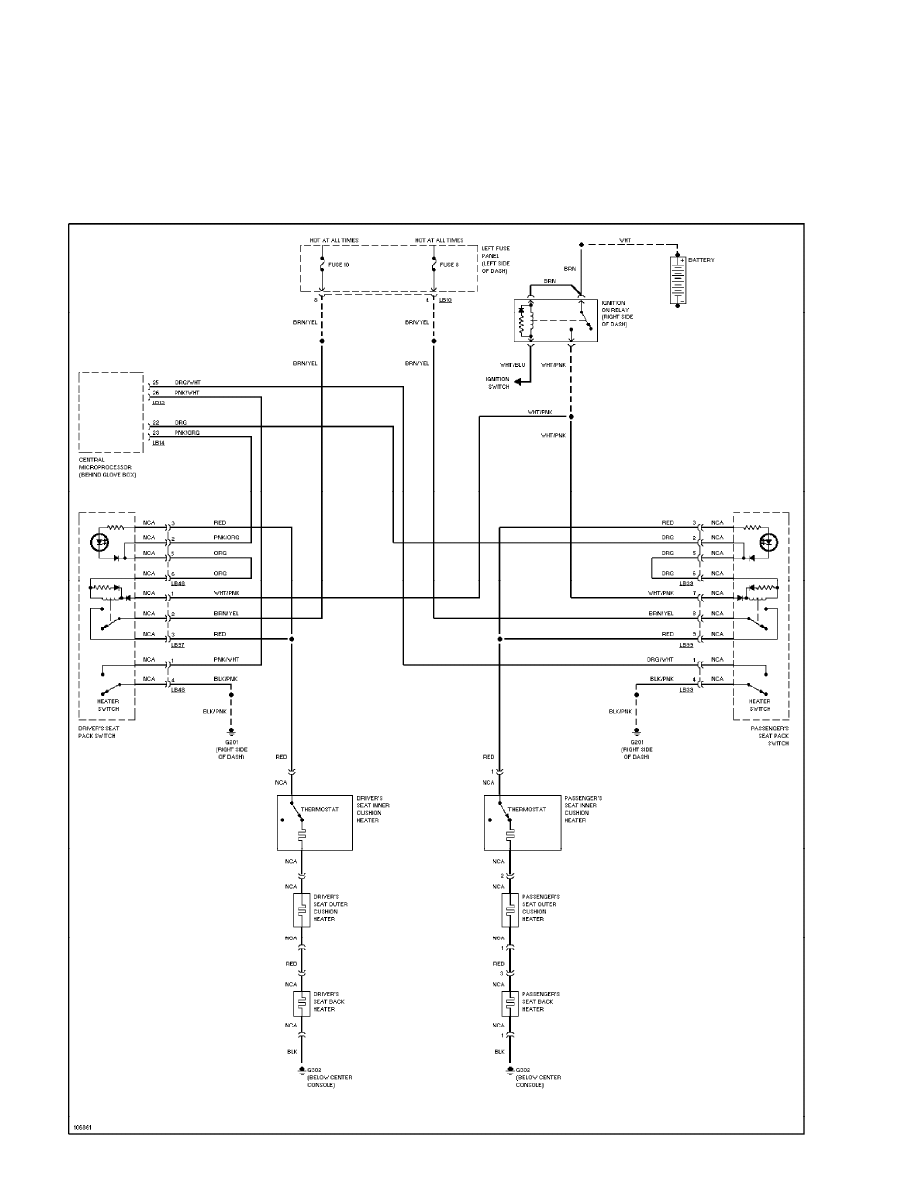

Heated Seats Circuit (p. 7)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

SYSTEM WIRING DIAGRAMS

Power Seats Circuit, Early Production (p. 8)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

SYSTEM WIRING DIAGRAMS

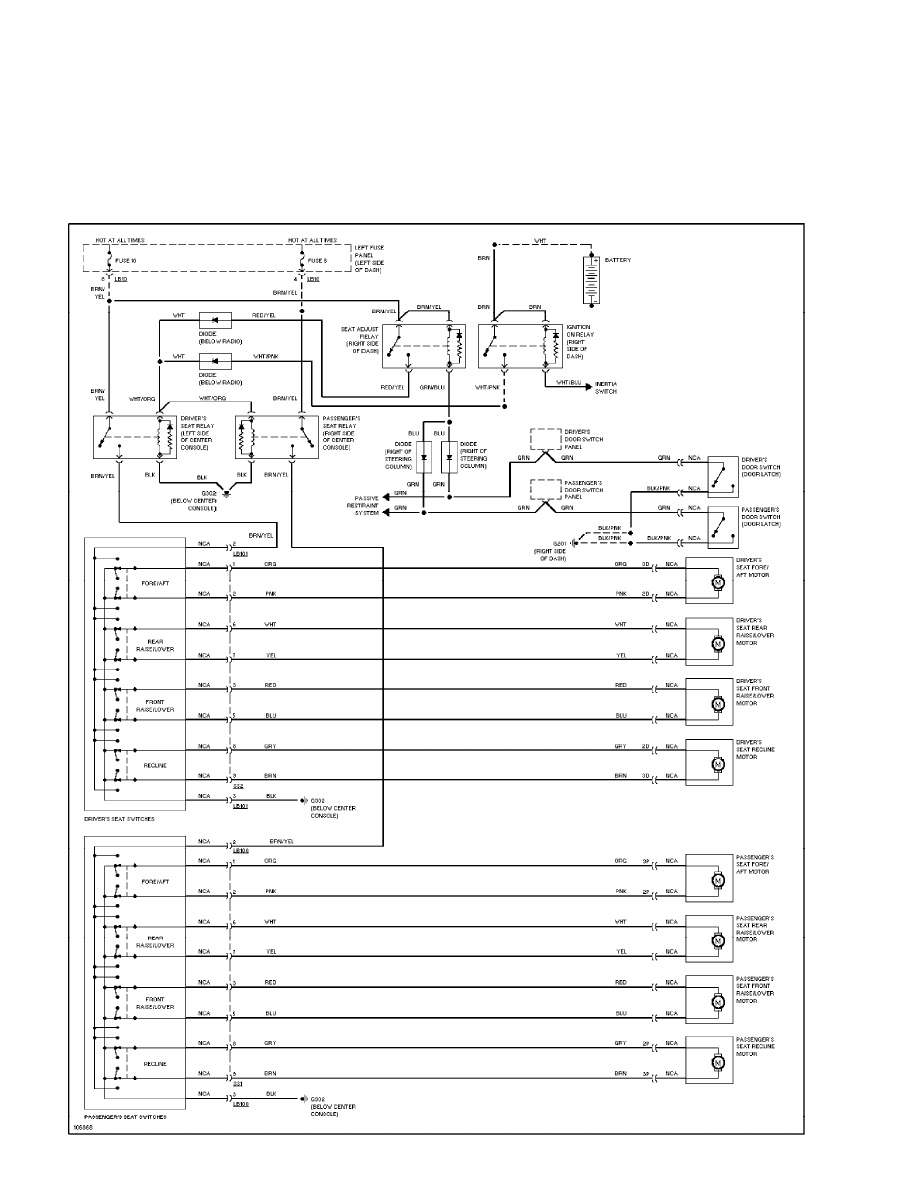

Power Seats Circuit, Late Production (p. 9)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

SYSTEM WIRING DIAGRAMS

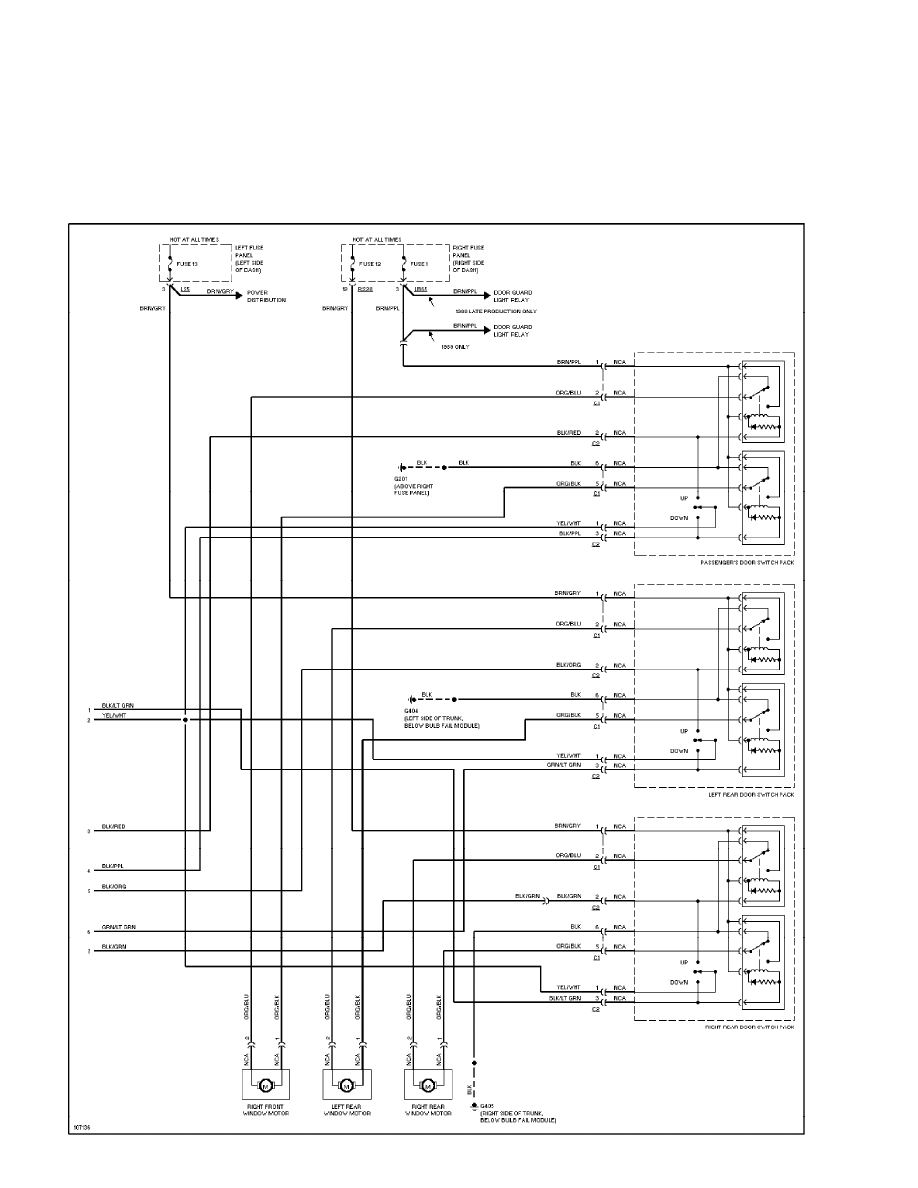

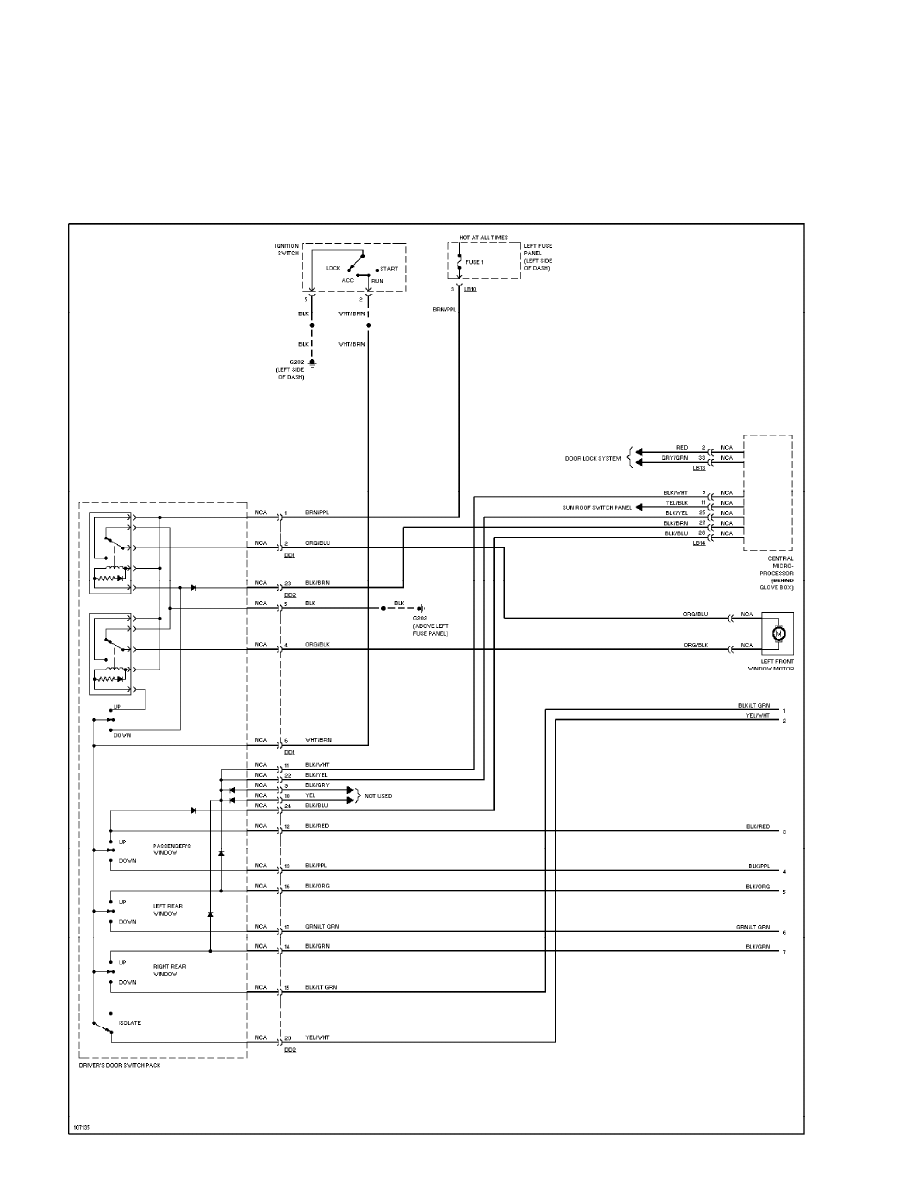

Power Window Circuit (1 of 2) (p. 10)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

SYSTEM WIRING DIAGRAMS

Power Window Circuit (2 of 2) (p. 11)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

SYSTEM WIRING DIAGRAMS

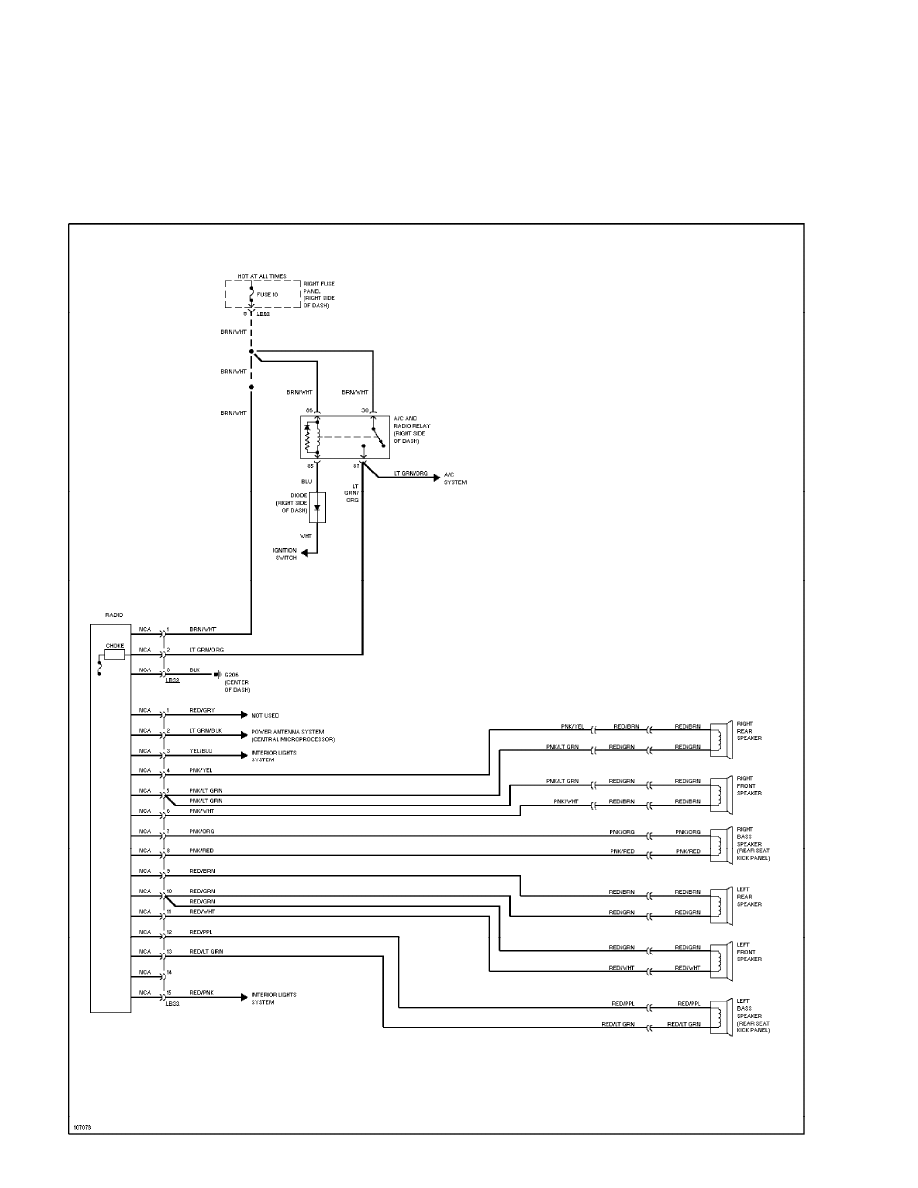

Radio Circuits (p. 12)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

SYSTEM WIRING DIAGRAMS

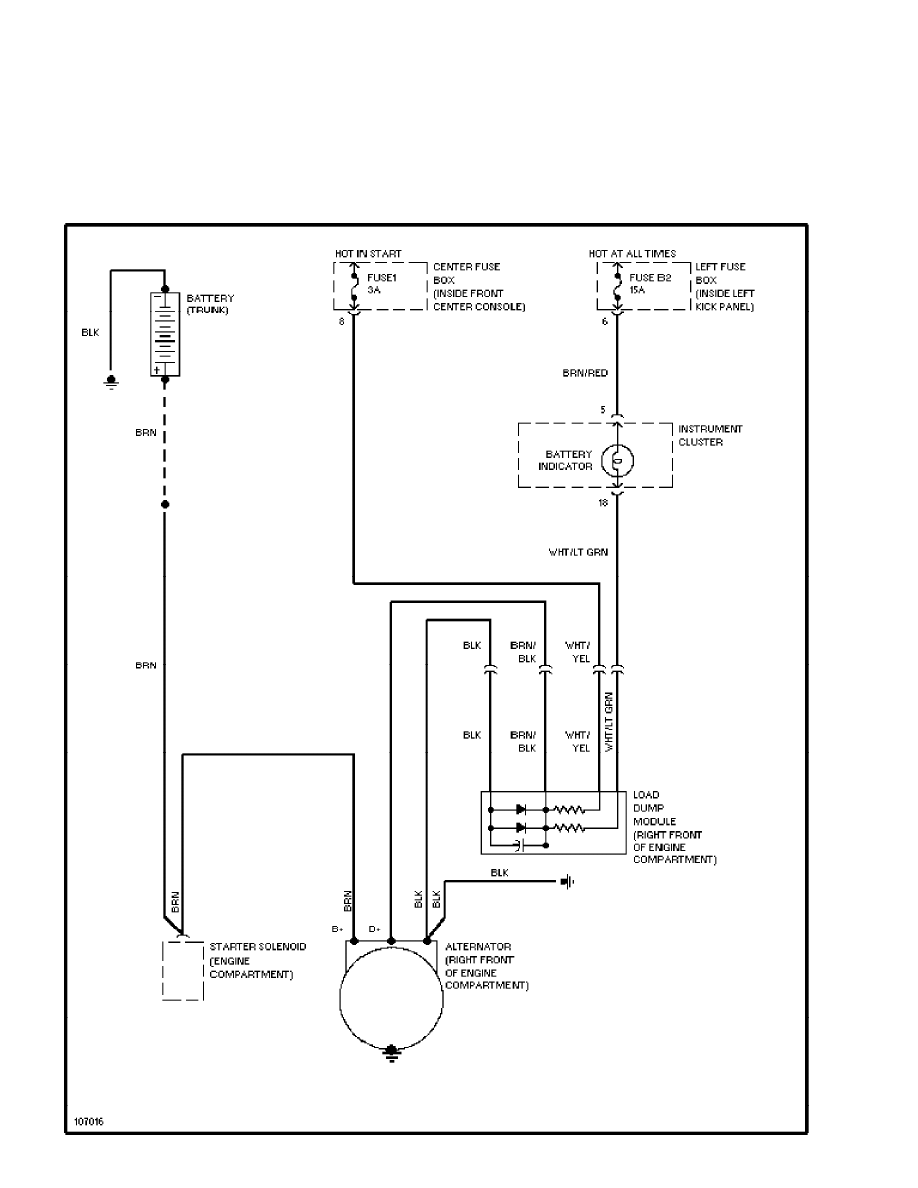

Charging Circuit (p. 13)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

SYSTEM WIRING DIAGRAMS

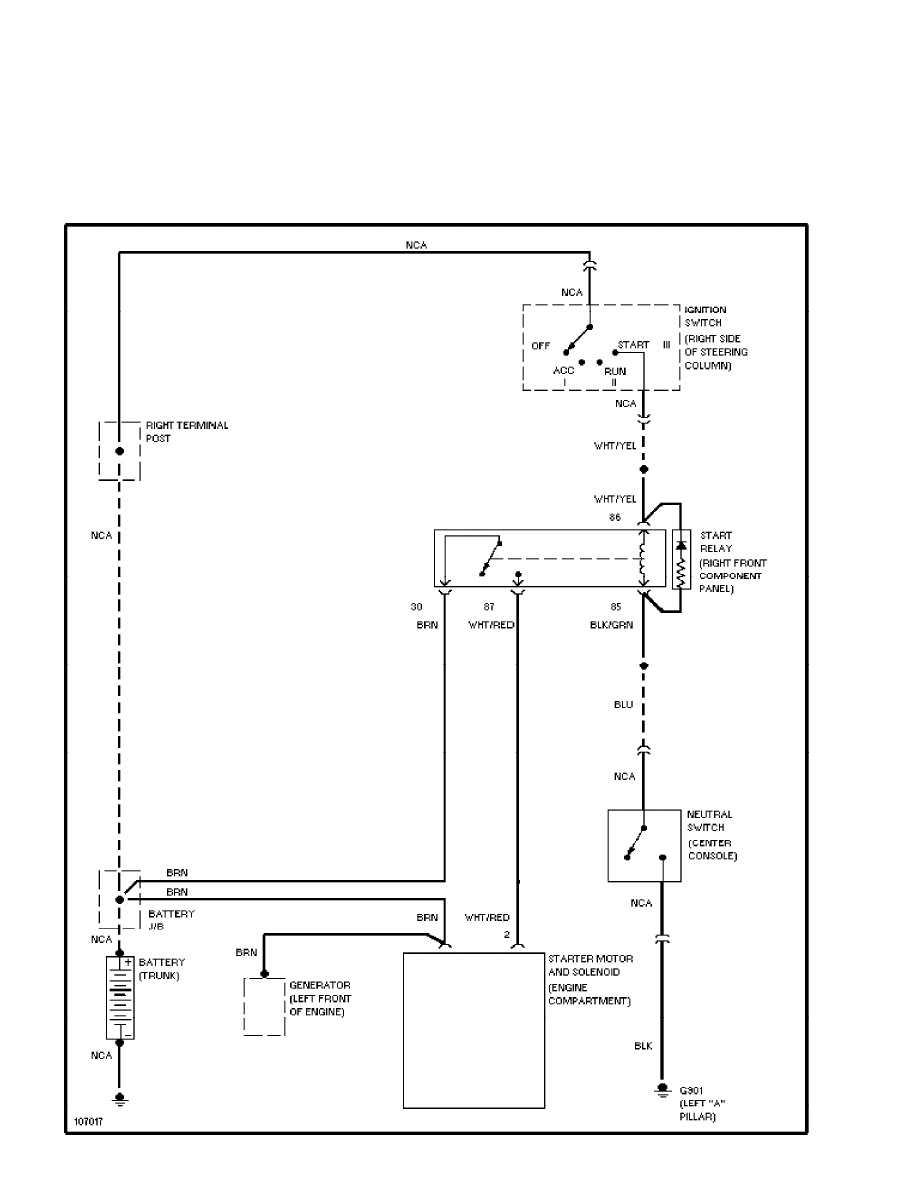

Starting Circuit (p. 14)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

SYSTEM WIRING DIAGRAMS

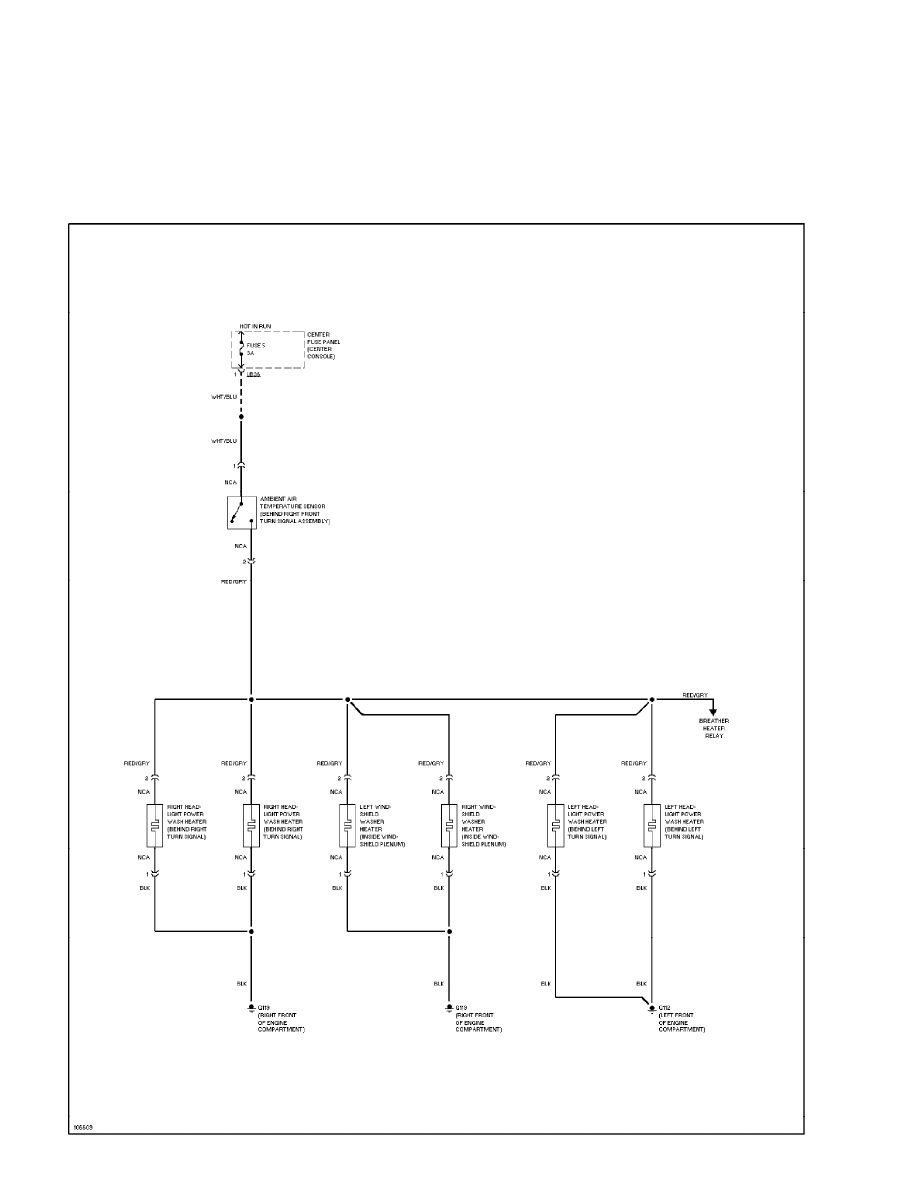

Jet Heater Circuit (p. 15)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

SYSTEM WIRING DIAGRAMS

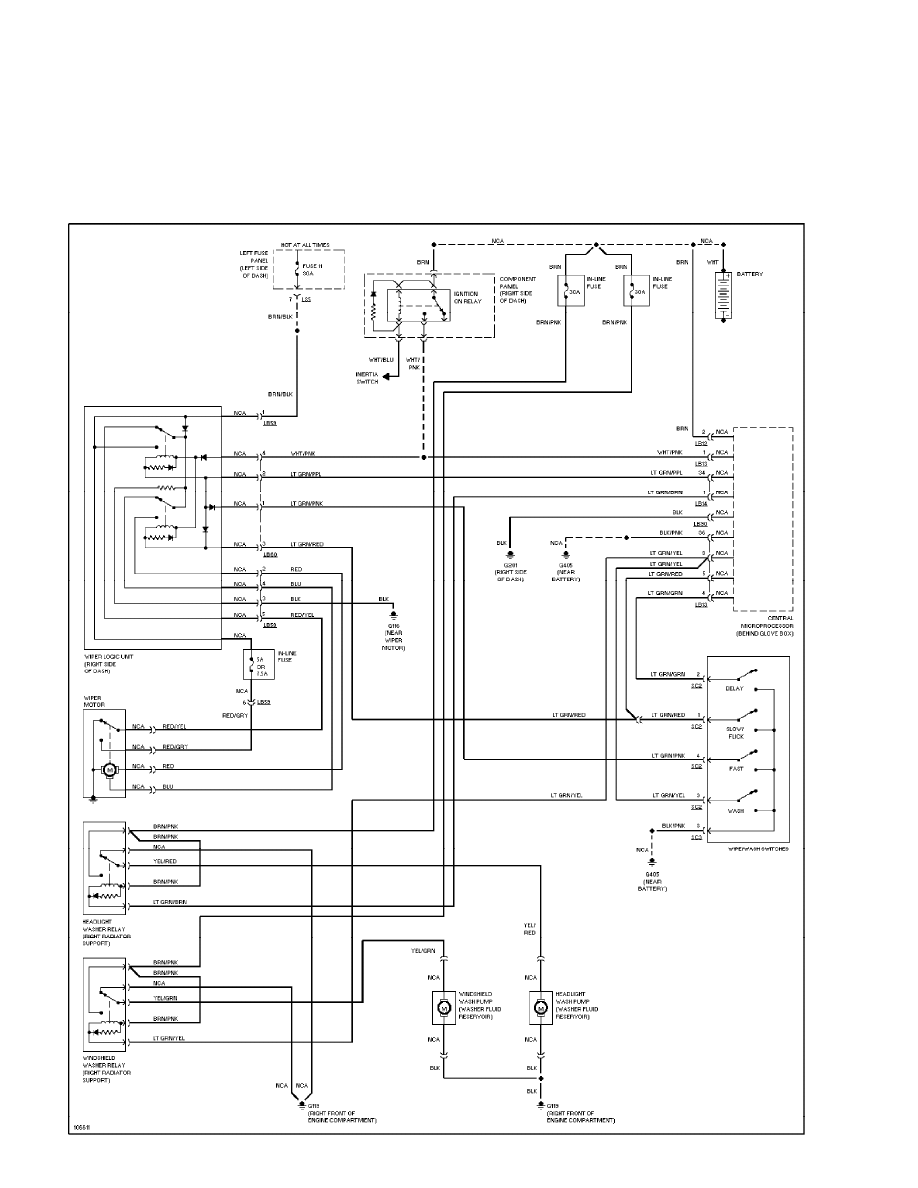

Wiper/Washer Circuit (p. 16)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

WIRING DIAGRAMS

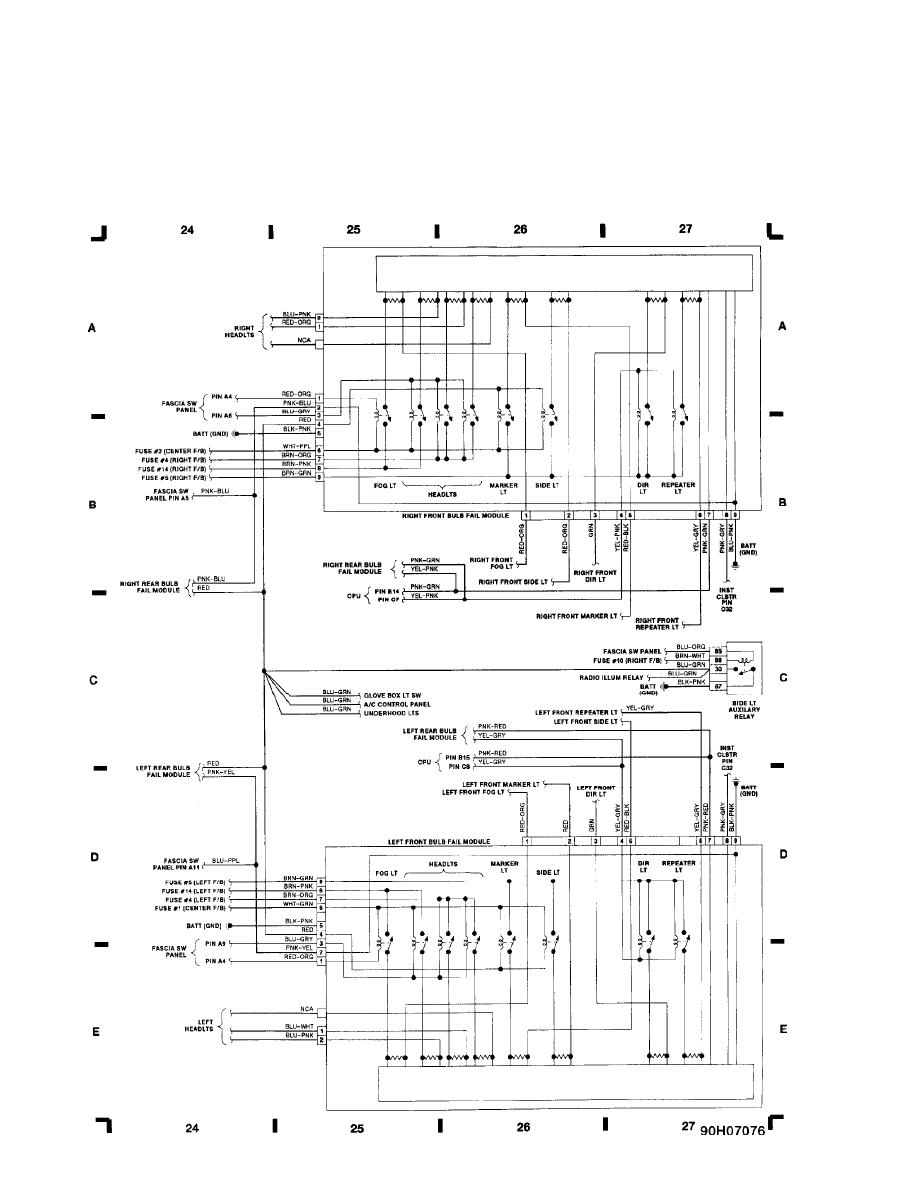

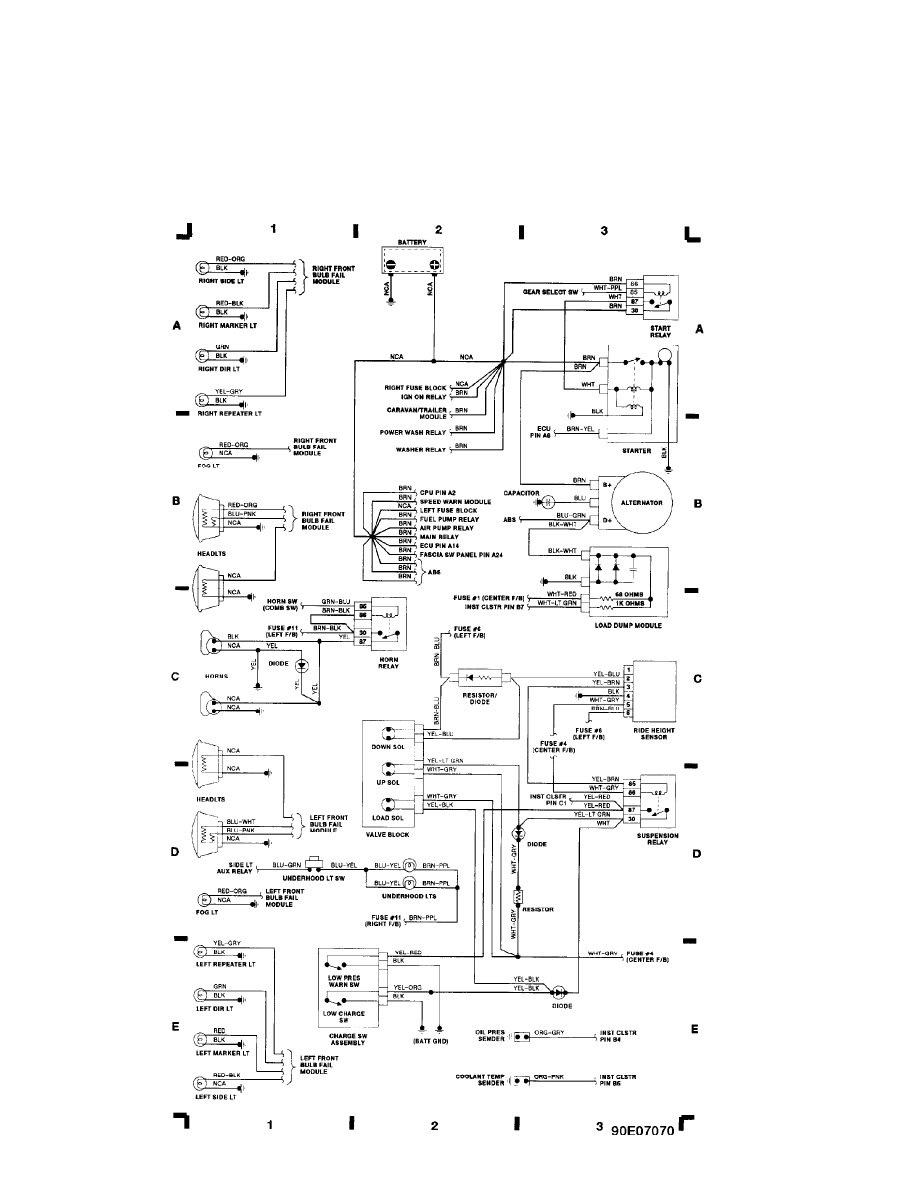

Fig. 1: Engine Compartment & Headlights

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

WIRING DIAGRAMS

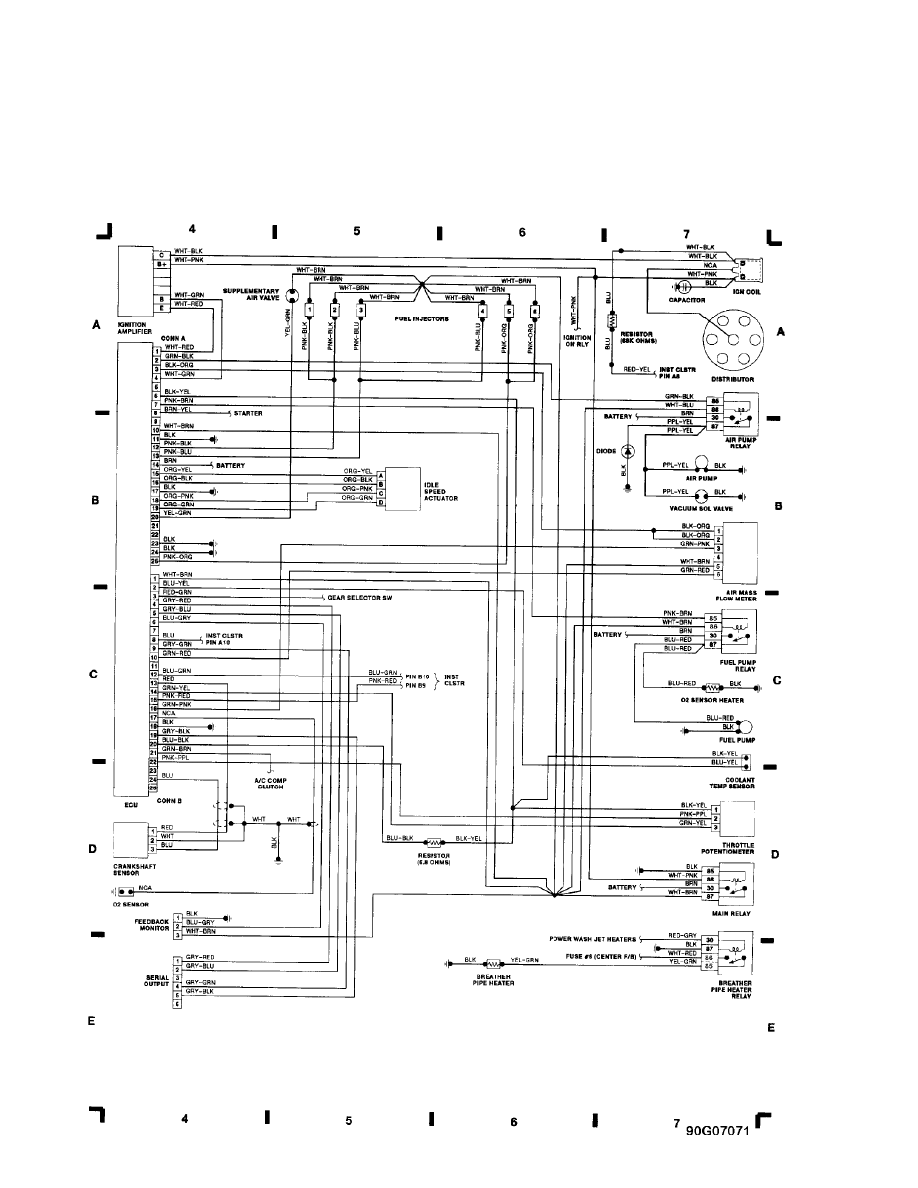

Fig. 2: Computer Engine Control (p. 2)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

WIRING DIAGRAMS

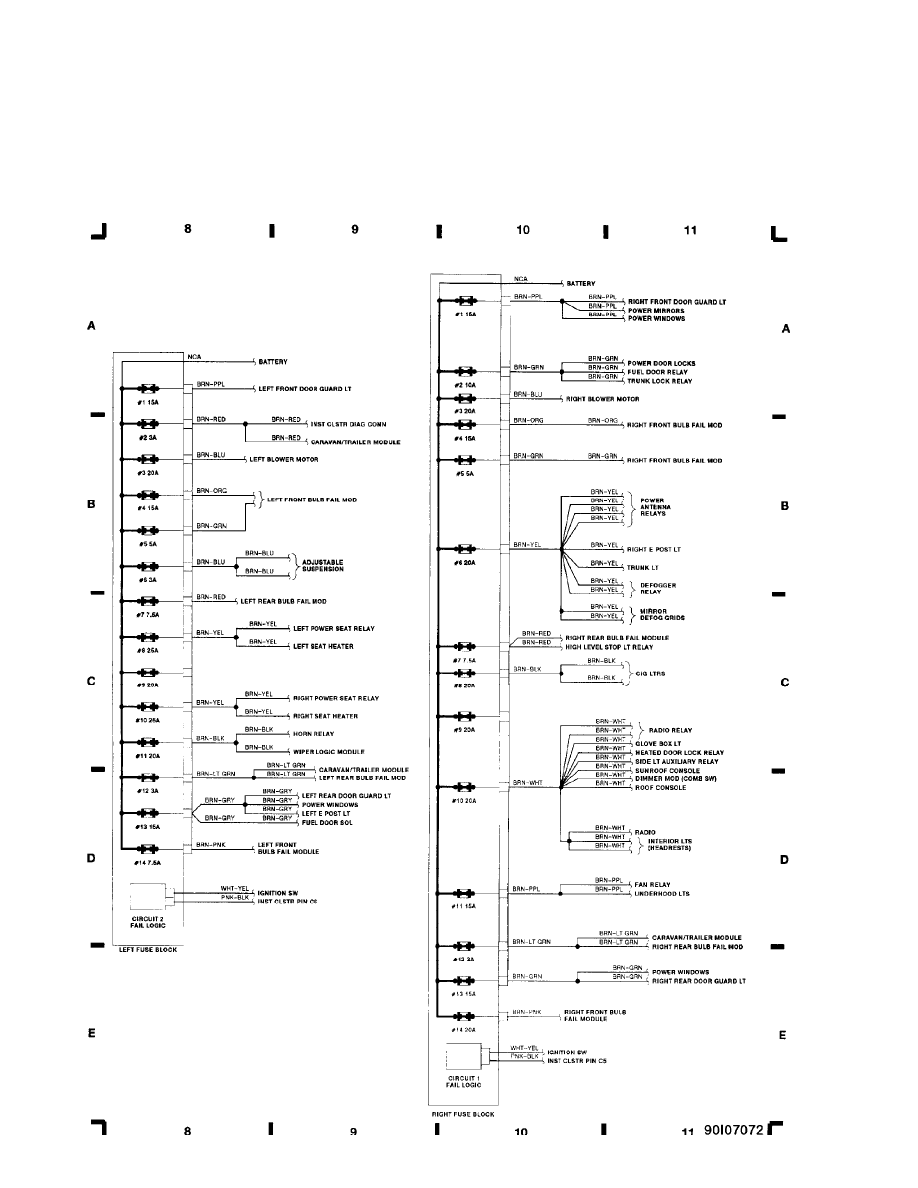

Fig. 3: Left & Right Fuse Blocks (p. 3)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

WIRING DIAGRAMS

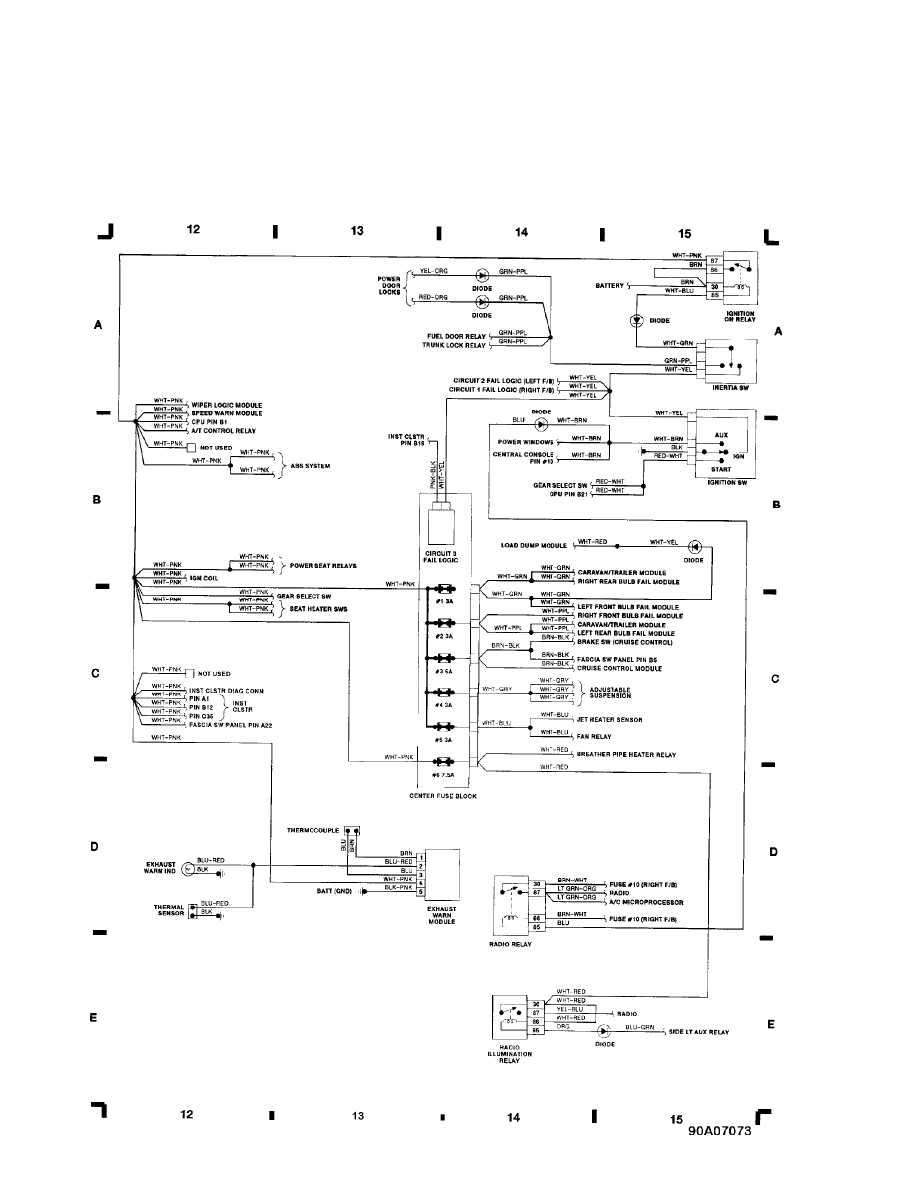

Fig. 4: Center Fuse Block (p. 4)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

WIRING DIAGRAMS

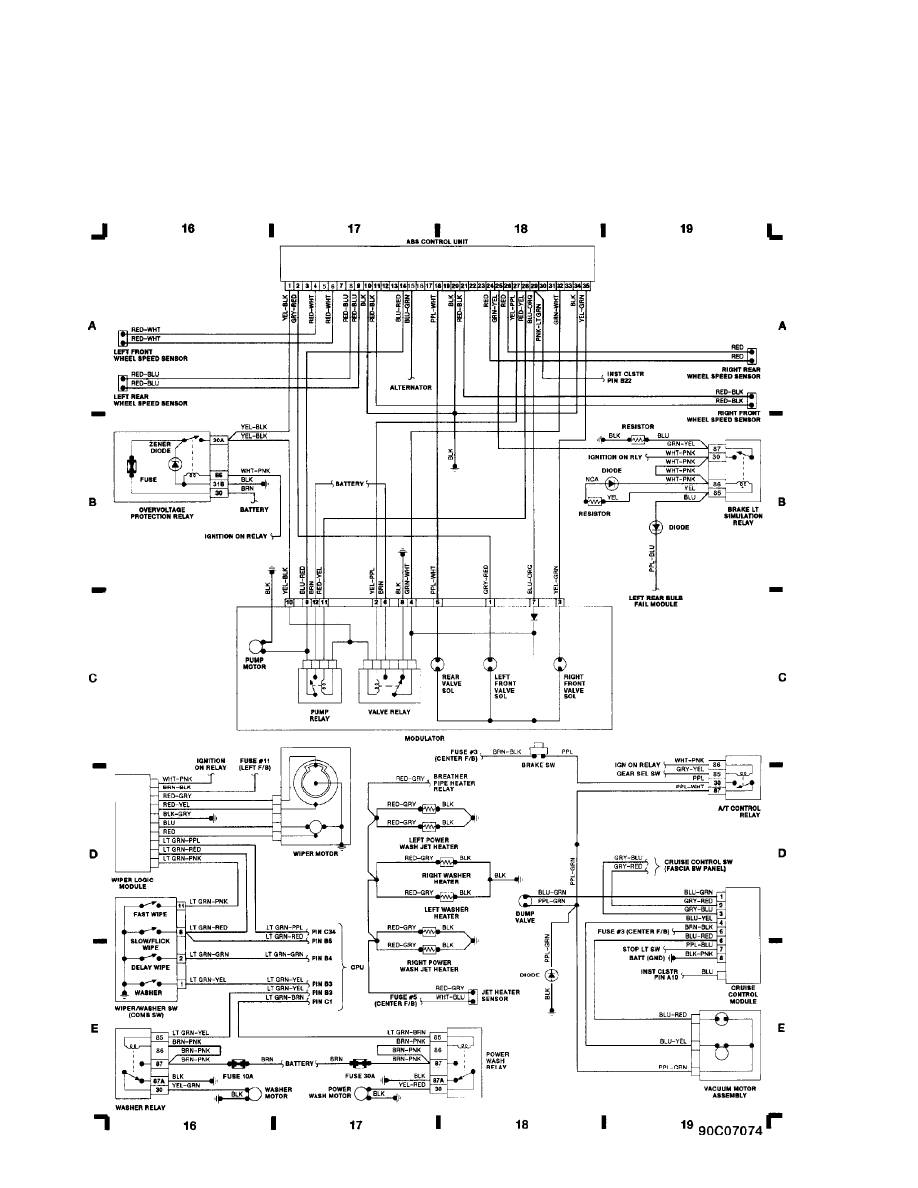

Fig. 5: Anti-Lock Brake System and Washer/Wiper System (p. 5)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

WIRING DIAGRAMS

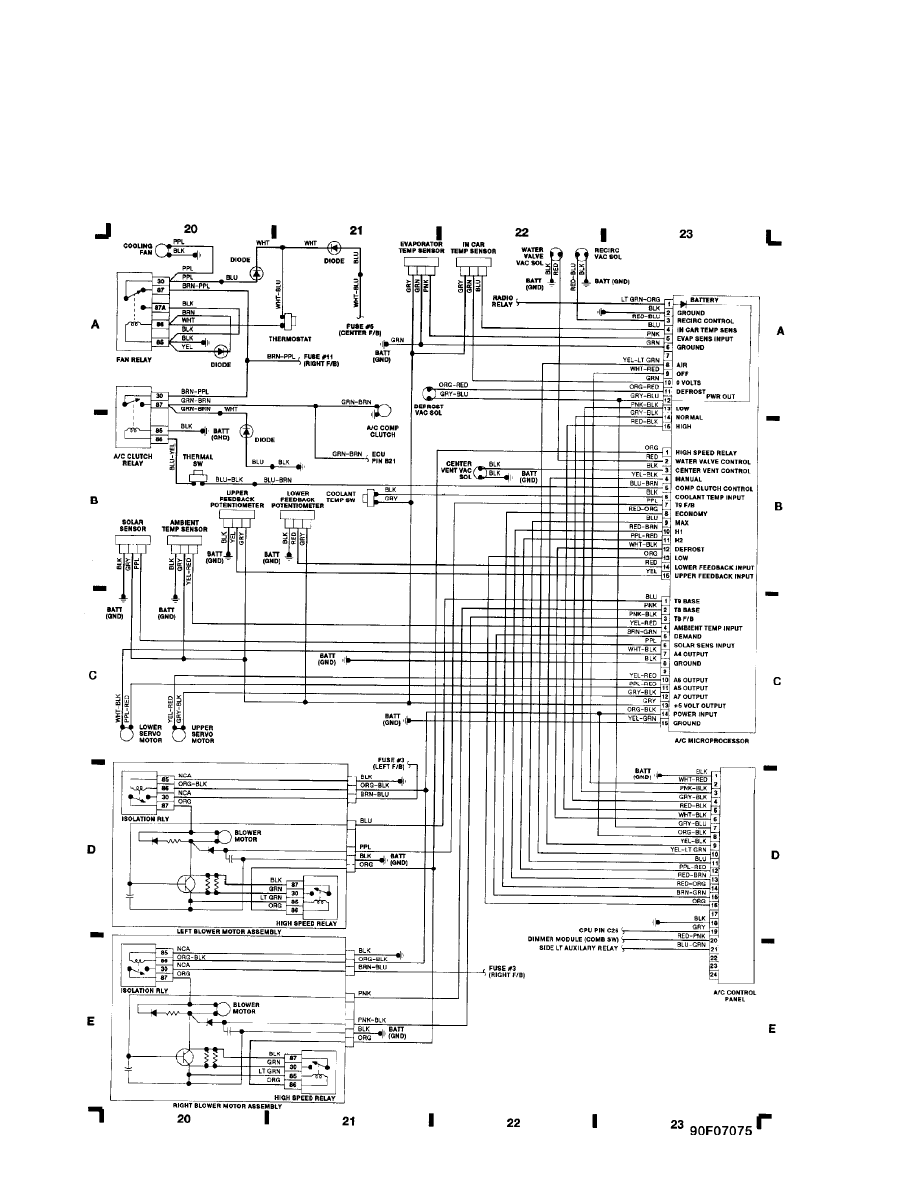

Fig. 6: A/C & Heating (p. 6)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

WIRING DIAGRAMS

Fig. 7: Lamp Monitor System (p. 7)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

WIRING DIAGRAMS

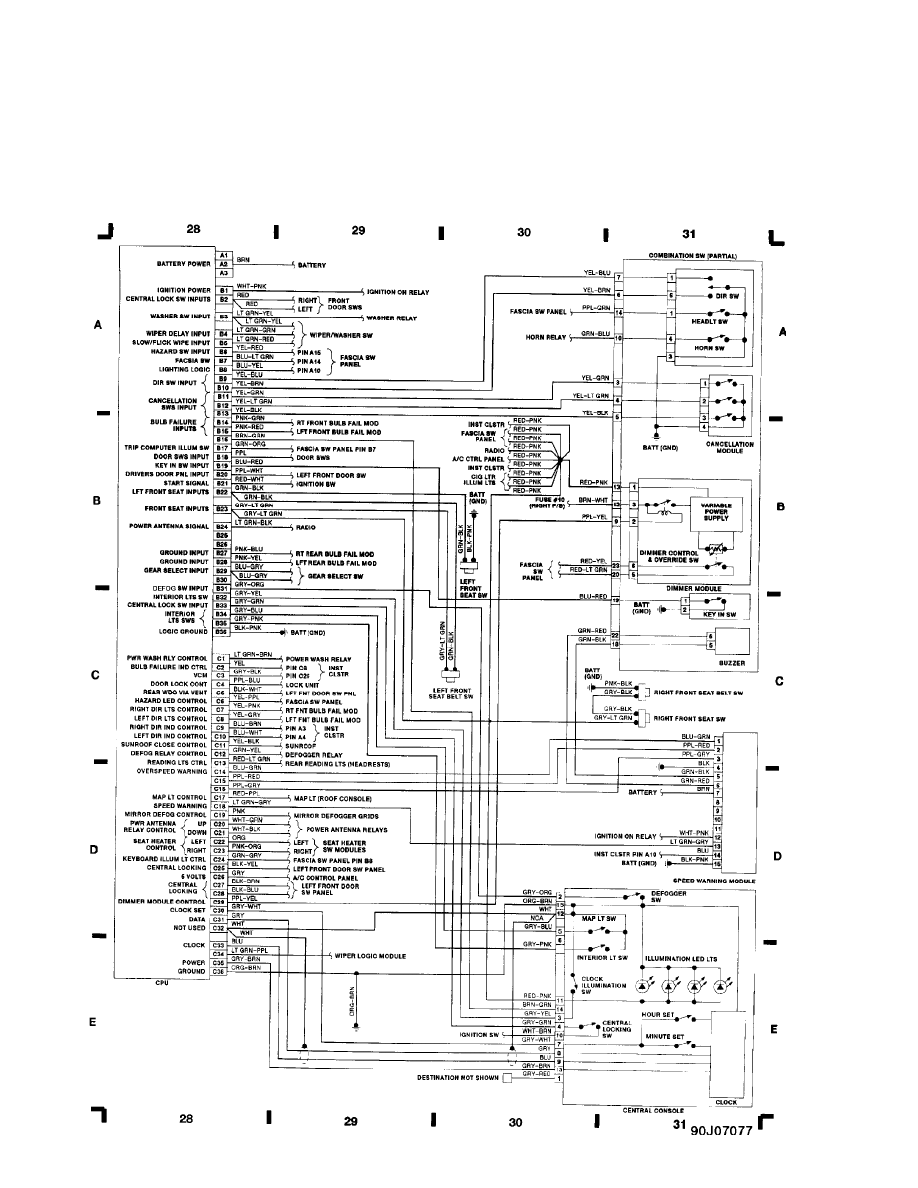

Fig. 8: Body Control System (p. 8)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

WIRING DIAGRAMS

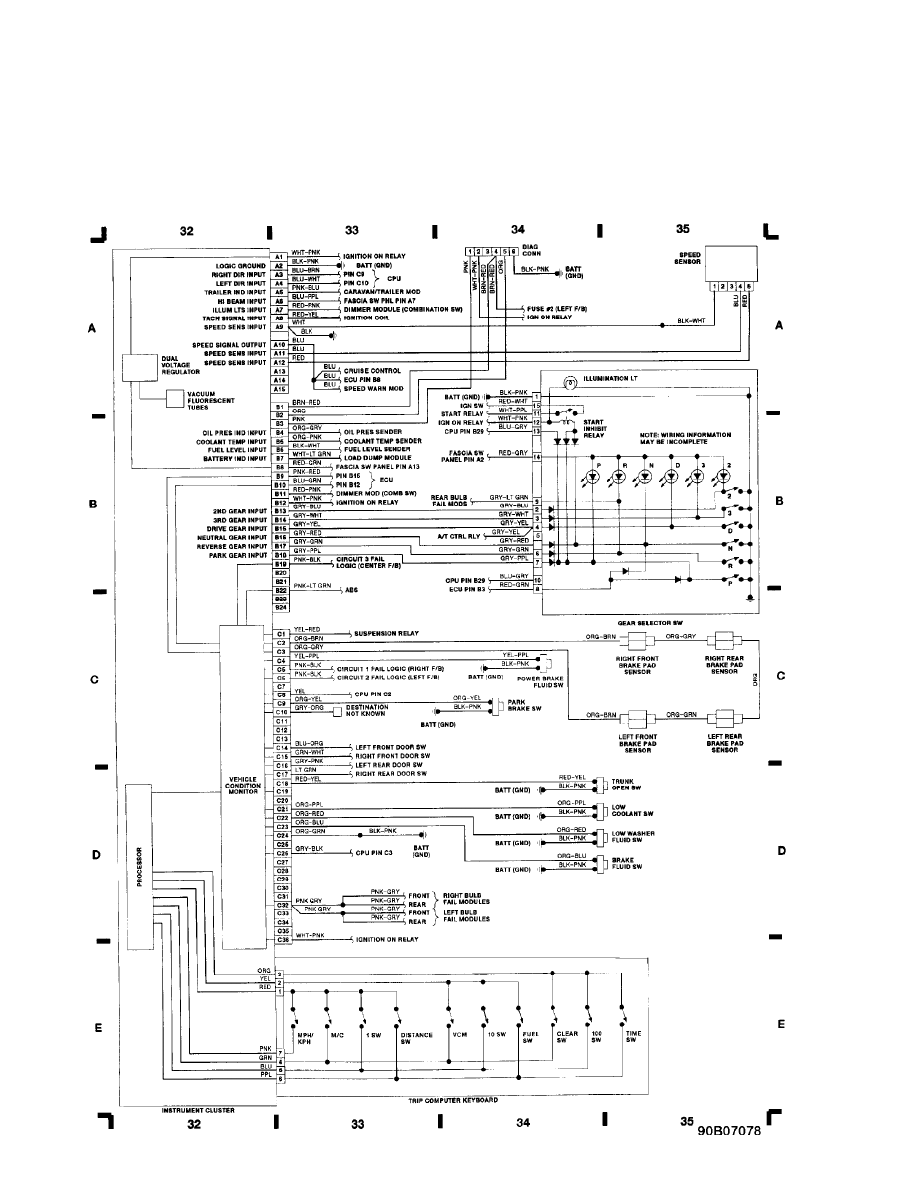

Fig. 9: Instrument Panel (p. 9)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

WIRING DIAGRAMS

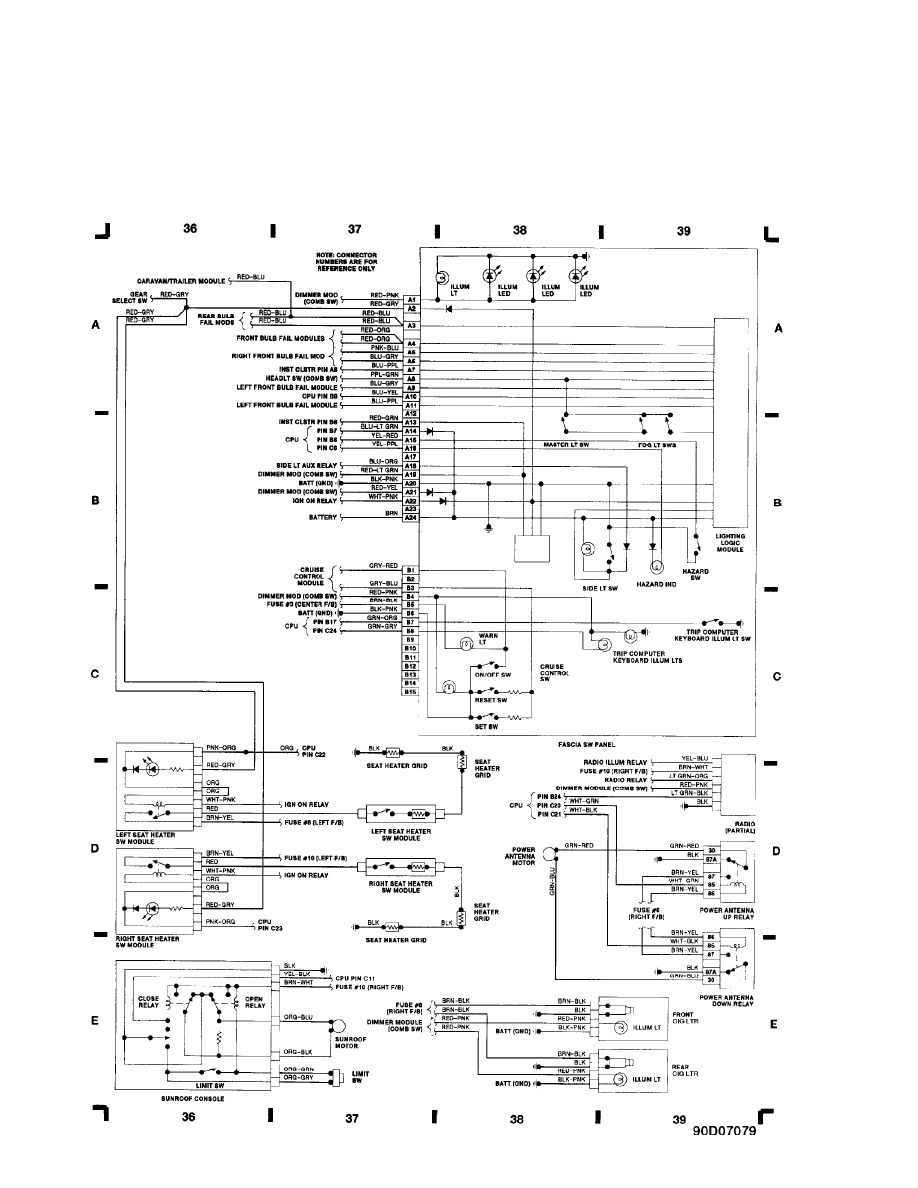

Fig. 10: Instrument Panel Switches (p. 10)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:48PM

WIRING DIAGRAMS

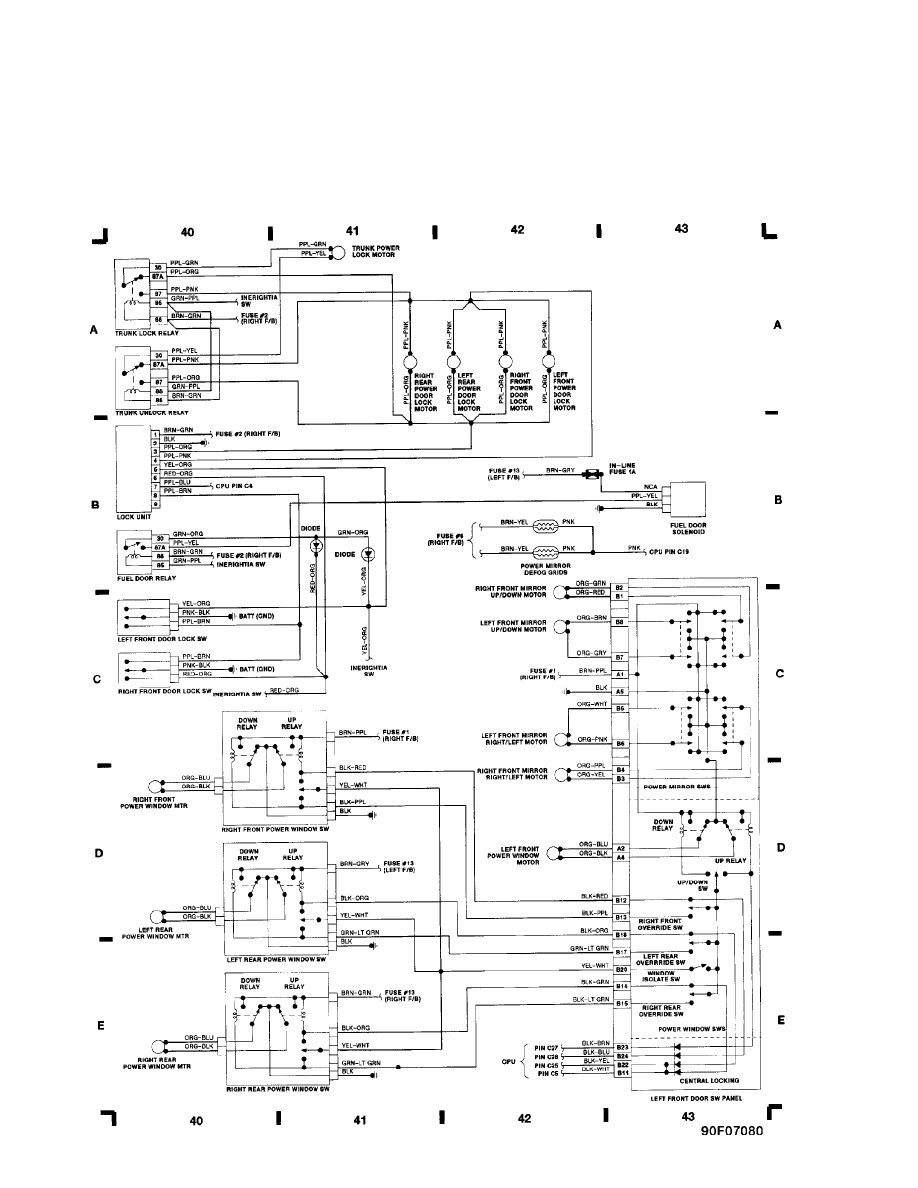

Fig. 11: Power Locks & Power Windows (p. 11)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:49PM

WIRING DIAGRAMS

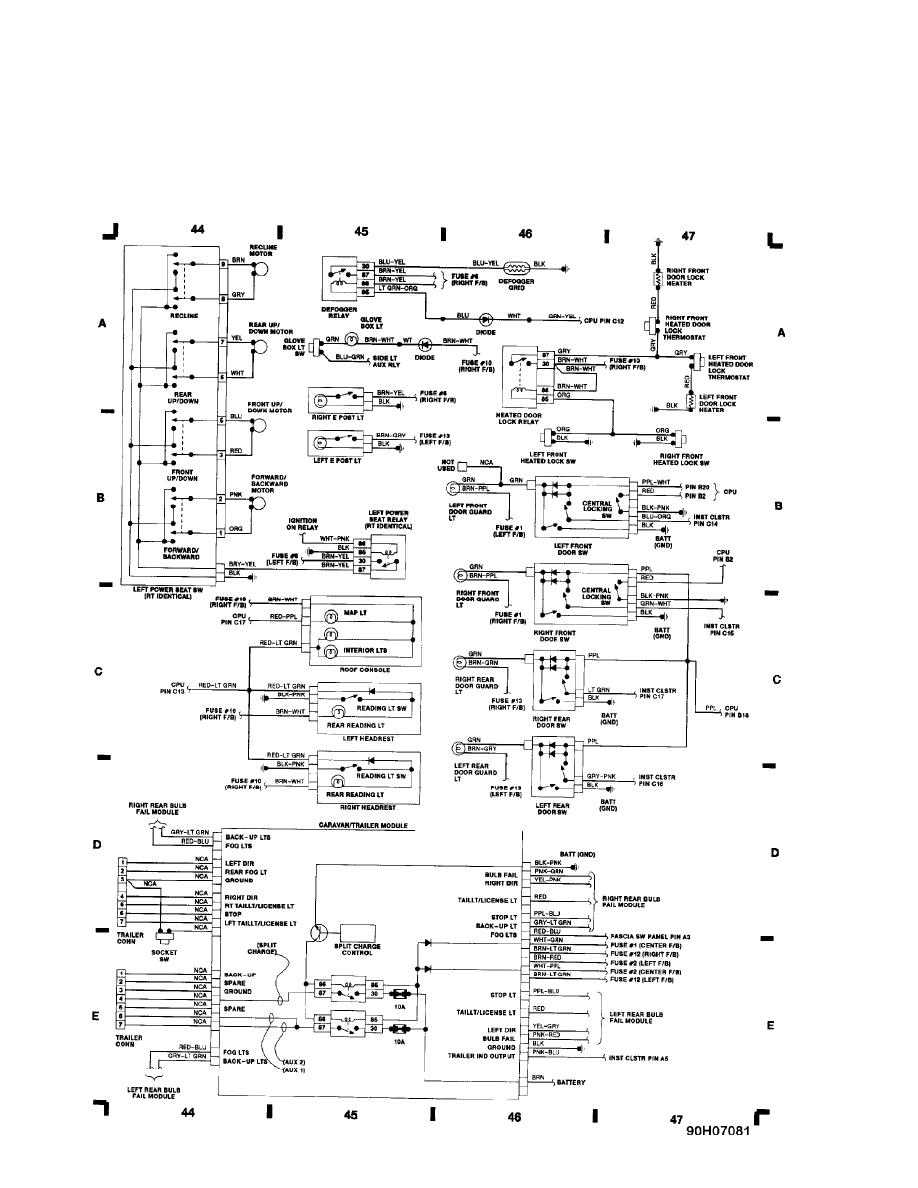

Fig. 12: Power Seats and Trailer Control System (p. 12)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:49PM

WIRING DIAGRAMS

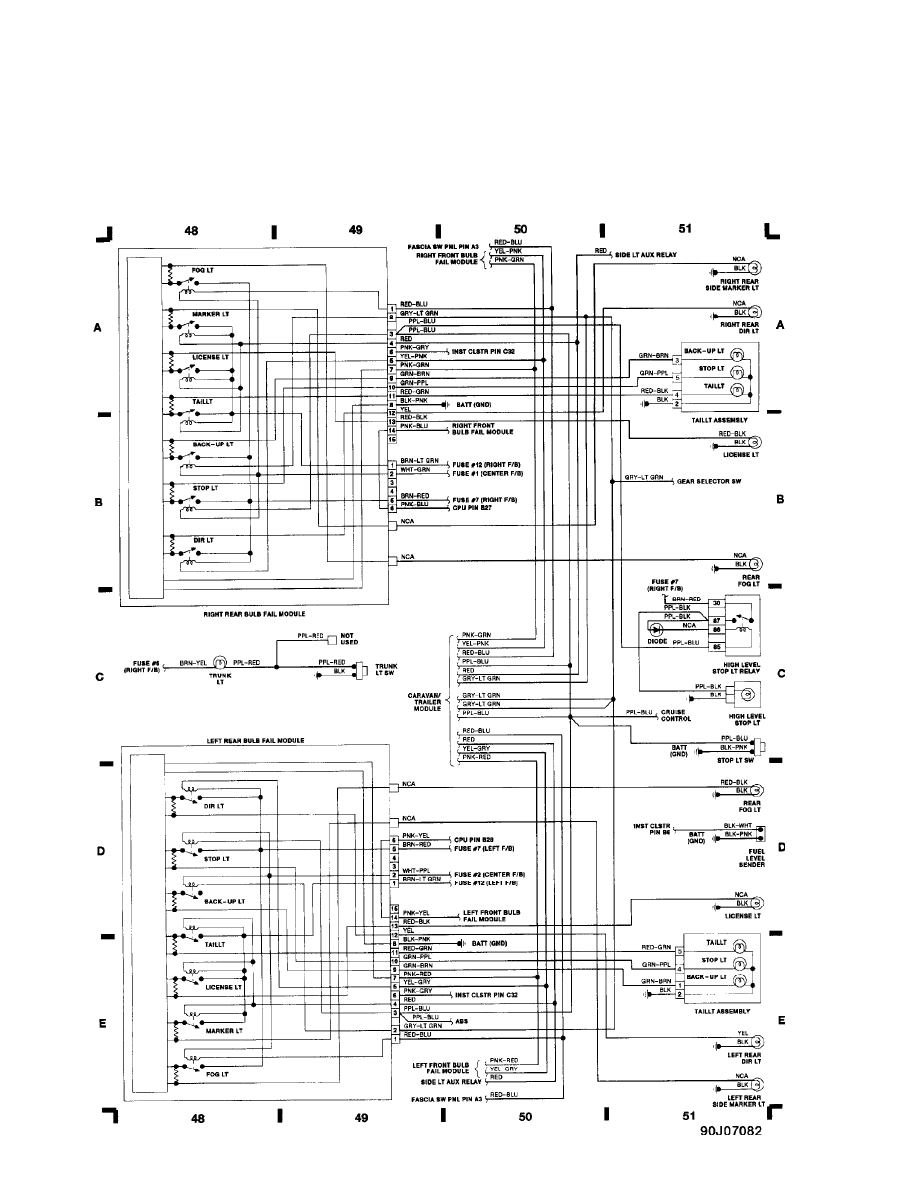

Fig. 13: Passenger Compartment & Taillights (p. 13)

1989 Jaguar XJ6

For x

Friday, September 10, 2004 12:49PM
