NOTE FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q'ty
(3) Description
(4) Symbol ( PCB No., Revision , and Parts location mounted on the PCB.)
Note : No orders without Parts Code or Tool No. can be accepted.
< Example >
REF.NO. CODE Q’TY
DESCRIPTION
SYMBOL REMARK
Revision No.: marked on the
main printed circuit board
.
B48K056 - 201A
Revision No.: marked on the
power supply PCB
.
Rev. 0B
2. Design-changed parts :
If the parts are changed, any one of the following symbols is indicated in the REMARKS column.
#A : compatible between old and new
#B : replaceable from old to new
#D : incompatible
# : newly established
3. The original of this list was made based on the information available in October, 2001.
4. Parts are subject to change in design without prior notice.
(1)
(4)
(3)
(2)
Design change indication
Specification No .
Pattern alteration No.
Circuit board No.
Design change indication
CONTENTS
..................................................................................................1
UNIT....................................................................................5
CASSETTE ...............................................................................5
UNIT..................................................................................7
PAPER EXIT UNIT ................................................................................7
UNIT........................................................................................9
PCB ...........................................................................................11
12. POWER SUPPLY UNIT ......................................................................17
13. HIGH VOLTAGE POWER SUPPLY ....................................................17
16. PACKING MATERIALS.........................................................................21
17. PERIODICAL REPLACEMENT PARTS ...............................................21

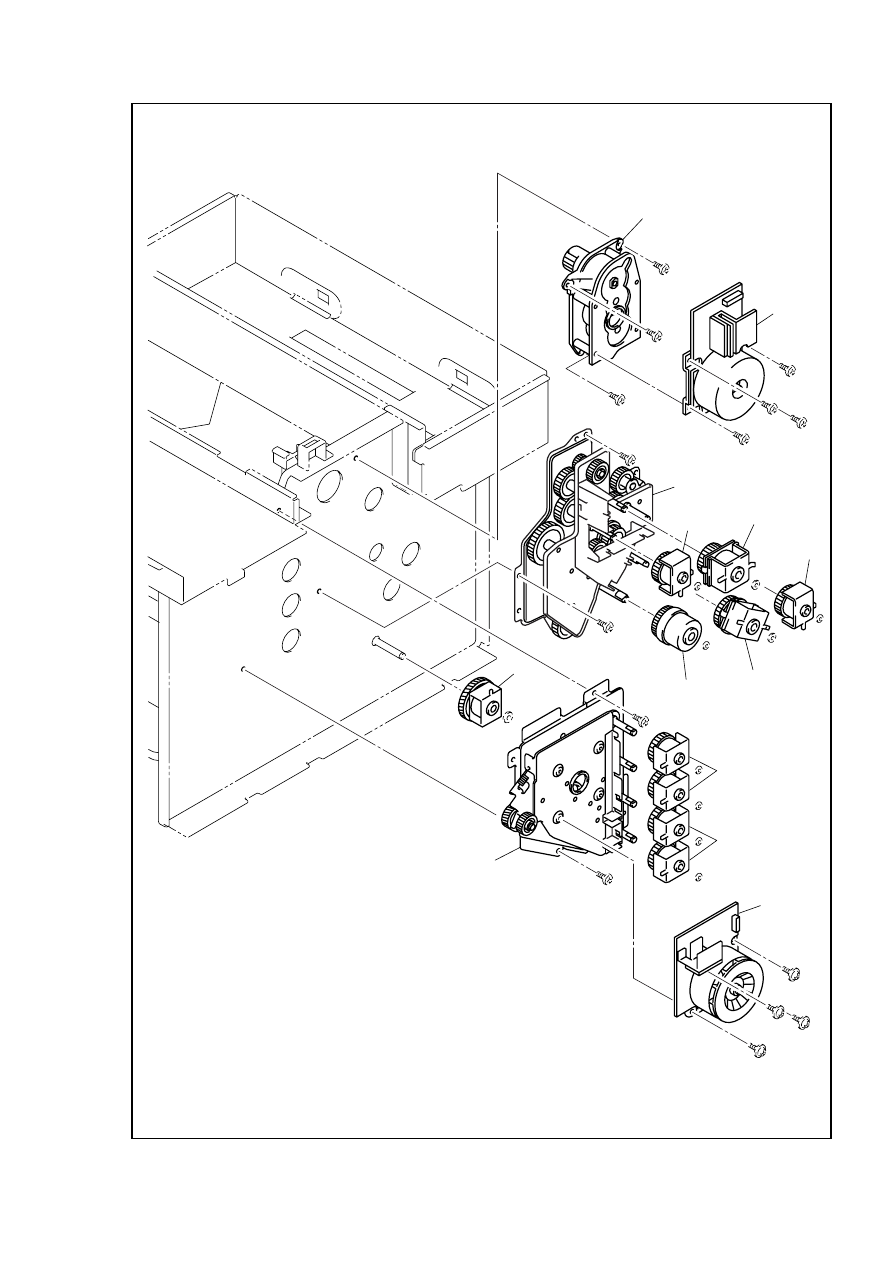

1. DRIVE
- 2 -
MODEL HL-2600CN 54S303
1
2
10
3
4
5
6
7
9
8
9
8
8

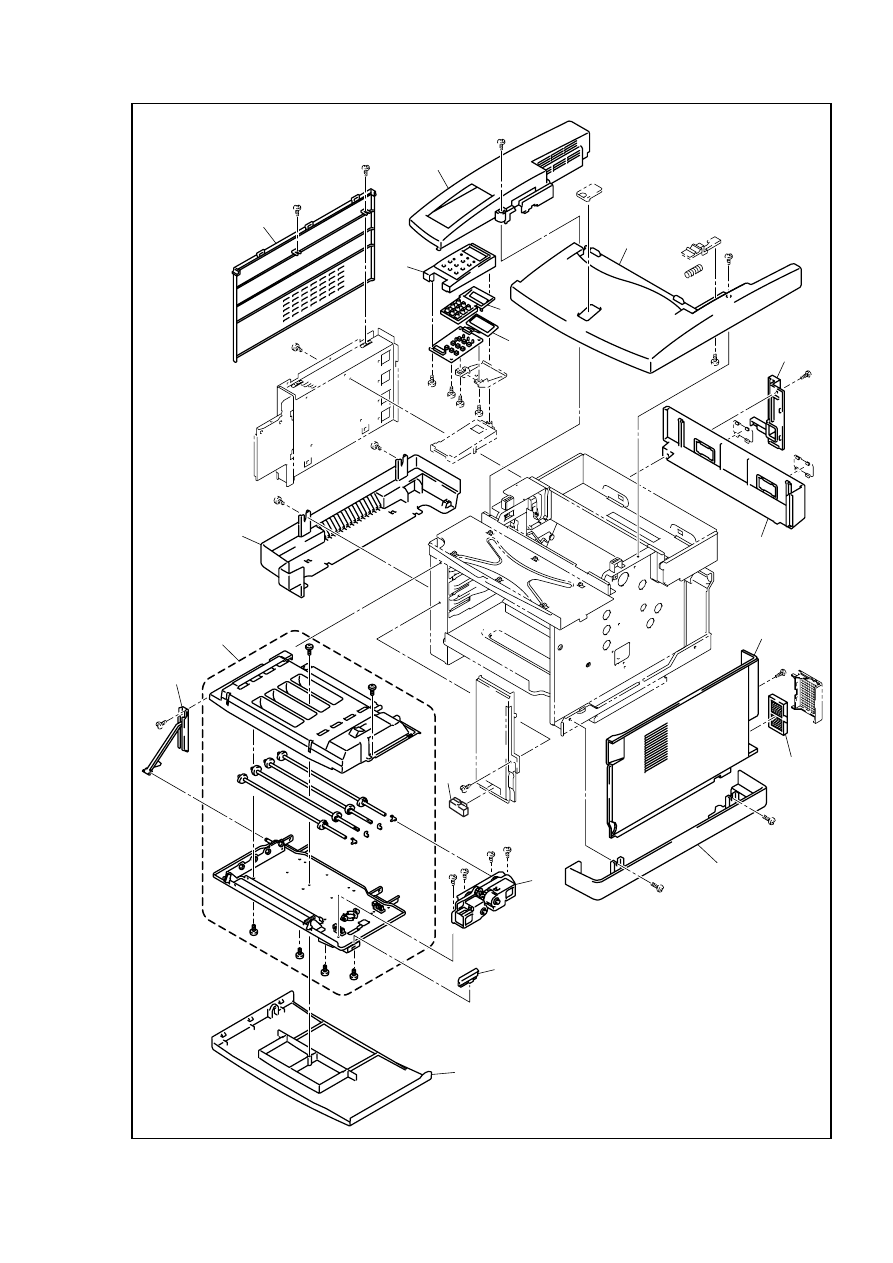

2. FRAME
MODEL HL-2600CN 54S303
- 4 -
27
3
2
10
12
11
25
25
4
21
1
1
5
22
23
9
13
14
15
24
28
16
19
18
5
6
3
3
17
20
6
7
24
7
26
8
5
5
Paper sensor (EXFS)
Paper sensor (F.CL)
Paper sensor (PT2)
5
5
-5-
MODEL HL-2600CN 54S303

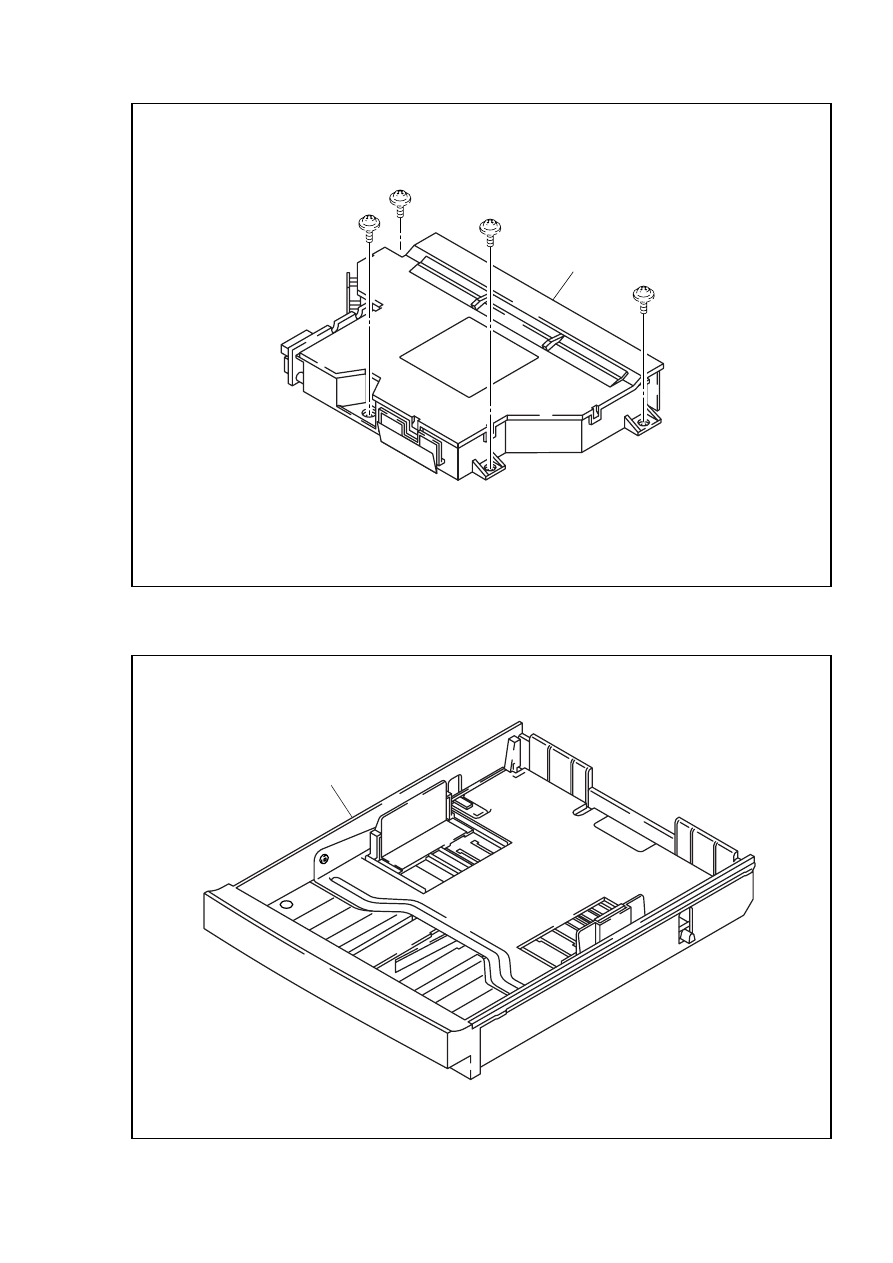

3. SCANNER UNIT
4. MEDIA CASSETTE
- 6 -
MODEL HL-2600CN 54S303
1
1
-7-
MODEL HL-2600CN 54S303
MODEL HL-2600CN 54S303

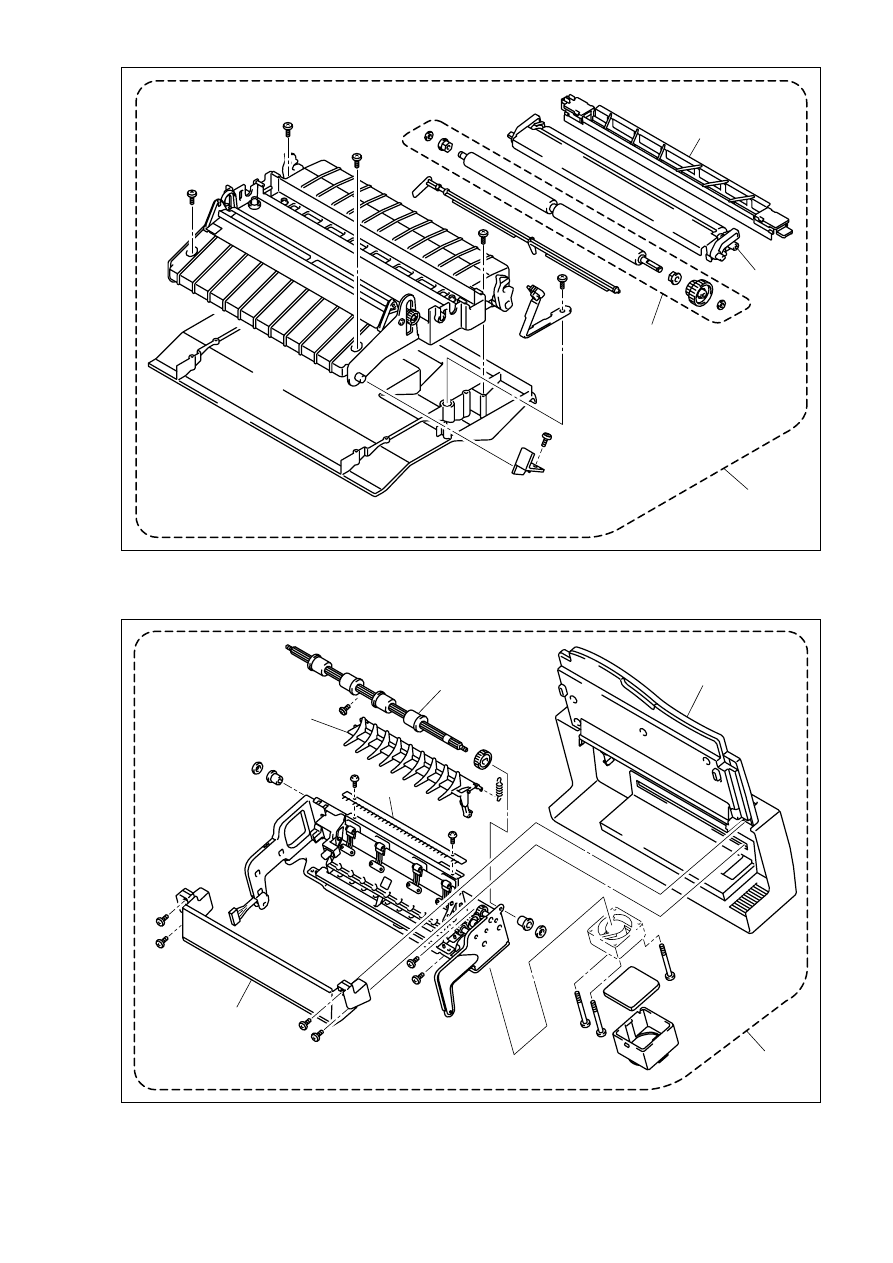

5. TRANSFER UNIT
6. PAPER EXIT UNIT
- 8 -
1
1-1
1-3
1-2
1
1-1
1-2
1-3
1-4
1-5
- 9 -

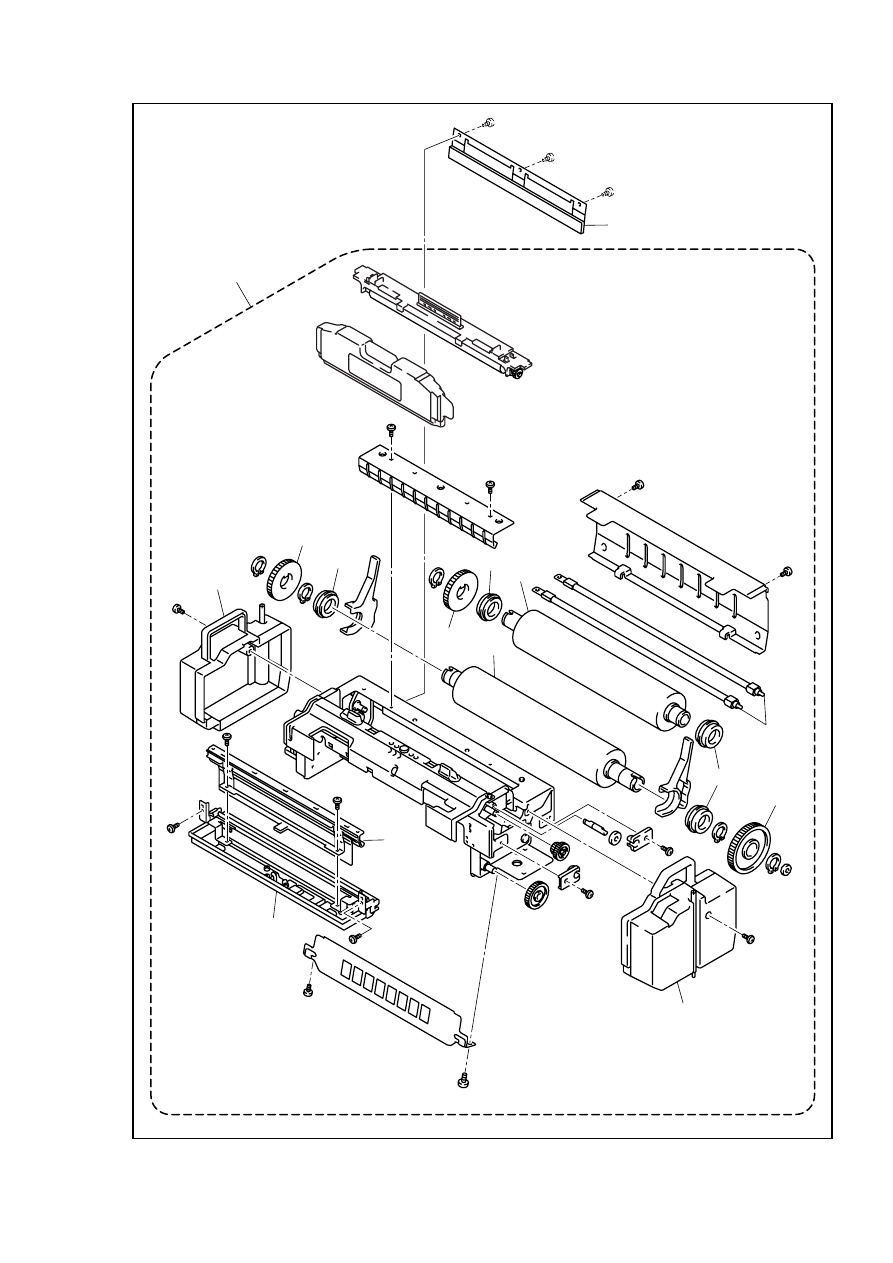

7. FUSING UNIT
MODEL HL-2600CN 54S303
- 10 -
1
2
1-1
1-3
1-5
1-7
1-9
1-10
1-6
1-2
1-4
1-4
1-8
1-6
1-6
MODEL HL-2600CN 54S303
T/I NO. PR2002007 / PR2002034 / PR2002077 / PR2002083
-11-

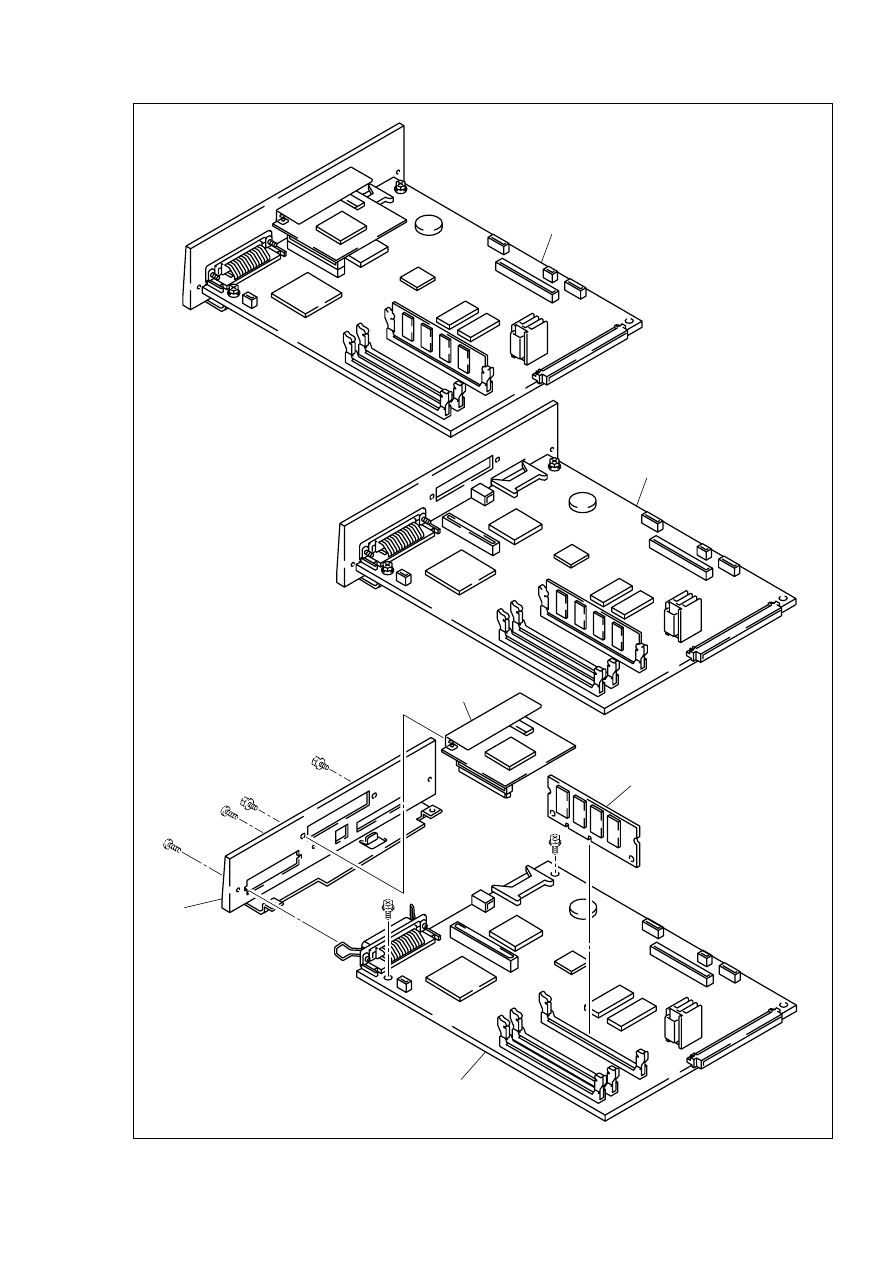

8. MAIN PCB
- 12 -
MODEL HL-2600CN 54S303
3
4
6
1
2
5
-13-
9. COVER
- 14 -
MODEL HL-2600CN 54S303
3
1
14
15
17
4
5
6
7
8
10
11
22
12
9
20
13
2
-15-
MODEL HL-2600CN 54S303
10. MCTL PCB
11. IOD PCB
- 16 -
MODEL HL-2600CN 54S303
1
1
2
MODEL HL-2600CN 54S303
12. POWER SUPPLY UNIT
13. HIGH VOLTAGE POWER SUPPLY
- 18 -
MODEL HL-2600CN 54S303
1
1
MODEL HL-2600CN 54S303
MODEL HL-2600CN 54S303

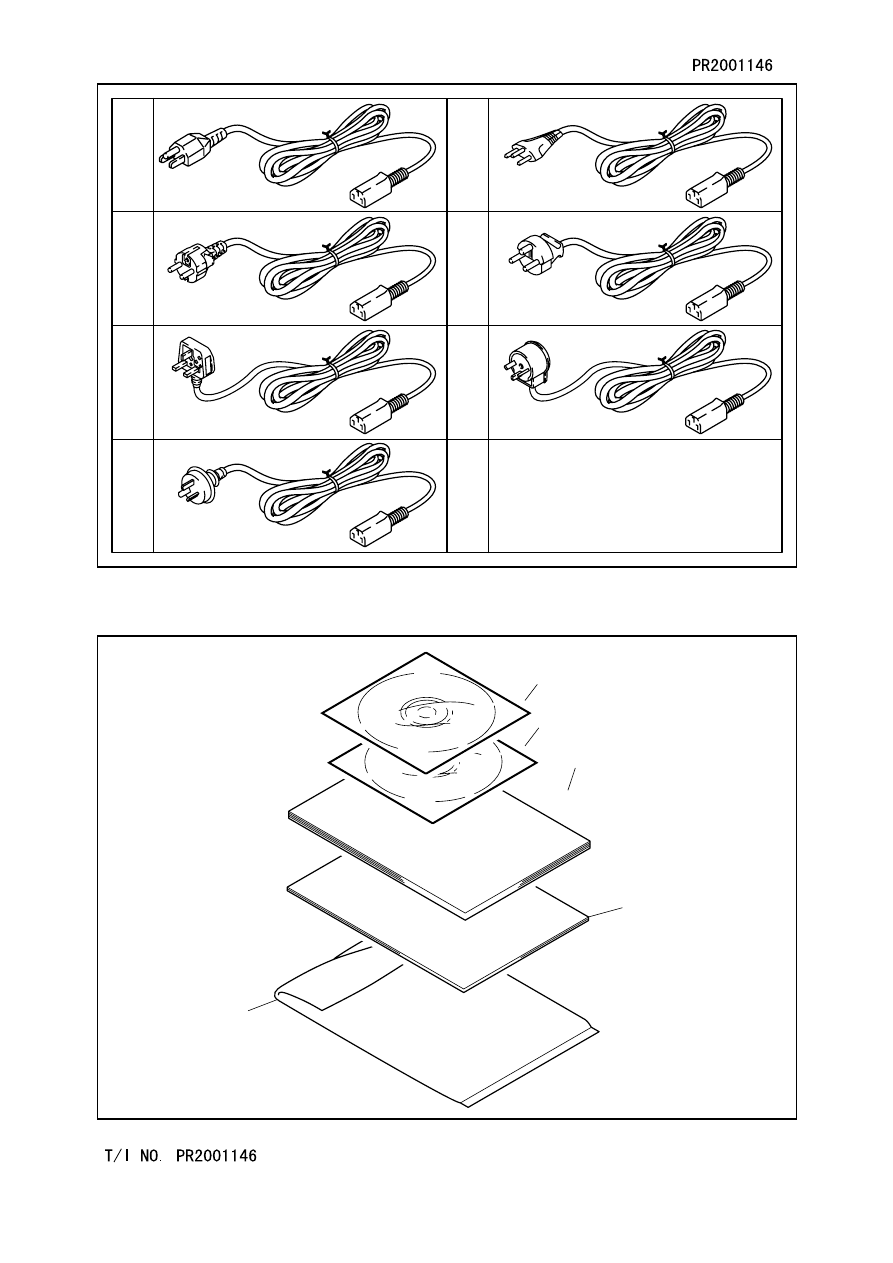

14. AC CORDS
15. ACCESSORIES
- 20 -
1D
1A
1H
1F
1G
1B
1C
1E
2
4
3
1
1
MODEL HL-2600CN 54S303
- 22 -
MODEL HL-2600CN 54S303

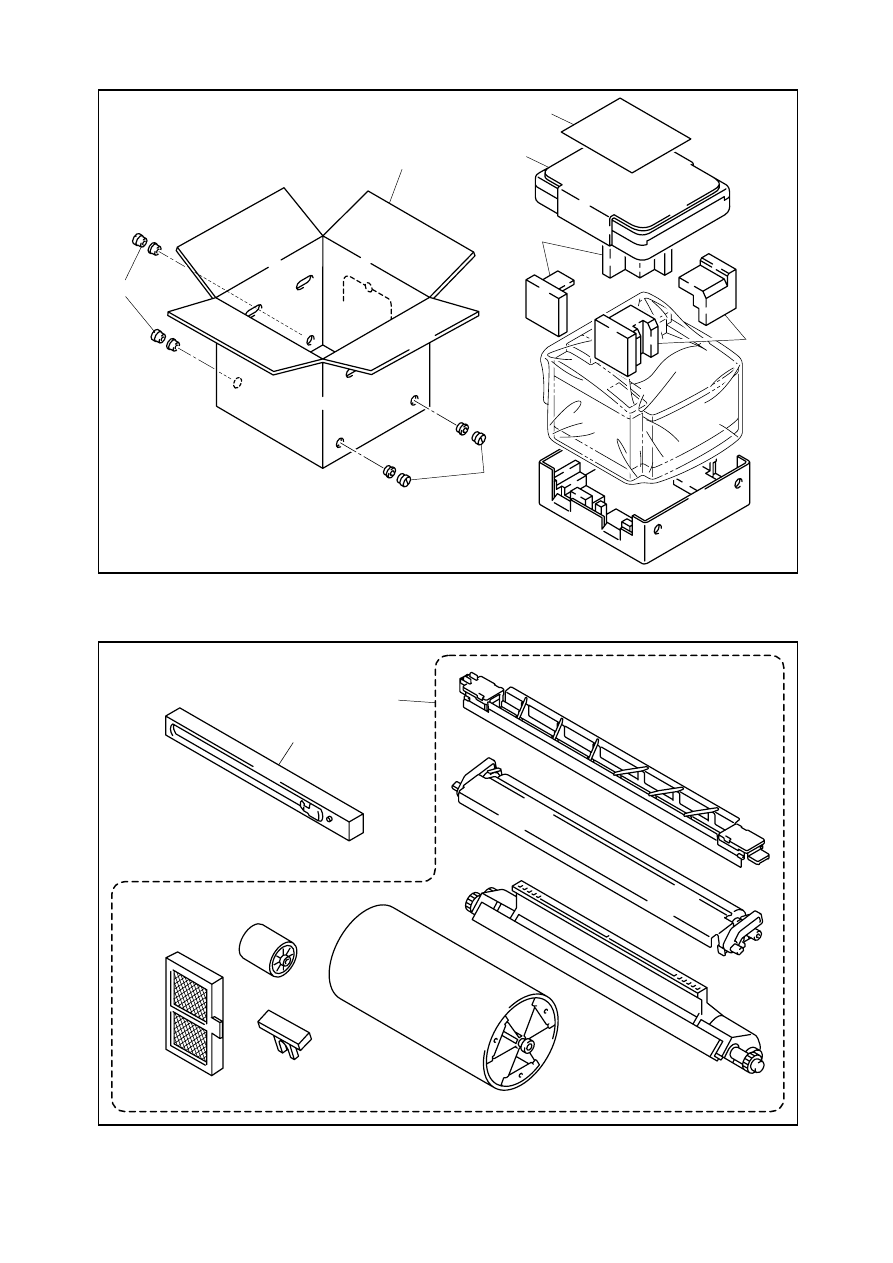

16 . PACKING MATERIALS
17 . PERIODICAL REPLACEMENT PARTS
5
5
1
2
4
3
3
2
1
MODEL HL-2600CN 54S303
- 24 -

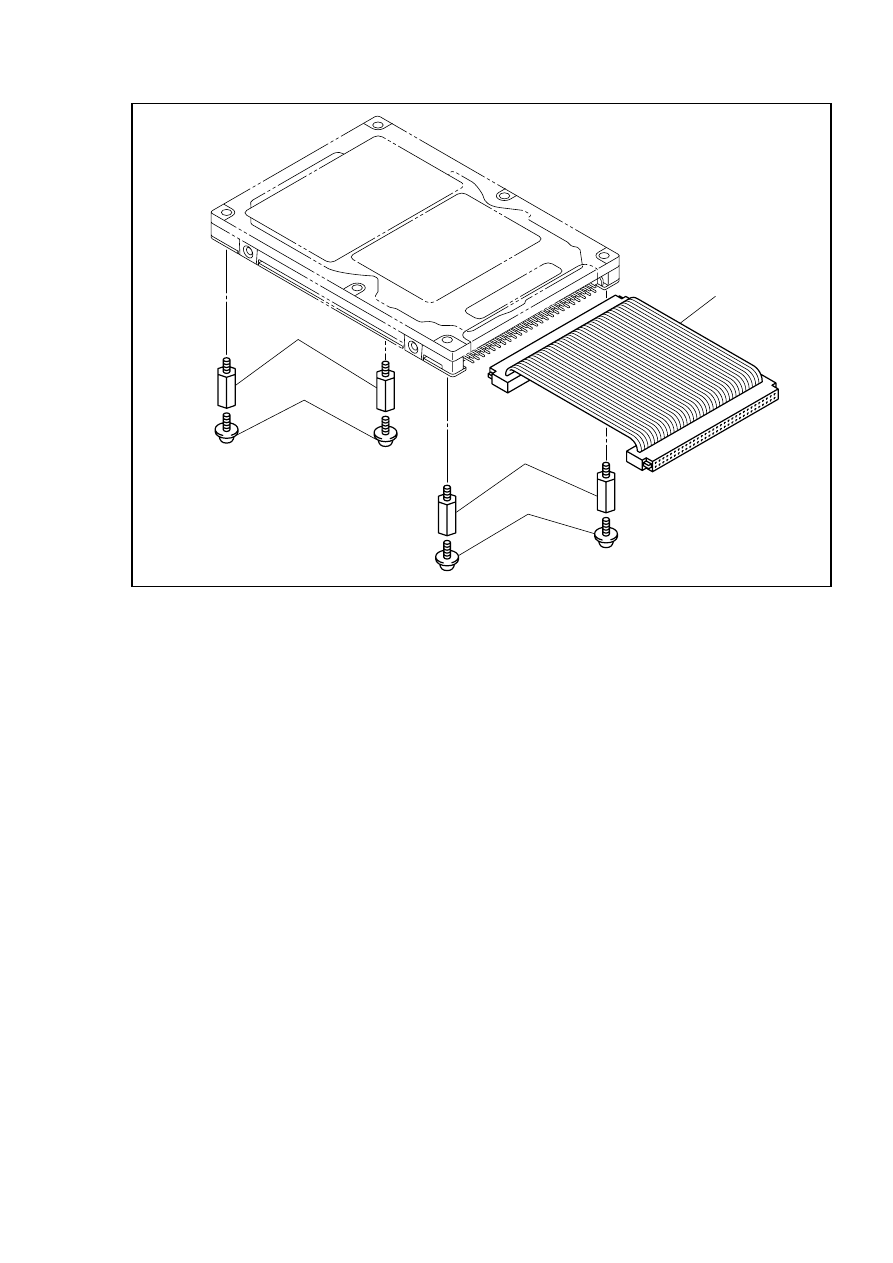

18 . HARD DISK (OPTION / FOR HL-2400Ce/2600CN)
1
2
2
3
3
