SAAB 900 1989

SYSTEM WIRING DIAGRAMS

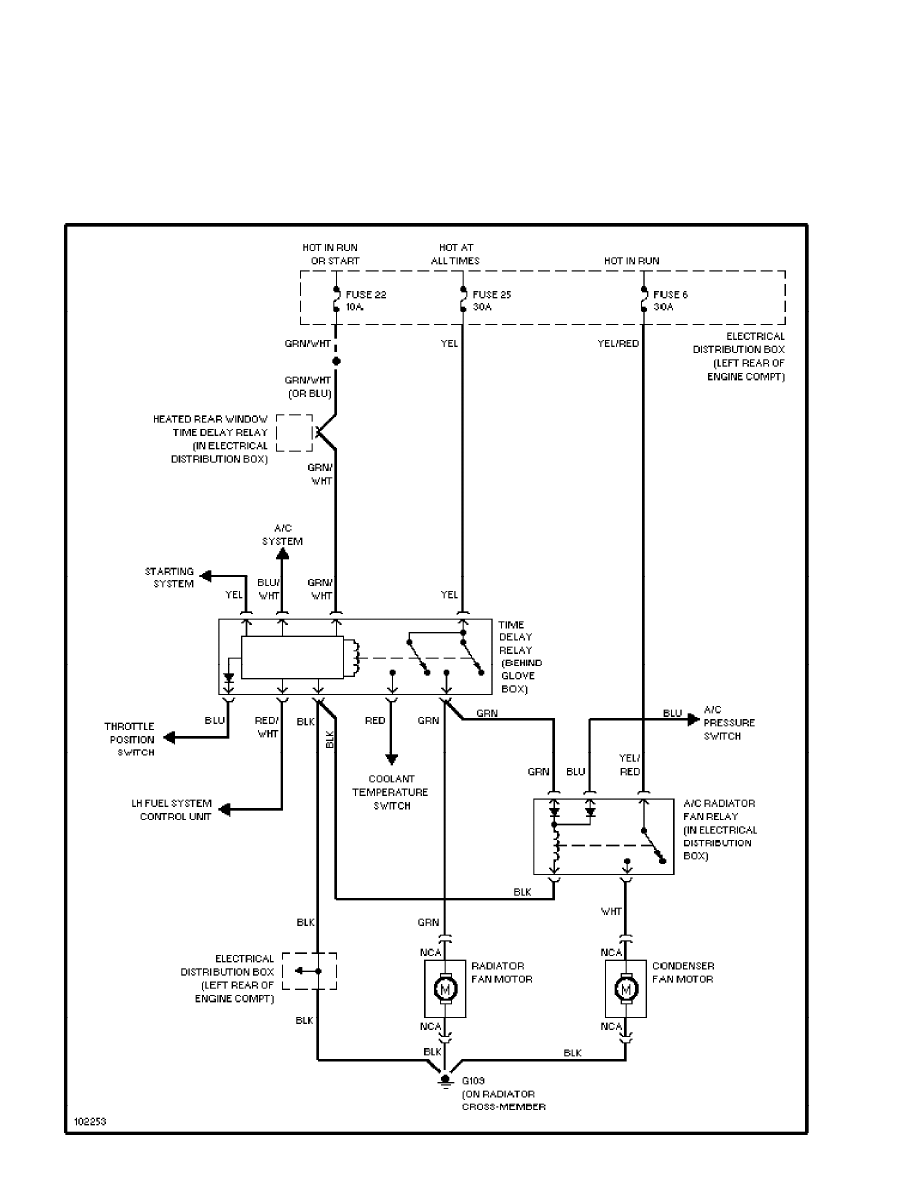

Cooling Fan Circuit, W/ A/C

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

SYSTEM WIRING DIAGRAMS

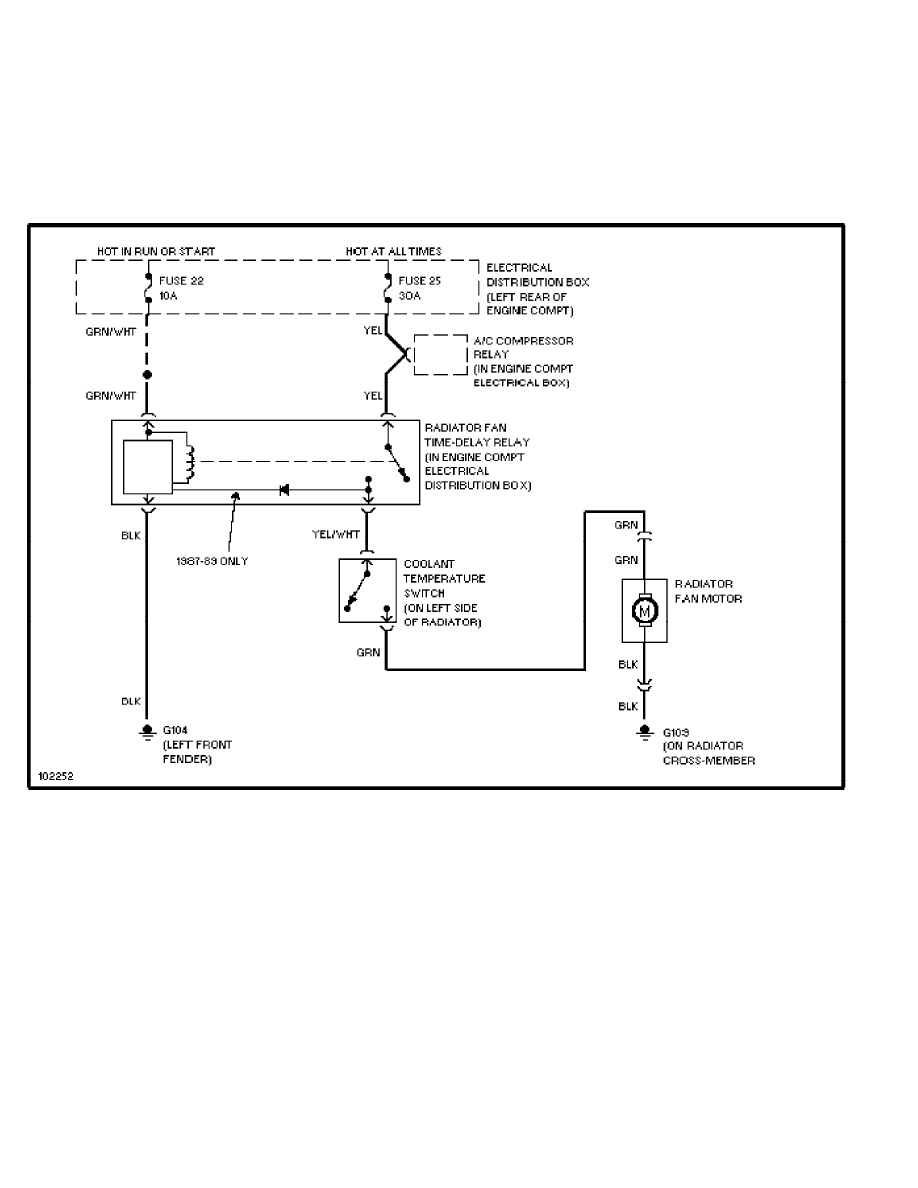

Cooling Fan Circuit, W/O A/C (p. 2)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

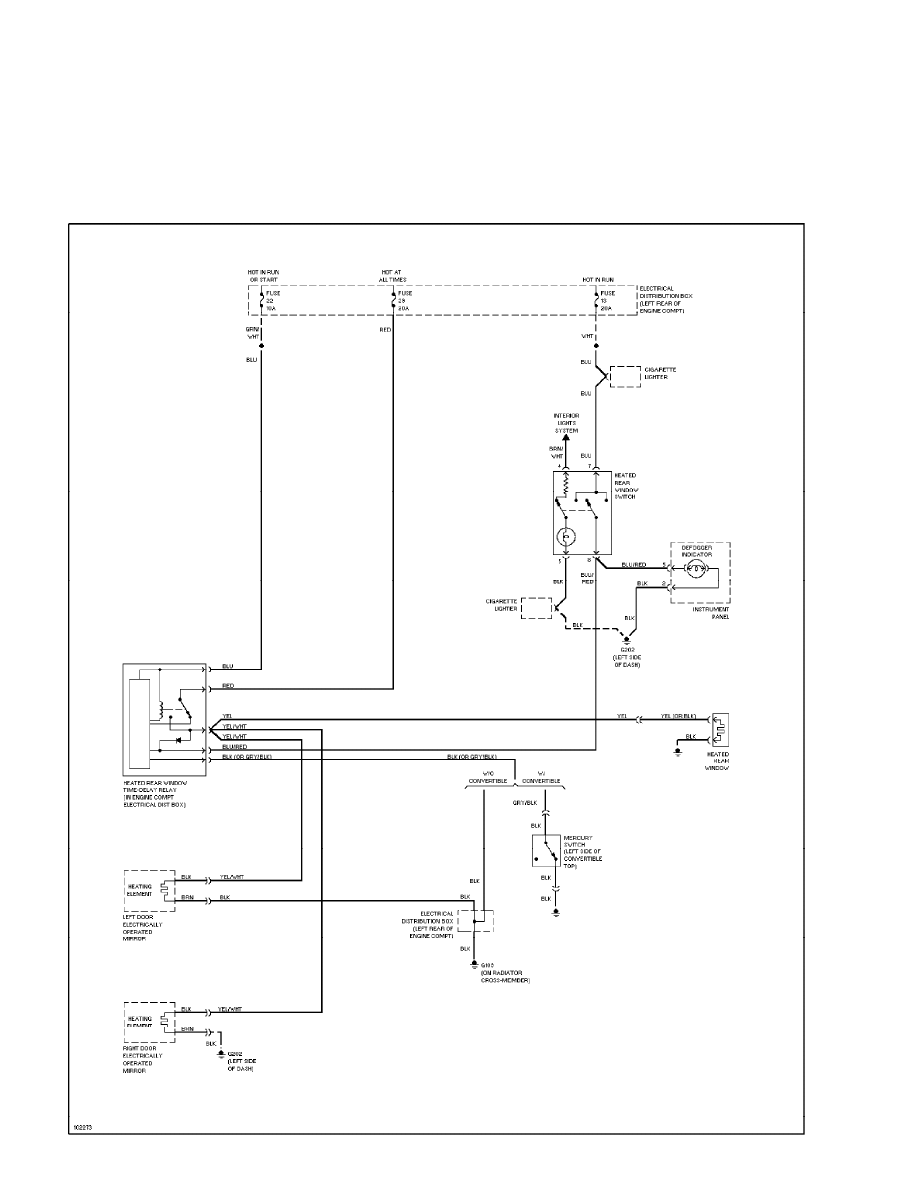

SYSTEM WIRING DIAGRAMS

Defogger Circuit (p. 3)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

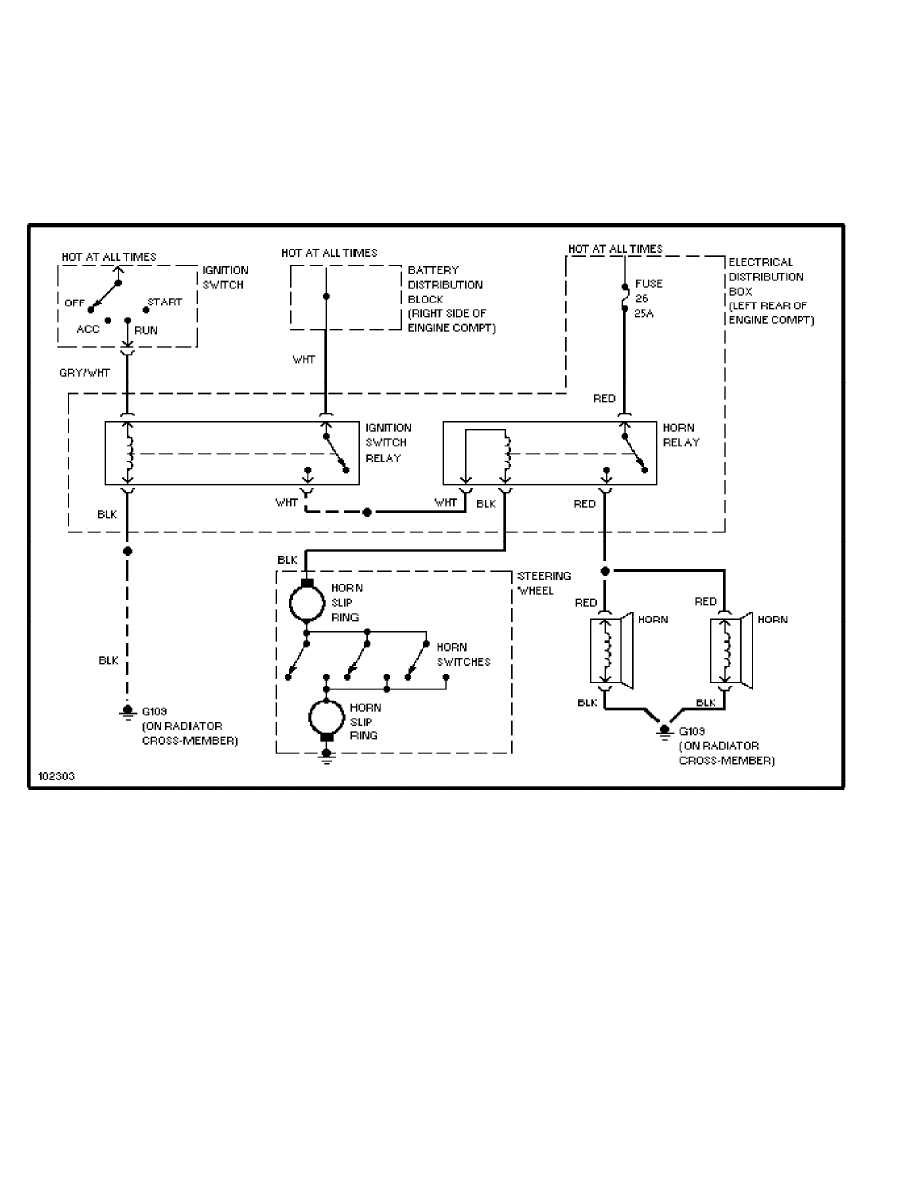

SYSTEM WIRING DIAGRAMS

Horn Circuit (p. 4)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

SYSTEM WIRING DIAGRAMS

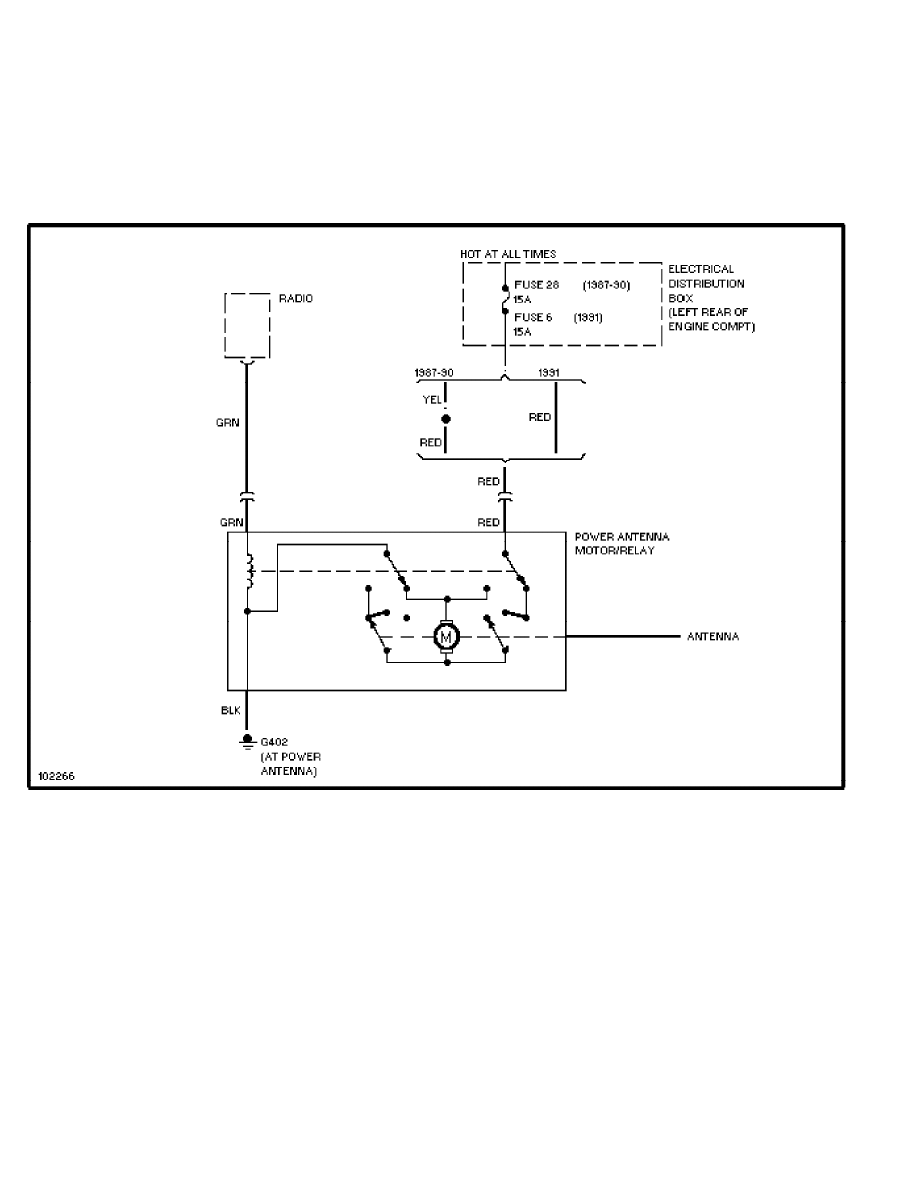

Power Antenna Circuit (p. 5)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

SYSTEM WIRING DIAGRAMS

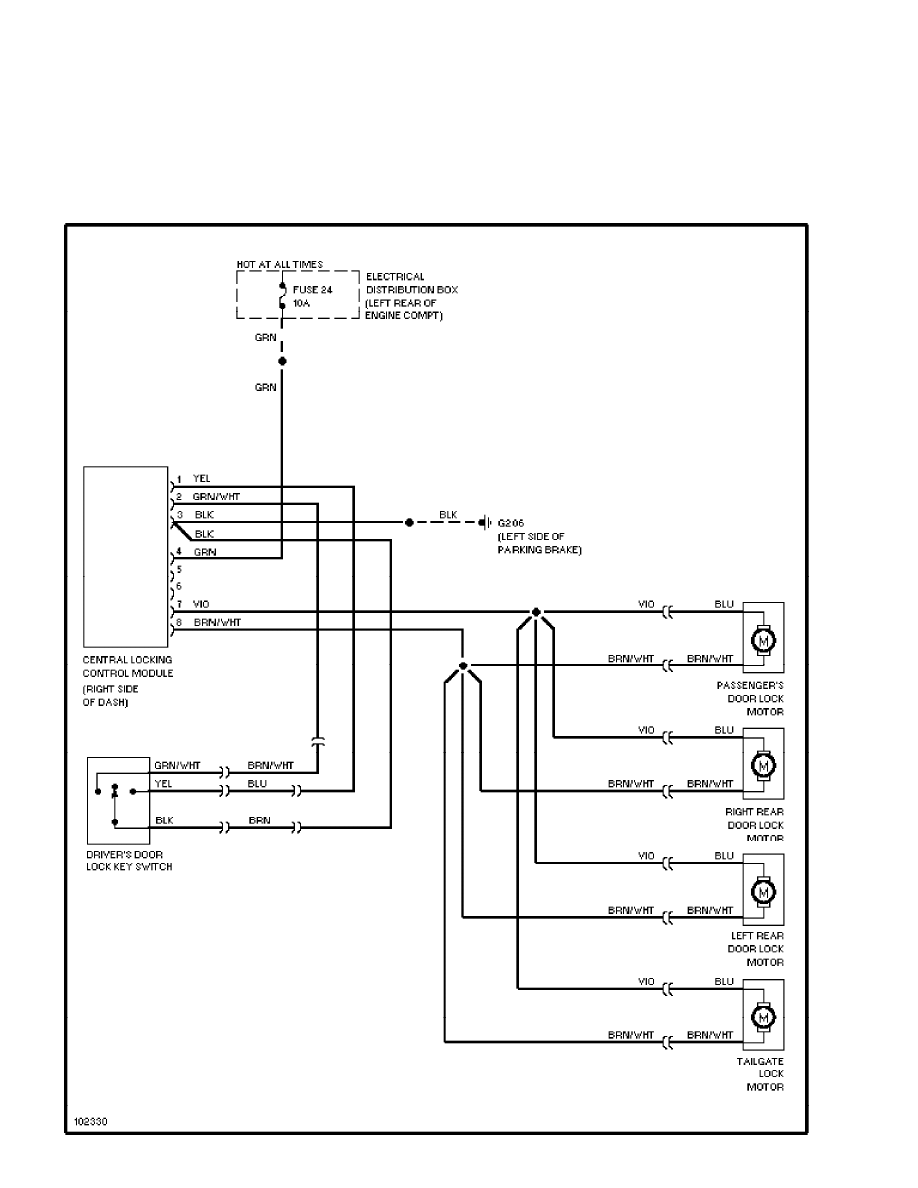

Power Door Lock Circuit, W/ Convertible (p. 6)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

SYSTEM WIRING DIAGRAMS

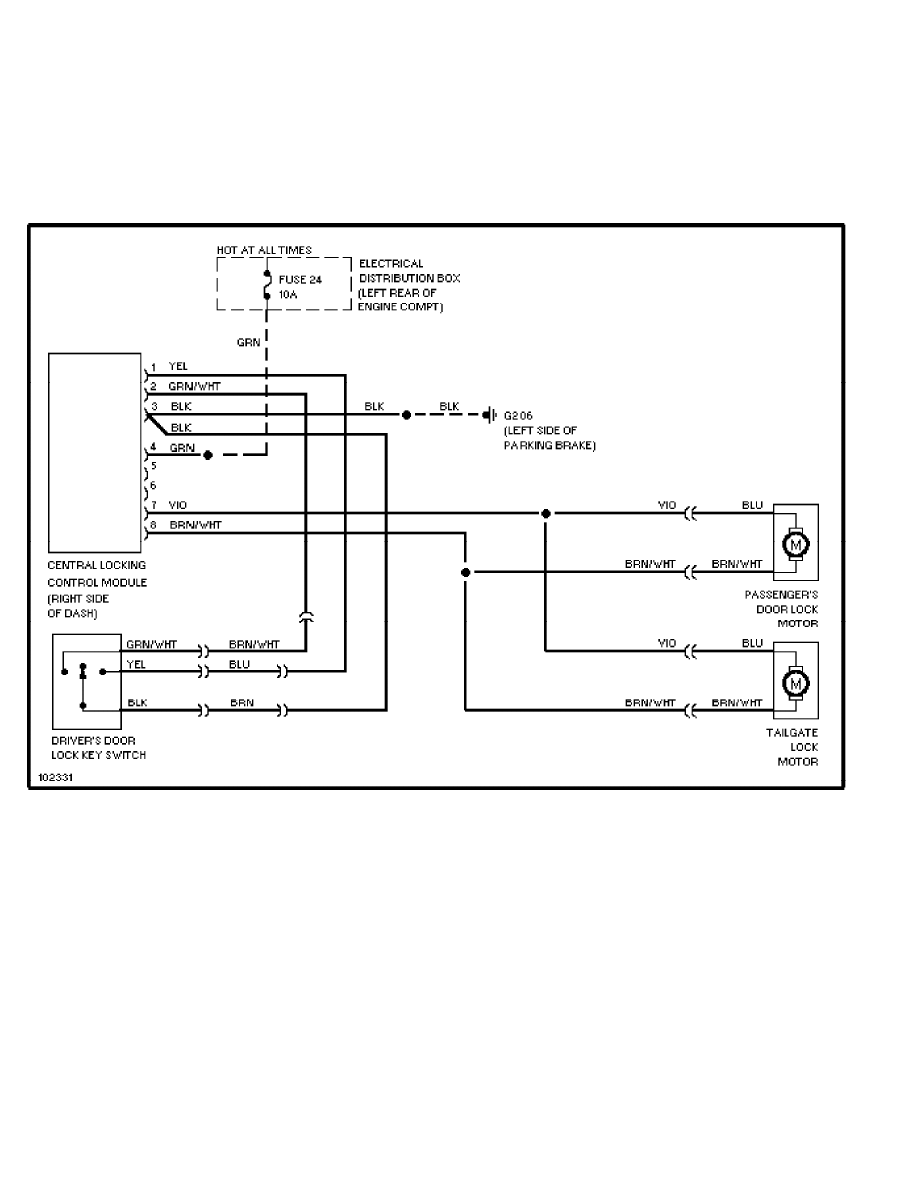

Power Door Lock Circuit, W/O Convertible (p. 7)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

SYSTEM WIRING DIAGRAMS

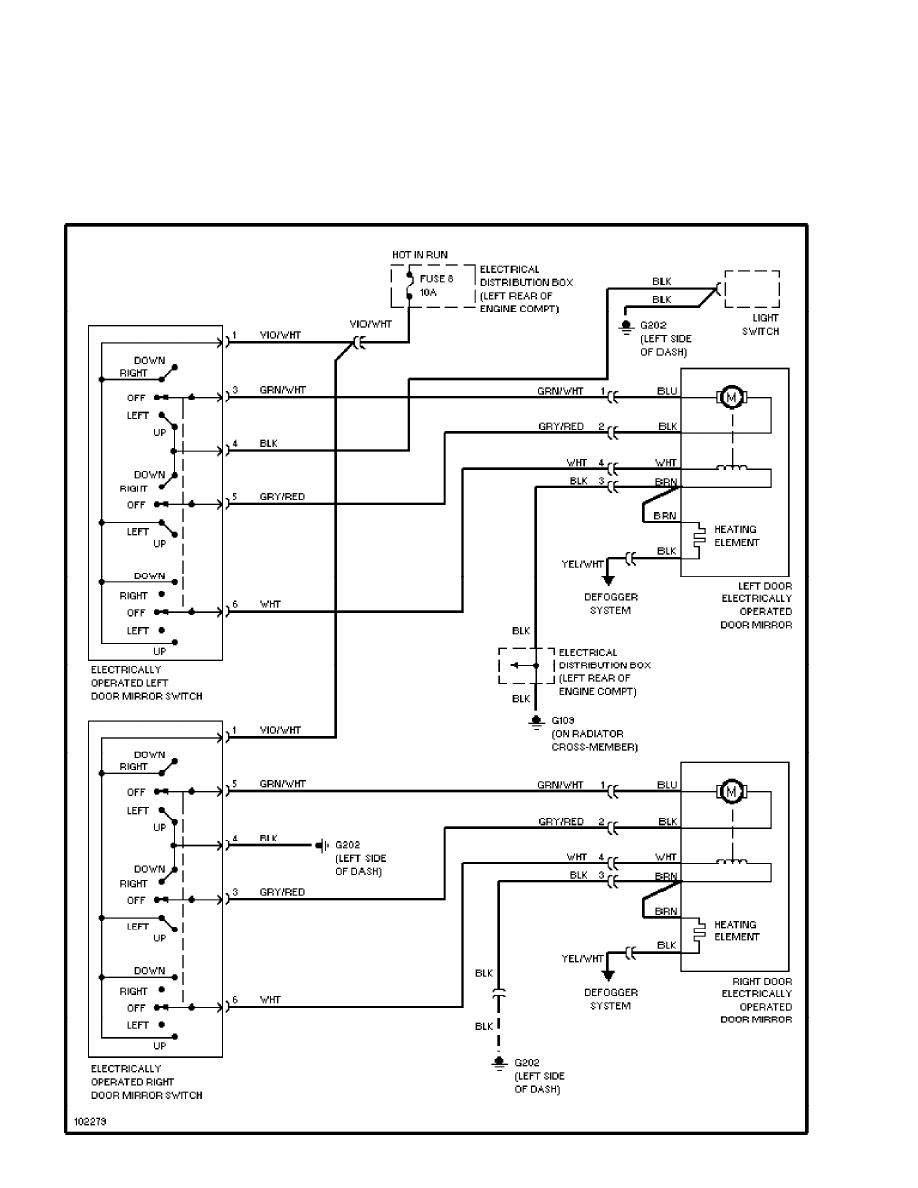

Power Mirror Circuit (p. 8)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

SYSTEM WIRING DIAGRAMS

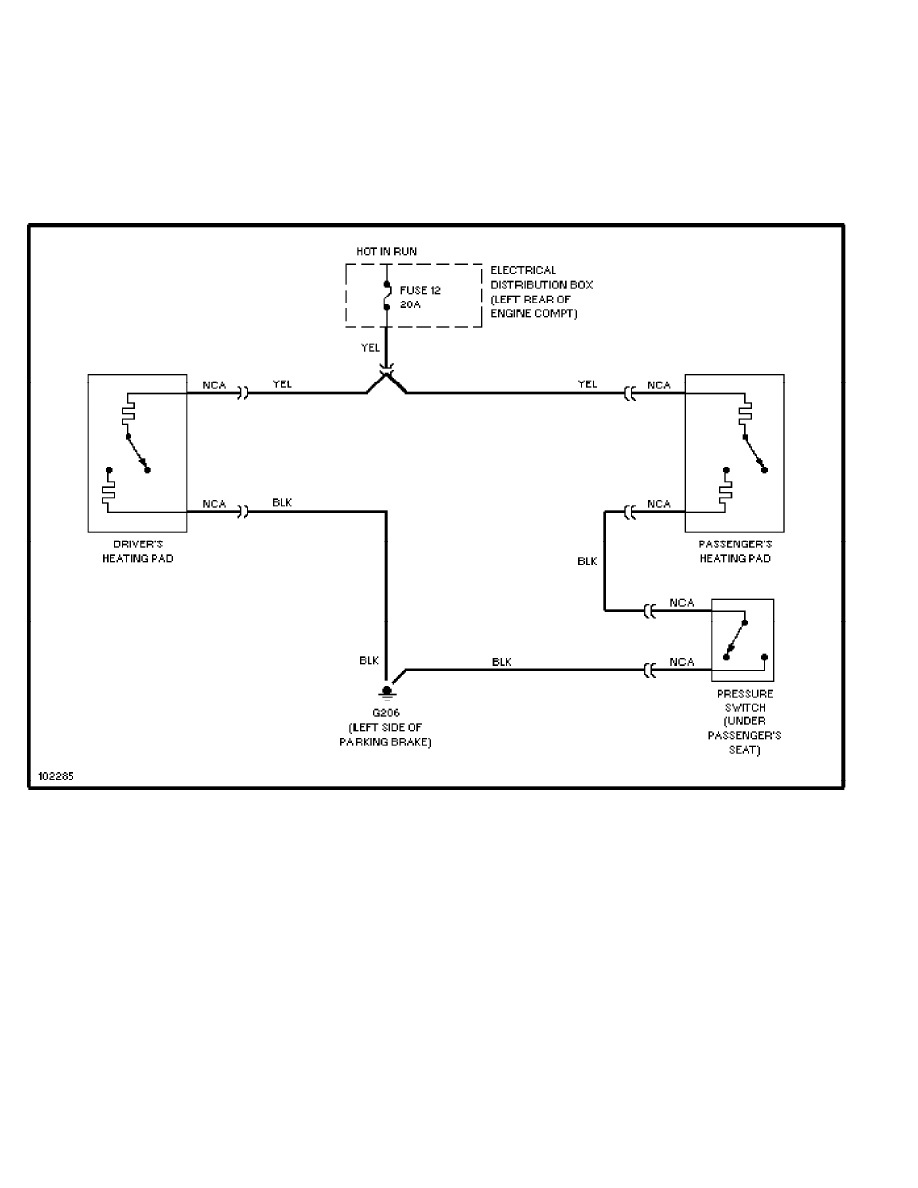

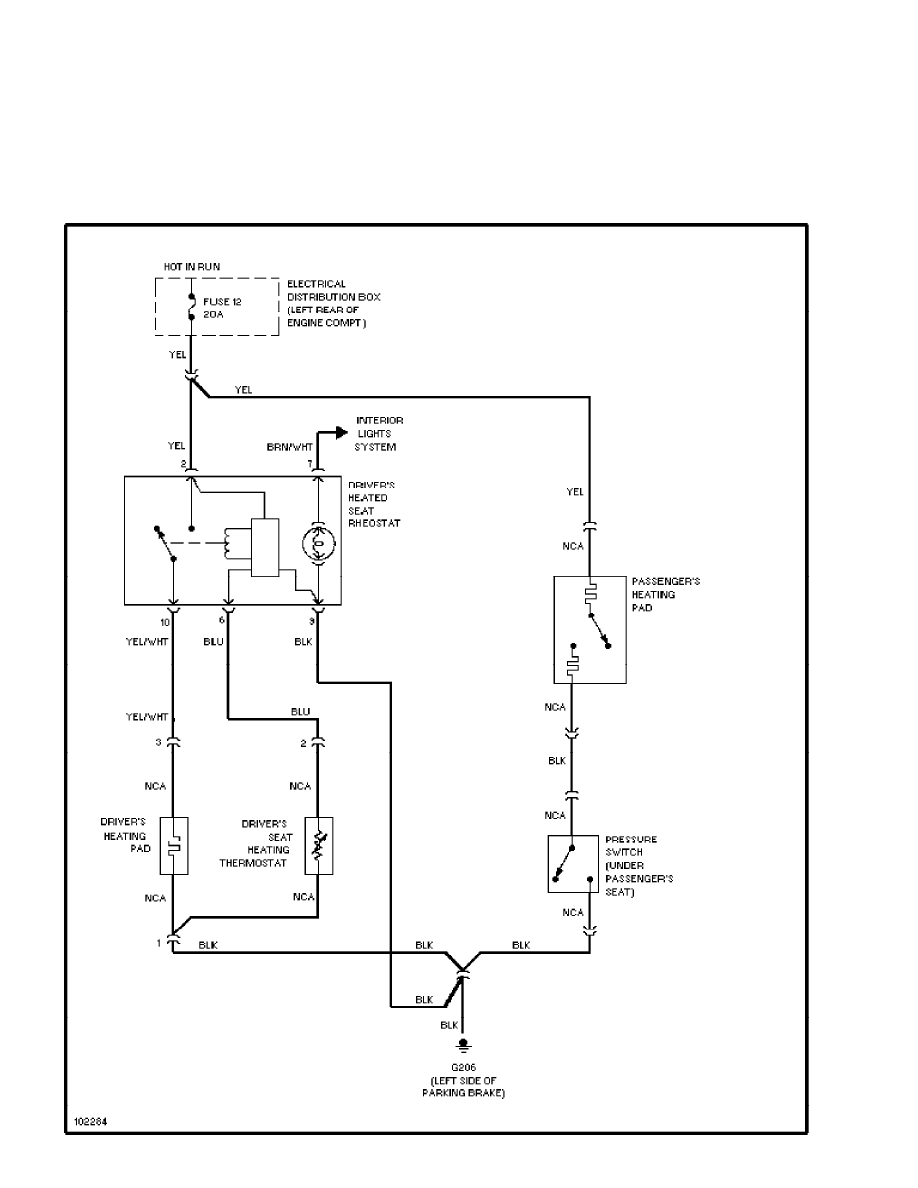

Heated Seats Circuit, W/ Rehostat Control (p. 9)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

SYSTEM WIRING DIAGRAMS

Heated Seats Circuit, W/O Rheostat Control (p. 10)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

SYSTEM WIRING DIAGRAMS

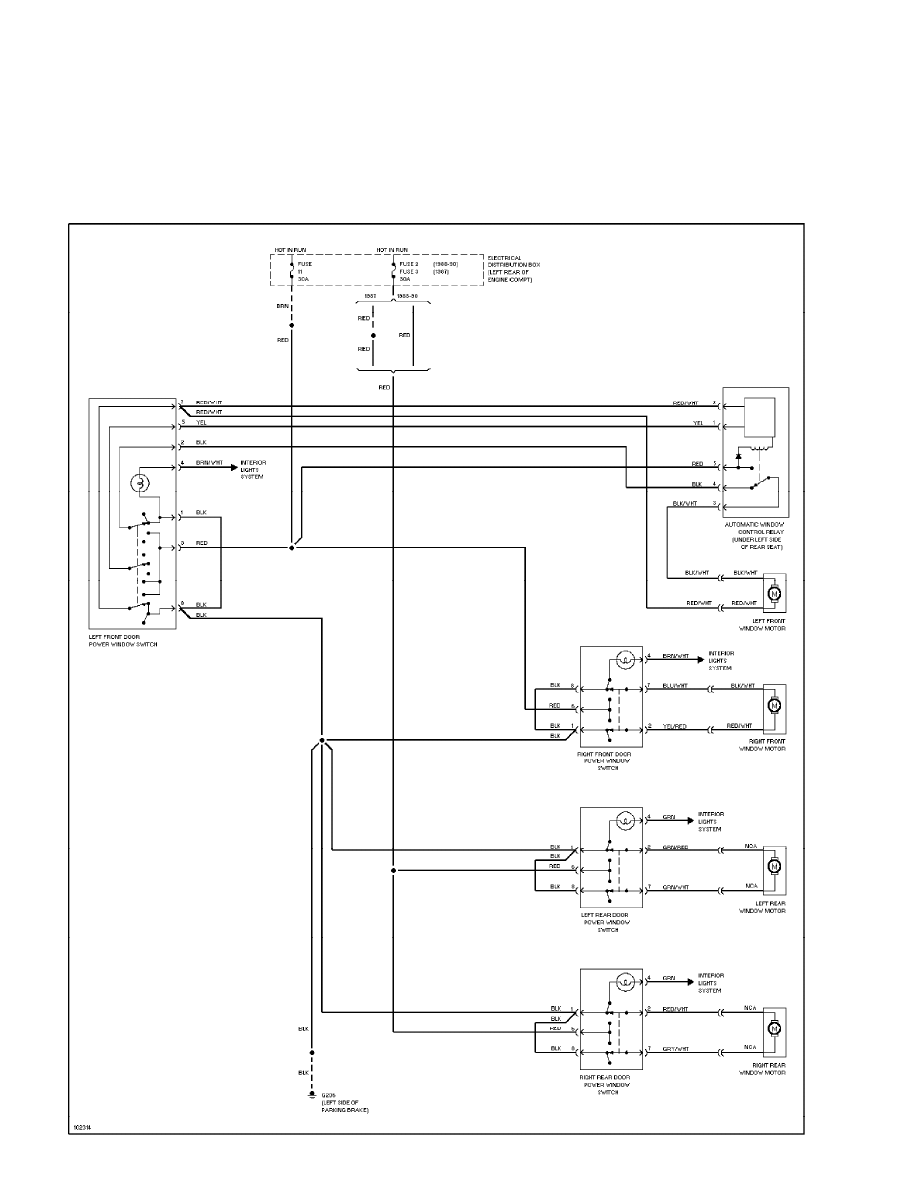

Power Window Circuit, W/ Convertible (p. 11)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

SYSTEM WIRING DIAGRAMS

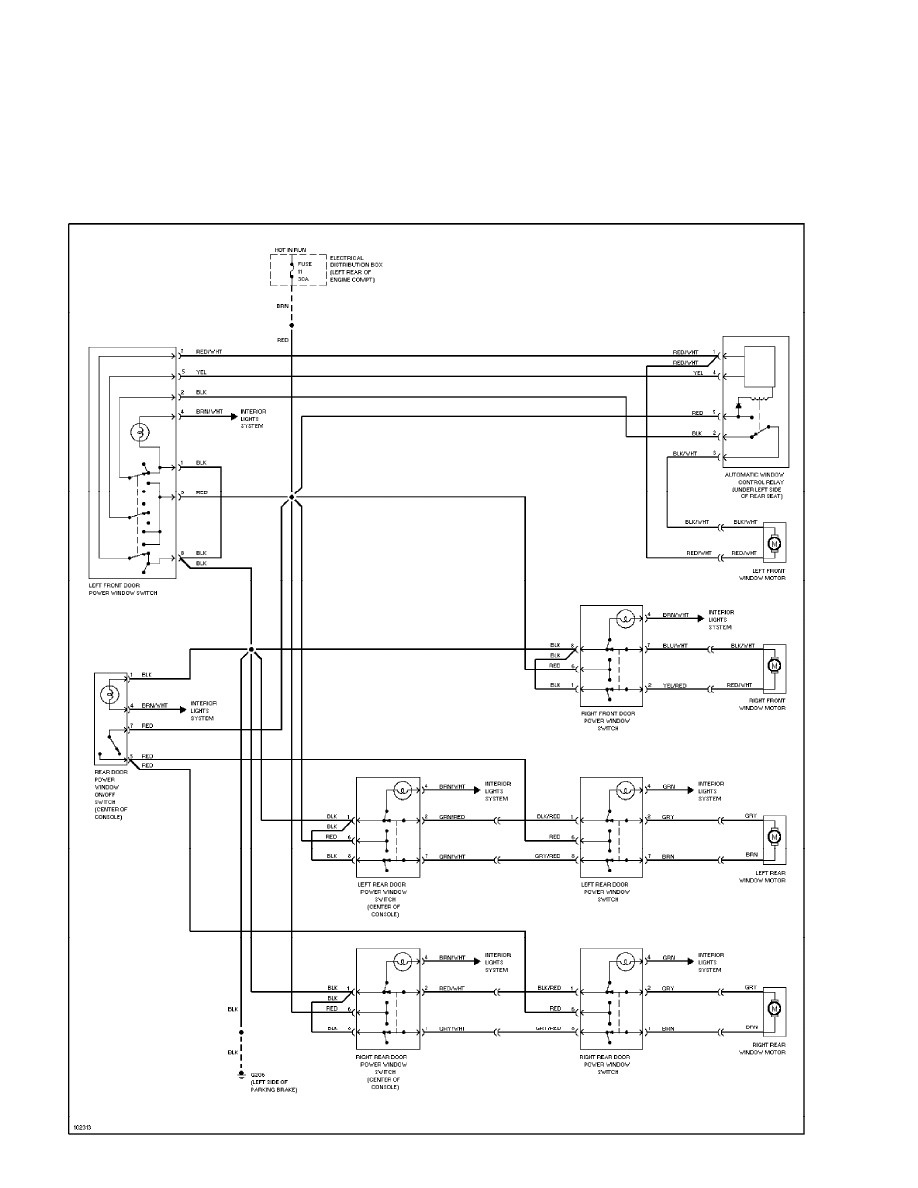

Power Window Circuit, W/O Convertible (p. 12)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

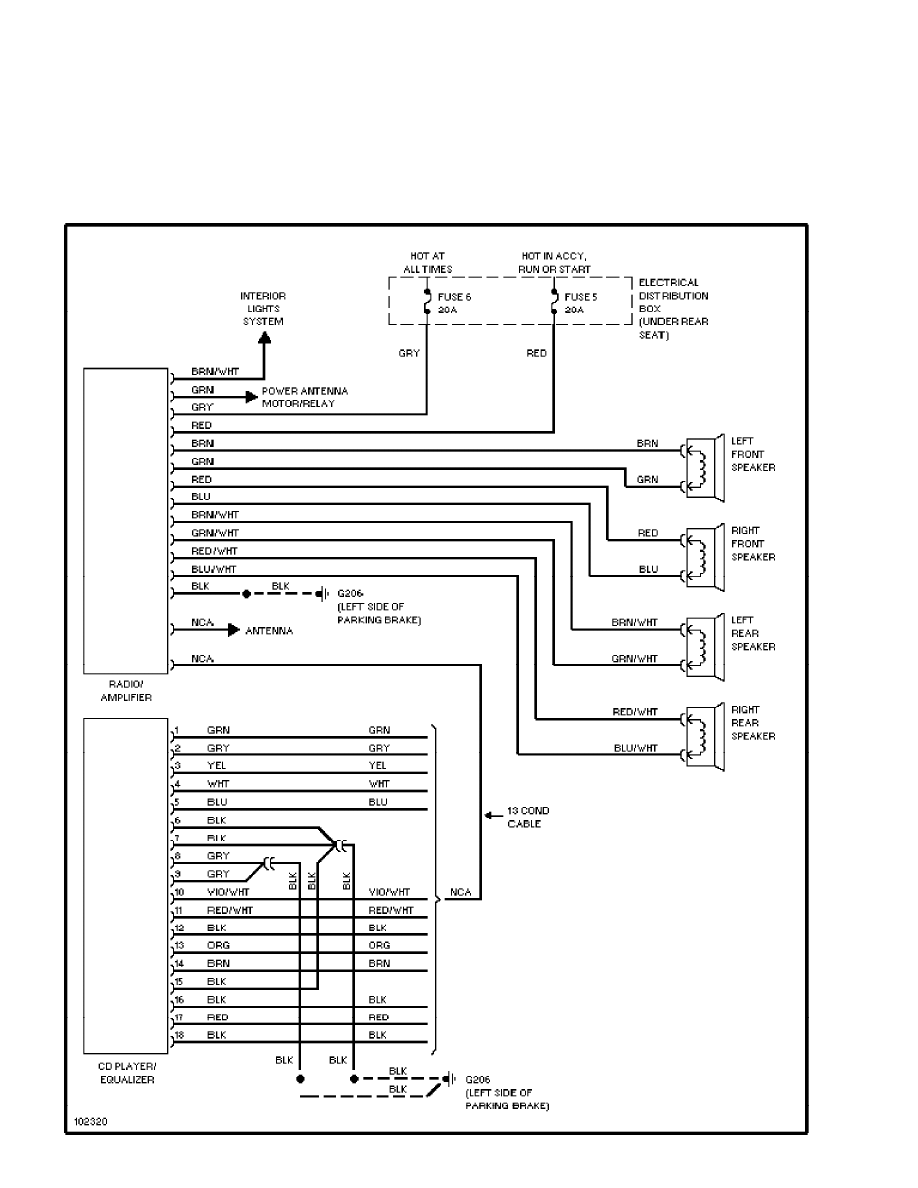

SYSTEM WIRING DIAGRAMS

Radio Circuits (p. 13)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

SYSTEM WIRING DIAGRAMS

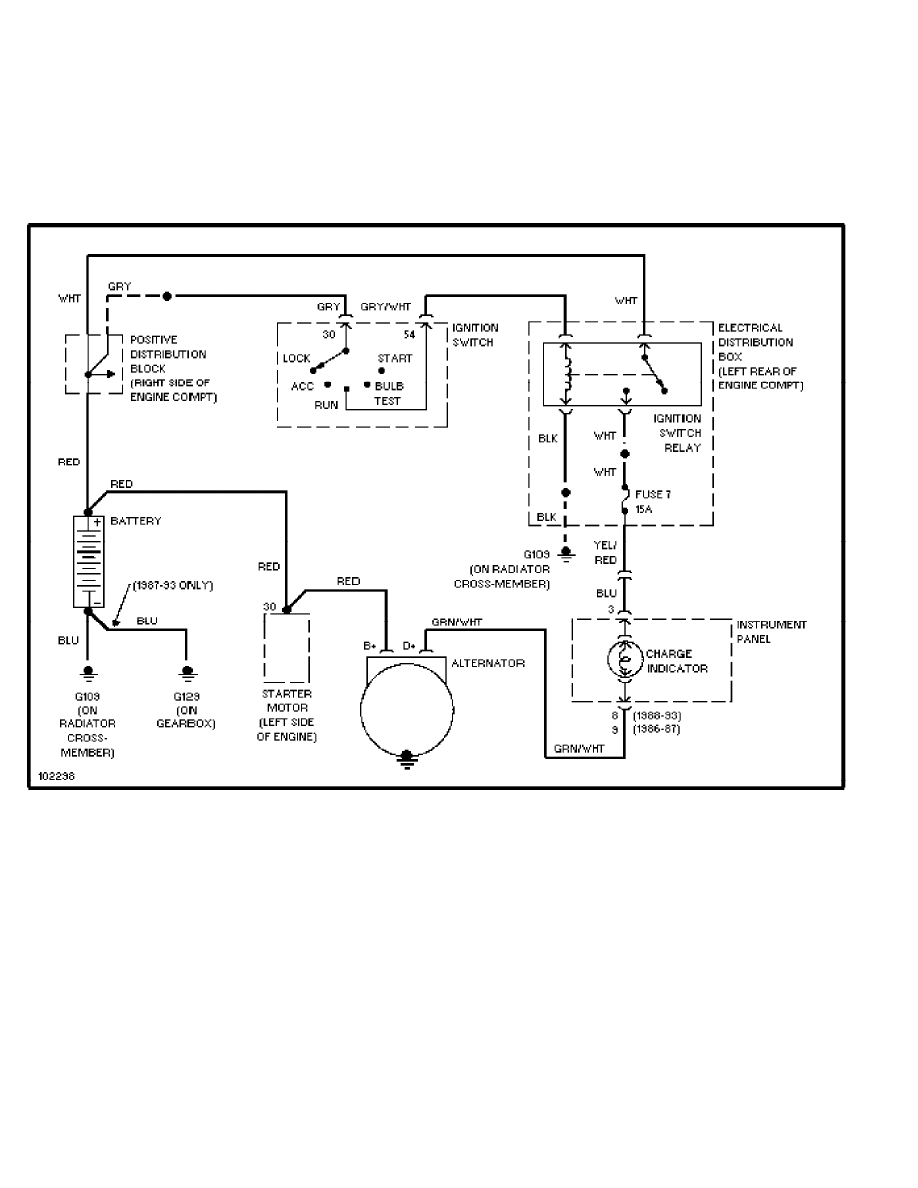

Charging Circuit (p. 14)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

SYSTEM WIRING DIAGRAMS

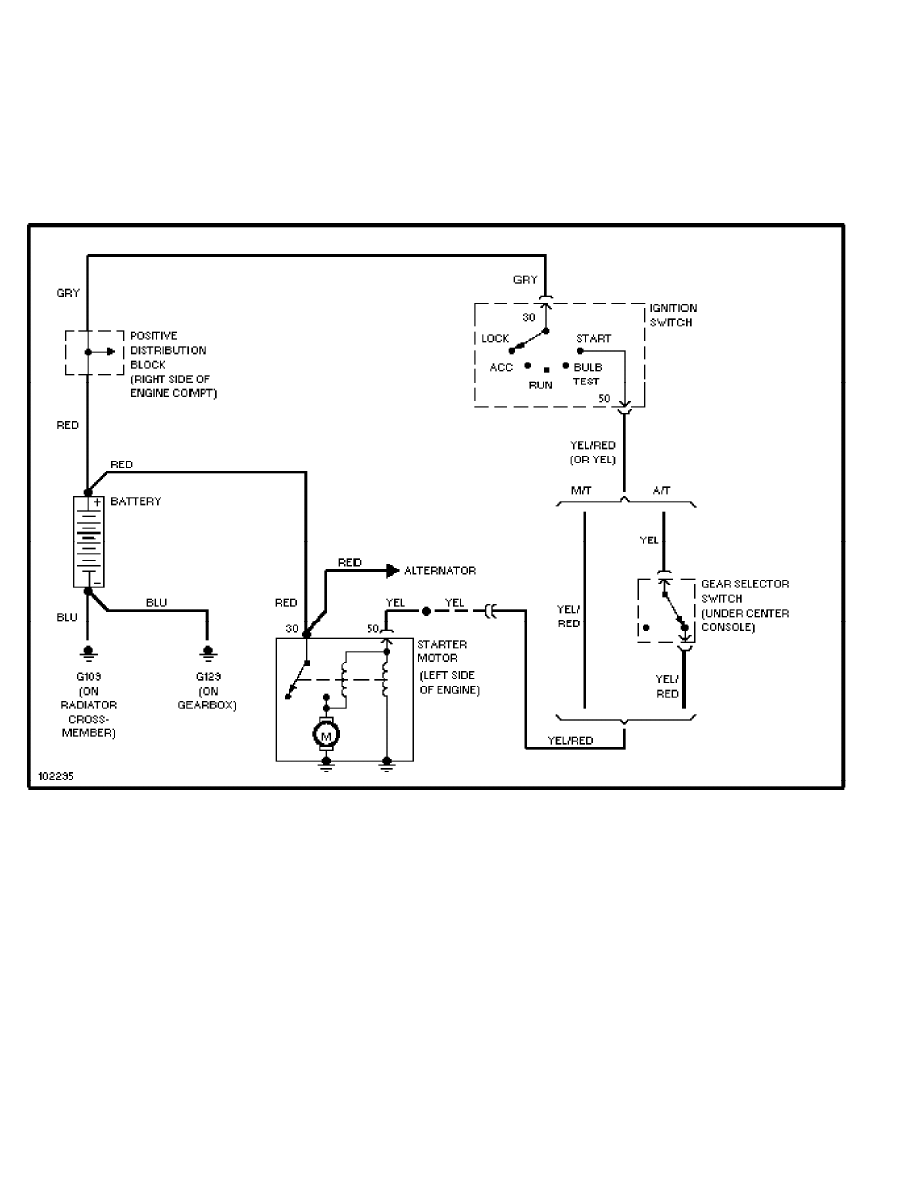

Starting Circuit (p. 15)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

SYSTEM WIRING DIAGRAMS

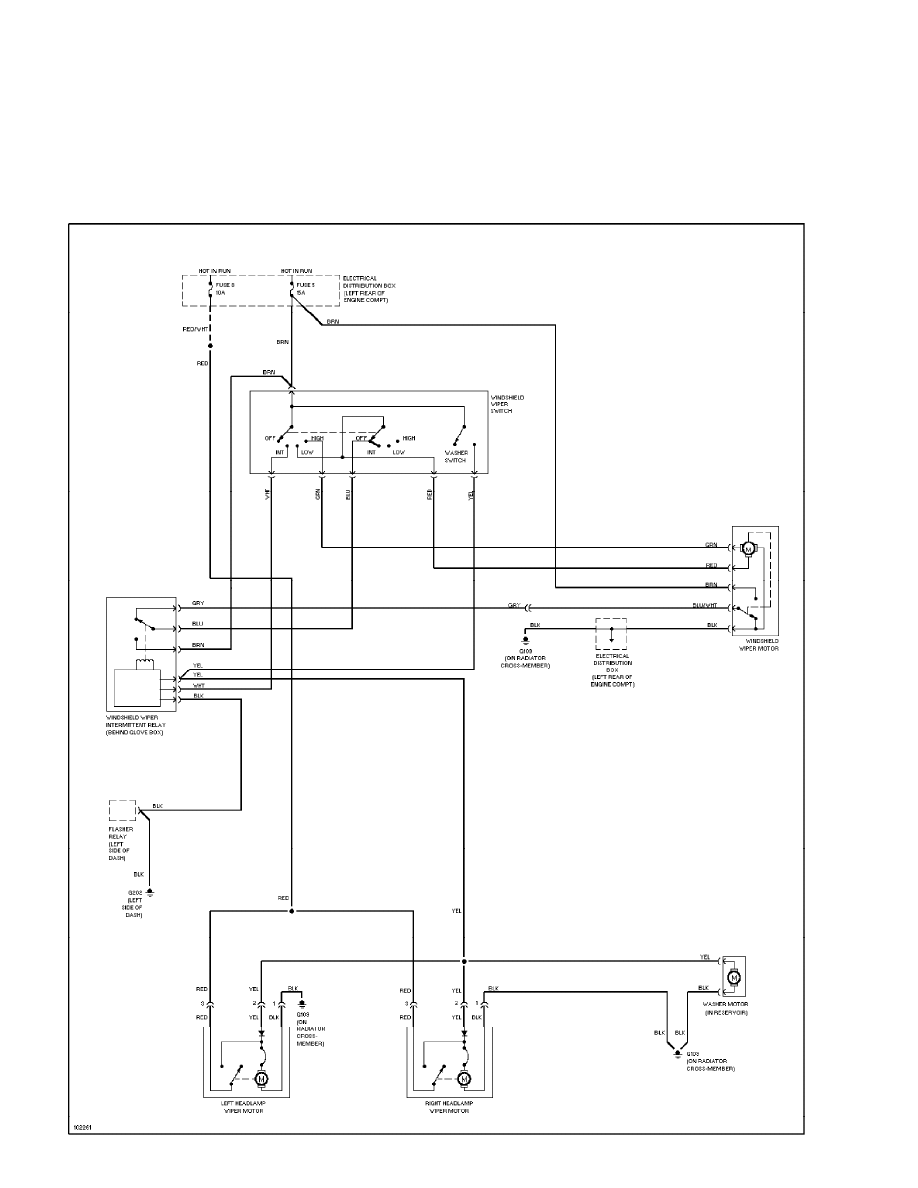

Wiper/Washer Circuit (p. 16)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

WIRING DIAGRAMS

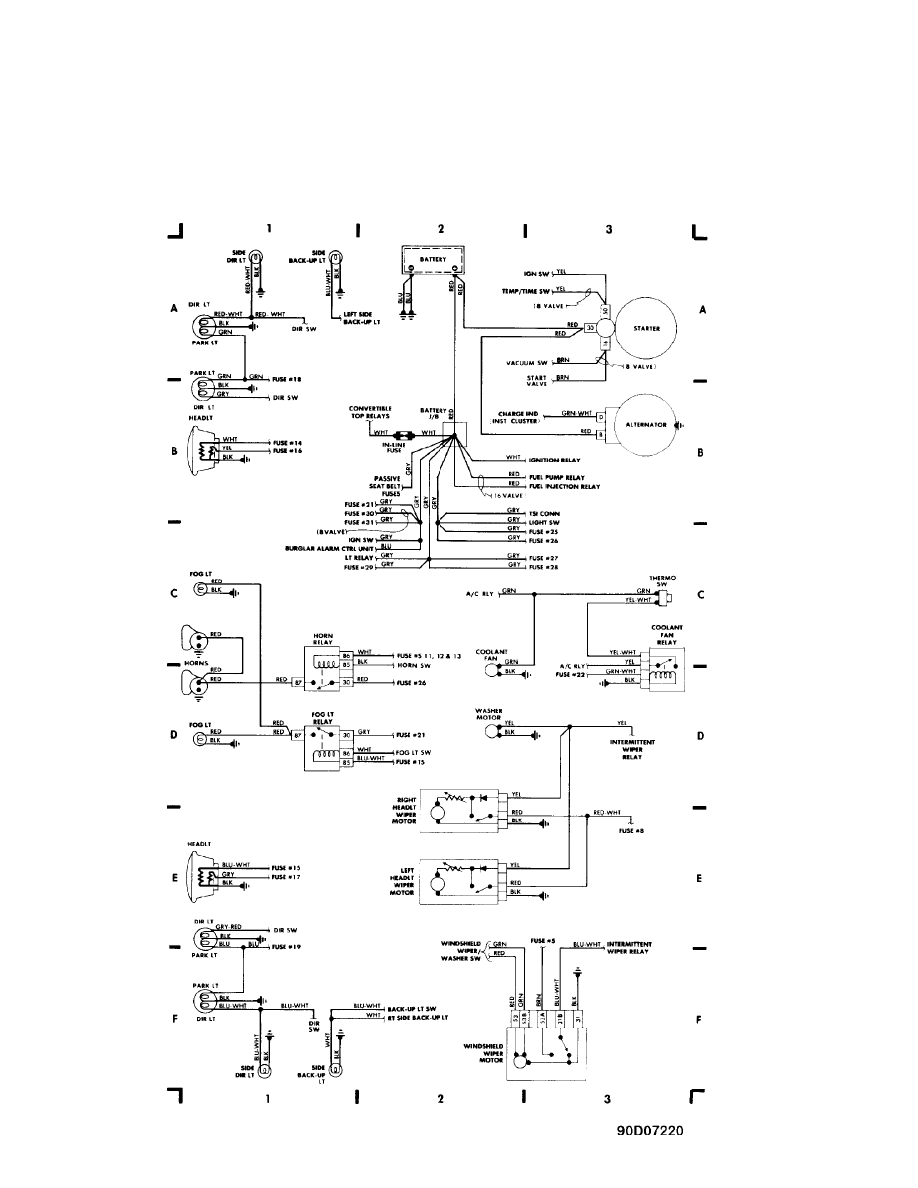

Fig. 1: Engine Compartment & Headlights

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

WIRING DIAGRAMS

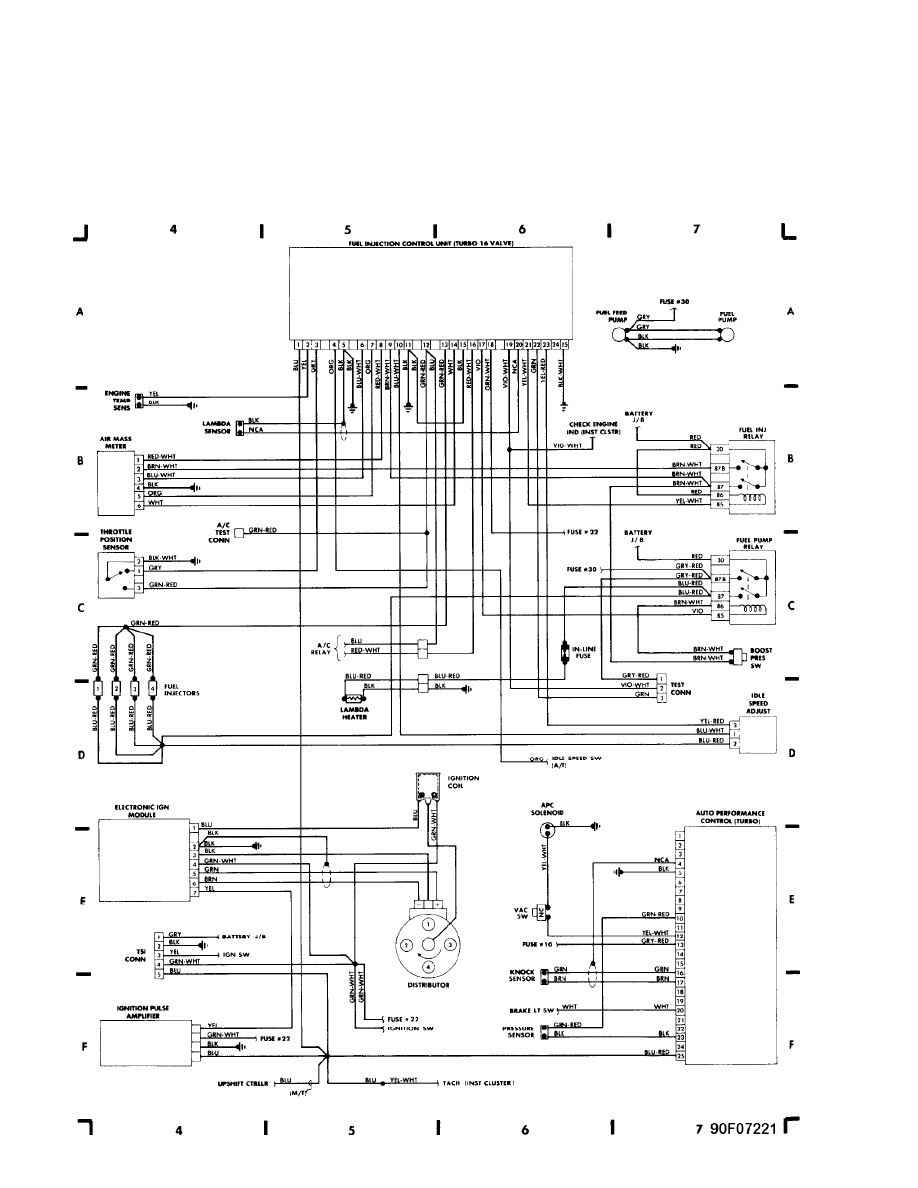

Fig. 2: Computer Engine Control (16 Valve Turbo) (p. 2)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

WIRING DIAGRAMS

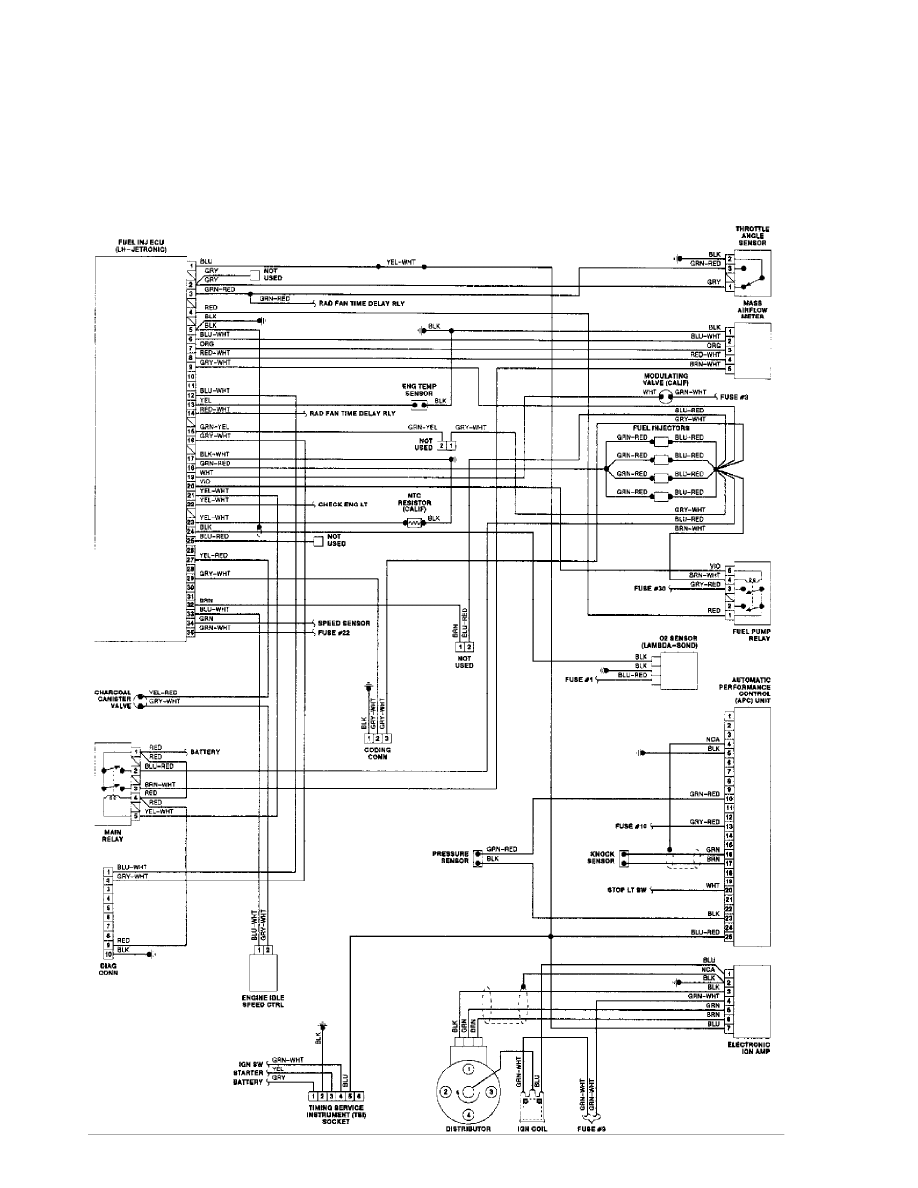

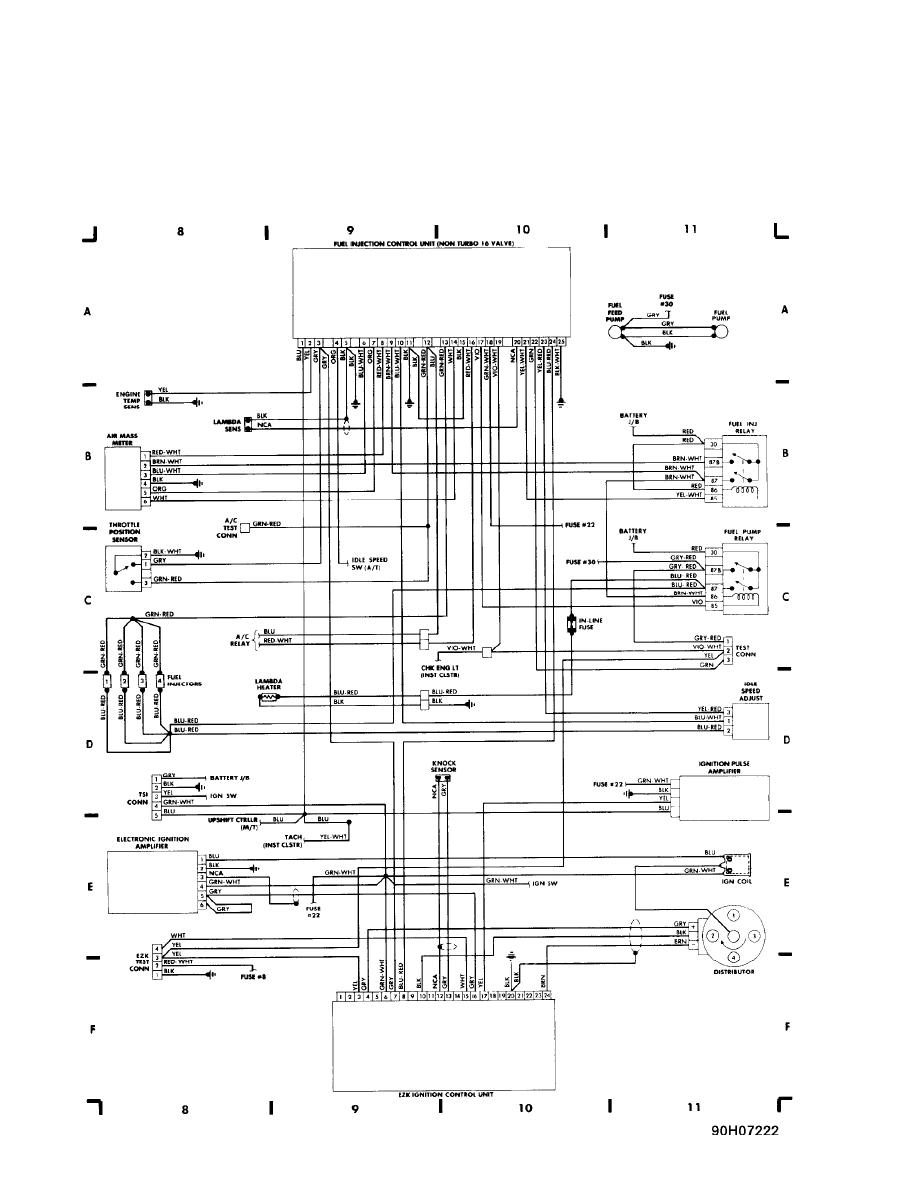

Fig. 3: Computer Engine Control (16 Valve Non-Turbo) (p. 3)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

WIRING DIAGRAMS

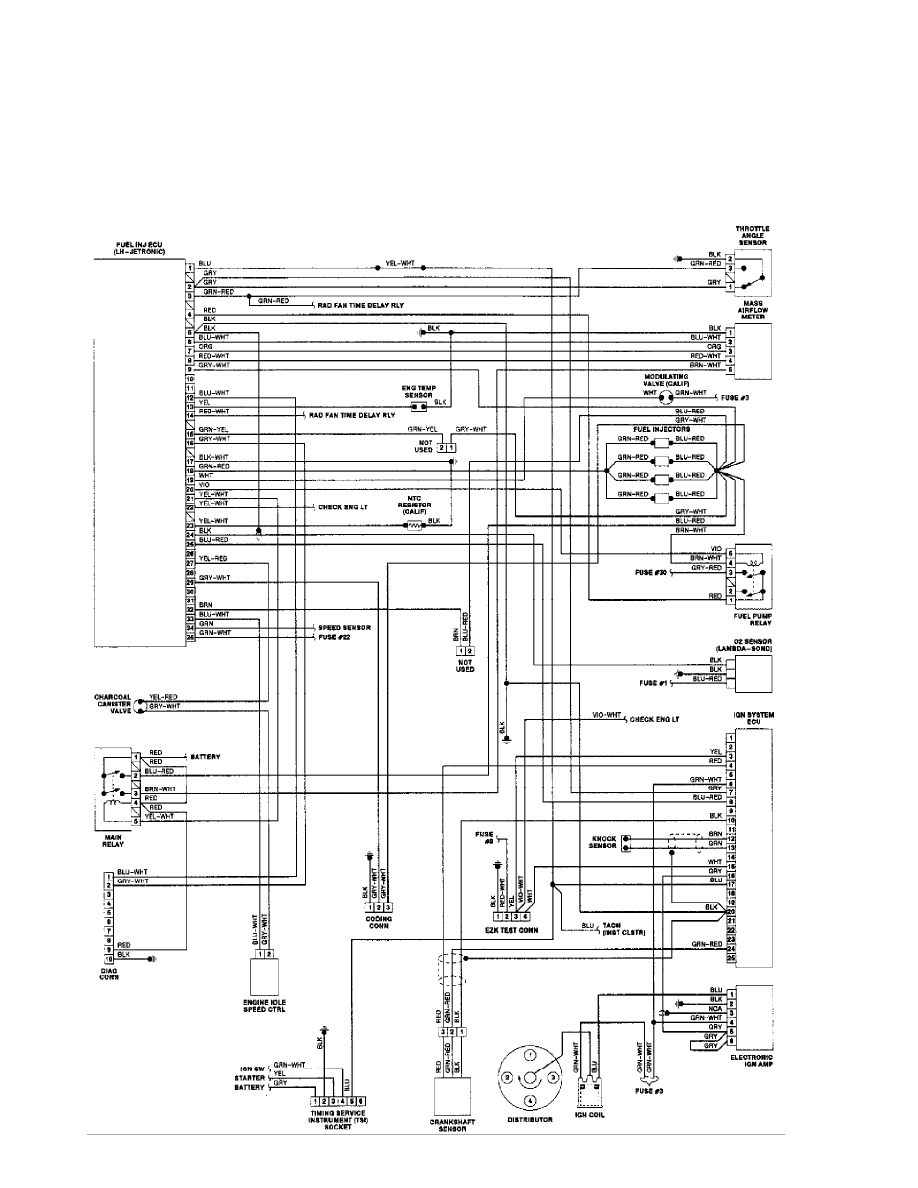

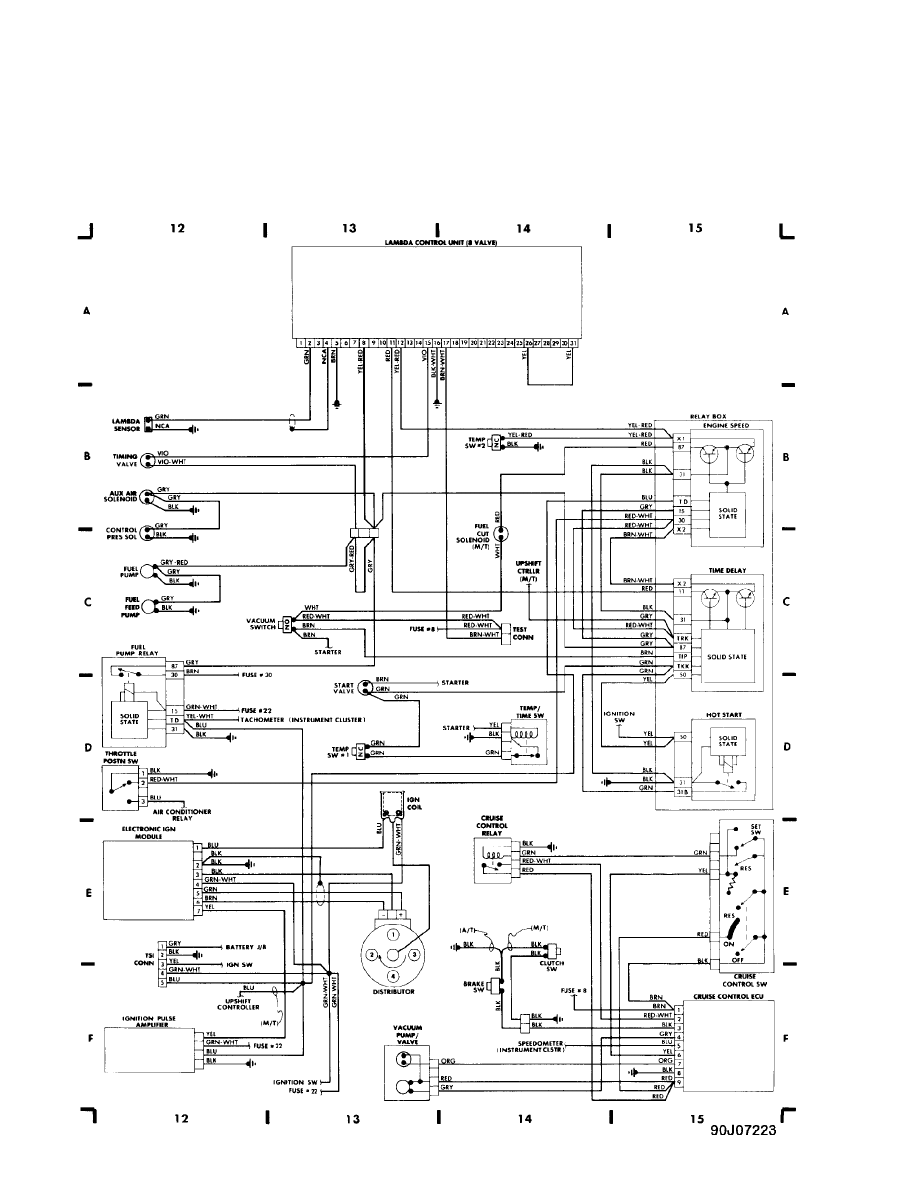

Fig. 4: Computer Engine Control (8 Valve) (p. 4)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

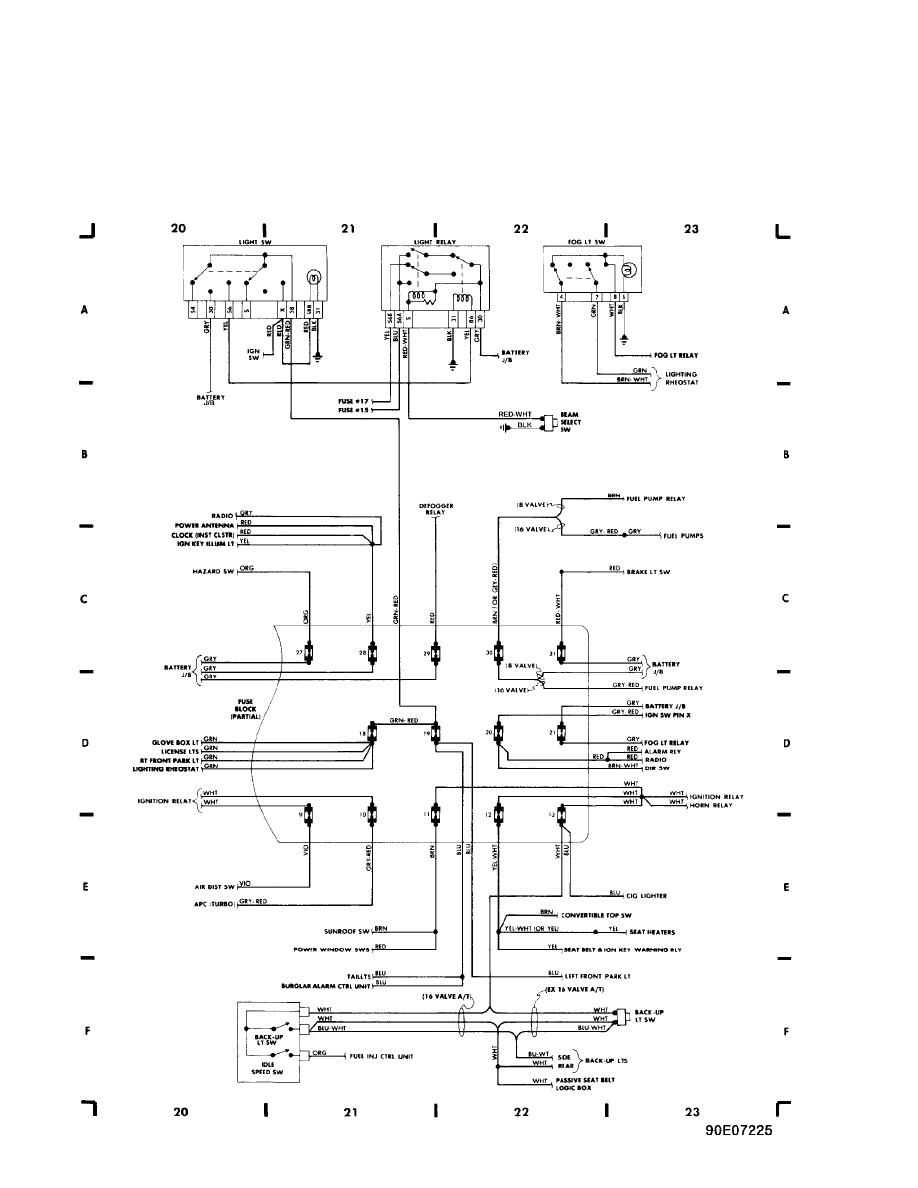

WIRING DIAGRAMS

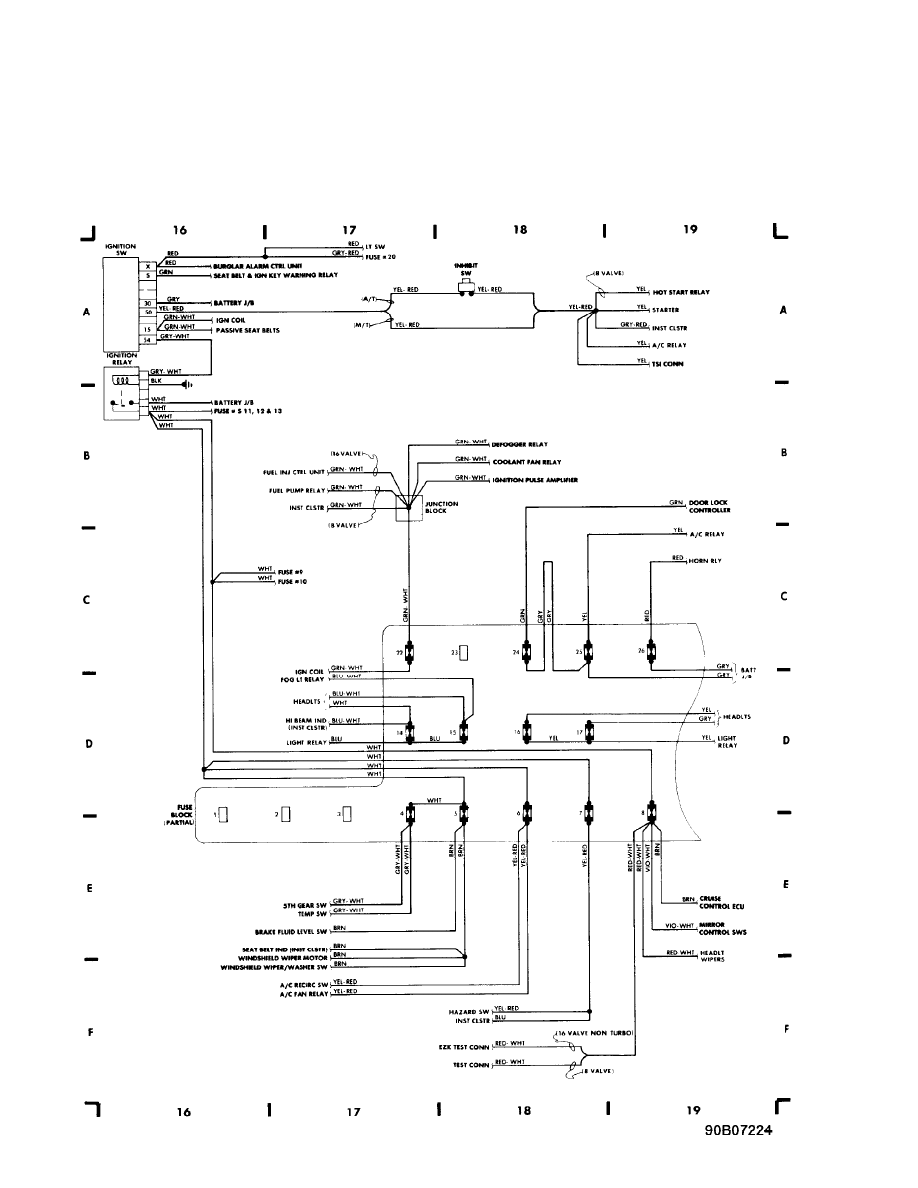

Fig. 5: Fuse Block (1 of 2) (p. 5)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

WIRING DIAGRAMS

Fig. 6: Fuse Block (2 of 2) (p. 6)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

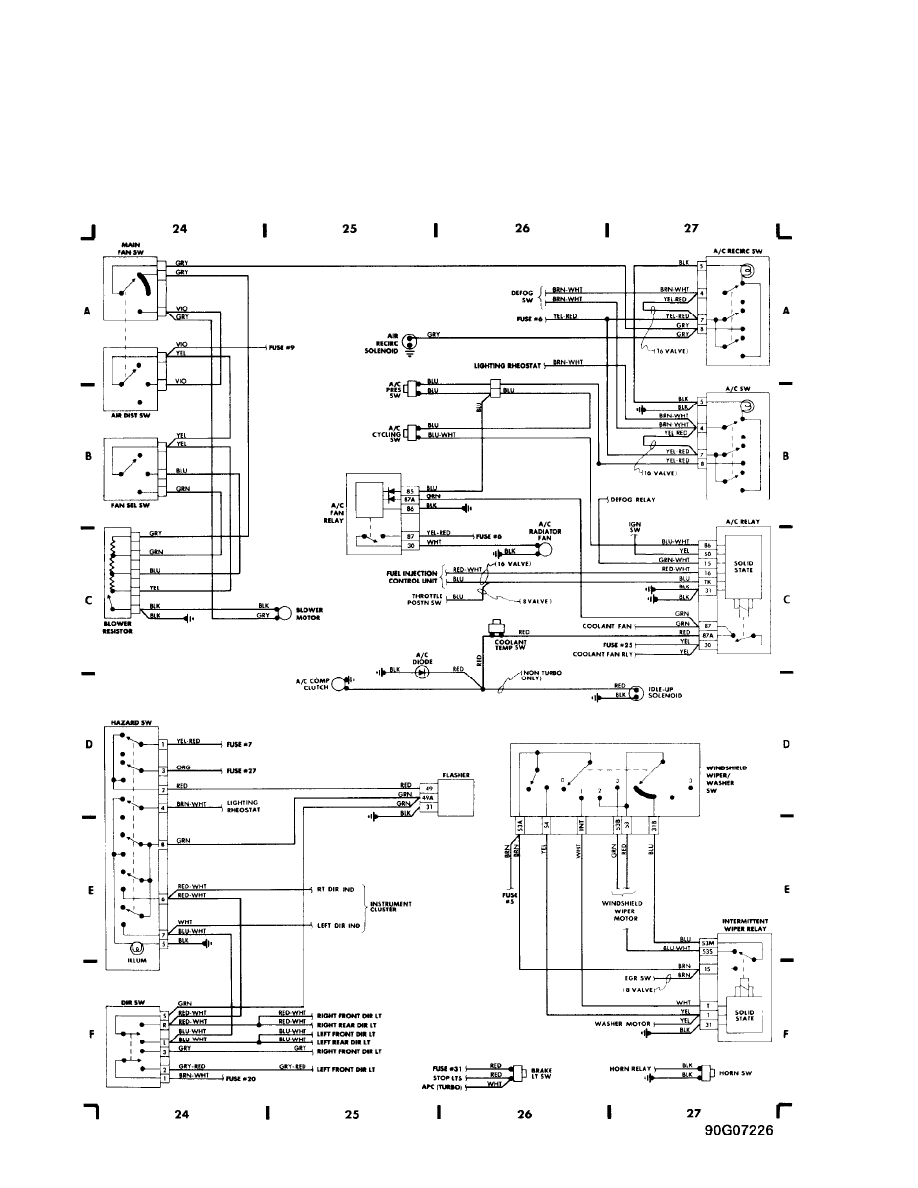

WIRING DIAGRAMS

Fig. 7: A/C & Heating (p. 7)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

WIRING DIAGRAMS

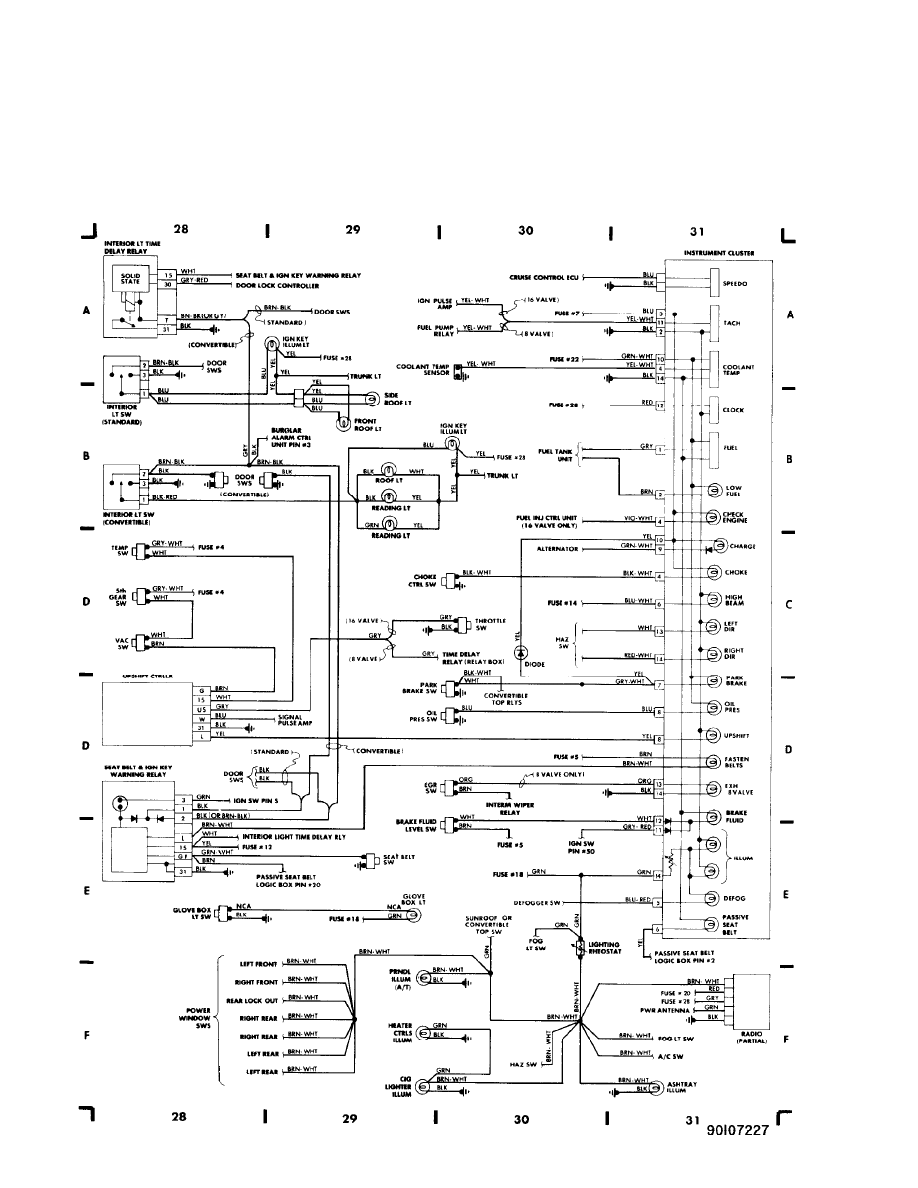

Fig. 8: Instrument Panel (p. 8)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

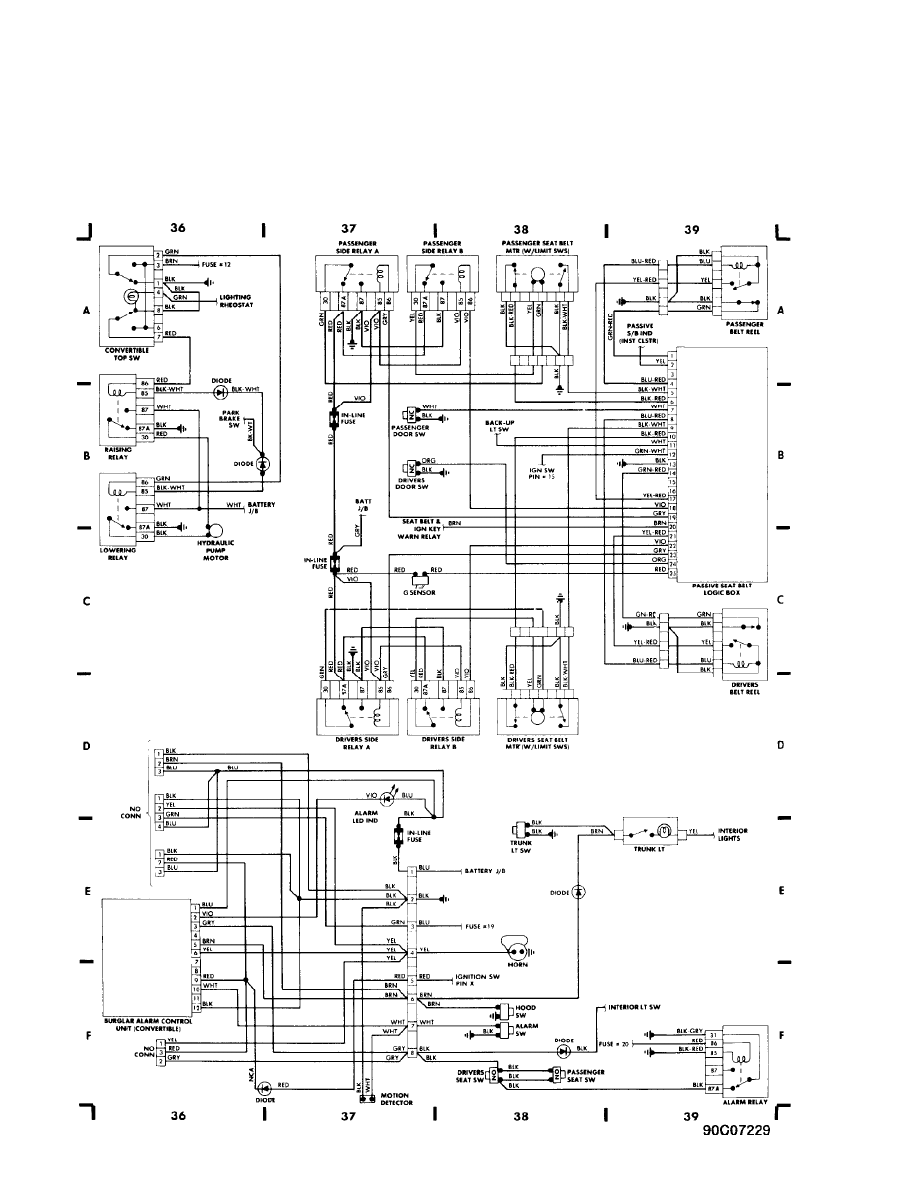

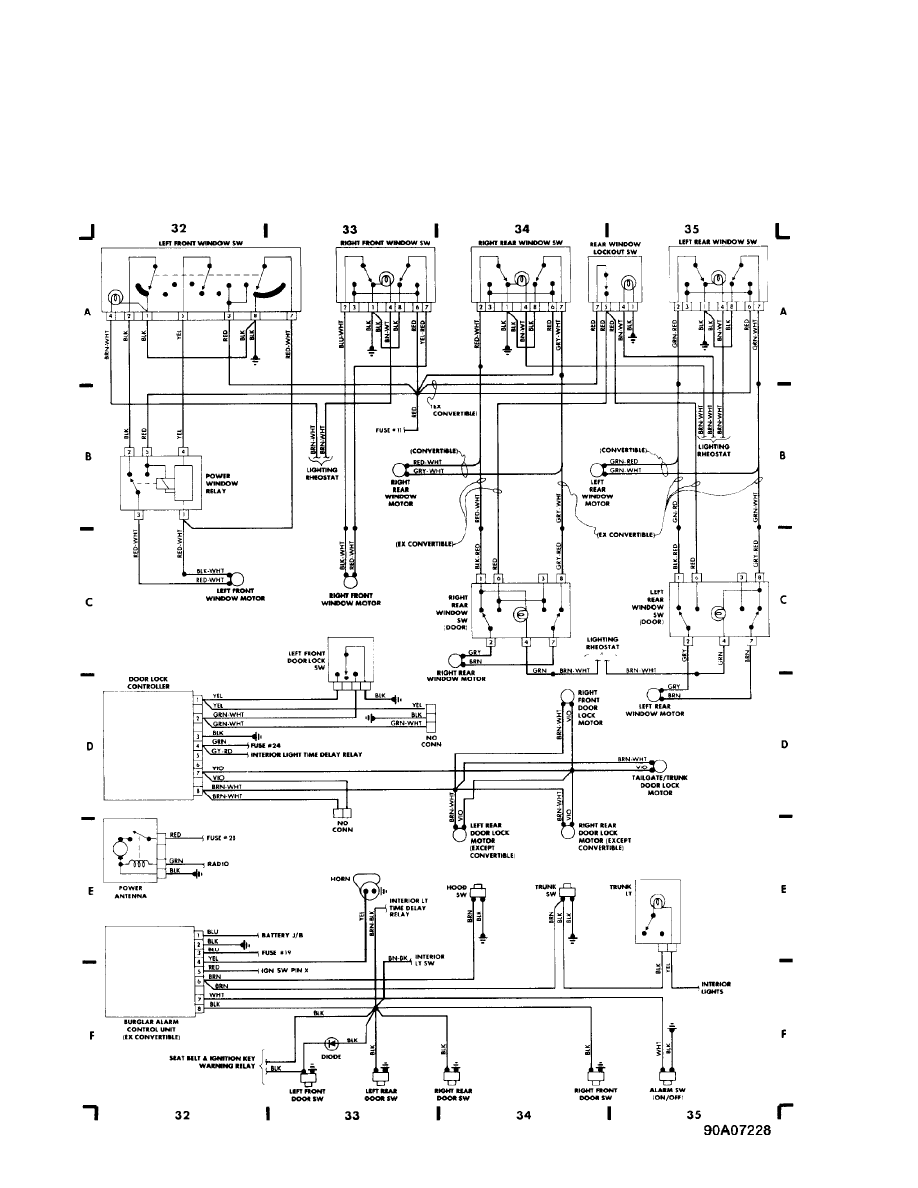

WIRING DIAGRAMS

Fig. 9: Power Windows and Anti-Theft System (p. 9)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

WIRING DIAGRAMS

Fig. 10: Relays and Anti-Theft System (Continued) (p. 10)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

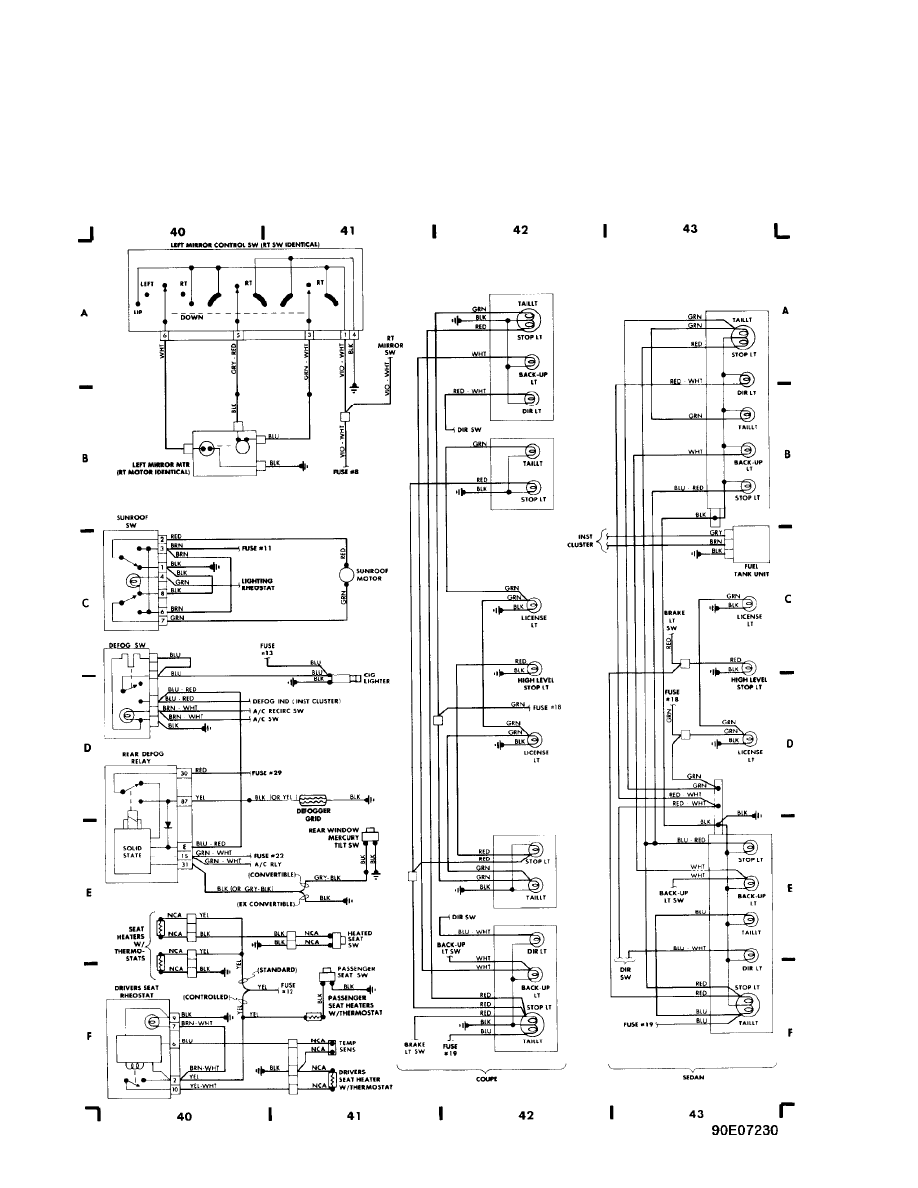

WIRING DIAGRAMS

Fig. 11: Taillights (p. 11)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

WIRING DIAGRAMS

Fig. 12: Computer Engine Control (16 Valve Turbo) (p. 12)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM

WIRING DIAGRAMS

Fig. 13: Computer Engine Control (16 Valve Non-Turbo) (p. 13)

1989 Saab 900

For cdr101@wp.pl x x x x

Saturday, January 14, 2006 06:31PM
