series motor controller 1204

background image

D E S C R I P T I O N

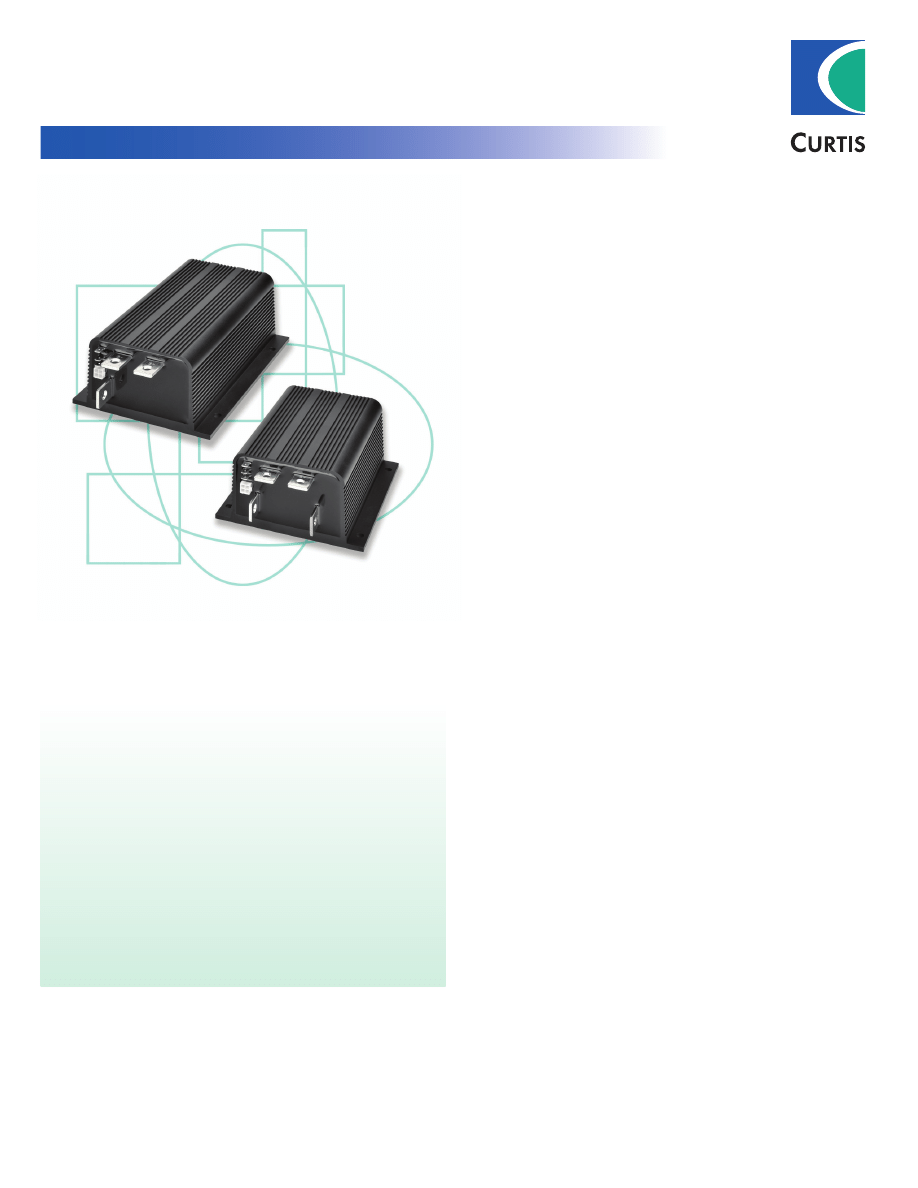

Curtis Models 1204M and 1205M provide fully programmable
control of DC series motors performing on-vehicle traction or
pump duties. These microprocessor based MOSFET controllers
add flexibility and versatility to the time-proven Curtis PMC series
motor controller family.

A P P L I C A T I O N

Primarily designed for battery-powered vehicle applications using
either electric or hydrostatic traction. These include industrial
trucks, personnel carriers, mobile elevating work platforms and
golf and utility vehicles.

1205M

1204M

M O D E L 1 2 0 4 M / 1 2 0 5 M

P r o g r a m m a b l e S e r i e S m o t o r C o n t r o l l e r S

www.curtisinstruments.com

F E A T u R E S

Smooth, Silent Control

Pulse Width Modulation control with programmable speed,

acceleration rate and current limit.

15kHz PWM frequency for near-silent operation.

Programmable and Flexible

Easily programmed via Curtis hand-held tools or Curtis PC

programming software.

External Status LED output for easy system troubleshooting

via flash codes.

Fully programmable analog throttle input for precise speed

control with a variety of signal sources.

Programmable undervoltage cutback caters for different

battery types.

Boost function to help clear obstacles, climb ramps, etc.

Programmable, variable or fixed plug braking modes.

Plug braking diode internal to controller.

Models available without A2 busbar for applications such

as pump control that do not require plug braking.

Robust Safety and Reliability

Redundant hardware watchdog timers.

Motor and MOSFET short-circuit protection functions.

Failsafe throttle fault detection requires keyswitch to be cycled

before drive can resume, protecting against intermittent faults.

Programmable High Pedal Disable function prevents controller

operation if throttle is applied before key is turned on.

Contactor fault detection: controller shuts down safely if the

main contactor opens.

Contactor protection functions minimize high current arcing to

prevent contact pitting and thus prevent contactor weld failures.

Rugged anodized aluminum extrusion housing meets IP65

environmental sealing standard for use in harsh environments.

Thermal cutback above 80°C and automatic shutdown at

120°C provide protection to motor and controller.

PWM frequency shifts from 15kHz to 1kHz if the controller

temperature exceeds 105°C, providing audible warning of

thermal shutdown.

Undervoltage cutback and shutdown functions protect

against low battery voltage, including low voltage caused

by external loads.

background image

Nominal Battery

Voltage (VDC)

36/48

36/48

36/48

36/48

36/48

60/72

60/72

5 Seconds

Boost Current

(A)

350

350

375

600

600

500

500

1 Hour Rating

(A)

125

125

140

175

175

150

150

Plug Braking

Y

N

Y

Y

N

Y

N

Model

1204M-5201

1204M-5202

1204M-5301

1205M-5601

1205M-5602

1205M-6B401

1205M-6B402

Current Limit

(A)

275/2min

(125-275)

275/2min

(125-275)

325/2min

(175-325)

500/1min

(250-500)

500/1min

(250-500)

400/1min

(150-400)

400/1min

(150-400)

M O D E L 1 2 0 4 M / 1 2 0 5 M

M O D E L C H A R T

Meets or complies with relevant US and International Regulations
EMC: Designed to the requirements of EN12895
IP65
Regulatory compliance of the complete vehicle system with the controller installed is the responsibility of the vehicle OEM.

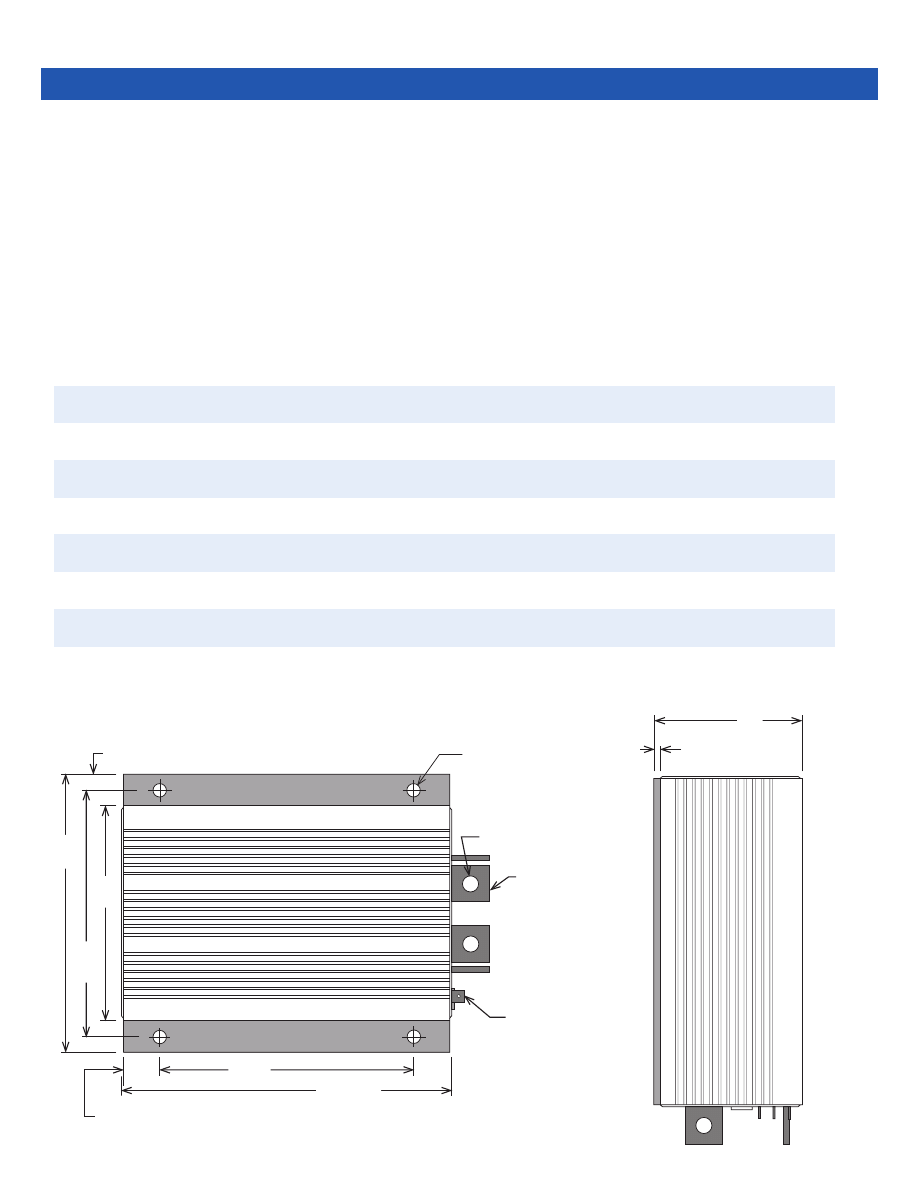

D I M E N S I O N S m m

16

133.3

7.2 dia.

8.5 dia.

6.35,

3 plcs

1204M:

22 x 19 x 3

1205M:

25 x 19 x 3

1204M:

174

1205M:

199

1204M:

18.8

1205M:

31.3

146

11

4

130.

3

77

5

background image

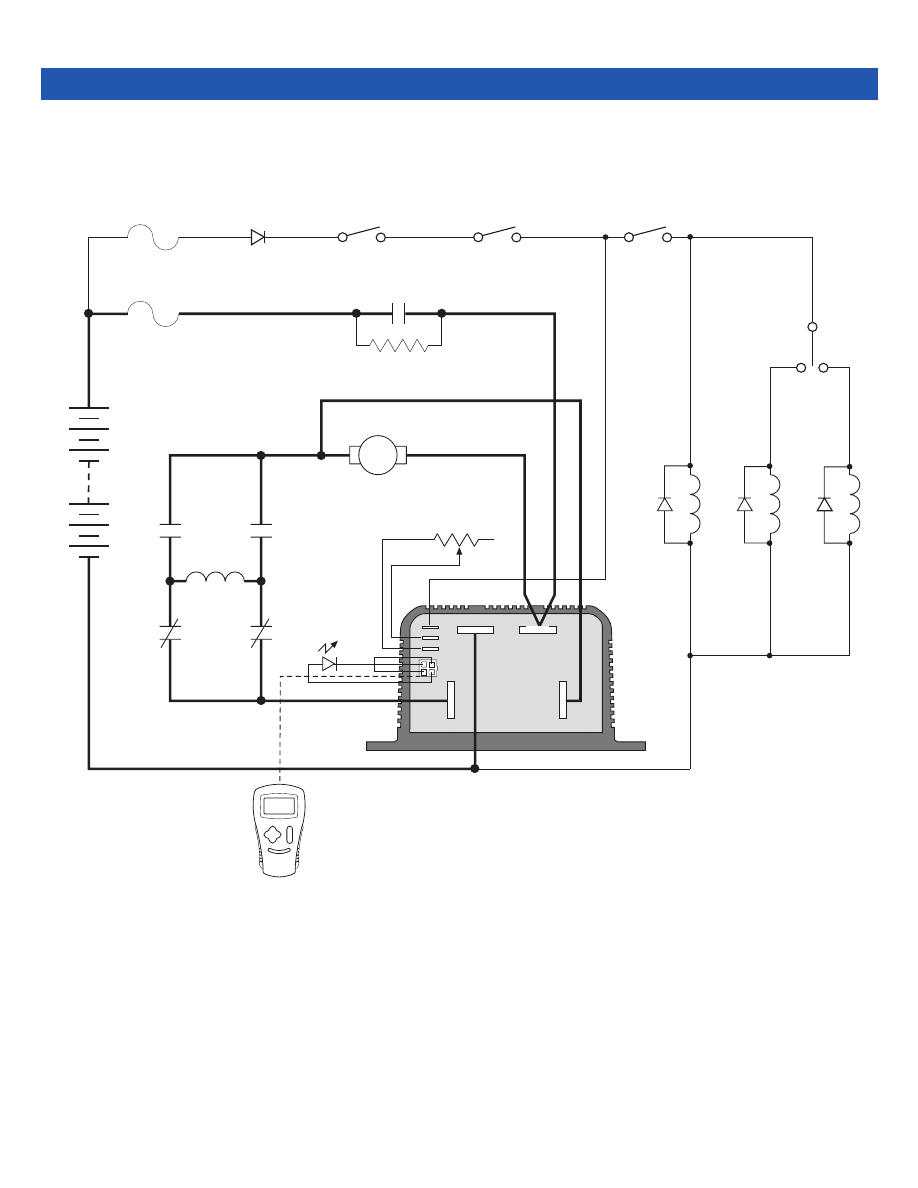

T Y P I C A L W I R I N G - T R A C T I O N

A2

M–

B–

B+

J1

J2

J3

J4

STATUS

LED

MOTO R

FIELD

A2

A1

5k Ω THROTTLE

PRECHARGE RESISTOR

(250 Ω , 5 W)

MOTOR

ARMATURE

FORWARD

REVERSE

MAIN

F

R

MAIN

KEYSWITCH

INTERLOCKS

POLARITY

PROTECTION

DIODE

CONTROL WIRING

FUSE

POWER WIRING

FUSE

S2

S1

F

R

F

R

+

PEDAL

MICROSWITCH

HANDHELD

PROGRAMMER

TO J4

M O D E L 1 2 0 4 M / 1 2 0 5 M

background image

M O D E L 1 2 0 4 M / 1 2 0 5 M

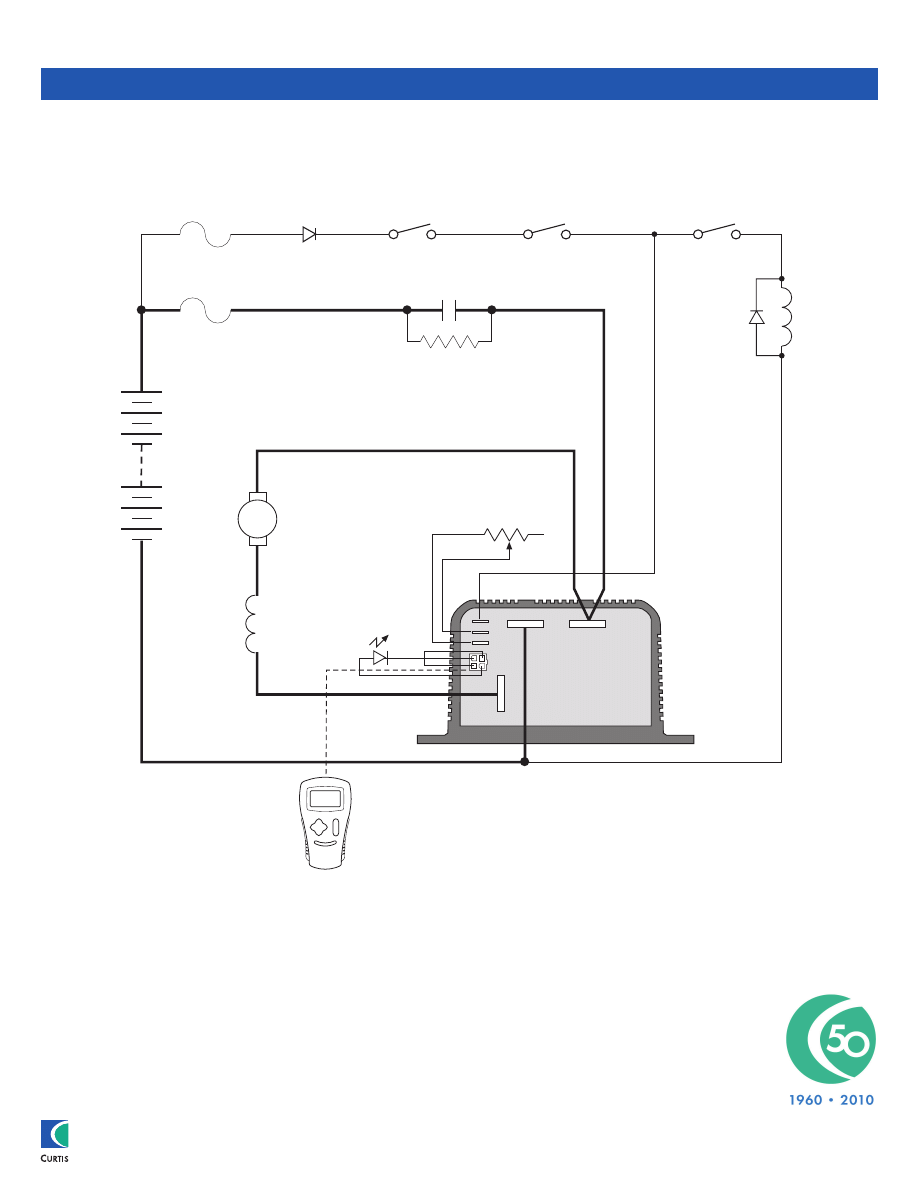

T Y P I C A L W I R I N G - P u M P

M–

B–

B+

J1

J2

J3

J4

STATUS

LED

MOTO R

FIELD

A2

5k Ω THROTTLE

PRECHARGE RESISTOR

(250 Ω , 5 W)

MOTOR

ARMATURE

MAIN

MAIN

KEYSWITCH

INTERLOCKS

POLARITY

PROTECTION

DIODE

CONTROL WIRING

FUSE

POWER WIRING

FUSE

S1

+

ENABLE

A1

S2

HANDHELD

PROGRAMMER

TO J4

Specifications subject to change without notice

50180 REV B 3/10

©2010 Curtis Instruments, Inc.

is a trademark of Curtis Instruments, Inc.

W A R R A N T Y

Two year limited warranty from time of delivery.
