(Ebooks) DIY Woodwork Plans Drill Press Table

background image

1 of 2

DJM 12/99 (

http://www.geocities.com/Heartland/Pointe/2039

)

Drill Press Wood Working Table

DIRECTIONS

1.) Adjust Measurements to fit your Drill Press Table

2.) Material is ¾” MDF (Medium Density Fiber Board)

3.) Cut two pieces of ¾” MDF and glue them together for the

Fence. Make sure that edges are perpendicular. Cut a ¼”
chamfer on the front bottom edge of fence as a sawdust
“relief”.

4.) Cut Dadoes in Table Hold Down Rails (Drill Press Table

should slide smoothly in and out of rails). Use your Drill Press
Table to line them up Square on the bottom of the wood table.
Use glue and ¾” drywall screws to secure.

5.) Position fence along the back edge of TableTop and drill a

clearance hole for a ½” Carriage bolt through Fence and Table.

6.) Install a ½” x 4 ½” Carriage bolt from the bottom of the Table

through the fence. Top it off with one washer and a wing nut.

USE AT YOUR OWN RISK, THIS DRAWING IS FOR DISCUSSION

PURPOSES ONLY

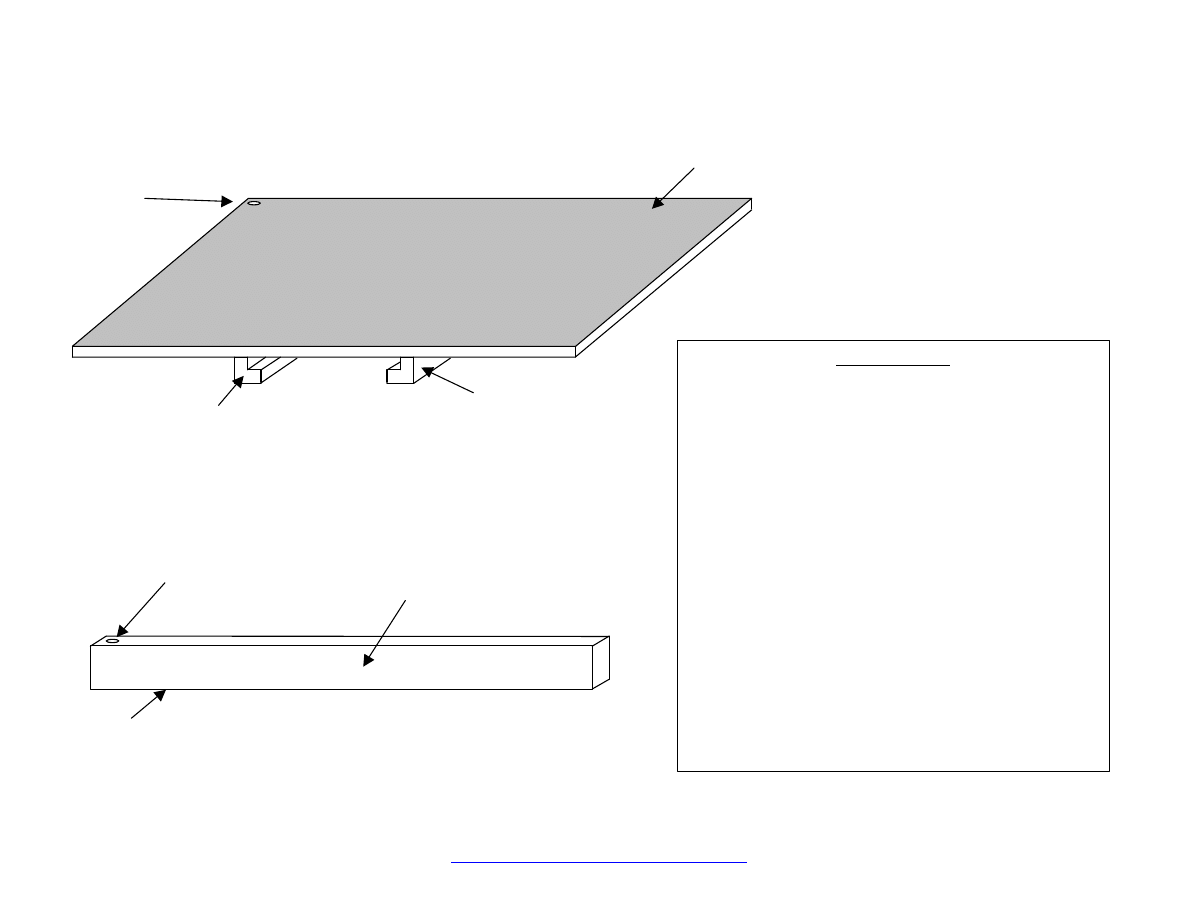

FENCE

¼” chamfer on Front

Bottom Edge

Clearance
Hole for ½”
Carriage Bolt

27”L x 2 ½”W x 3”H

MDF Board

TABLE

Clearance
Hole for ½”
Carriage Bolt

30”L x 27”W x ¾” T

MDF Board

30”L x 1”W x ¾” T

with a ¼” x ¼” Dado

MDF Board

Table Hold Down

Rails

background image

2 of 2

DJM 12/99 (

http://www.geocities.com/Heartland/Pointe/2039

)

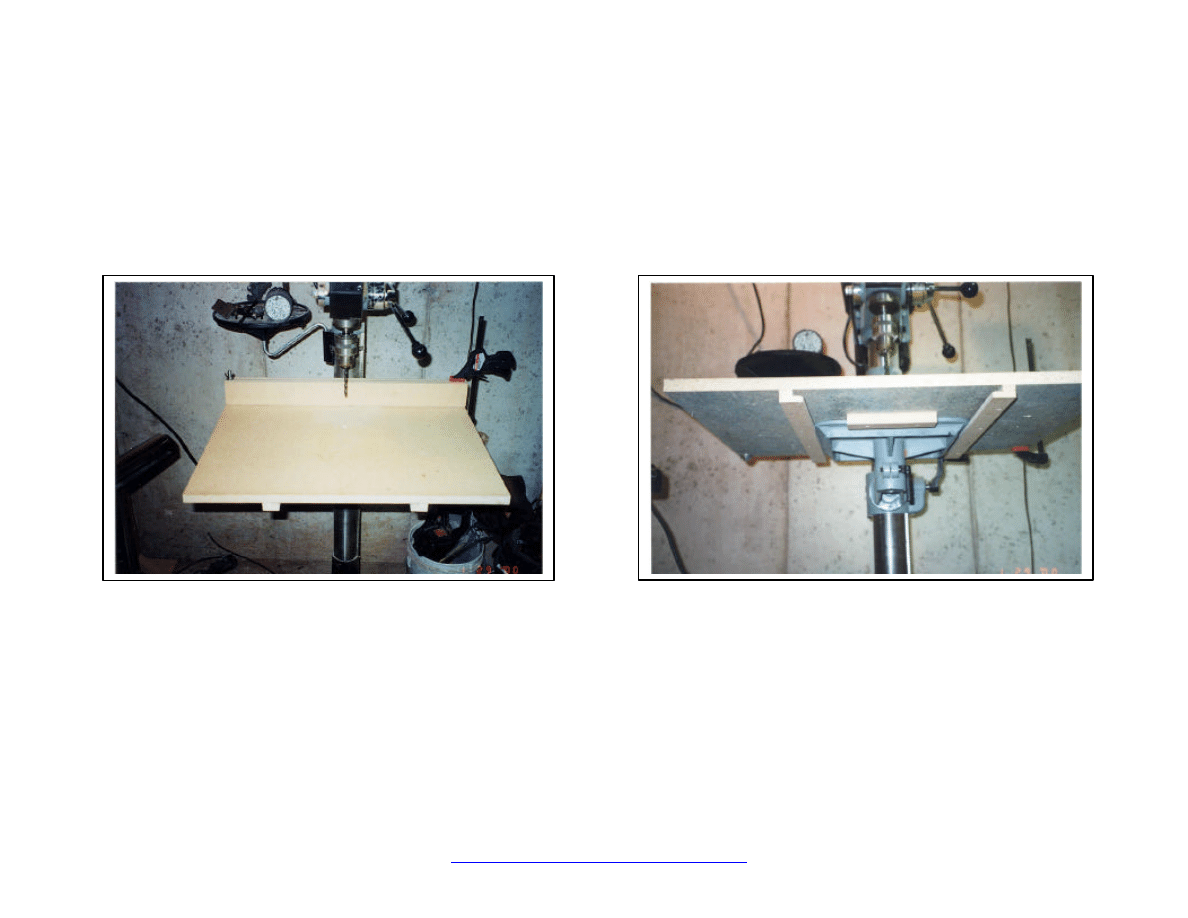

Drill Press Wood Working Table
