P/N 6542544 ( PRESTIGE SILENT ) AND P/N 6542545 ( MOSAIK )

OLD IFÖ-TOILET

Adapter frame and cover

Vacuum toilet Evac 900, wall model,
Prestige Silent or Mosaik

EVACINSHINE TOILET COMPLETE

WITH EVAC 900, WALL MODEL

EV

EV

EV

EV

EVA

A

A

A

ACINSHINE

CINSHINE

CINSHINE

CINSHINE

CINSHINE T

T

T

T

TOILET COMPLETE

OILET COMPLETE

OILET COMPLETE

OILET COMPLETE

OILET COMPLETE

WITH EV

WITH EV

WITH EV

WITH EV

WITH EVA

A

A

A

AC 900,

C 900,

C 900,

C 900,

C 900, W

W

W

W

WALL MODEL

ALL MODEL

ALL MODEL

ALL MODEL

ALL MODEL T

T

T

T

TO REPLA

O REPLA

O REPLA

O REPLA

O REPLACE IFÖ

CE IFÖ

CE IFÖ

CE IFÖ

CE IFÖ T

T

T

T

TOILETS

OILETS

OILETS

OILETS

OILETS

EVAC OY, tel.: [phone], Finland

PRODUCT INFORMATION DOCUMENT, P/N 6542646

EVAC reserves the right to make alterations to this specification without prior notice.
© Copyright Evac Oy. All rights reserved.

1

EVAC

Environmental Solutions Marine Sector

V

V

V

V

VA

A

A

A

ACUUM

CUUM

CUUM

CUUM

CUUM T

T

T

T

TOILET

OILET

OILET

OILET

OILET

TECHNICAL DATA

Date:

Doc.

30 Nov 2005

1:01217B

6542544

EVACINSHINE TOILET COMPLETE WITH EVAC 900, WALL MODEL, PRESTIGE SILENT
TO REPLACE IFÖ TOILETS

6542545

EVACINSHINE TOILET COMPLETE WITH EVAC 900, WALL MODEL, MOSAIK TO REPLACE IFÖ
TOILETS

P/N 6542544 (consists of): P/N 6542969 Evac 900, wall model, Prestige Silent ( See doc. 1:01001F )

Adapter frame
Cover
Fastening hook
Pipe
Water connection hose
Edge strip
Product information

P/N 6542545 (consists of): P/N 6540964 Evac 900, wall model, Mosaik ( See doc. 1:01001F )

Adapter frame
Cover
Fastening hook
Pipe
Water connection hose
Edge strip
Product information

Materials

Adapter frame: Al, DIN1028
Cover: PVC
Pipe: PVC

Shipping data

P/N 6542544 EvacInshine toilet complete:
Net weight: 24.8 ±0.5kg
Shipping weight: 28.1 ±0.5kg
Shipping volume: 0.168m³

P/N 6542545 EvacInshine toilet complete:
Net weight: 21.7 ±0.5kg
Shipping weight: 25 ±0.5kg
Shipping volume: 0.168m³

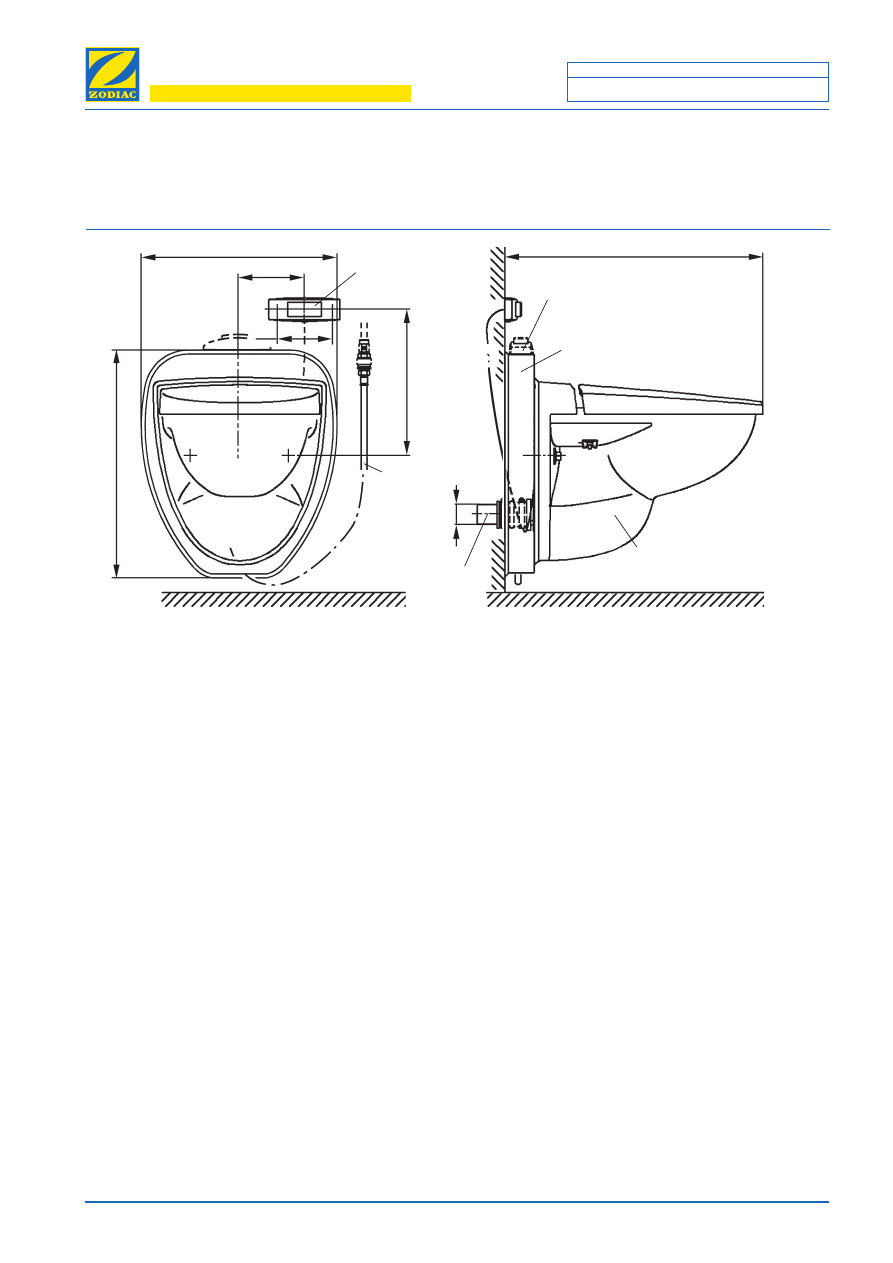

Ø50

340

Max. 520

Toilet Evac 900, wall model,
Prestige Silent or Mosaik

Max. 460

130

60

Max. 615

Pneumatic push
button

Alternative place for push button

Water connection
hose

Discharge
connection pipe

Adapter frame and cover

EVAC reserves the right to make alterations to this specification without prior notice.
© Copyright Evac Oy. All rights reserved.

1

EVAC

Environmental Solutions Marine Sector

V

V

V

V

VA

A

A

A

ACUUM

CUUM

CUUM

CUUM

CUUM T

T

T

T

TOILET

OILET

OILET

OILET

OILET

TECHNICAL DATA

Date:

Doc.

30 Nov 2005

1:01218B

6542546

EVACINSHINE TOILET COMPLETE WITH EVAC 900, WALL MODEL USPH, PRESTIGE SILENT
TO REPLACE IFÖ TOILETS

6542547

EVACINSHINE TOILET COMPLETE WITH EVAC 900, WALL MODEL USPH, MOSAIK TO REPLACE
IFÖ TOILETS

Ø50

340

Max. 520

Toilet Evac 900,
wall model USPH,
Prestige Silent or Mosaik

Max. 460

130

60

Max. 615

Pneumatic push button

Alternative place for push button

Water connection
hose

Discharge connection pipe

Adapter frame and cover

Min. 280

(USPH wall bracket)

P/N 6542546 (consists of): P/N 6542970 Evac 900, wall model USPH, Prestige Silent ( See doc. 1:01002G )

Adapter frame and cover
Fastening hook
Pipe
Water connection hose
Edge strip
Product information

P/N 6542547 (consists of): P/N 6540966 Evac 900, wall model USPH, Mosaik ( See doc. 1:01002G )

Adapter frame and cover
Fastening hook
Pipe
Water connection hose
Edge strip
Product information

Materials

Adapter frame: Al, DIN1028
Cover: PVC
Pipe: PVC

Shipping data

P/N 6542546 EvacInshine toilet complete:
Net weight: 25.6 ±0.5kg
Shipping weight: 28.8 ±0.5kg
Shipping volume: 0.168m³

P/N 6542547 EvacInshine toilet complete:
Net weight: 22.6 ±0.5kg
Shipping weight: 25.9 ±0.5kg
Shipping volume: 0.168m³

EVAC reserves the right to make alterations to this specification without prior notice.

© Copyright Evac Oy. All rights reserved.

5

EVAC

Environmental Solutions Marine Sector

V

V

V

V

VA

A

A

A

ACUUM

CUUM

CUUM

CUUM

CUUM T

T

T

T

TOILET

OILET

OILET

OILET

OILET

INSTALLATION

Date:

Doc.

30 Nov 2005

2:01067B

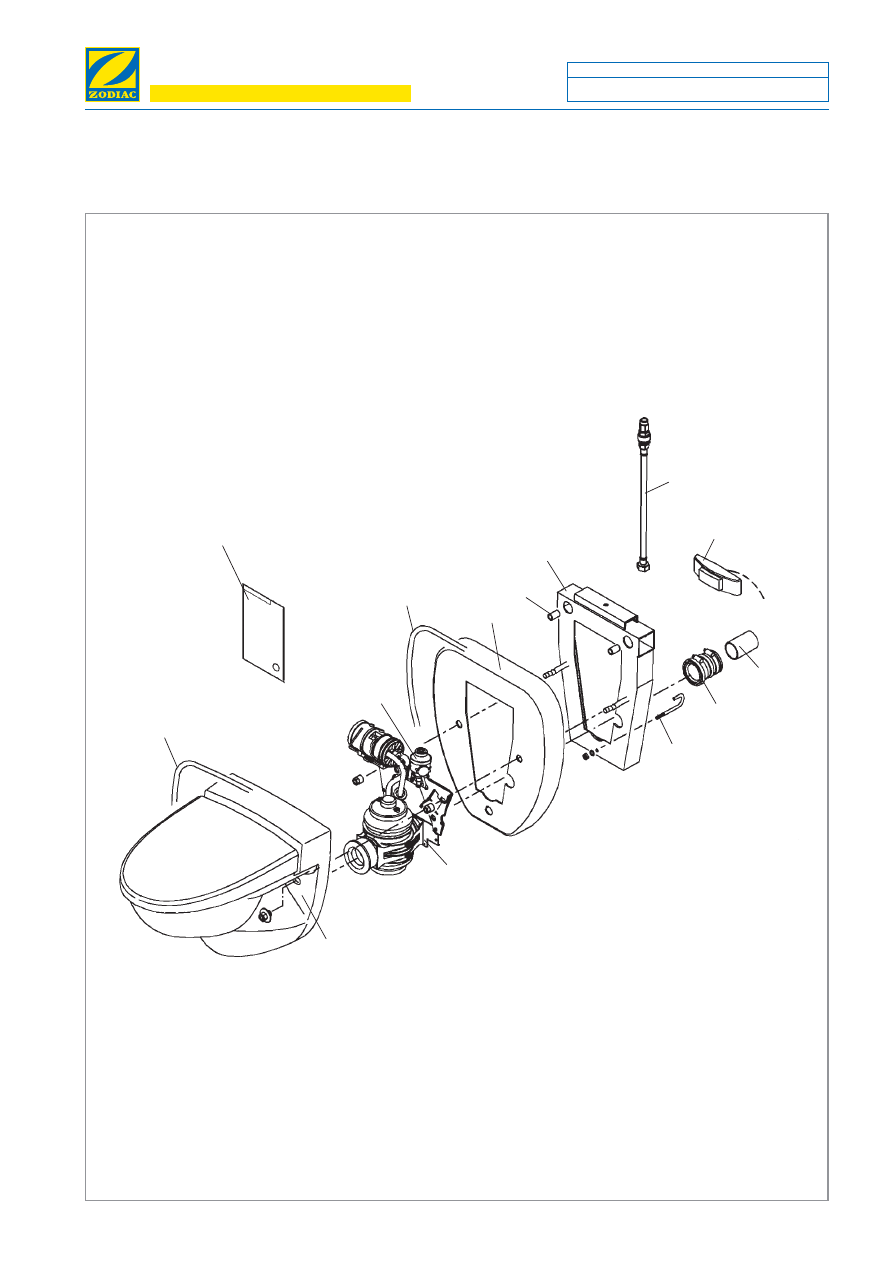

6542544 EVACINSHINE TOILET COMPLETE WITH EVAC 900, WALL MODEL PRESTIGE SILENT

FOR IFÖ TOILET

6542545 EVACINSHINE TOILET COMPLETE WITH EVAC 900, WALL MODEL MOSAIK FOR IFÖ TOILET

Pipe

Fastening hook

Adapter frame

Toilet Evac 900, wall model

Edge strip

Cover

Edge strip

Back plate

Water valve

Bushing

Push button

Connection

sleeve

Water connection

hose

Product information document

EvacInshine toilet complete with Evac 900, wall model

is replacing IFÖ toilet
