TOYOTA CELICA 1988

background image

SYSTEM WIRING DIAGRAMS

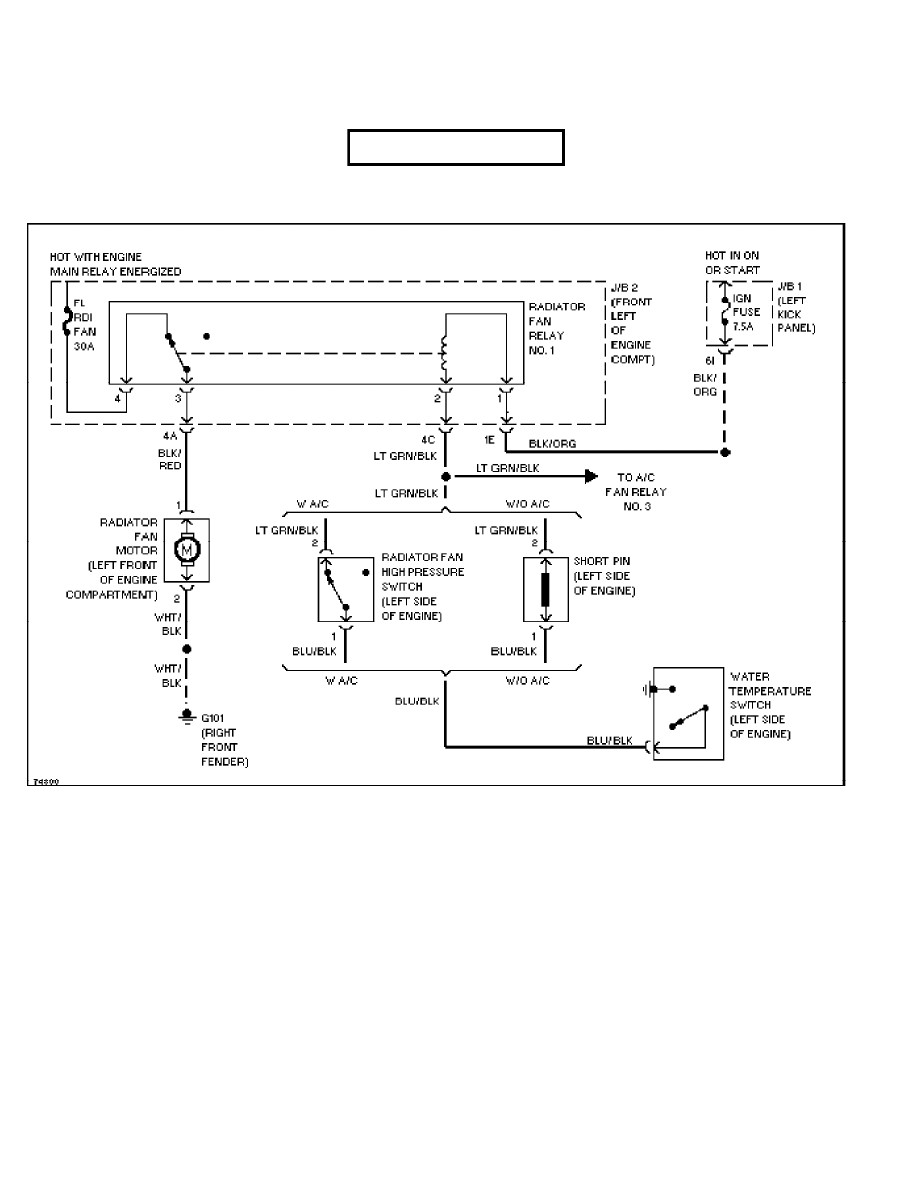

Cooling Fan Circuit, Lever Switch Type

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

CDR@WP.PL

background image

SYSTEM WIRING DIAGRAMS

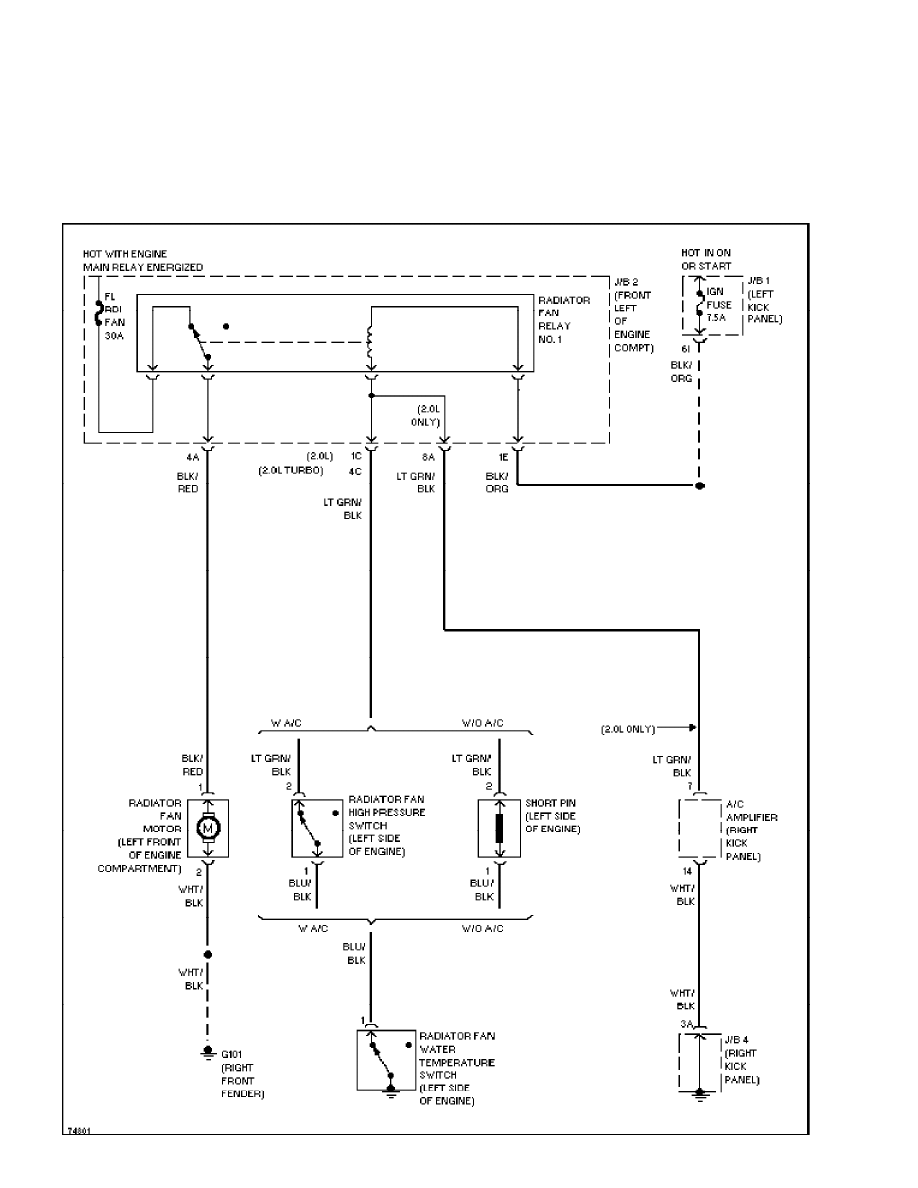

Cooling Fan Circuit, Push Type Switch (p. 2)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

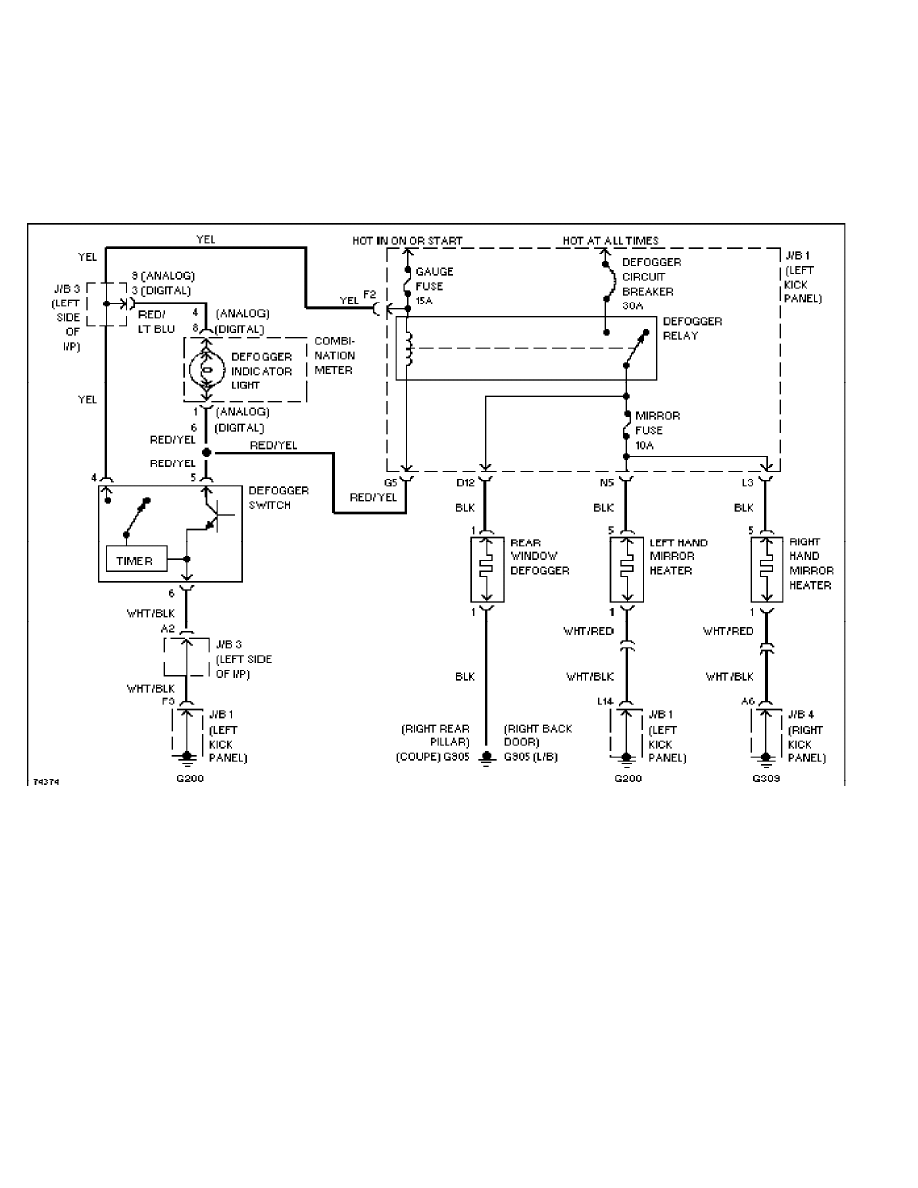

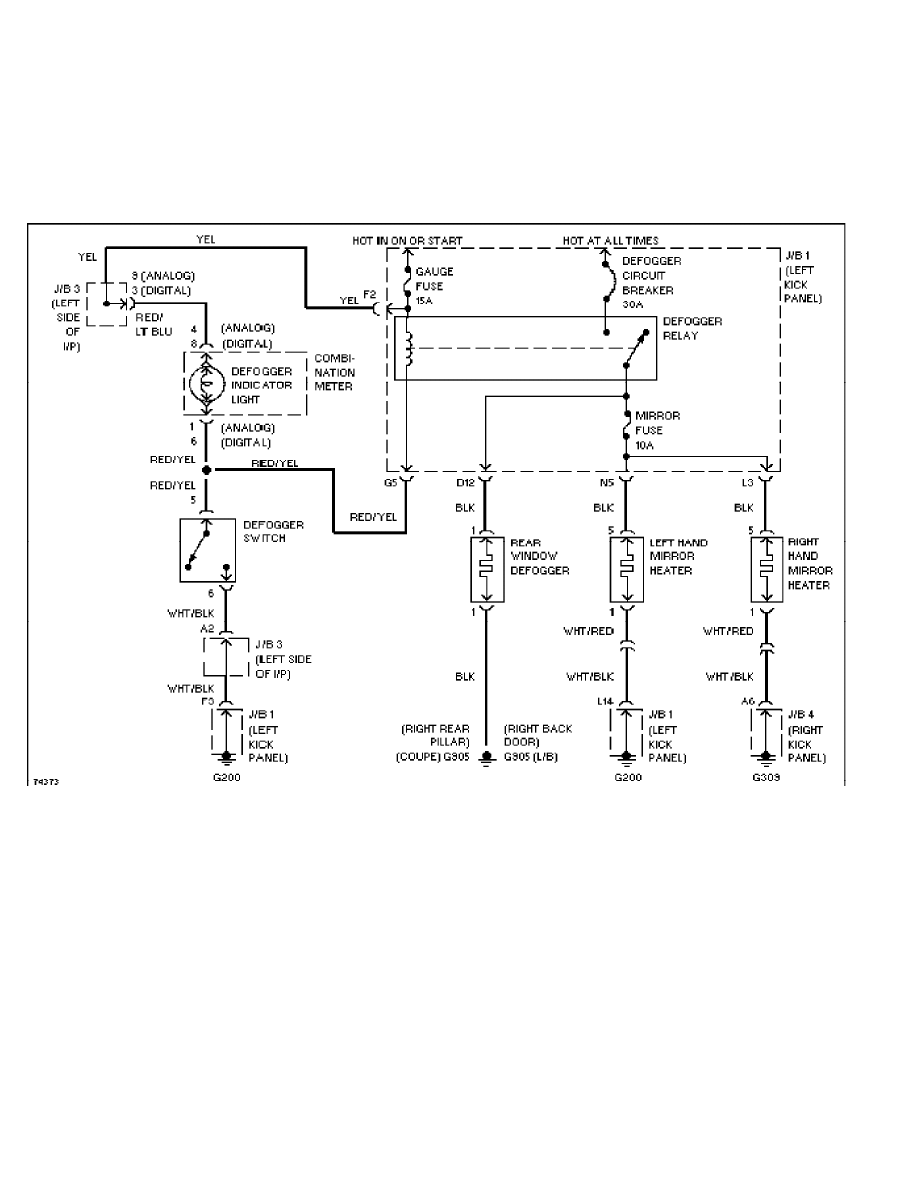

Rear Defogger & Heated Mirrors Circuit, W/ Timer Circuit (p. 3)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

Rear Defogger & Heated Mirrors Circuit, W/O Timer Circuit (p. 4)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

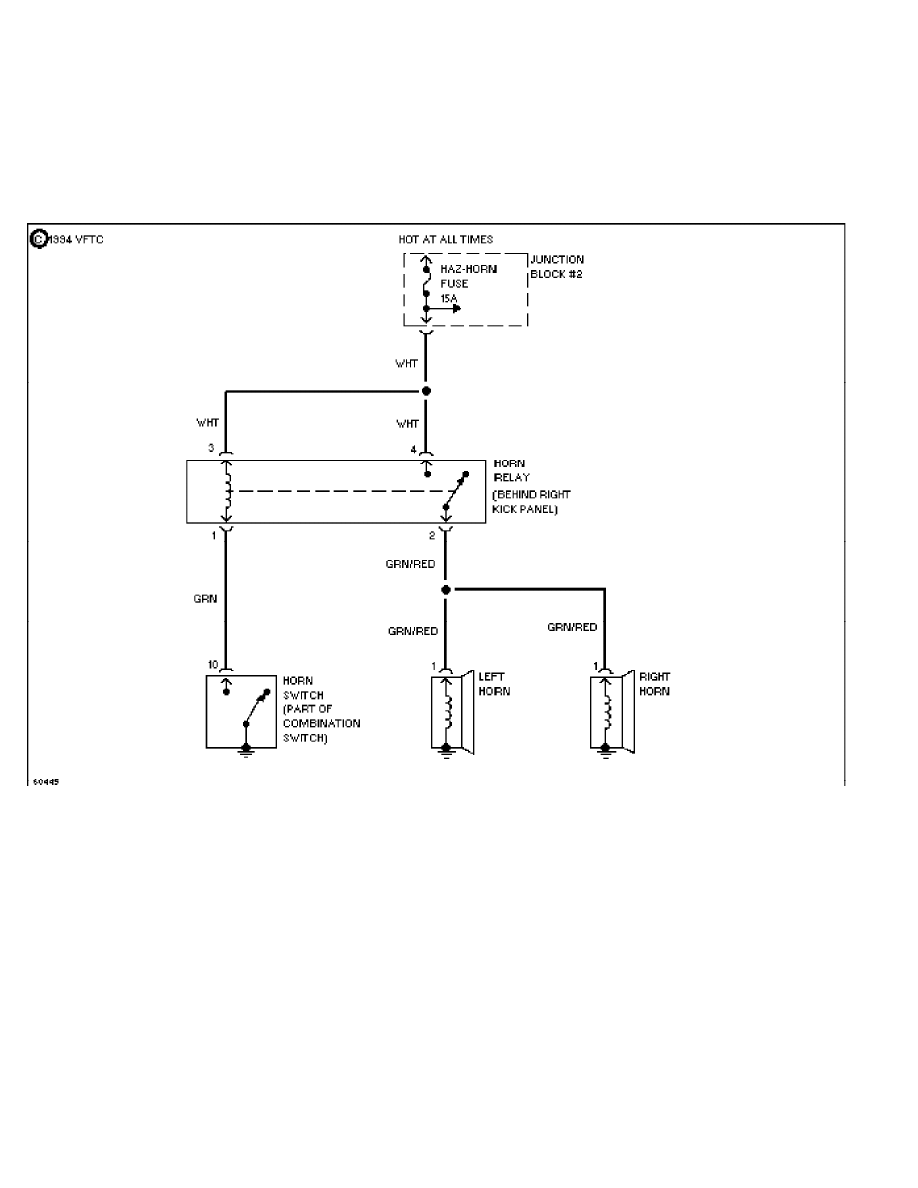

Horn Circuit (p. 5)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

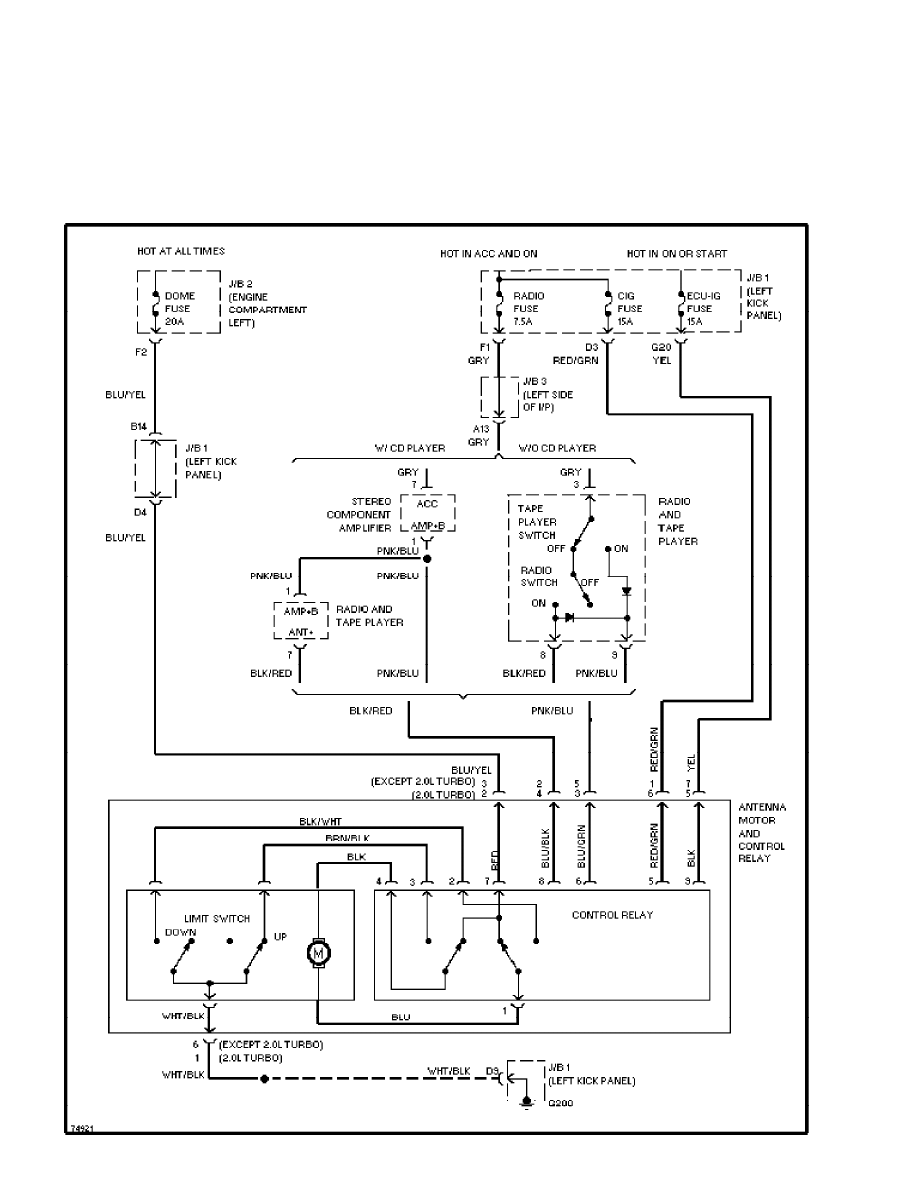

Power Antenna Circuit (p. 6)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

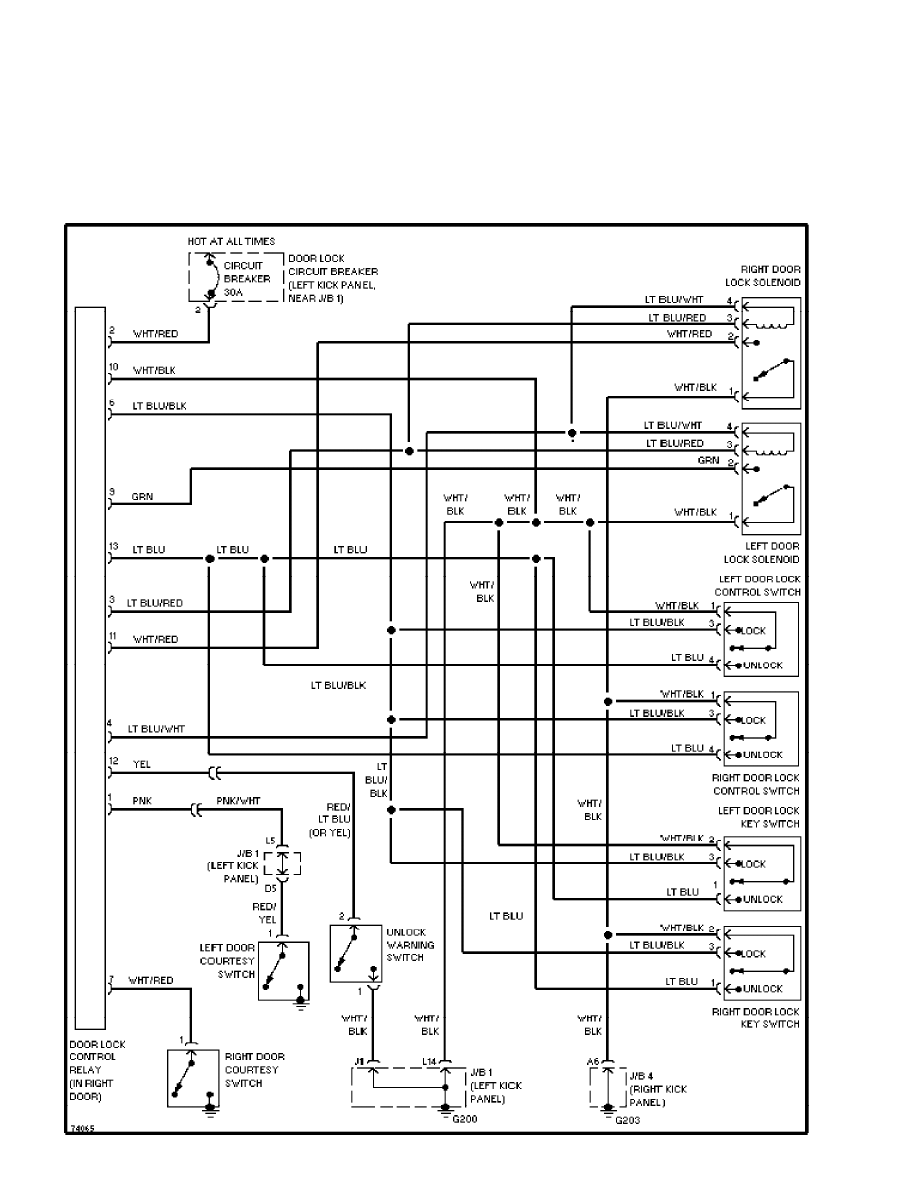

Power Door Lock Circuit (p. 7)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

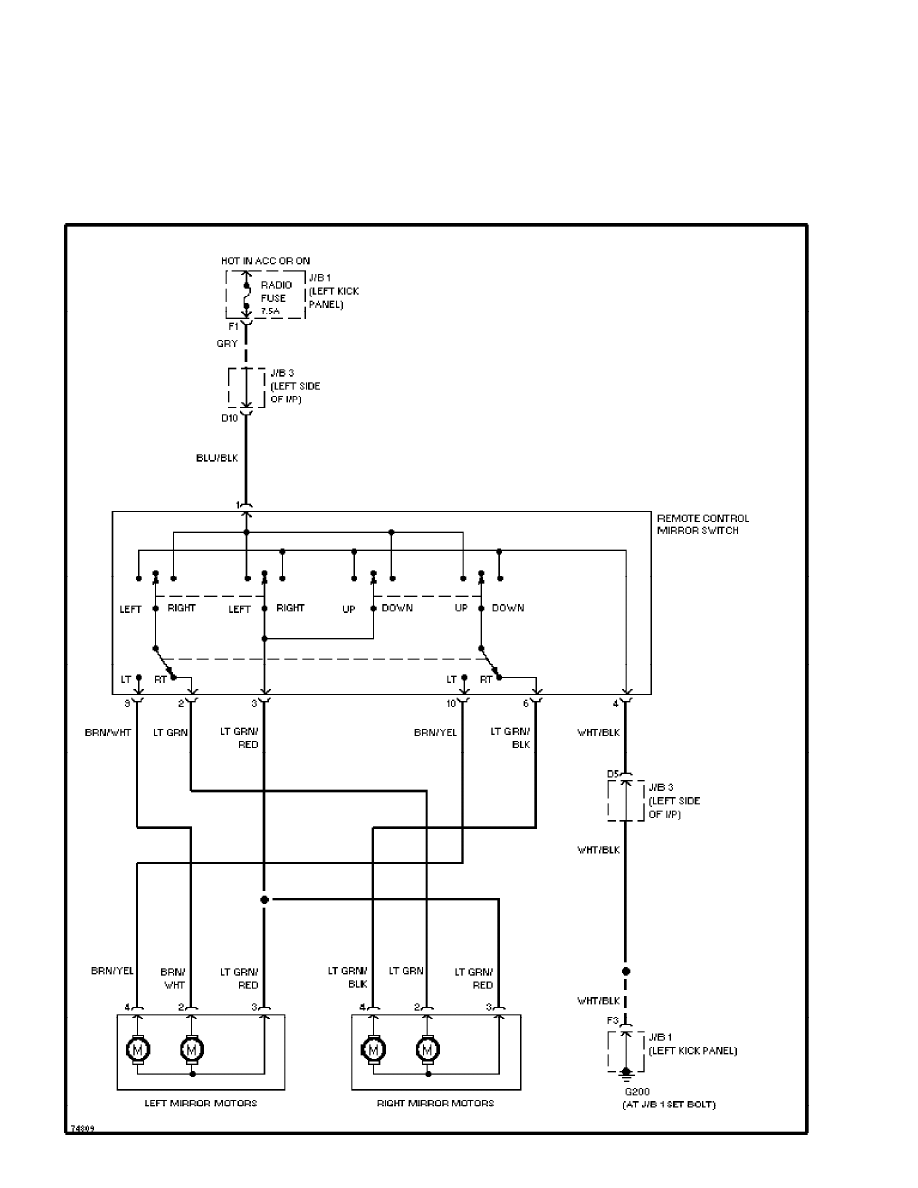

Power Mirror Circuit (p. 8)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

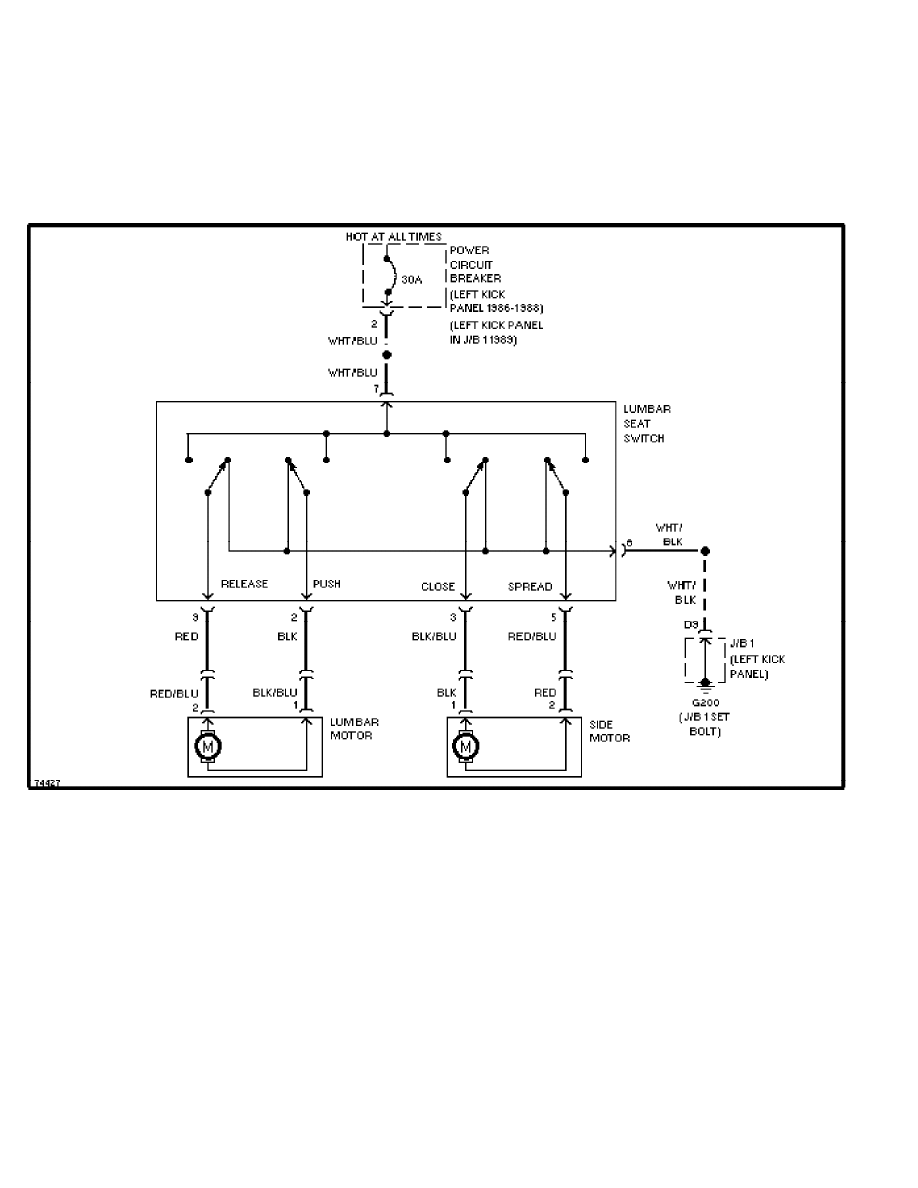

Lumbar Circuit (p. 9)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

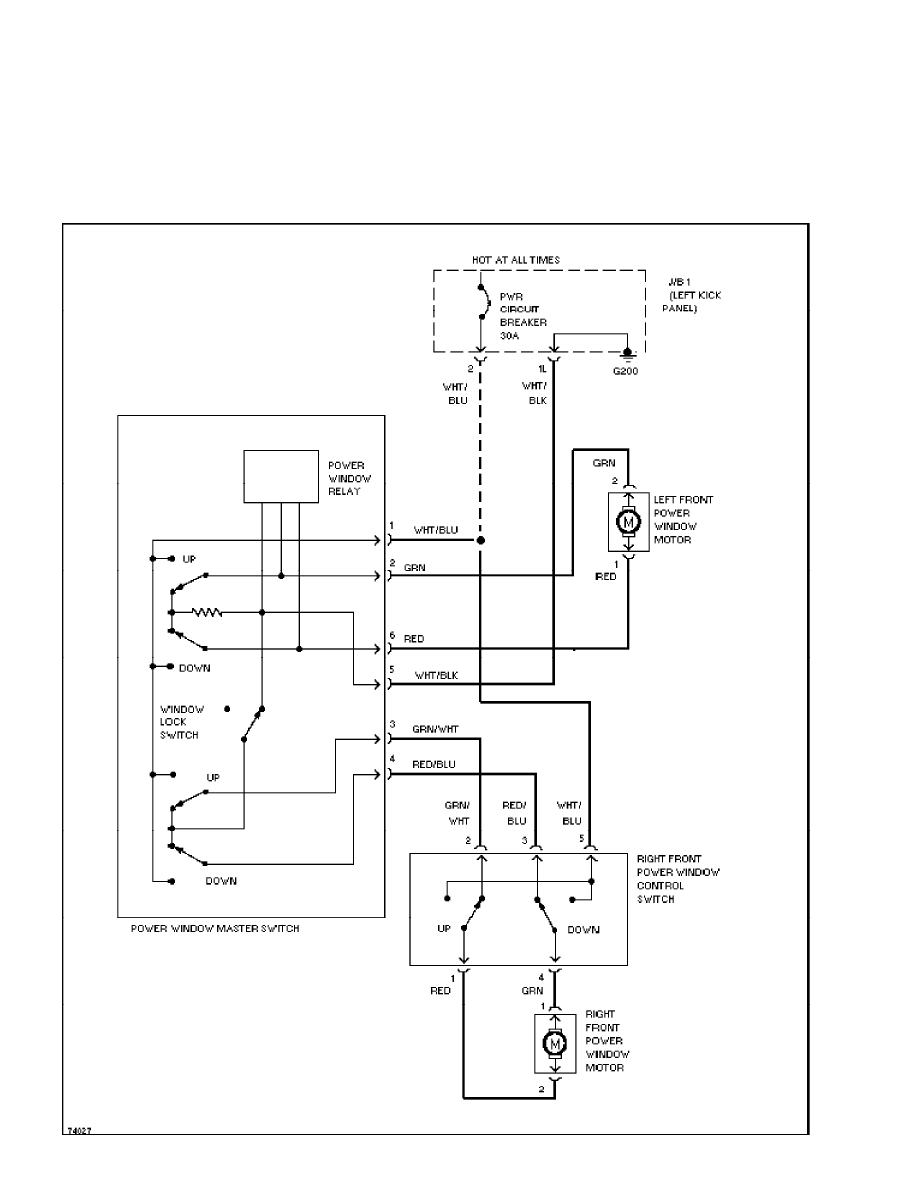

Power Window Circuit (p. 10)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

Radio Circuits, W/ CD Player (p. 11)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

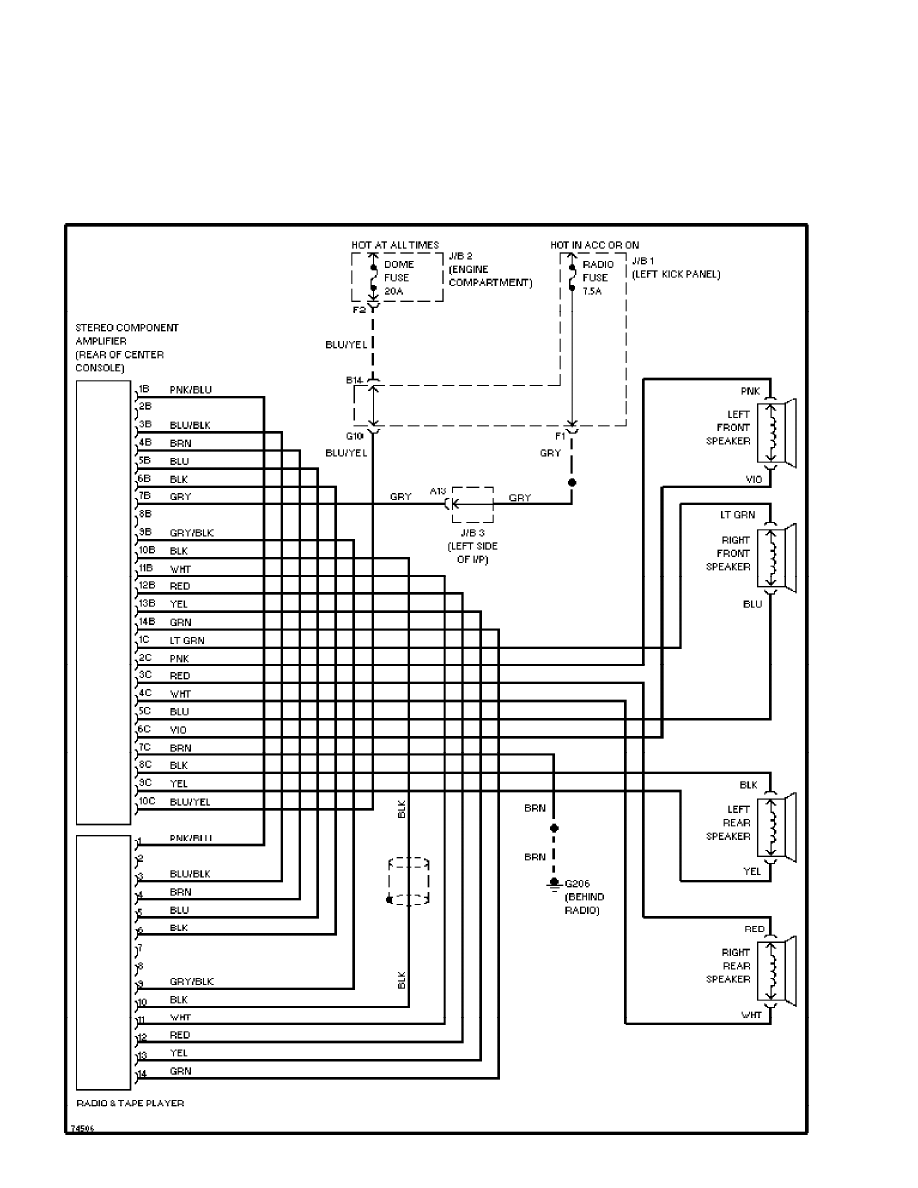

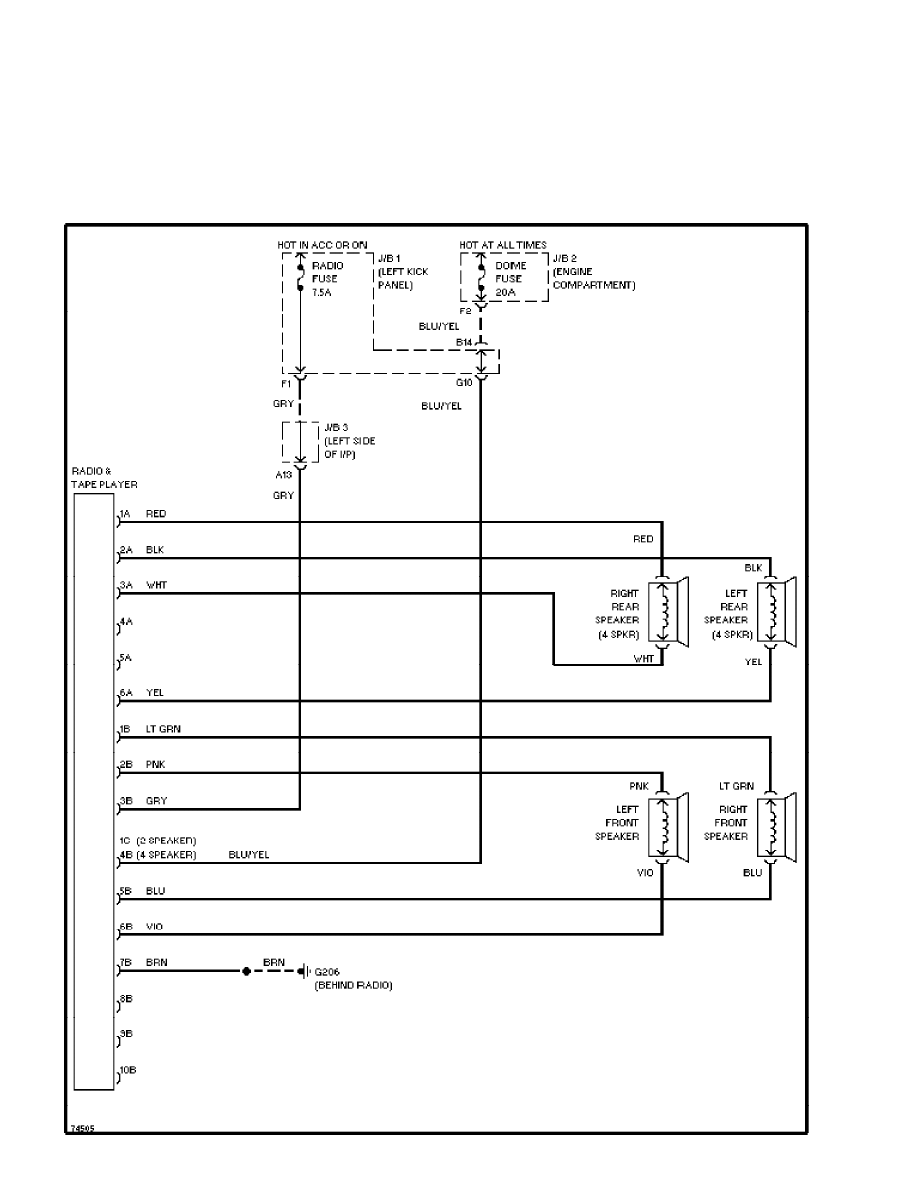

Radio Circuits, W/O CD Player (p. 12)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

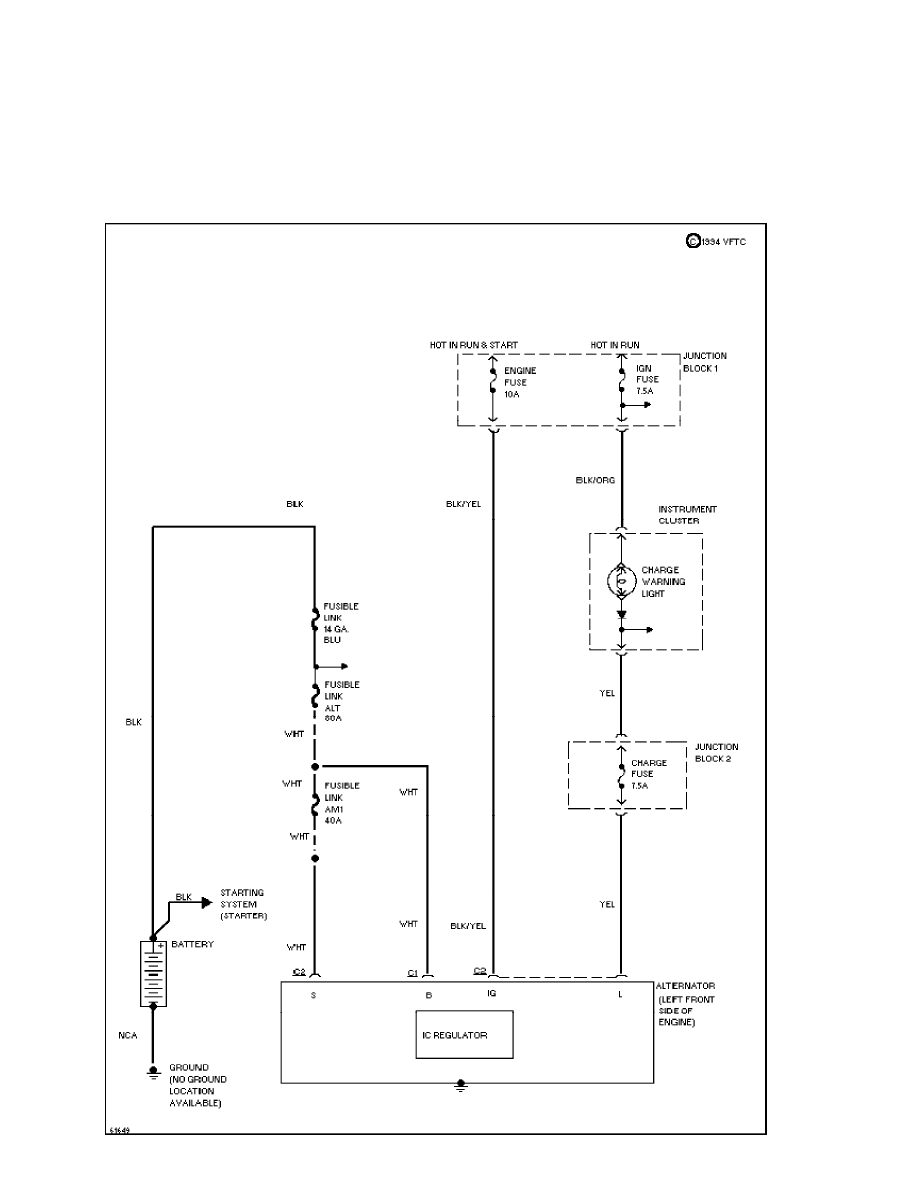

2.0L Turbo, Charging Circuit (p. 13)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

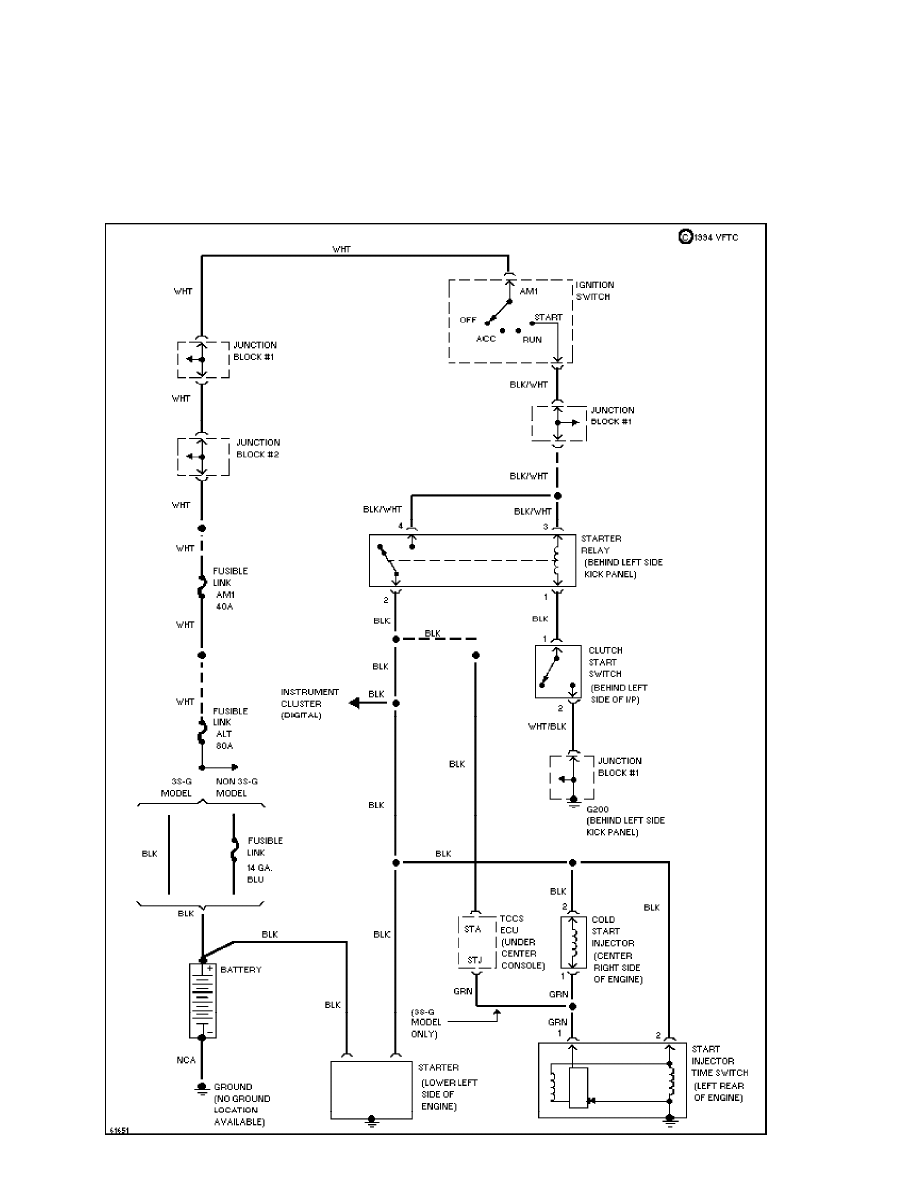

2.0L Turbo, Starting Circuit (p. 14)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

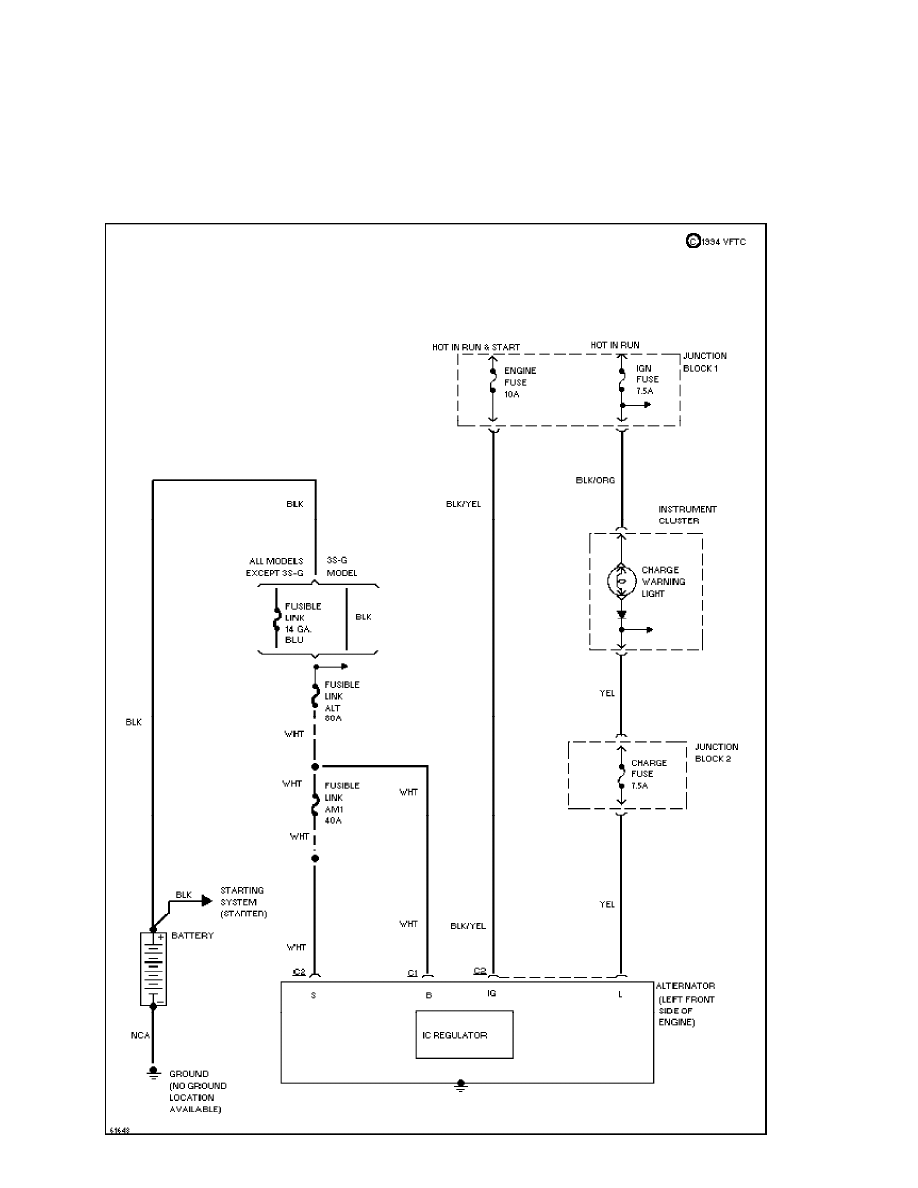

2.0L, Charging Circuit (p. 15)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

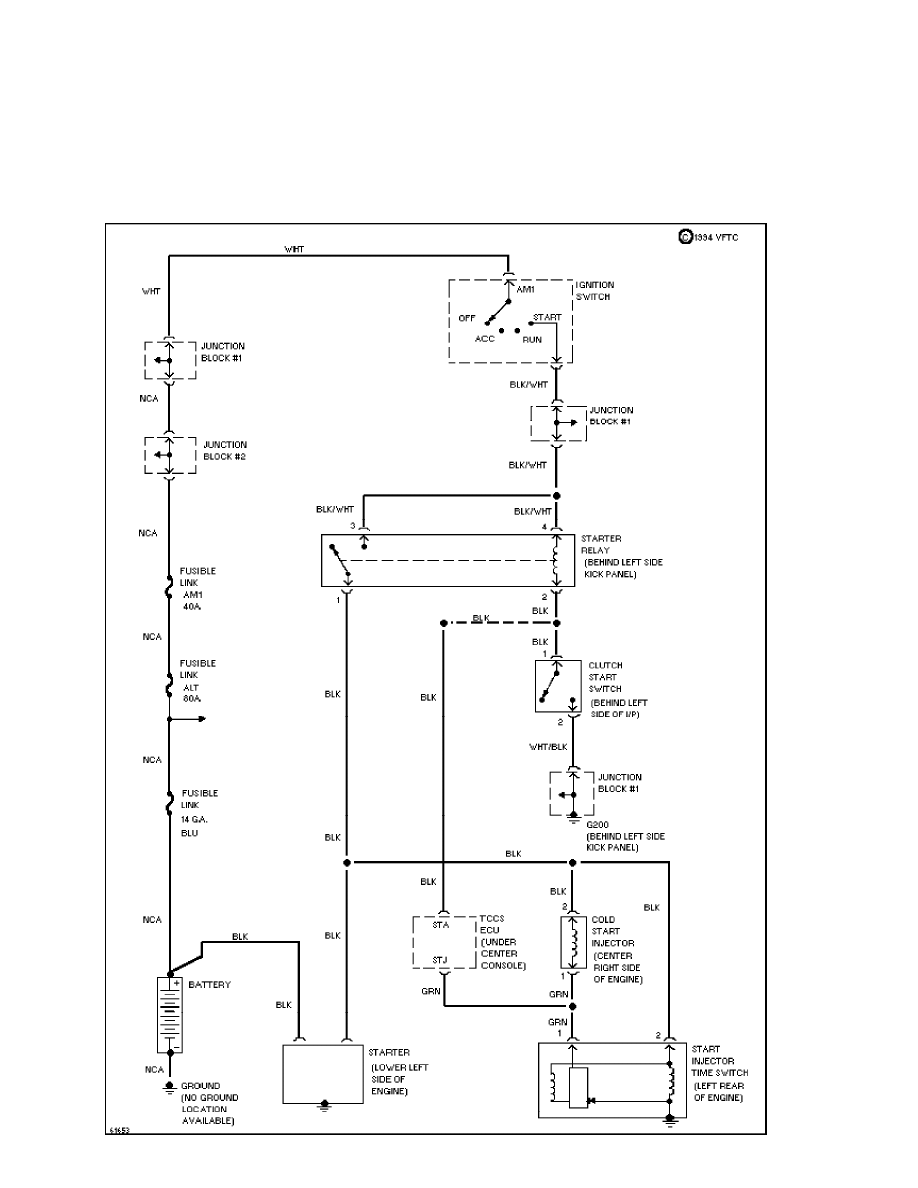

2.0L, Starting Circuit, Automatic (p. 16)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

2.0L, Starting Circuit, Manual (p. 17)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

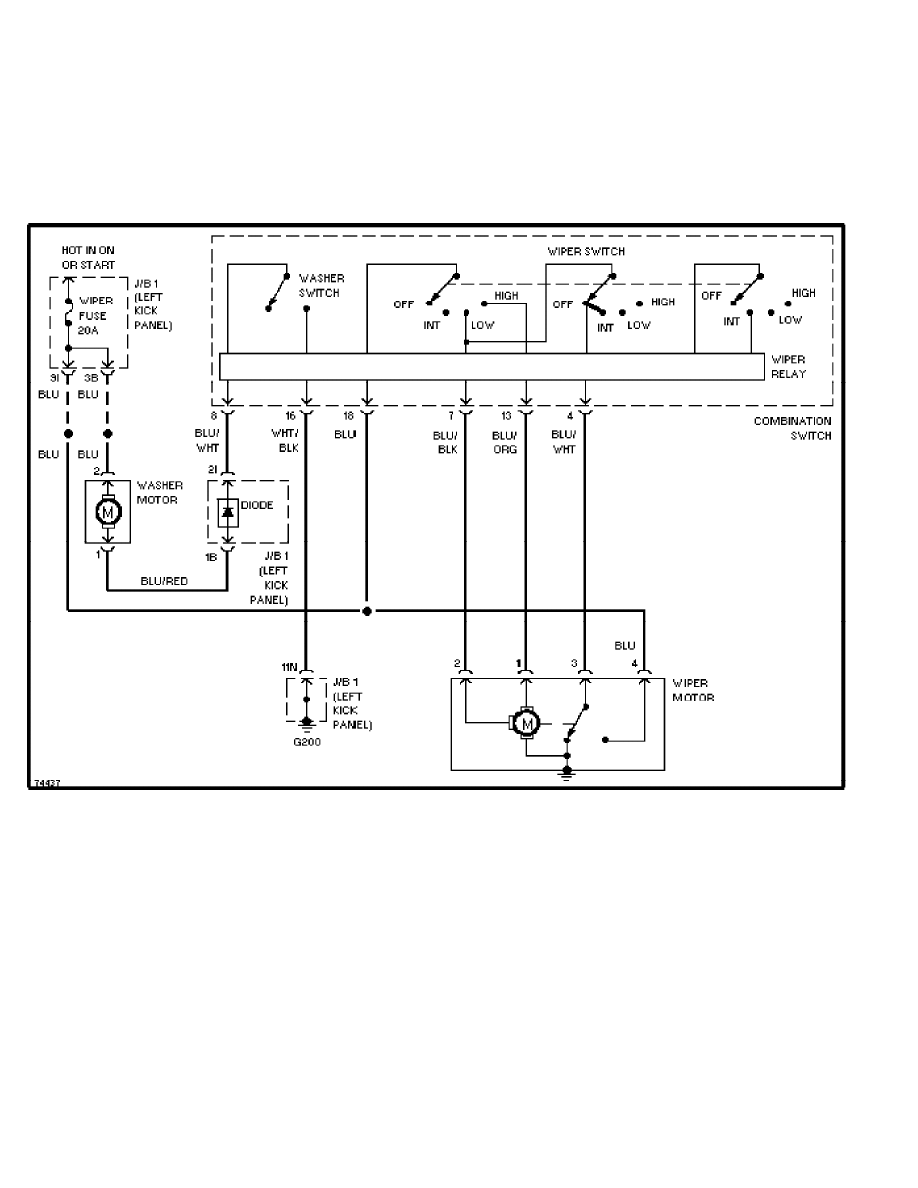

Front Wiper/Washer Circuit (p. 18)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

SYSTEM WIRING DIAGRAMS

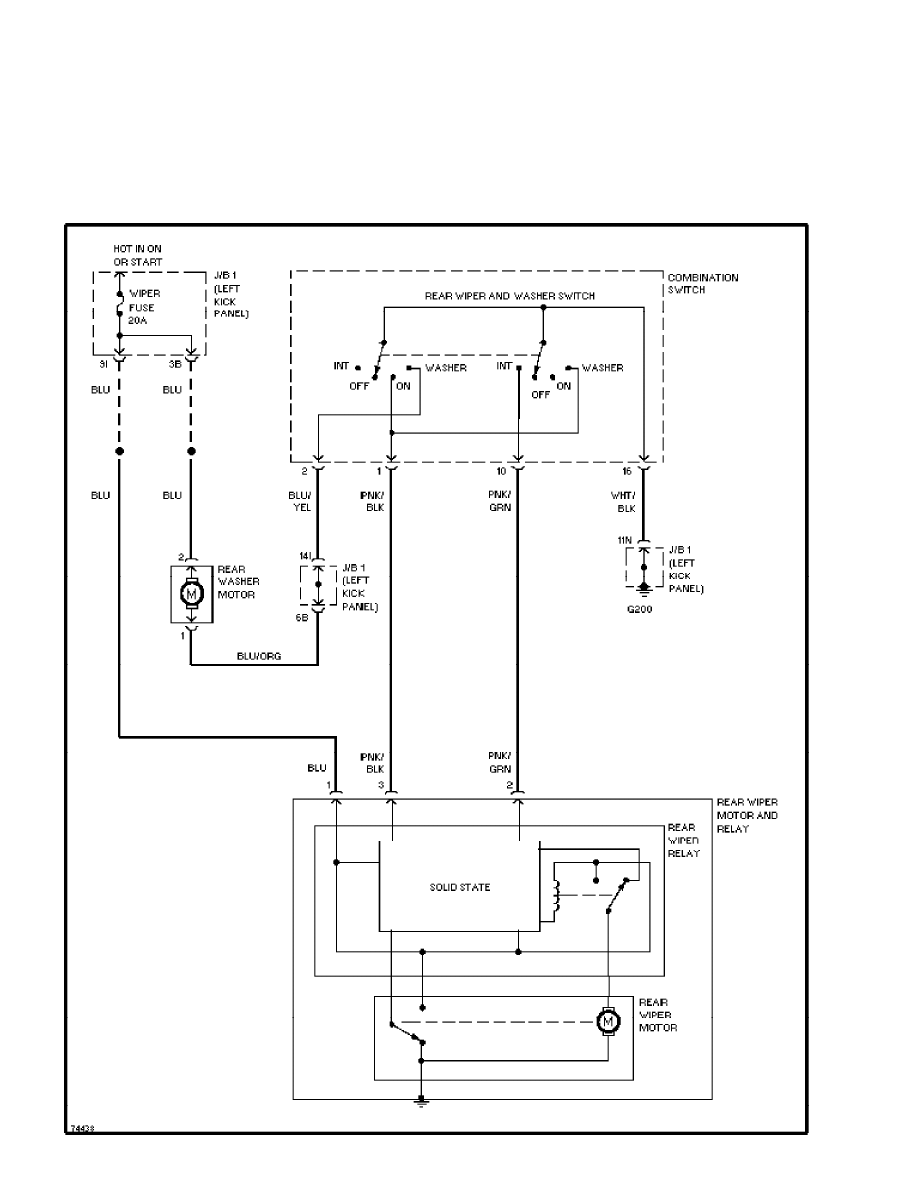

Rear Wiper/Washer Circuit (p. 19)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

WIRING DIAGRAMS

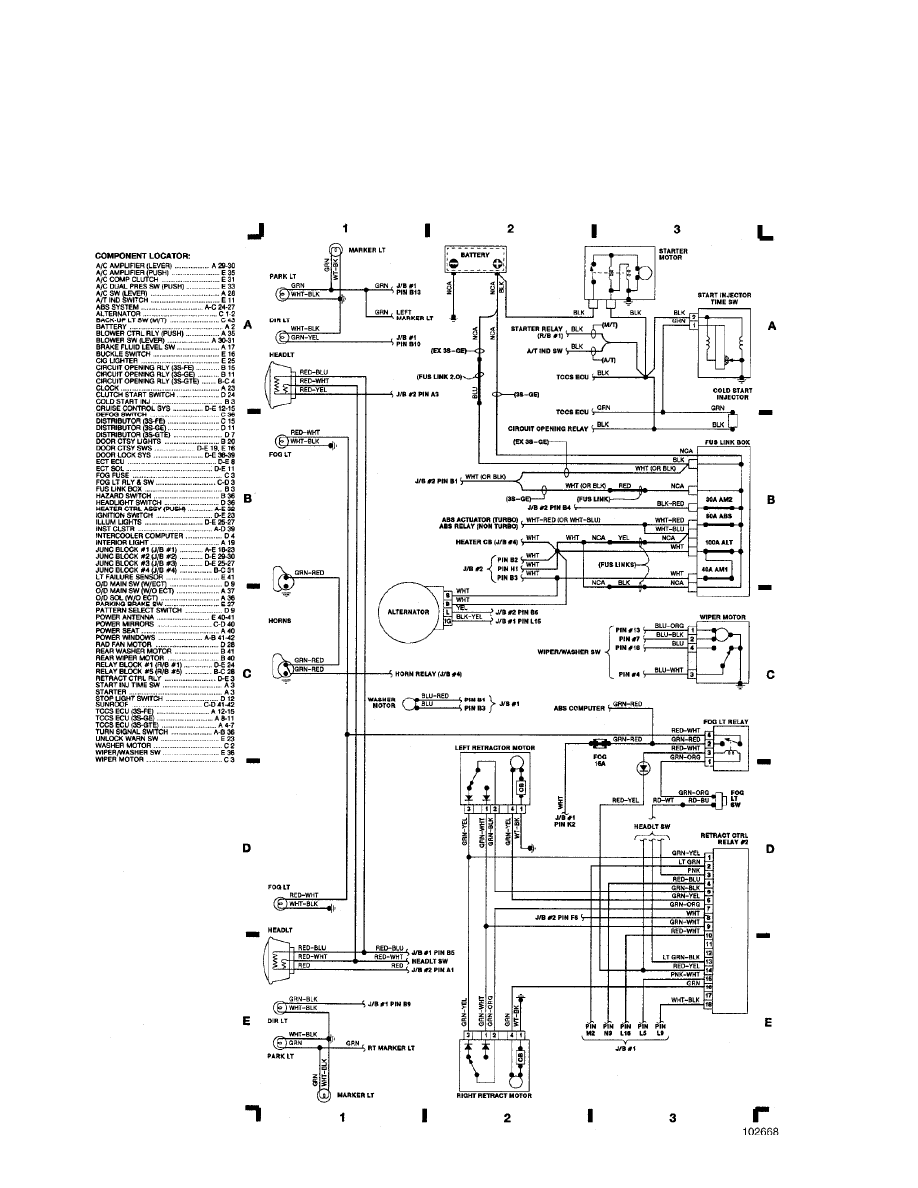

Fig. 1: Engine Compartment & Headlights

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

WIRING DIAGRAMS

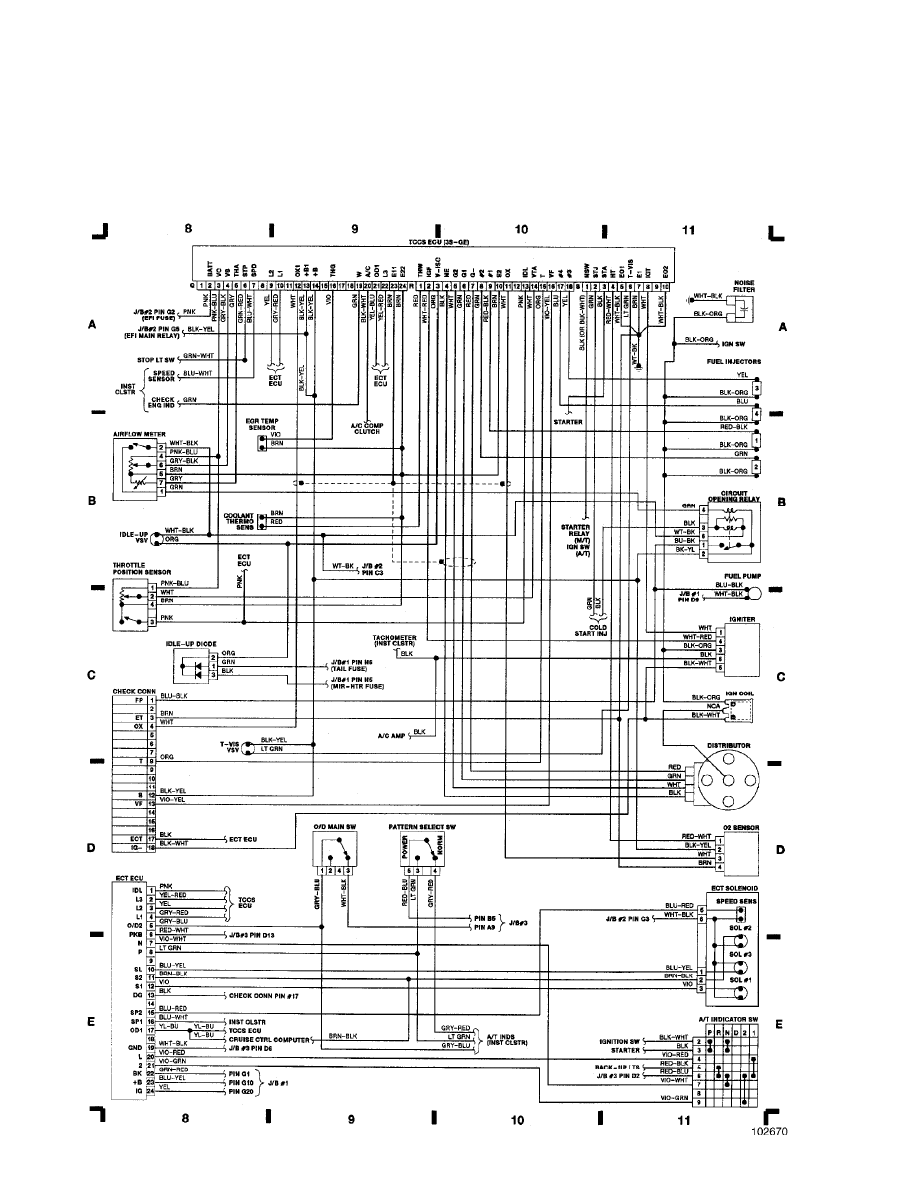

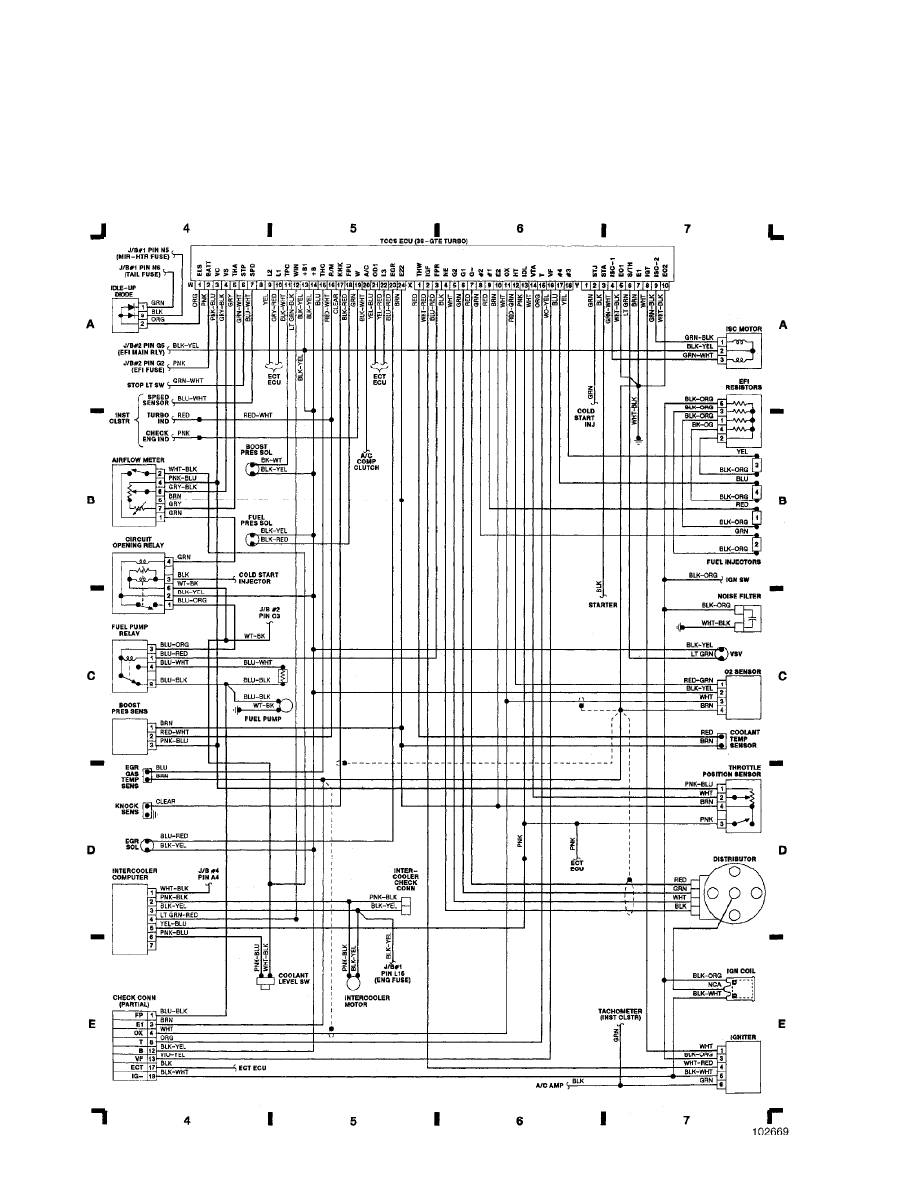

Fig. 2: Engine Compartment (Cont.), Ignition, Fuel (Turbo) (p. 2)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

WIRING DIAGRAMS

Fig. 3: Engine Compartment (Cont.), Ignition, Fuel (3S-GE Engine) (p. 3)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

WIRING DIAGRAMS

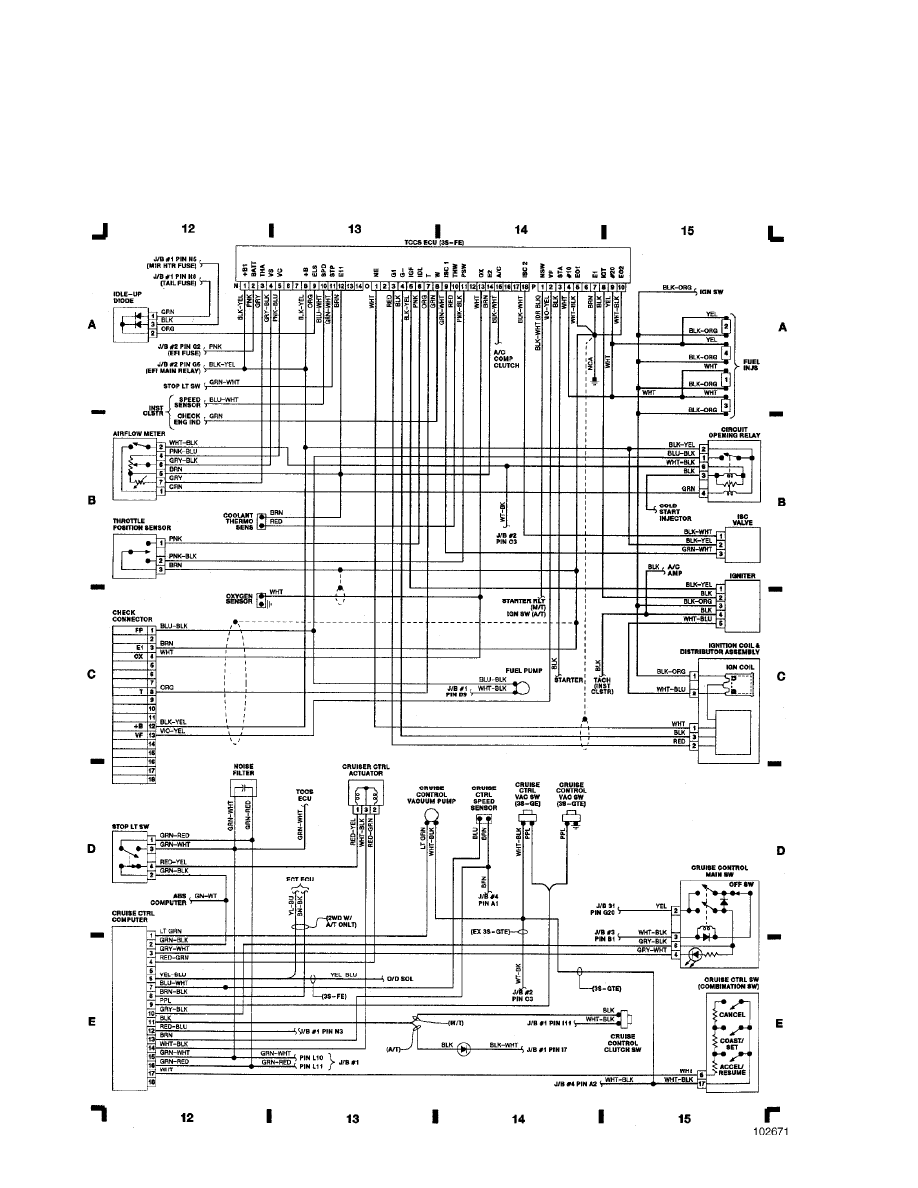

Fig. 4: Engine Compartment (Cont.), Ignition, Fuel (3S-FE Engine) (p. 4)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

WIRING DIAGRAMS

Fig. 5: Underdash, Junction Block #1 (p. 5)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

WIRING DIAGRAMS

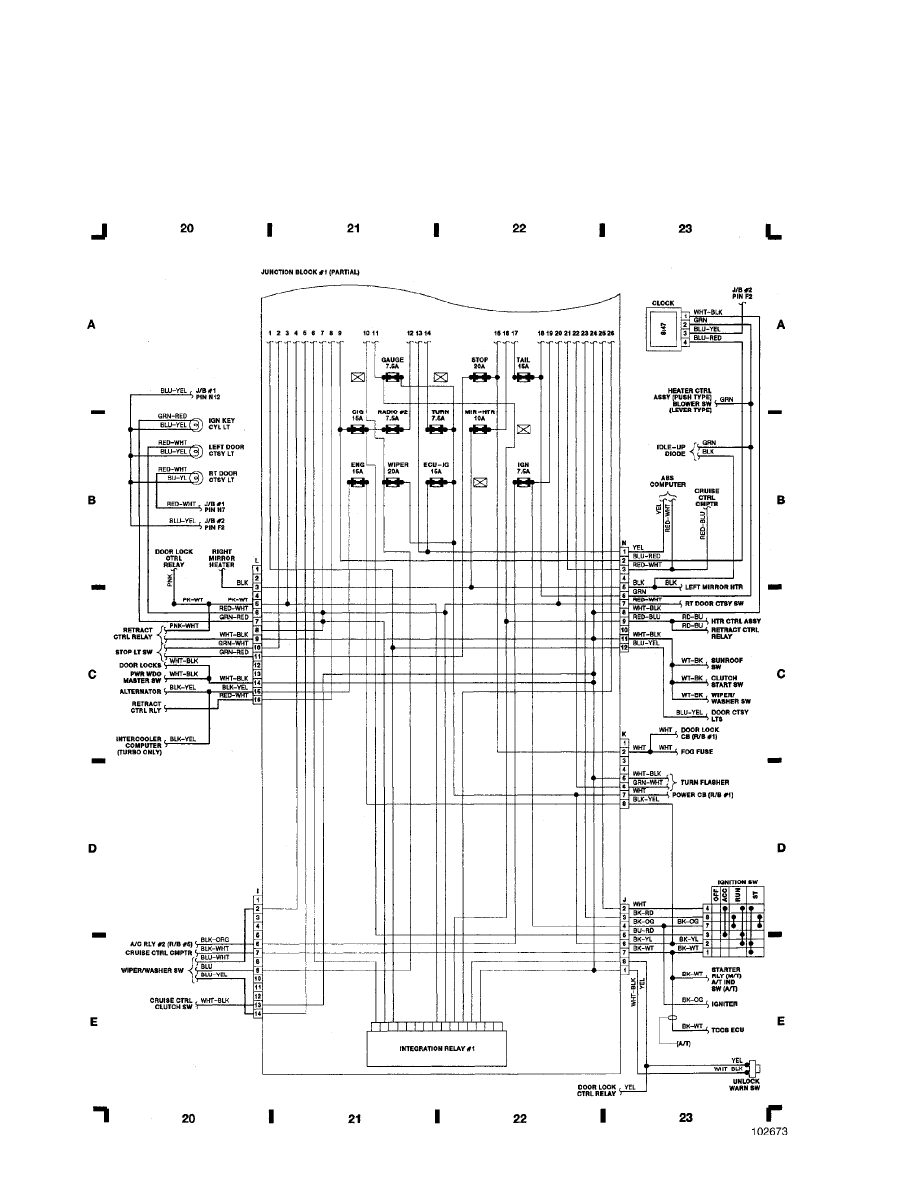

Fig. 6: Underdash (Cont.), Junction Block #1 (Cont.) (p. 6)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

WIRING DIAGRAMS

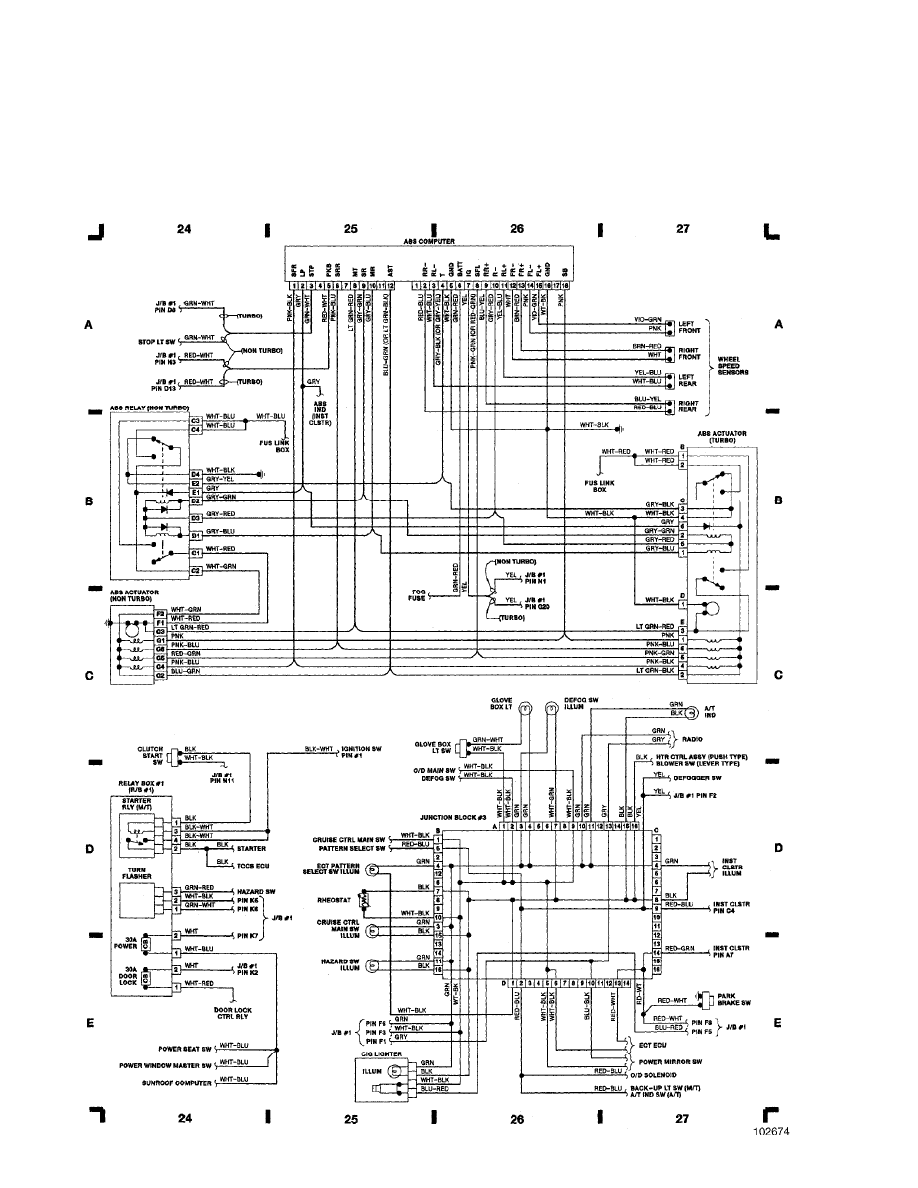

Fig. 7: Underdash (Cont.) & Accessories, CBS, Junction Block #3, Relay Box #1 (p. 7)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

WIRING DIAGRAMS

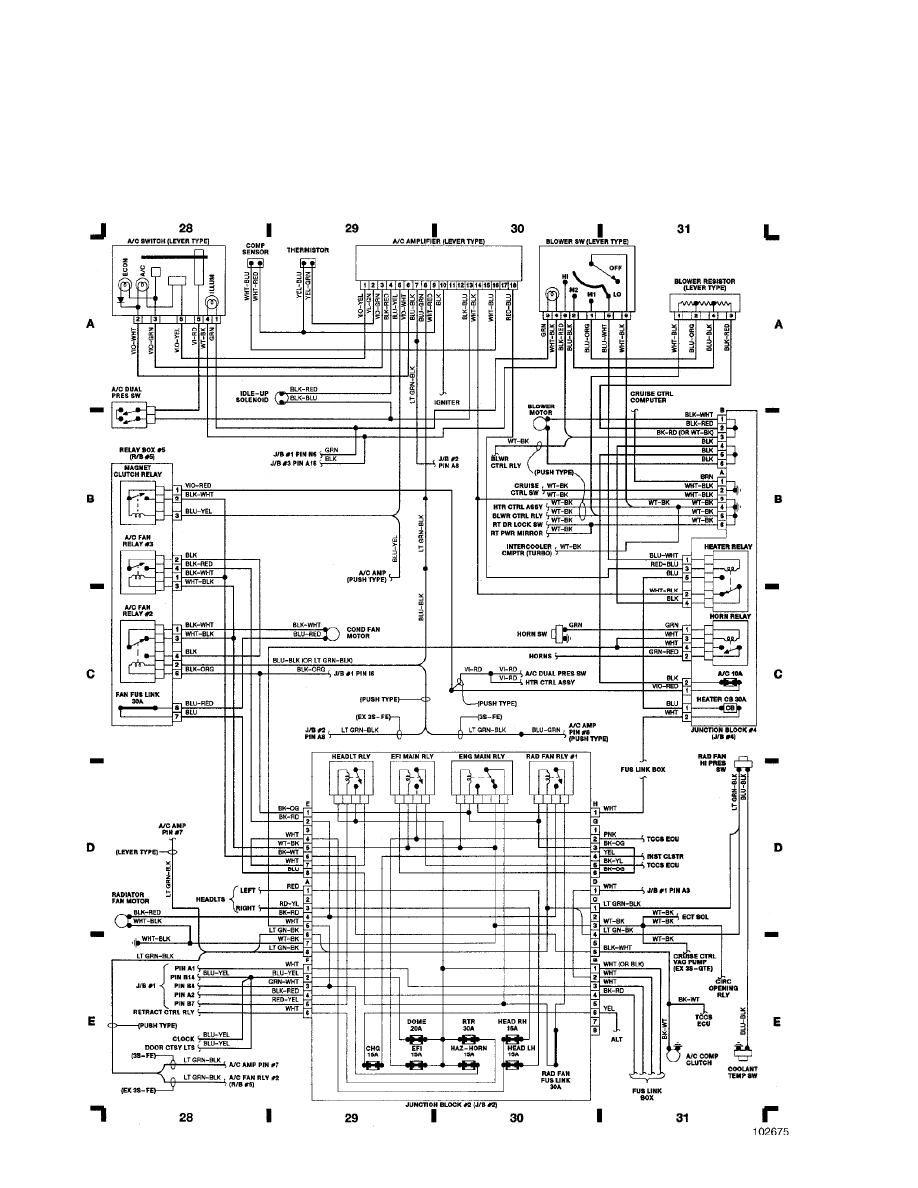

Underdash & Accessories (Cont.), A/C & Heating (Lever Type), Relay Box #6, Junction Blocks #2 &

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

WIRING DIAGRAMS

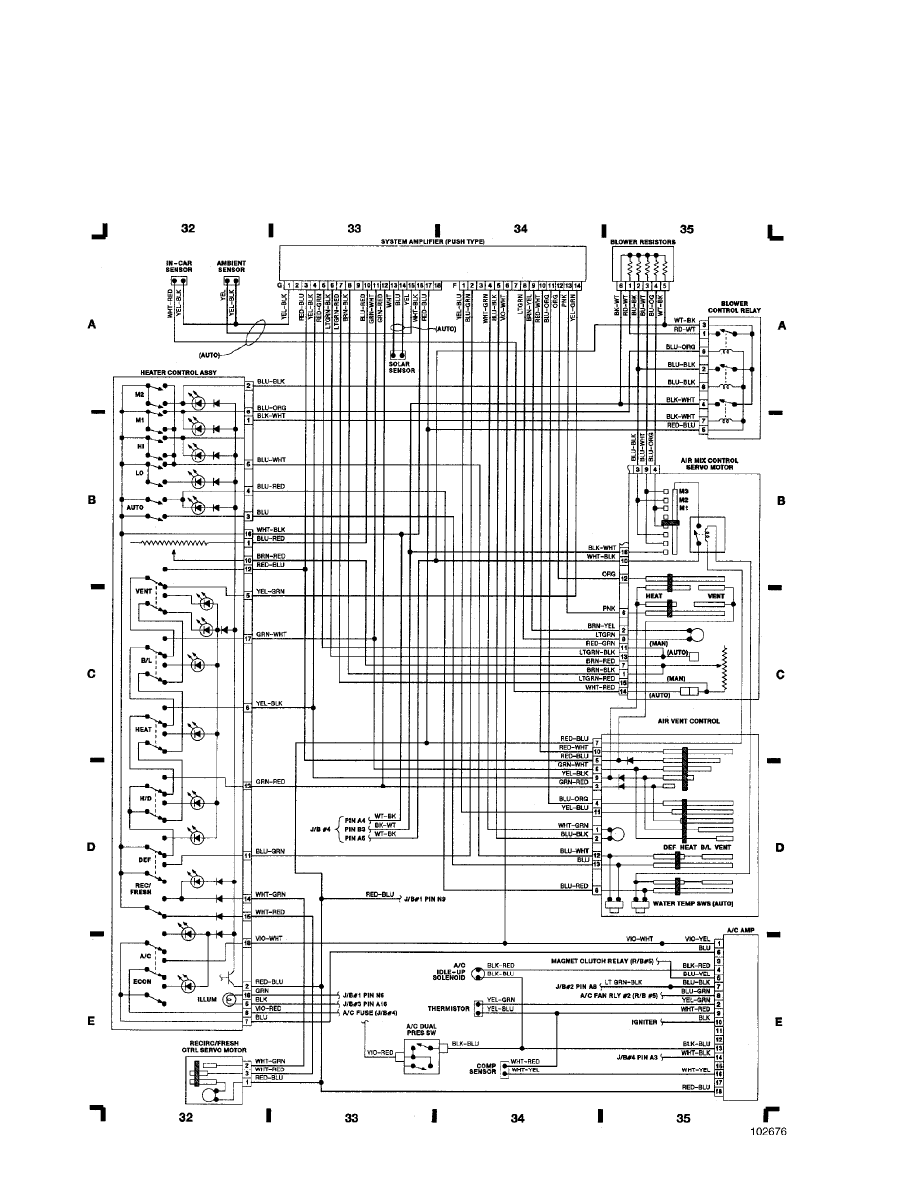

Fig. 9: Underdash & Accessories (Cont.), A/C & Heating (Push Type) (p. 9)

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

WIRING DIAGRAMS

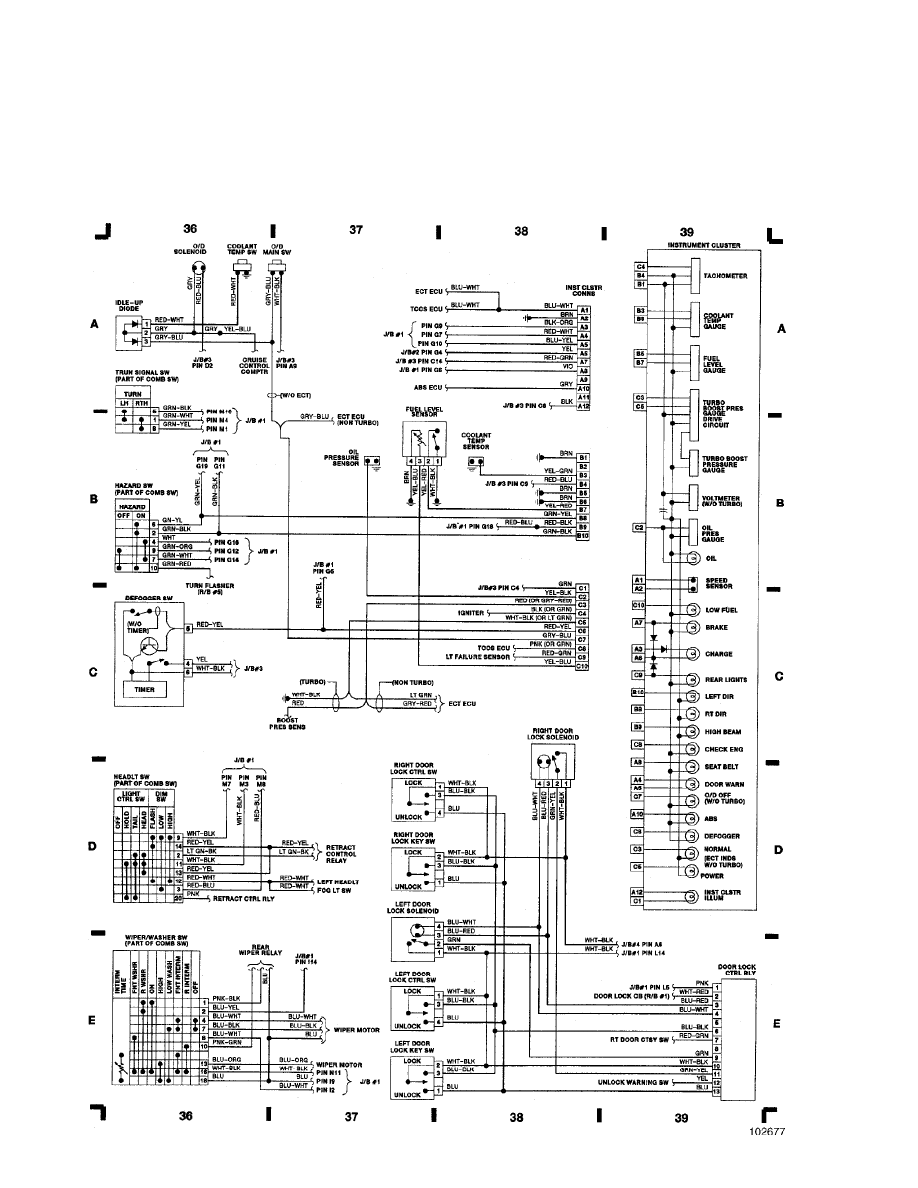

. 10: Underdash & Accessories (Cont.) & Instrument Panel, Cluster, Power Door Locks, Switches (p.

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM

background image

WIRING DIAGRAMS

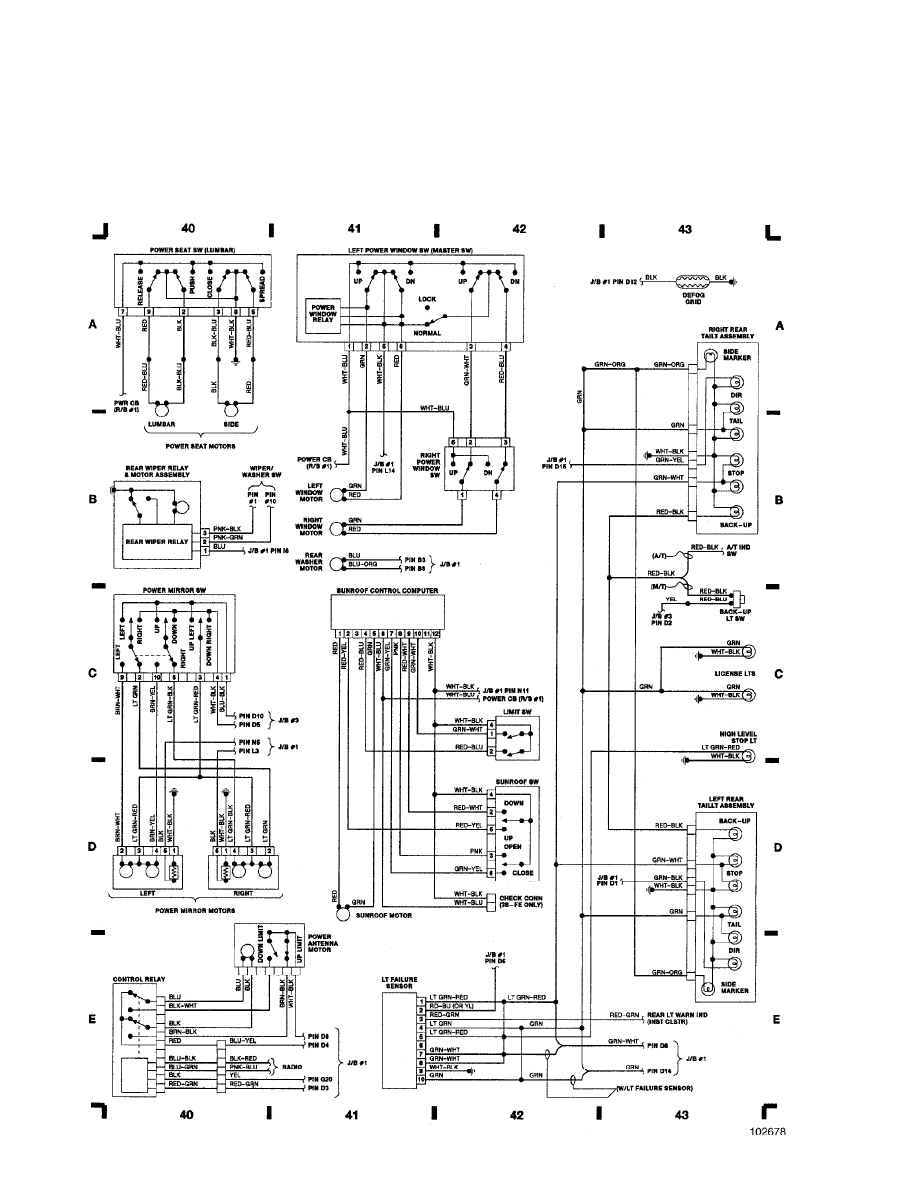

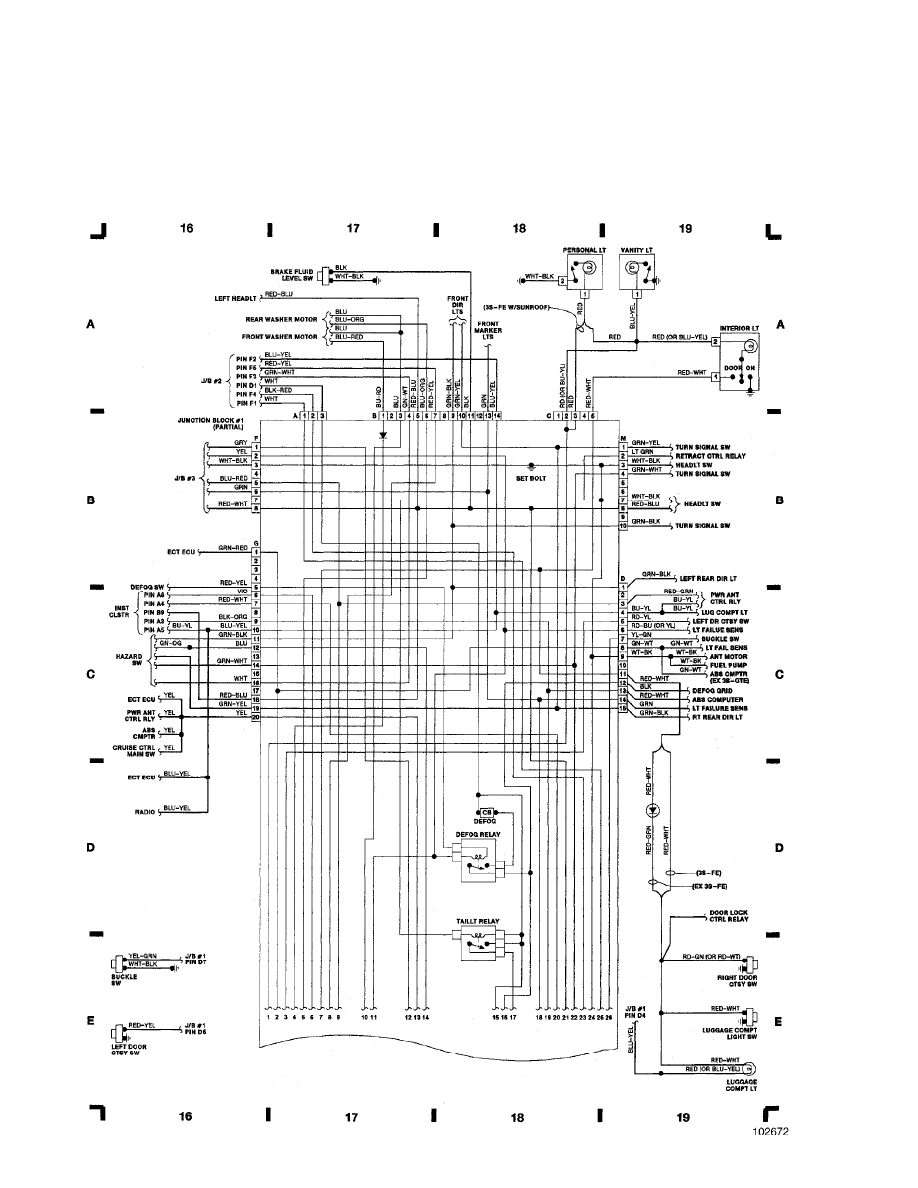

partment & Accessories (Cont.), Power Windows, Power Seats, Rear Wiper/Washer, Power Mirrors,

1988 Toyota Celica

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, July 30, 2004 10:48AM
