Notice the codes of Repair Kit for Galaxy S6 Rev1

background image

1

Published By [Global CS Team in HQ]

IMEI84

Product

HHP

Notice No.

15-40

Model

SM-G920/G925 Series

Notice Date

15

th

Apr ’15

Subject

Notice the codes of Repair Kit for Galaxy S6

Scope

Subsidiary ( Yes )

ASC ( Yes )

Customer ( No )

1. Purpose

- To inform all ASC’s of information regarding the codes of Repair Kit for Galaxy S6.

2. Introduction

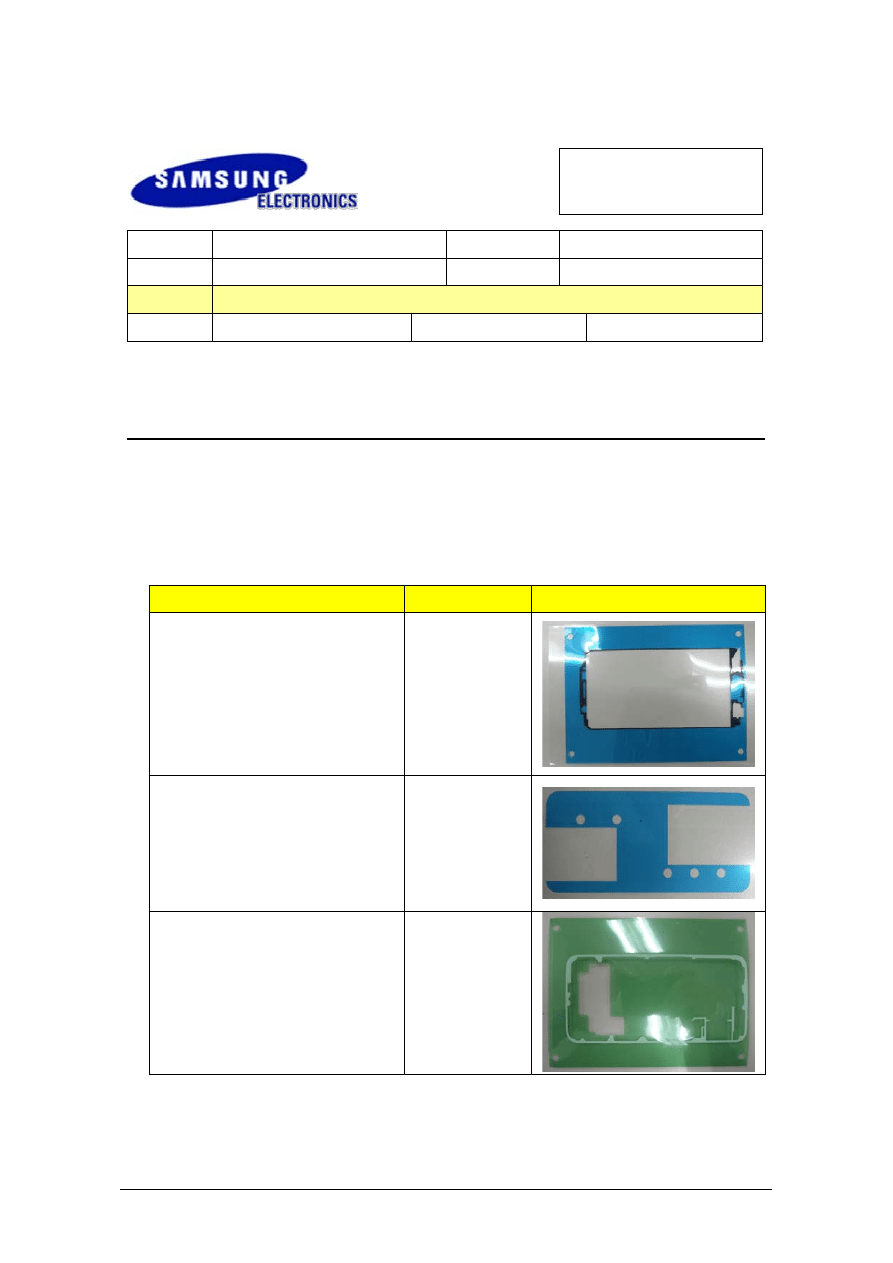

1) Repair kits are provided for Front part repair (i.e. OCTA, Home key) of Galaxy S6.

Refer to the below table.

- SM-G920 Series (Galaxy S6):

GH82-10033A

BOM Description

Part Code


A/S-MAIN WINDOW TAPE_R/KIT

GH81-12747A

A/S-SVC TAPE BATT

GH81-12820A

A/S-BACK GLASS TAPE_R/KIT

GH81-12746A

Notice

background image

2

Published By [Global CS Team in HQ]

BOM Description

Part Code


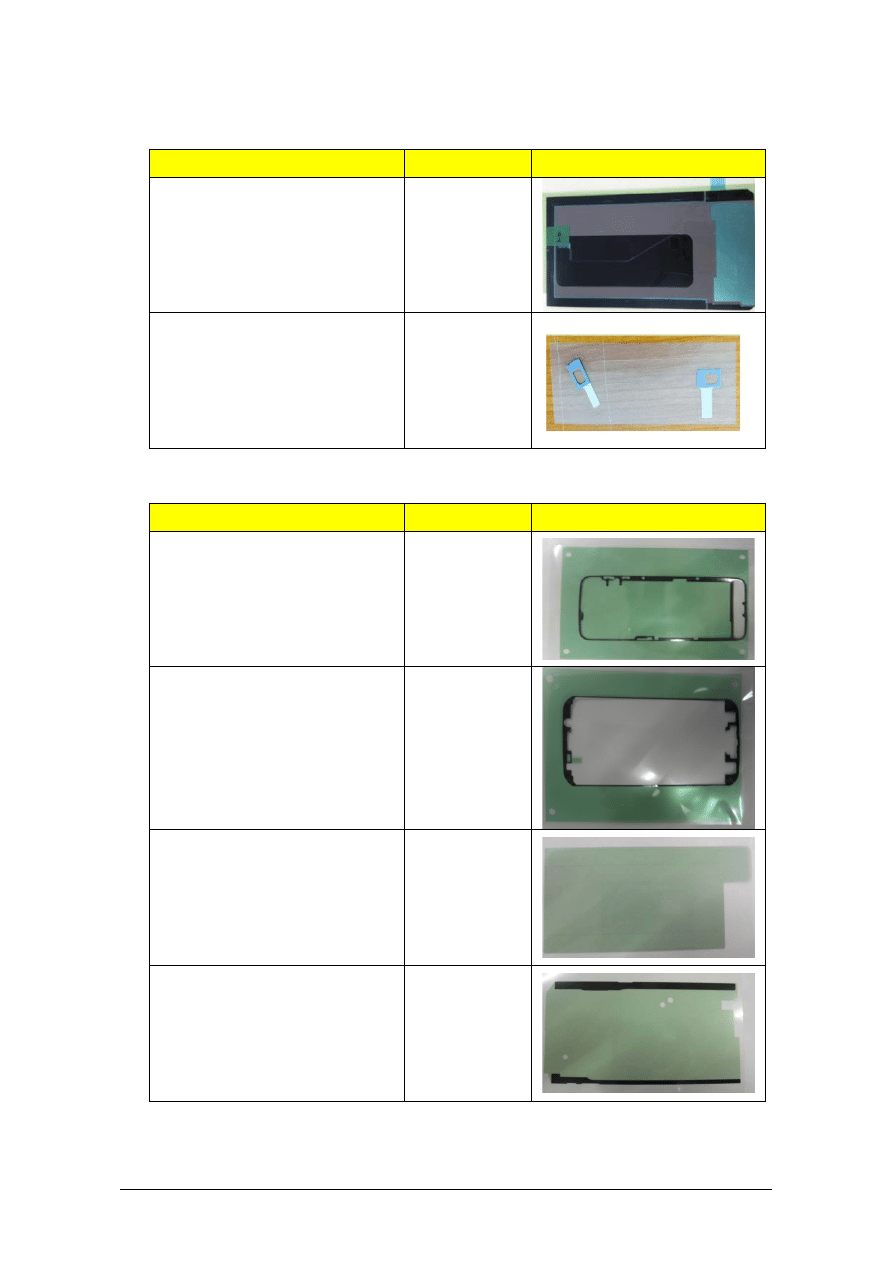

A/S-OCTA COVER PANEL_(R/KIT)

GH81-12784A

A/S-TOP_TAPE_ASSY_(R/KIT)

GH81-12757A

- SM-G925 Series (Galaxy S6 Edge):

GH82-10030A

BOM Description

Part Code


A/S-TAPE BACKGLASS

OUTTER(R/KIT)SM-G925F

GH81-12781A

A/S-TAPE MAIN

WINDOW_(R/KIT)SM-G925F

GH81-12779A

A/S-TAPE BATTERY

GH81-12780A

A/S-BRACKET SIDE

GH81-12824A

background image

3

Published By [Global CS Team in HQ]

2) The Front part of Galaxy S6 Edge (SM-G925 series), such as UB (TSP+LCD) and

Home key can be repaired as a component level.

Note) No longer provided as an Assembly level.

Refer to the below table, but make sure to confirm the final code from S-BOM.

Distinct the exact specification to check the BOM description of Bracket Ass’y.

[ Global Open ]

Ass'y code

Part code

BOM Description

GH97-17162A

GH96-08223A

ASSY INHOUSE UB OLED;SM-G925F,5.1,129.24

GH96-08253A

HOME KEY ASSY-BLACK (SM-G925F);SM-G925F,

GH98-35849A

ASSY BRACKET-FRONT;SM-G925F,EU,BLACK

GH97-17162B

GH96-08357A

ASSY INHOUSE UB OLED-5.1" A-GRADE_WHITE;

GH96-08253B

HOME KEY ASSY-WHITE (SM-G925F);SM-G925F,

GH98-35849A

ASSY BRACKET-FRONT;SM-G925F,EU,BLACK

GH97-17162C

GH96-08539A

ASSY INHOUSE UB OLED-5.09" A-GRADE_GOLD;

GH96-08253C

HOME KEY ASSY-GOLD (SM-G925F);SM-G925F,F

GH98-35849A

ASSY BRACKET-FRONT;SM-G925F,EU,BLACK

GH97-17162E

GH96-08540A

ASSY INHOUSE UB OLED-5.09" A-GRADE_GREEN

GH96-08253E

HOME KEY ASSY-GREEN (SM-G925F);SM-G925F,

GH98-35849A

ASSY BRACKET-FRONT;SM-G925F,EU,BLACK

[ China, Hong Kong, Taiwan, USA(VZW/SPR) ]

Ass'y code

Part code

BOM Description

GH97-17317A

GH96-08223A

ASSY INHOUSE UB OLED;SM-G925F,5.1,129.24

GH96-08253A

HOME KEY ASSY-BLACK (SM-G925F);SM-G925F,

GH98-36092A

ASSY BRACKET-FRONT;SM-G925V,VZW,STS,BLAC

GH97-17317B

GH96-08357A

ASSY INHOUSE UB OLED-5.1" A-GRADE_WHITE;

GH96-08253B

HOME KEY ASSY-WHITE (SM-G925F);SM-G925F,

GH98-36092A

ASSY BRACKET-FRONT;SM-G925V,VZW,STS,BLAC

[ USA(ATT/TMB), Canada ]

Ass'y code

Part code

BOM Description

GH97-17334A

GH96-08223A

ASSY INHOUSE UB OLED;SM-G925F,5.1,129.24

GH96-08253A

HOME KEY ASSY-BLACK (SM-G925F);SM-G925F,

GH98-36528A

ASSY BRACKET-FRONT_ATT (SM-G925A);SM-G92

GH97-17334B

GH96-08357A

ASSY INHOUSE UB OLED-5.1" A-GRADE_WHITE;

background image

4

Published By [Global CS Team in HQ]

Ass'y code

Part code

BOM Description

GH96-08253B

HOME KEY ASSY-WHITE (SM-G925F);SM-G925F,

GH98-36528A

ASSY BRACKET-FRONT_ATT (SM-G925A);SM-G92

GH97-17334C

GH96-08539A

ASSY INHOUSE UB OLED-5.09" A-GRADE_GOLD;

GH96-08253C

HOME KEY ASSY-GOLD (SM-G925F);SM-G925F,F

GH98-36528A

ASSY BRACKET-FRONT_ATT (SM-G925A);SM-G92

[ Korea (SKT/KT/LGT) ]

Ass'y code

Part code

BOM Description

GH97-17370A

GH96-08223A

ASSY INHOUSE UB OLED;SM-G925F,5.1,129.24

GH96-08253A

HOME KEY ASSY-BLACK (SM-G925F);SM-G925F,

GH98-35849A

ASSY BRACKET-FRONT;SM-G925F,EU,BLACK

GH97-17370B

GH96-08357A

ASSY INHOUSE UB OLED-5.1" A-GRADE_WHITE;

GH96-08253B

HOME KEY ASSY-WHITE (SM-G925F);SM-G925F,

GH98-35849A

ASSY BRACKET-FRONT;SM-G925F,EU,BLACK

GH97-17370C

GH96-08539A

ASSY INHOUSE UB OLED-5.09" A-GRADE_GOLD;

GH96-08253C

HOME KEY ASSY-GOLD (SM-G925F);SM-G925F,F

GH98-35849A

ASSY BRACKET-FRONT;SM-G925F,EU,BLACK

[ Japan ]

Ass'y code

Part code

BOM Description

GH97-17416A

GH96-08356A

ASSY INHOUSE UB OLED-5.1" A_GRADE BLACK_

GH96-08253A

HOME KEY ASSY-BLACK (SM-G925F);SM-G925F,

GH98-36929A

ASSY BRACKET-FRONT_JAPAN (SM-G925D);SM-G

GH97-17416B

GH96-08361A

ASSY INHOUSE UB OLED-5.09" A_GRADE WHITE

GH96-08253B

HOME KEY ASSY-WHITE (SM-G925F);SM-G925F,

GH98-36929A

ASSY BRACKET-FRONT_JAPAN (SM-G925D);SM-G

GH97-17416C

GH96-08527A

ASSY INHOUSE UB OLED-5.09" A_GRADE GOLD_

GH96-08253C

HOME KEY ASSY-GOLD (SM-G925F);SM-G925F,F

GH98-36929A

ASSY BRACKET-FRONT_JAPAN (SM-G925D);SM-G

GH97-17416D

GH96-08526A

ASSY INHOUSE UB OLED-5.09" A_GRADE GREEN

GH96-08253E

HOME KEY ASSY-GREEN (SM-G925F);SM-G925F,

GH98-36929A

ASSY BRACKET-FRONT_JAPAN (SM-G925D);SM-G

GH97-17416E

GH96-08526A

ASSY INHOUSE UB OLED-5.09" A_GRADE GREEN

GH96-08253E

HOME KEY ASSY-GREEN (SM-G925F);SM-G925F,

GH98-36929A

ASSY BRACKET-FRONT_JAPAN (SM-G925D);SM-G

background image

5

Published By [Global CS Team in HQ]

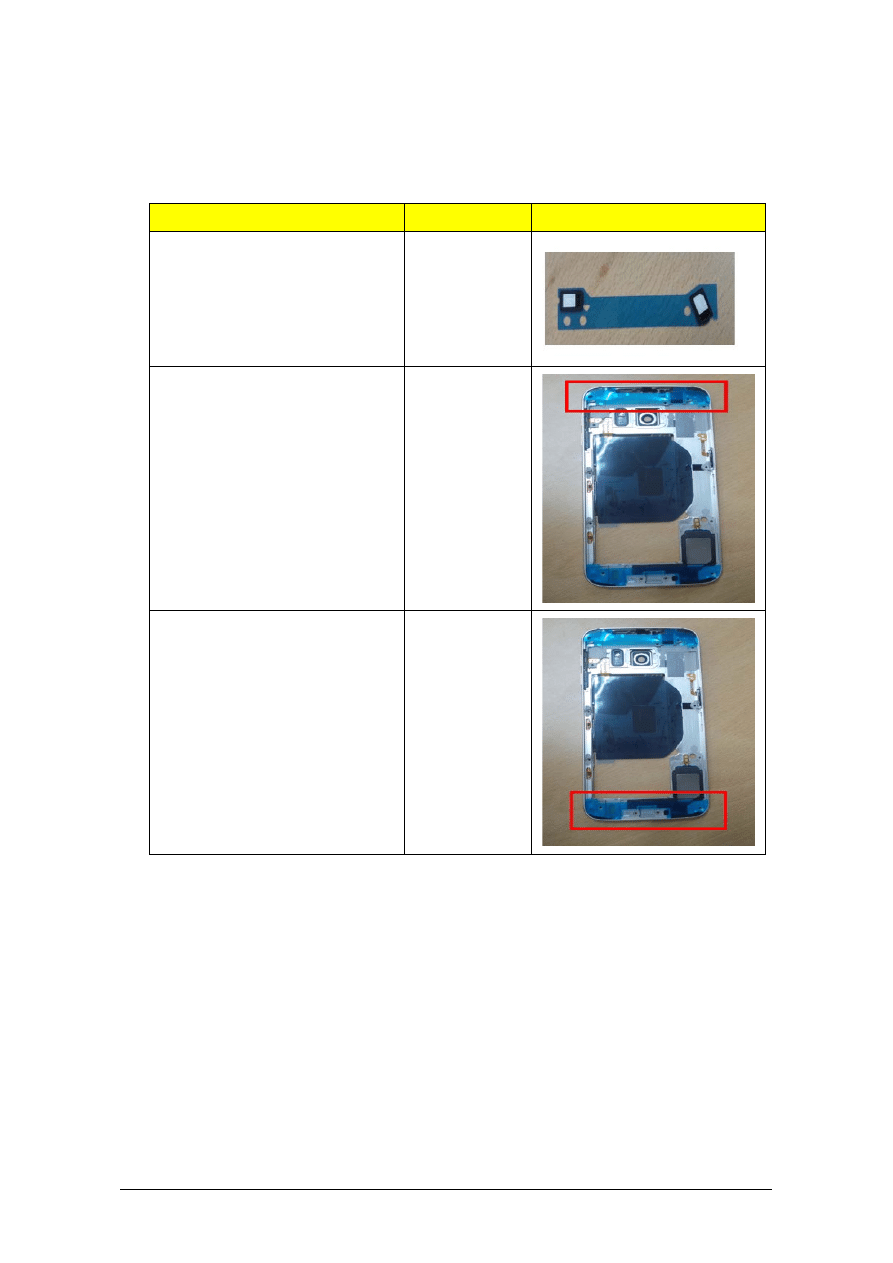

Appendix) Refer to the below codes in case of damage or missing during repair S6.

BOM Description

Part Code


A/S-DOFARO_ASSY

GH81-12753A

TAPE DOUBLE FACE-MAIN

WINDOW REAR TOP

GH02-09770A

TAPE DOUBLE FACE-MAIN

WINDOW REAR BTM

GH02-09769A
