SYSTEM WIRING DIAGRAMS

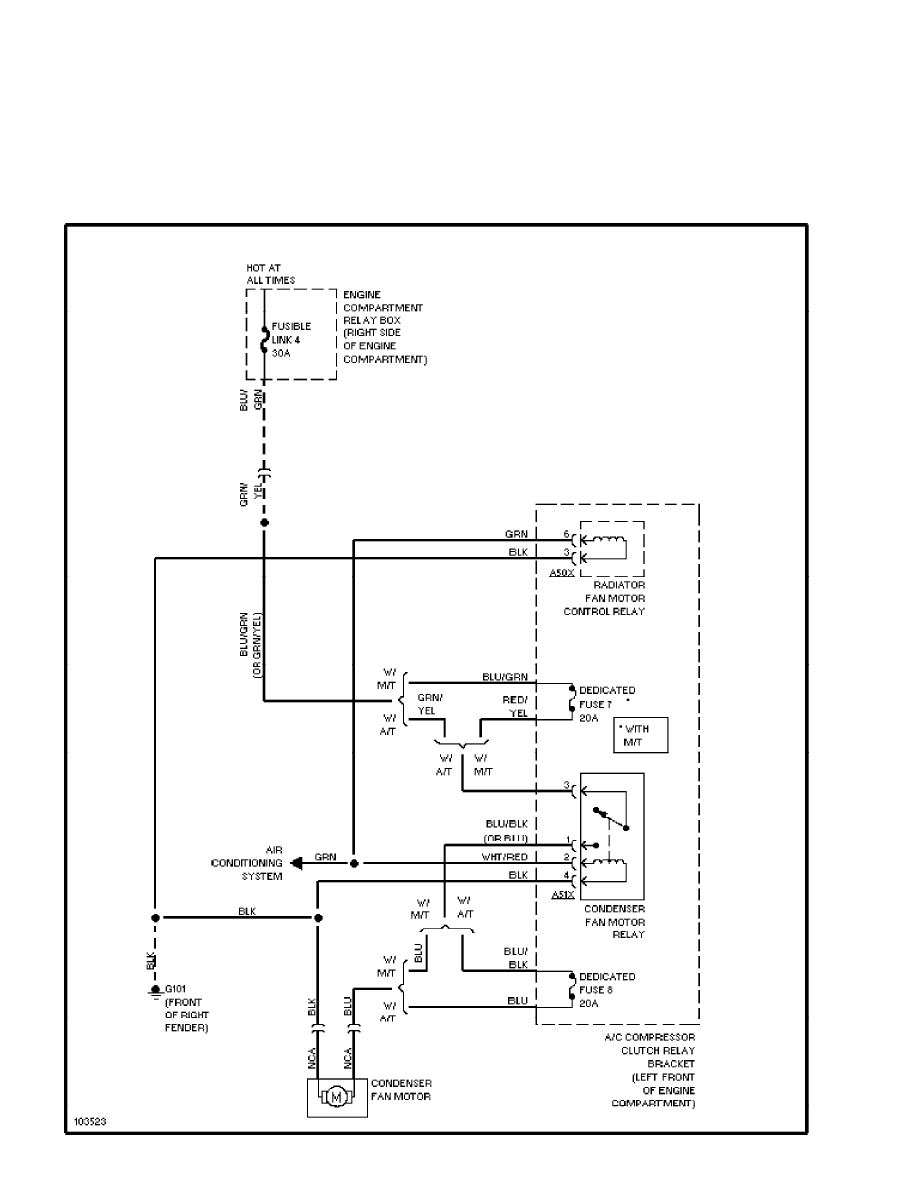

1.5L, Condenser Cooling Fan Circuit
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:38PM
SYSTEM WIRING DIAGRAMS

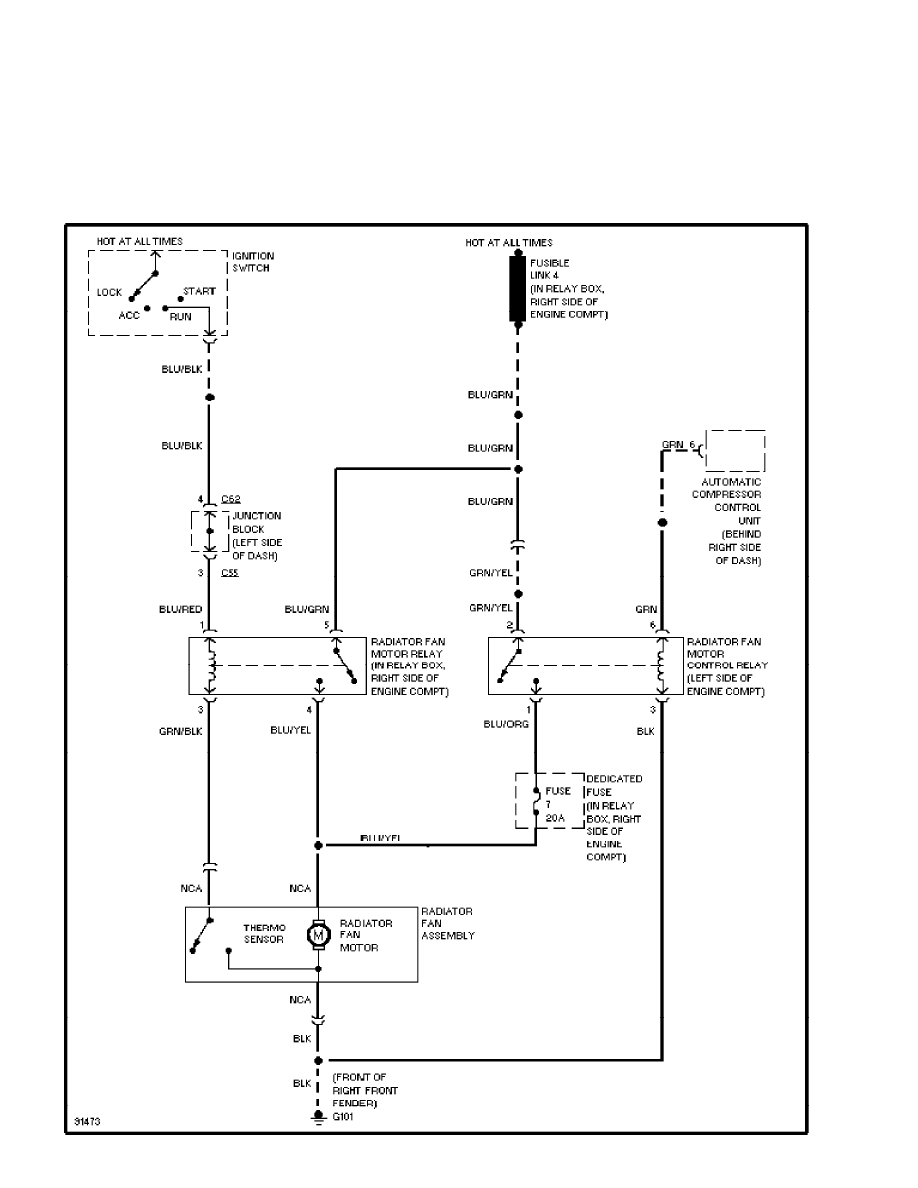

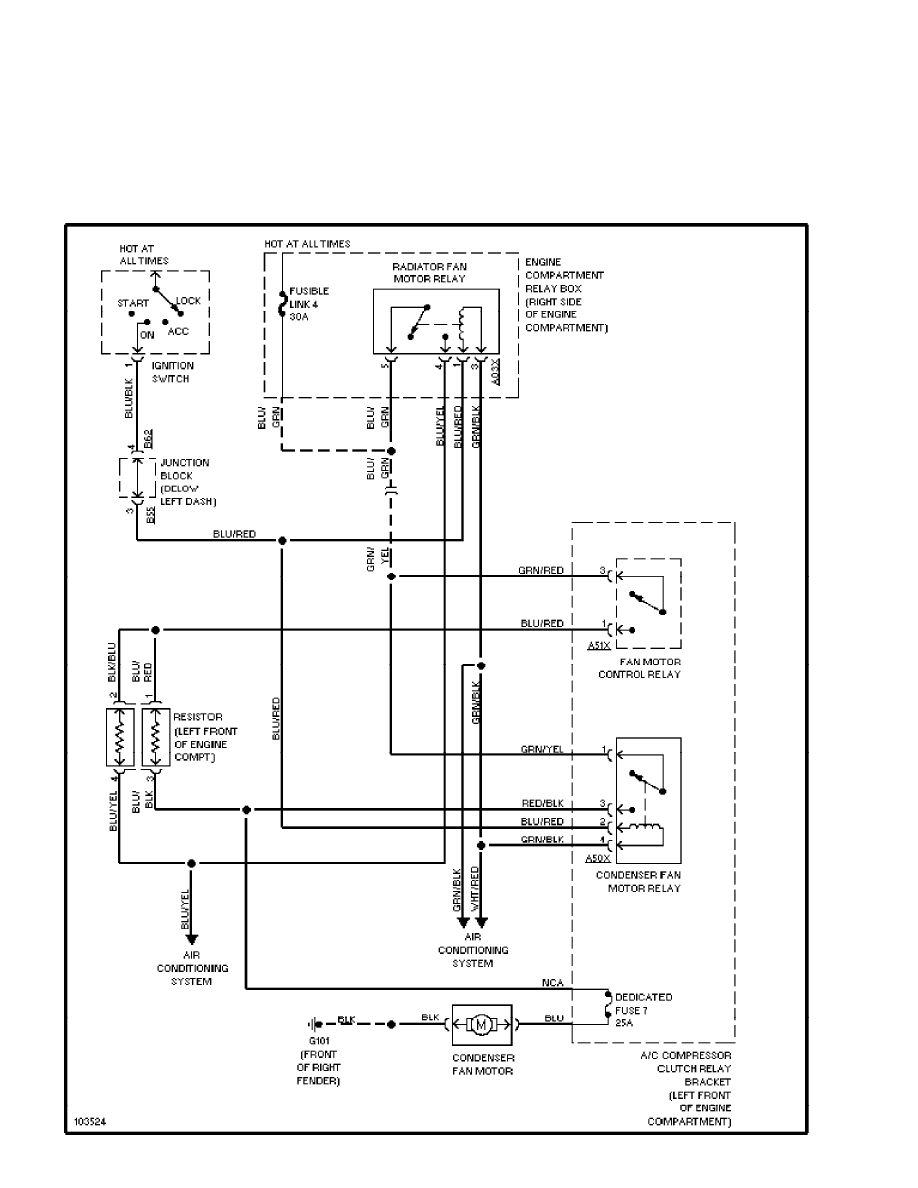

1.5L, Cooling Fan Circuit, W/ A/T (p. 2)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:38PM
SYSTEM WIRING DIAGRAMS
1.5L, Cooling Fan Circuit, W/ M/T (p. 3)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:38PM
SYSTEM WIRING DIAGRAMS
1.8L, Condenser Cooling Fan Circuit (p. 4)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:38PM
SYSTEM WIRING DIAGRAMS
1.8L, Cooling Fan Circuit (p. 5)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:38PM
SYSTEM WIRING DIAGRAMS

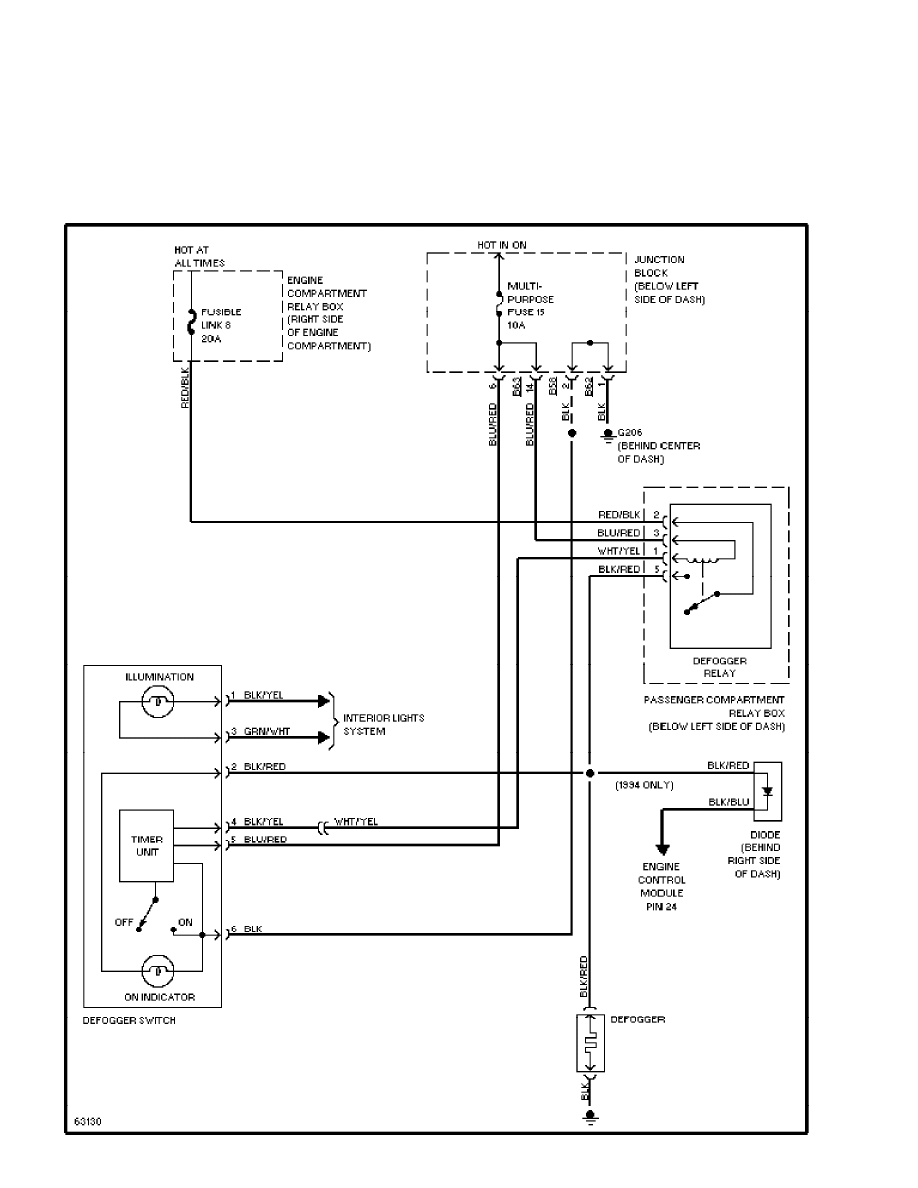

Defogger Circuit (p. 6)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:38PM
SYSTEM WIRING DIAGRAMS

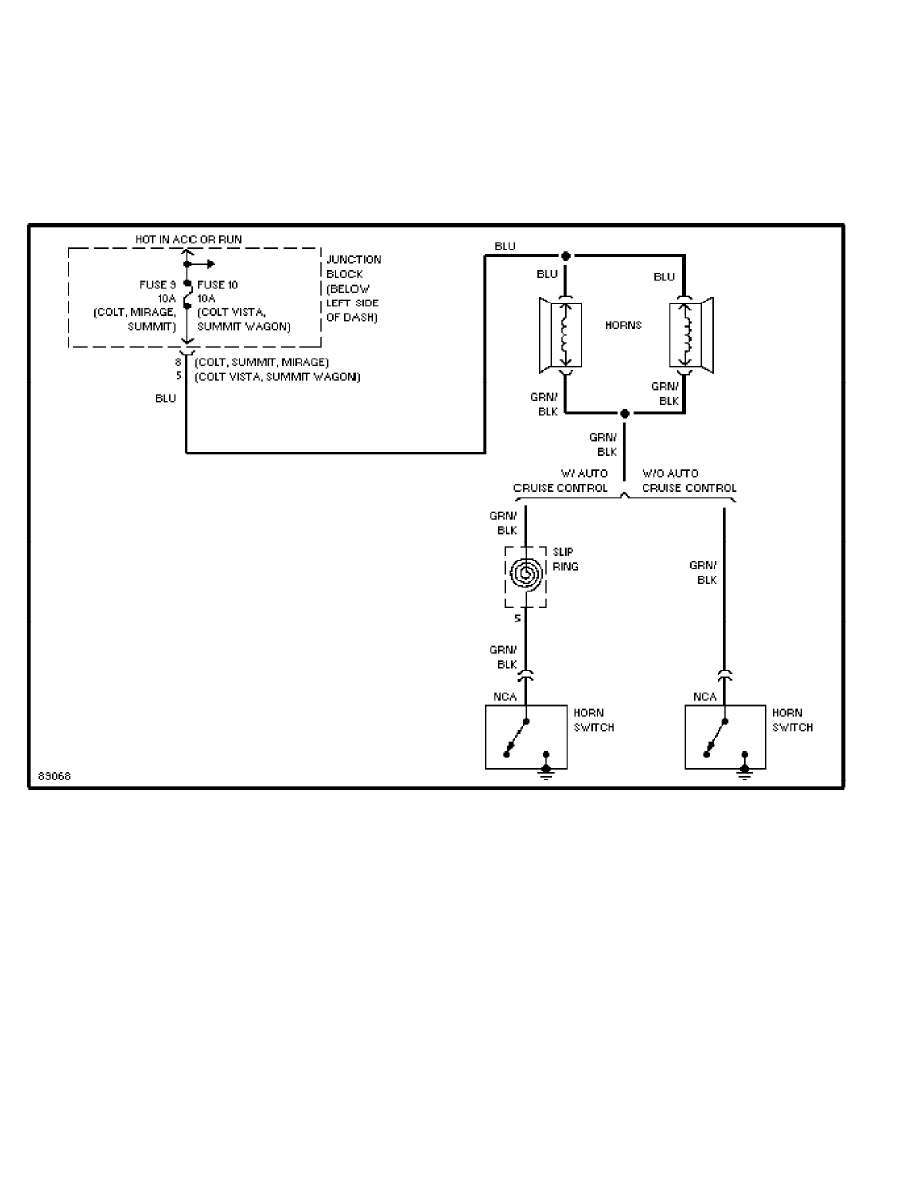

Horn Circuit (p. 7)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:38PM
SYSTEM WIRING DIAGRAMS

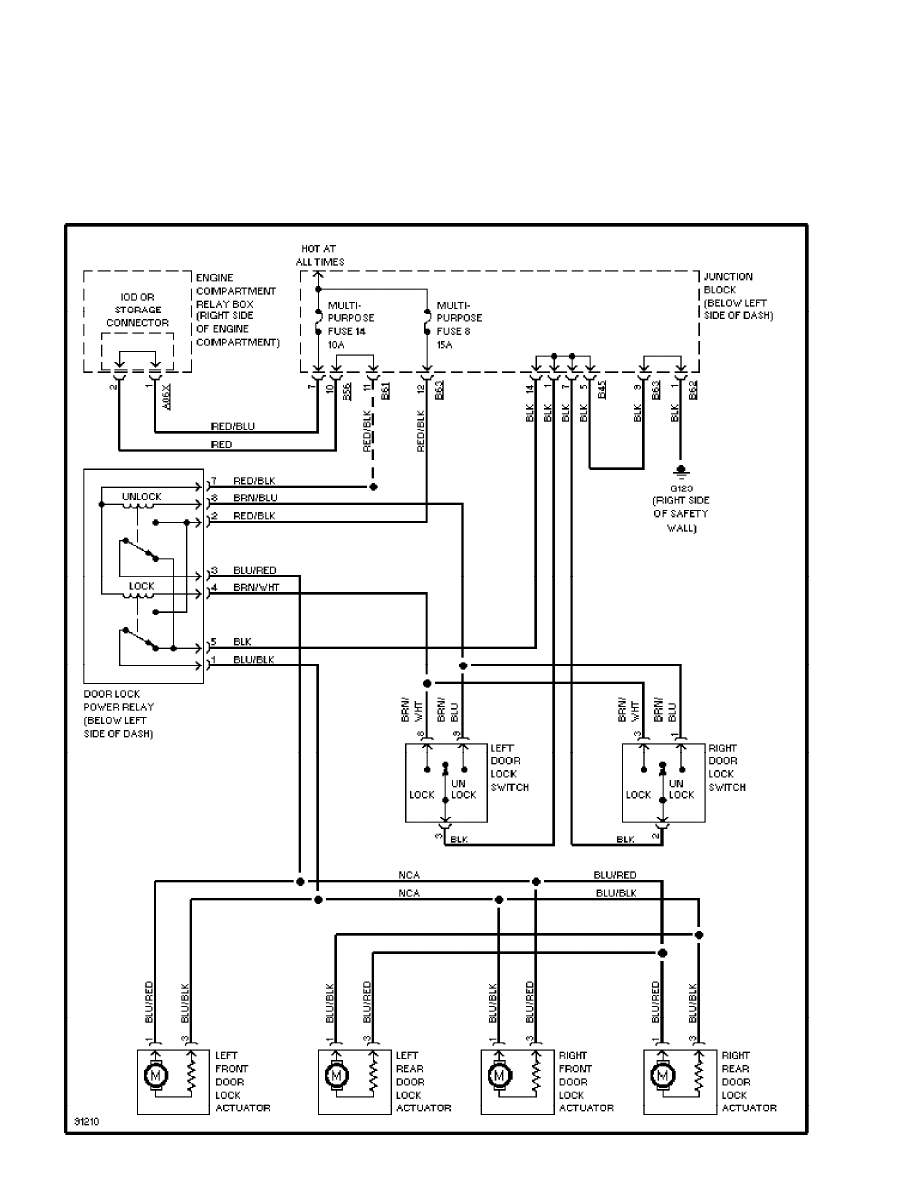

Power Door Lock Circuit (p. 8)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:38PM
SYSTEM WIRING DIAGRAMS

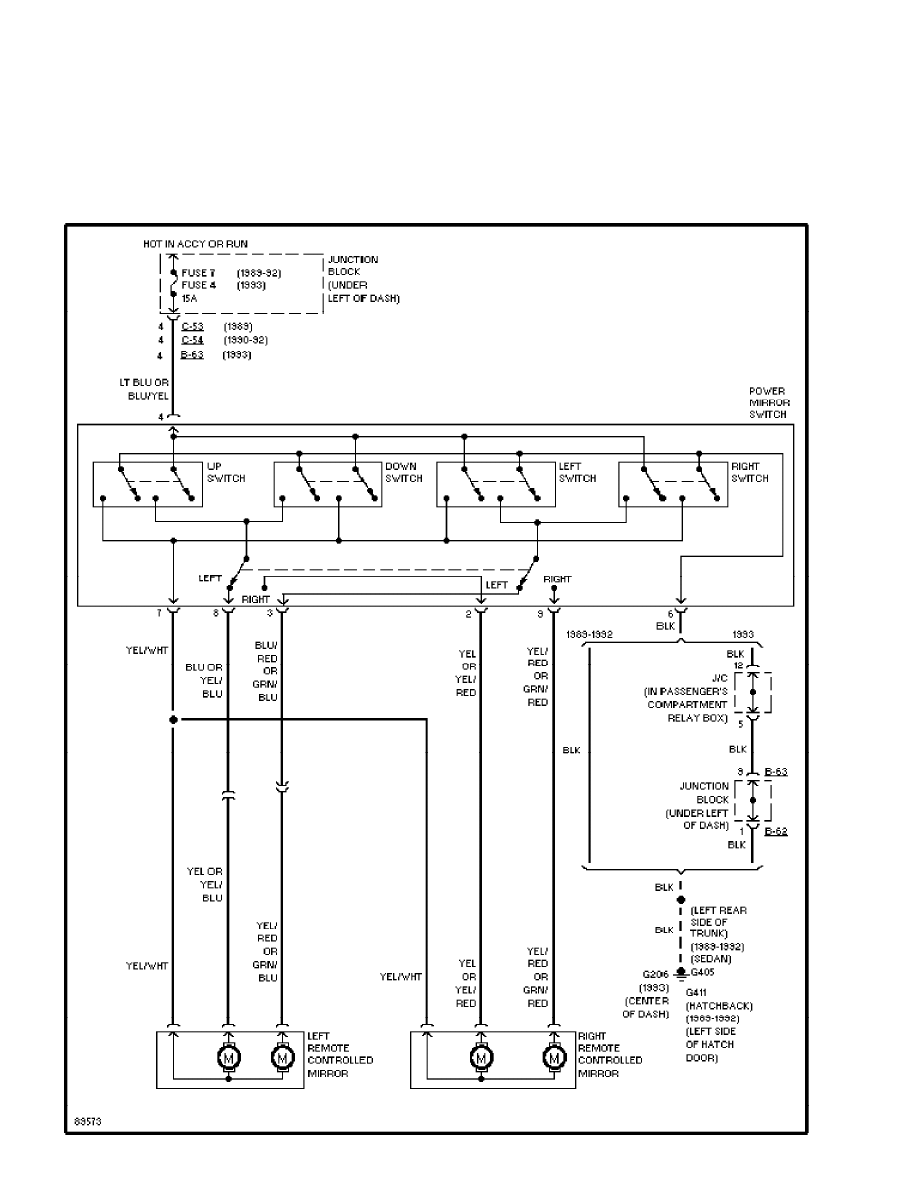

Power Mirror Circuit (p. 9)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:38PM
SYSTEM WIRING DIAGRAMS
Power Window Circuit (p. 10)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:38PM
SYSTEM WIRING DIAGRAMS

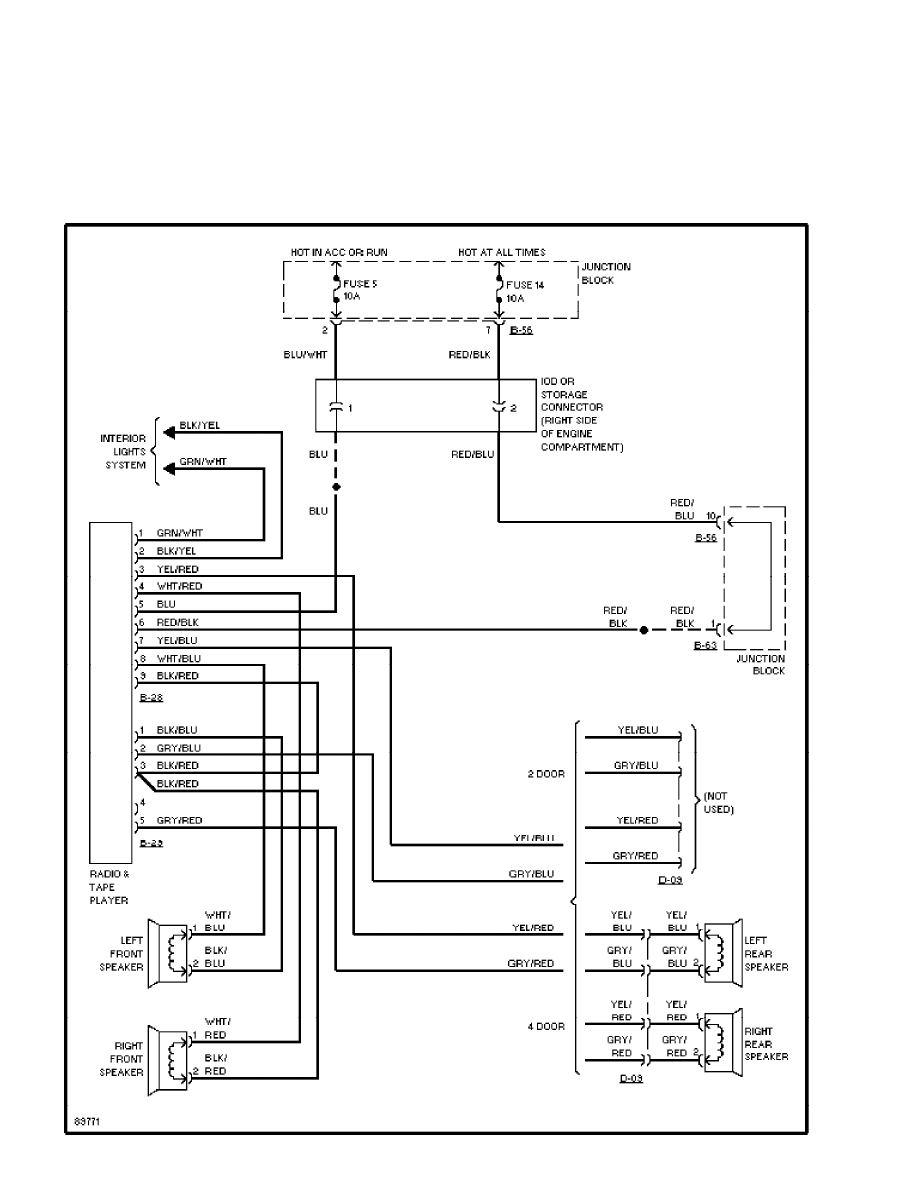

Radio Circuits (p. 11)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:38PM
SYSTEM WIRING DIAGRAMS

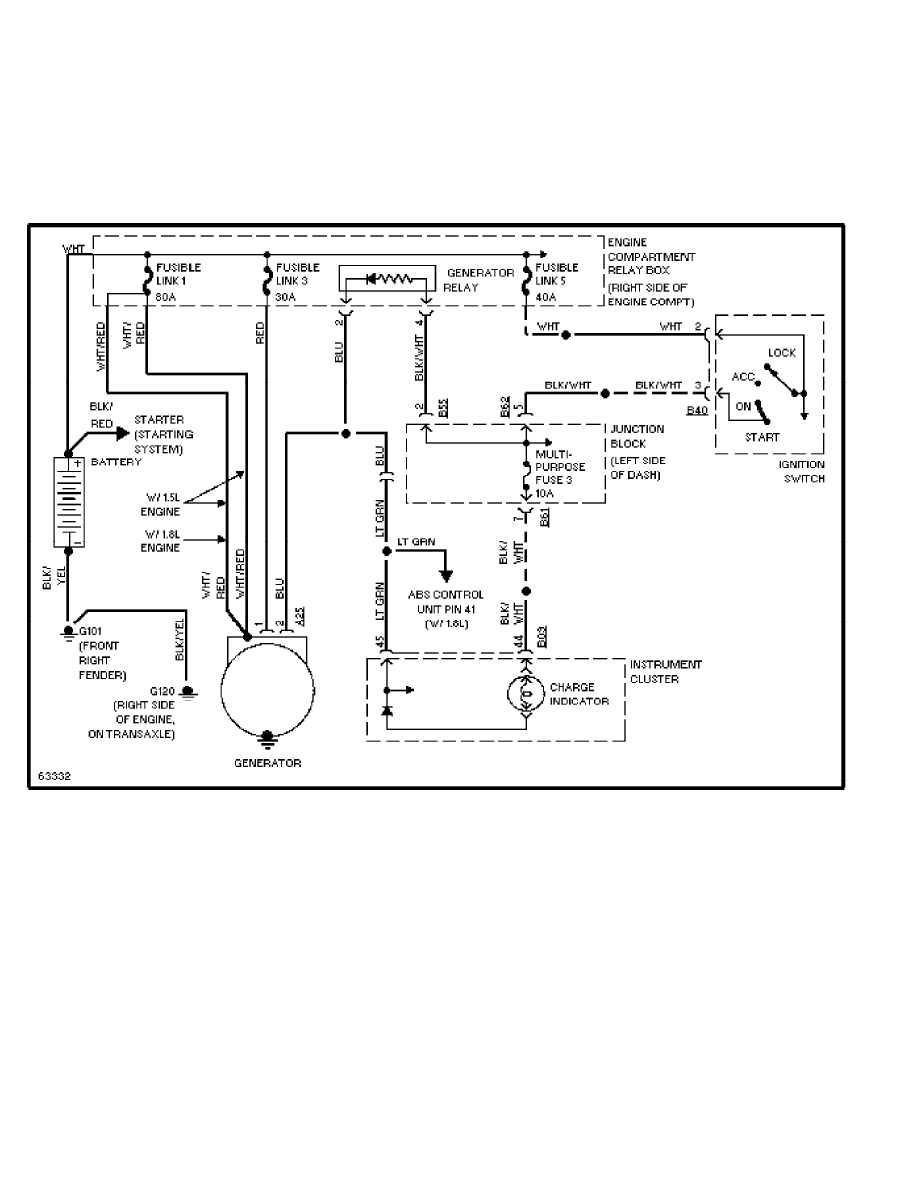

Charging Circuit (p. 12)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:38PM
SYSTEM WIRING DIAGRAMS

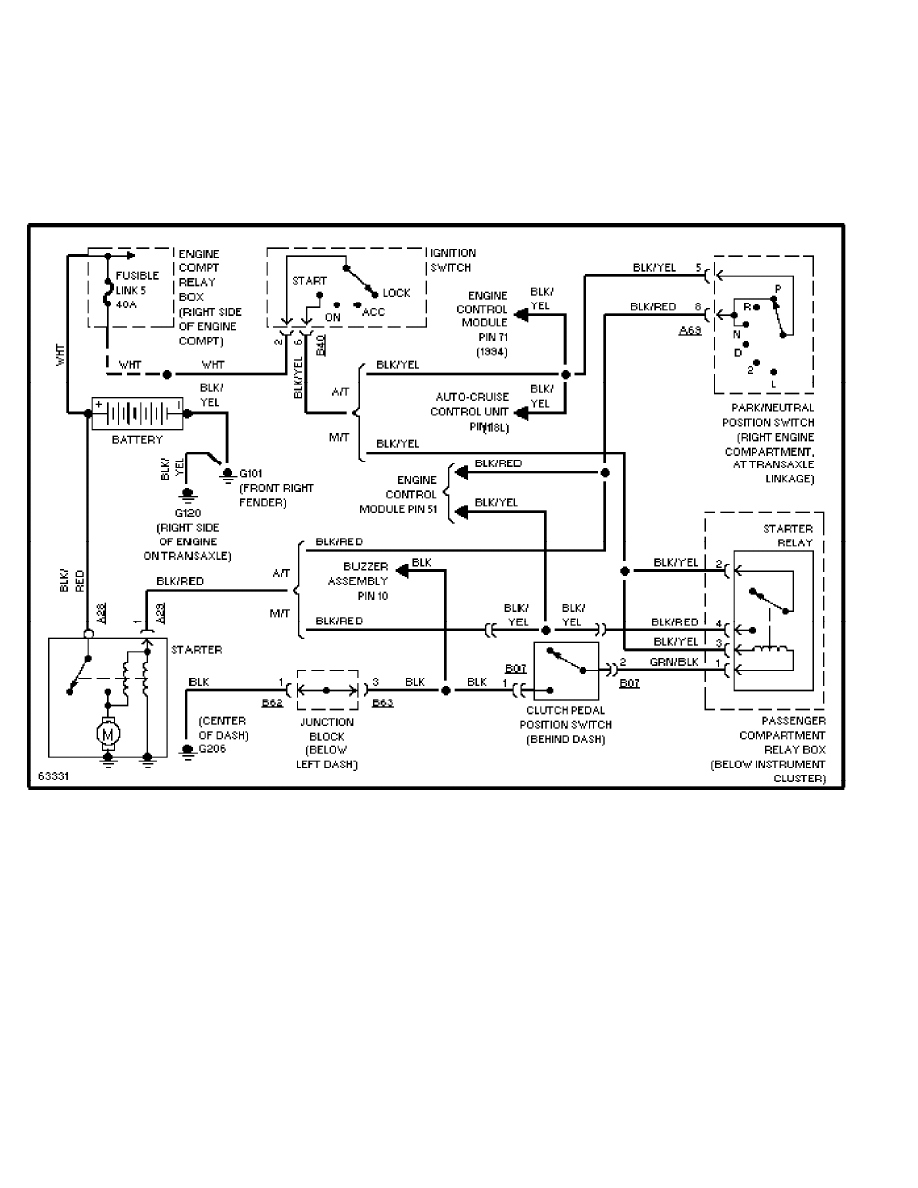

Starting Circuit (p. 13)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:38PM
SYSTEM WIRING DIAGRAMS

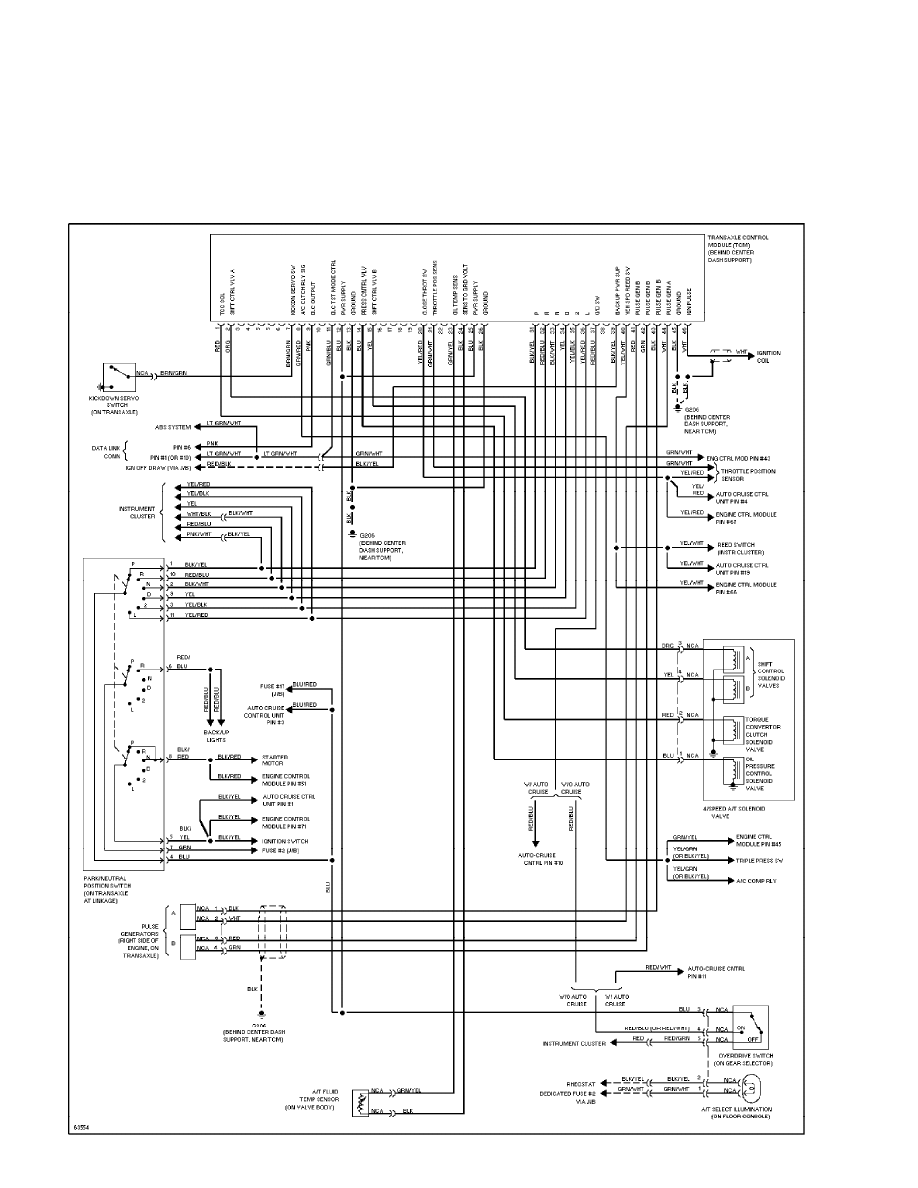

Transmission Circuit (p. 14)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:38PM
SYSTEM WIRING DIAGRAMS

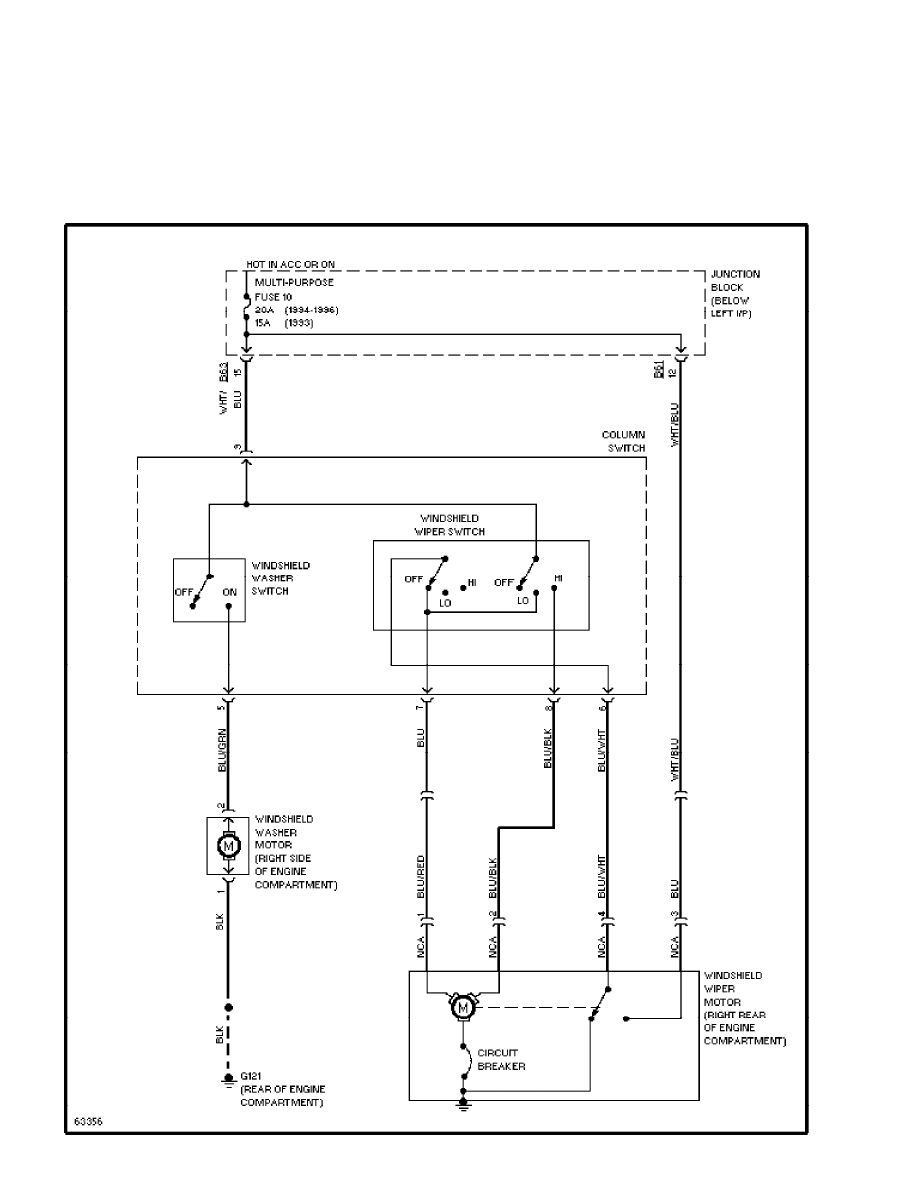

2-Speed Wiper/Washer Circuit (p. 15)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:38PM
SYSTEM WIRING DIAGRAMS
Interval Wiper/Washer Circuit (p. 16)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:38PM
WIRING DIAGRAMS

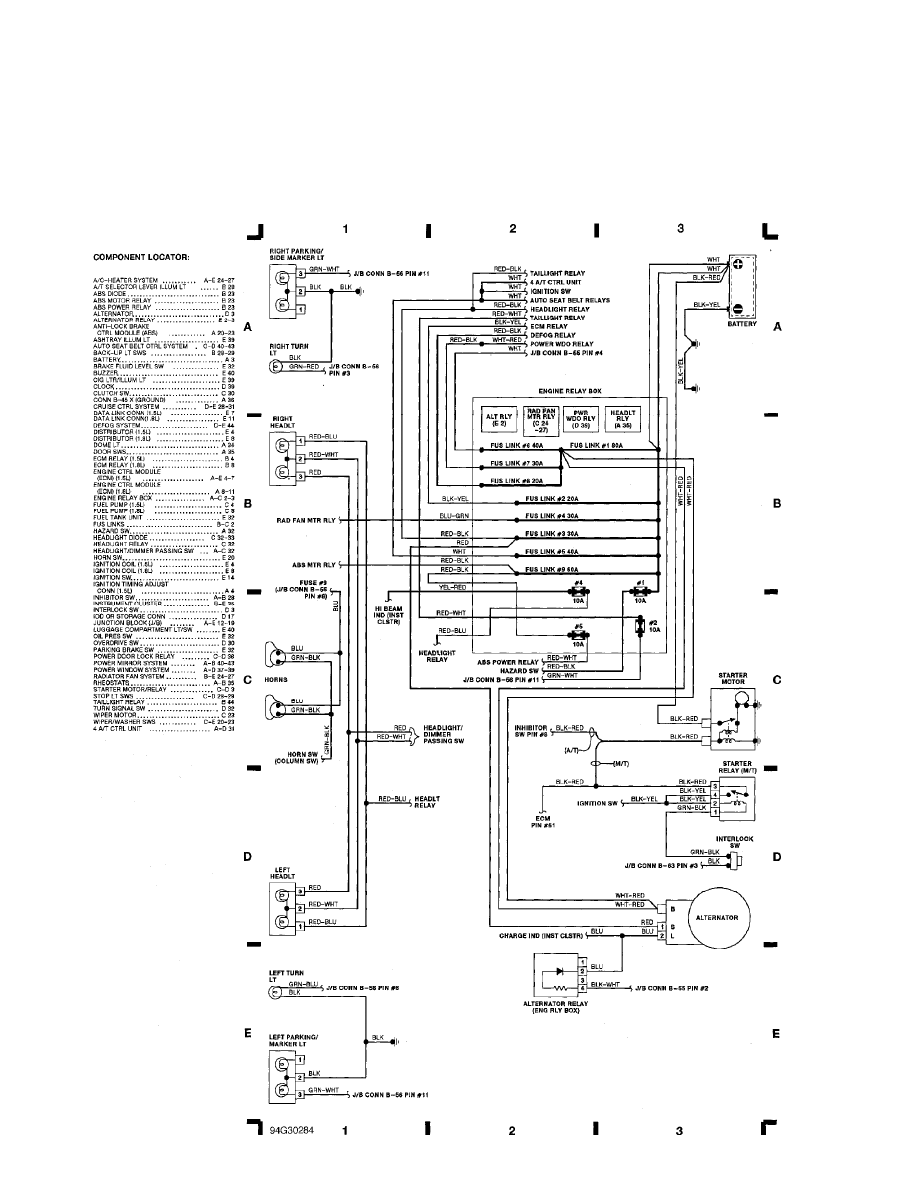

Fig. 1: Engine Compartment, Alternator, Headlights (Grid 1-3)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:39PM
WIRING DIAGRAMS

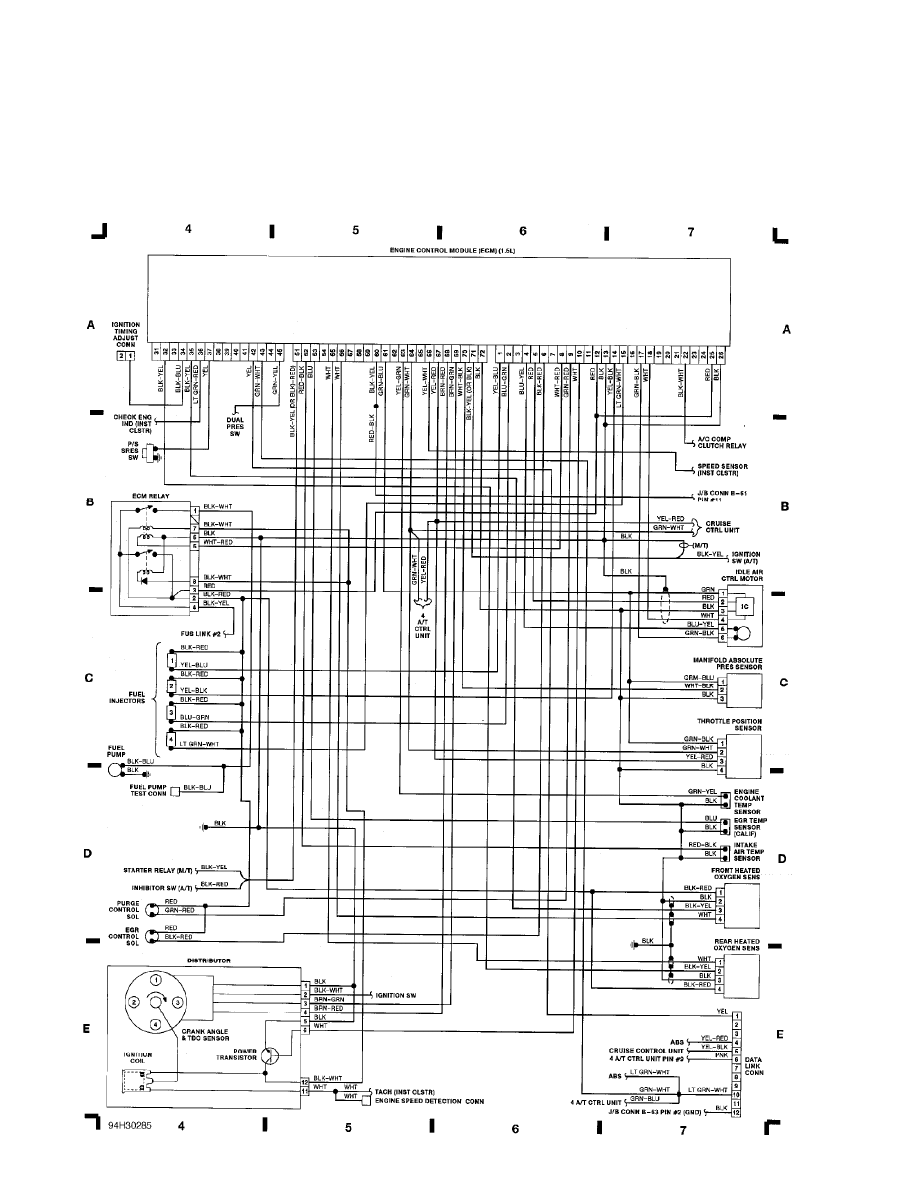

Fig. 2: Engine Control Module (1.5L) (Grid 4-7) (p. 2)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:39PM
WIRING DIAGRAMS
Fig. 3: Engine Control Module (1.8L) (Grid 8-11) (p. 3)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:39PM
WIRING DIAGRAMS

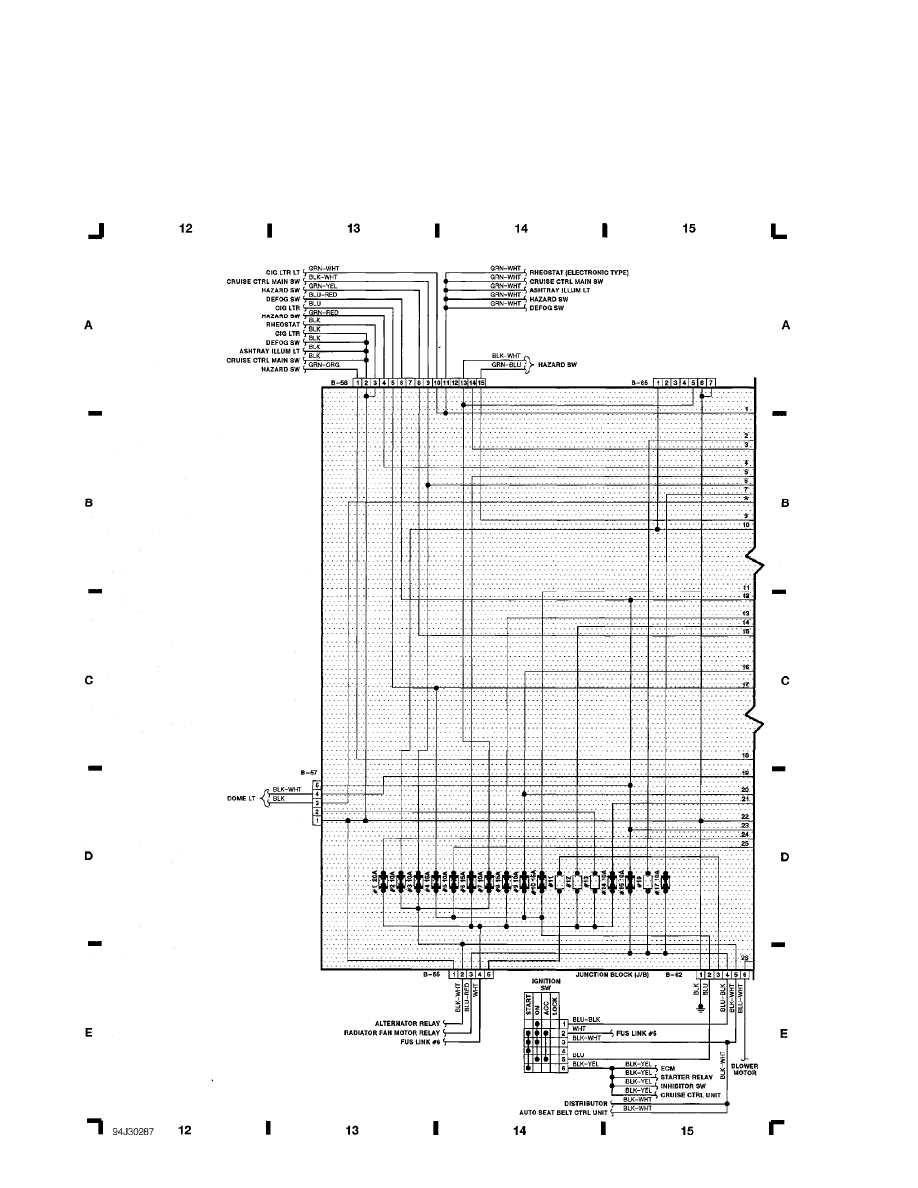

Fig. 4: Junction Block, Ignition Sw (Grid 12-15) (p. 4)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:39PM
WIRING DIAGRAMS

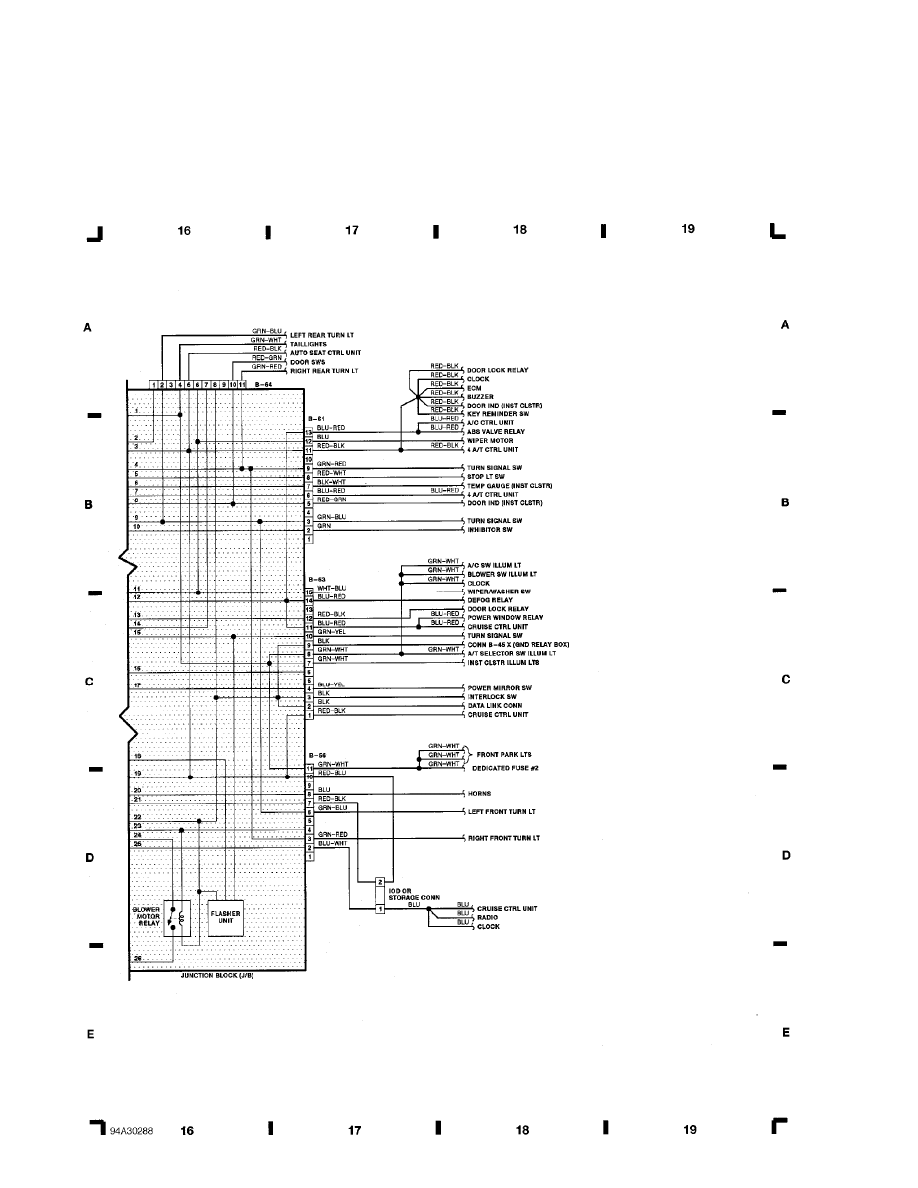

Fig. 5: Junction Block (Grid 16-19) (p. 5)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:39PM
WIRING DIAGRAMS

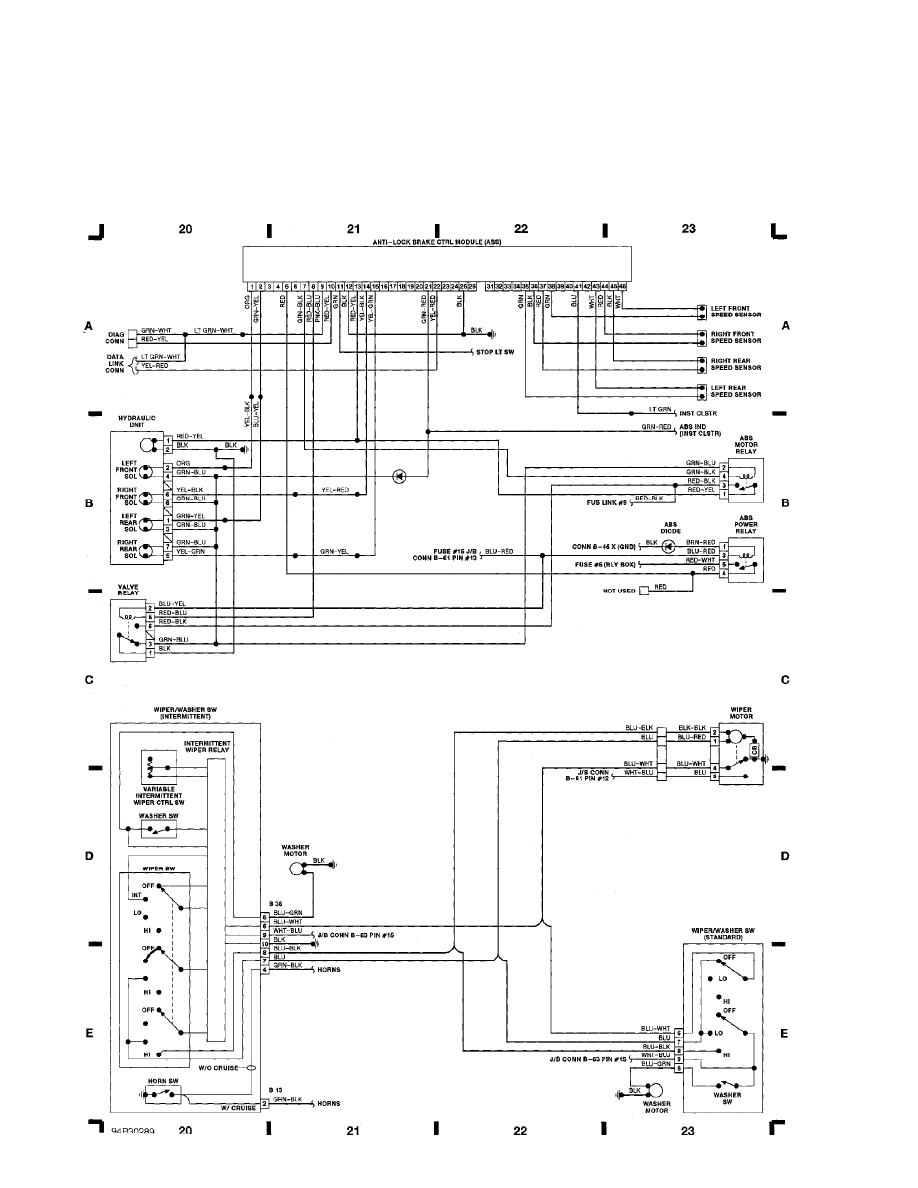

Fig. 6: Anti-Lock Brake Ctrl, Wiper/Washer Sw (Grid 20-23) (p. 6)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:39PM
WIRING DIAGRAMS

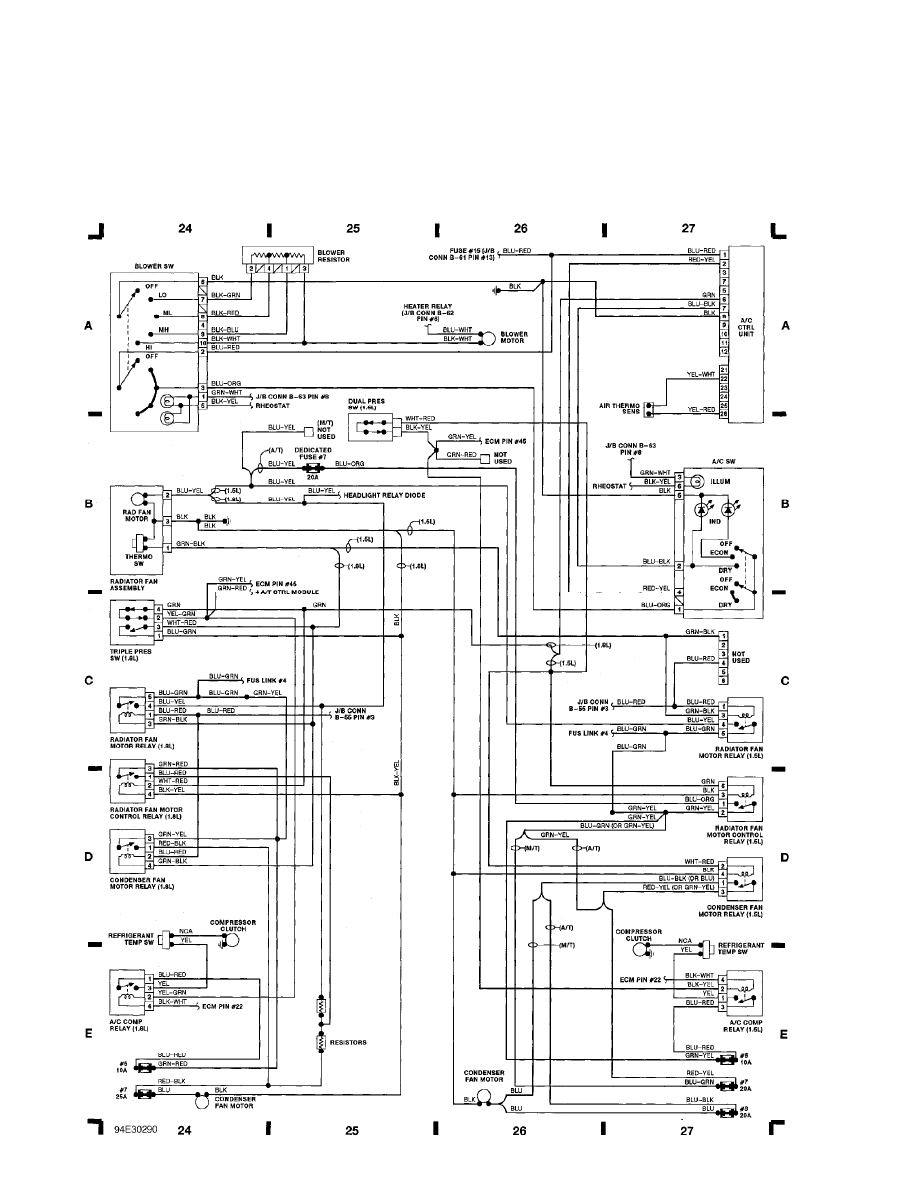

Fig. 7: Blower Sw, A/C Sw & Control Unit (Grid 24-27) (p. 7)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:39PM
WIRING DIAGRAMS
Fig. 8: Inhibitor Sw, Cruise Ctrl, Stop Lt Sw (Grid 28-31) (p. 8)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:39PM
WIRING DIAGRAMS

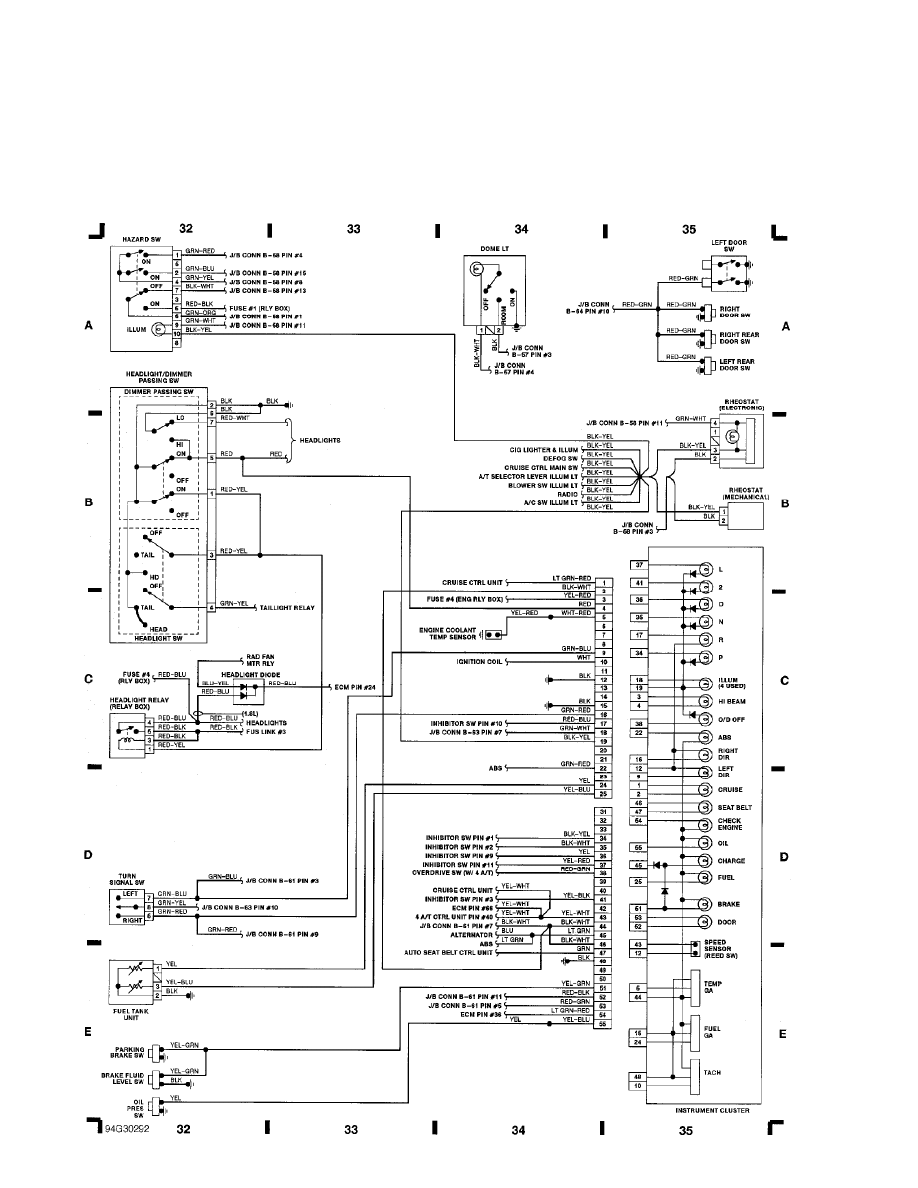

Fig. 9: Instrument Cluster, Hazard Sw, Door Sw (Grid 32-35) (p. 9)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:39PM
WIRING DIAGRAMS

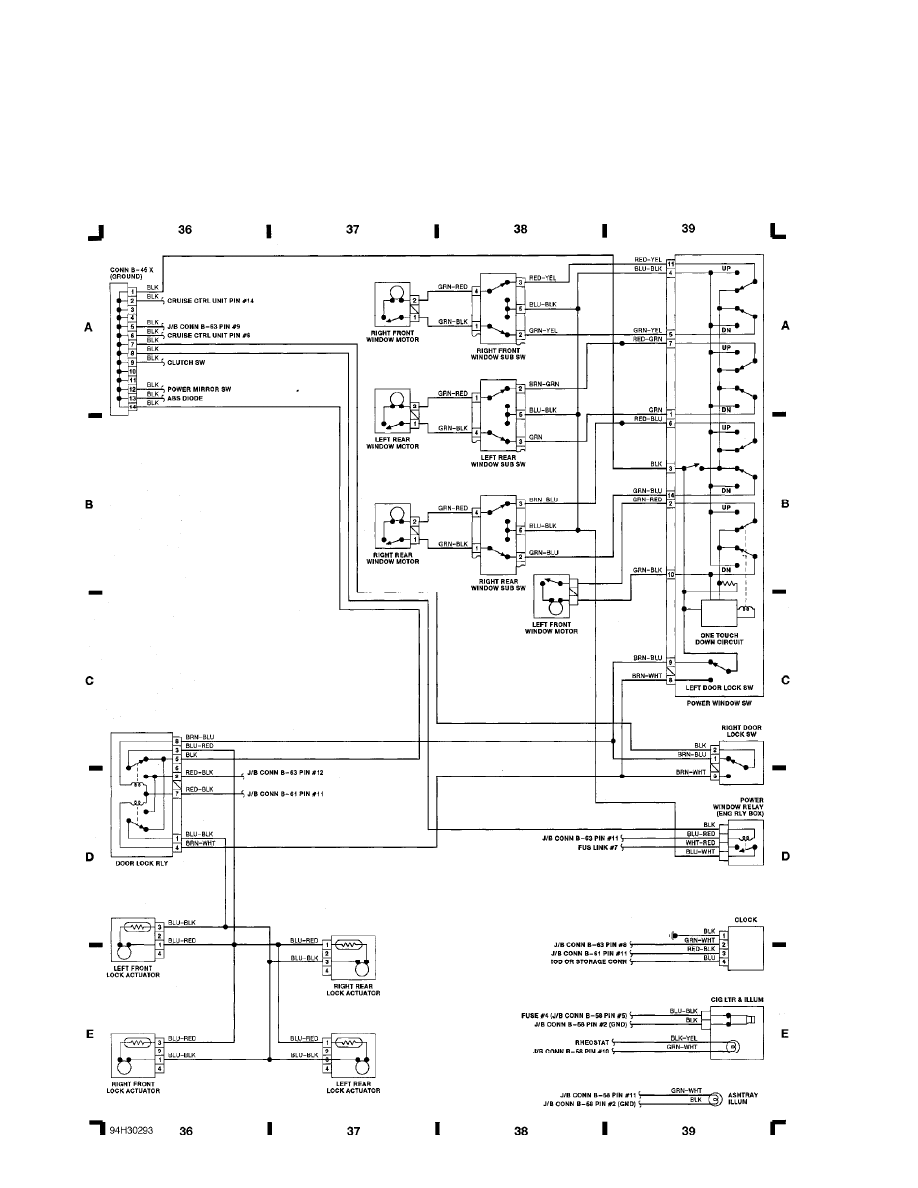

Fig. 10: Power Window Sw, Door Lock Rly (Grid 36-39) (p. 10)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:39PM
WIRING DIAGRAMS

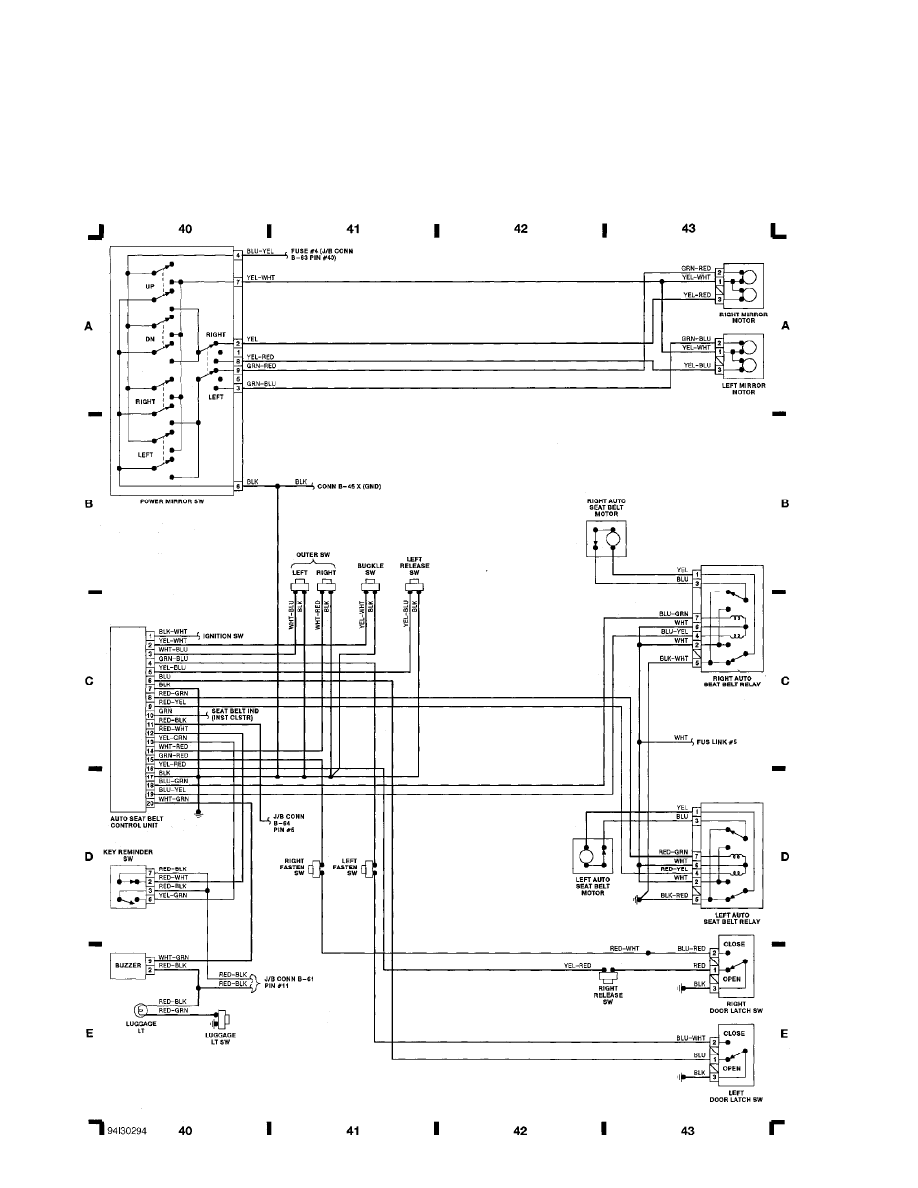

Fig. 11: Power Mirror Sw, Auto Seat Belt Ctrl Unit (Grid 40-43) (p. 11)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:39PM
WIRING DIAGRAMS
Fig. 12: Taillights, Defog Sw & Relay (Grid 44-17) (p. 12)
1993 Mitsubishi Mirage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, January 06, 2005 07:39PM
