MAZDA B3000 1996

background image

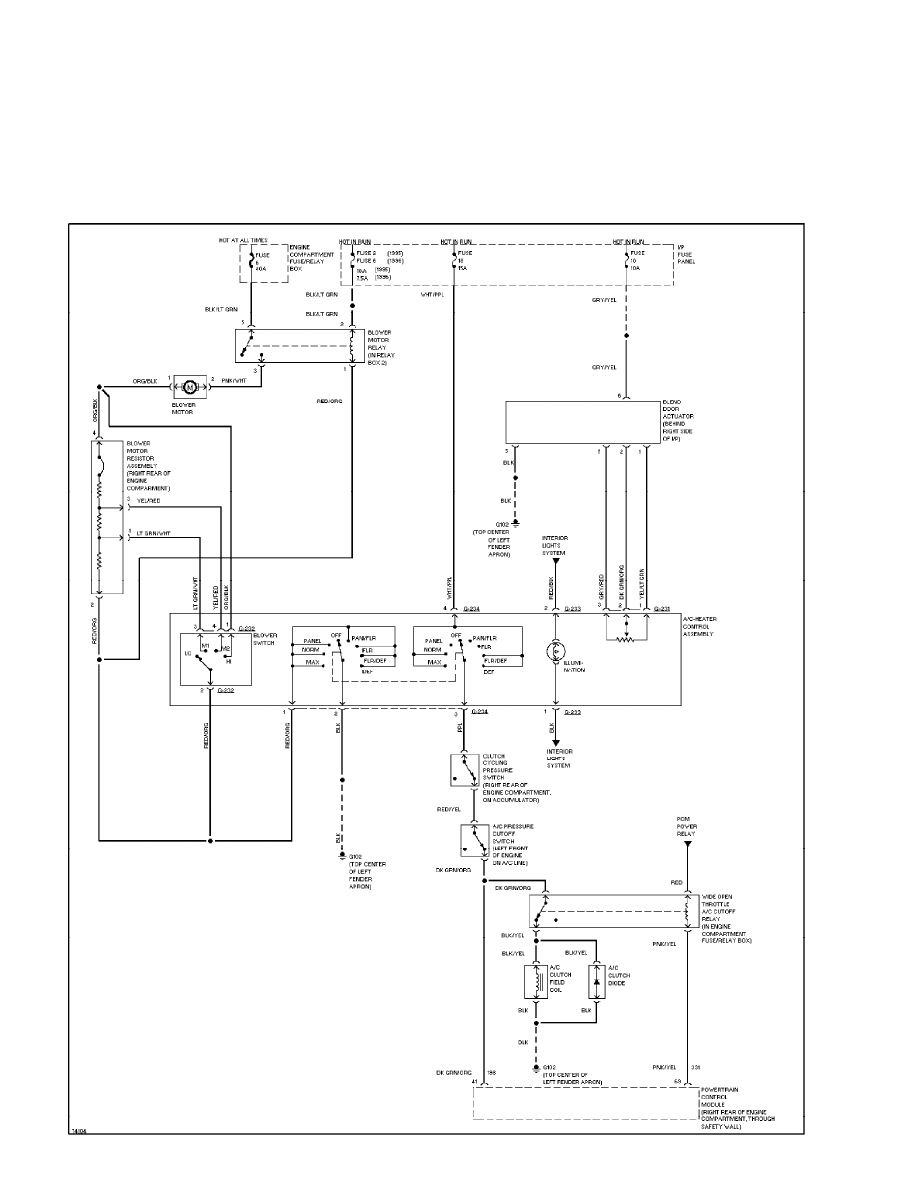

SYSTEM WIRING DIAGRAMS

A/C Circuit

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

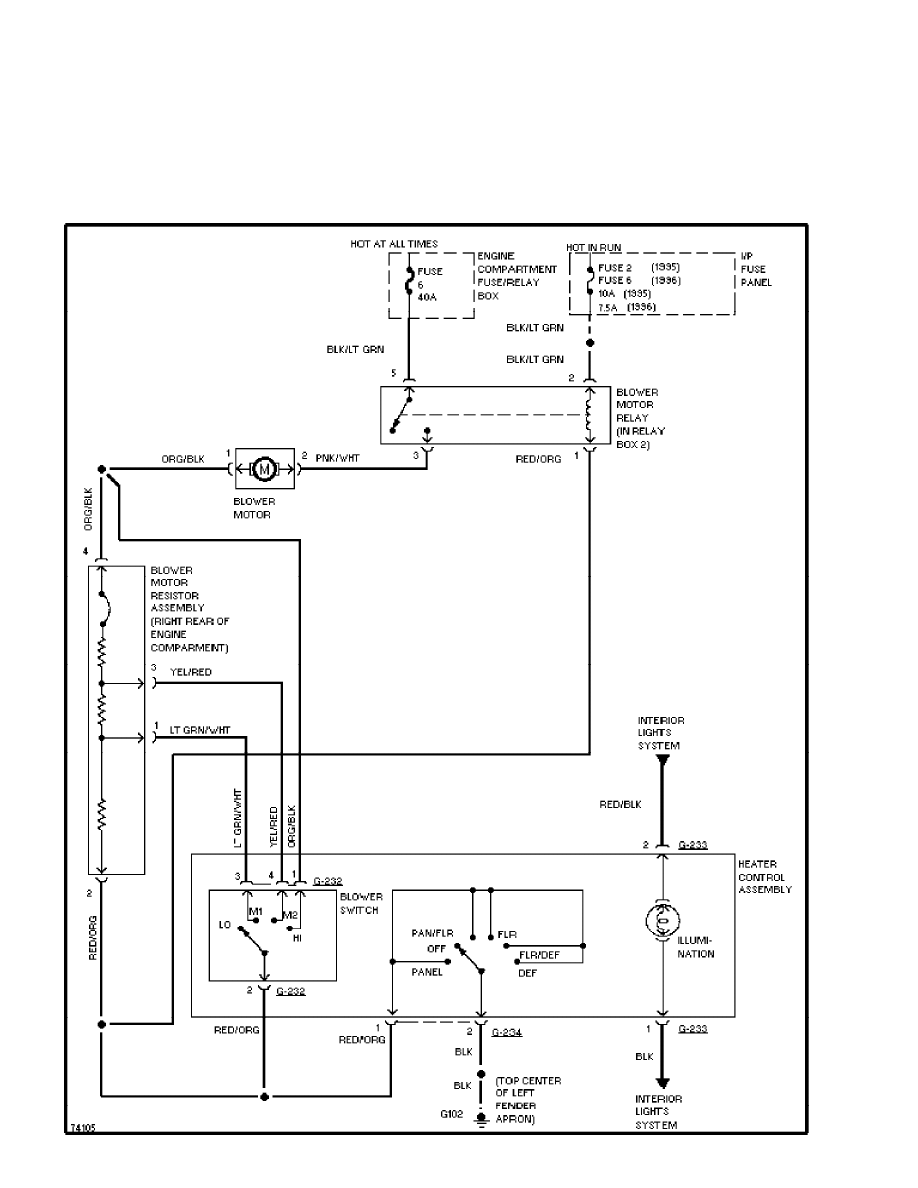

Heater Circuit (p. 2)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

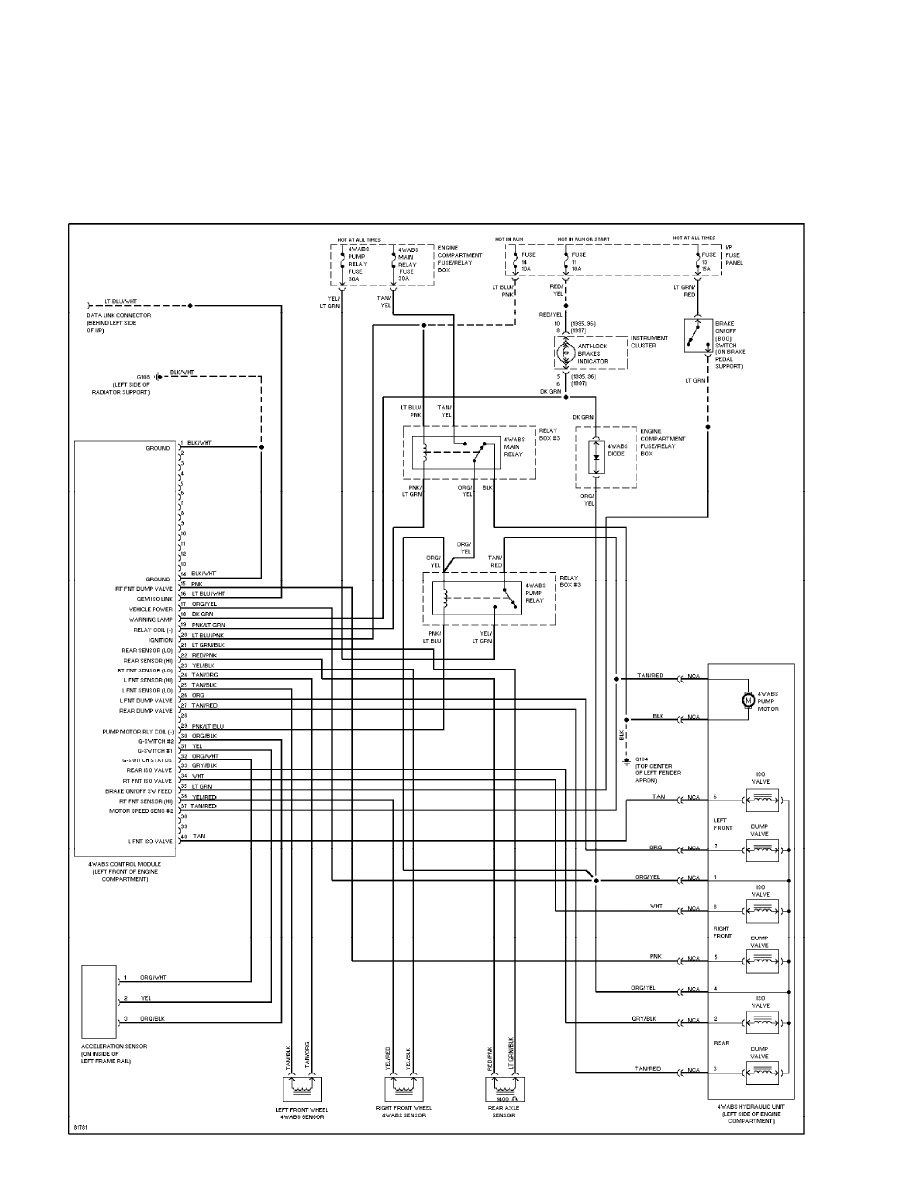

All-Wheel ABS Circuit (p. 3)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

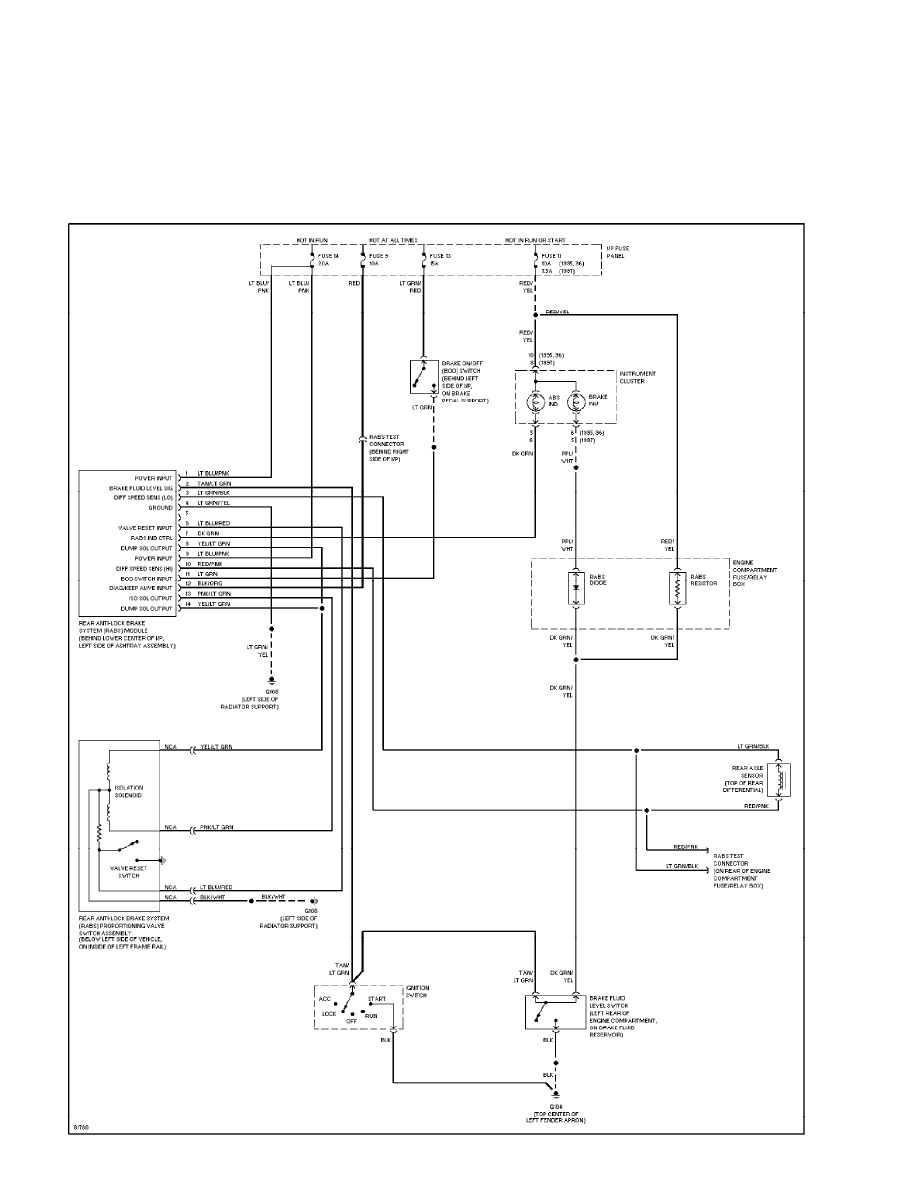

Rear Wheel ABS Circuit (p. 4)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

Body Computer Circuits (1 of 2) (p. 5)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

Body Computer Circuits (2 of 2) (p. 6)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

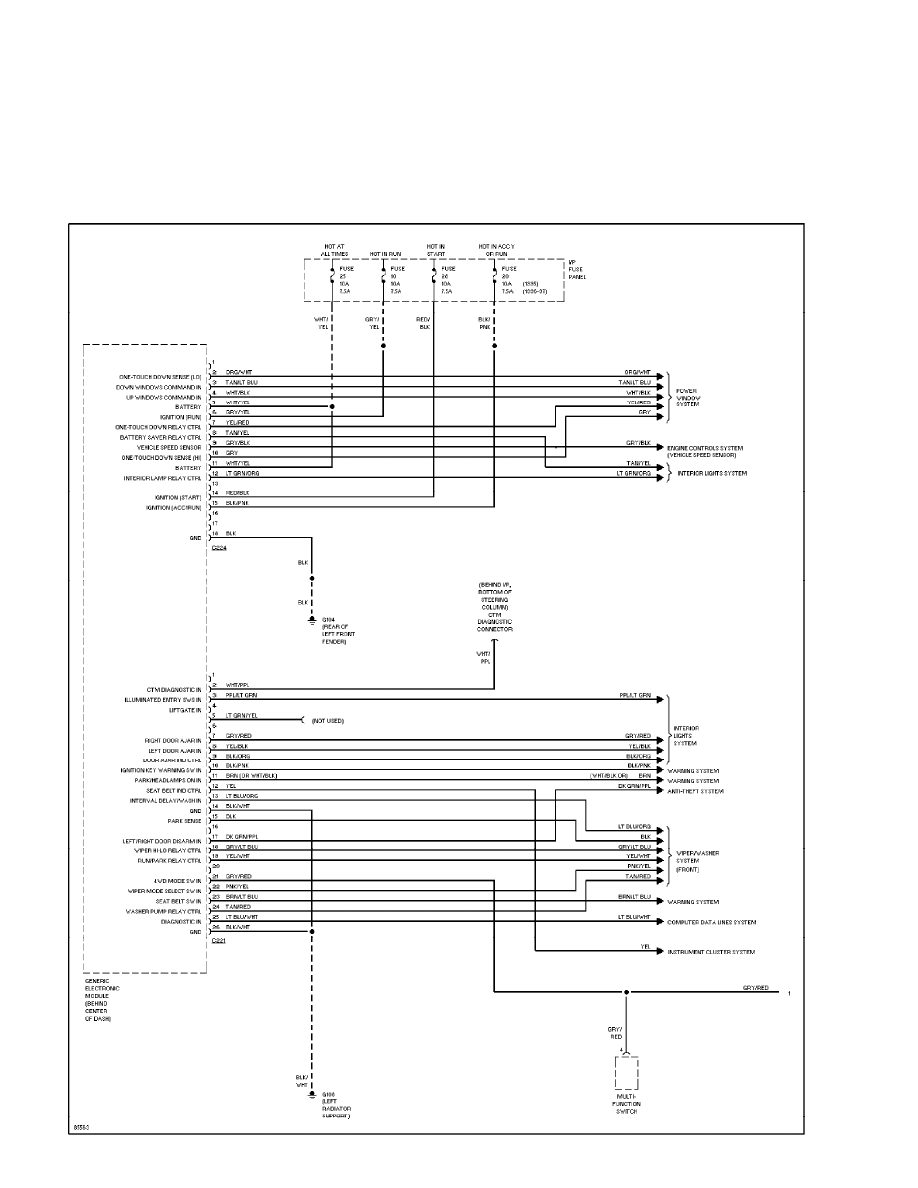

Generic Electronic Module Circuit (1 of 2) (p. 7)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

Generic Electronic Module Circuit (2 of 2) (p. 8)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

Computer Data Lines (p. 9)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

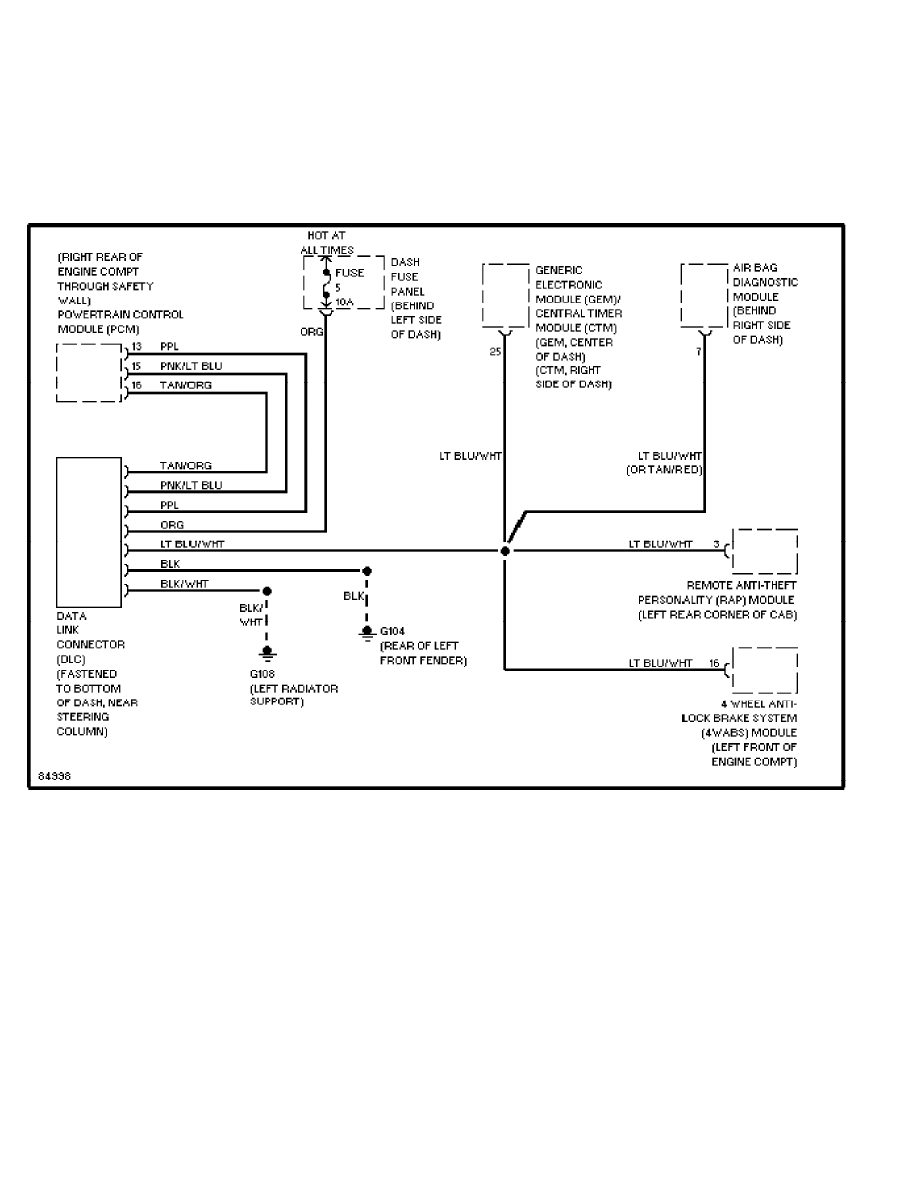

Data Link Connector Circuit (p. 10)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

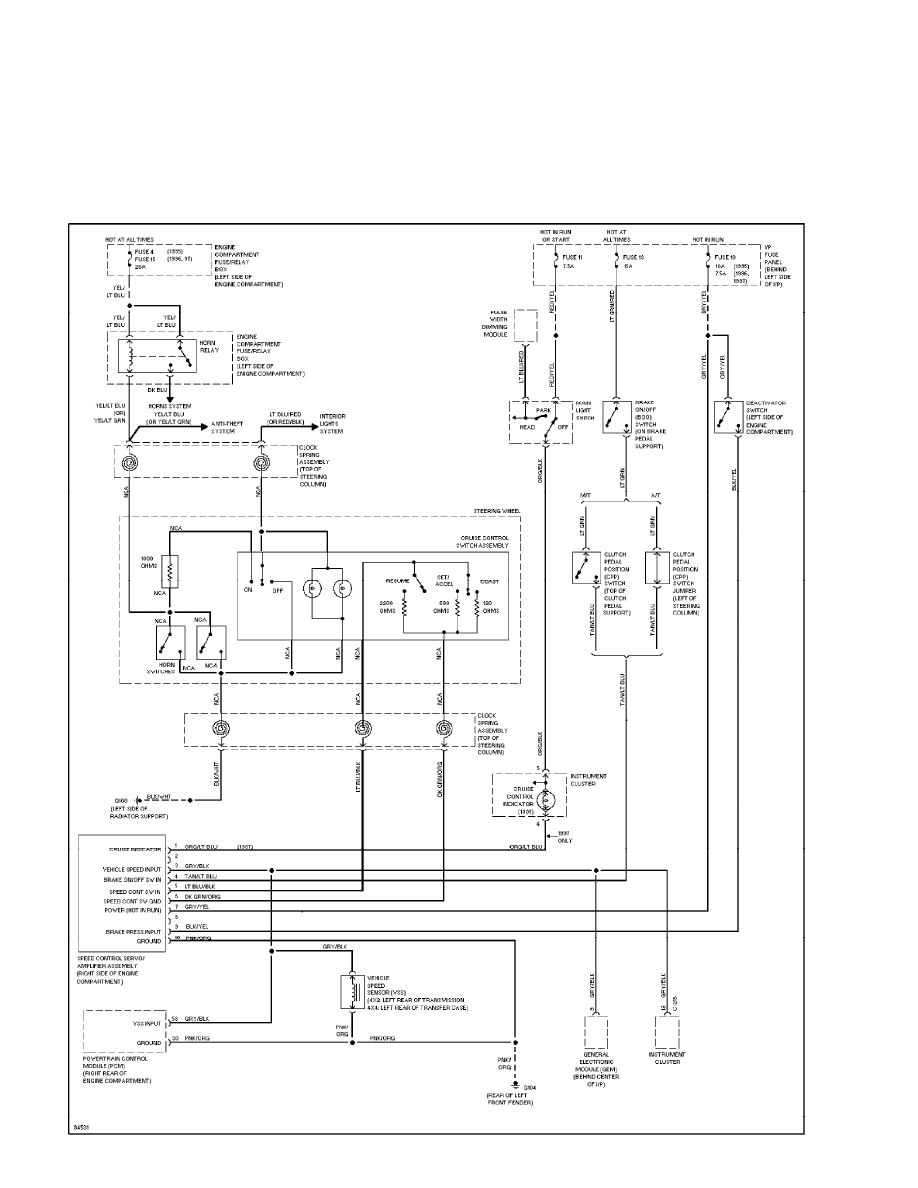

Cruise Control Circuit (p. 11)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

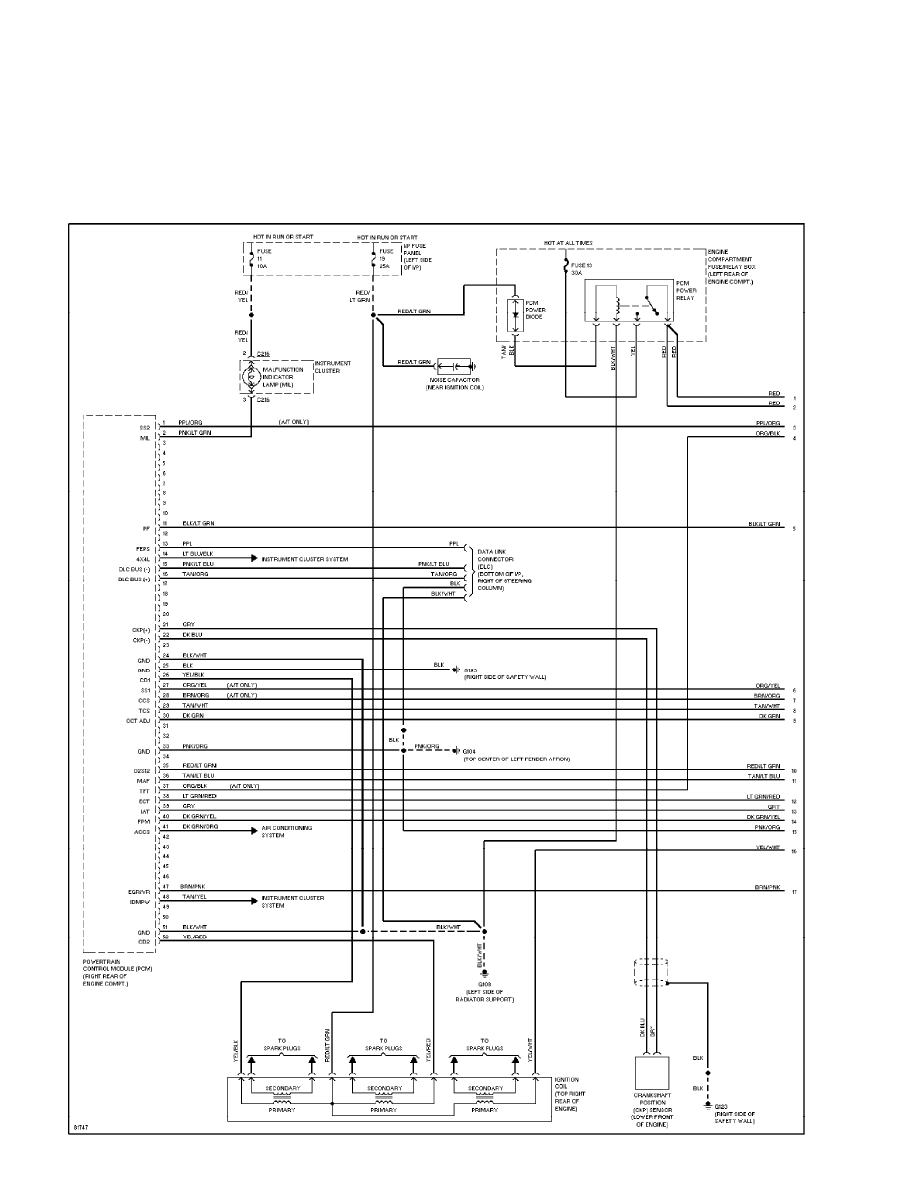

3.0L, Engine Performance Circuits (1 of 4) (p. 12)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

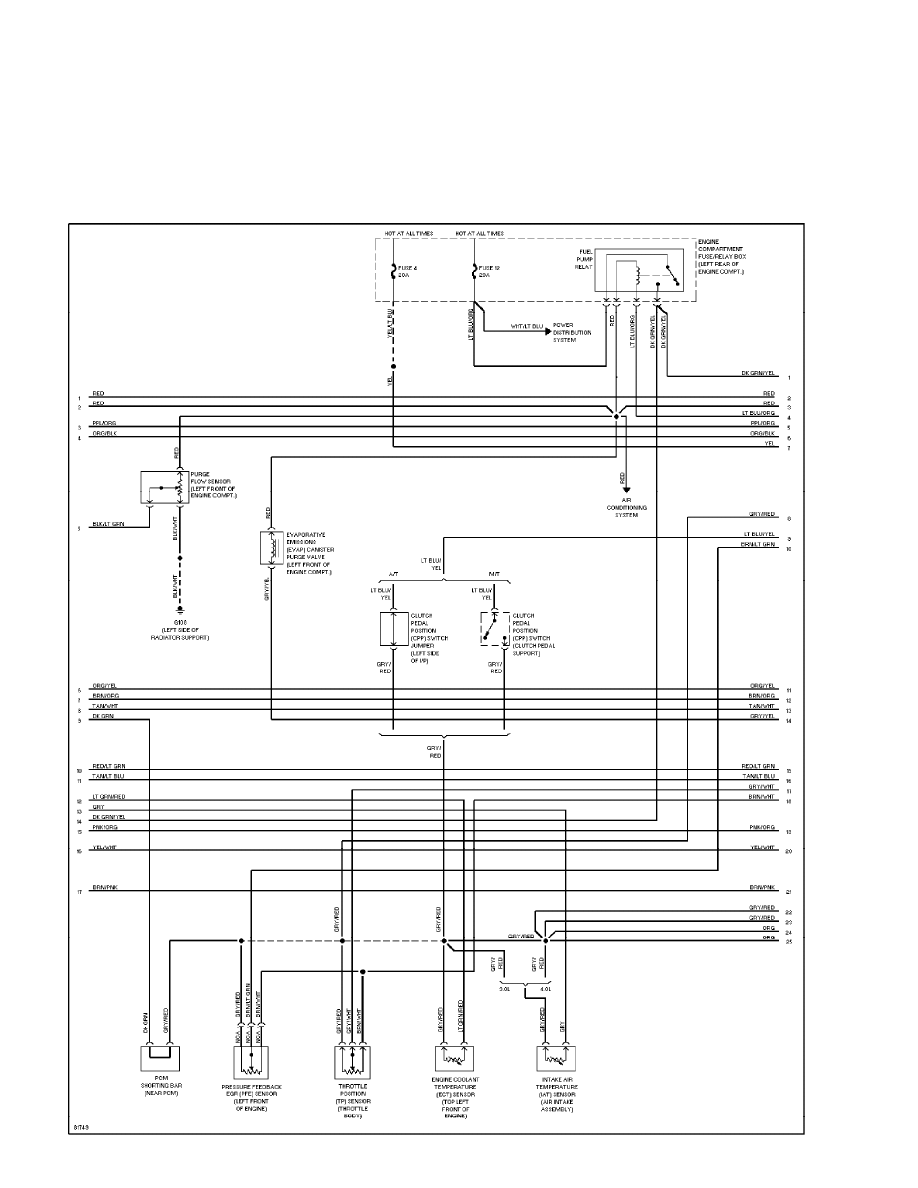

3.0L, Engine Performance Circuits (2 of 4) (p. 13)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

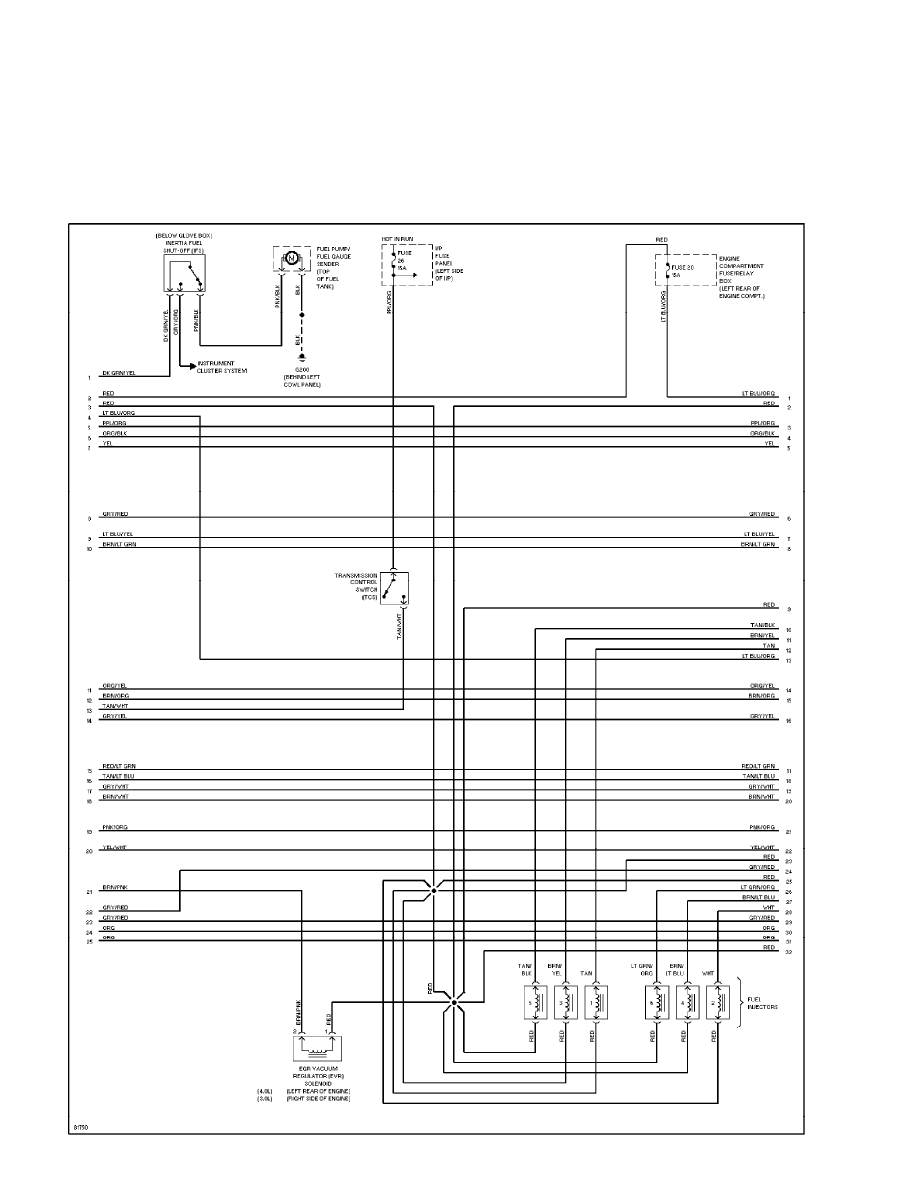

3.0L, Engine Performance Circuits (3 of 4) (p. 14)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

3.0L, Engine Performance Circuits (4 of 4) (p. 15)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

Back-up Lamps Circuit (p. 16)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

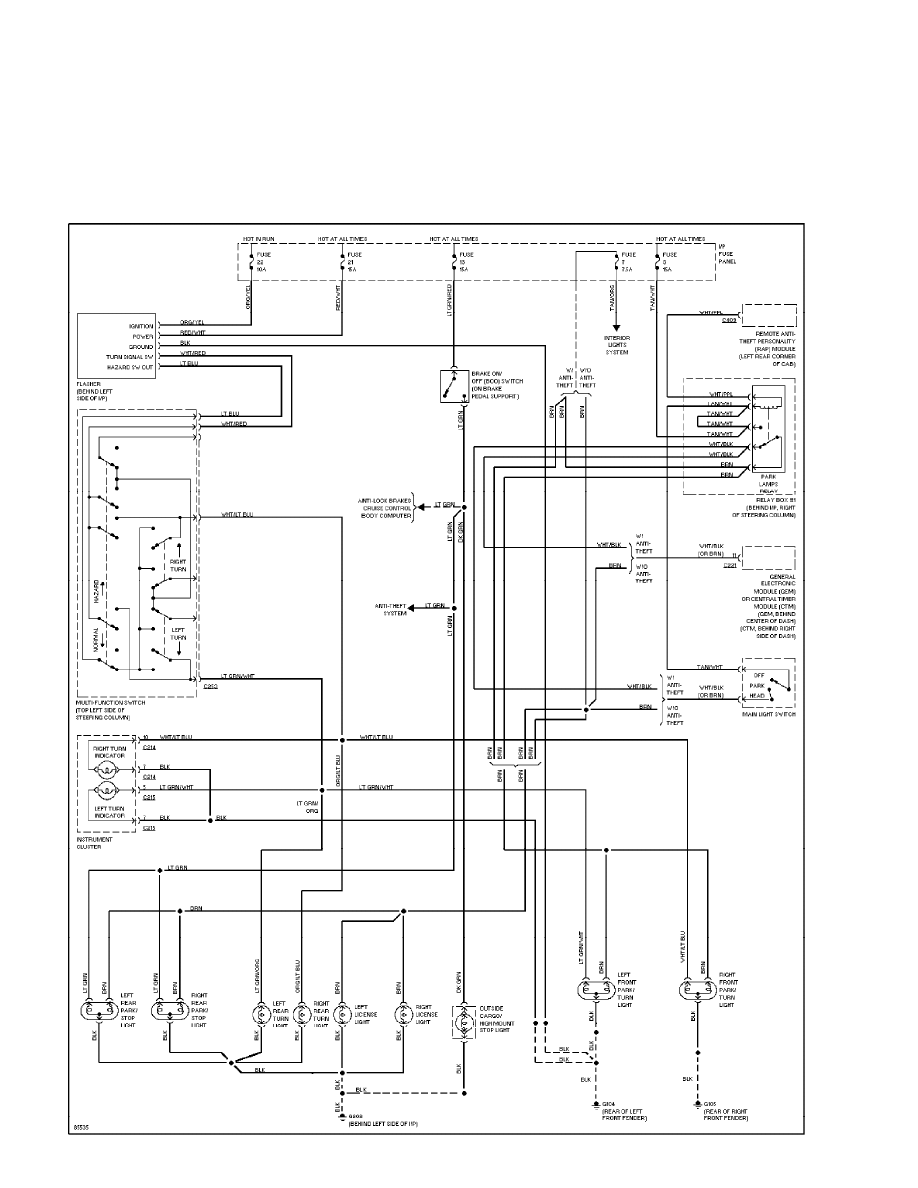

Exterior Lamps Circuit (p. 17)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

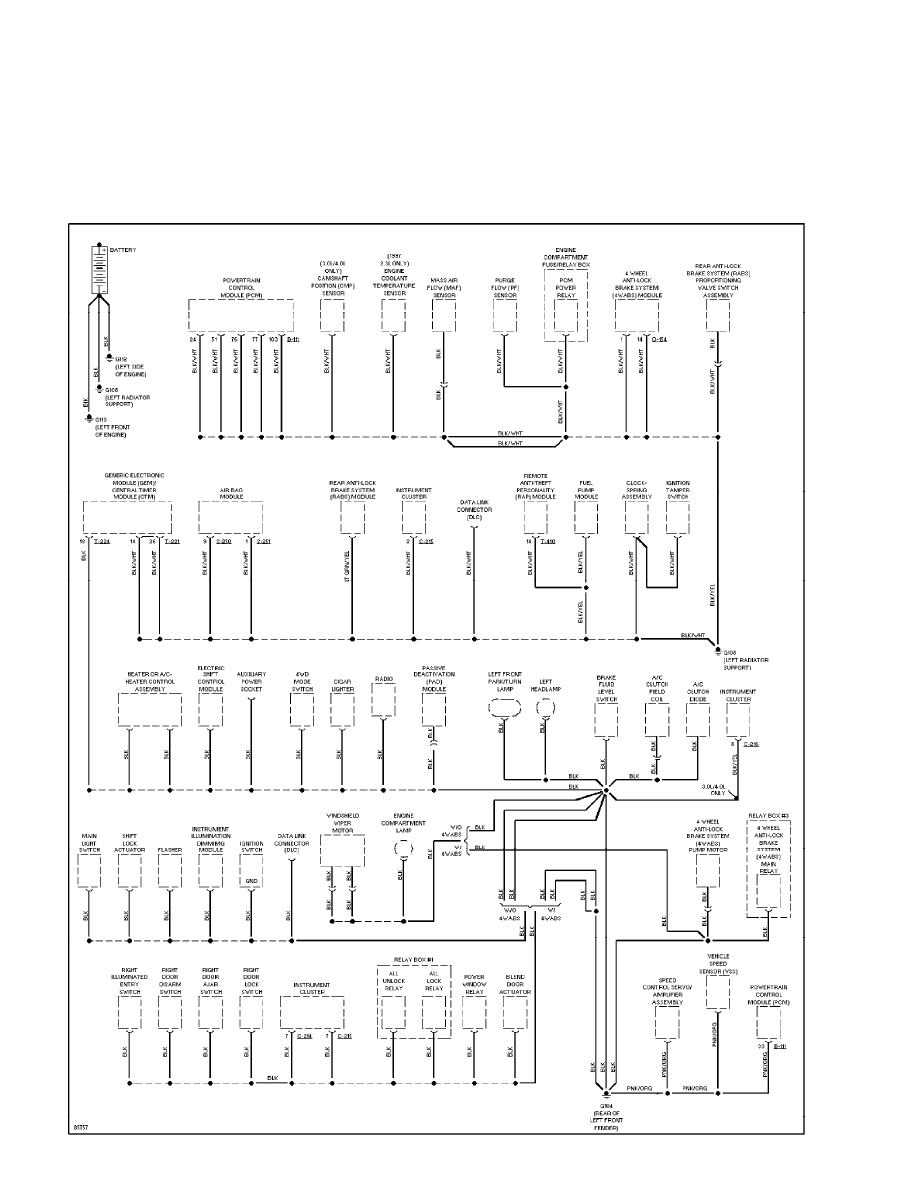

Ground Distribution Circuit (1 of 2) (p. 18)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

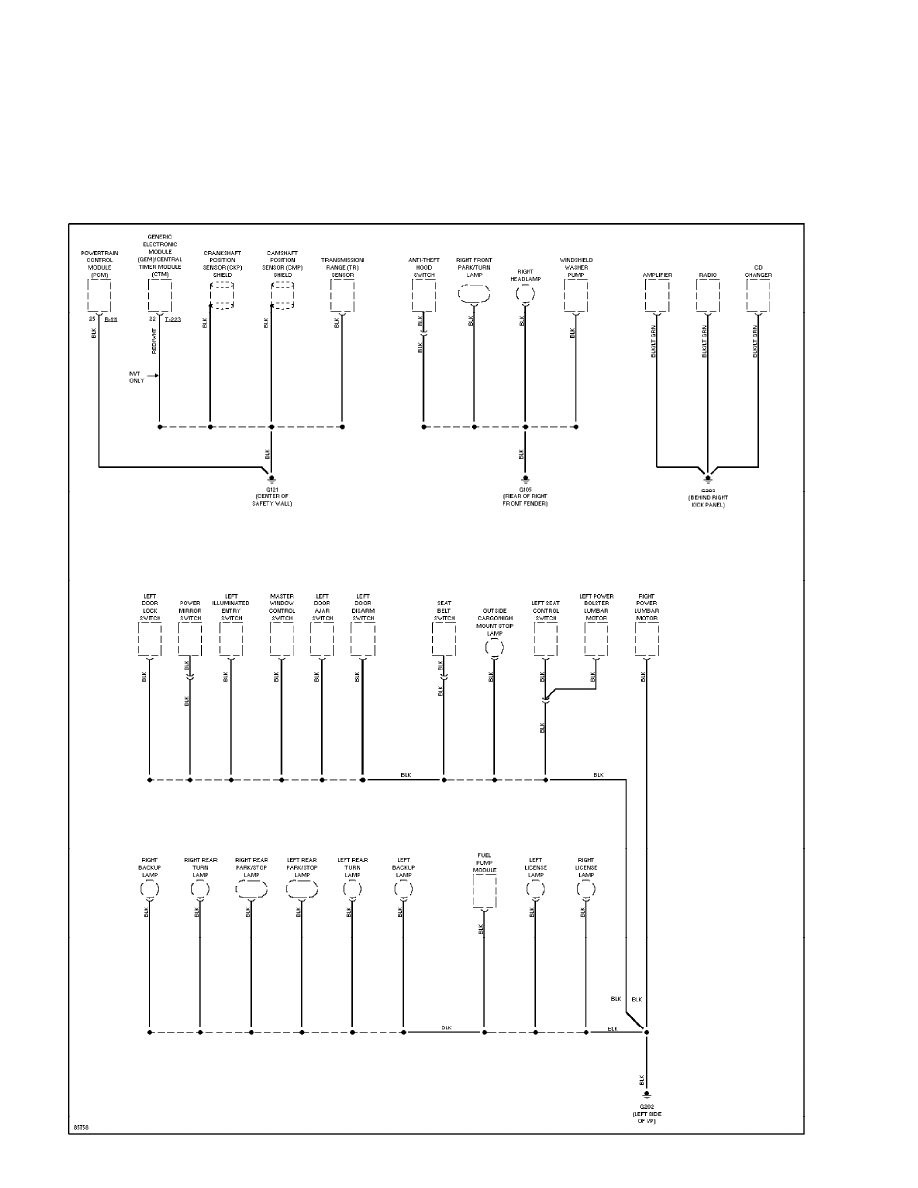

Ground Distribution Circuit (2 of 2) (p. 19)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

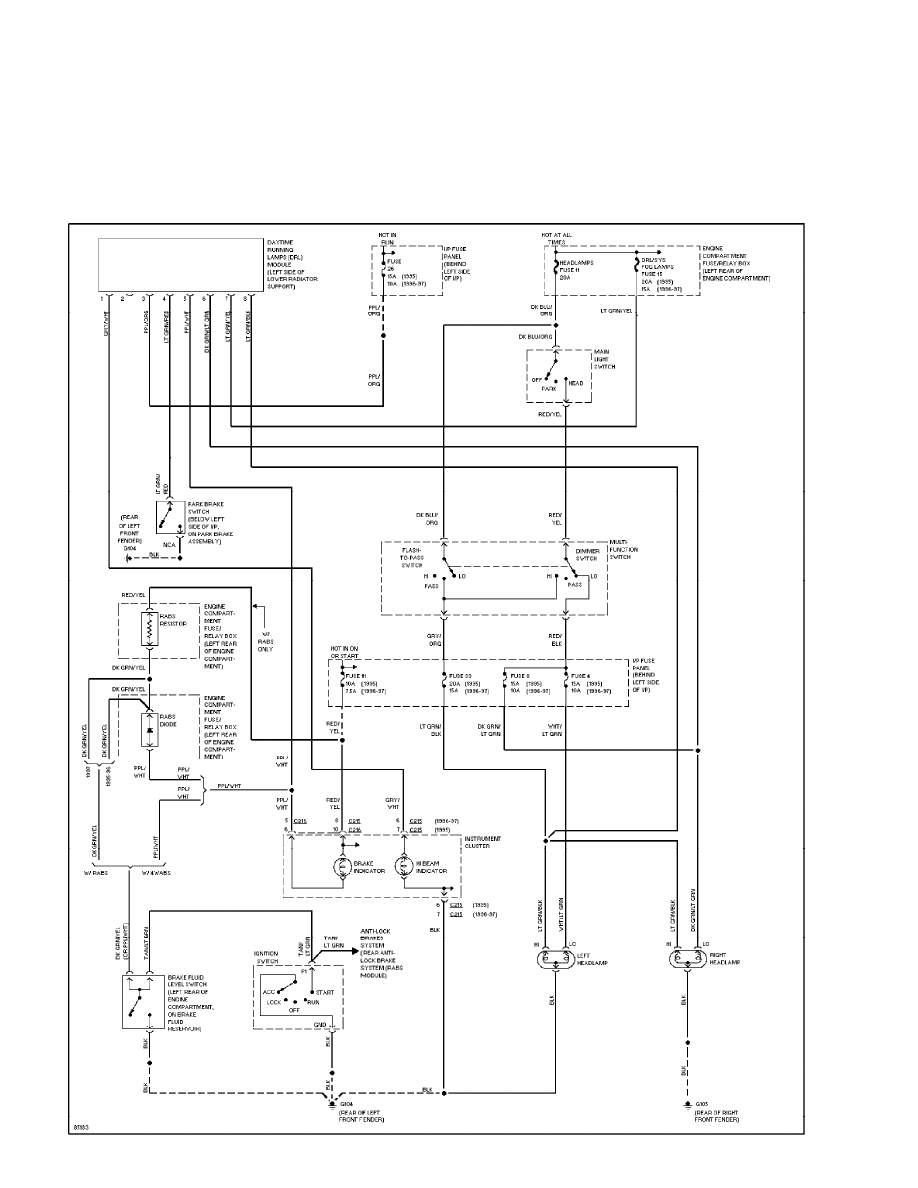

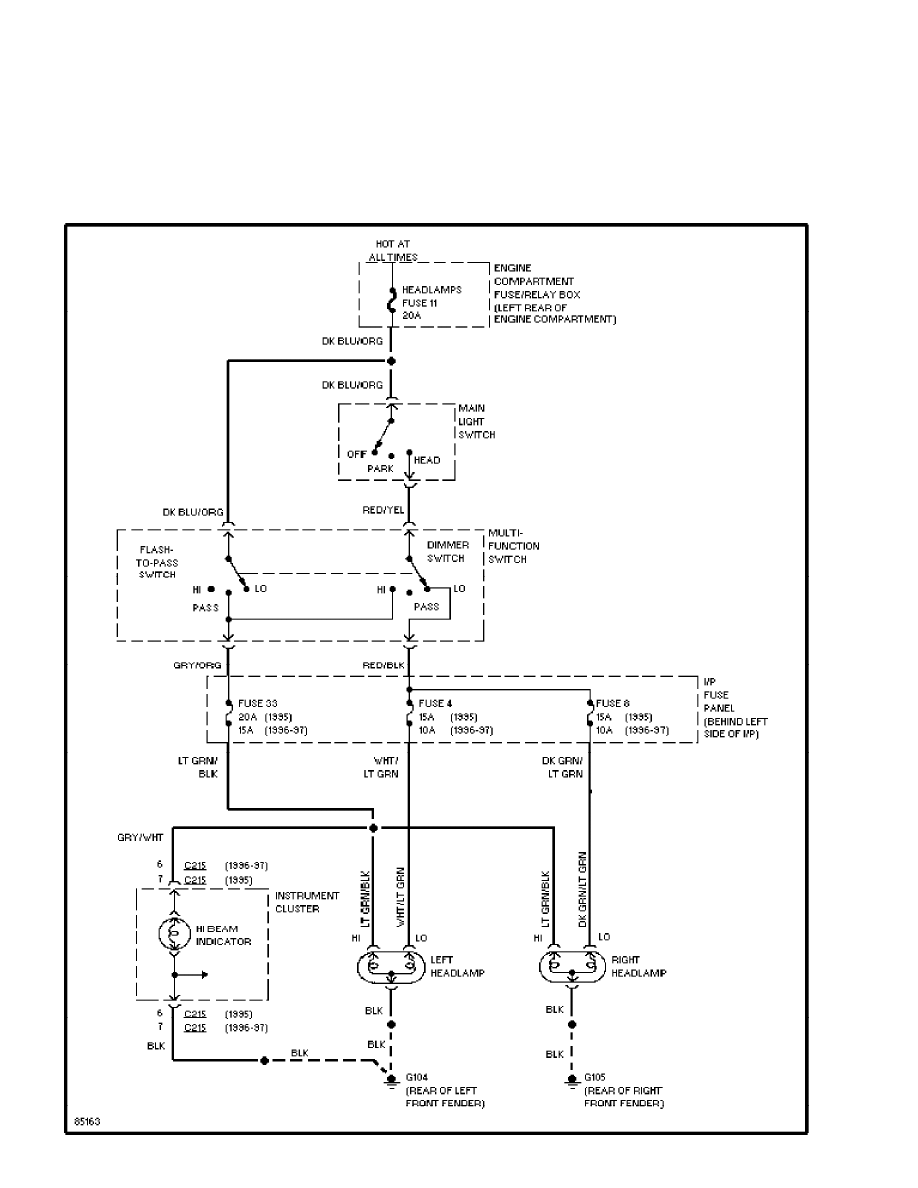

Headlight Circuit, W/ DRL (p. 20)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

Headlight Circuit, W/O DRL (p. 21)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

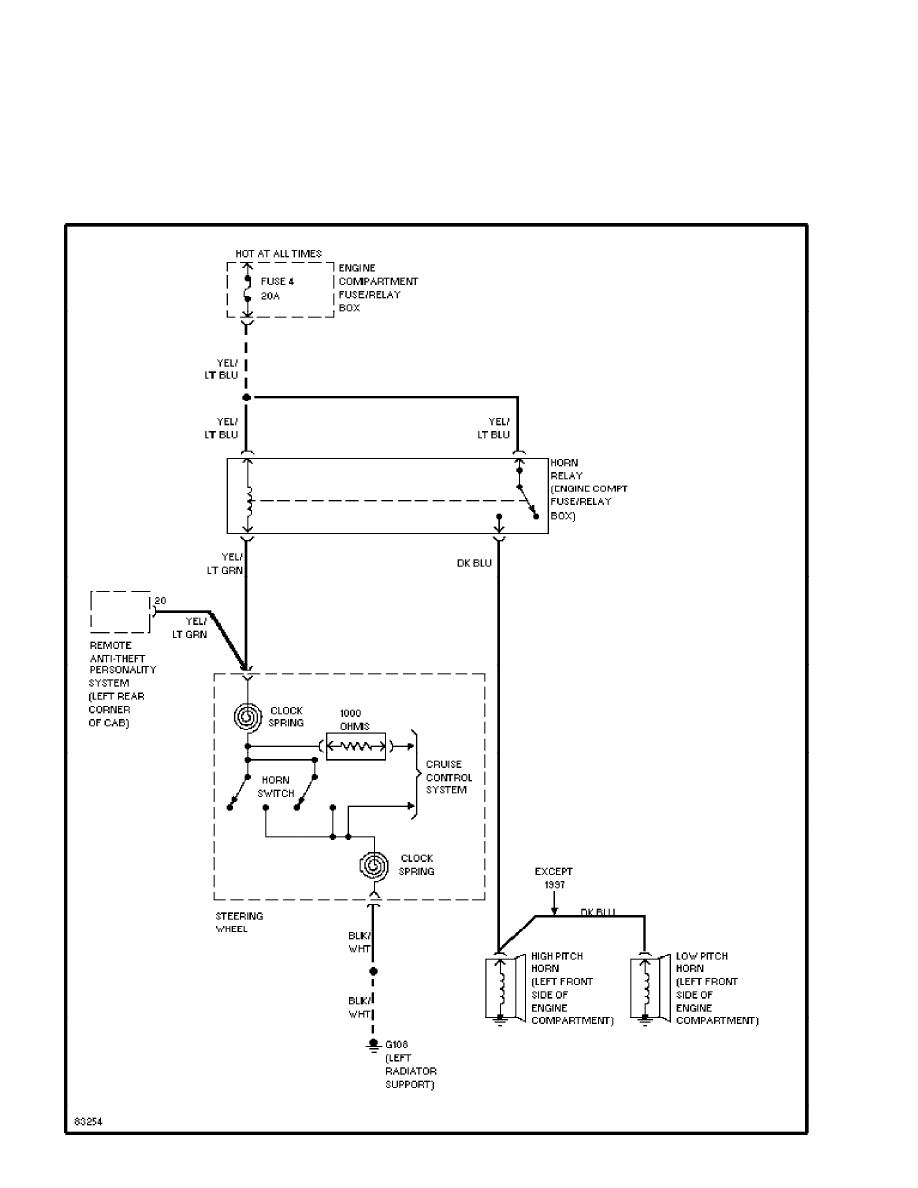

Horn Circuit (p. 22)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

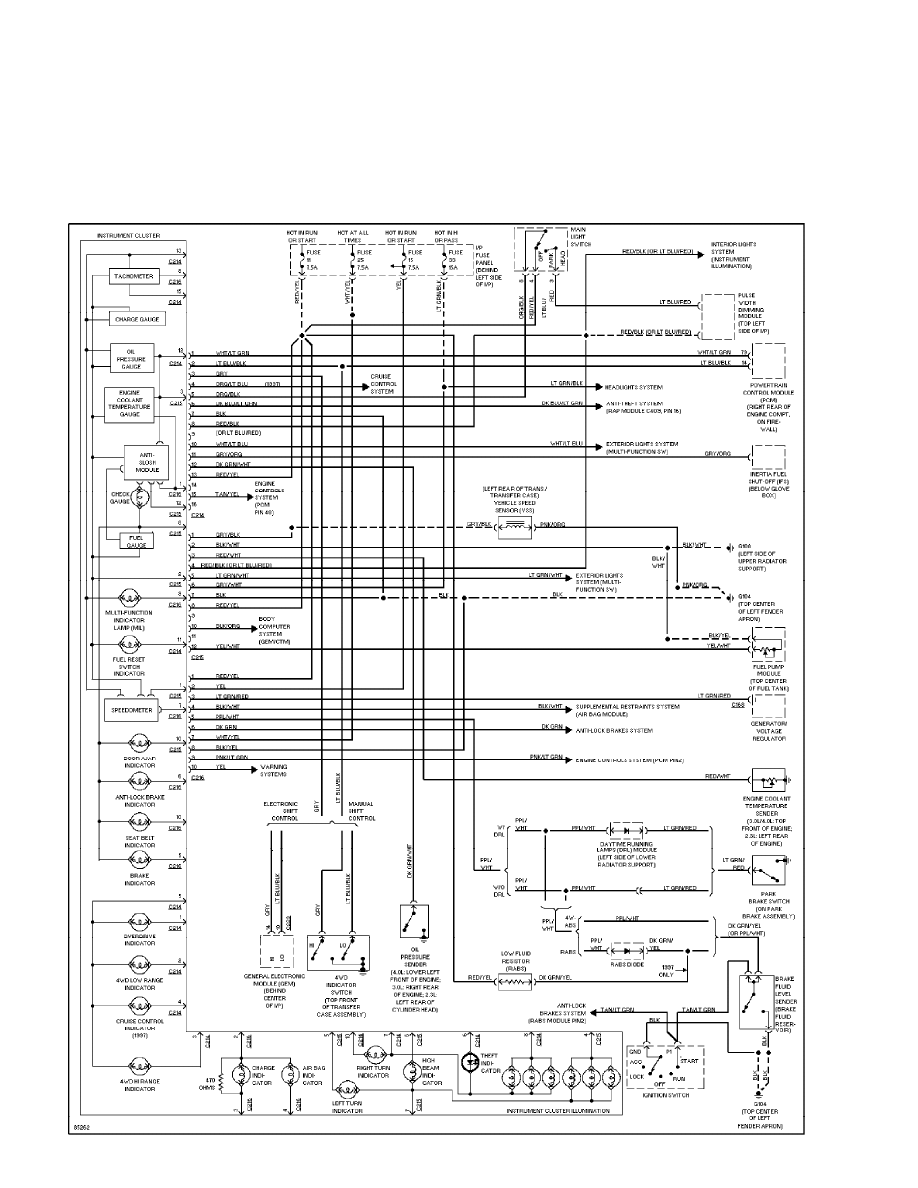

Instrument Cluster Circuit (p. 23)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

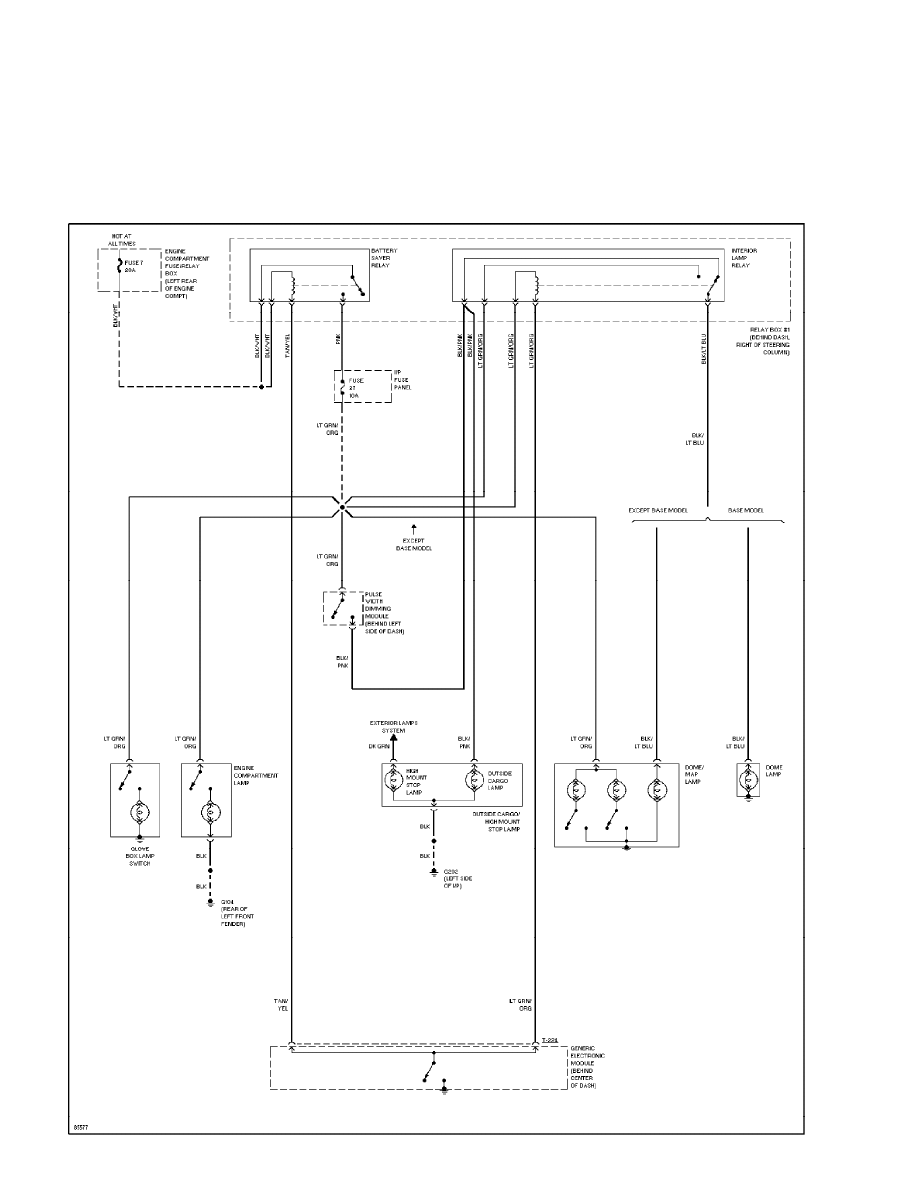

Courtesy Lamp Circuit (p. 24)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

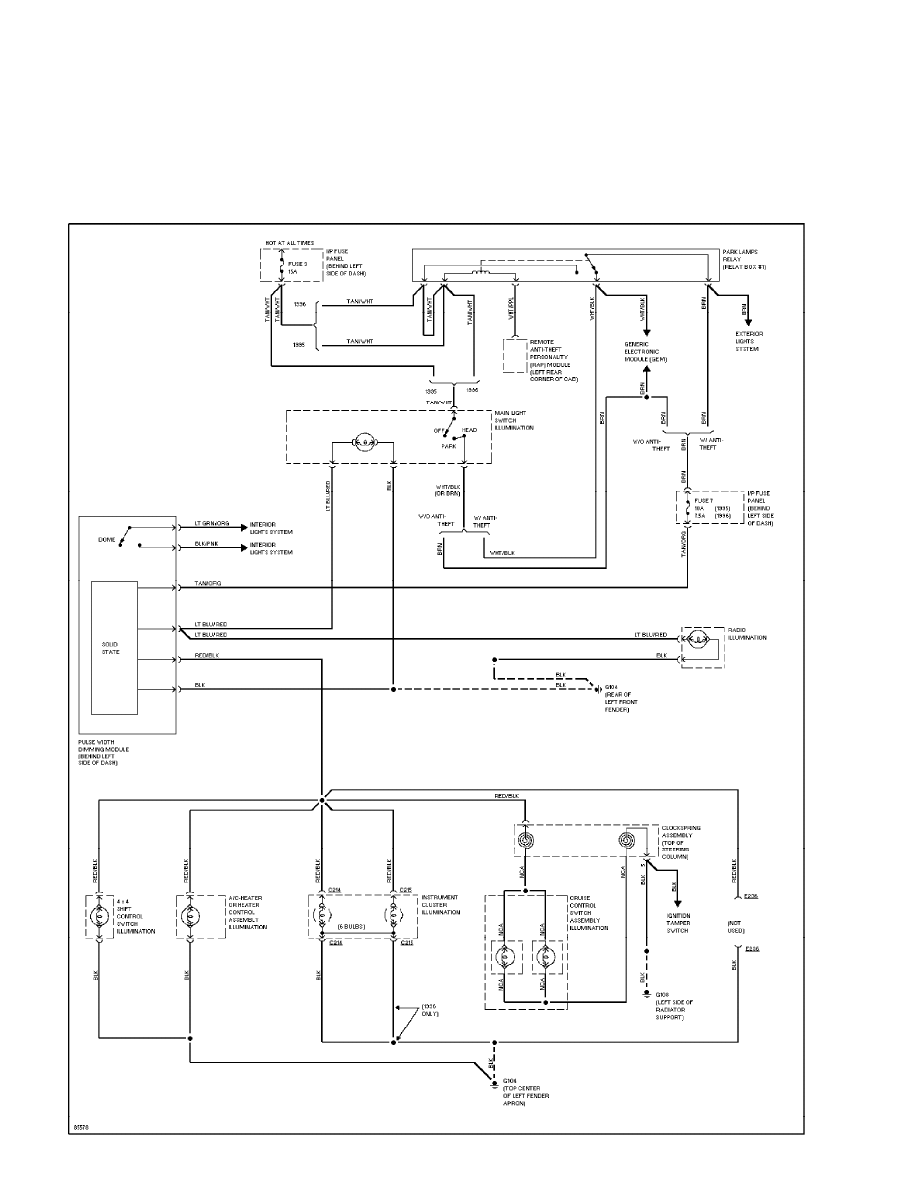

Instrument Illumination Circuit (p. 25)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

Power Distribution Circuit (1 of 2) (p. 26)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

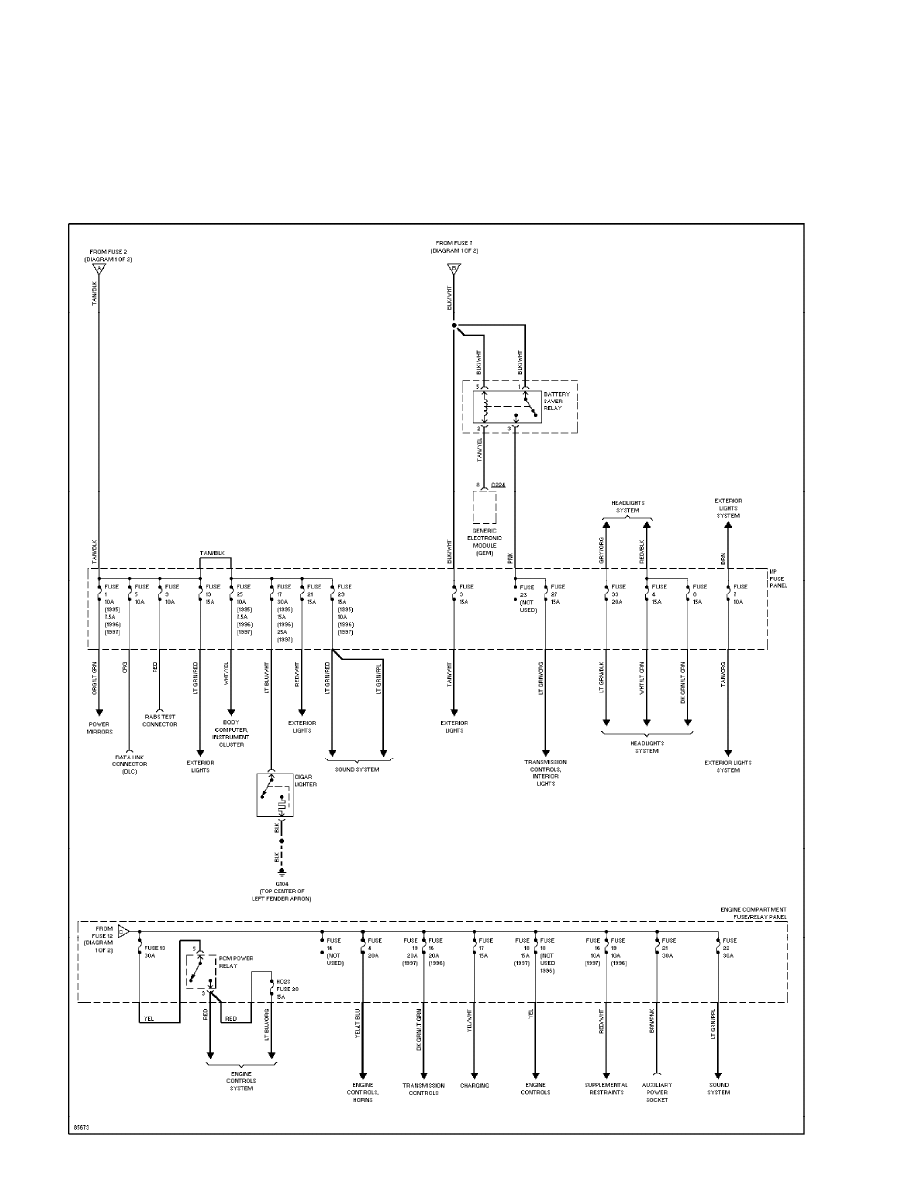

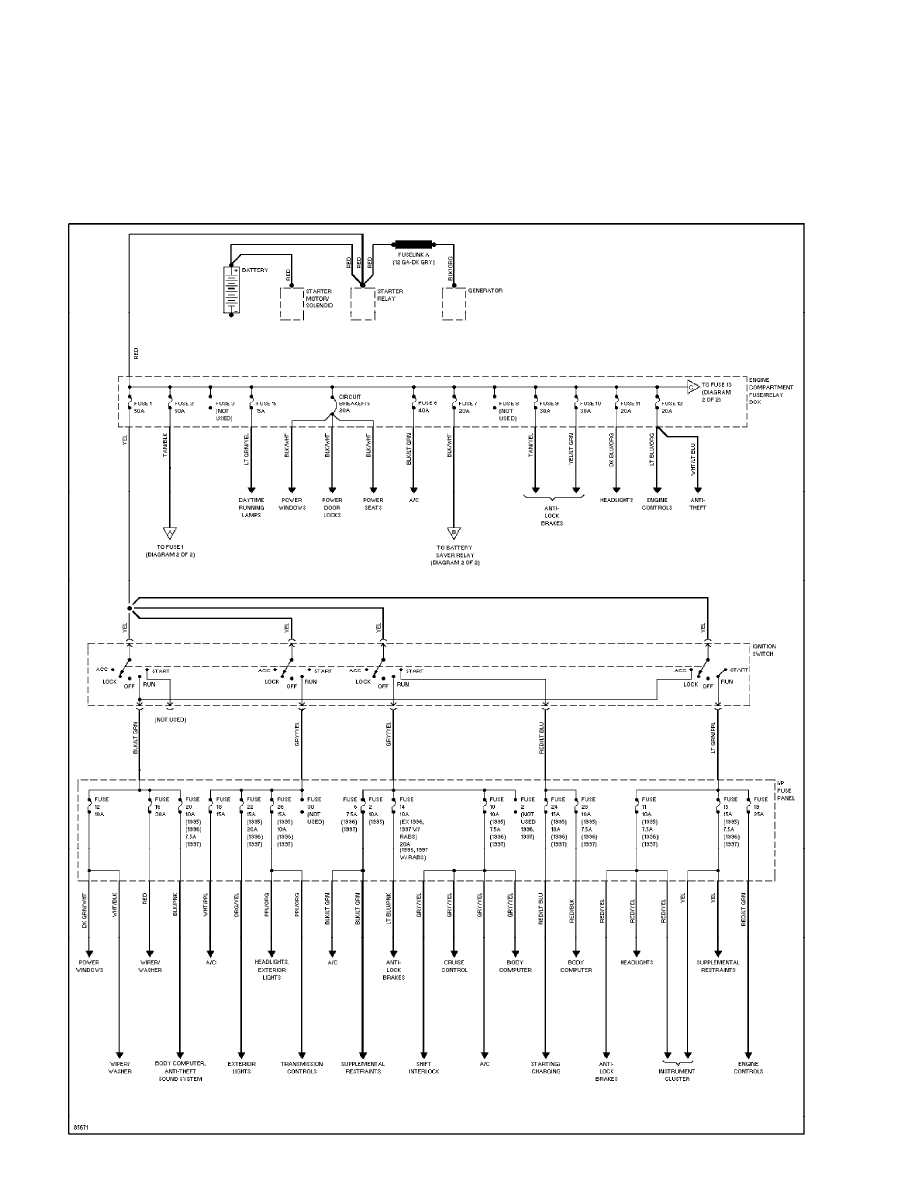

Power Distribution Circuit (2 of 2) (p. 27)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

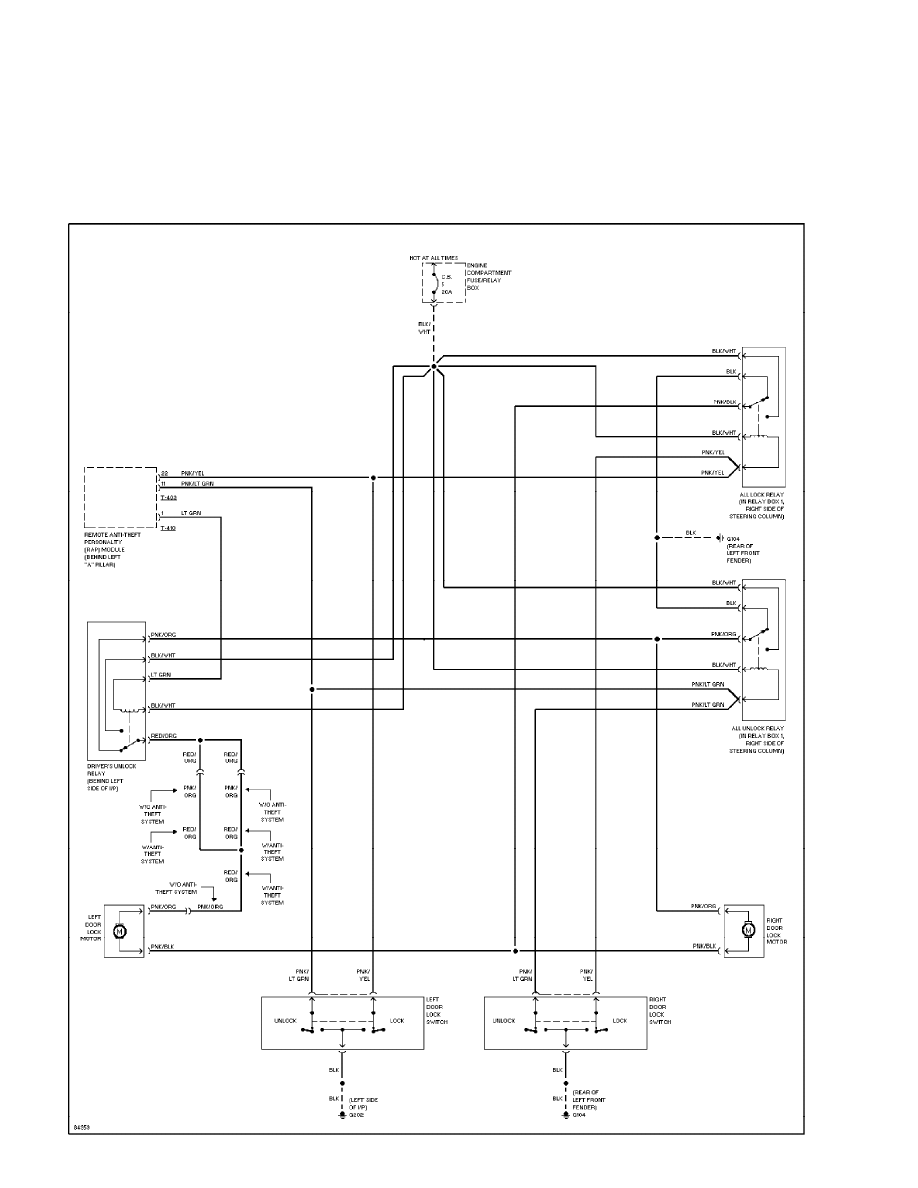

Power Door Lock Circuit (p. 28)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

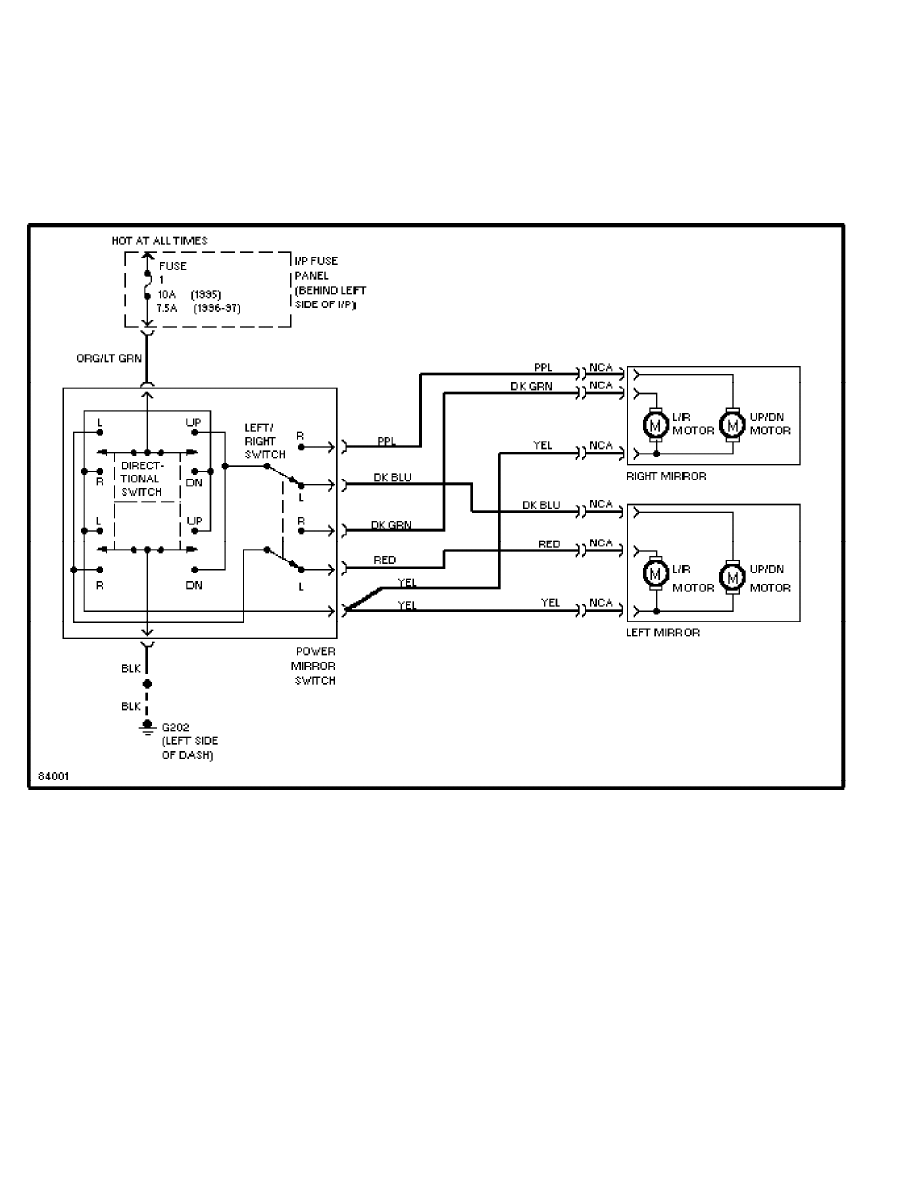

Power Mirror Circuit (p. 29)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

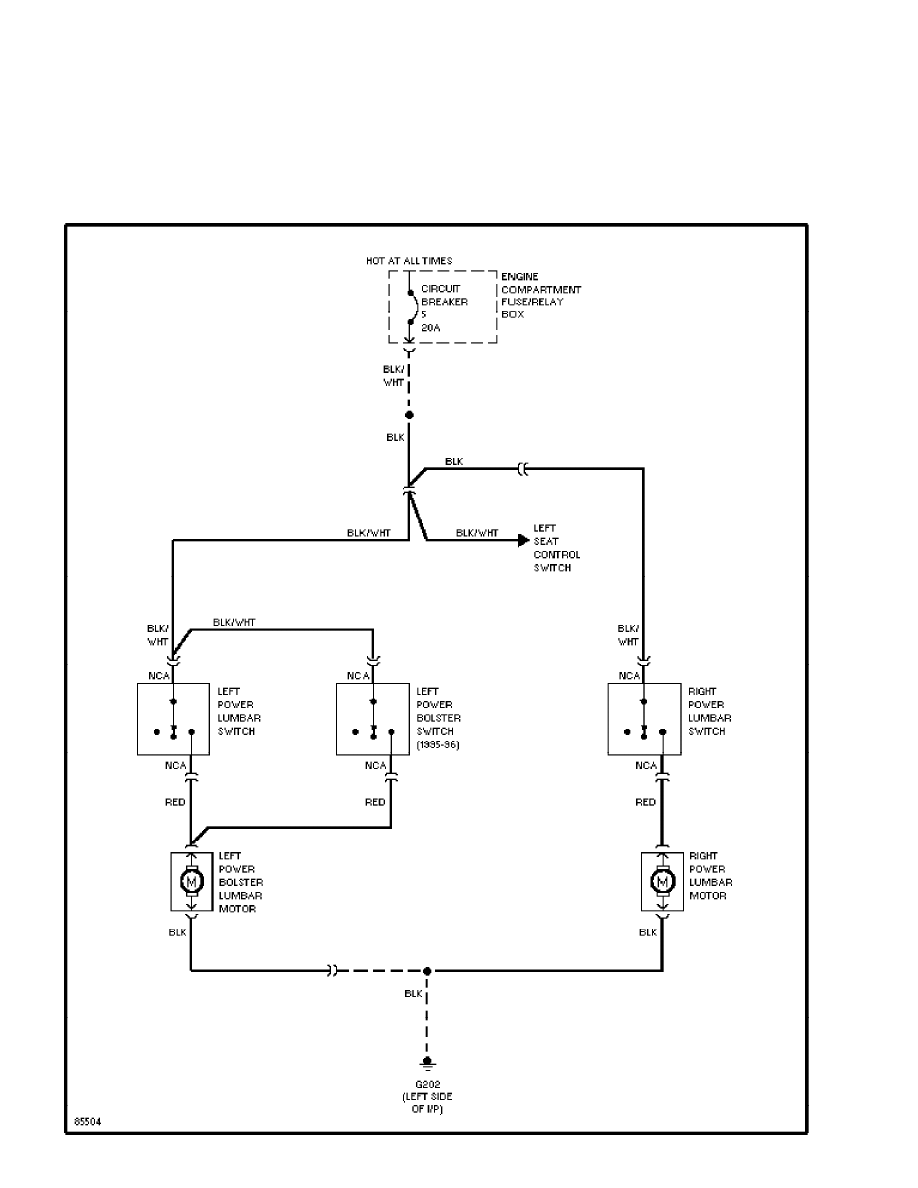

Lumbar/Bolster Circuit (p. 30)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

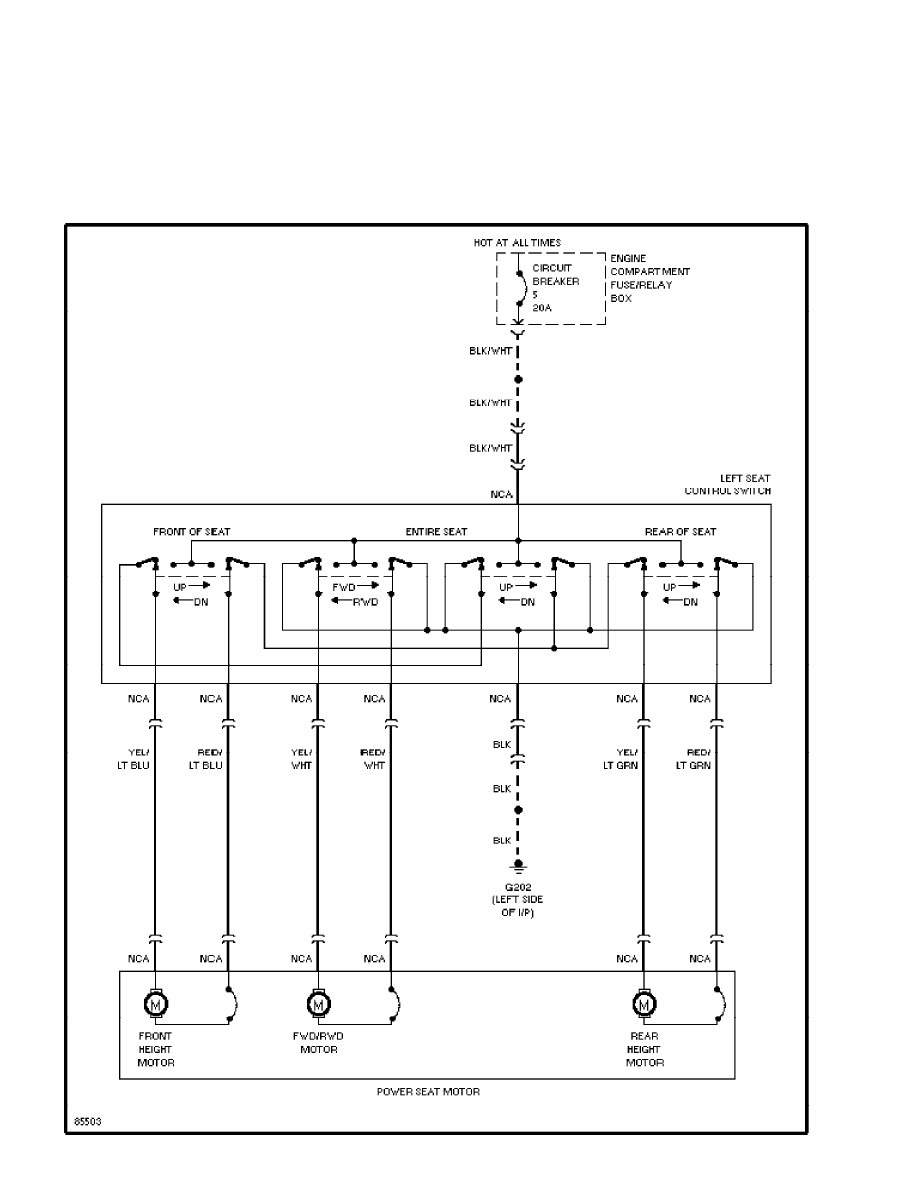

Power Seats Circuit (p. 31)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

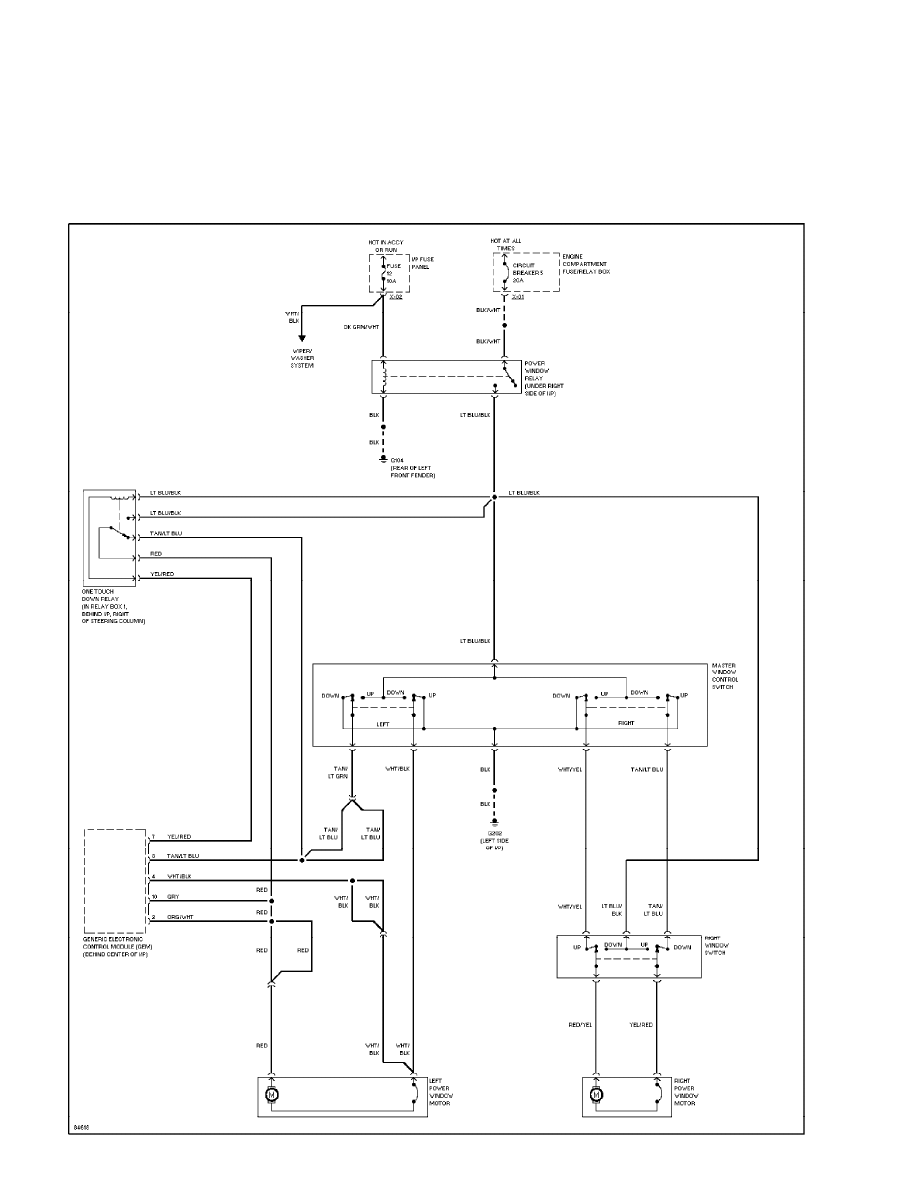

Power Window Circuit (p. 32)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

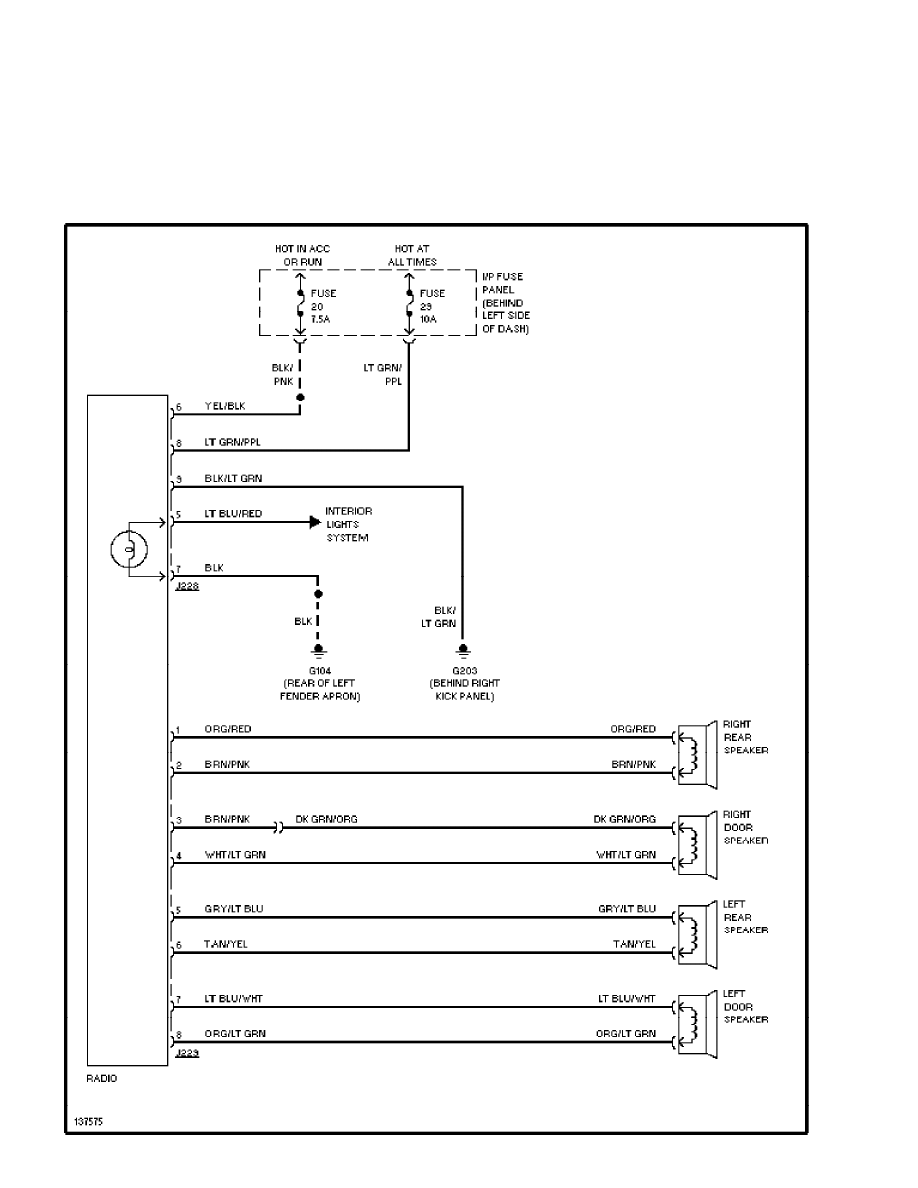

Base Radio (p. 33)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

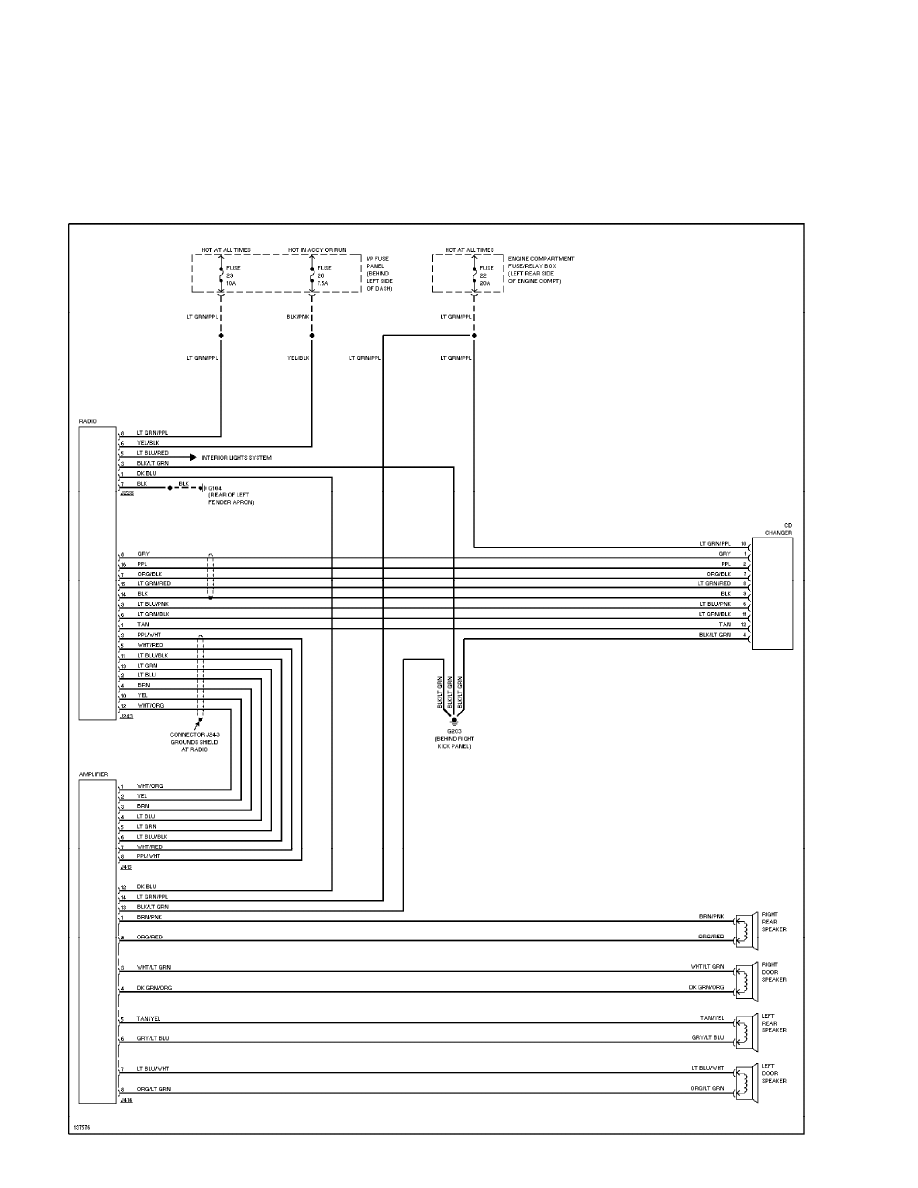

Premium Sound Radio Circuit (p. 34)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

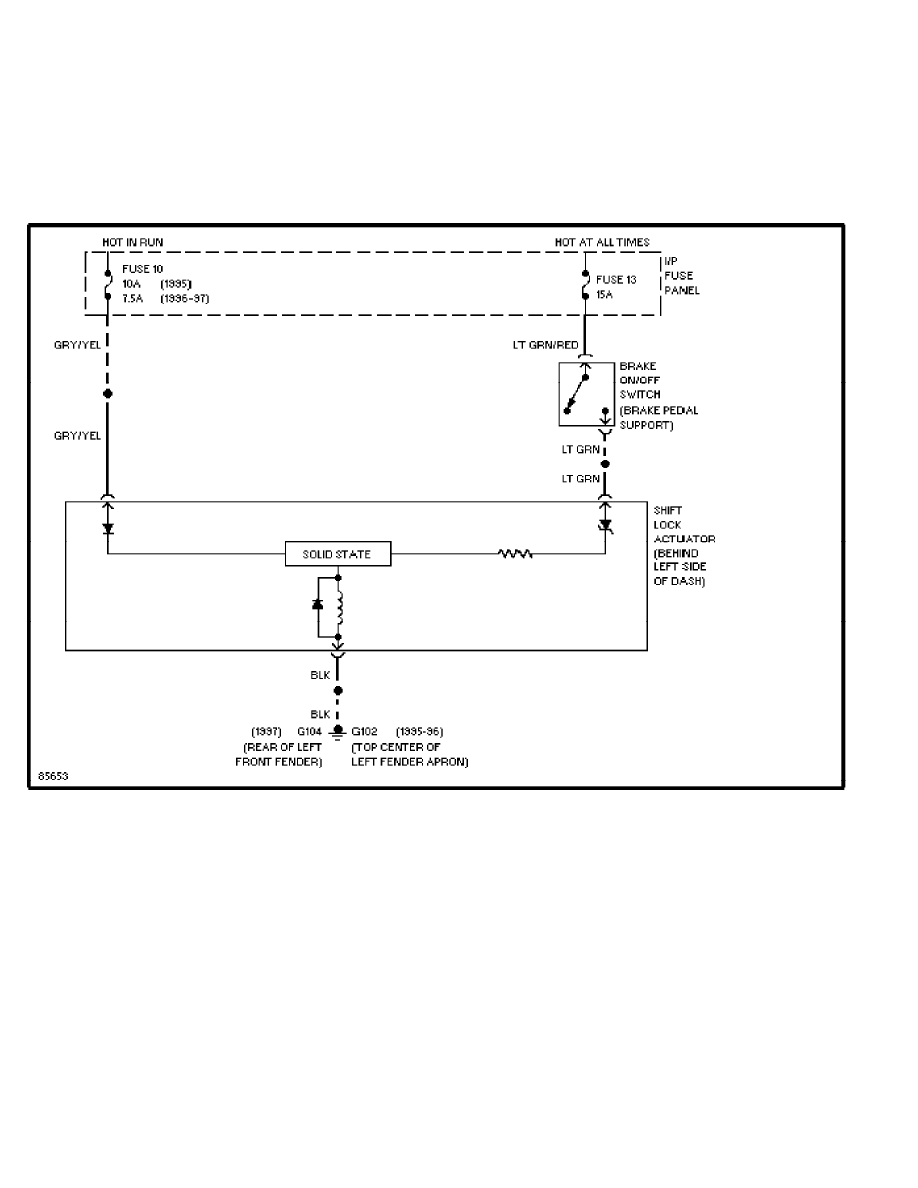

Shift Interlock Circuit (p. 35)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

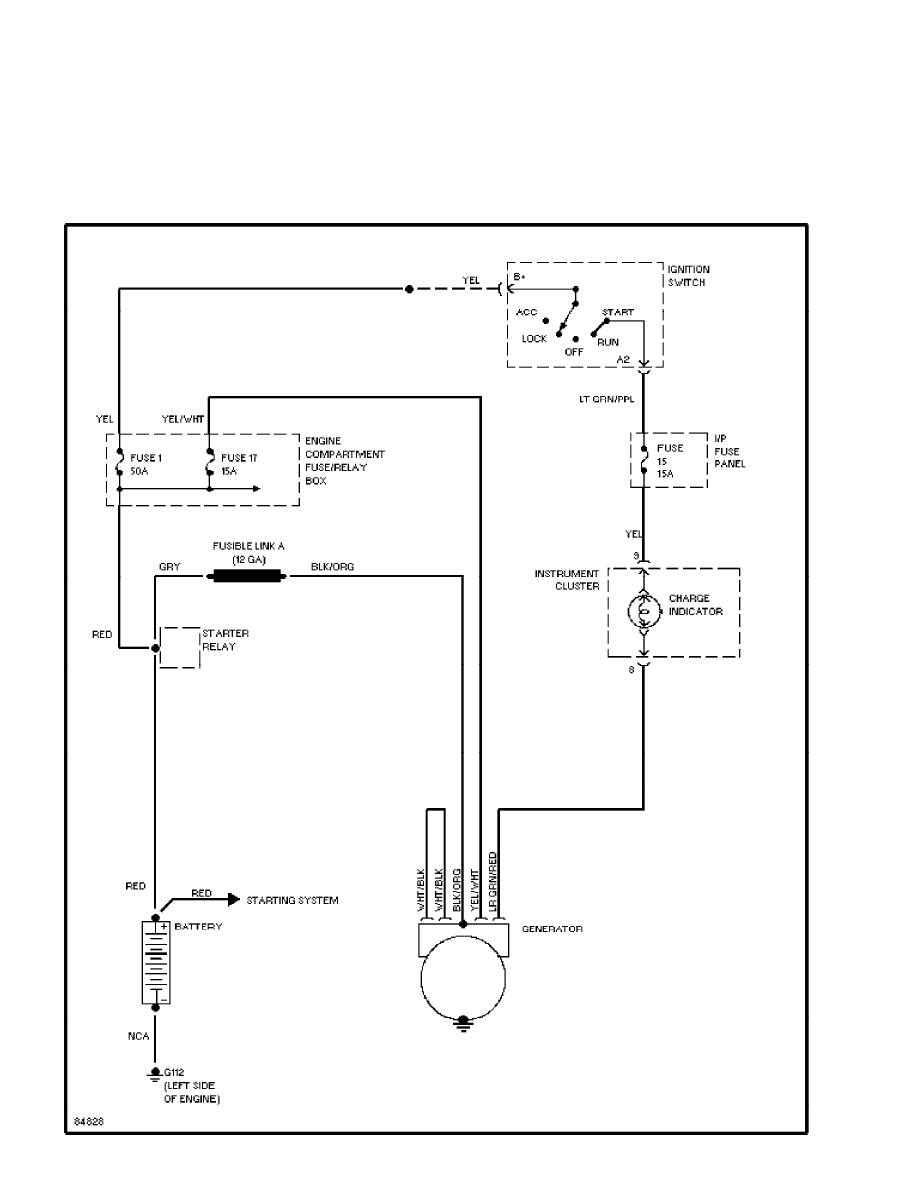

Charging Circuit (p. 36)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

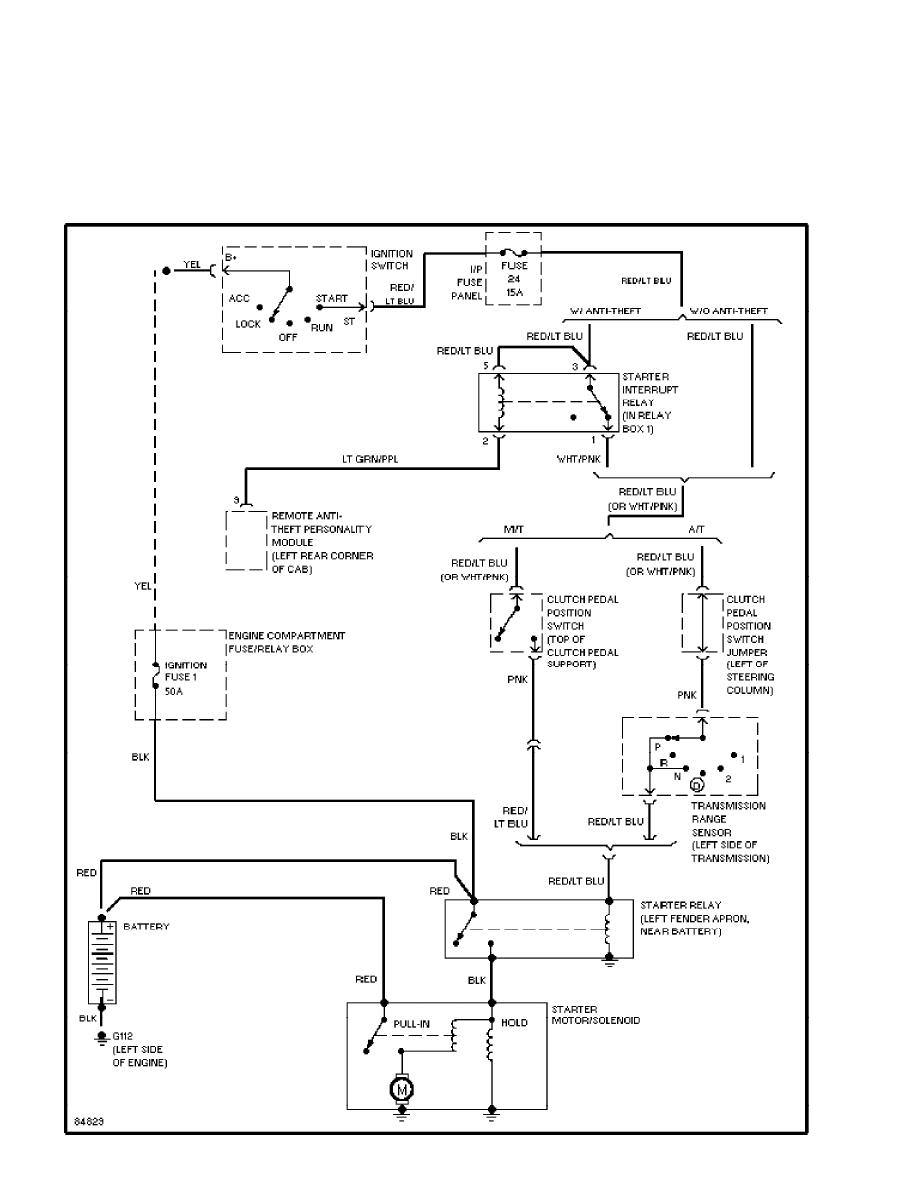

Starting Circuit (p. 37)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

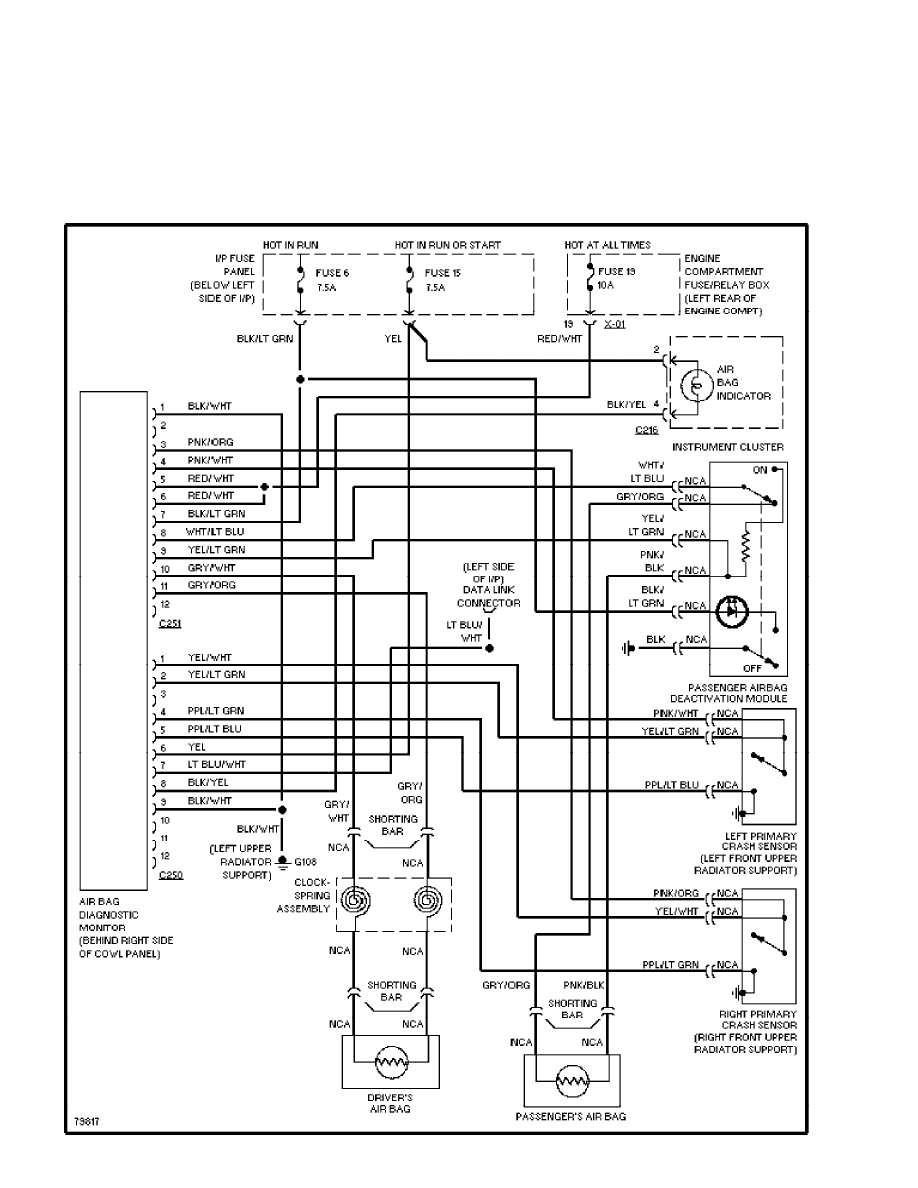

Supplemental Restraint Circuit, W/ Passenger Side Air Bag (p. 38)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

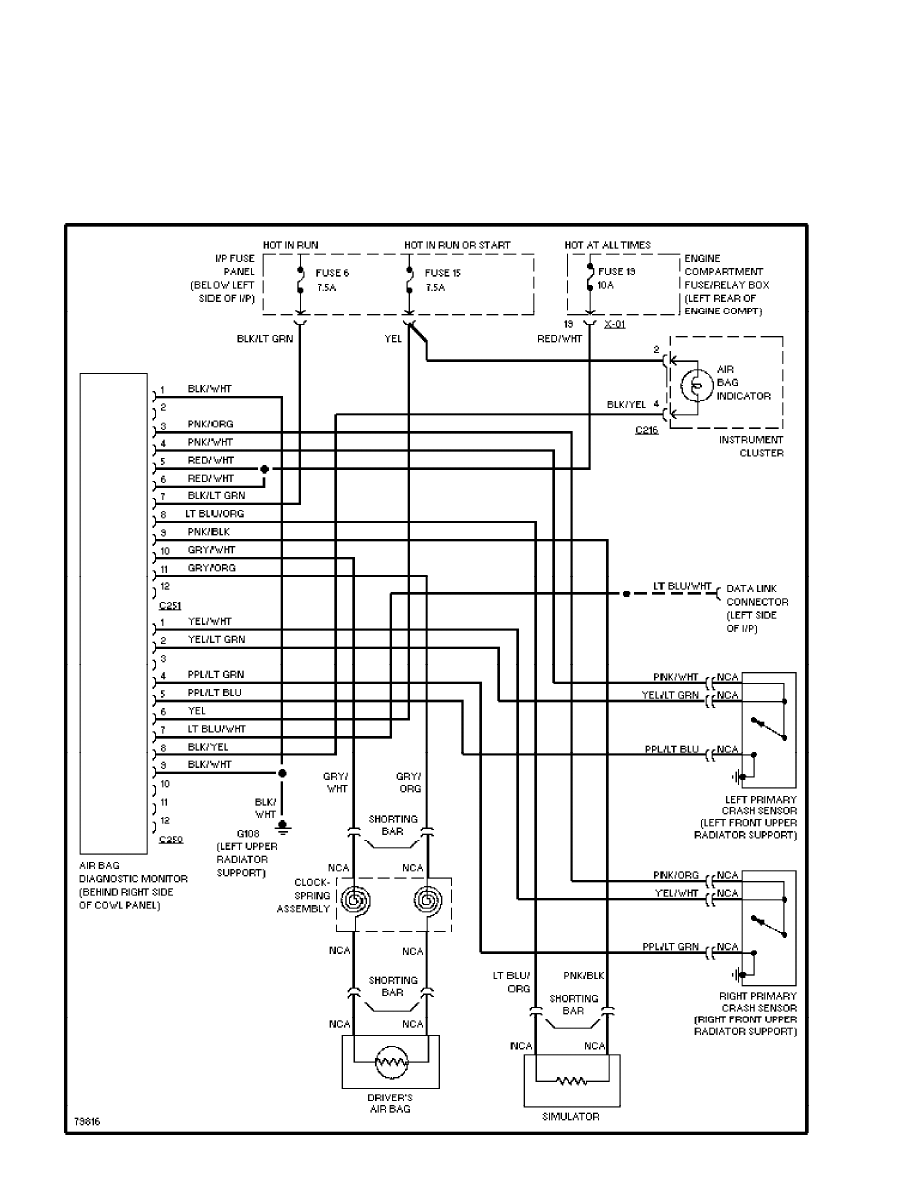

Supplemental Restraint Circuit, W/O Passenger Side Air Bag (p. 39)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

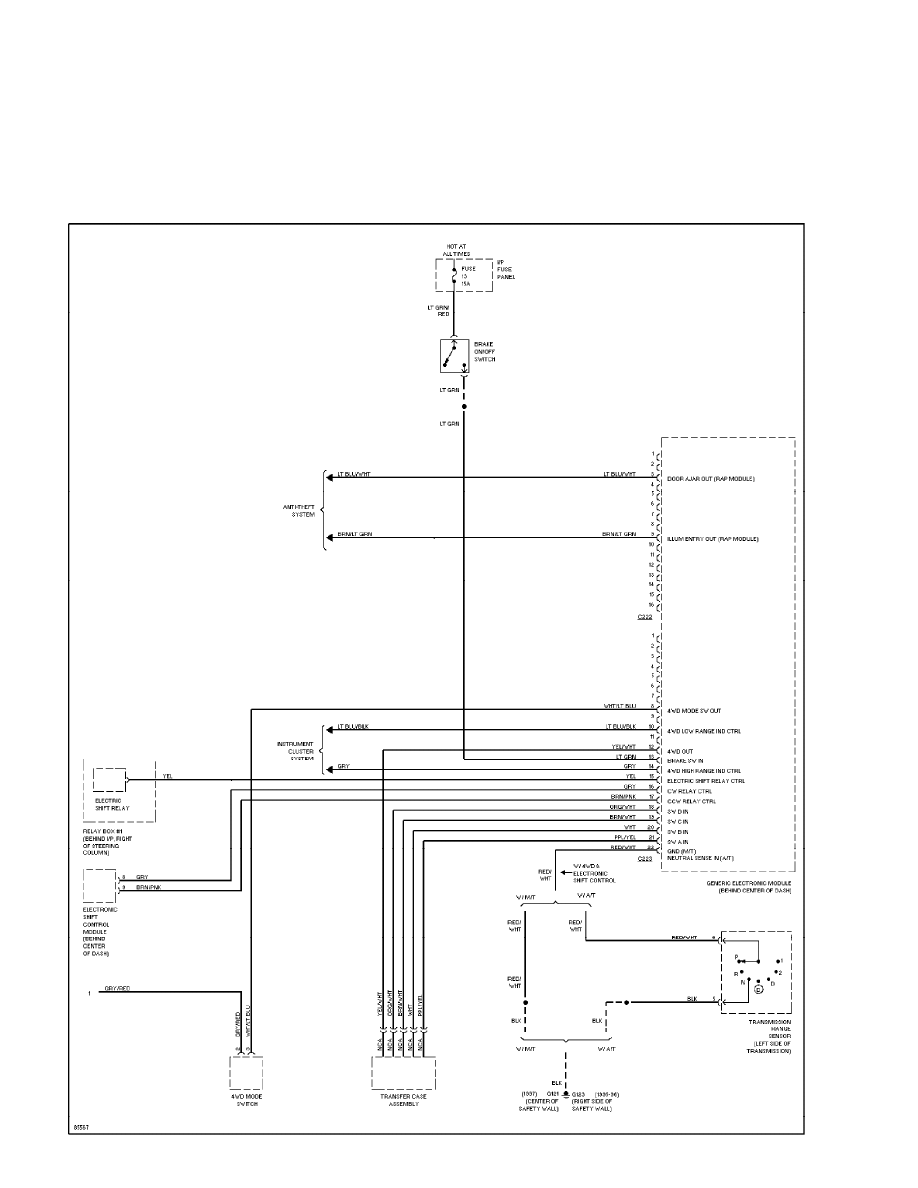

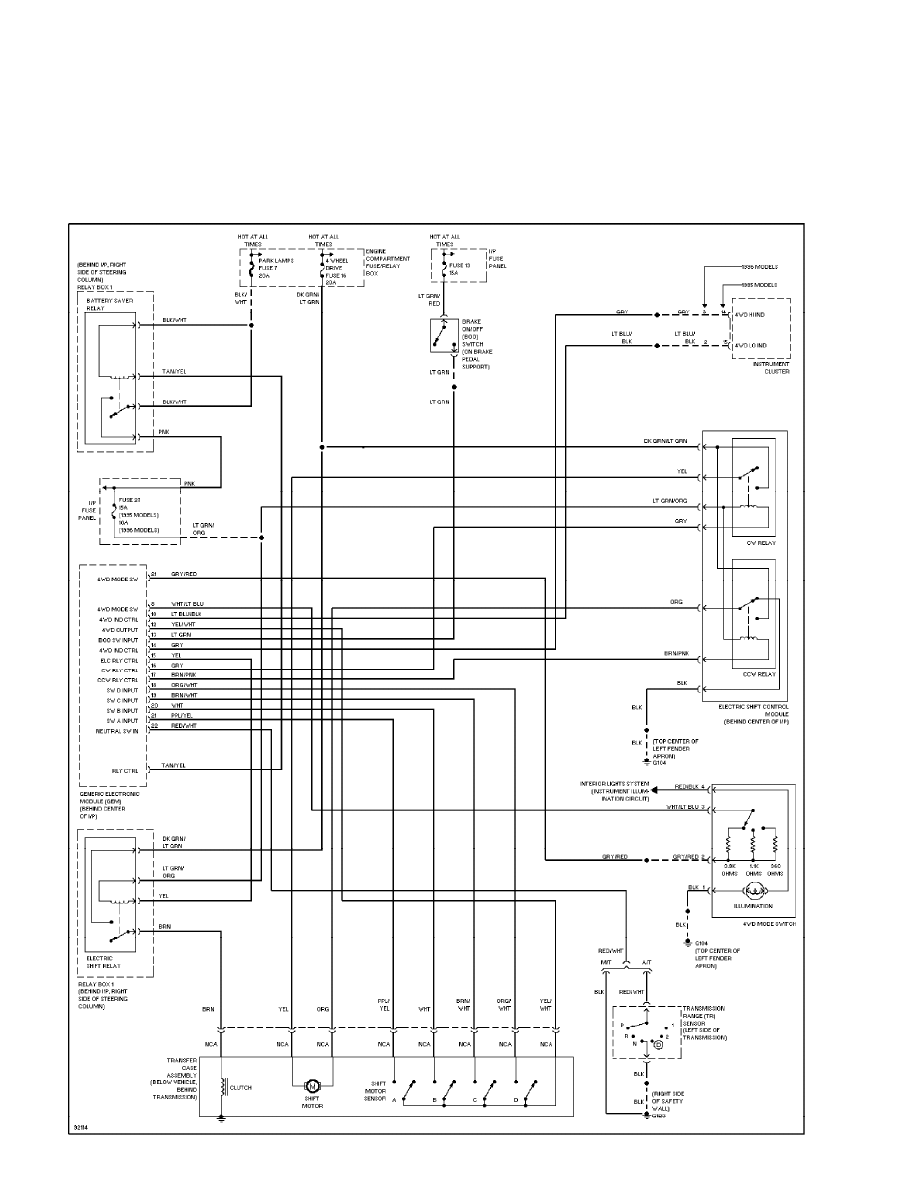

Transfer Case Circuit (p. 40)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

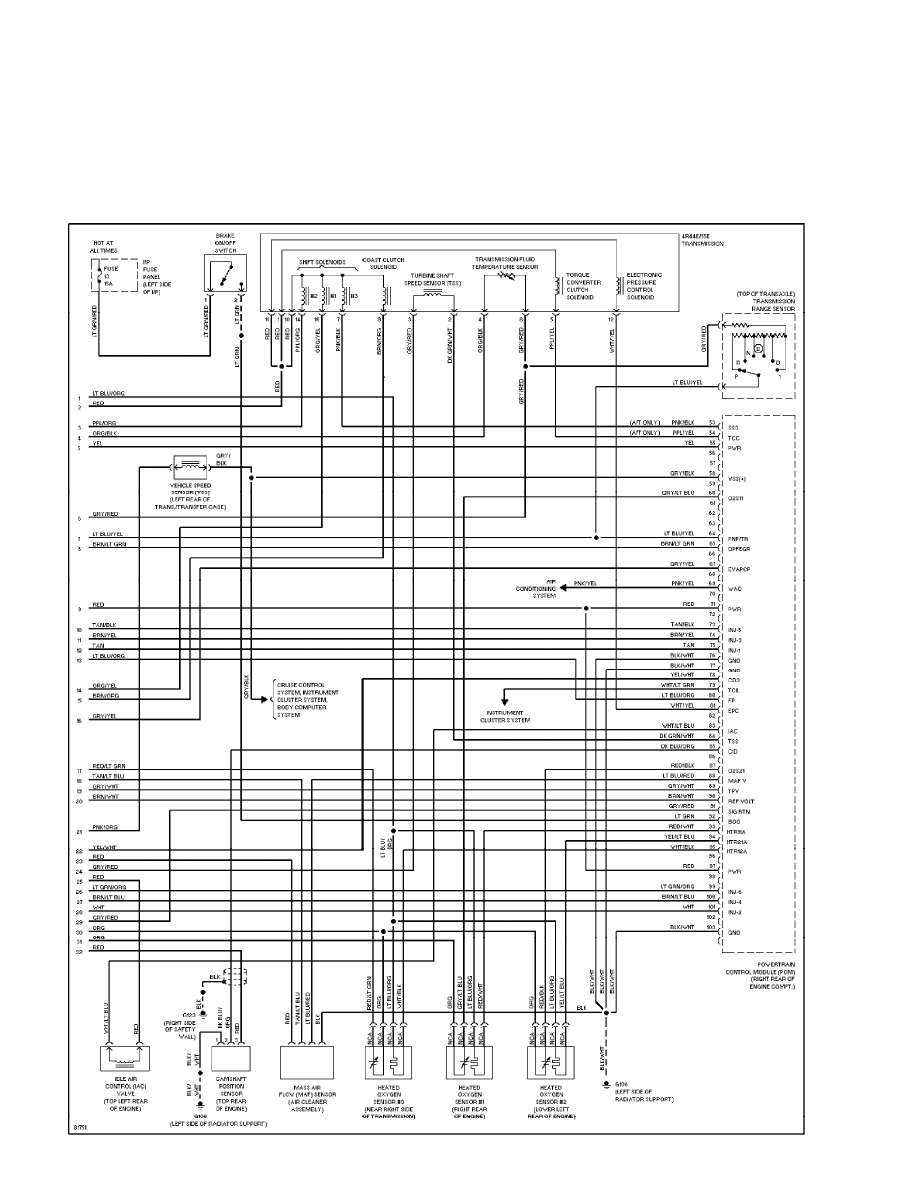

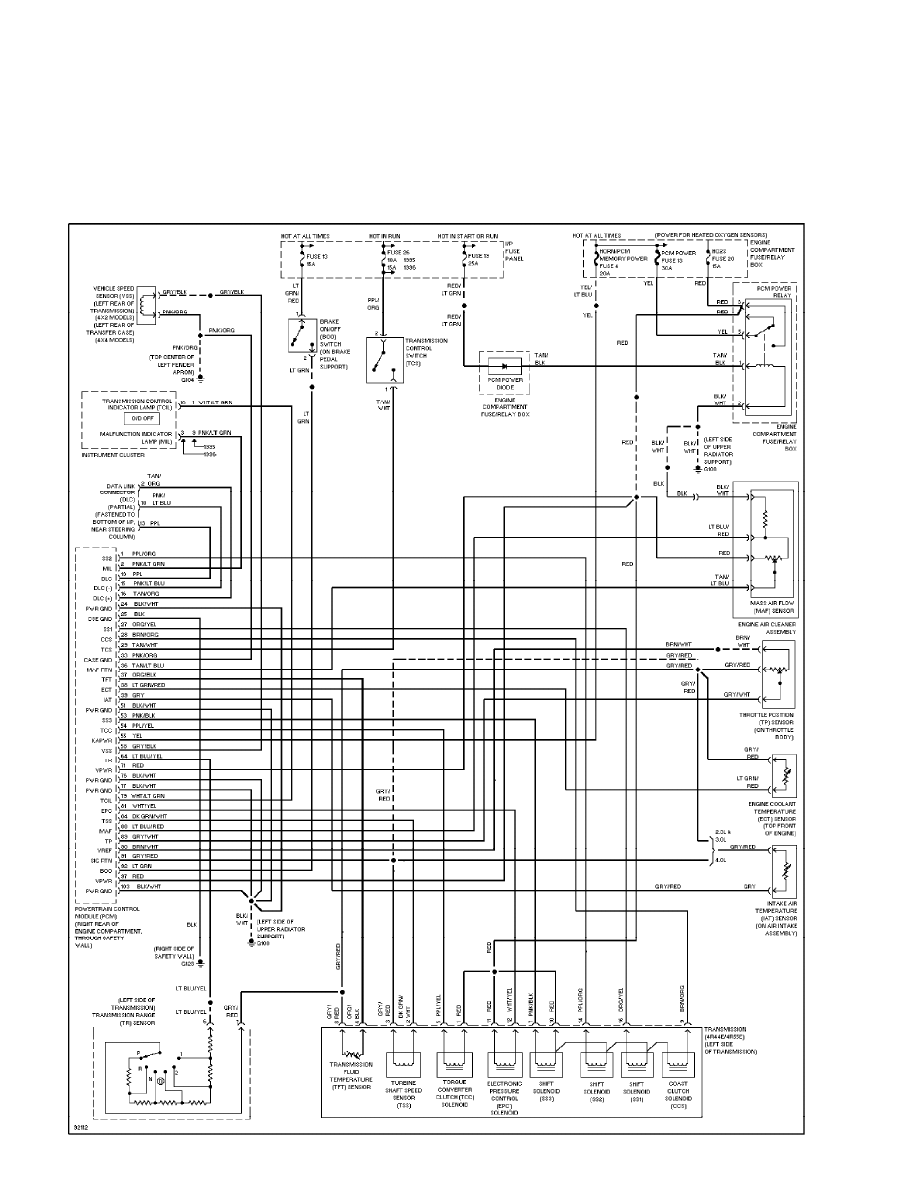

Transmission Circuit (p. 41)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

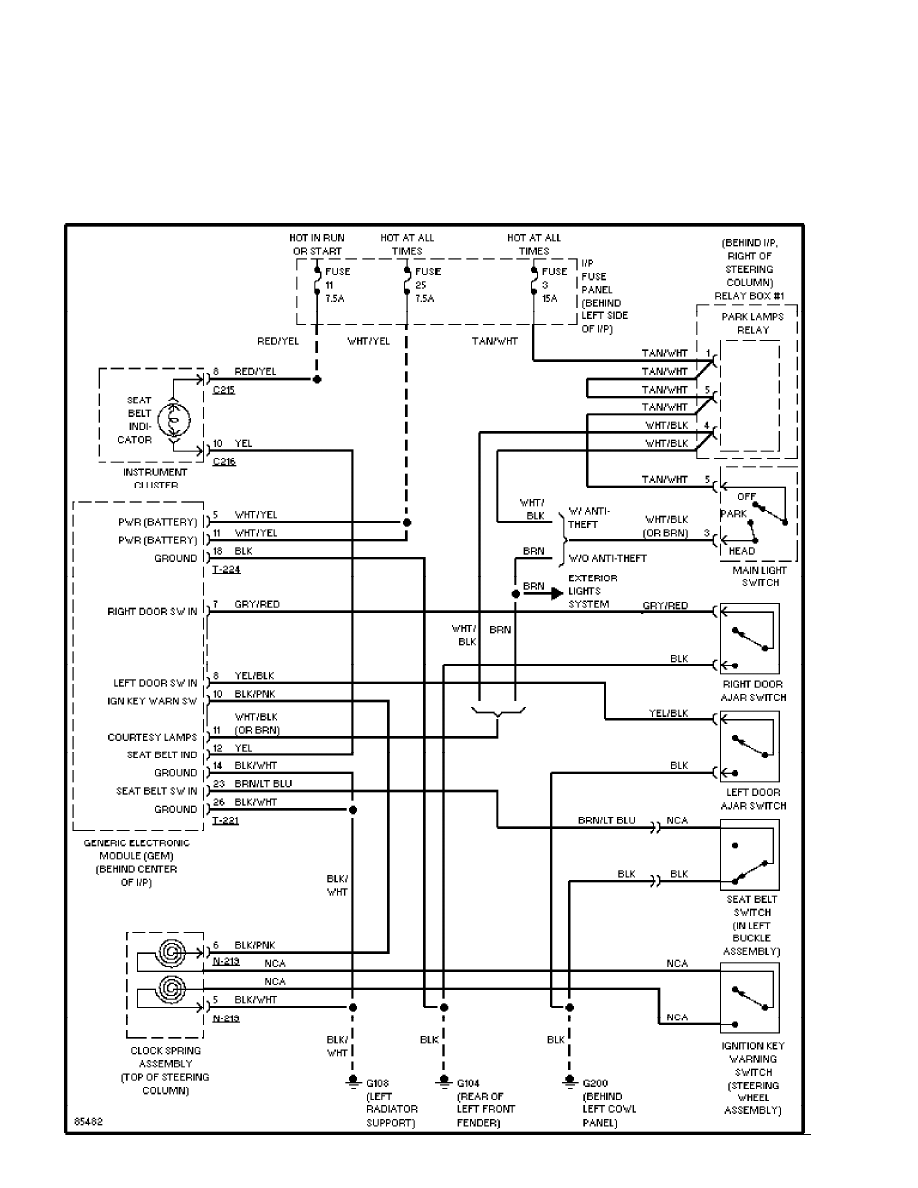

Warning System Circuits (p. 42)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM

background image

SYSTEM WIRING DIAGRAMS

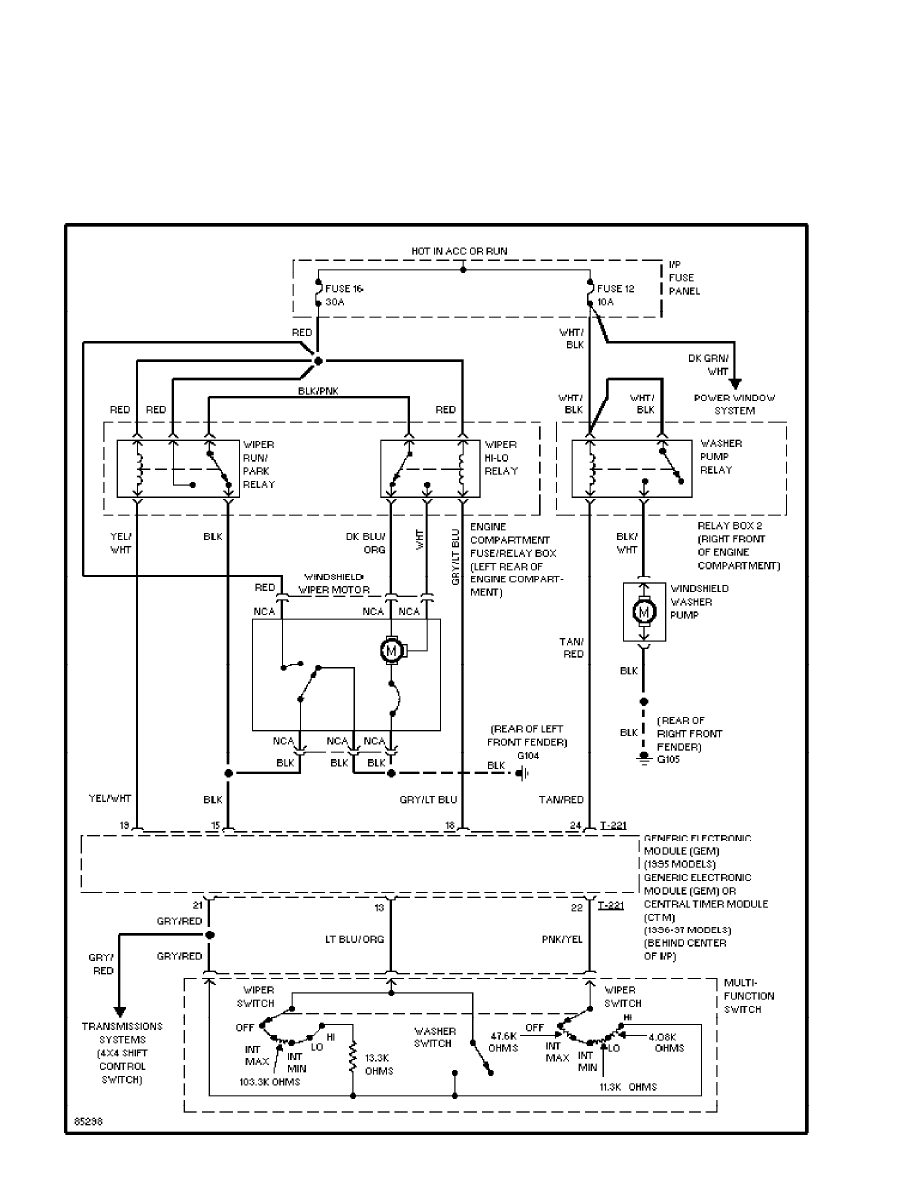

Wiper/Washer Circuit (p. 43)

1996 Mazda B3000

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 04:34PM
