SYSTEM WIRING DIAGRAMS

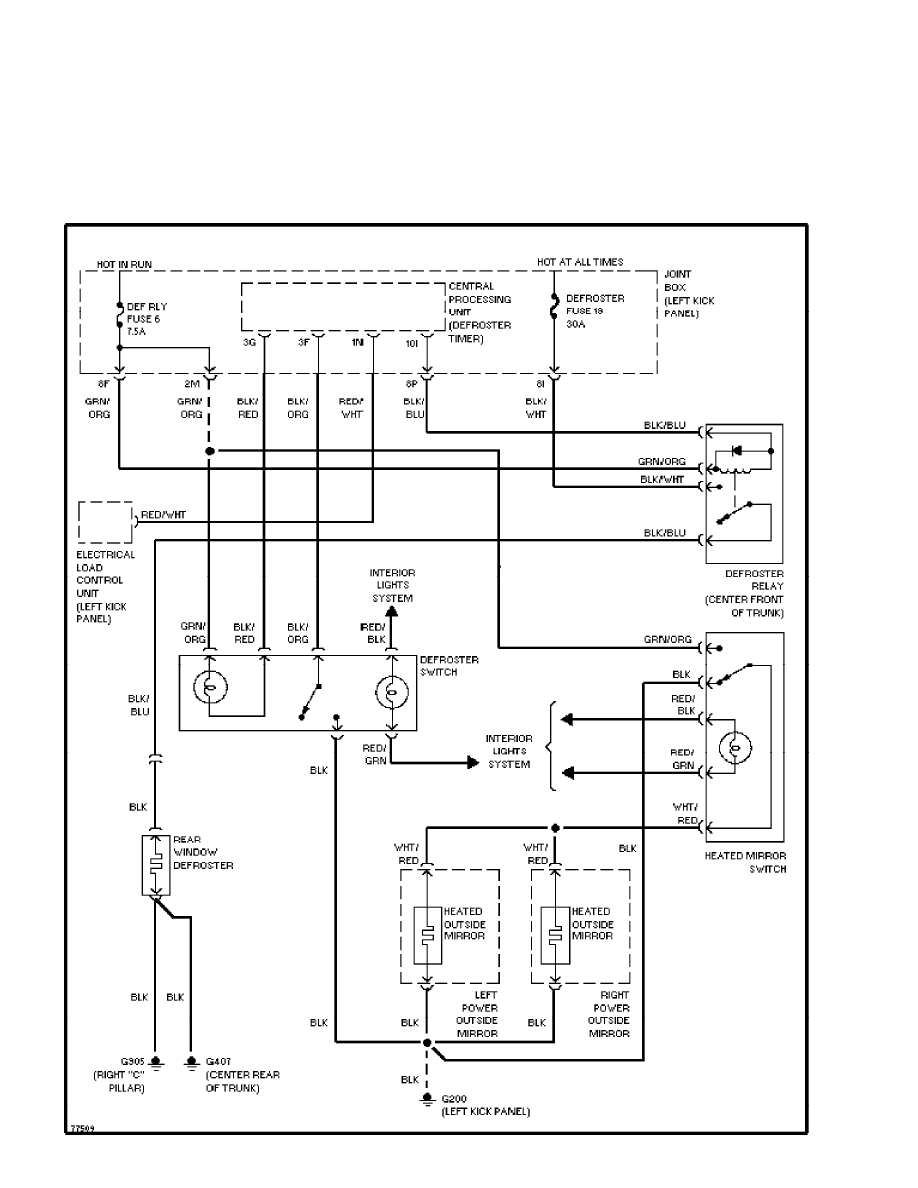

Defogger Circuit
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:53PM
SYSTEM WIRING DIAGRAMS
Defogger Circuit
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:53PM
SYSTEM WIRING DIAGRAMS

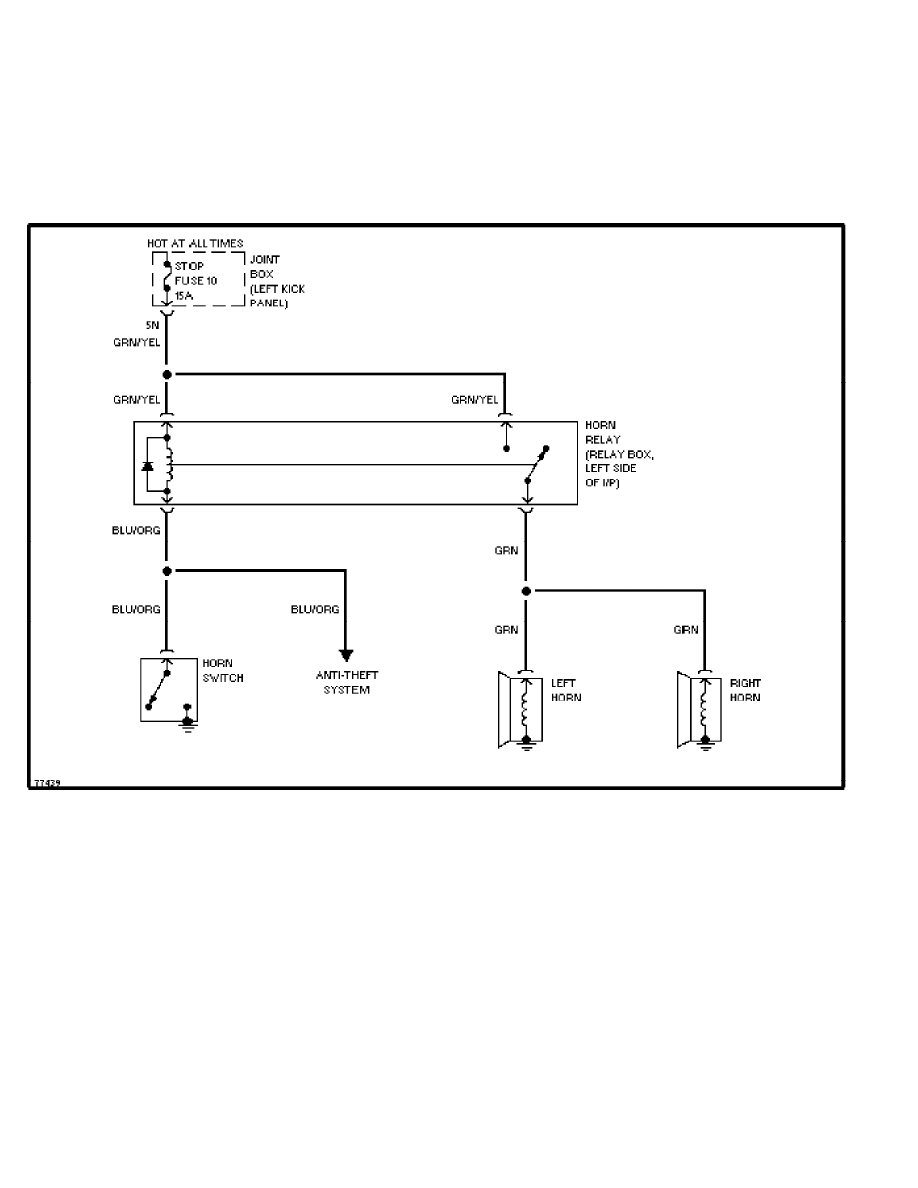

Horn Circuit (p. 2)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:53PM
SYSTEM WIRING DIAGRAMS

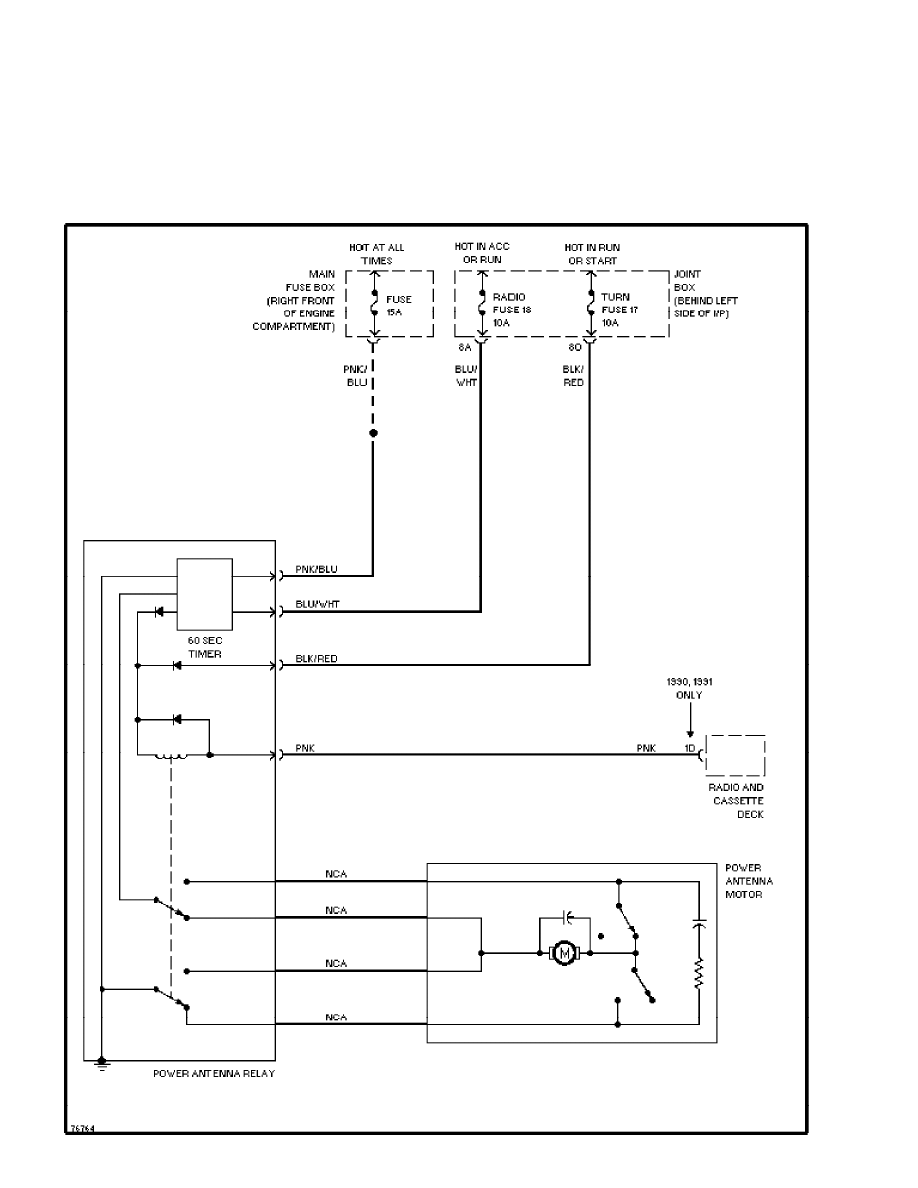

Power Antenna Circuit (p. 3)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:53PM
SYSTEM WIRING DIAGRAMS

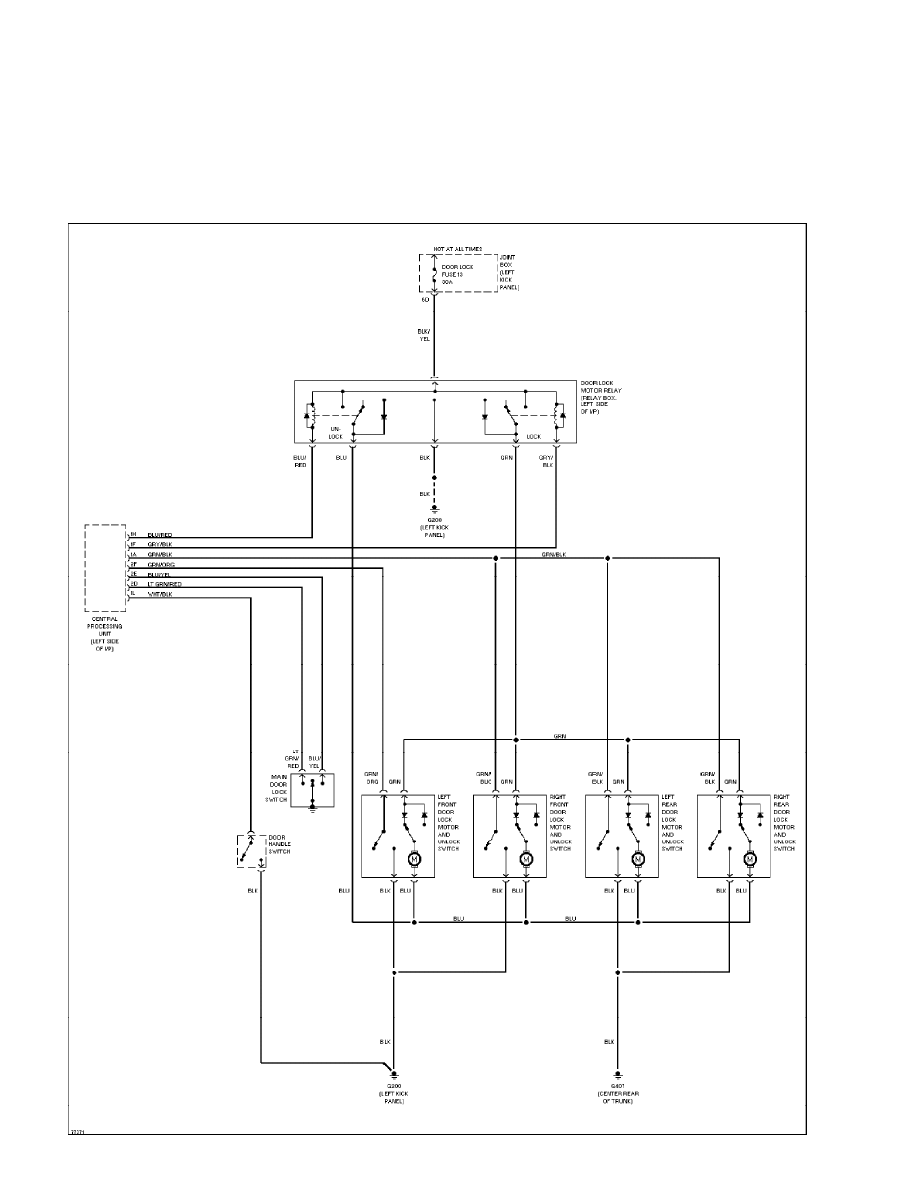

Power Door Lock Circuit (p. 4)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:53PM
SYSTEM WIRING DIAGRAMS

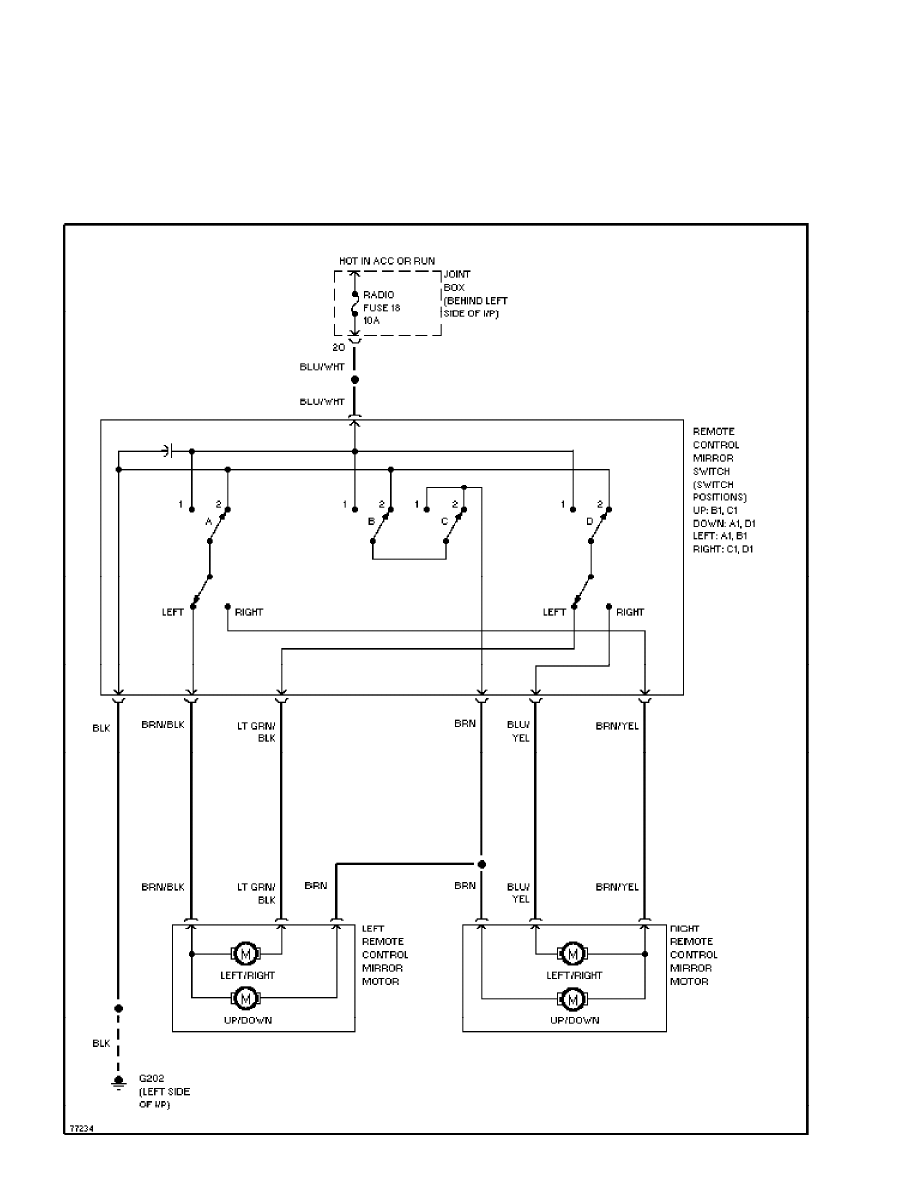

Power Mirror Circuit (p. 5)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:53PM
SYSTEM WIRING DIAGRAMS
Power Seat Circuits (p. 6)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:53PM
SYSTEM WIRING DIAGRAMS

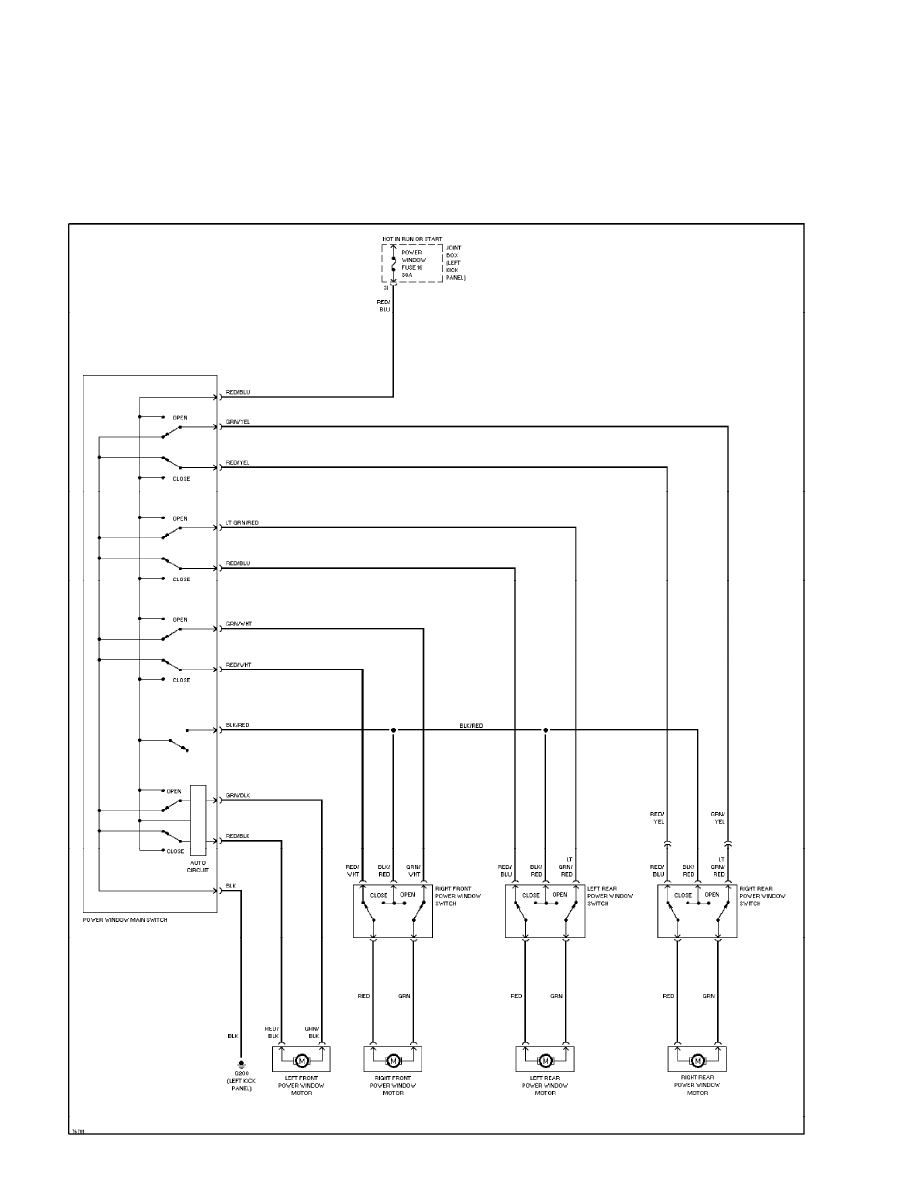

Power Window Circuit (p. 7)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:53PM
SYSTEM WIRING DIAGRAMS

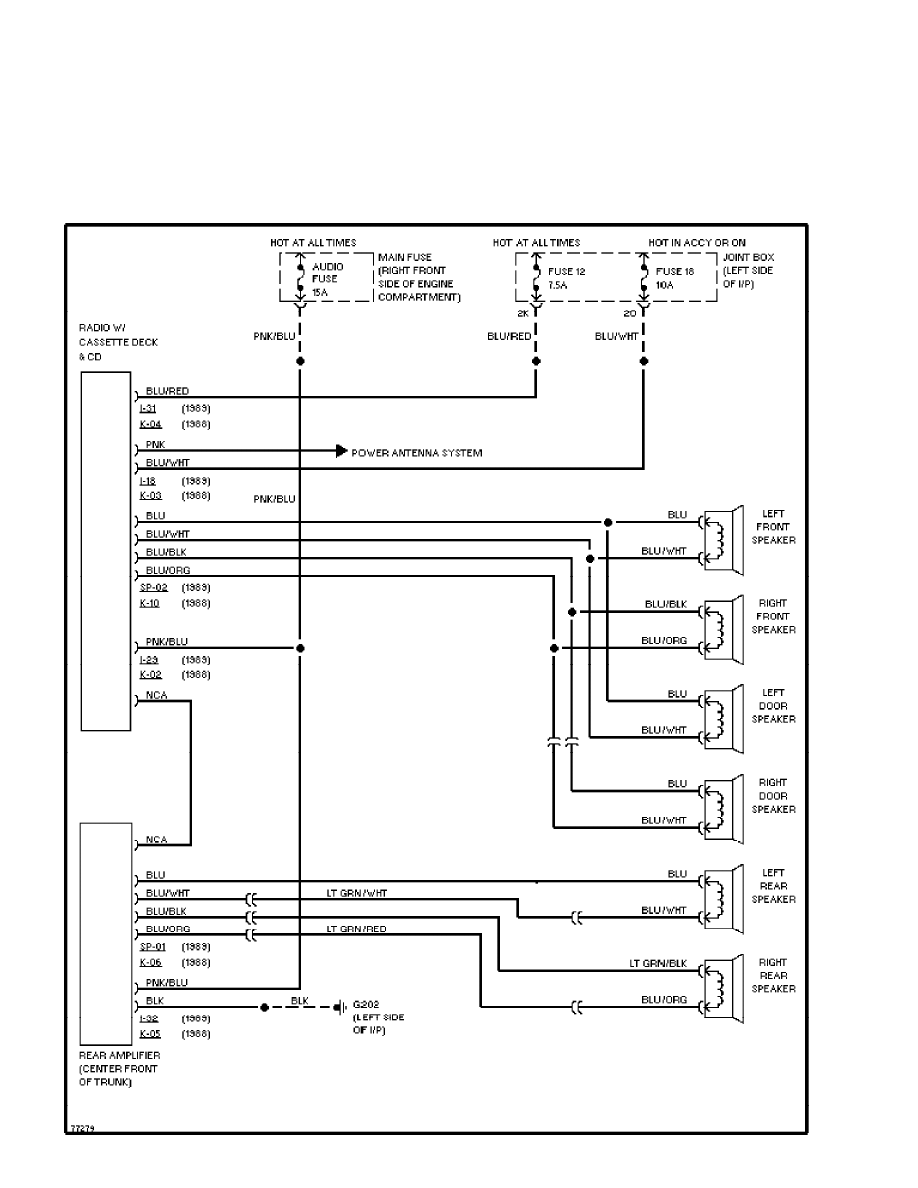

Radio Circuits, W/ CD Player (p. 8)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:53PM
SYSTEM WIRING DIAGRAMS

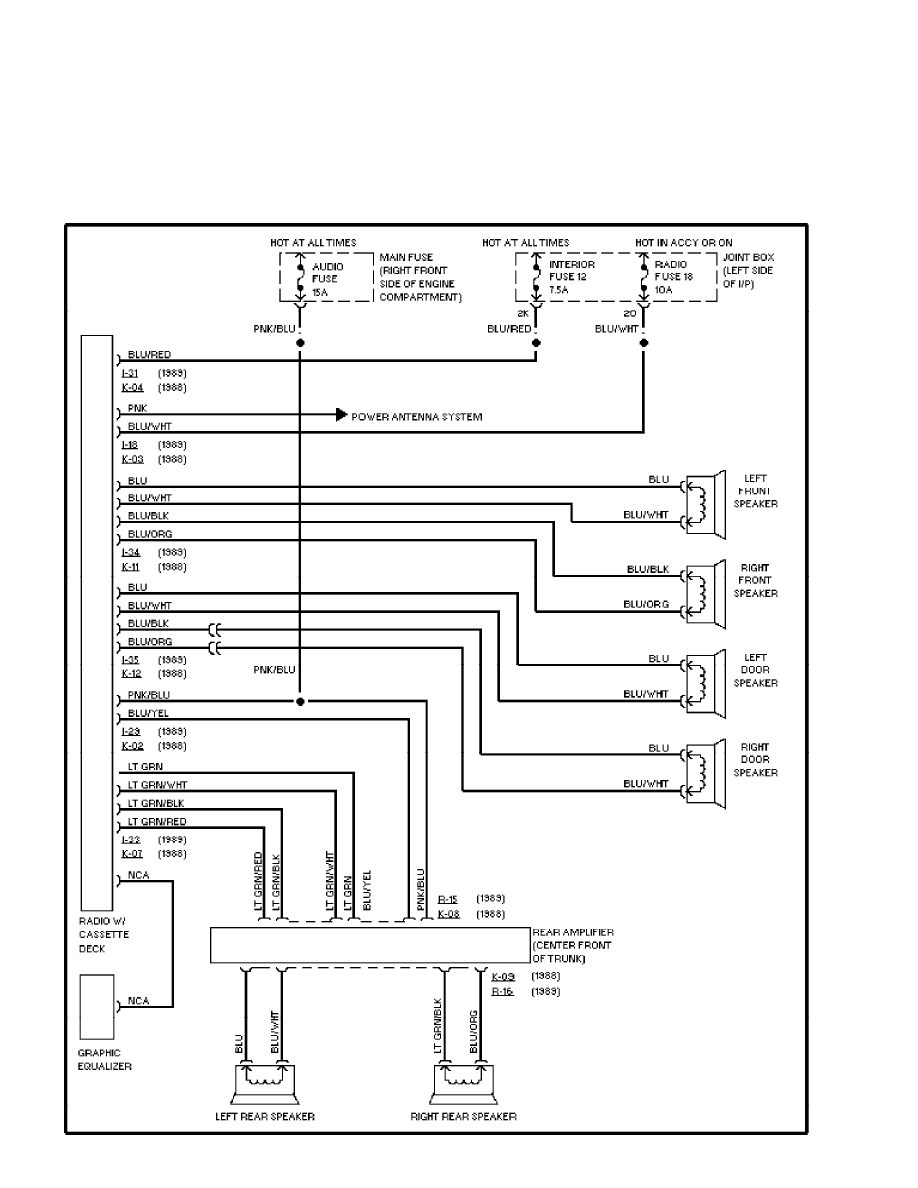

Radio Circuits, W/O CD Changer (p. 9)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:53PM
SYSTEM WIRING DIAGRAMS

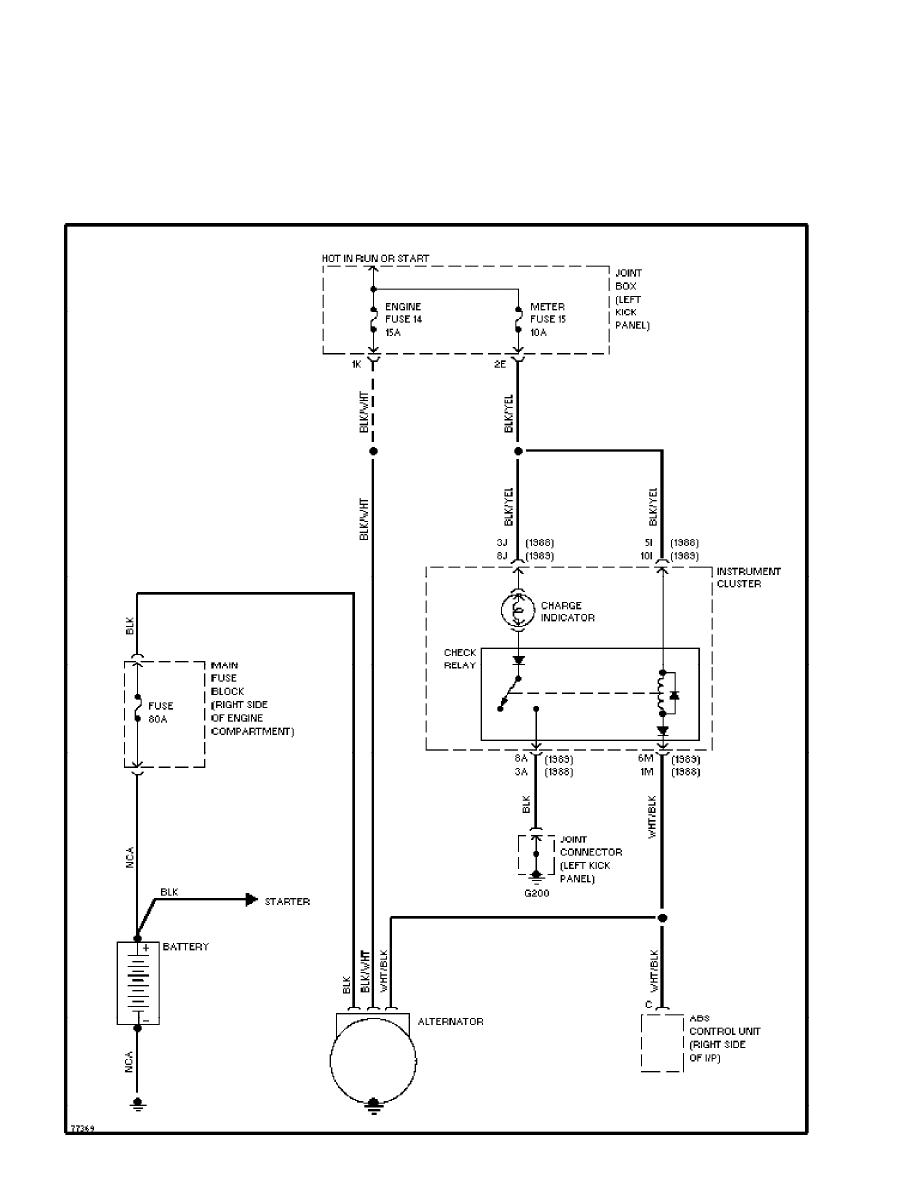

Charging Circuit (p. 10)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:53PM
SYSTEM WIRING DIAGRAMS

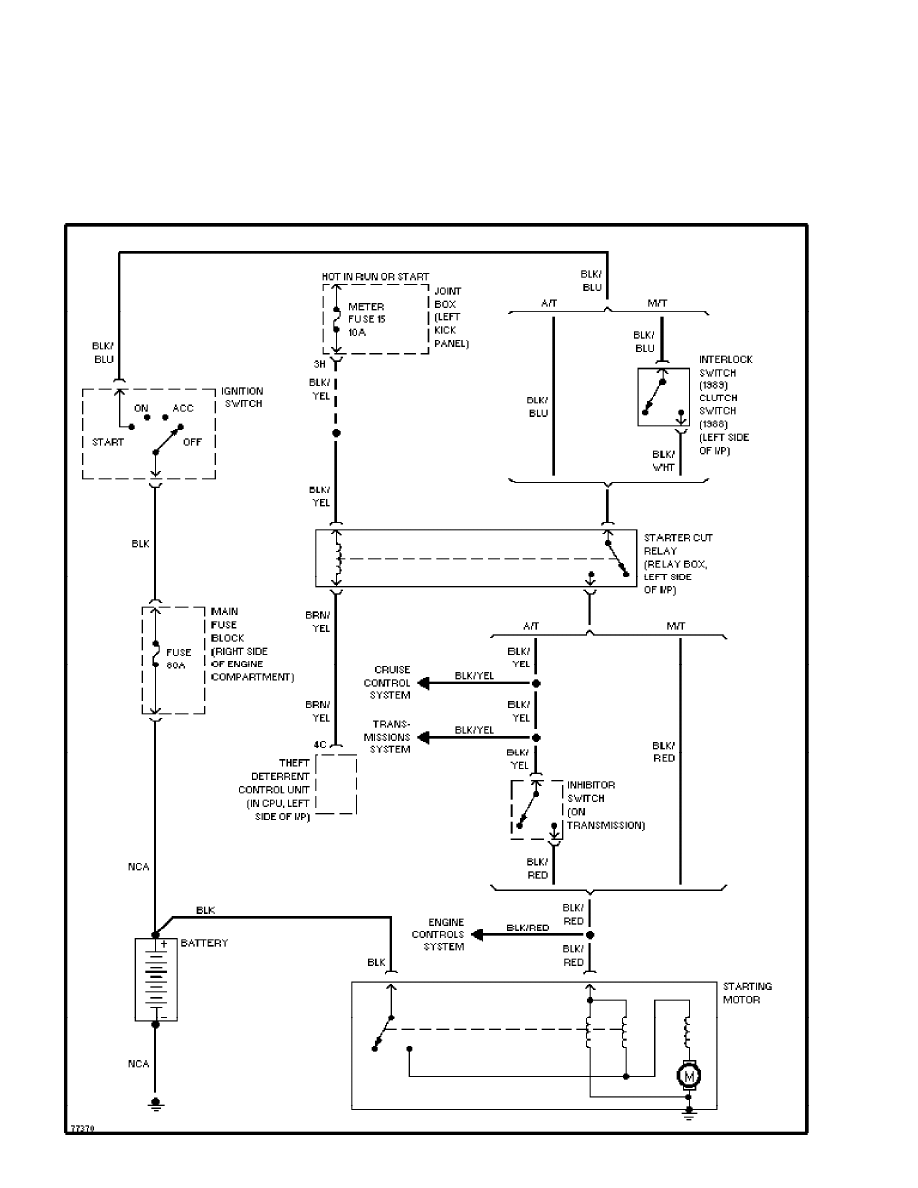

Starting Circuit (p. 11)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:53PM
SYSTEM WIRING DIAGRAMS

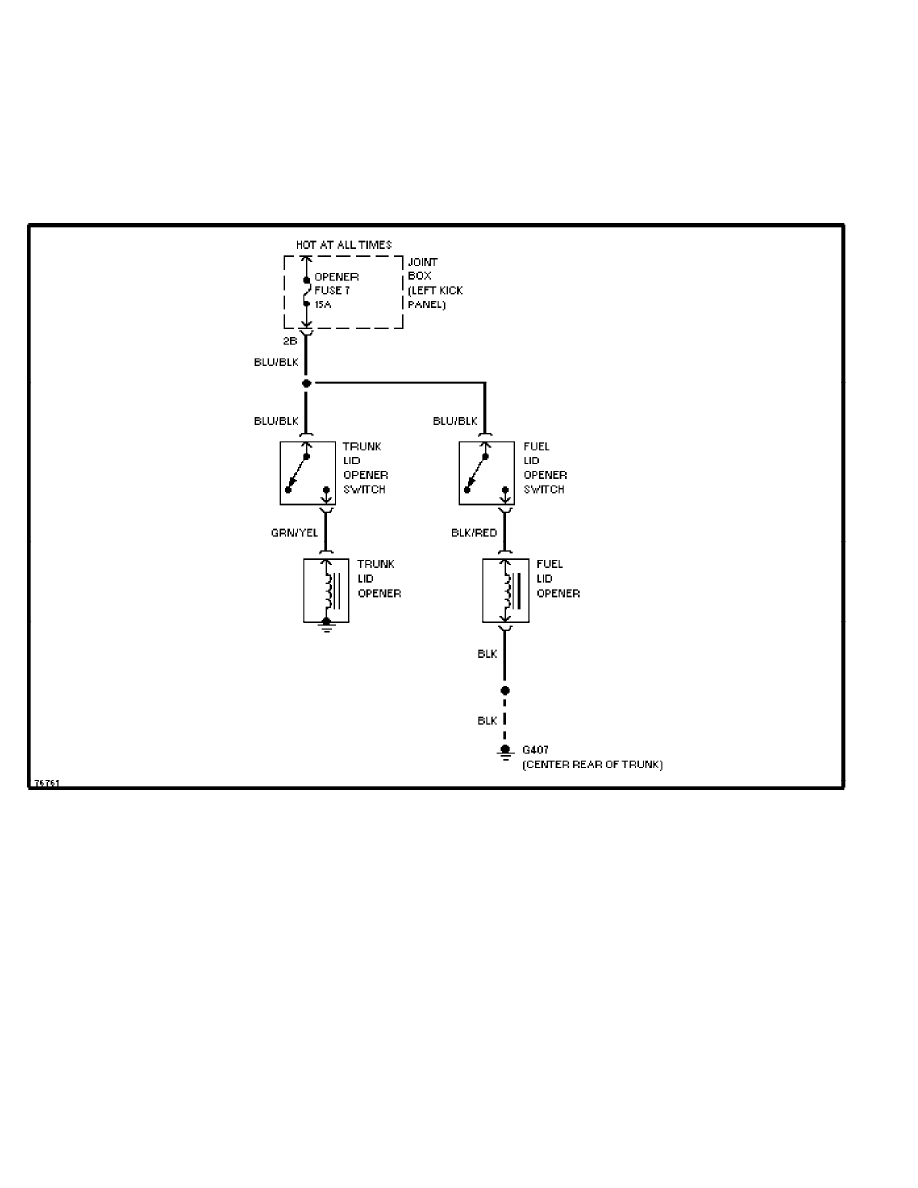

Trunk, Tailgate, Fuel Door Circuits (p. 12)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:54PM
SYSTEM WIRING DIAGRAMS

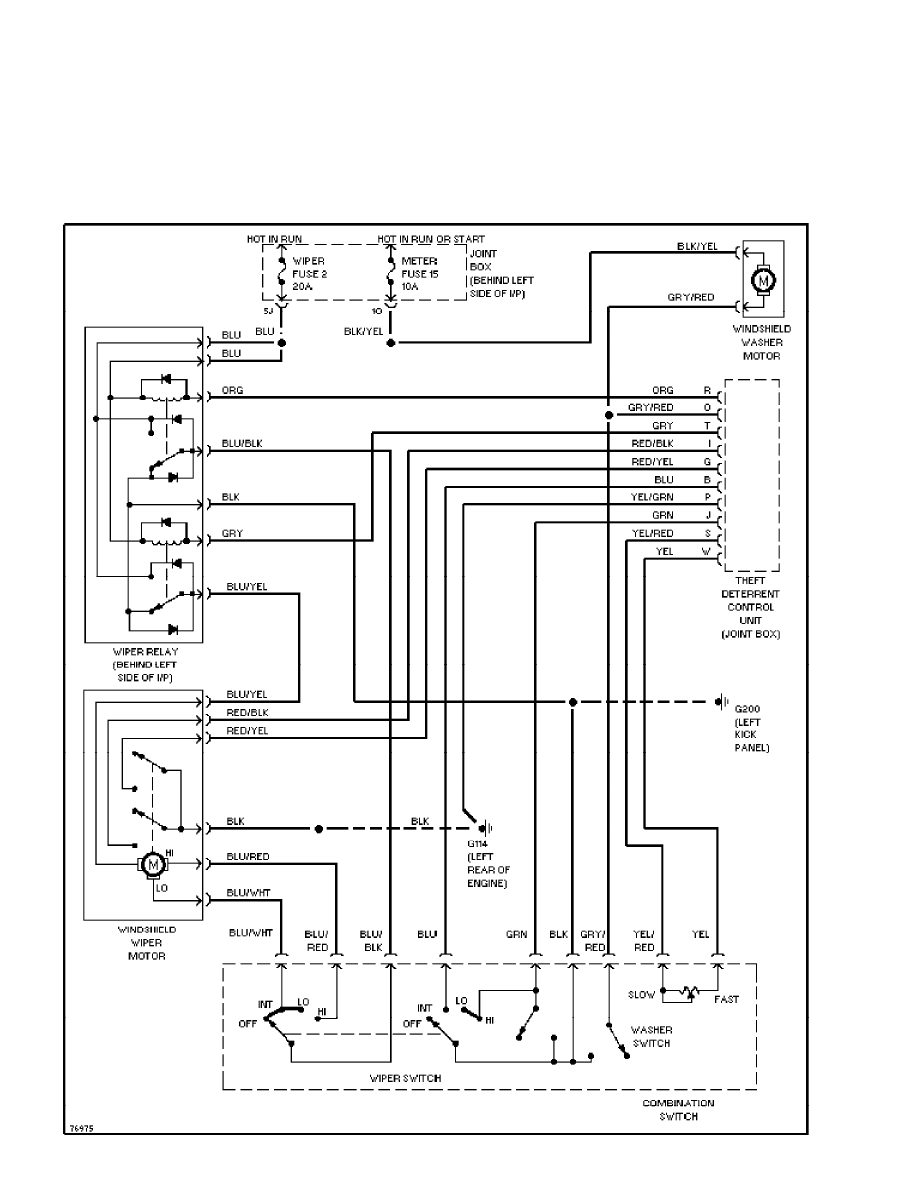

Wiper/Washer Circuit, Full Concealed (p. 13)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:54PM
SYSTEM WIRING DIAGRAMS
Wiper/Washer Circuit, Semi Concealed (p. 14)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:54PM
WIRING DIAGRAMS

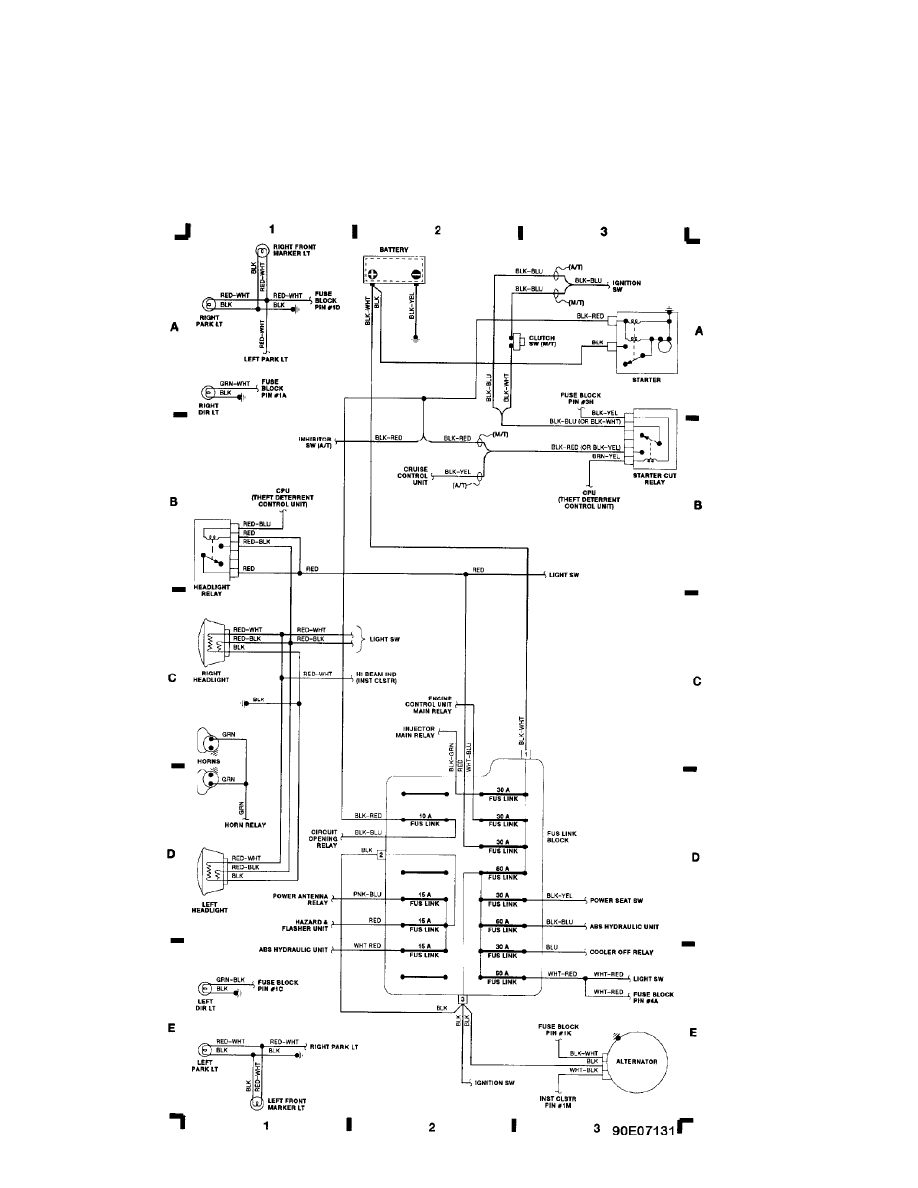

Fig. 1: Engine Compartment & Headlights
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:54PM
WIRING DIAGRAMS

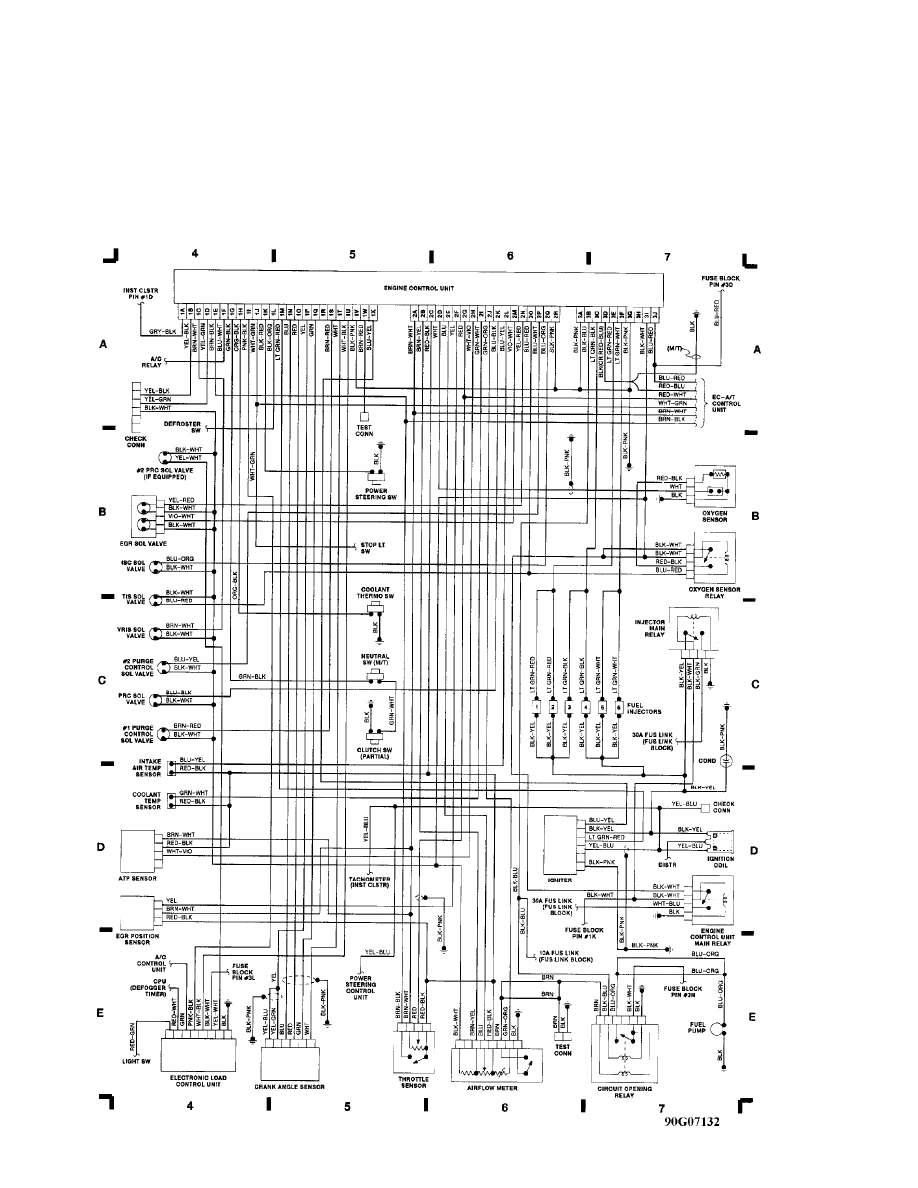

Fig. 2: Computer Engine Control (p. 2)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:54PM
WIRING DIAGRAMS

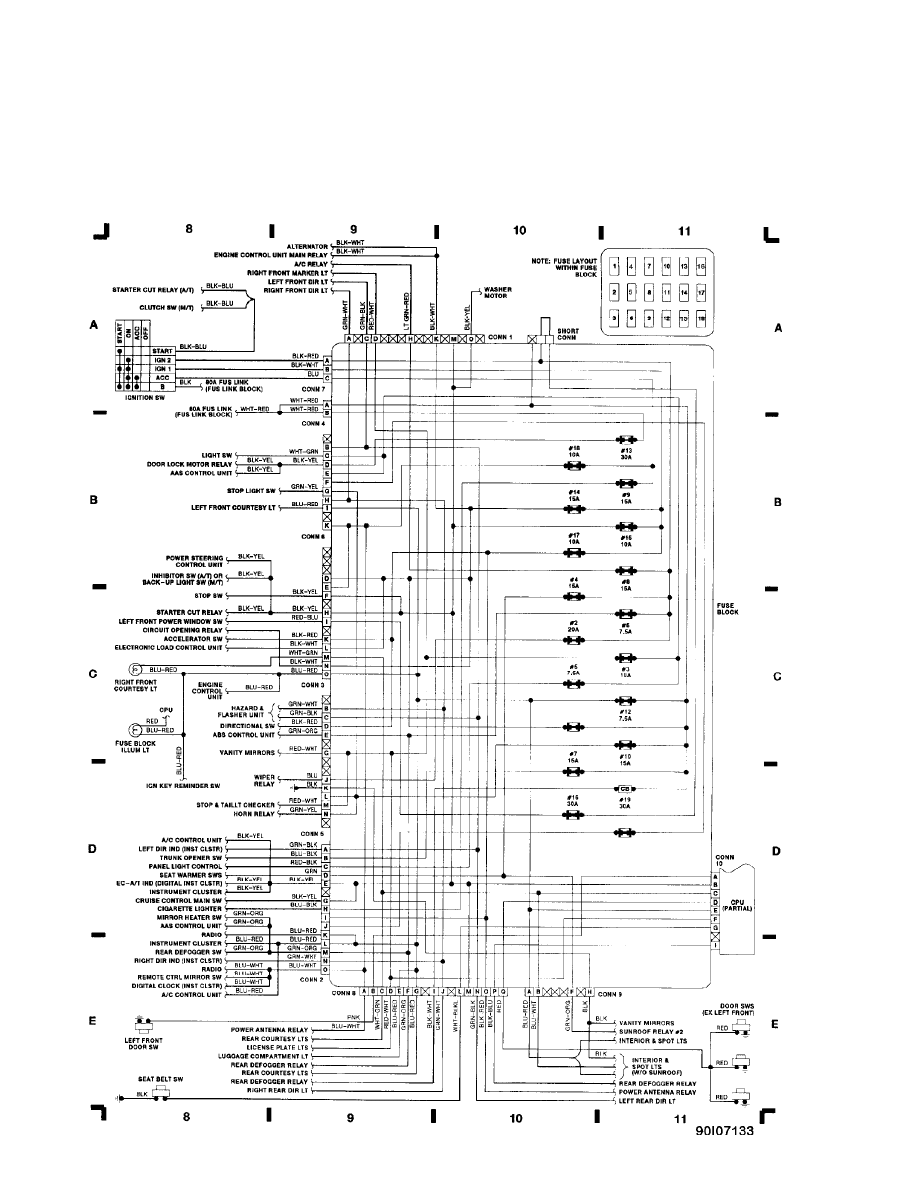

Fig. 3: Fuse Block (p. 3)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:54PM
WIRING DIAGRAMS

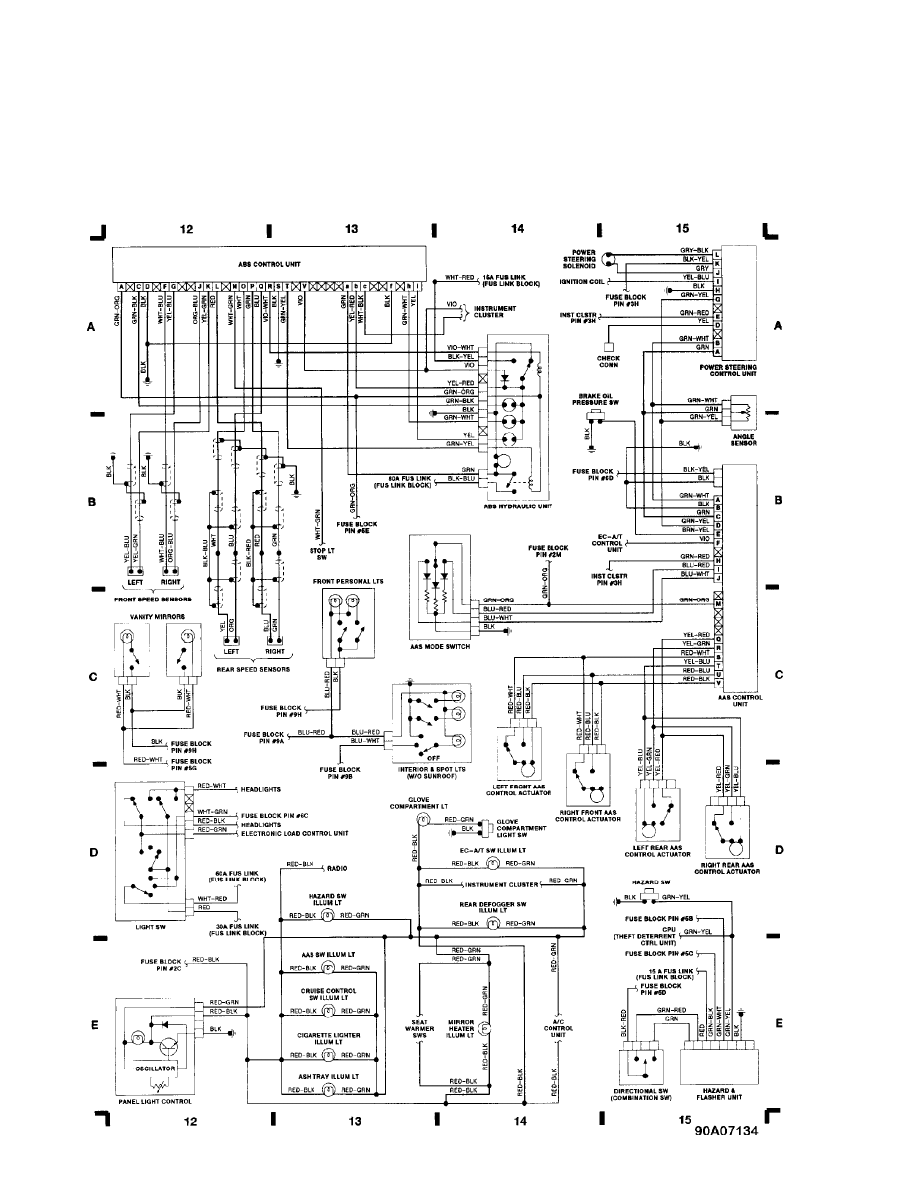

Fig. 4: Anti-Lock Brake System and Power Steering Control (p. 4)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:54PM
WIRING DIAGRAMS

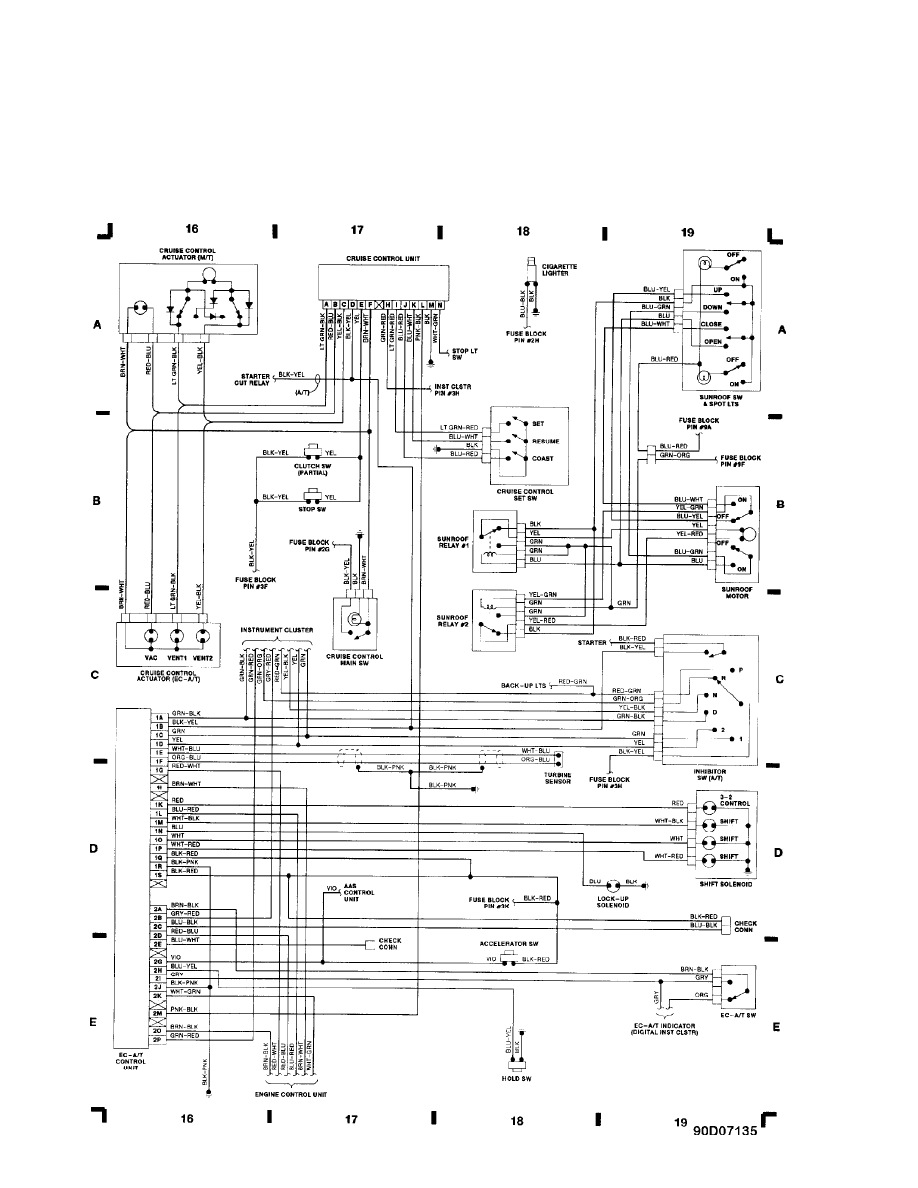

Fig. 5: Cruise Control and Automatic Transmission Control (p. 5)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:54PM
WIRING DIAGRAMS

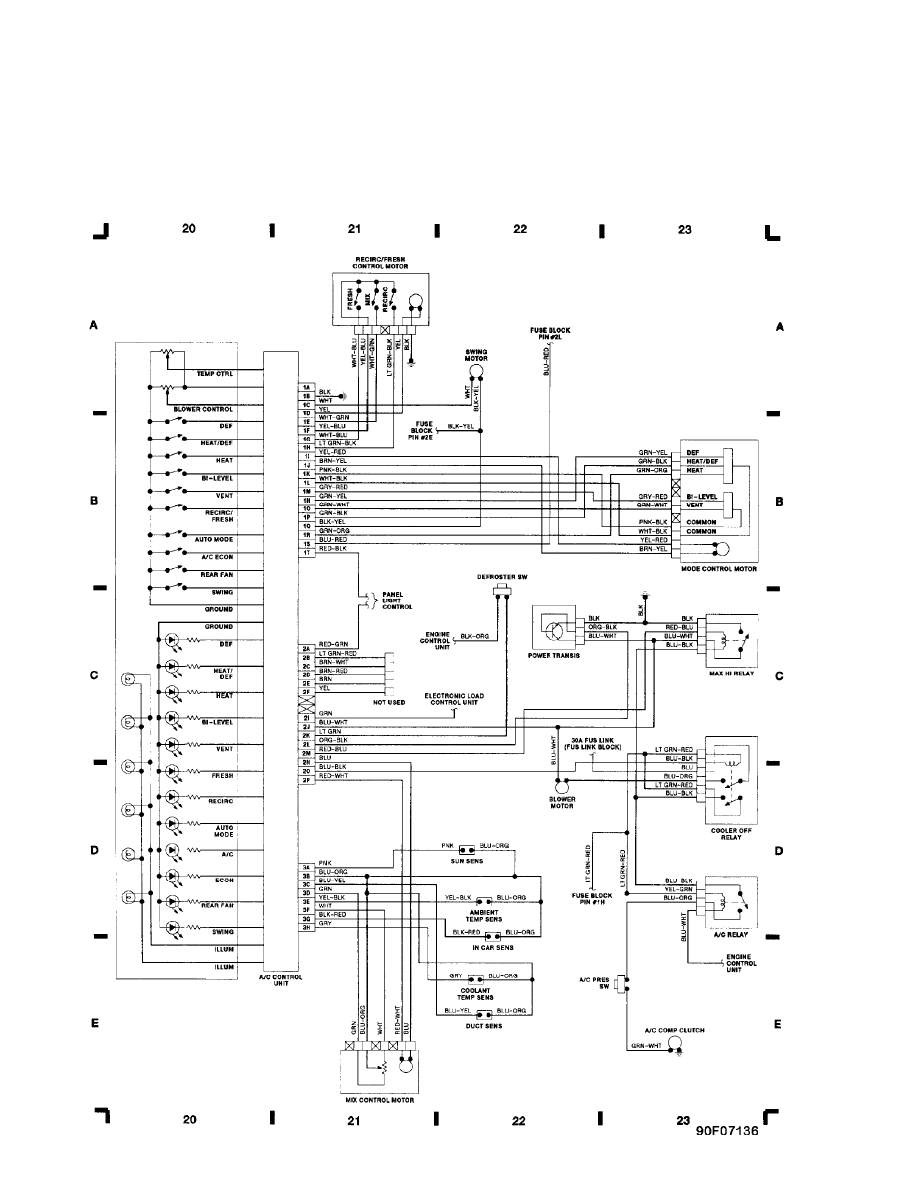

Fig. 6: A/C & Heating (p. 6)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:54PM
WIRING DIAGRAMS

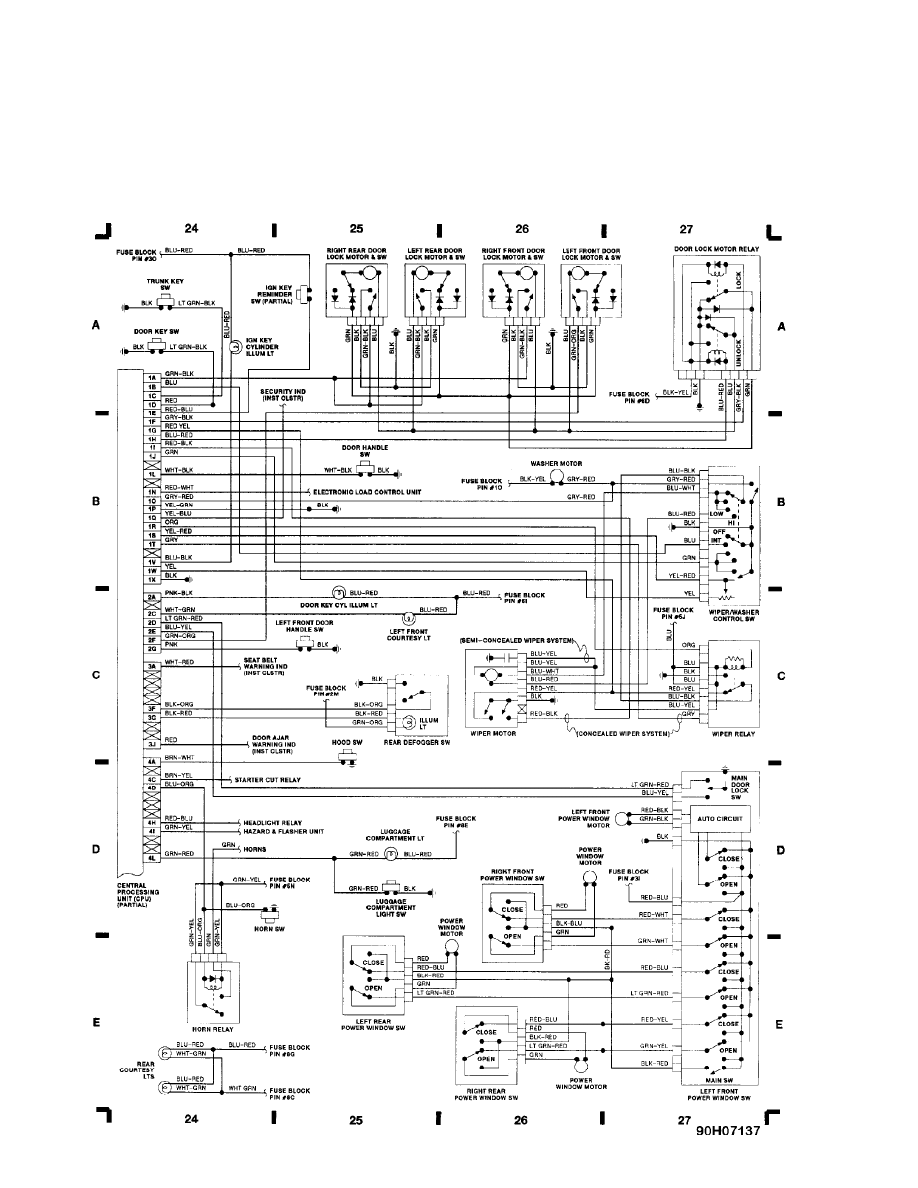

Fig. 7: Chassis Control System (p. 7)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:54PM
WIRING DIAGRAMS

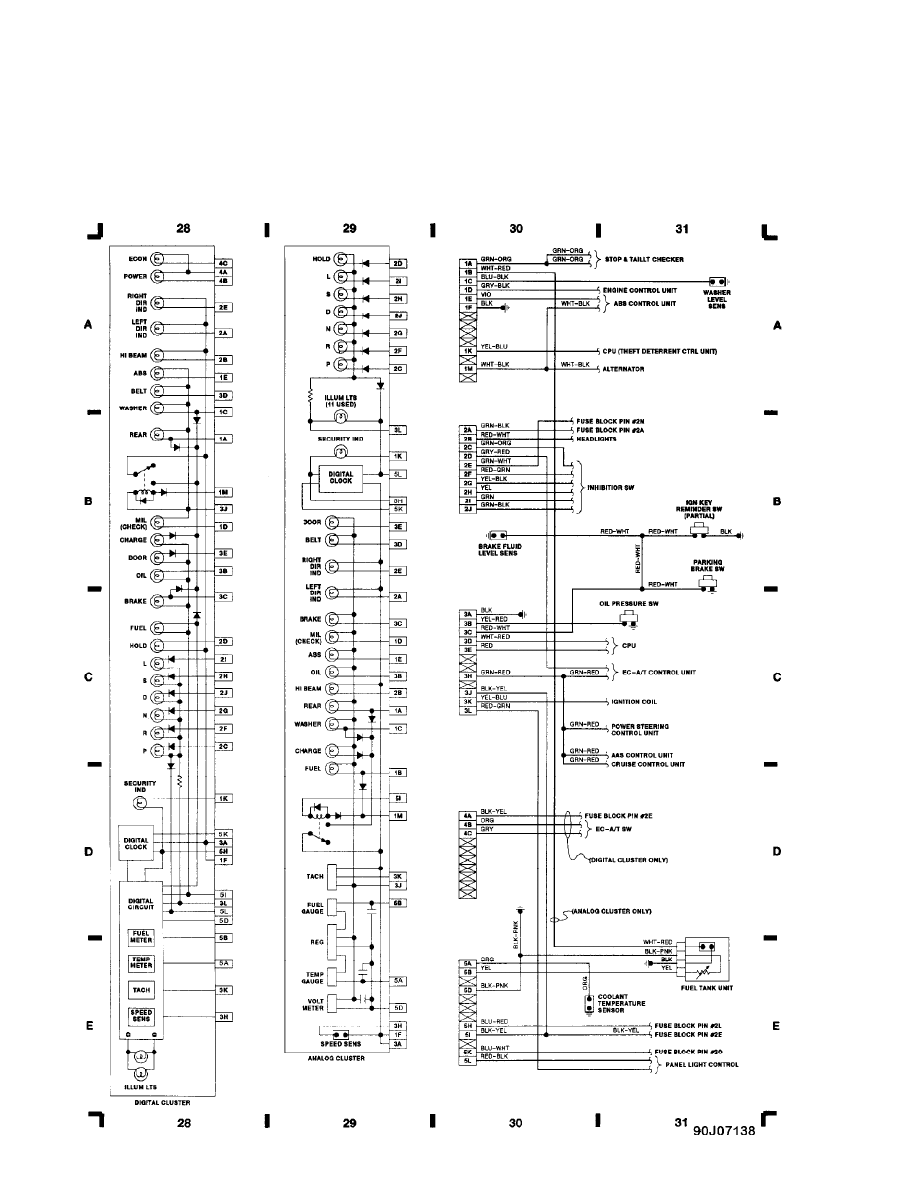

Fig. 8: Instrument Panel (p. 8)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:54PM
WIRING DIAGRAMS

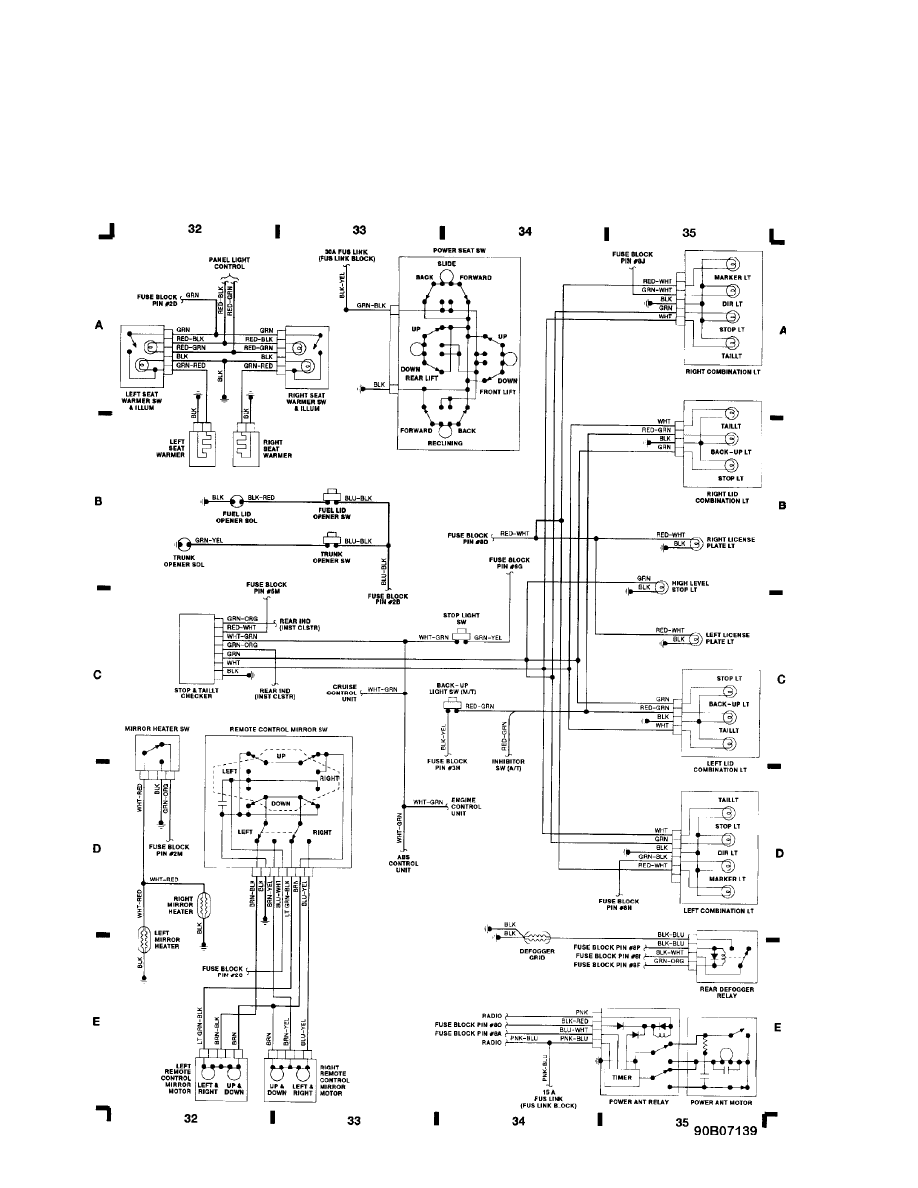

Fig. 9: Passenger Compartment & Taillights (p. 9)
1989 Mazda 929
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 09, 2004 08:54PM
