WIRING DIAGRAMS

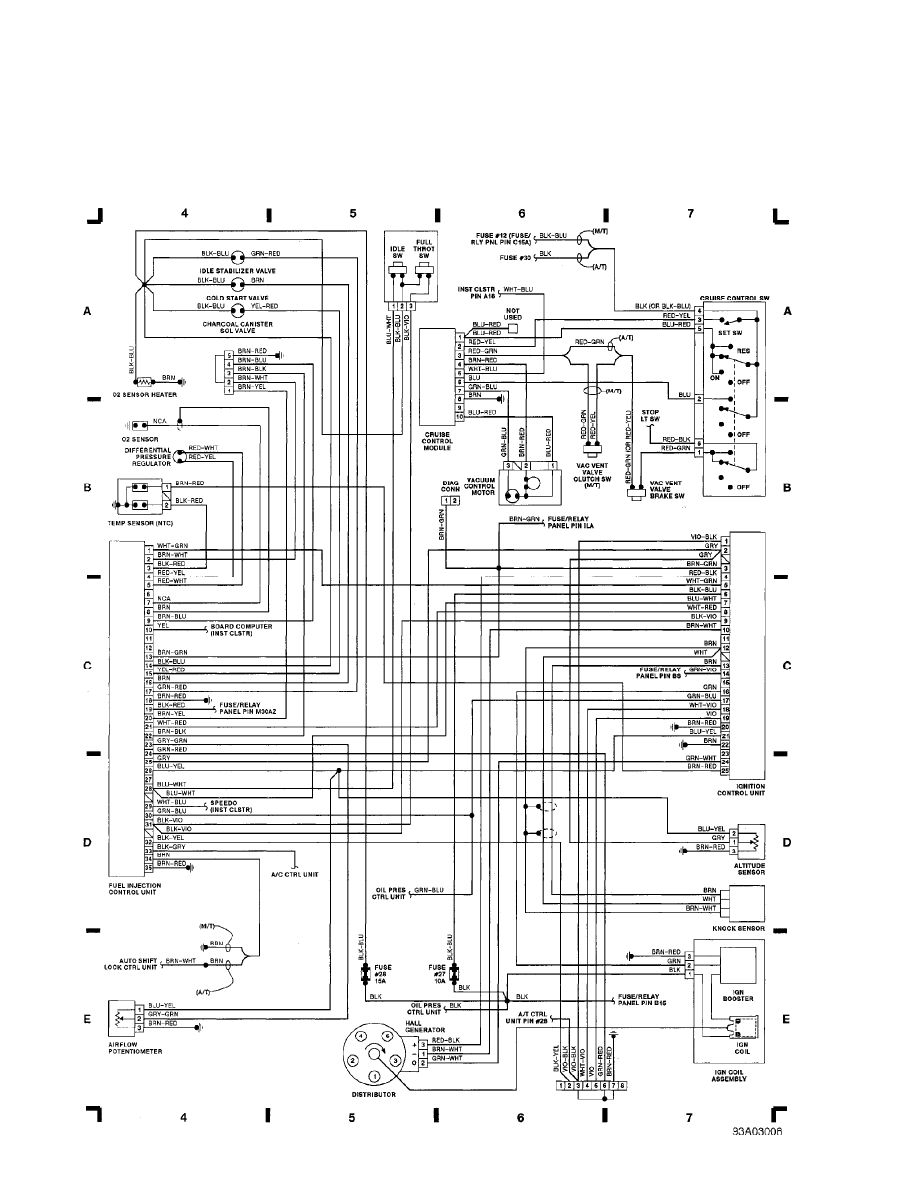

Fig. 2: Fuel Injection, Cruise Control, Ignition Control (Grid 4-7)
1992 Audi 80
Copyright © 1998 Mitchell Repair Information Company, LLC
